FAVORIT 54850 S
Dishwasher
Instruction book
PERFEKT IN FORM UND FUNKTION
Dear customer,
Please read this User Information carefully and keep it to refer to at a later date.
Pass it on to any subsequent owner of the appliance.
The following symbols are used in the text:
Safety instructions
Warning! Notes that concern your personal safety.
Attention! Notes that show how to avoid damage to the appliance.
Useful tips and hints
Environmental information
Your dishwasher has the new washing system ”IMPULSE WASHING”. With this dishwashing system the motor speed and spray pressure are varied during the wash cycle to achieve better cleaning of the dishes. It is for this reason that the noise level varies during the dishwashing cycle.
Printed on paper manufactured with environmentally sound processes.
He who thinks ecologically acts accordingly...
2
|
Contents |
|
|
CONTENTS |
|
Operating instructions |
4 |
Safety instructions |
4 |
Disposal |
6 |
Economical and ecological dishwashing |
6 |
Description of the appliance |
7 |
The control panel |
8 |
Prior to using for the first time |
11 |
Setting the water softener |
11 |
Filling with salt |
13 |
Rinse aid |
14 |
In daily use |
17 |
Loading cutlery and dishes |
17 |
The lower basket |
18 |
The cutlery basket |
19 |
The upper basket |
20 |
Adjusting the height of the upper basket |
21 |
Use of detergent |
22 |
Different kinds of detergent |
23 |
Washing programmes |
25 |
Starting a washing programme |
26 |
Maintenance and cleaning |
29 |
Cleaning the filters |
29 |
What to do, when... |
32 |
Service |
35 |
Guarantee terms |
36 |
Technical specifications |
38 |
Installation instructions |
39 |
Fitting under a counter |
39 |
Levelling |
39 |
Water supply connections |
40 |
Water inlet hose with safety valve |
41 |
Water outlet hose connection |
42 |
Electrical connection |
43 |
Hints for test centres |
44 |
|
|
3
Operating instructions
OPERATING INSTRUCTIONS
Safety instructions
The safety of AEG electrical appliances conforms to accepted rules of technology and the Appliance Safety Act. We as manufacturers, however, see ourselves as being obliged to familiarise you with the following safety instructions.
It is most important that this instruction book should be retained with the appliance for future reference. Should the appliance be sold or transferred to another owner, or should you move house and leave the appliance, always ensure that the book is left with the appliance in order that the new owner can get to know the functioning of the appliance and the relevant safety information.
This information has been provided in the interest of your safety. You MUST read it carefully before installing or using the appliance.
Installation
●Check your dishwasher for any transport damage. Never connect a damaged machine. If your dishwasher is damaged, you should contact your supplier.
●For safety reasons it is dangerous to alter the specifications or attempt to modify this product in any way.
●Any electrical and plumbing work required to install this appliance should be carried out by a qualified and competent person.
●Care must be taken to ensure that the appliance does not stand on the electrical supply cable.
●The sides of the dishwasher must never be drilled to prevent damage to hydraulic components.
Child safety
●This appliance is designed to be operated by adults.
●Children should not be allowed to tamper with the controls or play with the product.
●Packaging parts may be dangerous for children, who could even be suffocated! You should therefore keep all packaging well away from children.
4
Operating instructions
●The water in your dishwasher is not for drinking. Detergent residues may still be present in your machine. Keep children well away from your dishwasher when the door is open.
●Keep all detergents in a safe place out of children’s reach.
Your dishwasher in day-to-day use
●Items that are contaminated by petrol, paint, steel or iron debris, corrosive, acidic or alkaline chemicals must not be washed in this dishwasher.
●Under no circumstances should you open the door whilst the appliance is in operation, especially during the washing phase, hot water may escape. However, if the door is opened, a safety device ensures that the machine stops.
●Only use products (detergent, salt and rinse aid) specifically designed for use in dishwashers.
●Long bladed knives stored in an upright position are a potential hazard.
●Long and/or sharp items of cutlery such as carving knives must be positioned horizontally in the upper basket.
●When finishing loading or unloading close the door, as an open door can be a hazard.
●Do not sit or stand on the open door.
●Isolate the appliance from the power supply and turn off the water supply after use.
●This product should be serviced by an authorised service engineer, and only genuine spare parts should be used.
●Under no circumstances should you attempt to repair the machine yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunctioning. Contact your local Service Force Centre. Always insist on genuine spare parts.
5
Operating instructions
Disposal
Dispose of the dishwasher packaging material correctly. All packaging materials can be recycled.
Plastic parts are marked with standard international abbreviations:
>PE< |
for polyethylene, e.g. sheet wrapping material. |
>PS< |
for polystyrene, e.g. padding material (always CFC-free). |
>POM< |
for polyoxymethylene, e.g. plastic clips. |
Cardboard packaging is manufactured from recycled paper and should be deposited in the waste paper collection for recycling.
As and when you cease to use your dishwasher and withdraw it from service, your should render it unserviceable before having it disposed of.
Warning! Children at play could lock themselves in your dishwasher or otherwise endanger their lives. Therefore cut off the power supply cable and make the door closing device unusable to prevent children from being trapped inside.
To dispose of the appliance please take it to a recycling centre or to your dealer who may, for a small contribution to the costs, dispose of it for you.
Economical and ecological dishwashing
●Ensure that the water softener is correctly adjusted.
●Do not pre-wash under running water.
●Select the wash programme to suit the nature and degree of the soiling on the dishes.
●Do not use more detergent, dishwasher salt and rinse aid than is recommended in these operating instructions and by the manufacturer of the respective product.
6
Operating instructions
Description of the appliance
IN154
1. |
Upper basket stop |
7. |
Rinse aid dispenser |
2. |
Water hardness dial |
8. |
Filters |
3. |
Salt container |
9. |
Lower spray arm |
4. |
Detergent dispenser |
10. |
Upper spray arm |
5. |
Control panel |
11. |
Upper basket |
6. |
Rating plate |
12. |
Worktop |
7
Operating instructions
The control panel
Function |
“3 in 1” |
||
On/Off |
buttons |
indicator light |
|
|
|
Digital |
|
indicator light |
|
|
|
|
|
display |
|
|
|
|
|
1 |
2 |
3 |
4 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
On/Off |
Programme |
selection |
|
|
Indicator |
|||||||||||||||
button |
|
|
buttons |
|
|
lights |
||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
“Delay start” option button
Function buttons: in addition to the dishwashing programme selected, the following functions can also be set with the help of these buttons:
-the setting of the water softener,
-deactivation/activation of the rinse aid dispenser,
-deactivation/activation of the “3 in 1” function
-the cancelling of a programme in progress.
Programme selection buttons: the selection of a washing programme occurs by pressing one of these push buttons (see "Washing programmes" chart).
"Delay start" option button: this option allows the start of the programme to be delayed from 1 to 19 hours.
Indicator lights: have the following meanings:
Salt refilling indicator light: illuminates when the salt has run out
Rinse aid refilling indicator light: illuminates when the rinse aid has run out
The salt and rinse aid indicator lights are never illuminated while a washing programme is running even if filling with salt and rinse aid is necessary.
8
Operating instructions
The digital display indicates:
-the level of hardness to which the water softener is set,
-if the rinse aid inflow is activated/deactivated
-the approximative remaining time of the running programme
-the countdown of the delay start
-fault codes concerning malfunction of the dishwasher
"3 in 1" function: this appliance is equipped with the option "3 in 1", that allows the use of the "3 in 1" combi detergent tablets.
This function can be selected with all washing programmes.
With the selection of this function the inflow of rinse aid and salt from each respective supply container is automatically deactivated and also the indicator lights for salt and rinse aid are deactivated.
Once selected this option (button indicator light illuminated ) it will remain active also for the following washing programmes, to deactivate the function, press the button (button indicator light off).
Once the programme is running, the "3 in 1" function can no longer be changed. If you want to exclude the "3 in 1" function you have to cancel the programme setting (see chapter "Starting a washing programme" - "To cancel a washing programme in progress") and then deactivate the "3 in 1" function.
In this case you have to set a washing programme again.
With the use of "3 in 1" combi detergent tablets, the cycle durations given in the "Washing programmes" chart may change.
9
Operating instructions
Deactivation/activation of the 3 in 1 function
(The dishwasher must be switched off)
1.Press the On/Off button. The On/Off indicator light illuminates (setting mode).
If other indicator lights are on, this means that a wash programme has been selected. The programme must be cancelled: press simultaneously the function buttons 2 and 3 for about 2 seconds. All the indicator lights will turn off (except for the On/Off indicator light and eventually salt and rinse aid indicator lights) indicating that the set programme has been cancelled and the machine is now in setting mode.
2.Press simultaneously function buttons 2 and 3, until the indicator lights of the function push buttons 1, 2, 3 and 4 start flashing.
3.Press the function push button 4, the indicator lights of function push buttons 1, 2 and 3 turn off while the indicator light of the function push button 4 goes on flashing.
4.Press the function button 4 again, the "3 in 1" indicator light illuminates, indicating that the 3 in 1 funcion is active.
To deactivate the function press the function button 4 again, the indicator light turns off.
3 in1 function active |
indicator light on |
|
|
3 in 1 function not active |
indicator light off |
|
|
5.To memorise the operation, switch off the dishwasher by pressing the On/Off button or wait about 60 seconds after which the dishwasher will automatically return to setting mode.
10
Operating instructions
Prior to using for the first time
Before using your dishwasher for the first time:
1.Ensure that the electrical and water connections comply with the installation instructions
2.Remove all packaging from inside the appliance
3.Set the water softener
4.Pour 1 litre of water inside the salt container and then fill with special dishwasher salt
5.Fill the rinse aid dispenser.
Setting the water softener
The dishwasher is equipped with a water softener designed to remove minerals and salts from the water supply, which would have a detrimental or adverse effect on the operation of the appliance.
The higher the content of these minerals and salts, the harder your water is.
Water hardness is measured in equivalent scales, German degrees, French degrees and mmol/l (millimol per litre).
The softener should be adjusted according to the hardness of the water in your area. Your local Water Authority can advise you on the hardness of the water in your area.
The water softener must be set in both ways: manually, using the water hardness switch and electronically, using the function buttons on the control panel.
|
|
|
Water hardness |
|
Adjusting the water |
||||
|
|
|
|
|
|
|
hardness setting |
||
°dH |
°TH |
mmol/l |
|
|
Indication on |
||||
(german de- |
(french de- |
(millimol per litre, |
Range |
|
digital display |
||||
grees) |
grees) |
international unit for |
Manually |
Electronically |
|||||
|
|||||||||
|
|
|
|
the hardness of water) |
|
|
|
||
51 |
- 70 |
91 |
- 125 |
9,0 - 12,5 |
|
|
10 |
||
43 |
- 50 |
76 |
- 90 |
7,6 |
- 8,9 |
|
|
9 |
|
37 |
- 42 |
65 |
- 75 |
6,5 |
- 7,5 |
IV |
2 |
8 |
|
29 |
- 36 |
51 |
- 64 |
5,1 |
- 6,4 |
|
7 |
||
|
|
||||||||
23 |
- 28 |
40 |
- 50 |
4,0 |
- 5,0 |
|
|
6 |
|
19 |
- 22 |
33 |
- 39 |
3,3 |
- 3,9 |
III |
|
5 |
|
15 |
- 18 |
26 |
- 32 |
2,6 |
- 3,2 |
|
4 |
||
|
|
||||||||
11 - 14 |
19 |
- 25 |
1,9 |
- 2,5 |
II |
|
3 |
||
4 |
- 10 |
7 |
- 18 |
0,7 |
- 1,8 |
I/II |
1 |
2 |
|
< 4 |
< 7 |
< 0,7 |
I |
|
1 |
||||
|
no salt |
||||||||
|
|
|
|
|
|
|
|
necessary |
|
11
Operating instructions
a) Setting manually
1.Open the dishwasher door.
2.Remove the lower basket from the dishwasher.
3.Turn the water hardness dial to position 1 or 2 (see table).
4.Replace the lower basket.
The dishwasher is factory set at position
AA07 |
b) Setting electronically
(The dishwasher must be switched off) The dishwasher is factory set at level 5.
1.Press the On/Off button. The On/Off indicator light illuminates (setting mode).
If other indicator lights are on, this means that a wash programme has been selected. The programme must be cancelled: press simultaneously the function buttons 2 and 3 for about 2 seconds. All the indicator lights will turn off (except for the On/Off indicator light and eventually salt and rinse aid indicator lights) indicating that the set programme has been cancelled and the machine is now in setting mode.
2.Press simultaneously function buttons 2 and 3, until the indicator lights of the function buttons 1, 2, 3 and 4 start flashing.
3.Press function button 1, the indicator lights of function buttons 2, 3 and 4 turn off while the indicator light of the button 1 goes on flashing, the digital display indicates the current level.
4.To change the level, press button 1. Each time the button is pressed the level changes. (For the selection of the new level see the chart).
Examples:
if the current level is 5, by pressing button 1 once, level 6 is selected.
if the current level is 10, by pressing button 1 once, level 1 is selected.
5.To memorise the operation, switch off the dishwasher by pressing the On/Off button or wait about 60 seconds after which the dishwasher will automatically return to setting mode.
12
Operating instructions
Filling with salt
Only use salt specifically designed for use in dishwashers. All other types of salt not specifically designed for use in a
dishwasher, especially table salt, will damage the water softener. Only fill with salt just before starting one of the complete washing programmes.
This will prevent any grains of salt or salty water, which may have been spilt, remaining on the bottom of the machine for any period of time, which may cause corrosion.
To fill:
1.Open the door, remove the lower basket and unscrew the cap of the salt container by turning it anticlockwise.
2.Pour 1 litre of water inside the container (this is necessary only before filling with salt for the first time).
3.Using the funnel provided, pour in the salt until the container is full.
4.Replace the cap making sure that there is no trace of salt on the screw thread or on the gasket.
5.Screw on the cap tightly turning it clockwise until it stops with a click.
SALE ZOUT SALT SALZ
SEL
SR14
The salt container will require topping up periodically. You are reminded of this by the salt indicator light on the control panel which comes on when the salt has finished.
The salt indicator light on the control panel can remain illuminated for 2-6 hours after the salt has been replenished, assuming the dishwasher remains switched on. If you are using salts that take longer to dissolve then this can take longer. The function of the machine is not affected.
Do not worry if water over flows from the unit when filling with salt, this is quite normal.
13
Operating instructions
Rinse aid
Rinse aid is automatically added during the last rinse, ensuring thorough rinsing, and spot and streak free drying. The dispenser, which is positioned inside the door, holds about 110 ml of rinse aid, which is sufficient for 16 - 40 dishwashing programmes, depending upon the dosage setting.
Filling with rinse aid

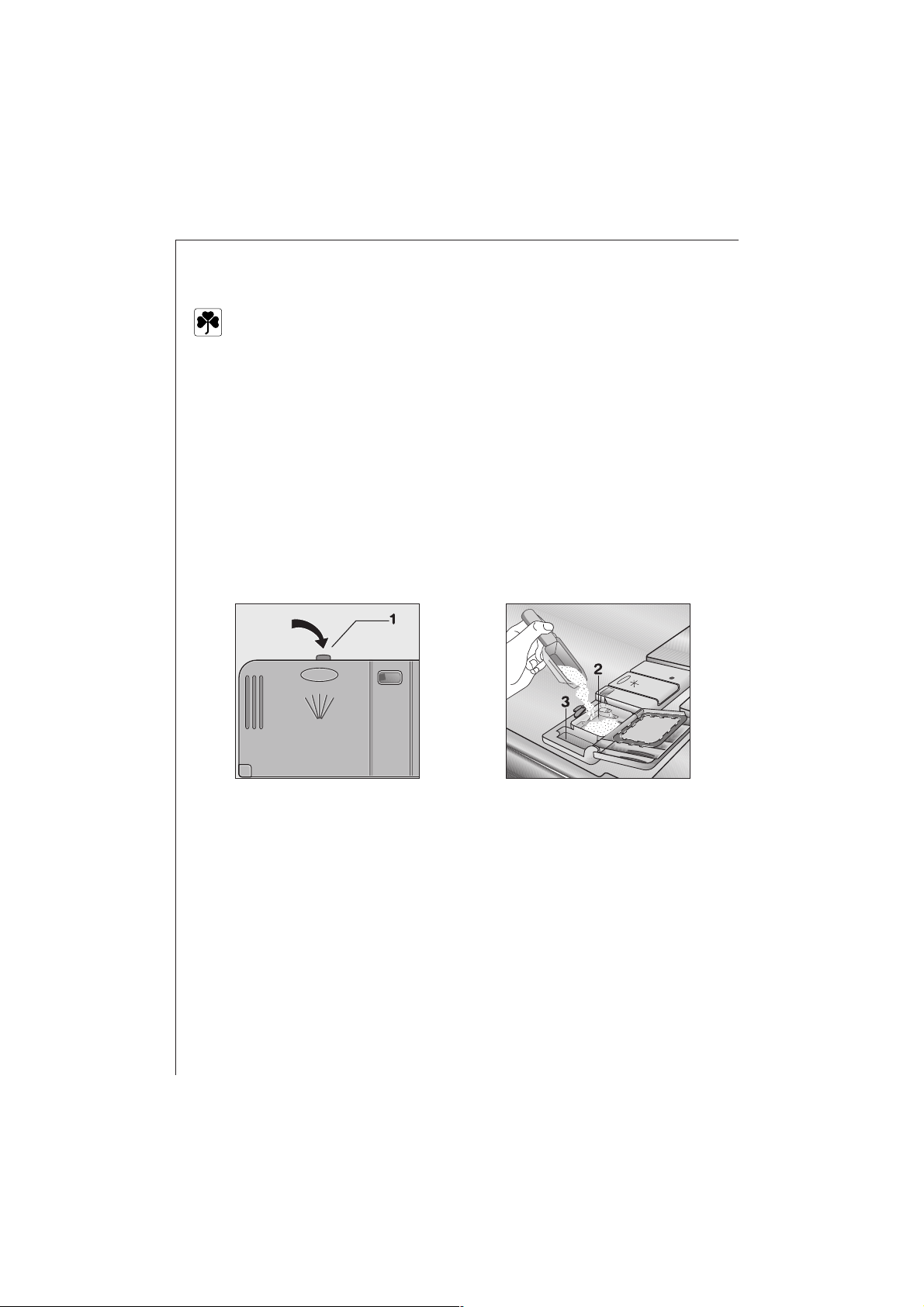

1.Open the container by pressing the release button (A).
2.Add the rinse aid until the container is completely full. The maximum level for filling is indicated by “max”.
BR07 |
BR14 |
Ensure that the lid is closed after every refill.
Clean up any rinse aid spilt during filling with an absorbent cloth to avoid excess foaming during the next wash.
Only use branded rinse aid for dishwashers. Never fill the rinse aid dispenser with any other substances (e.g. dishwasher cleaning agent, liquid detergent). This would damage the appliance.
14
Operating instructions
Adjusting the dose
According to the finish and drying results obtained, adjust the dose of rinse aid by means of the 6 position selector (position 1 minimum dosage, position 6 maximum dosage).
The dose is factory set in position 4.
Increase the dose if there are drops of water or lime spots on the dishes after
washing.
Reduce it if there are sticky whitish streaks on the dishes or a bluish film on glassware or knife blades.
BR09
Top up the rinse aid when the indicator light on the control panel illuminates.
15
Loading...
