AEG EGG690U User Manual

Gas hob

INSTRINSTR

INSTR

INSTRINSTR

Please read this instruction booklet before using the appliance

UCTION BOOKLETUCTION BOOKLET

UCTION BOOKLET

UCTION BOOKLETUCTION BOOKLET

35685-4801

Mod. EGG 690

Important Safety Information

You MUST read these warnings carefully before installing or using the hob. If you need assistance, contact our Customer Care Department on 08705 950950

Installation

z This hob must be installed by qualified personnel,

according to the manufacturer’s instructions and to the relevant British Standards.

z Any gas installation must be carried out by a

registered CORGI installer.

z Remove all packaging before using the hob. z Ensure that the gas and electrical supply complies

with the type stated on the rating plate, located near the gas supply pipe.

z Do not attempt to modify the hob in any way.

Child Safety

z This hob is designed to be operated by adults. Do

not allow children to play near or with the hob.

z The hob gets hot when it is in use. z Children should be kept away until it has cooled. z Children can also injure themselves by pulling pans

or pots off the hob.

During Use

z This hob is intended for domestic cooking only. It is

not designed for commercial or industrial purposes.

z When in use a gas cooking appliance will produce

heat and moisture in the room in which it has been installed. Ensure there is a continuous air supply, keeping air vents in good condition or installing a cooker hood with a venting hose.

z When using the hob for a long period of time, the

ventilation should be improved, by opening a window or increasing the extractor speed.

z Do not use this hob if it is in contact with water.

Do not operate the hob with wet hands.

z Ensure the control knobs are in the ‘OFF’ position

when not in use.

z When using other electrical appliances, ensure the

cable does not come into contact with the hot surfaces of the cooking appliance.

z Unstable or misshapen pans should not be used on

the hob as unstable pans can cause an accident by tipping or spillage.

z Never leave the hob unattended when cooking with

oil and fats.

z Never use plastic or aluminium foil dishes on the hob. z Perishable food, plastic items and areosols may be

affected by heat and should not be stored above or below the hob unit.

Service

z This hob should only be repaired or serviced by an

authorised Service Engineer and only genuine approved spare parts should be used.

Environmental Information

z After installation, please dispose of the packaging with

due regard to safety and the environment.

z When disposing of an old appliance, make it unusable,

by cutting off the cable.

Keep this instruction book for future reference

and ensure it is passed on to any new owner.

Guide to Use the instructions

The following symbols will be found in the text to guide you throughout the Instructions:

Safety Instructions

Step by step instructions for an operation

)

Hints and Tips

Enviromental information

This appliance complies with the following

E.E.C. Directives: * 73/23 - 90/683 (Low VoltageDirective); * 93/68 (General Directives); * 89/336 (Electromagnetical Compatibility

Directive);

* 90/396 (Gas Appliances),

and subsequent modifications

Contents

For the User For the Installer

Important Safety Information 2

Description of the Hob 3

Operation 4

Maintenance and Cleaning 4

Something Not Working? 5

Service and Spare Parts 5

Guarantee Conditions 6

Instructions for the Installer 7

Important safety requirements 8

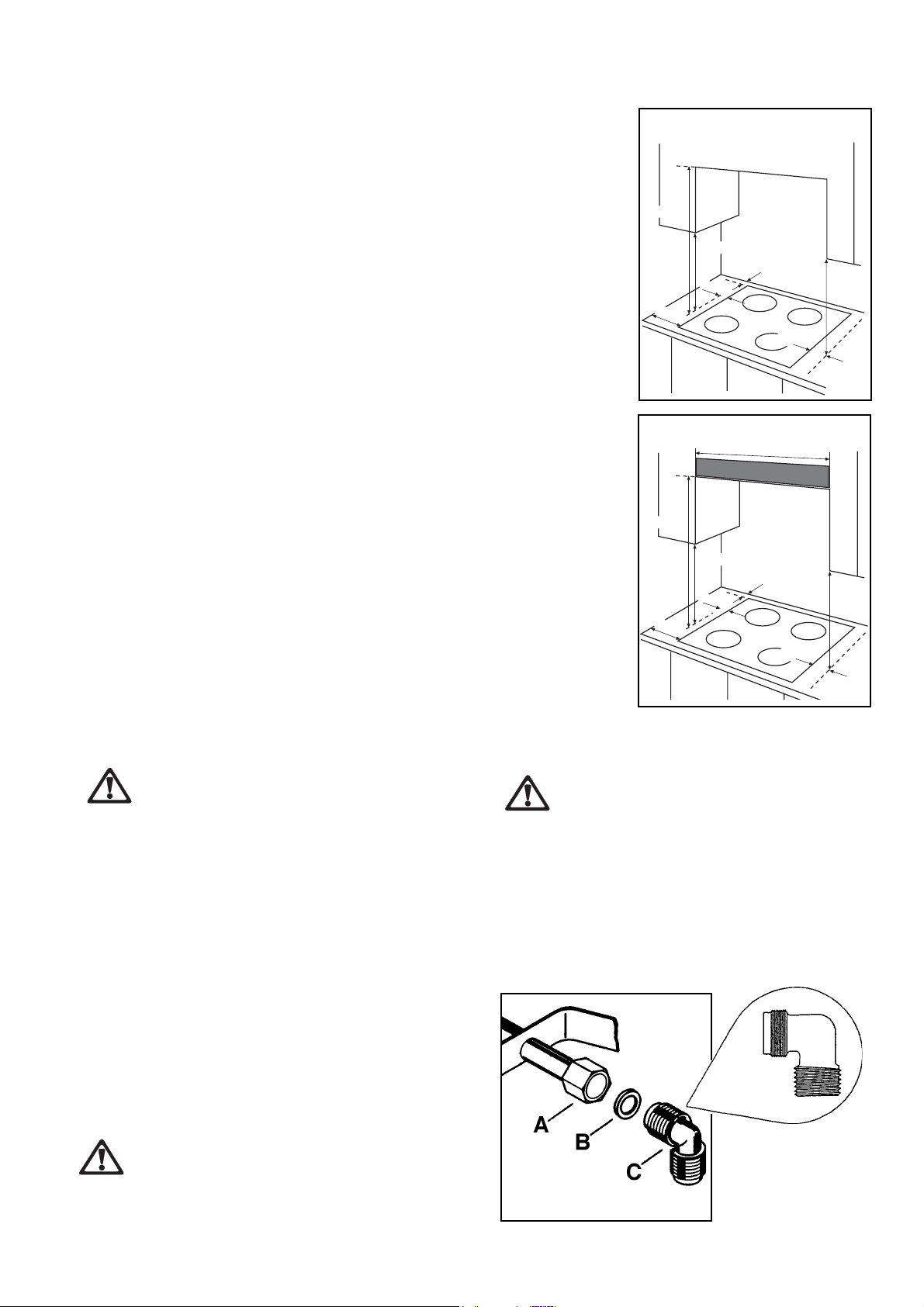

Installation 8

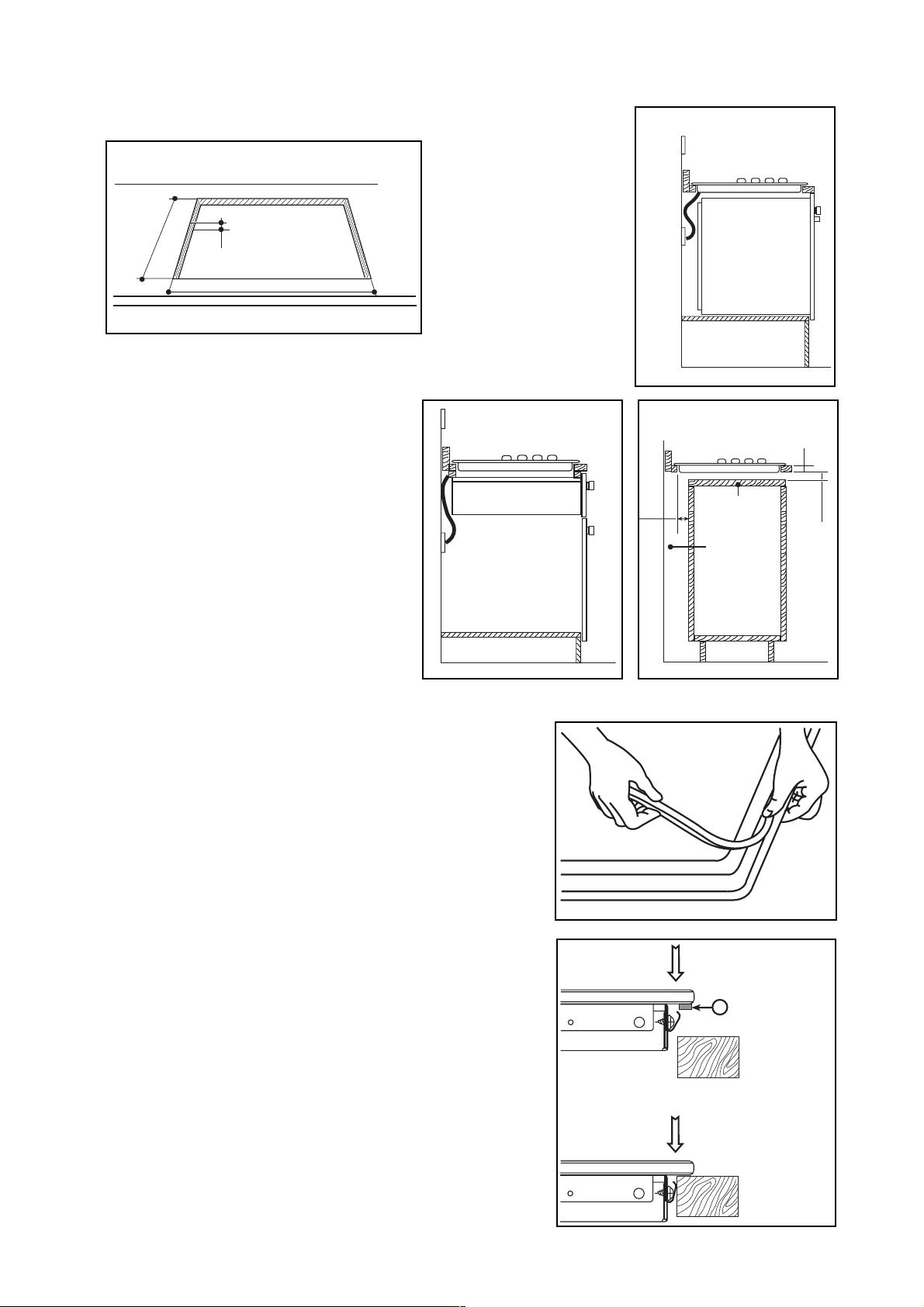

Building In 9

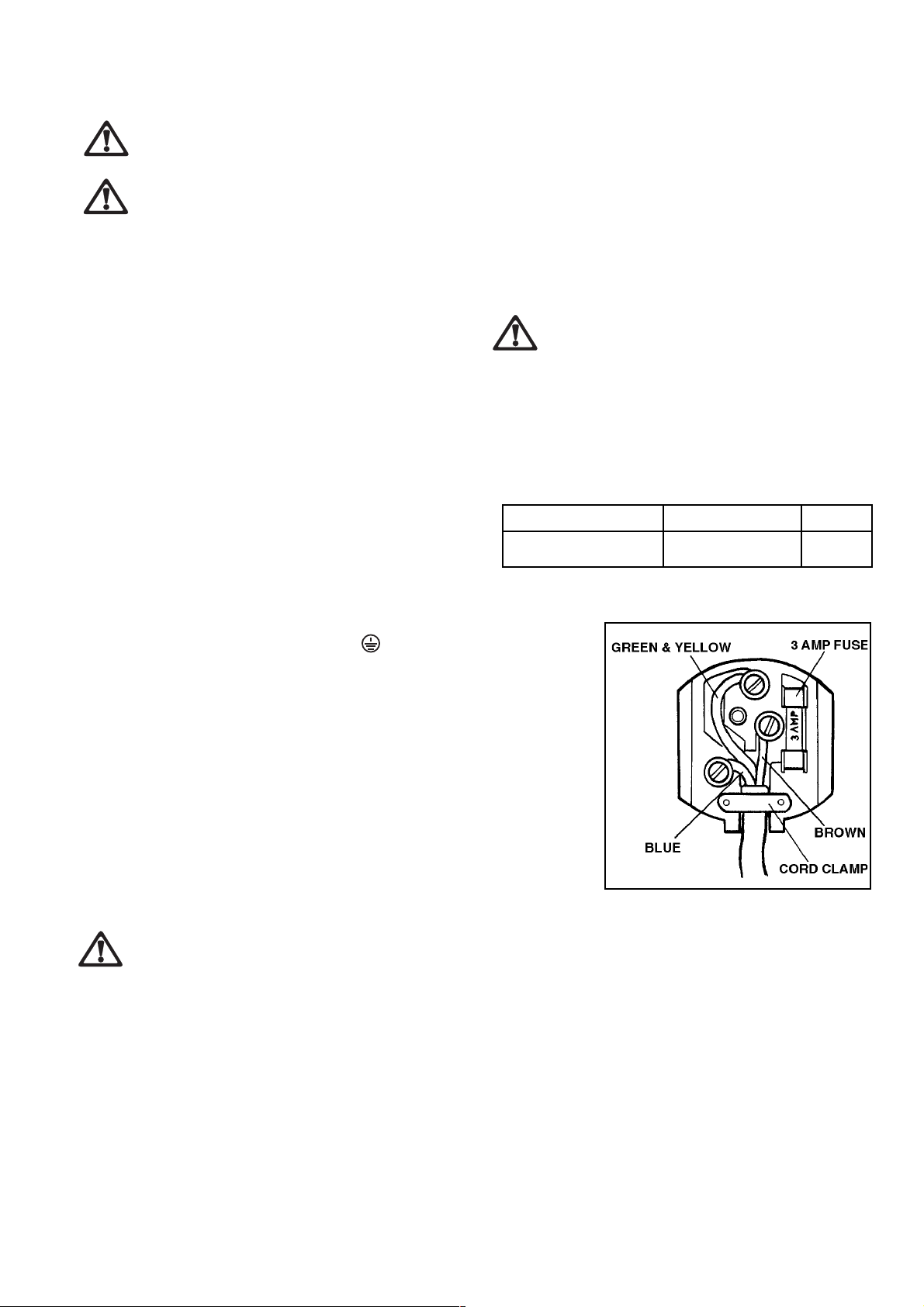

Electrical connections 10

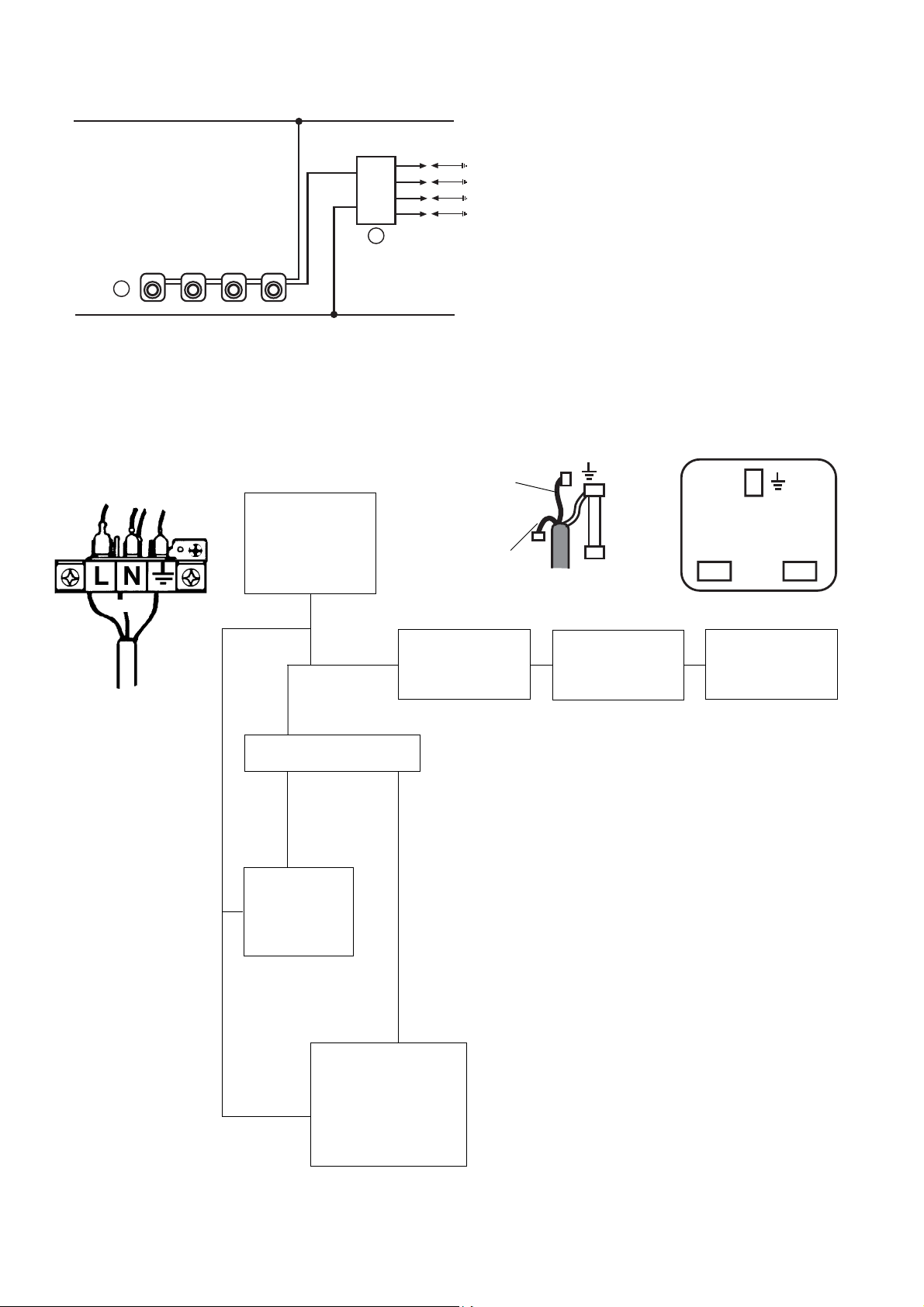

Wiring Diagram 11

Fault Finding 11

Commissioning 13

Conversion from Natural Gas to LPG 14

Description of the Hob

1. Hob top

2. Rapid Burner

3. Semi-rapid Burner

4. Auxiliary Burner

5. Control knobs

Operation

Hob burners

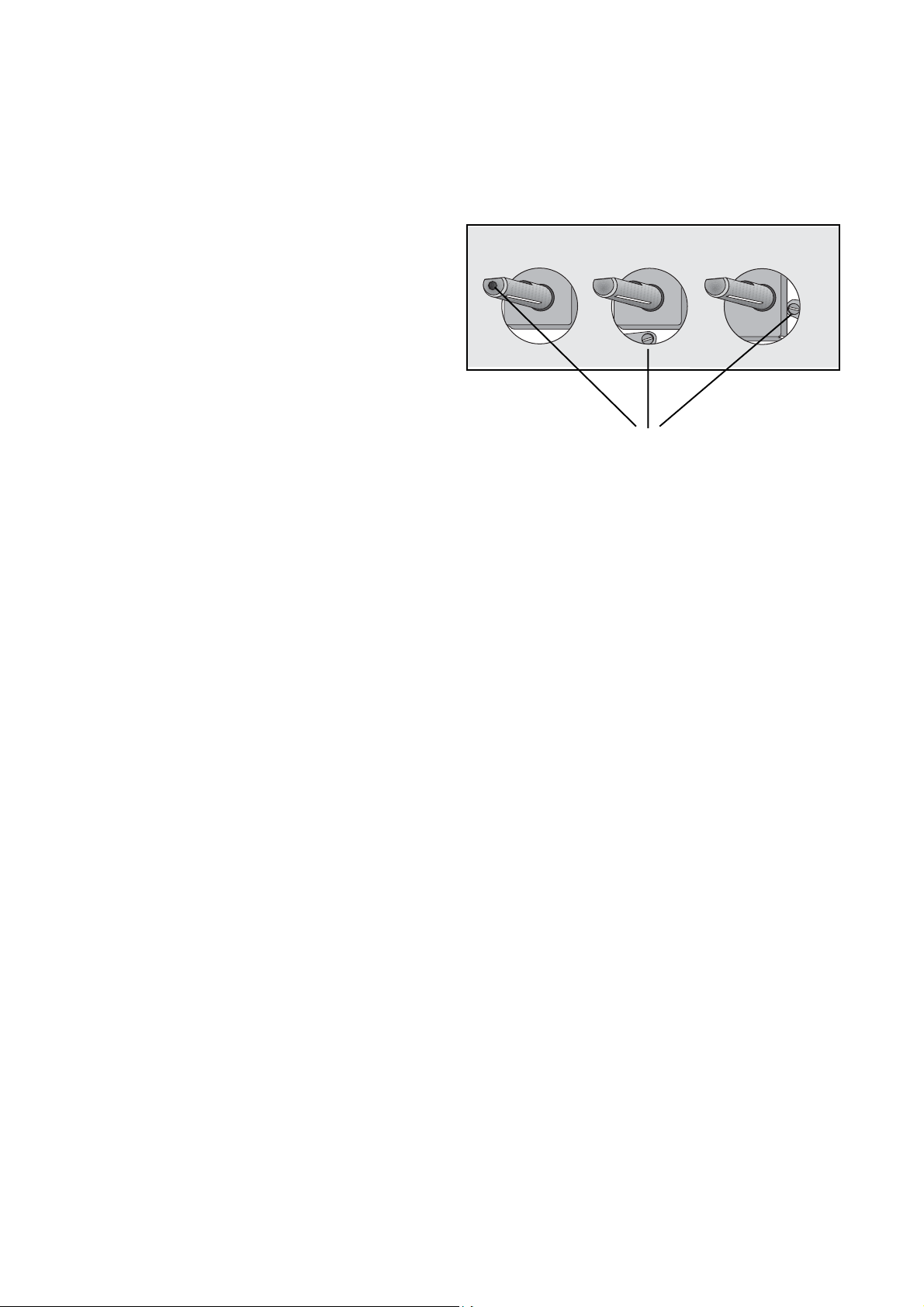

To light a burner:

)

z push in the relevant control and turn it to maximum

position;

z upon ignition, keep the knob pushed down about five

seconds.

z then adjust the flame as required.

z If the burner does not ignite, turn the control knob to

zero, and try again.

If you use a saucepan which is smaller than the recommended size, the flame will spread beyond the bottom of the vessel, causing the handle to overheat.

Take care when frying food in hot oil or fat, as the overheated splashes could easily ignite.

To ensure maximum burner efficiency, you should only use pots and pans with a flat bottom fitting the size of the burner used (see table).

Burner minimum maximum

diameter diameter

Large (rapid) 160 mm. 240 mm. Medium (semi-rapid) 120 mm. 220 mm. Small (auxiliary) 80 mm. 160 mm.

As soon as a liquid starts boiling, turn down the flame so that it will barely keep the liquid simmering.

If the control knobs become difficult to turn, please contact your local Service Force Centre.

Maintenance and Cleaning

Before any maintenance or cleaning can be carried out, you must DISCONNECT the hob from the electricity supply.

The hob is best cleaned whilst it is still warm, as spillage can be removed more easily than if it is left to cool.

The Hob Top

Regularly wipe over the hob top and the aluminium frame using a soft cloth well wrung out in warm water to which a little washing up liquid has been added. Avoid the use of the following:

- household detergent and bleaches;

- impregnated pads unsuitable for non-stick saucepans;

- steel wool pads;

- bath/sink stain removers. Should the hob top become heavily soiled, it is recommended that a cleaning product such as Hob Brite or Bar Keepers Friend is used.

The Burners

Pan Supports

The pan supports are dishwasher proof. If necessary, remove stubborn stains using a paste cleaner. Never use steel wool pads or acids.

The burner caps and crowns can be removed for cleaning. The cap and crown of each burner are secured with two screws. To separate the two pieces, lift the crown, turn it upside down, then undo the two fixing screws as shown in the diagram. After cleaning, reassemble the two parts and refit the cap on its correct position on the burner. Wash the burner caps and crowns using hot soapy water, and remove marks with a mild paste cleaner. A well moistened soap impregnated steel wool pad can be used with caution, if the marks are particularly difficult to remove. After cleaning, be sure to wipe dry with a soft cloth.

FO 2265

Something Not Working?

If the hob is not working correctly, please carry out the following checks before contacting your local Service Force Centre.

IMPORTANT: a charge will be made even if the appliance is under guarantee.

If you call out an engineer to a fault listed below, or to repair a fault caused by incorrect use or installation,

SYMPTOM

 There is no spark when lighting the gas

 The gas ring burns unevenly

If after all these checks, your hob still does not operate correctly, contact your local Service Force Centre.

Please note that it will be necessary to provide proof of purchase for any in-guarantee service calls.

SOLUTION

 Check that the unit is plugged in and the electrical

supply is switched on

 Check that the RCCB has not tripped (if fitted)

 Check the mains fuse has not blown

 Check the burner cap and crown have been

replaced correctly, e.g. after cleaning.

 Check the main jet is not blocked and the burner

crown is clear of food particles.

 Check the burner cap and crown have been

replaced correctly, e.g. after cleaning.

In-guarantee customers should ensure that the above checks have been made as the engineer will make a charge if the fault is not a mechanical or electrical breakdown.

Service and Spare Parts

In the event of your appliance requiring service, or if you wish to purchase spare parts, please contact your local Electrolux Service Force Centre by telephoning:

0870 5 929929

Your telephone call will be automatically routed to the Service Force Centre covering your post code area. For the address of your local Service Force Centre and further information about Service Force, please visit the website at www.serviceforce.co.uk Before calling out an engineer, please ensure you have read the details under the heading “Something Not Working.” When you contact the Service Force Centre you will need to give the following details:

1. Your name, address and post code

2. Your telephone number

3. Clear and concise details of the fault

4. The model and serial number of the appliance (found on the rating plate)

5. The purchase date
