Contents
Safety instructions ................................................................................................................ 3
Description of the appliance................................................................................................. 4
Function ................................................................................................................................................................. 4
Special accessories .............................................................................................................. 5
Active Charcoal filter............................................................................................................................................ 5
Installation .............................................................................................................................. 5
Unpacking ............................................................................................................................................................. 5
Placement............................................................................................................................................................... 5
Electrical connection ............................................................................................................................................ 5
Mounting under wall cabinet ............................................................................................................................... 5
Exhausting mode .................................................................................................................................................. 6
Recirculation mode (with Charcoal filter) .......................................................................................................... 6
Using the hood ...................................................................................................................... 6
Speed regulation ................................................................................................................................................... 6
Work light .............................................................................................................................................................. 6
Correct ventilation ................................................................................................................................................ 6
Maintenance .......................................................................................................................... 7
Grease filter ........................................................................................................................................................... 7
Charcoal filter ........................................................................................................................................................ 7
Cleaning ................................................................................................................................................................. 7
Changing the lighting elements ........................................................................................................................... 7
If the hood does not function ............................................................................................... 8

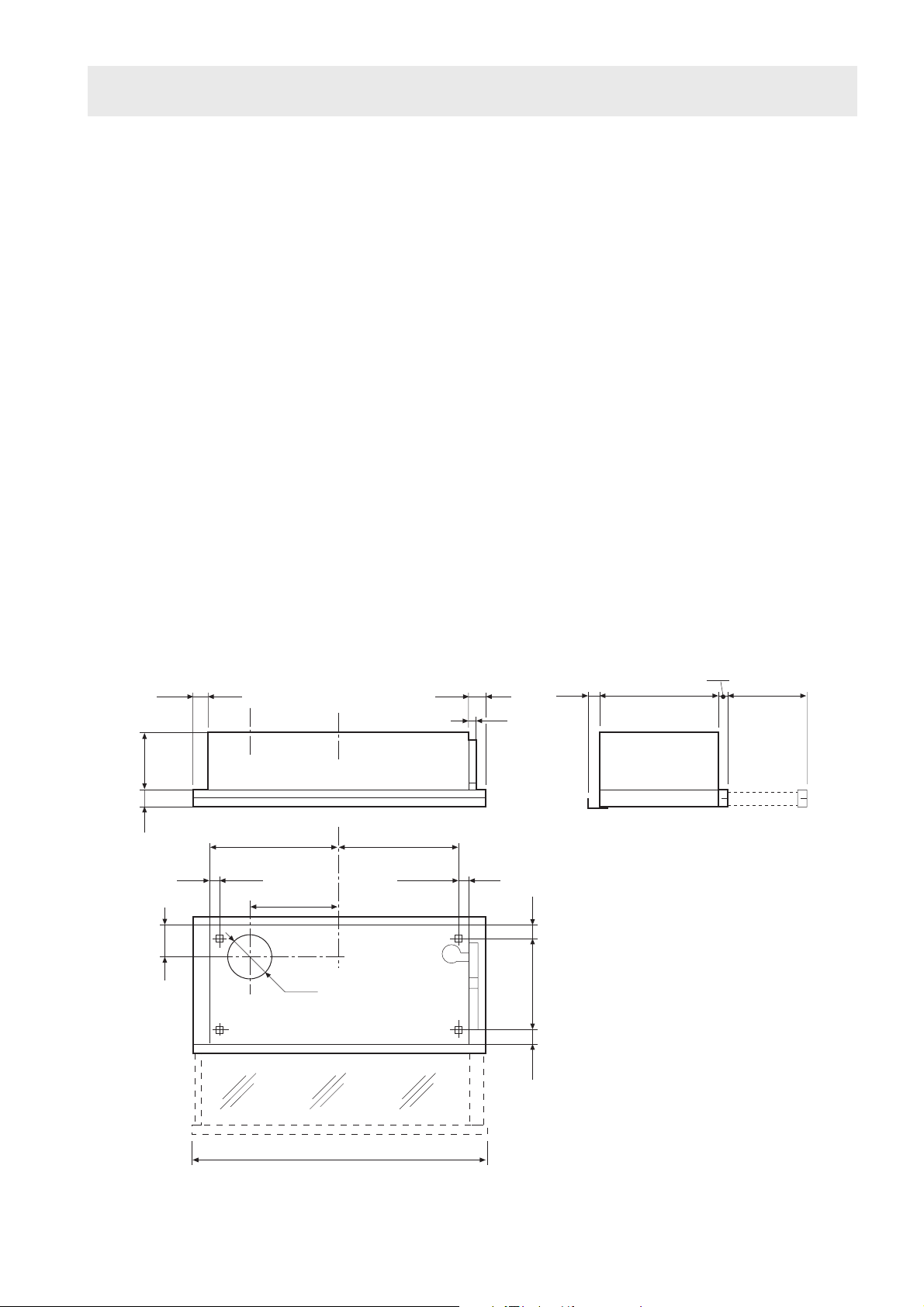

Technical data........................................................................................................................ 9
2
Congratulations to your new Cooker Hood
Thank you for your choice of an Electrolux product. We are convinced that you will have great use
and pleasure from your new cooker hood.
Before you use the cooker hood we recommend that you read through the whole user manual
giving a direct description of the cooker hood and its functions.
To avoid the risks, that are always present when you use a product driven by electricity, it is important that the cooker hood is installed correctly and that you read the safety instructions carefully to
avoid misuse and hazard.
Save the instruction manual and keep it available at use of the cooker hood
Safety instructions
At installation and service
• The cooker hood is made for normal households
with normal cooking. If it is used for other
purposes there is a risk of damage which is not
covered by the warranty.
• All eventual electric installation has to be
carried out by a qualified electrician. The
installation of the hood should be made by a
person with enough knowledge. Installation
made otherwise could lead to loss of performance and even injuries and /or damage
on properties.
• The hood cannot be connected to flues of
other appliances that run on energy sources
other than electricity.
Please, keep to the provisions of official directives regarding the question of fumes discharge.
• When the hood is used at the same time of
other appliances that run on energy sources
other than electricity, provision must be made
for an adequate supply of air.

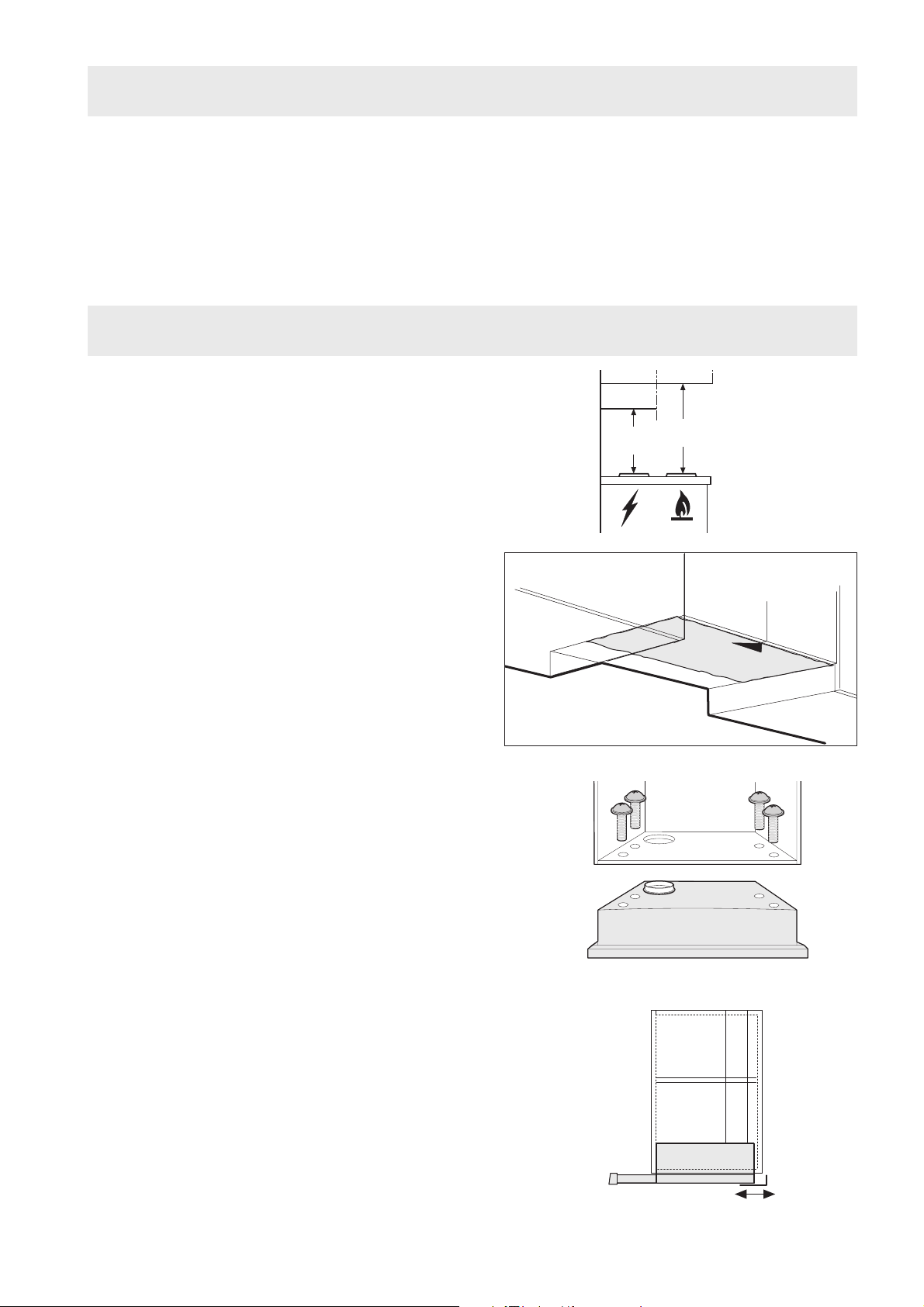

• When installed, the hood must be not less
than 65 cm. above electric burners or 75 cm.
above gas or mixed-fuel burners. (Fig. 3).
• The power cord should be drawn so that
there is no risk of damage. Hazard!
At use of cooker hood
• No food must be cooked flambé underneath the
hood.
• The use of an unprotected flame is dangerous
for the filters and could cause fires.
• Never leave the deep-frying or frying pan
over a cooker/hob. The oil contained in the
pan may spontaneously ignite through overheating.
• Observe the filter change or cleaning intervals. Failure to observe these intervals may
cause the risk of fire through fat deposition.
• The appliance is not intended for use by
young children or infirm persons without
supervision.
• Young children should be supervised to
ensure that they do not play with the appliance.
Note! If a fire starts; Switch of the cooker hood
and the heating zone; Cover the fire , Never use
water.
At disposal
• Help to avoid damages even when the cooker
hood should be disposed. Disconnect the power
plug and cut the power cord at hood inlet. Check
with the authorities for information of how to
proceed for disposal.
3
Description of the appliance
1. Motor speed switch
2. Light switch
3. Extractible drawer
4. Suction grid with grease filter
5. Hob light
Standard accessories included:
• Template for mounting under cupboard
• Screws:
• Duct with no return valve
Function
The hood may be used as follows:
- For air exhausting
- For air recycling
ON
2
1
OFF
3
4
5
5
Fig. 1
Exhausting
The air is vented outside by means of a Ø 120 mm
pipes to be connected to the coupling ring B with
no return valve (Fig.2).
Attention! In the horizontal runs the duct must be
slightly slanted (about 10°) and directed upwards
to vent the air easily from the room to the outside.
The hood cannot be connected to flues
of other appliances that run on energy
sources other than electricity.
Please, keep to the provisions of official directives
regarding the question of fumes discharge.
Recycling
The air is filtered through a Charcoal filter and
recirculated into the room. The filtered air is
discharged by means of a Ø120 mm pipe which
goes through the cupboard and whose outlet is
above the cupboard.
This version is used when there is no exhaust duct
for venting outdoors or when it is impossible to
install one.
B
Fig. 2
4
