DD 8890 - CHDD 8820
CHDD 8890
Köksfläkt
Ventilator
Liesituuletin
Emhætte
Cooker Hood
Instruktionsbok
Bruksanvisning
Käyttöohje
Brugsvejledning
Operating and Installation Instructions
S Innehållsförteckning ............................................................. 2
N Innholdsfortegnelse ............................................................ 14
FIN Sisällysluettelo .................................................................. 26
DK Indholdsfortegnelse ............................................................ 38
UK Contents ............................................................................ 50
Contents
Safety warnings ................................................................................ 50
Description of the cooker hood .......................................................... 52
Control Panel .................................................................................... 53
Maintenance and cleaning................................................................. 55
Something Not Working .................................................................... 58
Special accessories .......................................................................... 59
Technical assistance service ............................................................. 59
Technical specifications .................................................................... 60
Installation ........................................................................................ 60
Safety warnings
This appliance is to be used solely as a household appliance. It has
been manufactured according to the international safety and quality
standards. Note that the safety devices alone are not capable of
eliminating all accident risks.
It is therefore very important to carefully read all the operating
instructions, recommendations and warnings prior to installation and
use of the appliance. Note in particular the text paragraphs with the
danger triangle design, to avoid damages to persons or objects.
Keep this instruction booklet in a safe place: this booklet should
always accompany the appliance at such time as it is sold or given to
other persons for use.
Installation and service
Any electrical installation of the cooker hood must be carried out by
a qualified electrician and the hood itself must be installed by
someone with experience. Installation made by an unqualified
person can lead to loss of function of the cooker hood and possible
damage to person and and/or property.
The cooker hood must be at least 50 cm above electric hobs or
electric ranges, or at least 65 cm above gas burners or gas ranges.
If the instructions for installation for the gas hob specify a greater
distance, this has to be taken into account.
Ensure that the power cable is not damaged during installation.
The cooker hood is only in stand by mode unless the plug or the
fuse is disconnected.
The cooker hood cannot be connected to flues of other appliances
50
that run on energy sources other than electricity. Please, keep to the
provisions of official directives regarding fume discharge.
Use of cooker hood
This appliance is for domestic use only in a normal household.
Never leave any deep-frying, melting fat, paraffin or any other
inflammable liquid unattended on the hob. In the event of fire:
Immediately switch off the cooker hood and the cooker. Note! Cover
the fire. Never use water.
Never do any flambé cooking underneath the cooker hood. It can
cause a fire. Remember that overheated fat may spontaneously
ignite. Never leave the frying pan unattended.
It is essential that the grease filter is regularly cleaned to help avoid
fat dripping on to the hot zone and causing a fire. Read the section
on Maintenance and Cleaning in the instruction book.
Disposal
Prevent accidents when disposing of your cooker hood. Disconnect
the power plug from the wall socket and cut the power cord at the
hood inlet.Contact your local authority for information on where to
dispose the cooker hood.
51
Description of the Appliance
Functions
There are two possible systems:
Extraction of air to the outside using an optional venting kit and
evacuation duct.
Recirculation using an optional charcoal filter.
The air outlet must not be connected to chimney flues or combustion
gas ducts. The air outlet must under no circumstances be connected
to ventilation ducts for rooms in which fuel-burning appliances are
installed.
Accessories
The following are included with the cooker hood:
1 hood canopy complete with controls, lighting and fan motor.
1 telescopic chimney stack formed by: U-shaped upper section and
U-shaped lower section.
1 recirculation spigot.
1 plastic bag containing: 1 wall bracket to fix the hood, rawl plugs,
screws, and documentation.
The following can be ordered from your retailer:
Charcoal filter, Type 20. The charcoal filter is to be used when the
hood is connected to the recirculation mode.
Only for CHDD 8890: The cooker hood is supplied ready for use as
a recirculation hood and may be used for extraction by removing the
charcoal filter which has been fitted inside the cooker hood.
Extractor version
The air is discharged to the outside through a
pipe, which must be fitted to connection flange
A. Fig. 1.
In order to obtain the best performance the
hose should have a diameter equal to the outlet
hole.
Filter Version
The air is filtered through a charcoal filter and
returned to the kitchen.
You will need an original AEG charcoal filter
Type 20 for the filtering function.
Optionally, the position of the chimney
elements can be changed.
When using the hood in the filter version the
chimney must be fixed at the top, with the air
outlet grill at the side.
52
A
Fig. 1
Control Panel
Best results are obtained by using a low speed for normal conditions
and a high speed when odours are more concentrated.
Turn the hood on a few minutes before you start cooking, you will
then get an under pressure in the kitchen. The hood should be left on
after cooking for about 15 minutes or until all the odours have
disappeared. The control switches are located on the units front
panel.
a
b
123 456
Fig. 2
1 - Mains switch, ON/OFF
Press for less than 1 1/2 seconds and the cooker hood goes into
the "stand by" position (point "b" is illuminated).
Press for more than 1 1/2 seconds and the cooker hood turns off,
ALL the controls (except the light push button) are disabled (the
display is off).
Press again for more than 1 1/2 seconds to reset the cooker hood
to "stand by".
2 - Light ON/OFF
3 - Display
4 - Start and choice of motor speed 1-2-3-1-2.........
5 - Intensive speed on/off. The Intensive speed runs for 5 minutes:
If the hood is on when the Intensive speed is activated, the hood
will revert to previous speed after 5 minutes.
If the hood is off when the Intensive speed is activated, the hood
will automatically turn off after 5 minutes.
To interrupt the Intensive speed, press button 1 or 4.
The letter P appears on the display and the remaining time (the
point a is flashing), if interrupted an acoustic signal is heard.
6 - Self-Timer: times all the speed levels (the point b is flashing),
and then the cooker hood switches off:
The self-timer is set as follows: 1st speed level 20 minutes
2nd speed level 15 minutes
3rd speed level 10 minutes
The display shows the remaining operation time, at the end of the
time an acoustic signal is heard. Depressing the push-button
again exits the function.
Should the hood or the controls fail to operate: disconnect the power
supply for at least 5 seconds. After reconnecting the power supply wait
15 seconds and then check that the cooker hood is now operating
correctly.
53
Control device for grease and charcoal filters
This hood is fitted with a device that signals when it is necessary to
clean the grease filter or the charcoal filter (if the hood is used in the
recirculation version with a charcoal filter).
On delivery, the hood is not supplied with a charcoal filter, so the
saturation indicator will be disabled.
If the hood is to be used with a charcoal filter, the saturation
indicator light must be enabled as follows:
Press buttons 4 and 5 simultaneously and hold them for 3 seconds. At
first only the grease filter LED F will illuminate, but when the charcoal
filter LED C illuminates the saturation indicator will be enabled.
To disable it: Press buttons 4 and 5 again simultaneously and hold
them for 3 seconds, until the charcoal filter LED C goes out.
Grease filter LED (F)
LED F will start to flash when it is time to clean the grease filter.
Cleaning will be necessary after 40 working hours. Always comply with
the maintenance instructions for the grease filter.
Charcoal filter LED (C)
The charcoal filter LED C will start to flash when the charcoal filter
needs to be replaced.
This operation is necessary after approximately 160 working hours.
Resetting the saturation indicator
After cleaning or replacing the filters, press button 1 for 3 seconds until
the grease filter LED F or the charcoal filter LED C stops flashing.
Warning! The resetting of the saturation indicator MUST be done in
stand-by, never disconnect the hood from the mains.
54
Maintenance and care
Disconnect the cooker hood from the power supply prior to cleaning
the appliance, either by removing the plug (if fitted) from the mains or
removing the fuse.
Clean the filter regularly. The grease deposits in the filter and
discharge tube are fire hazards where a hotplate (or another heat
source) is left on by error.
Cleaning the hood
Clean the outside of the hood using a damp cloth and a mild detergent.
Never use corrosive, abrasive or flammable cleaning products.

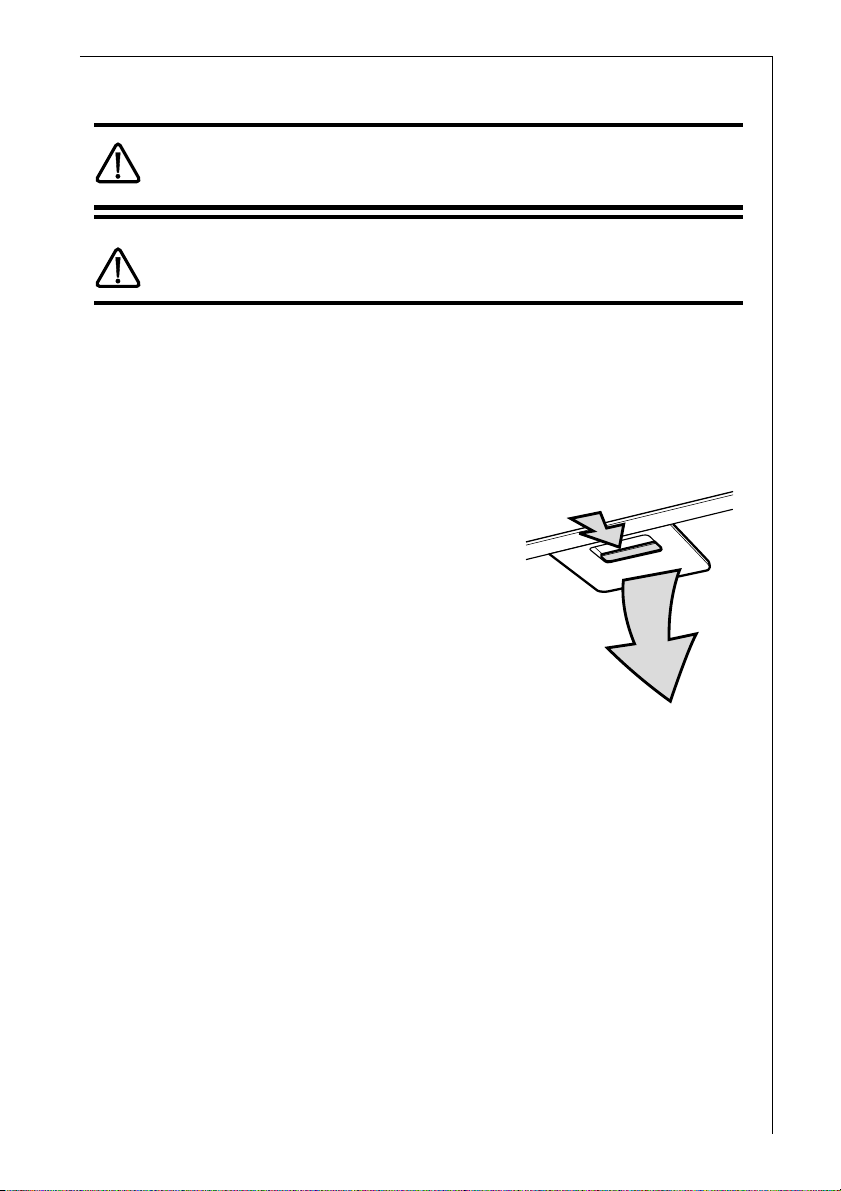

Cleaning the grease filters
Clean the filter every month or every other
month according to how much the hood is
used.
The cleaner the filters, the more grease they
collect. To remove the filters, Fig. 3:
First of all, push the stop on the metal
grease filter back, and then extract the filter
by pulling downward.
The filter is made of aluminium wires on which the
grease collects. Clean the filter in hot water using a
detergent, or in a dishwasher. Let the filter dry before
putting it back. Note that a dishwasher may discolour
the filter.discolouration of the filter can occur, this does not have any
impact on its performance.
Clean the inner housing using a hot detergent solution only (never
use caustic detergents, abrasive powders or brushes).
Fig. 3
55
g
Charcoal filter
The charcoal filter should only be used if you want to use the hood
in the recirculation function.
To do this you will need an original AEG charcoal filter (available
from your local Service Force Centre).
Cleaning/replacing the carbon filter
Unlike other carbon filters, the LONGLIFE carbon filter can be
cleaned and reactivated. At normal use the filter should be cleaned
every second month (when using the hood 2,5 hours per day, in
avarage). The best way to clean the filter is in the dishwasher. Use
normal detergent and choose the highest temperature (65º C).
Wash the filter separately so that no food parts gets stuck on the
filter and later causes bad odours. To reactivate the carbon, the
filter should be dried in an oven for 10 minutes with a temperature
of maximum 100º C.
After approximately three years of use, the carbon filter should be
replaced with a new, as the odour reduction capacity will be
reduced.
Fitting
Remove the frame i which supports the filter h by turning 90° the
two knobs g.
Insert the charcoal filter inside the frame and put all parts back in
their place. Fig. 4.
To remove proceed in the reverse order.
Always specify the hood model code number and serial number
when ordering replacement filters. This information is shown on the
registration plate located on the inside of the unit.
The charcoal filter can be ordered from your local AEG Service
Force Centre.
56
g
d
g
h
i
Fig. 4
g
Warning
Failure to observe the instructions on cleaning the unit and
changing the filters will cause a fire hazard. You are therefore
strongly recommended to follow these instructions.
The manufacturer declines all responsibility for any damage to the
motor or any fire damage linked to inappropriate maintenance or
failure to observe the above safety recommendations.
Changing the light bulb
Disconnect the cooker hood from the main supply.
Remove the lamp cover, use a screw driver as a lever. Fig. 5.
Replace the old bulb with a new one of the same type.
Refit the lamp cover.
If the light does not come on, make sure the bulb has been inserted
correctly before contacting your local Service Force Centre.
Fig. 5
57
Something Not Working
If your appliance fails to work properly please carry out the following
checks.
Symptom Solution
The cooker hood will not start. Check that:
The hood is connected to
the electricity supply.
Check that a fan speed has
been selected
The cooker hood is not working Check that:
The fan speed is set high
enough for the task.
The grease filters are clean.
The kitchen is adequately vented
to allow the entry of fresh air.
If set up for recirculation, check
that the charcoal filter is still
effective.
If set up for extraction, check that
the ducting and outlets are not
blocked.
The cooker hood has The safety cut-out device has been
switched off during operation. tripped.
Turn off the hob and then wait for
the device to reset.
If the hood has been installed
below the heights indicated in the
installation instructions the motor
will cut-out frequently which will
damage the hood.
If after all these checks, the problem persists, contact your local
Service Force Centre, quoting the model and serial number.
Please note that it will be necessary to provide proof of purchase for
any in-guarantee service calls.
In-guarantee customers should ensure that the above checks have
been made as the engineer will make a charge if the fault is not a
mechanical or electrical breakdown.
58
Special accessories
Charcoal filter Type 20
Technical assistance service (not for UK)
You are welcome to telephone our technical assistance service (see list
of technical assistance centres) whenever you need information or in the
unlikely event of a fault.
For service in Australia call 1300 650 020.
When calling, please be ready to specify:
1. The model code number
2. The serial number (E-Nr.)
3. The manufacturing number (F-Nr.)
This information is shown on the registration plate inside the unit
behind the grease filter.
We reserve the right to change specifications and colours as a result of
our policy of continuing technological development.
Service and Spare Parts for UK
In the event of your appliance requiring service, or if you wish to
purchase spare parts, contact your local AEG Service Force Centre by
telephoning: 08705 929 929
Your telephone call will be automatically routed to the Service Centre
covering your post code area. For the address of your local Service
Force Centre and further information about Service Force, please visit
the website at www.serviceforce.co.uk
Please ensure that you have read the section What to do if.... as the
engineer will make a charge if the fault is not a mechanical or electrical
breakdown even the appliance is under warranty. Please note that
proof of purchase is required for in-guarantee service calls.
Help us to help you
Please determine your type of enquiry before writing or telephoning.
When you contact us we need to know:
Your name
Address and post code
Telephone number
Clear and concise details of the fault
Name and model of the appliance*
E number*
* This information can be found on the rating plate, which can be seen
when the grease filters are removed.
59
Technical Specifications
Model DD 8890 CHDD 8820
CHDD 8890
Dimensions - extractor version (in cm):
Height 70-113 68,5-113,4
Width 89,8 119,8
Depth 50 46
Dimensions - filter version (in cm):
Height 78-122 77,2 - 123
Width 89,8 119,8
Depth 50 46
Lighting: 2 x 20W 4 x 20 W
Grease filter: 3 4
Electrical connection: 220 - 240 V 240 V
Maximum absorbed power: 215 W 275 W
Installation
Unpacking
Check that the cooker hood is not damaged. Transportation damages
should immediately be reported to the transport company. Damages,
faults and missing parts should immediately be reported to the retailer.
Dispose carefully of the packaging material so that it is out of the way
of small children.
Position
The cooker hood should be mounted freely hanging on the wall. The
cooker hood must be at least 50 cm above electric hobs or electric
ranges, or at least 65 cm above gas burners or gas ranges.
The cooker hood cannot be connected to flues of other
appliances that run on energy sources other than electricity.
Please, keep to the provisions of official directives regarding fume
discharge.
Electrical connection
The hood has a power cable with earth connection and the rated voltage
is 220-240V.
60
A
B
180°
C - OK!
Wall unit mounting - Fig. 6
First decide how the hood is to operate
(extractor or filter).
If you decide to use the hood in the
extractor version we suggest to position the
upper section of the chimney so that the
oulet slots are not visible once installed, if
the hood is used in the filtering version
ENSURE that the side with the slots
pointing upwards (see also A-B-C sequence
on on Fig. 6).
Fig. 6
Wall unit mounting - Fig. 7
Mark the wall with a centre line, this will aid mounting procedure (1),
position the template so that the mid line printed on the template
matches with the centre line previously drawn, the lower side of the
template corresponds to the lower side of the hood once mounted
(2).
Drill two holes Ø 8mm and fix the support bracket with two wall plugs
and screws (3). Hang the hood (4) and adjust its position (5-6).
From the inside of the hood mark two points for fixing (7).
Remove the hood (8) and drill two holes Ø 8mm (9), fit two wall plugs
(10).
Drill two holes Ø 8mm on the upper side close to the ceilling, fit two
wall plugs (11) (In case the hood is to be used in filter version,
mount the deflector F on the chimney support with four screws
2,9x6,5 (Two screws for model CHDD 8820) and fix the chimney
support G with two screws (12).
Hang the hood again (13) and secure it with two screws (14).
Fit an exhaust pipe (15) to connect the outlet hole A of the hood to
the outside (Extractor hood) or to the deflector F (Filter version).
Make electrical connection (16).
Fix the chimney first up (17a) to the chimney support (17b), then
slide the lower section of the chimney down into the housing on top
of the hood (18).
Only for model CHDD 8820: Fix the lower section to the hood with
two screws 3 x 9 mm (19).
61
17a
1
F
CHDD 8820
G
14
16
H
17a
17b
11
11
G
12
17b
F
4-13
18
15
B
6
5
10
8
6
5
9
7
4-13
8
3
10
2
9
7
Fig. 7
62
19
14
19
63
From the Electrolux Group. The world´s No.1 choice.
The Electrolux Group is the world´s largest producer of powered appliances for kitchen,
cleaning and outdoor use. More than 55 million Electrolux Group products (such as refrigerators,
cookers, washing machines,vacuum cleaners, chain saws and lawn mowers) are sold each
year to a value of approx. USD 14 billion in more than 150 countries around the world.
AEG Hem & Hushåll
S-105 45 Stockholm
www.aeg-hem.se
AEG Hausgeräte GmbH
Postfach 1036
D-90327 Nürnberg
http://www.aeg.hausgeraete.de
http://www.aeg.co.uk
© Copyright by AEG
LI148D Ed. 05/04
Loading...
