OVEN USER MANUAL

EN

2

FOR PERFECT RESULTS

Thank you for choosing this AEG product. We have
created it to give you impeccable performance for many
years, with innovative technologies that help make life
simpler – features you might not find on ordinary
appliances. Please spend a few minutes reading to get the
very best from it.

ACCESSORIES AND CONSUMABLES

In the AEG webshop, you’ll find everything you need to
keep all your AEG appliances looking spotless and
working perfectly. Along with a wide range of accessories
designed and built to the high quality standards you
would expect, from specialist cookware to cutlery baskets,
from bottle holders to delicate laundry bags…

Visit the webshop at:
www.aeg.com/shop

CONTENTS

Contents

4 Safety information
7 Product description
9 Before first use

9Daily use
11 Clock Functions
13 Using the Accesories
15 Additional Functions
16 Helpful hints and tips
27 Care and cleaning
30 What to do if…
31 Installation
33 Environment concerns
34 GREAT BRITAIN & IRELAND -

Guarantee/Customer Service

3

The following symbols are used in this user
manual:

Important information concerning your
personal safety and information on how to
avoid damaging the appliance.

General information and tips

Environmental information

Subject to change without notice

4 Safety information

SAFETY INFORMATION

Before the installation and use, read this manual carefully:

• For your personal safety and the safety of your property

• For the respect of the environment

• For the correct operation of the appliance.
Always keep these instructions with the appliance also if you move or sell it.
The manufacturer is not responsible if incorrect installation or use results in damage.

Children and vulnerable people safety

• This appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning use of the appliance in safe
way and understand the hazards involved. Children shall not play with the appliance.

• Keep all packaging away from children. There is the risk of suffocation or physical injury.

• WARNING: Keep children and animals away from the appliance when the door is open
or the appliance is in the operation, because it becomes hot. There is the risk of injury or
other permanent disability.

• If the appliance has Child Lock or Key Lock (Control Lock) function, use it. It prevents
children and animals from accidental operation of the appliance.

General safety

• Do not change the specifications of this appliance. There is the risk of injury and damage
to the appliance.

• Do not let the appliance stay unattended during operation.

• Switch off the appliance after each use.

Installation

• Only an approved electrician can install and connect the appliance. Contact an approved
service centre. This is to prevent the risks of structural damage or physical injury.

• Make sure that the appliance is not damaged because of transport. Do not connect a
damaged appliance. If necessary, contact the supplier.

• Remove all packaging, stickers and layers from the appliance before first use. Do not re­move the rating plate. It can invalidate the guarantee.

• Make sure that the appliance is disconnected from the power supply during the installa­tion.

• Be careful when you move the appliance. The appliance is heavy. Always use safety
gloves. Do not lift the appliance by the handle.

• The electrical installation must have an isolation device which lets you disconnect the
appliance from the mains at all poles. The isolation device must have a contact opening
width of minimum 3 mm.

• You must have correct isolation devices: line protecting cut-outs, fuses (screw type fuses
removed from the holder), earth leakage trips and contactors.

Safety information

• Before the installation, make sure that the kitchen cabinet has the recess dimensions ap­plicable.

• Make sure that the appliance is installed below and adjacent safe structures.

• Keep the minimum distances to the other appliances and units.

• The appliance cannot be positioned on a base.

• Built in ovens and built in cooking surfaces are attached with special connection system.
To prevent damage to the appliance, only use an appliance with the appliances from the
same manufacturer.

Electrical connection

• The appliance must be earthed.

• Make sure that the electrical data on the rating plate agree with your domestic power
supply.

• Information on the voltage is on the rating plate.

• Always use a correctly installed shockproof socket.

• Do not use multi-way plugs, connectors and extension cables. There is the risk of fire.

• Do not replace or change the mains cable. Contact the service centre.

• Make sure not to squash or cause damage to the mains plug (if applicable) and cable
behind the appliance.

• Do not pull the mains cable to disconnect the appliance. Always pull the mains plug – if
applicable.

Use

• The appliance is only for domestic use. Do not use the appliance for commercial and in­dustrial use.

• Only use the appliance for domestic cooking tasks. This is to prevent physical injury to
persons or prevent damage to property.

• Do not use the appliance as a work surface or storage surface.

• The interior of the appliance becomes hot during use. There is the risk of burns. Do not
touch the heating elements in the appliance. Use gloves when you insert or remove the
accessories or pots.

• Be careful when you remove or install the accessories to prevent damage to the oven
enamel.

• Always stay away from the appliance when you open the door while the appliance is in
operation. Hot steam can release. There is the risk of skin burns.

• To prevent damage or discoloration to the enamel:
– do not put any objects directly on the appliance floor and do not cover it with alumi-

nium foil;
– do not put hot water directly into the appliance;
– do not keep moist dishes and food in the appliance after you finish the cooking.

• Discoloration of the enamel has no effect on the performance of the appliance so it is
not a defect in the sense of the warranty law.

• Do not apply pressure on the open door.

5

6 Safety information

• Always close the appliance door when you cook, even while grilling.

Care and cleaning

• Before maintenance, switch off the appliance and disconnect the appliance from the
power supply.

• Before maintenance, make sure that the appliance is cold. There is the risk of burns.
There is the risk that the glass panels can break.

• Keep the appliance clean at all times. A build-up of fats or other foodstuff can result in a
fire.

• Regular cleaning prevents the surface material from deteriorating

• Use a deep baking tray for very moist cakes to prevent that fruit juices cause stains that
can be permanent.

• For your personal safety and the safety of your property, only clean the appliance with
water and a soap. Do not use flammable products or products that can cause corrosion.

• Do not clean the appliance with steam cleaners, high-pressure cleaners, sharp objects,
abrasive cleaning agents, abrasive sponges and stain removers

• If you use an oven spray, follow the instructions from the manufacturer.

• Do not clean the glass door with abrasive cleaning agents or metal scraper. Heat resist­ant surface of the inner glass can break and shatter.

• When the door glass panels are damaged they become weak and can break. You must
replace them. Contact the service centre.

• Be careful when you remove the door from the appliance. The door is heavy!

• Do not clean catalytic enamel (if applicable).

Risk of fire

• Open the door carefully. The use of ingredients with alcohol can cause a mixture of alco­hol and air. There is the risk of fire.

• Do not let sparks or open flames come near the appliance when you open the door.

• Do not put flammable products or items that are wet with flammable products, and/or
fusible objects (made of plastic or aluminium) in, near or on the appliance.

Oven lamp

• Bulb lamps used in this appliance are special lamps selected for household appliances use
only. They cannot be used for the full or partial illumination of a household room.

• If it becomes necessary to replace the lamp use one of the same power and specifically
designed for household appliances only.

• Disconnect the appliance from the power supply before the replacement of the oven
lamp. There is the risk of electrical shock.

Service centre

• Only an approved engineer can repair or work on the appliance. Contact an approved
service centre.

• Use only original spare parts.

Disposal of the appliance

• To prevent the risk of physical injury or damage
– Disconnect the appliance from the power supply.
– Cut off the mains cable and discard it.
– Discard the door catch. This prevents children or small animals from being closed in-

side of the appliance. There is the risk of suffocation.

PRODUCT DESCRIPTION

General overview

1

5

4

4 632 5

Product description

7

8

9

7

14

3

2

1

1 Control panel
2 Control knob for oven functions
3 Power lamp/symbol
4 Electronic programmer
5 Control knob for temperature
6 Temperature lamp/symbol/indicator
7 Socket for the core temperature sensor
8 Heating element

9 Oven lamp
10 Fan
11 Rear wall heating element

10

11

12

13

8 Product description

12 Bottom heat
13 Shelf support, removable
14 Shelf positions

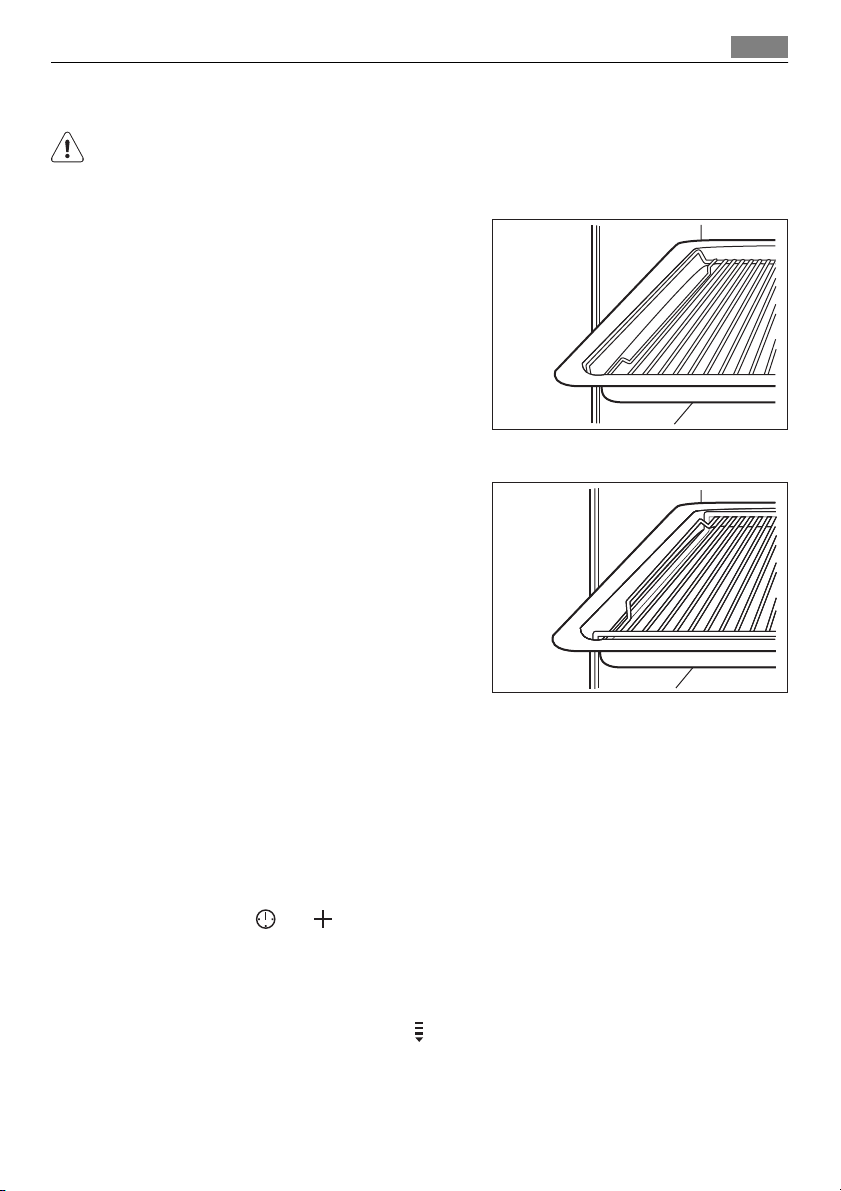

Oven accessories

• Nonstick wire shelf
For cookware, cake tins, roasts.

• Grill / roasting pan
To bake and roast or as pan to collect fat.

• Trivet
For roasting and grilling.

Use the trivet only with the grill/roasting pan.

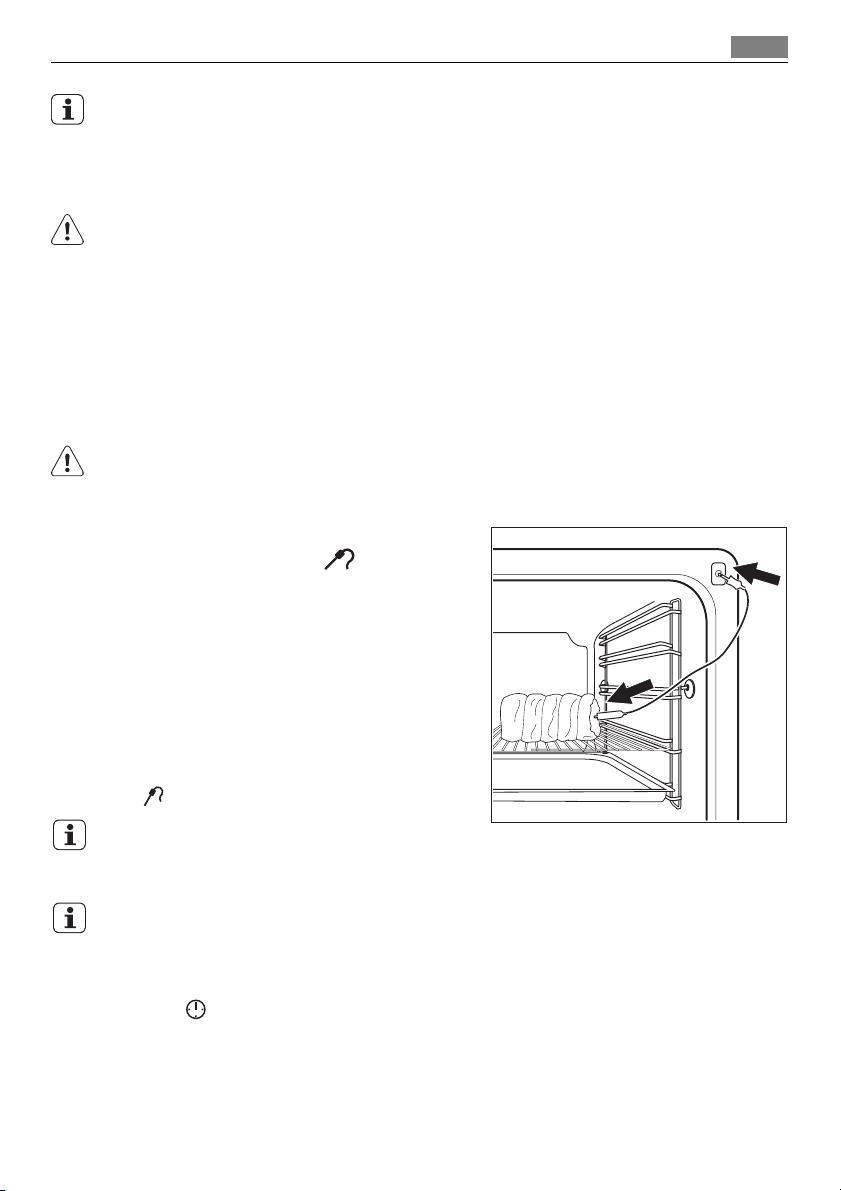

• Core Temperature Sensor
To measure how far the food is cooked.

Before first use

BEFORE FIRST USE

WARNING!

Refer to "Safety information" chapter.

Initial Cleaning

• Remove all parts from the appliance.

• Clean the appliance before first use.

Refer to chapter "Care and Cleaning".

First connection to the mains

After first connection to the mains all symbols in the display are on for some seconds. For
the subsequent few seconds the display shows software version.

Setting the time of day

After the software version goes off, the display shows and "12:00". "12" flashes.

1. Press

2. Press

automatically after 5 seconds).
The display shows and set hour. "00" flashes.

3. Press

4. Press

automatically after 5 seconds) .
The Temperature/Time display shows new time.

Changing the time of day

You can change the time of day only if the oven is off.
Press
dure "Setting the time of day".

or to set current hour.
to confirm (necessary only for the first setting, later new time will be saved

or to set current minutes.
to confirm (necessary only for the first setting, later new time will be saved

. The set time and symbol flash in the display. To set new time use the proce-

9

DAILY USE

WARNING!

Refer to "Safety information" chapter.

To use the appliance, press the control knob. The control knob comes out.

Activating and deactivating the appliance

1. Turn the oven functions control knob to select an oven function.

2. Turn the temperature control knob

3. To deactivate the appliance turn the oven functions control knob to off position ("0") .

/ to set a temperature.

10 Daily use

Knob symbol, indicator or lamp (depends on the model - refer to the appliance
overview):

• The indicator comes on when the oven heats up.

• The lamp comes on when the appliance operates.

• The symbol shows whether the knob controls one of the cooking zones, the oven func­tions or the temperature.

Oven Functions

Oven function Application

Fast Heat Up To decreases the heat-up time.

True Fan Cooking To bake maximum on three oven levels at the same time.

Pizza Setting To bake on one oven level food with a more intensive

Conventional Cooking To bake and roast on one oven level.

Bottom Heat To bake cakes with crispy or crusty bases and to preserve

Defrost To defrost frozen food.

Grilling To grill flat food in the middle of the grill and to toast.

Fast Grilling To grill flat food in large quantities and to toast.

Turbo Grilling To roast larger joints of meat or poultry on one level. Al-

Decrease the oven temperatures (20-40 °C) compared
with Conventional. And to dry food.

browning and a crispy base. Decrease the oven tempera­tures (20-40 °C) compared with Conventional

food

so to gratinate and brown.

Fast heat up function

The fast heat up function decreases the heat up time.

1. Set the fast heat up function. Refer to Oven function table.

2. Turn the temperature control knob

3. An acoustic signal sounds when the appliance is at the set temperature.

The fast heat up function does not deactivate after the acoustic signal. You must deactivate
the function manually.

4. Set an oven function.

/ to set a temperature.

Display

Buttons

1 Timer
2 Heating Up / Residual heat indicator
3 Water tank (selected models only)
4 Core temperature sensor (selected

models only)

5 Door lock (selected models only)
6 hr / min
7 Clock functions

Button Function Description

CLOCK To set the clock function.

Clock Functions

17 2 3

11

4567

,

MINUS, PLUS To set a value for time

MINUTE MINDER To set the minute minder. To switch ON/OFF

light in oven cavity, hold button more than 3
seconds

TEMPERATURE To check temperature inside the oven cavity.

To check the Core Temperature Sensor tem­perature, when is connected (if applicable).
Use only when the oven function is set.

Heat-up / Residual heat indicator

If you activate an oven function, the bars in the display come on one by one. The bars
show that the oven temperature increases or decrease.

CLOCK FUNCTIONS

SYMBOL FUNCTION DESCRIPTION

MINUTE MINDER Use to set a countdown time. This function has no effect on

TIME OF DAY To set, change or control the time of day. Refer to 'Setting the

DURATION Use only when the oven function is set to set how long the

END Use only when the oven function is set to set when the oven

stops. You can use Duration and End at the same time (Time

delay), if the appliance is to be activate and deactivate auto-

the operation of the oven.

time of day'.

oven operates.

matically later.

Press again and again to switch between the clock functions.

12 Clock Functions

To confirm settings of the clock functions use or wait 5 seconds for an automatic con­firmation.

Setting the DURATION or END

1. Press again and again until the display shows or .
or flashes in the display.

2. Press

3. Press

4. Press

5. Press

A sound operates after the time ends for 2 minutes.
flash in the display. The oven stops.

6. Press any button or open the oven door to stop the sound.

If you press button during setting hours for DURATION , the appliance goes to set­ting of the END

or to set minutes.
to confirm.
or to set the necessary hour.
to confirm.

or symbol and time setting

function.

Setting the MINUTE MINDER

Use to set a countdown (maximum 23 h 59 min) This function has no effect on the opera­tion of the oven

Set the function when the appliance is off:

1. Press

2. Press

3. Use the same procedure to set minutes and hours.

When you set hours, minutes replaced seconds on the display and hours replaced mi­nutes. Symbol

4. MINUTE MINDER starts to operate automatically after 5 seconds.

After 90% of set cooking time an acoustic signal sounds.

.

and "00" flash in the display.

or to set the seconds.

comes on the display.

5. When set time ends, an acoustic signal sounds for 2 minutes and "00:00" and

in the display.

You can set the MINUTE MINDER any time, even if the oven is off.

If you set the MINUTE MINDER when DURATION or END is running, the symbol goes on
the display.

Count Up Timer

Use the Count Up Timer to monitor how long the oven operates. It is on immediately when
the oven starts to heat.
Reset the Count Up Timer: press and hold
again.

and then the timer start to count up

flash
