AEG B9878-5-M User Manual

B9878-5

User manual Oven

Contents

Thank you for choosing one of our high-quality products.

To ensure optimal and regular performance of your appliance please read this instruction manual carefully. It will enable you to navigate all processes perfectly and most efficiently. To refer to this manual any time you need to, we recommend you to keep it in a safe plac e. An d p le as e pass it to any future owner of the appliance.

We wish you much joy with your new appliance.

Contents

Operating instructions 3

Safety information 3

Electrical safety 3 Safety during use 3 How to avoid damage to the appliance

Description of appliance 4

General view 4 Control panel 5 Display 5 Oven layout 6

The electronic oven controls 7

Menus and operation 7 Auto Cooking 8 Heating Functions 9 Specials 9 Basic Settings 10 Cleaning Menu 10 Additional Functions 10

Operation 11

Prior to first use 11 Switching on and off 11 Auto cooking 11 Conventional baking and roasting 12

Meatprobe 13 Setting the countdown timer 14 Key Lock 14 Switch-on lock 14 Automatic switch-off of the oven 14 Smell Filter 15 Inserting the grill rack, baking tray, and roasting pan 15 Inserting/Removing the Grease Filter 16 option 17

Tips, charts and information 18

Auto Cooking 18 Manual baking and roasting 24

Cleaning and servicing 33

Grease filter 33 Pyrolytic cleaning 34 Cleaning Assistant 34 Cleaning Reminder 34 Shelf supports 34 Oven light 35 Oven door 36 Oven door glass 38

What to do if ... 41 Disposal 42

Subject to change without notice

Safety information

Operating instructions

Safety information

Electrical safety

•

This appliance must only be connected by a qualified installation engineer.

• In the event of a fault or damage to the appliance: Take the fuses out or switch off.

•

Repairs to the appliance must only be carried out by qualified service engineers. Considerable danger may result from improper repairs. If repairs become necessary, please contact our Customer Care Department or your dealer.

Children's safety

• Never leave small children unattended while the appliance is in operation.

• To protect against unauthorised use the appliance is equipped with a switch-on lock.

Safety during use

• This appliance should be used only for normal domestic cooking, roasting and baking of food.

• Be careful if connecting electrical appliances to sockets near to this appliance. Electrical leads must not be caught under the hot oven door.

•

Warning: Risk of burns! The interior surfaces of the oven become very hot during use.

• If you use ingredients containing alcohol in the oven, a slightly flammable mixture of alcohol and air may ensue. In this case, be careful when opening the door. Do not handle any sources of heat, sparks or naked flames when doing so.

• People (including children), who, because of their physical, sensory or mental capabilities or their inexperience or ignorance, are not able to use the appliance safely, should not use this appliance without supervision by or instruction from a responsible person.

Information on acrylamides According to the latest scientific knowledge, intensive browning of food, especially in products containing starch, can constitute a health risk due to acrylamides. Therefore we recommend cooking at the lowest possible temperatures and not browning foods too much.

How to avoid damage to the appliance

• Do not line the oven with aluminium foil and do not place a baking tray or saucepan etc. on the floor, as otherwise the oven enamel will be damaged by the heat build-up.

• Fruit juices dripping from the baking tray will leave stains, which you will not be able to remove. For very moist cakes, use a deep tray.

• Do not put any strain on the oven door when open.

• Never pour water directly into the oven when it is hot. This could cause damage to and discoloration of the enamel.

• Rough handling, especially around the edges of the front panel, can cause the glass to break.

• Do not store any flammable materials inside the oven. These could ignite when the oven is switched on.

• Do not store any moist foods inside the oven. This could cause damage to the enamel.

Description of appliance

• Do not leave dishes uncovered in the oven after switching off the cooling fan. Moisture may form inside the oven or on the glass door and also get onto the units.

Information on the oven enamel Changes to the colour of the oven's enamel surface as a result of use do not affect the appliance's suitability for normal and correct use. They therefore do not constitute a defect in terms of warranty law.

Description of appliance

General view

1 Control panel

2 Oven door

Control panel

2 1

Overview

Description of appliance

3 4

1 AN/AUS-Button: to switch on, press and hold for longer 2 Display 3 Turning knob with OK button to select a menu option 4 Additional functions key 5 Sensor button to select a cooking category

Display

The information shown in the display varies according to the oven's operating status. If the oven has been switched off, the time of day is shown. If the oven is still hot, a bar appears in the display and shows the residual heat remaining in the oven. When the oven is switched on, the display shows the menu and information about the oven's operating status.

Symbols

Minute Minder

Time of Day

Duration

End Time

Running Time

Oven Temperature

Calculation

Rapid Heat Up

Temperature Display

Description of appliance

Oven layout

1 Top heat and grill elements 2 Oven light 3 Meat probe connector 4 Grease filter 5 Oven light 6 Ring heating element, fan 7 Bottom oven element 8 Side rails, removable

9 Oven levels 10 Rotary spit drive mechanism 11 Smell Filter

Oven accessories

Baking tray

For cakes and biscuits.

3 4 5 6

Drip pan

For baking and roasting or for use as a tray to catch fat.

Shelf

For cookware, cake tins, roasts and grilling food.

Meat probe

The electronic oven controls

For determining exactly how well done pieces of meat are during cooking.

Rotary spit with support

For roasting larger joints of meat and poultry.

The electronic oven controls

Menus and operation

You use the menu to operate the oven. The Main Menu contains:

Main Menu

Auto Cooking

Heating Functions

Cleaning Menu

Basic Settings

Specials

Selecting the menu options

• Turn the knob clockwise to get to the next function.

• Turn the knob anti-clockwise to get to the previous menu option.

Opening the main menu

Press the On/Off button to get to the main menu. The Auto Cooking function is selected by default.

Opening the menu Auto Cooking

Press the On/Off button to get to the main menu. The Auto Cooking function is selected by default.

1. Press the sensor key for the category you want.

2. Use the knob to select the menu or subcategory you want.

3. Follow the instructions in the display.

The electronic oven controls

Selecting a menu option in the menu

1. Select the menu option you want by turning the knob.

2. When the menu option you want is shown in the display, press the OK button to call it up.

"back" at the end of each menu takes you back to the previous menu

Auto Cooking

General

The menu "Auto Cooking" Is divided into five subcategories. Use these categories to select the optimum setting for a variety of dishes. Press the relevant sensor key. The categories are divided into various subcategories and dishes, which are then programmed with the appropriate settings.

Refer to the supplier quick guide for an overview of all the categories and dishes from the Auto Cooking menu. For help on how the dishes have been classified into the various categories, see the supplied Cooking and Baking Overview.

Symbol Category

Baking

Roasting

Convenience

Oven dishes

Pan pizza

Principle

With Auto Cooking , the oven calculates the cooked time needed. Unlike conventional cooking, you do not need to set a type of heat or cooking time. Instead, you simply select the desired food type from the category menu.

" You can use Auto Cooking on one oven level only. Only use the fat filter when roasting! Otherwise the oven cannot calculate an optimal cooking time. To attain optimum results, you should use the recommended cookware and/or accessories. You can find further information in the section Tips, Charts and Advice.

Heating Functions

To manually set Heating Functions and cooking temperature.

Heating Functions

Fan Cooking For baking on up to three levels simultaneously.

Conventional Cooking For baking and roasting on one level

Pizza Setting For baking on one oven level dishes that require

Turbo Grill For roasting larger joints of meat or poultry on

Turbo Grill + Spit Roast Especially for poultry, temperature setting

Economy Grill For grilling flat foods which are placed in the

Economy Grill + Spit Roast For grilling a chicken or small rolled roasts

Dual Grill For grilling flat foods in large quantities and for

Dual Grill + Spit Roast For grilling two chickens or one rolled roast

Bottom Heat For baking cakes with crispy or crusty bases.

Slow Cook For preparing particularly tender, succulent

The electronic oven controls

Set the oven temperatures 20 – 40° lower than Conventional Cooking

more intensive browning and a crispy base. Set the oven temperatures 20 – 40° lower than Conventional Cooking

one level. Also suitable for gratinating and browning.

190-210°C

middle of the rack and for toasting.

toasting.

roasts

Specials

For selecting additional heating functions

Defrost

Drying

Keep Warm

Preserving

Plate Warming

Special functions

The electronic oven controls

Basic Settings

To change different oven Basic Settings.

Set Time of Day To set current time on the clock

Time Indication When on, the time of day is displayed when the

Display Contrast Adjusts the display

Display Brightness Adjusts the display

Set Language

Buzzer Volume

Key Tones Switches key tones on or off

Alarm/Error Tones Switches alarm tones on or off

Smell Filter Smell Filter Activating or deactivating

Calibration Adapts oven to the kitchen environment, e. g.

Service Indicates the version of the software, the con-

Factory Settings Resets all basic settings to the original factory

Basic Settings

oven is switched off When off, the display switches itself off completely

after moving house

figuration and the period of operation

settings

Cleaning Menu

Pyrolytic cleaning and other functions.

Cleaning menu

Pyrolytic To clean the oven using pyrolytic cleaning

Cleaning Assistant Reminds you of various points that should be

Cleaning Reminder Recognises when pyrolytic cleaning is required

noted prior to pyrolytic cleaning. Can be switched on or off.

and alerts the user to this fact. Can be switched on or off.

Additional Functions

You can use the Additional Functions key to set the available Additional Functions.

Additional functions menu

Minute Minder

Key Lock

Duration / End Time

Meatprobe

Operation

Prior to first use

Before using the oven, first of all the language, then the contrast of the display, the brightness and the current time of day must be set.

When you switch on the oven for the first time, LANGUAGE appears on the display after a few seconds.

1. Use the Selector to select the desired setting

2. Then press the OK key to confirm your setting.

Make the additional required settings in the same way.

Adapts oven to the kitchen environment.

For best results with Auto Cooking , the oven must be adapted to the kitchen environment. This process is called Calibration and takes around 4 hours.

If you only want to use the oven for conventional cooking it does not need to be calibrated.

Please remember the following about Calibration

•

The Calibration must be used in room temperatures below 35°C.

•

Installing the oven for the Calibration in its final location.

• Connecting the oven for the Calibration to the power supply.

• Before Calibration, you must remove the grease filter.

• If you are changing location, power supply or one of the listed points, you must recali-

brate the oven so the Auto Cooking delivers best results.

You can find the calibration under Basic Settings, Calibration. After calibration the appliance is ready for use as soon as it has cooled down.

Initial cleaning

The oven should be thoroughly cleaned prior to first use. Wash all parts and the interior with detergent solution

Do not use sharp, abrasive cleaning solutions. These could damage the surface.

Switching on and off

– Press the ON/OFF button.

If the oven has been switched off, the time of day is shown. If the oven is still hot, a bar appears in the display and shows the residual heat remaining in the oven.

Auto cooking

1. Switch the oven on.

2. Select the main category you want by using the sensor buttons. – The available dishes or sub-categories are shown.

3. Select the category you want or the dish directly.

4. Follow the instructions in the display.

Operation

Example: Calzone - frozen

1. Switch the oven on.

2. Select the sensor field for Pizza. – Four different types of pizza are

shown.

3. Select Frozen Pizza by turning the knob. Then press the OK button to call up the

sub-category. – You can choose from three different

types of frozen pizza.

5. Select Calzone by turning the knob.

6. Then press the OK button to call up this dish.

7. Follow the instructions in the display.

When the calculated time for the dish has elapsed, you can prolong the cooking process for up to 5 minutes if it needs more time.

Conventional baking and roasting

1. Switch the oven on.

2. With the knob and the OK button, select Heating Functions.

– The oven functions are shown.

3. Select the function you want.

– A suggested temperature is shown

in the display.

4. Turn the knob to change the temper-

ature, if required.

5. Then press the OK button to confirm the oven temperature.

6. Press the additional functions button.

– The cooking time is shown in the

display.

7. Turn the knob to set the cooking time.

8. Then press the OK button to confirm

the cooking time. – The end time indicator flashes.

9. Turn the knob to set the end time.

10. Then press the OK button to confirm the end time.

– The oven begins to heat or automatically turns itself on and off at the time you set.

When the set time has elapsed you can prolong the oven function with the set temperature for up to 5 minutes if it needs more time.

Changing the temperature during the cooking process

1. To change the temperature later on, turn the knob to the right.

2. The frame within the display only marks the right-hand section in which the current temperature is shown. Confirm by pressing OK.

Operation

3. The triangle next to the current temperature flashes. You can set the new temperature you want only by turning the knob.

4. Confirm the new temperature by pressing OK.

The set oven function continues at the new temperature. Changing the oven function during the cooking process.

1. To change the oven function later on, turn the knob to the left.

2. The frame within the display only marks the left-hand section in which the current oven function is shown. Confirm by pressing OK.

3. Set the new oven function by turning the knob.

4. Confirm the new oven function by pressing OK.

The new oven function starts at the corresponding suggested temperature. You can change this temperature.

Meatprobe

When using the meat probe, the oven automatically switches itself off once it has reached the core temperature.

Caution: Only the meat probe supplied may be used! If replacing, please use only original spare parts

1. Switch the oven on.

2. Insert the meat probe into the meat. The tip of the meat probe must be placed in the middle of the piece of meat.

3. Insert the meat probe plug into the socket on the side wall of the oven as far as it will go.

– A suggestion for the core tempera-

ture appears in the display.

60 C

Meatprobe

1/2

4. Set the core temperature you want by turning the knob.

5. Then press the OK button to confirm the temperature.

6. Set the oven function and the oven temperature you want.

The core temperature is displayed from 30°C

Within a few minutes, a provisional end time is calculated, at which the core temperature set will be reached. This time is constantly recalculated and updated in the display. For the system to work it is essential that the meat probe is in the meat and in the socket at the start of the cooking process and that it is not removed during the cooking process.

Operation

Changing the core temperature during the cooking process – Repeatedly press the additional function button until the set core temperature appears

in the display.

– If necessary, change the temperature using the knob.

Setting the countdown timer

You can set an alarm by using the function Minute Minder.

1. Press the additional functions button repeatedly until Countdown Timer appears in the display.

2. Turn the knob to set the time you want the alarm to sound.

3. Then press the OK button and the time will count down.

Press the OK button to switch off the alarm.

Key Lock

You can turn Key Lock on and off using the additional functions button. The activated key lock prevents inadvertent changing of settings.

1. Press the additional functions button repeatedly until KEY LOCK appears in the display.

2. Follow the instructions in the display.

00:00:00

Minute Minder

1/1

Switch-on lock

The appliance can be locked using the "switch-on lock" function. This can prevent e. g. children switching on the appliance. No function may be selected. Close the door if necessary.

Switching the switch-on lock on/off

• " Backen" Press

Appliance locked appears briefly in the display.

and Pizza together until you hear a signal.

Automatic switch-off of the oven

If the oven not switched off after a certain time, or if the temperature is not modified, it switches off automatically.

The oven automatically switches itself off when the operating temperature is:

• 30 - 120° C after 12.5 hours

• 120 - 200° C after 8.5 hours

• 200 - 250° C after 5.5 hours

• 250 - max °C after 3.0 hours

Using the appliance after automatic switch-off

Press the OK button on the knob

Operation

Smell Filter

The Smell Filter is activated in the "Basic Settings" menu. If the Smell Filter is switched on, it will start automatically during baking and roasting. When the relevant process is complete, the Smell Filter automatically switches itself off again.

The filter is deactivated when the appliance is set to the factory settings. If the Smell Filter is switched on, the oven uses more energy. Even if the Smell Filter is switched off, it will switch on after every 100 hours of operation during baking or roasting in order to clean itself. The Smell Filter operates during pyrolytic cleaning of the oven, even if it is switched off at the time of cleaning.

1. Select "Basic Settings" from the Main menu.

2. Then press the OK key to call up this menu.

3. Use the Selector to select "Smell Filter".

4. Then press the OK key to make the changes.

5. Use the Selector to activate (ON) or deactivate (OFF) the filter.

6. Press the OK key to confirm the setting.

The setting is changed.

Inserting the grill rack, baking tray, and roasting pan

To increase shelf runner safety, all sliding components have a small curved indentation at the bottom on the right and left-hand edge.

Always insert sliding components so that this " indentation is at the back of the oven interior. This indentation is also important for preventing the sliding components from tipping.

Inserting the baking tray or roasting pan:

Slide the baking tray or drip pan between the guide bars of the selected oven level.

Inserting the oven shelf:

Insert the oven shelf with the feet pointing downwards. Slide the shelf between the guide bars of the selected oven level.

Operation

The high rim around the oven shelf is an additional device to prevent cookware from slipping off.

Inserting the grill shelf and roasting pan together:

Place the oven shelf on the roasting pan. Slide the roasting pan between the guide bars of the selected oven level.

Inserting/Removing the Grease Filter

Only insert the fat filter when roasting in order to protect the rear element from spitting fat.

Inserting the grease filter

Hold the fat filter by the handle and insert the two retainers into the rear oven wall from top to bottom (fan opening).

Remove the grease filter

Hold the grease filter by the tab, unhook it and lift out.

option

Attaching the food to be grilled

1. Place a fork on the rotary spit.

2. Slide the item to be grilled and the second fork onto the spit.

Place the item to be grilled in the middle.

3. Screw on the fork.

Inserting the rotary spit

1. Insert the drip pan into the lowest oven level.

2. Insert the rotary spit covering into the 5th level from the bottom at the front right.

3. Attach the handle and press the retainer down.

The clip must be kept pressed down to keep the handle secure on the rotary spit.

4. Press the end of the spit into the drive socket on the left-hand side of the rear wall.

5. Place the groove in front of the handle on the notch provided on the rotary spit support.

6. Remove the handle.

7. Set the heating function and desired temperature in accordance with the instructions provided in the rotary spit table.

Make sure that the rotary spit turns.

Operation

Removing the rotary spit

To remove the rotary spit, make sure the handle is attached again. The rotary spit is very hot when the cooking process has ended!

Tips, charts and information

When taking it out, there is the risk of burns!

Turn off the appliance.

Tips, charts and information

You can use this appliance to cook manually, conventionally, or with the automatic function. Choosing the right oven level is important for both methods. To help, the numbers of the oven levels are marked on the inside of the oven door. The charts for conventional baking and roasting are for your reference only. As the new appliance may have a different baking and roasting pattern to other appliances, you may need to adjust your usual settings (temperatures, cooking times) with the help of the recommendations.

Auto Cooking

To attain optimum results, you should use the recommended cookware or accessories.

Baking, Home Baking

Sponge Cake

Type Ovenware Accessories Notes

- Spring form Shelf Batter with no or very

Flat sponges, Swiss roll conventional

Yeast Plait

Type Ovenware Accessories Notes

- - Tray 1 piece

Cake Tray

Type Ovenware Accessories Notes

- - Tray Tray completely filled,

Cake Tin

Type Ovenware Accessories Notes

- cake tin Shelf Various types of cake

Shortcrust bases conventional

little fat content

no roasting tray

which are baked in tins.

Tips, charts and information

Yeast Plait

Type Ovenware Accessories Notes

- - Tray Tray completely filled, no roasting tray

Tarte

Type Ovenware Accessories Notes

Tart tin

Spring form

Shelf Cakes with minimal

topping, e.g. jam

Pie/Quiche

Type Ovenware Accessories Notes

- Quiche tin

Spring form Tart tin

Shelf

Strudel

Type Ovenware Accessories Notes

- - Tray 1 piece, Strudel: Dough with moist filling. Stollen: Dough with dried fruit

Fruit Cake

Type Ovenware Accessories Notes

- Square tin

Spring form

Shelf with dried fruit

Pastry

Type Ovenware Accessories Notes

Sweet - Tray multiple pieces

Salty - Tray multiple pieces

Bake cookies and biscuits the traditional way!

Bread

Type Ovenware Accessories Notes

Tin Bread tin Shelf 1 tin

Tray - Tray 1 tin

Flat Bread - Tray 1 or 2 pieces

(e.g. baguettes)

Tips, charts and information

Rolls

Type Ovenware Accessories Notes

Savoury - Tray multiple small pieces

Sweet - Tray multiple small pieces,

Cake Special

Type Ovenware Accessories Notes

Victoria Sponge Cake - - English speciality

Roasting

Always insert the fat filter when roasting in order to minimise soiling of the oven!

Beef/Lamb/Game

Type Ovenware Accessories Notes

Top Side Beef Roasting tin - Select the desired de-

Scandinavian Beef Roasting tin - Select the desired de-

Roast Beef Roasting tin - Set the weight

Lamb Joint, medium Roasting tin - -

Roast Lamb Roasting tin - Set the weight

Loin of game Roasting tin - -

Roast Game Roasting tin - Set the weight

Poultry/Fish

Type Ovenware Accessories Notes

Boned Poultry Roasting tin - -

Chicken, whole Roasting tin - Set the weight

Turkey, whole Roasting tin - Set the weight

Duck, whole Roasting tin - Set the weight

Goose, whole Roasting tin - Set the weight

Whole Fish Roasting tin - -

Pork/Veal

Type Ovenware Accessories Notes

Loin of pork Roasting tin - -

Roast Pork Roasting tin - Set the weight

e.g. sweet yeast rolls

gree of cooking (Rare, Medium or Well-done)

Type Ovenware Accessories Notes

Back of Veal Roasting tin - -

Roast Veal Roasting tin - Set the weight

Convenience food

Frozen Potato Types

Type Ovenware Accessories Notes

- - Tray Various potato con-

Frozen Pastry

Type Ovenware Accessories Notes

Sweet - Tray multiple small pieces

Salty - Tray multiple small pieces

Chilled Pastry

Type Ovenware Accessories Notes

Sweet - Tray multiple small pieces

Salty - Tray multiple small pieces

Rolls/Baguette

Type Ovenware Accessories Notes

Frozen - Tray multiple small pieces

Not frozen - Tray -

Frozen Fish/Meat

Type Ovenware Accessories Notes

Fish au Gratin Heat-resistant dish Shelf -

Breaded Fish/Meat - Tray multiple small pieces,

Frozen Pie/Quiche

Type Ovenware Accessories Notes

- - Tray -

Potato Dishes

Type Ovenware Accessories Notes

Frozen Heat-resistant dish Shelf -

Fresh Heat-resistant dish Shelf -

Tips, charts and information

venience foods, chips, wedges, croquettes...

e.g. fish fingers, cordon bleu

Tips, charts and information

Pasta Dishes

Type Ovenware Accessories Notes

Frozen Heat-resistant dish Shelf -

Fresh Heat-resistant dish Shelf -

Rice Dishes

Type Ovenware Accessories Notes

Frozen Heat-resistant dish Shelf pre-cooked rice

Fresh Heat-resistant dish Shelf pre-cooked rice

Vegetable Dishes

Type Ovenware Accessories Notes

Frozen Heat-resistant dish Shelf -

Fresh Heat-resistant dish Shelf -

Frozen Strudel

Type Ovenware Accessories Notes

- - Tray 1 or 2 pieces

Snack

Type Ovenware Accessories Notes

- - Tray multiple small pieces

Oven dishes, home-made

Meat/Fish Casserole

Type Ovenware Accessories Notes

High Casserole Heat-resistant dish Shelf > 4 cm

Flat Casserole Heat-resistant dish Shelf < 4 cm

Potato Dishes

Type Ovenware Accessories Notes

- Heat-resistant dish Shelf -

Pasta Dishes

Type Ovenware Accessories Notes

- Heat-resistant dish Shelf Sprinkle with Parme-

Vegetable Dishes

Type Ovenware Accessories Notes

- Heat-resistant dish Shelf -

san cheese towards the end of the baking time

Rice Dishes

- Heat-resistant dish Shelf pre-cooked rice

Sweet Dishes

- Heat-resistant dish Shelf -

Soufflé

One large tin Heat-resistant dish Shelf -

Small Tins In small tins Shelf multiple tins

Au Gratin

- Heat-resistant dish Shelf Sprinkle with Parme-

Pizza

Fresh Pizza

Thick - Tray Thick crust, lots of top-

Thin - Tray Thin crust, little top-

Calzone - Tray

Frozen Pizza

Parbaked - Tray Pizza base, partially

Not parbaked - Tray without extra topping

Calzone - Tray -

Fresh Pizza parbaked

- - Tray -

Tips, charts and information

Type Ovenware Accessories Notes

san cheese towards the end of the baking time.

Type Ovenware Accessories Notes

ping (American style)

ping (Italian style)

Type Ovenware Accessories Notes

baked, without additional topping

Type Ovenware Accessories Notes

Tips, charts and information

Pizza Snack

Type Ovenware Accessories Notes

- - Tray -

Manual baking and roasting

In case you wish to prepare meals with manual settings, the following tables and tips provide useful information. In the tables you will find a selection of dishes with the appropriate settings.

Baking

Oven levels

• Baking with Conventional Cooking is possible on one oven level.

• With Fan Cooking you can use up to three baking trays at the same time: 1 baking tray: e.g. oven level 3

1 baking tin: e.g. oven level 1

2 baking trays: e.g. oven levels 1 and 3

3 baking trays: Oven levels 1, 3 and 5

Tips, charts and information

Baking tins

• For best Conventional Cooking results, use tins made from dark metal and coated.

• For Fan Cooking you can also use light metal tins. General instructions

• Insert the tray with the bevel at the front

• With Conventional Cooking or Fan Cooking you can also bake with two cake tins next to one another on the oven shelf at the same time. This does not significantly increase the baking time.

If using frozen food, the inserted trays can warp during the cooking process. This is due to the large temperature difference between the frozen food and the oven temperature. After the trays have cooled, the deformation disappears.

Notes on the baking charts

• The following charts give the required temperature settings, cooking times and oven levels for a selection of typical dishes.

• Temperatures and baking times are for guidance only, as these will depend on the consistency of the mixture, the quantity and the type of baking tin.

• We recommend setting the oven to a lower temperature for the first time and only setting a higher temperature when required, e.g. If the baking is taking too long, choose a higher temperature setting.

• If you cannot find the settings for a particular recipe of your own, look for a similar one.

• If baking cakes on baking trays or in tins on more than one level, baking time can be extended by 10-15 minutes.

• Pizzas, fruit flans, etc.) are baked on one level.

•

Cakes and pastries at different heights may brown at an uneven rate at first. You should not change the temperature setting if this occurs . Different rates of browning even out as baking progresses.

Unless otherwise stated, the values given in the charts assume that cooking is started with the oven cold.

Baking charts Baking in tins

Type of baking Oven function Level Temperature

(°C)

Ring cake or brioche Fan Cooking 1 150 - 160 0:50 - 1:10

Madeira cake/Fruit cakes Fan Cooking 1 140 - 160 1:10 - 1:30

Sponge cake Fan Cooking 1 140 1:10 - 1:30

Time (h:min)

Tips, charts and information

Type of baking Oven function Level Temperature

Time (h:min)

(°C)

Sponge cake Conventional

1 160 0:25 - 0:40

Cooking

Flan base - shortcrust pastry Fan Cooking 3

170-180

0:10 - 0:25

Flan base - sponge mixture Fan Cooking 3 150 - 170 0:20 - 0:25

Apple tart (covered) Conventional

1 170 - 190 0:50 - 1:00

Cooking

Apple cake with lid (2 tins, Ø

Fan Cooking 1 160 1:10 - 1:30

20 cm, placed diagonally)

Apple cake with lid (2 tins, Ø 20 cm, placed diagonally)

Conventional Cooking

1 180 1:30 - 1:30

Savoury flan (e.g. quiche) Fan Cooking 1 160 - 180 0:30 - 1:10

Cheesecake Conventional

1 170 - 190 1:00 - 1:30

Cooking

1) Pre-heat oven

Baking on one oven level

Type of baking Oven function Level Temperature

Plaited bread/bread crown Conventional Cook-

3 170 - 190 0:30 - 0:40

ing

Christmas stollen Conventional Cook-

160 - 180

ing

Bread (rye bread)

-first

Conventional Cooking

230 160 - 180

-then

Cream puffs/éclairs Conventional Cook-

160 - 170

ing

Swiss Roll Conventional Cook-

180 - 200

ing

Cake with crumble topping

Fan Cooking 3 150 - 160 0:20 - 0:40

(dry)

Buttered almond cake/ sugar cakes

Fruit flan (made with yeast dough/sponge mixture)

Fruit flan (shortcrust pas-

Conventional Cook-

190 - 210

ing

Fan Cooking 3 150 0:35 - 0:50

Conventional Cook-

ing

3 170 0:35 - 0:50

Fan Cooking 3 160 - 170 0:40 - 1:20

try)

(°C)

Time (h:min)

0:40 - 1:00

0:25 0:30 - 1:00

0:15 - 0:30

0:10 - 0:20

0:15 - 0:30

Tips, charts and information

Type of baking Oven function Level Temperature

Time (h:min)

(°C)

Yeast cakes with delicate toppings (e.g. quark,

Conventional Cooking

160 - 180

0:40 - 1:20

cream, custard)

Pizza (with a lot of top-

ping)

Fan Cooking 1

Pizza (thin crust) Fan Cooking 1

180 - 200

200 - 220

0:30 - 1:00

0:10 - 0:25

Flat bread Fan Cooking 1 200 - 220 0:08 - 0:15

Swiss flaky pastry tarts Fan Cooking 1 180 - 200 0:35 - 0:50

Short pastry biscuits Fan Cooking 3 150 - 160 0:06 - 0:20

Viennese whirls Fan Cooking 3 140 0:20 - 0:30

Viennese whirls Conventional Cook-

160

0:20 - 0:30

ing

Biscuits made with sponge

Fan Cooking 3 150 - 160 0:15 - 0:20

mixture

Pastries made with egg

Fan Cooking 3 80 - 100 2:00 - 2:30

white, meringues

Macaroons Fan Cooking 3 100 - 120 0:30 - 0:60

Small raised pastries Fan Cooking 3 150 - 160 0:20 - 0:40

Puff pastries Fan Cooking 3

Rolls Fan Cooking 3

Rolls Conventional Cook-

170 -180

160

180

0:20 - 0:30

0:20 - 0:35

ing

Small cakes (20 per tray) Fan Cooking 3

Small cakes (20 per tray) Conventional Cook-

140

170

0:20 - 0:30

ing

1) Use drip pan/roasting pan

Baking on several oven levels with the oven function "Fan Cooking"

Type of baking 2 levels 3 levels Temperature (°C) Time (h:min)

Cream puffs/éclairs 1 / 4 ---

Cake with crumble

1 / 3 --- 140 - 160 0:30 - 0:60

160 - 180

topping (dry)

Short pastry biscuits 1 / 3 1 / 3 /5 150 - 160 0:15 - 0:35

Viennese whirls 1 / 3 1 / 3 /5 140 0:20 - 0:60

Biscuits made with

1 / 3 --- 160 - 170 0:25 - 0:40

sponge mixture

0:35 - 0:60

Tips, charts and information

Type of baking 2 levels 3 levels Temperature (°C) Time (h:min)

Pastries made with egg white, meringues

Macaroons 1 / 3 --- 100 - 120 0:40 - 1:20

Small raised pastries 1 / 3 --- 160 - 170 0:30 - 0:60

Puff pastries 1 / 3 --- 170 - 180 0:30 - 0:50

Rolls 1 /4 --- 160 0:30 - 0:45

Small cakes (20 per tray)

1) Pre-heat oven

1 / 3 --- 80 - 100 2:10 - 2:50

1 /4 ---

140

0:25 - 0:40

Tips on baking

Baking results Possible cause Remedy

Cake is not browned enough at the bottom

Cake sinks (becomes soggy, lumpy, streaky)

Baking time too short Set a longer baking time

Too much liquid in the mix-

Cake is too dry Temperature too low Use a higher oven temperature setting.

Baking time too long Reduce baking time

Cake browns unevenly

Cake mixture/dough is un-

Grease filter is inserted Remove the grease filter

Cake is not done within the baking time given

Grease filter is inserted Remove the grease filter

Wrong oven level Place cake lower in the oven

Oven temperature too high Use a slightly lower temperature setting

Baking times cannot be reduced by setting higher temperatures

ture

Oven temperature too high and baking time too short

evenly distributed

Temperature too low Use a slightly higher oven temperature

Use less liquid. Pay attention to mixing times, especially if using mixing machines

Use a lower oven temperature setting and increase baking time

Spread the mixture/dough evenly on the baking tray

setting

Roasting

Insert the grease filter when roasting!

Ovenware for roasting

• Any heat-resistant ovenware is suitable to use for roasting. (Please follow the manufacturer's instructions.)

•

You can place large roasts directly in the roasting tray or on the shelf with the

roasting tray underneath.

Tips, charts and information

•

We recommend roasting leaner cuts in a roasting pan with a lid. The meat will be

more succulent.

• All types of meat which are supposed be browned or form a crust or crackling can be roasted in a roasting pan without a lid.

The information given in the following charts is for guidance only.

•

We recommend meat and fish weighing 1 kg or more for roasting in the oven.

• To prevent escaping meat juices or fat from burning on to the pan, we recommend placing some liquid in the roasting cookware.

• If required, turn the roast after 1/2 - 2/3 of the cooking time.

• Use the cooking juices to baste large roasts and poultry several times during the cooking time. This will give better roasting results.

Beef

Type of meat Quantity Oven function Level Temperature

Braising steak 1 - 1.5kg Conventional Cook-

Roast beef or fillet per cm of

- rare per cm of thickness

- medium per cm of thickness

- well-done per cm of thickness

1) Pre-heat oven

ing

Turbo Grill 1

Turbo Grill 1 180 - 190 0:06 - 0:08

Turbo Grill 1 170 - 180 0:08 - 0:10

1 200 - 250 2:00 - 2:30

(°C)

190 - 200

Time (h:min)

thickness

0:05 - 0:06

Pork

Type of meat Quantity Oven function Level Temperature

Shoulder, neck, ham

Chop, smoked pork chop

Meatloaf 750 g - 1kgTurbo Grill 1 160 - 170 0:45 - 1:00

1 - 1.5kg Turbo Grill 1 160 - 180 1:30 - 2:00

1 - 1.5kg Turbo Grill 1 170 - 180 1:00 - 1:30

(°C)

Time (h:min)

Knuckle of pork (pre-cooked)

750 g - 1kgTurbo Grill 1 150 - 170 1:30 - 2:00

Veal

Type of meat Quantity Oven function Level Temperature

(°C)

Roast veal 1 kg Turbo Grill 1 160 - 180 1:30 - 2:00

Time (h:min)

Tips, charts and information

Type of meat Quantity Oven function Level Temperature

(°C)

Knuckle of veal 1.5 - 2 kg Turbo Grill 1 160 - 180 2:00 - 2:30

Time (h:min)

Lamb

Type of meat Quantity Oven function Level Temperature

Roast lamb, leg of lamb

Saddle of lamb 1 - 1,5 kg Turbo Grill 1 160 - 180 1:00 - 1:30

1 - 1,5 kg Turbo Grill 1 150 - 170 1:15 - 2:00

(°C)

Time (h:min)

Game

Type of meat Quantity Oven function Level Temperature

Saddle of hare, leg of hare

Leg of venison 1.5 - 2 kg Conventional Cooking 1 210 - 220 1:15 - 1:45

Leg of venison 1.5 - 2 kg Conventional Cooking 1 200 - 210 1:30 - 2:15

up to 1 kg Conventional Cooking 3

(°C)

220 - 250

Time (h:min)

0:25 - 0:40

Poultry

Type of meat Quantity Oven function Level Temperature

Poultry pieces per

200-250 g

Half chicken per

400-500 g

Chicken, poulard 1 - 1,5 kg Turbo Grill 1 190 - 210 0:45 - 1:15

Duck 1.5 - 2 kg Turbo Grill 1 180 - 200 1:15 - 1:45

Goose 3,5 - 5 kg Turbo Grill 1 160 - 180 2:30 - 3:30

Turkey 2,5 - 3,5kgTurbo Grill 1 160 - 180 1:45 - 2:30

Turbo Grill 1 200 - 220 0:35 - 0:50

Turbo Grill 1 190 - 210 0:35 - 0:50

(°C)

Time (h:min)

Turkey 4 - 6 kg Turbo Grill 1 140 - 160 2:30 - 4:00

Fish (steamed)

Type of meat Quantity Oven function Level Temperature

Fish, whole 1 - 1,5 kg Conventional

Cooking

1 210 - 220 0:45 - 1:15

(°C)

Time (h:min)

Meat probe chart

Food to be cooked Core temperature

Beef

Tips, charts and information

Food to be cooked Core temperature

Roast or fillet, rare medium well done

Pork

Shoulder of pork, ham joint, neck 80 - 82 °C

Chop (loin), smoked pork chop 75 - 80 °C

Meatloaf 75 - 80 °C

Veal

Roast veal 75 - 80 °C

Knuckle of veal 85 - 90 °C

Mutton / Lamb

Leg of mutton 80 - 85 °C

Saddle of mutton 80 - 85 °C

Roast lamb, leg of lamb 75 - 80 °C

Game

Saddle of hare 70 - 75 °C

Leg of hare 70 - 75 °C

Whole hare 70 - 75 °C

Saddle of venison 70 - 75 °C

Leg of venison 70 - 75 °C

45 - 50 °C 60 - 65 °C 75 - 80 °C

Grilling

Heating function: Economy Grill or Dual Grill with maximum temperature setting

Important: Always grill with the oven door closed.

Always pre-heat the empty oven for 5 minutes using the grilling function.

•

To grill, insert the shelf into the recommended oven level.

•

Always place the roasting tray in the 1st oven level from the bottom.

• The grilling times are guidelines.

• Grilling is particularly suitable for flat pieces of meat or fish.

Grilling Table

Food to be grilled Level

Rissoles 4 8-10 mins. 6 - 8 mins.

Pork fillet 4 10-12 mins. 6 - 10 mins.

1st side 2nd side

Grilling time

Tips, charts and information

Food to be grilled Level

Sausages 4 8-10 mins. 6 - 8 mins.

Fillet steaks, veal steaks 4 6-7 mins. 5- 6Min.

Fillet of beef, roast beef (approx. 1 kg)

Toast 3 4-6 mins. 3-5 mins.

Toast with topping 3 6-8 mins. ---

3 10-12 mins. 10-12 mins.

1st side 2nd side

Grilling time

Rotary spit

Dish

1 Chicken approx. 1 kg Grill + Spit Roast 240 1:00 - 1:10

2 Chicken per 1 kg Dual Grill + Spit

1 Duck 1.5 - 2 kg Grill + Spit Roast 240 1:20 - 1:40

Rolled Pork Roast 1 Grill + Spit Roast 240 1:45 - 2:15

Pork Knuckle (pre-cooked for 1/2 hour)

Quantity

1 - 1.3 kg Grill + Spit Roast 240 2:00 - 2:30

Function

Roast

Temperature

240 1:15 - 1:20

Grilling time

h:min

Low temperature cooking

With Slow Cook the meat becomes beautifully tender and remains particularly succulent. We recommend this function for tender, lean pieces of meat and fish. Slow Cook is not suitable for pot roasts or fatty pork roasts. We recommend 120°C for smaller pieces of meat, e.g. steaks. We recommend 150°C for larger pieces of meat, e.g. fillet of beef.

When using the heating function Slow Cook always cook dishes uncovered without a lid.

1. Sea r t he me at t o b e r oa sted in a p an on eac h s id e f or 1-2 m in s. at ve ry hi gh te mp eratu re .

2. Place meat in a roasting dish or directly on the oven shelf with the tray underneath to catch the fat.

3. Place it in the oven. Select heating function Slow Cook. If required, use the selector to select 150°C and cook until ready (see table).

Chart Slow Cook

Food to be cooked Weight

(g)

English roast beef 1000 - 1500 150 °C 1 90 - 110

Beef filet 1000 - 1500 150 °C 3 90 - 110

Roast veal 1000 - 1500 150 °C 1 100 - 120

Setting Level Total time

(minutes)

Cleaning and servicing

Food to be cooked Weight

(g)

Steak 200 - 300 120 °C 3 20 - 30

Setting Level Total time

Cleaning and servicing

WARNING!

When cleaning, the appliance must be switched off and cooled down.

WARNING!

Cleaning the appliance with a steam jet or high-pressure cleaner is prohibited for safety reasons.

CAUTION:

Do not use scourers, sharp tools or rinsing devices to clean the appliance. Do not use scourers or metal scrapers to clean the glass oven door, as these could scratch the surface. This could cause the glass to shatter.

The outside of the appliance

• Wipe the front of the appliance with a soft cloth and a solution of warm water and

washing-up liquid.

• For metal surfaces use standard commercial cleaning products.

• Please do not use any scouring agents or abrasive sponges.

Clean the oven after every use. This is the easiest way to remove dirt which then cannot burn on.

Inside of the oven

1. When the oven door is opened, the oven light bulb automatically illuminates.

2. Wipe out the oven after every use with a solution of washing-up liquid and then dry it.

Remove stubborn dirt with special oven cleaners.

(minutes)

Important: When using oven sprays, please follow the manufacturer's instructions exactly.

Accessories

Clean and dry the oven accessories (shelf, tray, roasting pan, etc.) after each use. Soak the items to make cleaning easier.

Grease filter

1. Clean the grease filter in hot water and washing-up liquid or in the dishwasher.

2. Heavy burnt-on dirt soiling can be removed by boiling the filter in a little water with 2-3 tablespoons of dishwasher detergent.

Cleaning and servicing

Pyrolytic cleaning

Use this function to pyrolytically clean the oven. Selecting the function in the menu " Cleaning Menu".

WARNING!

The oven will become very hot during Pyrolysis! When a certain temperature is reached, the door is automatically locked.

Do not open the door when the oven is heating up as this will cause the process to abort. As soon as a certain temperature is reached, the oven door is automatically locked.

Cleaning Assistant

If the function " Cleaning Assistant" is active in the menu "Cleaning Menu" and you press Start Pyrolytic, the display tells you what you need to do before the cleaning process starts.

Cleaning Reminder

When the "CLEANING REMINDER" in the "Cleaning Menu" menu is switched on, an appropriate message is shown in the display, when it is time for the oven to be cleaned.

Shelf supports

The left and right-hand side rails can be removed from the oven, so that the side walls of the oven can be cleaned.

Removing the slide-in racks

First pull the front of the rails away from the oven wall (1),

and then unhook them at the back (2).

Inserting the side rails

Attention! The rounded ends of the guide bars must point to the front!

To insert, first insert the rails in the holes at the back (1) and then lower into position at the front and press into place (2).

Oven light

WARNING!

Risk of electric shock! Before replacing the oven light bulb:

Cleaning and servicing

– Switch off the oven! – Take the fuses out of the fuse box or switch off.

To protect the oven light bulb and the glass cover, lay a cloth on the floor of the oven.

Replacing the oven light bulb/Cleaning the glass cover

1. Take off the glass cover by turning it anticlockwise and clean it.

2. If necessary:

Replace with a 40 Watt, 230V, 300°C heat-resistant oven light bulb .

3. Re-fit the glass cover.

Replacing the side oven light bulb / Cleaning the glass cover

1. Take out the left side rail.

Cleaning and servicing

2. Remove the glass cover by using a narrow, blunt object (e.g. a teaspoon) and clean it.

3. If necessary: Replace oven halogen light bulb.

Order a replacement bulb from customer services (see "Service / Customer Service")

Always take hold of the halogen light bulb with a cloth to avoid burning on grease residues.

4. Re-fit the glass cover.

5. Replace the side rails.

Oven door

You can unhinge the oven door to clean it.

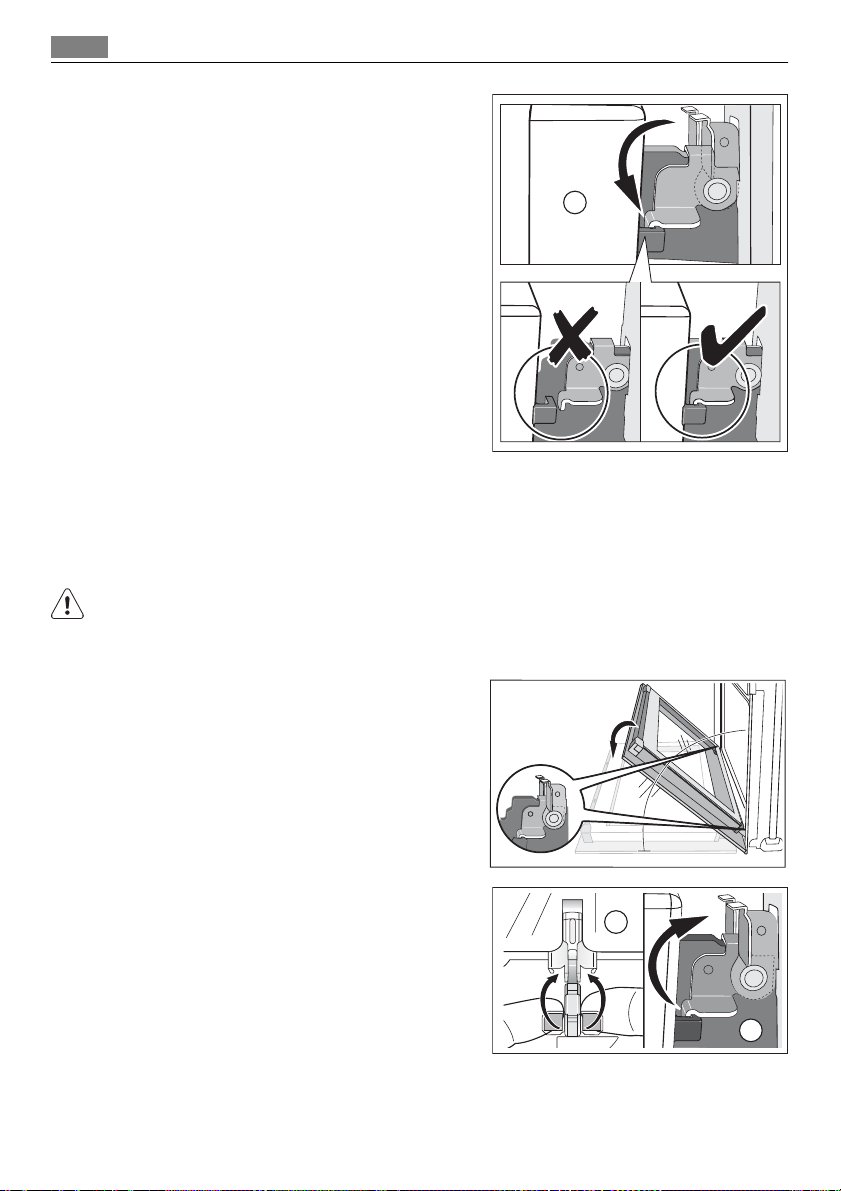

Removing the oven door from its hinges

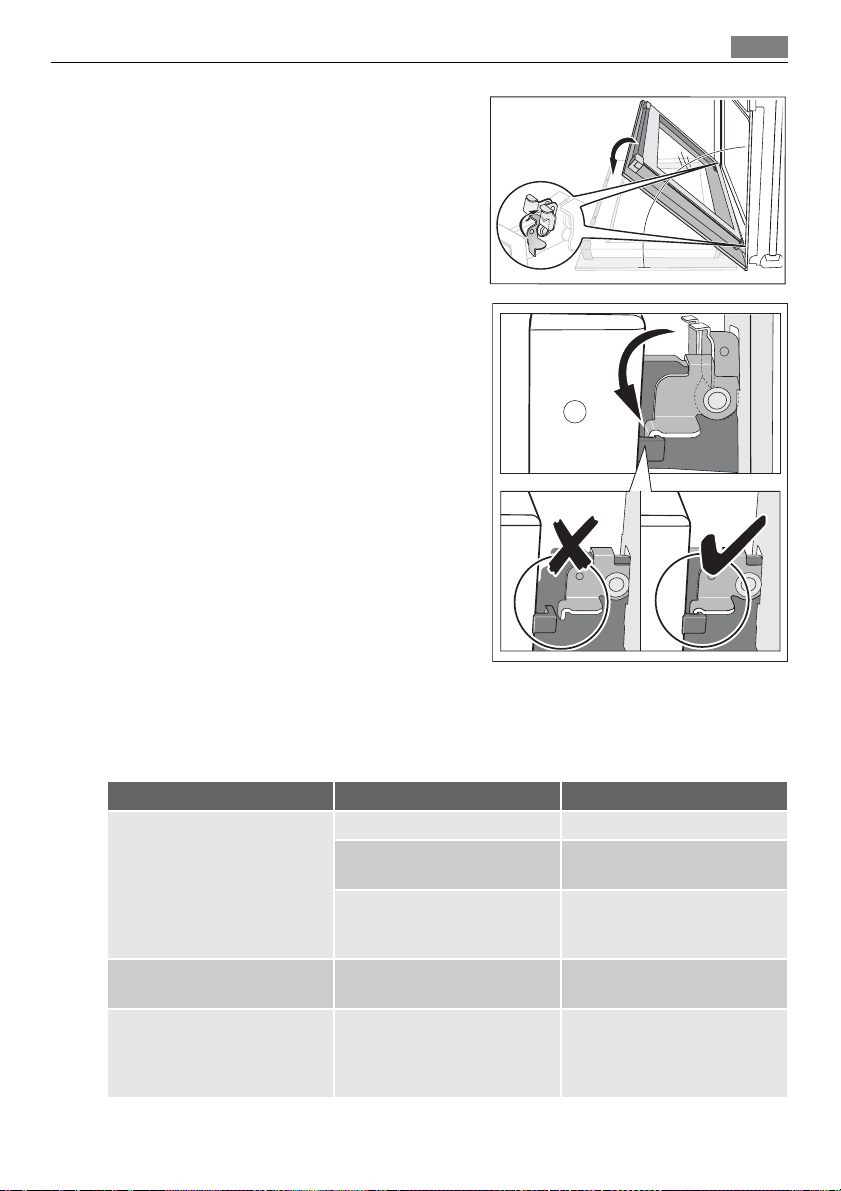

1. Open the oven door as far as it will go.

Undo the clamping levers (A) on both door hinges fully.

90°

3. Close the oven door as far as the first position (approx. 45°).

4. Take hold of the sides of the oven door with both hands and pull the door up and diagonally away from the oven (cau- tion: The door is heavy).

Lay the oven door with the outer side facing downwards on something soft and level, for example, a blanket in order to prevent scratches.

Fitting the oven door

1. From the handle side take hold of the oven door with a hand on each side and hold at an angle of approx. 45°. Align the slots on the bottom of the oven door with the oven tracks.

Let the door slide until it clicks in place.

Cleaning and servicing

45°

2. Open the oven door as far as it will go.

90°

Cleaning and servicing

3. Click the clamping levers (A) on both door tracks back to their original position.

4. Close the oven door.

Oven door glass

The oven door is fitted with four panels of glass mounted one behind the other. The inner glass panels can be removed for cleaning.

Attention: Rough handling, especially around the edges of the front panel, can cause the glass to break.

Removing door glass panels

1. Open the oven door as far as it will go.

Undo the clamping levers (A) on both door hinges fully.

90°

3. Close the oven door as far as the first position (approx. 45°).

4. Take hold of the door cover (B) at the top on both sides and push inwards to release the clip lock. Then remove the door trim by pulling it upwards.

5. Take hold of the door glass panels on their upper edge one after the other and take them out of the guide by pulling them upwards.

Cleaning and servicing

45°

Cleaning the door glass panels

Clean the door glass panels thoroughly with soapy water. Then dry them carefully.

CAUTION!

Do not use abrasive substances or metal scrapers to clean the glass oven door, as this could scratch the surface. This could cause the glass to shatter.

Cleaning and servicing

Putting the door glass panels back

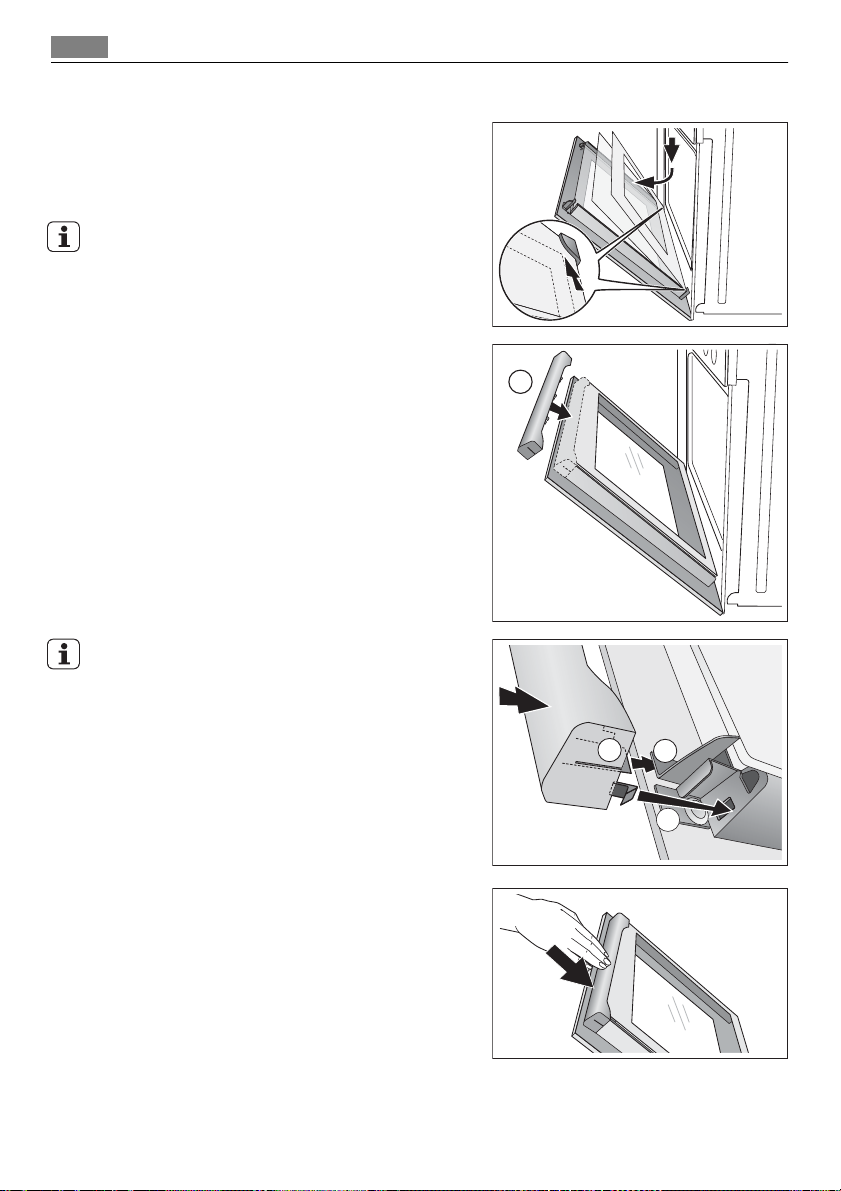

1. Slide the door glass panels one by one at an angle from above into the door panel at the bottom edge of the door and let them slide down.

Insert the two smaller panels first, followed by the largest.

2. Take hold of the door cover (B) on the sides, place on the inside of the door edge and attach the door cover (B) to the door's upper edge.

There is a guiding track (C) on the open side of the door cover (B). Insert this between the outer door panel and the guiding bracket (D). The clip seal (E) must be snapped in.

3. Open the oven door as far as it will go.

4. Click the clamping levers (A) on both door tracks back to their original position.

What to do if ...

90°

5. Close the oven door.

What to do if ...

Problem Possible cause Remedy

The oven is not heating up The oven is not switched on Switch on the oven

The oven lighting is not working

F11 appears in the time display The meat probe has short

The required settings have not been made

The fuse in the house's electrical wiring (fuse box) has blown

The oven light bulb is faulty Change the oven lamp

circuited or the meat probe's plug is not firmly in position in the socket

Switch on the oven

Check the fuse. If the fuses trip repeatedly, please call an authorised electrician.

Insert the meat probe plug into the socket on the side wall of the oven as far as it will go

Disposal

Problem Possible cause Remedy

F2 appears in the time display Temperature inside the oven is

A fault code that is not listed here appears in the clock display

too high

Electronic fault Switch the appliance off and on

Let the appliance cool down

again via the house fuse or the safety switch in the fuse box. Contact Customer Service if the fault appears again.

Switch the appliance off and then on again by screwing the fuse out and in or actuating the circuit breaker in the fuse box. Contact the Customer Care Department when the fault appears again.

WARNING!

Repairs to the appliance must only be carried out by qualified service engineers. Considerable danger to the user may result from improper repairs.

In the case of misuse the visit by the Customer Care Department technician or the repair may be chargeable, even during the warranty period.

Information for appliances with metal fronts: Due to the appliance's cool front, when the door is opened during or shortly after baking or roasting, there may be condensation of the inner glass panel for a short while.

Disposal

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council, your household waste disposal service or the shop where you purchased the product.

Packaging material The packaging material is environmentally-friendly and recyclable. Plastic parts are marked with the international abbreviations such as, e.g. >PE <, >PS< etc. Dispose of the packaging material in the containers provided for this purpose at your local waste management facility.

WARNING!

Your appliance should be made inoperable before it is disposed of, so that it does not constitute a danger. To do this, take the mains plug from the socket and remove the mains cable from the appliance.

www.electrolux.com

To buy accessories, consumables and spare parts at our online shop please visit: www.aegelectrolux.co.uk

822721090-A-062008

AEG B9878-5-M User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
