Aeg 949 630 921 User Manual

USER
MANUAL

HKB75450NB

EN User Manual

Hob

www.aeg.com2

CONTENTS

1. SAFETY INFORMATION......................................................................................2

2. SAFETY INSTRUCTIONS.................................................................................... 5

3. INSTALLATION.....................................................................................................8

4. PRODUCT DESCRIPTION.................................................................................12

5. DAILY USE......................................................................................................... 14

6. HINTS AND TIPS................................................................................................17

7. CARE AND CLEANING...................................................................................... 19

8. TROUBLESHOOTING........................................................................................21

9. TECHNICAL DATA............................................................................................. 23

10. ENVIRONMENTAL CONCERNS......................................................................24

FOR PERFECT RESULTS

Thank you for choosing this AEG product. We have created it to give you
impeccable performance for many years, with innovative technologies that help
make life simpler – features you might not find on ordinary appliances. Please
spend a few minutes reading to get the very best from it.

Visit our website to:

Get usage advice, brochures, trouble shooter, service and repair information:

www.aeg.com/support

Register your product for better service:

www.registeraeg.com

Buy Accessories, Consumables and Original spare parts for your appliance:

www.aeg.com/shop

CUSTOMER CARE AND SERVICE

Always use original spare parts.
When contacting our Authorised Service Centre, ensure that you have the
following data available: Model, PNC, Serial Number.
The information can be found on the rating plate.

Warning / Caution-Safety information
General information and tips
Environmental information

Subject to change without notice.

1. SAFETY INFORMATION

Before the installation and use of the appliance, carefully
read the supplied instructions. The manufacturer is not
responsible for any injuries or damage that are the result
of incorrect installation or usage. Always keep the

ENGLISH 3

instructions in a safe and accessible location for future
reference.

1.1 Children and vulnerable people safety

• This appliance is not intended for use by persons

(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and
knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a
person responsible for their safety.

• Children should be supervised to ensure that they do

not play with the appliance.

• Keep all packaging away from children and dispose of

it appropriately.

• WARNING: The appliance and its accessible parts

become hot during use. Keep children and pets away
from the appliance when in use and when cooling
down.

• If the appliance has a child safety device, it should be

activated.

• Children shall not carry out cleaning and user

maintenance of the appliance without supervision.

1.2 General Safety

• This appliance is for cooking purposes only.

• This appliance is designed for single household

domestic use in an indoor environment.

• This appliance may be used in, offices, hotel guest

rooms, bed & breakfast guest rooms, farm guest
houses and other similar accommodation where such
use does not exceed (average) domestic usage levels.

• WARNING: The appliance and its accessible parts

become hot during use. Care should be taken to avoid
touching heating elements.

• WARNING: Unattended cooking on a hob with fat or

oil can be dangerous and may result in fire.

www.aeg.com4

• Never use water to extinguish the cooking fire. Switch

off the appliance and cover flames with e.g. a fire

blanket or lid.

• WARNING: The appliance must not be supplied

through an external switching device, such as a timer,

or connected to a circuit that is regularly switched on

and off by a utility.

• CAUTION: The cooking process has to be supervised.

A short term cooking process has to be supervised

continuously.

• WARNING: Danger of fire: Do not store items on the

cooking surfaces.

• Metallic objects such as knives, forks, spoons and lids

should not be placed on the hob surface since they

can get hot.

• Do not use the appliance before installing it in the

built-in structure.

• Do not use a steam cleaner to clean the appliance.

• If the glass ceramic surface / glass surface is cracked,

switch off the appliance and unplug it from the mains.

In case the appliance is connected to the mains

directly using junction box, remove the fuse to

disconnect the appliance from power supply. In either

case contact the Authorised Service Centre.

• In case of hotplate glass breakage:
– shut immediately off all burners and any electrical

heating element and isolate the appliance from the
power supply,

– do not touch the appliance surface,
– do not use the appliance.

• If the supply cord is damaged, it must be replaced by

the manufacturer, an authorized Service or similarly
qualified persons in order to avoid a hazard.

• Where the appliance is directly connected to the

power supply, an all-pole isolating switch with a
contact gap is required. Complete disconnection in
compliance with the conditions specified in

overvoltage category III must be guaranteed. The
earth cable is excluded from this.

• When you route the mains cable, make sure that the

cable doesn't come into direct contact (for example
using insulating sleeving) with parts that can reach
temperatures of more than 50°C above room
temperature.

• WARNING: Use only hob guards designed by the

manufacturer of the cooking appliance or indicated by
the manufacturer of the appliance in the instructions
for use as suitable or hob guards incorporated in the
appliance. The use of inappropriate guards can cause
accidents.

2. SAFETY INSTRUCTIONS

ENGLISH 5

This appliance is suitable for the

following markets: RU UA BY

2.1 Installation

WARNING!

Only a qualified person must
install this appliance.

WARNING!

Risk of injury or damage to
the appliance.

• Remove all the packaging.

• Do not install or use a damaged
appliance.

• Follow the installation instructions
supplied with the appliance.

• Keep the minimum distance from
other appliances and units.

• Always take care when moving the
appliance as it is heavy. Always use
safety gloves and enclosed footwear.

• Seal the cut surfaces with a sealant to
prevent moisture from causing
swelling.

• Protect the bottom of the appliance
from steam and moisture.

• Do not install the appliance next to a
door or under a window. This
prevents hot cookware from falling
from the appliance when the door or
the window is opened.

• If the appliance is installed above
drawers make sure that the space,
between the bottom of the appliance
and the upper drawer is sufficient for
air circulation.

• The bottom of the appliance can get
hot. Install a non-combustible
separation panel under the appliance
to prevent access to the bottom.

2.2 Electrical Connection

WARNING!

Risk of fire and electric
shock.

• All electrical connections should be
made by a qualified electrician.

• The appliance must be earthed.

• Before carrying out any operation
make sure that the appliance is
disconnected from the power supply.

• Make sure that the parameters on the
rating plate are compatible with the
electrical ratings of the mains power
supply.

• Make sure the appliance is installed
correctly. Loose and incorrect
electricity mains cable or plug (if
applicable) can make the terminal
become too hot.

• Use the correct electricity mains
cable.

www.aeg.com6

• Do not let the electricity mains cable
tangle.

• Make sure that a shock protection is
installed.

• Use the strain relief clamp on the
cable.

• Make sure the mains cable or plug (if
applicable) does not touch the hot
appliance or hot cookware, when you
connect the appliance to a socket.

• Do not use multi-plug adapters and
extension cables.

• Make sure not to cause damage to
the mains plug (if applicable) or to the
mains cable. Contact our Authorised
Service Centre or an electrician to
change a damaged mains cable.

• The shock protection of live and
insulated parts must be fastened in
such a way that it cannot be removed
without tools.

• Connect the mains plug to the mains
socket only at the end of the
installation. Make sure that there is
access to the mains plug after the
installation.

• If the mains socket is loose, do not
connect the mains plug.

• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.

• Use only correct isolation devices: line
protecting cut-outs, fuses (screw type
fuses removed from the holder), earth
leakage trips and contactors.

• The electrical installation must have
an isolation device which lets you
disconnect the appliance from the
mains at all poles. The isolation
device must have a contact opening
width of minimum 3 mm.

2.3 Gas connection

CAUTION!

When using a gas cylinder,
always keep it on a flat
horizontal surface (with the
gas valve on top).

• All gas connections must be made by
a qualified person.

• Before installation, make sure that the
local distribution conditions (nature of
the gas and gas pressure) and the

adjustment of the appliance are
compatible.

• Make sure that there is air circulation
around the appliance.

• The information about the gas supply
is on the rating plate.

• This appliance is not connected to a
device, which evacuates the products
of combustion. Make sure to connect
the appliance according to current
installation regulations. Follow the
requirements for adequate ventilation.

2.4 Use

WARNING!

Risk of injury, burns and
electric shock.

CAUTION!

The use of a gas cooking
appliance results in the
production of heat, moisture
and products of combustion
in the room in which it is
installed. Ensure that the
kitchen is well ventilated
especially when the
appliance is in use.
Prolonged intensive use of
the appliance may require
additional ventilation, for
example the increasing of
mechanical ventilation where
present, additional
ventilation to safely remove
the products of combustion
to outside (external) air
whilst also providing room
air changes with additional
ventilation. Consult a
qualified person before
installation of the additional
ventilation.

• Do not change the specification of this
appliance.

• Remove all the packaging, labelling
and protective film (if applicable)
before first use.

• Make sure that the ventilation
openings are not blocked.

• Do not let the appliance stay
unattended during operation.

• Set the cooking zone to “off” after
each use.

ENGLISH 7

• Do not put cutlery or saucepan lids on
the cooking zones. They can become
hot.

• Do not operate the appliance with wet
hands or when it has contact with
water.

• Do not use the appliance as a work
surface or as a storage surface.

• When you place food into hot oil, it
may splash.

WARNING!

Risk of fire and explosion

• Fats and oil when heated can release
flammable vapours. Keep flames or
heated objects away from fats and
oils when you cook with them.

• The vapours that very hot oil releases
can cause spontaneous combustion.

• Used oil, that can contain food
remnants, can cause fire at a lower
temperature than oil used for the first
time.

• Do not put flammable products or
items that are wet with flammable
products in, near or on the appliance.

WARNING!

Risk of damage to the
appliance.

• Do not keep hot cookware on the
control panel.

• Do not let cookware boil dry.

• Be careful not to let objects or
cookware fall on the appliance. The
surface can be damaged.

• Never leave a burner on with empty
cookware or without cookware.

• Do not put aluminium foil on the
appliance.

• Cookware made of cast iron,
aluminium or with a damaged bottom
can cause scratches on the glass /
glass ceramic. Always lift these
objects up when you have to move
them on the cooking surface.

• Use only stable cookware with the
correct shape and diameter larger
than the dimensions of the burners.

• Make sure cookware is centrally
positioned on the burners.

• Do not use large cookware that
overlap the edges of the appliance.
This can cause damage to the
worktop surface.

• Make sure the flame does not go out
when you quickly turn the knob from
the maximum to the minimum
position.

• Use only the accessories supplied
with the appliance.

• Do not install a flame diffuser on the
burner.

• Do not let acid liquids, for example
vinegar, lemon juice or limescale
remover, touch the hob. This can
cause matt patches.

• Discoloration of the enamel or
stainless steel has no effect on the
performance of the appliance.

2.5 Care and cleaning

WARNING!

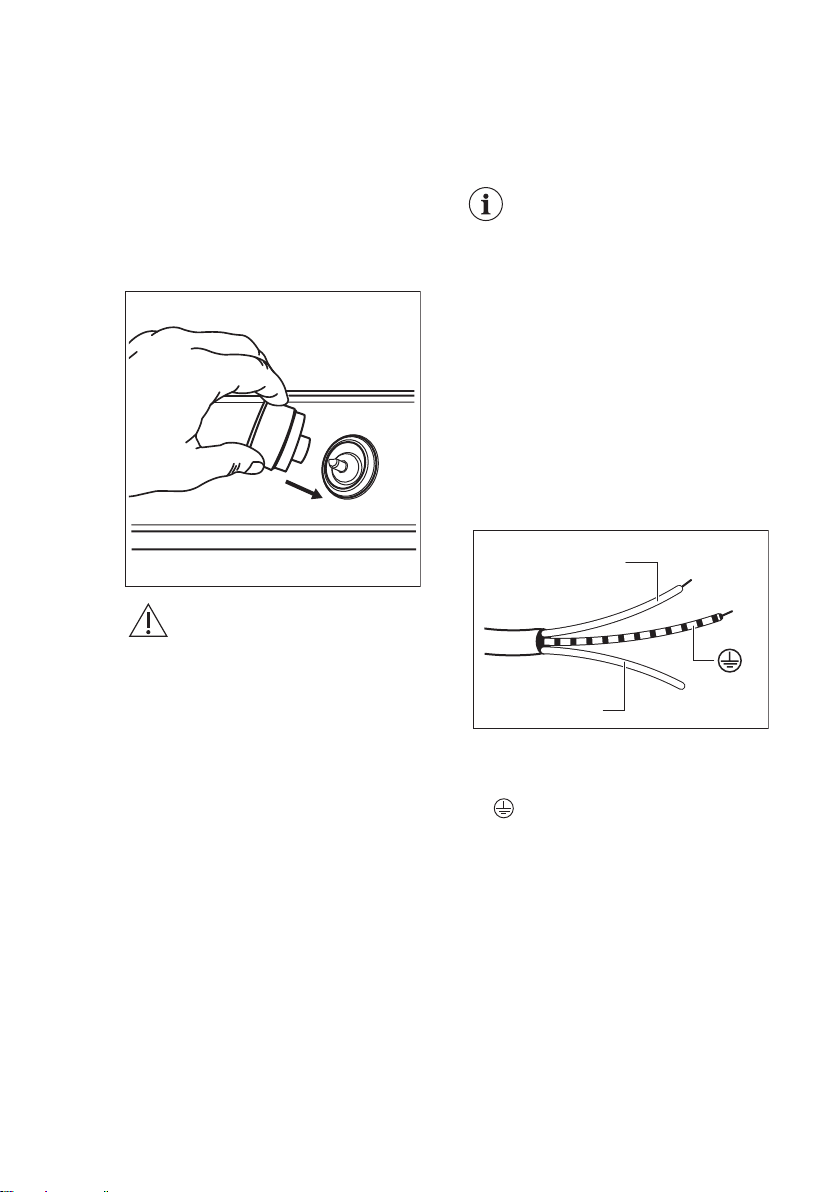

Do not remove the buttons,
knobs or gaskets from the
control panel. Water may get
inside the appliance and
cause damage.

• Clean the appliance regularly to
prevent the deterioration of the
surface material.

• Switch off the appliance and let it cool
down before cleaning.

• Do not use water spray and steam to
clean the appliance.

• Clean the appliance with a moist soft
cloth. Use only neutral detergents. Do
not use abrasive products, abrasive
cleaning pads, solvents or metal
objects.

• Do not clean the burners in the
dishwasher.

2.6 Service

• To repair the appliance contact the
Authorised Service Centre. Use
original spare parts only.

• Concerning the lamp(s) inside this
product and spare part lamps sold
separately: These lamps are intended
to withstand extreme physical
conditions in household appliances,
such as temperature, vibration,
humidity, or are intended to signal
information about the operational
status of the appliance. They are not
intended to be used in other
applications and are not suitable for
household room illumination.

A B C

www.aeg.com8

2.7 Disposal

WARNING!

Risk of injury or suffocation.

• For information on how to dispose of
the appliance, contact your dealer,
manufacturer's authorized person, or
your local solid waste operator.

3. INSTALLATION

WARNING!

Refer to Safety chapters.

3.1 Before the installation

Before you install the hob, write down the
information below from the rating plate.
The rating plate is on the bottom of the
hob.

Model .......................................

PNC .........................................

Serial number ...........................

3.2 Gas Connection

WARNING!

The following instructions
about installation,
connection and maintenance
must be carried out by
qualified personnel in
compliance with standards
and local regulations in
force.

Choose fixed connections or use a
flexible pipe in stainless steel in
compliance with the regulation in force. If
you use flexible metallic pipes, be careful
they do not come in touch with mobile
parts or they are not squeezed. Also be
careful when the hob is put together with
an oven.

• Disconnect the appliance from the
mains supply.

• Cut off the mains electrical cable
close to the appliance and dispose of
it.

• Flat the external gas pipes.

Make sure that the gas
supply pressure of the
appliance obeys the
recommended values. The
adjustable connection is
fixed to the comprehensive
ramp by means of a
threaded nut G 1/2". Screw
the parts without force,
adjust the connection in the
necessary direction and
tighten everything.

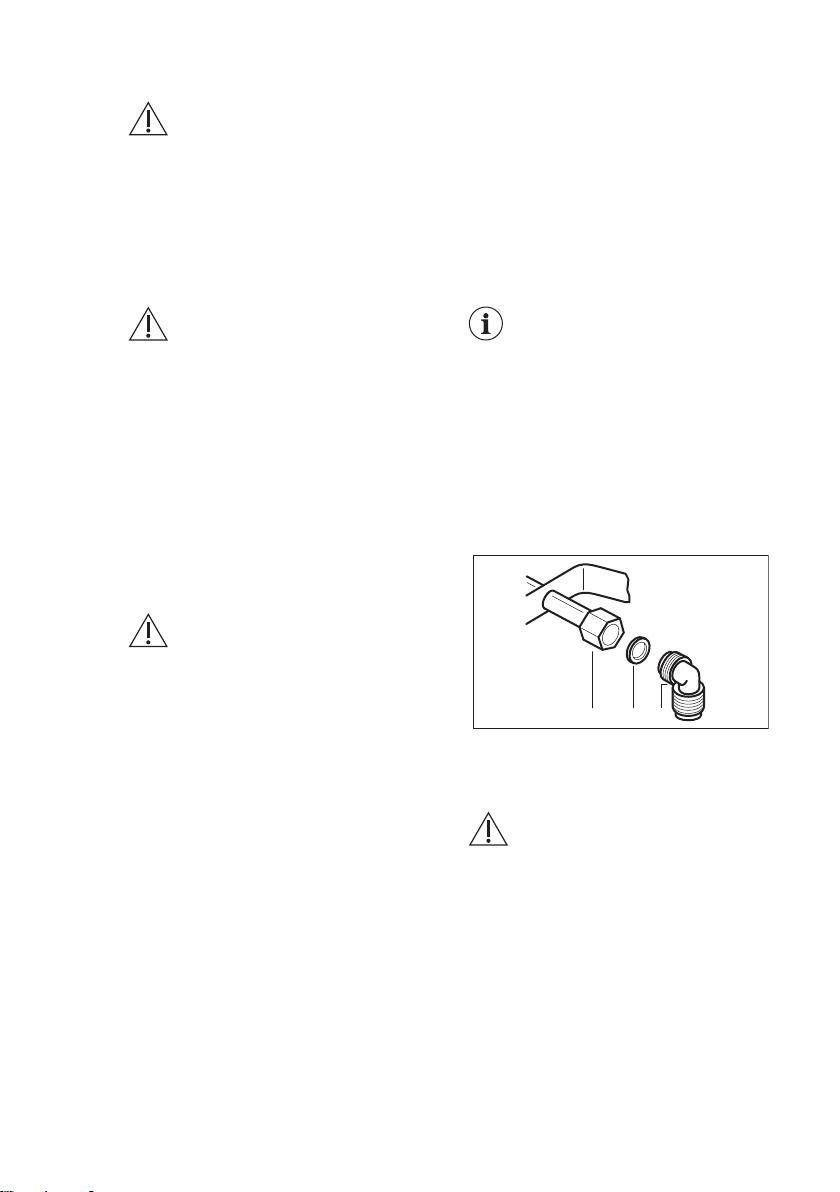

A. End of shaft with nut
B. Washer supplied with the appliance
C. Elbow supplied with the appliance

WARNING!

It is important to install the
elbow correctly. Make sure
that the shoulder is on the
end of the thread. Then
install it on the hob
connecting pipe. Incorrect
assembly may cause a gas
leakage.

Liquid gas

Use the rubber pipe holder for liquid gas.
Always engage the gasket. Then
continue with the gas connection.

The flexible pipe is prepared for apply
when:

A

ENGLISH 9

• it can not get hot more than room
temperature, higher than 30°C;

• it is no longer than 1500 mm;

• it shows no throttles;

• it is not subject to traction or torsion;

• it does not get in touch with cutting
edges or corners;

• it can be easily examined in order to
make sure its condition.

The control of preservation of the flexible
pipe consists in checking that:

• it does not show cracks, cuts, marks
of burnings on the two ends and on its
full length;

• the material is not hardened, but
shows its correct elasticity;

• the fastening clamps are not rusted;

• expired term is not due.

If one or more defects are visible, do not
repair the pipe, but replace it.

WARNING!

When installation is
complete, make sure that
the seal of each pipe fitting
is correct. Use a soapy
solution, not a flame!

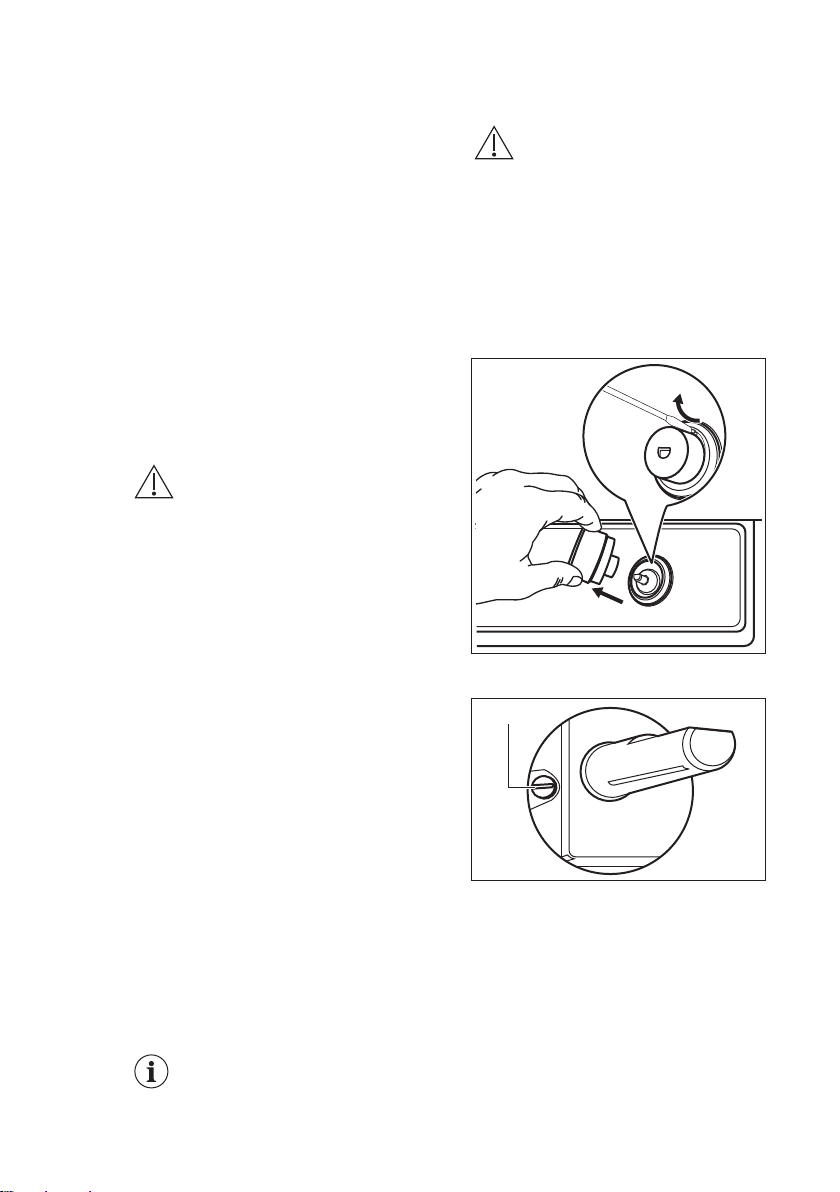

3.5 Adjustment of minimum level

WARNING!

Information for authorised
installer only.

To adjust the minimum level of the
burners:

1. Light the burner.

2. Turn the knob on the minimum
position.

3. Remove the knob and using thin
screwdriver lift up and remove the
plastic magnet holder.

3.3 Injectors replacement

1. Remove the pan supports.

2. Remove the caps and crowns of the
burner.

3. With a socket spanner 7 remove the
injectors and replace them with the
ones which are necessary for the
type of gas you use (see table in
"Technical Data" chapter).

4. Assemble the parts, follow the same
procedure backwards.

5. Attach the label with the new type of
gas supply near the gas supply pipe.
You can find this label in the package
supplied with the appliance.

If the supply gas pressure is changeable
or different from the necessary pressure,
you must fit an applicable pressure
adjuster on the gas supply pipe.

3.4 Conversion to G20 13

mbar

For the G20 13 mbar
conversion please contact
our Authorised Service
Centre.

4. With a thin screwdriver, adjust the
bypass screw position (A).

5. If you change:

• from natural gas G20 13 mbar or

natural gas G20 20 mbar to liquid
gas, fully tighten the bypass
screw in.

• from liquid gas to natural gas G20

13 mbar, undo the bypass screw
about 1/2 of a turn (1 turn for Multi
Crown burner).

• from liquid gas to natural gas G20

20 mbar, undo the bypass screw
about 1/4 of a turn (1/2 of a turn
for Multi Crown burner).

L

N

www.aeg.com10

• from natural gas G20 13 mbar to
natural gas G20 20 mbar, tighten
the bypass screw about 1/4 of a
turn (1/2 of a turn for Multi Crown
burner).

• from natural gas G20 20 mbar to
natural gas G20 13 mbar, undo
the bypass screw about 1/4 of a
turn (1/2 of a turn for Multi Crown
burner).

6. Reassemble the magnet holder and
the knob.

WARNING!

Make sure the flame does
not go out when you quickly
turn the knob from the
maximum position to the
minimum position.

extension cable, an adapter or a
multiple connection. Make sure that
the ground connection agrees with the
standards and regulations.

• Do not let the power cable to heat up
to a temperature higher than 90° C.

If the pilot lights turn on after
connecting the hob to the
mains, turn on and off the
control knob and wait until
the residual heat indicator
goes out.

3.7 Connection cable

To replace the connection cable use only
the special cable or its equivalent. The
cable type is: H03V2V2-F T90.

Make sure that the cable section is
applicable to the voltage and the working
temperature. The yellow / green earth
wire must be approximately 2 cm longer
than the brown (or black) phase wire.

3.6 Electrical connection

• Make sure that the rated voltage and
type of power on the rating plate
agree with the voltage and the power
of the local power supply.

• This appliance is supplied with a
mains cable. It has to be supplied with
a correct plug which can hold the load
that the rating plate rates. Make sure
that you install the plug in a correct
socket.

• Always use a correctly installed
shockproof socket.

• Make sure that there is an access to
the mains plug after the installation.

• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.

• There is a risk of fire when the
appliance is in connection with an

1. Connect the green and yellow (earth)
wire to the terminal which is marked
with the letter 'E', or the earth symbol

, or coloured green and yellow.

2. Connect the blue (neutral) wire to the
terminal which is marked with the
letter 'N' or coloured blue.

3. Connect the brown (live) wire to the
terminal which is marked with the
letter 'L'. It must always be connected
to the network phase.

min.
55 mm

min.
650 mm

560 mm

2
0

+

480 mm

2
0

+

min.
150 mm

30 mm

B

A

ENGLISH 11

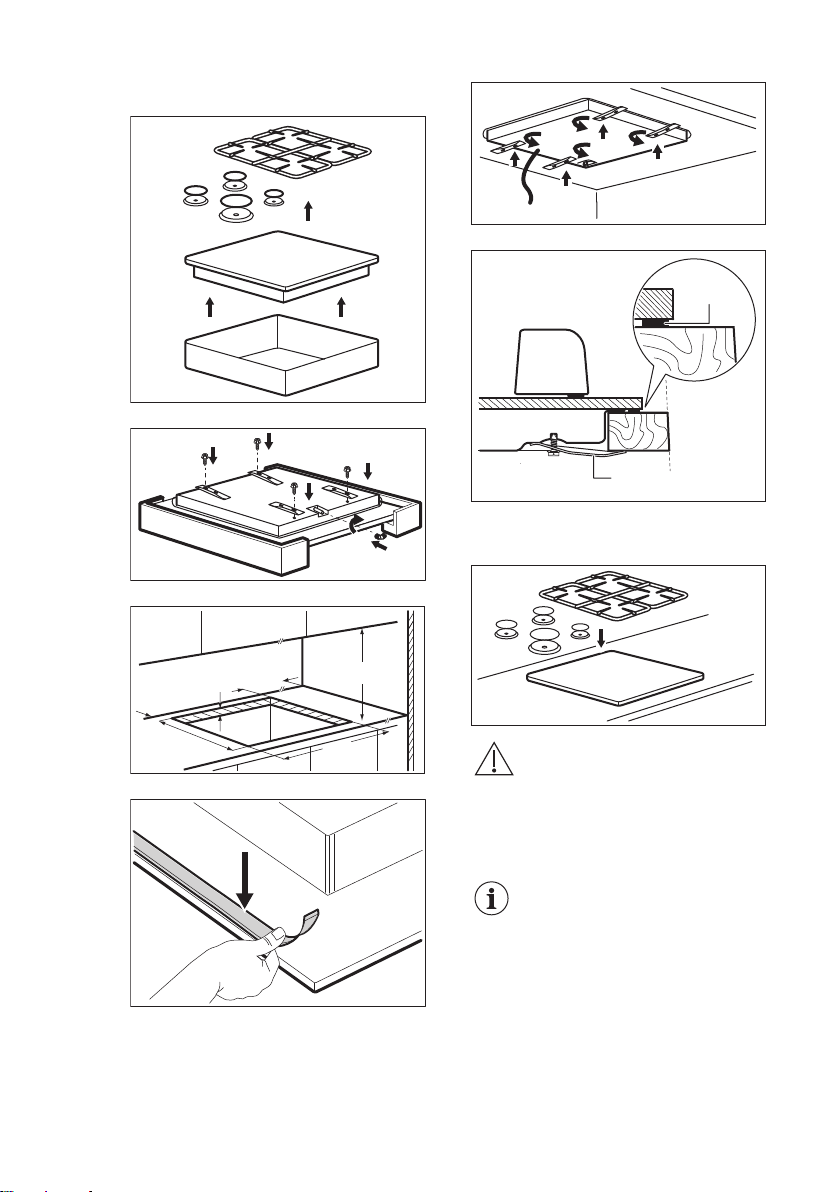

3.8 Assembly

1.

2.

3.

5.

6.

A) supplied seal
B) supplied brackets

7.

CAUTION!

Install the appliance only on

4.

a worktop with flat surface.

3.9 Installing hob under the hood

If you install the hob under a
hood, please see the
installation instructions of the
hood for the minimum
distance between the
appliances.

3.10 Possibilities for insertion

The panel installed below the hob must
be easy to remove and let an easy
access in case a technical assistance
intervention is necessary.

min 20 mm
(max 150 mm)

30 mm

60 mm

B

A

1

4

6

3

2

5

1

4

2 3

www.aeg.com12

Kitchen unit with door

4. PRODUCT DESCRIPTION

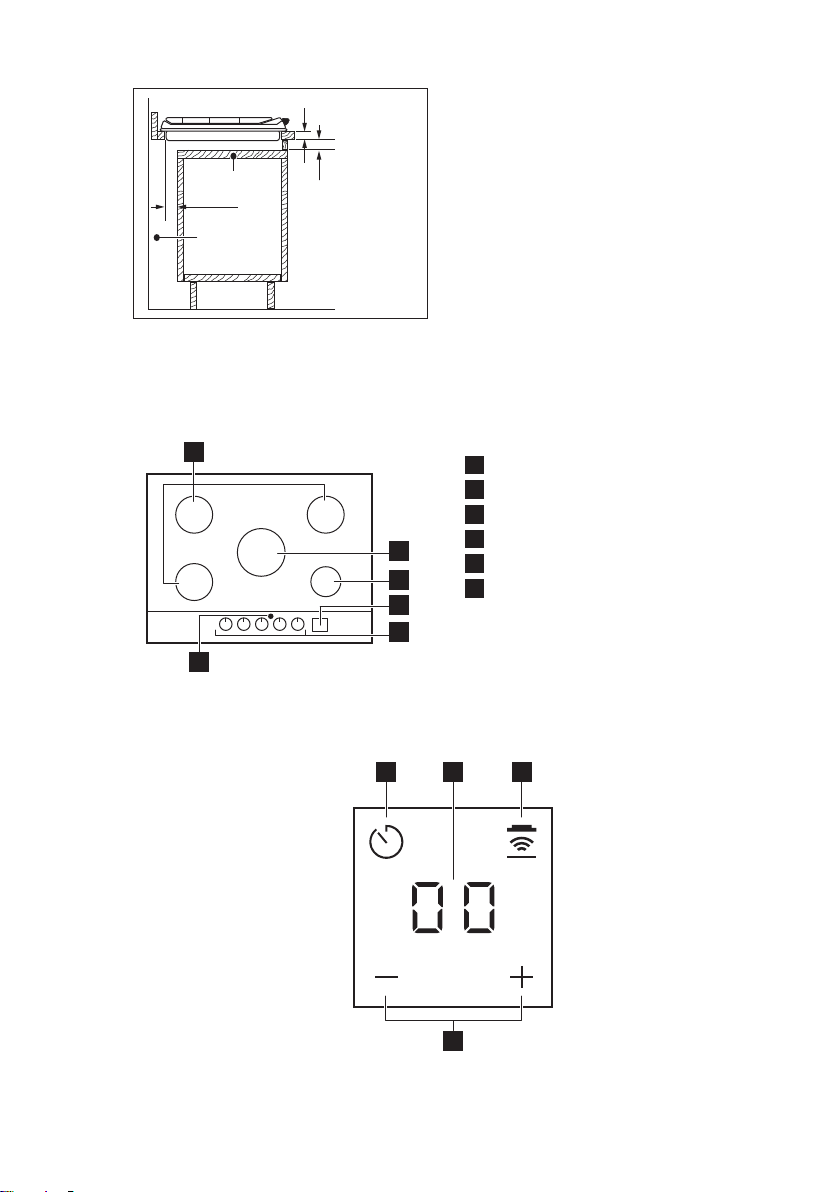

4.1 Cooking surface layout

A. Removable panel
B. Space for connections

Kitchen unit with oven

The electrical connection of the hob and
the oven must be installed separately for
safety reasons and to let easy remove
oven from the unit.

Semi-rapid burner

1

Multi Crown burner

2

Auxiliary burner

3

Control panel

4

Control knobs

5

Window for Hob²Hood infrared signal

6

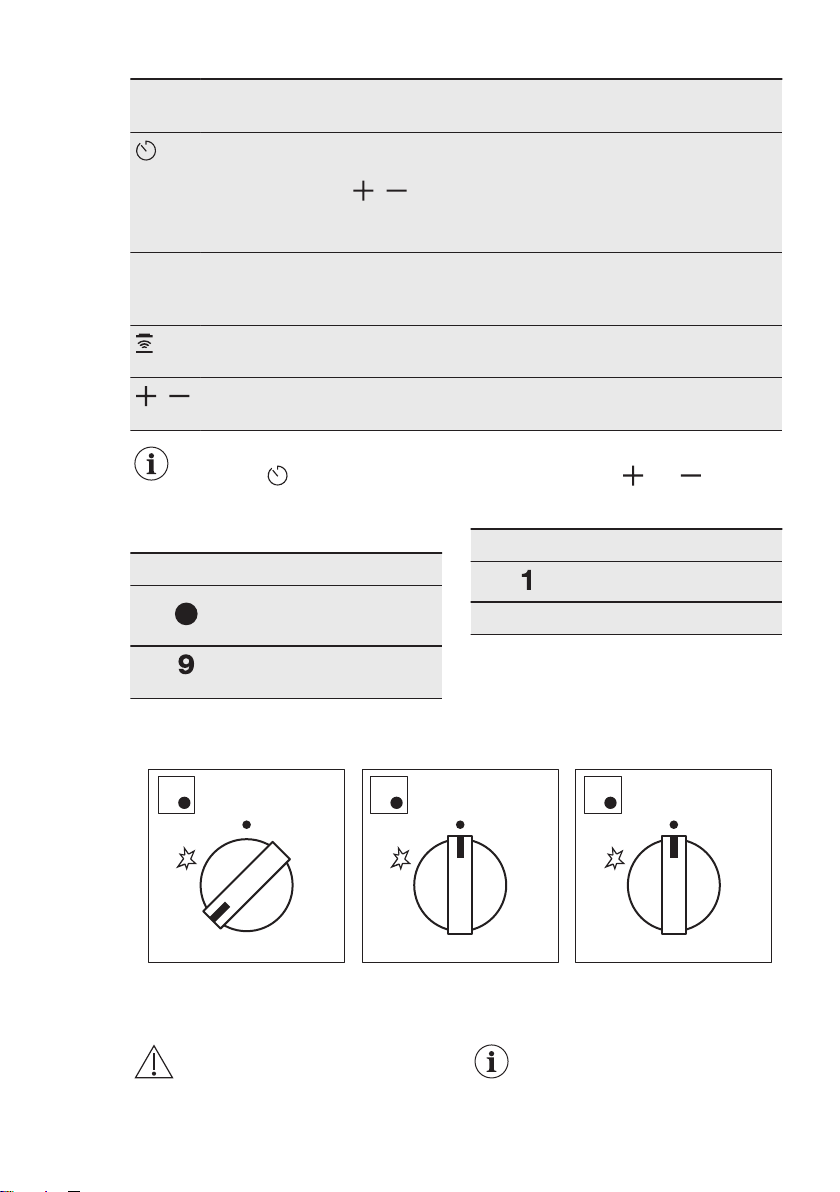

4.2 Control panel layout

Use the sensor fields to operate the Minute Minder and Hob²Hood. The displays,
indicators and sounds tell which functions operate.

8

9

7

6

5

4

3

2

1

8

9

7

6

5

4

3

2

1

ENGLISH 13

Sensor

Function Comment

field

- To select the Timer function.
To activate

/ and
Hob²Hood icons.
To make the LEDs visible.

- Timer display To show the time in minutes.
To show Hob²Hood function and Hob²Hood Automatic
Modes.

Hob²Hood To activate and deactivate the manual mode of the func‐

tion.

- To increase or decrease the time.

/

To switch Hob²Hood Automatic Modes.

Stand-by mode:

Press the for at least 1 second to activate the display, and .

4.3 Control knob

Symbol Description

Symbol Description

no gas supply / off posi‐
tion

ignition position / maxi‐
mum gas supply

1 - 9 power levels

minimum gas supply

4.4 Residual heat

LEDs full light
Knob opened

WARNING!

There is a risk of burns from
residual heat.

LEDs light slowly reduced

Residual heat starts

LEDs light off

Residual heat ends

The residual heat indicator
lights up when you turn off
the burner.

$

%

'

&

$

%

'

&

www.aeg.com14

Knob of the

burner

Multi Crown 0 30 sec 3 min 15 min

Semi-rapid

(front left)

Semi-rapid

(rear left)

Semi-rapid

(rear right)

Auxiliary 0 30 sec 3 min 5 min

5. DAILY USE

WARNING!

Refer to Safety chapters.

5.1 Burner overview

Open knob

on < 20 s 20 s < on < 1 min 1 min < on < 5 min on > 5 min

0 30 sec 3 min 10 min

0 30 sec 3 min 10 min

0 30 sec 3 min 10 min

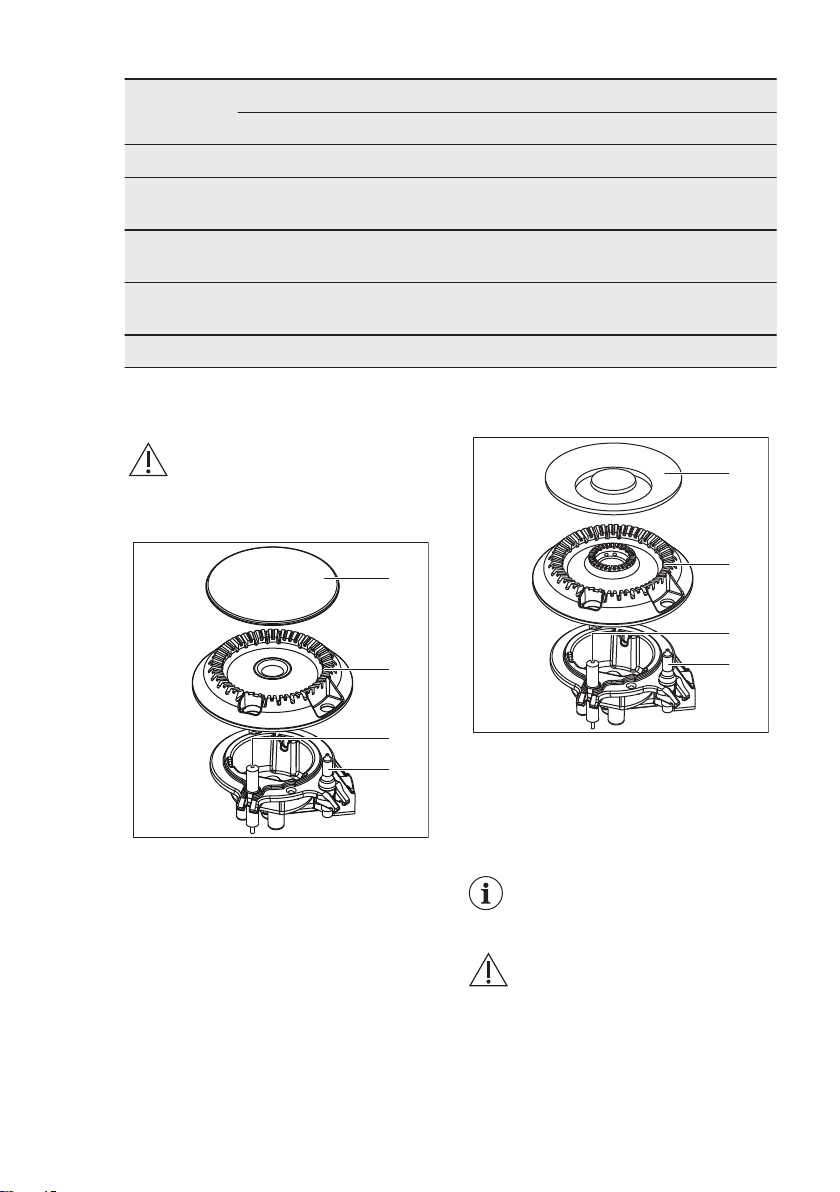

A. Burner cap
B. Burner crown
C. Ignition candle
D. Thermocouple

5.2 Ignition of the burner

Always light the burner
before you put on the
cookware.

WARNING!

Be very careful when you
use open fire in the kitchen
environment. The
manufacturer declines any
responsibility in case of the
flame misuse.

ENGLISH 15

1. Push the control knob down and turn
it counterclockwise to the maximum

gas supply position ( ).

2. Keep the control knob pushed for
equal or less than 10 seconds. This
lets the thermocouple warm up. If
not, the gas supply is interrupted.

3. Adjust the flame after it is regular.

If after some tries the burner
does not light, check if the
crown and its cap are in
correct positions.

WARNING!

Do not keep the control knob
pushed for more than 15
seconds. If the burner does
not light after 15 seconds,
release the control knob,
turn it into off position and try
to light the burner again after
minimum 1 minute.

CAUTION!

In the absence of electricity
you can ignite the burner
without electrical device; in
this case approach the
burner with a flame, turn the
control knob counter­clockwise to maximum gas
supply position and push it
down. Keep the control knob
pushed for equal or less
than 10 seconds to let the
thermocouple warm up.

If the burner accidentally
goes out, turn the control
knob to the off position and
try to light the burner again
after minimum 1 minute.

The spark generator can
start automatically when you
switch on the mains, after
installation or a power cut. It
is normal.

Each control knob is
surrounded by highlighted
numbers visible while
Residual Heat function
operates.

The hob is supplied with
StepPower. This function
allows you to set the power
more precisely from 9-1.

WARNING!

If you do not switch the knob
to the off position, after two
hours a warning sound is
emitted and the symbols
flash red. It reminds you that
the burner is on. To stop the

sound, touch , , or

.

5.3 Turning the burner off

To put the flame out, turn the knob to the

off position .

WARNING!

Always turn the flame down
or switch it off before you
remove the pans from the
burner.

5.4 Minute Minder

You can use this function as a Minute
Minder.

The Minute Minder is the only icon visible

in standby state. Touch the
other icons.

1. Touch .

To activate the function.

2. Touch or of the timer to set the
time (00 - 99 minutes).

When the time comes to an end, the
sound operates and 00 flashes.

In the last minute the time
decreases in seconds, and
the last 10 seconds the timer
emits a sound signal.

3. Touch , , or .

To stop the sound.

4. To stop the timer, touch longer .

You can use the Minute
Minder at any time also if the
appliance is off.

to activate

www.aeg.com16

The function has no effect
on the operation of the
burners.

WARNING!

After end of cooking, the
hood does not turn off
automatically. Turn it off

5.5 Hob²Hood

It is an advanced automatic function
which connects the hob to a special
hood. Both the hob and the hood have
an infrared signal communicator. You
can also operate the fan from the hob
manually.

Manual modes:

Mode Manual

light

H0 Off Off

HL On Off

H1 On Level 1

H2 On Level 2

H3 On Level 3

To turn off the hood touch
longer till H0 is displayed.

Fan speed

Setting default Hob²Hood procedure:

1. When timer is off, touch Minute

2. Touch

3. Touch to select desired automatic

This setting is saved in Flash Memory
and recall at startup.

manually.

For most of the hoods, the
remote system is originally
deactivated. Activate it
before you use the function.
For more information refer to
the hood user manual.

Minder for 3 seconds.

00, and come on.

and together until An
comes on, n is a current automatic
mode.

mode.

Repeat the same procedure
to select another Hob²Hood
Automatic Mode.

Automatic modes:

Mode Description H2H icon H2H display Automatic

light

A0 No remote control Off Off Off Off

A1 Remote control On On Off Off

A2 H2H Auto Light On On On Off

A3 H2H Auto Speed 0-2

(factory default)

A4 H2H Auto Speed 1-3 On On On 1-3

On On On 1

Fan speed

A3

Burner type on Speed

AUX 1

SR 1

MC 1

A4

Power (kW) Speed

1-5 1

6-8 2

9-11 3

6. HINTS AND TIPS

ENGLISH 17

WARNING!

Refer to Safety chapters.

6.1 Cookware

CAUTION!

Do not use cast iron pans,
clay or earthenware pots,
grilling accessories or
toaster plates.

WARNING!

Do not put the same pan on
two burners.

WARNING!

Do not put unstable or
damaged pots on the burner
to prevent spills and injuries.

CAUTION!

Make sure that the bottoms
of pots do not stand too
close to the control knob,
otherwise the flame heats
the control knob up.

CAUTION!

Make sure that pot handles
are not above the front edge
of the cooktop.

CAUTION!

Make sure that the pots are
placed centrally on the
burner in order to get the
maximum stability and a
lower gas consumption.

6.3 Diameters of cookware

CAUTION!

Use cookware with
diameters applicable to the
size of burners.

Burner Diameter of

cookware
(mm)

Multi Crown 220 - 260

Semi-rapid (front) 120 - 220

Semi-rapid (rear left) 120 - 240

Semi-rapid (rear right) 120 - 240

Auxiliary 80 - 180

6.4 Hints and Tips for Hob²Hood

When you operate the hob with the
function:

• Protect the hood panel from direct
sunlight.

• Do not spot halogen light on the hood
panel.

• Do not cover the hob control panel.

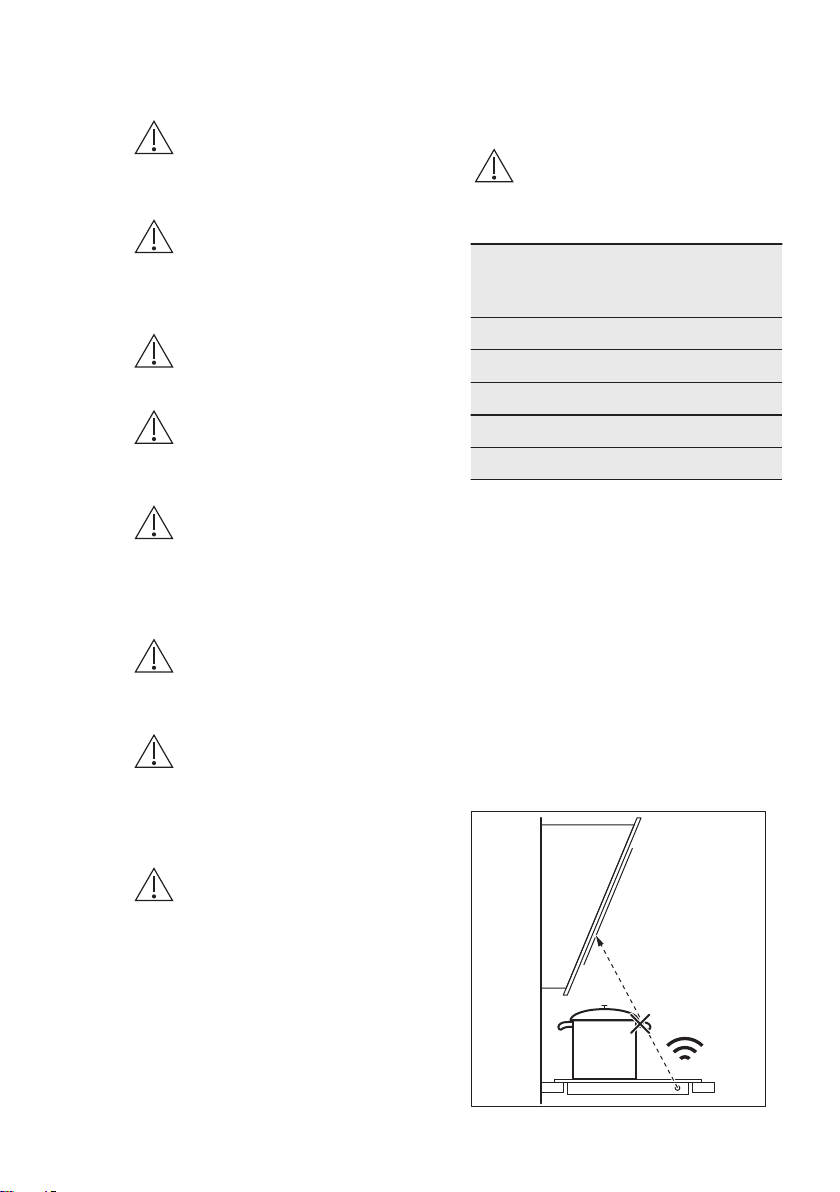

• Do not interrupt the signal between
the hob and the hood (e.g. with the
hand, a cookware handle or a tall
pot). See the picture.

The hood in the picture is only
exemplary.

CAUTION!

Liquids spilt during cooking
can cause the glass to
break.

6.2 Energy saving

• If it is possible, always put the lids on
the cookware.

• When the liquid starts to boil, turn
down the flame to barely simmer the
liquid.

www.aeg.com18

Keep the window for
Hob²Hood infrared signal
communicator clean.

Cooker hoods with the Hob²Hood
function

To find the full range of cooker hoods

which work with this function refer to our
Other remotely controlled
appliances may block the
signal. Do not use any such
appliances near to the hob

consumer website. The AEG cooker

hoods that work with this function must

have the symbol .

while Hob²Hood is on.

6.5 Suggested recipes

Food categories Recipes Burner type Power level

Sauces - Dressing

Pasta - Rice - other Ce‐
reals

Soup - Legumes

Meat

Fish

Eggs based meals Omelette Multi Crown 1-5

Vegetables

Fried dishes

Bechamel Auxiliary 2-4

Tomato sauce Semi-rapid 1-5

Mushrooms rice Multi Crown 1-5

Couscous Rapid 1-6

Ravioli Auxiliary 6-9

Vegetable soup Semi-rapid 2-7

Mushrooms and pota‐
toes soup

Fish soup Multi Crown 1-4

Beef meatballs Multi Crown 1-6

Fillet of pork roast Multi Crown 4-9

Beef burger gratin Auxiliary 1-5

Sepia with peas Multi Crown 1-5

Roasted tuna steak Rapid 5-8

Mushrooms with sea‐
sonings

Caponata with vegeta‐
bles

Frozen spinach with
butter

French fries Multi Crown 5-9

Donuts Multi Crown 3-7

Semi-rapid 1-5

Semi-rapid 2-6

Multi Crown 4-8

Rapid 1-4

ENGLISH 19

Food categories Recipes Burner type Power level

Roasting nuts Semi-rapid 2-5

Snacks cooked with pan

Desserts

Croutons of bread Multi Crown 2-7

Pancakes Semi-rapid 3-9

Caramel Auxiliary 1-5

Custard Auxiliary 1-5

Panna cotta Auxiliary 1-5

All recipes for approximately
4 portions.

The settings suggested in
the cooking table should
only serve as guidelines and
be adjusted depending on
the rawness of food, its
weight and quantity as well
as on the type of gas used
and the material of the
cookware used to prepare
the dish.

7. CARE AND CLEANING

WARNING!

Refer to Safety chapters.

7.1 General information

• Clean the hob after each use.

• Clean the hob when all light are off.
The Minute Minder may stay
activated.

• Always use cookware with a clean
base.

• Use a special cleaner suitable for the
surface of the hob.

• Wash stainless steel parts with water,
and then dry them with a soft cloth.

• Scratches or dark stains on the
surface have no effect on how the hob
operates.

The presence of water or
other liquids on the control
panel can accidentally
activate or deactivate the
hob functions.

For an optimal delicate
cooking use the auxiliary
burner.

WARNING!

Do not use knives, scrapers
or similar instruments to
clean the surface of the
glass or the rims of the
burners and the frame (if
applicable).

7.2 Pan supports

The pan supports are not
resistant to washing in a
dishwasher. They must be
washed by hand.

1. Remove the pan supports to easily
clean the hob.

Be very careful when
you replace the pan
supports to prevent the
hob top from damage.

2. The enamel coating occasionally can
have rough edges, so be careful
when you wash the pan supports by

www.aeg.com20

hand and dry them. If necessary,
remove stubborn stains with a paste
cleaner.

3. After you clean the pan supports,
make sure that they are in correct
positions.

4. For the burner to operate correctly,
make sure that the arms of the pan
supports are aligned with the centre
of the burner.

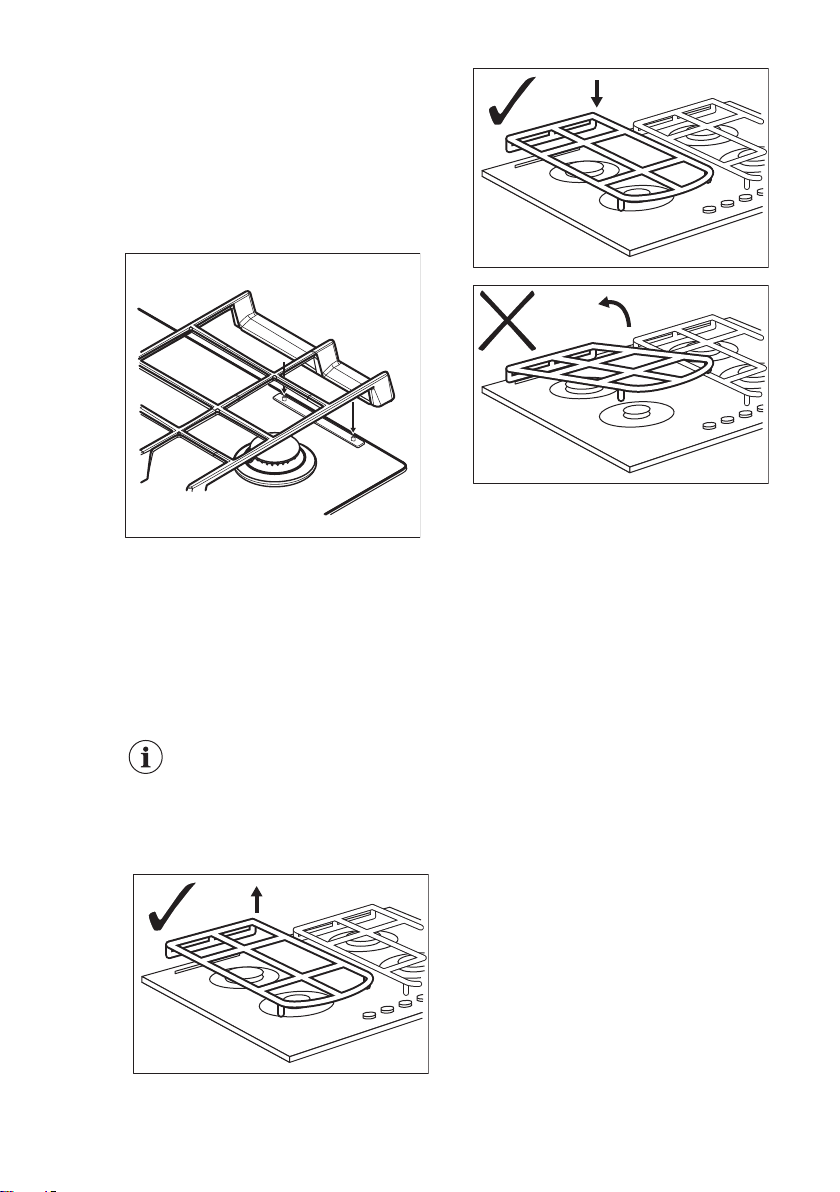

7.3 Removing pan supports

To keep the pan supports in the correct
position, they are put on metal pins
installed in the rear side of the hob. For
easier cleaning, pan supports can be
removed from the hob. Lift up the pan
supports keeping them in horizontal
position as shown in the graphic.

Do not lift the pan supports
at an angle, as this will put
strain on the metal pins. This
can cause damage to the
pins and cause them to
break.

The shape of pan supports and the
amount of burners can be different in
other models of the appliance.

7.4 Cleaning the hob

• Remove immediately: melted plastic,
plastic foil, sugar and food with sugar,
otherwise, the dirt can cause damage
to the hob. Take care to avoid burns.

• Remove when the hob is
sufficiently cool: limescale rings,
water rings, fat stains, shiny metallic
discoloration. Clean the hob with a
moist cloth and a non-abrasive
detergent. After cleaning, wipe the
hob dry with a soft cloth.

• To clean the enamelled parts, caps
and crowns, wash them with warm
soapy water and dry them carefully
before you put them back on.

7.5 Cleaning the spark plug

This feature is obtained through a
ceramic ignition candle with a metal
electrode. Keep these components well
clean to prevent difficult lighting and
check that the burner crown holes are
not obstructed.

ENGLISH 21

7.6 Periodic maintenance

Speak to your local Authorised Service
Centre periodically to check the

8. TROUBLESHOOTING

WARNING!

Refer to Safety chapters.

8.1 What to do if...

Problem Possible cause Remedy

There is no spark when you
try to activate the spark gen‐
erator.

The fuse is blown. Make sure that the fuse is

Burner cap and crown are

The flame extinguishes im‐
mediately after ignition.

The flame ring is uneven. Burner crown is blocked with

The control panel brightness
is reduced or it switches off.

The control knob pilot lights
turn on after connecting the
hob to the mains or after a
power outage.

Hob²Hood function does not
work.

The hob is not connected to
an electrical supply or it is
connected incorrectly.

placed incorrectly.

Thermocouple is not heated
up sufficiently.

food residues.

The temperature of the plate
is high. To ensure long life‐
time of the display the bright‐
ness is reduced depending
on the temperature of the
hob. Above a certain tem‐
perature the control panel
switches off.

Pilot light test. Refer to "Installation".

You covered the control pan‐
el.

conditions of the gas supply pipe and the
pressure adjuster, if fitted.

Check if the hob is correctly
connected to the electrical
supply.

the cause of the malfunction.
If the fuse is blown again
and again, contact a quali‐
fied electrician.

Place the burner cap and
crown correctly.

After lightning the flame,
keep the knob pushed for
equal or less than 10 sec‐
onds.

Make sure that the injector is
not blocked and the burner
crown is clean.

Let the hob cool down.

Remove the object from the
control panel.

MOD.

PROD. NO.

SER.N O

DATA

MOD.

PROD. NO.

SER.N O

DATA

MOD.
PROD.NO.
SER.NO.

03 IT

MADE IN ITALY

TYPE
IP20

0049

A B C

www.aeg.com22

Problem Possible cause Remedy

You cannot activate or oper‐
ate Hob²Hood and Minute
Minder.

The display shows "E t" - Turn off the control knobs

does not shows up when

knobs are opened.

There is water or fat stains
on the control panel.

Selected Automatic Mode is
A0.

Clean the control panel.

and wait until the display is
off or disconnect the appli‐
ance to the main to return to
the initial condition.

Refer to "Daily use".

8.2 If you cannot find a solution...

If you cannot find a solution to the
problem yourself, contact your dealer or
an Authorised Service Centre. Give the
data from the rating plate. Make sure,
you operated the hob correctly. If not the
servicing by a service technician or
dealer will not be free of charge, also

A. Stick it on Guarantee Card and send

this part (if applicable).

B. Stick it on Guarantee Card and keep

this part (if applicable).

during the warranty period. The
instructions about the Service Centre
and conditions of guarantee are in the
guarantee booklet.

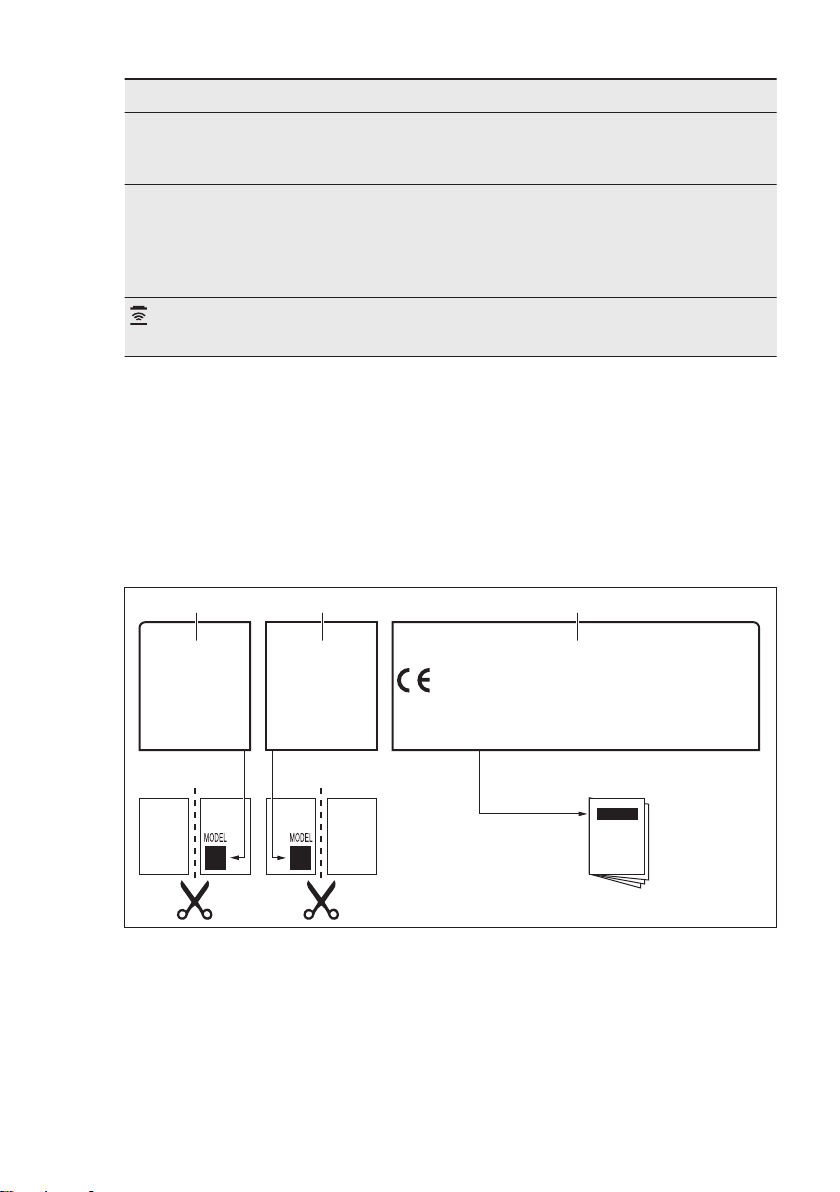

8.3 Labels supplied with the

accessories bag

Stick the adhesive labels as indicated
below:

C. Stick it on instruction booklet.

9. TECHNICAL DATA

9.1 Hob dimensions

Width 740 mm

Depth 510 mm

9.2 Bypass diameters

BURNER Ø BYPASS 1/100 mm

Multi Crown 57

Semi-rapid 35

Auxiliary 28

9.3 Other technical data

ENGLISH 23

TOTAL POW‐
ER:

Electric supply: 220-240 V ~ 50-60 Hz

Appliance cate‐
gory:

Gas connec‐
tion:

Appliance
class:

Gas original: G20 (2H) 20 mbar 10,45 kW

Gas replace‐
ment:

II2H3B/P

G 1/2"

3

G30/G31 (3B/P) 30/30 mbar
G20 (2H) 13 mbar

745 g/h
10,45 kW

9.4 Gas burners for NATURAL GAS G20 20 mbar

BURNER NORMAL POWER kW MINIMUM POWER kW INJECTOR MARK

Multi Crown 3,9 1,4 146

Semi-rapid 1,85 0,6 92

Auxiliary 1,0 0,33 70

9.5 Gas burners for NATURAL GAS G20 13 mbar

BURNER NORMAL POWER kW MINIMUM POWER kW INJECTOR MARK

Multi Crown 3,9 1,4 166

Semi-rapid 1,85 0,6 101A

Auxiliary 1,0 0,33 82

www.aeg.com24

Installation kit to be ordered from
Authorised Service Centre.

9.6 Gas burners for LPG G30/G31 30/30 mbar

BURNER NORMAL

POWER kW

Multi Crown 3,55 1,4 095 258

Semi-rapid 1,9 0,6 71 138

Auxiliary 1,0 0,33 50 73

MINIMUM
POWER kW

INJECTOR
MARK

10. ENVIRONMENTAL CONCERNS

Recycle materials with the symbol .
Put the packaging in relevant containers
to recycle it. Help protect the
environment and human health by
recycling waste of electrical and
electronic appliances. Do not dispose of

appliances marked with the symbol
with the household waste. Return the
product to your local recycling facility or
contact your municipal office.

NOMINAL GAS
FLOW g/h

*

www.aeg.com/shop

867356853-D-142022
