AEG 8259D-M, 825D-M User Manual
825 D / 8259 D
Extractor Hood
Installation and Operating Instructions
Contents
Introduction 3
Extraction mode 3
Recirculation mode 4
Electrical connection for the UK 5
T echnical Details 6
Installation 7
Safety warnings 7
Installation 8

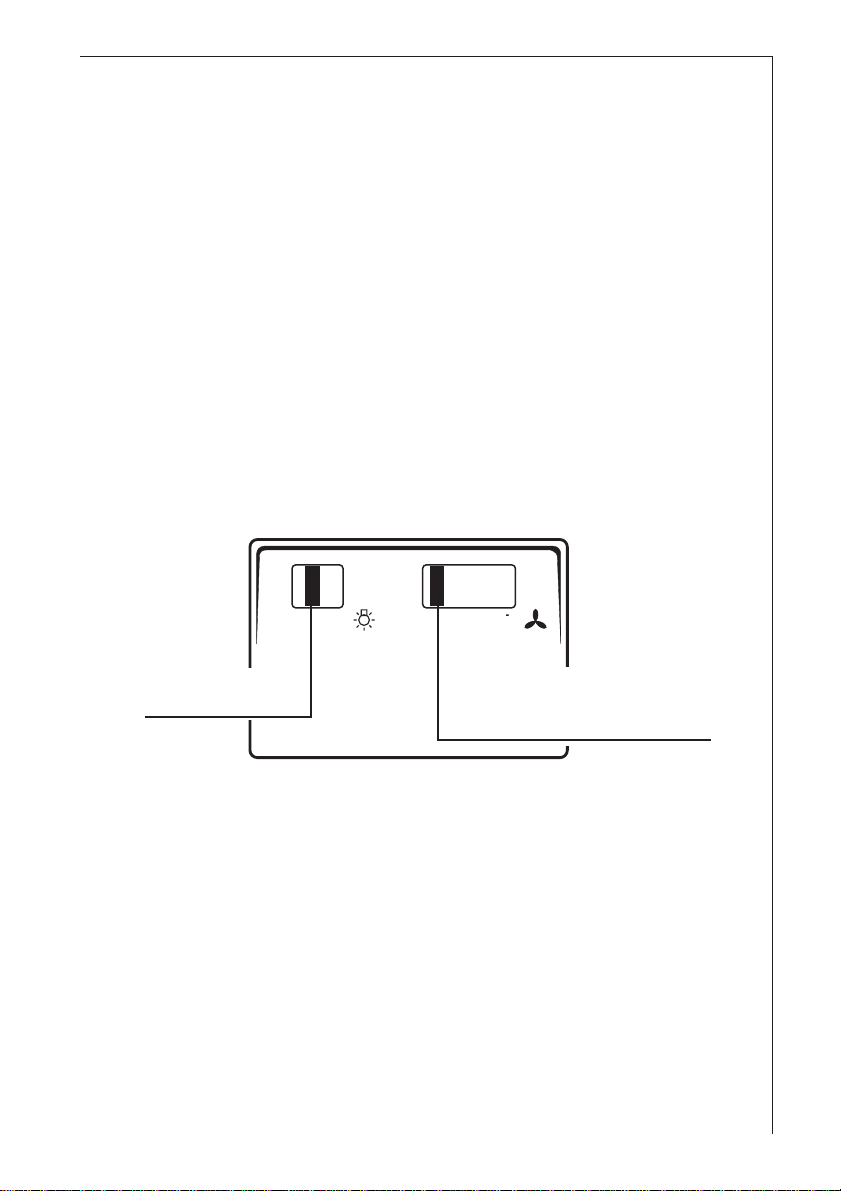

Hood Operation 11
Safety warnings for user 1 2
Maintenance and care 13

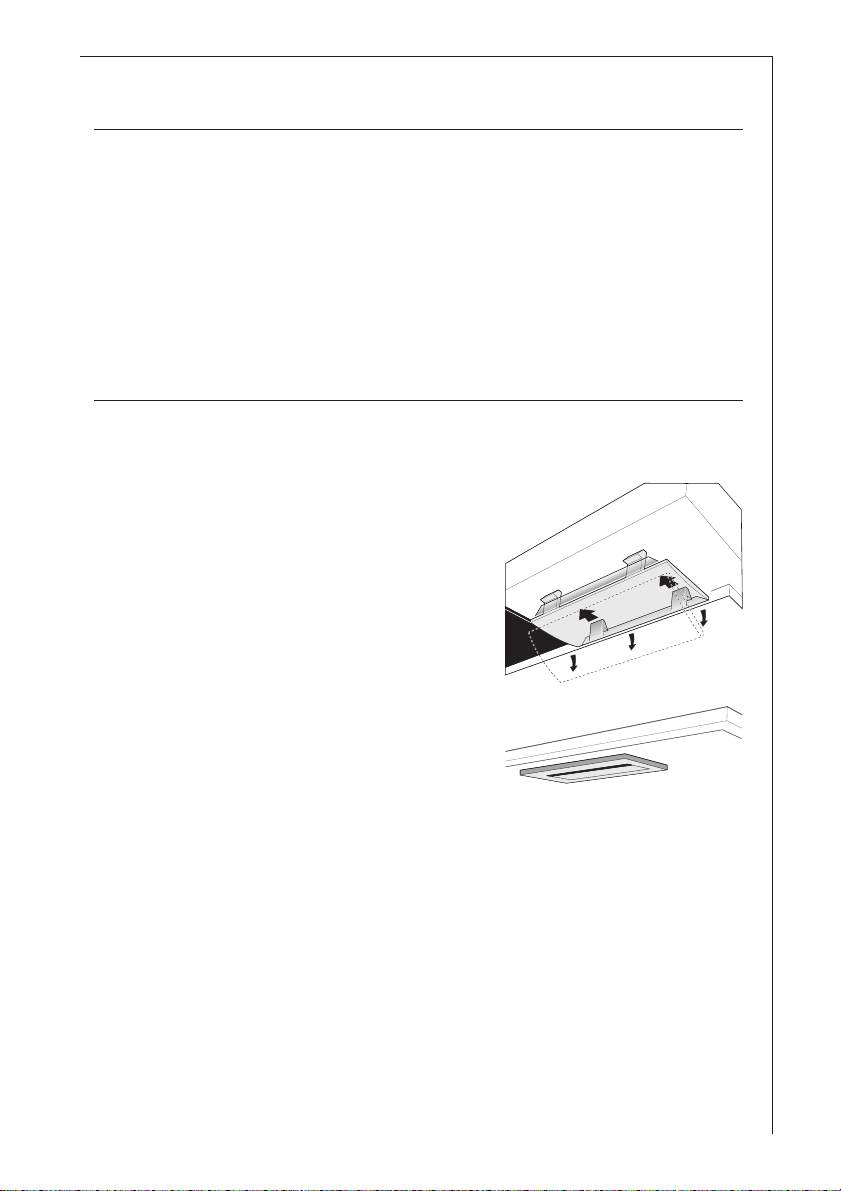

Metal grease filter 13

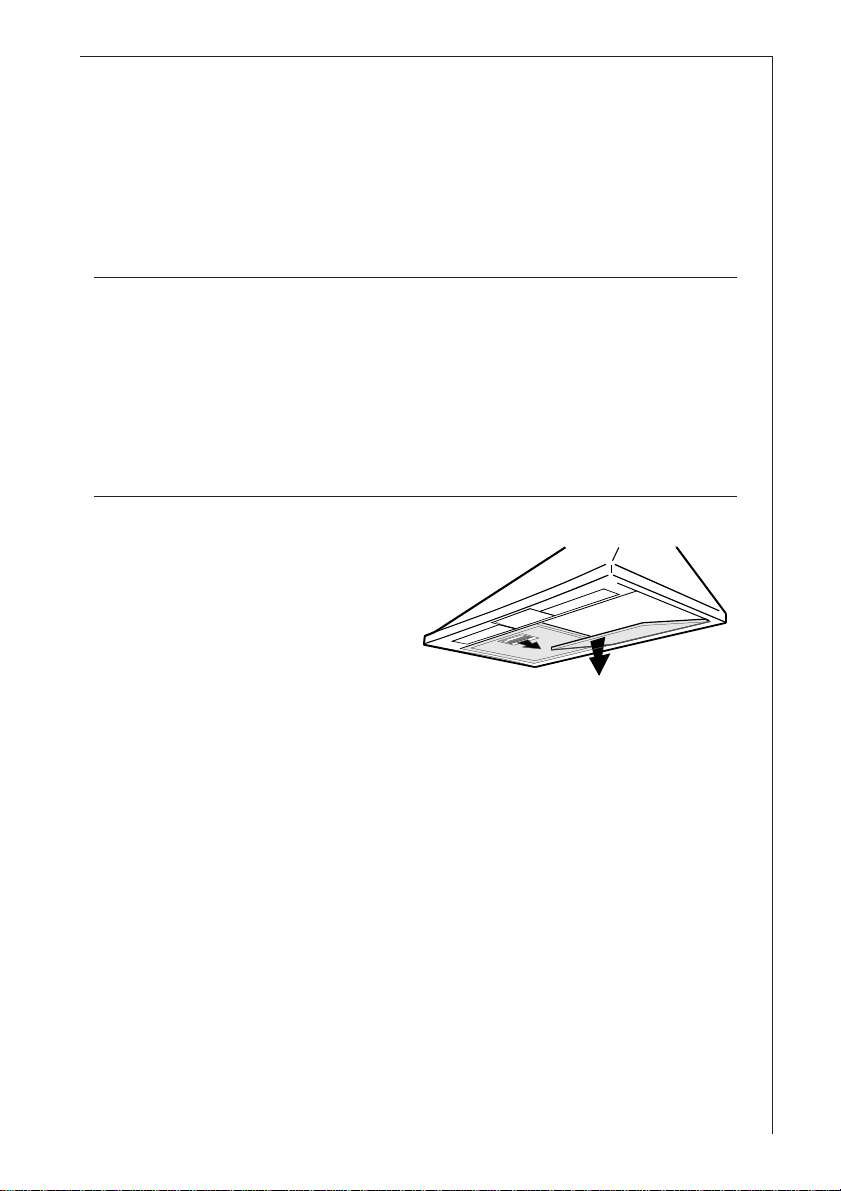

Opening the metal grease filter 1 3

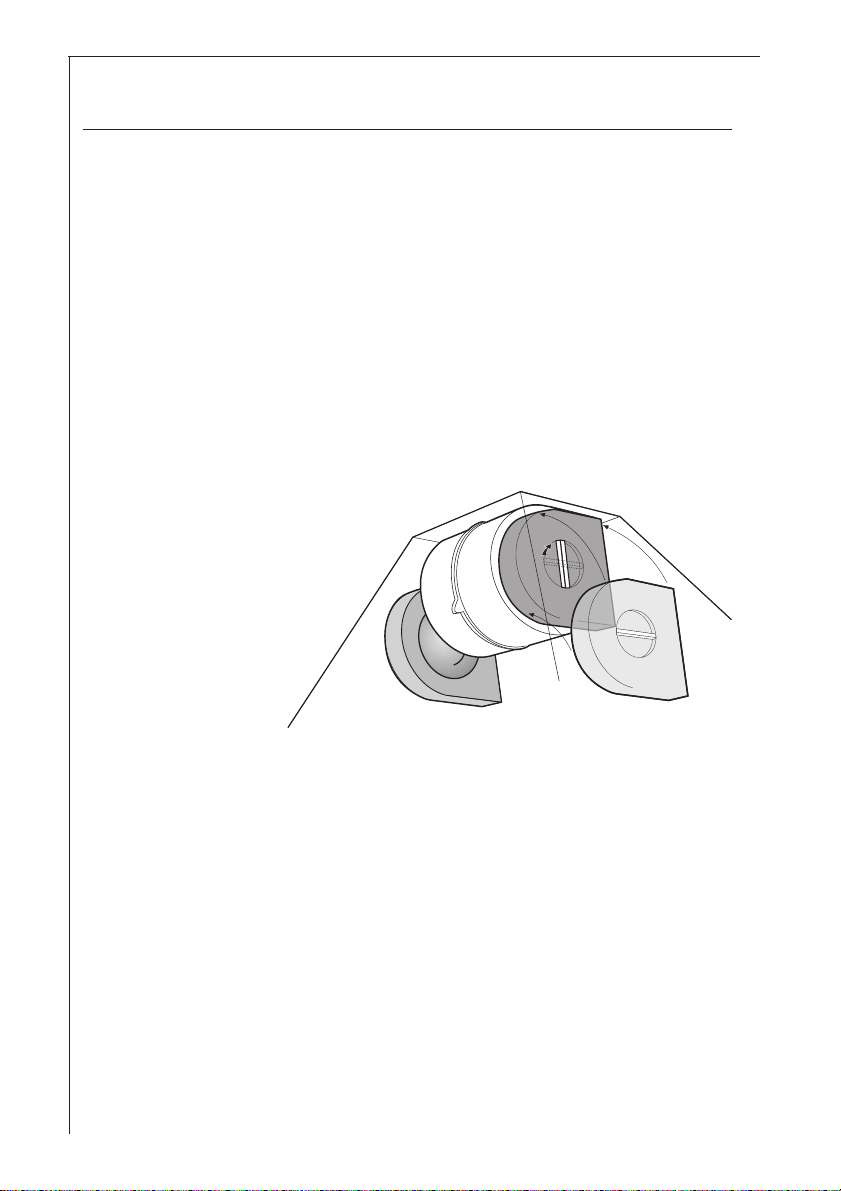

Carbon filter 1 4
Changing the light bulb 1 5
Cleaning 16
Accessories 16
Something not working 17
Service & Spare Parts 18
Printed on recycled paper.
AEG – putting words into action.
2
Introduction
Extraction mode
● The hood is supplied as an extractor unit and can also be used as a
filtered function by fitting activated carbon filters (available as an
accessory).
● You will need original AEG activated carbon filters for the filtered
function (see Accessories).
● The air is forced out through a hose fitted to the top of the hood
A. Fig. 1.
● The outlet hose must have a diameter of 120 mm (accessory) for
the extraction mode.
● Fit the connection ring above the hood with two screws then fir an
exhausting pipe long enough to reach the outside. Fig. 1.
A
Fig. 1
● If the cooking vapour is passed through an outside wall, you will
need an MKZ telescopic wall pipe (with intake and ventilation) ENr.: 610 899 004 (120 mm Ø) from our range of accessories.
3
Recirculation mode
● The air is filtered through an activated carbon filter and passed
back into the kitchen through the top outlet duct grids.
● Y ou will need an original AEG KF 825 activated carbon filter for the
filtering function. (See Accessories).
● Fix the deflector with two screws Ø3,5x6,5. Fig. 2.
Fig. 2
4
Electrical connection for the UK
Appliances with 2 wires
WARNING: DOUBLE INSULATED - DO NOT EARTH
The appliance must be connected to fixed wiring with a double
pole switched fused spur outlet with or without pilot lamp.
We strongly recommend the appliance to be connected only by a
qualified electrician who is a member of the NICEIC who will comply with the IEE and any local regulations.
NOTE:
The terminology “DOUBLE POLE” means that both the live and the
neutral supplies are switched and disconnected at the same time.
The terminations labelled SUPPL Y are for the connection for the
internal house wiring and the terminations labelled LOAD are for
the appliance.
IMPORT ANT
The wires of the mains lead supplied with this appliance are
coloured in accordance with the following code:
Blue-Neutral
Brown-Live
As the colours of the flexible cord of this appliance may not
correspond with the coloured markings identifying the terminals in the plug, proceed as follows: The wire which is coloured brown must be connected to the terminal which is
marked with the letter L or coloured red.
The wire which is coloured blue must be connected to the
terminal which is marked with the letter N or coloured black.
FUSE
BLUE
(NEUTRAL)
SUPPLY
N
ON
N
LOAD
SUPPLY
DP 13A, 250V
BROWN
(LIVE)
L
LOAD
L
5
T echnical Details
Dimensions (825 D):
Height x Width x Depht (in cm) 84-117 x 59,9 x 51.5
Dimensions (8259 D):
Height x Width x Depht (in cm) 84-117 x 89,9 x 51.5
Weight (825 D):
Net: 10,7 kg
Gross: 16,2 kg
Weight (8259 D):
Net: 13,1 kg
Gross: 19,6 kg
Maximum absorbed power: 250W
Motor absorption: 1 x 170 W
Lighting: 2 x 40 W
Length of the cable: 100 cm
Fan powers (speed), speed in compliance with DIN 44971
Extractor version:
1 179 m3/h
2 219 m3/h
3 336 m3/h
Filter version:
1 102 m3/h
2 150 m3/h
3 252 m3/h
Flange: 120 mm Ø
6
