6010 K
Ceramic Glass Hob
Operating Instructions
Installation Instructions
3
2
4
1
5
0
6
9
8
7
3
2
4
1
5
0
6
9
8
7
3
2
4
1
5
0
6
9
8
7
3
2
4
1
5
0
6
9
8
7
Dear Customer,
Please read these operating instructions through carefully.
Above all, please take note of the “Safety” section on the first few
pages. Please keep these operating instructions for future reference.
Pass them on to any subsequent owner of the appliance.
The warning triangle and/or specific words (Warning!, Caution!,
1
Important!) are used to highlight instructions that are important for
your safety or for the function of the appliance. It is imperative that
these instructions are observed.
0 1. This symbol guides you step by step when operating the appliance.
2. ...
3. ...
Next to this symbol you receive additional information and practical
3
tips on using the appliance.
Tips and information about the economical and ecological use of the
2
machine are marked with a cloverleaf.
Before calling out an engineer to a fault please read the chapter „What
to do if...“ as you may be able to resolve the problem yourself.
For further assistence contact your local AEG Service Force Centre, see
the chapter „Service“.
22
Printed on paper manufactured with environmentally sound processes.
He who thinks ecologically acts accordingly ...
Contents
CONTENTS
Operating Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Appliance Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Features of the hob . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Before Using for the First Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Initial Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Suitable Pans . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Using the Cooking Zones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Control Knobs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Cooking on the Zones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Switching on the Dual Cooking Zone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Residual Heat Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Usage, Tables, Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Pans . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Tables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Typical Heat Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Cleaning and Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Ceramic Glass . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
The Hob Frame . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
What to do, if ... . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Installation Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Regulations, Standards, Directives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Safety Instructions for the Installer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Electrical Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
UK only . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
23
Operating Instructions
OPERATING INSTRUCTIONS
1 Safety
The safety aspects of this appliance comply with accepted technical
standards and the German Appliance Safety Law. However, we also
consider it our obligation as a manufacturer to make you aware of the
following safety information.
Electrical Safety
• The new appliance may only be installed and connected up by qualified personnel, according to the manufacturers instructions and to
the relevant country standards.
Please observe this instruction, otherwise the warranty will not cover
any damage that may occur.
• Repairs to the appliance should only be carried out by approved service engineers. Improper repairs can cause injury or significant malfunction. If your appliance needs repairing, please contact your local
AEG Service Force Centre.
• If your appliance malfunctions, or fractures, cracks or splits appear:
– switch off all cooking zones,
– Disconnect the hob from the electricity supply.
24
Child Safety
The cooking zones will become hot when the hob is in use. Therefore,
always keep small children away.
The hob is designed to be operated by adults. Do not allow children to
play near or with the hob
Safety During Use
• This appliance is intended for domestic cooking only. It is not
designed for commercial or industrial purposes
• Do not use the hob to heat the room.
• Take care when plugging electrical appliances into mains sockets near
the hob. Connecting leads must not come into contact with the hot
surface.
• Overheated fats and oils catch fire quickly. You should supervise
cooking when preparing foods in fat or oil (e.g. chips).
• Switch the cooking zones off after use.
Operating Instructions
Safety When Cleaning
• For safety reasons do not clean the appliance with a steam jet or high
pressure cleaner.
• Clean the hob in accordance with the maintenance and cleaning
instructions in this manual.
How to Avoid Damage to Your Appliance
• Do not use the hob as a work surface or for storage.
• Do not use the cooking zones with empty pans, or without pans.
• Ceramic glass is insensitive to temperature shock and very robust,
however it is not unbreakable. Hard and sharp objects, in particular,
can damage the cooking surface if they fall on it.
• Do not use cast iron pans or pans with damaged bases that are rough
or burred. Scratching may occur when the pans are slid.
• Do not place any pans on the hob frame. Scratching may occur or the
paint damaged.
• Ensure that liquids containing acids, e.g. vinegar, lemon or scale
remover do not come into contact with the hob frame, otherwise
matt spots will appear.
• If sugar or a dish containing sugar comes into contact with a hot
cooking zone and then melts, remove the soiling immediately whilst
still hot using a scraper. If it cools, damage to the surface may occur
on removal.
• Keep all items and materials that can melt away from the ceramic
glass surface, e.g. plastics, aluminium foil, or oven foils. If something
of this nature should melt onto the ceramic glass surface, it must also
be removed immediately using the scraper.
• If you wish to use special types of pan (e.g. a pressure cooker, simmering pan, wok, etc.), please observe the manufacturer's instructions.
• Avoid boiling pans dry. The bases could be irreparably damaged in the
process and the glass ceramic cooking surface also damaged.
25
Operating Instructions
2 Disposal
Disposing of Packaging Materials
• All packaging can be recycled, sheet and hard foam parts are appropriately marked. Please dispose of packaging material and any old
appliance with due regard to safety and the environment.
Information on disposal
• The appliance must not be disposed of in the household rubbish.
• You can obtain information about collection dates or public tips from
your local refuse department or council.
• Warning! Before disposing of old appliances make them inoperable.
Cut off the mains cable.
26
Appliance Description
Features of the hob
Single Cooking
Zones
Operating Instructions
Dual Cooking
Zone
Control Panel
145 mm
180 mm
Control Knobs
3
2
4
1
5
0
6
9
8
7
3
2
4
1
5
0
6
9
8
120/210 mm
145 mm
7
3
2
4
1
5
0
6
9
8
7
3
2
4
1
5
0
6
9
8
7
Single Cooking
Zone
Four Residual Heat Indicators
(separate for each zone)
Control Knobs
3
2
4
1
5
0
6
9
8
7
3
2
4
1
5
0
6
9
8
7
3
2
4
1
5
0
6
9
8
7
3
2
4
1
5
0
6
9
8
7
for Rear Right Cooking Zone
for Rear Left Cooking Zone
for Front Left Cooking Zone
for Front Right Cooking Zone
27
Operating Instructions
Before Using for the First Time
Initial Cleaning
0 Wipe the ceramic glass cooking surface with a damp cloth to remove
any traces left from manufacturing.
Important: Do not use any caustic, abrasive cleaners! The surface could
1
be damaged.
Suitable Pans
• By using suitable pans, you avoid damage to the appliance.
• The base should be as thick and flat as possible. Rough bases may
scratch the cooking surface.
• Pans made of cast iron or with rough edges and burrs can leave permanent scratches.
• Important: Avoid pans boiling dry. The bases could be irreparably
1
damaged in the process and the glass ceramic cooking surface damaged.
28
Operating Instructions
Using the Cooking Zones
When the cooking zones are switched on, they may hum briefly. This is
3
a characteristic of all ceramic glass cooking zones and does not impair
either the function or the life of the appliance.
Control Knobs
• Over the range 1-9 you can set 14 heat settings
(including intermediate settings).
• Intermediate settings can be selected in the
range between 2 and 7. They are marked with a
dot between the heat settings.
1 = lowest power
9 = highest power
= switching on of dual cooking zone
Cooking on the Zones
0 1. Select a high setting for heating up / browning.
2. As soon a steam starts to form or the oil is hot, turn
back to the heat setting necessary for further cooking.
3. To stop cooking, turn back to the zero position.
Switch off the cooking zone approx. 5-10 minutes
2
before the end of the cooking to make use of the
residual heat. By this means you can save electricity.
3
2
1
0
9
8
2
1
0
9
8
2
1
0
9
8
4
5
6
7
3
4
5
6
7
3
4
5
6
7
29
Operating Instructions

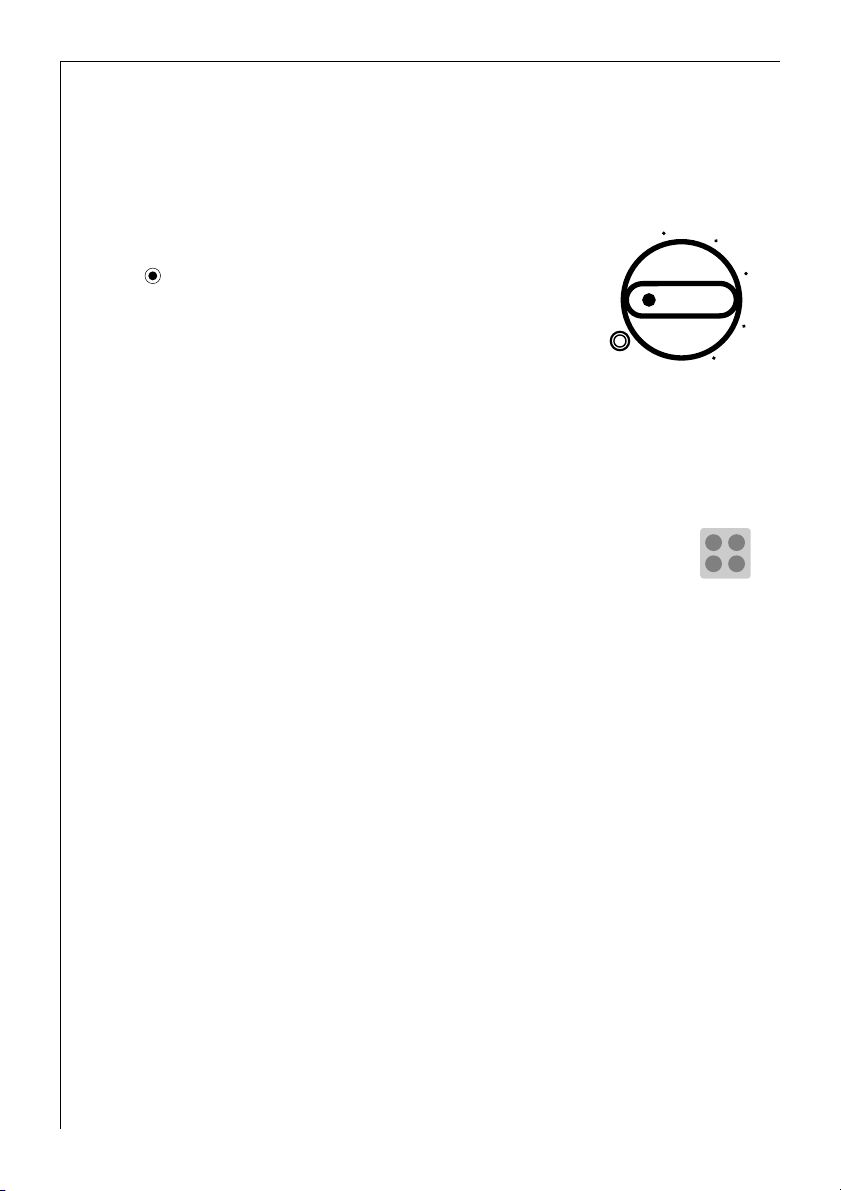

Switching on the Dual Cooking Zone
The switch for the dual cooking zone is switched on by turning clock-
1
wise and must not be turned past the stop!
0 1. Turn the switch for the dual cooking zone clockwise.
Turn past position 9 through light resistance at the
1
symbol, to a clearly noticeable stop.
2. Then turn back to the required heat setting for
0
cooking.
3. To stop cooking, turn back to the off position.
The next time the dual cooking zone is required,
3
repeat the above procedure.
Residual Heat Indicators
An indicator is assigned to each cooking zone. This illuminates when the temperature of the cooking zone reaches
80° C
Important! As long as the residual heat indicator is illu-
1
minated, there is a risk of burns.
Even when the cooking zone is switched off, the corresponding indicator will remain on until the temperature falls below 80° C.
You can use the residual heat for melting and for keeping food warm.
2
3
2
9
8
4
5
6
7
30
Operating Instructions
Usage, Tables, Tips
Pans
The better the pan, the better the results.
• You can recognise good pans by their bases. The base should be thick
and as flat as possible.
• Pans with aluminium or copper bases can leave
metal discoloration on the glass ceramic surface
that is very difficult or impossible to remove.
• Do not use cast iron pans or pans with damaged
bases that are rough or burred. Permanent
scratching may occur when the pans are slid.
• When cold, pan bases are normally bowed slightly
inwards (concave). They should under no circumstances be bowed outwards (convex).
Tips on Saving Energy
2
You will save valuable energy if you observe the following tips:
• Always place pans on the cooking zone before switching on.
• Soiled cooking zones and pan bases increase the
electricity consumption.
• If possible, always fit pans with a lid.
• Switch off the cooking zones before the end of
cooking to make use of the residual heat, e.g. to
keep food warm or for melting.
• The pan base and cooking zone should be the
same size.
When purchasing pans, pay attention to the
diameter of the base. Manufacturers often state
the diameter of the top of the pan
• Cooking times are reduced by up to 50% when a
pressure cooker is used.
31
Operating Instructions
Tables
Typical Heat Settings
The information given in the following tables is for guidance only. The
heat setting necessary for cooking is dependent on the quality of the
pans, and the type and quantity of the food.
Switch
Setting
9 Heating Up Heating up large amounts of water, boiling pasta
7-9
6-7
4-5 Boiling
3-4
2-3 Simmering
1-2 Melting
0 Residual heat, off position
Cooking Process/
Setting
Fast
Frying
Slow
Frying
Steaming,
Braising
Suitable for
Frying chips,
browning meat, e.g. goulash,
frying, e.g. potato pancakes
frying pieces of loin, steaks
Frying meat, schnitzels, cordon bleu
cutlets, rissoles, sausages, liver roux,
mild frying of
eggs, omelettes, frying doughnuts
Boiling larger quantities of food,
stews and soups,
steaming potatoes,
boiling meat stock
Braising vegetables,
braising meat
cooking rice pudding
Simmering rice and milk dishes
(stir occasionally),
Steaming smaller quantities of potatoes or
vegetables,
warming ready meals
Omelette, egg garnish, hollandaise sauce,
keeping dishes warm,
melting butter, chocolate, gelatine
32
When heating up or frying, we recommend heat setting “9“ and then
3
continue cooking foods at an appropriate lower heat setting.
Operating Instructions
Cleaning and Care
Ceramic Glass
Important: Cleaners must not come into contact with the ceramic
1
glass when hot! All cleaners must be removed with plenty of clean
water after cleaning as they may have a caustic effect when the rings
are next heated!
Do not use any aggressive cleaners, such as e.g. grill or oven sprays,
coarse scouring cleaners or pan cleaners that cause scratches.
Clean the ceramic glass surface after each use when it is hand warm or
3
cold. By this means you will avoid soiling becoming burnt on.
Remove scale and water marks, fat spots and metallic shimmering discoloration with a commercially available ceramic glass or stainless steel
cleaner, e.g. with “Stahl-Fix“ or “Vitroclen“.
Light Soilage
1. Wipe the ceramic glass surface with a damp cloth and a little washing
up liquid.
2. Then rub dry with a clean cloth. No residues of cleaner must be left on
the surface.
3. Once a week, thoroughly clean the entire ceramic glass surface with a
commercially available ceramic glass cleaner such as “Vitroclen“.
4. Then wipe the ceramic glass surface with plenty of clean water and rub
dry with a clean fluff-free cloth.
Stubborn Soilage
0 1. To remove food that has boiled over or
burnt on spots, use a glass scraper.
2. Place the glass scraper at an angle to the
glass ceramic surface.
3. Remove soiling by sliding the scraper.
You can obtain glass scrapers and
3
ceramic glass cleaners from your specialist retailers.
33
Operating Instructions
1 Burnt on Soilage
0 1. Remove burnt on sugar, melted plastic,
aluminium foil or other melted materials
immediately, while the hob is still hot,
using a glass scraper.
Important: When using the glass scraper
1
on the hot cooking zone, there is a risk of
burns!
2. Clean the cooking surface as normal once
it is cold.
If the cooking zone has cooled down
3
already prior to the soilage being removed, warm it up again for cleaning.
Scratches or dark marks on the ceramic glass surface, which have been
caused by a pan base with sharp edges, cannot be removed. However,
they do not impair the function of the cooking surface.
The Hob Frame
Important! Do not put vinegar, lemons or scale removers on the hob
1
frame, otherwise mat spots will appear.
0 1. Wipe the frame with a damp cloth and a little washing up liquid.
2. Soften dried dirt with a wet cloth. Then wipe off and rub dry.
34
What to do, if ...
... the cooking zones do not work?
0 Check whether
• the corresponding cooking zone is switched on.
• the switch is set to the correct heat setting.
• in the case of multi-ring cooking zones: the required heating circuit
is switched on.
• the mains fuse (fuse box) has blown.
If this information does not provide you with the necessary assistance, please seek specialist advice.
Warning: Repairs to the appliance may only be carried out by approved
1
service engineers. Improper repairs can cause injury or serious malfunction. If your appliance needs repairing, please contact your local AEG
Service Force Centre.
35
Installation Instructions
INSTALLATION INSTRUCTIONS
1 Important! This appliance must be installed by qualified personnel,
according to the manufacturer’s instructions and to the relevant country standards.
Please observe this instruction, otherwise the warranty will not cover
any damage that may occur.
Technical Data
Appliance Dimensions
Width 570 mm
Depth 500 mm
Height 49 mm
Cut-Out Dimensions
Width 560 mm
Depth 490 mm
Corner radius R3
36
Power Consumption
Front left Dual cooking zone 2200 W
Rear left cooking zone 1200 W
Rear right cooking zone 1800 W
Front right cooking zone 1200 W
Heater Element Voltage 230 V ...240 V
Total Electrical Load Max. 6.4 kW
Fuse Rating 30 Amp
Installation Instructions
Regulations, Standards, Directives
This appliance meets the following standards:
• EN 60 335-1 and EN 60 335-2-6
in respect of the safety of electrical appliances for household use and
similar purposes and
• DIN 44546 / 44547 / 44548
in respect of properties of electric cookers for the household.
• EN 55014-2 / VDE 0875 part 14-2
• EN 55014 / VDE 0875 part 14/12.93
• EN 61000-3-2 / VDE 0838 part 2
• EN 61000-3-3 / VDE 0838 part 3
in respect of basic electromagnetic compatibility (EMC) requirements.
This appliance complies with the EU Directives
;
• 73/23/EWG dated 19.02.1973 (Low Voltage Directive)
• 89/336/EWG dated 03./05.1989 (EMC Directive
including Directive Amendment 92/31/EWG).
37
Installation Instructions
1 Safety Instructions for the Installer
• This hob must be installed by qualified personnel, according to the
manufacturer’s instructions and to the relevant country standards.
• In respect of fire protection, this appliance corresponds to type Y (IEC
335-2-6). Only this type of appliance may be installed with a high
cupboard or wall on one side.
• It is not permitted to fit drawers below the cooking surface.
• Protection against electric shock must be provided by the installation.
• The kitchen unit in which the appliance is fitted must satisfy the
requirements of DIN 68930 in respect of stability.
• Built-in ovens and cooking surfaces are fitted with special connector
systems. They may only be combined with appliances with a matching
system.
• All cut surfaces are to be sealed with a suitable sealant for protection
against moisture.
• On tiled work surfaces, the joints in the area where the hob sits on
the surface must be completely filled with grout.
• On natural, artificial stone, or ceramic tops, the snap action springs
must be bonded in place.
• Ensure that the seal is correctly seated in the frame and that it is
seated against the work surface without leaving any gaps. Additional
silicon sealant must not be applied, this will make removal more difficult in the event of the need for service.
• To remove the hob, it must be pressed out from below.
38
Installation Instructions
Electrical Connection
• The mains connection terminals are on the underside of the appli-
ance, behind a cover. The hob is to be connected in accordance with
the connection diagram as a function of the mains supply present...
Connection Diagram 230 V ~
1 2 3 4 5
L1 N PE
230 V~
1 2 3 4 5
230 V~
L2L1 N PE
230 V~
230 V~
• The earth conductor is connected to the terminal, the earth wire
must be longer than the current carrying wires. If necessary, the
bridges on the terminal block must be changed as appropriate.
• The cable connections must be made in accordance with regula-
tions and the terminal screws fully tightened.
• The connecting cable is then to be secured using the strain relief
clamp.
• Following connection to the mains supply, all cooking zones are to be
1
switched on, at the maximum setting, one after the other for approx.
30 seconds to check that they function correctly.
2 N~
39
Installation Instructions
UK only
Any electrical work required to install this hob should be carried
1
out by a qualified electrician or competent person, in accordance
with the current regulations.
This hob must be earthed.
1
The manufacturer declines any liability should these safety measures
not be observed.
This hob is designed to be connected to a 230-240 50 HZ AC electrical
supply.
Before switching on, make sure the electricity supply voltage is the
same as that indicated on the hob rating plate. The rating plate is
located on the bottom of the hob.
The hob is supplied without supply cable. A 3 core flexible supply cable
must be fitted, in accordance with the specifications given in the table.
Connection via Min. size Cable/Flex Cable/Flex Type Fuse
40
Cooker Control Cir-
cuit
6mm
2
PVC / PVC twin and
earth
30 Amp
The hob must be connected to a double pole switch with a minimum
gap of 3 mm. Between the switch contacts and of a type suitable for
the required load in compliance with the current electric regulations.
The switch should be sited within 2 m of the hob and be easily accessible upon completion of the installation.
The switch must not break the yellow and green earth cable at any
point.
SERVICE
In the “What to do, if …” section a number of malfunctions are listed
that you can rectify yourself. In the event of a malfunction, look there
first.
Is it a technical malfunction?
Then please contact your customer service centre. (You will find
addresses and telephone numbers in the "Customer Service Centres"
list.)
Always take the time to prepare yourself for the call. By this means you
will make diagnosis of the problem easier and also make it easier to
decide if a customer service visit is necessary:
Please determine as accurately as
possible:
• How is the malfunction notice-
able ?
• Under what circumstances does
the malfunction occur?
Prior to the telephone call it is imperative that you make a note of the
following appliance code numbers that are given on the rating plate:
• PNC Code (9 digits),
• S-No Code (9 digits).
We recommend you to record the code numbers here so that you
always have them at hand:
Service
PNC . . . . . . . . .
S-No . . . . . . . . .
When will you be charged, also during the warranty period?
• when you could have rectified the malfunction with aid of the Table
of Malfunctions (see “What to do, if ...” section),
• if the customer service engineer has to make several calls because he
was not given important information prior to his visit, and therefore,
e.g., had to fetch replacement parts. You can avoid multiple calls if
you prepare yourself well for the telephone call, as described above.
41
Montage / Installation
MONTAGE / INSTALLATION
42
Montage / Installation
min.
25 mm
min.
5 mm
43
Hier Typschild aufkleben!
(nur für Werk)
AEG Hausgeräte GmbH
Postfach 1036
D-90327 Nürnberg
http://www.aeg.hausgeraete.de
© Copyright by AEG
ANC 822 947 096 - 05 - 1299
documentation manual, user maintenance, brochure, user reference, pdf manual
This file has been downloaded from:
User Manual and User Guide for many equipments like mobile phones, photo cameras, monther board, monitors, software, tv, dvd, and othes..
Manual users, user manuals, user guide manual, owners manual, instruction manual, manual owner, manual owner's, manual guide,
manual operation, operating manual, user's manual, operating instructions, manual operators, manual operator, manual product,
Loading...
