1
IMPORTANTNOTE: The operation of the Bluetooth Hands Free Kit as described in this manual is
applicable to most phones. However, due to the configuration of some phones, some functions may not
apply. Please see your installing dealer for more information.

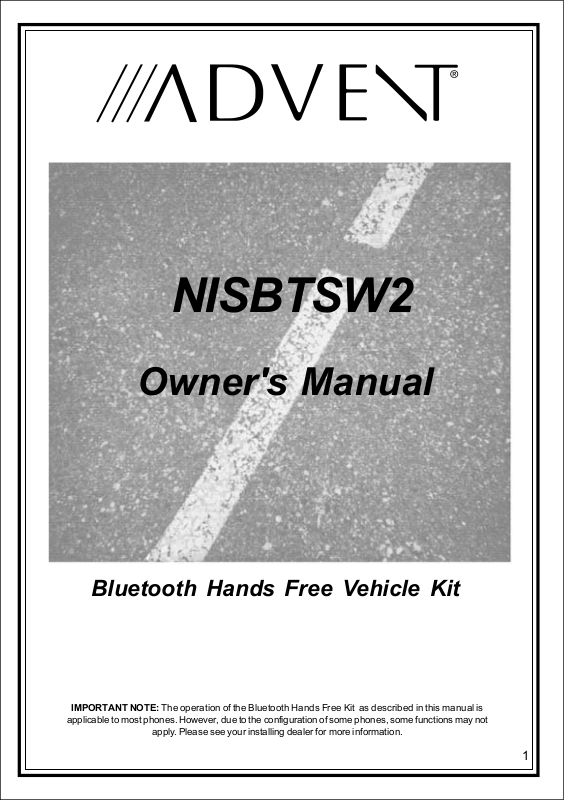

Owner's Manual
NISBTSW2
Bluetooth Hands Free Vehicle Kit
Using Your Bluetooth Hands Free Ki t
Powering On/Off
The bluetooth kit willautomaticallyturnon when the vehicle’s key is turnedto the accessoryposition andwill remain on
until the vehicle’saccessory poweris turned off.After turning on, the bluetoothkitwillautomatically searchfor phonesthat
havebeen pairedwith it. Since it is possible to have multiple phonespaired tothe system theorder of priorityof
connectingwill be thelatestphonepaired, the phone most used withthe system, the phonesecondmost usedphonewith
thesystem. If the bluetooth kit hasnotbeen paired toa phone pairingwill automatically activate.
Making a Call
When connected to thebluetoothkit you may use your phone as normal to dial numbers or search your contacts list
or by using Voice Dialing.
Voice Dialing
To activate voice dialing press the ANSWER key on the bluetooth keypad, the system will promptyou for a command.
Clearly speak your command (example, “Call Shaun”). The system will then confirm the command andin this
example will then call “Shaun”.
Ending a Call
To end a call press and hold the END key for 2 seconds.
Answer a Call
When there is an incoming call the vehicle’s radio will be muted/turned off and the call will ring through the
vehicle’s speaker, to answer presstheANSWER key.
Ignore an Incoming Call
To Ignore an incoming call press and hold the END key.
Redial the Last Number
To redial the last number press and hold the ANSWER key for 2 seconds.
Adjusting the Call Volume
While in a call, adjust the volume up/down with the ANSWER key or END key,each press raises or lowers the
volume by 1 level.When the min/maxvolumeis reached the system will beep 2 times through the speaker.
Transfer a Call
To transfer a call between bluetooth hands free or normalphone operation press and hold the ANSWER key on
the
bluetooth keypad for2 seconds.
Pairing
To activate phone pairing press and hold the END key for 10 seconds. At this time you will need to activate pairing
on the phone, see yourphones owners manual. The PIN codeforpairingis 1234 and willneedto be enteredinto your
phone at the time of pairing.
*Throughout this manual, ‘press’ refers to pressing for less than 1 second, ‘press and hold’ refers to pressing for 2
seconds.
2
Using Your Bluetooth Hands Free Kit, continued
SETONNOTTUBDAPYEKNOITCNUF
NOyrosseccaelcihevnruT-pUtinUrewoP
lamronsaenohpesU-llaCAekaM
esaelerdnasserPREWSNAllaCrewsnA
sdnoces2rofdlohdnasserPDNEllaCdnE
esaelerdnasserPREWSNAgnilaiDecioV
Redial Last Number ANSWER Press and hold for 2 seconds
sdnoces2rofdlohdnasserPREWSNAllaCrefsnarT
esaelerdnasserPDNEllaCerongI
Volume ANSWER OR END Press and release
sdnoces01rofdlohdnasserPDNEgniriaP
esaelerdnasserPREWSNAhcraeSlaunaM
sdnoces51rofrehtegotsserPDNEteseR
sdnoces5rofdlohdnasserPDNEhtooteulBtcennocsiD
Quick Reference Guide - 2 Button Switch
Manual Search for Paired Phone
If your phone is not connected to orhas been disconnected by you fromthe bluetooth kit but haspreviously been
paired to the system you can activatethe manual search whichwill locate your phone and connect to it. To activate a
manual search press the ANSWER key.
Reset / Clear All Paired Phones
To permanently remove all pairedphones from the bluetoothkit press and hold the END key for 15 seconds.
Quick Reference
3
4
This page intentionally left blank.
This page intentionally left blank.
5
6
This page intentionally left blank.
36 MONTH LIMITED WARRANTY
Appliesto BluetoothAutomotive/Cellular Interface Products.
AUDIOVOX Electronics Corp. (theCompany) warrantsto the original retail purchaser ofthis product
that, should this product or any partthereof, under normal use and conditions, be proven defective
in material or workmanship within 36 months from the date of original purchase, such defect(s) will
be repaired or replaced with new or reconditioned product (at the Company's option) without
charge for parts.
Simply call toll free to our control office for reference to the authorized Warranty Station in your
area and to obtain an Authorization number. No repairs or replacement will be made without a
valid Authorization number.
TRAVELER'S WARRANTY SERVICE1-800-645-4994
To obtain repair or replacement within the terms of this Warranty, the product is to be delivered
with proof of warranty coverage (e.g. dated bill of sale), authorization number, specification of
defect(s), transportation prepaid, to an approved warranty station. This warranty is not transferable.
This Warranty does not cover damage to vehicle electrical system. This Warranty does not apply
to any product or part thereof which, in the opinion of the Company, has suffered or been
damaged through alteration, improper installation, mishandling, misuse, neglect, accident, or by
removal or defacement of the factory serial number/bar code label(s).
This Warranty is in lieu of all other express warranties or liabilities. ANY IMPLIED WARRANTIES,
INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY, SHALL BE LIMITED TO THE
DURATION OF THIS WRITTEN WARRANTY. ANY ACTION FOR BREACH OF ANY
WARRANTY HEREUNDER INCLUDING ANYIMPLIED WARRANTY OF MERCHANTABILITY
MUST BE BROUGHT WITHINA PERIODOF 48 MONTHS FROM DATE OF ORIGINAL
PURCHASE. IN NO CASE SHALL THE COMPANY BE LIABLE FOR ANY CONSEQUENTIAL
OR INCIDENTAL DAMAGES FOR BREACH OF THIS OR ANY OTHER WARRANTY. No person
or representative is authorized to assume for the Company any liability other than expressed
herein in connection with the sale of this product.
The Company does not warrant that this product cannot be compromised or circumvented. THE
EXTENT OF THE COMPANY'S LIABILITY UNDERTHIS WARRANTYIS LIMITEDTO THE REPAIR
ORREPLACEMENTPROVIDEDABOVE AND,INNOEVENT,SHALLTHECOMPANY'S LIABILITY
EXCEED THE PURCHASE PRICE PAID BY THE PURCHASER FOR THE PRODUCT.
Some states do not allow limitations on how long an implied warranty lasts or the exclusion or
limitation of incidental or consequential damage so the above limitations or exclusions may not
apply to you. This Warranty gives you specific legal rights and you may also have other rights
which vary from state to state.
● TRAVELER'S WARRANTY DEPARTMENT
● AUDIOVOX ELECTRONICS CORPORATION
● 150 MARCUS BLVD HAUPPAUGE, NEW YORK 11788
128-8437
7
FCC COMPLIANCE
This device complies with Part 15 of the FCC rules and with RSS-210 of Industry
Canada. Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including any interference that
may cause undesired operation.
Warning!
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
8
1032778 R6WE57BAVX1A5A-01
