This manual is the latest at the time of print, and does not include the modification
which may be made after the printing, by the constant improvement of product.
1. The design of this product contains special hardware, many
circuits and components especially for safety purposes. For
continued protection, no changes should be made to the
original design unless authorized in writing by the
manufacturer. Replacement parts must be identical to those
used in the original circuits. Service should be performed by
qualified personnel only.
2. Alterations of the design or circuitry of the products should
not be made. Any design alterations or additions will void the
manufacturer’s warranty and will further relieve the
manufacturer of responsibility for personal injury or property
damage resulting therefrom.
3. Many electrical and mechanical parts in the products have
special safety-related characteristics. These characteristics
are often not evident from visual inspection nor can the
protection afforded by them necessarily be obtained by using
replacement components rated for higher voltage, wattage,
etc. Replacement parts which have these special safety
characteristics are identified in the parts list of Service
manual. Electrical components having such features are
identified by shading on the schematics and by ( ! ) on
the parts list in Service manual. The use of a substitute
replacement which does not have the same safety
characteristics as the recommended replacement part
shown in the parts list of Service manual may cause shock,
fire, or other hazards
4. Don’t short between the LIVE side ground and
ISOLATED (NEUTRAL) side ground or EARTH side
ground when repairing. Some model’s power circuit is
partly different in the GND. The difference of the GND is
shown by the LIVE: ( ) side GND, ISOLATED
(NEUTRAL): ( ) side GND and EARTH: ( ) side GND.
Don’t short between the LIVE side GND and ISOLATED
(NEUTRAL) side GND or EARTH side GND and never
measure with a measuring apparatus (oscilloscope etc.) the
LIVE side GND and ISOLATED (NEUTRAL) side GND or
EARTH side GND at the same time. If above note will not be
kept, a fuse or any parts will be broken.
5. If any repair has been made to the chassis, it is
recommended that the B1 setting should be checked or
adjusted (See ADJUSTMENT OF B1 POWER SUPPLY).
6. The high voltage applied to the picture tube must conform to
that specified in Service manual. Excessive high voltage can
cause an increase in X-Ray emission, arcing and possible
component damage, therefore operation under excessive
high voltage conditions should be kept to a minimum, or
should be prevented. If severe arcing occurs, remove the AC
power immediately and determine the cause by visual
inspection (incorrect installation, cracked or melted high
voltage harness, poor soldering, etc.). To maintain the proper
minimum level of soft X-Ray emission, components in the
high voltage circuitry including the picture tube must be the
exact replacements or alternatives approved by the
manufacturer of the complete product.
7. Do not check high voltage by drawing an arc. Use a high
voltage meter or a high voltage probe with a VTVM.
Discharge the picture tube before attempting meter
connection, by connecting a clip lead to the ground frame
and connecting the other end of the lead through a 10kΩ 2W
resistor to the anode button.
8. When service is required, observe the original lead dress.
Extra precaution should be given to assure correct lead
dress in the high voltage circuit area. Where a short circuit
has occurred, those components that indicate evidence of
overheating should be replaced. Always use the
manufacturer’s replacement components.
9. Isolation Check
(Safety for Electrical Shock Hazard)
After re-assembling the product, always perform an isolation
check on the exposed metal parts of the cabinet (antenna
terminals, video/audio input and output terminals, Control
knobs, metal cabinet, screw heads, earphone jack, control
shafts, etc.) to be sure the product is safe to operate without
danger of electrical shock.
10. The surface of the TV screen is coated with a thin film which
can easily be damaged. Be very careful with it when handle
the TV. Should the TV screen become soiled, wipe it with a
soft dry cloth. Never rub it forcefully. Never use any cleaner
or detergent on it.
(1) Dielectric Strength Test
The isolation between the AC primary circuit and all metal
parts exposed to the user, particularly any exposed metal
part having a return path to the chassis should withstand a
voltage of 3000V AC (r.m.s.) for a period of one second.
(…Withstand a voltage of 1100V AC (r.m.s.) to an appliance
rated up to 120V, and 3000V AC (r.m.s.) to an appliance
rated 200V or more, for a period of one second.)
This method of test requires test equipment not generally
found in the service trade.
(2) Leakage Current Check
Plug the AC line cord directly into the AC outlet (do not use
line isolation transformers during this check). Using a
“Leakage Current Tester”, measure the leakage current from
each exposed metal part of the cabinet, particularly any
exposed metal part having a return path to the chassis, to a
known good earth ground (water pipe, etc.). Any leakage
current must not exceed 0.5mA AC (r.m.s.).
However, in tropical area, this must not exceed 0.2mA AC
(r.m.s.).
●Alternate Check Method
Plug the AC line cord directly into the AC outlet ( do not use
a line isolation transformer during this check.). Use an AC
voltmeter having 1000 ohms per volt or more sensitivity in
the following manner. Connect a 1500Ω 10W resistor
paralleled by a 0.15µF AC-type capacitor between an
exposed metal part and a known good earth ground (water
pipe, etc.). Measure the AC voltage across the resistor with
the AC voltmeter. Move the resistor connection to each
exposed metal part, particularly any exposed metal part
having a return path to the chassis, and measure the AC
voltage across the resistor. Now, reverse the plug in the AC
outlet and repeat each measurement. Any voltage measured
must not exceed 0.75V AC (r.m.s.). This corresponds to
0.5mA AC (r.m.s.).
However, in tropical area, this must not exceed 0.3V AC
(r.m.s.).
This corresponds to 0.2mA AC (r.m.s.)
3
.
2. Block diagram TDA9377 PS/N2 series with mono intercarrier sound demodulator
4
3. REPLACEMENT OF MEMORY IC
1. MEMORY IC.
This TV uses memory IC. In the memory IC are memorized data for correctly operating the video and deflection
circuits.
2. PROCEDURE FOR REPLACING MEMORY IC
(1) Standby off
Switch the power off and unplug the power cord from AC outlet.
(2) Replace IC
Be sure to use memory IC written with the initial data values.
(3) Standby On
Plug the power cord into the AC outlet and switch the power on.
(4) Check and set SYSTEM default value:
1) Press “MUTE” Æ “CALL” Æ “-\--“ Æ “CALL” Æ “MUTE” buttons in sequence to enter into factory
status.
2) If the memory IC haven’t been written with the initial data, press [Program+] / [Program-] to select item
INIT and press [VOLUME+] / [VOLUME-] to start initialize memory IC.
3) Check the setting value of the SYSTEM default value of Table below. If the value is different, select
items by [Program+] / [Program-] keys and set value by [VOLUME+] / [VOLUME-] keys.
4) Press “EXIT” button to return to the normal screen.
4. SERVICE ADJUSTMENT
Specific operation: use remote controller
Press “MUTE” Æ “CALL” Æ “-\--“ Æ “CALL” Æ “MUTE” buttons in sequence to enter into factory mode.
Press [Program+] / [Program-] to select items and press [VOLUME+] / [VOLUME-] key, to make data adjustment
of corresponding factory menus.
Press “EXIT” key to exit factory mode.
Focus adjustment
1. Receive a crosshatch signal.
2. While watching the screen, adjust the FOCUS VR on the FBT to make the vertical and horizontal lines as
fine and sharp as possible.
Geometrical adjustment
Receive NTSC standard complete pattern signal.
Adjustment steps:
a) Adjust VSL, to the centre horizontal line just appears from half bottom shadow.
b) Adjust VAM, to get 92% of vertical picture contents would be displayed on CRT.
c) Adjust VSH, the centre horizontal line corresponds to CRT vertical centre.
d) Adjust SCL, to the linearity of P card field is in proper condition.
e) Adjust
Receive NTSC signal and repeat above adjustment.
AGC Adjustment
Receive 60dBµ (1mV) VH colour bar pattern signal.
Select TOP item.
Adjust value, to noise reduce gradually and just disappeared point.
CRT cut off and white balance adjustment
a) CRT cut off adjustment
b) White balance adjustment
HSH, to get the picture horizontal centre correspond to CRT horizontal centre.
1. Select item VG2B, then adjust value to 42.
2. PRESS “0” key, when the screen shows”VG2” adjust the SCREEN control on Fly back transformer to
make the screen show alternating flashing characters of “INSIDE HIGH INSIDE LOW”.
1. Receive a Black and White pattern.
2. Adjust WRP, WRG, WRB items to get colour temperature 9300K ±3 JND.
5
Adjustable Items
Direct access key Items Description Preset Remark
“1” 5/6HSH Horizontal shift ON A
“2” 5/6VSL Vertical slop 21 A
5/6VAM Vertical amplitude 45 A
5/6SCL S-correction 20 A
5/6VSH Vertical shift 38 A
5/6VOF OSD Vertical offset 38 A
HOF* OSD Horizontal offset 20 A
“3” RED Black level offset R 32 A
GRN Black level offset G 32 A
WPR White point R 30 A
WPG White point G 26 A
WPB White point B 38 A
YD AV Y-D el ay fo r PA L 7
“4” TOP AGC Take-over point 32 A
VOL Volume 36
9874 Output level of TDA9874A 18
AVLT TDA9874A AVL delay time
0BRI Listen: Brightness 0 A
0COL Listen: Colour 50 A
0SHP Listen: Sharpness 50 A
1CON Soft: Contrast 45 A
1BRI Soft: Brightness 45 A
1COL Soft: Colour 50 A
1SHP Soft: Sharpness 50 A
“6” Picture preset 2
2CON Standard: Contrast 75 A
2BRI Standard: Brightness 50 A
2COL Standard: Colour 50 A
2SHP Standard: Sharpness 60 A
3CON Dynamic: Contrast 85 A
3BRI Dynamic: Brightness 60 A
3COL Dynamic: Colour 60 A
3SHP Dynamic: Sharpness 80 A
NOTE: THE ITEMS WITH REMARK “A” IS ADJUSTABLE DATA.
Note:Don’t adjust any OPTION items, please inform the engineer about any change.
5. ICs functional description
1. N501 UOC TDA9377
SYMBOL PIN DESCRIPTION
STAND BY output. 1 In STAND BY mode, low level (Power OFF).
For Power ON this pin will be high.
SCL 2 I2C-bus clock line
SDA 3 I2C-bus data line
TUNING 4 tuning Voltage (Vt) PWM output
KEY 5 Control keys input
SYSTEM 6 TV system control
VOL 7 Sound Volume control PWM output
MUTE 8 Sound mute output
VSSC/P 9 Digit ground for µ-controller core and periphery
CTL 10 DVD power control
VACANT 11 Vacant
VSSA 12 Analog ground of digital ground of TV-processor
SECPLL 13 Internally connected
VP2 14 2nd supply voltage TV-processor(+8V)
DECDIG 15 decoupling digital supply of TV-processor
PH2LF 16 Phase-2 filter
PH1LF 17 Phase-1 filter
GND3 18 Ground 3 for TV-processor
DECBG 19 Band gap decoupling
AVL/EWD 20 Automatic volume levelling
VDRB 21 Vertical drive B output
VDRA 22 Vertical drive A output
IFIN1 23 IF input 1
IFIN2 24 IF input 2
IREF 25 Reference current input
VSC 26 Vertical sawtooth capacitor
TUNER AGC 27 Tuner AGC output
AUDEEM/SIFIN1 *1 28 Audio deemphasize or SIF input
DECSDEM/SIFIN2 29 Decoupling sound demodulator
GND2 30 Ground 2 for TV processor
SNDPLL/SIFAGC *1 31 Narrow band PLL filter
AVL 32 Automatic Volume Levelling
HOUT 33 Horizontal output
FBISO 34 Flyback input/sandcastle output
AUDEXT 35 External audio output
EHTO 36 EHT/over voltage protection input
PLL IF 37 IF-PLL loop filter
IFVO/SVO 38 IF video output / selected CVBS output
VP1 39 supply voltage TV processor
CVBS INT 40 internal CVBS input
GND1 41 ground for TV processor
CVBS/Y 42 CVBS/SVHS(Y) input
8
CHROMA 43 SVHS (C) input
AUDOUT 44 Audio output
INSSW2 45 YUV insertion input
R2/VIN 46 R input / V (R-Y) input / PR input
G2/YIN 47 G input / Y input
B2/UIN 48 B input / U (B-Y) input / PB input
BCLIN 49 Beam current limiter input
BLKIN 50 Black current input
RO 51 Red output
GO 52 Green output
BO 53 Blue output
VDDA 54 Analog supply of Closed Caption decoder and digital supply of TV-processor (3.3 V)
VPE 55 Ground
VDDC 56 Digital supply to core (3.3 V)
OSCGND 57 Oscillator ground supply
XTALIN 58 Crystal oscillator input
XTALOUT 59 Crystal oscillator output
RESET 60 Ground
VDDP 61 Digital supply to periphery (+3.3 V)
P1.0/INT1 62 AV1 / AV2 mode Output.
P1.1/T0 63 AV /S-VHS mode Output.
P1.2/INT0 64 Remote control signal input.
Vcc 1 Power supply GND 7 ground
Out 1 (+) 2 Ch 1 output (+) In 2 8 Ch 2 input
GND(out 1) 3 Ch 1Ground VOL 9 Volume Control
Out 1 (-) 4 Ch 1 output (-) Out 2 (-) 10 Ch 2 output (-)
Standby 5 Mute input GND(out 2) 11 Ch 2 Ground
In 1 6 Ch 1 input Out 2 (+) 12 Ch 2 output (+)
4. N301: Vertical output (TDA8357A)
Symbol PIN Function Symbol PIN Function
INV IN 1 Input PUMP UP 6 Pump up power
INV IN 2 Input V OUT 7 Vertical output
Vcc 3 Pump up power V PRO 8 Vertical protection
V OUT 4 Vertical output V FEEDBACK 9 Vertical feedback
GND 5 Ground
2. Using 4-pole convergence magnets overlap the red
and blue lines in the center of the screen (Fig. 1) and
turn them to magenta (red/blue).
3. Using 6-pole convergence magnets overlap the
magenta (red/blue) and green lines in the center of the
screen and turn them to white.
4. Repeat 2 and 3 above, and make the best
convergence.
DYNAMIC CONVERGENCE ADJUSTMENT
1. Move the deflection yoke up and down and overlap
lines in the periphery. (Fig. 2)
2. Move the deflection yoke left to right and overlap the
lines in the periphery. (Fig. 3)
3. Repeat 1 and 2 above, and make the best
convergence.
After adjustment, fix the wedge at the original position.
Fasten the retainer screw of the deflection yoke.
Fix the 6 magnets with glue.
(FRONT VIEW)
Fig. 1
(FRONT VIEW)
RED GREEN BLUE
BLUE
GREEN GREEN
RED BLUE
BLUE GREEN RED
Fig.2
RED
(FRONT VIEW)
RED GREEN BLUE BLUE GREEN RED
RED
GREEN
BLUE
BLUE
GREEN
RED
Fig. 3
12
9. DVD Part: Introduction of MTK1379 maintenance
1. Under normal power supply conditions, the maintenance plan for MT1379 mono-chip is: first the reset
circuit resets the MT1379, after the crystal oscillator circuit gave the clock signal to MT1379, MT1379 will
start the initialization check for Flash、E
start initialization check for 7Audio DAC, MT1336 and motor Driver.
2. If the all the a.m. parts are good, then MT1379 will send signal to motor Driver to drive the servo system,
pick up then to generate DVD light for collection, tracing the main shaft to check if there is any disc, and
confirm if it is CD format or DVD format disc. If the disc is in DVD format, the system will read the data
from the disc directly; if it is in CD format MT1336 will drive the CD laser to send out CD light and read the
data, the data then will be amplified through MT1336 and sent to MT1379 for data processing, released by
MPEG and resolved into video data and audio data, then they will be returned to analog signals through
VIDEO DAC、AUDIO DAC.
Decoder section
3. There is power supply, clock and reset, but the system does not work.
1)Check if all the address wires required for FLASH are exist, and if they are in normal status,
especially check if the A0~A15 of FLASH have normal signals, if there aren’t, then inspect MT1379
to see if there is faulty soldering. If there are normal signals at A0~A15, check if the address data
signal of MT1379 and SDRAM is normal. If it is normal, then check the signal at A16~A19 of
MT1379; if there are also signals, then check the 8 video data wires; it there is no signal, then
check the corresponding pins of MT1397 to see if there is any short circuit, break or faulty
soldering.
2)If all the a.m. conditions are good, but there is still no video signal output, then the filter circuit after
MT1379 shall be checked.
4. System in normal operation, but the audio has no sound.
1)Check if all the signals of DATA, MCLK, BCLK, LRCK and reset required by the Audio DAC are
exist, if there is signal missing, then check the signal line between MT1379 and Audio DAC. If the
line is connected properly, but there is no signal, then check if there is any welding problem at the
corresponding pins of MT1379. If it is still OK, it is probably the problem on MT1379 itself.
2)All the required signals are exist, while there is no audio output. Then you need to check the lower
passing amplifying circuit and the MUTE circuit at the back of Audio DAC. Also check if there is
any power supply to the Audio DAC.
3)Check if the power supply voltage required for playing is at normal level.
Servo Section
5. After the LOGO of the machine shows normally, there is no OSD display. This problem mainly is caused
by the abnormality between servo and MPEG, possible problems may be:
1) T1336 and its surrounding circuits have problems.
2) Servo part of MT1379 has problems.
6. OSD display is normal,while there is no action of servo part(feeding motor does not work, main shaft does
no turn, possible fault status are:
1) The corresponding signals giving by MT1379 to DMSO、FMSO are missing, the reason may be the
problem of MT1379 or the communication between MT1379 and motor Driver.
2) Not output from Motor Driver, the reason may be the problem on motor Driver or its corresponding
circuit.
7. Servo part in good status, while there is no pick up action(no light, no focus)
1) No light, check the power supply(power supply for pick up), or the light producing driving circuit to see
if they are in normal status.
2) No focus, check MT1379 to see if there is signal output from FOSO、TRSO.
Secondly, check motor driver to see if there is F+、F-、T+、T-signal output.
Thirdly, check the external corresponding circuit of the motor driver to see if there is any problem.
8. All the servo part has action, while it cannot read out the disc
1) Check MT1336 if there is RF net picture output, if there isn’t, then it must be the problem of MT1336
and external surrounding circuits, it there is output, then it might the problem of MT1369 and its
surrounding circuits.
2) There is RF signal,but not in normal status,then check MT1336 and surrounding circuits.
3 )Everything is normal, but the disc cannot be read out, check MT1369 and its surrounding circuit
2
PROM、SDRAM, after everything is checked to be normal, it will
13

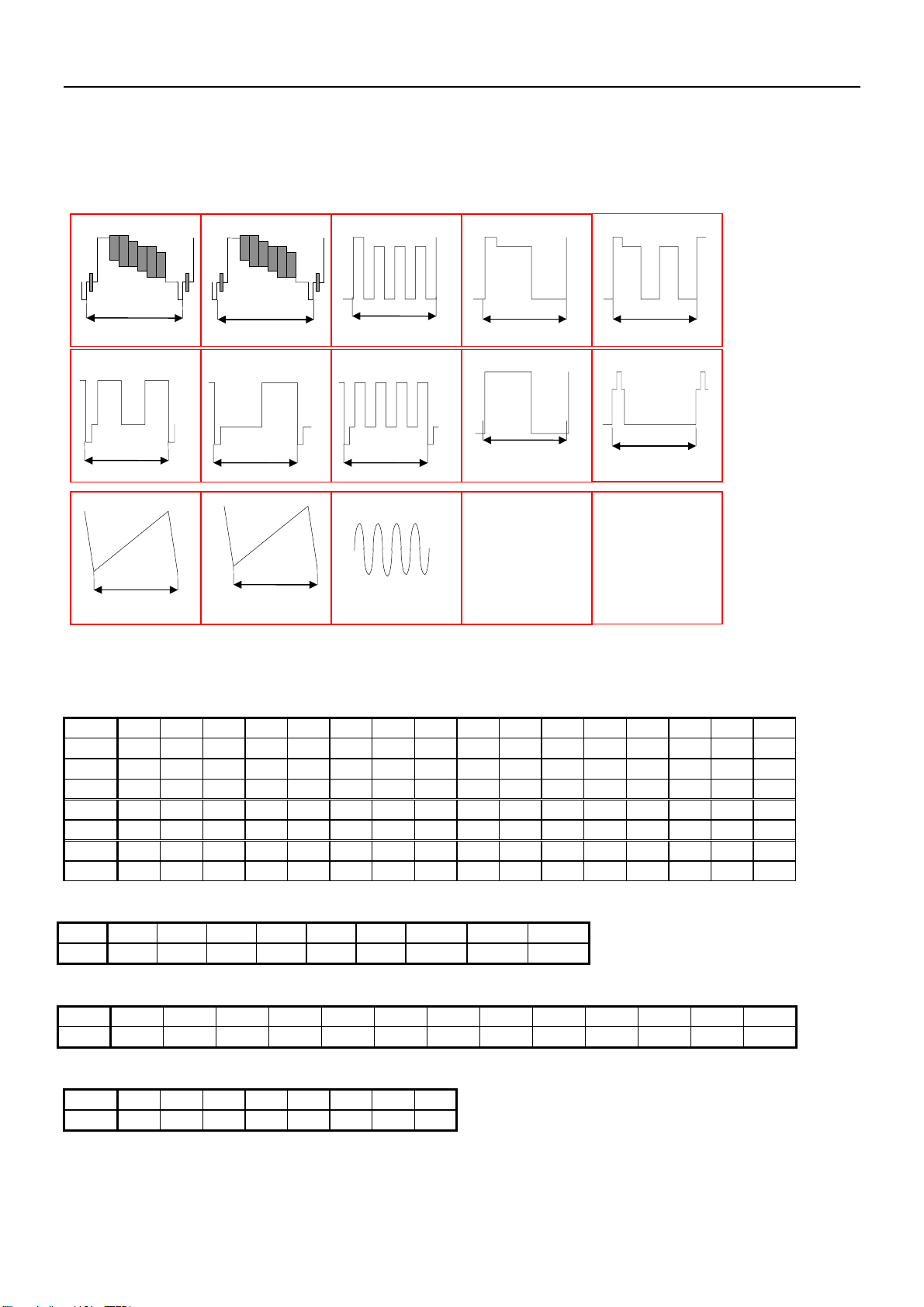

DEGUSS
K
K
VD217
1N4148
12V
CN801
TJC1-2Y
CN802
TJC1-2Y
VD811~VD814
TRM11C
P+
RB04
1.2K
10uH
JA702
F801
C800
104
Rx801
3.3M
DV801
MYN15-471K
P-
RB02
RB03
620
1K
B+SCL SDA
C101
0.22U
C111
0.01
1
R831
10K
IN4148
12
2SC2216
C109
DZ831
104
MTZJ5.1B
220U
R106
470
L101
1uH
V101
R103
47
C850
224
2
C849
224
C202
DZ102
C102
Y
250V/3.15A
N801
4
VFB
VCC
35
C804
392
VD802
B1206
C803
473
V-
V+
RB05
1.8K
TU101
TEDE9-280A
AGC
C107
22U
R110
33
L102
R261
R262
9.1K
12K
R260
R227
9.1K
100
N805
2
78R12
C853
C854
104
100UF
C852
1000UF
CN810
5V
LCL-207
34
N804
78R05
C851
104
34
CN706
C
DVD-AR
DVD-AL
SW801
5A-250V
L801
R801
33K
RP803
R802
PTC
33K
RP801
5
R822
470K
C801
150uF/450V
R823
470K
TV/AV
MENU
RB01
CNB01
470
TJC3-2Y
GNDBT
9
11IF1083154672
DZ201
KA33V
C201
10u
R104
10
R105
4.7K
R102
2.2K
SF101
D2901C
R830
R832
2
2
3.3K
10K
10K
2
R833
V807
KA815
DVD-5V
L807
1
F/B
2
SYNC
R805
600
R803
390
C802
47u
1
DZ102
MTZJ5.1B
103
C109
VD809
IN4148
VD810
ERB4304
2
A3-15.8V
L803
F/B
C805
222
N802
PC817C
A1-33V
B4-9V
LD901
HTRYG9208
R806
3.3M
TJC3-2Y
CNB02
SDASCL
TDA9370N201
INT.REM
AV/SVHS
AV1/AV2
XTAL.OUT
XTAL.IN
OSC.GND
VDD.A
BLK.IN
BCL.IN
B2/U.IN
G2/Y.IN
R2/V.IN
AUD.OUTV.DRB
CHROMA
CVBS/Y
CVPS.INT
IF.VO/SVO
AUO.EXT
F.B.L.SO
VDDP
RESET
VDD.C
B.OUT
G.OUT
R.OUT
PLL.IF
H.OUT
GND1
EHTO
R208
A6-5V
N202
100
24C08
8
VDD
C207
103
PTC
SCL
SDA
5
R230
100
64
C234
102
63
62
60
59
58
57
AV/SVHS
AV1/AV2
C237
C236
104
22U
C239
33
X201
12M
C240
33
56
55
VPE
54
C242
C241
104
53
100uH
52
51
R238
12K
50
R248
6.8K
49
C250
10u
48
47
46
BL
45
44
43
42
41
40
39
VP1
38
37
36
R276
27K
35
34
33
R710*
4.7K
R242
1K
C246
10U
C247
474
C253
474
C255
C254
223
100U
R244
390
R275
270K
C256
104
R246
8.2K
R245
100
R247
R263
3.3K
200
H-DRI
1
Wp
NC
A2
VSS
4
L206
10uH
L207
10uH
L208
10uH
R274
22K
R249
20K
R256
470
L209
10UH
R264
470
R265
75
C248
104
R259
100K
C249
151
H-SYNCABL
RM201
A6-5V
HS0038A
R943
OUT
GND
VCC
47
C922
100U
AV1/AV2
N702
HEF4053
9
9
10
10
R746
R747
11
11
3.3K
3.3K
12
12
13
13
C740
1UF
14
14
15
15
CVBS/Y
16
16
A5-3.3V
R235
100
R236
100
R237
100
VD201
IN4148
R273
33K
100K
R277
R243
10K
v213
A7-8V
CUT-OFF
A3-5V
B-OUT
G-OUT
R-OUT
R262*
R742
2
10
21P-B
21P-G
21P-R
4.7K
CVBS/Y
R255
430
R254
180
R252
100
4.5MHz
5.5/6.0/6.5MHz
5.5MHz
5.5/6.0/6.5MHz
L211
10uH
V210
Z203
L210
5.6U
Z201
Z202
KSR2010
Z204
V211
KSR1010
VD202
IN4148
DZ205
MTZ4.7B
V209
KSC815
V208
KSC815
R250
47
C252
47u
R253
510
R251
200
CN704
TJC-2A
Y-SVHS
75
R719
100
8
7
6
5
4
3
2
1
C706
224
C-SVHS
R257
47
C257
47u
V212
V-OUT
KSC815
R258*
R258
75
1K
SYSTEM
A7-8V
R278
R222
A6-5V
3.3K
3.3K
STANDBY
R209
100
SDA
C102
220UF
SCL
SCL
A7-8V
SYSTEM
MUTE
L203
1uH
EW-DRI
A5-3.3V
L202
10uH
L205
1uH
VD-N
R210
100
SDA
R266
3.3K
C259
3.3K
R279
10K
C214
104
224
C216
.
C219
100u
C222
1u
C221
472
C224
2.2u
R228
39K
C227
104
L204
1uH
R229
C231
102
VD-P
A6-5V
R212
R211
R215
3.3K
3.3K
3.3K
1
STANDBY
2
SCL
C209
56
3
SDA
C208
56
461
VT
R216
47
5
KEY
6
SYSTEM
7
MUTE
8
VOL
9
VSSC/P
10
CTL
11
BAND
12
VSSA
13
SEC.PLL
14
C220
104
R226
15K
222
C225
C226
222
C228
223
C229
223
C230
10u
3.9K
C232
331
C233
4.7¦Ì
VP2
15
DECD/G
C217
224
16
PH2.LF
C218
222
17
PH1.LF
18
GND3
C223
104
19
DEC.BG
20
INSS.W2(BL)
EWD
21
22
V.BRA
23
IF.IN1
24
IF.IN2
25
I.REF
26
V.S.C.
27
AGC
28
AV.DEEM
29
DECS.DEM
30
GND2
31
SND.PLL
32
AVL
TJC3-10A
R718
CNT01
A0R
A0L
V-OUT
RT02
100
AV2-VIN
V04
RS03
75
R715
75
C722
CNS01
YC
CN200
224
224
C727
9
9
10
10
11
11
12
12
13
14
15
15
16
16
SLSR
HEATER
B1-180V
A4-10.4V
MUTE
POWER
A3-15.7V
A3-15.8
A7-8V
A5-3.3V
R841
R840
1K
1K
4
3
1
C806
332
BCK-07-DE7
¡£
4
8
¡£
9
V805
2SB764
R860
10K
R861
15K
15K
POWER
R862
R807
3.3M
T801
10
¡£
12
14
¡£
15
16
¡£
17
18
¡£
19
L808
LB3.5*6
FFPF10U20STU
1
R819
1K
2
DZ803
KA431
VD805
FFPF10U20STU
FFPF10U20STU
C845
561
VD806
C847
561
VD802
VD803
C807
561
C810
561
R818
1.5K
C808
100u
FFP10U60STU
C814
104
L806
LB.6*6
V806
815
2200UF
1000UF
1000UF
R821
8.2
L809 101
R820
110
MTZ5.1B
DZ802
N802
7809
C829
100UF
DZ101
MTZJ9.1B
C819
100UF
7.5KR811
L809 101
IN4004
A7-8V
L209
B4-9V
C108
47u
A6-5V
A3-14.73V
A1-33V
10KR810
A2-130V
100R812
A3-15.7V
C811
A4-10.4V
C846
DVD-5V
C848
R849
10K
1N4148
R816
123K
R809
39K
VD816
R848
R847
6.2K
6.2K
R817
2.49K
V206
KSC815
A6-5V
V803
KSC815
R213
10K
STANDBY
ST-BY
R214
10K
RS01
C-SVHS
Y
N703
HEF4052
75
OUT
VIDEO
10U
10U
VOL
v04
v03
CT01
102
AV1-V
CbCr
L704
L703
AV2-L
220
R704
224
8
7
6
5
4
3
2
1
AV1-VIN AV1-AL AV1-AR
AV1-AL
220
AV2-R
R703
C705
224
L707
C725
10u
V03
L708
10u
R001
120
CNS02
AV1-AR
C001
10u
C002
10u
R002
120
R707
220
VD-P
VD-N
EW-DRI
H-SYNC
B4-12V
A3-15.8V
H-DRI
A2-130V
HEATER
B1-185V VIDEO
ABL
CN703
L402
TK116
VIDEO
16.5
VD405
TVR10G
C503
103
SC
FO
HV
CRT
A34AGT13X53
C612
1U/50V
SCREEN
GT501 1P
GT502 1P
SPEA
CN603
SPEA
CN610
R622
C403
22u
10K
V1
C406
474
C405
2.2u
BSC25-0284G
8
46
9
6
7
1
4
5
3
B+
C411
250V/22u
V2
CN401
TJC-4
H2
H1
T444
ABL
10 11
TO CRT
HV
HV
FO
SC
FO
SC
TO CRT PCB SCREEN & FOCUS
C414
104
GT404
VD505
IS133
R517
CN501
R403
270
C401
103
7.5K
C505
471
G-OUT
R-OUT
B-OUT
V506
C504
331
R502
10K
R503
10K
R526
68
BF422
V503
BF421
R512
R513
10K
270
5
6
7
R526
68
8
C502
222
C508
10u
R527
33K
N601
AN7522N
VCC
1
C610
1000u
VCC
OUT
GND
3
4
5
DZ303
12k
R314
MTZJ15C
R305
1.3
R315
1W 3.9
C304
22u
100K
R303
C421
100u
VD402
IN4004
R405
C402
43
561
C408
47u
OUT2
2
TDA8357
DZ502
MTZJ9.1B
R525
2W 2.8
GND
OUT2
MUTE
3
4
5
56K
12k
R606
2.2k
C612
1U/50V
R606
12k
R610
N301
VFB
OUT
VO
7
C306
A?
R308
1.5
N401
KA7812A
VI
8
9
12k
R311
DZ402
MTZJ5.1B
1W 10R302
100V 10u
B3-18.5V
C426
100u
V401
2SD2499
R407
0.39
R408
33
6
L306
10UH
C422
104
T401
AA26
V503
BF422
C507
331
R310
1.5K
B2-46V
C418
6
R516
INPUT
22UH
L304
C420
224
VD503
ISS133
7.5K
C503
471
v504
BF423
R510
270
R515
V501
BF422
C501
331
VD503
ERB4304
VD503
ERB4304
GND
INPUT
7
8
C611
472
C604
1UF/50V
2.2k
C603
472
R611
12
0.7V
L305
2W 0.68
10UH
R306
R401
52.6K
DZ401
MTZJ30D
R407
3.9K
C417
471
VD403
ER24-06
VD404
R5GU41
R414
10
C403
471
C404
470u
VD404
FMP-3FU
R520
1.8K
R519
1.8K
R518
1.8K
R511
1K
VD502
ISS133
C502
471
7.5K
V502
BF423
R507
R506
1K
270
VOL
OUT1
GND
9
VD403
ER24-06
1.8K
R313
2W 390
R307
R403
5.6K
R402
100
V401
KSA614Y
1W 1
R415
OUT1
10
11
12
C403
22u
KSA539
v620
V621
1.8K
R313
KSC815
R313
1.8K
VD401
TR5GU41
18K
R406
R405
390
C402
103
C404
102
L401
LX034
C403
22u
R409
0.22
HEATER
H-OUT
C419
681
C409
622
R416
1W 18
CN001
TJC3-4Y
C003
10u
R003
120
CN503
TJC-5
R-OUT
G-OUT
220
R708
B-OUT
GND
CUT-OFF
A1L
A1R
HEATER
180V
CN502
TJC-3
1
2
3
R815
0.18
V622
539
INPUT
INPUT
2
R312
1.8K
R313
1.8K
C303
DZ301
MTZJ22A
V402
KSC2331-Y
100u
VD402
IN4004
NOTE:This diagram is only for reference and subject to change without notice.
10. List of Parts
LOCATIONmaterial codeparts namespecificationQTY
DA0RF0E0100FACTORY MODEL:HP-1586MODEL: DV1418A
90805790FRONT FRAME MODULEBJH3156-----Q1
90205838FRONT FRAME ASSEMBLYMTAA3191AC--Q1
90205844FRONT FRAMEMTAA3197AC--Q1
90401734WIRING HARNESSTJC3-2A
90205861LIGHT GUIDING COMPONETMTAA3214AC--Q 1
90600076SCROWSJ2831-87 ST3x10F1
90205860touch switchMTAA3213AC--Q1
90600200SCROWSJ2825-87 ST3x12F6
90205465METAL LABELMTAA3169AC--Q1
90205859cap of power switch1
SPRING1
94009173SPEAKERYDT0313-8W-8Ω2
90600035SCROWSJ2825-87 ST3X8F8
90401336FRONT AV WIRING HARNESS1
90600013SCROWSJ2825-87 ST3x12F2
94008692DVD MODULEMTZD7006AG--Q1
90204545DVD PLANKMTAC7014AA--Q1
90100709DVD screening cover(upper)1
90100710DVD screening cover(lower)1
90600011scrow4
90204529DVD COVER1
94008041DVD assembly
90203564sponge piece8
C005B(32M)
1
90805808back cover moduleBJH3174-----Q1
90205850back cover assemblyMTAA3203AC--Q1
90205856back coverMTAA3209AC--Q1
90600076scrowSJ2831-87 ST3x10F1
90600037scrowSJ2825-87 ST3X10F2
90205866AV brandMTAA3219AC--Q1
90805791SUBASSEMBLYBJH3157-----Q
90200008HIGH VOLTAGE STRING TACHTEM1011
90200047round wire tachTMMOA411-12
90205871DVD doorMTAA3224AC--Q1
90204560power cord nipMTAH7005AA--Q1
90600015screwSJ2824-87 ST4X12F6
90600023screwSJ2824-87 SJ4X16F6
90600023screwSJ2824-87 SJ4X16F1
90204751laser mark1
90100306IRON NIP WIRE60mm1
90504852upper padMTEE3166AB--Q1
90504853lower padMTEE3167AB--Q1
CN00290402176wiring harness1
90805792BRACKET SUBASSEMBLYBJH3158-----Q
90205862bracketMTAA3215AC--Q1
90600037screwSJ2825-87 ST3X10F9
90201400padPS V-03
90200038wire tachMTAJ1001AG--Q1
90401101power cordJPRVVZ202XDFQ1
94501126harmonic filterECRK-5135712
94008684CRT module1
94004185PURE CRT 15'A36CPAA00X021
90401302GROUDING WIREJE215-0C3014Q1
94500815demagnetize windingHXC-38A1
90100297Screw
SJ2824-87 ST5X25(φ20)
4
90202438CRT label1
90200038wire tachMTAJ1001AG--Q2
90805480packaging module1
90204816back cover brand1
90505680packaging box1
94000105battery5#2
90205727plastic bag of manual1
90805980remote cotroller
HTR-108(///ADVE\T)
1
90205728plastic bag of TV1
90100027nail20
90500018bag of power cord1
90504600service manual(english)1
90205763guarantee1
90205764label of power cord1
90100306iron nip wire60mm1
94006708DVD module1
94006709DVD machine inserting assembly1
91800930PCBDVD0091800930 V1.01
R00194100942CARBON FILM RESISTORRT13-1/6W-120-J------T1
R00294100133CARBON FILM RESISTORRT13-1/6W-200-J------T1
R00394100017CARBON FILM RESISTORRT13-1/6W-100-J------T1
