ADV48

12.1" OVERHEAD

LCD MONITOR WITH

DVD PLAYER

OPERATION

MANUAL

128-7937A

Important Notice

An LCD panel and/or video monitor may be installed in a motor vehicle and visible to the driver if the LCD panel or video monitor is used for vehicle information, system control, rear or side observation or navigation. If the LCD panel or video monitor is used for television reception, video or DVD play, the LCD panel or video monitor must be installed so that these features will only function when the vehicle is in “park” or when the vehicle’s parking brake is applied.

An LCD panel or video monitor used for television reception, video or DVD play that operates when the vehicle is in gear or when the parking brake is not applied must be installed to the rear of the driver’s seat where it will not be visible, directly or indirectly, to the operator of the motor vehicle.

Warnings

• Do not use any solvents or cleaning materials when cleaning the video monitor.

• Do not use any abrasive cleaners, they may scratch the screen.

• Use only a lightly dampened lint free cloth to wipe the screen if it is dirty.

• Lock the LCD screen in the fully closed position when not in use.

• Before putting on headphones always adjust the volume setting to the lowest position.

• Remember to leave the dome light switch in the off or auto positions when the vehicle is unattended, as the dome lights, if left on, can drain

the vehicle’s battery.

• Do not put pressure on the screen.

• Caution children to avoid touching or scratching the screen, as it may become dirty or damaged.

Licensed under one or more of the following patents, Patent NOS. 5,775,762 and 5,927,784

Congratulations

Congratulations on your purchase of the Audiovox ADV48 DVD Player with Drop-Down Video / Monitor. The ADV48 has been designed to give you and your family many years of video entertainment in the mobile environment. Please read the directions that follow to familiarize yourself with the product to ensure that you obtain the best results from your equipment. Please note: Installation options vary, see the individual owner’s manuals for each component in your system to obtain a full understanding of each component’s operation.

Safety Precaution

For safety reasons, when changing video media it is recommended that the vehicle is not in motion, and that you do not allow children to unfasten seat-belts to change video media or make any adjustments to the system. System adjustments can be accomplished using the remote control, while seat-belts remain fastened. Enjoy your Audiovox entertainment system but remember the safety of all passengers remains the number one priority.

FEATURES

• 12.1" TFT (Thin Film Transistor) Active Matrix LCD (Liquid Crystal Display) Monitor

• Built-in DVD Player

• Auto On with Disc insertion

• Selectable (M1 and M2) IR Receive and Transmit

Codes

• Multi-Lingual OSD (On Screen Display) for Control of Picture Quality and Functions

• Switchable Channel Infrared Transmitter for use with IR Wireless Headphones

• Four Audio / Video Source Inputs (DVD, VIDEO 1, VIDEO 2, VIDEO 3 )

• Dome Lights with Built-in Three Way Switch

• Built-in 16 Channel Frequency Wireless FM Modulator

• Last Position Memory for DVD

• Headphone Jack

• Screen Mode Selection (16:9, 4:3)

• Wireless Game Controller

• Full Function Remote Control

• Backlit Controls

• Day / Night Picture Modes

• AV Output

• Pause To Talk Feature

• Smart Port for iPod Connection

CONTROLS AND INDICATORS DIAGRAM (FRONT VIEW)

1. EJECT () Button

12345678

This Button is used for ejecting discs from the disc compartment. (Note: Disc can be ejected with the unit turned

Off. Vehicle ignition must be in Run or ACC position). After the Disc is removed the unit will turn Off after 15-20 seconds.

2. STOP (n) Button

This button is used to stop playback.

3. Source Select

Use to select one of the four sources: DVD, VIDEO 1, VIDEO 2, VIDEO 3.

4. Volume (+)

To increase the volume of wired headphones and increase the level of selected picture controls.

5. Picture Select Button

Allows the user to enter the picture adjustment mode.

6. Volume (–)

To decrease the volume of wired headphones and decrease the level of selected picture controls.

7. FMM Source Select Switch

Used to select the frequency in sequence rotation: FM OFF, CH1 88.1MHz, CH2 88.3MHz, CH3 88.5MHz, CH4 88.7MHz, CH5 88.9MHz, CH6 89.1MHz, CH7 89.3MHz, CH8 89.5MHz, CH9 89.7MHz, CH10 89.9MHz, CH11 90.1MHz, CH12 90.3MHz, CH13 90.5MHz, CH14 90.7MHz, CH15 90.9MHz, CH16 91.1Mhz.

8. PLAY (u) Button

This button is used to start playback of a disc.

CONTROL FUNCTION DESCRIPTION (FRONT VIEW)

9. POWER ( ) Button

Used to turn the system on/off.

10. Dome Lights

Provide additional interior illumination.

11. Infrared Transmitter and Sensor

Transmits audio to wireless headphones. Also allows the remote control to operate the ADV48 and to control other accessories in the system.

12. Three Position Dome Light Switch ON – Turns on the dome lights. OFF – The dome lights will not turn on in this position. AUTO – Automatically switches on the dome lights in

conjunction with the vehicle's interior illumination.

13. Ventilation Openings

14. LCD Cut Off Switch

Used to turn off the LCD panel monitor when in the closed position.

15. LCD Panel

16. Screen Release

Press to release the screen.

17. USB 1.1 INPUT FOR USB THUMB DRIVE

18. SD Card Reader - Allows reading the contents (Audio, Photo,

Video) data stored on the Secure Digital Card (SD Card).

The ADV48 has an option that allows the user to select from two IR transmit and receive codes (M1 or M2). This feature can be used when using two ADV48s in the same installation or if the vehicle has an RSA (Rear Seat Audio) that uses an “A” channel headset. The ADV48 comes factory set to M1. When in the M1 mode the unit will respond to remote commands when M1 is selected on the remote and will transmit audio on the A channel. When in the M2 mode the unit will respond to remote commands when M2 is selected on the remote and will transmit audio on the B channel.

Note: 2-channel IR headphones need to be used when monitor is set to M2 mode.

Note:

OSD will appear on the screen for 4~5 seconds

Selecting a Monitor Code (M1 or M2)

1. Press and hold the SOURCE and FMM buttons on the unit

for 3 seconds and the unit will switch from M1 to M2 or M2 to M1.

2. The selected mode (M1 or M2) will be retained in memory until changed by the user.

FMM 88.3MHz

AUX/GAME

FMM OFF

DVD

IRT ON

IRT OFF

CONTROL FUNCTION DESCRIPTION (SIDE VIEW AND BACK VIEW)

Side View

1. DVD Disc insertion Slot

For loading and removing discs. Unit will turn On and load disc when disc is inserted. Insert disc with label side facing up.

Note: Disc slot will be lit when unit is turned Off for easy loading at night.

Back View

SMART PORT

1 3

1. Headphone Jack

Allow the use of wired headphones with a 1/8" (3.5mm) plug for listening to the video program audio.

2. Smart Port AUX Cable - Connect Auxiliary AV Input. *IPOD Cable - Connect iPod Cable (Optional). Remark: When AUX or iPod cables are connected.

The game feature will be disabled.

3. PAUSE To Talk (;) Button

Allows the front seat passenger to pause the playback. Pressing PAUSE again or pressing the PLAY button will resume normal playback.

*Note will not work with iPod classic

REMOTE CONTROL OPERATION

Battery Installation

Before attempting to operate your Remote Control, install the batteries as described below.

1) Turn the Remote Control face down. Using your finger, slide the battery cover off in the direction of the arrow.

2) Install Two “AAA” batteries. Make sure that proper polarity (+ or -) is observed.

3) Align the cover tabs with the remote control and slide the cover until it locks.

The remote control will operate the ADV48. It is not a universal remote control and will not control equipment from other manufacturers.

MAIN FUNCTION DESCRIPTION

POWER

10 11

12 13

19 20

21 22

1 2

3 4

MONITOR SELECT

SYSTEM

SOURCE

AUTO

MEMORY

SKIP/

ERASE/ WRITE

CHANNEL

FMM

SELECT

ON/OFF

RETURN DISPLAY

AUDIO

SUBTITLE

TV MENU

TVM2DVD

1 2

NIGHT

ON/OFF

RECALL REPEAT

EPG

DTV/ATV

DAY/

IRT

584

VOLUME

EJECT

DVD

SOURCE

PIX

MUTE

SETUP

FAV

ZOOM

INFO

A-B

EXIT

36 35

33 32

31 30

Function control is available on the unit and the remote control.

Function not available in this model.

POWER Button*

Press this button to turn the unit ON and OFF.

MONITOR SELECT M1 Button – M2 Button –

SYSTEM MENU Button

Allow the user to access the system menu. Press cursor (pq) buttons to select desired screen mode, OSD language and source default on power up.

TV Mode Select Button**

Switches certain function keys on the remote control for TV functions.

SOURCE Button*

Each time the button is pressed, the audio / video source will change in the following sequence: DVD > VIDEO 1, VIDEO 2, VIDEO 3.

AUTO MEMORY Button (AUTO PROGRAM Button)**

When the AUTO MEMORY button is pressed, all channels are searched and channels that are detected with signals of sufficient levels are automatically stored in memory.

SKIP / SEARCH Button**

This button selects between SKIP and SEARCH mode. In "SKIP mode" the TV tuner will tune and stop on channels that are programmed into memory when the CHANNEL UP / DOWN buttons are used. When the SKIP mode is disabled, the TV will stop on all active channels.

Sets the remote control code to allow control of the unit set to M1 mode. (See page 5 for details) Sets the remote control code to allow control of the unit set to M2 mode.

ERASE / WRITE Button**

While tuned to a channel, pressing this button will alternately store or erase the channel from memory.

FMM ON / OFF Button*

Turns the wireless FM Modulator on or off.

10.

CHANNEL SELECT Button*

Selects the wireless FM Modulator Frequency (CH1 88.1MHz, CH2 88.3MHz, CH3 88.5MHz, CH4 88.7MHz, CH5 88.9MHz, CH6 89.1MHz, CH7 89.3MHz, CH8 89.5MHz, CH9 89.7MHz, CH10 89.9MHz, CH11 90.1MHz, CH12 90.3MHz, CH13 90.5MHz, CH14 90.7MHz, CH15 90.9MHz, CH16 91.1MHz)

RETURN Button

11.

Press Return Once : Go to disc menu. Press Return Twice : Go to movie playback.

DISPLAY

12.

Press to display current disc information while the disc is playing. Press cursor (pq) buttons to select the Title or Chapter. For Title/Chapter selection use the numeric buttons to enter the desired Title Chapter selection.

CURSOR / CHANNEL UP DOWN (pqtu) **

13.

Use these buttons to navigate the menu selections on the screen. Use the CHp to increase the channel number and use CHq to decrease the channel number. **

14.

OK Button (ENTER)

Used to implement a selected setting or menu option.

15.

MENU Button

Allows the user to access the DVD root menu (DVD MODE).

16.

REPEAT Button

Allows the user to repeat a selected title, chapter, or track.

AUDIO Button

17.

Press to display and select the available AUDIO languages in DVD mode. Each time you press the button, the language changes.

Note: The languages for audio vary from disc to disc.

SUBTITLE Button

18.

Press to display and select the available subtitle language in DVD mode. Each time you press the button, the subtitle language changes.

Note: The type and number of languages for subtitle vary from disc to disc.

STOP (<) Button*

19.

Press to stop playback.

PREVIOUS (9) Button

20.

Press to return to the previous chapter or track.

SCAN BACKWARD (7) Button

21.

Press to search in a backward direction. Press repeatedly to change the search speed from 2, 4, 8, and 16 times the normal speed.

PAUSE (II) Button*

22.

Allows the user to pause the playback. Pressing pause again or pressing the Play Button will resume normal playback.

PLAY Button*

23.

Press to activate the play mode when a disc is loaded in the disc compartment.

SCAN FORWARD (8) Button

24.

Press to search in a forward direction. Press repeatedly to change the search speed from 2, 4, 8, and 16 times the normal speed.

NEXT (:) Button

25.

Press to skip to the next chapter or track.

A-B Button

26.

Allow user to repeat the playback from point A to point B.

Press A-B button On-Screen Display DVD player

Once Twice 3 times

ZOOM Button

27.

Press this button to enlarge the picture when playing a DVD disc.

Press ZOOM button

Once Twice 3 times 4 times

SETUP Button

28.

Press to display the Setup Menu which allows the user to change the DVD player options such as TV DISPLAY, OSD LANGUAGE, PARENTAL CONTROL etc. Refer to the Settings and Adjustments section for more information.

IRT ON/OFF Button

29.

Turns the Infrared Transmitter IRT ON or OFF for IR Wireless Headphones. Pressing M1 then IRT ON/OFF will control the IR Transmitter for M1. Pressing M2 then IRT ON/OFF will control the IR Transmitter for M2.

30.

MUTE Button

Press this button to mute the audio for wireless FMM and wired headphones. Pressing the button again restores the sound to the previously set level.

Repeat ARepeat AB AB Off

Mark the beginning of the section to repeat (Set point A) Mark the end of the section to repeat (Set point B) Cancel the A-B repeat function

DVD player perform

Enlarge the picture 1 times of the original size Enlarge the picture 2 times of the original size Enlarge the picture 3 times of the original size Picture is returned to original size

DAY / NIGHT Mode Button

31.

This control toggles the unit between “Day” and “Night” LCD illumination modes. In the “Day” mode, the LCD backlit intensity is at maximum. In “Night” mode, the LCD backlit is dimmed to a preset level that is more suitable for low light operation.

PIX Button (Picture Select)*

32.

Each time this button is pressed, the on screen picture adjustment displays the “adjustment bar” for BRIGHTNESS, CONTRAST, COLOR, TINT or RESET. Once the desired adjustment bar is displayed, use the VOLUME(+)/ VOLUME(–) button to adjust the setting. The display will automatically turn off if no adjustments are made within 6 seconds, or if any other button is pressed.

VOLUME DOWN (–) or UP (+)*

Press to decrease or increase the level of the picture adjustments.

33.

NUMBER Buttons

34.

Allow the user to enter numbers 0 to 9 for selection of selection of CD tracks, DVD chapters and password.

DVD Mode Select Button

35.

Switches certain function keys on the remote control for DVD function.

DVD Source

36.

This button is only active when remote control is in DVD mode. Each time the button is pressed one of the source (DVD, Card Reader and USB) will be selected. If the Card Reader and USB are not plugged in, it will remain on DVD Source. Press to change source in sequence of DVD > SD > USB.

37.

EJECT () Button*

This button is used to eject the disc.

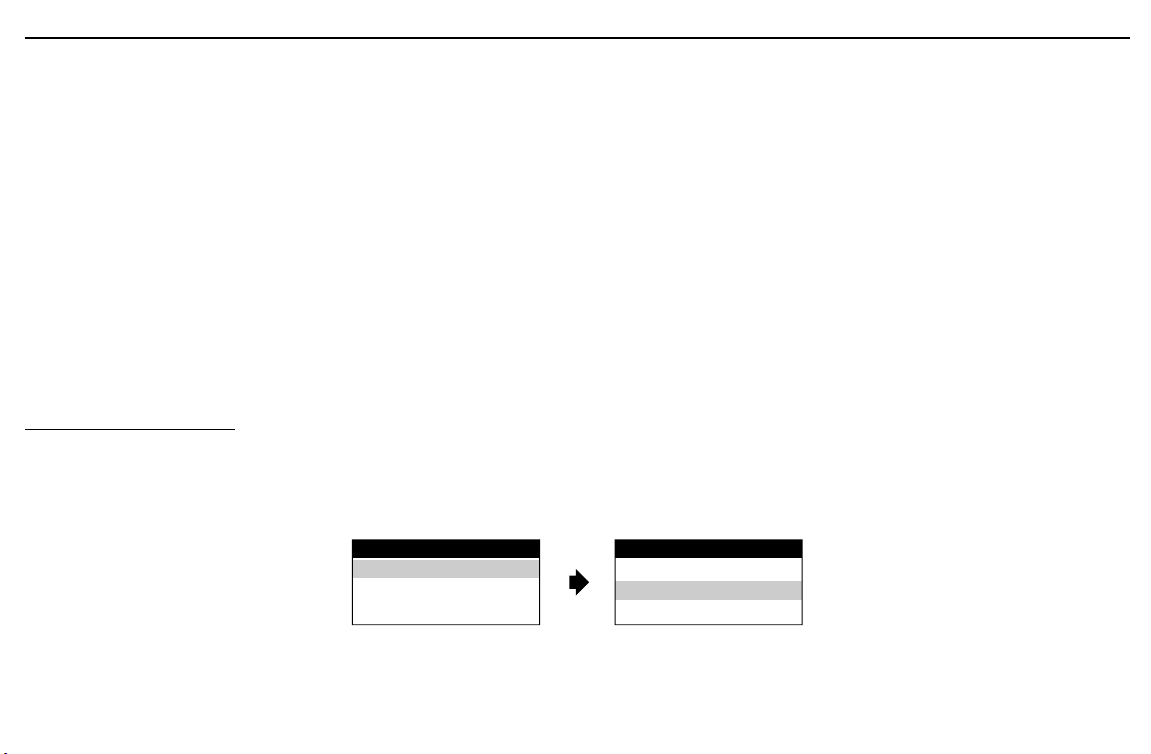

MENU ADJUSTMENT

The System Menu Contains features and options that let you customize your system to change the screen mode display, OSD language and source default.

Press the SYSTEM MENU button on the remote, the main page of the system menu will appear on screen.

Use the cursor buttons p or q to select the desired item in the main page and press the OK button to select.

The sub menu will appear on screen.

Use the cursor buttons p or q to select an item in the sub menu and then press the OK button to select.

Press the Menu button to exit the System Menu.

Note: System Menu can be controlled via Remote Control only. (Items selected in the menu will have a green background)

SCREEN MODE SELECT

This allows the user to change the screen format (aspect ratio 16:9, 4:3).

To select the screen aspect ratio format highlight SCREEN MODE and then press the OK button to enter the sub menu. Then use the cursor buttons por q to select from either 4:3 or 16:9. Press the OK button to confirm the setting.

SYSTEM MENU

SCREEN MODE OSD LANGUAGE SOURCE DEFAULT DVD

SCREEN MODE

4:3 16:9

OSD LANGUAGE

This allows the user to select the language for the on-screen display. The user can either select English, Spanish, French or German for the OSD language.

SYSTEM MENU

SCREEN MODE OSD LANGUAGE SOURCE DEFAULT DVD

OSD LANGUAGE

ENGLISH SPANISH FRENCH GERMAN

SOURCE DEFAULT DVD

This allows the user to select from: DVD default on- Whenever the unit is turned on it will return to DVD mode. DVD default off- Whenever the unit is turned on it will return to the last source selected.

SYSTEM MENU

SCREEN MODE OSD LANGUAGE SOURCE DEFAULT DVD

SOURCE DEFAULT DVD

ON OFF

SETTINGS AND ADJUSTMENTS

The Setup Menu contains features and options that let you customize your DVD player. For example, you can set a language for the onscreen display or prevent DVD playback for children.

Using the Setup Menu

1. Press the SETUP button on the remote. The Setup Menu appears on the screen as shown per diagram.

Lan guage

Vid eo

Rat ing

Mis c

OSD L angua ge

Sub title

Aud io

: Eng lish

: Off

: Eng lish

2. In order set the desired option, move the highlight into the setup area using the cursor button u.

3. After entering the setup area, highlight the desired option using the cursor button p or q.

4. Press u to move the highlight to the different options for the selected item. Press p or q to select the desired options, and then press

ENTER to confirm the selection.

5. Repeat steps 3~4 to continue setting the options that reside on the same Setup Page.

6. To change to another Setup page, press t until the highlight moves back to the icon on the top part of the Setup Menu.

Then, repeat steps 2~5.

Exiting the Setup Menu

Press the SETUP button again only.

LANGUAGE SETUP

Language for On-Screen Display

OSD MENU: The OSD MENU setup allows you to select the language for the on-screen display. The user can either select English, French, Spanish, German or Italian for the OSD language.

Lan guage

Vid eo

Rat ing

Mis c

OSD L angua ge

Sub title

Aud io

Eng lish

Fre nch

Spa nish

Ger man

Ita lian

SUBTITLE SETUP

select "SUBTITLE" using pq button, then press u button to enter the Submenu. Select the subtitle you desire using pq button, then press "ENTER" to confirm the setting. Press t button to return.

Note: The subtitle selection is only available for discs that are recorded in the above listed languages. If the selected, language is not available, the player will play and display on the screen the original language contained in the disc.

AUDIO SETUP

select "AUDIO" using pq button, then press u button to enter the Submenu. Select the audio you desire using pq button, then press "ENTER" to confirm the setting. Press t button to return.

Note: The audio selection is only available for discs that are recorded in the above listed languages. If the selected, language is not available, the player will play and display on the screen the original language contained in the disc.

VIDEO SETUP TV Display

The TV DISPLAY setup allows you to adjust screen setting (aspect ratio). 4:3 This displays the wide picture with black bands on the upper and lower portions of the screen. 16:9 This displays a wide picture with black bands on the upper and lower portion of the screen. The bandwidth will vary, depending on the aspect ratio of the disc.

Lan guage

Vid eo

Rat ing

Mis c

Lan guage

Vid eo

Rat ing

Mis c

Lan guage

Vid eo

Rat ing

Mis c

OSD L angua ge

Sub title

Aud io

OSD L angua ge

Sub title

Aud io

TV di splay

TV ty pe

Eng lish

Fre nch

Spa nish

Ger man

Ita lian

Jap anese

Chi nese

Tha i

Off

Eng lish

Fre nch

Spa nish

Ger man

Ita lian

Jap anese

Chi nese

Tha i

4:3

16: 9

TV Type

The TV TYPE setup allows you to select the system to fit to the color system of the TV to be connected. NTSC - Select this type for NTSC TV PAL - Select this type for PAL TV Multi - Select this type for multi-system TV

RATING SETUP Rating

This item allows you to limit the content of movie playback from G to Adult. The lower the value, the more strict the control. G PG PG – 13 R NC – 17 Adult

Lan guage

Vid eo

Rat ing

Mis c

Par ental

: 6.A dult

Pas sword

The rating level can only be changed when the displayed lock is open. For first time use, key in the default password (3308) and press Enter. To set a new password, key in a new four-digit password and press enter.

Lan guage

Vid eo

Rat ing

Mis c

Par ental

Ent er Pass word

: 6.A dult

Pas sword

Note: The Default Password is 3308. This password is always effective even after you have selected your own password and changed it. To avoid the possibility of others using the default password to set the parental level and change the password, you can record this default password in another area and delete it from this manual. Some discs can be limited depending on the age of users while some discs cannot.

Misc SETUP

select "MISC” using pq button, then press u button to enter the Misc menu. Select the subtitle you desire using pq button, then press "ENTER" to confirm the setting. Press t button to return.

Lan guage

Vid eo

Rat ing

Mis c

Loa d Facto ry

Scr een Sav er

: On

Load Factory

Load Factory allows you to reset all options to factory settings. * This function will not affect the Rating control settings.

Screen Saver

Lan guage

Vid eo

Rat ing

Mis c

Loa d Facto ry

Scr een Sav er

Yes No

ON -Screen saver will appear OFF -Screen saver will not appear

Note: The DVD player will enable the Screen Saver mode if the unit is inactive for approximately 3 minutes.

Playing DVDs

Lan guage

Vid eo

Rat ing

Mis c

Loa d Facto ry

Scr een Sav er

Off

1. Press the DISPLAY button on the remote control to display the status banner. The banner includes title, chapter, angle, audio, subtitle, title selection & chapter selection.

2. Title Selection Press numeric (0~9) buttons to initiate a change of title selection. Then press ENTER to implement the selection.

3. Chapter selection Press numeric (0~9) buttons to initiate a change of chapter selection. Then press ENTER to implement the selection.

As you toggle through the options, the repeat option changes at that time. The track, for example, repeats once that track has ended. The selected repeat option loops repeatedly until you turn it off.

Playing USB, Memory Cards (SD/MMC/MS)

1. The System will detect the insertion of the USB or CARD (SD/MMC/MS) media automatically if no disc is loaded. The system only auto detects the first media inserted (card or USB drive); the second media source can be manually selected by pressing the DVD source button on the remote control (See button 36 on Remote Control.)

2. When a disc is inserted, the system will switch to DVD mode immediately regardless of which type of media (card or USB) is currently playing.

3. The DVD source (DVD, USB, or SD Card) can only be changed if the DVD is stopped (not playing)

4. This system cannot support more than 2 memory partitions on the USB thumb drive.

Note: The system will always default to the DVD when the system detects a disc in the DVD player.

Playing MP3 Discs

MP3 is a format for storing digital audio. An audio CD-quality song can be compressed into the MP3 format with very little loss of quality, while taking up much less space. CD-R discs that have been encoded in MP3 format can be played on your DVD player. The DVD player plays the songs in the order they were burned on to the disc. When playback is started the elapsed time of the track that is playing will be displayed.

Selecting Folders and Songs

When a device containing MP3 files is loaded in the player, the navigation menu appears automatically.

1. Press p or q to move the highlight to the desired folder (if present) on the left side of the menu and press OK. The songs in the folder will be displayed on the screen.

2. Press p or q to move the highlight to the desired track containing the song and press OK to begin

track playback.

03/1 3

00:0 0:01

/TRA CK02. MP3

TRAC K01

TRAC K02

TRAC K03

TRAC K04

TRAC K05

TRAC K06

Albu m: genr e Comme nt:-

Repe at Mode

Musi c Playi ng

Skipping Songs

Use the Next (:) button on the remote control to move to the next song. Use the Previous (9) button to move to the previous song.

Selecting a Play Mode

Filter (For MP3 & JPEG only)

Filter Mode enables or disables the display of files contained on the media based on their file extension.

TRAC K01

TRAC K02

TRAC K03

TRAC K04

TRAC K05

TRAC K06

00:0 0:21

Flat Mo de

Repea t : off

Musi c Playi ng

The Filter function applies to the following formats:

Audio - Audio data format (MP3, WMA) Photo - Photo data format (JPEG) Video - Video data format (AV1, MPEG , )

1/12

Edit Mo de

Filte r

: All : Shuf fle

Audio


Video

Flat Mode: play the entire disc

This mode is always on (default). During the Flat Mode all the data folders with MP3, JPEG & movies will be played in sequence. If the Flat Mode function is off, it will only play the selected folder; other folders are disabled.

1/12

TRAC K01

TRAC K02

TRAC K03

TRAC K04

TRAC K05

TRAC K06

Flat Mo de

Repea t : Off

Mode : No rmal

JPEG P revie w

Repeat: play repetitively

Repeat function has 4 options: Off, Single, Folder, All. Move cursor to Repeat function and press OK; Off/Single/Folder/All are displayed in that order. Repeat default is Off;

Off Turn off repeat function

1/12

TRAC K01

TRAC K02

TRAC K03

TRAC K04

TRAC K05

TRAC K06

Flat Mo de

Repea t : Off

Mode : No rmal

JPEG P revie w

Single Repeat the song being played until STOP is pressed. Folder Play all songs in a folder repetitively All Play all songs on the disc repetitively

Mode: play mode

The Mode function has 4 options: Normal, Shuffle, Random and Music Intro. Move cursor to the desired Mode function and press OK; Normal/Shuffle/Random/Music Intro are selected in that order. The Mode function default status is Normal.

Normal: Play all songs in folder once Shuffle: Play songs in a folder in a shuffled order. Each song in the folder is played only once. Random: Play songs in a folder in a random order. Each song in the folder is played only once. Music Intro: Play each song in order in the folder for 10 seconds Remark-- The purpose of the Music Intro function is to provide the user with a sample of each song for 10 seconds, thereby making it easy

to select and listen to a favorite song.

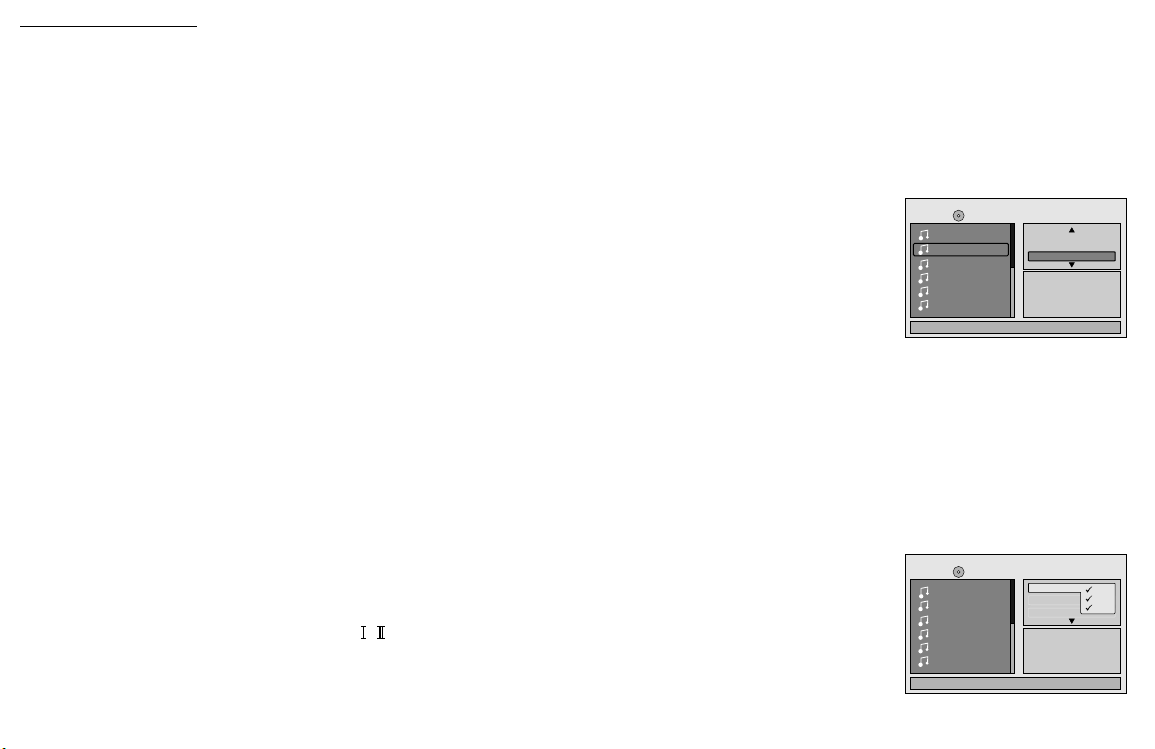

Edit Mode

1/12

Program View Add to Program

Notice: Edit Mode/Program View/Add to program functions are all related and can not be implemented

during play mode or any other program function.

TRAC K01

TRAC K02

TRAC K03

TRAC K04

TRAC K05

TRAC K06

Albu m:--- ----- ----

Edit Mo de

Progr am View

Add to Pr ogram

JPEG P revie w

Method: Make sure disc playback is off. Move cursor to Edit Mode function and press OK. After Edit Mode is selected, open the folder and

select the songs which will be compiled. A check mark appears to the left of the selected song; highlight the Add to program function and press OK. The selected song is added to a new program and the check mark disappears; move cursor to Program view function and press OK to browse the songs in the program.

In Edit Mode, if Add to program function is used, highlight Program view function and press ENTER; the following selections appear:

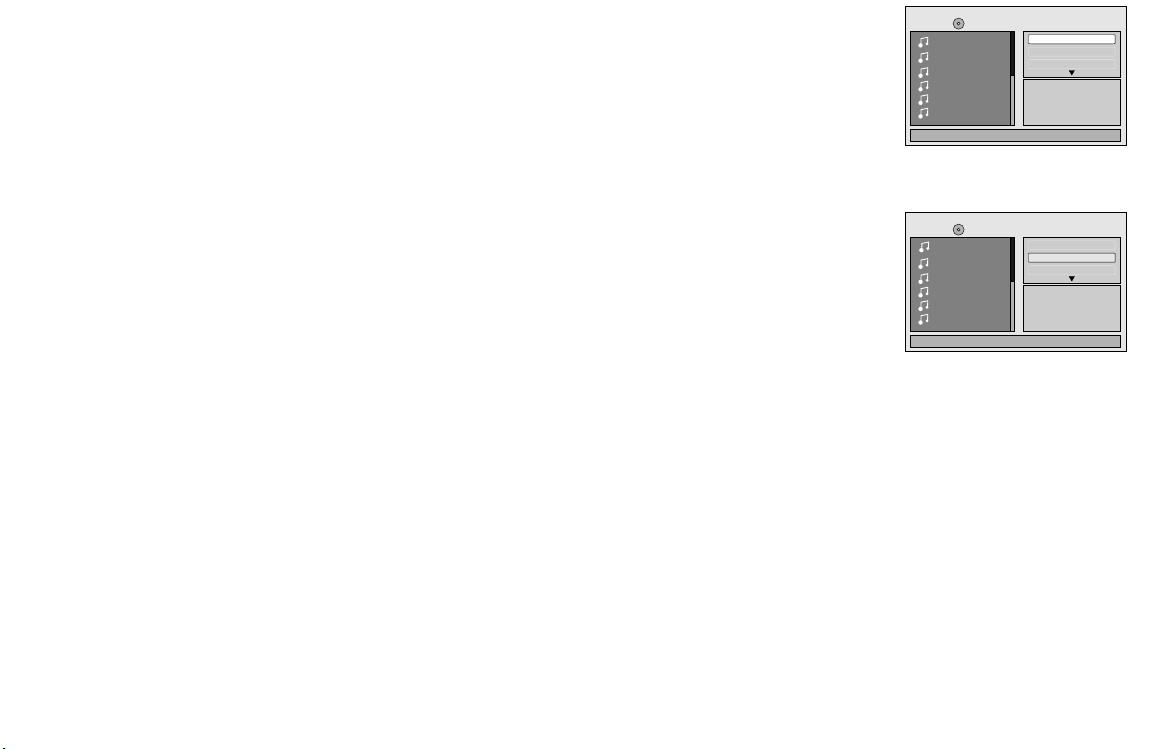

Edit Mode Browser View Clear Program

Method: When Add to program function is finished, highlight the Browser view function; the songs in the new

program are displayed. To delete a selected song, highlight the selected song; a check mark appears to the left of the selected song. Highlight Clear program function and press OK; the song will be deleted.

1/12

Arti st:

TRAC K01

TRAC K02

TRAC K03

TRAC K04

TRAC K05

TRAC K06

Edit Mo de

Brows er View

Clear P rogra m

JPEG P revie w

DVD Basics

To get the optimum use out of the DVD section, make sure you read this section completely.

Regional Coding

Both the DVD player and DVDs are coded by region. These regional codes must match in order for the disc to play. If the codes don’t match, the disc won’t play. This unit’s code is region 1. Other regional codes cannot be played in this unit. The unit will display “WRONG REGION”.

Types of Discs your DVD will play

•DVD* disc - DVD discs which contain video.

•Audio discs - Audio CDs contain musical or sound content only.

•MP3 discs - A disc that contains audio files (for example, a CD-R with downloaded MP3 files).

* This system is capable of playing most recordable DVD formats. However, due to the variety of disc manufacturers and software, playback

cannot be guaranteed.

Loading and Playing Discs

Before you load a disc, make sure that it is compatible with the player. Insert the disc with the label facing the driver. Note: the following Discs CANNOT be used with this player :

•MiniDisc

•Laserdisc

•CD-1, CD-ROM, DVD-ROM, Super Audio CD (SACD), DVD Audio, JPEG (KODAK)

To load and Play a Disc

Press the Power button to turn the unit ON. Select DVD mode and insert the disc (Label towards driver) into the disc compartment.

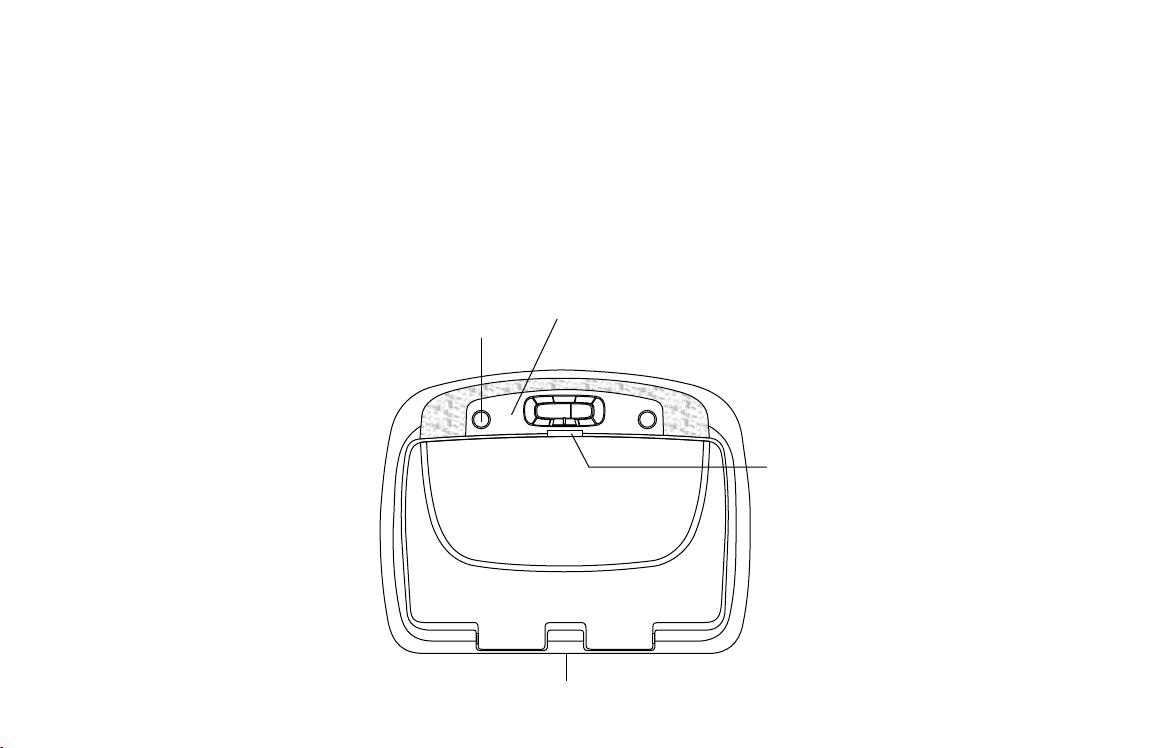

TURNING THE UNIT ON OR OFF

1. Pushing in the Screen Release button will unlock the LCD screen and it will drop down slightly. Pivot the screen downward until a

comfortable viewing angle is reached. The hinge friction will hold the screen in position while the system is in use.

2. Pressing the power button* on the unit or the remote control will turn the system on and off. When in use the internal backlighting

will illuminate the controls.

3. After the unit has been turned on and is displaying a picture, adjust the viewing angle by pivoting the screen to optimize the picture

quality.

4. Remember to turn the unit off and pivot the LCD to the locked position when not in use.

*Note: Unit will turn On automatically when a Disc is inserted

Power

ON/OFF

Button

Remote Sensor

Infrared Transmitter

Screen Release

Remote Sensor

OVERHEAD DOME LIGHTS

The Dome Lights integrated into the ADV48 are controlled by a three position slide switch. Sliding the switch to the ON position will turn the lights ON. The OFF position will prevent the lights from turning ON with the vehicle’s interior lighting, and the auto position will allow the lights to turn ON and OFF with the vehicle’s interior lighting. Refer to the Installation Guide for wire connections. Do not leave the vehicle unattended with the dome light switch in the ON position, as this could result in a discharged battery.

REMOTE SENSOR

The ADV48 incorporates two infrared remote sensors to relay signals to the unit when the remote control is pointed at the remote sensor.

ACCESSORIES

WIRELESS HEADPHONES

The ADV48 includes a built-in infrared transmitter for use with the supplied wireless headphones. The headphone volume is adjusted using the controls on each headset. Any number of wireless headphones may be used but they must be used within a line of sight from the transmitter, as infrared transmissions, like visible light travel only in a straight line. See the documentation accompanying your wireless headphones.

Note: If the monitor is set to M2 mode, the headphones supplied with this unit will not work, as these headphones are single channel. Only two-channel wireless headphones (Audiovox Model IR2CHS) will work with this unit when set to M2 mode. The only time it is necessary to set this unit to M2 mode is if there is an RSA (Rear Seat Audio) installed in the vehicle or if two of these monitors are installed in one vehicle.

WIRED HEADPHONES (OPTIONAL)

There is one 1/8” headphone jack on the ADV48 that can be used with any standard wired stereo headphones with a 1/8” plug. This jack is controlled by the volume up/down buttons on the ADV48 remote control or the +/- keys located on the unit.

SOURCE FEATURE*

Video1

The Video 1 input may be connected to a Video Cassette Player (VCP), video game system, or other audio / video devices. To access the A/ inputs, turn the ADV48 on and press the S (source) button on the ADV48 or the Source button on the remote control until "VIDEO 1" is displayed on the screen. Turn the video source component on with its power button or remote control. The ADV48 is now ready to play the audio and video signals from the source connected to AV1 input ( .

Video 2

The Video 2 input may be connected to a Video Cassette Player (VCP), Video game system, any other audio / video device. To access the A/V inputs, turn the ADV48 on and press the S (source) button on the ADV48 or the source button on the remote control until video 2 is displayed on the screen.

Video 3

The ADV48 will accept audio / video input through the Smart port located on the rear of the unit. The audio / video device could be a video game system, video camera, iPod (through iPod cable interface) or other input device.

Notes: 1. The AUX/Game input is a shared input 30-pin connector (Priority AUX); when an AUX input is connected, it will

automatically disable the game input.

2. Similarly, If an iPod is to be used, such as the Apple iPod 30, connect one end of the iPod adapter cable (purchased separately) to the 30-pin AUX/Game connector on the ADV48, and connect the other end of the cable to the iPod connector. The iPod adapter cable can be purchased from the vendor where the ADV48 was sold. When connected,

the game input is disabled.

Video Out

The ADV48 provides a video output for optional video monitor(s). This output will provide a video signal that duplicates the picture displayed by the ADV48 to an additional monitor or video display. Please see your installer for more information.

optional accessory cable part number 8010730 required)

*Note: Video 1 and Video 2 sources are available only if pre-installed during your video product installation.

USING THE WIRELESS GAME CONTROLLER

The Game Controller transmits to the ADV48 with two infrared transmitters located on the front of the Game Controller. The Game Controller must be pointed toward the ADV48 for correct operation.

Press the source button on the remote control or the unit until the GAME*menu is displayed.

GAME CONTROLLER FUNCTIONAL DESCRIPTION

1. Install two AAA batteries in the Game Controller. Observe the correct polarity.

2. Use the ON/OFF selector switch to turn on the Game Controller.

3. Use the A button (page up) or B button (page down) to display the three pages of games (1-10, 11-20, 21-30). Then use the direction buttons to move the arrow to the desired game. Press Start to select the game.

4. Press Start to begin the game. Press Start again at any time to pause the game.

5. Press RESET to return to the game menu.

6. Use the ON/OFF selector switch to turn off the Game Controller after use

Note: The

* AUX/GAME input is a shared input. For game operation remove all plugs from the AUX input.

Bottom Side of Game Controller

Battery case

TROUBLESHOOTING

PROBLEM

IR remote inoperative

Disc won't play

Play starts, but then stops immediately

No sound or distorted sound

Can’t advance through a movie

SOLUTION

— Verify that the batteries in the remote are fresh. — Verify that the remote sensor eye is not obstructed. — If monitor is set to M1, press M1 button on remote; If monitor is set to M2, press

M2 on remote.

— Insert a disc with the label side facing up. — Check the type of disc you put into disc tray. This DVD only plays DVDs, audio CDs

and MP3s.

— Both the unit and the disc are coded by region. If the regional codes don’t match,

the disc can’t be played. This DVD player is set to Region Number 1.

— The disc is dirty. Clean it. — Condensation has formed. Allow player to dry out.

— Make sure your DVD is connected properly. Make sure all cables are securely

inserted into the appropriate jacks.

— If you are using the 2-channel IR headphones, make sure you turn on the IR

headphone power, make sure the correct channel (A-B) is selected.

— Make sure the Modulator is ON and the proper Frequency has been selected. — Make sure that unit is set to M1 when using Single Channel Headphones.

— You can’t advance through the opening credits and warning information that

appears at the beginning of movies because the disc is programmed to prohibit that action.

PROBLEM

SOLUTION

The icon ( ) appears on screenx

Picture is distorted

No forward or reverse scan

— The feature or action cannot be completed at this time because:

1. The disc’s software restricts it.

2. The disc’s software doesn’t support the feature (e.g., angles)

3. The feature is not available at the moment.

4. You’ve requested a title or chapter number that is out of range.

— The disc might be damaged. Try another disc. — It is normal for some distortion to appear during forward or reverse scan.

— Some discs have sections that prohibit rapid scanning or title and chapter skip. — If you try to skip through the warning information and credits at the beginning of a

movie, you won’t be able to. This part of the movie is often programmed to prohibit skipping through it.

REPLACEMENT PARTS SPECIFICATIONS

Remote Control 136-4427

LCD Backlighting Edge Light Tube

Resolution 2400 x 480

Pixels 1, 152, 000

Operation Temperature 32 ~131º F (0 ~ 55º C)

Storage Temperature -4 ~ 158º F (-20 ~ 70º C)

Backlit life 30,000 Hours

Video Display System NTSC / PAL

Headphone Audio Output 0.03W @ 32 ohms

Video Output 1.0Vp-p @ 75 ohms

Power Source 12V DC

Dimension L x W x H

14.0” x 12.0” x 2.0”

356mm x 305mm x 51mm

Specifications subject to change without notice.

ADVENT LIMITED WARRANTY

Applies to ADVENT Mobile Video Products

AUDIOVOX ELECTRONICS CORP. (the Company) warrants to the original retail purchaser of this product that, should this product or any part thereof (except game controllers), under normal use and conditions, be proven defective in material or workmanship within 36 months from the date of original purchase, such defect(s) will be repaired or replaced with reconditioned product (at the Company's option) without charge for parts and repair

labor.

If your new vehicle’s radio, CD/DVD player is covered by the manufacturer’s warranty for a period of 48 months as set forth in the OEM Warranty Booklet, the company will extend the Advent Mobile Video product warranty for the same period of time. This is not applicable to extended warranty purchases beyond the original manufacturer’s warranty. A game controller, if supplied, is similarly warranted for ninety (90) days.

To obtain repair or replacement within the terms of this Warranty, the product is to be delivered with proof of warranty coverage (e.g. dated bill of sale),

specification of defect(s), transportation prepaid, to the Company at the address shown below.

This Warranty does not extend to the elimination of externally generated static or noise, to correction of antenna problems, to costs incurred for installation, removal or reinstallation of the product, or to damage to digital memory/media devices, gaming devices, discs, speakers, accessories, or vehicle electrical systems. This Warranty does not apply to any product or part thereof which, in the opinion of the Company, has suffered or been damaged through alteration, improper installation, mishandling, misuse, neglect, accident, or by removal or defacement of the factory serial number/bar code label(s). THE EXTENT OF THE COMPANY'S LIABILITY UNDER THIS WARRANTY IS LIMITED TO THE REPAIR OR REPLACEMENT PROVIDED ABOVE AND, IN NO EVENT, SHALL THE COMPANY'S LIABILITY EXCEED THE PURCHASE PRICE PAID BY PURCHASER FOR THE PRODUCT. This Warranty is in lieu of all other express warranties or liabilities. ANY IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY, SHALL BE LIMITED TO THE DURATION OF THIS WRITTEN WARRANTY. ANY ACTION FOR BREACH OF ANY WARRANTY HEREUNDER INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY MUST BE BROUGHT WITH IN A PERIOD NOT EXCEEDING 12 MONTHS AFTER EXPIRATION OF THE WARRANTY. IN NO CASE SHALL THE COMPANY BE LIABLE FOR ANY CONSEQUENTIAL OR INCIDENTAL DAMAGES FOR BREACH OF THIS OR ANY OTHER WARRANTY. No person or representative is authorized to assume for the Company any liability other than expressed herein in connection with the sale of this product. Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damage so the above limitations or exclusions may not apply to you. This Warranty gives you specific legal rights and you may also have other rights which vary from state to state.

Audiovox Electronics Corporation, 150 Marcus Blvd., Hauppauge, New York 11788 l 1-800-645-4994

128-7188B

3029

WWW

128-7937A

Advent ADV48, 128-7937A User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
