Advent ADV38 User Manual

ADV38
10.2” OVERHEAD LCD MONITOR
WITH DVD PLAYER
ON OFF AUTO
Installation Guide
Important Notice
An LCD panel and/or video monitor may be installed in a motor vehicle and visible to the driver if the LCD panel or video monitor is used for vehicle information, system control, rear or side observation or navigation. If the LCD panel or video monitor is used for television reception, video or DVD play, the LCD panel or video monitor must be installed so that these features will only function when the vehicle is in "park" or when the vehicle s parking brake is applied.
An LCD panel or video monitor used for television reception, video or DVD play that operates when the vehicle is in gear or when the parking brake is not applied must be installed to the rear of the driver s seat where it will not be visible, directly or indirectly, to the operator of the motor vehicle.
,
Installation of overhead products requires careful planning and preparation. Be
extremely careful when working on a vehicle with side curtain air bags. Do not route wires near any portion of the side curtain air bag assemblies. This includes any anchor points in A, B, C or D pillars of the vehicle. Routing wires in these areas or running wires by the side curtain air bags can prevent the side curtain air bag from fully deploying which can result in personal injury to vehicle occupants. If you have any questions regarding wire routing in a vehicle, please contact Audiovox Technical Support at 1-800-225-6074.
When connecting power and ground in a mobile video installation ensure that the ACC wire is fused at the point where it is connected to the vehicle ACC wiring. Failure to do so can result in damage to the vehicle if a short circuit develops between the vehicle connection point and the mobile video product.
,
Important Note
The ADV38 incorporates three new features:
1) A wireless FM Modulator
2) Snap on Covers with matching Trim Rings (Shale and Pewter).
Select the color that matches the interior trim.
Please be advised that the wireless FM modulator will perform well in most applications. However, in certain applications the quality of the wireless signal may be less than optimal, resulting in static or strong local station bleed thru. If this is the case, an optional relay box is available. The Audiovox part number is SIRSWB and it plugs into the 1/8" jack located next to the FM antenna on the side of the chassis. This relay box is installed between the vehicle antenna and the car radio to provide the best possible FM reception of the DVD player audio. When the SIRSWB is installed it is recommended that the wireless FM antenna that is plugged into the printed circuit board next to the 3.5mm jack be unplugged.
Licensed under one or more of the following patents, Patent NOS. 5,775,762 , 5,927,784 and 6,678,892
MATERIALS INCLUDED IN THIS PACKAGE:
1) 10.2 TFT LCD Overhead Monitor With DVD Player - (1pc)
2) 12 Pin Power / Signal Harness (P/N 112-3483) - (1pc)
3) 2 Pin Power Wire Harness With Choke (P/N 112B3143) - (1pc)
4) AUX Pigtail (P/N 112B3227) - (1pc)
5) 12 Pin AV Adapter Cable (P/N 112-4094) - (1pc)
6) Hardware Package Screws ISO M3 x 8mm Long - (5pcs) #4 x 5/16" Self Tapping Screws - (1pc) #4 x 7/16" Self Tapping Screws - (3pcs) #8 x 3/8" Self Drilling Screws - (4pcs) M5 Screws - (4pcs)
7) Remote Control (P/N 136-4840) - (1pc)
8) Universal Mounting Bracket (P/N 108-3921) - (1pc)
9) Pry Tool - (1pc)
10) USB Cover - (1pc)
11) Screw Cap - Shale - (2pcs)
- Pewter - (2pcs)
12) Trim Ring - Shale (P/N 102-4231) - (1pc)
- Pewter (P/N 102-4232) - (1pc)
13) Snap On Cover (Screen Back) - Shale (P/N 102-4233) - (1pc)
- Pewter (P/N 102-4234) - (1pc)
14) Snap On Cover (Shroud) - Shale (P/N 102-4596) - (1pc)
- Pewter (P/N 102-4597) - (1pc)
15) Wireless Headphones (P/N IR1CFF) - (2pcs)
16) Wireless Game Controller (P/N 136-4197) - (1pc)
Optional Accessories
17) SIRSWB Relay Box (P/N 112C3159) - (1pc)
1
ON OFF AUTO
5
6
2
3
7
MUTE
AUDIO
ZOOM
REPEAT
SUBTITLE
VOLUME
DVDTV
SETUP
DISC MENU
M1 M2
PIX
ENTER
DVD SOURCE
POWER
DISPLAY
SOURCE
DVD SOURCE
SYSTEM MENU
8
9
13
10
11
IRT ON/OFF
FMM ON/OFF
12
14
15
16
17
(Optional)
4
TOOLS RE QUIRED:
#2 Phillips Screwdri ver #1 Phillips Screwdri ver Utility or Razor Knife or Shears Wire Strippers Upholstery hook tool (for removal of panels as necessary) Electrical Tape Masking Tape Multimeter (to verify 12 volt DC and cont inuity: Do not use a test light or logic probe) Marker pen – to mark headliner Scribe (to mark tr im ring if used) Misc. electrical connectors (to connect to vehicle power source). Re quiremen ts will vary from vehicle to vehicle) DVD Movie (to veri fy system operation after installation)
3
Installing The Snap On Covers
1. 5.
ON OFF AUTO
3.2. 4.
6.
Housing
Snap On Cover
(Shroud)
1 Pewter, 1 Shale
Snap On Cover
(Screen Back Cab)
1 Pewter, 1 Shale
Pry Tool
Screw Cap
(L & R)
2 Pewter, 2 Shale
USB Cover
Place the pod on a soft surface to avoid damaging the plastic.
Installing The Shroud
catch catch
Remove
tape backing
before installing.
(A)
ON OFF AUTO
Begin by hooking area “A” (above) over the dome light and slide the cover over the pod. The cover will snap in place.
Installing The Screen Cover
(B)
(B)
ON OFF AUTO
ON OFF AUTO
Open the screen and hook the two tabs “B” on the bottom edge of the screen. Snap the opposite side over the hinge.
Installing The Screw Cap & USB Cover
Plug -in
ON OFF AUTO
Screw cap & USB cover get installed after the unit is mounted.
ON OFF AUTO
Plug -in
4
Removing The Snap On Cover (Shroud) From T he Ho usi ng
Work on a soft surface to avoid damaging the plastic. Insert the supplied pry tool between the Housing and Snap On Cover (Shroud), then press the pry tool to release the Snap On Cover (Shroud).
1 2 3
Removing The Snap On Cover (Screen Back) From LCD The Housing
Insert the supplied pry tool between the Housing and Snap On Cover (Screen Back), then press the pry tool to release the Snap On Cover (Screen Back).
54
6 7
O
N F FO
A U
TO
5
GENERAL INSTALLATION APPROACH:
1) Decide upon system configuration and options that will be installed (i.e.: what components, VCP, Video Game, external amp, wireless headphones, VCP, etc.).
2) Review all manuals to become familiar with electrical requirements and hook ups.
3) Decide upon mounting locations of all components and method of mounting.
4) Prep the vehicle by removing any interior trim necessary to gain access to vehicle's wiring as well as
all areas where interconnecting wire harnesses will need to be located. If any access holes need to be cut into the vehicle (headliner, other trim components etc.), this should be done now as well.
5) Route the wiring harnesses throughout the vehicle as necessary. (Refer to the Wiring Diagrams on
this manual as well as the wiring instructions for the individual components and accessory options
being installed). Be sure that all wiring is protected from sharp edges and is routed in such a manner that pinched when all components and interior trim are fully installed. Be sure to leave enough slack in the wiring at each component to allow working room.
6) Remove all A/V system components from their packaging and place them loosely in the vehicle at their respective locations.
7) Connect all components together (electrically) and verify proper operation of all system functions. Note: This is best done BEFORE, components have been permanently mounted.
8) After verifying proper operation of the system, proceed to mount of each component.
9) When all components are mounted, recheck function of entire system again to ensure that no wiring
was pinched or connected improperly during final installation.
VEHICLE PREPARATION:
1) Locate an accessory power source (+12v when key is in the ACC. and run positions, and 0v when key is off), and also a good ground generally, these wires can be found at the ignition switch or fuse­box.
2) The mounting method and location will vary from vehicle to vehicle, so this manual will only focus on the installation of the ADV38 and related console accessories.
3) Generally, the best location for the video monitor is where the vehicle's factory dome light is installed. The monitor should be located in such a manner that it can be comfortably viewed by rear seat passengers. NEVER INSTALL THE MONITOR IN A PLACE WITHIN THE DRIVER'S VIEW. THIS IS NOT ONLY DANGEROUS, BUT IT IS ALSO ILLEGAL IN MANY STATES.
4) Once the mounting location of the monitor has been determined, there may be additional preparation work necessary, depending on the vehicle structure and installation method. Some of the steps that may be required are: A) Removal of the vehicle's dome light B) If the trim ring will be used, it may have to be trimmed to fit the contour of the vehicle's
headliner. Refer to the "Trim Ring Installation" section in this manual.
6
TRIM RING INSTALLATION:
Note: This page only covers special installation considerations for thick trim ring installation. If the video monitor is to be installed in a vehicle with the thick trim ring, it may need to be trimmed to fit the contour of the vehicle Headliner.
Note: The trim rings supplied with this unit are not designed to be trimmed.
1) In this installation, the video monitor is mounted directly to the overhead cross-member in the roof using the mounting screw bosses. These screw bosses should contact the cross-member directly (i.e.: no gap between the screw boss and the roof structure). Also, be sure that the screws do not pierce the outer roof skin when fully fastened to the cross-member. The trim ring is attached to the video monitor using the perimeter screw bosses. It is important that the screws used in this installation are not over tightened, and that the video monitor and trim ring are mounted in such a way that the assembly does not distort (or bend) when the mounting screws are tightened. An alternate method is to use the mounting bracket. First secure the mounting bracket to the cross­member, then screw the monitor into the mounting bracket. See the drawing in this manual.
2) It is best to mount the video monitor to the roof structure without the trim ring first. There should be a gap between the headliner and the outer flange of the video monitor. The trim ring should be cut to
fill this gap. Apply masking tape to the outer surface of the trim ring in the areas where the cut will be made.
3) Mark the cut to follow the necessary contour of the roof. The suggested method of marking is as
follows: A) First mark the narrowest point of the trim ring on the masking tape. Be careful to consider not
only vertical location, but fore-aft location.

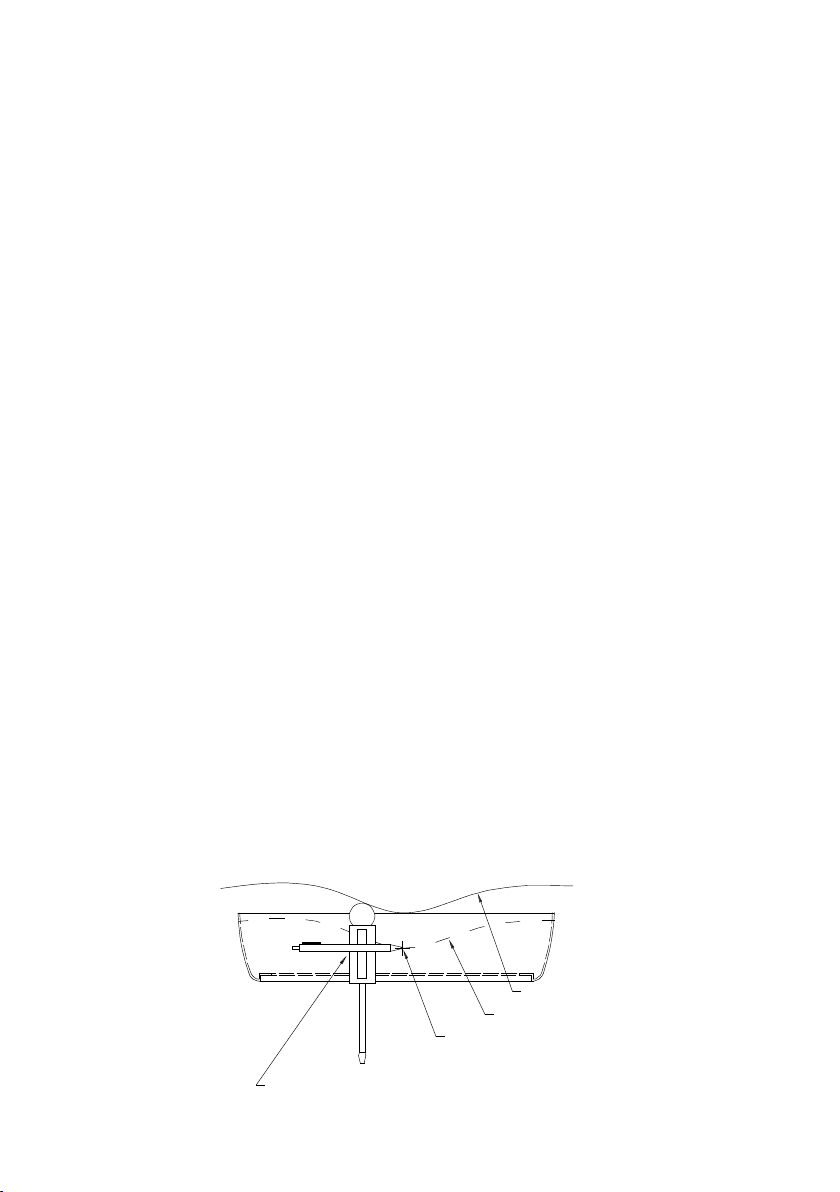

B) Using the handle of a screwdriver, make a “transfer marking tool”. See diagram below. Place
the tool against the roof and the marker against the masking tape on the trim ring. Trace the cut to be made around the entire perimeter of the trim ring.
C) Cut the trim ring using a sharp utility knife or shears. Make the cut in several passes over the
marked line, each time cutting a little deeper. It is not necessary to cut completely through the plastic, the cut only need be over 50% of the wall thickness of the plastic. By bending the cut back and forth several times, the plastic will break cleanly at the cut.
D) Check the fit of the trimmed console and make any minor adjustments necessary.
4) The trim ring can be painted or covered with a material that matches the headliner before assembling the trim ring to video monitor.
5) The finished trim ring should be attached to the video monitor, then attach the assembly to the roof.
Lowest point mark
Tape marker to screwdriver. Starting at your mark for the lowest point, trace the contour of the roof
7
Headliner
Cut line
TRIM RING INSTALLATION:
Supplied screws as below use for install Trim Ring to unit. Please refer illustration below.
A) #4 x 5/16 Self Tapping Screws (1pc) B) #4 x 7/16 Self Tapping Screws (3pcs) C) Screws ISO 3 x 8mm Long (5pcs)
A
C
C C
MOUNTING THE TRIM RING
B
C
C
BB
Roof
Roof Support
Headliner
Mounting Bracket
Self-drilling Screws
Trim Ring
Video Unit
M5 Screw
8
WIRING DIAGRAM
* Relay Box (OPTIONAL)
SIRSWB
* Antenna for Wireless FM Mod. ** See Antenna Note
12 Pin Power / Signal ha rness
Dome Light Power source
AV OUTPUT
Line Out-R (Red)
Line Out-L (White)
2 Pin Po wer
Wire Harn ess
Figure A
with chok e
1) Make the connections to the vehicle for the 12 pin wirin g har nes s.
Line Out-V (Yellow)
Auxiliary Video Display
12 Pin AV Adapter Ca ble AV1 Input
***
2) Connect the 2 pin power harness to vehicle’s electrical system by tapping into an accessory hot line and a good ground.
3) Connect the 12 pin powe r/s ign al ha rne ss to t he ma tin g con nec tor
on the video monitor.
4) Connect the 2 pin connector on the power harness to the 2 pin connector on the power/signal harness.
5) Verify all functions of the system before final mount ing o f the finished assembly.
A/V Sou rce D efini tio ns:
1. DVD - Built in DVD
2. USB - Built in USB
3. AV1
- Supp lie d 12 Pin Power / S ignal Harn ess to 3 RCA Jack P igtail is us ed fo r AV1 input.
4 . AU X - AU X inp ut.
5. GAM E - Bui lt in Gam e
*NOT E: If the o ption al r elay bo x is P/N SI RSWB in st alled , it reco mmend ed t hat the a ntenn a for the FM m odula tor ant en na wire i s unplu gged. S ee AD V38 Wir ing Dia gram (F igure A) f or ante nna loc ation .
**NO TE: Ext endin g th e wirel ess ant enna be yo nd its 12 i nch len gth wil l cause t he F M modu lator t o excee d FC C limit s of wire less tr an smiss ion. Wh en inst allin g th e unit po sitio n the ante nna for b est rec ep tion.
***N OTE: Pl ug in 12 pi n AV Ad apter c ab le when c onnec ting to a n externa l sourc e (i.e. g ame cont rolle r, etc).
9
CONNECTING THE DOME LIGHTS
The dome lights in the video monitor require three connections to the vehicle's wiring. There are two common types of dome light circuits used, positive or negative switched system. Positive switched systems supply voltage to the interior lights to turn on, negative switched systems apply ground to illuminate the bulbs. To determine which system you have to locate the wires at the dome light: On a positive switched system, with all the doors closed and the lights out, both wires at the dome light will rest at ground. When the light is activated, one of these wires will switch to +12 vdc. This is the vehicle's switching wire. On a negative switched system, with all the doors closed and the lights out, both wires at the dome light will rest at + 12vdc. When the light is activated, one of these wires will switch to ground. This is the vehicle’s switching wire.
For positive systems, connect the violet / brown (Lamp auto) wire to the vehicle's switched wire. Then connect the red / black (lamp on) wire to a fused constant 12 volt source and the black / red (lamp common) wire to a good ground. Positive systems are commonly found on Ford vehicles.
For negative systems, connect the violet / brown (Lamp auto) wire to the vehicle's switched wire. Then connect the red / black (lamp on) wire to a good ground and the black / red (lamp common) wire to fused constant 12 volt source. Negative systems are commonly found on General Motors and import vehicles.
Note: Some vehicles which incorporate transistorized control of the dome light circuit, such as the 1999 Dodge Caravan, may require that the violet / brown (Lamp auto) wire be connected to the door pin switch wire, as the additional current draw of the monitor's lights may not be supported by the output of the vehicles body control computer.
Positive Switched Dome Lighting
To 12 pin
connector
on Monitor
Factory Dome light circuit
To
constant
+12vdc
Red / black - Lamp on Black / red - Lamp common Purple / brown - Lamp Auto
Factory Door ajar switch or Body Control computer
10
To
constant
+12vdc
Fused
Negative Switched Dome Lighting
Red / black - Lamp on
To 12 pin
connector
Black / red - Lamp common Purple / brown - Lamp Auto
Factory Door ajar switch or Body Control computer
To
constant
To
constant
Troubleshooting:
SYMPTOM: REMEDY:
No power at Video Monitor Verify +12 VDC on Red wire at 2 pin Power Harness
behind video monitor. Verify ground connection with continuity test from known good ground to black wire at 2 pin Power Harness
Power but no video or sound Verify that the correct source is selected (i.e.: 1,2,3 or
4). Verify that the source is on and playing a known good media (such as a videotape). Verify connections at both ends of the source component harness.
11
© 2011 ADVENT, 150 Marcus Blvd. Hauppauge, NY 11788
128-8513C
