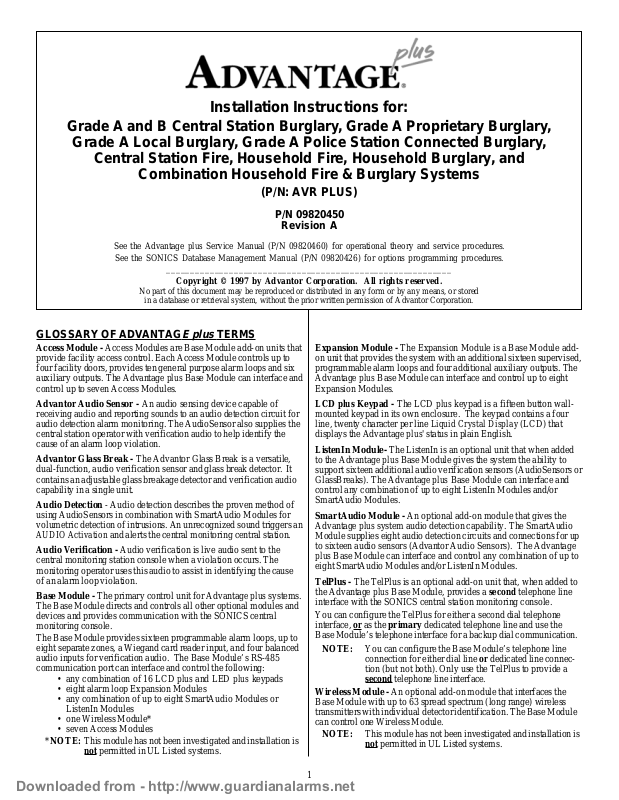

Installation Instructions for:
Grade A and B Central Station Burglary, Grade A Proprietary Burglary, Grade A Local Burglary, Grade A Police Station Connected Burglary, Central Station Fire, Household Fire, Household Burglary, and Combination Household Fire & Burglary Systems
(P/N: AVR PLUS)
P/N 09820450
Revision A
See the Advantage plus Service Manual (P/N 09820460) for operational theory and service procedures.
See the SONICS Database Management Manual (P/N 09820426) for options programming procedures.
___________________________________________________________
Copyright © 1997 by Advantor Corporation. All rights reserved.
No part of this document may be reproduced or distributed in any form or by any means, or stored in a database or retrieval system, without the prior written permission of Advantor Corporation.
GLOSSARY OF ADVANTAGE plus TERMS
Access Module - Access Modules are Base Module add-on units that provide facility access control. Each Access Module controls up to four facility doors, provides ten general purpose alarm loops and six auxiliary outputs. The Advantage plus Base Module can interface and control up to seven Access Modules.
Advantor Audio Sensor - An audio sensing device capable of receiving audio and reporting sounds to an audio detection circuit for audio detection alarm monitoring. The AudioSensor also supplies the central station operator with verification audio to help identify the cause of an alarm loop violation.
Advantor Glass Break - The Advantor Glass Break is a versatile, dual-function, audio verification sensor and glass break detector. It contains an adjustable glass breakage detector and verification audio capability in a single unit.
Audio Detection - Audio detection describes the proven method of using AudioSensors in combination with SmartAudio Modules for volumetric detection of intrusions. An unrecognized sound triggers an AUDIO Activation and alerts the central monitoring central station.
Audio Verification - Audio verification is live audio sent to the central monitoring station console when a violation occurs. The monitoring operator uses this audio to assist in identifying the cause of an alarm loop violation.
Base Module - The primary control unit for Advantage plus systems. The Base Module directs and controls all other optional modules and devices and provides communication with the SONICS central monitoring console.
The Base Module provides sixteen programmable alarm loops, up to eight separate zones, a Wiegand card reader input, and four balanced audio inputs for verification audio. The Base Module’s RS-485 communication port can interface and control the following:
•any combination of 16 LCD plus and LED plus keypads
•eight alarm loop Expansion Modules
•any combination of up to eight SmartAudio Modules or ListenIn Modules
•one Wireless Module*
•seven Access Modules
*NOTE: This module has not been investigated and installation is not permitted in UL Listed systems.
Expansion Module - The Expansion Module is a Base Module addon unit that provides the system with an additional sixteen supervised, programmable alarm loops and four additional auxiliary outputs. The Advantage plus Base Module can interface and control up to eight Expansion Modules.
LCD plus Keypad - The LCD plus keypad is a fifteen button wallmounted keypad in its own enclosure. The keypad contains a four line, twenty character per line Liquid Crystal Display (LCD) that displays the Advantage plus' status in plain English.
ListenIn Module- The ListenIn is an optional unit that when added to the Advantage plus Base Module gives the system the ability to support sixteen additional audio verification sensors (AudioSensors or GlassBreaks). The Advantage plus Base Module can interface and control any combination of up to eight ListenIn Modules and/or SmartAudio Modules.
SmartAudio Module - An optional add-on module that gives the Advantage plus system audio detection capability. The SmartAudio Module supplies eight audio detection circuits and connections for up to sixteen audio sensors (Advantor Audio Sensors). The Advantage plus Base Module can interface and control any combination of up to eight SmartAudio Modules and/or ListenIn Modules.
TelPlus - The TelPlus is an optional add-on unit that, when added to the Advantage plus Base Module, provides a second telephone line interface with the SONICS central station monitoring console.
You can configure the TelPlus for either a second dial telephone interface, or as the primary dedicated telephone line and use the Base Module’s telephone interface for a backup dial communication.
NOTE: You can configure the Base Module’s telephone line connection for either dial line or dedicated line connection (but not both). Only use the TelPlus to provide a second telephone line interface.
Wireless Module - An optional add-on module that interfaces the Base Module with up to 63 spread spectrum (long range) wireless transmitters with individual detector identification. The Base Module can control one Wireless Module.
NOTE: This module has not been investigated and installation is not permitted in UL Listed systems.
1
Downloaded from - http://www.guardianalarms.net
Zone - An area of the facility that contains alarm loops that arm and disarm as a group with associated auxiliary outputs and audio verification or audio detection AudioSensors.
SCOPE
These instructions provide the information and references needed to install, set up, and option UL Listed Advantage plus systems using the UL Listed Base Module as the system control unit. The “ Advantage plus Service Manual” (P/N 09820460) covers system maintenance and service.
THE ADVANTAGE plus UL SYSTEMS
The Advantage plus system has following UL Listings and agency approvals:
•FCC Part 15, Class B
•UL 294, “Access Control System Units”
•UL 365, “Police Station Connected Burglary Alarm Units and Systems”
•UL 609, “Local Burglar Alarm Systems and Units”
•UL 864, “Control Units for Fire Protective Signaling Service”
•UL 985, “Household Fire Warning System Units”
•UL 1023, “Household Burglar-Alarm Systems”
•UL 1076, “Proprietary Burglar Alarm Units and Systems”
•UL 1610, “Central Station Burglar Alarm Units”
•CSFM (California State Fire Marshal)
The Advantage plus Base Module is the primary control unit for Advantage plus systems. The Base Module directs and controls all other optional modules and devices and provides communication with the SONICS central station monitoring console.
The Base Module, without any optional add-on modules, has the following features and capabilities:
•sixteen programmable alarm loops
•up to eight separate zones
•four auxiliary outputs
•four audio inputs for verification audio
•dedicated or dial telephone line operation
•one Wiegand card reader input
•an RS-485 communication port
The Base Module’s RS-485 communication port can interface and control the following optional add-on modules and devices to expand the system’s features and capabilities:
•any combination of 16 LCD plus and LED plus keypads
•eight alarm loop Expansion Modules
•a combined total of eight SmartAudio Modules and/or ListenIn audio verification modules
•seven Access Modules
NOTE: See the following documents for Advantage plus optional module installation instructions:
•Access Module Installation, P/N 09820451
•Smart Audio Module Installation, P/N 09820452
•Expansion Module Installation, P/N 09820453
•TelPlus Module Installation, P/N 09820454
•Wireless Module Installation, P/N 09820456
•ListenIn Module Installation, P/N 09820455
•Cellular Module Installation, P/N 09820457
•APS12V1A-S Power Supply, P/N 09820458
•LED plus Keypad Installation, P/N 09830030
•LCD plus Keypad Installation, P/N 09830046
•Fire Control Panel Interface Installation, P/N 09820459
Each of the listed add on devices and modules can be located up to 2,000* feet from the Base Module giving the Advantage plus the following maximums:
•214 alarm loops split into eight separate zones
•any combination of up to 128 audio detection/audio verification audio sensors
•access control of up to 28 separate doors
•up to 82 programmable auxiliary outputs
*NOTE: At least one LCD plus or LCD plus keypad must be powered directly from the Base Module.
ADVANTAGE plus PROPRIETARY AND CENTRAL STATION BURGLARY SYSTEMS
The major differences between the Advantage plus UL Proprietary Burglary systems and standard Advantage plus installations are:
•Must be installed per UL 681, “Installation and Classification of
Mercantile and Bank Burglar Alarm Systems” and UL 611, “Central Station Burglar Alarm Systems.”
•Requires the UL Listed chassis and the tamper switch assembly, available from Advantor.
•UL Certificated Burglary Systems may use only LCD or LCD plus keypads as the system Arming/Disarming device.
•Proprietary burglar alarm systems provide Grade AA alarm loops.
•UL Burglary Systems require a minimum of 4 hours of standby (battery) power.
OPTIONS SELECTION AND PROGRAMMING
NOTE: See the “SONICS Database Management Manual”
(P/N 09840015) for complete option descriptions.
The alarm monitoring console displays different screens for each Advantage plus series. For example, selecting the Panel Type and UL Fire automatically locks in many UL required options and limits other option selections in specific fields.
Advantage plus Central Station Fire Options
The following lists the required central station fire options.
Equipment Options
• Select “ADV” panel type and “plus” for the series
•Select “LCD Keypad.”
•Select “TelPlus.”
•An annunciator (if used) must be supervised. (See the Household File loop and auxiliary output options.)
Phone Options
•Program the Wait for Dial Tone option for 7 seconds or less.
•Option the Central Station Response Time (CSR) option for 45 seconds or less.
•Program the Enable Line Monitor 2 for Yes.
Loop Options
•To meet the UL requirement that fire alarms have the highest priority, Fire-related Alarm Codes should be the following:
- FIRE ALARM |
- FIRE LOOP # |
•All UL Fire-related loops restricted to 24-Hour security.
•All UL Fire-related loops restricted to Send Restoral Code.
•All UL Fire-related loops default to Alarm on Short.
•All UL Fire-related loops restricted to Send Trouble When Armed.
•All UL Fire-related loops restricted to Drop Line alarm reporting.
•All UL Fire-related loops restricted to Fire Loop.
2
Advantage plus Grade A Proprietary & Grade A Central Station (Multiplex) Burglary Options
The following lists the required proprietary burglary options:
Equipment Options
• Select “ADV” panel type and “plus” for the series
•Select "LCD Keypad".
Phone Options
•(Proprietary only). Select the ERAD mode for the telephone line.
Loop Options
•Program all UL Burglary alarm circuits for Alarm on Open and
Alarm on Short.
NOTE: UL requires that an alarm be generated if the initiating loop is opened or shorted when the system is armed.
Miscellaneous Options
•If a bell is present, program the Bell Ring Length option for a minimum of 15 minutes.
Advantage plus Grade A Police Station Connected, Grade B Local, and
Grade B Central Station (DAC) Burglary Options
The following lists the required options for a police station connected burglary system:
Equipment Options
• Select “ADV” panel type and “plus” for the series
•Select “"LCD Keypad".
Phone Options
•Program the Wait for Dial Tone option for 7 seconds or less.
•Option the Central Station Response Time (CSR) for 45 seconds or less.
Keypad Options
•Option the Entry Delay Time for 60 seconds or less.
•Option the Exit Delay Time for 60 seconds or less.
Loop Options
•Program all UL Burglary alarm circuits for both Alarm on Open and Alarm on Short.
Line Down Options
•All UL-related loops restricted to YES Send Restoral Code for Line Down.
Miscellaneous Options
•Program the AC Power Down option as YES.
NOTE: In UL Listed systems, the Base Module sends the AC alarm six hours after AC power loss. In non-UL systems, the Base Module sends the AC alarm one minute after losing AC power.
The LCD plus keypad immediately indicates the “AC OFF” condition on all systems
•Program the Bell Ring Length option for 15 minutes or longer. The Advantage plus Base Module must be connected to a compatible Listed sounding device suitable for the application, rated for at least 85 dB operating over the voltage range of 9.6 to 13 VDC.
ADVANTAGE plus SEQUENCE OF INSTALLATION
An efficient sequence for a typical installation is as follows:
1. Complete the “Advantag e plus UL Standby Battery Chart”
2.Check the option sheet and enter the selected options into the computer.
3.Enter database information (and employee numbers if a Secure arming system).
4.Mount the cabinet, install any optional modules and the RJ31X jack. Ensure correct RJ31X wiring. Existing RJ31X jacks are often wired incorrectly.
All UL systems must use the fused RJ31X jack(s) included in the ULB or ULF Installation Kit.
5.Connect the phone line(s) and perform the “Base Module PreInstallation Test”.
6.Complete the field wiring (AudioSensors, GlassBreaks, smoke detectors, door switches, LCD keypads, etc.).
7.Download options from the programming computer into the Advantage plus Base Module and all optional add-on modules.
8.Adjust and calibrate (if applicable) system audio.
9.Test the system to ensure communications and proper options.
AC POWER BUDGET
The Base Module’s AC power supply can continuously supply a total of 1.9 Amps (thermally limited) at 12 VDC. By installing a battery, the Base Module can supply up to 1.9 Amps of device current and 1.5 Amps of annunciation current for short periods of time.
The Base Module’s annunciator and auxiliary outputs are individually protected by Positive Temperature Coefficient resistors (PTCs). However, since UL requires internally fusing the AC power transformer, shorting an output with no battery present often blows the transformer fuse before the PTC can react.
*The current drawn by the Base Module’s Audible/Visual annunciators cannot exceed the PTC limited 1,500mA (1.5 Amps).
*The Normal Standby or Alarm currents (excluding annunciators) cannot exceed the PTC limited 1,900mA (1.9 Amps).
The UL Standby Battery Chart in the following section can also be used to calculate the AC operation power budget. Adding an additional 400 mA for charging dead batteries is recommended.
CALCULATING BATTERY STANDBY
In UL installations, the Normal Standby Current is limited by backup capacity of the installed battery(s) rather than the available AC power. To ensure the required backup power, you must always use this lower current value in certificated UL installations. Table 1 shows estimates of the maximum Normal Standby current available from one or two 7AH batteries for UL requirements for 4 or 24 hour battery operation
Table 1. Battery versus Standby Current
Required Battery Backup |
One Battery |
Two Batteries |
|
|
|
4 Hours + 15 Minutes |
1.2 A |
1.9 A |
|
|
|
24 Hours + 5 Minutes |
0.2 A |
0.4 A |
|
|
|
Before installation, compute the required standby current for all accessories powered by the Base Module. The following factors limit the equipment and devices powered by the Base Module:
•The current drawn by the equipment and devices powered from the Base Module
•The UL requirement for at least 4 hours plus 15 minutes of alarm battery life for UL Central Station Burglary, Proprietary Burglary, Household Burglary, and Household Fire.
•The UL requirement for at least 24 hours (plus 5 minutes of alarm) battery life for UL Central Station Fire.
3
Knowing this, the following rule applies for battery operation:
•The Base Module’s maximum Normal Standby current cannot exceed the battery(s) Ampere-Hour (AH) capacity divided by the number of hours of required battery operation.
Example: two 7 AH batteries installed in a system requiring 24 hours of backup operation.
7 x 2 = 14 AH 14 AH ÷ 24 Hours required backup = 0.58 Amp
Normal Standby current cannot exceed 0.58 Amps
To properly calculate the Advantage plus system’s battery capacity you MUST evaluate the Normal Standby and Alarm current required by the system. Calculate a system’s AmpereHour requirements using the following factors:
•the total system standby current load
•hours of required standby operation (24 hours for UL Central Station Fire, 4 hours for other UL configurations)
•the required duration of alarm signaling (normally 4 minutes for fire, 15 minutes for central station burglary).
NOTE: Consult the Authority Having Jurisdiction (AHJ) before installing any Fire system. Local and/or state fire ordinances could impose limitations on the maximum number of smoke detectors installed in one system.
CABINET AND MODULE INSTALLATION
CAUTION!
DO NOT INSTALL ADVANTAGE plus IN LOCATIONS WHERE TEMPERATURES DROP BELOW 0°F OR RISE ABOVE 122°F.
Mount the enclosure next to a standard 120VAC power source to simplify AC wiring. See Figure 3 and do the following:
1.Install the six Base Module standoffs by pressing them in from the back of the cabinet. Also install the standoffs for any optional modules.
2.Using the cabinet as a guide, mark the top two mounting hole locations on the mounting surface.
3.Mount the top screws and place the cabinet keyholes on the screws. Tighten the top screws and secure the cabinet with the bottom screws.
4.Mount the Base Module on the standoffs installed in step #1.
5.Mount any additional modules inside the cabinet on the pop-in standoffs installed in step #1.
|
|
Standby |
Total |
Alarm |
Total |
Accessory Name |
Qty |
Current |
Standby |
Current |
Alarm |
(Ea.) mA. |
Current |
(Ea.) mA. |
Current |
||
Base Module |
1 |
150 |
150 |
200 |
200 |
LCD plus Keypad |
|
25 |
|
125 |
|
LED plus Keypad |
|
25 |
|
25-95 |
|
SmartAudio Module |
|
200 |
|
200 |
|
Expansion Module |
|
130 |
|
130 |
|
TelPlus Module |
|
0 |
|
45 |
|
ListenIn Module |
|
30 |
|
30 |
|
Wireless Module (see Note 1) |
|
150 |
|
150 |
|
Advantage AudioSensor |
|
5 |
|
5 |
|
Advantage GlassBreak |
|
12 |
|
26 |
|
Wiegand Compatible Card Reader |
|
|
|
|
|
Sensor Engineering Listed 30387-0XX |
|
|
|
|
|
Sensor Engineering Listed 31815-0XX |
|
|
|
|
|
Sensor Engineering Listed 31815-1XX |
|
|
|
|
|
Sensor Engineering Listed 31880-1XX |
|
|
|
|
|
Sensor Engineering Listed 31503-X |
|
|
|
|
|
Auxiliary Outputs #1 through #4
DS200-4W (DS200 w/MB200-4W Base) |
|
0.08 |
|
25 |
|
DS200HD-4W (DS200HD w/MB200-4W |
|
0.08 |
|
25 |
|
Base) |
|
|
|
||
|
|
|
|
|
|
MB4W (Base w/DS250 4-Wire Head) |
|
0.08 |
|
48 |
|
MB4WA (DS250 4-Wire Head w/Base |
|
0.08 |
|
56 |
|
w/Aux Relay) |
|
|
|
||
|
|
|
|
|
|
MB4WE (DS250 4-Wire Head w/Base |
|
0.08 |
|
80 |
|
w/Aux Relay and Power Supervision) |
|
|
|
||
|
|
|
|
|
|
MB4WS (DS250 4-Wire Head w/Base |
|
0.08 |
|
63 |
|
w/85dB Sounder) |
|
|
|
||
|
|
|
|
|
|
EOL200 (End of Line Module) |
|
30 |
|
30 |
|
|
|
TOTALS |
(1) |
|
|
Audible and Visual Annunciators |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
(2) |
|
|
TOTALS |
|
|
(3) |
NOTE 1: The Wireless Module is NOT UL Listed, and may not be used in UL Certificated systems.
(1) This number, Total Standby Current, or long term Alarm Current CANNOT exceed the number of backup hours (see Table 1).
(2) The Base Module Bell current is limited to 1,500mA (1.5 Amps).
(3) This number, the combined Total Alarm Current and Bell Current CANNOT exceed 1,900 mA if using the plug-mounted transformer, or 1,600 mA if using the open frame transformer.
Figure 2. Advantage plus UL Standby Battery Chart
4
Base Module |
Battery Battery
|
|
Dedicated |
|
|
|
Phone Line |
|
|
Optional Ditek Data |
|
|
|
Loop Protector |
|
|
|
(P/N 08061698) |
|
|
|
|
DITEK |
|
|
|
DITEK |
|
|
Ditek 120 VAC Surge |
|
|
|
Protector (P/N 08061699) |
|
|
Earth |
|
|
|
GND |
|
|
|
Battery |
DANGER |
WHT |
|
Battery |
GRN |
|
|
|
|
|
|
|
|
Fuse |
|
|
|
BLK |
|
|
|
Strain Relief |
|
|
115 VAC via either power cord (included) |
||
|
or from direct supply (enclosed in conduit). |
||
|
|
To Dial |
|
|
|
Telephone Line |
|
|
|
4 |
5 |
|
Optional Ditek |
3 |
6 |
|
2 |
7 |
|
|
Data Protector |
1 |
8 |
|
|
|
|
|
(P/N 08060085) |
|
|
|
|
DITEK |
|
Ditek 120 VAC Surge |
|
|
Protector (P/N 08061699) |
|
Earth |
|
|
GND |
|
|
Battery |
DANGER |
WHT |
Battery |
GRN |
|
|
|
|
|
|
Fuse |
|
|
BLK |
|
|
Strain Relief |
|
115 VAC via either power cord (included) |
|
|
or from direct supply (enclosed in conduit). |
|
Figure 3. Advantage plus Enclosure Layout
AC AND EARTH GROUND WIRING
CAUTION!
DO NOT CONNECT BASE MODULE JACK J1 UNTIL ALL TRANSFORMER WIRING IS COMPLETE.
AC Power Wiring (using plug-mounted transformer)
Run an 18AWG (or larger) 2-conductor cable out the hole in the cabinet bottom to the plug-mount transformer (or the transformer enclosure).
The Base Module J1 screw terminal block pins 1 and 2 (labeled AC 16.5V) provides the connections for the 16.5VAC, 50 VA input from the plug-mount transformer. Connect the power wires into the J1-1 and 2 terminals (polarity is not important).
WARNING!
UNLESS OTHERWISE INSTRUCTED, DO NOT PLUG THE TRANSFORMER INTO THE AC OUTLET UNTIL ALL WIRING IS COMPLETE.
Connect the wires to the transformer terminals.
When ready to plug the transformer into the AC outlet, remove the outlet cover plate screw and place it through the transformer case tab. Plug the transformer into the bottom outlet, insert the screw through the transformer and cover plate, then tighten. This secures the transformer, preventing accidental disconnection.
AC Power Wiring (using open frame transformer)
The open frame transformer comes pre-installed inside the chassis with a fuse block and a DITEK 120 VAC surge protector.
AC power coming inside the chassis connects at the fuse block as shown in Figure 3. You can bring AC power to the fuse block via either the AC power cord (included), or wire it directly from a 120 VAC power line.
The Base Module J1 screw terminal block pins 1 and 2 (labeled AC 16.5V) provides the connections for the 16.0VAC, 43 VA input from the open frame transformer. Connect the power wires from the transformer to the J1-1 and 2 terminals (polarity is not important).
WARNING!
UNLESS OTHERWISE INSTRUCTED, DO NOT PLUG THE TRANSFORMER CORD INTO THE AC OUTLET OR TURN THE CIRCUIT BREAKER “ON” UNTIL ALL WIRING IS COMPLETE.
SYSTEM GROUNDING
NOTE: All Advantage plus modules isolate earth ground from signal ground. This is done to meet UL requirements, and also allows all the interconnect modules to share the same signal ground when there may be a large difference in potential between earth grounds. Earth ground must remain isolated from signal ground.
Earth Ground Wiring
WARNING!
IF USING THE 115 VAC, 43 VA OPEN FRAME TRANSFORMER DO NOT CONNECT AN EXTERNAL EARTH GROUND TO THE CHASSIS EARTH GROUND STUD. THE ELECTRICAL GROUND AT THE OPEN FRAME TRANSFORMER ACTS AS THE EARTH GROUND IN THIS CHASSIS.
NOTE: Always install AC and Earth Ground wiring per Article 250 of the National Electrical Code.
5
Loading...
