Advantech Co TREK 120 User Manual
User Manual
TREK-120
Cold Chain Sensor, Gateway
& NFC reader
TREK-120 User Manual
Copyright
The documentation and the software included with this product are copyrighted 2019
by Advantech Co., Ltd. All rights are reserved. Advantech Co., Ltd. reserves the right
to make improvements in the products described in this manual at any time without
notice. No part of this manual may be reproduced, copied, translated or transmitted
in any form or by any means without the prior written permissio n of Advantech Co.,
Ltd. Information provided in this manual is intended to be accurate and reliable. However, Advantech Co., Ltd. assumes no responsibility for its use, nor for any infringements of the rights of third parties, which may result from its use.
Acknowledgements
Windows is registered trademarks of Microsoft.
All other product names or trademarks are properties of their respective owners.
Product Warranty (2 years)
Advantech warrants to you, the original purchaser, that each of its products will be
free from defects in materials and workmanship for two years from the date of purchase.
This warranty does not apply to any products which have been repaired or altered by
persons other than repair personnel authorized by Advantech, or which have been
subject to misuse, abuse, accident or improper installation. Advantech assumes no
liability under the terms of this warranty as a consequence of such events.
Because of Advantech’s high quality-control standards and rigorous testing, most of
our customers never need to use our repair service. If an Advantech product is defective, it will be repaired or replaced at no charge during the warranty period. For outof-warranty repairs, you will be billed accor ding to the co st of replacement materials,
service time and freight. Please consult your dealer for more details.
If you think you have a defective product, follow these steps:
1. Collect all the information about the problem encountered. (For example, CPU
speed, Advantech products used, other hardware and software used, etc.) Note
anything abnormal and list any onscreen messages you get when the problem
occurs.
2. Call your dealer and describe the problem. Please have your manual, product,
and any helpful information readily available.
3. If your product is diagnosed as defective, obtain an RMA (return merchandize
authorization) number from your dealer. This allows us to process your return
more quickly.
4. Carefully pack the defective product, a
Order Card and a photocopy proof of purchase date (such as your sales receipt)
in a shippable container. A product returned without proof of the purchase date
is not eligible for warranty service.
5. Write the RMA number visibly on the outside of the package and ship it prepaid
to your dealer.
Part No. Edition 1
fully-completed
Repair and Replacement
Jan 2019
TREK-120 User Manual
Declaration o f Conformity
CE
This product has passed the CE test for environmental specifications. Test conditions
for passing included the equipment being operated within an industrial enclosure. In
order to protect the product from being damaged by ESD (Electrostatic Discharge)
and EMI leakage, we strongly recommend the use of CE-compliant industrial enclo-
„
FCC Caution :
Any changes or modifications not expressly approved by the party responsible for
FCC RF Radiation Exposure Statement :
This device meets the government`s requirements for exposure to radio waves.
This device is designed and manufactured not to exceed the emission limits for
.
sure products.
FCC Class B
Note: This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions, may cause harmful interference to radio c ommunications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or televisio n reception, whic h can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
Reorient or relocate the receiving antenna
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 FCC Rules.
Operation is subject to the following two conditions.
(1) This device may not cause harmful interference , and
(2) The device must accept any interference received, including
interference may cause undesired operation.
compliance could void the user's authority to operate this equipment.
exposure to radio frequency (RF) energy set by the Federal Communications
Commission of the U.S. Government.
This device complies with FCC radiation exposure limits set forth for an uncontrolled
environment. In order to avoid the possibility of exceeding the FCC radio frequency
exposure limits, human proximity to the antenna shall not be less than 20cm (8
inches) during normal operation.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user`s authority to operate the equipment.
TREK-120 User Manual
Technical Support and Assistance
1. Visit the Advantech web site at
the latest information about the product.
2. Contact your distributor, sales representative, or Advantech's customer service
center for technical support if you need additional assistance. Please have the
following information ready before you call:
– Product name and serial number
– Description of your peripheral attachments
– Description of your software (operating system, version, application software,
etc.)
– A complete description of the problem
– The exact wording of any error messages
http://support.advantech.com
where you can find
TREK-120 User Manual
Description
Q`ty
TREK-120
1
Mounting screws
2
Warnings, Cautions and Notes
Warning! Warnings indicate conditions, which if not observed, can cause personal
injury!
Caution! Cautions are included to help you avoid damaging hardware or losing
data. e.g.
There is a danger of a new battery exploding if it is incorrectly installed.
Do not attempt to recharge, force open, or heat the battery. Replace the
battery only with the same or equivalent type recommended by the manufacturer. Discard used batteries according to the manufacturer's
Note! Notes provide optional additional information.
instructions.
Document Feedback
To assist us in making improvements to this manual, we would welcome comments
and constructive criticism. Please send all such - in writing to: support@advantech.com
Packing List
Before setting up the system, check that the items listed below are included and in
good condition. If any item does not accord with the table, please contact your dealer
immediately.
Ordering Information
Part Number
Description
TREK-120-ANF000A00
Temperature/humidity/G sensor by NFC
TREK-120-ANLNA0A00
Temperature/humidity/G sensor by NFC+LoRa
NA902/TW922
TREK-120-ANLEU0A00
Temperature/humidity/G sensor by NFC+LoRa
EU868
TREK-120-ANLCN0A00
Temperature/humidity/G sensor by NFC+LoRa
CN470
TREK-120-ANR000A00
Cold Chain NFC reader
TREK-120-ALG000A00
LoRa gateway dongle 525MHz ~ 928MHz
TREK-120-ALG000B00
LoRa gateway dongle 433MHz ~ 510MHz
Safety Instructions
1. Read these safety instructions carefully.
2. Keep this User Manual for later reference.
3. Keep this equipment away from fire.
6. Do not leave this equipment in an environment unconditioned where the storage
temperature under -40° C (-40° F) or above 85° C (185° F), it may damage the
equipment. Operating temperature: -30°C~70°C.
8. Do not operate this equipment in an environment temperature may over
70°C(149° F). The surface temperature of plastic chassis may be hot.
9. All cautions and warnings on the equipment should be noted.
12. If the equipment is not used for a long time, stop recording by setting utility.
13. Never pour any liquid into an opening. This may cause fire or electrical shock.
14. Never open the equipment. For safety reasons, the equipment should be
opened only by qualified service personnel.
15. If one of the following situations arises, get the equipment checked by service
personnel:
„
The power cord or plug is damaged.
„
Liquid has penetrated into the equipment.
„
The equipment has been exposed to moisture.
„
The equipment does not work well, or you cannot get it to work according to
the user's manual.
„
The equipment has been dropped and damaged.
„
The equipment has obvious signs of breakage.
16. CAUTION: The computer is provided with a battery-powered real-time clock cir- cuit.
There is a danger of explosion if battery is incorrectly replaced. Replace only with
same or equivalent type recommended by the manufacture. Discard used batteries
according to the manufacturers instructions.
17. This device complies with Part 15 of the FCC rules. Operation is subject to the
following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation.
18. CAUTION: Always completely disconnect the power cord from your chassis
whenever you work with the hardware. Do not make connections while the power
is on. Sensitive electronic components can be damaged by sudden power surges.
19. CAUTION: Always ground yourself to remove any static charge before touching the
motherboard, backplane, or add-on cards. Modern electronic devices are very
sensitive to static electric charges. As a safety precaution, use a grounding wrist
strap at all times. Place all electronic components on a static-dissipative surface or in
a static-shielded bag when they are not in the chassis.
20. CAUTION: Any unverified component could cause unexpected damage. To ensure
the correct installation, please always use the components (ex. screws) provided
with the accessory box.
Safety Precaution - Static Electricity
Follow these simple precautions to protect yourself from harm and the products from
damage.
„
To avoid electrical shock, always disconnect the power from your PC chassis
before you work on it. Don't touch any components on the mainboard or other
cards while the system is on.
„
Disconnect power before making any configuration changes. The sudden rush
of power as you connect a jumper or install a card may damage sensitive electronic components.
This product is intended to be supplied by an AA wide temperature battery, if need
further assistance with purchasing the battery, please contact Advantech for further
information.
Chapter 1
1 General Info rmati on
This chapter gives background
information on the TREK-120 Cold
chain Sensor
Sections include:
„
Introduction
„
General Specifications
„
Dimensions
Chapter 1
General Information
Temperature
Measurement Range
-30 ~ 70 °C (-22 ~ 158 °F)
Accuracy Range
0.5 °C from 0 ~ 20 °C(±32.9 °F from 32 ~ 68
158 °F)
Resolution
0.1 °C (32.18 °F)
Frequency
NFC
13.56MHz
LoRa
863-870MHz for Europe
470-510 MHz for China
Humidity
Measurement Range
0 ~ 100% RH
Accuracy Range
3% from 0 to 80%
3-Axis
accelerometer
ST IIS2DH with free fall detection.
Default value is 350mg
Data Storage
Capacity
65Kbits for 2000 temperature and humidity
values + 30 free fall values
1.1 Introduction
TREK-120 LoRa temperature and humidity sensors aimed at cold chain logistics and supermarket
applications. In response to industry demands for rugged cold chain fleet management solutions,
Advantech developed its TREK-120 wireless temperature and humidity sensors that can be integrated with
an NFC reader and LoRa gateway for wireless data collection and transmissions. Functioning like a data
logger, TREK-120 sensors are designed to collect and log all temperature and humidity data accurately and
precisely without data losses. The collected data can then be downloaded using an NFC reader (or any
handheld device with NFC capabilities) or wirelessly transmitted to the cloud via a LoRa gateway to enable
real-time monitoring. The inclusion of LoRa technology not only enables long-distance (up to 50 meters)
wireless transmissions with excellent signal penetration, but also reduces the sensor’s overall power
consumption. However, even with the use of NFC and LoRa technology, the sensor battery supports at
least 1 year of operation (depending on operating environment) and can be easily replaced for convenient
management.
To withstand operation in refrigerated vehicles and cold chain logistics fleets, the TREK-120 sensors are
IP65 rated for protection from water and dust ingress and support a wide operating temperature range (20 ~ 65 °C/-4 ~ 149 °F). Moreover, the sensor design is compact, lightweight (108 g), and cableless, and
can be easily installed using magnets or an adhesive backing, eliminating the need for additional cables
and invasive vehicle modifications. The TREK-120 sensors are also equipped with a drop detection sensor
that facilitates product tracking and traceability monitoring. Furthermore, in terms of development
potential, Advantech also provides specific software APIs and SDKs that enable customization and cloudbased applications for centralized fleet management.
For operation in diverse usage environments, TREK-120 sensors can be paired with a LoRa gateway or NFC
reader. Additionally, TREK-120 sensors support management using mobile devices that feature Windows
or Android operating systems to enable uninterrupted cold chain management. Finally, to facilitate
development, Advantech offers software APIs and SDKs (for Windows/Android) that allow system
integrators to develop unique applications and cold chain application software aimed at optimizing vehicle
diagnostics and facilitating cloud-based centralized management.
1.2 General Specifications
TREK-120 Specifications
±
°F)
±1 °C from -30 ~ 70 °C (±33.8 °F from -22 ~
920-925MHz for North America/Taiwan
±
LED Indicators
1 x Power status
1 x Alarm
Buttons
1x Start button
Battery
3.6V/2000mAh wide temperature battery ( 30 ~ 70 °C)
Data
Transmissions
NFC only and NFC + LoRa
Mechanical
Mount Options
2x Screw holes for mounting.
2x Magnet
Dimensions (W x D x H)
123.97 x 65.21 x 23.14 mm (4.88 x 2.56 x
0.91 mm)
Weight
108g (0.23Ib)
Environment
Operating
Temperature
-30 ~ 70 °C (-22 ~ 158 °F)
Storage Temperature
-40 ~ 85 °C (-40 ~ 185 °F)
IP Rating
IP65
Drop Tolerance
4 ft. drop onto concrete
Certifications
CE/FCC/NCC
RF Operating Frequency
13.56MHz +/- 7kHz (nominal)
RF Output Power
200 mW
RF Output Impendence
50 Ohm
Host Interface
Micro USB
Input Voltage
DC 5V
Operating Temperature
0 ~ 70°C (32 ~ 158°F)
Storage Temperature
-25 ~ 85°C (13 ~ 185°F)
Dimensions
121.63 x 74.18 x 15.6 mm (4.79 x 2.92 x 0.61 in)
Weight
52g (0.11 Ib)
Certifications
CE/FCC/NCC
Back sticker
LoRa Gateway Dongle
Low-power middle range receiver operating from 433MHz to 928MHzfrequency Bands
Host interface: USB
Enhanced noise filtering for better RF performance
Easy connection to Flex antenna
Dimension: 82x62x20 mm, weight: 100g
NFC Reader
Chapter 1
General Information
1.3 Dimensions
TREK-120 Cold Chain Sensor
LoRa gateway dongle
NFC reader
Figure 1.1 TREK-120 dimensions
Chapter 2
2 System Setup
This chapter details system setup
on TREK-120
Sections include:
A Quick Tour of TREK-120
Installation Procedures
[
2.1 A Quick Tour of TREK-120
Before starting to set up TREK-120, take a moment to become familiar with the
locations and functions of the buttons and indicators, which are illustrated in the
figures below.
2.1.1 Outlook
Power/Status LED
Alarm LED
Figure 2.1 Front view of TREK-120
2.1.2 LED behavior
Figure 2.2 LED behavior of TREK-120
Replaceable battery
Start/Status Button
鍵入文字]
[
2.1.3 Mounting Way
Figure 2.3 Mounting way of TREK-120
2.1.4 Replace Battery
The procedure of replacing battery
- Release 2 screws on battery cover
- Open battery cover
- Take off the battery
- Press “Start“ button. The sensor Power LED shows “Red”
- Install the new battery
- Press “Start“ button. The sensor Power LED shows “Green”
鍵入文字]
Figure 2.4 Replace battery of TREK-120
[
2.1.5 Mounting of LoRa gateway dongle
There`s a mounting kit on the LoRa gateway dongle. Suggest using 4pcs M3 or M2.5
self-tapping screw or machine screw to fix the gateway dongle.
鍵入文字]
[
Chapter 2
System Setup
2.2 Installation Procedures
2.2.1 Setup TREK-120 NFC reader
a. Connect NFC reader to a PC or notebook USB port.
b. Download Cold Chain SDK from the website :
c. Unzip SDK file (Password is the same as the file name) and Launch coldchain_demo.exe.
d. Go to “Setting”, and then select COM port which NFC reader connected then press “Open”.
2.2.2 Setup TREK-120 Temperature/humidity sensor
a. Put TREK-120 on the NFC reader. (Note : Please check NFC logo on TREK-120 close to NFC
reader 4 LED area to ensure better transmission quality.)
鍵入文字]
[

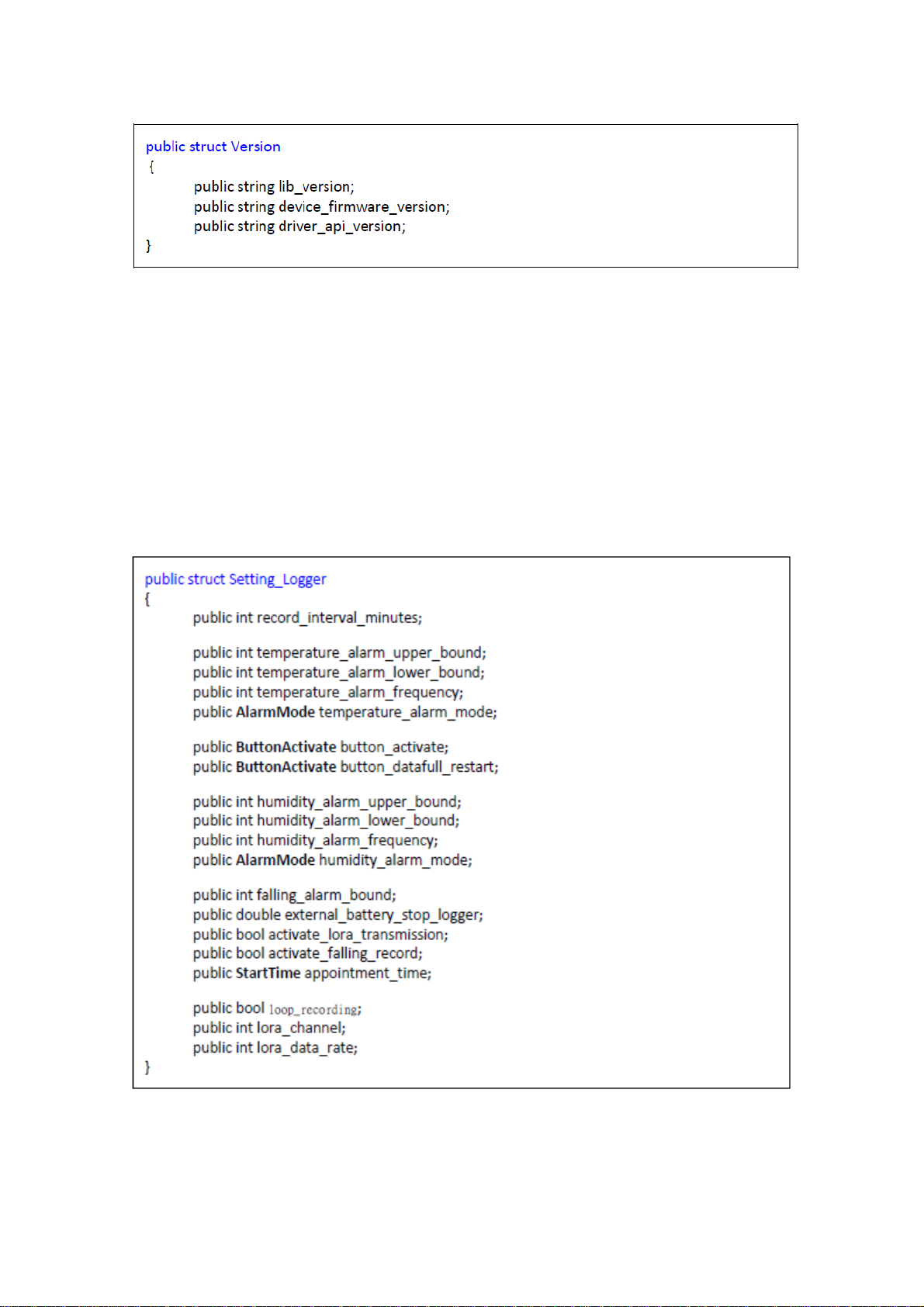

b. Go to “ Configure” to setup TREK-120. When you finish all the setting. Please press “Configure
Loggers”. All the setting will be written into TREK-120. Press “ Start logger” , then the TREK-120
will start record temperature/humidity. Press “ Stop logger”, then the TREK-120 will be
stopped record.
鍵入文字]
c. Go to “Check” to check the configuration of the TREK-120.
[
d. Go to “Download” to download all data in the TREK-120. When you press “ Download data”, all
data will be shown on the screen. You also can export to .CSV file to save in other disk.
2.2.3 Setup TREK-120 LoRa gateway ( Windows Platform)
a. Connect TREK-120 LoRa gateway USB cable to the PC or any windows platform USB port.
b. Go to “Setting”.
鍵入文字]
c. Select COM port which LoRa gateway connected and channel & Data rate. (Note : The channel
and data rate must be the same as the TREK-120 sensor setting.) Then press “Open”.
[
d. Go to “LoRa data” then will show all the data.
鍵入文字]

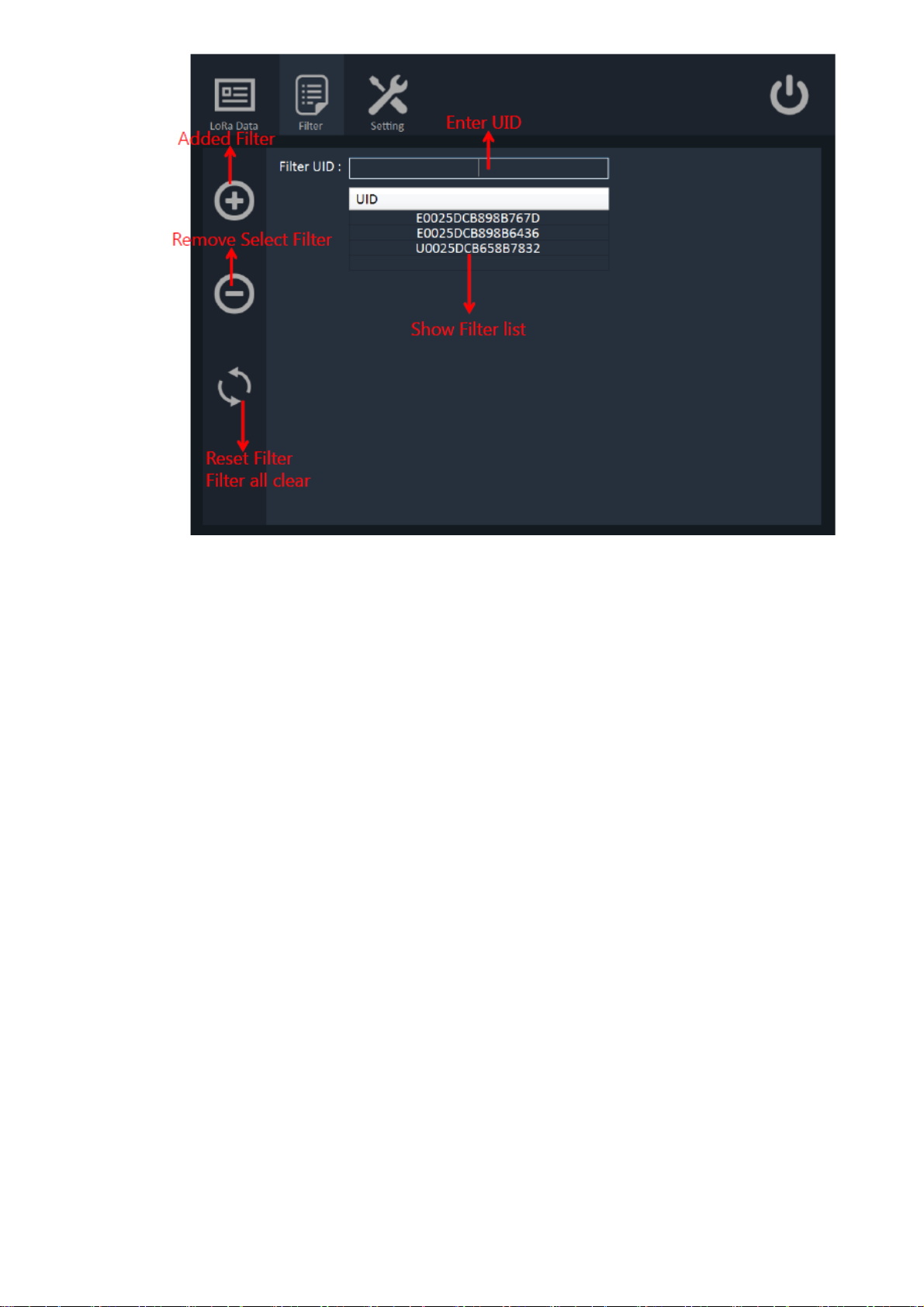

e. Go to “Filter”. You can select UID to show which TREK-120 you want to see the data.
Loading...
