Patient Infotainment Terminal Platform
Rev.0.1
Patient Infotainment Terminal
PIT-1701
User Manual
Page 2
Patient Infotainment Terminal Platform
I. About This Guide
This user guide aims to describe the PIT-1701 series device in an
easy way to follow manner. It describes the hardware feature and
software settings for PIT-1701. Users will learn how to use the
PIT-1701 and its powerful features just by reading and following the
instructions in this guide.
Information is organized as followed :
1. About This Guide
This Chapter describes the organization of this manual.
Rev.0.1
2. Introduction
This Chapter briefly introduces the PIT-1701 product.
3. Hardware Description
This Chapter describes the hardware features of the PIT-1701.
4. Software Description
This Chapter describes the software features of the PIT-1701.
5. Design Requirements
This Chapter describes the design requirements of the PIT-1701.
6. Installation
This Chapter describes the installation of the PIT-1701.
Page 3
Patient Infotainment Terminal Platform
II. Introduction
1. Overview
The PIT-1701 Patient Infotainment terminal is Advantech’s
standard product with a built-in Windows XP embeded OS. In
addition to the entertainment information access, Remote
Monitoring/Security and Home Service functions, the Intel Celeron
M 1.06GHz CPU speed and the LAN-enabled architectures can
achieve an integrated Home Gateway function. The PIT-1701
equipped with a Intel Celeron 1.06GHz processor, 17” touch screen,
onboard Ethernet and audio plays as the key of a home/ building
security & automation solution. It connects the service / emergency
Rev.0.1
calls and sensor signals of an apartment unit through the LAN to the
administration center.
Page 4
Patient Infotainment Terminal Platform
Rev.0.1
Page 5
Patient Infotainment Terminal Platform
III. Hardware Description
1. General Specifications
• Power adaptor: AC/DC
Input voltage: 100Vac~250Vac
Output voltage: 19V @ 3.42A
• Disk drive housing:
1. Space for one 2.5" HDD,
Rev.0.1
1.0 Standard PC functions
• CPU: Intel®Celeron M 1.06GHz
• BIOS: Award 256 KB Flash BIOS
• Chipset: Intel® 945GME + Intel®ICH-7M
• Front side bus: 533/667 MHz
• 2nd level cache: On-die 1MB L2 cache for Celeron M 1.06GHz CPU
• RAM: One 200-pin SODIMM DDRII sockets accept 32 ~ 1000 MB
DDR2 SDRAM
• SATA interface:
Support one SATA connector. The SATA host controller that
supports independent DMA operation on two ports and supports data
transfer rates of up to 3.0Gb/s. The SATA controller contains two modes
of operation-a legacy mode using I/Ospace, and an AHCImode using
memory space.
Page 6
Patient Infotainment Terminal Platform
Rev.0.1
• Universal serial bus (USB) port: Supports up to four USB
ports(three on front side, one on rear side). All USB ports support USB
high-speed signaling. High-speed USB 2.0 allows data transfers up to
480Mb/s. All ports are high-speed, full-speed and low-speed capable.
• Mini PCI bus expansion slot: Accepts one type III mini PCI bus
card
• Battery: 3.0 V @ 195 mA lithium battery
• Audio interface: Microphone-in, Line-out
2.0 Mechanical Specifications
Dimensions of system: 459 (W) x 401 (H) x 73 (D) mm
-Front Cover:
-Rear Cover:
Page 7
Patient Infotainment Terminal Platform
Rev.0.1
Dimensions of carton: 524 (W) x 567 (H) x 180 (D) mm
Fixing System: Back Box for Wall mounting
Gross Weight: 9.5 kg
Net Weight: 7.3 kg
Page 8
Patient Infotainment Terminal Platform
Rev.0.1
Page 9
IV. Outlook View
1. Front View
Patient Infotainment Terminal Platform
Rev.0.1
2. Rear View
Page 10

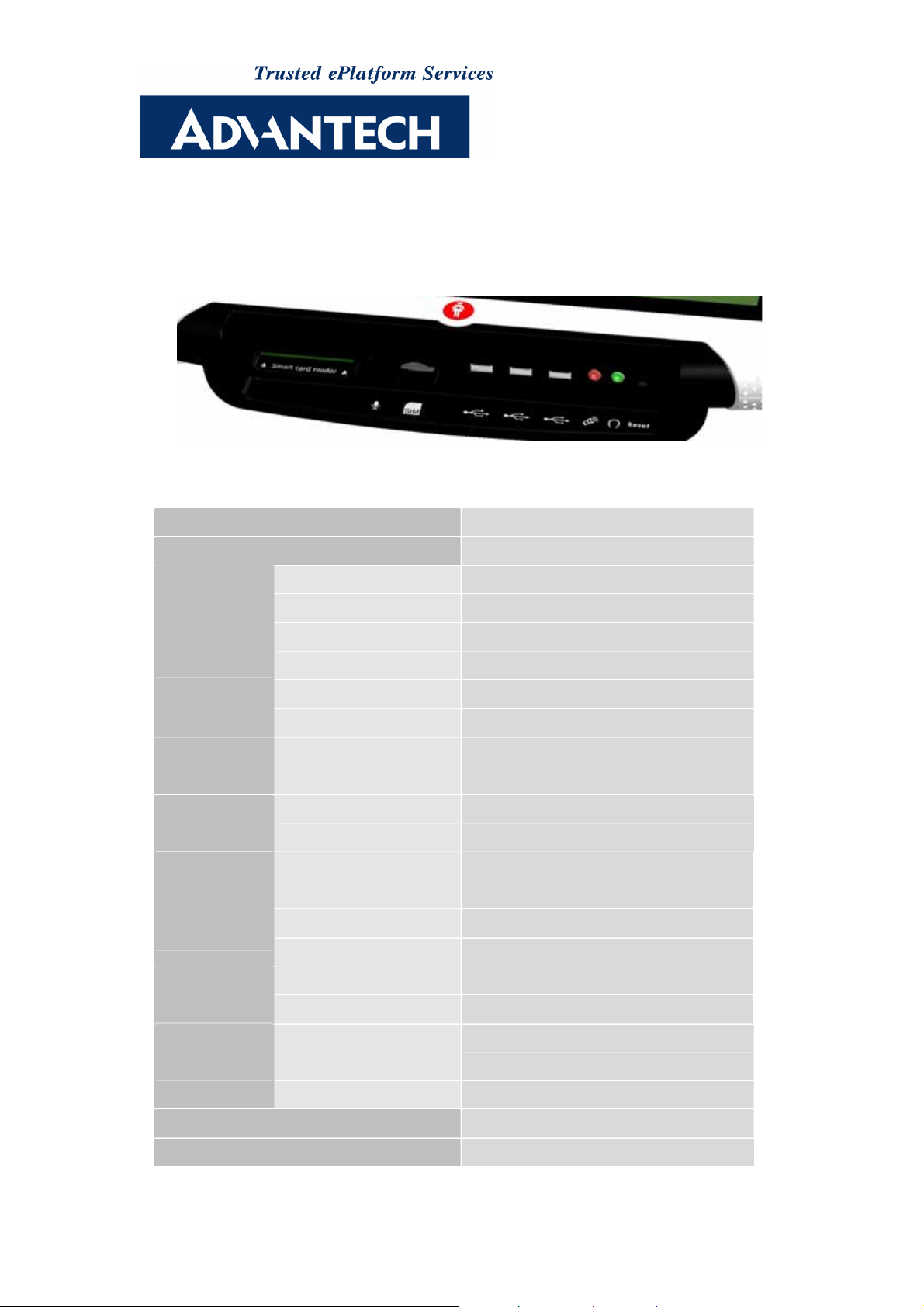

3. I/O Port View
V
. Hardware Specification Table
Patient Infotainment Terminal Platform
Rev.0.1
Display
Interface for
User
Interface for
System
Integrator
Items
CPU Intel Celeron M 1.06GHz
Panel type TFT color LCD
Screen Size 17” (Diagonal)
Resolution 1,280(H) x 1024 (V)
Luminance 300 nit (w/i TS)
Contrast Ratio 800:1
Backlight MTBF 50,000 hours (typ)
Working 1 GB DDR2 SDRAM Memory
Storage 2.5” SATA HDD 80G
LED Emergency LED on both sides
SIM card reader 1
Smart Card reader 1
USB Port 4
MIC in jack 1
Specifications
RJ-45 10/100Base T Ethernet Interface to
the Internet
Windows XP
OS
Windows XP Pro Yes
Power Comsumption < 60W
Dimension (W x H x D)
embeded
Yes Embedded
Page 11
Patient Infotainment Terminal Platform
Rev.0.1
Weight
Operation Temperature
Certificates CE Class B
Page 12
Patient Infotainment Terminal Platform
VI. Software Description
1. Windows XP embeded Software Spec
Real-Time OS Kernel
Win XP English Version
Device Drivers
CX 5530A Control
¾ PCI to ISA Bridge
¾ Graphics/video support for Intel PIII 1G
¾ USB host controller
¾ AC97 Codec Interface
Rev.0.1
ALC-200 Audio Codec
RTL8139C Ethernet Controller
Touch Screen Controller
LCD & Backlight Control
Video Capturing Circuit (BT878A) with GPIO ports
PCMCIA Controller
RS-232/422 Control & IRQ Service Routine
ASCII Terminal Support for debugging view
Embedded Application Software
Automatic Back-light Off
Web Browser
Page 13
Patient Infotainment Terminal Platform
VII. Design Requirements
Environmental Specifications
Temperature & Humidity
9 Operating Temperature: 0 ~ 45
9 Storage Temperature: 0 ~ 60
9 Relative Humidity: 0 ~ 95% RH
(Non-condensed)
Case / Panel Temperature
o
9 Less than 40
C @ 25 o C ambient temperature (front
Rev.0.1
o
C
o
C
bezel)
9
Safety
9 CE
9
EMI
9 FCC class B approved
9
Vibration:
9 10~18Hz, 1.5mm peak-to-peak displacement
9 18~500Hz, 1G acceleration
Reliability
MTBF
9 20,000 hours
Touch Screen
9 1 million touch actuation times on a single point with a
5/8" diameter silicon finger under a 350g load at 2 Hz
Power Requirements
9 DC Input Voltage: 19V
Page 14
Patient Infotainment Terminal Platform
Rev.0.1
9 Power Consumption: less than 60W
