Advantech Co DVS 350 Users Manual

DVS-350

4~16 Channels Embedded/ Mobile Digital Video System

User Manual

The documentation and the software included with this product are copyrighted 2005 by Advantech Co., Ltd. All rights are reserved. Advantech Co., Ltd. reserves the right to make improvements in the products described in this manual at any time without notice. No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written permission of Advantech Co., Ltd.

While Advantech has sought to ensure the accuracy of all information in this manual, Advantech assumes no liability to any party for any damage caused by any error or omission contained in this manual, its updates or supplements, whether such errors or omissions result from negligence, accident, or any other cause. In addition, Advantech assumes no liability with respect to the application or use of any product or system in accordance with the descriptions or instructions contained herein; including any liability for incidental or consequential damages arising therefrom.

ADVANTECH DISCLAIMS ALL WARRANTIES REGARDING THE INFORMATION CONTAINED HEREIN, WHETHER EXPRESSED, IMPLIED, OR STATUTORY.

Advantech reserves the right to make changes to any products described herein without further notice and without obligation. The contents of this manual may be revised without prior notice.

Acknowledgements

Intel and Pentium are trademarks of Intel Corporation. Microsoft Windows and MS-DOS are registered trademarks of Microsoft Corp. All other product names or trademarks are properties of their respective owners.

Part No. 2002S35000 May 2006 1st Edition

Printed in Taiwan

Product Warranty (1 year)

Advantech warrants to you, the original purchaser, that each of its products will be free from defects in materials and workmanship for one year from the date of purchase.

This warranty does not apply to any products which have been repaired or altered by persons other than repair personnel authorized by Advantech, or which have been subject to misuse, abuse, accident or improper installation. Advantech assumes no liability under the terms of this warranty as a consequence of such events.

Because of Advantech’s high quality-control standards and rigorous testing, mo st of our customers never need to use our repair service. If an Advantech product is defe ctive, it will be repaired or replaced at no charge during the warranty period. For out-of-warranty repairs, you will be billed according to the cost of replacement materials, service time and freight. Please consult your dealer for more details.

If you think you have a defective product, follow these steps:

1. Collect all the information about the problem encountered. (For example, CPU speed, Advantech products used, other hardware and software used, etc.) Note anything abnormal and list any onscreen messages you get when the problem occurs.

2. Call your dealer and describe the problem. Please have your manual, product, and any helpful information readily available.

3. If your product is diagnosed as defective, obtain an RMA (return merchandize authorization) number from your dealer. This allows us to process your return more quickly.

4. Carefully pack the defective product, a fully-completed Repair and Replacement Order Card and a photocopy proof of purchase date (such as your sales receipt) in a shippable container. A product returned without proof of the purchase date is not eligible for warranty service.

5. Write the RMA number visibly on the outside of the package and ship it prepaid to your dealer.

Declaration of Conformity

This product has passed the CE test for environmental specifications when shielded cables are used for external wiring. We recommend the use of shielded cables. This kind of cabl e is available from Advantech. Please contact your local supplier for ordering information.

This product has passed the CE test for environmental specifications. Test conditions for passing included the equipment being operated within an industrial enclosure. In order to protect the product from being damaged by ESD (Electrostatic Discharge) and EMI leakage, we strongly recommend the use of CE-compliant industrial enclosure products.

FCC Class A

Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

Technical Support and Assistance

Step 1. Visit the Advantech web site at where you can find the latest information about the product. Contact your distributor, sales representative, or Advantech's customer service center for technical support if you need additional assistance.

Please have the following information ready before you call:

www.advantech.com/support

- Product name and serial number

- Description of your peripheral attachments

- Description of your software (operating system, version, application software, etc.)

- A complete description of the problem

- The exact wording of any error messages

DVS-350 Series Model There are 6 sub-models in DVS-350 series listed below:

Part Number Video Channel CPU L2 Cache DVS-350-18M0 4~16 CH Intel ULV Celeron® M 600MHz 512KB DVS-350-18S4 4~16 CH Intel LV Pentium® M 1.4GHz 2MB DVS-350-25M0 4~16 CH Intel ULV Celeron® M 600MHz 512KB DVS-350-25S4 4~16 CH Intel LV Pentium® M 1.4GHz 2MB DVS-350-35M0 * 4~16 CH Intel ULV Celeron® M 600MHz 512KB DVS-350-35S4 * 4~16 CH Intel LV Pentium® M 1.4GHz 2MB * The swappable HDD tray of DVS-350-35M0/DVS-350-35S4 just support HITACHI and Seagate HDD only.

Table 0.1 DVS-350 Model List

Packing List

Before installing your board, make sure that the following materials have been received:

Part Number Description Quantity

2013000000 1 year warranty card 1 2062S35000 Driver CD 1 1700001394 DC Jack with 2-pin pluggable terminal block 1 1652000209 Pluggable terminal block for DI and DO 1 1700060202 Y cable of KB and PS/2 Mouse 1 1700001618 Video Cable (D-sub 15P to BNC) 2

* DVS-350-35M0/DVS-350-35S4 also has a key for swappable HDD tray lock door.

If any of these items are missing or damaged, contact your distributor or sales representative immediately.

Safety Instructions

1. Please read these safety instructions carefully.

2. Please keep this User Manual for later reference.

3. Please disconnect this equipment from power outlet before cleaning. Don‘t use liquid or sprayed detergent for cleaning. Use moisture sheet or clothe for cleaning.

4. For pluggable equipment, the socket-outlet shall near the equipment and shall be easily accessible.

5. Please keep this equipment from humidity.

6. Lay this equipment on a reliable surface when install. A drop or fall could cause injury.

7. Do not leave this equipment in an uncontrolled environment; storage temperatures above 60ºC may damage the equipment.

8. The openings on the enclosure are for air convection hence protecting the equipment from overheating. DO NOT COVER THE OPENINGS.

9. Make sure the voltage of the power source when connecting the equipment to the power outlet.

10. Place the power cord such a way that people cannot step on it. Do not place anything over the power cord. The power cord must be rated for the product and for the voltage and current marked on the product’s electrical ratings label. The voltage and current rating of the cord should be greater than the voltage and current rating marked on the product.

11. All cautions and warnings on the equipment should be noted.

12. If the equipment is not used for long time, disconnect the equipment from mains to avoid being damaged by transient over-voltage.

13. Never pour any liquid into ventilation openings; this could cause fire or electrical shock.

14. Never open the equipment. For safety reasons, only qualified service personnel should open the equipment.

15. If one of the following situations arise, get the equipment checked by service personnel: a. The Power cord or plug is damaged. b. Liquid has penetrated the equipment. c. The equipment has been exposed to moisture. d. The equipment has not worked well or you can not get it work according to user‘s manual. e. The equipment has been dropped and damaged. f. The equipment has obvious signs of breakage

16. This device complies with Part 15 of the FCC rules. Operation is subject to the following

two conditions:

a. this device may not cause harmful interference, and b. this device must accept any interference received, including interference that may cause

undesired operation.

CAUTION! THIS COMPUTER IS PROVIDED WITH A BATTERY-POWERED REAL-TIME CLOCK CIRCUIT. THERE IS A DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED. REPLACE ONLY WITH SAME OR EQUIVLENT TYPE RECOMMENDED BY THE MANUFACTURE. DISCARD USED BATTERIES ACCORDING TO THE MANUFACTURER’S INSTRUCTIONS.

Wichtige Sicherheishinweise

1. Bitte lesen sie Sich diese Hinweise sorgfältig durch.

2. Heben Sie diese Anleitung für den späteren Gebrauch auf.

3. Vor jedem Reinigen ist das Gerät vom Stromnetz zu trennen. Verwenden Sie Keine

Flüssig-oder Aerosolreiniger. Am besten dient ein angefeuchtetes Tuch zur Reinigung.

4. Die NetzanschluBsteckdose soll nahe dem Gerät angebracht und leicht zugänglich sein.

5. Das Gerät ist vor Feuchtigkeit zu schützen.

6. Bei der Aufstellung des Gerätes ist auf sicheren Stand zu achten. Ein Kippen oder Fallen

könnte Verletzungen hervorrufen.

7. Die Belüftungsöffnungen dienen zur Luftzirkulation die das Gerät vor überhitzung schützt.

Sorgen Sie dafür, daB diese Öffnungen nicht abgedeckt werden.

8. Beachten Sie beim. AnschluB an das Stromnetz die AnschluBwerte.

9. Verlegen Sie die NetzanschluBleitung so, daB niemand darüber fallen kann. Es sollte auch

nichts auf der Leitung abgestellt werden.

10. Alle Hinweise und Warnungen die sich am Geräten befinden sind zu beachten.

11. Wird das Gerät über einen längeren Zeitraum nicht benutzt, sollten Sie es vom Stromnetz

trennen. Somit wird im Falle einer Überspannung eine Beschädigung vermieden.

12. Durch die Lüftungsöffnungen dürfen niemals Gegenstände oder Flüssigkeiten in das

Gerät gelangen. Dies könnte einen Brand bzw. Elektrischen Schlag auslösen.

13. Öffnen Sie niemals das Gerät. Das Gerät darf aus Gründen der elektrischen Sicherheit

nur von authorisiertem Servicepersonal geöffnet werden.

14. Wenn folgende Situationen auftreten ist das Gerät vom Stromnetz zu trennen und von

einer qualifizierten Servicestelle zu überprüfen:

a. Netzkabel oder Netzstecker sind beschädigt. b. Flüssigkeit ist in das Gerät eingedrungen.

c. Das Gerät war Feuchtigkeit ausgesetzt. d. Wenn das Gerät nicht der Bedienungsanleitung entspre chend funktioniert oder Sie mit

Hilfe dieser Anleitung keine Verbesserung erzielen.

e. Das Gerät ist gefallen und/oder das Gehäuse ist beschädigt. f. Wenn das Gerät deutliche Anzeichen eines Defektes aufweist.

15. VOSICHT: Explisionsgefahr bei unsachgemaben Austausch der Batterie. Ersatz nur

durch densellben order einem vom Hersteller empfohlene-mahnlichen Typ. Entsorgung gebrauchter Batterien navh Angaben des Herstellers.

16. ACHTUNG: Es besteht die Explosionsgefahr, falls die Batterie auf nicht fach-männische

Weise gewechselt wird. Verfangen Sie die Batterie nur gleicher oder entsprechender Type, wie vom Hersteller empfohlen. Entsorgen Sie Batterien nach Anweisung des Herstell-ers.

Der arbeitsplatzbezogene Schalldruckpegel nach DIN 45 635 Teil 1000 beträgt 70dB(A) oder weiger.

Haftungsausschluss: Die Bedienungsanleitungen wurden entsprechend der IEC-704-1 erstellt. Advantech lehnt jegliche Verantwortung für die Richtigkeit der in diesem Zusammenhang getätigten Aussagen ab.

Safety Precaution - Static Electricity

Follow these simple precautions to protect yourself from harm and the products from damage.

1. To avoid electrical shock, always disconnect the power from your PC chassis before you

work on it. Don't touch any components on the CPU card or other cards while the PC is on.

2. Disconnect power before making any configuration changes. The sudden rush of power as

you connect a jumper or install a card may damage sensitive electronic components.

CHAPTER

Overview

This chapter gives background information on the DVS-350 series. It shows you the DVS-350 overview and specifications.

Sections include:

‧ Introduction ‧ Hardware Specifications ‧ DVS-350 Series Model and Packing List ‧ Chassis Dimension

Chapter 1 Overview

1.1 Introduction

The DVS-350 Digital Video System combines rich video capture functions and other industrial features into a rugged, compact metal chassis for digital video applications. The fanless operation provides high reliability when deployed in space constrained environments. All electronics are protected in a sealed anti-vibration anti-dust housing, making the DVS-35 0 ideal for harsh environment applications. Its X86 architecture offers an open platform for easy application development or inclusion of other applications like vehicle data recorders or global positioning systems (GPS).

1.2 Features

1.2.1 High Video Capacity and Easy Integration

‧ DVS-350 uses 4 Conexant Fusion 878A video capture chips which are certificated and commonly used in digital video recording market. For more information about the BT878 chip, please visit

DVS-350 can support up to D1 resolution with total frame rate 120fps/NTSC or 100fps/PAL. Each Conexant Fusion 878A can switch 4 video inputs. With this share frame technology, DVS-350 can run up to 16 channel video inputs.

Also, DVS-350 provides users the software development kit (SDK) for Windows-based environment with sample program and its complete C++ source codes, which will speed the time of system integration and save your money.

Moreover, DVS-350 comes with PowerView DVR application software (Trial Version, Valid for 60 days only.) Users can easily evaluate and experience the performance of DVS-350 via PowerView. If interested, users can contact with Advantech’s sale representative for further

http://www.conexant.com/products/entry.jsp?id=272

customization and speedy integration by project-based.

1.2.2 Robust Casting Construction

‧ Fan-less operation in Aluminum sealed construction

‧ A special cushioned design that absorbs vibration to ensure maximum reliability under

harsh conditions

1.2.3 Compact Size

‧ With its maximum mounting height of 45.8 mm (DVS-350-18M0), the DVS-350 can be used under space critical installation conditions

1.2.4 Scalable Performance with low power consumption

‧ Scalable Low Voltage and Ultra Low Voltage Pentium M class processor system to bring high computing performance with low power consumption

1.2.5 Optimized Integration

‧ Few Parts, Easy Integration, Easy Maintenance to reduce investment ‧ Systems are supplied ready to run ‧ Long life cycle support for product continuity

1.2.6 Wide Range of Power Source

Wide range of DC 9V~30V power source offers flexibility of power input for various automation environments.

1.2.7 Options for Expansion

DVS-350 provides 5 Isolated DI, 2 Relay DO, 1 Remote SW control, COM1: RS-232, COM2: RS-485/RS-422 and 4xUSB 2.0 ports which can fit most of application scenario. If users n eed more DI, DO or COM ports, Advantech provides the following option for easy expansion:

RS-232/422/485 expansion option Product Name Description EDG-4504 4-port RS-232/422/485 to Ethernet data gateway ADAM-4570 2-port RS-232/422/485 to Ethernet data gateway ADAM-4571 1-port RS-232/422/485 to Ethernet data gateway ADAM-4570L 2-port RS-232 to Ethernet data gateway ADAM-4570L 1-port RS-232 to Ethernet data gateway ADAM-4561 1-port isolated USB to RS-232/422/485 Conve rter

Ethernet expansion option Product Name Description ADAM-6510 4-port industrial 10 Mbps Ethernet hub ADAM-6520 5-port industrial 10/100 Mbps Ethernet hub ADAM-6521 5-port industrial 10/100 Mbps Ethernet switch with fiber port UNO-2058 GX1-300 Universal Network Controller with GPS/GPRS

Communication

Digital I/O expansion option Product Name Description

ADAM-4501 Ethernet-enabled Communication Controller with 8 Digital I/O ADAM-4052 Isolated Digital Input Module ADAM-4053 16-channel Digital Input Module ADAM-4055 16-channel Isolated Digital I/O Module with LED and Modbus ADAM-4056S 12-channel Sink Type Isolated Digital Output Module ADAM-4056S0 12-channel Source Type Isolated Digital Output Module ADAM-4060 4-channel Relay Output Module ADAM-4068 8-channel Relay Output Module with Modbus and L ED

For further information of above options, please visit

http://www.advantech.com

1.2 Hardware Specification

1.2.1 Processor Core Logic System

CPU Type: Intel® Ultra Low Voltage Celeron® M or Intel® Pentium® M Low Voltage Processor, µFC-BGA 479 Package:

Model Name Part Number Intel® CPU Type Intel® Chipset DVS-350C

DVS-350M DVS-350F

DVS-350-18M0 Intel ULV Celeron® M 600MHz Intel® 852GM / ICH4 DVS-350-18S4 Intel LV Pentium® M 1.4GHz Intel® 852GM / ICH4 DVS-350-25M0 Intel ULV Celeron® M 600MHz Intel® 852GM / ICH4 DVS-350-25S4 Intel LV Pentium® M 1.4GHz Intel® 852GM / ICH4 DVS-350-35M0 Intel ULV Celeron® M 600MHz Intel® 852GM / ICH4 DVS-350-35S4 Intel LV Pentium® M 1.4GHz Intel® 852GM / ICH4

BIOS: 4Mbit Flash BIOS, supports Plug & Play, APM 1.2

System Memory

- One 200 pin SO-DIMM sockets, support ECC DDR SDRAM Up to 1GB, DDR200/266/333

DRAM

1.2.2 Display

Chipset ‧ Integrated graphics built-in Intel® 852GM GMCH, utilizing Intel® Extreme Graphics 2 technology

Display Memory ‧ Dynamic video memory allocation up to 32 MB

Display Interface support ‧ VGA and TV-out (BNC) Interface

1.2.3 Ethernet

‧ Ethernet Controller: Intel® 82551QM Fast Ethernet Multifunction PCI/CardBus Controller ‧ Speed: 10/100MBps, IEEE 802.3u (100 BASE-T) protocol compatible

1.2.4 Other

‧ Watchdog Timer: 255 levels timer interval, setup by software ‧ Serial Port: One RS-232 port (COM1) and One RS-485/422 port (COM2) ‧ Keyboard/Mouse: One PS/2 Port to support PS/2 Mouse and PS/2 Keyboard ‧ USB: 4 USB 2.0 compliant universal serial bus port

1.2.5 Storage

‧ Supports a drive bay space for 1.8”, 2.5’’ and 3.5” HDD ‧ Supports a Compact Flash socket for Type I/II Compact Flash disk

1.2.6 Mechanical

‧ Construction: Aluminum housing ‧ Mounting: DIN-rail mounting, Desk/wall mounting ‧ Dimension (W x H x D):

DVS-350C: 232.0 x 138.4 x 45.0 mm (9.13” x 5.45” x 1.8”); Weight: 2.0KG DVS-350M: 232.0 x 138.4 x 65.0 mm (9.13” x 5.45” x 2.56”); Weight: 2.3KG DVS-350F: 232.0 x 138.4 x 65.0 mm (9.13” x 5.45” x 3.54”); Weight: 2.9KG

1.2.7 Power Supply

‧ Maximum Output Rating 45 W ‧ Inside Fuse Rating 7 A ‧ Input Voltage: 9 ~ 30V DC,

Typical: 9 VDC @ 5.4A, 19 VDC @ 3.42 A,

1.2.8 Environment Specifications

‧ Operating Temperature: -10 to 45° C

Warning: Please do not keep DVS-350 working in a closed environm ent. The temperature in a closed environment might get higher over the operation temperature.

‧ Relative humidity 95 % @ 40 ° C (non-condensing) ‧ Vibration loading during operation: 1Grms, IEC 68-2-64, random, 5~500Hz, 1 Oct./min,

1hr/axis. ‧ Shock during operation: 20Grms, IEC 60068-2-27, half sine, 11 ms duration

1.2.9 Certificate Approved

‧ EMC Approved: CE, FCC Class A ‧ Safety Approved: UL

1.3 Dimensions Diagram

COM 2

COM 1

USB

VGA

LAN

RESET

LAN

USB

RESET

USB

LAN

RESET

KB / MSDC IN

9V ~ 35

USB

DC I

KB / MS

9V ~ 35

DC I

KB / MS

9V ~ 35

GND

VCC

Unit: mm

CHAPTER

Hardware Functionality

This chapter shows how to set up the DVS350 hardware functions, including connecting peripherals, switches and indicators.

Sections include:

‧ Introduction of External I/O Connectors ‧ Front plate external I/O Connectors ‧ Power Connector ‧ LED Indicators ‧ Video Input Connectors ‧ Isolated Digital I/O ‧ Audio Connectors ‧ Rear plate external I/O Connectors ‧ COM1 Connector ‧ COM2 Connector ‧ Ethernet Connector ‧ Reset Button ‧ PS2 Keyboard/Mouse Connector

Chapter 2 Hardware Functionality

2.1 Introduction of DVS-350 External I/O Connectors

The following two figures show the external I/O connectors on DVS-350. The following sections give you detailed information about the function of each I/O connector.

Figure 2.1: DVS-350 front metal face plate external I/O connectors

Figure 2.2: DVS-350 rear metal face plate I/O connectors

2.2 DVS-350 front plate external I/O connectors

2.2.1 Power ON/OFF Button

The DVS-350 comes with a Power On/Off button, that Support dual function Soft Power On/Off (Instant off or Delay 4 Second), and Suspend.

2.2.2 LED Indicators

There are two LEDs on the DVS-350 front face plate for indicating system status: PWR LED is for power status and flash in green color; and HDD LED is for hard disk and compact flash disk status, which flash in red color.

2.2.3 Video Input Connectors

Figure 2.3: Video Input Connectors

The DVS-350 can support up to 16 channel video inputs with 2 customization video cables. The pin definition of video connector and video cable is following:

Table 2.1 Video Input Connector

Pin Definition Pin Definition 1 Channel 1 /9 9 Channel 5 /13 2 Ground 10 Ground 3 Channel 2 /10 11 Channel 6 /14 4 Ground 12 Ground 5 Channel 3 /11 13 Channel 7 /15 6 Ground 14 Ground 7 Channel 4 /12 15 Channel 8 /16 8 Ground N/A N/A

DVS-350 has a high integration main board with 4 Conexant Fusion 878A video chips. Each 878A chip can run with 30 frames per second at NTSC or 25 fps at PAL up to D1 resolution. Also, each 878A chip can accept 4 channel video input to share the total 30/25 frames. Following table is the video performance of 1 Conexant Fusion 878A chip with enabling share frame function.

Table 2.2 Video performance with share frame function

Input channel 1 channel 2 channel 3 channel 4 channel Share frame per second / NTSC 30 fps 15 fps 10 fps 7.5 fps Share frame per second / PAL 25 fps 12.5 fps 8 fps 6 fps

Table 2.3 DVS-350 Video Channel Arrangement

Channel Number 878A Video Chip Number Video Input (Chip-Switch) Channel 1 Chip 1 1-1 Channel 2 Chip 2 2-1 Channel 3 Chip 3 3-1 Channel 4 Chip 4 4-1 Channel 5 Chip 1 1-2 Channel 6 Chip 2 2-2 Channel 7 Chip 3 3-2 Channel 8 Chip 4 4-2 Channel 9 Chip 1 1-3 Channel 10 Chip 2 2-3 Channel 11 Chip 3 3-3 Channel 12 Chip 4 4-3 Channel 13 Chip 1 1-4 Channel 14 Chip 2 2-4 Channel 15 Chip 3 3-4 Channel 16 Chip 4 4-4

If user would like to run DVS-350 with 4 channel only, user should connect the 4 channel inputs to channel 1 to channel 4. Then each channel can run at 30/25 frame per second.

If user would like to run DVS-350 with 8 channel application, user should connect the 8 channel inputs to channel 1 to channel 8 with 15/12.5 fps per channel.

If user would like to run DVS-350 with 12 channel application, user should connect the 12 channel inputs to channel 1 to channel 12 with 10/8 fps per channel.

If user would like to run DVS-350 with 16 channel application, user should connect the 16 channel inputs to channel 1 to channel 16 with 7.5/6 fps per channel.

Also, user can set different 878A chip with different switch. For example, user can set the chip1 to 1 input only, the chip2 to 3 inputs, the chip3 to 2 inputs, and the chip4 to 4 inputs. Then, the channel 1 can run at 30/25 fps. The channel 2, 6 and 10 can run at 10/8 fps. The channel 3 and 7 can run at 15/12.5 fps. The channel 4, 8, 12 and 16 can run at 7.5/6 fps. The channel 5, 9, 11, 13, 14 and 15 will not accept any video signal with above setting. User can set the video channel setting to meet the specific application situation.

For the DVS-350 series with Intel ULV Celeron® M 600MHz, user just can run it up to 8 video inputs at 15/12.5fps.

Note: Above information are the characteristics of Conexant Fusion 878A video chip and DVS-350 series. The actual frame rate and performance will depen d on the video input setting, compression codec, the CPU type, the DRAM capacity/speed, the video content (Moving or still), the brightness and etc.

2.2.4 Isolated DI, Relay DO and Remote SW control

Figure 2.4: Isolated DI, Relay DO and Remote SW control

Isolated DI Channel: 5 fully independent isolated channels Digital Input Level: Logic level 0: 0V~3V Logic level 1: 10V~30V Isolation Voltage 3,750V RMS

Relay DO Channel: 2 channels, 2 Form C Contact Rating: AC: 125V at 0.5A DC: 30V at 2A, 110V at 0.3A

Breakdown Voltage: 500 V AC (50/60Hz) Relay on Time (Typical): 2ms Relay off Time (Typical): 2ms Insulation Resistance: 1,000MΩ minimum at 500V DC

Table 2.4 Isolated DI, Relay DO and Remote SW control

Pin Definition Pin Definition 1 DO_1+ 9 DI_3+ 2 DO_1- 10 DI_33 DO_2+ 11 DI_4+ 4 DO_2- 12 DI_45 DI_1+ 13 DI_5+ 6 DI_1- 14 DI_57 DI_2+ 15 PSW+ 8 DI_2- 16 PSW-

2.2.5 MIC-in, Line-out and LED Indicators

2.3 DVS-350 rear plate external I/O connectors

2.3.1 Power Input Connector

The DVS-350 comes with a Phoenix connector that carries 9~30 VDC external power input.

Table 2.5 Power connector pin assignments

Pin Definition Pin Definition 1 Ground 2 +9~30VDC

2.3.2 COM1 Connector

The DVS-350 provides a D-sub 9-pin connector, which offers one standard RS-232 serial communication interface port of COM1.

Table 2.6 COM1 standard serial port pin assignments

Pin Definition Pin Definition 1 DCD 6 DSR 2 RxD 7 RTS 3 TxD 8 CTS 4 DTR 9 RI 5 GND N/A N/A

2.3.3 COM2 Connector

The DVS-350 provides a D-sub 9-pin connector, which offers one RS-485 serial communication interface port for COM2. The default setting of COM2 is RS-485.

Table 2.7 COM2 standard serial port pin assignments

Pin RS-485 1 DATA2 DATA+ 3 No Connection 4 No Connection 5 GND 6 No Connection 7 No Connection 8 No Connection 9 No Connection

2.3.4 Ethernet Connector (LAN)

The DVS-350 is equipped with an Intel 82551QM Fast Ethernet controller that is fully compliant with IEEE 802.3u 10/100Base-T CSMA/CD standards. The Ethernet port provides a standard RJ-45 jack connector with LED indicators on the front side to show its Active/Link status (Green LED) and Speed status (white LED).

Table 2.8 RJ-45 Connector pin assignments

Pin 10/100BaseT Signal Name 1 XMT+ 2 XMT3 RCV+ 4 No Connection 5 No Connection 6 RCV7 No Connection 8 No Connection

2.3.5 Reset Button

Press the "Reset" button to activate the reset function.

2.3.6 PS2 Keyboard/Mouse Connector

The DVS-350 provides a PS/2 keyboard/mouse connector. A 6-pin mini-DIN connector is located on the rear face plate. It comes with an external Y cable to convert from the 6-pin mini-DIN connector to PS/2 keyboard and PS/2 mouse connection.

Table 2.9 PS2 Keyboard/Mouse Connector

Pin Definition 1 PS2_KBDAT 2 PS2_MSDAT 3 GND 4 VCC 5 PS2_KBCLK 6 PS2_MSCLK

2.3.7 VGA Connector

The DVS-350 provides a high resolution VGA interface by a D-sub 15-pin connector to support a VGA CRT monitor. It supports VGA and VESA, up to 1600 x 1200 @85-Hz resolution and up to 32 MB shared memory.

Table 2.10 VGA Connector

Pin Definition Pin Definition 1 Red 9 No Connection 2 Green 10 GND 3 Blue 11 No Connection 4 No Connection 12 No Connection 5 GND 13 H-SYNC 6 GND 14 V-SYNC 7 GND 15 No Connection 8 GND N/A N/A

2.3.8 USB Connector

The DVS-350 provides 4 connectors for USB interface, which gives complete Plug & Play and hot swapping for up to 127 external devices. The USB interface complies with USB UHCI, Rev. 2.0 compliant. The USB interface can be disabled in the system BIOS setup.

The USB connector is used for connecting any device that conforms to the USB interface. Many recent digital devices conform to this standard. The USB interface supports Plug and Play, which enables you to connect or disconnect a device whenever you want, without turning off the computer.

Table 2.11 USB Connector

Pin Definition Pin Definition 1 VCC 3 USB_P+ 2 USB_P- 4 GND

CHAPTER

Hardware Installation and Upgrade

This chapter introduces how to initialize the DVS-350.

Sections include: ‧ Installing the DDR SDRAM Memory

Module

‧ Inserting a Compact Flash Card ‧ Installing the 2.5” Hard Disk Drive

(HDD) ‧ Connecting Power

Chapter 3 Hardware Installation and Upgrade

3.1 Jumpers and Connectors

The DVS-350 Embedded/Mobile Video System consists of a PC-based computer that is housed in a aluminum top cover, a metal bottom case with accessed bottom cover and front with rear metal face plate. The HDD, SDRAM, are accessible by removing the accessed bottom cover. Any maintenance or hardware upgrades can be easily completed after removing the top cover, front and rear plates.

Warning!

Do not remove any mechanical parts, such as the top cover, bottom cover and front with rear face plate until you have verified that no power is flowing within the embedded box computer. Power must be switched off and the power cord must be unplugged. Every time you service the embedded box computer, you should be aware of this.

3.2 Setting jumpers

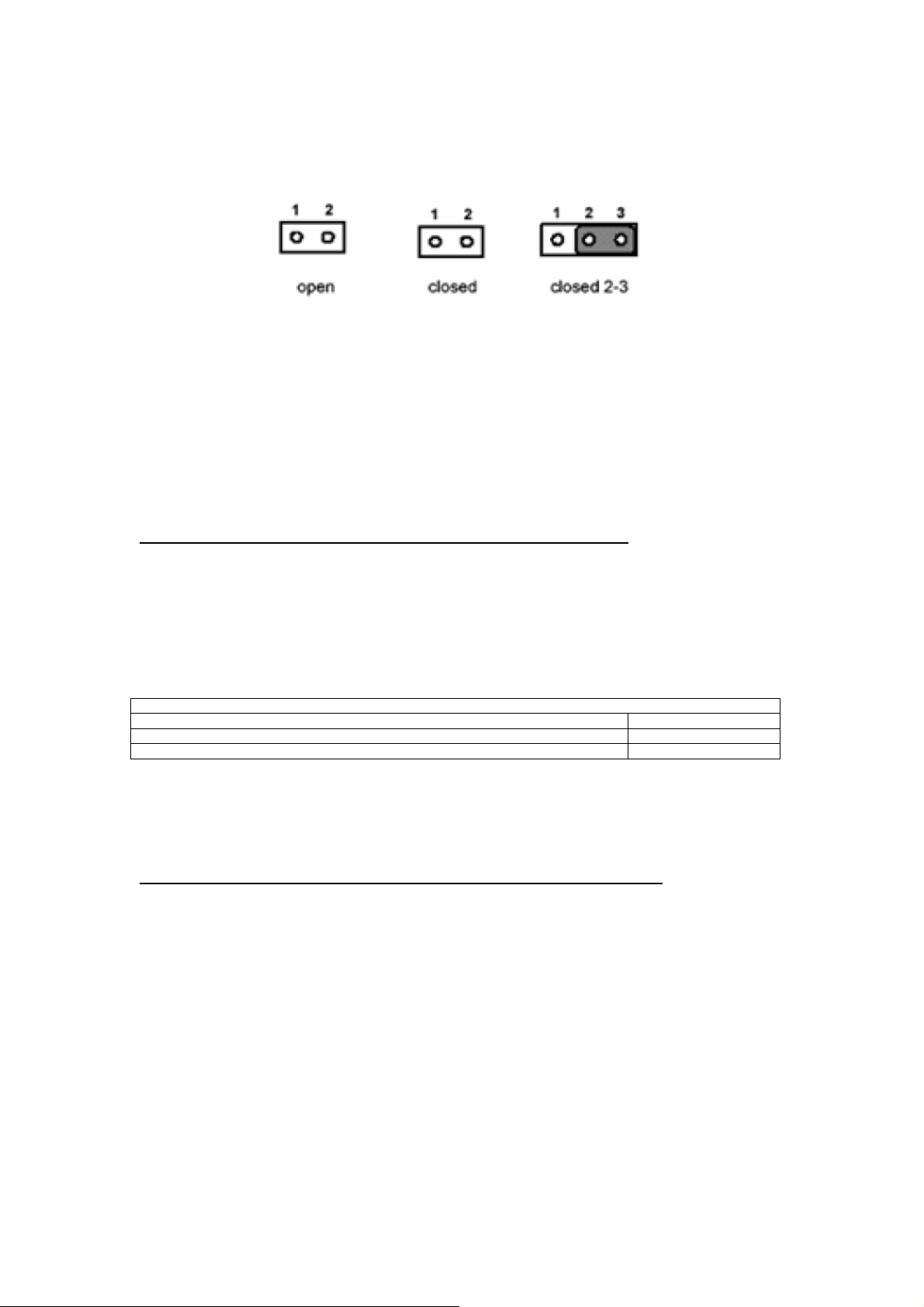

You can configure your DVS-350 to match the needs of your application by setting jumpers. A jumper is the simplest kind of electrical switch. It consists of two metal pins and a small metal clip (often protected by a plastic cover) that slides over the pins to connect them. To “close” a jumper, you connect the pins with the clip. To “open” a jumper you remove the clip. Sometimes a jumper will have three pins, labeled 1, 2, and 3. In this case, you would connect either pins 1 and 2 or pins 2 and 3.

+ 129 hidden pages
