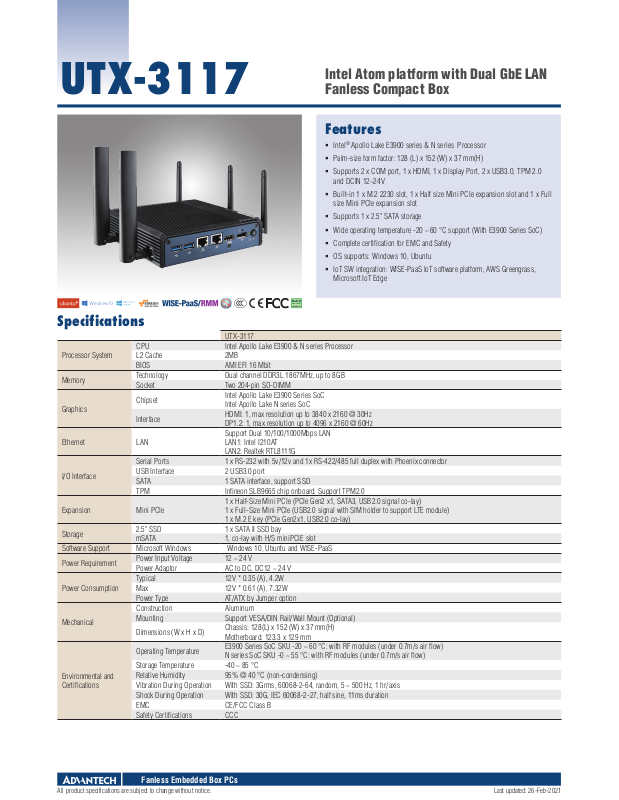

Advantech UTX-3117 Specifications
UTX-3117 |
Fanless Compact Box |
|||||||
|
|
|
|
|
|
|
Intel Atom platform with Dual GbE LAN |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Features |
|
|
|
|
|
|
|
|
Intel® Apollo Lake E3900 series & N series Processor |
|
|
|
|
|
|
|
|
Palm-size form factor: 128 (L) x 152 (W) x 37 mm(H) |
|
|
|
|
|
|
|
|
Supports 2 x COM port, 1 x HDMI, 1 x Display Port, 2 x USB3.0, TPM 2.0 |
|
|
|
|
|
|
|
|
and DCIN 12~24V |
|
|
|
|
|
|
|
|
Built-in 1 x M.2 2230 slot, 1 x Half size Mini PCIe expansion slot and 1 x Full |
|
|
|
|
|
|
|
|
size Mini PCIe expansion slot |
|
|
|
|
|
|
|
|
Supports 1 x 2.5" SATA storage |
|
|
|
|
|
|
|
|
Wide operating temperature -20 ~ 60 °C support (With E3900 Series SoC) |
|
|
|
|
|
|
|
|
Complete certification for EMC and Safety |
|
|
|
|
|
|
|
|
OS supports: Windows 10, Ubuntu |
|
|
|
|
|
|
|
|
IoT SW integration: WISE-PaaS IoT software platform, AWS Greengrass, |
|
|
|
|
|
|
|
|
Microsoft IoT Edge |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
RoHS |
|
||
|
|
|
|
|
COMPLIANT |
|
||
|
|
|
|
|
2002/95/EC |
|
||
Specifications |
|
|
|
|
|
|||
|
|
|
UTX-3117 |
|
||||
|
CPU |
Intel Apollo Lake E3900 & N series Processor |
||||||
Processor System |
L2 Cache |
2MB |
|
|||||
|
BIOS |
AMI EFI 16 Mbit |
|
|||||
Memory |
Technology |
Dual channel DDR3L 1867MHz, up to 8GB |
||||||
Socket |
Two 204-pin SO-DIMM |
|
||||||
|
|
|||||||
|
Chipset |
Intel Apollo Lake E3900 Series SoC |
|
|||||
Graphics |
Intel Apollo Lake N series SoC |
|
||||||
|
|
|
||||||
Interface |
HDMI: 1, max resolution up to 3840 x 2160 @ 30Hz |
|||||||
|
||||||||
|
DP1.2: 1, max resolution up to 4096 x 2160 @ 60Hz |
|||||||
|
|
|
||||||
|
|
|
Support Dual 10/100/1000Mbps LAN |
|||||
Ethernet |
LAN |
LAN1: Intel I210AT |
|
|||||
|
|
|
LAN2: Realtek RTL8111G |
|
||||
|
Serial Ports |
1 x RS-232 with 5v/12v and 1x RS-422/485 full duplex with Phoenix connector |
||||||
I/O Interface |
USB Interface |
2 USB3.0 port |
|
|||||
SATA |
1 SATA interface, support SSD |
|
||||||
|
|
|||||||
|
TPM |
Infineon SLB9665 chip onboard. Support TPM2.0 |
||||||
|
|
|
1 x Half-Size Mini PCIe (PCIe Gen2 x1, SATA3, USB2.0 signal co-lay) |
|||||
Expansion |
Mini PCIe |
1 x Full-Size Mini PCIe (USB2.0 signal with SIM holder to support LTE module) |
||||||
|
|
|
1 x M.2 E key (PCIe Gen2x1, USB2.0 co-lay) |
|||||
Storage |
2.5" SSD |
1 x SATA II SSD bay |
|
|||||
mSATA |
1, co-lay with H/S miniPCIE slot |
|
||||||
|
|
|||||||
Software Support |
Microsoft Windows |
Windows 10, Ubuntu and WISE-PaaS |
||||||
Power Requirement |
Power Input Voltage |
12 ~ 24 V |
|
|||||
Power Adaptor |
AC to DC, DC12 ~ 24 V |
|
||||||
|
|
|||||||
|
Typical |
12V * 0.35 (A), 4.2W |
|
|||||
Power Consumption |
Max |
12V * 0.61 (A), 7.32W |
|
|||||
|
Power Type |
AT/ATX by Jumper option |
|
|||||
|
Construction |
Aluminum |
|
|||||
Mechanical |
Mounting |
Support VESA/DIN Rail/Wall Mount (Optional) |
||||||
Dimensions (W x H x D) |
Chassis: 128(L) x 152 (W) x 37 mm(H) |
|||||||
|
||||||||
|
Motherboard: 123.3 x 129 mm |
|
||||||
|
|
|
|
|||||
|
Operating Temperature |
E3900 Series SoC SKU -20 ~ 60 °C: with RF modules (under 0.7m/s air flow) |
||||||
|
N series SoC SKU -0 ~ 55 °C: with RF modules (under 0.7m/s air flow) |
|||||||
|
|
|
||||||
|
Storage Temperature |
-40 ~ 85 °C |
|
|||||
Environmental and |
Relative Humidity |
95% @ 40 °C (non-condensing) |
|
|||||
Certifications |
Vibration During Operation |
With SSD: 3Grms, 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis |
||||||
|
Shock During Operation |
With SSD: 30G, IEC 60068-2-27, half sine, 11ms duration |
||||||
|
EMC |
CE/FCC Class B |
|
|||||
|
Safety Certifications |
CCC |
|
|||||
Fanless Embedded Box PCs
All product specifications are subject to change without notice. |
Last updated: 26-Feb-2021 |
UTX-3117
Dimensions
Unit: mm
152
128
<![if ! IE]><![endif]>37.10
Front Panel External I/O Mechanical Layout/Drawing |
Rear Panel External I/O Mechanical Layout/Drawing |
Ordering Information
P/N |
CPU |
SSD |
Memory |
WiFi |
3G/LTE |
Other RF |
Antenna |
OS |
UTX-3117FS-S6A1N |
PENTIUM N4200, 4C 2M 1.1GHz |
32GB |
4GB X 1 |
NA |
NA |
NA |
4 |
NA |
UTX-3117FS-S6A2N |
CELERON N3350 2C 2M 1.1GHz |
32GB |
4GB X 1 |
NA |
NA |
NA |
4 |
NA |
UTX-3117FS-S6A2E |
Atom X5-E3940 4C 2M 1.6GHz |
32GB |
4GB X 1 |
NA |
NA |
NA |
4 |
NA |
UTX-3117C-S6A2N |
CELERON N3350 2C 2M 1.1GHz |
NA |
NA |
NA |
NA |
NA |
NA |
NA |
UTX-3117C-S6A2E |
Atom X5-E3940 4C 2M 1.6GHz |
NA |
NA |
NA |
NA |
NA |
NA |
NA |
Packing List
Part Number |
Description |
UTX-3117 |
1 x UTX-3117 unit |
TBD |
1 x Traditional Chinese user manual for CCC |
TBD |
1 x Startup manual |
96PSA-A36W12W7 |
36W 12V 3A AC/DC Power Adaptor |
1930000198 |
2x Screw M2x4L for miniPCIE module use |
1933030500 |
1xScrew M2x5L for M.2 module use |
Embedded OS
OS/API |
Part No. |
Descriptio |
Win10 |
20706WX6ES0001 |
img W10 16EL UTX-3117 64b 1701 ENU |
Ubuntu 20.04 |
36OSU117000101 |
Ubuntu V20.04 image of UTX-3117 |
Optional Items
Part Number
1700001524
170203183C
170203180A
1700008921
AIMB-0BRK-VM05E AIMB-0BRK-WM03E AIMB-0BRK-DR05E 1750008401-01 1750008402-01 1750008403-01 1750008424-01 1750008671-01 1750008818-01
Description
Power Cable 3-pin 180cm, USA type (For power adapter 96PSA-A36W12W7)
Power Cable 3-pin 180cm, Europe type (For power adapter 96PSA-A36W12W7)
Power Cable 3-pin 180cm, UK type (For power adapter 96PSA-A36W12W7)
Power Cable 3-pin PSE Mark 183cm (For power adapter 96PSA-A36W12W7)
UTX-3117 Vesa Mount bracket kit UTX-3117 Wall Mount bracket kit UTX-3117 DIN Rail bracket kit
Antenna SMA(F)/MHF 12cm IP65 A9703219 for 3G/LTE Antenna R/P SMA(M) to MHF 14cm IP65 A97 for WSN NGFF R/P SMA (M) to MHF 12cm IP65 A9703
LTE Antenna Dipole L=148.5mm 4dBi A9703 for LTE Dipole Ant.SMA/M-R 2.4/5G 2.5/4dBi BLK for WiFi Dipole Ant. LTE SAM/M BLK OD10x133.5mm
