Advantech PCM-4862 User Manual

PCM-4862

All-in-One 486 Single Board

Computer with SVGA, Ethernet,

and SSD

This document is copyrighted, 1996. All rights are reserved. The original manufacturer reserves the right to make improvements to the products described in this manual at any time without notice.

No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written permission of the original manufacturer. Information provided in this manual is intended to be accurate and reliable. However, the original manufacturer assumes no responsibility for its use, nor for any infringements upon the rights of third parties which may result from its use.

Acknowledgements

VIA is a trademark of VIA Technology, Inc. AMD is a trademark of Advanced Micro Devices, Inc. Award is a trademark of Award Software International, Inc. Cyrix is a trademark of Cyrix Corporation. IBM, PC/AT, PS/2 and VGA are trademarks of International Business Machines Corporation. Intel and Pentium are trademarks of Intel Corporation. Microsoft Windows ® is a registered trademark of Microsoft Corp. SMC is a trademark of Standard Microsystems Corporation. RTL is a trademark of Realtek Semi-Conductor Co., Ltd. C&T is a trademark of Chips and T echnologies, Inc. UMC is a trademark of United Microelectronics Corporation.

All other product names or trademarks are properties of their respective owners.

Part No. 2006862020 3rd Edition Printed in Taiwan September 1997

Packing list

Before you begin installing your card, please make sure that the following materials have been shipped:

• 1 PCM-4862 All-in-One Single Board Computer

• 1 utility disk with system BIOS, VGA BIOS, and Ethernet utility programs

• 1 utility disk with SVGA utility programs and drivers for Windows 3.1 and Windows 95

• 1 utility disk with Ethernet drivers

If any of these items are missing or damaged, contact your distributor or sales representative immediately.

Contents

Chapter 1 General Information ................................. 1

Introduction............................................................................ 2

Features................................................................................... 3

Specifications.......................................................................... 3

Standard SBC functions ....................................................... 3

Local-bus flat panel/VGA interface ..................................... 4

Ethernet controller function ................................................. 5

Solid state disk function ....................................................... 5

PC/104 bus expansion .......................................................... 5

Mechanical and environmental ............................................ 5

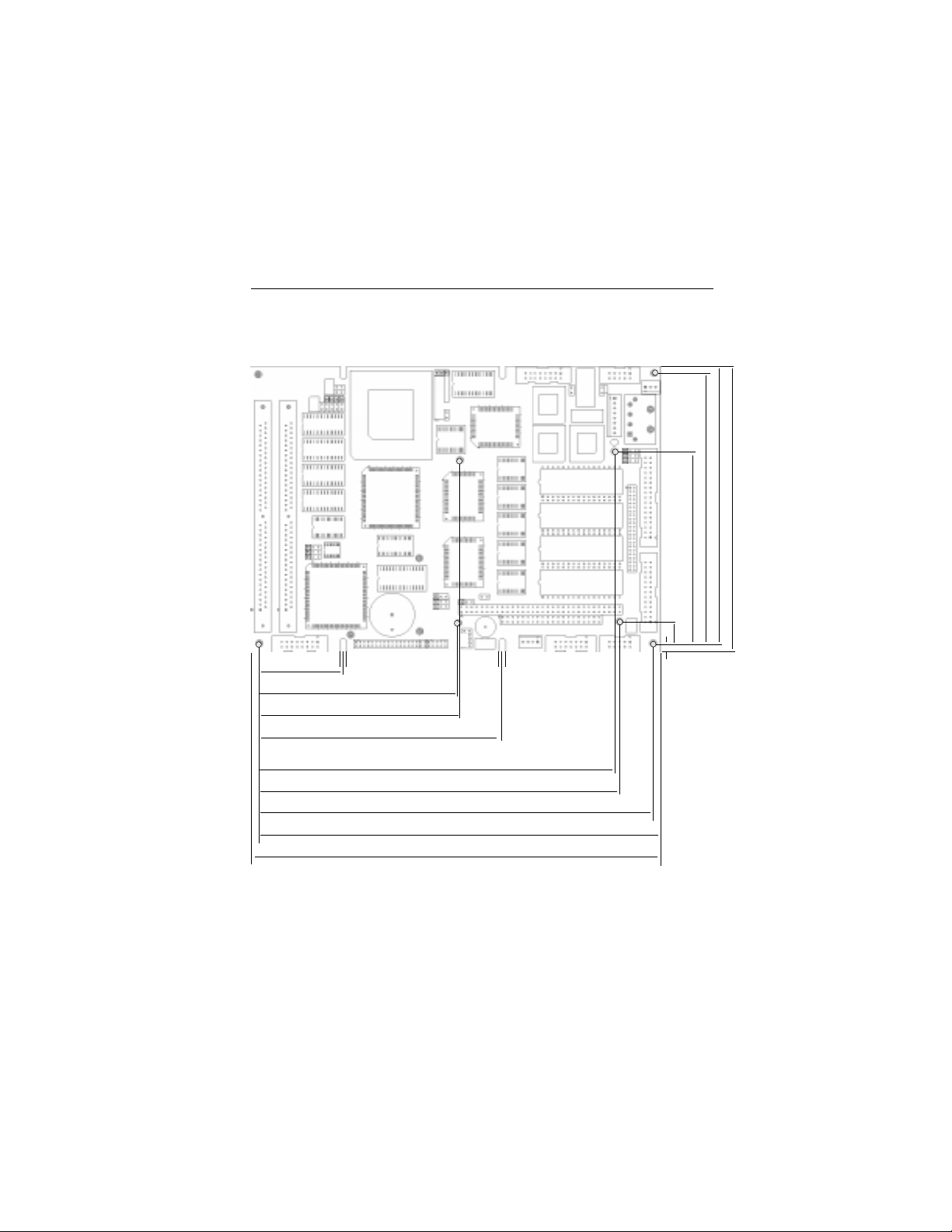

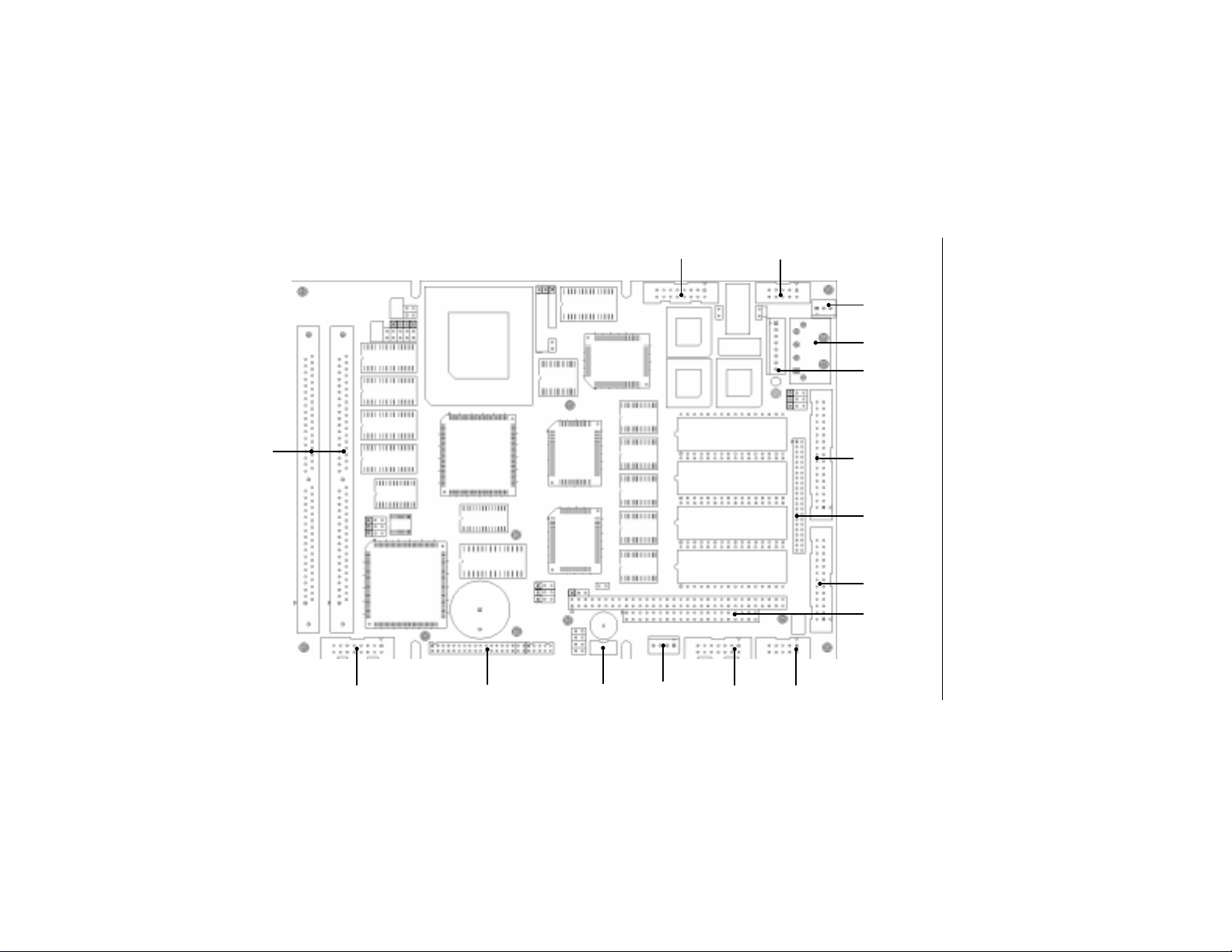

Board layout and dimensions ................................................ 6

Chapter 2 Installation ................................................ 7

Jumpers and connectors........................................................ 8

Locating jumpers ................................................................. 10

Locating connectors ............................................................. 11

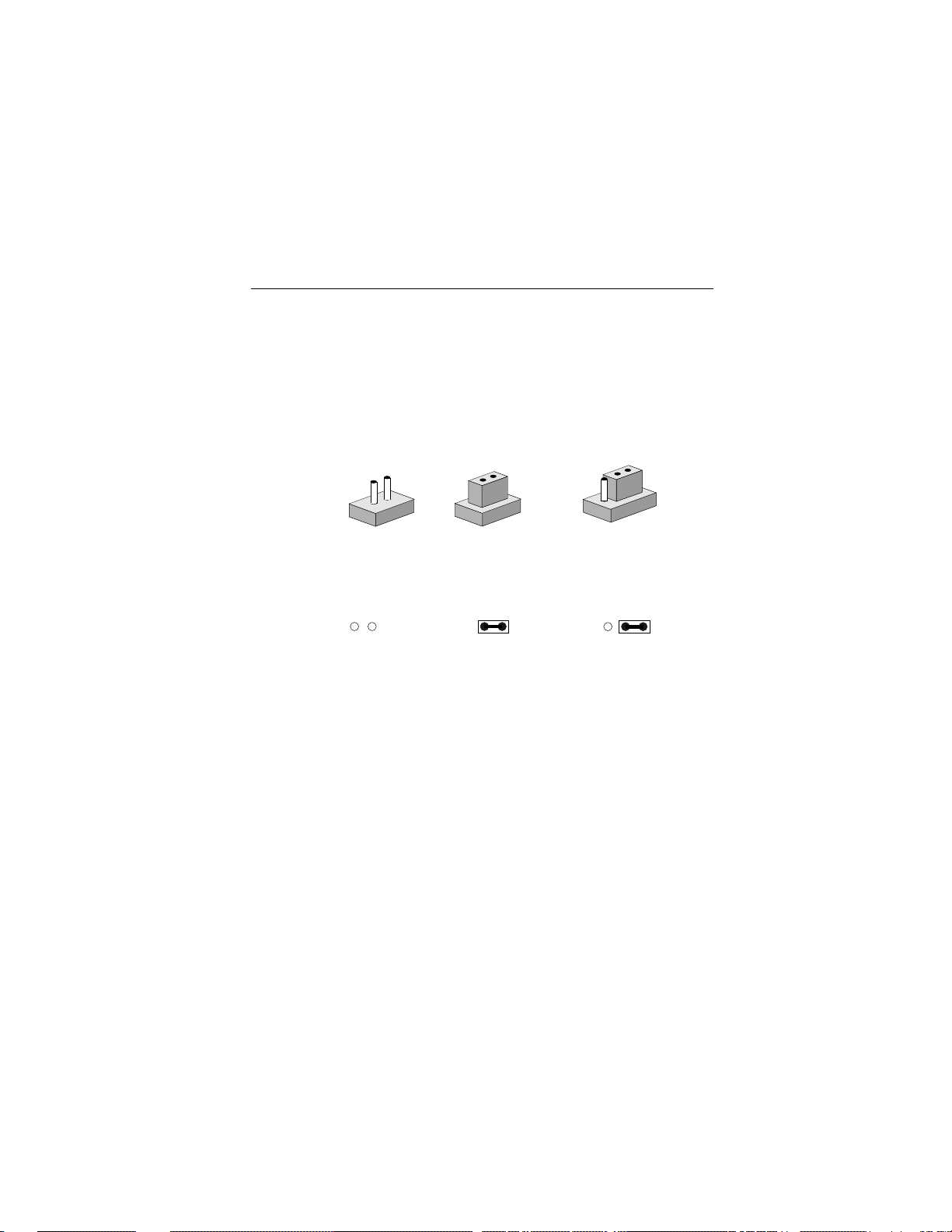

Setting jumpers .................................................................... 12

Safety precautions................................................................ 13

Installing the CPU................................................................ 13

Removing a CPU................................................................ 13

Installing a CPU ................................................................. 14

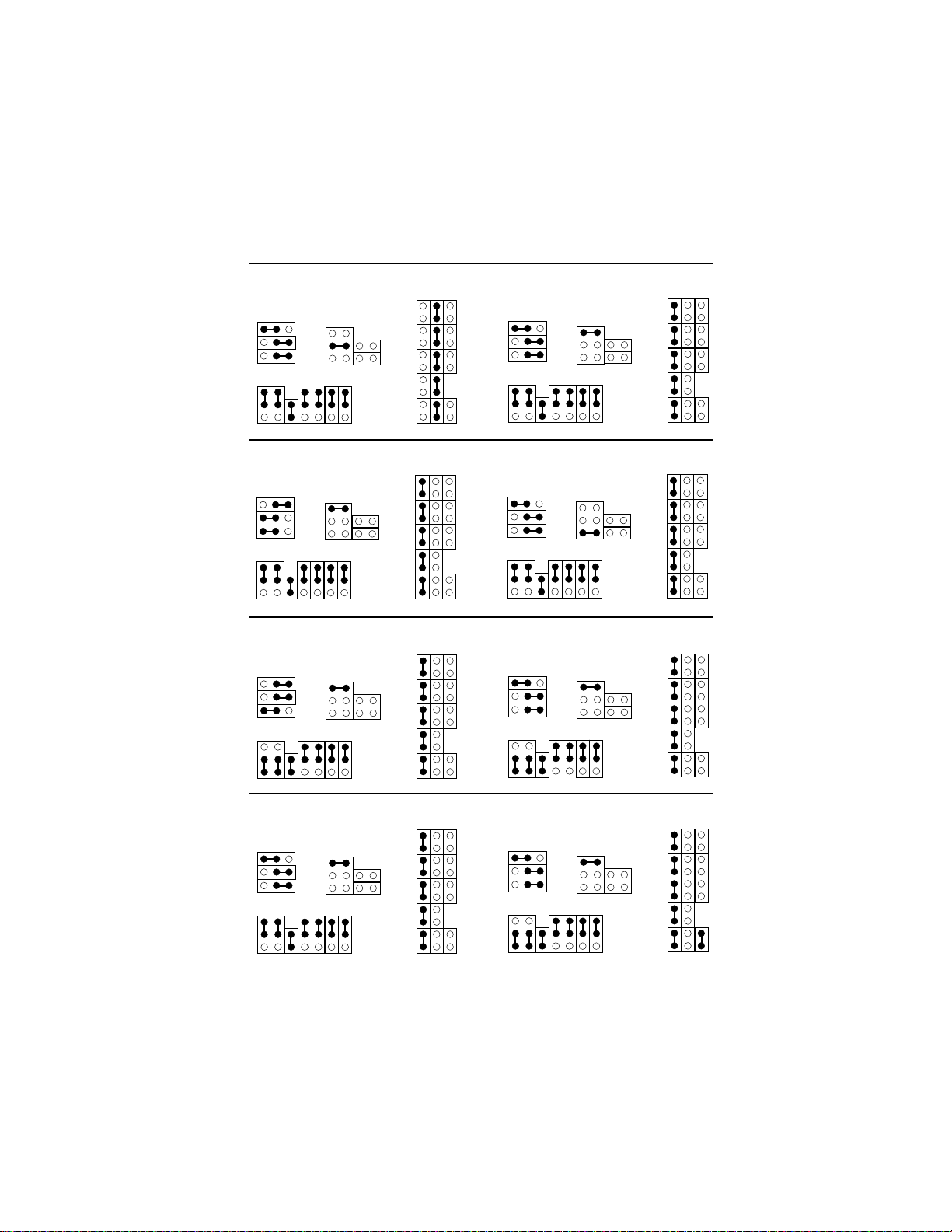

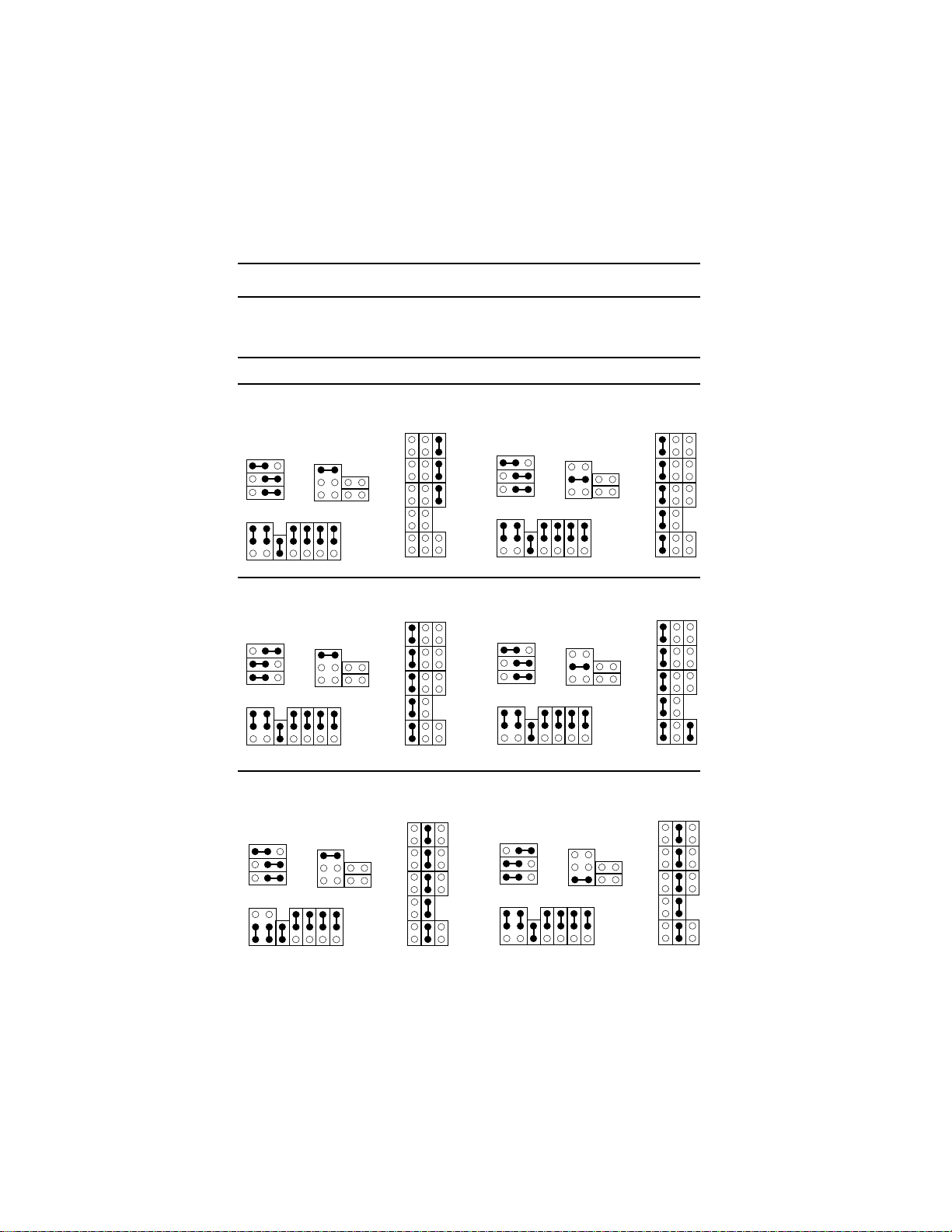

CPU type select (J1-J13, J17-J19) ..................................... 15

CPU power supply select (J4, J6) ....................................... 17

CPU clock select (J1, J2, J3).............................................. 17

CMOS setup (J14).............................................................. 17

Buzzer enabled/disabled (J21) ........................................... 17

Installing DRAM (SIMMs) ................................................. 18

Installing SIMMs ............................................................... 18

IDE hard drive connector (CN12) ...................................... 19

Connecting the hard drive .................................................. 19

Floppy drive connector (CN15)........................................... 20

Connecting the floppy drive ............................................... 20

Parallel port connector (CN16)........................................... 21

Parallel port IRQ ................................................................ 21

Keyboard and PS/2 connector (CN9) ................................. 21

Front panel connector (CN4) .............................................. 22

Power connectors (CN6, CN11, CN14)............................... 22

Peripheral power connector, -5V, -12V (CN6) ................... 22

Main power connector, +5V, +12V (CN11) ....................... 22

Fan power supply connector (CN14).................................. 22

Serial ports (CN13, CN8) .................................................... 23

COM1 RS-232 port (CN13)............................................... 23

COM2 RS-232/422/485 selection (CN8)........................... 23

VGA interface connections.................................................. 24

CRT display connector (CN1)............................................ 24

Flat panel display connector (CN2) ................................... 24

Ethernet configuration ........................................................ 25

10BASE-2/10BASE-5 AUI connector (CN7) .................... 25

10BASE-T connector (CN10) ............................................ 26

Network boot ...................................................................... 26

Watchdog timer configuration............................................ 26

Watchdog timer enable/disable .......................................... 26

Watchdog timer action (J23, J24)....................................... 26

Solid State Disk Configuration ........................................... 27

Memory devices ................................................................. 28

Memory address selection (J27) ........................................ 29

I/O address selection (J27) ................................................. 29

Drive emulated (J27) .......................................................... 30

SSD device and size selection (J31, J30) ........................... 31

SSD hardware enable/disable (J29).................................... 31

DOS 5.0 .............................................................................. 32

DOS 3.3 .............................................................................. 32

Booting from the Flash/ROM disk..................................... 33

Inserting memory devices .................................................. 33

Using a memory manager (EMM386.EXE) ...................... 34

Chapter 3 Software Configuration ......................... 33

Introduction.......................................................................... 34

Utility disk ............................................................................ 34

VGA display software configuration .................................. 36

Connections for four standard LCDs ................................. 38

Connections to Sharp LM64183P

(640 x 480 DSTN MONO LCD)........................................ 38

Connections to PLANAR EL

(640 x 480 AD4 EL)........................................................... 39

Connections to T oshiba LTM09C016

(640 x 480 TFT Color LCD) .............................................. 40

Connections to Sharp LM64C142

(640 x 480 DSTN Color LCD)........................................... 41

Ethernet software configuration......................................... 42

Chapter 4 Award BIOS Setup .................................... 45

System test and initialization .............................................. 46

System configuration verification ..................................... 46

AWARD BIOS setup............................................................. 47

Entering setup..................................................................... 47

Standard CMOS setup........................................................ 48

BIOS features setup............................................................ 49

CHIPSET features setup .................................................... 50

Power management setup ................................................... 51

Load BIOS defaults............................................................ 52

Change password................................................................ 53

Auto detect hard disk ......................................................... 54

Save & exit setup................................................................ 54

Exit without saving............................................................. 54

Chapter 5 SVGA Setup............................................... 55

Simultaneous display mode ................................................. 56

Sleep mode ............................................................................ 56

Software support .................................................................. 57

Driver installation ................................................................ 58

Windows setup ................................................................... 59

AutoCAD R12.................................................................... 62

Lotus 1-2-3 and Lotus Symphony...................................... 64

VESA ................................................................................. 66

Word ................................................................................... 67

WordPerfect ........................................................................ 68

Appendix A Programming the Watchdog Timer .... 71

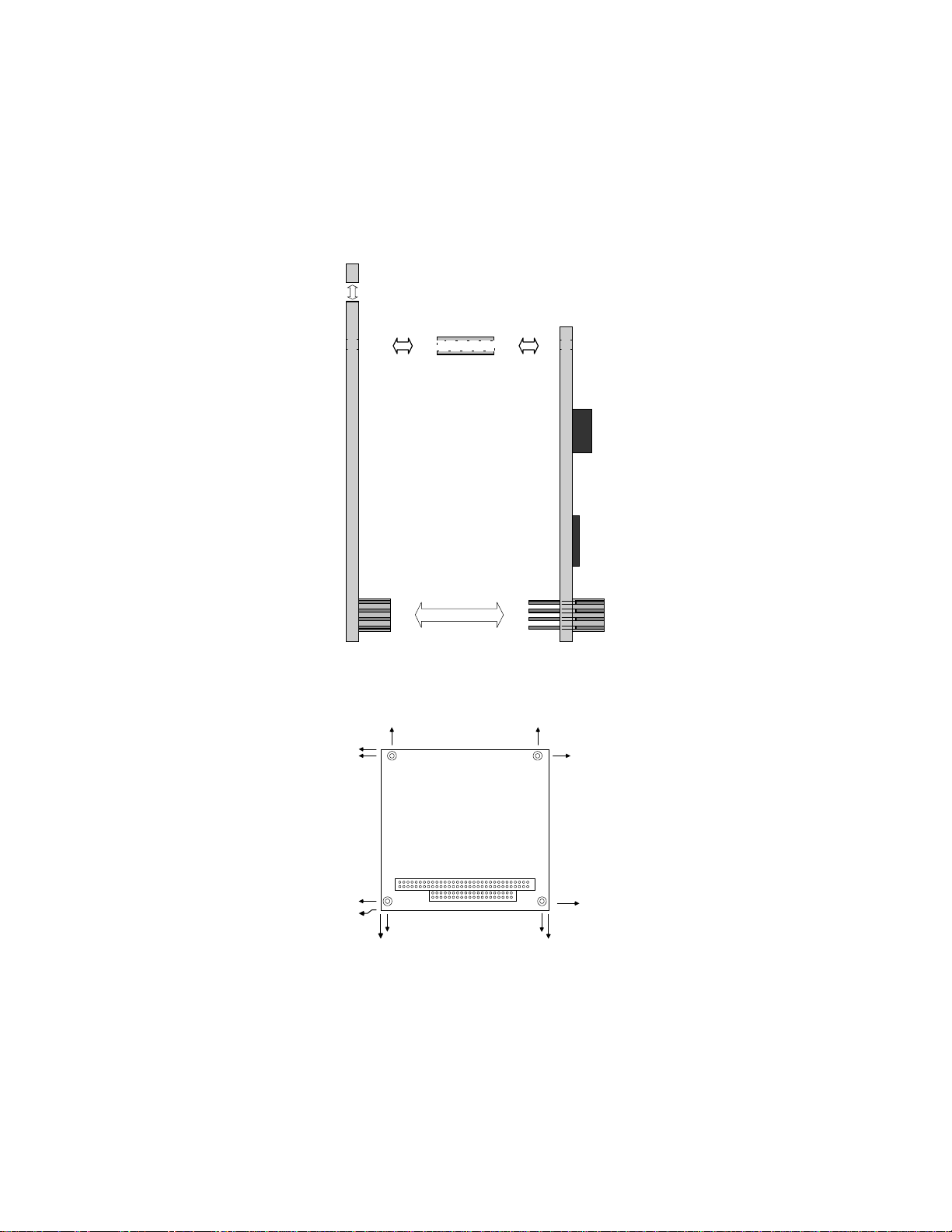

Appendix B Installing PC/104 Modules .................... 73

Installing PC/104 modules................................................... 74

Appendix C Pin Assignments ................................... 77

CRT display connector (CN1)............................................ 78

Flat panel display connector (CN2) ................................... 78

PC/104 connectors (CN3, CN5)......................................... 79

Front panel connector (CN4) ............................................. 80

Peripheral power connector (CN6)..................................... 80

10BASE-2/10BASE-5 AUI connector (CN7) .................... 80

COM2 RS-232/422/485 serial port (CN8)......................... 81

Keyboard and mouse connector (CN9) .............................. 81

Ethernet 10BASE-T connector (CN10) ............................. 82

Main power connector (CN11)........................................... 82

IDE hard drive connector (CN12) ...................................... 82

COM1 RS-232 serial port (CN13) ..................................... 83

Fan power connector (CN14) ............................................. 83

Floppy drive connector (CN15) ......................................... 84

Parallel port connector (CN16) .......................................... 85

Appendix D Optional Extras ..................................... 87

PCM-10586-1 Cable kit for PCM-4862/5860.................... 88

PCM-20486-1 Boot ROM binary files for............................

PCM-4860/4862 ................................................................. 88

CHAPTER

General

Information

This chapter gives background information on the PCM-4862.

Sections include:

• Card specifications

• Card layout and dimensions

Chapter 1 General Information 1

Introduction

The PCM-4862 is an enhanced, all-in-one single board 486 computer with an on-board Ethernet interface, local-bus SVGA controller and solid state disk. The PCM-4862 offers all the functions of an AT-compatible industrial computer on a single board, but it fits in the space of a 5¼" floppy drive (only 5.75" x 8"). For maximum performance, the PCM-4862 also supports 2nd level cache sizes from 128 KB to 512 KB (32 KB x 8, 64 KB x 8, or 128 KB x 8).

On-board features include two serial ports (RS-232 and RS-232/ 422/485), one parallel port, an enhanced IDE hard-drive controller (for up to two drives), a floppy-drive controller and a keyboard/PS/ 2 mouse interface. The board's watchdog timer can automatically reset the system or generate an interrupt if it stops due to a program bug or EMI problem.

An on-board solid state disk (SSD) emulates a floppy drive using EPROM or Flash memory devices. You access the SSD using standard DOS commands or BIOS I/O. The system can even boot from the SSD. Disk capacity is up to 1.44 MB, depending on the size of the memory chips. If you use Flash memory, you can read and write to the disk just like a floppy. If you use EPROM, the disk is read-only and you must program the chips with an EPROM programmer.

The PCM-4862 also complies with the "Green Function" standard and supports three types of power saving features: Doze mode, Standby mode, and Suspend mode.

All display and Ethernet configuration is done through software. A single Flash chip holds the system BIOS, VGA BIOS and the network boot ROM image. This minimizes the number of chips and eases configuration. You can change the display BIOS or install a boot ROM simply by programming the Flash chip.

If you need any additional functions, you can add up to six industry-standard PC/104 expansion modules. For those who require special functions, we have developed a PC/104 to ISA adaptor so you can use your standard ISA card.

2 PCM-4862 User's Manual

Features

• 80486SX/DX/DX2/DX4 processor, selectable clock speed

• Up to 512 KB 2nd level cache

• 16-bit Ethernet interface on-board, Novell NE2000 compatible

• Local-bus SVGA display controller (LCD, EL and CRT displays), flat panel type configured by programming the Flash chip

• Sockets for 1.44 MB solid state disk using Flash memory or EPROM

• Supports M-Systems DiskOnChip (DOC) 2000

• Up to 64 MB of on-board DRAM

• Built-in enhanced IDE (AT bus) hard disk drive interface

• Built-in floppy disk drive controller

• On-board keyboard/PS/2 mouse connector

• T wo serial ports: one RS-232, one RS-232/422/485 selectable (uses 16C550 UARTs with 16 byte FIFO)

• One multi-mode parallel port (ECP/EPP/SPP)

• Watchdog timer

• ISA-bus expansion with PC/104 modules

• Dimensions: 5.75" x 8" (146 mm x 203 mm)

• Power management

• Single +5 V power supply

Specifications

Standard SBC functions

• CPU: 80486SX/DX/DX2/DX4-25/33/40/66/80/100/120

• BIOS: AW ARD 128 KB Flash memory

• Chipset: VIA VT82C496G

• 2nd level cache: On-board 128 KB, up to 512 KB (SOJ package)

• RAM memory: 1 MB to 64 MB. Two 72-pin SIMM sockets (accepts 1 MB, 2 MB, 4 MB, 8 MB, 16 MB and 32 MB)

Chapter 1 General Information 3

• Enhanced IDE hard disk drive interface: Supports up to two IDE

(VL- bus) hard disks. BIOS auto-detect

• Floppy disk drive interface: Supports up to two floppy disk drives,

3½" (720 KB, 1.44 and 2.88 MB) and/or 5¼" (360 KB and 1.2 MB)

• Multi-mode parallel port: Configured to LPT1, LPT2, LPT3 or

disabled. Supports SPP/ECP/EPP

• Serial ports: One serial RS-232 port, one serial RS-232/422/485 port.

Ports can be configured as COM1, COM2, COM3, COM4 or disabled individually . Two 16550 serial UARTs

• Battery: 3.6 V @ 600 mAh lithium battery for up to 10 years of data

retention

• Watchdog timer : Can generate a system reset or IRQ15. Software

enabled/disabled. Time interval is 1.6 seconds

• DMA channels: 7

• Interrupt levels:15

• Keyboard/mouse connector: 8-pin connector supports standard PC/AT

keyboard and a PS/2 mouse

• Power management: I/O peripheral devices support power saving and

doze/standby/suspend modes. AMP 1.1 compliant

Local-bus flat panel/VGA interface

• Chipset: C&T 65545

• Display memory: 512 KB VRAM (standard), 1 MB VRAM (optional)

• Display type: Supports CR T and flat panel (EL, LCD and gas plasma

flat panel) display . Can display CRT and flat panel simultaneously

• CRT display mode: Supports resolutions up to 1024 x 768. Non-

interlaced CRT monitors resolutions up to 1024 x 768 @ 256 colors. True-color and Hi-color display capability with flat panels and CRT monitors at 640 x 480 resolution.

• Panel display modes: Supports resolutions up to 800 x 600 @ 256

colors (1 MB VRAM)

4 PCM-4862 User's Manual

Ethernet controller function

• Chipset: Realtek RTL8019AS

• T ype: 16-bit Ethernet, Novell NE 2000 compatible

• Connector: 10BASE-T and AUI connector on-board

Solid state disk function

• Sockets: Three 32-pin sockets for FLASH/EPROM

• FLASH type: ATMEL 29C010/29C040/29C040A (+5 V); AMD/ INTEL 28F010 (+12 V)

• Size: 360 KB/720 KB/1.2 MB/1.44 MB

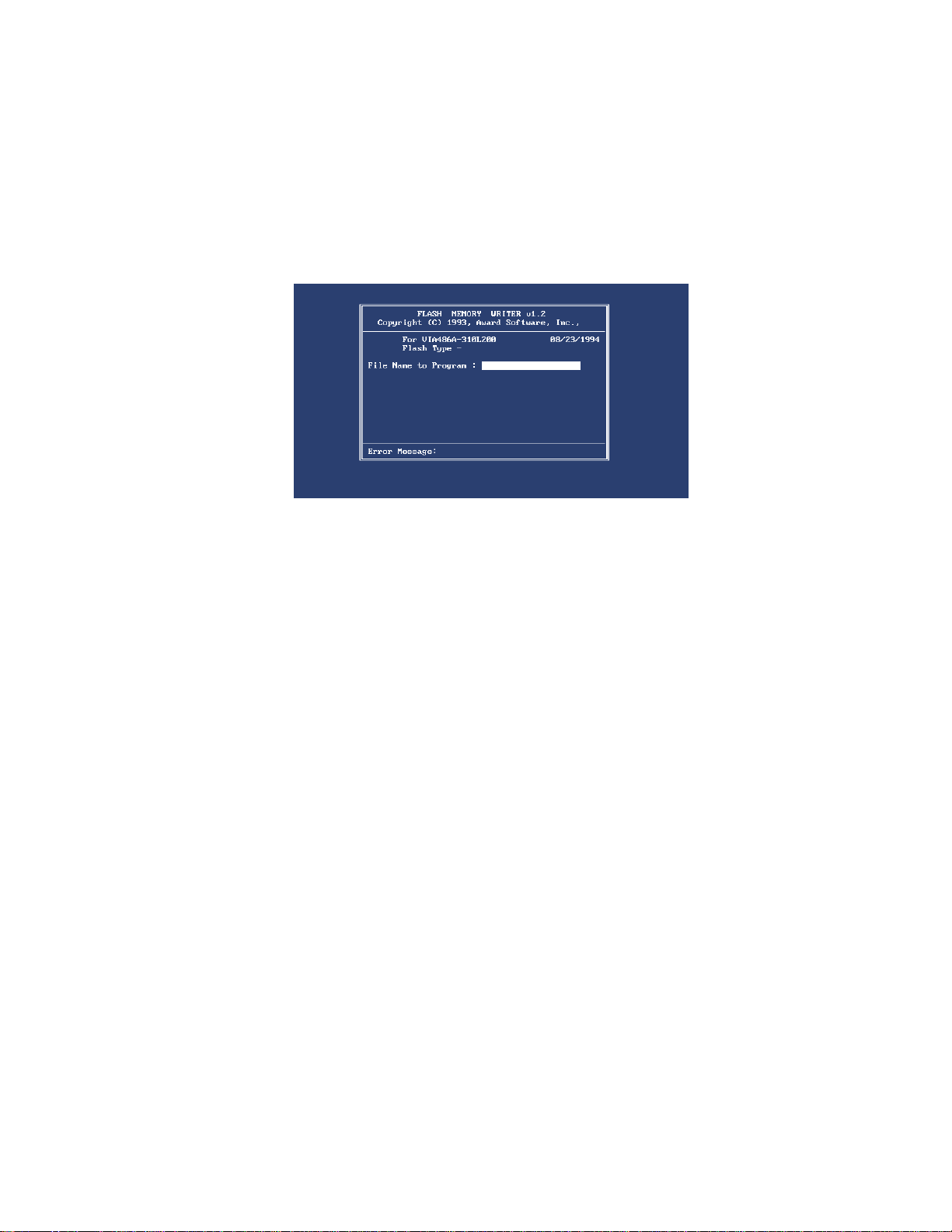

• Utility software: Includes software to prepare files for EPROM

• Supports M-Systems DiskOnChip (DOC) 2000

PC/104 bus expansion

• PC/104: 104-pin connector for a 16-bit bus

• Driving capacity: Six PC/104 modules

Mechanical and environmental

• Power supply voltage: +5 V (4.75 V to 5.25 V)

• Max. power requirements: +5 V @ 2 A (typical)

• Operating temperature: 32 to 140°F (0 to 60°C)

• Board size: 8" (L) x 5.75" (W) (203 mm x 146 mm)

• Weight: 0.5 kg

Chapter 1 General Information 5

Board layout and dimensions

5.08

40.64

97.16

100.97

119.38

174.63

177.17

193.04

198.12

203.20

3.56å

135.89

146.05

140.97

95.25

9.53

ååå

5.08

6 PCM-4862 User's Manual

Dimensions in mm

PCM-4862 dimensions

CHAPTER

Installation

This chapter tells how to set up the PCM-4862 hardware, including instructions on setting jumpers and connecting peripherals, switches and indicators. Be sure to read all the safety precautions before you begin the installation procedure.

Chapter 2 Installation 7

Jumpers and connectors

Connectors on the board link it to external devices such as hard disk drives, a keyboard, or floppy drives. In addition, the board has a number of jumpers that allow you to configure your system to suit your application.

The table below lists the function of each of the board jumpers and connectors:

Jumpers

Label Function

J1 System clock setting J2 System clock setting J3 System clock setting J4 CPU power supply J5 CPU type select J6 CPU power supply J7 CPU type select J8 CPU type select J9 CPU type select J10 CPU type select J11 CPU type select J12 CPU type select J13 CPU type select J14 CMOS setup J15 ECP/EPP DMA channel J16 ECP/EPP DMA channel J17 CPU type select J18 CPU type select J19 CPU type select J20 Parallel port IRQ J21 Buzzer enable/disable J22 Factory reserved J23 Watchdog timer invokes IRQ15 J24 Watchdog timer invokes system reset J25 External battery input for CMOS data retention J26 Ethernet CRS LED

8 PCM-4862 User's Manual

Jumpers, cont.

Label Function

J27 (1,2) SSD I/O address selection J27 (3,4) SSD I/O address selection J27 (5,6) SSD memory address selection J27 (7,8) SSD memory address selection J27 (9,10) SSD drive emulated J27 (11,12) SSD drive emulated J28 Ethernet BNC LED J29 SSD hardware enable/disable J30 SSD device type and selection J31 SSD device type and selection J32 COM2 RS-232/422/485 selection

Connectors

Label Function

CN1 CRT display connector CN2 Flat panel display connector CN3 PC/104 ISA-bus expansion CN4 Front panel connector CN5 PC/104 ISA-bus expansion CN6 Peripheral power connector (-5V, -12V) CN7 Ethernet 10BASE-2/10BASE-5 AUI connector CN8 Serial port COM2 (RS-232/422/485) CN9 Keyboard and mouse connector CN10 Ethernet 10BASE-T connector CN11 Main power connector (+5V, +12V) CN12 IDE hard drive connector CN13 Serial port COM1 (RS-232) CN14 Fan Power connector CN15 Floppy drive connector CN16 Parallel port connector

Chapter 2 Installation 9

Locating jumpers

J30

J17

J11

J28 J27

J26

J19

J18 J13

J12

J10 J8

J29

J31

J32

J25

J21, J22,

J23, J24

J20

J14, J15,

J16

J6J7

10 PCM-4862 User's Manual

J1, J2,

Chapter 2 Installation 11

SIMM

Sockets

10BASE-2/10BASE-5

AUI Connector CN7

Locating connectors

10BASE-T CN10

Fan Power CN14

Main Power CN11

Keyboard/ Mouse connector CN9

Floppy Disk CN15

IDE Hard Disk CN12

Parallel CN16 PC/104 CN3, CN5

CRT Display

CN1

Flat Panel

Display

CN2

Front

Panel

CN4

Peripheral

Power

CN6

COM2

CN8

COM1

CN13

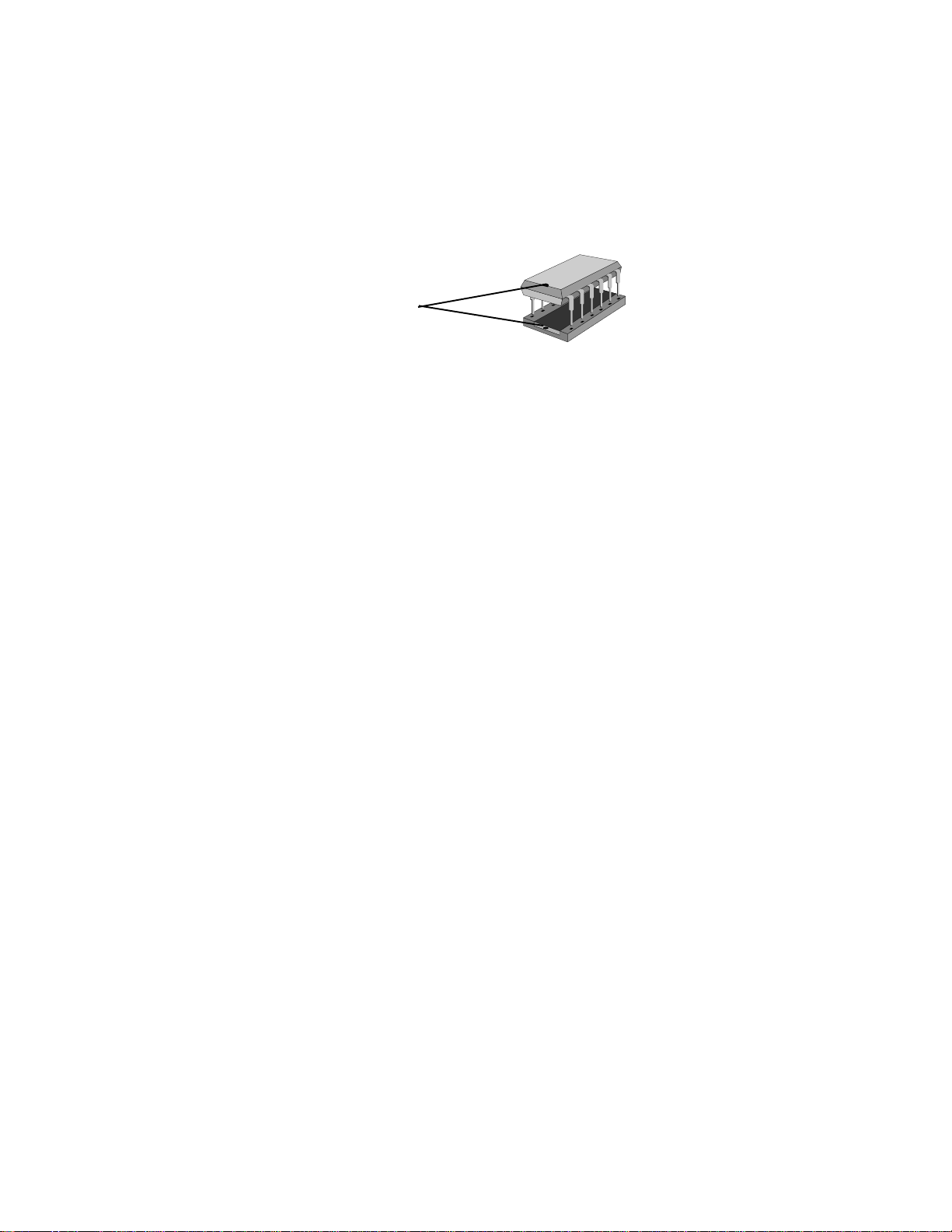

Setting jumpers

You configure your card to match the needs of your application by setting jumpers. A jumper is the simplest kind of electric switch. It consists of two metal pins and a small metal clip (often protected by a plastic cover) that slides over the pins to connect them. To “close” a jumper you connect the pins with the clip. T o “open” a jumper you remove the clip. Sometimes a jumper will have three pins, labeled 1, 2, and 3. In this case you would connect either pins 1 and 2 or 2 and 3.

Open Closed Closed 2-3

The jumper settings are schematically depicted in this manual as follows:

1 2 3

Open Closed Closed 2-3

A pair of needle-nose pliers may be helpful when working with jumpers.

If you have any doubts about the best hardware configuration for your application, contact your local distributor or sales representative before you make any changes.

12 PCM-4862 User's Manual

Safety precautions

Warning! Always completely disconnect the power cord

from your chassis whenever you are working on it. Do not make connections while the power is on because sensitive electronic components can be damaged by the sudden rush of power . Only experienced electronics personnel should open the PC chassis.

Caution! Always ground yourself to remove any static

charge before touching the CPU card. Modern electronic devices are very sensitive to static electric charges. Use a grounding wrist strap at all times. Place all electronic components on a static-dissipative surface or in a static-shielded bag when they are not in the chassis.

Installing the CPU

The PCM-4862 all-in-one CPU module supports most 486 CPUs. The system's performance depends on the CPU you choose. You can install or upgrade the CPU in the board's PGA socket by following the procedures outlined below . If your system has an existing CPU, you need to remove it before installing the new CPU.

Removing a CPU

1. Disconnect power from the chassis, and unplug all connections to the CPU card. Then, remove the CPU card from the chassis by following the instructions in the user's manual for your chassis.

2 . Lift the CPU out of the PGA socket. The old chip may be

difficult to remove. Y ou may find spray chip lubricant, designed for pin-grid-array (PGA) devices, and a chip puller helpful. These are available at electronics hobbyists' supply stores.

Chapter 2 Installation 13

Installing a CPU

T o install the CPU, follow the instructions that came with it. If no documentation was provided, the general procedures for installing a CPU are outlined below:

1 . Lubricate the pins on the CPU with lubricant for PGA devices.

This makes the CPU slide in much easier and greatly reduces the chance of damaging the pins and other components.

2 . Carefully align the CPU so that it is parallel to the socket. Make

sure that the notch on the corner of the CPU matches the notch on the inside of the socket.

3 . Gently push the CPU into the socket. There will probably be a

small gap between the CPU and the socket even when it is fully seated. DO NOT USE EXCESSIVE FORCE!

When you install a new CPU, you may have to adjust other settings on the board, such as CPU type, CPU clock, and PCI speed, to accommodate it. Make sure that the settings are correct for your CPU. Improper settings may damage the CPU.

14 PCM-4862 User's Manual

CPU type select (J1-J13, J17-J19)

The following chart shows the proper jumper settings for their respective CPUs.

CPU type select

AMD 486DX2-66 (3 V) and TI 486DX-66 AMD 486DX4-100

123 J1 J2 J3

J4 J7 J8 J11 J12

J5 3 5

J6 1 3 5

1 2 3

AMD 486DX4-120 AMD 5x86-P75

123 J1 J2 J3

J4 J7 J8 J11 J12

J5 3 5

J6 1 3 5

J9 J10

J13

J17 1 2 3 4 5 6 7 8 9 10

J13 J17 J18 1 2 3 4 5 6 7 8 9 10

J18

J13

J9 J10

J17 1 2 3 4 5 6 7 8 9 10

J13 J17 J18 1 2 3 4 5 6 7 8 9 10

1 2 3 4 5 6

1 2

1 2 3 4 5 6

1 2

J19

123 J1 J2 J3

J4 J7 J8 J11 J12

J5 3 5

123 J1 J2 J3

J4 J7 J8 J11 J12

J5 3 5

J6 1 3 5

1 2 3

J18

1 2 3 4 5 6

J19

1 2 3 4 5 6

J19

Cyrix 486DX2-66 Cyrix 486DX2-V80GP

J13 J17 J18

123 J1 J2 J3

J4 J7 J8 J11 J12

J5 3 5

J9 J10

2 3 4 5 6 7 8 9 10

J6 1 3 5

1 2

1 2 3 4 5 6

1 2

J19

123 J1 J2 J3

J4 J7 J8 J11 J12

J5 3 5

J6 1 3 5

J9 J10

1 2 3

Chapter 2 Installation 15

J13 J17 J18 1 2 3 4 5 6 7 8 9 10

1 2 3 4 5 6

J19

Cyrix 486DX4-100 Cyrix 5x86-100

J13

J18

J17

123 J1 J2 J3

J4 J7 J8 J11 J12

J5 3 5

J9 J10

2 3 4 5 6 7 8 9 10

J6 1 3 5

1 2 3

1 2 3 4 5 6

1 2

J19

123 J1 J2 J3

J4 J7 J8 J11 J12

J5 3 5

J6 1 3 5

J13

J18

J17 1 2 3 4

J10

1 2 3

7 8 9 10

1 2 3 4 5 6

J19

Cyrix 5x86-120 IBM 486DX4

J18

J13 J17

123 J1 J2 J3

J4 J7 J8 J11 J12

J5 3 5

J10

2 3 4 5 6 7 8 9 10

J6 1 3 5

1 2 3

1 2 3 4 5 6

1 2

J19

123 J1 J2 J3

J4 J7 J8 J11 J12

J5 3 5

J6 1 3 5

Intel 486DX-25 Intel 486DX2-66

J13 J17 J18

123 J1 J2 J3

J4 J7 J8 J11 J12

J5 3 5

J10

2 3 4 5 6 7 8 9 10

J6 1 3 5

1 2 3

1 2 3 4 5 6

1 2

J19

123 J1 J2 J3

J4 J7 J8 J11 J12

J5 3 5

J6 1 3 5

*Intel 486DX4-100 (default) SGS 486DX2-66

J13 J17 J18

123 J1 J2 J3

J4 J7 J8 J11 J12

J5 3 5

J10

2 3 4 5 6 7 8 9 10

J6 1 3 5

1 2 3

1 2 3 4 5 6

1 2

J19

123 J1 J2 J3

J4 J7 J8 J11 J12

J5 3 5

J6 1 3 5

J18

J13 J17 1 2 3 4

J10

7 8 9 10

J13 J17 J18 1 2 3 4 5 6 7 8 9 10

1 2

1 2 3 4 5 6

J19

1 2 3 4 5 6

J19

1 2 3 4 5 6

J19

16 PCM-4862 User's Manual

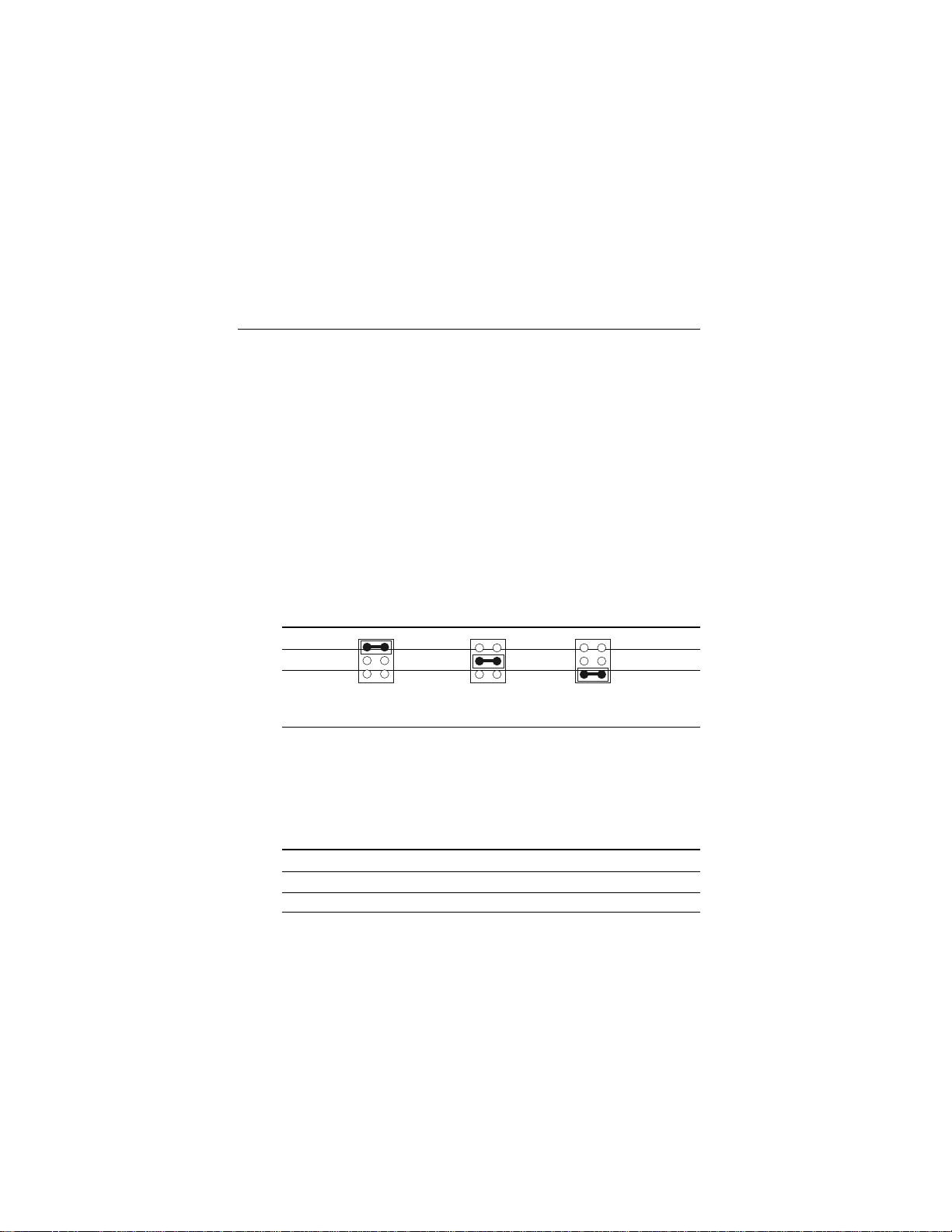

CPU power supply select (J4, J6)

J4 and J6 must be set to match the CPU type. The chart below shows the proper jumper settings for their respective VCC.

CPU power supply select

*3.3 V 3.45 V 3.6 V 5 V

J4 1-3 1-3 1-3 3-5

2-4 2-4 2-4 4-6

J6 1-2 3-4 5-6 —

CPU clock select (J1, J2, J3)

J1, J2, and J3 are used to synchronize the CPU clock with the CPU type. Set the CPU clock according to the base CPU speed.

CPU clock select

25 MHz *33 MHz 40 MHz

J1 2-3 1-2 2-3 J2 2-3 2-3 1-2 J3 1-2 2-3 1-2

CMOS setup (J14)

CMOS setup

*3.6V Battery On Clear CMOS

J14 1-2 2-3

Buzzer enabled/disabled (J21)

Buzzer enabled/disabled

Enable Disable

J21

* default setting

Chapter 2 Installation 17

Installing DRAM (SIMMs)

Y ou can install anywhere from 1 MB to 32 MB of on-board DRAM memory using 1, 2, 4, 8 or 16 MB 72-pin SIMMs (Single In-Line Memory Modules). Access time should be 70 nsec. or less.

Memory installs in two banks composed of one SIMM socket each. The banks are designated as Bank0 and Bank1. See the figure on page 11 for help identifying the banks. It supports both single and dual insertion

Installing SIMMs

NOTE: The modules can only fit into a socket one way.

Their chips must face the CPU , and their gold pins must point down into the SIMM socket.

The procedure for installing SIMMs appears below. Please follow these steps carefully.

1 . Ensure that all power supplies to the system are switched Off. 2 . Locate the board's memory banks, shown in the figure on

page 11.

3. Install the SIMM cards. Install each SIMM so that its chips face away from the CPU and its gold pins point down into the SIMM socket.

4 . Slip each SIMM into a socket at a 45 degree angle and carefully

fit the bottom of the card against the connectors.

5 . Gently push the SIMM into a perpendicular position until the

clips on the ends of the SIMM sockets snap into place.

6. Check to ensure that each SIMM is correctly seated and all connector contacts touch. The SIMM should not move around in its socket.

18 PCM-4862 User's Manual

IDE hard drive connector (CN12)

The built-in Enhanced IDE (Integrated Device Electronics) controller supports up to two IDE devices, including CD-ROM drives, tape backup drives, a large hard disk drive and other IDE devices. It also supports faster data transfer rates and allows the IDE hard disk drive to exceed 528 MB.

Connecting the hard drive

Connecting drives is done in a daisy-chain fashion and requires one of two cables, depending on the drive size. 1.8" and 2.5" drives need a 1 x 44-pin to 2 x 44-pin flat-cable connector. 3.5" drives use a 1 x 44-pin to 2 x 40-pin connector.

Wire number 1 on the cable is red or blue, and the other wires are gray.

1 . Connect one end of the cable to CN12. Make sure that the red

(or blue) wire corresponds to pin 1 on the connector, which is labeled on the board (on the right side).

2 . Plug the other end of the cable to the Enhanced IDE hard drive,

with pin 1 on the cable corresponding to pin 1 on the hard drive. (See your hard drive's documentation for the location of

the connector.) Connect a second drive as described above. Unlike floppy drives, IDE hard drives can connect to either end of

the cable. If you install two drives, you will need to set one as the master and one as the slave by using jumpers on the drives. If you install just one drive, set it as the master.

Chapter 2 Installation 19

Floppy drive connector (CN15)

You can attach up to two floppy disks to the PCM-4862's on-board controller. You can use any combination of 5¼" (360 KB and 1.2 MB) and/or 3½" (720 KB, 1.44 MB, and 2.88 MB) drives.

A 34-pin daisy-chain drive connector cable is required for a dualdrive system. On one end of the cable is a 34-pin flat-cable connector. On the other end are two sets of floppy disk drive connectors. Each set consists of a 34-pin flat-cable connector (usually used for 3½" drives) and a printed-circuit board connector (usually used for 5¼" drives).

Connecting the floppy drive

1 . Plug the 34-pin flat-cable connector into CN15. Make sure that

the red wire corresponds to pin one on the connector.

2. Attach the appropriate connector on the other end of the cable to the floppy drive(s). You can use only one connector in the set. The set on the end (after the twist in the cable) connects to the A: drive. The set in the middle connects to the B: drive.

3 . If you are connecting a 5¼" floppy drive, line up the slot in the

printed circuit board with the blocked-off part of the cable connector. If you are connecting a 3½" floppy drive, you may have trouble determining which pin is pin number one. Look for a number printed on the circuit board indicating pin number one. Also, the connector on the floppy drive connector may have a slot. When the slot is up, pin number one should be on the right. Check the documentation that came with the drive for more information.

If you desire, connect the B: drive to the connectors in the middle of the cable as described above.

If you need to make your own cable, you can find the pin assignments for the card’s connector in Appendix C.

20 PCM-4862 User's Manual

Parallel port connector (CN16)

Normally, the parallel port is used to connect the card to a printer. The PCM-4862 includes an on-board parallel port, accessed through CN16, a 26-pin flat-cable connector. You will need an adapter cable if you use a traditional DB-25 connector. The cable has a 26-pin connector on one end and a DB-25 connector on the other.

Parallel port IRQ

The PCM-4862 supports one parallel port. The port is designated as LPT1 and can be disabled or changed to LPT2 or LPT3 in the system BIOS setup.

Parallel port IRQ selection

IRQ5 *IRQ7

J20

Y ou can select ECP/EPP DMA channel by setting J15 and J16.

ECP/EPP DMA channel

J15 J16

* default setting

1 2 2 3

*DMA1 DMA3

1 2 2 3

Keyboard and PS/2 connector (CN9)

The PCM-4862 board provides a keyboard connector which supports both a keyboard and a PS/2 style mouse. In most cases, especially in embedded applications, a keyboard is not used. The standard PC/A T BIOS will report an error or fail during power-on self test (POST) after a reset if the keyboard is not present. The PCM-4862's BIOS standard setup menu allows you to select "All, But Keyboard" under the "Halt On" selection. This allows nokeyboard operation in embedded system applications without the system halting under POST (power-on-self-test).

Chapter 2 Installation 21

Front panel connector (CN4)

Next you may want to install external switches to monitor and control the PCM-4862. These features are completely optional — install them only if you need them. The front panel connector (CN4) is an 8-pin male, dual in-line header and provides connections for a speaker, hard disk access indicator and an input switch for resetting the card.

Speaker

The PCM-4862 can drive an 8 Ω speaker at 0.5 watts. Ensure that alternatives to this specification do not overload the card.

LED interface

The front panel LED indicator for hard disk access is an active low signal (24 mA sink rate).

Reset switch

If you install a reset switch, it should be a open single pole switch. Momentarily pressing the switch will activate a reset. The switch should be rated for 10 mA, 5 V .

If you need to make your own cable, you can find the pin assignments for the card’s connector in Appendix C.

Power connectors (CN6, CN11, CN14)

Peripheral power connector, -5V, -12V

(CN6)

Supplies secondary power to devices that require -5 V and -12 V.

Main power connector, +5V, +12V (CN11)

Supplies main power to the PCM-4862 (+5 V) and devices that require +12 V .

Fan power supply connector (CN14)

Provides power supply to optional CPU cooling fan. Only present

22 PCM-4862 User's Manual

when +5 V and +12 V power is supplied to the board.

Serial ports (CN13, CN8)

The PCM-4862 offers two serial ports: one RS-232 and one RS-232/ 422/485. These ports let you connect to serial devices (a mouse, printers, etc.) or a communication network.

COM1 RS-232 port (CN13)

The serial port connectors are mounted on the bottom edge of the card. The 10-pin, dual-in-line, male header to the right of the card is the RS-232 port.

COM2 RS-232/422/485 selection (CN8)

The secondary port, to the left of COM1, consists of a 14-pin, dualin-line, male header and can be configured to operate in RS-232, RS422, or RS-485 mode. This is done via J32.

COM2 selection

1 3

*RS-232 RS-422 RS-485

2 4 6

1 3 5

2 4 6

J32

* default setting

The IRQ and address range for both ports are fixed. However if you wish to disable the port or change these parameters later you can do this in the system BIOS setup. The table below shows the settings for the PCM-4862's ports.

PCM-4862 Serial port default settings

Port Address Range Interrupt Default

COM1 2E8~3F8 IRQ4 3F8

Chapter 2 Installation 23

COM2 2E8~3F8 IRQ3 2F 8

VGA interface connections

The PCM-4862's SVGA interface can drive conventional CRT displays and is capable of driving a wide range of flat panel displays, including electroluminescent (EL), gas plasma, passive LCD and active LCD displays. The card has two connectors to support these displays, one for standard CRT VGA monitors and one for flat panel displays.

CRT display connector (CN1)

CN1 is a 16-pin, dual-in-line header used for conventional CRT displays. A simple one-to-one adapter can be used to match CN1 to a standard 15-pin D-SUB connector commonly used for VGA.

Pin assignments for CRT display connector CN1 are detailed in Appendix C.

Flat panel display connector (CN2)

CN2 consists of a 44-pin, dual-in-line header. Power supplies (+12 V) present on CN2 depend the supply connected to the board. Ensure that CN11 is connected for +12 V power supply .

The PCM-4862 provides a bias control signal on CN2 which can be used to control the LCD bias voltage. It is recommended that the LCD bias voltage not be applied to the panel until the logic supply voltage (+5 V) and panel video signals are stable. Under normal operation the control signal (ENAVEE) is active high. When the PCM-4862's power is applied, the control signal is low until just after the relevant flat panel signals are present.

Configuration of the VGA interface is done completely via the software utility . You don't have to set any jumpers. Refer to Chapter 3 for software setup details.

Refer to Chapter 3 for details on connecting the four standard LCD's: Sharp LM64183P , T oshiba L TM09C016, Sharp 64C142, and Planor EL Display .

24 PCM-4862 User's Manual

Ethernet configuration

The PCM-4862 is equipped with a high performance 16-bit Ethernet interface which is fully compliant with IEEE 802.3 10Mbps CSMA/ CD standards. It is supported by all major network operating systems and is 100% Novell NE-2000 compatible.

Configuration of the Ethernet is very easy and can be done via the RSET8019.EXE program included on the utility disk. This program enables you to: view the current Ethernet configuration, to reconfigure the Ethernet interface (IRQ, I/O address, etc.), and to execute useful diagnostic functions. (See Chapter 3 for detailed information)

The RSET8019.EXE program provides two ways to configure the Ethernet interface. Configuration can be done automatically when you choose PNP (plug and play) option; or, when you choose the Jumperless option, the following IRQ and I/O address settings are available.

PCM-4862 Ethernet settings

IRQ option I/O address range

Jumperless 2, 3, 4, 5, 10 , 200 - 300 EFH Configuration 11, 12, 15

Default Settings: IRQ = 3 ; I/O Address = 300H

Note: 1. Y ou can select an IRQ from the options shown

above, but make sure your selection does not conflict with other I/O devices.

2. When Boot R OM is installed, the RSET8019.EXE program does not support PNP mode configuration.

10BASE-2/10BASE-5 AUI connector (CN7)

10BASE-2 and 10BASE-5 coax connections are made via an attachment unit interface or AUI (CN7). This consists of a 16-pin, dual-in-line male header.

Chapter 2 Installation 25

10BASE-T connector (CN10)

10BASE-T connects to the PCM-4862 via an adapter cable to a 10pin polarized header (CN10). For 10BASE-T RJ-45 operation, an adapter cable converting CN10 into a standard RJ-45 jack is required.

Network boot

The Network Boot feature can be utilized by incorporating the Boot ROM image files for the appropriate network operating system. The Boot ROM BIOS files are available from your supplier. They can be programmed into the BIOS, similar to the VGA BIOS file, using the A WDFLASH.EXE program detailed in Chapter 3.

Watchdog timer configuration

An on-board watchdog timer reduces the chance of disruptions which EMP (electro-magnetic pulse) interference can cause. This is an invaluable protective device for standalone or unmanned applications. Setup involves two jumpers and running the control software (refer to Appendix A).

Watchdog timer enable/disable

You can enable or disable the watchdog timer by reading the card's I/O ports with your program. Read address 443 hex to enable and refresh the watchdog or address 043 to disable the watchdog. For information on programming the watchdog timer see Appendix A.

Watchdog timer action (J23, J24)

When the watchdog timer activates (CPU processing has come to a halt), it can reset the system or generate an interrupt on IRQ15. This can be set via two 2-pin jumpers (J23, J24) as shown below:

26 PCM-4862 User's Manual

Watchdog timer system reset/IRQ15

*System reset IRQ15

J23 J24

* default setting

Solid State Disk Configuration

This section will explain the function and configuration of the jumpers necessary for the operation of the PCM-4862's solid state disk (SSD). The SSD is optional and can be utilized by inserting memory devices onto the board. Jumpers relevant to SSD configuration are:

PCM-4862 SSD Jumpers

Number Function

J27 (1,2) SSD I/O address selection J27 (3,4) SSD I/O address selection J27 (5,6) SSD memory address selection J27 (7,8) SSD memory address selection J27 (9,10) SSD drive emulated J27 (11,12) SSD drive emulated J29 SSD harware enable/disable J30 SSD ROM device selection J31 SSD memory type selection

The PCM-4862 features an internal Flash/ROM disk drive. This drive emulates a floppy disk drive by using solid-state memory chips (Flash or EPROM) to store programs and data instead of the magnetic particles on the mechanical drive’s disk. The Flash/ROM disk offers much faster access times than a floppy or hard disk and greatly increased reliability in harsh environments.

Chapter 2 Installation 27

The Flash/ROM disk works by modifying the BIOS INT-13 disk I/O routine on boot-up. The routine then translates read and write commands to the disk so that they will correctly access the memory chips. You don’t need any special drivers. You simply set the drive to act as a DOS drive (e.g. A: or C:) and use standard DOS commands (COPY , DIR, etc.) to manipulate your data.

Before you use the Flash/ROM disk, you will need to enable it with J29 and the BIOS Chipset Features Setup Program as detailed in Chapter 4.

Memory devices

The Flash/ROM disk supports the following memory devices, or their equivalents:

• 27C010 128 KB x 8 EPROM

• 27C040 512 KB x 8 EPROM

• 28F010 128 KB x 8 +12 V Flash Memory (AMD/INTEL)

• 29C010 128 KB x 8 +5 V Flash Memory (A TMEL only)

• 29C040 512 KB x 8 +5 V Flash Memory (A TMEL only)

• 29C040A 512 KB x 8 +5 V Flash Memory (A TMEL only)

If you use EPROM, files on the disk are read only . You will need an external programmer to load your program and data files on the EPROMs.

If you use +5 V Flash memories (29C010) for the solid state disk, you can read or write data just like a floppy disk; you need not use an external programmer. If you use +12 V Flash memories (28F010) you will still need an external programmer to write data.

Before you activate the Flash/ROM drive (using the BIOS Chipset Features Setup program), you will need to set the drive's I/O and memory addresses to avoid conflicts with other plug-in cards. You will also need to set the DOS drive designation to be used by the Flash/ROM drive. The following jumpers sets the configuration of the SSD as described in the following sections:

28 PCM-4862 User's Manual

Memory address selection (J27)

The SSD occupies a 8 Kbyte window in the upper memory address range of D6000 to D7FFF . You should ensure this does not conflict with any other device's memory address. Jumpers J27 (5-6, 7-8) control the Flash/ROM disk’s memory address. If you select "Disabled", the disk will not function.

D6000 to D7FFF (default)

J27

PCM-4862 SSD memory address

Memory address (HEX) 5, 6 7, 8

Disabled ¡¡ DE000 to DFFFF l¡ D6000 to D7FFF* ¡l

¡ = Open l= Closed * = Default These addresses might conflict with the ROM BIOS on some of

your other boards (i.e. PC/104 modules). Read the manuals for these modules to ensure there is no memory conflict.

I/O address selection (J27)

Jumpers J27 (1-2, 3-4) control the disk's I/O address. The default is set to 200~204 but should be set as to not conflict with the I/O address of other devices. Jumpers are set as shown below:

200~204 (default)

J27

Chapter 2 Installation 29

PCM-4862 SSD I/O address

I/O address (HEX) 1, 2 3, 4

2C0-2C4 ¡¡ 240-244 l¡ 280-284 ¡l 200-204* ll

¡ = Open l= Closed * = Default

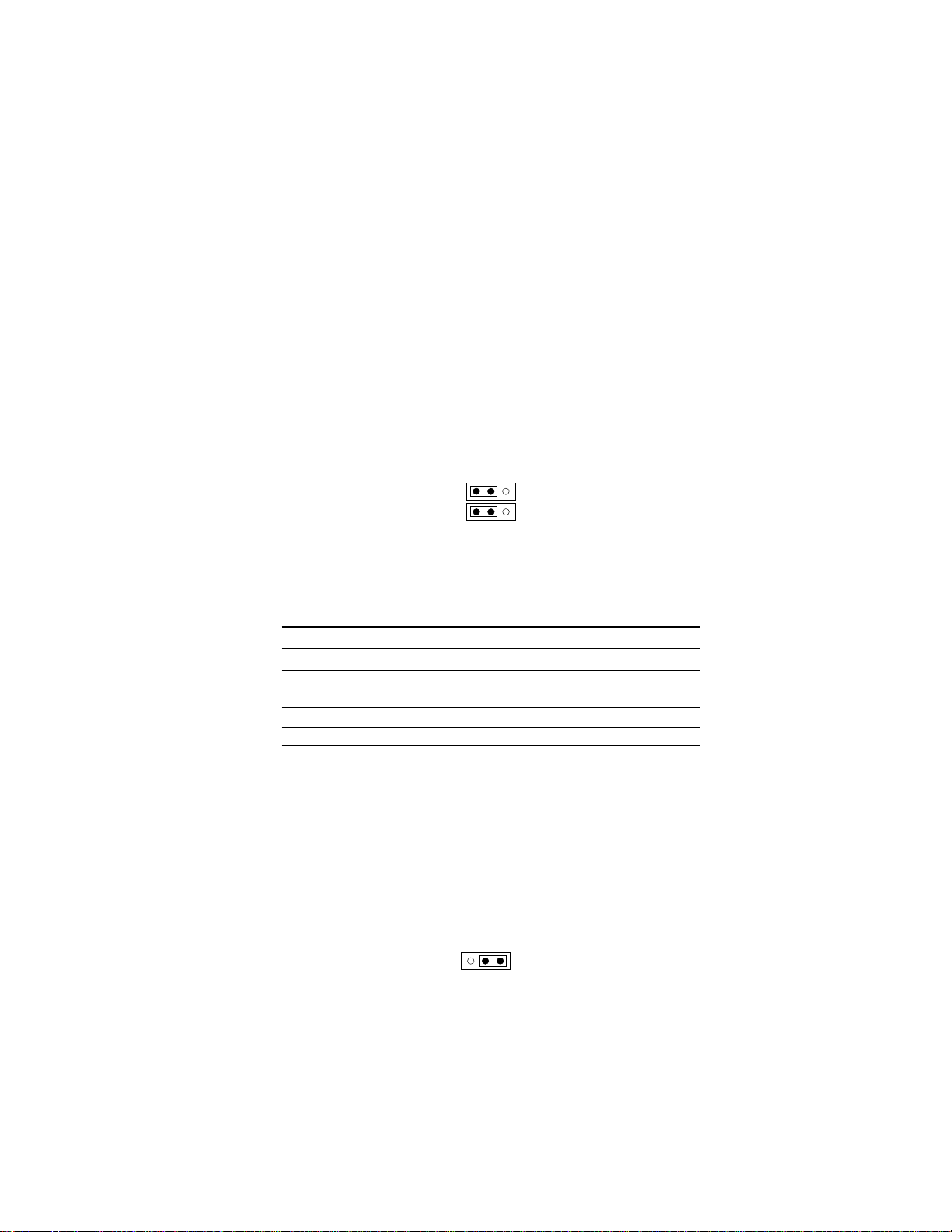

Drive emulated (J27)

Jumpers J27 (9-10, 11-12) control the DOS drive emulated by the Flash/ROM disk as 1st, 2nd, 3rd or 4th as shown below:

3rd Drive (default)

10 12

911

J27

PCM-4862 SSD drive designation

Drive 9, 10 11, 12

1st ll 2nd l¡ 3rd* ¡l 4th ¡¡

¡ = Open l= Closed * = Default The actual drive letter assigned by DOS to the Flash/ROM disk

depends on the floppy or hard disks installed in the system and the DOS version.

30 PCM-4862 User's Manual

SSD device and size selection (J31, J30)

The size of the emulated drive depends on the size and number of the chips you install. For example, if you install three 512 KB chips, you will have 3 x 512 KB = 1.5 MB, equivalent to a 1.44 MB floppy. The following table shows the memory chips you will need to emulate 360 KB, 720 KB, 1.2 KB and 1.44 floppy drives.

Y ou will need to set jumpers J31 and J30 to match the type (Flash or ROM) and size (128 KB or 512 KB) of the devices you use. All the devices must be the same type and size.

EPROM 1.44 MB (default)

J30

J31

The following table shows the size and number of devices you will need for each size emulated disk. It also shows the corresponding settings of jumpers J31 (Flash/ROM) and J30 (size 128 KB/512 KB).

PCM-4862 SSD device type and selection

J30 J31 Device 360KB 720KB 1.2MB 1.44MB

1-2 1-2 ROM 512KBx1 512KBx2 512KBx3 512KBx3 2-3 1-2 ROM 128KBx3 — — — 2-3 2-3 Flash 128KBx3 — — — 1-2 2-3 Flash 512KBx1 512KBx2 512KBx3 512KBx3

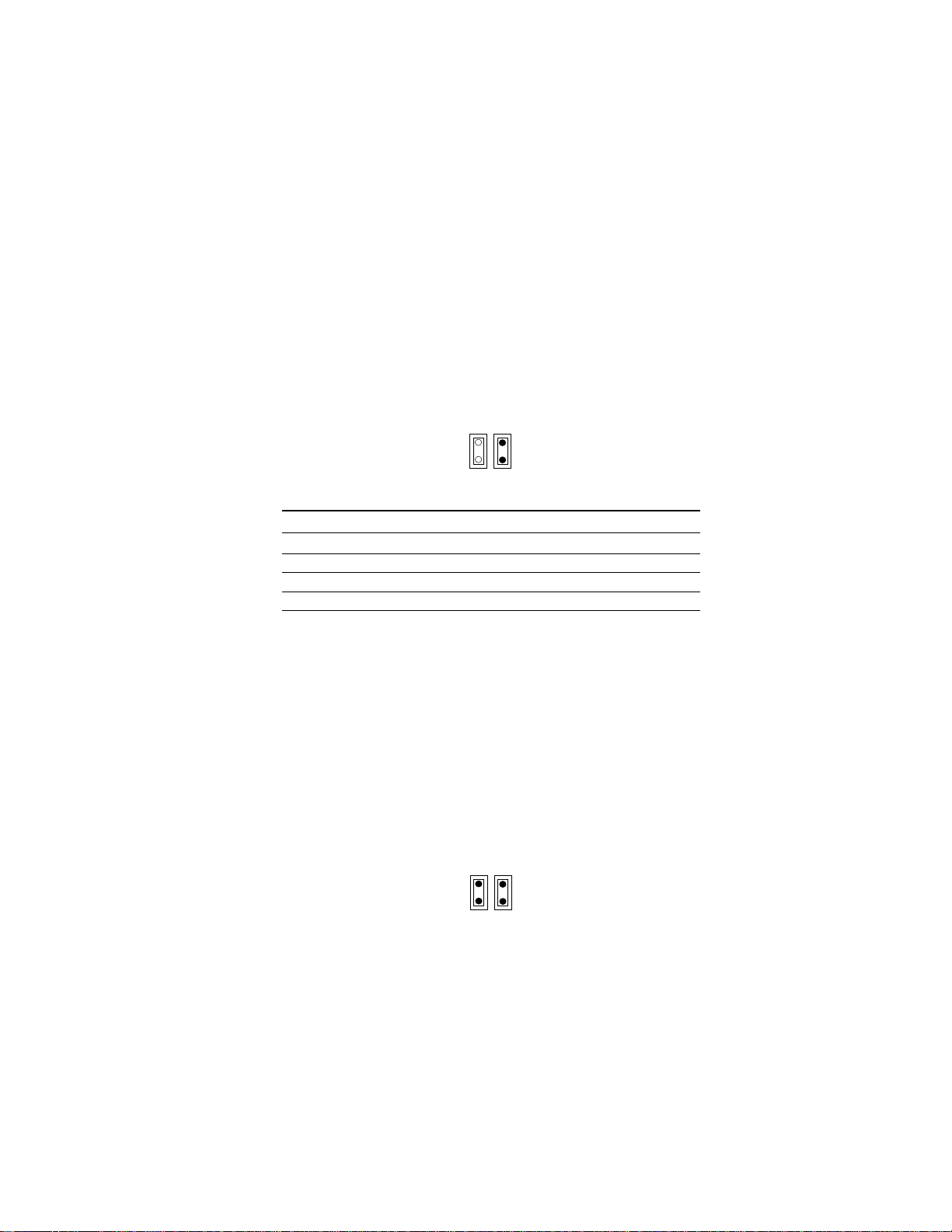

SSD hardware enable/disable (J29)

As previously mentioned, before you use the SSD you have to enable it. This is done via the BIOS and a single three pin jumper (J29). The jumper overrides the BIOS, even if you set the SSD to enable in BIOS, it will not work unless the jumper is in place as the table shows below:

SSD enabled (default)

J29

Chapter 2 Installation 31

PCM-4862 SSD hardware enable/disable

J29

Enable* Disable

* = Default

DOS 5.0

Floppy disks

The Flash/ROM disk will replace the corresponding floppy disk. For example, if you have a single floppy disk (drive A:) and assign the Flash/ROM disk to be the 1st drive, any drive operations directed at drive A: will go to the Flash/ROM disk. Y ou will not be able to access the floppy drive.

Hard disks

The Flash/ROM disk will not replace corresponding hard disks. Instead, DOS will assign the Flash/ROM disk to the next free drive designation. For example, if you have a single hard disk (drive C:) and assign the Flash/ROM disk to be the 3rd drive, the Flash/ROM drive will become drive D:. If you have two hard disks, the Flash/ ROM drive will become drive E:.

DOS 3.3

Floppy disks

Hard disks

The Flash/ROM disk will take the drive letter of the hard disk and DOS will assign the hard disk to the next available drive letter. For example, if you have a single hard disk (drive C:) and assign the Flash/ROM disk to be the 3rd drive, the Flash/ROM drive will become drive C: and the hard disk will become drive D:. If you have two hard disks, the Flash/ROM drive will become drive C:, the first

32 PCM-4862 User's Manual

hard disk will become drive D: and the second hard disk will become drive E:.

Example

Before installing Flash/ROM disk

ABC

DOS 5.0 FDD FDD HDD DOS 3.3 FDD FDD HDD

After installing Flash/ROM disk

ABC D

DOS 5.0 FDD FDD HDD Flash/ROM DOS 3.3 FDD FDD Flash/ROM HDD

Booting from the Flash/ROM disk

If you wish to have the system boot from the Flash/ROM disk, simply set both J27(9-10, 11-12) closed to select the 1st FDD. Copy your application files to the disk along with the standard system files required to boot (command.com, io.sys, autoexec.bat, etc). The next time you start the system, it will boot from the solid state disk.

Inserting memory devices

After you’ve set all the jumpers on the PCM-4862, insert the appropriate memory devices into the card’s sockets. Remember that you will need to program EPROMs before you insert them.

1 . Make sure that the pins of the memory chips are perpendicular

to the case and both rows are parallel to each other. Often the chips come with the pins spread out slightly. Place the chip on a table top and carefully bend each line of pins together until they point directly down.

2. Insert each chip. Align the chips so their pins are perpendicular to the connector and the semicircular notch on the end of the chip matches the notch on the end of the socket. There will probably be a gap between the chip body and the socket when it is fully seated – Do not push too hard!.

Chapter 2 Installation 33

Notches

Using a memory manager (EMM386.EXE)

If you are using an extended or expanded memory manager (such as EMM386 or QEMM386), you will need to configure it to avoid the addresses used by the Flash/ROM disk (set by jumpers J30 and J31). Otherwise, the memory manager will attempt to use these addresses, causing unreliable operation.

For example, the line in your CONFIG.SYS file that invokes EMM386, the DOS memory manager, might be the following:

DEVICE=EMM386.SYS X=D600-D7FF

This excludes a 8 KB range for the card from D6000 to D7FFF (the default addresses).

If you are using expanded memory , you will need to make sure that the memory manager is not putting the page frame in the disk's addresses. For example,

DEVICE=EMM386.EXE X=D600-D7FF FRAME = D800

You should also make sure that the disk's memory address is not shadowed in the BIOS.

User's Note: Sometimes, it is better to assign the sectors and tracks when formatting an SSD. For different disk sizes, you must use different assignments, for example:

Format Format

drive drive

(

drive

:/u/n:9/t:40 (for 360K disk) :/u/n:18/t:80 (for 1.44M disk)

is the disk label, such as A or B) After formatting, please read the on-screen message carefully. DOS will provide information on total and available disk space, bad sectors, etc. If the disk size does not match your assignment, please check the system settings again, such as the switches and jumpers. If you need a bootable disk, you should do the system transfer by typing:

SYS

drive

34 PCM-4862 User's Manual

(

drive

is the disk label, such as A: or B:)

CHAPTER

Software

Configuration

This chapter details the software configuration information. It shows you how to configure the card to match your application requirements. A WARD System BIOS is covered in Chapter 4.

Sections include:

• LCD display configuration

• Connections for four standard LCDs

• Ethernet interface configuration

Chapter 3 Software Configuration 35

Introduction

The PCM-4862 system BIOS and custom drivers are located in a 128 Kbyte, 32-pin (JEDEC spec.) Flash ROM device, designated U28. A single Flash chip holds the system BIOS, VGA BIOS, and network Boot ROM image. The display can be configured via software. This method minimizes the number of chips and eases configuration. You can change the display BIOS simply by reprogramming the Flash chip.

Utility disk

The PCM-4862 is supplied with a software utility disk. This disk contains the necessary file for setting up the VGA display and Ethernet controller. Directories and files on the disk are as follows:

README.DOC COOKROM.EXE

DISPLA Y (Dir) AWDFLASH.EXE

4862_SYS.BIN 4862_CRT .BIN 4862_TFT.BIN 4862_STN.BIN 4862_ST5.BIN 4862_MON.BIN 4862_EL.BIN CBROM.EXE

COOKROM.EXE

A program that converts application files into binary files (files with a .BIN extension). These are then written into the SSD Flash ROM devices.

RSET8019.EXE

This program enables you to view the current Ethernet configuration, reconfigure the Ethernet interface (medium type, etc.), and execute useful diagnostic functions.

36 PCM-4862 User's Manual

AWDFLASH.EXE

This program allows you to write the VGA BIOS files to the BIOS Flash ROM. The VGA files all come ready formatted for the PCM4862 with .BIN extensions. See README.DOC. These files support various CRT and flat panel displays. They are custom written and can be made available upon request.

4862-SYS.BIN

This binary file contains the system BIOS.

4862-CRT.BIN

Supports CRT only.

4862-TFT.BIN (default)

Supports 640 x 480 18 bit or 24 bit color TFT LCD panel (Sharp LQ9D011, Toshiba LTM10C042).

4862-STN.BIN (1 MB VRAM) Supports 640 x 480 color STN DD 8/16-bit displays (Sharp LM64C142).

4862-ST5.BIN (512 KB VRAM) Supports 640 x 480 color STN DD 8/16-bit displays (Sharp LM64C142).

NO T E: This BIOS does not support simultaneous CRT

and flat panel display with 512 KB VRAM

4862-MON.BIN

Supports 640 x 480 dual scan monochrome displays (Sharp LM64P8X/837).

4862-EL.BIN

Supports 640 x 480 EL displays (PLANAR EL640480 - A Series).

CBROM.EXE

This program allows you to combine your own VGA BIOS with system BIOS (4862_SYS.BIN).

Chapter 3 Software Configuration 37

VGA display software configuration

The PCM-4862’s on-board VGA interface supports a wide range of popular LCD, EL, gas plasma flat panel displays and traditional analog CRT monitors. The interface can drive CRT displays with resolutions up to 1024 x 768 in 256 colors. It is also capable of driving color panel displays with resolutions of 640 x 480 in 64K colors. The VGA interface is configured completely via the software utility , so you don’t have to set any jumpers. Configure the VGA display as follows:

1. Apply power to the PCM-4862 with a color TFT display attached. This is the default setting for the PCM-4862. Ensure that the AWDFLASH.EXE and *.BIN files are located in the working drive.

NOTE: Ensure that you do not run A WDFLASH.EXE

while your system is operating in EMM386 mode.

2. At the prompt, type AWDFLASH.EXE and press <Enter>. The VGA configuration program will then display the following:

38 PCM-4862 User's Manual

VGA Setup screen

3. At the prompt, type in the BIN file which supports your display. When you are sure that you have entered the file name correctly press <Enter>. The screen will ask “Do you want to save?” If you wish to continue press Y. If you change your mind or have made a mistake press N to abort and end the setup procedure.

4. If you decide to continue, the program will create a BIOS.OLD file which contains the existing BIOS configuration. The prompt will then ask “Are you sure you want to save new configuration?” Press Y if you want the new file to be written into the BIOS. Press N to exit the program.

The new VGA configuration will then write to the ROM BIOS chip. This configuration will remain the same until you run the A WDFLASH.EXE program and change the settings.

Chapter 3 Software Configuration 39

Connections for four standard LCDs

Connections to Sharp LM64183P

(640 x 480 DSTN MONO LCD)

LM64P83 PCM-4862 CN2

Pin Pin name Pin Pin name

CN1-1 S 36 FLM CN1-2 CP1 38 LP CN1-3 CP2 35 SHFCLK CN1-4 DISP 5 +5 V CN1-5 VDD 6 +5 V CN1-6 VSS 3 GND CN1-7 VEE - -17 V (external power) CN1-8 DU0 12 P3 CN1-9 DU1 11 P2 CN1-10 DU2 10 P 1 CN1-11 DU3 9 P 0 CN1-12 DL0 16 P7 CN1-13 DL1 15 P6 CN1-14 DL2 14 P5 CN1-15 DL3 13 P4

40 PCM-4862 User's Manual

Connections to PLANAR EL

(640 x 480 AD4 EL)

PLANAR 640 x 480 AD4 PCM-4862 CN2

Pin Pin name Pin Pin name

1 GND 3 GND 2 DO 21 P12 3 GND 3 GND 4 D1 22 P13 5 GND 3 GND 6 D2 23 P14 7NC —— 8 D3 24 P15 9NC —— 10 D4 17 P8 11 NC — — 12 D5 18 P9 13 NC — — 14 D6 19 P10 15 GND 4 GND 16 D7 20 P11 17 GND 4 GND 18 VCLK 42 ASHFCLK 19 GND 4 GND 20 /BLANK — — 21 GND 8 GND 22 HS 37 M 23 NC — — 24 VS 36 FLM 25 NC — — 26 SELFTST 39 GND 27 COLMAP 39 GND 28 ENABLE — — 29 RESERVED — — 30 /LOWPOW — — 31,32 NC — — 33 RESERVED — — 34 NC — —

Chapter 3 Software Configuration 41

Connections to Toshiba LTM09C016

(640 x 480 TFT Color LCD)

LTM09C016 PCM-4862 CN2

Pin Pin name Pin Pin name

CN1-1 NCLK 35 SHFCLK CN1-2 GND 3 GND CN1-3 R0 22 P13 CN1-4 GND 3 GND CN1-5 R1 23 P14 CN1-6 GND 4 GND CN1-7 R2 24 P15 CN1-8 GND 4 GND CN1-9 G0 17 P8 CN1-10 GND 8 GND CN1-11 G1 18 P9 CN1-12 GND 8 GND CN1-13 G2 19 P10 CN1-14 GMD 33 GND CN1-15 NC — —

CN2-1 B0 11 P 2 CN2-2 GND 33 GND CN2-3 B1 12 P 3 CN2-4 GND 34 GND CN2-5 B2 13 P 4 CN2-6 GND 34 GND CN2-7 ENAB 37 M CN2-8 GND 39 GND CN2-9 VDD 5 +5 V CN2-10 VDD 6 +5 V

42 PCM-4862 User's Manual

Connections to Sharp LM64C142

(640 x 480 DSTN Color LCD)

LM64C142 PCM-4862 CN2

Pin Pin name Pin Pin name

CN1-1 YD 36 FLM CN1-2 LP 38 L P CN1-3 XCX 35 SHFCLK CN1-4 DISP 5 +5 V CN1-5 VDD 6 +5 V CN1-6 VSS 3 GND CN1-7 VEE - +27 V (external power) CN1-8 DU0 20 P11 CN1-9 DU1 19 P10 CN1-10 DU2 18 P 9 CN1-11 DU3 17 P 8 CN1-12 DU4 12 P 3 CN1-13 DU5 11 P 2 CN1-14 DU6 10 P 1 CN1-15 DU7 9 P 0

CN2-1 VSS 4 GND CN2-2 DL0 24 P15 CN2-3 DL1 23 P14 CN2-4 DL2 22 P13 CN2-5 DL3 21 P12 CN2-6 DL4 16 P7 CN2-7 DL5 15 P6 CN2-8 DL6 14 P5 CN2-9 DL7 13 P4 CN2-10 VSS 8 GND

Chapter 3 Software Configuration 43

Ethernet software configuration

The PCM-4862’s on-board Ethernet interface supports all major network operating systems. I/O addresses and interrupts are easily configured via the RSET8019.EXE program (either by jumperless mode or PNP mode). To execute the configuration, to view the current configuration, or to run diagnostics, do the following:

1. Power the PCM-4862 on. Ensure that the RSET8019.EXE file is located in the working drive.

2. At the prompt type RSET8019.EXE and press <Enter>. The Ethernet configuration program will then be displayed.

3. This simple screen shows all the available options for the Ethernet interface. Just highlight the option you wish to change by using the Up and Down keys. To change a selected item, press <Enter>, and a screen will appear with the available options. Highlight your option and press <Enter>. Each highlighted option has a helpful message guide displayed at the bottom of the screen for additional information.

4. After you have made your selections and your are sure that this is the configuration you want, press ESC. A prompt will appear asking if you want to save the configuration. Press Y if you want to save.

The Ethernet Setup Menu also offers three very useful diagnostic functions. These are:

1. Run EEPROM test

2. Run Diagnostics on Board

3. Run Diagnostics on Network

Each option has its own display screen which shows the format and result of any diagnostic tests undertaken.

44 PCM-4862 User's Manual

CHAPTER

Award BIOS Setup

This chapter describes how to set BIOS configuration data.

Chapter 4 Award BIOS Setup 45

System test and initialization

These routines test and initialize board hardware. If the routines encounter an error in during the tests, you will either hear a few short beeps or see an error message on the screen. There are two kinds of errors: fatal and non-fatal. The system can usually continue the boot up sequence with non-fatal errors. Non-fatal error messages usually appear on the screen along with the following instructions:

press <F1> to RESUME

Write down the message and press the F1 key to continue the bootup sequence.

System configuration verification

These routines check the current system configuration against the values stored in the card’s CMOS memory. If they don’t match, the program outputs an error message. You will then need to run the BIOS setup program to set the configuration information in memory.

There are three situations in which you will need to change the CMOS settings:

1. You are starting your system for the first time

2. You have changed the hardware attached to your system

3. The CMOS memory has lost power and the configuration information has been erased.

The PCM-4862’s CMOS memory has an integral lithium battery backup. The battery backup should last ten years in normal service, but when it finally runs down, you will need to replace the complete unit.

46 PCM-4862 User's Manual

AWARD BIOS setup

R O M I S A B I O S ( 2 C 4 L 6 A K A )

C M O S S E T U P U T I L I T Y

A W A R D S O F T W A R E , I N C .

STANDARD CMOS SETUP PASSWORD SETTING BIOS FEATURES SETUP IDE HDD AUTO DETECTION CHIPSET FEATURES SETUP SAVE & EXIT SETUP POWER MANAGEMENT SETUP EXIT WITHOUT SAVING LOAD BIOS DEFAULTS

ESC: QUIT ßàáâ: SELECT ITEM

F10: Save & Exit Setup (Shift)F2: Change Color

Time, Date, Hard Disk Type....

Setup program initial screen

A ward’s BIOS ROM has a built-in Setup program that allows users to modify the basic system configuration. This type of information is stored in battery-backed CMOS RAM so that it retains the Setup information when the power is turned off.

Entering setup

Power on the computer and press <Del> immediately. This will allow you to enter Setup.

Chapter 4 Award BIOS Setup 47

Standard CMOS setup

When you choose the ST ANDARD CMOS SETUP option from the INITIAL SETUP SCREEN menu, the screen shown below is displayed. This standard Setup Menu allows users to configure system components such as date, time, hard disk drive, floppy drive, display, and memory. Once a field is highlighted, on-line help information is displayed in the left bottom of the Menu screen.

R O M I S A B I O S ( 2 C 4 L 6 A K A )

S T A N D A R D C M O S S E T U P

A W A R D S O F T W A R E , I N C .

Date (mm:dd:yy) : Wed, Jan 17 1996 Time (hh:mm:ss) : 12 : 19 : 58

HARD DISKS TYPE SIZE CYLS. HEADS PRECOMP LANDZONE SECTORS MODE

Primary Master none 0 0 0 0 0 0 NORMAL Primary Slave none 0 0 0 0 0 0 N/A Secondary Ma. none 0 0 0 0 0 0 N/A Secondary Sl. none 0 0 0 0 0 0 N/A

Drive A : None Drive B : None

Video : EGA/VGA Halt On : All Errors

ESC : Quit ßàáâ : Select Item PU / PD / + / - : Modify F1 : Help (Shift)F2 : Change Color

Base Memory : 640K

Extended Memory : 3072K

Other Memory : 384K

Total Memory : 4096K

48 PCM-4862 User's Manual

CMOS setup screen

BIOS features setup

By choosing the BIOS FEATURES SETUP option from the INITIAL SETUP SCREEN menu, the screen below is displayed. This sample screen contains the manufacturer’s default values for the PCM-4862.

R O M I S A B I O S ( 2 C 4 L 6 A K A )

B I O S F E A T U R E S S E T U P

A W A R D S O F T W A R E , I N C .

Virus Warning : Enabled Video BIOS Shadow : Enabled CPU Internal Cache : Enabled C8000-CBFFF Shadow : Disabled External Cache : Enabled CC000-CFFFF Shadow : Disabled Quick Power On Self Test : Disabled D0000-D3FFF Shadow : Disabled Boot Sequence : A,C D4000-D7FFF Shadow : Disabled Swap Floppy Drive : Disabled D8000-DBFFF Shadow : Disabled Boot Up Floppy Seek : Enabled DC000-DFFFF Shadow : Disabled Boot Up NumLock Status : On Boot Up System Speed : High IDE HDD Block Mode : Disabled Gate A20 Option : Normal Memory Parity Check : Enabled Typematic Rate Setting : Disabled Typematic Rate (Chars/Sec) : 6 Typematic Delay (Msec) : 250 Security Option : Setup

Esc : Quit ßàáâ: Select Item F1 : Help PU / PD / + / - : Modify F5 : Old Values (Shift)F2 : Color F6 : Load BIOS Defaults

BIOS features setup

Chapter 4 Award BIOS Setup 49

CHIPSET features setup

By choosing the CHIPSET FEATURES SETUP option from the INITIAL SETUP SCREEN menu, the screen below is displayed. This sample screen contains the manufacturer’s default values for the PCM-4862.

R O M I S A B I O S ( 2 C 4 L 6 A K A )

C M O S S E T U P U T I L I T Y

C H I P S E T F E A T U R E S S E T U P

Auto Configuration : Enabled Decoupled Refresh : Disabled Relocate 256K/384K : Disabled Video BIOS Cacheable : Enabled System BIOS Cacheable : Enabled

External Cache Scheme : Write Back Combine Alter & Tag Bits : Disabled CHRDY for ISA Master : Enabled Memory Hole At 15 MB Addr. : Disabled Cache Timing Control : Fast DRAM Timing Control : Normal Fast DRAM : Disabled Burst Write : Disabled CPU Write Back Cache : Disabled Set Turbo Pin Function : Suspend Set Mouse Lock : Disabled

CHIPSET features setup

On-Board Local-Bus IDE : Enabled IDEPrimary Master PIO : Auto IDE Primary Slave PIO : Auto

On-Board FDC Controller : Enabled On-Board Serial Port 1 : COM1 On-Board Serial Port 2 : COM2 COM3 & COM4 Address : 3E8H,2E8H On-Board Parallel Port : 278H Parallel Extended Mode : Standard

Solid State Disk : Disabled

Esc :Quit ßàáâ: Select Item F1 :Help PU/PD/+/- : Modify F5 : Old Values (Shift)F2 : Color F6 :Load BIOS Defaults

50 PCM-4862 User's Manual

Power management setup

By choosing the POWER MANAGEMENT SETUP option from the INITIAL SETUP SCREEN menu, the screen below is displayed. This sample screen contains the manufacturer’s default values for the PCM-4862.

R O M I S A B I O S ( 2 C 4 L 6 A K A )

C M O S S E T U P U T I L I T Y

P O W E R M A N A G E M E N T S E T U P

Power Management : Disabled Doze Mode : 8 sec

Sleep Timer : 2 min Sleep Mode : Suspend HDD Power Management : 1 min VGA Activity Wakeup : Disabled

IO Activity : Disabled

Power management setup

IRQ3 Activity : Primary IRQ4 Activity : Primary IRQ5 Activity : Primary IRQ7 Activity : Primary IRQ8 Activity : Secondary IRQ10 Activity : Primary IRQ11 Activity : Primary IRQ12 Activity : Primary

Esc : Quit ßàáâ : Select Item

F1 : Help PU/PD/+/- : Modify F5 : Old Values (Shift)F2 : Color F6 : Load BIOS Defaults

Chapter 4 Award BIOS Setup 51

Load BIOS defaults

LOAD BIOS DEF AULTS loads the default system values directly from ROM. If the stored record created by the Setup program becomes corrupted (and therefore unusable), these defaults will load automatically when you turn the PCM-4862 on.

R O M I S A B I O S ( 2 C 4 L 6 A K A )

C M O S S E T U P U T I L I T Y

A W A R D S O F T W A R E , I N C .

STANDARD CMOS SETUP PASSWORD SETTING BIOS FEATURES SETUP IDE HDD AUTO DETECTION CHIPSET FEATURES SETUP SAVE & EXIT SETUP POWER MANAGEMENT SETUP EXIT WITHOUT SAVING LOAD BIOS DEFAULTS

Load BIOS Defaults (Y/N)? Y

ESC: QUIT ßàáâ:SELECT ITEM

F10:Save & Exit Setup (Shift)F2:Change Color

Load BIOS defaults except standard CMOS SETUP

52 PCM-4862 User's Manual

Load BIOS defaults screen

Change password

T o change the password, choose the PASSWORD SETTING option form the Setup main menu and press <Enter>.

1. If the CMOS is bad or this option has never been used, there is default password which is stored in the ROM. The screen will display the following messages:

Enter Password:

Press <Enter>.

2. If the CMOS is good or this option has been used to change the default password, the user is asked for the password stored in the CMOS. The screen will display thefollowing message:

Confirm Password:

Enter the current password and press <Enter>.

3. After pressing <Enter> (ROM password) or the current password (user-defined), you can change the password stored in the CMOS. The password can be at most 8 characters long.

Remember - to enable this feature, you must first select either Setup or System in the BIOS FEATURES SETUP.

Chapter 4 Award BIOS Setup 53

Auto detect hard disk

The IDE HDD AUTO DETECTION utility can automatically detect the IDE hard disk installed in your system. You can use it to self-detect and/or correct the hard disk type configuration.

R O M I S A B I O S ( 2 C 4 L 6 A K A )

C M O S S E T U P U T I L I T Y

A W A R D S O F T W A R E , I N C .

HARD DISK TYPE SIZE CYLS. HEADS PRECOMP LANDZ SECTORS MODE

Drive C : (MB) 790 15 65535 789 57

Select Secondry Slave Option (N=Skip) : N

ESC = SKIP

IDE HDD auto detection screen

Save & exit setup

If you select this option and press <Enter>, the values entered in the setup utilities will be recorded in the chipset's CMOS memory. The microprocessor will check this every time you turn your system on and compare this to what it finds as it checks the system. This record is required for the system to operate.

Exit without saving

Selecting this option and pressing <Enter> lets you exit the Setup program without recording any new values or changing old ones.

54 PCM-4862 User's Manual

CHAPTER

SVGA Setup

The PCM-4862 features an on-board flat panel/VGA interface. This chapter provides instructions for installing and operating the software drivers on the included display driver diskette.

Chapter 5 SVGA Setup 55

Simultaneous display mode

The 65545 VGA BIOS supports monochrome LCD, EL, color TFT and STN LCD flat panel displays. It also supports interlaced and non-interlaced analog monitors (VGA color and VGA monochrome) in high-resolution modes while maintaining complete IBM VGA compatibility. Digital monitors (i.e. MDA, CGA, and EGA) are NOT supported. Multiple frequency (multisync) monitors are supported as analog monitors.

Both CRT and panel displays can be used simultaneously. The PCM-4862 can be set in one of three configurations: on a CRT, on a flat panel display, or on both simultaneously. The system is initially set to simultaneous display mode. In the utility diskette, there are three .COM files which can be used to select the display. Simply type the filename at the DOS prompt:

CT.COM Enables CRT display only FP .COM Enables panel display only SM.COM Enables both displays at the same time.

Sleep mode

The display driver diskette contains two files that support sleep mode. Simply type the filename at the DOS prompt:

ON.COM switches to normal display mode. OFF.COM switches to sleep mode.

56 PCM-4862 User's Manual

Software support

The drivers support the following applications using the filenames and resolutions listed:

Application Filename Resolution Colors Windows 3.1 LINEAR4.DR V 640x480 16

800x600 16 1024x768 16

LINEAR8.DR V 640x480 256

800x600 256

1024x768 256 LINEAR16.DR V 640x480 64K LINEAR24.DR V 640x480 16M

AutoCAD R12 RCTURBOC.EXP 640x480 16

800x600 16

1024x768 16

640x480 256

800x600 256

1024x768 256

640x480 32K

640x480 64K

640x480 16M

Lotus 1-2-3 2.0 and Lotus Symphony 1.0,1.1

V132X25.DR V 132x25 (Text) 16 V132X50.DR V 132x50 (Text) 16

VESA 1.2 VESA.COM 800x600 16

1024x768 16

640x400 256

640x480 256

800x600 256

1024x768 256

640x480 32K

640x480 64K

Chapter 5 SVGA Setup 57

Word 5.0 VGA600.VID 800x600 16

VGA768.VID 1024x768 16

Word 5.5 VGA55600.VID 800x600 16

VGA55768.VID 1024x768 16

W ordPerfect 5.0 CHIPS600.WPD 800x600 16

CHIPS768.WPD 1024x768 16

W ordPerfect 5.1 VGA600.VRS 800x600 16

VGA768.VRS 1024x768 16

Driver installation

Necessary prerequisites

The instructions in this manual assume that you understand elementary concepts of MS-DOS and the IBM Personal Computer. Before you attempt to install any driver or utility you should: know how to copy files from a floppy disk to a directory on the hard disk, understand the MS-DOS directory structure, and know how to format a floppy disk. If you are uncertain about any of these concepts, please refer to the DOS or Windows user reference guides for more information before you proceed with the installation.

Before you begin

Before you begin installing software drivers, you should make a backup copy of the display driver diskette and store the original in a safe place. The display driver diskette contains drivers for several versions of certain applications. You must install the correct version in order for the driver to work properly so make sure you know which version of the application you have.

58 PCM-4862 User's Manual

Windows setup

These drivers are designed to work with Microsoft Windows 3.1. You may install these drivers through Windows or in DOS.

Step 1: Install Windows as you normally would for a VGA display. Run Windows to make sure that it is working correctly.

Step 2: Place the display driver diskette in drive A. In Windows Program Manager, choose File from the Options Menu. Then from

the pull-down menu, choose Run . . . . At the command line

prompt, type A:\WINSETUP. Press the <ENTER> key or click OK to begin the installation. At this point the setup program locates the directory where Windows is installed. For proper operation, the drivers must be installed in the Windows subdirectory. Press <ENTER> to complete the installation. Once completed, the Display Driver Control Panel appears on the screen. This Control Panel allows you to select and load the installed drivers.

Another method of installing these drivers is through the File Manager. Click on Drive A:. Then double-click on WINSETUP.EXE to begin installation.

Changing Display Drivers in Windows

T o change display drivers in W indows, select the W indows Setup icon from the Main window. You will be shown the current setup configuration. Select Change System Settings from the Option menu. Click on the arrow at the end of the Display line. You will be shown a list of display drivers. Click on the driver you want. Then click on the OK button. Follow the directions to complete the setup.

Changing Color Schemes

After you change display drivers, you may notice that the color scheme used by Windows looks strange. This is because different drivers have different default colors. To change the color scheme, select the Control Panel from the Main window. Select the Color icon. You will be shown the current color scheme. Choose a new color scheme and click the OK button.

Chapter 5 SVGA Setup 59

DOS Setup

Step 1: Install Windows as you normally would for a VGA display. Run Windows to make sure that it is working correctly. Then exit Windows.

Step 2: Place the display driver diskette in drive A. T ype A: <ENTER> to make this the default drive. T ype SETUP <ENTER> to run the driver SETUP program. Press any key to get to the applications list. Using the arrow keys, select Windows Version 3.1 and press the <ENTER> key. Press the <ENTER> key to select All Resolutions, and then press <END> to begin the installation. At this point you will be asked for the path to your Windows System directory (default C:\WINDOWS). When the installation is complete, press any key to continue. Press <ESC> followed by Y to exit to DOS.

Step 3: Change to the directory where you installed Windows (usually C:\WINDOWS).

Step 4: T ype SETUP <ENTER> to run the W indows Setup program. It will show the current Windows configuration. Use the up arrow key to move to the Display line and press <ENTER>. A list of display drivers will be shown. Use the arrow keys to select one of the drivers starting with an asterisk (*) and press <ENTER>.

Step 5: Follow the directions on the screen to complete the setup. In most cases, you may press <ENTER> to accept the suggested option. When Setup is done, it will return to DOS. T ype WIN <ENTER> to start Windows with the new display driver.

Changing Display Drivers in DOS

T o change display drivers from DOS, change to the Windows directory and run Setup, repeating steps 4 and 5 from the previous page. Besides the special display drivers marked by an asterisk (*), you should be able to use the following standard drivers:

VGA 640x480, 16 colors Super VGA 800x600, 16 colors

60 PCM-4862 User's Manual

Panning Drivers

Special panning drivers are provided to allow high-resolution modes to be displayed on a flat panel or CRT. These drivers will show a section of a larger screen and will automatically pan, or scroll, the screen horizontally and vertically when the mouse reaches the edge of the display.

Linear Acceleration Drivers

A special high-performance linear acceleration driver is provided for 256-color modes. This driver may require special hardware and may not be supported on all systems. It is only available for Windows3.1.

Chapter 5 SVGA Setup 61

AutoCAD R12

These drivers are designed to work with Autodesk AutoCAD R12. They conform to the Autodesk Device Interface (ADI) for Rendering drivers and Display drivers. These display list drivers accelerate redraw, pan, and zoom functions.

Driver installation

Step 1: Place the display driver diskette in drive A. T ype A: <ENTER> to make this the default drive. T ype SETUP <ENTER> to run the SETUP program. Press any key to get to the applications list. Using the arrow keys, select AutoCAD Release 12 and press <ENTER>. This will display a list of supported driver resolutions. Using the arrow keys and the <ENTER> key , select the resolutions that are appropriate for your monitor. When all of the desired resolutions have been selected, press <END> to begin the installation. At this point you will be asked for a drive and directory to copy the driver files. Enter the drive and directory that contains the installed AutoCAD R12. If the destination directory does not exist you will be asked for confirmation. When the installation is complete, press any key to continue. Press <ESC> followed by Y to exit to DOS.

Step 2: Go to the AutoCAD directory where the new drivers were installed and run the driver installation program by typing ACAD12 -r <ENTER>. This program will configure your AutoCAD R12 to use the new display drivers. Select TurboDLD Classic.

Configuring TurboDLD

Select Configure Video Display. In Display Device Configuration choose Select Graphics Board/Resolution. Then choose Select

Display Graphics Board. After choosing a graphics board, go to Select Display Resolution. After selecting the display resolution,

save the new configuration, and return to the main menu.

62 PCM-4862 User's Manual

Basic Configuration Menu

This menu allows you to modify: Number of AutoCAD Command Lines Font Size 6x8/8x8/8x14/8x16/12x20/12x24 Dual Screen Enable/Disable User Interface Configuration Double Click Interval Time BP Button BP Highlight Patt Line/Xor Rect/Both BP Refresh Enable/Disable BP Cache Enable/Disable

Expert Configuration Menu

This menu allows you to modify: Display List Enable/Disable Drawing Cache Enable/Disable Use Acad 31 bit space? Yes/No Internal Command Echo Enable/Disable BP Zoom Mode Freeze/Float Regen Mode Incremental/Fast If your previously installed driver is not TurboDLD, you will have

to reconfigure the RENDER command the first time you use it.

Chapter 5 SVGA Setup 63

Lotus 1-2-3 and Lotus Symphony

These drivers are designed to work with Lotus 1-2-3 versions 2.0,

2.01 and 2.2, and with Lotus Symphony versions 1.0 and 1.1.

Driver installation

Step 1: Place the display driver diskette into drive A. Make A the default drive by typing A: <ENTER>. Run the SETUP program by typing SETUP <ENTER>. Press any key to display a list of supported applications. Use the arrow keys to select Lotus/ Symphony, and press <ENTER>. A list of supported screen resolutions will be displayed. Use the arrow keys to select the desired screen resolution and press <ENTER>. (Make sure your monitor is able to display the resolution desired) Press <END> to begin the driver installation process. A default drive and directory path will be displayed. Use the backspace key to erase this default and type in the 123 directory. At this point you may be asked to create the target directory if it does not already exist. After the files have been installed, press any key to return to the list of supported applications. Press <ESC> followed by Y to exit to DOS. Copy all the files that were just created in the temporary directory onto a formatted floppy diskette.

Step 2: Go to your 123 directory, and start the installation program. T ype the following commands:

C: <ENTER> INST ALL <ENTER>

Step 3: The Lotus installation program will load and present the

installation menu. From this menu, select Advanced Options. From the Advanced Options menu, select Add New Drivers T o Library. From the Add New Drivers Menu, select Modify Current Driver Set. From the Modify Driver Set Menu, select T ext Display. From the T ext Display menu, select one of drivers.

Step 4: After the selection of the appropriate VGA display driver, you will need to exit this menu and return to the Main Lotus Installation Menu. Do this by selecting Return To Menu.

Step 5: At the Main Lotus Installation Menu, select Save Changes.

64 PCM-4862 User's Manual

Step 6: At this point the Installation Menu will prompt you for the name of your new Lotus configuration file. The Lotus system will prompt you with the default value — 123.SET , but you may want to use a filename that indicates the resolution of its driver. For example, if you installed the 132 column by 25 line driver, you could name this driver 132X25.SET, or if you installed the 80 by 50 driver, you may want to call the file 80X50.SET.

Step 7: The installation of your Lotus 1-2-3 driver is now complete. You will need to exit the Lotus installation program at this point. At the main Lotus Installation Menu, select Exit.

NOTE: If your driver set is not 123.SET, you have to type the filename of your driver set in the command line when you start Lotus 1-2-3. For example, if you named your driver set 132X25.SET, type the following to start Lotus 1-2-3:

123 132X25.SET <ENTER>

Chapter 5 SVGA Setup 65

VESA

The Video Electronics Standards Association (VESA) has created a standard for a Super VGA BIOS Extension (VBE). This defines a standard software interface to allow application programs to set and control extended video modes, such as 800x600 graphics, on video adapters from different manufacturers.

The VESA driver adds this Super VGA BIOS Extension to the VGA BIOS. Any application program which supports the VESA standard driver interface can be used with this driver. This VESA driver conforms to the VESA Super VGA Standard #VS891001.

Driver installation

Step 1: Place the display driver diskette into drive A. Make A the default drive by typing A: <ENTER>. Run the SETUP program by typing SETUP <ENTER>. Press any key to display a list of supported applications. Use the arrow keys to select VESA Driver Version 1.2 and press <ENTER>. Press the <ENTER> key to select All Resolutions, and press <END> to begin the installation. A default drive and directory path will be displayed. Use the backspace key to erase this and type in a directory that is in the directory path (such as C:\BIN or C:\UTILS). After the files have been installed, press any key to return to the list of supported applications. Press <ESC> followed by Y to exit to DOS.

Step 2: T o install the VESA driver , type either VESA <ENTER> or VESA + <ENTER> at the DOS prompt. The optional + command line parameter enables all of the available modes. Make sure that your monitor is capable of displaying these high resolution modes before enabling them.

NOTE: If the video BIOS already supports VBE extended video modes, DO NOT use this driver. Run the VTEST.EXE program to see if the video BIOS supports the VBE modes.

66 PCM-4862 User's Manual

Word

These drivers are designed to work with Microsoft W ord 5.0 and

5.5.

Driver installation

If you have already installed W ord on your computer, go to Step 2 to install the new video driver.

Step 1: Install W ord as normal. Step 2: After you complete the Word installation, place the display

driver diskette into drive A. Make A the default drive by typing A: <ENTER>. Run the SETUP program by typing SETUP <EN- TER>. Press any key to display a list of supported applications. Use the arrow keys to select Word and press <ENTER>. Use the arrow keys to select the desired screen resolution and press <ENTER> (make sure your monitor is able to display the resolution desired). Press <END> to begin the driver installation process. A default drive and directory path will be displayed. Use the backspace key to erase this and type in your Word directory. After the files have been installed, press any key to return to the list of supported applications. Press <ESC> followed by Y to exit to DOS.

Step 3: Copy the driver file for the desired resolution that was just installed to SCREEN.VID.

Chapter 5 SVGA Setup 67

WordPerfect

These drivers are designed to work with WordPerfect 5.0 or 5.1. They support 132-column display in editing mode, and highresolution graphics display in PreView mode.

Driver installation

Step 1: Place the display driver diskette into drive A. Make A the default drive by typing A: <ENTER>. Run the SETUP program by typing SETUP <ENTER>. Press any key to display a list of supported applications. Use the arrow keys to select W ordPerfect and press <ENTER>. A list of supported screen resolutions will be displayed. Use the arrow keys to select the desired screen resolution and press <ENTER> (make sure your monitor is able to display the resolution desired). Press <END> to begin the driver installation process. A default drive and directory path will be displayed. Use the backspace key to erase this default and type in the W ordPerfect directory. At this point you may be asked to create the target directory if it does not already exist. After the files have been installed, press any key to return to the list of supported applications. Press <ESC> followed by Y to exit to DOS.

Step 2: Start W ordPerfect, and press <SHIFT>+<F1> to enter the setup menu. Select D for Display and G for Graphics Screen T ype, and then choose the desired Chips VGA resolution.

68 PCM-4862 User's Manual

Configuring WordPerfect 5.0 for 132 columns

Follow these instructions to configure WordPerfect 5.0 for 132 column text mode:

Step 1: To use the SETCOL program to set 132 columns and 25 rows, type the following command:

SETCOL 132, 25 <ENTER>

Step 2: Start W ordPerfect. The program will detect the number of

rows and columns automatically . If for some reason WordPerfect is unable to adapt to 132 columns by 25 rows, start W ordPerfect with the following command:

WP /SS=25,132 <ENTER>

Configuring WordPerfect 5.1 for 132 columns

Start W ordPerfect and press <SHIFT>+<F1> to enter the setup menu. Select D for Display and T for Text Screen Type and then select Chips 132 Column Text.

Chapter 5 SVGA Setup 69

70 PCM-4862 User's Manual

APPENDIX

Programming the

Watchdog Timer

The PCM-4862 is equipped with a watchdog timer that resets the CPU or generates an interrupt if processing comes to a standstill for whatever reason. This feature ensures system reliability in industrial standalone, or unmanned, environments.

Appendix A Programming the Watchdog Timer 71

Jumpers J23 and J24 control the watchdog settings. The default configuration of the timer is enabled with system reset.

T o enable the watchdog timer, you must write a program which reads I/O port address 443 (hex) at regular intervals. The first time your program reads the port, it enables the watchdog timer. After that, your program must read the port at time interval of less than

1.6 seconds, otherwise the watchdog timer will activate and reset the CPU or generate an interrupt on IRQ15. When you want to disable the watchdog timer, your program should read I/O port 043 (hex).

If CPU processing comes to a standstill because of EMI or a software bug, your program's signals to I/O port address 443 to the timer will be interrupted. The timer will then automatically reset the CPU or invoke an IRQ, and data processing will continue normally.

You must write your program so that it reads I/O port address 443 at an interval shorter than the timer's preset interval. The timer's intervals have a tolerance of ±30%, so you should program an instruction that will refresh the timer about every second.

The following program shows how you might program the watchdog timer in BASIC:

10 REM Watchdog timer example program 20 X=INP (&H443) REM Enable and refresh the watchdog 30 GOSUB 1000 REM Task #1, takes 1 second to complete 40 X=INP (&H443) REM Refresh the watchdog 50 GOSUB 2000 REM Task #2, takes 1 second to complete 60 X=INP (&H043) REM Disable the watchdog 70 END 1000 REM Subroutine #1, takes 1 second to complete

1070 RETURN 2000 REM Subroutine #2, takes 1 second to complete

2090 RETURN

. . .

72 PCM-4862 User's Manual

APPENDIX

Installing PC/104

Modules

This appendix gives instructions for installing PC/104 modules.

Appendix B Installing PC/104 Modules 73

Installing PC/104 modules

The PCM-4862's PC/104 connectors give you the flexibility to attach PC/104 expansion modules. These modules perform the functions of traditional plug-in expansion cards, but save space and valuable slots. Modules include:

• PCM-3290 GPS Module

• PCM-3810 Solid State Disk Module

• PCM-3820 High Density Flash Disk Module

• PCM-3110 PCMCIA Module

• PCM-3111 Secondary PCMCIA Module

• PCM-3610 Isolated RS-232 and RS-422/485 Module

• PCM-3660 Ethernet Module

• PCM-3718 30 KHz A/D Module

• PCM-3724 48-Channel DIO Module

• PCM-3640 4-Port RS-232 Module

• PCM-3680 Dual Port CAN Module Installing these modules on the PCM-4862 is quick and simple.

The following steps show how to mount the PC/104 modules:

1. Remove the PCM-4862 from your system paying particular attention to the safety instructions already mentioned above.

2. Make any jumper or link changes required to the CPU card now. Once the PC/104 module is mounted you may have difficulty in accessing these.

3. Normal PC/104 modules have male connectors and mount directly onto the main card. However, to ensure better bus matching, the connectors on the PCM-4862 and the PC/104 module are both female. For this reason, you may need to use the "male-male" adapter included with the PCM-4862 in order to properly connect your PC/104 module. (Refer to the diagram on the following page.)

4. Mount the PC/104 module onto the CPU card by pressing the module firmly but carefully onto the mounting connectors.

5. Secure the PC/104 module onto the CPU card using the four mounting spacers and srews.

74 PCM-4862 User's Manual

PC/104

Mounting Support

Female Male

PCM-4860

PC/104 Module Mounting Diagram

3.775

3.575

0.200

3.500

0.200

3.250

3.350

PC/104 module dimensions (inches ±5 %)

Appendix B Installing PC/104 Modules 75

PC/104 Module

3.575

0.200

3.550

76 PCM-4862 User's Manual

APPENDIX

Pin Assignments

This appendix contains information of a detailed or specialized nature. It includes:

• CRT display connector

• Flat panel display connector

• PC/104 connector

• Front panel connector

• Main power connector

• 10BASE-2/10BASE-5 AUI connector

• RS-232/422/485 serial port connector

• Keyboard and mouse connector

• 10BASE-T connector

• Peripheral power connector

• IDE connector

• RS-232 serial port connector

• CPU fan power connector

• Floppy drive connector

• Printer/parallel port connector

Appendix C Pin Assignments 77

CRT display connector (CN1)

PCM-4862 CRT display connector

Pin Signal Pin Signal

1 RED 9 SIGNAL GND 2 N/C 10 H-SYNC 3 GREEN 11 CHASSIS GND 4 SIGNAL GND 12 V-SYNC 5 BLUE 13 CHASSIS GND 6 N/C 14 N/C 7 N/C 15 CHASSIS GND 8 N/C 16 N/C

Flat panel display connector (CN2)

PCM-4862 Flat panel display connector

Pin Function Pin Function

1 +12 V 2 +12 V 3 GND 4 GND 5 Vcc 6 Vcc 7 ENAVEE• 8 GND 9P0 10P1 11 P2 12 P3 13 P4 14 P5 15 P6 16 P7 17 P8 18 P9 19 P10 20 P11 21 P12 22 P13 23 P14 24 P15 25 P16 26 P17 27 P18 28 P19 29 P20 30 P21 31 P22 32 P23 33 GND 34 GND 35 SHFCLK 36 FLM 37 M 38 LP 39 GND 40 ENABKL 41 GND 42 ASHFCLK 43 Vcc 44 Vcc

78 PCM-4862 User's Manual

PC/104 connectors (CN3, CN5)

PCM-4862 PC/104 connectors

Pin Signal (CN3) Signal (CN5) Number RowA RowB RowA RowB

0— — 0V 0V 1 IOCHCHK 0V SBHE MEMCS16 2 SD7 RESETDRV LA23 IOCS16 3 S D6 +5V LA22 IRQ10 4 S D5 IRQ9 LA21 IRQ11 5 S D4 -5V LA20 IRQ12 6 S D3 DRQ2 LA19 IRQ15 7 S D2 -12V LA18 IRQ14 8 SD1 ENDXFR LA17 DACK0 9 S D0 +12 MEMR DRQ0 10 IOCHRDY (KEY) MEMW DACK5 11 A EN SMEMW SD8 DRQ5 12 SA19 SMEMR SD9 DACK6 13 SA18 IOW SD10 DRQ6 14 SA17 IOR SD11 DACK7 15 SA16 DACK3 SD12 DRQ7 16 SA15 DRQ3 SD13 +5V 17 SA14 DACK1 SD14 MASTER 18 SA13 DRQ1 SD15 0V 19 SA12 REFRESH (KEY) 0V 20 SA11 SYSCLK — — 21 SA10 IRQ7 — — 22 SA 9 IRQ6 — — 23 SA 8 IRQ5 — — 24 SA 7 IRQ4 — — 25 SA 6 IRQ3 — — 26 SA5 DACK2 — — 27 SA4 TC — — 28 SA3 BALE — — 29 SA2 +5V — — 30 SA1 OSC — — 31 SA0 0V — — 32 0V 0V — —

Appendix C Pin Assignments 79

Front panel connector (CN4)

PCM-4862 Front panel connector

Pin Signal

1 HDD LED- (HARD DISK ACTIVE) 2 HDD LED+ (VCC) 3 SPEAKER+ 4 SPEAKER- (GND) 5 GND 6 WATCHDOG TIMER OUT 7 RESET SWITCH- (GND) 8 RESET SWITCH+

Peripheral power connector (CN6)

PCM-4862 Peripheral power connector

Pin Function

1 GND 2 -5 V 3 GND 4 -12 V

10BASE-2/10BASE-5 AUI connector (CN7)

PCM-4862 Ethernet 10BASE-2/10BASE-5 AUI connector

Pin Signal

1 GND 2 CD3 CD+ 4 Tx5 Tx+ 6 GND 7 GND 8 Rx9 Rx+ 10 +12 V 11 GND 12 GND

80 PCM-4862 User's Manual

PCM-4862 Ethernet 10BASE-2/10BASE-5 AUI connector

Pin Signal

13 N/C 14 N/C 15 N/C 16 +5 V

COM2 RS-232/422/485 serial port (CN8)

PCM-4862 COM2 RS-232/422/485 serial port

Pin Signal

1 DCD 2 DSR 3 RxD 4RTS 5 TxD 6 CTS 7 DTR 8RI 9 GND 10 N/C 11 485 TxD+ 12 485 TxD13 485 RxD+ 14 485 RxD-

Keyboard and mouse connector (CN9)

PCM-4862 Keyboard and mouse connector

Pin Signal

1 GND 2 MS V 3 MS DATA 4 MS CLOCK 5 GND 6 KB V 7 KB DATA 8 KB CLOCK

Appendix C Pin Assignments 81

Ethernet 10BASE-T connector (CN10)

PCM-4862 Ethernet 10BASE-T connector

Pin Signal

2 CRS LED 3 RCV+ 4 RCV5 BNC LED 6 GND 7 N/C 8 GND 9 XMT+ 10 XMT-

Main power connector (CN11)

PCM-4862 Main power connector

Pin Signal

1 +12 V 2 GND 3 GND 4 +5 V

IDE hard drive connector (CN12)

PCM-4862 IDE hard drive connector

Pin Signal Pin Signal

1 IDE RESET 2 GND 3DATA 7 4DATA 8 5DATA 6 6DATA 9 7DATA 5 8DATA 10 9 D ATA 4 1 0 DATA 1 1 11 DATA 3 12 DATA 12 13 DATA 2 14 DATA 13 15 DATA 1 16 DATA 14 17 DATA 0 18 DATA 15 19 SIGNAL GND 20 N/C

82 PCM-4862 User's Manual

PCM-4862 IDE hard drive connector, cont.

Pin Signal Pin Signal

21 N/C 22 GND 23 IO WRITE 24 GND 25 IO READ 26 GND 27 IO CHANNEL READY 28 N/C 29 N/C 30 GND 31 IRQ14 32 IOCS16 33 ADDR 1 34 N/C 35 ADDR 0 36 ADDR 2 37 HARD DISK SELECT 0 38 HARD DISK SELECT 1 39 IDE ACTIVE 40 MGND 41 VCC 42 MVCC 43 GND 44 N/C

COM1 RS-232 serial port (CN13)

PCM-4862 COM1 RS-232 serial port

Pin Signal

1 DCD 2 DSR 3 RxD 4RTS 5 TxD 6 CTS 7 DTR 8RI 9 GND 10 N/C

Fan power connector (CN14)

PCM-4862 Fan power connector

Pin Signal

1 +5 V 2 GND 3 +12 V

Appendix C Pin Assignments 83

Floppy drive connector (CN15)

PCM-4862 Floppy drive connector

Pin Signal Pin Signal

1 GND 2 DENSITY SELECT 3 GND 4 N/C 5 GND 6 DRIVE TYPE 7 GND 8 INDEX 9 GND 10 MOTOR 0 11 GND 12 DRIVE SELECT 1 13 GND 14 DRIVE SELECT 2 15 GND 16 MOTOR 1 17 GND 18 DIRECTION 19 GND 20 STEP 21 GND 22 WRITE DATA 23 GND 24 WRITE GATE 25 GND 26 TRACK 0 27 GND 28 WRITE PROTECT 29 GND 30 READ DATA 31 GND 32 HEAD SELECT 33 GND 34 DISK CHANGE

84 PCM-4862 User's Manual

Parallel port connector (CN16)

PCM-4862 Parallel port connector

Pin Signal

1 \STROBE 2 \AUTOFD 3D0 4 ERR 5D1 6 \INIT 7D2 8 \SLCTINI 9D3 10 GND 11 D4 12 GND 13 D5 14 GND 15 D6 16 GND 17 D7 18 GND 19 \ACK 20 GND 21 BUSY 22 GND 23 PE 24 GND 25 SLCT 26 N/C

Appendix C Pin Assignments 85

86 PCM-4862 User's Manual

Optional Extras

APPENDIX

Appendix D Optional Extras 87

PCM-10586-1 Cable kit for PCM-4862/5860

The PCM-4862 requires several cables for normal operation. You can make them yourself or purchase an optional cable kit assembly which includes the following:

Part No. Cable description PCM-5860 connector Termination connector

1701440350 2.5" and 1.8" IDE CN12

1701440500 3.5" IDE (40P) CN12

1701340700

1701100300

1701140200

1709612600 Parallel port CN16 25-pin female DSUB

1701100200 Network 10BASE-T CN10 RJ-45 8-pin modular jack

1701150150 VGA CRT CN1 15-pin DSUB

1700060200

1703040301

1701440300 LCD cable CN2 44-pin, 2 mm, 300 mm

1701080300 Front panel CN4 8-conductor pigtail

Dual floppy, 3.5" and

5.25" (34P)

Primary serial (COM1)

RS-232

Secondary serial (COM2)

RS-232/422/485

Keyboard and

PS/2 mouse

Peripheral power

(-5 V, -12 V)

CN15 34-pin dual floppy

CN13 9-pin male DSUB

CN8 9-pin male DSUB * 2

CN9

CN6 4-conductor type

44-pin, 2 mm, female IDC

(350 mm)

40-pin, 2.54 mm, female

IDC (500 mm)

5-pin circular DIN

6-pin circular DIN

PCM-20486-1 Boot ROM binary files for

PCM-4860/4862

Boot ROM binary files required for network remote boot-up are available. Please contact your sales rep for detailed information.

88 PCM-4862 User's Manual

Advantech PCM-4862 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
