Advantech PCM-4823 User Manual

PCM-4823/4823L

486-Based Single Board
Computer with SVGA/LCD
and Ethernet Interface

Copyright Notice

This document is copyrighted, 1999. All rights are reserved. The
original manufacturer reserves the right to make improvements to
the products described in this manual at any time without notice.

No part of this manual may be reproduced, copied, translated or
transmitted in any form or by any means without the prior written
permission of the original manufacturer. Information provided in
this manual is intended to be accurate and reliable. However, the
original manufacturer assumes no responsibility for its use, nor for
any infringements upon the rights of third parties which may result
from its use.

Acknowledgements

VIA is a trademark of VIA T echnology, Inc.
AMD is a trademark of Advanced Micro Devices, Inc.
A ward is a trademark of A ward Software International, Inc.
Cyrix is a trademark of Cyrix Corporation.
IBM, PC/A T , PS/2 and VGA are trademarks of International
Business Machines Corporation.
Intel and Pentium are trademarks of Intel Corporation.
Microsoft Windows® is a registered trademark of Microsoft Corp.
SMC is a trademark of Standard Microsystems Corporation.
RTL is a trademark of Realtek Semi-Conductor Co., Ltd.
C&T is a trademark of Chips and T echnologies, Inc.
UMC is a trademark of United Microelectronics Corporation.

For more information on this and other Advantech products please
visit our website at:http://www.advantech.com

http://www.advantech.com/epc

For technical support and service for please visit our support
website at: http://support.advantech.com

This manual is for the PCM-4823 Rev. B101 or higher
Part No. 2006482301 2nd Edition

Printed in Taiwan Jan. 1999

Packing list

Before you begin installing your card, please make sure that the
following materials have been shipped:

• 1 PCM-4823/4823L All-in-One Single Board Computer

• 1 utility disk with system BIOS, VGA BIOS utility programs

• 3 SVGA driver disks (PCM-4823 only)

• 1 Ethernet driver disk

• 1 3.5" IDE flat cable

• 1 keyboard/mouse cable

• 1 secondary serial port cable (RS-232/422/485)

• 1 parallel cable

• 1 floppy cable
If any of these items are missing or damaged, contact your distribu-

tor or sales representative immediately.

Contents

Chapter 1 General Information .................................. 1

1.1 Introduction .................................................................... 2

1.2 Features .......................................................................... 3

1.3 Specifications .................................................................. 4

1.3.1 Standard SBC functions .............................................. 4

1.3.2 Local-bus flat panel/VGA interface (PCM-4823)....... 5

1.3.3 Ethernet interface ........................................................ 5

1.3.4 Mechanical and environmental .................................... 5

1.4 Board layout and dimensions ....................................... 6

Chapter 2 Installation ................................................. 7

2.1 Jumpers and connectors .............................................. 8

2.2 Locating jumpers ......................................................... 1 0

2.3 Locating connectors .................................................... 11

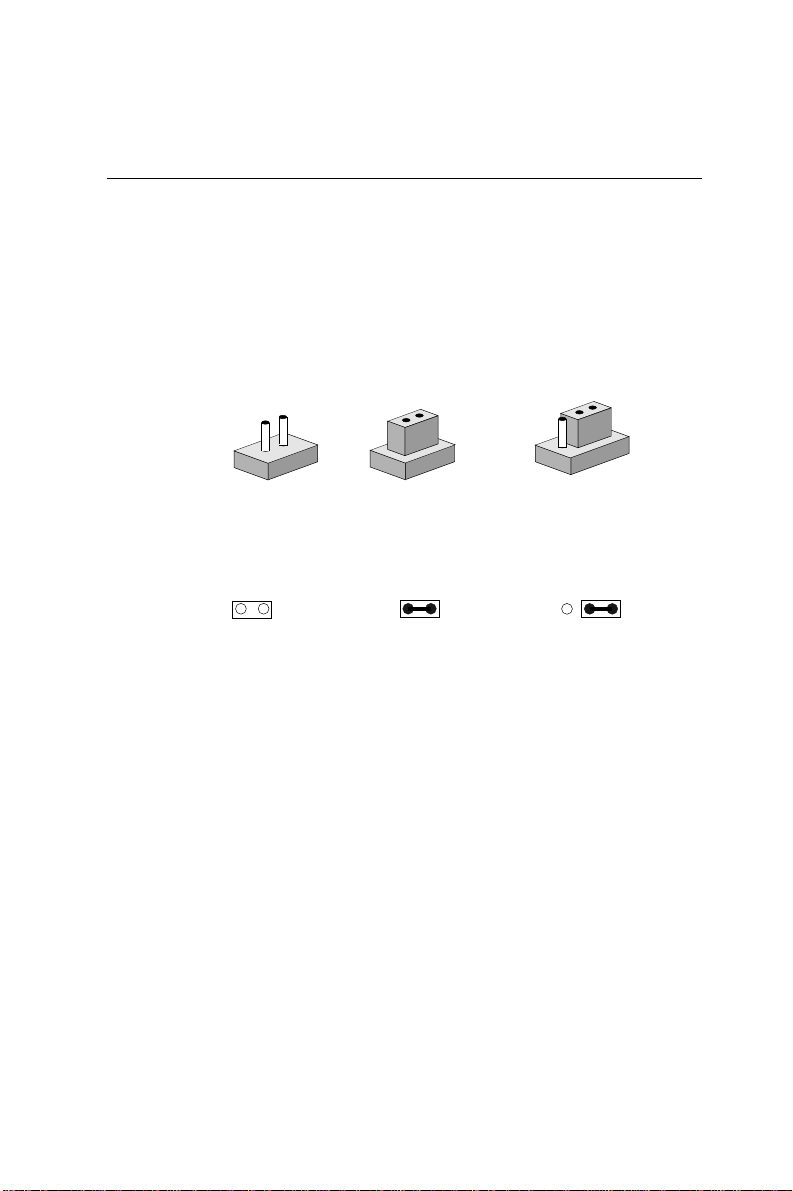

2.4 Setting jumpers ............................................................ 1 2

2.5 Safety precautions ....................................................... 1 3

2.6 Installing DRAM (SIMMs) ....................................... 1 5

2.6.1 Installing SIMMs ........................................................15

2.7 IDE hard drive connector (CN7) .............................. 1 6

2.7.1 Connecting the hard drive...........................................16

2.8 Keyboard and PS/2 mouse connector (CN13) ........ 1 7

2.9 Power connector (CN11) ............................................ 1 7

2.9.1 Main power connector, +5V, +12V (CN12) ...............17

2.10 IR connector (CN8) .................................................. 1 7

2.11 Serial ports (CN12, CN9) ......................................... 1 8

2.11.1 COM1 RS-232 port (CN12) .....................................18

2.11.2 COM2 RS-232/422/485 selection (CN9)..................18

2.12 VGA interface connections ...................................... 1 9

2.12.1 CR T display connector (CN14)................................1 9

2.12.2 Flat panel display connector (CN6) ..........................19

2.13 Ethernet interface connections ................................ 2 0

2.13.1 10Base-T RJ-45 connector (CN10) .........................20

2.14 Ethernet LED and HDD/power LEDs .................... 2 0

2.14.1 LED1 (Ethernet LED).............................................. 20

2.14.2 LED2 (Power and HDD LED)................................ 20

2.15 Watchdog timer configuration .................................. 2 1

2.15.1 W atchdog timer action (J8).......................................21

Chapter 3 Software Configuration .......................... 23

3.1 Introduction .................................................................. 2 4

3.2 Utility disk .................................................................... 2 4

3.3 VGA display software configuration ......................... 26

3.4 Connections for four standard LCDs ....................... 2 7

3.4.1 Connections to Sharp LM64183P

(640 x 480 DSTN MONO LCD) ..............................27

3.4.2 Connections to PLANAR EL

(640 x 480 AD4 EL)..................................................28

3.4.3 Connections to T oshiba L TM10C042

(640 x 480 TFT Color LCD).......................................29

3.4.4 Connections to Sharp LM64C142

(640 x 480 DSTN Color LCD) ...................................30

3.5 Ethernet Interface Configuration .............................. 3 1

Chapter 4 Award BIOS Setup .................................. 33

4.1 System test and initialization ..................................... 3 4

4.1.1 System configuration verification ...............................34

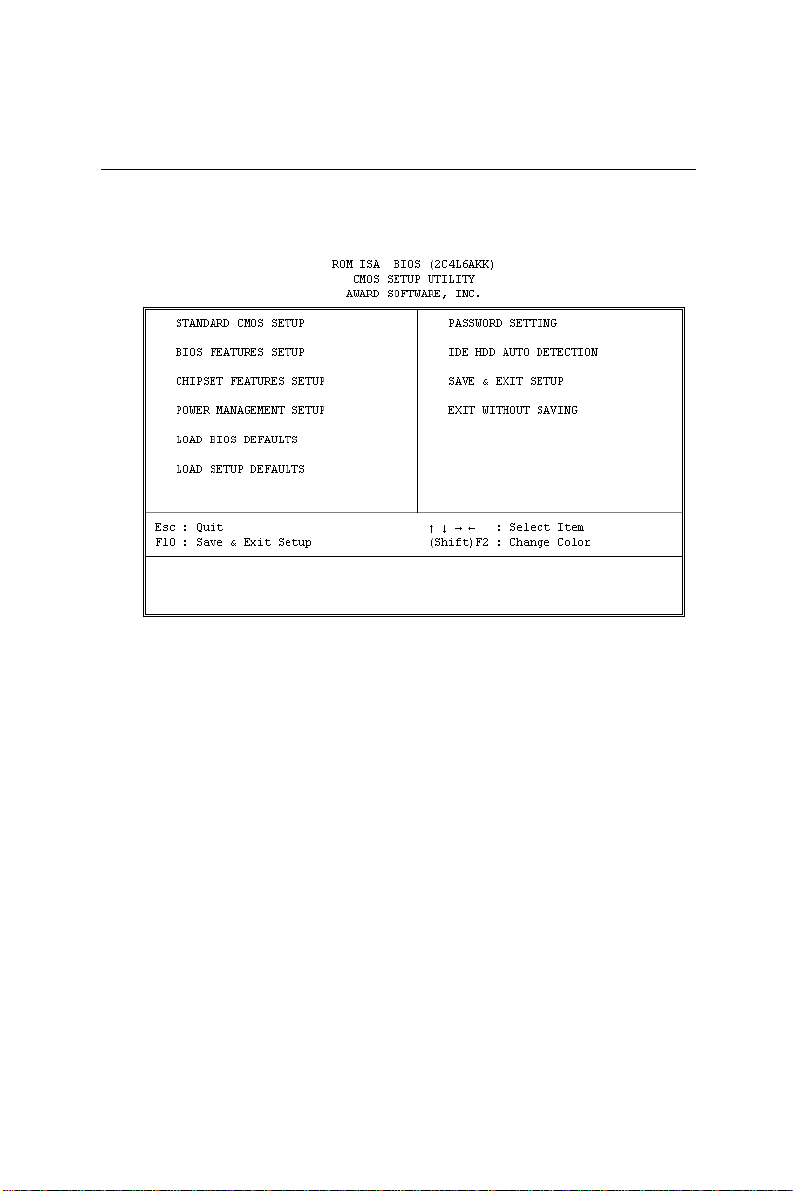

4.2 Award BIOS setup ....................................................... 3 5

4.2.1 Entering setup .............................................................35

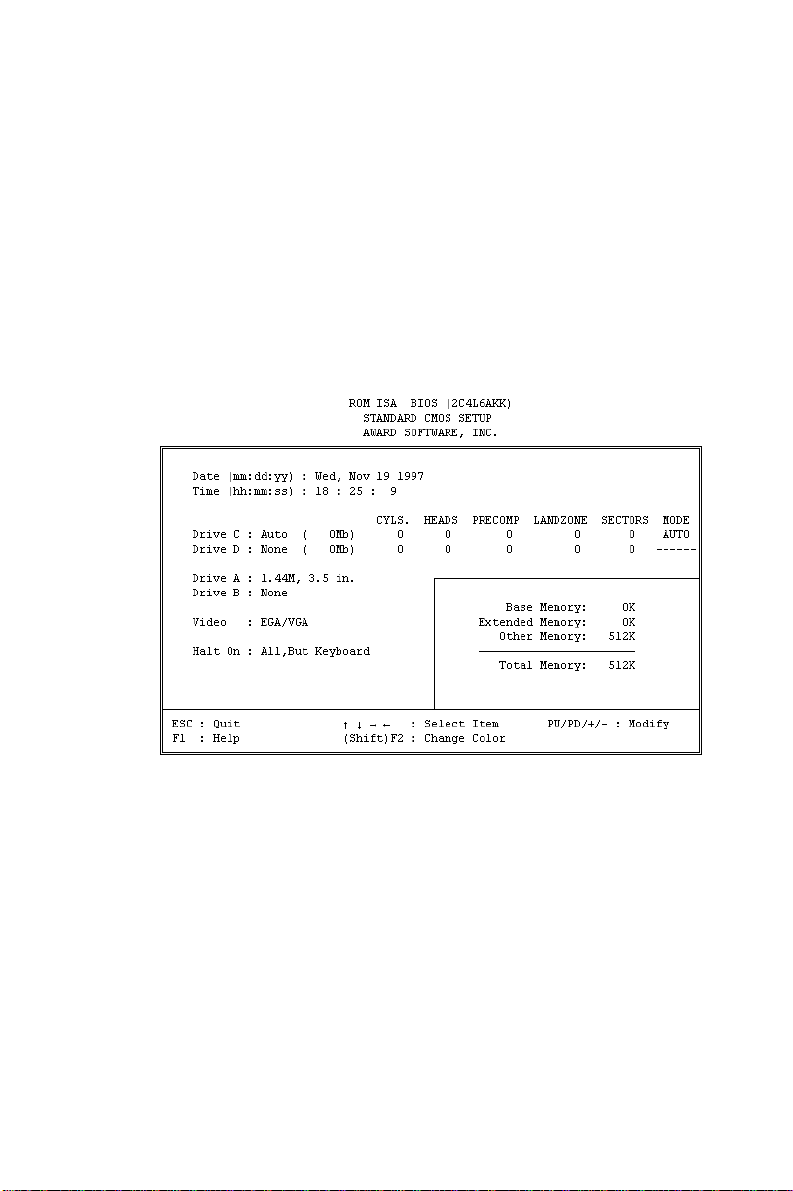

4.2.2 Standard CMOS setup................................................36

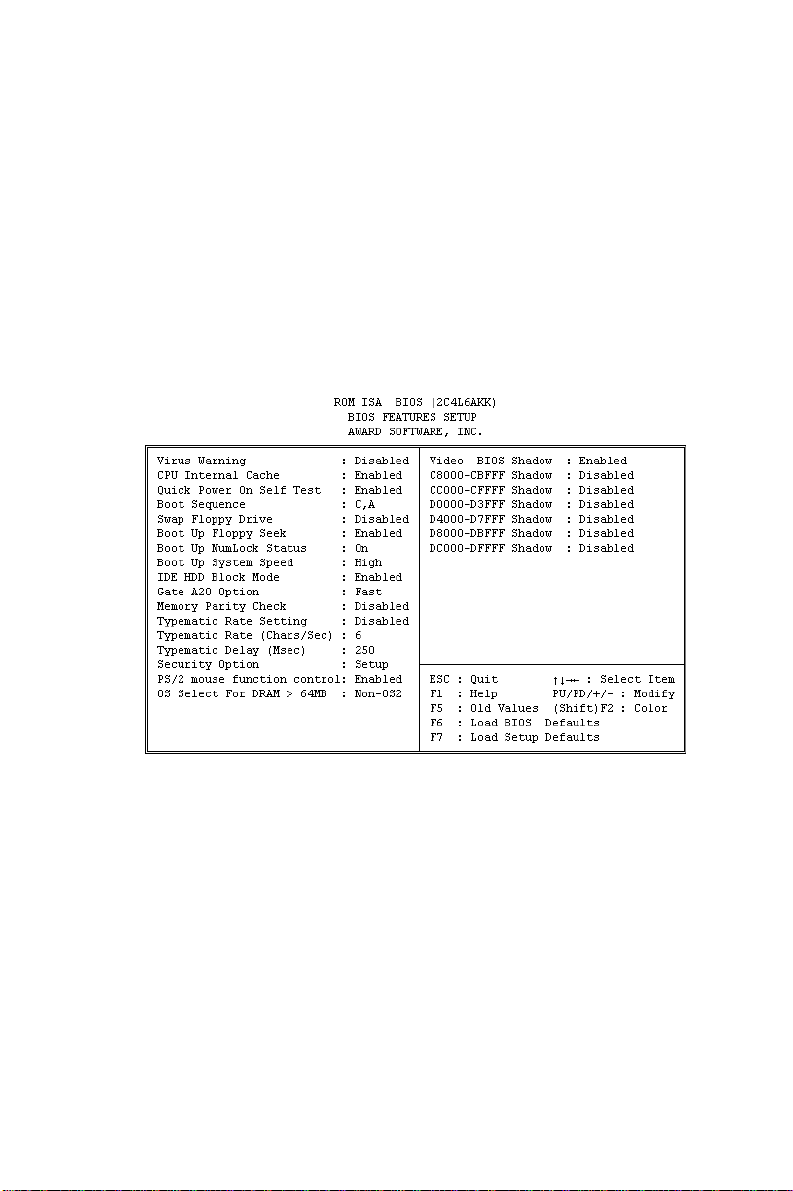

4.2.3 BIOS features setup...................................................37

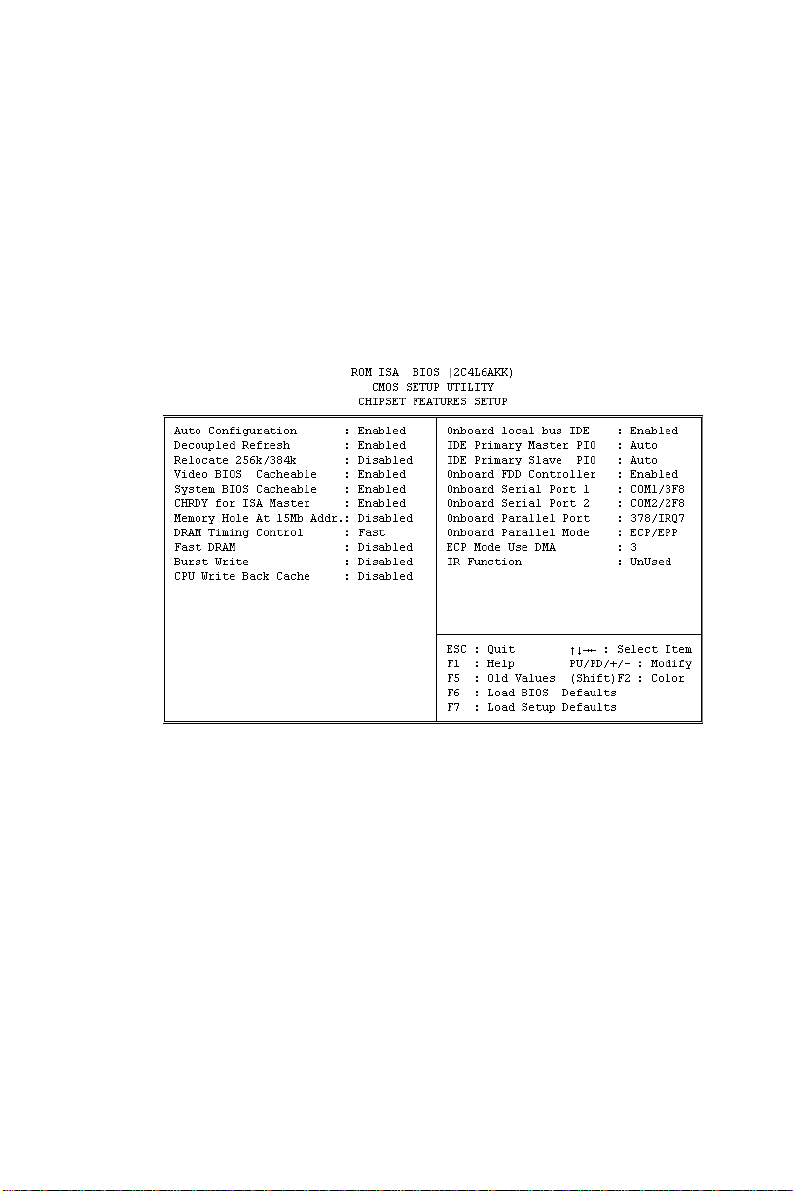

4.2.4 CHIPSET features setup ..........................................38

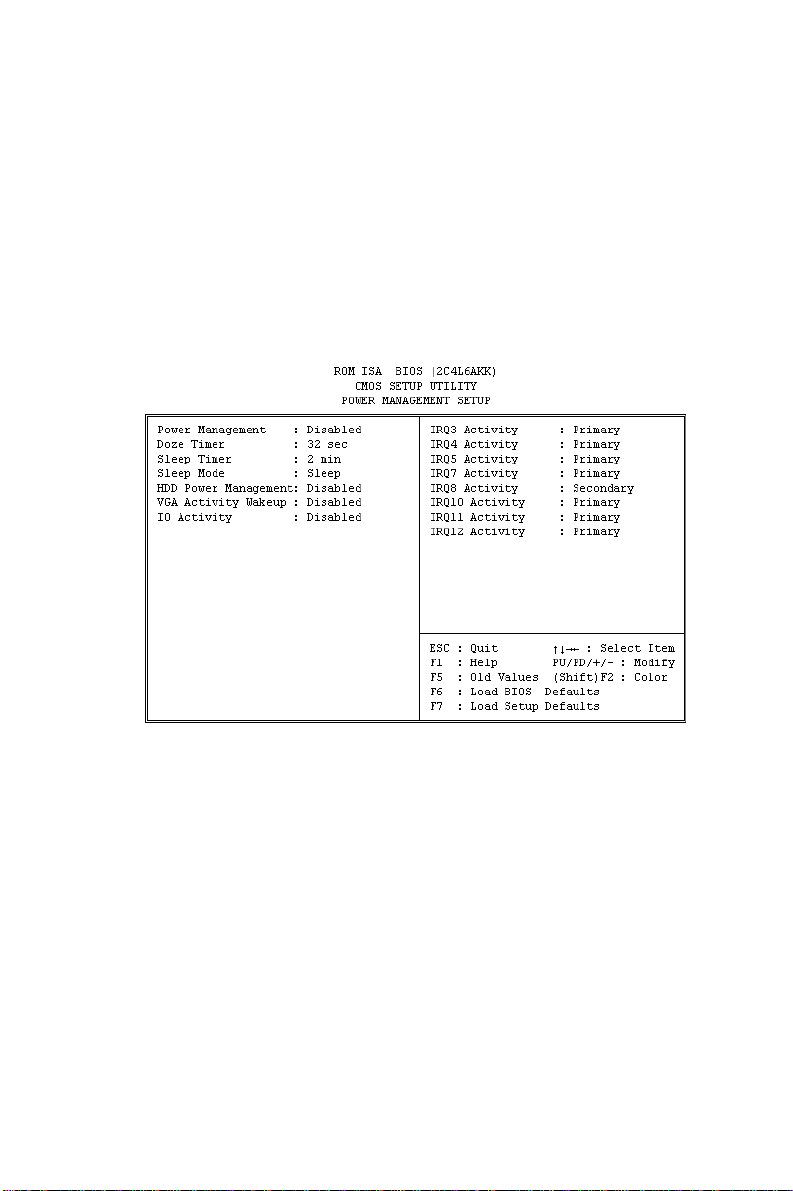

4.2.5 Power management setup ..........................................39

4.2.6 Load BIOS defaults....................................................40

4.2.7 *Load setup defaults...................................................4 1

4.2.8 Change password .......................................................42

4.2.9 Security option ............................................................4 3

4.2.10 Auto detect hard disk ..............................................44

4.2.11 Save & exit setup......................................................44

4.2.12 Exit without saving....................................................44

Chapter 5 SVGA Setup............................................. 45

5.1 Before you begin ......................................................... 4 6

5.2 Installation .................................................................... 4 7

5.3 Simultaneous display mode ........................................ 4 7

5.4 Sleep mode ................................................................... 4 7

5.5 Driver installation (Windows 3.1 & DOS) ............... 4 8

5.5.3 Windows setup............................................................48

5.5.6 DOS setup ..................................................................50

5.6 Windows 95 drivers setup procedure ...................... 5 2

5.7 Windows NT drivers setup procedure ..................... 5 2

5.7.2 Step 2..........................................................................52

5.7.3 Step 3..........................................................................53

5.8 OS/2 drivers setup procedure ................................... 5 3

5.8.1 Preliminary steps ........................................................53

5.8.2 Installing from diskette................................................53

5.8.3 Selecting monitor type ................................................5 5

5.8.4 Selecting screen resolution/refresh rate .....................55

5.8.5 Installation notes .........................................................5 6

Appendix A Pin Assignments.................................. 57

A.1 CRT display connector (CN14) ................................ 5 8

A.2 Flat panel display connector (CN6) ......................... 5 8

A.3 COM2 RS-232/422/485 serial port (CN9) .............. 5 9

A.4 Keyboard and mouse connnector (CN13) .............. 5 9

A.5 Main power connector (CN11) ................................. 6 0

A.6 IDE hard drive connector (CN7) .............................. 6 0

A.7 COM1 RS-232 serial port (CN12) ........................... 6 1

A.8 Ethernet 10Base-T connector (CN10) .................... 6 1

A.9 Peripheral power connector (CN1) .......................... 6 2

A.10 Floppy drive connector (CN2) ................................ 6 2

A.11 Parallel port connector (CN4) ................................. 6 3

A.12 IR connector (CN8) ................................................. 6 4

A.13 System I/O ports ....................................................... 6 5

A.14 DMA channel assignments ..................................... 6 6

A.15 Interrupt assignments ............................................. 6 6

A.16 1st MB memory map ............................................... 6 7

A.17 CPU fan connector ................................................... 6 7

Appendix B Installing PC/104 Modules .................. 69

B.1 Installing PC/104 modules ........................................ 7 0

Appendix C DOC® 2000 Installation Guide ............ 73

C.1 DiskOnChip® 2000 quick installation guide ......... 7 4

C.1.1 DiskOnChip® 2000 installation instructions...............74

C.1.2 Additional information and assistance........................75

Appendix D Programming the Watchdog Timer .... 77

D.1 Programming the Watchdog timer ......................... 7 8

D.1.1 W atchdog timer enabling procedure.......................7 8

Appendix E Mechanical Drawing ............................ 81

E.1 PCM-42823/4823 Mechanical Drawing ................ 8 2

Figures

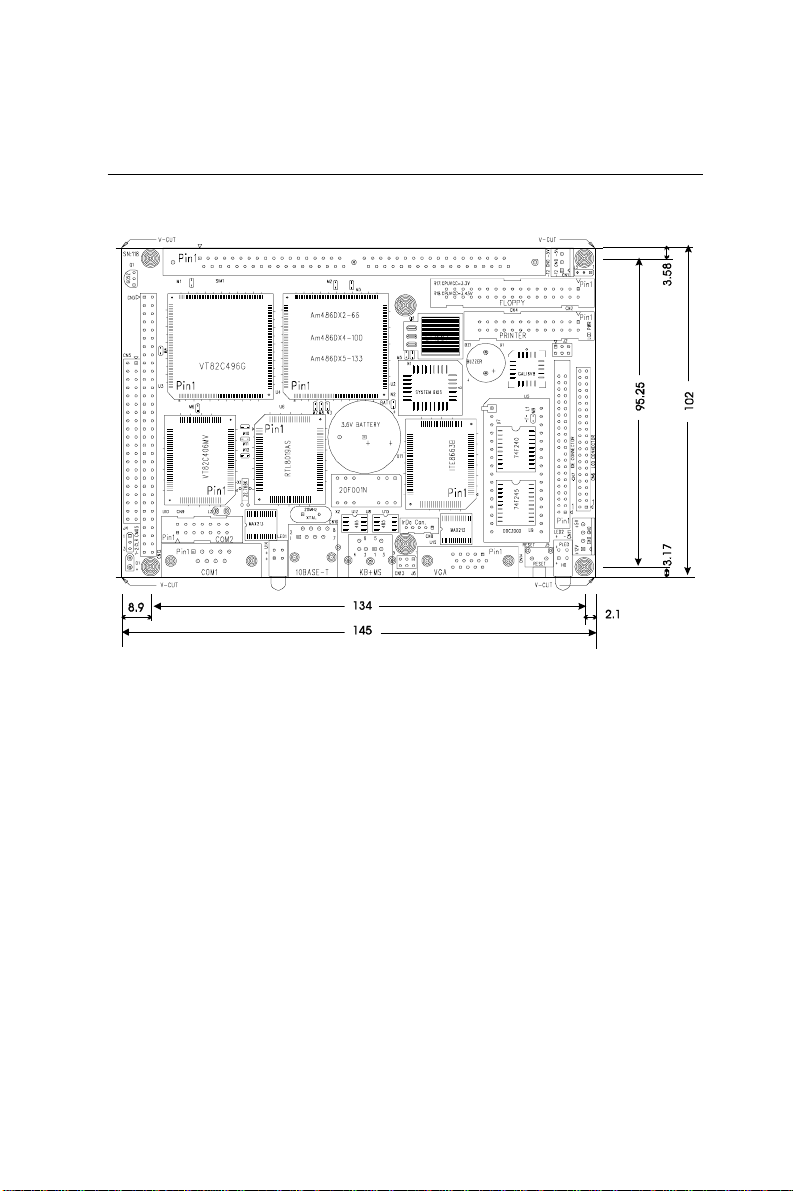

Figure 1-1: PCM-4823/4823L dimensions........................................6

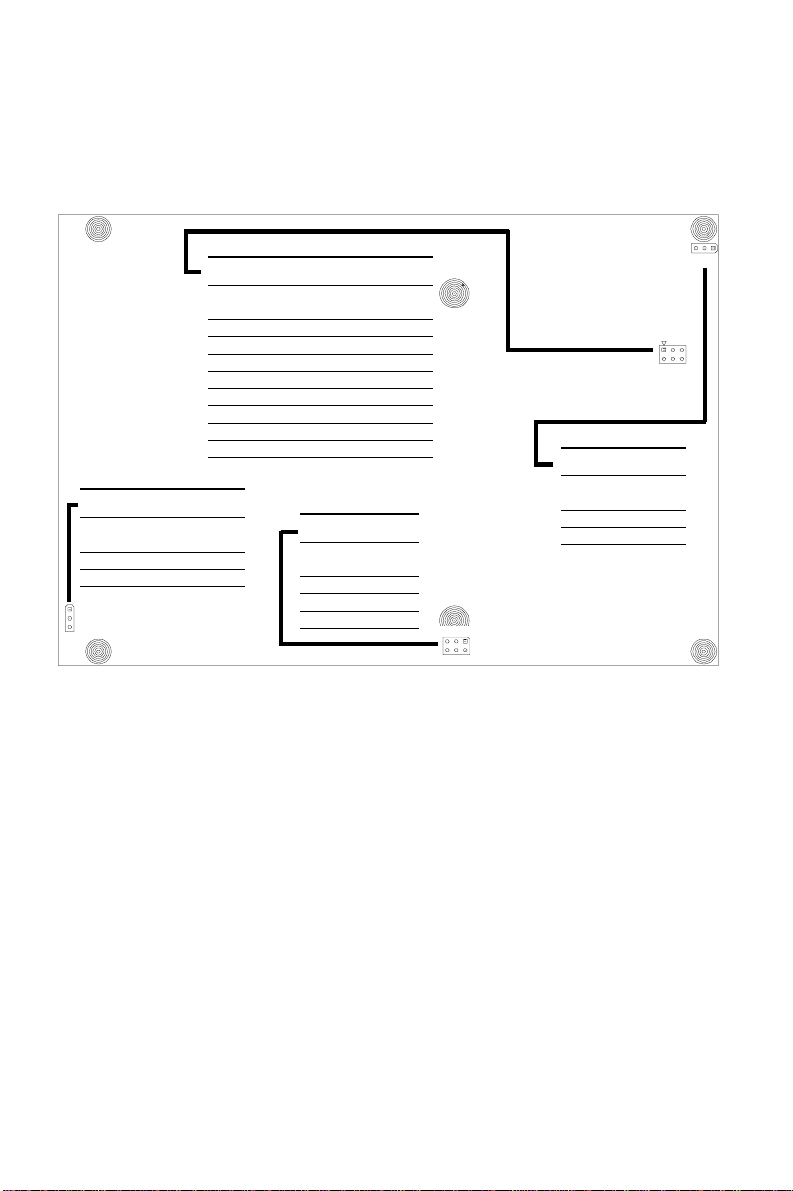

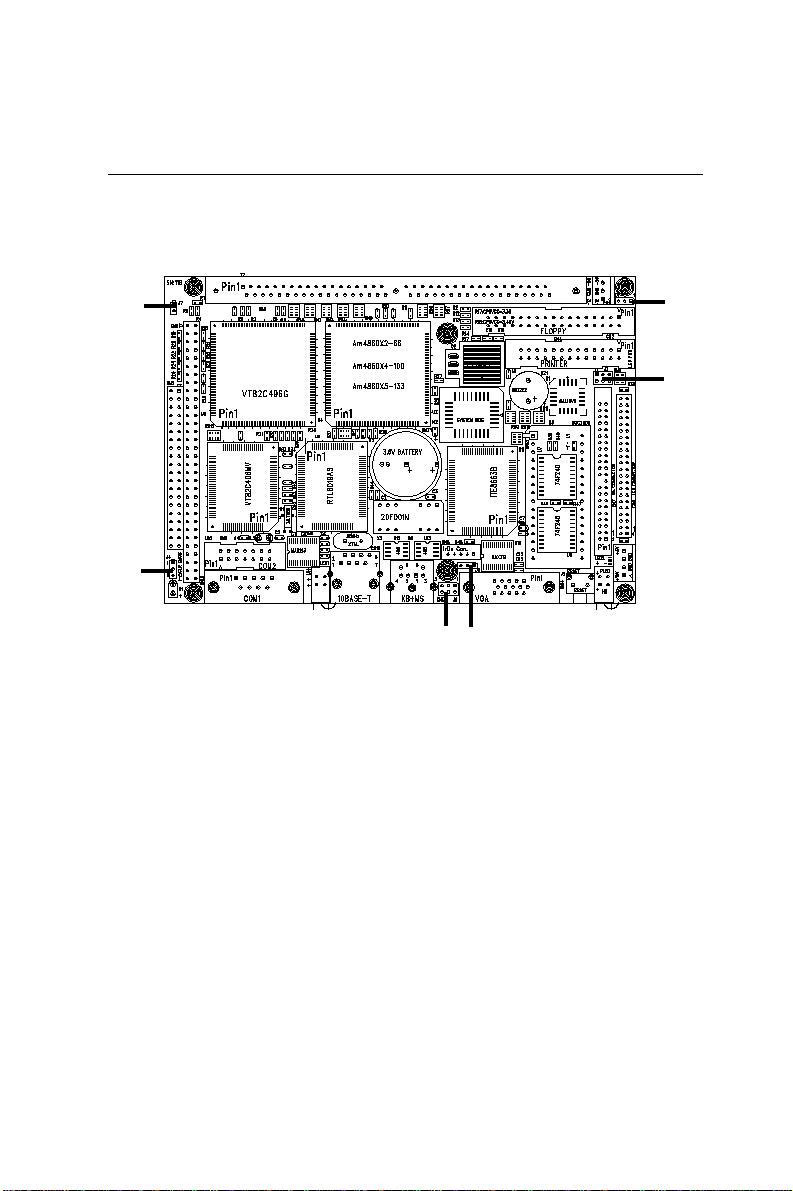

Figure 2-1: PCM-4823/4823L jumpers ...........................................1 0

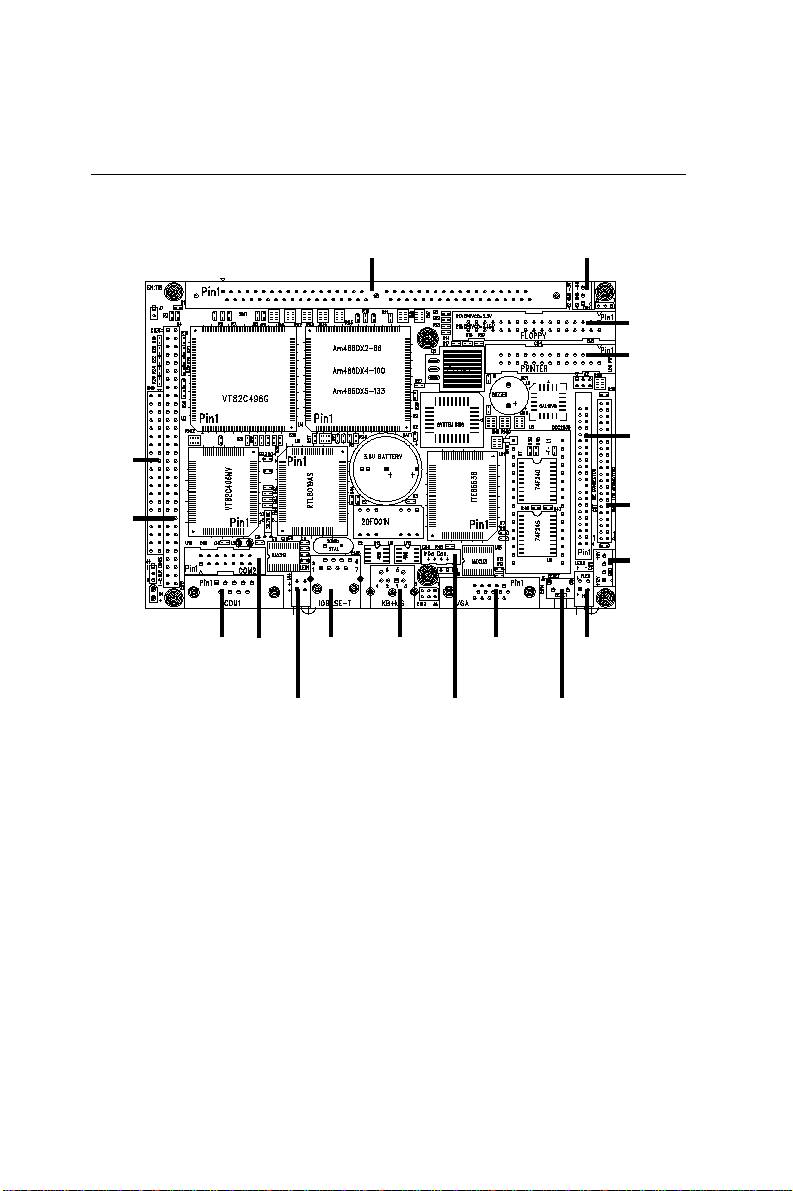

Figure 2-2: PCM-4823/4823L connectors ...................................... 1 1

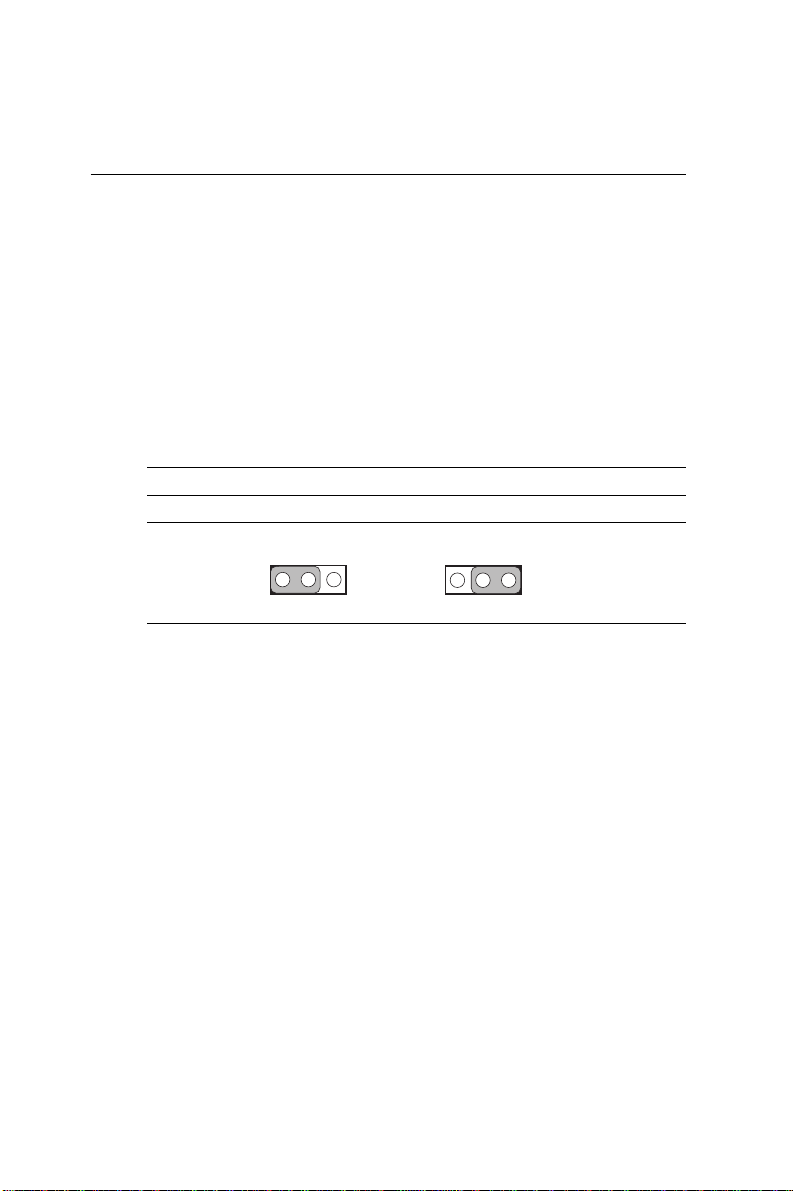

Figure 2-3: PCM-4823/4823L jumper settings................................1 3

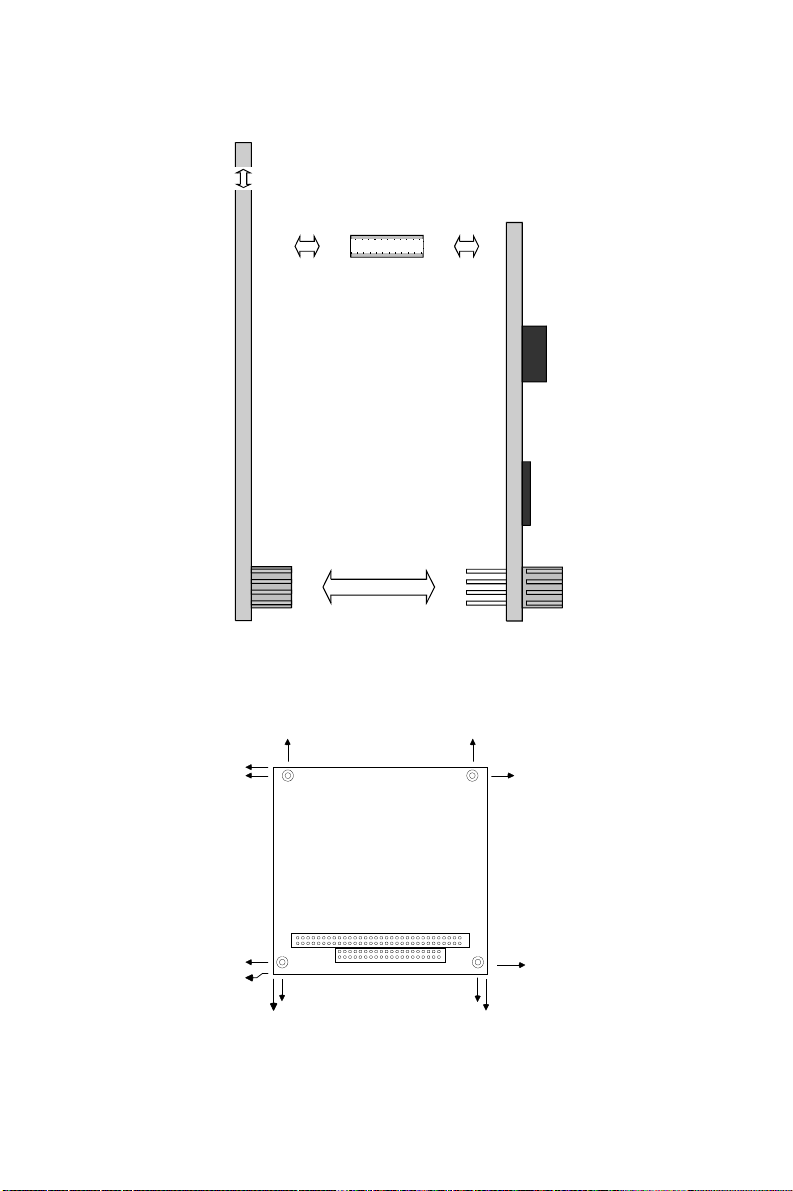

Figure B-1: PC/104 module mounting diagram ..............................71

Figure B-2: PC/104 module dimensions (mm) (±0.1) .....................71

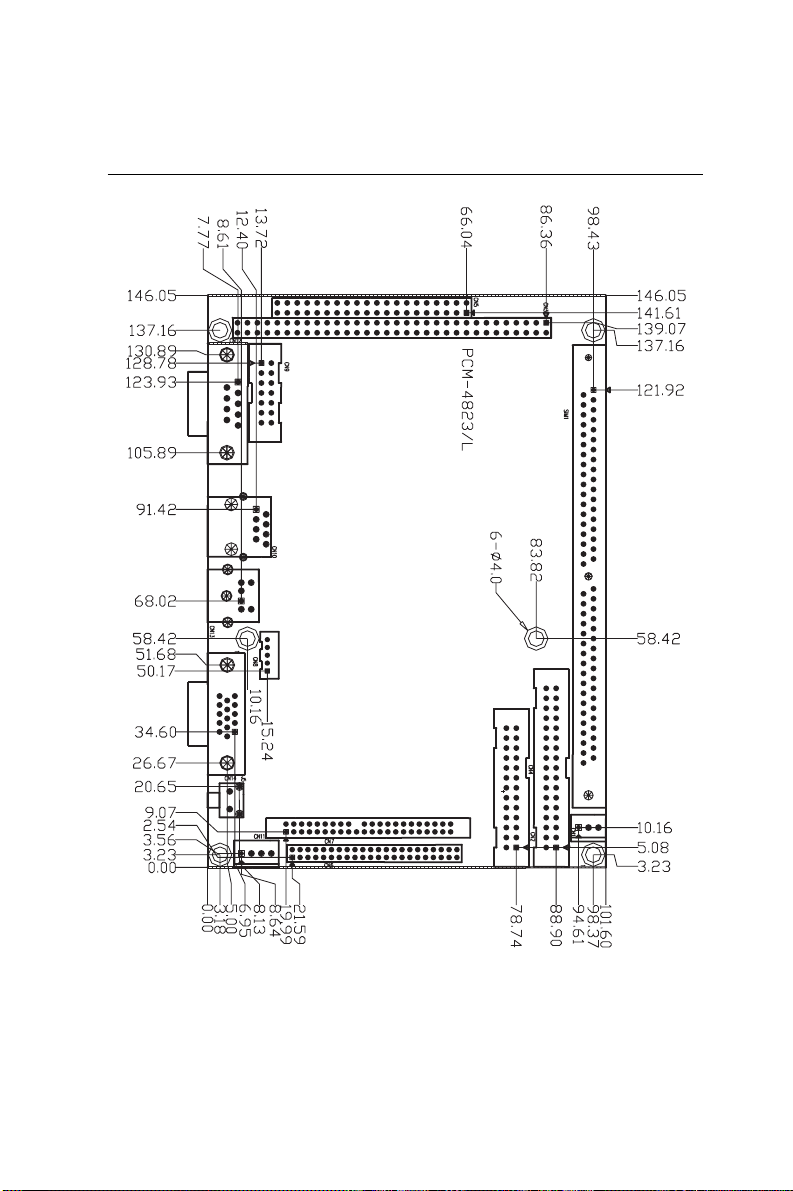

Figure E-1: PCM-4823/4823L mechanical drawing.........................82

Tables

T able 2-1: PCM-4823/4823L jumpers...............................................8

T able 2-2: PCM-4823/4823L connectors ..........................................9

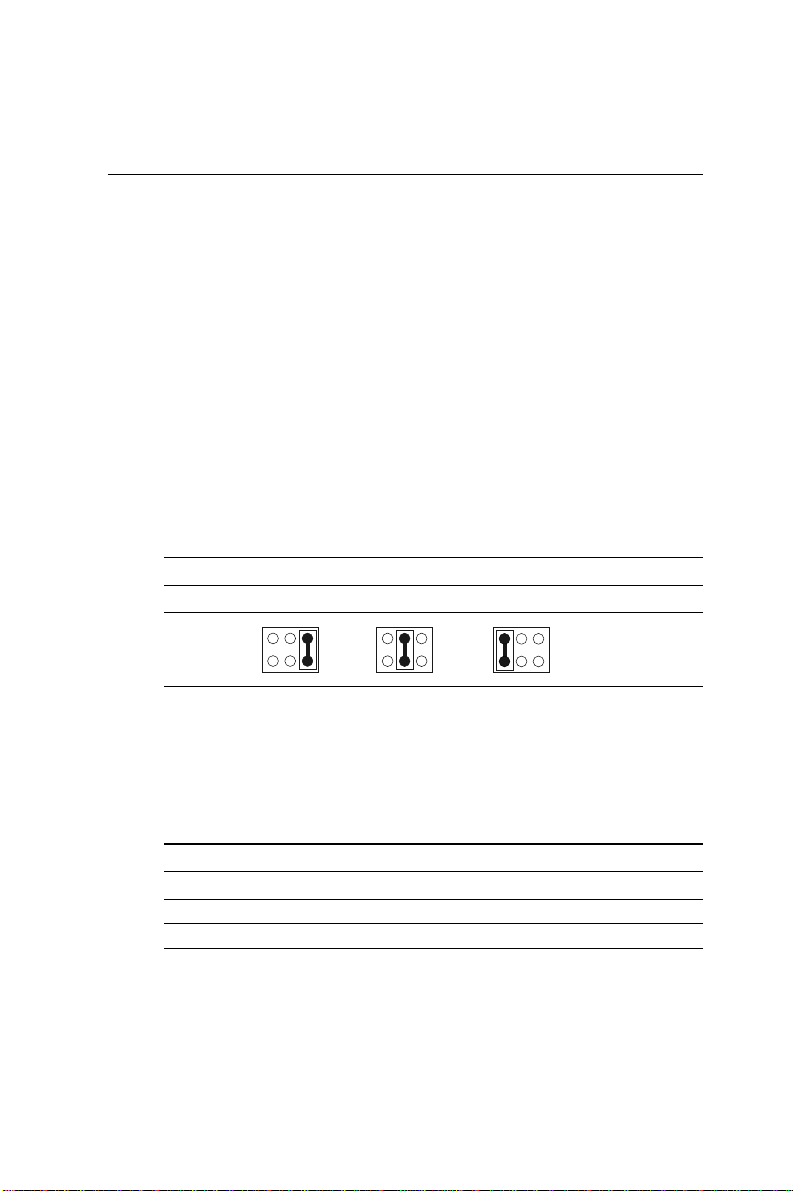

T able 2-4: COM2 selection (J6) .....................................................18

T able 2-5: PCM-4823/4823L Serial port default settings.................18

T able 2-6: Ethernet LED Setup......................................................20

T able 2-7: HDD/powerLED Setup...................................................2 0

T able 2-8: W atchdog timer action ..................................................21

T abler A-1: PCM-4823/4823L CRT display connector.....................58

T able A-2: PCM-4823/4823L flat panel display connector .............. 58

T able A-3: PCM-4823/4823L COM2 RS-232/422/485 series port ...59

T able A-4: PCM-4823/4823L keyboard and mouse connector........59

T able A-5: PCM-4823/4823L main power connector.......................60

T able A-6: PCM-4823/4823L IDE hard drive connector...................6 0

T able A-7: PCM-4823/4823L COM1 RS-232 serial port..................6 1

T able A-8: PCM-4823/4823L Ethernet 10Base-T connector ...........6 1

T able A-9: PCM-4823/4823L peripheral power connector ...............62

T able A-10: PCM-4823/4823L floppy drive connector ..................... 62

T able A-1 1: PCM-4823/4823L parallel port connector..................... 63

T able A-12: PCM-4823/4823L IR connector ...................................64

Table A-13: System I/O ports ........................................................65

T able A-14: DMA channel assignments.........................................6 6

T able A-15: Interrupt assignments .................................................66

Table A-16: 1st MB memory map ..................................................67

T able A-17: CPU fan (5 V) connector............................................ 67

T able B-1: PCA-4823/4823L PC/104 connectors (CN3, CN5).........72

1

CHAPTER

General Information

This chapter gives background informa­tion on the PCM-4823/4823L.

Sections include:

• Card specifications

• Card layout and dimensions

1.1 Introduction

The PCM-4823/4823L is the ultimate cost-effective solution for
limited space applications. It offers all the functions of an AT­compatible industrial computer on a single board and only occu­pies the space of a 3 1/2" hard drive. The PCM-4823/4823L
comes with an embedded high-performance 5x86 processor and
audio on-board. For maximum performance, the PCM-4823/
4823L also supports an EDO/FPM DRAM SIMM socket that can
accept up to 32 MB memory.

On-board features include an Ethernet interface, support for a VL­Bus Enhanced IDE interface with up to Mode 3 transfer protocol,
one parallel port, two serial ports (RS-232 and RS-232/422/485)
with DB-9 connector as COM1 and a mini-DIN PS/2 keyboard/
mouse interface. A local bus SVGA/LCD display controller (LCD,
EL and CRT displays) allows LCD screen resolutions up to 1024 x
768 and CRT resolutions up to 1280 x 1024 @ 16 colors
(PCM-4823 only).

The PCM-4823/4823L complies with the "Green Function"
standard and supports three types of power saving features:
Normal, Doze, and Sleep modes.

The display type configuration is done through software. A single
Flash chip holds the system BIOS and the VGA BIOS. This
minimizes the number of chips and eases configuration. You can
change the display BIOS simply by programming the Flash chip.

If you need any additional functions, the PCM-4823/4823L has a
PC/104 connector for future upgrades.

2 PCM-4823/4823L User's Manual

1.2 Features

• Ultra-compact size single board computer as small as a 3 1/2" hard disk
drive (145 mm x 102 mm)

• On-board AMD DX5-133 (5x86-133) CPU

• Up to 32 MB on-board EDO/Fast Page-mode DRAM

• Local-bus SVGA display controller (LCD, EL and CR T displays), flat
panel type configured by programming the Flash chip (PCM-4823)

• On-board 16-bit Ethernet interface

• Supports M-Systems DiskOnChip® 2000 Flash memory

• Built-in VL-Bus Enhanced IDE (AT bus) hard disk drive interface

• On-board mini-DIN PS/2 keyboard/mouse connector

• Two serial ports: one RS-232, one RS-232/422/485 or infared selectable
(uses 16C550 UARTs with 16 byte FIFO)

• Upgradeable through PC/104 module

• Green engine with sleep mode and low power consumption

• Single +5 V power supply

Chapter 1 General Information 3

1.3 Specifications

1.3.1 Standard SBC functions

• CPU: Embedded AMD DX5-133 (5x86-133) processor

• BIOS: AWARD 128 KB Flash memory

• Chipset: VIA VT82C496G

• System memory: One 72-pin SIMM sockets (accepts 1 MB, 2 MB, 4

MB, 8 MB, 16 MB and 32 MB). Supports FPM or EDO DRAM from 1
MB to 32 MB.

• Enhanced IDE hard disk drive interface: Supports up to two IDE

(VL-bus) hard disks. BIOS auto-detect and PIO Mode 3 transfer
protocol

• Serial ports: One serial RS-232 port, one serial RS-232/422/485 port.

Two 16550 serial UARTs

• Parallel port: One parallel port, supports SPP/EPP/ECP mode

• Infrared port: Shared with COM2. Transfer rate up to 115 kbps.

• Keyboard/mouse connector: Mini-DIN connector supports standard

PC/AT keyboard and a PS/2 mouse

• Power management: Supports power saving modes including Normal/

Doze/Sleep modes. APM 1.1 compliant

• Supports M-Systems' DiskOnChip® 2000 Flash disk up to 72 MB

• W atchdog T imer: 1.6 second intervals

4 PCM-4823/4823L User's Manual

1.3.2 Local-bus flat panel/VGA interface (PCM-4823)

• Chipset: C&T 65550

• Display memory: 1 MB DRAM

• Display type: Supports CRT and flat panel (EL, LCD and gas plasma
flat panel) displays. Can display CRT and flat panel simultaneously

• Flat panel display mode: Panel resolution supports up to 1024 x 768.

• CRT display mode: Non-interlaced CRT monitors resolutions up to
1280 x 1024 @ 16 colors.

1.3.3 Ethernet interface

• Chipset: RTL 8019AS

• I/O address switchless setting

• Software compatible with NE1000 and NE2000

• Built-in boot ROM

1.3.4 Mechanical and environmental

• Dimension: 5.9" (L) x 4.2" (W) (145 mm x 102 mm)

• Power supply voltage: +5 V (4.75 V to 5.25 V)

• Max. power requirements: +5 V @ 2 A (typical)

• Operating temperature: 32° F to 140° F (0° C to 60° C)

• Weight: 0.65 kg (weight of total package)

Chapter 1 General Information 5

1.4 Board layout and dimensions

Figure 1-1: PCM-4823/4823L dimensions

6 PCM-4823/4823L User's Manual

2

CHAPTER

Installation

This chapter tells how to set up the PCM-4823/
4823L hardware, including instructions on
setting jumpers and connecting peripherals,
switches and indicators. Be sure to read all the
safety precautions before you begin the
installation procedure.

2.1 Jumpers and connectors

Connectors on the board link it to external devices such as hard
disk drives, a keyboard or expansion bus connectors. In addition,
the board has a number of jumpers that allow you to configure your
system to suit your application.

The table below lists the function of each of the board jumpers and
connectors:

Table 2-1: PCM-4823/4823L jumpers

Label Function

J2 DOC 2000 address setting
J3 LCD power selector
J4 Clear CMOS
J6 COM2 selector
J8 Watchdog timer action

8 PCM-4823/4823L User's Manual

Table 2-2: PCM-4823/4823L connectors

Label Function

CN1 Power connector (-5 V, -12 V)
CN 2 Floppy disk connector
CN 3 PC/104 connector
CN 4 Parallel port connector
CN 5 PC/104 connector
CN 6 Flat panel connector
CN 7 Hard disk connector
CN 8 IR connector (infrared)
CN9 COM2 connector
CN10 Ethernet connector
CN11 Power connector (+5 V, +12 V)
CN12 COM1 connector
CN13 PS/2 keyboard + PS/2 mouse
CN14 CRT display connector
J5 Reset switch
J7 CPU fan connnector (+5 V)

Chapter 2 Installation 9

2.2 Locating jumpers

J4

J7

J6

J8

Figure 2-1: PCM-4823/4823L jumpers

J3

J2

10 PCM-4823/4823L User's Manual

2.3 Locating connectors

PC/104
(CN5)

PC/104
(CN3)

EDO/FPM DRAM

SIMM Socket

COM1
(CN12)

COM2
(CN9)

Ethernet

(CN10)

NET
LED

Keyboard/

PS/2 Mouse

(CN13)

IR

(CN8)

Figure 2-2: PCM-4823/4823L connectors

CRT

Display

(CN14)

Power -5/-12 V

(CN1)

Floppy Disk
(CN2)

Parallel Port
(CN4)

IDE Hard
Disk (CN7)

Flat Panel
Display (CN6)

Power
+5/+12 V
(CN11)

Power/
HDD
LED

Reset SW

(J5)

Chapter 2 Installation 11

2.4 Setting jumpers

You may configure your card to match the needs of your applica­tion by setting jumpers. A jumper is the simplest kind of electrical
switch. It consists of two metal pins and a small metal clip (often
protected by a plastic cover) that slides over the pins to connect
them. To "close" a jumper, you connect the pins with the clip. To
"open” a jumper you remove the clip. Sometimes a jumper will have
three pins, labeled 1, 2, and 3. In this case you would connect either
pins 1 and 2 or 2 and 3.

2

1

Open Closed Closed 2-3

The jumper settings are schematically depicted in this manual as
follows:

Open Closed Closed 2-3

A pair of needle-nose pliers may be helpful when working with
jumpers.

1 2 3

3

If you have any doubts about the best hardware configuration for
your application, contact your local distributor or sales representa­tive before you make any changes.

Generally, you simply need a standard cable to make most connec­tions.

12 PCM-4823/4823L User's Manual

2.4.1 PCM-4823/4823L Jumper Settings

J2: DOC2000 Address Setting

1 - 2 3 - 4 5 - 6

close close close C800 ~ C9FF
close close open CC00 ~ CDFF

*close open close D000 ~ D1FF

close open open D400 ~ D5FF
open close close D800 ~ D9FF
open close open DC00 ~ DDFF
open open close E000 ~ E1FF
open open open OFF

J4: Clear CMOS

Closed Result
Pins

1 - 2 Clear CMOS
*2 - 3 3.6 V Battery On

1
2
3

* default setting

Figure 2-3 PCM-4823/4823L Jumper Settings

Pins Address

J6: COM2 Selector

Closed Result
Pins

*1 - 2 RS-232
3 - 4 RS-422
5 - 6 RS-485

5 3 1

6 4 2

1 3 5

2 4 6

J3: LCD Power

Closed Voltage
Pins

1 - 2 3.3 V
*2 - 3 5 V

3 2 1

Chapter 2 Installation 13

2.5 Safety precautions

Warning! Always completely disconnect the power cord from

your board whenever you are working on it. Do not
make connections while the power is on because
sensitive electronic components can be damaged
by the sudden rush of power.

Caution! Always ground yourself to remove any static

charge before touching the board. Modern elec­tronic devices are very sensitive to static electric
charges. Use a grounding wrist strap at all times.
Place all electronic components on a static­dissipative surface or in a static-shielded bag
when they are not in the chassis.

14 PCM-4823/4823L User's Manual

2.6 Installing DRAM (SIMMs)

Y ou can install anywhere from 1 MB to 32 MB of on-board DRAM
memory using 1, 2, 4, 8, 16 or 32 MB 72-pin SIMMs (Single In-Line
Memory Modules). DRAM access time ≤ 60 ns.

2.6.1 Installing SIMMs

NOTE: The modules can only fit into a socket one way

and their gold pins must point down into the SIMM
socket.

The procedure for installing SIMMs appears below. Please follow
these steps carefully.

1 . Ensure that all power supplies to the system are switched Off.

2. Install the SIMM card. Install the SIMM so that its gold pins
point down into the SIMM socket.

3 . Slip the SIMM into the socket at a 45 degree angle and carefully

fit the bottom of the card against the connectors.

4 . Gently push the SIMM into a perpendicular position until the

clips on the ends of the SIMM sockets snap into place.

5. Check to ensure that the SIMM is correctly seated and all
connector contacts touch. The SIMM should not move around
in its socket.

Chapter 2 Installation 15

2.7 IDE hard drive connector (CN7)

The built-in Enhanced IDE (Integrated Device Electronics) control­ler supports up to two IDE devices, including CD-ROM drives, tape
backup drives, a large hard disk drive and other IDE devices. It also
supports faster data transfer rates and allows the IDE hard disk
drive to exceed 528 MB.

2.7.1 Connecting the hard drive

Connecting drives is done in a daisy-chain fashion and requires
one of two cables, depending on the drive size. 1.8" and 2.5" drives
need a 1 x 44-pin to 2 x 44-pin flat-cable connector. 3.5" drives use a
1 x 44-pin to 2 x 40-pin connector.

Wire number 1 on the cable is red or blue, and the other wires are
gray.

1 . Connect one end of the cable to CN7. Make sure that the red (or

blue) wire corresponds to pin 1 on the connector, which is
labeled on the board (on the right side).

2 . Plug the other end of the cable to the Enhanced IDE hard drive,

with pin 1 on the cable corresponding to pin 1 on the hard
drive. (See your hard drive's documentation for the location of

the connector.)
Connect a second drive as described above.
Unlike floppy drives, IDE hard drives can connect to either end of

the cable. If you install two drives, you will need to set one as the
master and one as the slave by using jumpers on the drives. If you
install just one drive, set it as the master.

16 PCM-4823/4823L User's Manual

2.8 Keyboard and PS/2 mouse connector (CN13)

The PCM-4823/4823L board provides a mini-DIN keyboard connec­tor which supports both a keyboard and a PS/2 style mouse. In
most cases, especially in embedded applications, a keyboard is not
used. The standard PC/A T BIOS will report an error or fail during
power-on self test (POST) after a reset if the keyboard is not
present. The PCM-4823/4823L board's BIOS standard setup menu
allows you to select "All, But Keyboard" under the "Halt On"
selection. This allows no-keyboard operation in embedded system
applications without the system halting under POST (power-on­self-test).

2.9 Power connector (CN11)

2.9.1 Main power connector, +5V, +12V (CN11)

Supplies main power to the PCM-4823/4823L (+5 V) and devices
that require +12 V .

2.10 IR connector (CN8)

This connector supports the optional wireless infrared transmitting
and receiving module. This module mounts on the system case.
You must configure the setting through BIOS setup.

Chapter 2 Installation 17

2.11 Serial ports (CN12, CN9)

The PCM-4823/4823L offers two serial ports: one RS-232 and one
RS-232/422/485. These ports let you connect to serial devices (a
mouse, printers, etc.) or a communication network.

2.11.1 COM1 RS-232 port (CN12)

The serial port connectors are mounted on the bottom edge of the
card. The 9-pin, D-SUB connector to the left of the card is the RS­232 port.

2.11.2 COM2 RS-232/422/485 selection (CN9)

The secondary port located above COM1, consists of a 14-pin,
dual-in-line, male header and can be configured to operate in RS­232, RS-422, or RS-485 mode. This is done via J6.

Table 2-4: COM2 selection (J6)

*RS-232 RS-422 RS-485

5 3 1

J6

6 4 2 6 4 2

* default setting

The IRQ and address range for both ports are fixed. However if you
wish to disable the port or change these parameters later, you can
do this in the system BIOS setup. The table below shows the
settings for the PCM-4823/4823L board's ports.

5 3 1

6 4 2

5 3 1

Table 2-5: PCM-4823/4823L Serial port default settings

Port Address Interrupt Default

COM1 3F8, 3E8 IRQ4 3F8
COM2 2F8, 2E8 IRQ3 2F8

18 PCM-4823/4823L User's Manual

2.12 VGA interface connections

The PCM-4823/4823L board's SVGA interface can drive conven­tional CRT displays and is capable of driving a wide range of flat
panel displays, including electroluminescent (EL), gas plasma,
passive LCD and active LCD displays. The card has two connec­tors to support these displays, one for standard CRT VGA monitors
and one for flat panel displays.

2.12.1 CRT display connector (CN14)

CN14 is a 15-pin, D-SUB connector commonly used for convention­al CRT displays.

Pin assignments for CRT display connector CN15 are detailed in
Appendix A.

2.12.2 Flat panel display connector (CN6)

CN6 consists of a 44-pin, dual-in-line header.
The PCM-4823/4823L provides a bias control signal on CN6 which

can be used to control the LCD bias voltage. It is recommended
that the LCD bias voltage not be applied to the panel until the logic
supply voltage (+5 V) and panel video signals are stable. Under
normal operation the control signal (ENAVEE) is active high. When
the PCM-4823/4823L board's power is applied, the control signal is
low until just after the relevant flat panel signals are present.

Configuration of the LCD type is done completely via the software
utility. You do not have to set any jumpers. Refer to Chapter 3 for
software setup details.

Refer to Chapter 3 for details on connecting the four standard
LCD's: Sharp LM64183P , T oshiba L TM10C042, Sharp 64C142, and
Planar EL Display .

Chapter 2 Installation 19

2.13 Ethernet interface connections

The PCM-4823/4823L is equipped with a high performance 16-bit
Ethernet interface which is fully compliant with IEEE 802.3 10
Mbps CSMA/CD standards. It is supported by all major network
operating systems and is 100% Novell NE-2000 compatible.

2.13.1 10Base-T RJ-45 connector (CN10)

10Base-T connections are made via the on-board RJ-45 connector.

2.14 Ethernet LED and HDD/power LEDs

2.14.1 LED1 (Ethernet LED)

Table 2-6: Ethernet LED Setup

LED Setting

Green lamp Rx
Yellow lamp Tx

The LED should be set so when data is recieved the Green lamp is
activated and when data is transmitted the Yellow lamp is activated.

2.14.2 LED2 (Power and HDD LED)

Table 2-7: HDD/powerLED Setup

LED Setting

Green lamp HD D
Yellow lamp power

The LED should be set so when the HDD is accessed the Green
lamp is activated and when the power is on the Y ellow lamp is
activated.

20 PCM-4823/4823L User's Manual

2.15 Watchdog timer configuration

An on-board watchdog timer reduces the chance of disruptions
which EMP (electro-magnetic pulse) interference can cause. This is
an invaluable protective device for standalone or unmanned
applications. Setup involves one jumper and running the control
software (refer to Appendix D).

2.15.1 Watchdog timer action (J8)

When the watchdog timer activates (CPU processing has come to a
halt), it can reset the system or generate an interrupt on IRQ11.
This can be set via setting J8 as shown below:

Table 2-8: Watchdog timer action

*System reset IRQ11

3 2 1 3 2 1

J8

* default setting

Chapter 2 Installation 21

22 PCM-4823/4823L User's Manual

3

CHAPTER

Software Configuration

This chapter details the software configu­ration information. It shows you how to
configure the card to match your applica­tion requirements. A ward system BIOS is
covered in Chapter 4.

Sections include:

• LCD display configuration

• Connections for four standard LCDs

3.1 Introduction

The PCM-4823/4823L system BIOS and custom drivers are
located in a 128 KB, 32-pin Flash ROM device, designated U2. A
single Flash chip holds the system BIOS and VGA BIOS. The
display type can be configured via software. This method minimiz­es the number of chips and eases configuration. You can change the
display BIOS simply by reprogramming the Flash chip.

3.2 Utility disk

The PCM-4823/4823L is supplied with a software utility disk. This
disk contains the necessary file for setting up the VGA display .
Directories and files on the disk are as follows:

README.DOC
AWDFLASH.EXE

4823_SYS.BIN
4823_CRT.BIN
4823_TFT.BIN
4823_STN.BIN
4823_MON.BIN
4823_EL.BIN
CBROM.EXE
CT.COM
FP.COM
SM.COM
ON.COM
OFF.COM
RSET8019.EXE

Figure 3-1: Contents of the PCM-4823/4823L utility disk

AWDFLASH.EXE

This program allows you to write the VGA BIOS files to the BIOS
Flash ROM. The VGA files all come ready formatted for the
PCM-4823/4823L with .BIN extensions. See README.DOC.
These files support various CRT and flat panel displays. They are
custom written and are available upon request.

4823_SYS.BIN

This binary file contains the system BIOS.

24 PCM-4823/4823L User's Manual

4823_CRT.BIN

Supports CRT only.

4823_TFT.BIN (default)

Supports 640 x 480 color TFT
(Toshiba LTM10C042).

4823_STN.BIN

Supports 640 x 480 color STN DD 8/16-bit displays
(Sharp LM64C142).

4823_MON.BIN

Supports 640 x 480 dual scan monochrome displays
(Sharp LM64P8X/837).

4823_EL.BIN

Supports 640 x 480 EL displays (PLANAR EL640480 - A Series).

CBROM.EXE

This program allows you to combine your own VGA BIOS with
system BIOS (4823_SYS.BIN).

CT .COM

Enables CRT display only

EP.COM

Enables panel display only

SM.COM

Enables both displays at the same time

ON.COM

Switches to normal display mode

OFF .COM

Switches to sleep mode

RSET8019.EXE

This program enables you to view the current Ethernet configura­tion, reconfigure the Ethernet interface (medium type, etc.), and
execute useful diagnostic functions.

Chapter 3 Software Configuration 25

3.3 VGA display software configuration

The PCM-4823 on-board VGA/LCD interface supports a wide
range of popular LCD, EL, gas plasma flat panel displays and
traditional analog CRT monitors. The interface can drive CRT
displays with resolutions up to 1280 x 1024 in 16 colors. It is also
capable of driving color panel displays with resolutions of 1024 x

768. The LCD type is configured completely via the software
utility, so you do not have to set any jumpers. Configure the LCD
type as follows:

1. Apply power to the PCM-4823 with a color TFT display

attached. This is the default setting for the PCM-4823/4823L.

Ensure that the AWDFLASH.EXE and *.BIN files are located

in the working drive.

NOTE: Ensure that you do not run AWDFLASH.EXE

while your system is operating in EMM386 mode.

2. At the prompt, type AWDFLASH.EXE and press <Enter>. The

VGA configuration program will then display the following:

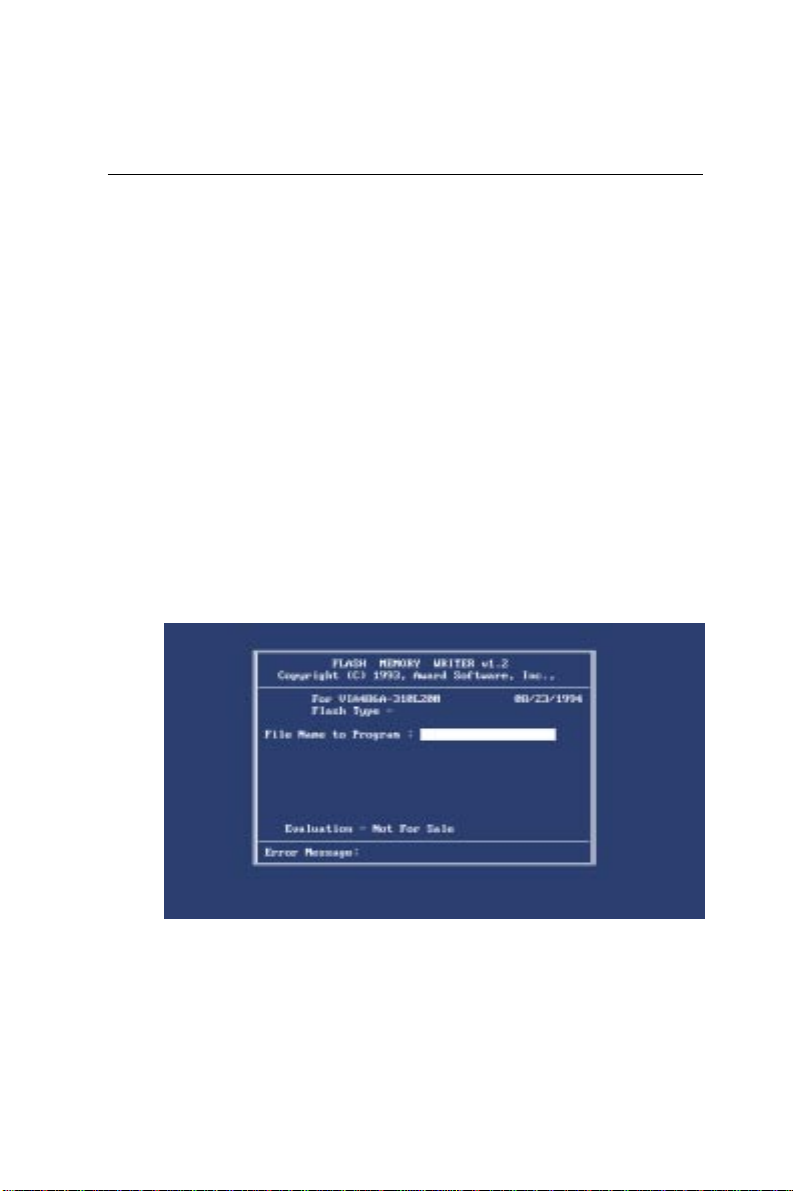

Figure 3-2: BIOS VGA setup screen

26 PCM-4823/4823L User's Manual

3. At the prompt, type in the BIN file which supports your display.
When you are sure that you have entered the file name correctly
press <Enter>. The screen will ask “Do you want to save?” If
you wish to continue press Y. If you change your mind or have
made a mistake press N.

4. If you decide to continue, the screen will issue a prompt which
will then ask “Are you sure to program (Y/N)?” If you wish to
continue, press Y. Press N to exit the program.

The new VGA configuration will then write to the ROM BIOS
chip. This configuration will remain the same until you run the
A WDFLASH.EXE program and change the settings.

3.4 Connections for four standard LCDs

3.4.1 Connections to Sharp LM64183P

(640 x 480 DSTN MONO LCD)

Table 3-1: Connections for Sharp LM64183P LCD

LM64P83 PCM-4823 CN6
Pin Pin name Pin Pin name

CN1-1 S 36 FLM
CN1-2 CP1 38 LP
CN1-3 CP2 35 SHFCLK
CN1-4 DISP 5 +5 V
CN1-5 VDD 6 +5 V
CN1-6 VSS 3 GND
CN1-7 VEE - -17 V (external power)
CN1-8 DU0 12 P3
CN1-9 DU1 11 P2
CN1-10 DU2 10 P1
CN1-11 DU3 9 P0
CN1-12 DL0 16 P7
CN1-13 DL1 15 P6
CN1-14 DL2 14 P5
CN1-15 DL3 13 P4

Chapter 3 Software Configuration 27

3.4.2 Connections to PLANAR EL (640 x 480 AD4 EL)

Table 3-2: Connections for Planar EL

PLANAR 640 x 480 AD4 PCM-4823 CN6
Pin Pin name Pin Pin name

1 GND 3 GND
2 DO 21 P12
3 GND 3 GND
4 D1 22 P13
5 GND 3 GND
6 D2 23 P14
7NC ——
8 D3 24 P15
9NC ——
10 D4 17 P8
11 NC — —
12 D5 18 P9
13 NC — —
14 D6 19 P10
15 GND 4 GND
16 D7 20 P11
17 GND 4 GND
18 VCLK 42 ASHFCLK
19 GND 4 GND
20 /BLANK — —
21 GND 8 GND
22 HS 37 M
23 NC — —
24 VS 36 FLM
25 NC — —
26 SELFTST 39 GND
27 COLMAP 39 GND
28 ENABLE — —
29 RESERVED — —
30 /LOWPOW — —
31,32 NC — —
33 RESERVED — —
34 NC — —

28 PCM-4823/4823L User's Manual

3.4.3 Connections to Toshiba LTM10C042

(640 x 480 TFT Color LCD)

Table 3-3: Connections for Toshiba LTM10C042

LTM10C042 PCM-4823 CN6
Pin Pin name Pin Pin name

1 GND 3 GND
2 CLK 35 SHFCLK
3 GND 4 GND
4 R0 27 P18
5 R1 28 P19
6 R2 29 P20
7 GND 8 GND
8 R3 30 P21
9 R4 31 P22
10 R5 32 P23
11 GND 33 GND
12 G0 19 P10
13 G1 20 P11
14 G2 21 P12
15 GND 33 GND
16 G3 22 P13
17 G4 23 P14
18 G5 24 P15
19 GND 34 GND
20 ENAB 37 M
21 GND 34 GND
22 B0 11 P2
23 B1 12 P3
24 B2 13 P4
25 GND 39 GND
26 B3 14 P5
27 B4 15 P6
28 B5 16 P7
29 GND 39 GND
30 VDD 5 +5 V
31 VDD 6 +5 V

Chapter 3 Software Configuration 29

3.4.4 Connections to Sharp LM64C142 (640 x 480 DSTN Color LCD)

Table 3-4: Connections for Sharp LM64C142

LM64C142 PCM-4823 CN6
Pin Pin name Pin Pin name

CN1-1 YD 36 FLM
CN1-2 LP 38 LP
CN1-3 XCX 35 SHFCLK
CN1-4 DISP 5 +5 V
CN1-5 VDD 6 +5 V
CN1-6 VSS 3 GND
CN1-7 VEE - +27 V(external power)
CN1-8 DU0 20 P11
CN1-9 DU1 19 P10
CN1-10 DU2 18 P9
CN1-11 DU3 17 P8
CN1-12 DU4 12 P3
CN1-13 DU5 11 P2
CN1-14 DU6 10 P1
CN1-15 DU7 9 P0
CN2-1 VSS 4 GND
CN2-2 DL0 24 P15
CN2-3 DL1 23 P14
CN2-4 DL2 22 P13
CN2-5 DL3 21 P12
CN2-6 DL4 16 P7
CN2-7 DL5 15 P6
CN2-8 DL6 14 P5
CN2-9 DL7 13 P4
CN2-10 VSS 8 GND

30 PCM-4823/4823L User's Manual

3.5 Ethernet Interface Configuration

The PCM-4823/4823L's on-board Ethernet interface supports all
major network operating systems. I/O adress and interrupts are
easily configured via the RSET8019.EXE program included on the
utility disk.

The RSET8019.EXE program provides two ways to configure the
Ethernet interface. Configuration can be done automatically when
you choose PNP (plug and play). When you choose jumperless
configuration, the following IRQ and I/O address settings are
available.

PCM-4823/4823L Ethernet Settings

IRQ option I/O address range

Jumperless 2, 5, 10 200H - 33FH
Configuration 11, 15

Default Settings: IRQ=5; Address=300H-31FH

Note: 1. You can select an IRQ from the Options shown

above, but be certain that your selection does not
conflict with other I/O devices.

2. When Boot ROM is installed, the RSET8019.EXE
program does not support PNP mode configuration.

T o execute the configuration, to view the current configuration, or
to run diagnostics do the following:

1. Power the PCM-4823/4823L on. Ensure that the

RSET8019.EXE file is located in the working directory.

2. At the prompt type RSET8019.exe and press <Enter>. The

Ethernet configuration program will then be displayed.

Chapter 3 Software Configuration 31

3. A simple screen displays the available options for the Ethernet
interface. Highlight the option which you wish to change using
the Up and Down keys. T o change a selected item press
<Enter>, and a window will appear with the available options.
Highlight your selection and press <Enter>. Each highlighted
option has a helpful message guide displayed at the bottom of
the screen for additional information.

4. After you have made your selections and you are sure that this
is the configuration you want, press <ESC>. A prompt will

appear asking if you want to save the configuration. Press Y
if you want to save.

The Ethernet Setup Menu also offers three very useful diagnostic
functions. These are:

1. Run EEPROM test.

2. Run Diagnostics on Board.

3. Run Diagnostics on Network
Each option has its own display screen which shows the format and

result of any diagnostic tests undertaken.

32 PCM-4823/4823L User's Manual

4

CHAPTER

Award BIOS Setup

This chapter describes how to set BIOS
configuration data.

4.1 System test and initialization

These routines test and initialize board hardware. If the routines
encounter an error in during the tests, you will either hear a few
short beeps or see an error message on the screen. There are two
kinds of errors: fatal and non-fatal. The system can usually continue
the boot up sequence with non-fatal errors. Non-fatal error
messages usually appear on the screen along with the following
instructions:

press <F1> to RESUME

Write down the message and press the F1 key to continue the
bootup sequence.

4.1.1 System configuration verification

These routines check the current system configuration against the
values stored in the card’s CMOS memory. If they don’t match, the
program outputs an error message. You will then need to run the
BIOS setup program to set the configuration information in memory.

There are three situations in which you will need to change the CMOS
settings:

1. You are starting your system for the first time

2. You have changed the hardware attached to your system

3. The CMOS memory has lost power and the configuration infor­mation has been erased.

The PCM-4823/4823L board's CMOS memory has an integrated
lithium battery backup. The battery backup should last ten years in
normal service, but when it finally runs down, you will need to
replace the complete unit.

34 PCM-4823/4823L User's Manual

4.2 Award BIOS setup

Figure 4-1: BIOS setup program initial screen

Award's BIOS ROM has a built-in setup program that allows users to
modify the basic system configuration. This type of information is
stored in battery-backed CMOS RAM so that it retains the setup
information when the power is turned off.

4.2.1 Entering setup

Power on the computer and press <Del> immediately. This will allow
you to enter Setup.

Chapter 4 Award BIOS Setup 35

4.2.2 Standard CMOS setup

When you choose the ST ANDARD CMOS SETUP option from
the INITIAL SETUP SCREEN menu, the screen shown below is
displayed. This standard setup menu allows users to configure
system components such as date, time, hard disk drive, floppy
drive, display, and memory. Once a field is highlighted, on-line
help information is displayed in the bottom left of the menu screen.

Figure 4-2: CMOS setup screen

36 PCM-4823/4823L User's Manual

4.2.3 BIOS features setup

By choosing the BIOS FEATURES SETUP option from the
INITIAL SETUP SCREEN menu, the screen below is displayed.
This sample screen contains the manufacturer's default values for the
PCM-4823/4823L.

Figure 4-3: BIOS features setup

Chapter 4 Award BIOS Setup 37

4.2.4 CHIPSET features setup

By choosing the CHIPSET FEATURES SETUP option from the
INITIAL SETUP SCREEN menu, the screen below is displayed.
This sample screen contains the manufacturer’s default values for
the PCM-4823/4823L.

LAN Card Boot ROM : Disable

Figure 4-4: CHIPSET features setup

38 PCM-4823/4823L User's Manual

4.2.5 Power management setup

By choosing the POWER MANAGEMENT SETUP option from
the INITIAL SETUP SCREEN menu, the screen below is dis­played. This sample screen contains the manufacturer's default
values for the PCM-4823/4823L.

Figure 4-5: Power management setup

Chapter 4 Award BIOS Setup 39

4.2.6 Load BIOS defaults

BIOS DEF AULTS contains the default system values, which are
the appropriate system parameters for minimum performance.
These default values are loaded automatically if the stored record
created by the Setup program becomes corrupted (and, therefore,
unusable).

Figure 4-6: Load BIOS defaults screen

40 PCM-4823/4823L User's Manual

4.2.7 *Load setup defaults

"LOAD SETUP DEF AULTS" loads the values required by the
system for maximum performance.

*: Default

Figure 4-7: Load SETUP defaults screen

Chapter 4 Award BIOS Setup 41

4.2.8 Change password

T o change the password, choose the PASSWORD SETTING
option form the Setup main menu and press <Enter>.

1. If the CMOS is bad or this option has never been used, there is
default password which is stored in the ROM. The screen will
display the following messages:

Enter Password:

Press <Enter>.

2. If the CMOS is good or this option has been used to change the
default password, the user is asked for the password stored in
the CMOS. The screen will display thefollowing message:

Confirm Password:

Enter the current password and press <Enter>.

3. After pressing <Enter> (ROM password) or the current password
(user-defined), you can change the password stored in the
CMOS. The password can be at most 8 characters long.

Remember - to enable this feature, you must first select either
Setup or System in the BIOS FEATURES SETUP.

42 PCM-4823/4823L User's Manual

4.2.9 Security option

Access to the BIOS setup can be controlled using a password. A
password will control access to the BIOS setup according to two
differing options:

System password: The system will not boot and access to Setup
will be denied unless the correct password is entered at the prompt.

Setup password: The system will boot, but access to Setup will be
denied unless the correct password is entered at the prompt.

To disable security, first enter the BIOS setup and select the
PASSWORD SETTING option in the main menu. When prompted to
enter a password, press the <ENTER> key without entering a
password, then save the new settings. This will will disable security.
Now when you boot you will not be prompted for a password - you
will enter setup directly.

If you lose or forget your password, the following steps restore
default settings:

1. Power off the system.

2. Set jumper J4, connecting pins 1-2 for at least 3 seconds to
clear CMOS entries.

3. Set jumper J4, connecting pins 2-3.

4. Power on the system.

5. Press the Del key to access CMOS settings. Modify the settings
as desired, save, and exit.

Chapter 4 Award BIOS Setup 43

4.2.10 Auto detect hard disk

The IDE HDD AUTO DETECTION utility can automatically
detect the IDE hard disk installed in your system. You can use it to
self-detect and/or correct the hard disk type configuration.

ROM ISA BIOS

CMOS SETUP UTILITY

AWARD SOFTWARE, INC.

HARD DISK TYPE SIZE CYLS. HEADS PRECOMP LANDZ SECTORS MODE

Primary master: (MB) 790 15 65535 789 57

Select Secondary Slave Option (N=Skip): N

ESC = SKIP

Figure 4-8: IDE HDD auto detection screen

4.2.11 Save & exit setup

If you select this option and press <Enter>, the values entered in
the setup utilities will be recorded in the chipset's CMOS memory.
The microprocessor will check this every time you turn your system
on and compare this to what it finds as it checks the system. This
record is required for the system to operate.

4.2.12 Exit without saving

Selecting this option and pressing <Enter> lets you exit the Setup
program without recording any new values or changing old ones.

44 PCM-4823/4823L User's Manual

CHAPTER

5

SVGA Setup

The PCM-4823/4823L features an on­board flat panel/VGA interface. This
chapter provides instructions for installing
and operating the software drivers on the
included display driver diskette.

5.1 Before you begin

T o facilitate the installation of the enhanced display device drivers
and utility software, you should read the instructions in this chapter
carefully . The enhanced display drivers for the PCM-4823/4823L
board are located on the software installation diskette. You must
install the drivers and utility software by using the supplied SETUP
program for DOS drivers

Note: The files on the software installation diskette are

compressed. Do not attempt to install the drivers
by copying the files manually . You must use the
supplied SETUP program to install the drivers.

Before you begin, it is important to note that most display drivers
need to have the relevant software application already installed in
the system prior to installing the enhanced display drivers. In
addition, many of the installation procedures assume that you are
familiar with both the relevant software applications and operating
system commands. Review the relevant operating system com­mands and the pertinent sections of your application software's
user's manual before performing the installation.

46 PCM-4823/4823L User's Manual

5.2 Installation

Disk 1: Windows 3.1 driver
Disk 2: Windows 95, Windows NT drivers
Disk 3: OS/2 drivers

5.3 Simultaneous display mode

The 65550 VGA BIOS supports monochrome LCD, EL, color TFT
and STN LCD flat panel displays. It also supports interlaced and
non-interlaced analog monitors (VGA color and VGA
mono-chrome) in high-resolution modes while maintaining
complete IBM VGA compatibility. Digital monitors (i.e. MDA,
CGA, and EGA) are NOT supported. Multiple frequency (multi­sync) monitors are supported as analog monitors.

Both CRT and panel displays can be used simultaneously. The
PCM-4823/4823L can be set in one of three configurations: on a
CRT, on a flat panel display, or on both simultaneously. The system
is initially set to simultaneous display mode. In the utility diskette,
there are three .COM files which can be used to select the display.
Simply type the filename at the DOS prompt:

CT .COM Enables CRT display only
FP.COM Enables panel display only
SM.COM Enables both displays at the same time.

5.4 Sleep mode

The utility diskette contains two files that support sleep mode.
Simply type the filename at the DOS prompt:

ON.COM switches to normal display mode.
OFF.COM switches to sleep mode.

Chapter 5 SVGA Setup 47

5.5 Driver installation (Windows 3.1 & DOS)

5.5.1 Necessary prerequisites

The instructions in this manual assume that you understand
elementary concepts of MS-DOS and the IBM Personal Computer.
Before you attempt to install any driver or utility you should: know
how to copy files from a floppy disk to a directory on the hard
disk, understand the MS-DOS directory structure, and know how to
format a floppy disk. If you are uncertain about any of these
concepts, please refer to the DOS or Windows user reference
guides for more information before you proceed with the installa­tion.

5.5.2 Before you begin

Before you begin installing software drivers, you should make a
backup copy of the display driver diskette and store the original in
a safe place. The display driver diskette contains drivers for several
versions of certain applications. You must install the correct
version in order for the driver to work properly so make sure you
know which version of the application you have.

5.5.3 Windows setup

These drivers are designed to work with Microsoft Windows 3.1.
You may install these drivers through Windows or in DOS.

Step 1: Install Windows as you normally would for a VGA display.
Run Windows to make sure that it is working correctly.

Step 2: Place the display driver diskette in drive A. In Windows
Program Manager, choose File from the Options Menu. Then from

the pull-down menu, choose Run . . . . At the command line

prompt, type A:\SETUP. Press the <ENTER> key or click OK to
begin the installation. At this point the setup program locates the
directory where Windows is installed. For proper operation, the
drivers must be installed in the Windows subdirectory. Press
<ENTER> to complete the installation. Once completed, the

48 PCM-4823/4823L User's Manual

Display Driver Control Panel appears on the screen. This Control
Panel allows you to select and load the installed drivers.

Another method of installing these drivers is through the File
Manager. Click on Drive A: . Then double-click on SETUP.EXE to
begin installation.

5.5.4 Changing display drivers in Windows

T o change display drivers in Windows, select the Windows Setup
icon from the Main window. You will be shown the current setup
configuration. Select Change System Settings from the Option
menu. Click on the arrow at the end of the Display line. You will be
shown a list of display drivers. Click on the driver you want. Then
click on the OK button. Follow the directions to complete the
setup.

5.5.5 Changing color schemes

After you change display drivers, you may notice that the color
scheme used by Windows looks strange. This is because different
drivers have different default colors. To change the color scheme,
select the Control Panel from the Main window. Select the Color
icon. You will be shown the current color scheme. Choose a new
color scheme and click the OK button.

Chapter 5 SVGA Setup 49

5.5.6 DOS setup

Step 1: Install Windows as you normally would for a VGA display.
Run Windows to make sure that it is working correctly. Then exit
Windows.

Step 2: Place the display driver diskette in drive A. T ype A:
<ENTER> to make this the default drive. T ype SETUP <ENTER>
to run the driver SETUP program. Press any key to get to the
applications list. Using the arrow keys, select Windows Version 3.1
and press the <ENTER> key. Press the <ENTER> key to select
All Resolutions, and then press <END> to begin the installation.
At this point you will be asked for the path to your Windows
system directory (default C:\WINDOWS). When the installation is
complete, press any key to continue. Press <ESC> followed by Y
to exit to DOS.

Step 3: Change to the directory where you installed Windows
(usually C:\WINDOWS).

Step 4: T ype SETUP <ENTER> to run the Windows Setup
program. It will show the current Windows configuration. Use the
up arrow key to move to the Display line and press <ENTER>. A
list of display drivers will be shown. Use the arrow keys to select
one of the drivers starting with an asterisk (*) and press <ENTER>.

Step 5: Follow the directions on the screen to complete the setup.
In most cases, you may press <ENTER> to accept the suggested
option. When Setup is done, it will return to DOS. T ype WIN
<ENTER> to start Windows with the new display driver.

5.5.7 Changing display drivers in DOS

T o change display drivers from DOS, change to the Windows
directory and run Setup, repeating steps 4 and 5 from the previous
page. Besides the special display drivers marked by an asterisk (*),
you should be able to use the following standard drivers:

VGA 640x480, 16 colors
Super VGA 800x600, 16 colors

50 PCM-4823/4823L User's Manual

5.5.8 Panning drivers

Special panning drivers are provided to allow high-resolution
modes to be displayed on a flat panel or CRT. These drivers will
show a section of a larger screen and will automatically pan, or
scroll, the screen horizontally and vertically when the mouse
reaches the edge of the display.

5.5.9 Linear acceleration drivers

A special high-performance linear acceleration driver is provided
for 256-color modes. This driver may require special hardware and
may not be supported on all systems.

Chapter 5 SVGA Setup 51

5.6 Windows 95 drivers setup procedure

1. Boot system with VGA or SuperVGA driver.

2. Select properties from a menu after right button press.

3. Select display .

4. Select Change Display.

5. Select Change Monitor.

6. Select Change Adapter.

7. Select Have Disk.

5.7 Windows NT drivers setup procedure

5.7.1 Step 1

1.Install Windows NT as you normally would for a VGA display .

2.First click the Start button,choose Settings and click on Control

Panel.

3.Choose the Display icon and click on the icon.

4.In the Display Properties window, click on the Settings tab.

5.Click on Change Display Type. In the Change Display Type

window, click on the Change button under Adapter Type. This
will bring up the Select Device window .

5.7.2 Step 2

1.In the Select Device window, click on Have Disk. Enter source

directory where the Windows NT driver files are located.

2.Press <ENTER> and the name of the Chips and Technologies

Video Accelerator driver will appear in the Models list box.
Select a driver, then click OK or press enter.

3.A warning panel about Third Party drivers will appear. Click the

Yes button to finish installation.

4.Once the installation is complete, the system must be shut down

and restarted.

52 PCM-4823/4823L User's Manual

5.7.3 Step 3

1.Upon restarting your computer, select the desired display settings
from the Display property dialog box.

2.Click on Test to test the newly selected graphics mode. A color
test screen should appear, followed by the Testing Mode window .

3.Click on Yes to continue. Click on Apply to switch to the new
graphics mode.

4.Since graphics modes are changed dynamically with NT 4.0, you
need not shutdown and restart to give effect to the new screen
settings.

5.8 OS/2 drivers setup procedure

5.8.1 Preliminary steps

The following steps must be performed before you install the
65550/554 display driver:

1. OS/2 DOS support must be installed.

2. If you previously installed SVGA support, you must reset the
system to VGA mode. VGA is the default video mode enabled
when OS/2 is installed.

T o restore VGA mode, use Selective Install and select VGA for
Primary Display. For more information on this procedure, see the
section on Changing Display Adapter Support in the OS/2 User's
Guide.

5.8.2 Installing from diskette

T o install this driver, do the following steps:

1. Open an OS/2 full screen or window session.

2. Place the 65550 Display Driver Diskette in drive A.

3. At the OS/2 command prompt, type the following commands to
copy the files to the OS/2 drive:

Chapter 5 SVGA Setup 53

Type:

A: <ENTER> to make this the default drive.
SETUP A: C: <ENTER>

where A: is the floppy disk drive and C: is the hard drive
When the setup program is completed, you will need to perform a

shutdown and then restart the system in order for changes to take
effect.

A log of the information output during the install can be found in
<root>:\OS2\INST ALL\DISPLAY .LOG

4. After restarting the system, perform the following steps:

1. Open the OS/2 System folder.

2. Open the System Setup folder.

3. Open the Display Driver Install Object

This step will execute the Display Driver Installation (DSPINSTL)
utility program to finish installation of the new drivers.

4. When the Display Driver Install window appears, select
Primary Display and then select OK.

5. When The Primary Display Driver List window appears,
select “Chips and Technologies 65550/554” from the list
of adapter types, then select OK to install the video driver.

6. When the installation is complete, you will need to
shutdown and then restart the system for the changes to
take effect. Make sure to remove the install diskette
before restarting the system.

When the system has restarted, the display driver will be initialized
for 640x480x256 color, 60 Hz refresh. To switch to a different
video resolution, color depth or refresh rate, follow the steps
below.

54 PCM-4823/4823L User's Manual

5.8.3 Selecting monitor type

Monitor type is initially set to DEF AULT. This DEFAULT setting
may not allow you to select all resolution/refresh combinations that
are available for your monitor. The following steps can be per­formed to select monitor type. This section applies only after
installation, or when a different monitor is used.

1. Open the OS/2 System folder.

2. Open the System Setup folder.

3. Open the System object.

4. When the System - Settings notebook appears, select the Screen
tab. This will take you to page 2 of the settings.

5. On Screen page 2, select your monitor type from the Display
Name list. If your monitor is not listed, select DEF AULT. Return
to Screen page 1.

It may be necessary to restart your system to have all refresh rate
options available.

5.8.4 Selecting screen resolution/refresh rate

T o switch to a dif ferent video resolution, color depth or refresh
rate, follow the steps below.

1. Open the OS/2 System folder.

2. Open the System Setup folder.

3. Open the System object.

4. From the selection windows provided, select a new Screen
Resolution and Screen refresh rate.

Please note, Refresh rates, other than 60 Hz, are only valid when
the display is switched to CRT only display mode.

5. Close the System-Settings notebook.

6. Perform a shutdown and restart for the changes to take effect.

Chapter 5 SVGA Setup 55

5.8.5 Installation notes

1. During the installation of this driver, DISPLAY.LOG and

DSPINSTL.LOG files are created in \OS2\INST ALL directory.
These files identify the OS/2 system files that were updated and
indicate whether the installation was successful. The
DISPLA Y.LOG file also contains a string which identifies the
version of driver that was installed. This information may be
important when reporting an installation problem.

2. During installation, DSPINSTL will invoke the SVGA Configu-

ration program SVGA.EXE to determine the hardware configu­ration, and create the file \OS2\INST ALL\SVGADATA.PMI. If
this file is not created, the adapter will not be supported. When
this step is done, the display will be blanked, and you may see a
series of flashes on the display , and what appears to be a “cor­rupted” display. This is normal, as the configuration process is
doing V ideo BIOS mode sets to determine which screen resolu­tions BIOS supports. This configuration information is then used
to provide the System-Settings Resolution and Refresh selec­tions.

56 PCM-4823/4823L User's Manual

A

APPENDIX

Pin Assignments

This appendix contains information of a
detailed or specialized nature. It includes:

• CRT display connector

• Flat panel display connector

• Main power connector

• RS-232/422/485 serial port connector

• Keyboard and mouse connector

• Peripheral power connector

• IDE connector

• RS-232 serial port connector

• Ethernet RJ-45 connector

• Floppy connector

• Parallel connector

• IR connector

• System I/O ports

• DMA channel assignments

• Interrupt assignments

• 1st MB memory map

• CPU fan connector

A.1 CRT display connector (CN14)

Tabler A-1: PCM-4823/4823L CRT display connector

Pin Signal Pin Signal

1 RED 9 N/C
2 GREEN 10 GND
3 BLUE 11 N/C
4 N/C 12 N/C
5 GND 1 3 H-SYNC
6 GND 1 4 V-SYNC
7 GND 1 5 N/C
8 GND

A.2 Flat panel display connector (CN6)

Table A-2: PCM-4823/4823L flat panel display connector

Pin Function Pin Function

1 +12 V 2 +12 V
3 GND 4 GND
5 Vcc 6 Vcc
7 ENAVEE 8 GND
9P0 10P1
11 P2 12 P3
13 P4 14 P5
15 P6 16 P7
17 P8 18 P9
19 P10 20 P11
21 P12 22 P13
23 P14 24 P15
25 P16 26 P17
27 P18 28 P19
29 P20 30 P21
31 P22 32 P23
33 GND 34 GND
35 SHFCLK 36 FLM
37 M 38 LP
39 GND 40 ENABKL
41 GND 42 ASHFCLK
43 ENAVDD 4 4 Vcc

58 PCM-4823/4823L User's Manual

A.3 COM2 RS-232/422/485 serial port (CN9)

Table A-3: PCM-4823/4823L COM2 RS-232/422/485 series port

Pin RS-232 port RS-422 port RS-485 port

1 DCD N/C N/C
2 DSR N/C N/C
3 RxD N/C N/C
4 RTS N/C N/C
5 TxD N/C N/C
6 CTS N/C N/C
7 DTR N/C N/C
8 RI N/C N/C
9 GND N/C N/C
10 N/C N/C N/C
11 N/ C TxD+ D ATA+
12 N/ C TxD- DATA­13 N/C RxD+ N/C
14 N/C RxD- N/C

A.4 Keyboard and mouse connnector (CN13)

Table A-4: PCM-4823/4823L keyboard and mouse connector

Pin Signal

1 KB DATA
2 MS DATA
3 GND
4V
5 KB CLOCK
6 MS CLOCK

CC

Appendix A Pin Assignments 59

A.5 Main power connector (CN11)

Table A-5: PCM-4823/4823L main power connector

Pin Signal

1 +12 V
2 GND
3 GND
4 +5 V

A.6 IDE hard drive connector (CN7)

Table A-6: PCM-4823/4823L IDE hard drive connector

Pin Signal Pin Signal

1 IDE RESET 2 GND
3DATA 7 4DATA 8
5DATA 6 6DATA 9
7 DATA 5 8 DATA 10
9 DATA 4 10 DATA 11
11 DATA 3 12 DATA 12
13 DATA 2 14 DATA 13
15 DATA 1 16 DATA 14
17 DATA 0 18 DATA 15
19 SIGNAL GND 20 N/C
21 N/C 22 GND
23 IO WRITE 24 GND
25 IO READ 26 GND
27 IO CHANNEL READY 28 N/C
29 N/C 30 GND
31 IRQ14 32 IOCS16
33 ADDR 1 34 N/C
35 ADDR 0 36 ADDR 2
37 HARD DISK SELECT 0 38 HARD DISK SELECT 1
39 IDE ACTIVE 40 GND
41 VCC 42 VCC
43 GND 44 N/C

60 PCM-4823/4823L User's Manual

A.7 COM1 RS-232 serial port (CN12)

Table A-7: PCM-4823/4823L COM1 RS-232 serial port

Pin Signal

1 DCD
2 RxD
3 TxD
4 DTR
5 GND
6 DSR
7RTS
8 CTS
9RI

A.8 Ethernet 10Base-T connector (CN10)

Table A-8: PCM-4823/4823L Ethernet 10Base-T connector

Pin Signal

1 XMT+
2 XMT­3 RCV+
4 N/C
5 N/C
6 RCV­7 N/C
8 N/C

Appendix A Pin Assignments 61

A.9 Peripheral power connector (CN1)

Table A-9: PCM-4823/4823L peripheral power connector

Pin Signal

3 -5 V
2 GND
1 -12 V

A.10 Floppy drive connector (CN2)

Table A-10: PCM-4823/4823L floppy drive connector

Pin Signal Pin Signal

1 GND 2 DENSITY SELECT
3 GND 4 N/C
5 GND 6 N/C
7 GND 8 INDEX
9 GND 10 MOTOR 0
11 GND 12 DRIVE SELECT 1
13 GND 14 DRIVE SELECT 0
15 GND 16 MOTOR 1
17 GND 18 DIRECTION
19 GND 20 STEP
21 GND 22 WRITE DATA
23 GND 24 WRITE GATE
25 GND 26 TRACK 0
27 GND 28 WRITE PROTECT
29 GND 30 READ DATA
31 GND 32 HEAD SELECT
33 GND 34 DISK CHANGE

62 PCM-4823/4823L User's Manual

A.11 Parallel port connector (CN4)

Table A-11: PCM-4823/4823L parallel port connector

Pin Signal

1 \STROBE
2 \AUTOFD
3D0
4 ERR
5D1
6 \INIT
7D2
8 \SLCTINI
9D3
10 GND
11 D4
12 GND
13 D5
14 GND
15 D6
16 GND
17 D7
18 GND
19 \ACK
20 GND
21 BUSY
22 GND
23 PE
24 GND
25 SLCT
26 N/C

Appendix A Pin Assignments 63

A.12 IR connector (CN8)

Table A-12: PCM-4823/4823L IR connector

Pin Signal

1 +5 V
2 N/C
3 IR_RX
4 GND
5 IR_TX

64 PCM-4823/4823L User's Manual

A.13 System I/O ports

Table A-13: System I/O ports

Addr. range (Hex)Device

000-01F DMA controller
020-021 Interrupt controller 1, master
022-023 Chipset address
040-05F 8254 timer
060-06F 8042 (keyboard Controller)
070-07F Real-time clock, non-maskable interrupt (NMI) mask
080-09F DMA page register,
0A0-0BF Interrupt controller 2
0C0-0DF DMA controller
0F0 Clear math co-processor
0F1 Reset math co-processor
0F8-0FF Math co-processor
1F0-1F8 Fixed disk
200-207 Game I/O
278-27F Parallel printer port 2 (LPT 3)
2F8-2FF Serial port 2
300-31F Ethernet**
360-36F Reserved
378-37F Parallel printer port 1 (LPT 2)
380-38F SDLC, bisynchronous 2
3A0-3AF Bisynchronous 1
3B0-3BF Monochrome display and printer adapter(LPT1)
3C0-3CF Reserved
3D0-3DF Color/graphics monitor adapter
3F0-3F7 Diskette controller
3F8-3FF Serial port 1
443 Watchdog timer

* PNP audio I/O map range from 220 ~ 250H (16 bytes)
MPU-401 select from 300 ~ 330H (2 bytes)

** default setting

Appendix A Pin Assignments 65

A.14 DMA channel assignments

Table A-14: DMA channel assignments

Channel Function

0 Available
1 Available
2 Floppy disk (8-bit transfer)
3 Available
4 Cascade for DMA controller 1
5 Available
6 Available
7 Available

A.15 Interrupt assignments

Table A-15: Interrupt assignments

Priority Interrupt# Interrupt source

1 NMI Parity error detected
2 IRQ 0 Interval timer
3 IRQ 1 Keyboard

- IRQ 2 Interrupt from controller 2 (cascade)
4 IRQ 8 Real-time clock
5 IRQ 9 Cascaded to INT 0A (IRQ 2)
6 IRQ 10 Available
7 IRQ 11 Watchdog timer
8 IRQ 12 PS/2 mouse
9 IRQ 13 INT from co-processor
10 IRQ 14 Fixed disk controller
11 IRQ 15 Available
12 IRQ 3 Serial communication port 2
13 IRQ 4 Serial communication port 1
14 IRQ 5 Ethernet*
15 IRQ 6 Diskette controller (FDC)
16 IRQ 7 Parallel port 1 (print port)

* Ethernet default setting: IRQ5

Ethernet IRQ select: IRQ 10, 11, 15

66 PCM-4823/4823L User's Manual

A.16 1st MB memory map

Table A-16: 1st MB memory map

Addr. range (Hex) Device

F000h - FFFFh System ROM
CC00h - EFFFh Unused
C800h - CBFFh Ethernet ROM*
C000h - C7FFh Expansion ROM**
B800h - BFFFh CGA/EGA/VGA text
B000h - B7FFh Unused
A000h - AFFFh EGA/VGA graphics
0000h - 9FFFh Base memory
D000 - D400H DOC 2000*

* Default setting
** If Ethernet boot ROM is enabled

A.17 CPU fan connector

Table A-17: CPU fan (5 V) connector

Pin Signal

1 +5V
2 GND

Appendix A Pin Assignments 67

68 PCM-4823/4823L User's Manual

APPENDIX

B

Installing PC/104 Modules

This appendix gives instructions for
installing PC/104 modules.

B.1 Installing PC/104 modules

The PCM-4823/4823L's PC/104 connectors give you the flexibili­ty to attach PC/104 modules.

Installing these modules on the PCM-4823/4823L is quick and simple.
The following steps show how to mount the PC/104 modules:

1. Remove the PCM-4823/4823L from your system paying

particular attention to the safety instructions already mentioned
above.

2. Make any jumper or link changes required to the CPU card

now. Once the PC/104 module is mounted you may have
difficulty in accessing these.

3. Normal PC/104 modules have male connectors and mount

directly onto the main card. (Refer to the diagram on the
following page.)

4. Mount the PC/104 module onto the CPU card by pressing the

module firmly but carefully onto the mounting connectors.

5. Secure the PC/104 module onto the CPU card using the four

mounting spacers and screws.

70 PCM-4823/4823L User's Manual

PC/104

g

Mountin

Support

Female

PCM-4825/4825L

Male

PC/104 module

Figure B-1: PC/104 module mounting diagram

95.9

90.8

5.1

8.9

0

5.1

0

82.5

85.1

90.8

5.1

90.2

Figure B-2: PC/104 module dimensions (mm) (±0.1)

Appendix B Installing PC/104 Modules 71

Table B-1: PCA-4823/4823L PC/104 connectors (CN3, CN5)

Pin Signal (CN3) Signal (CN5)

Number Row A Row B Row C Row D

0— — 0 V 0 V
1 IOCHCHK* 0V SBHE*

MEMCS16*
2 SD7 RESETDRV LA23 IOCS16*
3 SD6 +5V LA22 IRQ10
4 SD5 IRQ9 LA21 IRQ11
5 SD4 -5V LA20 IRQ12
6 SD3 DRQ2 LA19 IRQ15
7 SD2 -12V LA18 IRQ14
8 SD1 ENDXFR* LA17 DACK0*
9 SD0 +12 V MEMR* DRQ0
10 IOCHRDY N/C MEMW* DACK5*
11 AEN SMEMW* SD8 DRQ5
12 SA19 SMEMR* SD9 DACK6*
13 SA18 IOW* SD10 DRQ6
14 SA17 IOR* SD11 DACK7*
15 SA16 DACK3* SD12 DRQ7
16 SA15 DRQ3 SD13 +5V
17 SA14 DACK1* SD14 MASTER*
18 SA13 DRQ1 SD15 0 V
19 SA12 REFRESH* KEY 0 V
20 SA11 SYSCLK — —
21 SA10 IRQ7 — —
22 SA9 IRQ6 — —
23 SA8 IRQ5 — —
24 SA7 IRQ4 — —
25 SA6 IRQ3 — —
26 SA5 DACK2* — —
27 SA4 TC — —
28 SA3 BALE — —
29 SA2 +5V — —
30 SA1 OSC — —
31 SA0 0 V — —
32 0 V 0 V — —

*active low

72 PCM-4823/4823L User's Manual

APPENDIX

C

DOC® 2000 Installation Guide

This appendix contains information on the
DiskOnChip® 2000 quick installation
guide. It includes:

• DiskOnChip® 2000 installation instruc­tions

• Additional information and assistance

Appendix C DOC 2000 Installation Guide 73

C.1 DiskOnChip® 2000 quick installation guide

C.1.1 DiskOnChip® 2000 installation instructions

1. Make sure the target platform is powered OFF .

2. Plug the DiskOnChip® 2000 device into its socket. V erify the
direction is correct (pin 1 of the DiskOnChip® 2000 is aligned with
pin 1 of the socket).

3. Power up the system.

4. During power up you may observe the messages displayed by
the DiskOnChip® 2000 when its drivers are automatically loaded
into the system's memory .

5. At this stage the DiskOnChip® 2000 can be accessed as any disk
in the system.

6. If the DiskOnChip® 2000 is the only disk in the system, it will
appear as the first disk (drive C: in DOS).

7. If there are more disks besides the DiskOnChip® 2000, the
DiskOnChip® 2000 will appear by default as the last drive, unless
it was programmed as the first drive. (Please refer to the
DiskOnChip® 2000 utilities user manual.)

8. If you want the DiskOnChip® 2000 to be bootable:

a - Copy the operating system files into the DiskOnChip® by

using the standard DOS command (for example: sys d:).

b - The DiskOnChip® should be the only disk in the systems or

would be configured as the first disk in the system (c:) using the
DUPDA TE utility .

DUPDATE D /S: DOC104.EXB /FIRST (set as c:)
DUPDATE C /S: DOC104.EXB (set as d:)

74 PCM-4823/4823L User's Manual

C.1.2 Additional information and assistance

1. Visit M-Systems Web site at www .m-sys.com where you can find
Utilities Manual, Data Sheet and Application Notes. In addition,
you can find the latest DiskOnChip® 2000 S/W Utilities.

2. Contact your dealer for technical support if you need additional
assistance, and have the following information ready:

• Product name and serial number .

• Description of your computer hardware (manufacturer, model,
attached devices, etc.)

• Description of your software (operating system, version,
application software, etc.)

• A complete description of the problem.

• The exact wording of any error messages.

Appendix C DOC 2000 Installation Guide 75

76 PCM-4823/4823L User's Manual

Programming the
Watchdog Timer

This appendix contains information
of a detailed or specialized nature.
It includes:

The PCM-4823/4823L Rev. B is
equipped with a watchdog timer
that resets the CPU or generates an
interrupt if processing comes to a
standstill for whatever reason. This
feature ensures system reliability in
industrial standalone or un­manned environments.

D

APPENDIX

Appendix D Programming the Watchdog Timer 77

D.1 Programming the Watchdog timer

T o enable the watchdog timer , you must write a program which first
writes to the I/O address + 443(hex) and then reads from that
address at regular intervals. The first time your program writes to
the port, it enables the watchdog timer. After that, your program
must read the port during a time interval of less than 1.6 seconds,
otherwise the watchdog timer will activate and reset the CPU.

If CPU processing comes to a standstill because of EMI or a
software bug, the program will signal to I/Oaddress + 443(hex) and
the timer will be interrupted. The timer will then automatically reset
the CPU and data processing will continue normally .

T o avoid an unexpected CPU reset you must write your program so
that it reads the I/O address + 443(hex) at an interval shorter than
the timer's preset interval. Programs can disable the W atchdog
Timer by reading the value preset in 443 (hex).

The watchdog timer must be programmed via direct I/O access
using the following procedure.

D.1.1 Watchdog timer enable, refresh and

disables procedures

Note: The following values must be written to the I/O port

exactly as stated or the watchdog timer will NOT
function

A.To enable the WDT

REM WDT enable procedure
I 443
O 3F0 87h
O 3F0 87h
O 3F0 14h
O 3F1 9Ch

78 PCM-4823/4823L User's Manual

B.To refresh the WDT read port 443

REM WDT refresh procedure
I 443 ;if the refresh interval is
O 443 ;greater than 1.6 sec., the

. ;systen will reset!
.
.

I 443

C. To disable the WDT

REM WDT disable procedure
O 3F0 87h
O 3F0 87h
O 3F0 14h
O 3F1 8Ch
O 3F0 AAh

Note: For details, please refer to the WDT example on

the utility diskette.

Appendix D Programming the Watchdog Timer 79

80 PCM-4823/4823L User's Manual

E

APPENDIX

Mechanical Drawing

Appendix D Programming the Watchdog Timer 81

E.1 PCM-4823/4823L Mechanical Drawing

Figure E-1: PCM-4823/4823L Mechanical Drawing
