Advantech PCIE-1756 User guide

PCIE-1756

64-ch Isolated Digital I/O PCI Express Card

User Manual

The documentation and the software included with this product are copyrighted 2012 by Advantech Co., Ltd. All rights are reserved. Advantech Co., Ltd. reserves the right to make improvements in the products described in this manual at any time without notice. No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written permission of Advantech Co., Ltd. Information provided in this manual is intended to be accurate and reliable. However, Advantech Co., Ltd. assumes no responsibility for its use, nor for any infringements of the rights of third parties, which may result from its use.

Acknowledgements

Intel and Pentium are trademarks of Intel Corporation.

Microsoft Windows and MS-DOS are registered trademarks of

Microsoft Corp.

All other product names or trademarks are properties of their respective owners.

Part No. 2003E75610 1st Edition

Printed in Taiwan March 2012

PCIE-1756 User Manual ii

Product Warranty (2 years)

Advantech warrants to you, the original purchaser, that each of its products will be free from defects in materials and workmanship for two years from the date of purchase.

This warranty does not apply to any products which have been repaired or altered by persons other than repair personnel authorized by Advantech, or which have been subject to misuse, abuse, accident or improper installation. Advantech assumes no liability under the terms of this warranty as a consequence of such events.

Because of Advantech’s high quality-control standards and rigorous testing, most of our customers never need to use our repair service. If an Advantech product is defective, it will be repaired or replaced at no charge during the warranty period. For out-of-warranty repairs, you will be billed according to the cost of replacement materials, service time and freight. Please consult your dealer for more details.

If you think you have a defective product, follow these steps:

1. Collect all the information about the problem encountered. (For example, CPU speed, Advantech products used, other hardware and software used, etc.) Note anything abnormal and list any onscreen messages you get when the problem occurs.

2. Call your dealer and describe the problem. Please have your manual, product, and any helpful information readily available.

3. If your product is diagnosed as defective, obtain an RMA (return merchandize authorization) number from your dealer. This allows us to process your return more quickly.

4. Carefully pack the defective product, a fully-completed Repair and Replacement Order Card and a photocopy proof of purchase date (such as your sales receipt) in a shippable container. A product returned without proof of the purchase date is not eligible for warranty service.

5. Write the RMA number visibly on the outside of the package and ship it prepaid to your dealer.

iii

This product has passed the CE test for environmental specifications when shielded cables are used for external wiring. We recommend the use of shielded cables. This kind of cable is available from Advantech. Please contact your local supplier for ordering information.

FCC Class A

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

Technical Support and Assistance

Step 1. Visit the Advantech web site at www.advantech.com/support

where you can find the latest information about the product.

Step 2. Contact your distributor, sales representative, or Advantech's cus-

tomer service center for technical support if you need additional assistance. Please have the following information ready before you call:

- Product name and serial number

- Description of your peripheral attachments

- Description of your software (operating system, version, application software, etc.)

- A complete description of the problem

- The exact wording of any error messages

PCIE-1756 User Manual iv

Packing List

Before setting up the system, check that the items listed below are included and in good condition. If any item does not accord with the table, please contact your dealer immediately.

• PCIE-1756 DA&C Card

• StartUp or User Manual

• Companion DVD-ROM with DAQNavi drivers included

Safety Precaution - Static Electricity

Follow these simple precautions to protect yourself from harm and the products from damage.

1. To avoid electrical shock, always disconnect the power from your PC chassis before you work on it. Don't touch any components on the CPU card or other cards while the PC is on.

2. Disconnect power before making any configuration changes. The sudden rush of power as you connect a jumper or install a card may damage sensitive electronic components.

PCIE-1756 User Manual vi

Contents

Chapter 1 Introduction ..................................................... 2

1.1 Features ............................................................................. 2

1.2 Applications ..................................................................... 5

1.3 Installation Guide ............................................................. 5

1.4 Software Overview ........................................................... 7

1.5 DAQNavi Device Driver Programming Roadmap .......... 8

1.6 Accessories........................................................................ 9

Chapter 2 Installation ..................................................... 12

2.1 Unpacking ....................................................................... 12

2.2 Driver Installation ........................................................... 13

2.3 Hardware Installation ...................................................... 15

2.4 Device Setup & Configuration ....................................... 16

Chapter 3 Signal Connections ........................................ 20

3.1 Overview ......................................................................... 20

3.2 Switch and Jumper Settings ........................................... 20

3.3 Signal Connections.......................................................... 23

3.4 Field Wiring Considerations .......................................... 28

Appendix A Specifications ................................................. 30

Figure 1.1:Installation Flow Chart ................................. 6

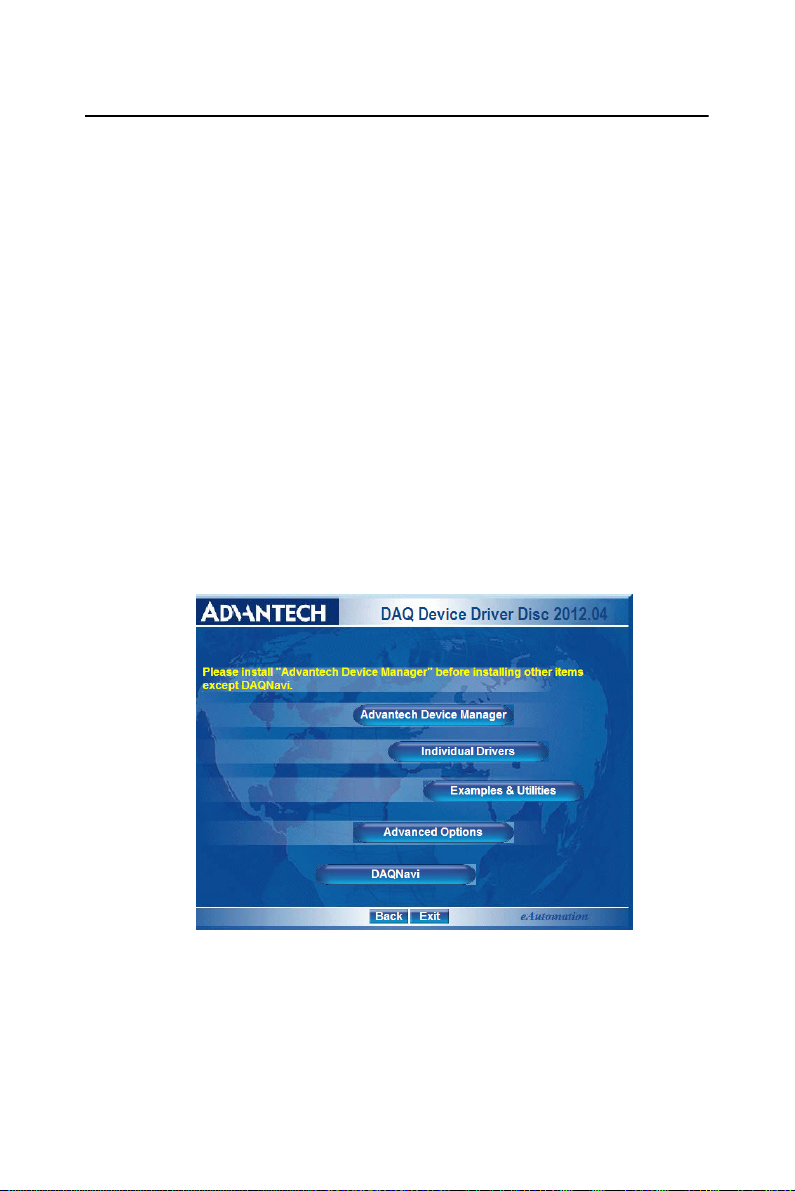

Figure 2.1:Setup Screen of Advantech Automation Soft-

ware 13

Figure 2.2:DAQNavi Installation Setup Screen .......... 14

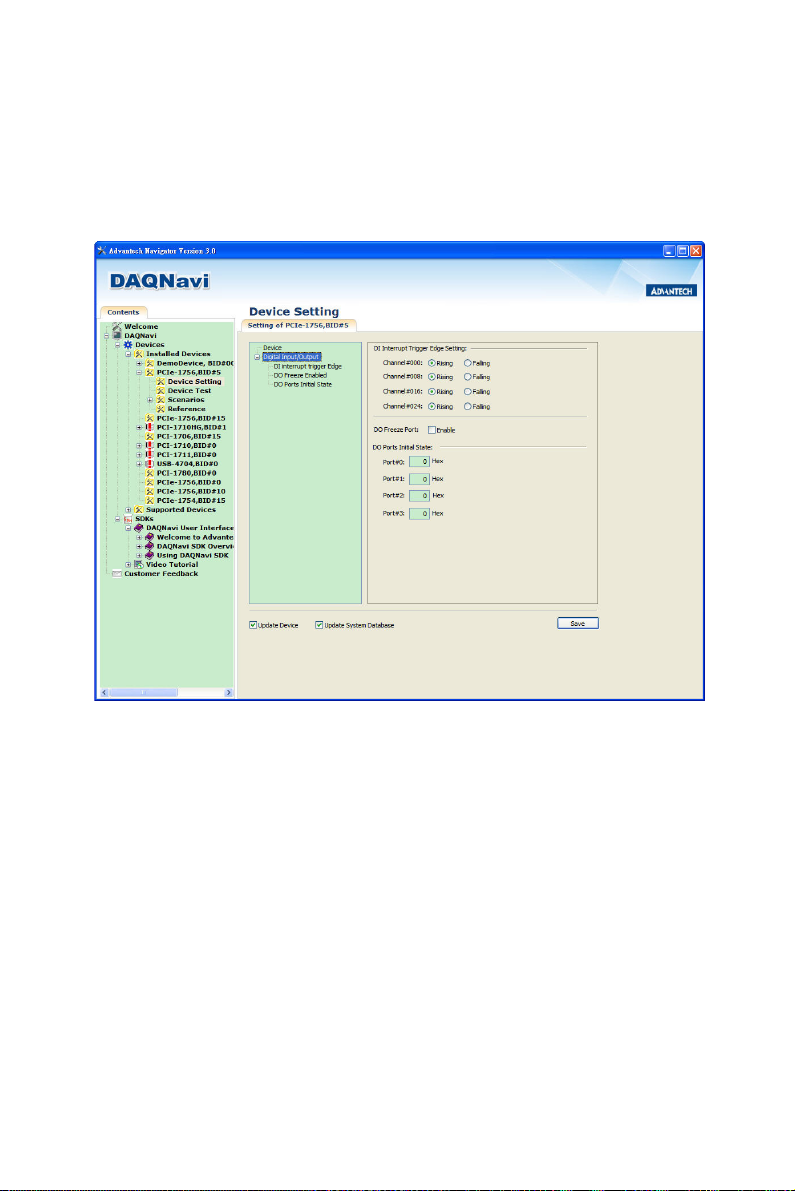

Figure 2.3:The Device Setting of PCIE-1756 .............. 16

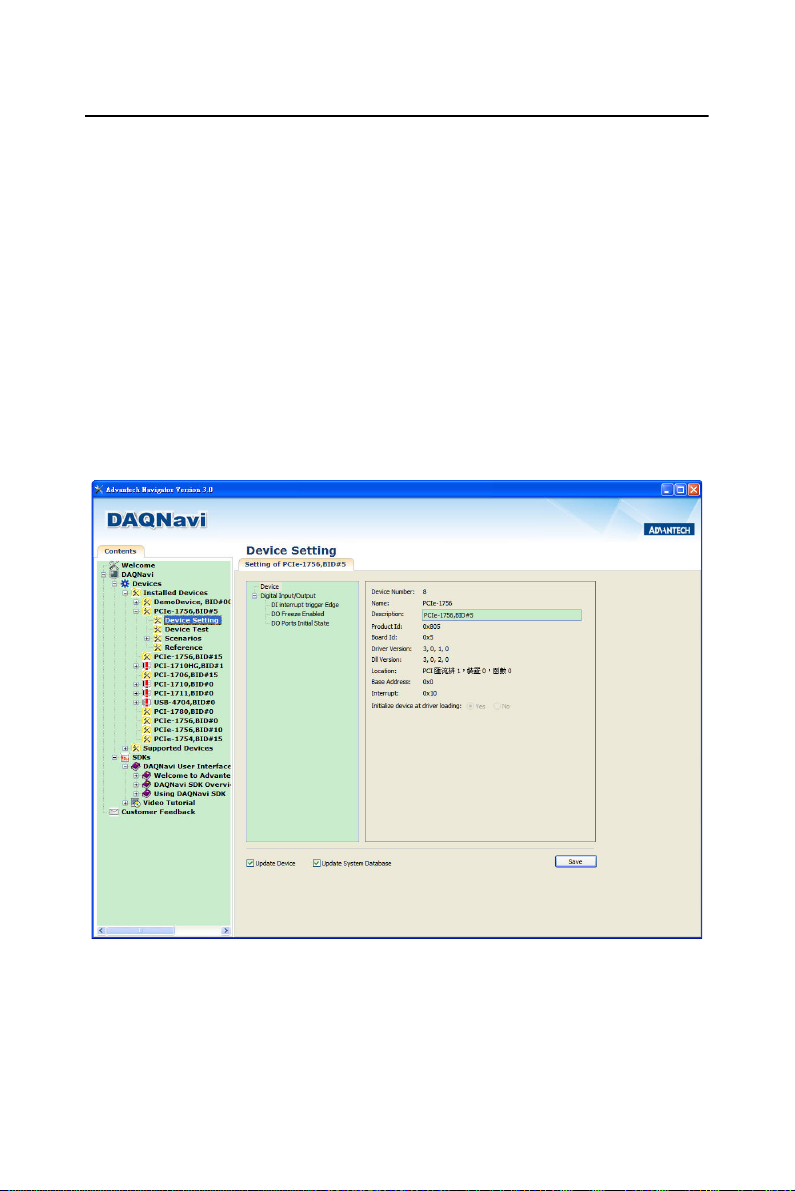

Figure 2.4:The Digital I/O Setting Page ...................... 17

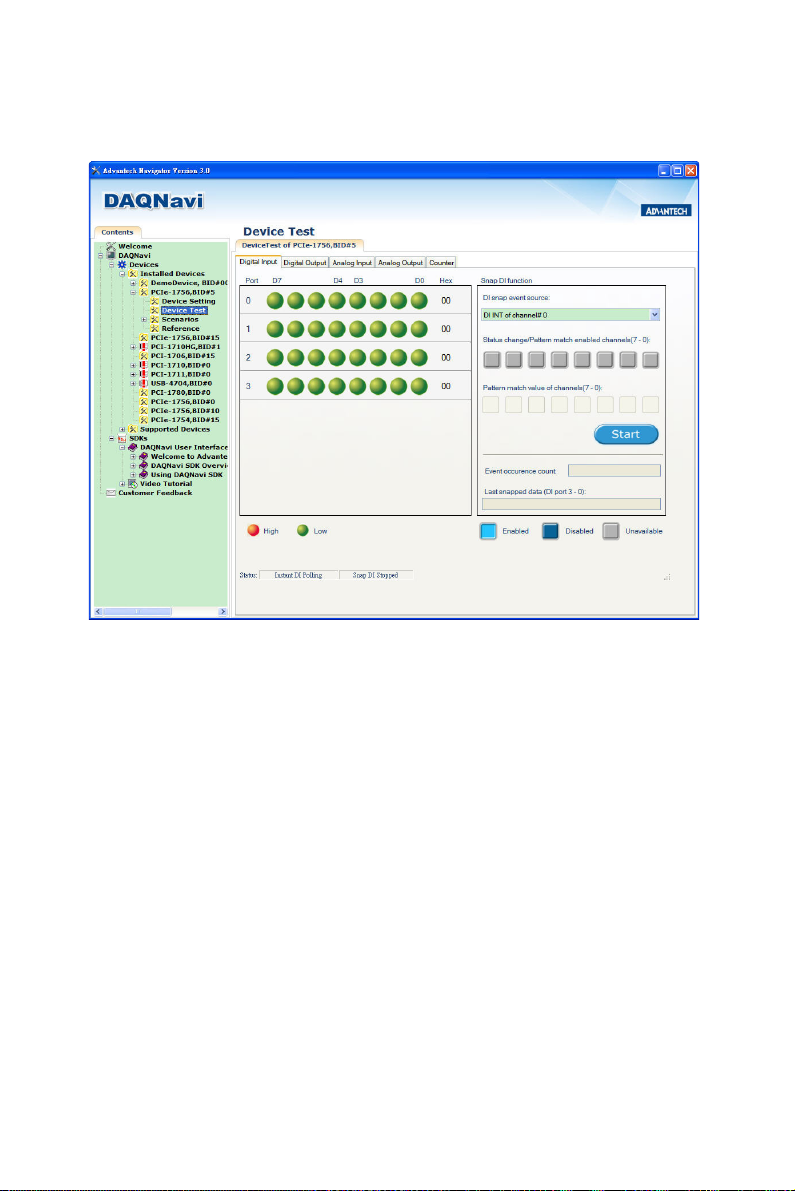

Figure 2.5:The Device Testing of PCIE-1756 ............. 18

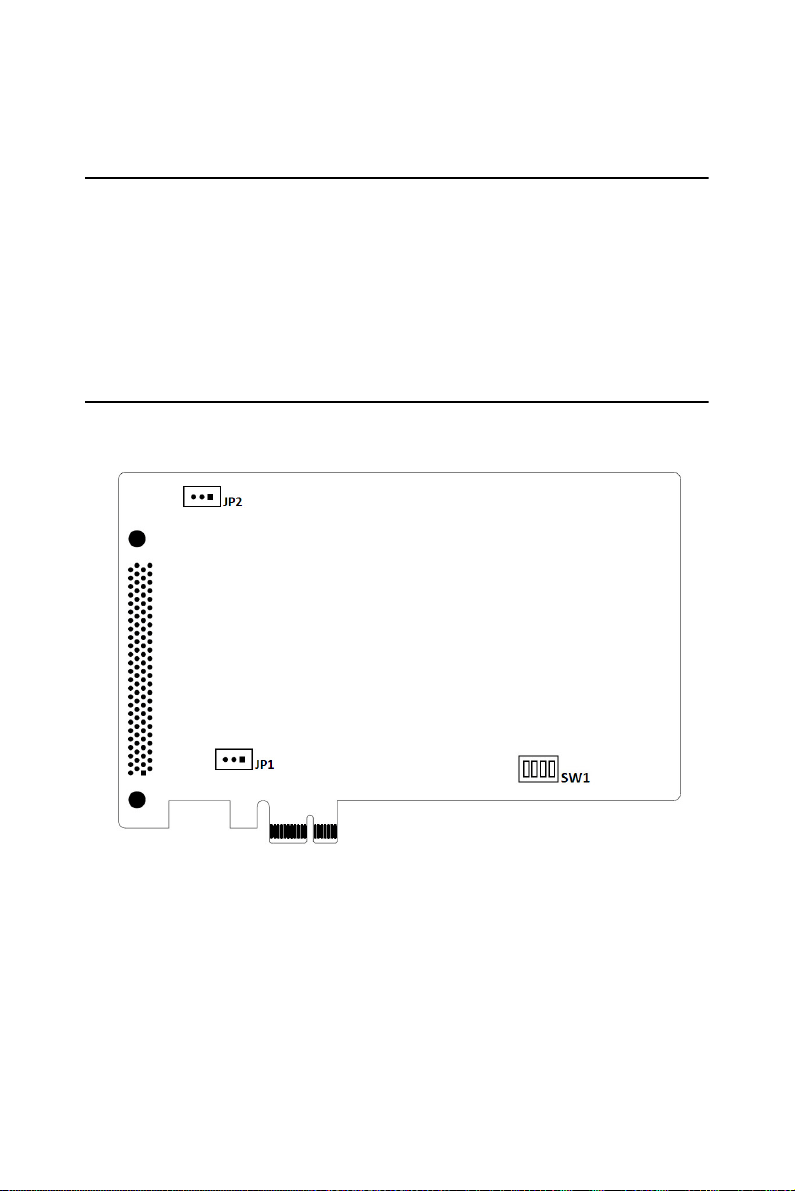

Figure 3.1:Connector and Switch Locations ................ 20

3.2.1 Board ID (SW1) ........................................................... 21

Table 3.1:Board ID Setting (SW1) .............................. 21

3.2.2 Power On Configuration(JP1) ..................................... 22

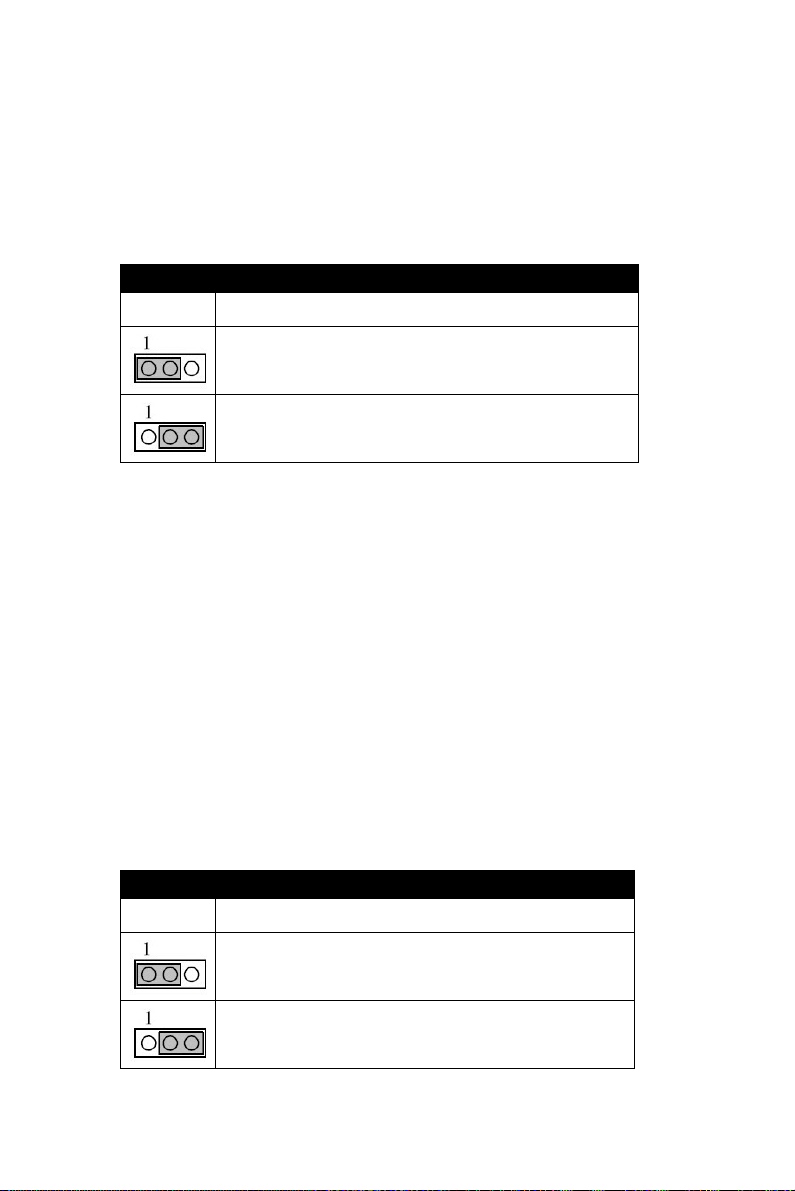

Table 3.2:Power on configuration after hot reset (JP1) 22

3.2.3 Channel-Freeze Function (JP2) ................................... 22

Table 3.3:Channel-Freeze Function Input Mode (JP2) 22

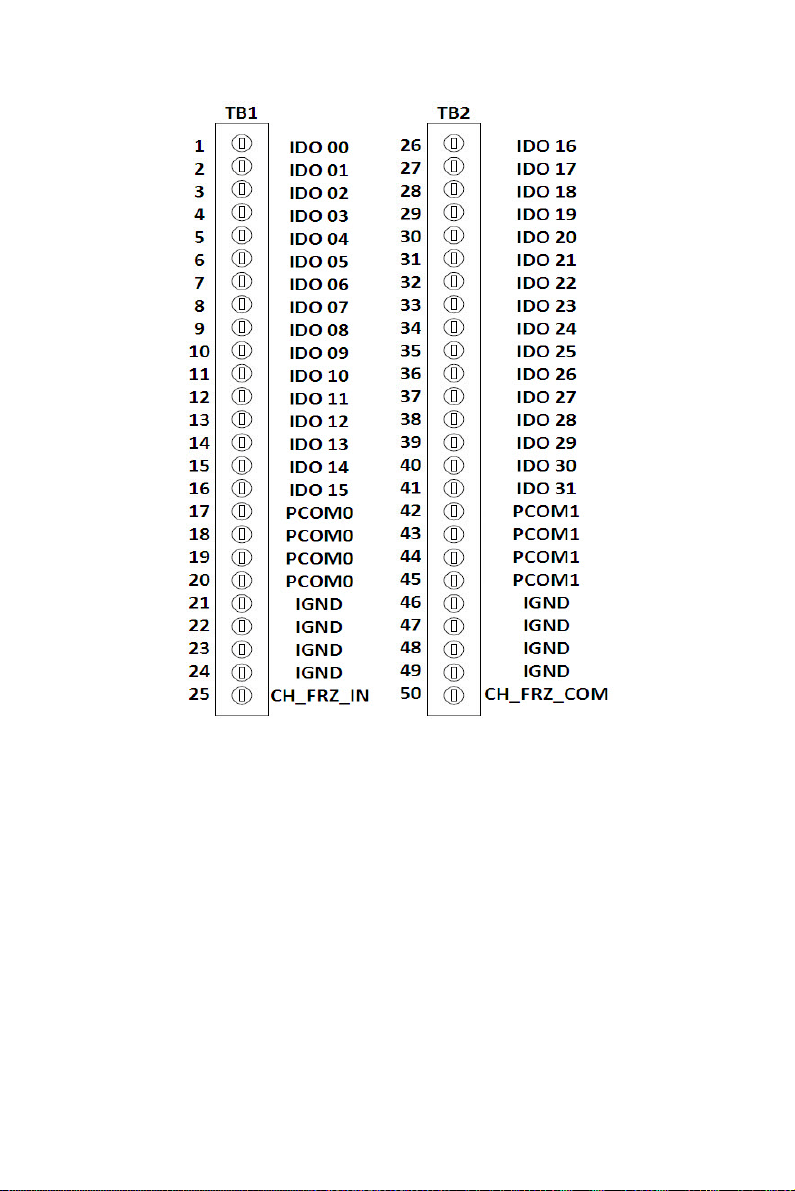

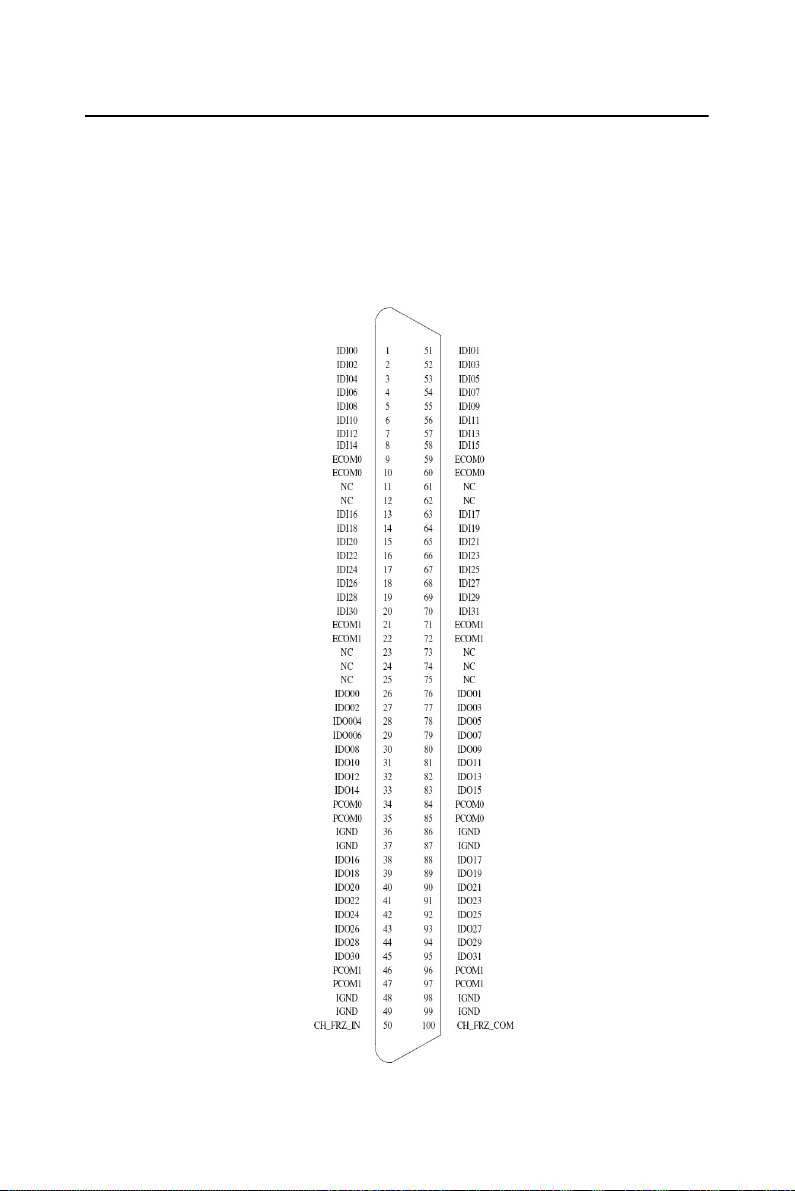

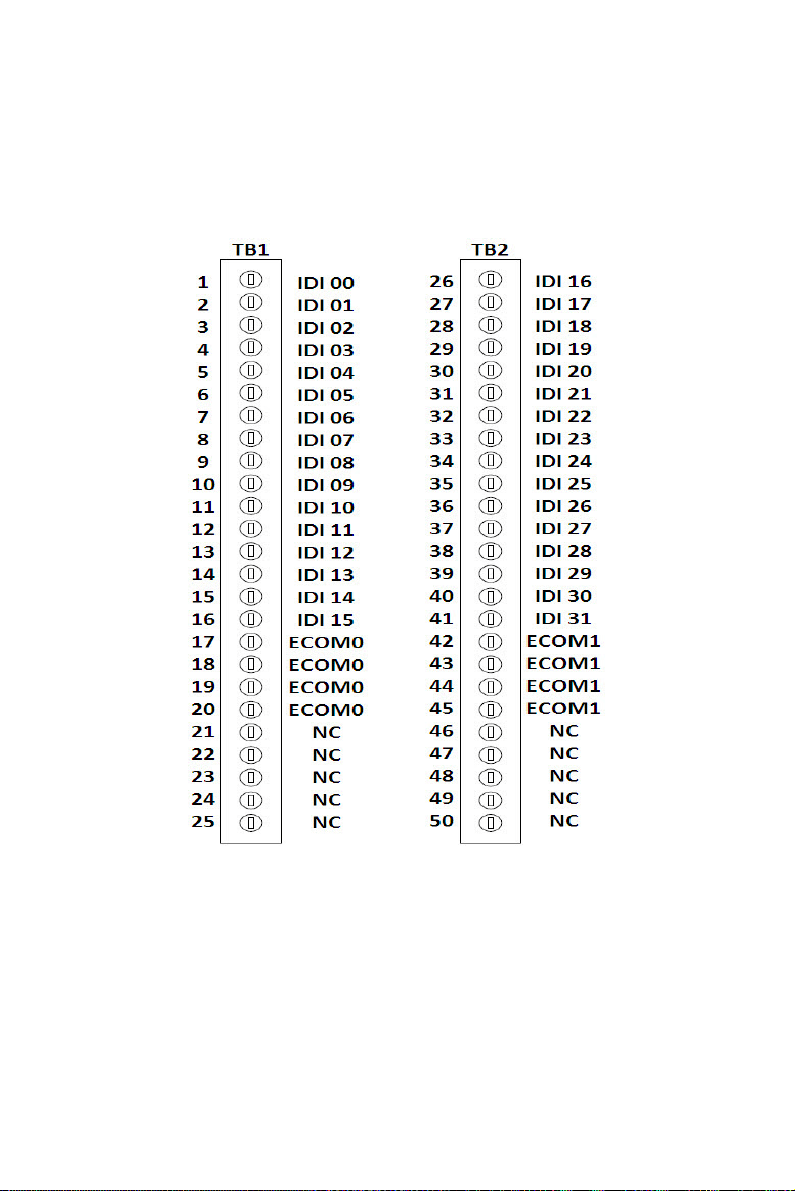

Figure 3.2: I/O Connector Pin Assignments ................ 23

3.3.1 I/O Connector Pin Definition ....................................... 24

Table 3.4:I/O Connector Signal Descriptions .............. 24

3.3.2 Isolated Digital Input ................................................... 25

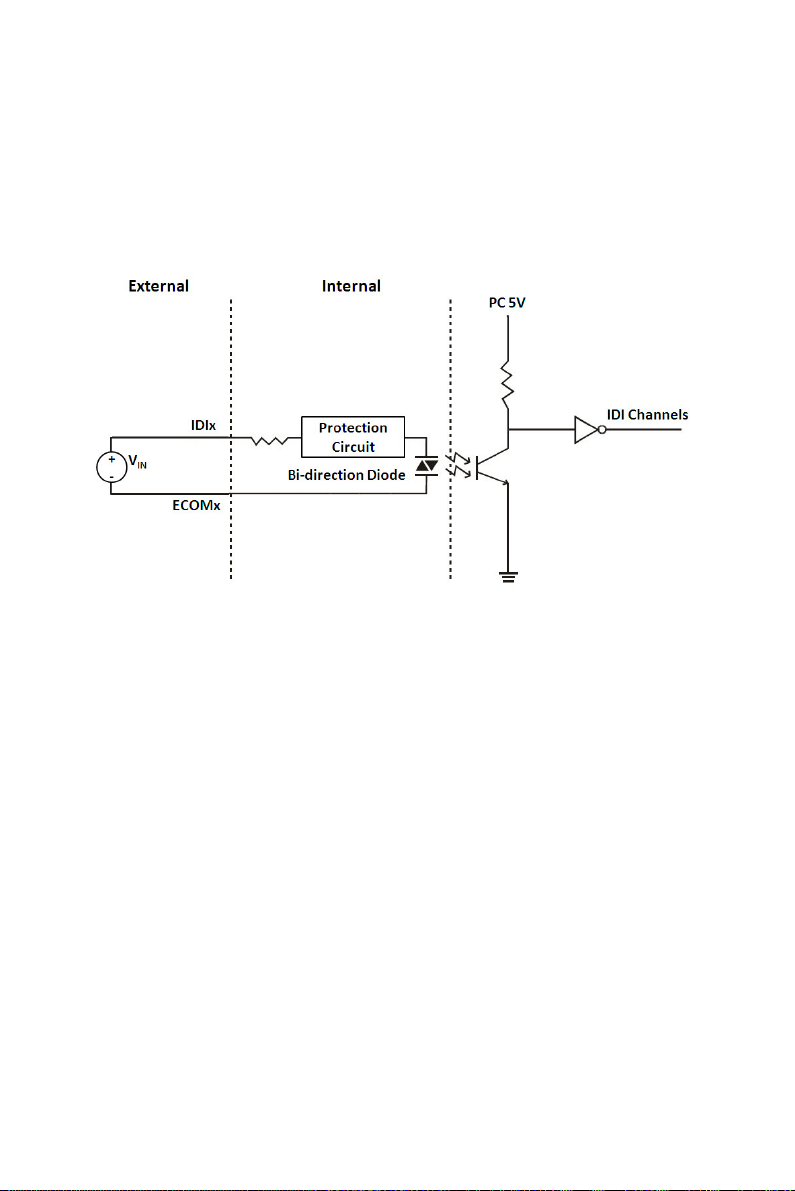

Figure 3.3:Isolated Digital Input Connection .............. 25

3.3.3 Isolated Digital Output ................................................. 26

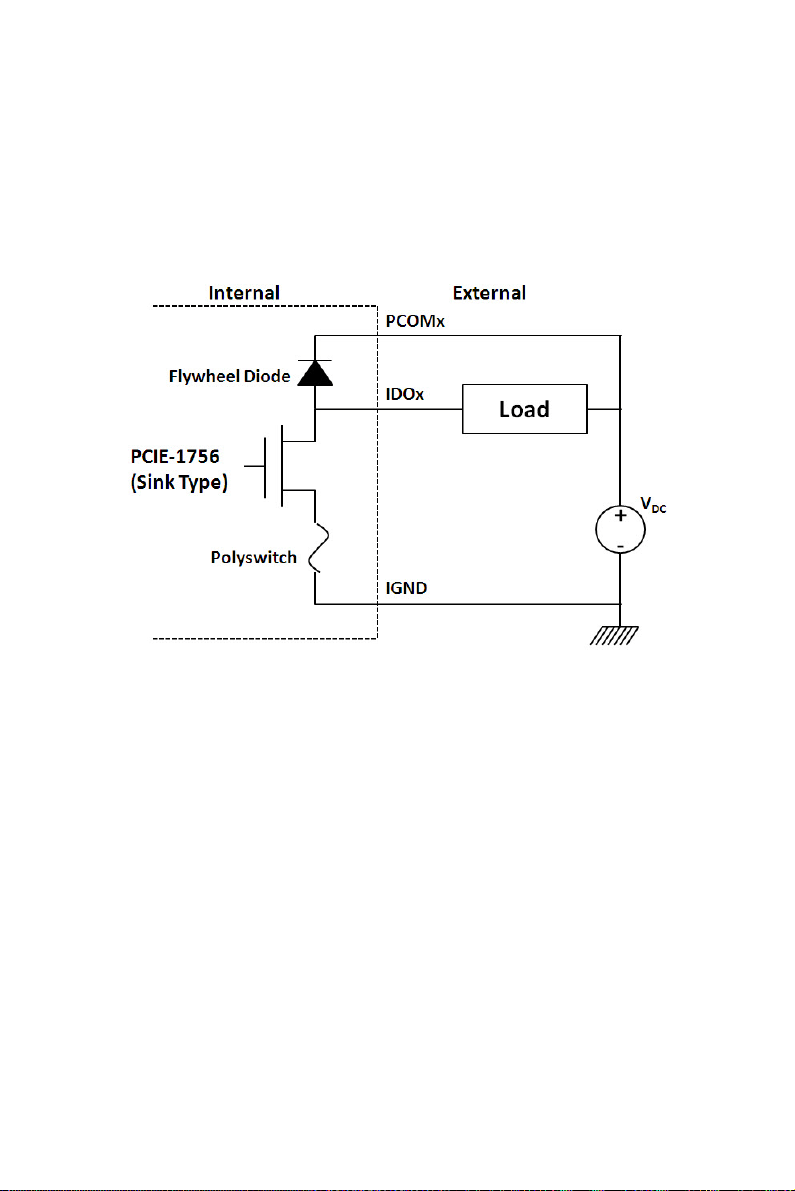

Figure 3.4:Isolated Digital Output Connection ............ 26

3.3.4 Channel-Freeze Function ............................................. 27

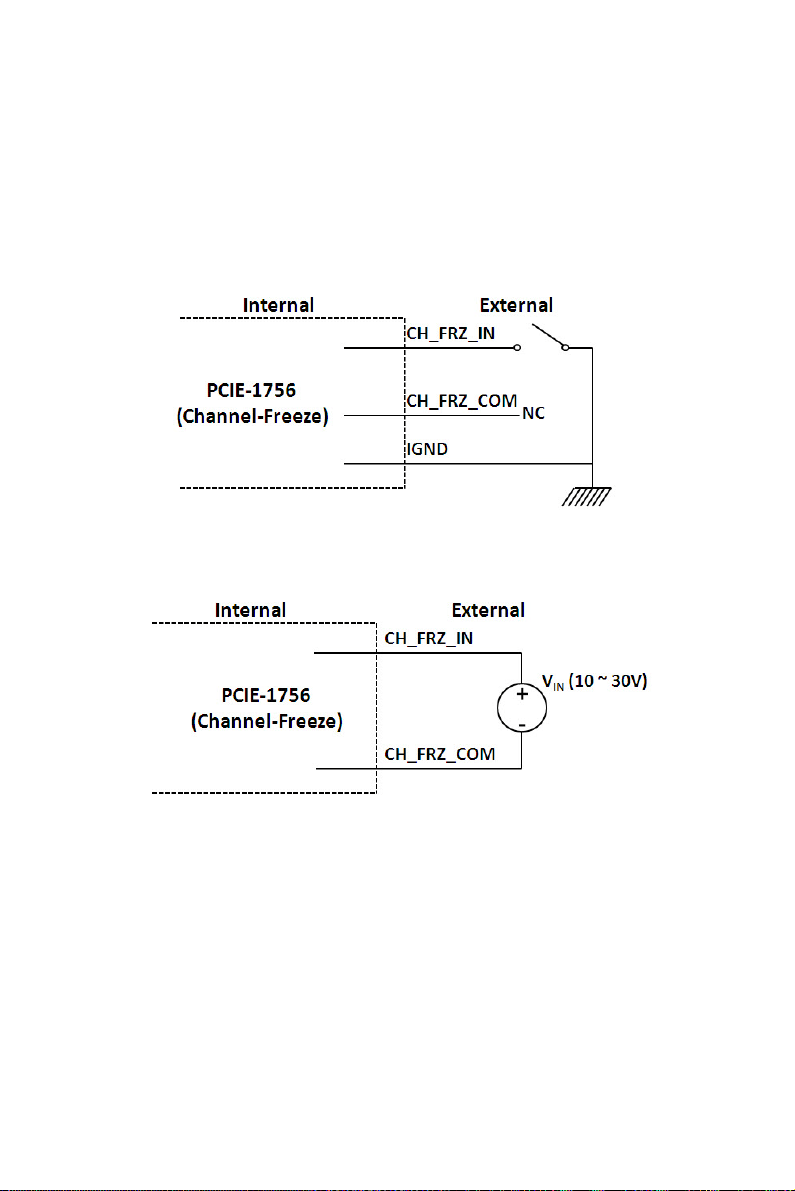

Figure 3.5:Wiring in wet contact input mode .............. 27

Figure 3.6:Wiring in dry contact input mode .............. 27

vii

A.1 Isolated Digital Input....................................................... 30

A.2 Isolated Digital Output .................................................... 30

A.3 General ............................................................................ 31

Appendix B Block Diagrams ............................................. 34

Appendix C ADAM-3951 Pin Assignment ....................... 36

Figure C.1:Connect to PCL-10250 CON1 ................... 36

Figure C.2:Connect to PCL-10250 CON2 ................... 37

PCIE-1756 User Manual viii

CHAPTER

Introduction

This chapter introduces the PCIE-1756 cards and their typical applications.

Sections include:

• Features

• Applications

• Installation Guide

• Software Overview

• Device Driver Roadmap

• Accessories

Chapter 1 Introduction

Thank you for buying the Advantech PCIE-1756 which is a 32/32-ch isolated digital input/output card. It is an advanced-performance data acquisition card based on 32-bit PCI Express bus architecture. It features a unique circuit design and complete functions for data acquisition and control. The following sections of this chapter will provide further information about features of PCIE-1756, a Quick Start for installation, together with some brief information on software and accessories.

1.1 Features

• 32/32 isolated digital input/output channels

• Wide input range (10 ~ 30 V

• Either +/- voltage input for DI by group

• Wide output range (5 ~ 40 V

• High sink current on isolated output channels (500mA max./ch)

• High over-voltage protection (70 V

• High-voltage isolation (2,500 V

• 2,000 V

ESD protection

• Output status read-back

• Keeps the output settings and values after system hot reset

• Interrupt handling capability

• Channel-freeze function

• Board ID

)

PCIE-1756 offers the following main features:

Robust Protection

The PCIE-1756 features a robust isolation protection for applications in industrial, lab and machinery automation. The PCIE-1756 can durably withstand a voltage up to 2,500 V

, preventing your host system from

any incidental harms.

PCIE-1756 User Manual 2

Wide Input Range

The PCIE-1756 has a wide range of input voltage from 10 to 30 V

it is suitable for most industrial applications with 12 V

and 24 VDC

, and

input voltage. In the mean time, we are also ready to serve your special needs for specific input voltage range. Do not hesitate to ask us about tailoring our standard products to meet your specifications. All these merits make PCIE-1756 the best choice for industrial applications.

Wide Output Range

The PCIE-1756 also features a wide output voltage range from 5 to 40 V

, suitable for most industrial applications with 12 VDC/24 VDC out-

put voltage. In the mean time, we are also ready to serve your special needs for specific output voltage range. Do not hesitate to ask us about tailoring our standard products to meet your specifications. All these merits make PCIE-1756 the best choice for industrial applications.

Board ID Setting

The PCIE-1756 has a built-in DIP switch that helps define each card’s ID when multiple cards have been installed on the same PC chassis. The board ID setting function is very useful when users build their system with multiple PCIE-1756 cards. With correct Board ID settings, you can easily identify and access each card during hardware configuration and software programming.

Channel-Freeze Function

The PCIE-1756 provides Channel-Freeze function, which can be enabled either in dry contact or wet contact mode (selectable by the on-board jumper). When the Channel-Freeze function is enabled, the last status of each digital output channel will be safely kept for emergency use. Moreover, you can enable this function through software as it is useful in software simulation and testing program.

Reset Protection

When the system has undergone a hot reset (i.e. without turning off the system power), the PCIE-1756 can either retain outputs values of each channel, or return to its default configuration as open status, depending on its on-board jumper setting. This function protects the system from wrong operations during unexpected system resets.

3 Chapter 1

Note: For detailed specifications of the

PCIE-1756, please refer to Appendix A.

PCIE-1756 User Manual 4

1.2 Applications

• Industrial ON/OFF control

• Switch status sensing

• BCD interfacing

• Digital I/O control

• Industrial and lab automation

1.3 Installation Guide

Before you install your PCIE-1756 card, please make sure you have the following necessary components:

PCIE-1756 DA&C Card

PCIE-1756 StartUp or User Manual

Driver Software Advantech DAQNavi software (included in DVD-

ROM)

Wiring Cable PCL-10250 or PCL-101100M (optional)

Wiring Board ADAM-3951 or ADAM-39100 (optional)

Computer PC or workstation with PCI Express bus slot (running Win-

dows XP/Vista/7)

Other optional components are also available for enhanced operation:

• Advantech DAQ tools, LabView or other 3rd-party software

After you get the necessary components and maybe some accessories for enhanced operation for your DA&C card, you can then begin the Installation procedures. Figure 1-1 on the next page provides a concise flow chart to give users a broad picture of the software and hardware installation procedures:

5 Chapter 1

Figure 1.1: Installation Flow Chart

PCIE-1756 User Manual 6
