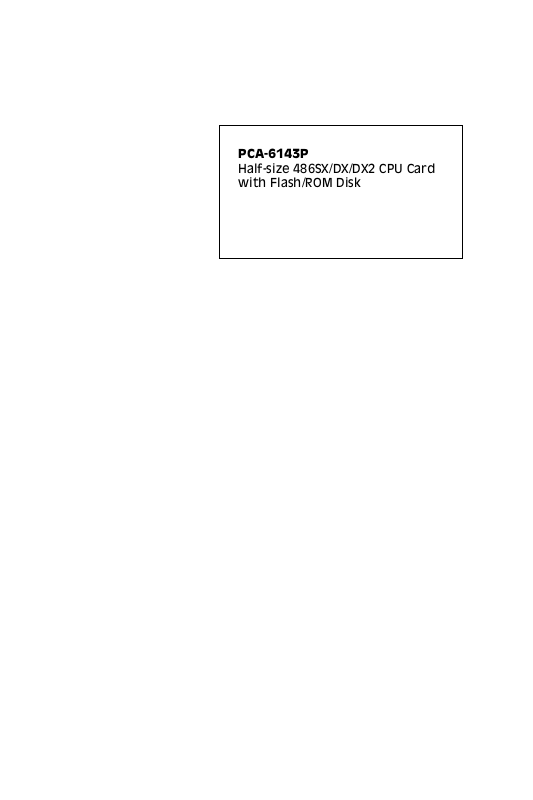

Advantech PCA-6143P User Manual

PCA-6143P

Half-size 486SX/DX/DX2 CPU Card

with Flash/ROM Disk

This document is copyrighted, 1994, by Advantech Co., Ltd. All rights are reserved. Advantech Co., Ltd., reserves the right to make improvements to the products described in this manual at any time without notice.

No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written permission of Advantech Co., Ltd. Information provided in this manual is intended to be accurate and reliable. However, Advantech Co., Ltd. assumes no responsibility for its use, nor for any infringements upon the rights of third parties which may result from its use.

Acknowledgments

AMD is a trademark of Advanced Micro Devices, Inc. AMI is a trademark of American Megatrends Inc. IBM, PC AT and VGA are trademarks of International Business Machines Corporation. Intel, 486SX, 486DX and 486DX2 are a trademarks of Intel corporation. MS-DOS is a trademark of Microsoft Corporation. SMC is a trademark of Standard Microsystems Corporation ALI is a trademark of Acer Labs Inc.

Part No. 2006143080 4th Edition Printed in Taiwan January 1996

A Message to the Customer....

Advantech Customer Services

Each and every Advantech product is built to the most exacting specifications to ensure reliable performance in the unusual and demanding conditions typical of industrial environments. Whether your new Advantech equipment is destined for the laboratory or the factory floor, you can be assured that it will provide the reliability and ease of operation for which the name Advantech has come to be known.

Your satisfaction is our number one concern. Here is a guide to Advantech’s customer services. To ensure you get the full benefit of our services, please follow the instructions below carefully.

Technical Support

We want you to get the maximum performance from your products. If you run into technical difficulties, we are here to help. But please consult this manual first. We have listed the answers to most commonly asked questions in Appendix E, Maintenance and troubleshooting.

If you still can’t find the answer, gather all the information or questions that apply to your problem and, with the product close at hand, call your dealer. Our dealers are trained and ready to give you the support you need to get the most from your Advantech products. In fact, most problems reported are minor and are able to be easily solved over the phone.

In addition, free technical support is available from Advantech engineers every business day. We are always ready to give advice on application requirements or specific information on the installation and operation of any of our products.

Product warranty

Advantech warrants to you, the original purchaser, that each of its products will be free from defects in materials and workmanship for one year from the date of purchase.

This warranty does not apply to any products which have been repaired or altered by other than repair personnel authorized by Advantech, or which have been subject to misuse, abuse, accident or improper installation. Advantech assumes no liability as a consequence of such events under the terms of this Warranty.

Because of Advantech’s high quality-control standards and rigorous testing, most of our customers never need to use our repair and replacement service. If an Advantech product ever does prove defective, it will be repaired or replaced at no charge during the warranty period. For out-of-warranty repairs, you will be billed according to the cost of replacement materials, service time and freight. Please consult your dealer for more details.

If you think you have a defective product, follow these steps:

1. Collect all the information about the problem encountered (e.g. type of PC, CPU speed, Advantech products used, other hardware and software used, etc.). Note anything abnormal and list any on-screen messages you get when the problem occurs.

2. Call your dealer and describe the problem. Please have your manual, product and any other information readily available.

3. If your product is diagnosed as defective, obtain an RMA (return material authorization) number from your dealer. This allows us to process your return more quickly.

4. Carefully pack the defective product, a completely filled-out Repair and Replacement Order Card and a photocopy of a dated proof of purchase (such as your sales receipt) in a shippable container. A product returned without dated proof of purchase is not eligible for warranty service.

5. Write the RMA number visibly on the outside of the package and ship it prepaid to your dealer.

How to use this manual

Thank you for purchasing the PCA-6143P Half-size 486SX/DX/ DX2 CPU Card with Flash/ROM Disk. We designed this manual

to help you quickly and easily set up your card. You can use the manual in two ways:

åStep by step:

The manual guides you through the configuration process from beginning to end. It gives detailed information to help you make each configuration choice. Special sections cover tasks such as installing memory chips, CPU upgrading and watchdog timer setup. A troubleshooting section lists solutions to common problems.

åQuick Start:

Our special Quick Start section (on page 39) gives experienced users the information they need to setup the CPU card as quickly as possible. It concisely lists all jumper settings and connections. If you need more information, it directs you to the page number of the complete description. If you have any problems, you can work through the manual step by step for easy troubleshooting.

If you have any questions, feel free to call your local distributor or sales representative.

Packing list

Before you begin installing your card, please make sure that the following materials have been shipped:

• 1 PCA-6143P CPU card

• 1 6-pin mini-DIN keyboard adapter

• 1 Hard disk drive (IDE) interface cable (40-pin)

• 1 Floppy disk drive interface cable (34-pin)

• 1 Parallel port adapter (26-pin) kit

• 1 3½" diskette with Flash/ROM disk utility

If any of these items are missing or damaged, contact your distributor or sales representative immediately.

Contents

Chapter 1 Hardware Configuration .......................... 1

Introduction............................................................................ 2

Specifications .......................................................................... 3

Locating components ............................................................. 4

Safety precautions.................................................................. 8

Jumper settings ...................................................................... 8

Chapter 2 Installation ............................................. 11

Chapter 3 Connecting peripherals ......................... 13

Floppy drive connections..................................................... 15

IDE hard drive connections ................................................ 16

Parallel Port.......................................................................... 16

Keyboard connectors ........................................................... 17

External switches and indicators ........................................ 17

Reset switch (JP7) .............................................................. 17

Power LED and keylock (JP9) ........................................... 18

Hard disk drive LED (JP1)................................................. 18

Turbo switch (JP12) ........................................................... 18

Turbo LED (JP13) .............................................................. 19

External speaker (JP10) ...................................................... 19

SBC power connector (J2)................................................... 19

Bus clock selection (JP4) ..................................................... 20

Serial Ports ........................................................................... 20

Chapter 4 Power-up ................................................. 25

Chapter 5 BIOS diagnostics and SETUP ................... 27

Quick Start for experienced users ................. 39

1. Check card default setting ............................................. 40

2. Set jumpers ...................................................................... 40

3. Install CPU ...................................................................... 41

4. Install memory ................................................................ 41

5. Install card....................................................................... 42

6. Connect peripherals........................................................ 42

7. Power up .......................................................................... 45

8. Set up the BIOS............................................................... 45

Appendix A Flash/ROM disk ..................................... 47

Memory devices.................................................................... 48

Drive capacity....................................................................... 49

Drive configuration .............................................................. 49

Booting from the Flash/RAM/ROM disk .......................... 52

Inserting memory devices ................................................... 52

Formatting the Solid State disk .......................................... 53

File copy utility..................................................................... 53

Using a memory manager (EMM386.EXE) ...................... 53

Appendix B Programming the watchdog timer ... 55

Appendix C Upgrading ............................................ 57

Installing DRAM (SIMMs) ................................................. 58

CPU installing and upgrading ............................................ 59

Installing PC/104 modules................................................... 61

Appendix D Detailed system information ............. 63

Appendix E Maintenance and troubleshooting ..... 75

General maintenance........................................................... 76

Industrial PC system troubleshooting guide ..................... 77

Appendix F AMI BIOS error codes ............................ 81

Beep codes............................................................................. 82

Nonfatal error messages ...................................................... 83

BIOS Checkpoint Codes...................................................... 87

CHAPTER

Hardware

Configuration

This chapter gives background information on the PCA-6143P. It then shows you how to configure the card to match your application and prepare it for installation into your PC.

Sections include:

• Card specifications

• Locating components

• Safety precautions

• Configuration – Jumper settings

Experienced users can skip to the Quick Start section on page 39.

Chapter 1 Hardware Configuration 1

Introduction

The half-size PCA-6143P comes equipped with either an 80486SX25, 80486SX-33, 80486DX-33, 80486DX2-50 or 80486DX2-66 CPU. Also included on-board are one serial RS-232 port, one serial RS-232/422/485 port, an enhanced bi-directional parallel port, an IDE hard disk drive interface, a floppy disk controller and a watchdog timer. The watchdog timer ensures that the CPU will be reset if it stops due to a program or EMI problem, allowing the PCA-6143P to be used in stand-alone systems or unattended environments. The PCA6143P’s industrial-grade construction ensures continuous, reliable operation in harsh industrial environments at temperatures up to 140oF (60oC).

We designed the PCA-6143P with SBC (Single Board Computer) applications in mind. It incorporates a single-voltage power supply (+5 V) and a connector for PC/104 modules (Flat-panel/CRT VGA controller or Flash/RAM/ROM disk). A built-in Flash/ROM disk emulates a floppy disk drive of up to 1.44 MB capacity. It emulates the 1st, 2nd, 3rd or 4th DOS drive, depending on the physical disks installed and the DOS version. See Appendix A for details.

Built using CMOS technology, the PCA-6143P consumes very little power. Its two SIMM (Single In-line Memory Module) DRAM sockets accept 1 MB, 4 MB or 16MB SIMM modules for total onboard memory of 1 to 32 MB.

You can also use this 8-layer CPU card to transform any system into a 32-bit 486 compatible computer, its all-in-one configuration freeingup valuable expansion slots. Its highly compact form and numerous features make it an ideal cost/performance solution for high-end commercial and industrial applications where high CPU speed and low mean-time-to-repair are critical.

2 PCA-6143P User's Manual

Specifications

åSystem

• CPU: 80486SX-25, 80486SX-33, 80486DX-33, 80486DX2-50,

80486DX2-66, or 80486DX4-100

• Bus interface: ISA (PC/AT) bus

• System performance:

150 MHz with an 80486DX-33 MHz CPU (Landmark speed V1.14)

• Data bus: 32-bit

• DMA channels: 7

• Interrupt levels: 15

• Processing ability: 32-bit

• Bus speed: 8 MHz

• Chipset: ALI M1219

• Real-time clock/calendar:

Uses DS-12887 RTC chip and quartz oscillator, powered by a lithium battery for 10 years of data retention

åMemory

• DRAM memory: 1 MB to 32 MB

Uses 256Kx36 (SIMM-256-8), 1Mx36 (SIMM-1000-8) or 4Mx36 (SIMM-4000-8) SIMMs with access time of 80 ns or less

• Shadow RAM memory: Support for system and video BIOS of up

to 256 KB in 32 KB blocks

åI/O

• IDE hard disk drive interface: Supports up to two IDE (AT bus)

hard disk drives. BIOS enabled/disabled

• Floppy disk drive interface:

Supports up to two floppy disk drives, 5¼" (360 KB and 1.2 MB) and/or 3½” (720 KB and 1.44 MB). BIOS enabled/disabled

Chapter 1 Hardware Configuration 3

• Enhanced bi-directional parallel port: Configurable to LPT1,

LPT2, LPT3 or disabled. Standard female DB-25 connector provided

• Serial ports: One serial RS-232 port, one serial RS-232/422/485

port. Ports can be individually configured as COM1, COM2 or disabled

åIndustrial features

• Watchdog timer:

BIOS configurable to disabled or programmable ON/OFF. The time-out interval is 0.5 sec. ~ 16 min. 48 sec. Your program uses hex 043 and 443 to control the watchdog

• PC/104 connector:

A PC/104 16-bit bus connector for optional modules such as a Flash/RAM/ROM disk module and/or Flat-panel/CRT VGA modules

• Keyboard connectors: A 6-pin mini-DIN keyboard connector is

located on the mounting bracket for easy access. An external keyboard adapter is also included. An on-board keyboard pin header connector is also available.

åGeneral

• Max power required: + 5 V @ 2 A

• Power supply voltage: +5 V (4.75 V to 5.25 V)

• Operating temperature: 32 to 140oF (0 to 60oC)

• Size: 7.3" (L) x 4.8" (W) (185 mm x 122 mm)

• Weight: 1.1 lbs (0.5 Kg)

• EMI: Pending

• MTBF: 64,500 hrs @ 25oC; 39,100 hrs @ 60oC

4 PCA-6143P User's Manual

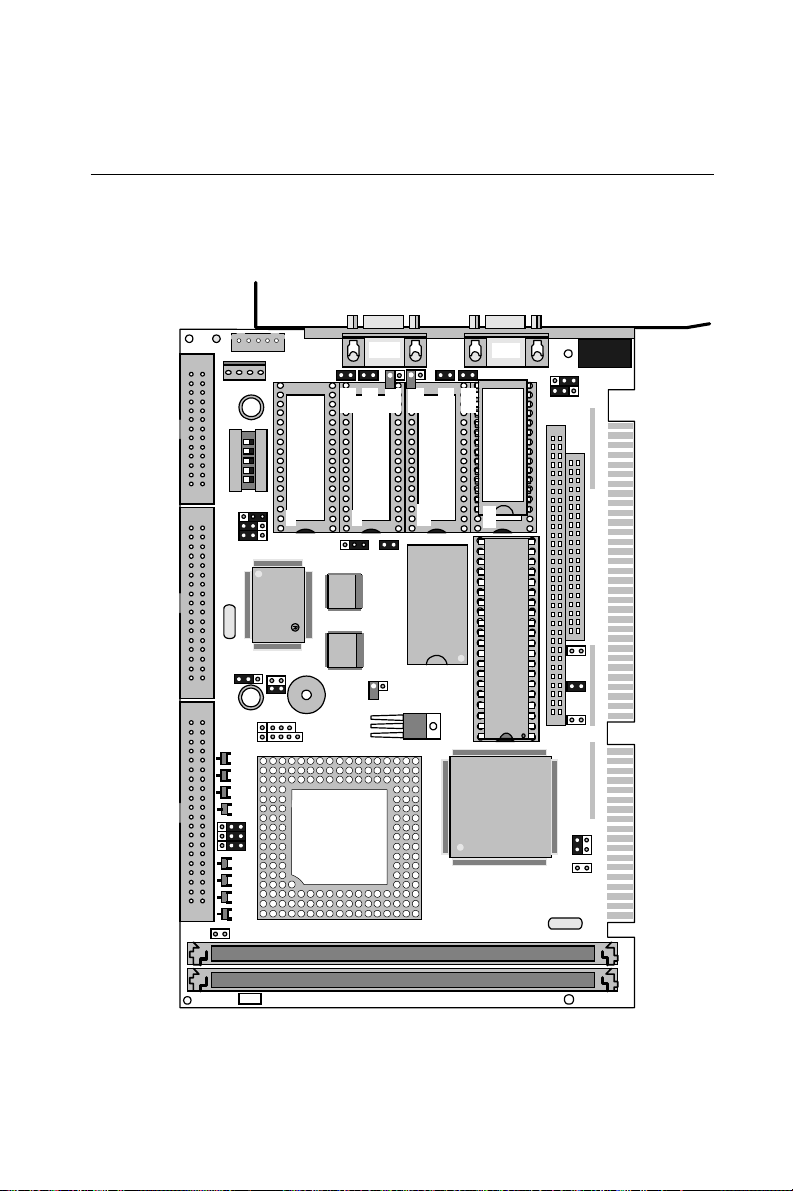

Locating components

This section identifies the location of the card's major components. It also includes a list of the function of each of the card jumpers. The following figure gives an overall view of the card.

SW1

JP18

24M

JP11

1 2 3 4 5

JP17 JP19

JP2 JP3 JP4

JP1

ROM3

U15

FDC37C665

SMC

JP13

JP12

JP9 JP10

RS-232

COM1COM2

JP23

JP24

JP25

JP26

JP30

JP31

JP22

ROM1

U21

DALLAS

DS12887

ROM2

U18

JP20

U5 U6

ALI

M1219-40

/485

RS-232/422

JP29

AMIBIOS

U23

JP27 JP28

AMERICAN MEGATRENDS

386SX BIOS

8042

AMIKEY

14.318

JP16

JP14 JP15

JP7 JP8

486 SX/DX INDUSTRIAL CPU CARD REV.B1

PCA-6143P PCB Layout

Chapter 1 Hardware Configuration 5

Jumpers and connectors

Connectors on the board link it to external devices such as hard disk drives, a keyboard or PC/104 modules. In addition, the board has a number of jumpers which you use to configure it for your application.

The table below lists the function of each of the board jumpers and connectors. Later sections in this chapter give instructions on setting jumpers and detailed information on each jumper setting. Chapter 3 gives instructions for connecting external devices to your card. Pin assignments for each connector appear there or in Appendix D.

Jumpers and connectors

Number Function Page

J1 Keyboard connector 17 J2 SBC Power Connector 19 J3 Keyboard connector (6-pin mini-DIN) 17 JP1 Hard disk drive activity LED 18 JP2, 3 CPU type selection 60 JP4 Bus clock selection 9 JP7 Reset switch 17 JP8 Watchdog timer

invokes system reset or IRQ15 9 JP9 Power LED and keylock 18 JP10 Speaker connector 19 JP11 Print IRQ selection 24 JP12 Turbo switch 18 JP13 Turbo LED 19 JP14 Bypass POST 8 JP15 Display type - color/mono 9 JP17 Parallel port DACK selection 24 JP18 Parallel port DRQ selection 24 JP19,23,24 SSD device selection 49 JP20,22,25,26, COM2 RS-232/422/485 selection 21

27,28,29,30 JP31 CPU voltage selection 60

6 PCA-6143P User's Manual

Number Function Page

CN1 HDD connector 16 CN2 FDD connector 15 CN3 Parallel/printer connector 16 CN4,CN5 PC/104 connectors 61 COM1 RS-232 serial port 20 COM2 RS-232/422/485 serial port 21

SIMM memory modules

On the left end of the card (away from the mounting bracket) are the two SIMM (Single In-line Memory Module) sockets which hold the card’s DRAM memory. If you ordered DRAM SIMMs along with your card, the SIMMs may already be installed. If not, you should install them as described in Appendix C.

Flash/RAM/ROM disk

At the right of the card are three 32-pin sockets which hold the memory chips for the card's Flash/RAM/ROM disk. Instructions for installing memory chips appear in Appendix A.

Chapter 1 Hardware Configuration 7

Safety precautions

Follow these simple precautions to protect yourself from harm and your PC from damage.

1. To avoid electric shock always disconnect the power from your PC

chassis before you work on it. Don’t touch any components of the CPU card or other cards while the PC is on.

2. Disconnect power before making any configuration changes. The

sudden rush of power as you connect a jumper or install a card may damage sensitive electronic components.

3. Always ground yourself to remove any static charge before you

touch your CPU card. Be particularly careful not to touch the chip connectors. Modern integrated electronic devices, especially CPUs and memory chips, are extremely sensitive to static electric discharges and fields. Keep the card in its anti-static packaging when it is not installed in the PC and place it on a static dissipative mat when you are working on it. Wear a grounding wrist strap for continuous protection.

Jumper settings

This section tells how to set the jumpers to configure your card. It gives the card default configuration and your options for each jumper. After you set the jumpers and install the card, you will also need to run the BIOS Setup program (discussed in Chapter 5) to configure the serial port addresses, floppy/hard disk drive types and system operating parameters. Connections, such as hard-disk cables, appear in Chapter 3.

Card default setting

We set the card’s jumpers at the factory for the most popular configuration. If this configuration matches your needs, you may not need to change the jumpers at all. The default configuration is as follows:

• Watchdog invokes system reset • Color display is attached

• Parallel port IRQ7, DRQ1, DACK1 • Bypass POST (JP14)

8 PCA-6143P User's Manual

How to set jumpers

You configure your card to match the needs of your application by setting jumpers. A jumper is the simplest kind of electric switch. It consists of two metal pins and a small metal clip (often protected by a plastic cover) that slides over the pins to connect them. To “close” a jumper you connect the pins with the clip. To “open” a jumper you remove the clip. Sometimes a jumper will have three pins, labeled 1, 2 and 3. In this case you would connect either pins 1 and 2 or 2 and 3.

If you have any doubts about the best hardware configuration for your application, contact your local distributor or sales representative before you make any changes.

Display type (JP15)

This jumper sets the display adapter type attached to your card. If you are using a monochrome LCD or EL screen which uses a CGA, EGA, VGA or other color display adapter, set JP15 to color.

JP15 Setting

Open Monochrome Closed (default) Color

Watchdog timer  system reset/IRQ15 (JP8)

When the watchdog timer activates (CPU processing has come to a

halt), it can reset the system or generate an interrupt on IRQ15. Set jumper JP8 as shown in the following table:

JP8 Setting

1-2 System Reset 3-4 IRQ15

Bus clock selection (JP4)

JP4 Selection

1-2 Bus clk = CPU clk * 2/8 2-3 Bus clk = CPU clk * 2/6

Chapter 1 Hardware Configuration 9

Parallel Port Jumper Settings

Parallel Port IRQ selection (JP11)

JP11 IRQ no

1-2 IRQ7 (default) 2-3 IRQ5

Parallel Port DRQ selection (JP17)

JP17 DRQ no

1-2 DRQ1 (default) 2-3 DRQ3

Parallel Port DACK selection (JP18)

JP18 DACK no

1-2 DACK1 (default) 2-3 DACK3

The following figure gives card dimensions for SBC applications:

10 PCA-6143P User's Manual

Card dimensions

CHAPTER

Installation

This chapter gives guidelines for installing your CPU card into an PC chassis with an A T-compatible passive backplane. For specific instructions, consult the user’s manual for your chassis.

Before you begin, double check the jumper settings for the card (described in Chapter 1). This could save you a lot of troubleshooting time later. If you are not sure about the proper setting, contact your local distributor or sales representative.

Chapter 2 Installation 11

Warning! Disconnect all power from the chassis before you

install the CPU card. Unplug the power cord from the wall, don’t just turn off the power switch. If you are not sure what to do, take the job to an experienced professional.

Caution! The electronic components on this CPU card are

very sensitive to static electric charges. Use a grounding wrist strap to remove all static electricity before you touch any components. Place all components on a static-dissipative mat or in a static-shielded bag when they are not in the chassis.

Install your CPU card as follows:

1. Remove power from the chassis and disconnect all power cords. Follow all power-down procedures outlined in your chassis user’s manual.

2. Remove the chassis cover, then detach the card hold-down bracket. This bracket stretches across the top of each circuit card to hold it securely in place.

3. Locate a free slot in the chassis. You can use any 16-bit (double connector) slot. We suggest that you leave the maximum amount of space between boards to improve cooling.

4. You may need to remove a block-off cover at the end of the slot. Unscrew the cover and save the screw for use in Step 6.

5. Align the card square with the card-end guide slot and parallel to the connector. Slide the card carefully into the connector.

6. Make sure the card is completely seated in the connector. Screw the card I/O bracket to the case.

After you have installed the CPU card, you will need to attach the connecting cables as described in the following chapter. Replace the card hold-down bracket you removed in Step 2, replace the chassis cover and power-up your system.

Dimensions for SBC (Single Board Computer) installation appear in Chapter 1 (page 10).

12 PCA-6143P User's Manual

CHAPTER

Connecting

peripherals

This chapter tells how to connect peripherals, switches and indicators to the PCA-6143P board. You can access most of the connectors from at the top of the board while it is installed in the chassis. If you have a number of cards installed, or your chassis is very tight, you may need to partially remove the card to make all the connections. When everything is done, finish installing the card as described in Chapter 2.

Chapter 3 Connecting peripherals 13

The following table lists the connectors on the PCA-6143P. See Chapter 1 (page 5) for help with locating the connectors.

Component Label Page

HDD (IDE) connector CN1 16 FDD connector CN2 15 Parallel port CN3 16 PC/104 connector CN4, CN5 61 Keyboard connectors J1, J3 17 Reset switch connector JP7 17 Power LED and keylock connector JP9 18 HDD LED connector JP1 18 Turbo switch connector JP12 18 Turbo LED connector JP13 19 External speaker connector JP10 19 SBC power connector J2 19 RS-232 serial port COM1 20 RS-232/422/485 serial port COM2 21

The following sections tell how to make each connection. In most cases you will simply need to connect a standard cable. If you need to make your own cables, you can find pin assignments for the more complicated connectors in Appendix D.

Warning! Always completely disconnect the power cord

from your chassis whenever you are working on it. Do not make connections while the power is on, sensitive electronic components can be damaged by the sudden rush of power. Only experienced electronics personnel should open the PC chassis.

Caution! Always ground yourself to remove any static

charge before touching the CPU card. Modern electronic devices are very sensitive to static electric charges. Use a grounding wrist strap at all times. Place all electronic components on a static-dissipative surface or in a static-shielded bag when they are not in the chassis.

14 PCA-6143P User's Manual

Floppy drive connections

You can attach up to two floppy disk drives to the PCA-6143P's on-board controller. You can use any combination of 5.25" (360 KB and 1.2 MB) and/or 3.5" (720 KB and 1.44 MB) drives.

The card comes with a 34-pin daisy-chain drive connector cable. On one end of the cable is a 34-pin flat-cable connector. On the other end are two sets of floppy disk drive connectors. Each set consists of a 34-pin flat-cable connector (usually used for 3.5" drives) and a printed-circuit-board connector (usually used for

5.25" drives). You can use only one connector in each set. The set on the end (after the twist in the cable) connects to the A: floppy. The set in the middle connects to the B: floppy.

Attach the single 34-pin flat-cable connector to CN2 on the CPU card. For help finding the connector, see Chapter 1 (page 5). Wire number 1 on the cable is red or blue, the other wires are gray. Make sure that the red wire corresponds to pin one on the connector (on the right side).

Connect the A: floppy drive to the connector set on the other end of the cable. If you are connecting a 5.25" floppy drive, line up the slot in the printed-circuit-board (golden fingers) with the blockedoff part of the cable connector.

If you are connecting a 3.5" floppy drive, you may have trouble determining which pin is number one. Look for a number printed on the circuit board indicating pin number one. Also, the connector on the floppy drive connector may have a slot. When the slot is up, pin number one should be on the right. Check the documentation that came with the drive for more information.

Next, if required, connect the B: floppy drive to the connectors in the middle of the cable as described above.

If you need to make your own cable, you can find the pin assignments for the card’s connector in Appendix D.

Chapter 3 Connecting peripherals 15

IDE hard drive connections

You can attach two IDE (Integrated Device Electronics) hard disk drives to the PCA-6143P's internal controller. The card comes with a 40-pin flat-cable piggyback cable. This cable has three identical 40-pin flat-cable connectors.

Wire number 1 on the cable is red or blue, the other wires are gray. Connect one end to connector CN1 on the CPU card. Make sure that the red wire corresponds to pin one on the connector (on the right side). See Chapter 1 for help finding the connector.

Unlike floppy drives, IDE hard drives can connect in either position on the cable. If you install two drives, you will need to set one as the master and one as the slave. You do this using jumpers on the drives. If you use just one drive, you should set it as the master. See the documentation that came with your drive for more information.

Connect the first hard drive to the other end of the cable. Wire one on the cable should also connect to pin one on the hard drive connector. You may have difficulty determining the pin number. Look for a number printed on the drive circuit board. Check the documentation that came with the drive for more information.

Connect a second drive as described above. If you need to make your own cable, you can find the pin assign-

ments for the card’s connector in Appendix D.

Parallel Port

You would normally use the parallel port to connect the card to a printer. The PCA-6143P includes an on-board parallel port, accessed through a 26-pin flat-cable connector, CN3. The CPU card comes with an adapter cable which lets you use a traditional DB-25 connector. The cable has a 26-pin connector on one end

16 PCA-6143P User's Manual

and a DB-25 connector on the other, mounted on a retaining bracket. The bracket installs at the end of an empty slot in your chassis, giving you access to the connector.

To install the bracket find an empty slot in your chassis. Unscrew the plate that covers the end of the slot. Screw in the bracket in place of the plate. Next, attach the flat-cable connector to connector CN3 on the CPU card. Wire one of the cable is red or blue, the other wires are gray. Make sure that wire one connects to pin one of CN3. Pin one is on the right side of CN3. For help finding the connector, refer to Chapter 1 (page 5).

The pin assignments for the connector appear in Appendix D.

Keyboard connectors

The PCA-6143P board provides two keyboard connectors. A 5-pin connector (J1) supports passive backplane applications. A second 6-pin mini-DIN connector (J3) on the card mounting bracket supports single-board-computer applications. The card comes with an adapter to convert from the 6-pin mini-DIN connector to a standard DIN connector.

If you need to make your own adapter cable, you can find the pin assignments in Appendix D.

External switches and indicators

Next you may want to install external switches to monitor and control your CPU card. These features are completely optional — install them only if you need them.

Reset switch (JP7)

You can connect an external switch to easily reset your computer. This switch restarts your computer as if you had turned off the power then turned it back on. Install the switch so that it closes the two pins of JP7 when pressed (normally-open switch).

Chapter 3 Connecting peripherals 17

Power LED and keylock (JP9)

You can connect an LED to indicate when the CPU card is on. Pin 1 of JP9 supplies power to the LED and Pin 3 is the ground. For help finding JP9, refer to Chapter 1 (page 5).

You can use a switch (or a lock) to disable the keyboard. In this state the PC will not respond to any input. This is useful if you don’t want anyone to change or stop a running program. Simply connect the switch between Pins 4 and 5 of JP9. The pin assignments for JP9 appear in the following table:

Power LED and keylock (JP9)

Pin Function

1LED Power (+5 V) 2No Connection 3Ground 4Keyboard lock 5Ground

Hard disk drive LED (JP1)

You can connect a LED to connector JP1 to indicate when the HDD is active. The pin on the top is positive.

Turbo switch (JP12)

You can connect a switch across the pins of jumper JP12 to change the CPU between Turbo and non-Turbo mode. When you close (short) the pins, the CPU card operates at full speed. When you leave the pins open, the card operates at slow speed for compatibility with older software.

You can also switch the CPU back and forth between Turbo mode and non-Turbo mode using the keyboard, but only when jumper JP12 is open. When jumper JP12 is closed, the CPU is fixed in Turbo mode. To switch into Turbo mode from the keyboard simultaneously press the Ctrl, Alt and keypad plus (+) keys. To switch into non-Turbo mode press the Ctrl, Alt and keypad minus (-) keys.

18 PCA-6143P User's Manual

Turbo LED (JP13)

You can connect a LED indicator across jumper JP13 to indicate when the CPU is in Turbo mode. Marks on the circuit board indicate LED polarity (the lower pin is positive).

External speaker (JP10)

The CPU card has its own buzzer. You can also connect to the external speaker on your computer chassis. Connect leads to connector JP10 as shown below:

External speaker (JP10)

Pin no. Function

1+5 V

2Speaker out 3Speaker out 4Speaker out

SBC power connector (J2)

In single-board-computer (non-passive-backplane) applications you will need to connect power directly to the PCA-6143P board using connector J2. This connector is fully compatible with the standard PC power supply connector for a 3.5" FDD (or HDD). See the following table for its pin assignments:

SBC power connector (J2)

Pin no. Function

1+5 V

2 GND 3 GND 4+12 V

Chapter 3 Connecting peripherals 19

Serial Ports

The PCA-6143P offers two serial ports: one RS-232 and one RS-232/422/485. These ports let you connect to serial devices (a mouse, printers, etc.) or a communication network.

You can select the address for each port (3F8H [COM1], 2F8H [COM2] or 3E8H) or disable it, through the BIOS Advanced Setup program, covered in Chapter 5.

The card mounting bracket holds the serial port connectors. This lets you connect and disconnect cables after you install the card. The DB-9 connector on the top of the bracket is the RS-232 port. The second DB-9 connector is the RS-232/422/485 port. The following sections tell how to make RS-232 and RS-232/422/485 connections.

RS-232 connections

Different devices implement the RS-232 standard in different ways. If you are having problems with a serial device, be sure to check the pin assignments for the connector. The following table shows the pin assignments for the card's RS-232 port:

RS-232 connector pin assignment

Pin no. Signal

1 DCD 2RX 3TX 4 DTR 5 GND 6 DSR 7RTS 8CTS 9RI

20 PCA-6143P User's Manual

RS-232/422/485 serial port connections

RS-422 is commonly used for two-way communication between two devices, whereas RS-485 is used for communication between a single master and a network of slave modules.

Before you use the RS-232/422/485 port, you will need to select RS-232, RS-422 (the default) or RS-485 mode. Set jumpers JP20, 22, 25, 26, 27, 28, 29 and 30 according to the following table:

RS-232 RS-422 RS-485

JP20 1 - 2 2 - 3 2 - 3 JP22 Open Short Short JP25 Open Open Short JP26 Open Open Short JP27 Open 1-2 2-3 JP28 1-2 2-3 2-3 JP29 Open Short Short JP30 Open Short Short

Pin assignments for the DB-9 connector RS-422/485 are as follows:

RS-422/485 connector pin assignments

Pin Signal

1 TX - or send data - (DTE) 2 TX + or send data + (DTE) 3 RX + or receive data + (DTE) 4 RX - or receive data - (DTE) 5 Ground 6 RTS - or ready to send 7 RTS + or ready to send + 8 CTS + or clear to send + 9 CTS - or clear to send -

Chapter 3 Connecting peripherals 21

å RS-422 signal wiring

RS-422 is used for long-distance point-to-point connections. RS422 originally used four wires for one-way communication (with devices such as display terminals or printers) but was later adopted by industry for simultaneous two-way communication by doubling the number of wires.

Each pin on the first device connects to a corresponding device on the second. Flow control lines manage the communication. The following table shows pin connections:

Computer A Computer B

Pin Signal Pin Signal

1 TX- > 4 RX2 TX+ > 3 RX+ 3 RX+ < 2 TX+ 4 RX- < 1 TX5 GND < > 5 GND 6 RTS- > 9 CTS7 RTS+ > 8 CTS+ 8 CTS+ < 7 RTS+ 9 CTS- < 6 RTS-

å RS-485 signal wiring

In a typical RS-485 application the host device requests data from a slave module then listens for the response. The host transmits and receives data on the same pair of wires. Software handles the flow control; no other wires are needed.

Pin assignments appear in the following table. Pins 1 and 4 share the Data+ wire. Pins 2 and 3 share the Data- wire.

22 PCA-6143P User's Manual

Data-

Data+

Computer A Device B

Pin Signal Pin Signal

1 TX- – – 1 TX4 RX- – – 4 RX-

2 TX+ – – 2 TX+ 3 RX+ – – 3 RX+

5 GND 5 GND

RS-422/RS-485 driver and receiver circuit

The following figure shows the circuits for the card's RS-422 and RS-485 driver and receiver.

Image not available

Our sincere apologies

Driver and receiver circuit

Now that you have made all the required external connections, you can close up your chassis (as described in Chapter 2). If you are installing any other cards, do it now. You can then power up your system as described in the next chapter.

Chapter 3 Connecting peripherals 23

24 PCA-6143P User's Manual

CHAPTER

Power-up

After you have set the jumpers (Chapter 1), installed SIMMs (Appendix C), installed the card (Chapter 2) and made all external connections (Chapter 3), you are ready to power-up your system.

Chapter 4 Power-up 25

Follow the startup procedure outlined in the manual for your chassis.

When you start your system, the BIOS will test the hardware and check the system configuration against the values stored in its CMOS memory.

Since this is the first time you are starting up, the BIOS will display an error message stating that the configuration does not match the stored values. You should then run the BIOS setup program as described in Chapter 5.

If the BIOS hardware diagnostic tests fail, you may see an error message on the screen describing the problem. If the BIOS found a problem early in the tests, you will need to determine the BIOS POST (Power On Self Test) results by counting beeps or using a POST card. See Appendix F for details.

The most common source of problems is incorrect jumper settings. Double check your settings (Chapter 1) and restart the system. If the system still has problems, see Appendix E, Maintenance and troubleshooting.

There are three methods you can use to restart your system after it is turned on:

1. Switch the power off, then on again

2. Reboot the system. Using the keyboard, simultaneously press the CTL, ALT and DEL keys

3. Depress the optional reset switch

Use of each of these methods will erase data from the system RAM memory. If you can, save any data stored in memory to a hard or floppy disk before you reset your system.

26 PCA-6143P User's Manual

CHAPTER

BIOS diagnostics

and SETUP

This chapter describes the card’s diagnostic tests and how to set BIOS configuration data. BIOS POST (Power On Self T est) test codes appear in Appendix F.

Chapter 5 BIOS diagnostics and setup 27

POST (Power On Self Tests)

Whenever you start up your system, the CPU card runs a series of programs stored in an on-board ROM chip. These programs are divided into two stages:

System test and initialization

These routines test and initialize board hardware. If the routines encounter an error during the tests, you will either hear a few short beeps or see an error message on the screen. There are two kinds of errors: fatal and non-fatal. The system can usually continue the boot up sequence with non-fatal errors. Non-fatal error messages usually appear on the screen along with the following instructions:

press <F1> to RESUME

Write down the message and press the F1 key to continue the bootup sequence. Non-fatal error messages appear in Appendix F.

If the routines encounter a fatal error, they will stop the tests and output a message indicating which test failed. If the fatal error comes before the screen device initializes, the card will indicate the error code through a series of beeps. Error beep codes also appear in Appendix F .

System configuration verification

These routines check the current system configuration against the values stored in the card’s CMOS memory. If they don’t match, the program outputs an error message. You will then need to run the BIOS setup program to set the configuration information in memory.

28 PCA-6143P User's Manual

There are three situations in which you will need to change the CMOS settings:

1. You are starting your system for the first time

2. You have changed the hardware attached to your system

3. The CMOS memory has lost power and the configuration information has been erased.

The PCA-6143P’s CMOS memory has integral lithium battery backup. The battery backup should last ten years in normal service, but when it finally runs down, you will need to replace the complete unit. Contact your sales representative or distributor for details.

Running the setup program

Normally, the only routine visible on the screen will be the memory test. The following figure shows the screen as it appears while the tests are occurring.

Power On Self Tests

A line of reference codes appears at the bottom left of the screen. These codes identify the options installed in the AMI BIOS. If you have a problem with your system, make a note of these codes before you contact your dealer for technical support.

To “freeze” the screen so that you can write down the codes, power-on the system and hold down a key on the keyboard. This will cause a “Keyboard Error” message to appear on the screen and the system will wait for you to press the <F1> key. After you

Chapter 5 BIOS diagnostics and setup 29

copy down the line, you can then press <F1> to continue the boot procedure. After the POST routines are complete, the following message appears:

Hit <DEL> if you want to run SETUP

Press the <DEL> key to access the BIOS setup program. The BIOS Setup screen will then appear.

BIOS Setup Main Menu

You use the following keys to control the BIOS SETUP program:

ESC: Exit to previous screen ARROW KEYS: Moves the cursor to highlight the desired

configuration option

PAGEUP/PAGEDOWN/CTRL-PAGEUP/CTRL-PAGE-

DOWN:

Cycles through the configuration options for the highlighted feature. If there are less than ten available options, the CtrlPageUp and Ctrl-PageDown keys function the same as the PageUp and PageDown keys.

F1: Displays a help screen for selected feature. F2/F3: Changes background and foreground colors. F5: Retrieves the values which were resident when the current

setup session was started. These values will be CMOS values if the CMOS was uncorrupted at the start of the session, or they will be the BIOS Setup default values.

F6: Loads all features in the Advanced CMOS Setup with the

BIOS Setup defaults.

F7: Loads all features in the Advanced CMOS Setup with the

Power-On defaults (the values in the CMOS when the system was started).

F10: Saves all changed made to Setup and exits program.

30 PCA-6143P User's Manual

Standard CMOS Setup

Standard CMOS setup configures options that most users will need to change. Highlight Standard CMOS Setup in the main screen and press <ENTER>.

A warning message appears (shown below) whenever you select either Standard CMOS Setup or Advanced CMOS Setup from the main screen. Simply press any key to continue or ESC to abort.

Improper Use of Setup may Cause Problems!!

If System Hangs,.....Enter Setup by pressing

the <DEL> key Do any of the following After Entering Setup (i) Alter Option to make System Work (ii) Load BIOS Setup Defaults (iii) Load Power-On Defaults Hit <ESC> to Stop now, Any other Key to continue

BIOS Setup Warning Message

The following screen will then appear:

BIOS Setup Program - Standard CMOS SETUP

Date (mn / date / year): Tue, Jan 01 1991 Base memory: 640KB Time (hour / min / sec): 09:39:06 Ext. memory: 0KB Daylight Saving: Disabled

Hard disk C: type: 47= USER TYPE Cyln Head WPCom LZone Sect Size 642 8 0 0 17 43MB

Hard disk D: type:Not Installed Floppy drive A: :1.2MB, 51/4" Floppy drive B: :Not Installed Primary display :Monochrome Keyboard :Installed

Month: Jan, Feb,...........Dec

Date : 01, 02, 03...... .. .. 31

Year : 1901, 1902.........2099

Esc = Exit, = Select, F2/F3 = Color, PgUp/PgDn = Modify

←→↓↑

Sun Mon Tue Wed Thu Fri Sat

30 31 1 2 3 4 5

6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 1 2

3 4 5 6 7 8 9

Chapter 5 BIOS diagnostics and setup 31

This screen lets you set following features: Date:

System date. A prompt box at the lower left corner of the screen gives the range of allowable values.

Time:

System clock. Hour first, minute then second. Uses 24 hour clock format (for PM numbers add 12 to the hour: you would enter 4:30 p. m. as 16:30:00)

Daylight Savings: Disabled or Enabled Hard Disk C: and Hard Disk D:

The BIOS supports 46 standard hard disk sizes and layouts. If your hard disk matches one of these types (shown below), highlight the number blank (for the appropriate drive, C: or D:) and press <PgDn> until the correct number appears. If the BIOS does not support your hard disk, select disk type 47 and enter each of the specifications into the blank spaces (e. g. number of cyln.). You can get these numbers from a label on your disk drive or from the documentation that came with the drive. After you have set up drive C:, you can then set up drive D:. If you have no drive D:, select Not Installed.

Hard disk types

Type Cyln Head WPcompLZone Sect Size

1 306 4 128 305 17 10 MB 2 615 4 300 615 17 20 MB 3 615 6 300 615 17 31 MB 4 940 8 512 940 17 62 MB 5 940 6 512 940 17 47 MB 6 615 4 65535 615 17 20 MB 7 462 8 256 511 17 31 MB 8 733 5 65535 733 17 30 MB 9 900 15 65535 981 17 112 MB 10 820 3 65535 828 17 20 MB 11 855 5 65535 855 17 35 MB 12 855 7 65535 855 17 50 MB 13 306 8 128 319 17 20 MB

32 PCA-6143P User's Manual

Type Cyln Head WPcompLZone Sect Size

14 733 7 65535 733 17 43 MB 16 612 4 0 663 17 20 MB 17 977 5 300 977 17 41 MB 18 977 7 65535 977 17 57 MB 19 1024 7 512 1023 17 60 MB 20 733 5 300 732 17 30 MB 21 733 7 300 732 17 43 MB 22 733 5 300 733 17 30 MB 23 306 4 0 336 17 10 MB 24 925 7 0 925 17 54 MB 25 925 9 65535 925 17 69 MB 26 754 7 754 754 17 44 MB 27 754 11 65535 754 17 69 MB 28 699 7 256 699 17 41 MB 29 823 10 65535 823 17 68 MB 30 918 7 918 918 17 53 MB 31 1024 11 65535 1024 17 94 MB 32 1024 15 65535 1024 17 128 MB 33 1024 5 1024 1024 17 43 MB 34 612 2 128 612 17 10 MB 35 1024 9 65535 1024 17 77 MB 36 1024 8 512 1024 17 68 MB 37 615 8 128 615 17 41 MB 38 987 3 987 987 17 25 MB 39 987 7 987 987 17 57 MB 40 820 6 820 820 17 41 MB 41 977 5 977 977 17 41 MB 42 981 5 981 981 17 41 MB 43 830 7 512 830 17 48 MB 44 830 10 65535 830 17 69 MB 45 917 15 65535 918 17 114 MB 46 1224 15 65535 1223 17 152 MB 47 user type

Note that the user definition entry (47) lets you define a disk drive not defined in ROM. You have to supply all the relevant information concerning the drive characteristics. This is usually found on a label on the disk or in the disk's documentation.

Chapter 5 BIOS diagnostics and setup 33

The following chart shows the meaning of each of the hard disk parameters:

Hard disk parameters

Type: This is the number designation for a drive with

certain identification parameters.

Cyl: This is number of cylinders found in the specified

drive type.

Heads: This is the number of heads found in the specified drive

type.

WPpcom: WPcom is the read delay circuitry which takes into

account the timing differences between the inner and outer edges of the surface of the disk platter. The number designates the starting cylinder of the signal.

L-Zone: LZone is the landing zones of the heads. This number

determines the cylinder location where the heads will normally park when the system is shut down.

Capacity: This is the formatted capacity of the drive based on the

following formula: (# of heads) x (# of cylinders) x (# of sectors) x (512 bytes/sec)

Floppy Drive A: and Floppy Drive B:

The BIOS supports any combination of 3.5" (720 KB and

1.44 MB) and 5.25" (360 KB and 1.2 MB) floppy disks. If you have no floppy disk installed, select Not Installed.

Primary Display:

Select the type of display you have connected. Options are: Monochrome, Color 40x25, VGA/PGA/EGA, Color 80x25 and Not Installed. You might use the Not installed option for a network file server.

Keyboard:

Options are Installed or Not Installed. Note: If you are running your system on a non-dedicated file

server, and you do not want the AMI BIOS to report any keyboard, video or floppy disk drive errors during POST, set the AMI BIOS Keyboard, Primary display and floppy disk features to “Not Installed.”

34 PCA-6143P User's Manual

Advanced CMOS Setup

Advanced CMOS Setup controls system settings and the ALI M-1219 chipset’s configuration registers. Adjusting these parameters may improve system performance, but make a note of the original settings before you make any changes. Some combinations of settings may cause your system to crash or become unreliable.

From the main menu highlight the Advanced CMOS Setup option and press <ENTER>. Press any key to clear the warning screen.

åFeatures

The following chart lists card settings which you can change in Advanced CMOS Setup. It lists the default value for each setting. This screen has several help screens, accessed by pressing the <F1> key, which display setting options.

Feature Available options

Type Rate Programming Disabled (default)

Enabled Type Rate Delay (msec) 500 (default) Type Rate (Chars/sec) 15 (default) Above 1MB Memory Test Disabled (default) Memory Parity Error Check Enabled (default)

Disabled Hit <DEL> Message Display Enabled (default)

Disabled Hard Disk Type 47 RAM Area 0:300 (default)

DOS 1KB This setting determines where in memory the hard disk information is stored when you select hard disk type 47. If you disable BIOS Shadow RAM, the Hard Disk Type 47 parameter table will use regular RAM. There are two options, 0:300 (lower system RAM) and DOS 1 KB (the top 1KB of 640 KB base memory).

Wait for <F1> if Any Error Enabled (default)

Disabled System Bootup Num Lock On

Off (default) Floppy Drive Seek At Boot Enabled (default)

Disabled

Chapter 5 BIOS diagnostics and setup 35

Feature Available options

System Bootup Sequence A:, C: (default)

C:, A:

Internal Cache Memory Enabled (default)

Disabled

Password Checking Option Disabled (default)

Setup Always

Video ROM Shadow Enabled (default) C000,32K Disabled

Adapter ROM Shadow Disabled (default) C800,32K Enabled

Adapter ROM Shadow Disabled (default) D000,32K Enabled

Adapter ROM Shadow Disabled (default) D800, 32K Enabled

Adapter ROM Shadow Disabled (default) E000, 32K Enabled

Adapter ROM Shadow Disabled (default) E800,32K Enabled

The above settings shadow ROMs on plug-in cards. You will need to know the addresses of the ROMs.

System ROM Shadow Disabled

Enabled (default)

Memory Wait State Disable (default)

Enable

Shadow BIOS Cacheable Disable (default)

Enable

16 Bit ISA Cycle 0 w/s (default) Insert wait 1 w/s

Slow refresh Disabled (default)

Enabled

Remapping Disabled

Enabled (default)

Turbo Priority Option Same (default)

Hardware

36 PCA-6143P User's Manual

Feature Available options

Serial Port 1 3F8H (default)

2F8H

3E8H

Disabled Serial Port 2 2F8H (default)

3F8H

2E8H

Disabled Parallel Port 378H (default)

278H

3BCH

Disabled Enhanced Parallel Port Normal (default)

EPP

ECP

ECP&ECC IDE Controller Enabled (default)

Disabled Floppy Controller Enabled (default)

Disabled Watchdog Timer Setting 16 min 48 seconds

08 min 24 seconds 04 min 12 seconds 02 min 06 seconds 01 min 03 seconds

31.5 seconds

15.8 seconds

7.9 seconds

3.9 seconds

2.0 seconds (default)

1.0 seconds

0.5 seconds

Disabled

Internal Flash/ROM disk Disabled (default)

Enabled

After you have made your configurations changes, press <ESC> to return to the main menu.

Chapter 5 BIOS diagnostics and setup 37

Auto Configuration with BIOS Defaults

This main menu option loads the system default values stored in the BIOS ROM at the factory.

Auto Configuration with Power-On De-

faults

This main menu option loads the settings stored in the CMOS memory when you turned on your system. If your system behaves erratically, you can use this feature to check for incorrect settings.

Hard Disk Utility

This option lets you perform low-level hard disk drive preparation before you use the DOS FDISK or FORMAT utilities. All of its functions are destructive to existing data on the disk drive.

Most IDE hard drives come preformatted from the factory, so you will probably only need these utilities if your hard disk develops bad sectors or ages and needs to have the formatting information refreshed.

Write to CMOS and Exit/Do not Exit

After you have made your configuration changes, select Write to CMOS and Exit. If you decide you want to abandon the changes

you have made, select Do not Write to CMOS and Exit. The BIOS will then perform a memory test, and attempt to boot

your system. Be sure that your DOS system files are located on either drive A:

or on your hard disk drive. If they are not, the BIOS will not be able to boot your system.

38 PCA-6143P User's Manual

Quick

Start

for experienced

users

This Quick Start section puts all the vital configuration information in one place. If you need more information about any setting, just check the appropriate page reference.

Quick Start for advanced users 39

1. Check card default setting

We set the card’s jumpers at the factory for the most popular configuration. If this configuration matches your needs, you can skip to step 3. The default configuration is as follows:

• W atchdog invokes system reset • Color display attached

• Parallel port IRQ7, DRQ1, DACK1 • Bypass POST (JP14)

2. Set jumpers

This section gives a quick description of each card configuration setting. If you need more information, just check the appropriate page references. Check the figure on page 5 for help finding jumpers or connectors.

åJP15 Display type

If you are using a monochrome LCD or EL screen which uses a CGA, EGA, VGA or other color display adapter, set JP15 to color.

JP15 Setting

Open Monochrome Closed (default) Color

åWatchdog timer  reset, IRQ15 (JP8) p. 9

JP8 Setting

1-2 System Reset 3-4 IRQ15

å CPU type selection (JP2, 3) p. 60

CPU JP2 JP3 JP31

SX-25 Off 1-2 Closed SX-33 Off 1-2 Closed DX-25 2-3 2-3 Closed DX-33 2-3 2-3 Closed DX2-50 2-3 2-3 Closed DX2-66 2-3 2-3 Closed DX4-100 (3.45 V) 2- 3 2-3 Open

40 PCA-6143P User's Manual

åJP20, 22, 25, 26, 27, 28, 29, and 30  RS-232, RS-422 or

RS-485 p. 20

RS-232 RS-422 (def.) RS-485

JP20 1-2 2-3 2-3 JP22 Open Short Short JP25 Open Open Short JP26 Open Open Short JP27 Open 1-2 2 -3 JP28 1-2 2-3 2 -3 JP29 Open Short Short JP30 Open Short Short

åFlash/ROM disk p. 47

JP19 JP23 JP24

SRAM 128K - Open Short SRAM 512K - Open Open FLASH 128K 2-3 Short Short FLASH 512K 2-3 Short Open EPROM 128K 1-2 Short Short EPROM 512K 1-2 Short Open

åBus clock selection (JP4) p. 9

JP4 Selection

1-2 Bus clk = CPU clk * 2/8 2-3 Bus clk = CPU clk * 2/6

Quick Start for advanced users 41

åParallel Port IRQ, DRQ, DACK Selection p. 10

Parallel Port IRQ selection (JP11)

JP11 IRQ no

1-2 IRQ7 (default) 2-3 IRQ5

Parallel Port DRQ selection (JP17)

JP17 DRQ no

1-2 DRQ1 (default) 2-3 DRQ3

Parallel Port DACK selection (JP18)

JP18 DACK no

1-2 DACK1 (default) 2-3 DACK3

3. Install CPU

If your CPU was not installed, install it. See Appendix C.

4. Install memory

If your memory was not installed, install it. See Appendix C.

5. Install card

For instructions, see Chapter 2.

42 PCA-6143P User's Manual

6. Connect peripherals

Connect the following external devices. See the figure on page 5 for help finding connectors. The page number after each connector references the detailed description in the text. Details for the more complicated connections appear on the following pages. Other connector pin assignments appear in Appendix D.

Connectors

Component Label Page

HDD (IDE) connector CN1 16 FDD connector CN2 15 Parallel port CN3 16 Keyboard connectors J1, J3 17 Reset switch connector JP7 17 Power LED and keylock connector JP9 18 HDD LED connector JP1 18 Turbo switch connector JP12 18 Bus Clock selection JP4 19 Turbo LED connector JP13 19 External speaker connector JP10 19 SBC power connector J2 19 RS-232 serial port COM1 20 RS-232/422/485 serial port COM2 21 PC/104 connector CN4, CN5 61

åReset switch (JP7) p. 17

Reset Close pins of JP7, then open

åPower LED and keylock (JP9) p. 18

Power LED and keylock

Pin Function

1LED Power (+5 VDC) 2No Connection 3Ground 4Keyboard lock 5Ground

Quick Start for advanced users 43

åHard disk drive LED (JP1) p. 18

The pin on the top is positive.

åTurbo switch (JP12) p. 18

Turbo switch settings

Turbo Closed Non-Turbo, keyboard switchable Open

T o switch the CPU into Turbo mode from the keyboard simultaneously press the Ctrl, Alt and keypad plus (+) keys. To switch it to non-Turbo, simultaneously press the Ctrl, Alt and keypad minus (-) keys.

åTurbo LED (JP13) p. 19

The pin on the bottom is positive.

åExternal speaker (JP10) p. 19

External speaker

Pin no. Function

1+5 V

2Speaker out 3Speaker out 4Speaker out

åSBC power connector (J2) p. 19

SBC power connector

Pin no. Function

1+5 V

2 GND 3 GND 4+12 V

44 PCA-6143P User's Manual

åSerial Ports p. 20

Before you use the RS-232/422/485 port, you will need to select RS-232, RS-422 (the default) or RS-485 mode. Set jumpers JP20, 22, 25, 26, 27, 28, 29 and 30 according to the following table:

RS-232 RS-422 RS-485

JP20 1- 2 2-3 2-3 JP22 Open Short Short JP25 Open Open Short JP26 Open Open Short JP27 Open 1-2 2-3 JP28 1- 2 2-3 2-3 JP29 Open Short Short JP30 Open Short Short

7. Power up

Power up your chassis following the procedure described in the chassis user manual. If you have problems, see Appendix E, Maintenance and troubleshooting. BIOS error codes appear in Appendix F .

8. Set up the BIOS

BIOS setup information appears in Chapter 5.

Quick Start for advanced users 45

46 PCA-6143P User's Manual

Flash/ROM disk

APPENDIX

Appendix A Flash/ROM disk 47

The PCA-6143P features an internal Flash/ROM disk drive. This drive emulates a floppy disk drive by using solid-state memory chips (Flash or EPROM) to store programs and data instead of the magnetic particles on the mechanical drive’s disk. The Flash/ROM disk offers much faster access times than a floppy or hard disk and greatly increased reliability in harsh environments.

The Flash/ROM disk works by modifying the BIOS INT-13 disk I/O routine on boot-up. The routine then translates read and write commands to the disk so that they will correctly access the memory chips. You don’t need any special drivers. You simply set the drive to act as a DOS drive (e. g. A:, B:, C: or D: - 1st, 2nd, 3rd or 4th floppy disks) and use standard DOS commands (COPY, DIR, etc.) to manipulate your data.

Before you use the Flash/ROM disk, you will need to enable it with the BIOS Advanced Setup Program, discussed in Chapter 5.

Memory devices

The Flash/RAM/ROM disk supports the following memory devices, or their equivalents:

• 27C010 128 KB x 8 EPROM

• 27C040 512 KB x 8 EPROM

• 28F010 128 KB x 8 +12 V Flash Memory (AMD/INTEL)

• 29C010 128 KB x 8 +5 V Flash Memory (ATMEL only)

• 29C040 512 KB x 8 +5 V Flash Memory (ATMEL only) If you use EPROM, files on the disk are read only . You will need

an external programmer to load your program and data files on the EPROMs.

If you use +5 V Flash memories (29C010 or 29C040) for the solid state disk, you can read or write data just like a floppy disk; you need not use an external programmer. If you use +12 V Flash memories (28F010) you will still need an external programmer to write data.

48 PCA-6143P User's Manual

Drive capacity

The size of the emulated drive depends on the size and number of the chips you install. For example, if you install three 512 KB chips, you will have 3 x 512 KB = 1.536 MB, equivalent to a 1.44 MB floppy.

You will need to set jumpers JP19, JP23 and JP24 to match the type (Flash, RAM or ROM) and size (128 KB or 512 KB) of the devices you use. All the devices must be the same type and size.

The following tables shows the size and number of devices you will need for each size emulated disk. It also shows the corresponding settings of jumpers JP19, JP23(Flash/RAM/ROM) and JP24 (128 KB/512 KB).

JP19 JP23 JP24

SRAM 128K - Open Short SRAM 512K - Open Open FLASH 128K 2-3 Short Short FLASH 512K 2-3 Short Open EPROM 128K 1- 2 Short Short EPROM 512K 1- 2 Short Open

Drive configuration

Before you activate the Flash/RAM/ROM drive (using the BIOS Advanced Setup program), you will need to set the drive's I/O and memory addresses to avoid conflicts with other plug-in cards. You will also need to set the DOS drive designation to be used by the Flash/RAM/ROM drive. DIP switch SW1 controls each of these settings, as described in the following sections:

Appendix A Flash/ROM disk 49

åI/O address selection (SW1)

Positions 1 and 2 on DIP switch SW1 control the disk's I/O address.

Position 1 Position 2 I/O address (HEX)

Off Off Disabled Off On 200-201 On Off 240-241 On On 280-281

Memory address selection (SW1)

Positions 3 and 4 on SW1 control the Flash/ROM disk’s memory address. If you select "Disabled", the disk will not function.

Position 3 Position 4 Memor y address (HEX)

Off Off Disabled Off On D2000 to D3FFF On Off D6000 to D7FFF On On DA000 to DBFFF

åDrive emulated (SW1)

Positions 5 and 6 of SW1 control the DOS drive emulated by the Flash/RAM/ROM disk: 1st, 2nd, 3rd or 4th.

Position 5 Position 6 Drive

Off Off 4th Off On 3rd On Off 2nd On On 1st

The actual drive letter assigned by DOS to the Flash/RAM/ROM disk depends on the floppy or hard disks installed in the system and the DOS version.

50 PCA-6143P User's Manual

Drive Selection

DOS 5.0 (and later)

Floppy disks

The Flash/ROM disk will replace the corresponding floppy disk. For example, if you have a single floppy disk (drive A:) and assign the Flash/ROM disk to be the 1st drive (both switches 5 and 6 are on), any drive operations directed at drive A: will go to the Flash/ ROM disk. This floppy drive will then be assigned the next free drive designation. The example below illustrates this.

Hard disks

The Flash/ROM disk will not replace corresponding hard disks. Instead, DOS will assign the Flash/ROM disk to the next free drive designation. For example, if you have a single hard disk (drive C:) and assign the Flash/ROM disk to be the 3rd drive (switch 5 on, switch 6 off), the Flash/ROM drive will become drive D:. If you have two hard disks, the Flash/ROM drive will become drive E:.

Example 1

You install the Flash/ROM disk as drive A: (both switches 5 and 6 are on).

Before installing Flash/ROM disk

ABC

DOS 5.0+ FDD FDD HDD

After installing Flash/ROM disk

ABCD

DOS 5.0+ Flash/ROM FDD HDD FDD

Appendix A Flash/ROM disk 51

Example 2

You (try to) install the Flash/ROM disk as drive C:

Before installing Flash/ROM disk

ABC

DOS 5.0+ FDD FDD HDD

After installing Flash/ROM disk

ABCD

DOS 5.0+ FDD FDD HDD Flash/ROM

Booting from the Flash/RAM/ROM disk

If you wish to have the system boot from the Flash/RAM/ROM disk, simply set positions 5 and 6 on SW1 for the 1st FDD. Copy your application files to the disk along with the standard system files required to boot (command.com, io.sys, autoexec.bat, etc). The next time you start the system, it will boot from the solid state disk.

Inserting memory devices

After you’ve set all the jumpers and switches on the PCA-6143P, insert the appropriate memory devices into the card’s sockets. Remember that you will need to program EPROMs before you insert them.

1. Make sure that the pins of the memory chips are perpendicular to the case and both rows are parallel to each other. Many times the chips come with the pins spread out slightly. Place the chip on a table top and carefully bend each line of pins together until they point directly down.

2. Insert each chip. Align the chips so their pins are perpendicular to the connector and the semicircular notch on the end of the chip matches the notch on the end of the socket. There will probably be a gap between the chip body and the socket when it is fully seated – do not push too hard!

52 PCA-6143P User's Manual

Formatting the Solid State disk

If you use Flash memory or SRAM, it is advisable to format the Flash/SRAM disk before copying files to it. The DOS command is as follows:

FORMAT drv: /U ...

where drv = solid state disk drive A, B, C etc.

File copy utility

The utility program COOKROM.EXE, included on the card's utility disk, splits the files on a diskette into a series of binary files. You can then use an external programmer to copy the files to EPROM or +12 V Flash memory chips. It produces up to three files, depending on the size of the source files.

Using a memory manager

(EMM386.EXE)

If you are using an extended or expanded memory manager (such as EMM386 or QEMM386), you will need to configure it to avoid the addresses used by the Flash/RAM/ROM disk (set by positions 1 and 2 of SW1). Otherwise, the memory manager will attempt to use these addresses, causing unreliable operation.

For example, the line in your CONFIG.SYS file that invokes EMM386, the DOS memory manager, might be the following:

DEVICE=EMM386.SYS X=D600-D7FF

This excludes a 8 KB range for the card from D6000 to D7FFF (the default addresses).

If you are using expanded memory, you will need to make sure that the memory manager is not putting the page frame in the disk's addresses. For example,

DEVICE=EMM386.EXE X=D600-D7FF FRAME = D800

You should also make sure that the disk's memory address is not shadowed in the BIOS.

Appendix A Flash/ROM disk 53

54 PCA-6143P User's Manual

CHAPTER

Programming the

watchdog timer

The PCA-6143P is equipped with a watchdog timer that resets the CPU or generates an interrupt if processing comes to a standstill for whatever reason. This feature ensures system reliability in industrial stand-alone and unmanned environments.

Appendix B Programming the watchdog timer 55

Programming the watchdog timer

If you decide to program the watchdog timer, you must write a program which reads I/O port address 443 (hex) at regular intervals. The first time your program reads the port, it enables the watchdog timer. After that your program must read the port at time intervals less than 2.0 seconds (as set in the BIOS), otherwise the watchdog timer will activate and reset the CPU or generate an interrupt on IRQ15. When you want to disable the watchdog timer, your program should read I/O port 043 (hex).

If CPU processing comes to a standstill because of EMI or a software bug, your program's signals to I/O port address 443 to the timer will be interrupted. The timer will then automatically reset the CPU or invoke an IRQ, and data processing will continue normally.

The following program shows how you might program the watchdog timer in BASIC:

10 REM Watchdog timer example program 15 REM Watchdog timer interval set to 2 sec in BIOS 20 X=INP(&H443) REM Enable and refresh the watchdog 30 GOSUB 1000 REM Task #2, takes 2 sec to complete 40 X=INP(&H443) REM Refresh the watchdog 50 GOSUB 2000 REM Task #2, takes 2 sec to complete 60 X=INP(&H043) REM Disable the watchdog 70 END 1000 REM Subroutine #2, takes 2 seconds to complete

1070 RETURN 2000 REM Subroutine #2, takes 2 seconds to complete

2090 RETURN

. . .

56 PCA-6143P User's Manual

APPENDIX

Upgrading

This appendix gives instructions for

increasing the capabilities of your CPU

card. It covers:

 DRAM memory installation (SIMMs)

 CPU installation and upgrading

 Installing PC/104 modules

Appendix C Upgrading 57

Installing DRAM (SIMMs)

You can install anywhere from 1 MB to 32 MB of on-board

DRAM memory using 256 KBx36, 1 MBx36 or 4 MBx36 SIMMs

(Single In-line Memory Modules). Access time should be 80 ns or

less.

Memory installs in two 72-pin SIMM sockets. See the figure on

page 5 for help identifying the banks. You must fill both sockets,

and both SIMMs must be of the same capacity, i. e. you cannot

mix 256 KB SIMMs with 1 MB SIMMs. The following table

shows the memory size for different SIMM capacities:

System memory configuration SIMM size Pcs

1 MB 256 KB x 36 1 2 MB 256 KB x 36 2 4 MB 1 MB x 36 1 8 MB 1 MB x 36 2 16 MB 4 MB x 36 1 32 MB 4 MB x 36 2

The procedure for installing SIMMs appears below. Please follow

these steps carefully.

Warning! Completely disconnect power from the system

before you install SIMMs. Remove the CPU card from the chassis. .

Caution! Properly ground yourself (we recommend a

grounding wrist strap) before you touch the CPU card or SIMMs. Both are very susceptible to damage from static discharge. Place the card and SIMMs on a static-dissipative surface or into a static-shielding bag when they are not installed.

1. Locate the CPU cards memory banks, shown in the figure in

Chapter 1 (page 5).

58 PCA-6143P User's Manual

2. Install the SIMM cards. Install each SIMM so that its chips

faces the CPU and its gold pins point down into the SIMM

socket.

3. Slip each SIMM into a socket at a 45 degree angle and careful-

ly fit the bottom of the card against the connectors.

4. Gently push the SIMM into a perpendicular position until the

clips on the ends of the SIMM sockets snap into place.

5. Check to ensure that each SIMM is correctly seated and all

connector contacts touch. The SIMM should not move around

in its socket.

CPU installation and upgrading

This section tells how to install or upgrade the card's CPU. You

can upgrade your PCA-6143P to a higher powered 486 CPU at any

time. Simply remove the old 486 CPU, install the new and set the

jumpers for the CPU type and speed.

Warning! Disconnect all power from the chassis before you

remove or install the CPU card. Follow the power-down procedure outlined in the manual for your chassis. Unplug the power cord from the wall, don’t just turn off the power switch. If you are not sure what to do, take the job to an experienced professional.

Caution! The electronic components on this CPU card are

very sensitive to static electric charges. Use a grounding wrist strap to remove all static electricity before you touch any components. Place all components on a static-dissipative surface or in a static-shielded bag when they are not in the chassis.

1. Disconnect power from the chassis and remove the CPU card.

Follow the instructions in the user's manual for your chassis.

You will also need to disconnect everything you connected in

Chapter 3, Connections.

Appendix C Upgrading 59

2. If you are upgrading the CPU, remove any existing CPU from

the socket. (See Chapter 1 for help locating the socket.) The

old chip may be difficult to remove. You may find spray chip

lubricant (designed for pin-grid-array devices, PGAs) and a

chip puller helpful (available at electronics hobbyist's supply

stores).

3. Plug in the new CPU into the empty socket. Follow the

instructions that came with the CPU or math coprocessor. If

you have no instructions, do the following: Lubricate the pins

of the CPU. Use lubricant designed for use with PGA devices.

This will make the new CPU slide in MUCH easier and reduce

the chance of bending pins or other damage. Next, carefully

align the CPU so it is parallel to the socket and the notch on the

corner of the CPU matches with the notch on the inside of the

socket. Carefully slide in the CPU. There will probably be a

gap between the CPU and the connector when it is fully seated

 do not push too hard!

4. Switch jumpers JP2, JP3 and JP31 to match the new CPU

according to the following table:

JP2 JP3 JP31

SX-25 Off 1-2 Closed SX-33 Off 1-2 Closed DX-25 2- 3 2-3 Closed DX-33 2- 3 2-3 Closed DX2-50 2- 3 2-3 Closed DX2-66 2- 3 2-3 Closed DX4-100 (3.45 V) 2-3 2-3 Open

5. Reinstall the CPU card according to the instructions in

Chapter 2.

60 PCA-6143P User's Manual

Installing PC/104 modules

The PCA-6143P's PC/104 connectors let you attach PC/104

expansion modules. These modules perform the functions of

traditional plug-in expansion cards, but save space and valuable

slots. Modules available from Advantech include:

 PCM-3510 Super VGA module

 PCM-3520 Flat-panel/CRT VGA module

 PCM-3810 Solid-state Disk module

 PCM-3110 PCMCIA module

 PCM-3660 Ethernet module

 PCM-3718 30 KHz A/D module

 PCM-3724 48-channel DIO module

PC/104 modules are produced by over a dozen manufacturers, and

the PC/104 form factor is being advanced as an appendix to the

ISA bus standard.

Connectors CN4 and CN5 support 16-bit PC/104 modules. For

module installation instructions, see the user manual for the

module. For help locating the connectors, refer to Chapter 1.

If you want to make your own PC/104 module, the figure on the

following page shows module dimensions. Pin assignments for the

connector appear in Appendix D. For further information, contact

your Advantech distributor or sales representative.

Appendix C Upgrading 61

62 PCA-6143P User's Manual

PCA-6143P dimensions (mm)

APPENDIX

Detailed system

information

This appendix contains information of a

detailed or specialized nature. It includes:

 Parallel connector pin assignments

 HDD connector pin assignments

 FDD connector pin assignments

 Keyboard connector pin assignments

 Piggyback connector pin assignments

 Card connector pin assignments

 System I/O port address assignments

 System information I/O address

assignments

 DMA channel assignments

 DMA controller registers

 DMA page addresses

 Interrupt assignments

 Timer channel assignments

Appendix D Detailed system information 63

Parallel/printer connector (CN3)

Pin no. Signal

1 STROBE 2 DATA 0 3 DATA 1 4 DATA 2 5 DATA 3 6 DATA 4 7 DATA 5 8 DATA 6 9 DATA 7 10 - ACKNOWLEDGE 11 BUSY 12 PAPER EMPTY 13 + SELECT 14 - AUTO FEED 15 - ERROR 16 - INIT PRINTER 17 - SELECT INPUT 18-25 GROUND

HDD connector (CN1)

Pin no. Signal Pin no. Signal

1 - RST 2 GND 3D7 4D8 5D6 6D9 7 D5 8 D10 9 D4 10 D11 11 D3 12 D12 13 D2 14 D13 15 D1 16 D14 17 D0 18 D15 19 GND 20 N.C. 21 N.C. 22 GND 23 IOW 24 GND 25 IOR 26 GND

64 PCA-6143P User's Manual

Pin no. Signal Pin no. Signal

27 IORDY 28 BALE 29 N.C. 30 GND 31 IRQ 32 -IO CS16 33 A1 34 N.C. 35 A0 36 A2 CS0 37 CSO 38 CS1 39 -ACT 40 GND

FDD connector (CN2)

Pin no. Signal

1-33 (odd) GROUND 2 HIGH DENSITY 4, 6 UNUSED 8 INDEX 10 MOTOR ENABLE A 12 DRIVER SELECT B 14 DRIVER SELECT A 16 MOTOR ENABLE B 18 DIRECTION 20 STEP PULSE 22 WRITE DATA 24 WRITE ENABLE 26 TRACK 0 28 WRITE PROTECT 30 READ DATA 32 SELECT HEAD 34 DISK CHANGE

Keyboard connector pin assignment

J1 J3 (mini-DIN) Signal

1 5 CLOCK 2 1 DATA 3 2, 6 N.C. 4 3 GND 5 4 +5 V

Appendix D Detailed system information 65

PC/104 Connector Pin Assignments

CN4 CN5

0 -- -- 0V 0V

1 IOCHCHK* 0V SBHE* MEMCS16* 2 SD7 RESETDRV LA23 IOCS16* 3 SD6 +5V LA22 IRQ10 4 SD5 IRQ9 LA21 IRQ11 5 SD4 -5V LA20 IRQ12 6 SD3 DRQ2 LA19 IRQ15 7 SD2 -12V LA18 IRQ14 8 SD1 ENDXFR* LA17* DACK0* 9 SD0 +12 MEMR* DRQ0* 10 IOCHRDY (KEY)

MEMW* DACK5* 11 AEN SMEMW* SD8 DRQ5 12 SA19 SMEMR* SD9 DACK6* 13 SA18 IOW* SD10 DRQ6 14 SA17 IOR* SD11 DACK7* 15 SA16 DACK3* SD12 DRQ7 16 SA15 DRQ3 SD13 85V 17 SA14 DACK1* SD14 MASTER* 18 SA13 DRQ1 SD15 0V 19 SA12 REFRESH* (KEY)

0V 20 SA11 SYSCLK -- -21 SA10 IRQ7 -- -22 SA9 IRQ6 -- -23 SA8 IRQ5 -- -24 SA7 IRQ4 -- -25 SA6 IRQ3 -- -26 SA5 DACK2* -- -27 SA4 T C -- -28 SA3 BALE -- -29 SA2 + 5V -- -30 SA1 OSC -- -31 SA0 0 V -- -32 0V 0V -- --

66 PCA-6143P User's Manual

Card connector pin assignments  Side A

I/O pin Signal name Input/output

A1 -I/O CH CK Input A2 SD7 Input/Output A3 SD6 Input/Output A4 SD5 Input/Output A5 SD4 Input/Output A6 SD3 Input/Output A7 SD2 Input/Output A8 SD1 Input/Output A9 SD0 Input/Output A10 I/O CHRDY Input A11 AEN Output A12 SA19 Input/Output A13 SA18 Input/Output A14 SA17 Input/Output A15 SA16 Input/Output A16 SA15 Input/Output A17 SA14 Input/Output A18 SA13 Input/Output A19 SA12 Input/Output A20 SA11 Input/Output A21 SA10 Input/Output A22 SA9 Input/Output A23 SA8 Input/Output A24 SA7 Input/Output A25 SA6 Input/Output A26 SA5 Input/Output A27 SA4 Input/Output A28 SA3 Input/Output A29 SA2 Input/Output A30 SA1 Input/Output A31 SA0 Input/Output

Appendix D Detailed system information 67

Card connector pin assignments  Side B

I/O pin Signal name Input/Output

B1 GND Ground B2 RESET DRV Output B3 +5Vdc Power B4 IRQ9 Input B5 -5Vdc Power B6 DRQ2 Input B7 -12Vdc Power B8 0WS Input B9 +12Vdc Power B10 GND Ground B11 -SMEMW Output B12 -SMSMR Output B13 -IOW Input/Output B14 -IOR Input/Output B15 -DRACK3 Output B16 DRQ3 Input B17 -DRACK1 Output B18 DRQ1 Input B19 -REFRESH Input/Output B20 CLK Output B21 IRQ7 Input B22 IRQ6 Input B23 IRQ5 Input B24 IRQ4 Input B25 IRQ3 Input B26 -DACK2 Output B27 T/C Output B28 BALE Output B29 +5Vdc Power B30 OSC Output B31 GND Ground

68 PCA-6143P User's Manual

Card connector pin assignments  Side C

I/O pin Signal name Input/Output

C1 SBHE Input/Output C2 LA23 Input/Output C3 LA22 Input/Output C4 LA21 Input/Output C5 LA20 Input/Output C6 LA19 Input/Output C7 LA18 Input/Output C8 LA17 Input/Output C9 -MEMR Input/Output C10 -MEMW Input/Output C11 SD08 Input/Output C12 SD09 Input/Output C13 SD10 Input/Output C14 SD11 Input/Output C15 SD12 Input/Output C16 SD13 Input/Output C17 SD14 Input/Output C18 SD15 Input/Output

Card connector pin assignments  Side D

I/O pin Signal name Input/Output

D1 -MEM CS16 Input D2 -I/O CS16 Input D3 IRQ10 Input D4 IRQ11 Input D5 IRQ12 Input D6 IRQ15 Input D7 IRQ14 Input D8 -DACK0 Output D9 DRQ0 Input D10 -DACK5 Output D11 DRQ5 Input D12 -DACK6 Output D13 DRQ6 Input

Appendix D Detailed system information 69

I/O pin Signal name Input/Output

D14 -DACK7 Output D15 DRQ7 Input D16 +5Vdc Power D17 -MASTER Input D18 GND Ground

System I/O ports

Address range (Hex)Device

000-01F DMA controller 020-021 Interrupt controller 1, master 022-023 Chipset address 040-05F 8254 timer 043 Watchdog timer disable 060-06F 8042 (keyboard Controller) 070-07F Real-time clock, non-maskable interrupt (NMI) mask 080-09F DMA page register, 0A0-0BF Interrupt controller 2 0C0-0DF DMA controller 0F0 Clear math co-processor 0F1 Reset math co-processor 0F8-0FF Math co-processor 1F0-1F8 Fixed disk 200-207 Game I/O 278-27F Parallel printer port 2 (LPT 3) 2F8-2FF Serial port 2 300-31F Prototype card 360-36F Reserved 378-37F Parallel printer port 1 (LPT 2) 380-38F SDLC, bisynchronous 2 3A0-3AF Bisynchronous 1 3B0-3BF Monochrome display and printer adapter (LPT 1) 3C0-3CF Reserved 3D0-3DF Color/graphics monitor adapter 3F0-3F7 Diskette controller 3F8-3FF Serial port 1 443 Watchdog timer enable and trigger

70 PCA-6143P User's Manual

System information I/O addresses

Address Description

00-0D * Real-time clock information 00 Second 01 Second alarm 02 Minutes 03 Minute alarm 04 Hours 05 Hours alarm 06 Day of week 07 Date of month 08 Month 09 Year 0A Status register A 0B Status register B 0C Status register C 0D Status register D 0E * Diagnostic status byte 0F * Shutdown status byte 10 Diskette drive type byte, drives A and B 11 Reserved 12 Fixed disk type byte, drives C and D 13 Reserved 14 Equipment byte 15 Low base memory byte 16 High base memory byte 17 Low expansion memory byte 18 High expansion memory byte 19-2D Reserved 2E-2F 2-byte CMOS checksum 30 * Low expansion memory byte 31 * High expansion memory byte 32 * Date century byte 33 * Information flags (set during power on) 34-3F Reserved

Appendix D Detailed system information 71

DMA channel assignments

Channel Function

0 Spare (8-bit transfer) 1 SDLC (8-bit transfer) 2 Floppy disk (8-bit transfer) 3 Spare (8-bit transfer) 4 Cascade for DMA controller 1 5 Spare (16-bit transfer) 6 Spare (16-bit transfer) 7 Spare (16-bit transfer)

DMA controller registers

Address Command code

0C0 CH0 base and current address 0C2 CH0 base and current word count 0C4 CH1 base and current address 0C6 CH1 base and current word count 0C8 CH2 base and current address 0CA CH2 base and current word count 0CC CH3 base and current address 0CE CH3 base and current word count 0D0 Read status register/Write command register 0D2 Write mode register 0D4 Read temporary register/Write command register 0D6 Write mode register 0D8 Clear byte pointer flip-flop 0DA Read status register/Write command register 0DC Write mode register 0DE Write all mask register bus

72 PCA-6143P User's Manual

DMA Page Addresses

Page register I/O Address

DMA Channel 0 0087 DMA Channel 1 0083 DMA Channel 2 0081 DMA Channel 3 0082 DMA Channel 5 008B DMA Channel 6 0089 DMA Channel 7 008A Refresh 008F

Interrupt assignments

Priority Interrupt# Interrupt source

1 NMI Parity error detected 2 IRQ 0 Interval timer, counter 0 output 3 IRQ 1 Keyboard

- IRQ 2 Interrupt from controller 2 (cascade) 4 IRQ 8 Real-time clock 5 IRQ 9 Cascaded to INT 0AH (IRQ 2) 6 IRQ 10 Reserved 7 IRQ 11 Reserved 8 IRQ 12 Reserved 9 IRQ 13 INT from co-processor 10 IRQ 14 Fixed disk controller 11 IRQ 15 Reserved 12 IRQ 3 Serial communication port 2 13 IRQ 4 Serial communication port 1 14 IRQ 5 Parallel port 2 (bus mouse) 15 IRQ 6 Diskette controller (FDC) 16 IRQ 7 Parallel port 1 (print port)

Timer channel assignments

Channel Function

0 System timer 2 Refresh request generator 3 Tone generation for speaker

Appendix D Detailed system information 73

74 PCA-6143P User's Manual

APPENDIX

Maintenance and

troubleshooting

This appendix describes the general

maintenance that your CPU card requires

to ensure reliable operation. It then gives

some solutions to common card trouble-

shooting problems.

Appendix E Maintenance and troubleshooting 75

General maintenance

As with any electronic equipment, an adequate maintenance

program will ensure reliable performance.

In general terms, maintenance includes periodic inspection of the

card and peripherals to ensure that they are clean and free from

signs of dirt, dust, wear and stress.

Warning! Always remove power from the complete system

before installing the CPU card. Follow all powerdown procedures outlined in the chassis user’s manual. To avoid injury to personnel, disconnect the power cord from the power source. Only qualified, experienced electronics personnel should access the interior of the chassis.

Caution! Never allow moisture or condensation to come in

contact with the PCA-6143P components or cables and connectors. Damage to sensitive components may occur.

Inspect all cables and connectors to verify that they are securely

fastened to their connecting components. Worn or stressed cables

or connectors should be replaced.

All peripheral equipment used with the PCA-6143P should be

properly maintained. Malfunctioning equipment should be

immediately replaced to prevent damage to the CPU.

76 PCA-6143P User's Manual

Industrial PC system

troubleshooting guide

PROBLEM

Will not boot up

SOLUTION

Make sure that all cards on the passive backplane are firmly seated

in their slots. Clean the pins on the cards and slot connectors on

the passive backplane if necessary.

Check the DC output of the power supply. All required voltages

(+5 V, + 12 V, etc.) should be present. The +5 V output should be

within the range 4.75 V to 5.25 V.

Make sure that the DRAM modules are correctly inserted into their

sockets and have the correct access time (usually 80 nsec or less)

Check that the CMOS is correctly set up. Check the HDD, FDD,

wait states, error hold, etc.

Make sure the add-on cards are OK. Remove or change add-on

cards and test again.

Ensure that the math co-processor is properly inserted in its socket.

Check the connections between the video card and monitor. Check

display adjustments, especially when using LCD displays. The

system may be booting up, but not displaying on the screen.

If you are booting from a floppy disk drive, make sure the floppy

is bootable. If booting from a hard drive, make sure that it is pro-

perly formatted for your DOS version. New disks must first be

partitioned (with FDISK) and formatted with FORMAT).

Check HDD and FDD cable connections. Make sure that the

floppy drive is designated drive A: (the end connector on the FDD

cable), and that the hard disk is designated drive C: (the end

connector on the HDD cable).

Check connections for the reset, keylock and power LED wires.

Remove completely or adjust the value of the terminating resistor

on your backplane.

Appendix E Maintenance and troubleshooting 77

Check for and remove viruses. The boot sector and partition table

on your HDD may be damaged.

PROBLEM

CMOS setup loss

SOLUTION

Make sure that your application software does not write to CMOS

data addresses.

PROBLEM

System hangs after working for a short time (about 20 minutes)

SOLUTION

Make sure the power switch is set to correct input range (110 or

220 VAC). If the correct range is set, check the quality of the input

power. It should be stable and between 90 and 120/200 and

240 VAC. PC equipment should not be connected to the end of a

power trunk line. Next, check the output of the power supply. The

+5 VDC supply should be between 4.75 and 5.25 VDC.

Make sure the temperature of the case is less than 60oC (140oF). If

necessary, clean the air filter and backplane.

Check that the SIMM DRAM modules have an access time of

80 nsec or less.

PROBLEM

Serial Port Failure

SOLUTION

Check cable connections between the PC and the remote terminal

equipment. Make sure that the remote terminal equipment is

functioning properly.

Check COM port assignment.

When using standard C, Pascal or BASIC serial port commands,

make sure that either the ports DTR/DSR and RTS/CTS lines are

looped back (shorted together in the connector), or the COM port

78 PCA-6143P User's Manual

is set to loop back mode. Test using diagnostic software such as

Checklt or QAPlus.

The RS-232 interface relies on good grounding for reliable

operation. Check that all equipment has a good connection to

ground, and that the ground potential is the same at both locations.

PROBLEM

Parallel Port Failure

SOLUTION

Make sure the printer cable is connected correctly.

Make sure that the printer is on-line and self-tests OK.

Make sure that application software is set correctly.

PROBLEM

FDD works incorrectly

SOLUTION

Check the connections between the CPU card and FDD.

Clean the magnetic head of the FDD. Make sure you are using

diskettes of the proper capacity and format.

Check that the FDD type is correctly set in CMOS.

Reset the BIOS to the default setting and try again.

Make sure the super I/O configuration is setup correctly.

PROBLEM

HDD works incorrectly

SOLUTION

Check cable connections. Check that the master/slave jumpers are

properly set. The boot drive should be the master.

Make sure the HDD type is correctly set in CMOS. Reset system

setup to BIOS default settings and try again.

Check for and remove viruses. The boot sector and partition table

on your HDD may be damaged.

Appendix E Maintenance and troubleshooting 79

Make sure the super I/O configuration is setup correctly.

Check for bad sectors on the hard disk (using a program such as

Norton Disk Doctor). This is a common problem with Conner

HDDs. If bad sectors are found, reformat the HDD.

PROBLEM

Add-on cards work incorrectly

SOLUTION

Check jumper and switch settings of add on cards.

Make sure that the card is firmly seated in its slot. Clean the pins

on the card and the passive backplane connector if necessary.

Make sure the bus speed setting in CMOS setup is 8 MHz. Check

that the shadow RAM and EMS settings in CMOS do not conflict

with the add-on cards firmware and I/O addresses.

Remove (or replace) the terminating resistors on the passive

backplane and test again. These resistors are especially important

for high speed add-on cards.

PROBLEM

Real-time clock is not accurate

SOLUTION

Under standard conditions the DS-12887 is accurate to within two

minutes per month.

Make sure the application software you are using does not

interrupts the RTC and/or writes improper data to the RTC.

PROBLEM

Software

SOLUTION

Make sure that the memory, system configuration, display and

HDD space meet the minimum requirements of the software.

Make sure the software is properly installed.

Check for and remove viruses.

80 PCA-6143P User's Manual

APPENDIX

AMI BIOS error codes

This appendix lists the codes generated by

the AMI BIOS if it encounters a hardware

error during its POST (Power On Self

Test) routines.

Appendix F AMI BIOS error codes 81

Whenever you start up your system, the CPU card runs a series of

programs to test and initialize board hardware. If the routines

encounter an error in during the tests, you will either hear a few

short beeps or see an error message on the screen. There are two

kinds of errors: fatal and non-fatal. The system can usually

continue the boot up sequence with non-fatal errors. Non-fatal

error messages usually appear on the screen along with the

following instructions:

Press <F1> to RESUME

Write down the message and press the F1 key to continue the

bootup sequence. The cure for most non-fatal error messages is

simply to run the BIOS SETUP program, discussed in Chapter 5.

If the routines encounter a fatal error, they will stop the tests and

output a message indicating which test failed. If the fatal error

comes before the screen device initializes, the card will indicate

the error code through a series of beeps.

You can also determine the number of the test that failed by

reading the LED indicators on the top of the PCA-6143P board.

Please make a note of any BIOS error codes before you contact

Advantech for technical support.

Beep codes

Beep codes indicate fatal errors through a series of audible tones

output through the card's buzzer or a speaker. The number of

beeps indicates the error, as shown in the following table:

BIOS error codes  Beep codes

Beeps Meaning

1 Refresh failure – The card's memory refresh circuitry is faulty. 2 Parity error – A parity error was detected in the base memory

(the first block of 64 KB) of the system.

3 Base 64 KB memory failure – A memory failure occurred within

the first 64 KB of system memory.

4 Timer not operational – Timer #1 on the card has generated an

error.

82 PCA-6143P User's Manual

Beeps Meaning

5 Processor error – The card's CPU has generated an error. 6 8042 Gate A20 failure – The keyboard controller (8042)

contains the Gate A20 switch which allows the CPU to operate in protected mode. This error message means that the BIOS is not able to switch the CPU into protected mode.

7 Processor exception interrupt error – The CPU has generated

an exception interrupt

8 Display memory read/write error – The system video adapter is

either missing or has faulty memory.

error.

9 ROM checksum error – The ROM checksum value does not

match the value encoded in the BIOS.

10 CMOS shutdown register read/write error – The shutdown

Note: This is not a fatal

Non-fatal error messages

Following are descriptions of the BIOS's non-fatal error messages:

8042 Gate A20 error

The gate-A20 portion of the keyboard controller (8042) has failed

to operate correctly. Replace the 8042 chip or the keyboard.

Address line short

An error has occurred in the address decoding circuitry of the card.

Cache memory bad, do not enable cache!

The BIOS has found the cache memory on the board to be

defective.

CH-2 timer error

Your card has two timer chips. An error with timer no. 1 is a fatal

error, explained above.

C: drive error

The BIOS is not receiving any response from hard disk C:. Check

the type of hard disk selected in the Standard CMOS Setup of the

BIOS Setup Program to see if the correct hard You may need to

run the Hard Disk Utility to correct this problem.

Appendix F AMI BIOS error codes 83

C: drive failure

The BIOS cannot get any response from hard disk drive C:. You

may need to replace the disk.

CMOS battery state low

The battery used to stored the CMOS values appears to be low.

CMOS checksum failure

After the CMOS values are saved, a checksum value is generated

to provide for error checking. If the previous value is different

from the value currently read, this message appears. To correct this

error, you should run the BIOS Setup Program.

CMOS display type mismatch

The type of video stored in CMOS does not match the type

detected by the BIOS. Run the BIOS Setup Program to correct this

error.

CMOS memory size mismatch

If the BIOS finds the amount of memory on your motherboard to

be different from the amount indicated in the CMOS it generates

this message. Run the BIOS Setup Program to correct this error.

CMOS system options not set

The values stored in CMOS are either corrupt or nonexistent. Run

the BIOS Setup Program to correct this error.

CMOS time and date not set

Run Standard CMOS Setup in the BIOS setup program to set the

date and time in the CMOS.

D: drive error

The BIOS is not receiving any response from hard disk D:. Check

the type of hard disk selected in the Standard CMOS Setup of the

BIOS Setup Program to see if the correct hard You may need to

run the Hard Disk Utility to correct this problem.

D: drive failure

The BIOS cannot get any response from hard disk drive D:. You

may need to replace the disk.

84 PCA-6143P User's Manual

Diskette boot failure

The diskette used to boot-up in floppy drive A: is corrupt, which

means you cannot use it to boot-up the system. Use another boot

diskette and follow the instructions on the screen.

Display switch not proper

Jumper JP15 is set incorrectly. (Remember to shut down the system

first).

DMA #1 error

An error has occurred with the board's first DMA channel.

DMA #2 error

An error has occurred with the board's second DMA channel.

DMA error

An error has occurred with the board's DMA controller

FDD controller failure

An error has occurred with the board's floppy disk drive controller

HDD controller failure

An error has occurred with the board's floppy disk drive controller

INTR #1 error

Interrupt channel #1 has failed the POST routine

INTR #2 error

Interrupt channel #2 has failed the POST routine

Invalid boot diskette

The BIOS can read the diskette in floppy drive A:, but it cannot

boot-up the system with it. Use another boot diskette and follow

the instructions on the screen.

KB/Interface error

The BIOS has found an error with the board's keyboard connector

Keyboard error

The BIOS has encountered a timing problem with the keyboard.

Make sure you have an AMI Keyboard BIOS installed in your

system. You may also have set the "Keyboard" option in the

Standard CMOS Setup to "Not Installed", which will cause the

BIOS to skip the keyboard POST routines.

Appendix F AMI BIOS error codes 85

Keyboard is locked... Unlock it.

The keyboard lock on the system is engaged. The system must be

unlocked to continue the boot-up procedure.

No ROM BASIC

This error occurs when a proper bootable sector cannot be found

on either the floppy diskette drive A: or the hard disk drive C:. The

BIOS will try at this point to run ROM BASIC, and this error

message will be generated when the BIOS does not find it.

Off board parity error

The BIOS has encountered a parity error in some memory in-

stalled in an I/O expansion slot. The message will appear as

follows:

OFF BOARD PARITY ERROR ADDR (HEX) = (XXXX)

XXXX is the address (in hexadecimal) at which the error occurred.

On board parity error

The BIOS has encountered a parity error in some memory in-

stalled in the CPU card. The message will appear as follows:

ON BOARD PARITY ERROR ADDR (HEX) = (XXXX)

XXXX is the address (in hexadecimal) at which the error occurred.

Parity error ????

The BIOS has encountered a parity error with some memory in the

system, but it is unable to determine the address of the error.

86 PCA-6143P User's Manual

BIOS Checkpoint Codes

The following list of checkpoint codes gives the number for each

checkpoint for the AMI BIOS POST. Codes are Copyright AMI-

Rights Reserved. 1346 Oakbrook Dr. #120. GA 30093. Phone:

(404)-263-8181, Fax: (404)-263-9381

Code Description of Check-point

01 Processor register test about to start.

NMI to be disabled.

02 NMI is Disabled.

Power on delay starting.

03 Power on delay complete.

Any initialization before keyboard BAT is in progress.

04 Any initialization before keyboard BAT is complete.

Reading keyboard SYS bit

05 Soft reset/power-on determined.

Going to enable ROM. i. e. disable shadow RAM/Cache if any.

06 ROM is enabled.

Calculation ROM BIOS checksum 07 ROM BIOS checksum passed 08 BAT command to keyboard controller is issued.

Going to verify the BAT command. 09 Keyboard controller BAT result verified.

Keyboard command byte to be written next. 0A Keyboard command byte chewed is issued.

Going to write command byte data. 0B Keyboard controller command byte is written.

Going to issue Pin-23, 24 blocking/unblocking command 0C Pin-23, 24 of keyboard controller is block/unblocked

NOP command of keyboard controller to be issued next. 0D NOP command processing is done.

CMOS shutdown register test to be done next. 0E CMOS shutdown register R/W test passed.

Going to calculate CMOS checksum 0F CMOS checksum calculation is down 10 CMOS initialization done (if any).

CMOS status register about to init for Date and Time.

Appendix F AMI BIOS error codes 87

11 CMOS Status register initialized.

Going to disable DMA and Interrupt controllers.

12 DMA controller #1, #2 interrupt controller #1, #2 disabled

About to disable Video display and init port-B

13 Video display is disabled and port-B is initialized.

Chipset init/auto memory detection about to begin.

14 Chipset initialization/auto memory detection over.

8254 timer test about to start.

15 CH-2 timer test halfway.

8254 CH-2 timer test to be complete.

16 CH-2 timer test over.

8254 CH-1 timer test to be complete.

17 CH-1 timer test over.

8254 CH-0 timer test to be complete.

18 CH-0 timer test over.

About to start memory refresh.

19 Memory Refresh started.

Memory Refresh test to be done next.

1A Memory Refresh line is toggling.

Going to check 15 msec ON/OFF time.

1B Memory Refresh period 30 msec test complete.

Base 64k memory test about to start.

20 Base 64k memory test started.

Address line test to be done next.

21 Address line test passed.

Going to do toggle parity.

22 Toggle parity over.

Going for sequential data R/W test.

23 Base 64k sequential data R/W test passed.

Any setup before Interrupt vector init about to start.

24 Setup required before vector initialization complete.

Interrupt vector initialization about to begin.

25 Interrupt vector initialization done.

Going to read I/O port of 8042 for turbo switch (if any)

26 I/O port of 8042 is read.

Going to initialize global data for turbo switch.

27 Global data initialization is over.

Any initialization after interrupt vector to be done next.

28 Initialization after interrupt vector is complete.

Going for monochrome mode setting.

88 PCA-6143P User's Manual

29 Monochrome mode setting is done.

Going for Color mode setting. 2A Color mode setting is done.

About to go for toggle parity before optional ROM test. 2B Toggle parity over.

About to give control for nay setup required before optional

video ROM check. 2C Processing before video ROM control is done.

About to look for optional video ROM and give control. 2D Optional video ROM control is done.

About to give control to do any processing after video ROM

returns control. 2E Return from processing after the video ROM control.

If EGA/VGA not found then do display memory R/W test. 2F EGA/VGA not found.

Display memory R/W test about to begin. 30 Display memory R/W test passed.

About to look for the retrace checking. 31 Display memory R/W test or retrace checking failed.

About to do alternate Display memory R/W test. 32 Alternate Display memory R/W test passed.

About to look for the alternated display retrace checking. 33 Video display checking over.

Verification of display type with switch setting and actual

card to begin. 34 Verification of display adapter done.

Display mode to be set next. 35 Display mode set complete.

BIOS ROM data area about to be checked. 36 BIOS ROM data area check over.

Going to set cursor for power on message. 37 Cursor setting for power on message is complete.

Going to display the power on message. 38 Power on message display complete.

Going to read new cursor position. 39 New cursor position read and saved.

Going to display the reference string. 3A Reference string display is over.

Going to display the Hit ESC message. 3B Hit ESC message displayed.

Virtual mode memory test about to start.

Appendix F AMI BIOS error codes 89

40 preparation for virtual mode test started.

Going to verify from video memory.

41 Returned after verifying from display memory.

Going to prepare the descriptor tables.

42 Descriptor tables prepared.

Going to enter in virtual mode for memory test.

43 Entered in the virtual mode.

Going to enable interrupts for diagnostics mode.

44 Interrupts enabled (if diagnostics switch is on).

Going to initialize data to check memory wrap around at 0:0.

45 Data initialized.

Going to check for memory wrap around at 0:0 and find the total system memory size.

46 Memory wraparound test done. Memory size calc. over.

About to go for writing patterns to test memory.

47 Pattern to be tested written in extended memory.

Going to write patterns in base 640 K memory.

48 Patterns written in base memory.

Going to find out amount of memory below 1 M.

49 Amount of memory below 1 M found and verified.

Going to find out amount of memory above 1 M

4A Amount of memory above 1 M found and verified.

Going for BIOS ROM data area check

4B BIOS ROM data area check over.

Going to check ESC and to clear memory below 1 M for soft reset.

4C Memory below 1 M cleared. (SOFT RESET)

Going to clear memory above 1 M.

4D Memory above 1 M cleared. (SOFT RESET)

Going to save the memory size.

4E Memory test started. (NO SOFT RESET)

About to display the first 64 K memory test.

4F Memory size display stared. This will be updated during

memory test.

Going for sequential and random memory test.

50 Memory test below 1 M complete.

Going to adjust memory size for relocation/shadow.

51 Memory size adjusted due to relocation/shadow.

Memory test above 1 M to follow.

90 PCA-6143P User's Manual

52 Memory test above 1 M complete.

Going to prepare to go back to real mode. 53 CPU registers are saved including memory size.

Going to enter in real mode. 54 Shutdown successful, CPU in real mode. Going to restore

registers saved during preparation for shutdown 55 Registers restored.

Going to disable gate A20 address line. 56 A20 address line disable successful.

BIOS ROM data area about to be checked. 57 BIOS ROM data area check halfway.

BIOS ROM data area check to be complete. 58 BIOS ROM data area check over.

Going to clear Hit ESC message. 59 Hit <ESC> message cleared. WAIT... message displayed.

About to start DMA and interrupt controller test. 60 DMA page register test passed.

About to verify from display memory. 61 Display memory verification over.

About to go for DMA #1 base register test. 62 DMA #1 base register test passed.

About to go for DMA #2 base register test. 63 DMA #2 base register test passed.

About to go of BIOS ROM data area check. 64 BIOS ROM data area check halfway.

BIOS ROM data area check to be complete. 65 BIOS ROM data area check over.

About to program DMA unit 1 and 2. 66 DMA unit 1 and 2 programming over.

About to initialize 8259 interrupt controller. 67 8259 initialization over.

About to start keyboard test. 80 Keyboard test started. Clearing output buffer, checking for

stuck key. About to issue keyboard reset command 81 Keyboard reset error/stuck key found.

About to issue keyboard controller interface test command. 82 keyboard controller interface test over.

About to check for lock-key. 83 Command byte written. Global init done.

About to check for lock-key

Appendix F AMI BIOS error codes 91

84 Lock-key checking over.

About to check for memory size mismatch with CMOS.

85 Memory size check done.

About to display soft error and check for password or bypass setup.

86 Password checked.

About to do programming before setup.

87 Programming before setup complete.

Going to CMOS setup program.

88 Returned from CMOS setup program and screen is cleared.

About to do programming after setup.

89 Programming after setup complete.

Going to display power on screen message.

8A First screen message displayed.

About to display WAIT... message. 8B WAIT... message displayed. 8C Main and Video BIOS shadow successful.

Setup options programming after CMOS setup about to

start. 8D Setup options are programmed 8E Mouse check and initialization complete.

Going for hard disk 8F Floppy check returns that floppy is to be initialized.

Floppy setup to follow. 90 Floppy setup is over.

Test for hard disk presence to be done. 91 Hard disk presence test over.

Hard disk setup to follow. 92 Hard disk setup complete.

About to go for BIOS ROM data area check. 93 BIOS ROM data area check halfway.

BIOS ROM data area check to be complete. 94 BIOS ROM data area check over.

Going to set base and extended memory size. 95 Memory size adjusted due to mouse support 96 Returned after verifying from display memory.

Going to do any init before C800 optional ROM control. 97 Any init before C800 optional ROM control is over.

Optional ROM check and control will be done next. 98 Optional ROM control is done. About to give control to do any

required processing after optional ROM returns control.

92 PCA-6143P User's Manual

Advantech PCA-6143P User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
