PCA-6003
Full-size socket 370 Intel
Pentium
based PCI/ISA-bus CPU
card
®
III processor-
®
Copyright notice
This document is copyrighted, 2000, by Advantech Co., Ltd. All rights
are reserved. Advantech Co., Ltd. reserves the right to make improvements to the products described in this manual at any time without
notice.
No part of this manual may be reproduced, copied, translated or
transmitted in any form or by any means without the prior written
permission of Advantech Co., Ltd. Information provided in this manual
is intended to be accurate and reliable. However, Advantech Co., Ltd.
assumes no responsibility for its use, nor for any infringements upon
the rights of third parties which may result from its use.
Acknowledgements
• AWARD is a trademark of AWARD Software, Inc.
• IBM and PC are trademarks of International Business Machines
Corporation.
• Intel® and Pentium® III are trademarks of Intel Corporation.
• MS-DOS is a trademark of Microsoft Corporation.
• SMC is a trademark of Standard Microsystems Corporation.
• WinBond is a trademark of Winbond Corporation.
• SYMBIOS is a registered trademark of Symbios, Inc.
• ATI is a registered trademark of ATI Technologies, Inc.
• VIA is a registered trademark of VIA Technologies Inc.
All other product names or trademarks are the properties of their
respective owners.
Part No. 2002600300
1st Edition Printed in Taiwan Nov. 2001
A Message to the Customer
Advantech customer services
Each and every Advantech product is built to the most exacting
specifications to ensure reliable performance in the harsh and
demanding conditions typical of industrial environments. Whether
your new Advantech equipment is destined for the laboratory or the
factory floor, you can be assured that your product will provide the
reliability and ease of operation for which the name Advantech has
come to be known.
Your satisfaction is our primary concern. Here is a guide to
Advantech’s customer services. To ensure you get the full benefit of
our services, please follow the instructions below carefully.
Technical support
We want you to get the maximum performance from your products. So
if you run into technical difficulties, we are here to help. For the most
frequently asked questions, you can easily find answers in your
product documentation. These answers are normally a lot more
detailed than the ones we can give over the phone.
So please consult this manual first. If you still cannot find the answer,
gather all the information or questions that apply to your problem, and
with the product close at hand, call your dealer. Our dealers are well
trained and ready to give you the support you need to get the most
from your Advantech products. In fact, most problems reported are
minor and are able to be easily solved over the phone.
In addition, free technical support is available from Advantech
engineers every business day. We are always ready to give advice on
application requirements or specific information on the installation and
operation of any of our products.
elbatnosirapmocseireS3006-ACP
ledoM1A00-V3006-ACP1A00-EV3006-ACP1A00-H3006-ACP
®
:UPC letnI
®
muitneP
073tekcoSIII
✓✓ ✓
:NAL tenrehtET-esaB001/01
:AGV AGV/PGA
:SOIB SOIBhsalFP&PdrawA
:tespihcmetsyS T331ELPollopAAIV
✓✓ ✓
✓✓ ✓
:ehcaC2L UPCnoBK215/652/821
:MARmetsyS.xaM
)stekcosnip-861X2(BG1
troPBSU
srotcennocEDIE2
stroplellarap1,laires2
)ni-tliubtespihC(
)C9318ketlaeR:tespihc(
)evirdhgihASI(ASiH
✓✓ ✓
✓✓ ✓
22 2
✓✓ ✓
✓✓ ✓
✓✓ ✓
✕✓ ✓
✕✕ ✓
Product warranty
Advantech warrants to you, the original purchaser, that each of its
products will be free from defects in materials and workmanship for two
years from the date of purchase.
This warranty does not apply to any products which have been
repaired or altered by persons other than repair personnel authorized
by Advantech, or which have been subject to misuse, abuse, accident
or improper installation. Advantech assumes no liability under the
terms of this warranty as a consequence of such events.
If an Advantech product is defective, it will be repaired or replaced at
no charge during the warranty period. For out-of-warranty repairs, you
will be billed according to the cost of replacement materials, service
time and freight. Please consult your dealer for more details.
If you think you have a defective product, follow these steps:
1. Collect all the information about the problem encountered. (For
example, type of PC, CPU speed, Advantech products used, other
hardware and software used, etc.) Note anything abnormal and list
any on-screen messages you get when the problem occurs.
2. Call your dealer and describe the problem. Please have your
manual, product, and any helpful information readily available.
3. If your product is diagnosed as defective, obtain an RMA (return
material authorization) number from your dealer. This allows us to
process your return more quickly.
4. Carefully pack the defective product, a fully-completed Repair and
Replacement Order Card and a photocopy proof of purchase date
(such as your sales receipt) in a shippable container. A product
returned without proof of the purchase date is not eligible for
warranty service.
5. Write the RMA number visibly on the outside of the package and
ship it prepaid to your dealer.
Initial Inspection
Before you begin installing your card, please make sure that the
following materials have been shipped:
• 1 PCA-6003 socket 370 Pentium III® processor-based single board
computer
• 1 Pentium III® processor (optional)
• 1 PCA-6003 startup Manual
• 1 CD driver utility and manual (in PDF format)
• 1 FDD cable, P/N: 1701340703
• 2 UDMA 66/100 HDD cables, P/N: 1701400452
• 1 printer (parallel port) cable & COM port cable kit, P/N: 1700060305
• 1 ivory cable for PS/2 keyboard and PS/2 mouse, P/N: 1700060202
• 1 USB cable (optional), P/N 1700100170
If any of these items are missing or damaged, contact your distributor
or sales representative immediately.
We have carefully inspected the PCA-6003 mechanically and
electrically before shipment. It should be free of marks and scratches
and in perfect working order upon receipt.
As you unpack the PCA-6003, check it for signs of shipping damage.
(For example, damaged box, scratches, dents, etc.) If it is damaged or it
fails to meet the specifications, notify our service department or your
local sales representative immediately. Also notify the carrier. Retain
the shipping carton and packing material for inspection by the carrier.
After inspection, we will make arrangements to repair or replace the
unit.
Contents
Chapter 1 Hardware Configuration ............................... 1
1.1 Introduction .......................................................................... 2
1.2 Features................................................................................. 3
1.3 Specifications ........................................................................ 5
1.3.1 System .........................................................................5
1.3.2 Memory .......................................................................5
1.3.3 Input/Output ................................................................ 6
1.3.4 VGA interface.............................................................6
1.3.5 Ethernet LAN ............................................................. 6
1.3.7 Industrial features ........................................................6
1.3.8 Mechanical and environmental specifications .............7
1.4 Board Layout: Main Features ........................................... 8
1.5 Jumpers and Connectors.................................................... 9
1.6 Board Layout: Jumper and Connector Locations ........ 11
1.7 Safety Precautions.............................................................. 12
1.8 Jumper Settings ................................................................. 13
1.8.1 How to set jumpers ................................................... 13
1.8.2 CMOS clear (J1) ....................................................... 14
1.8.3 Watchdog timer output (J2) ......................................14
1.9 System Memory ........................................................... 15
1.9.1 Sample calculation: DIMM memory capacity ...........15
1.9.2 Supplementary information about DIMMs ................ 16
1.10 Memory Installation Procedures .................................. 16
1.11 Cache Memory................................................................. 1 6
1.12 CPU Installation ............................................................... 17
Chapter 2 Connecting Peripherals ............................. 19
2.1 Primary (CN1) and Secondary (CN2) IDE Connectors 20
2.2 Floppy Drive Connector (CN3) ....................................... 21
2.3 Parallel Port (CN4) ............................................................ 21
2.5 USB Port (CN6) ................................................................. 22
2.6 VGA Connector (CN7) ...................................................... 22
2.7 10/100Base-T Ethernet Connector (CN8) .................... 23
2.8 Serial Ports (CN9: COM1; CN10: COM2) ................... 23
2.9 PS/2 Keyboard and Mouse Connector (CN11) ............. 24
2.10 External Keyboard Connector (CN12) ........................ 24
2.11 Infrared (IR) Connector (CN13) ................................... 25
2.12 CPU Fan Connector (CN14) .......................................... 25
2.13 Front Panel Connectors (CN16, CN17, CN18, CN19,
CN21 and CN29)..................................................................26
2.13.1 Keyboard lock and power LED (CN16) ................. 26
2.13.2 External speaker (CN17) ........................................ 26
2.13.3 Reset (CN18) .......................................................... 27
2.13.4 HDD LED (CN19) ................................................. 27
2.13.5 SM Bus Connector (CN29)..................................... 27
2.14 ATX Power Control Connectors (CN20 and CN21) .. 28
2.14.1 ATX feature connector (CN20) and soft power
switch connector (CN21) ...................................................28
2.14.2 Controlling the soft power switch ............................29
Chapter 3 Award BIOS Setup ...................................... 31
3.1 Introduction ........................................................................ 32
3.2 Entering Setup.................................................................... 32

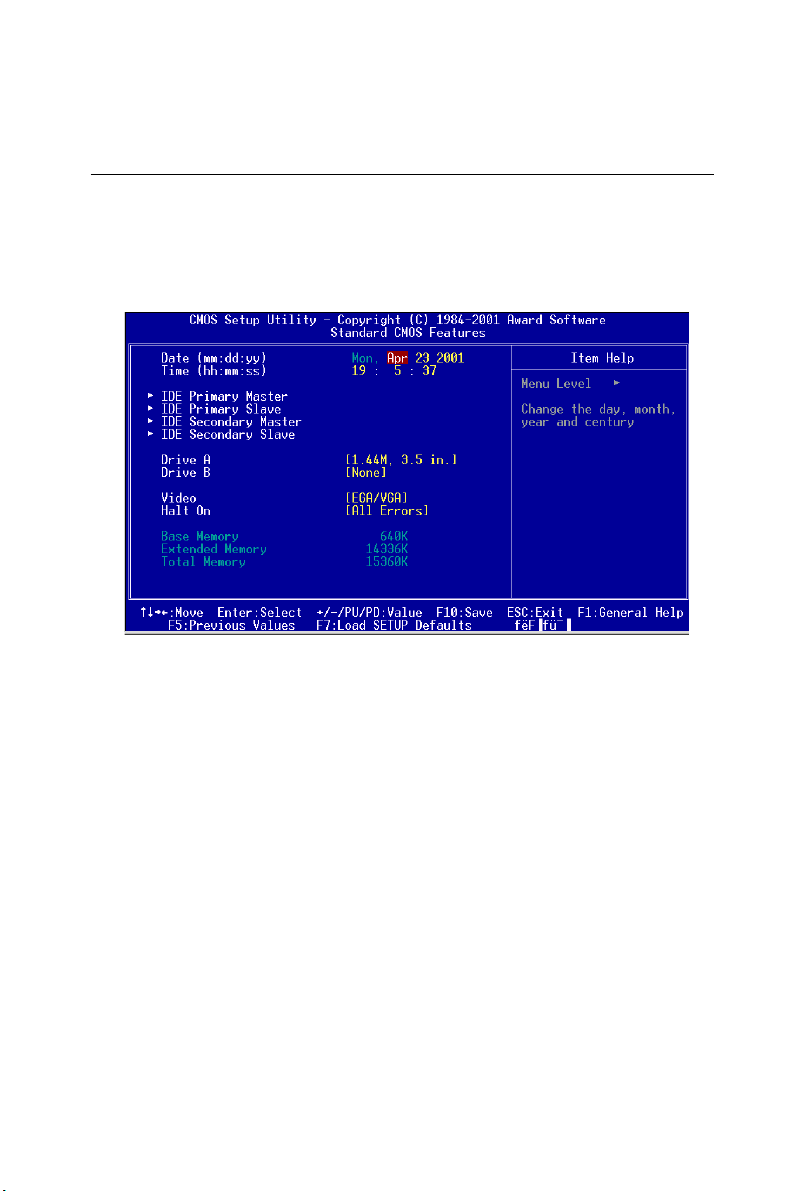

3.3 Standard CMOS Setup ...................................................... 33
3.3.1 CMOS RAM backup ................................................ 33

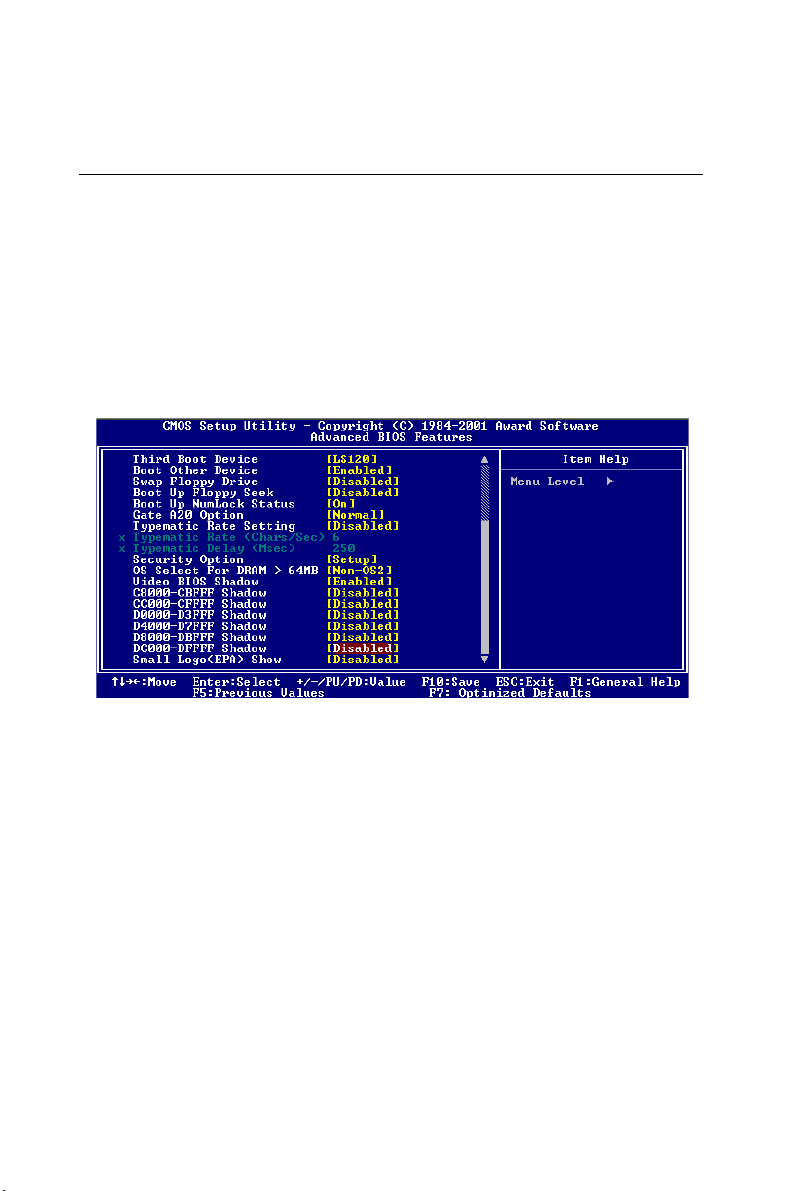

3.4 Advanced BIOS Features................................................. 34
3.4.1 Virus Warning............................................................ 34
3.4.2 CPU Internal Cache / External Cache...................... 34
3.4.3 CPU L2 Cache ECC Checking ................................ 35
3.4.4 First/Second/Third/Other Boot Device...................... 35
3.4.5 Swap Floppy Drive ....................................................35
3.4.6 Boot UP Floppy Seek ................................................ 35
3.4.7 Boot Up NumLock Status .........................................35
3.4.8 Gate A20 Option ....................................................... 35
3.4.9 Typematic Rate Setting ............................................. 35
3.4.10 Typematic Rate (Chars/Sec) ................................... 36
3.4.11 Typematic Delay (msec) ......................................... 36
3.4.12 Security Option ........................................................ 36
3.4.13 OS Select for DRAM > 64MB ...............................36
3.4.14 Video BIOS Shadow ...............................................36
3.4.15 Small Logo (EPA)Show .......................................... 36
3.5 Advanced Chipset Features ............................................. 37
3.5.1 DRAM Clock ............................................................37
3.5.2 SDRAM Cycle Length.............................................. 37
3.5.3 Bank Interleave .........................................................38
3.5.4 Memory Hole ............................................................ 38
3.5.5 P2C/P2P Concurrency .............................................. 38
3.5.6 System BIOS Cacheable........................................... 38
3.5.7 AGP Aperture Size ................................................... 38
3.5.8 Onchip USB .............................................................. 38
3.5.9 USB Keyboard Support ............................................ 39
3.5.10 USB Mouse Support ............................................... 39
3.5.11 CPU to PCI Write Buffer........................................ 39
3.5.12 PCI Dynamic Bursting ............................................ 39
3.5.13 PCI Master 0 WS Write.......................................... 39
3.5.14 PCI Delay Transaction...........................................39
3.5.15 PCI#2 Access #1 Retry......................................... 39
3.5.16 AGP Master 1 WS Write ........................................ 40
3.5.17 Memory Parity/ ECC Check ................................... 40
3.6 Integrated Peripherals ...................................................... 40
3.6.1 On-Chip Primary/Secondary PCI IDE...................... 40
3.6.2 IDE Primary Master/Slave PIO/UDMA Mode, IDE
Secondary Master/Slave PIO/UDMA Mode (Auto) ......... 40
3.6.3 Init Display First ........................................................ 41
3.6.4 IDE HDD Block Mode .............................................41
3.6.5 Onboard FDD Controller........................................... 41
3.6.6 Onboard Serial Port 1 (3F8H/IRQ4) ......................... 41
3.6.7 Onboard Serial Port 2 (2F8H/IRQ3) ......................... 41
3.6.8 UART 2 Mode Select ............................................... 41
3.6.9 Onboard Parallel Port (378H/IRQ7) .........................41
3.6.10 Onboard Parallel Port Mode (ECP + EPP) ............42
3.6.11 ECP Mode Use DMA............................................. 42
3.6.12 EPP Mode Select ....................................................42
3.7 Power Management Setup ............................................... 43
3.7.1 ACPI function ........................................................... 43
3.7.2 Power Management .................................................. 43
3.7.3 PM Control by APM ................................................. 44
3.7.4 Video Off Option .......................................................44
3.7.5 Video Off Method ..................................................... 44
3.7.6 MODEM Use IRQ ...................................................45
3.7.7 Soft-Off by PWRBTN .............................................. 45
3.7.8 State After Power Failure ......................................... 45
3.8 Wake Up Event .................................................................. 46
3.8.1 VGA .......................................................................... 46
3.8.2 LPT & COM............................................................. 46
3.8.3 HDD & FDD ............................................................ 46
3.8.4 Power On by LAN.................................................... 46
3.8.5 Power On by Modem ................................................ 47
3.8.6 Power On by Alarm .................................................. 47

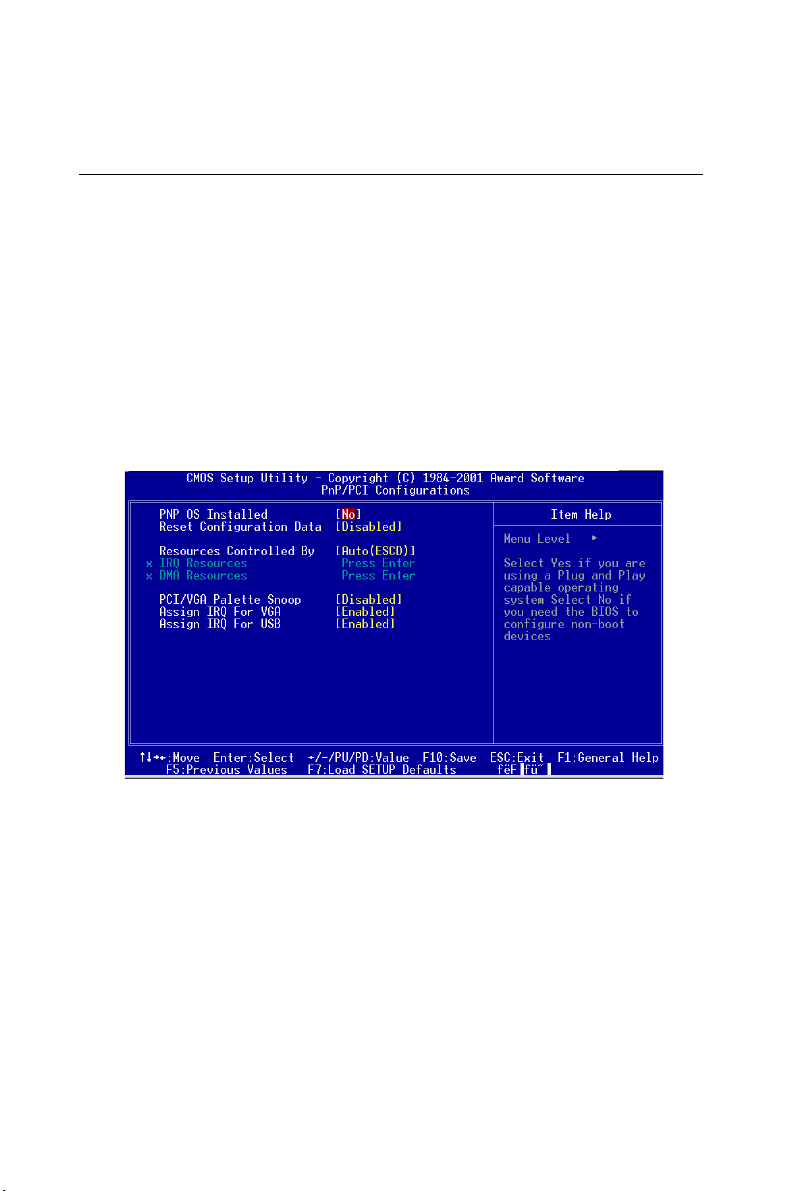

3.9 PnP/PCI Configurations .................................................... 48
3.9.1 PnP OS Installed .......................................................48
3.9.2 Reset Configuration Data .......................................... 48
3.9.3 Resources controlled by: ........................................... 48

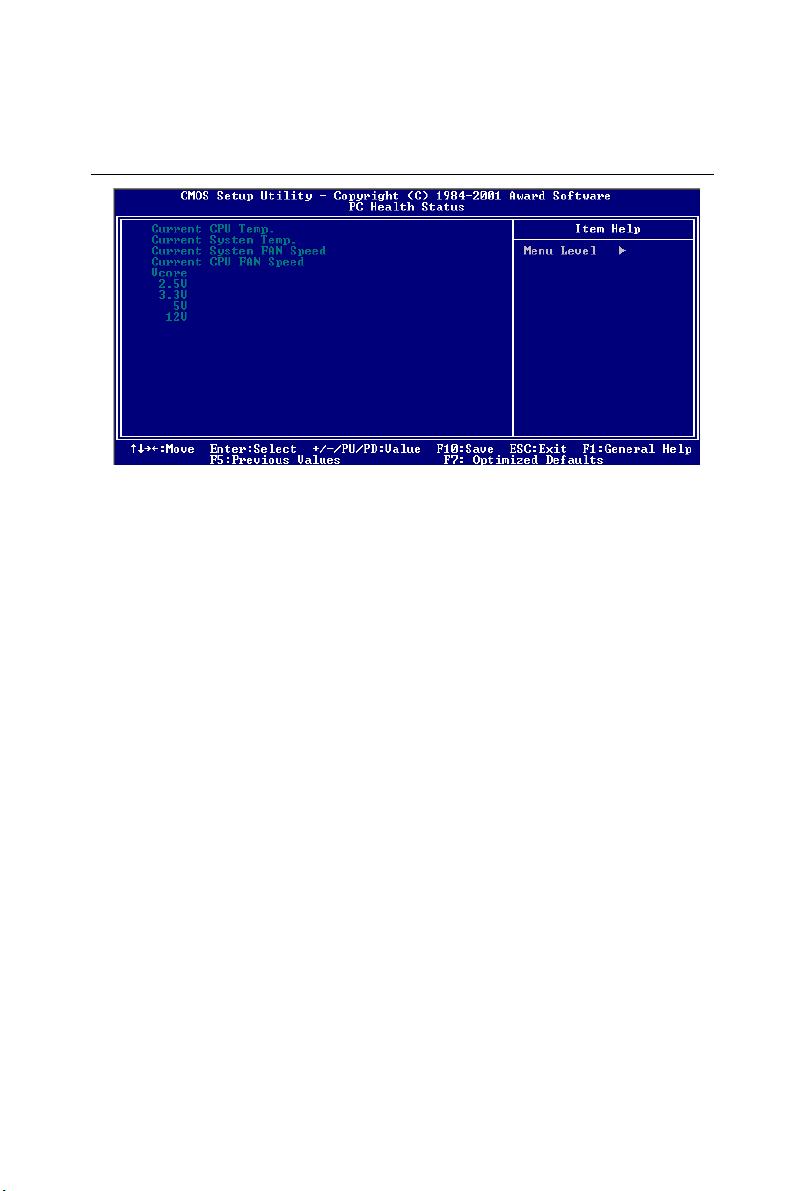

3.10 PC Health Status.............................................................. 49
3.10.1 Current CPU Temperature ......................................49
3.10.2 Current CPUFAN Speed ........................................ 49
3.10.5 VCORE ................................................................... 49
3.10.7 +2.5/ +3.3V/ + 5V/ +12V ........................................ 49
3.11 Load Setup Defaults ........................................................ 50
3.12 Password Setting.............................................................. 50
3.13 Save & Exit Setup ........................................................... 51
3.14 Exit Without Saving ......................................................... 51
Chapter 3 AGP SVGA Setup ........................................ 53
4.1 Before You Begin............................................................... 54
4.2 Features............................................................................... 54
4.3 Installation .......................................................................... 55
Chapter 5 LAN Configuration ...................................... 57
5.1 Introduction ........................................................................ 58
5.2 Features............................................................................... 58
5.3 Driver Installation.............................................................. 59

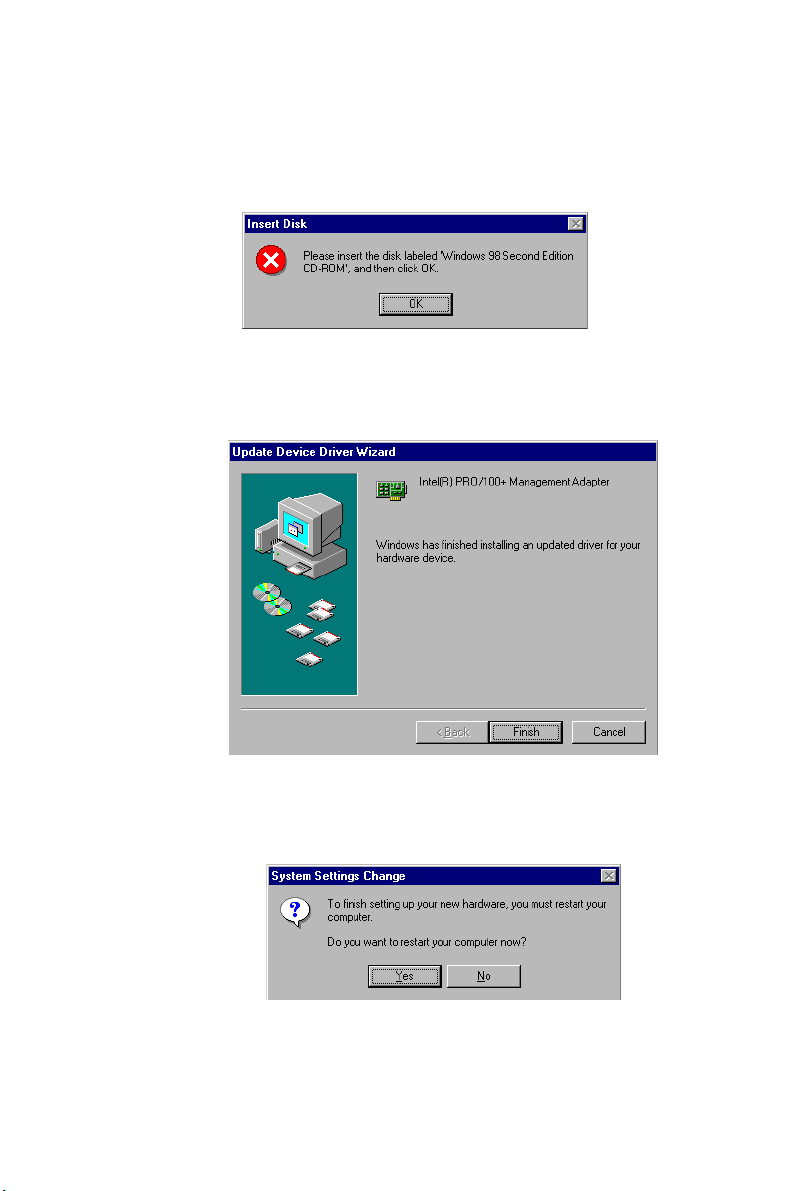

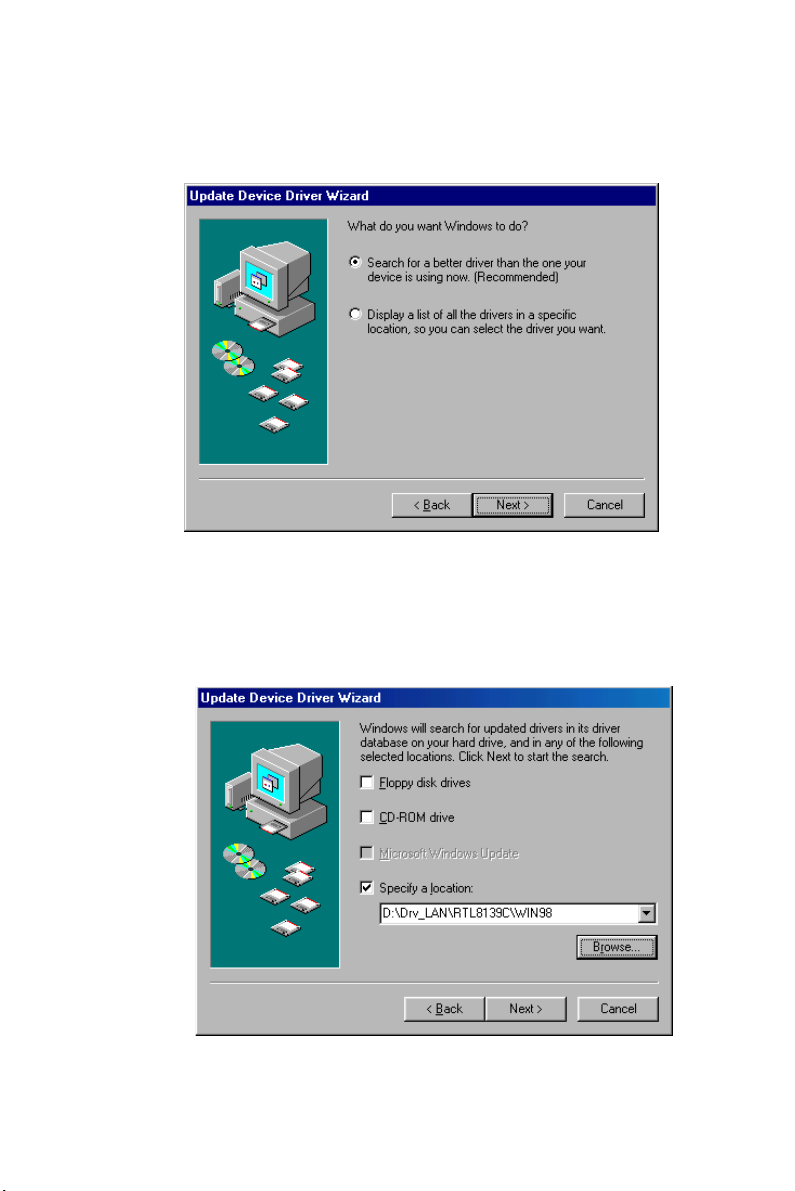

5.4 Windows 9X Drivers Setup Procedure ........................... 60
5.5 Windows NT Drivers Setup Procedure .......................... 66
5.6 Windows 2000 Drivers Setup Procedure ....................... 71
Appendix Programming the Watchdog Timer ............ 79
A.1 Programming the Watchdog Timer ................................ 80
Appendix B Pin Assignments ..................................... 83
B.1 IDE Hard Drive Connector (CN1, CN2)....................... 84
B.2 Floppy Drive Connector (CN3) ...................................... 85
B.3 Parallel Port Connector (CN4)........................................ 86
B.4 USB Connector (CN6) ..................................................... 87
B.5 VGA Connector (CN7) ..................................................... 87
B.6 Keyboard and Mouse Connnector (CN11) ................... 88
B.7 External Keyboard Connector (CN12).......................... 88
B.8 IR Connector (CN13) ....................................................... 89
B.9 CPU Fan Power Connector (CN14) ............................... 89
B.10 Power LED and Keylock Connector (CN16) ............. 90
B.11 External Speaker Connector (CN17) .......................... 90
B.12 Reset Connector (CN18)............................................... 91
B.13 HDD LED Connector (CN19) ...................................... 91
B.14 ATX Feature Connector (CN20) .................................. 91
B.15 ATX Soft Power Switch (CN21) .................................... 92
B.16 SM Bus Connector (CN23) ........................................... 92
B.17 System I/O Ports ............................................................. 93
B.18 DMA Channel Assignments ......................................... 94
B.19 Interrupt Assignments................................................... 94
B.20 1st MB Memory Map .................................................... 95
B.21 PCI Bus Map ................................................................... 95
Figure
Figure 1-1: Board layout: main features .......................................................................... 8
Figure 1-2: Board layout: jumper and connecter locations ........................................... 11
Figure 3-1: Award BIOS Setup initial screen ................................................................ 32
Figure 3-2: Standard CMOS features screen ............................................................... 33
Figure 3-3: Advanced BIOS features screen ............................................................... 34
Figure 3-4: Advanced chipset features screen ............................................................ 37
Figure 3-5: Integrated peripherals (1) ............................................................................ 40
Figure 3-6: Power management setup screen .............................................................. 43
Figure 3-7: Wake-up event screen ................................................................................ 46
Table
Table 1-1: Jumpers ........................................................................................................... 9
Table 1-2: Connectors .................................................................................................... 10

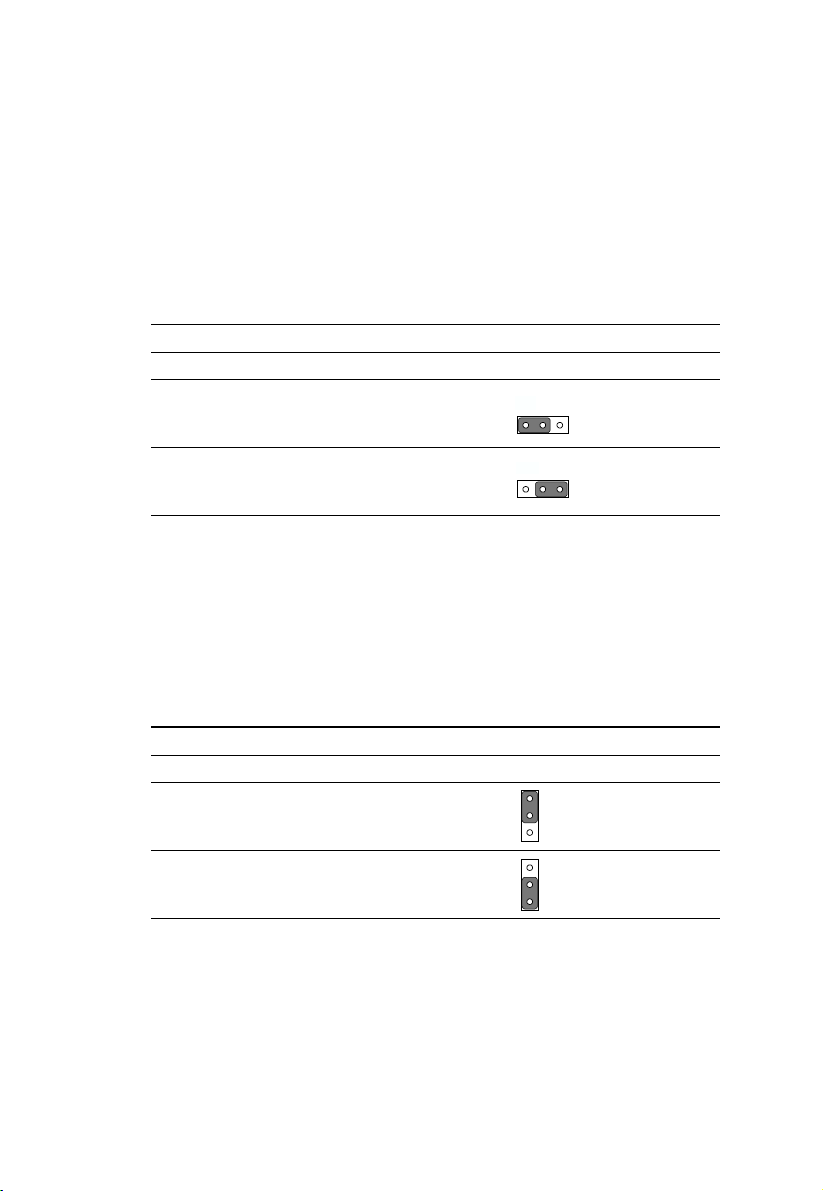

Table 1-3: CMOS clear (J1) ............................................................................................ 14
Table 1-4: Watchdog timer output (J2)........................................................................... 14
Table 1-5: DIMM module allocation table ......................................................................... 15
Table 1-6: DIMM memory capacity sample calculation .................................................. 15
Table 2-1: Serial port connections (COM1, COM2) ........................................................ 23
Table 2-2: PS/2 or ATX power supply LED status......................................................... 26
Table B-1: IDE hard drive connector (CN1, CN2) ........................................................... 84
Table B-2: Floppy drive connector (CN3) ...................................................................... 85
Table B-3: Parallel port connector (CN4) ....................................................................... 86
Table B-5: USB1/USB2 connector (CN6) .......................................................................87
Table B-6: VGA connector (CN7) ..................................................................................87
Table B-9: Keyboard and mouse connector (CN11)...................................................... 88
Table B-10: External keyboard connector (CN12) ......................................................... 88
Table B-11: IR connector (CN13).................................................................................... 89
Table B-12: CPU fan power connector (CN14) .............................................................89
Table B-14: External speaker (CN17) ............................................................................ 90
Table B-15: Reset connector (CN18) ............................................................................. 91
Table B-16: HDD LED connector (CN19) ........................................................................ 91
Table B-17: ATX feature connector (CN20) ..................................................................91
Table B-18: ATX soft power switch (CN21) ................................................................. 92
Table B-20: ATX soft power switch (CN21) ................................................................. 92
Table B-24: System I/O ports ......................................................................................... 93
Table B-25: DMA channel assignments .........................................................................94
Table B-26: Interrupt assignments ................................................................................. 94
Table B-27: 1st MB memory map.................................................................................... 95
Table B-28: PCI bus map ................................................................................................ 95
CHAPTER
1
Hardware Configuration
This chapter gives background information on the PCA-6003. It then shows you
how to configure the card to match your
application and prepare it for installation
into your PC.
Sections include:
• Introduction
• Features
• Specifications
• Board Layout
• Jumpers and Connectors
• Safety Precautions
• Jumper Settings
• System Memory
• Memory Installation Procedures
• Cache Memory
• CPU Installation
1.1 Introduction
The PCA-6003 Series all-in-one industrial grade single board computer
is a low cost yet full-featured product. It uses VIA's Apollo PLE133
chipset with integrated VGA and supports Intel Pentiun III / Celeron
processor up to 1.26GHz and above. Its on-board I/O functions and
industrial features can meet most of the requirements of industrial
applications.
The CPU provides 128/256/512 KB on-CPU L2 cache, eliminating the
need for external SRAM chips. It has two PCI EIDE interfaces (for up
to four devices) and a floppy disk drive interface (for up to two
devices). Other features include two RS-232 serial ports (16C550
UARTs with 16-byte FIFO or compatible), one enhanced parallel port
(supports EPP/ECP) and two USB (Universal Serial Bus) ports. The
PCI enhanced IDE controller supports Ultra DMA/33/66/100 and PIO
Mode 4 operation. This provides data transfer rates of 33/66/100 MB/
sec. System BIOS supports boot-up from an IDE CD-ROM, SCSI
CD-ROM, LS-120, IDE HDD, SCSI HDD, ZIP-100, LAN, and FDD.
A backup of CMOS data is stored in the Flash memory, which protects
data even after a battery failure. Also included is a 63-level watchdog
timer, which resets the CPU or generates an interrupt if a program
cannot be executed normally. This enables reliable operation in
unattended environments.
The PCA-6003 Series offers several impressive industrial features such
as chipset built-in VGA (AGP) interface, a 10/100Base-T networking
controller, two DIMM slots for a total of 1 GB RAM memory, and a
high driving ISA bus. In addition, the PCA-6003 Series supports a
solid state disk (SSD) using M-Systems Corporation's DiskOnChip
2000 Flash disk, for up to 144 MB of non-volatile, reliable memory that
is not vulnerable to the hazards of an industrial computing environment. All these make it an ideal choice for applications that require
both high performance and full functionality.
®
The remote management interface enables the PCA-6003 to be
managed through Ethernet when it is connected to the SNMP-1000
Remote HTTP/SNMP System Manager.
2
PCA-6003 User's Manual
Note: Some of the features mentioned above are not
available with all models. For more information about
the specifications of a particular model, see Section
1.3: Specifications.
1.2 Features
1. Fan status monitoring and alarm: To prevent system overheating
and damage, the CPU fan can be monitored for speed and failure.
The fan is set for its normal RPM range and alarm thresholds.
2. Temperature monitoring and alarm: To prevent system overheat-
ing and damage, the CPU card supports processor thermal sensing
and auto-protection.
3. Voltage monitoring and alarm: System voltage levels are moni-
tored to ensure stable current flows to critical components. Voltage
specifications will become even more critical for processors of the
future. Thus monitoring will become ever more necessary to ensure
proper system configuration and management.
4. ATX soft power switch: Through the BIOS, the power button can
be defined as the "Standby" (aka "Suspend" or "Sleep") button or
as the "Soft-Off" button (see Section 3.6.6 Soft-off by PWR-BTN).
Regardless of the setting, pushing the power button for more than
4 seconds will enter the Soft-Off mode.
5. Power-on by modem (requires modem): This allows a computer to
be turned on remotely through an internal or external modem. Users
can thus access information on their computers from anywhere in
the world.
6. Power-on by LAN: This allows you to remotely power up your
system through your network by sending a wake-up frame or
signal. With this feature, you can remotely upload/ download data
to/from systems during off-peak hours.
7. Message LED: Chassis LEDs now act as information providers.
The way a particular LED illuminates indicates the stage the
computer is in. A single glimpse provides useful information to the
user.
Chapter 1 Hardware Configuration
3
8. More:
• Additional metal bracket for CPU stabilization
• Power On by Alarm: Powers up your computer at a certain
time
• Virus warning: During and after system boot-up, any attempt
to write to the boot sector or partition table of the hard disk
drive will halt the system. In this case, a warning message will
be displayed. You can then run your anti-virus program to
locate the problem
4
PCA-6003 User's Manual
1.3 Specifications
1.3.1 System
• CPU: Intel Celeron up to 533 MHz ~ 1.2 GHz, Pentium® III up to 1.26
GHz, FSB 66/100/133 MHz
• BIOS: Award Flash BIOS, 2 Mb
• System Chipset: VIA Apollo PLE133T (VT8601T + VT82C686B)
• Green function: Supports power management operation via BIOS.
Activated by keyboard or mouse activity
• PCI enhanced IDE hard disk drive interface: Supports up to four
IDE large hard disk drives or other enhanced IDE devices. Supports
PIO mode 4 (16.67 MB/s data transfer rate) and Ultra DMA/33/66/100
(33/66/100 MB/s data transfer rate). BIOS enabled/disabled
• Floppy disk drive interface: Supports up to two floppy disk drives,
5¼" (360 KB and 1.2 MB) and/or 3½" (720 KB, 1.44 MB, and 2.88
MB). BIOS enabled/disabled
1.3.2 Memory
• RAM: Up to 1GB in two available 168-pin DIMM sockets. Supports
PC100/ PC133-compliant SDRAMs
• ECC (parity DRAM only): Modules can detect multi-bit memory
errors. Correction of 1-bit memory errors
Chapter 1 Hardware Configuration
5
1.3.3 Input/Output
• Bus interface: PCI/ISA bus, PICMG compliant
• Enhanced parallel port: Configurable to LPT1, LPT2, LPT3, or
disabled. Standard DB-25 female connector provided. Supports EPP/
ECP
• Serial ports: Two RS-232 ports with 16C550 UARTs (or
compatible) with 16-byte FIFO buffer. Supports speeds up to 115.2
Kbps. Ports can be individually configured to COM1, COM2 or
disabled
• Keyboard and PS/2 mouse connector: A 6-pin mini-DIN
connector is located on the mounting bracket for easy connection to
a keyboard or PS/2 mouse. An onboard keyboard pin header
connector is also available
• ISA driving current: 64 mA (High Drive)
1.3.4 VGA interface
• Controller: Chipset integrated
• Display memory: Share system memory up 8 MB
• Resolution up to 1280 X 1024 X 64K colors
1.3.5 Ethernet LAN
• Supports 10/100Base-T Ethernet networking
• Chipset: Realtek 8139C
1.3.7 Industrial features
• Watchdog timer: Can generate a system reset or IRQ11. The watch-
dog timer is programmable, with each unit equal to one second (63
levels). The program uses I/O port hex 443h to control the watchdog
timer
6
PCA-6003 User's Manual
1.3.8 Mechanical and environmental specifications
• Operating temperature: 0 ~ 60° C (32 ~ 140° F), depending on CPU
• Storage temperature: -40 ~ 60° C (-40 ~ 140° F)
• Humidity: 20 ~ 95% non-condensing
• Power supply voltage: +5 V, ±12 V
• Power consumption:
+5 V @ 6.8 A, +12V @ 400 mA (typical, with Pentium III 1 GHz and
256 MB SDRAM)
• Board size: 338 x 122 mm (13.3" x 4.8")
• Board weight: 0.5 kg (1.2 lb)
Chapter 1 Hardware Configuration
7
1.4 Board Layout: Main Features
COM1
LAN
VGA
COM2
Parallel port
FDD Connector
PS/2 mouse
and keyboard
connector
RTL8139 C
Ethernet controller
8
PCA-6003 User's Manual
Two DIMM sockets
up to 1GB SDRAM
EIDE
Connectors
Figure 1-1: Board layout: main features
Socket 370
Pentium III CPU
up to 1.26 GB
1.5 Jumpers and Connectors
Connectors on the PCA-6003 board link it to external devices such as
hard disk drives and a keyboard. In addition, the board has a number
of jumpers used to configure your system for your application.
The tables below list the function of each of the board jumpers and
connectors. Later sections in this chapter give instructions on setting
jumpers. Chapter 2 gives instructions for connecting external devices
to your card.
Table 1-1: Jumpers
Label Function
J1 CMOS clear
J2 Watchdog timer output
Chapter 1 Hardware Configuration
9
Table 1-2: Connectors
Label Function
CN1 Primary IDE connector
CN2 Secondary IDE connector
CN3 Floppy drive connector
CN4 Parallel port
CN6 USB port
CN7 VGA connector
CN8 10/100Base-T Ethernet connector
CN9 Serial port: COM1
CN10 Serial port: COM2
CN11 PS/2 keyboard and mouse connector
CN12 External keyboard connector
CN13 Infrared (IR) connector
CN14 CPU fan connector
CN16 Keyboard lock and power LED
CN17 External speaker
CN18 Reset connector
CN19 HDD LED connector
CN20 ATX feature connector
CN21 ATX soft power switch
CN29 External SM bus connector
10
PCA-6003 User's Manual
1.6 Board Layout: Jumper and Connector
Locations
Figure 1-2: Board layout: jumper and connecter locations
Chapter 1 Hardware Configuration
11
1.7 Safety Precautions
Warning! Always completely disconnect the power cord from
your chassis whenever you work with the hardware.
Do not make connections while the power is on.
Sensitive electronic components can be damaged by
sudden power surges. Only experienced
electronics personnel should open the PC chassis.
Caution! Always ground yourself to remove any static charge
before touching the CPU card. Modern electronic
devices are very sensitive to static electric charges.
As a safety precaution, use a grounding wrist strap
at all times. Place all electronic components in a
static-dissipative surface or static-shielded bag when
they are not in the chassis.
12
PCA-6003 User's Manual
1.8 Jumper Settings
This section provides instructions on how to configure your card by
setting jumpers. It also includes the card's default settings and your
options for each jumper.
1.8.1 How to set jumpers
You configure your card to match the needs of your application by
setting jumpers. A jumper is a metal bridge that closes an electrical
circuit. It consists of two metal pins and a small metal clip (often
protected by a plastic cover) that slides over the pins to connect them.
To “close” (or turn ON) a jumper, you connect the pins with the clip.
To “open” (or turn OFF) a jumper, you remove the clip. Sometimes a
jumper consists of a set of three pins, labeled 1, 2, and 3. In this case
you connect either pins 1 and 2, or 2 and 3.
A pair of needle-nose pliers may be useful when setting jumpers.
Chapter 1 Hardware Configuration
13
1.8.2 CMOS clear (J1)
The PCA-6003 CPU card contains a jumper that can erase CMOS data
and reset the system BIOS information. Normally this jumper should be
set with pins 1-2 closed. If you want to reset the CMOS data, set J1 to
2-3 closed for just a few seconds, and then move the jumper back to 12 closed. This procedure will reset the CMOS to its default setting.
Table 1-3: CMOS clear (J1)
Function Jumper setting
1
* Keep CMOS data 1-2 closed
11
Clear CMOS data 2-3 closed
1
* default setting
1.8.3 Watchdog timer output (J2)
The PCA-6003 contains a watchdog timer that will reset the CPU or
send a signal to IRQ11 in the event the software fails to reset the
watchdog timer. The J2 jumper settings control the outcome of what
the computer will do in the event the watchdog timer is tripped.
Table 1-4: Watchdog timer output (J2)
Function Jumper setting
1
IRQ11 1-2 closed
* Reset 2-3 closed
* default setting
1
14
PCA-6003 User's Manual
1.9 System Memory
The PCA-6003 has two sockets for 168-pin dual inline memory modules
(DIMMs). All these sockets use 3.3 V unbuffered synchronous
DRAMs (SDRAM). DIMMs are available in capacities of 16, 32, 64,
128, 256 or 512 MB. The sockets can be filled in any combination with
DIMMs of any size, giving a total memory size between 16 MB and 1
GB. Use the following table to calculate the total DRAM memory
within your computer:
Table 1-5: DIMM module allocation table
Socket number 168-pin DIMM memory
1 (16, 32, 64, 128, 256 or 512 MB) x 1
2 (16, 32, 64, 128, 256 or 512 MB) x 1
1.9.1 Sample calculation: DIMM memory capacity
Suppose you install a 128 MB DIMM into your PCA-6003's socket 1
and a 32 MB DIMM into sockets. Your total system memory is 160
MB, calculated as follows:
Table 1-6: DIMM memory capacity sample calculation
Socket number 168-pin DIMM memory Total memory
1 128 MB x 1 128 MB
2 32 MB x 1 32 MB
Total memory 160 MB
Chapter 1 Hardware Configuration
15
1.9.2 Supplementary information about DIMMs
Your PCA-6003 can accept SDRAM memory chips with or without
parity. Also note::
• If the PCA-6003 operates at 133/100 MHz, only use PC-133/ PC-100
compliant DIMMs. Most systems will not even boot if non-compliant modules are used. This is due to strict timing issues involved at
this speed.
• SDRAM chips are usually thinner and have higher pin density than
EDO chips.
• Chips with 9 chips/side support ECC; chips with 8 chips/side do not
support ECC.
1.10 Memory Installation Procedures
To install DIMMs, first make sure the two handles of the DIMM
socket are in the "open" position. i.e. The handles lean outward.
Slowly slide the DIMM module along the plastic guides on both ends
of the socket. Then press the DIMM module right down into the
socket, until you hear a click. This is when the two handles have
automatically locked the memory module into the correct position of
the DIMM socket. To remove the memory module, just push both
handles outward, and the memory module will be ejected by the
mechanism in the socket.
1.11 Cache Memory
Since the second level (L2) cache has been embedded into the Intel
Pentium III/Celeron processor, you do not have to take care of either
SRAM chips or SRAM modules. The built-in second level cache in the
Pentium III/Celeron processor yields much higher performance than
the external cache memories. The cache size in the Intel® Pentium III
processor is 256 KB or 512 KB, for Celeron processor is 128 or 256 KB.
16
PCA-6003 User's Manual
®
1.12 CPU Installation
The CPU on the board must have a fan or heat sink attached, to
prevent overheating.
Warning: Without a fan or heat sink, the CPU will overheat and
cause damage to both the CPU and the motherboard.
To install a CPU, first turn off your system and remove its cover.
Locate the processor socket 370.
1. Make sure the socket 370 lever is in the upright position. To raise
the lever, pull it out to the side a little and raise it as far as it will go.
2. Place the CPU in the empty socket. Follow the instructions that
came with the CPU. If you have no instructions, complete the
following procedure. Carefully align the CPU so it is parallel to the
socket and the notches on the corners of the CPU correspond with
the notches on the inside of the socket. Gently slide the CPU in. It
should insert easily. If it does not insert easily, pull the lever up a
little bit more.
3. Press the lever down. The plate will slide forward. You will feel
some resistance as the pressure starts to secure the CPU in the
socket. This is normal and will not damage the CPU.
When the CPU is installed, the lever should snap into place at the side
of the socket.
Note: To remove a CPU, pull the lever out to the side a
little and raise it as far as it will go. Lift out the CPU.
Chapter 1 Hardware Configuration
17
18
PCA-6003 User's Manual
CHAPTER
2
Connecting Peripherals
This chapter tells how to connect peripherals, switches and indicators to the
PCA-6003 board. You can access most of
the connectors from the top of the board
while it is installed in the chassis. If you
have a number of cards installed, or your
chassis is very tight, you may need to
partially remove the card to make all the
connections.
2.1 Primary (CN1) and Secondary (CN2) IDE
Connectors
CN1
CN2
You can attach up to four IDE (Integrated Device Electronics) drives to
the IDE connectors. The primary (CN1) and secondary (CN2) connectors can each accommodate two drives.
Wire number 1 on the cable is red or blue and the other wires are gray.
Connect one end to connector CN1 or CN2 on the CPU card. Make
sure that the red/blue wire corresponds to pin 1 on the connector (in
the upper right hand corner). See Chapter 1 for help finding the
connector.
Unlike floppy drives, IDE hard drives can connect in either position
on the cable. If you install two drives to a single connector, you will
need to set one as the master and one as the slave. You do this by
setting the jumpers on the drives. If you use just one drive per
connector, you should set each drive as the master. See the documentation that came with your drive for more information.
Connect the first hard drive to the other end of the cable. Wire 1 on
the cable should also connect to pin 1 on the hard drive connector,
which is labeled on the drive circuit board. Check the documentation
that came with the drive for more information.
Connect the second hard drive to the remaining connector (CN2 or
CN1), in the same way as described above.
20
PCA-6003 User's Manual
2.2 Floppy Drive Connector (CN3)
You can attach up to two floppy disk drives to the PCA-6003's
onboard controller. You can use any combination of 5.25" (360 KB / 1.2
MB) and/or 3.5" (720 KB / 1.44/2.88 MB) drives.
The card comes with a 34-pin daisy-chain drive connector cable. On
one end of the cable is a 34-pin flat-cable connector. On the other end
are two sets of floppy disk drive connectors. Each set consists of a
34-pin flat-cable connector (usually used for 3.5" drives) and a printed
circuit-board connector (usually used for 5.25" drives). You can use
only one connector in each set. The set on the end (after the twist in
the cable) connects to the A: floppy drive. The set in the middle
connects to the B: floppy drive.
2.3 Parallel Port (CN4)
CN3
CN4
The parallel port is normally used to connect the CPU card to a printer.
The onboard parallel port can be accessed through a 26-pin flat-cable
connector, CN4. The card comes with an adapter cable which lets you
use a traditional DB-25 connector. The cable has a 26-pin connector on
one end and a DB-25 connector on the other, mounted on a retaining
bracket. The bracket installs at the end of an empty slot in your
chassis, giving you access to the connector.
The parallel port is designated as LPT1, and can be disabled or
changed to LPT2 or LPT3 in the system BIOS setup.
Chapter 2 Connecting Peripherals
21
To install the bracket, find an empty slot in your chassis. Unscrew the
plate that covers the end of the slot. Screw in the bracket in place of
the plate. Next, attach the flat-cable connector to CN4 on the CPU card.
Wire 1 of the cable is red or blue, and the other wires are gray. Make
sure that wire 1 corresponds to pin 1 of CN4. Pin 1 is on the upper right
side of CN4.
2.5 USB Port (CN6)
CN6
The PCA-6003 provides two USB (Universal Serial Bus) interfaces,
which give complete Plug & Play and hot attach/detach for up to 127
external devices.The USB interface complies with USB Specification
Rev. 1.0 and is fuse-protected.
The USB interface is accessed through a 10-pin flat-cable connector,
CN6. The adapter cable has a 10-pin connector on one end and two
USB connectors on the bracket.
The USB interface can be disabled in the system BIOS setup.
Pin 1
2.6 VGA Connector (CN7)
The PCA-6003 includes a AGP SVGA interface that can drive conventional CRT displays. CN7 is a standard 15-pin D-SUB connector
commonly used for VGA. Pin assignments for CRT connector CN7 are
detailed in Appendix B.
22
PCA-6003 User's Manual
CN7
2.7 10/100Base-T Ethernet Connector (CN8)
CN8
The PCA-6003 is equipped with a high-performance 32-bit PCI-bus
Ethernet interface, which is fully compliant with IEEE 802.3/u 10/100
Mbps CSMA/CD standards. It is supported by all major network
operating systems and is 100% Novell NE-2000 compatible. An
onboard RJ-45 jack provides convenient 10/100Base-T RJ-45 operation.
2.8 Serial Ports (CN9: COM1; CN10: COM2)
CN9CN10
The PCA-6003 offers two serial ports, CN9 as COM1 and CN10 as
COM2. These ports can connect to serial devices, such as a mouse or
printers, or to a communication network.
Table 2-1: Serial port connections (COM1, COM2)
Connector Ports Address Interrupt
CN9 COM1 3F8*, 3E8 IRQ4
CN10 COM2 2F8*, 2E8 IRQ3
* default settings
Chapter 2 Connecting Peripherals
23
The IRQ and address ranges for both ports are fixed. However, if you
want to disable the port or change these parameters later, you can do
this in the system BIOS setup.
Different devices implement the RS-232 standard in different ways. If
you are having problems with a serial device, be sure to check the pin
assignments for the connector.
2.9 PS/2 Keyboard and Mouse Connector
(CN11)
CN11
The PCA-6003 board provides a keyboard connector. A 6-pin
mini-DIN connector (CN11) on the card mounting bracket supports
single-board computer applications. The card comes with an adapter to
convert from the 6-pin mini-DIN connector to a standard DIN connector and to a PS/2 mouse connector.
2.10 External Keyboard Connector (CN12)
In addition to the PS/2 mouse/keyboard connector on the PCA-6003's
rear plate, there is also an extra onboard external keyboard connector.
This gives system integrators greater flexibility in designing their
systems.
24
PCA-6003 User's Manual
CN12
2.11 Infrared (IR) Connector (CN13)
This connector supports the optional wireless infrared transmitting
and receiving module. This module mounts on the system case. You
must configure the setting through the BIOS setup (see Chapter 3).
2.12 CPU Fan Connector (CN14)
This connector supports a cooling fan with tachometer output.
CN13
CN14
PIN 1
Chapter 2 Connecting Peripherals
25
2.13 Front Panel Connectors (CN16, CN17,
CN18, CN19, CN21 and CN29)
There are several external switches to monitor and control the
PCA-6003.
CN21
CN29
CN19
CN17
2.13.1 Keyboard lock and power LED (CN16)
CN16 is a 5-pin connector for the keyboard lock and power on LED.
Refer to Appendix B for detailed information on the pin assignments. If
a PS/2 or ATX power supply is used, the system's power LED status
will be as indicated below:
Table 2-2: PS/2 or ATX power supply LED status
Power mode LED (PS/2 power) LED (ATX power)
System On On On
System Suspend Fast flashes Fast flashes
System Off Off Slow flashes
2.13.2 External speaker (CN17)
CN17 is a 4-pin connector for an extenal speaker. If there is no external
speaker, the PCA-6003 provides an onboard buzzer as an alternative.
To enable the buzzer, set pins 3-4 as closed.
CN18
CN16
26
PCA-6003 User's Manual
2.13.3 Reset (CN18)
Many computer cases offer the convenience of a reset button.
Connect the wire from the reset button.
1
2.13.4 HDD LED (CN19)
You can connect an LED to connector CN19 to indicate when the HDD
is active.
1
2.13.5 SM Bus Connector (CN29)
This connector is reserved for Advantech's SNMP-1000 HTTP/SNMP
Remote System Manager. The SNMP-1000 allows users to monitor the
internal voltages, temperature and fans from a remote computer
through an Ethernet network.
CN23 can be connected to CN3 or CN6 of SNMP-1000. Please be
careful about the pin assignments, pin 1 must be connected to pin 1
and pin2 to pin 2 on both ends of cable.
Chapter 2 Connecting Peripherals
27
2.14 ATX Power Control Connectors (CN20
and CN21)
CN20
2.14.1 ATX feature connector (CN20) and soft power switch
connector (CN21)
The PCA-6003 can support an advanced soft power switch function if
an ATX power supply is used. To enable the soft power switch
function:
1. Take the specially designed ATX-to-PS/2 power cable out of the
accessory bag.
2. Connect the 3-pin plug of the cable to CN20 (ATX feature connector).
3. Connect the power on/off button to CN21. (A momentary type of
button should be used.)
Note: If you will not be using an ATX power connector,
make sure that pins 2-3 of CN20 are closed.
Warnings: 1. Make sure that you unplug your power supply
when adding or removing expansion cards or other
system components. Failure to do so may cause
severe damage to both your CPU card and expansion cards.
2. ATX power supplies may power on if certain
motherboard components or connections are touched
by metallic objects.
28
PCA-6003 User's Manual
Important: Make sure that the ATX power supply can take at
least a 720 mA load on the 5 V standby lead (5VSB).
If not, you may have difficulty powering on your
system and/or supporting the "Wake-on-LAN"
function.
2.14.2 Controlling the soft power switch
Users can also identify the current power mode through the system's
power LED (see Section 2.13.1).
Chapter 2 Connecting Peripherals
29
30
PCA-6003 User's Manual
CHAPTER
3
Award BIOS Setup
This chapter describes how to set the
card’s BIOS configuration data.
3.1 Introduction
Award’s BIOS ROM has a built-in setup program that allows users to
modify the basic system configuration. This type of information is
stored in battery-backed memory (CMOS RAM) so that it retains the
setup information when the power is turned off.
3.2 Entering Setup
Turn on the computer and check for the “patch code”. If there is a
number assigned to the patch code, it means that the BIOS supports
your CPU.
If there is no number assigned to the patch code, please contact
Advantech’s applications engineer to obtain an up-to-date patch code
file. This will ensure that your CPU’s system status is valid.
After ensuring that you have a number assigned to the patch code,
press <Del> to allow you to enter the setup.
Figure 3-1: Award BIOS Setup initial screen
32
PCA-6003 User’s Manual
3.3 Standard CMOS Setup
Choose the “Standard CMOS Features” option from the “Initial Setup
Screen” menu, and the screen below will be displayed. This menu
allows users to configure system components such as date, time, hard
disk drive, floppy drive, display, and memory.
Figure 3-2: Standard CMOS features screen
3.3.1 CMOS RAM backup
The CMOS RAM is powered by an onboard button cell battery.
When BIOS CMOS Setup has been completed, CMOS RAM data is
automatically backed up to Flash ROM. If conditions in a harsh
industrial enviroment cause a soft error, BIOS will recheck the data and
automatically restore the original data for booting.
Note: If you intend to update CMOS RAM data, you have
to click on “DEL” within two seconds of the “CMOS
checksum error....” display screen message appear-
ing. Then enter the “Setup” screen to modify the data.
If the “CMOS checksum error....” message appears
again and again, please check to see if you need to
replace the battery in your system.
Chapter 3 Award BIOS Setup
33
3.4 Advanced BIOS Features
The “Advanced BIOS Features” screen appears when choosing the
“Advanced BIOS Features” item from the “Initial Setup Screen”
menu. It allows the user to configure the CPU card according to his
particular requirements.
Below are some major items that are provided in the Advanced BIOS
Features screen.
A quick booting function is provided for your convenience. Simply
enable the Quick Booting item to save yourself valuable time.
Figure 3-3: Advanced BIOS features screen
3.4.1 Virus Warning
If enabled, a warning message and alarm beep activates if someone
attempts to write here. The commands are “Enabled” or “Disabled.”
3.4.2 CPU Internal Cache / External Cache
Enabling this feature speeds up memory access. The commands are
“Enabled” or “Disabled.”
34
PCA-6003 User’s Manual
3.4.3 CPU L2 Cache ECC Checking
Enabling allows CPU L2 cache checking. The commands are “Enabled”
or “Disabled.”
3.4.4 First/Second/Third/Other Boot Device
The BIOS tries to load the OS with the devices in the sequence
selected.
Choices are: Floppy, LS/ZIP, HDD, SCSI, CDROM, LAN, Disabled.
3.4.5 Swap Floppy Drive
Logical name assignments of floppy drives can be swapped if there is
more than one floppy drive. The commands are “Enabled” or “Disabled.”
3.4.6 Boot UP Floppy Seek
Selection of the command “Disabled” will speed the boot up. Selection
of “Enabled” searches disk drives during boot up.
3.4.7 Boot Up NumLock Status
This feature selects the “power on” state for NumLock. The commands are “Enabled” or “Disabled.”
3.4.8 Gate A20 Option
Normal The A20 signal is controlled by the keyboard
controller.
Fast (Default) The A20 signal is controlled by the chipset.
3.4.9 Typematic Rate Setting
The typematic rate is the rate key strokes repeat as determined by the
keyboard controller. The commands are “Enabled” or “Disabled.”
Enabling allows the typematic rate and delay to be selected.
Chapter 3 Award BIOS Setup
35
3.4.10 Typematic Rate (Chars/Sec)
BIOS accepts the following input values (characters/second) for
typematic rate: 6, 8, 10, 12, 15, 20, 24, 30.
3.4.11 Typematic Delay (msec)
Typematic delay is the time interval between the appearance of two
consecutive characters, when holding down a key. The input values
for this category are: 250, 500, 750, 1000 (msec).
3.4.12 Security Option
This setting determines whether the system will boot up if the
password is denied. Access to Setup is, however, always limited.
System The system will not boot, and access to Setup will be
denied if the correct password is not entered at the prompt.
Setup The system will boot, but access to Setup will be denied if
the correct password is not entered at the prompt.
Note: To disable security, select “PASSWORD SETTING”
in the main menu. At this point, you will be asked to
enter a password. Simply press <Enter> to disable
security. When security is disabled, the system will
boot, and you can enter Setup freely.
3.4.13 OS Select for DRAM > 64MB
This setting allows selecting an OS with greater than 64MB of RAM.
Commands are “Non-OS2” or “OS2.”
3.4.14 Video BIOS Shadow
Enable copies video BIOS to sharow RAM for performnace improving.
Choices are Enable, Disable.
3.4.15 Small Logo (EPA)Show
Energy Star Log from Environmental Protection Agency. Choices are:
Enable, Disable.
36
PCA-6003 User’s Manual
3.5 Advanced Chipset Features
By choosing the “Advanced Cipset Features” option from the “Initial
Setup Screen” menu, the screen below will be displayed. This sample
screen contains the manufacturer’s default values for this CPU card, as
shown in Figure 3-5:
Note: DRAM default timings have been carefully chosen
and should ONLY be changed if data is being lost.
Please first contact technical support.
Figure 3-4: Advanced chipset features screen
3.5.1 DRAM Clock
This item allows you to control the DRAM speed. The Choice: Host
Clock, CLK-33M.
3.5.2 SDRAM Cycle Length
When synchronous DRAM is installed, the number of clock cycles of
CAS latency depends on the DRAM timing. Do not reset this field
from the default value specified by the system designer. The Choice:
2, 3.
Chapter 3 Award BIOS Setup
37
3.5.3 Bank Interleave
This item allows you to select the value in this field, depending on
whether the board has paged DRAMs or EDO (extended data output)
DRAMs. The Choice: EDO 50ns, EDO 60ns,Slow, Medium, Fast,
Turbo.
3.5.4 Memory Hole
In order to improve performance, certain space in memory is reserved
for ISA cards. This memory must be mapped into the memory space
below 16MB. The Choice: 15M-16M, Disabled.
3.5.5 P2C/P2P Concurrency
This item allows you to enable/disable the PCI to CPU, CPU to PCI
concurrency. The Choice: Enabled, Disabled
3.5.6 System BIOS Cacheable
Selecting Enabled allows caching of the system BIOS ROM at F0000hFFFFFh, resulting in better system performance. However, if any
program writes to this memory area, a system error may result. The
choice: Enabled, Disabled.
3.5.7 AGP Aperture Size
Select the size of Accelerated Graphics Port (AGP) aperture. The
aperture is a portion of the PCI memory address range dedicated for
graphics memory address space. Host cycles that hit the aperture
range are forwarded to the AGP without any translation. The Choice:
4M, 8M, 16M, 32M, 65M, 128M, 256M.
3.5.8 Onchip USB
This should be enabled if your system has a USB installed on the
system board and you want to use it. Even when so equipped, if you
add a higher performance controller, you will need to disable this
feature. The choice: Enabled, Disabled.
38
PCA-6003 User’s Manual
3.5.9 USB Keyboard Support
Select Enabled if your system contains a Universal Serial Bus (USB)
controller and you have a USB keyboard. The choice: Enabled,
Disabled.
3.5.10 USB Mouse Support
Select Enabled if your system contains a Universal Serial Bus (USB)
controller and you have a USB mouse. The choice: Enabled, Disabled.
3.5.11 CPU to PCI Write Buffer
When this field is Enabled, writes from the CPU to the PCI bus are
buffered, to compensate for the speed differences between the CPU
and the PCI bus. When Disabled, the writes are not buffered and the
CPU must wait until the write is complete before starting another write
cycle. The choice: Enabled, Disabled..
3.5.12 PCI Dynamic Bursting
When Enabled, every write transaction goes to the write buffer.
Burstable transactions then burst on the PCI bus and nonburstable
transactions don’t. The choice: Enabled, Disabled
3.5.13 PCI Master 0 WS Write
When Enabled, writes to the PCI bus are executed with zero wait
states. The choice: Enabled, Disabled
3.5.14 PCI Delay Transaction
The chipset has an embedded 32-bit posted write buffer to support
delay transactions cycles. Select Enabled to support compliance with
PCI specification version 2.1. The choice: Enabled, Disabled
3.5.15 PCI#2 Access #1 Retry
When disabled, PCI#2 will not be disconnected until access finishes
(difault). When enabled, PCI#2 will be disconnected if max retries are
attempted without success. The choice: Enabled, Disabled
Chapter 3 Award BIOS Setup
39
3.5.16 AGP Master 1 WS Write
When Enabled, writes to the AGP(Accelerated Graphics Port) are
executed with one wait states. The choice: Enabled, Disabled
3.5.17 Memory Parity/ ECC Check
Enabled add a parity check to the boot-up memory test. Select
Enabled when only system DRAM contains parity. The Choice:
Enable, Disable.
3.6 Integrated Peripherals
Figure 3-5: Integrated peripherals
3.6.1 On-Chip Primary/Secondary PCI IDE
If you enable IDE HDD Block Mode, the enhanced IDE driver will be
enabled. Leave IDE HDD Block Mode on the default setting.
3.6.2 IDE Primary Master/Slave PIO/UDMA Mode,
IDE Secondary Master/Slave PIO/UDMA Mode (Auto)
Each channel (Primary and Secondary) has both a master and a slave,
making four IDE devices possible. Because each IDE device may have
a different Mode timing (0, 1, 2, 3, 4), it is necessary for these to be
independent. The default setting “Auto” will allow autodetection to
ensure optimal performance.
40
PCA-6003 User’s Manual
3.6.3 Init Display First
This item allows you to choose which one to activate first, PCI Slot or
AGP. The choices: PCI Slot, AGP.
3.6.4 IDE HDD Block Mode
Block mode is also called block transfer, multiple commands, or
multiple sector read/write. If your IDE hard drive supports block mode
(most new drives do), select Enabled for automatic detection of the
optimal number of block read/writes per sector the drive can support.
The choice: Enabled, Disabled
3.6.5 Onboard FDD Controller
When enabled, this field allows you to connect your floppy disk
drives to the onboard floppy disk drive connector instead of a
separate controller card. If you want to use a different controller card
to connect the floppy disk drives, set this field to Disabled.
3.6.6 Onboard Serial Port 1 (3F8H/IRQ4)
The settings are Auto 3F8/IRQ4, 2F8/IRQ3, 3E8/IRQ4, 2E8/IRQ3, and
Disabled for the on-board serial connector.
3.6.7 Onboard Serial Port 2 (2F8H/IRQ3)
The settings are Auto 3F8/IRQ4, 2F8/IRQ3, 3E8/IRQ4, 2E8/IRQ3, and
Disabled for the on-board serial connector.
3.6.8 UART 2 Mode Select
This item allows you to select UART mode. The choices: HPSIR,
ASKIR, Standard.
3.6.9 Onboard Parallel Port (378H/IRQ7)
This field sets the address of the on-board parallel port connector. You
can select either 3BC/IRQ7, 378/IRQ7, 278/IRQ5 or Disabled. If you
install an I/O card with a parallel port, make sure there is no conflict in
Chapter 3 Award BIOS Setup
41
the address assignments. The CPU card can support up to three
parallel ports, as long as there are no conflicts for each port.
3.6.10 Onboard Parallel Port Mode (ECP + EPP)
This field allows you to set the operation mode of the parallel port.
The setting “Normal” allows normal speed operation, but in one
direction only. “EPP” allows bidirectional parallel port operation at
maximum speed. “ECP” allows the parallel port to operate in bidirectional mode and at a speed faster than the maximum data transfer rate.
“ECP + EPP” allows normal speed operation in a two-way mode.
3.6.11 ECP Mode Use DMA
This selection is available only if you select “ECP” or “ECP + EPP” in
the Parallel Port Mode field. In ECP Mode Use DMA, you can select
DMA channel 1, DMA channel 3, or Disable. Leave this field on the
default setting.
3.6.12 EPP Mode Select
This field allows you to select EPP port type 1.7 or 1.9. The choices:
EPP1.7, 1.9.
42
PCA-6003 User’s Manual
3.7 Power Management Setup
The power management setup controls the CPU card’s “green”
features to save power. The following screen shows the manufacturer’s defaults:
Figure 3-6: Power management setup screen
3.7.1 ACPI function
This item allows you to enable/disable the Advanced Configuration
and Power Management (ACPI). The choice: Enabled, Disabled.
3.7.2 Power Management
This category allows you to select the type (or degree) of power
saving and is directly related to the following modes:
1. HDD Power Down
2. Doze Mode
3. Suspend Mode
There are four selections for Power Management, three of which have
fixed mode settings.
Chapter 3 Award BIOS Setup
43
)tluafed(elbasiDsedomruofllaselbasiD.tnemeganamrewopoN
gnivaSrewoP.niM ,.rh1=edoMybdnatS.rh1=edoMezoD.tnemeganamrewopmuminiM
gnivaSrewoP.xaM 1=edoMybdnatS,.nim1=edoMezoD.tnemeganamrewopmumixaM
denifeDresU ehtfohcae,delbasidtonnehW.yllaudividniedomhcaetesotuoyswollA
.elbasiddna.nim51ot.nim1morf
.nim51=nwoDrewoPDDHdna,.rh1=edoMdnepsuS
.nim1=nwoDrewoPDDHdna,.nim1=edoMdnepsuS,.nim
segnarhcihwnwoDrewoPDDHroftpecxe.rh1ot.nim1morferasegnar
3.7.3 PM Control by APM
When enabled, an Advanced Power Management device will be
activated to enhance the Max. Power Saving mode and stop the CPU
internal clock. If Advance Power Management (APM) is installed on
your system, selecting Yes gives better power savings. If the Max.
Power Saving is not enabled, this will be preset to No.
3.7.4 Video Off Option
When enabled, this feature allows the VGA adapter to operate in a
power saving mode.
nOsyawlAsedomgnivasrewopgnirudnoniamerlliwrotinoM
ffO>---NdnepsuS .edomdnepsuSehtsretnesmetsysehtnehwdeknalbrotinoM
ffO>---NybtS,psuS .sedomybdnatSrodnepsuSrehtiesretnemetsysehtnehwdeknalbrotinoM
ffO>ÑsedoMllA .edomgnivasrewopynasretnemetsysehtnehwdeknalbrotinoM
3.7.5 Video Off Method
This determines the manner in which the monitor is blanked.
knalB+CNYSH/V latnozirohdnalacitrevehtffonrutotmetsysehtesuaclliwnoitcelessihT
neercSknalB.reffuboedivehtotsknalbsetirwylnonoitposihT
SMPD tnemeganaMrewoPyalpsiDehtstroppusrotinomruoyfinoitposihttceleS
.seulavtnemeganamrewopoediv
44
PCA-6003 User’s Manual
.reffuboedivehtotsknalbetirwdnastropnoitazinorhcnys
tcelesotsdradnatSscinortcelEoediVehtfodradnats)SMPD(gnilangiS
3.7.6 MODEM Use IRQ
This determines the IRQ in which the MODEM can use.The choices: 3,
4, 5, 7, 9, 10, 11, NA.
3.7.7 Soft-Off by PWRBTN
If you choose “Instant-Off”, then pushing the ATX soft power switch
button once will switch the system to “system off” power mode. You
can choose “Delay 4 sec.” If you do so, then pushing the button for
more than 4 seconds will turn off the system, whereas pushing the
button momentarily (for less than 4 seconds) will switch the system to
“suspend” mode.
3.7.8 State After Power Failure
This field lets you to determine the state that your computer returns
after a power failure. If sets to Off, the PC will not boot after a power
failure. If sets to On, the PC will restart after a power failure. If sets to
Auto, the PC will go back to the previous state before a power failure
occurred. For instance, if the PC is power-on when power system fails,
the PC will restart when power system is working again. If the PC is
power-ff when power system fails, the PC will not boot when power
system is working again. The Choice: Off, On, Auto.
Chapter 3 Award BIOS Setup
45
3.8 Wake Up Event

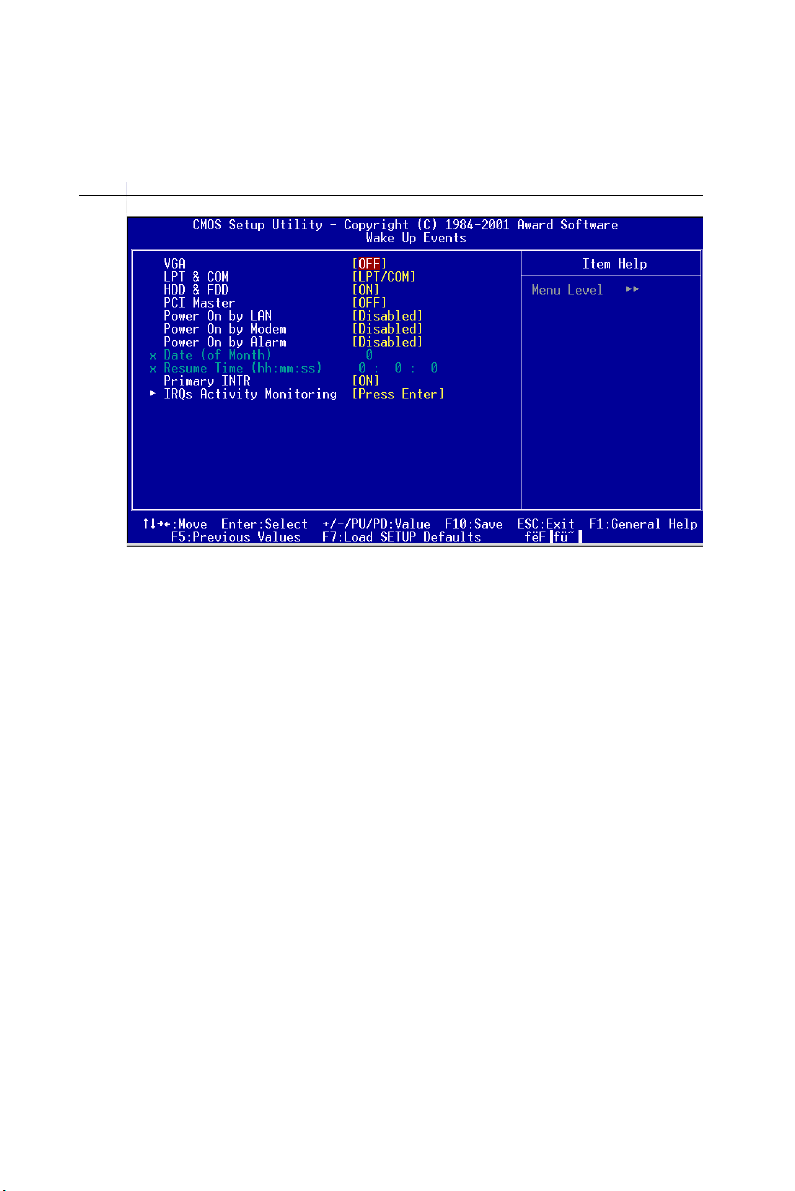

Figure 3-7: Wake-up event screen
3.8.1 VGA
When Enabled, you can set the VGA awakens the system.
3.8.2 LPT & COM
When On of LPT & COM, any activity from one of the listed system
peripheral devices or IRQs wakes up the system.
3.8.3 HDD & FDD
When On of HDD & FDD, any activity from one of the listed system
peripheral devices wakes up the system.
3.8.4 Power On by LAN
This shows you to wake up the system via LAN from the remote host.
The Choice: Enable, Disable.
46
PCA-6003 User’s Manual
3.8.5 Power On by Modem
When enabled, an input signal on the serial Ring Indicator (RI) line (in
other words, an incoming call on the modem) awakens the system from
a soft off state. The Choice: Enable, Disable.
3.8.6 Power On by Alarm
When enabled, you can set the date and time at which the RTC (realtime clock) alarm awakens the system from Suspend mode. The
Choice: Enable, Disable.
Chapter 3 Award BIOS Setup
47
3.9 PnP/PCI Configurations
3.9.1 PnP OS Installed
This features allows you to install the PnP OS. The commands are
“yes” or “no.”
3.9.2 Reset Configuration Data
Note: This is left “Disabled.” Select “Enabled” to reset
Extended System Configuration Data (ECSD) if you
have installed a new add-on and your OS won’t boot
and you need to reconfigure.
Figure 3-8: PnP/PCI configurations screen
3.9.3 Resources controlled by:
The commands here are “Auto” or “manual.” Choosing “manual”
requires you to choose resources from each following sub-menu.
“Auto” automatically configures all of the boot and Plug and Play
devices but you must be using Windows 95 or above.
48
PCA-6003 User’s Manual
3.10 PC Health Status
Figure 3-9: PC health status screen
3.10.1 Current CPU Temperature
This shows you the current CPU1 temperature.
3.10.2 Current CPUFAN Speed
This shows you the current CPUFAN speed.
3.10.5 VCORE
This shows CPU1 core voltage.
3.10.7 +2.5/ +3.3V/ + 5V/ +12V
This shows you the voltage of +2.5/ +3.3V/ + 5V/ +12V
Chapter 3 Award BIOS Setup
49
3.11 Load Setup Defaults
“LOAD SETUP DEFAULTS” loads the values required by the system
for maximum performance.
3.12 Password Setting
To change the password:
1. Choose the “Set Password” option from the “Initial Setup Screen”
menu and press <Enter>.
The screen will display the following message:
Enter Password:
Press <Enter>.
2. If the CMOS is good or if this option has been used to change the
default password, the user is asked for the password stored in the
CMOS. The screen will display the following message:
Confirm Password:
Enter the current password and press <Enter>.
3. After pressing <Enter> (ROM password) or the current password
(user-defined), you can change the password stored in the CMOS.
The password must be no longer than eight (8) characters.
Remember, to enable the password setting feature, you must first
select either “Setup” or “System” from the “Advanced BIOS Features” menu.
50
PCA-6003 User’s Manual
3.13 Save & Exit Setup
If you select this and press <Enter>, the values entered in the setup
utilities will be recorded in the CMOS memory of the chipset. The
microprocessor will check this every time you turn your system on
and compare this to what it finds as it checks the system. This record
is required for the system to operate.
3.14 Exit Without Saving
Selecting this option and pressing <Enter> lets you exit the setup
program without recording any new values or changing old ones.
52
PCA-6003 User’s Manual
CHAPTER
4
AGP SVGA Setup
The PCA-6003 features an integrated
AGP/VGA interface. This chapter provides
instructions for installing and operating
the software drivers on the display driver
CD included in your package.
4.1 Before You Begin
To facilitate the installation of the enhanced display device drivers and
utility software, you should read the instructions in this chapter
carefully before you attempt installation. The enhanced display
drivers for the PCA-6003 board are located on the software installation
CD. You must install the drivers and utility software by using the
supplied SETUP program for DOS drivers.
Note: The files on the software installation CD are com-
pressed. Do not attempt to install the drivers by
copying the files manually. You must use the supplied
SETUP program to install the drivers.
Before you begin, it is important to note that most display drivers
need to have the relevant software application already installed in the
system prior to installing the enhanced display drivers. In addition,
many of the installation procedures assume that you are familiar with
both the relevant software applications and operating system commands. Review the relevant operating system commands and the
pertinent sections of your application software’s user’s manual before
performing the installation.
4.2 Features
• Chipset integrated high performance 3D graphic engine
• High speed internal AGP bus mastering data bus
• PC 99 compliant
• Support DVD playback & hardware motion compensation
• Integrated 230 MHz DAC allows 64K colors at 1280 x 1024 resolution
• User-friendly installation for Windows 95 and Windows NT
• AGP 1.0 interface
• Share system SDRAM up to 8 MB.
54
PCA-6003 User's Manual
4.3 Installation
First, insert CD drive. Then follow the Icons for your PCA Series model
number.
Click on the right driver for the auto-installation.
Please follow the instruction of the installation program to install the
VGA driver and to restart the system when the installation is finished.
Chapter 4 PCI SVGA Setup
55
56
PCA-6003 User's Manual
CHAPTER
5
LAN Configuration
The PCA-6003 features an onboard LAN
interface. This chapter gives detailed
information on Ethernet configuration. It
shows you how to configure the card to
match your application requirements.
5.1 Introduction
The PCA-6003 features an optional 32-bit 10/100 Mbps Ethernet
network interface. This interface supports bus mastering architecture
and auto-negotiation features. Therefore standard twisted-pair cabling
with RJ-45 connectors for both 10 Mbps and 100 Mbps connections
can be used. Extensive driver support for commonly-used network
systems is also provided.
5.2 Features
• Realtek RTL8139C Ethernet LAN controller
(fully integrated 10Base-T/100Base-TX)
• Supports Wake-on-LAN remote control function
• Supports up to128 K bytes Boot ROM
• PCI Bus Master complies with PCI Rev. 2.2
• MAC & PHY (10/100 Mbps) interfaces
• Complies to IEEE 802.3X 10Base-T and IEEE 802.3u 100Base-T
interfaces
• 3.3 V power supply with 5 V tolerant I/Os
• Single RJ-45 connector gives auto-detection of 10 Mbps or 100
Mbps network data transfer rates and connected cable types
• Enhancements on ACPI, PCI power management
• Compliant to PC99 standard
58
PCA-6003 User's Manual
5.3 Driver Installation
The PCA-6003's onboard Ethernet interface supports all major network
operating systems.
The BIOS automatically detects the LAN while booting, and assigns
an IRQ level and I/O address. No jumpers or switches are required for
user configuration.
The drivers and installation instructions are located in the following
directories of the utility CD:
• Dos: Drivers for DOS platforms
• Info: Installation instructions
• Nwserver: Drivers for Novell NetWare
• Wfw: Drivers for Windows 3.11 for Workgroups
Please refer to the text files in the Info directory for detailed informa-
tion about installing the drivers.
Note: Operating system vendors may post driver updates
on their websites. Please visit the websites of OS
vendors to download updated drivers.
Chapter 5 LAN Configuration
59
5.4 Windows 9X Drivers Setup
Procedure
Note 1: If you are using Windows 98SE, your system will find
the LAN device "PCI Ethernet Controller". You must
first remove this device from your system, and then
restart your computer. Then you will be ready to
install the correct driver by following the procedure
below.
Note 2: The CD-ROM drive is designated as "D" throughout
this section.
1. In the "Windows" screen, click on "Start" and select "Settings".
Then click on the "Control Panel" icon to select "System".
60
PCA-6003 User's Manual
2. In the "System Properties" window, select the "Device Manager"
tab. Select "View devices by type", and navigate to:
Computer\Other devices\PCI Ethernet Controller. Highlight "PCI
Ethernet Controller" and click on "Properties".
Chapter 5 LAN Configuration
61
3. In the "PCI Ethernet Controller Properties" window, select the
"Driver" tab. Then click on "Update Driver...".
4. In the "Update Device Driver Wizard" window, click on "Next".
62
PCA-6003 User's Manual
5. Click "Next".
6. In the following "Update Device Driver Wizard" window, select
"Specify a location:". Type in: "D:\Drv_LAN\RTL8139C\WIN98".
Then click on "Next".
Chapter 5 LAN Configuration
63
7. In the following "Update Device Driver Wizard" window, select
"The updated driver ...". Then click on "Next".
8. In the following "Update Device Driver Wizard" window, click on
"Next".
64
PCA-6003 User's Manual
9. When the "Insert Disk" window appears, insert the utility CD into
the CD-ROM drive. Then click on "OK".
10. When the "Update Device Driver Wizard" window shows, click on
finish.
11. In the "System Settings change" window, select click on "Yes".
Chapter 5 LAN Configuration
65
5.5 Windows NT Drivers Setup Procedure
Note: The CD-ROM drive is designated as "E" throughout
this section.

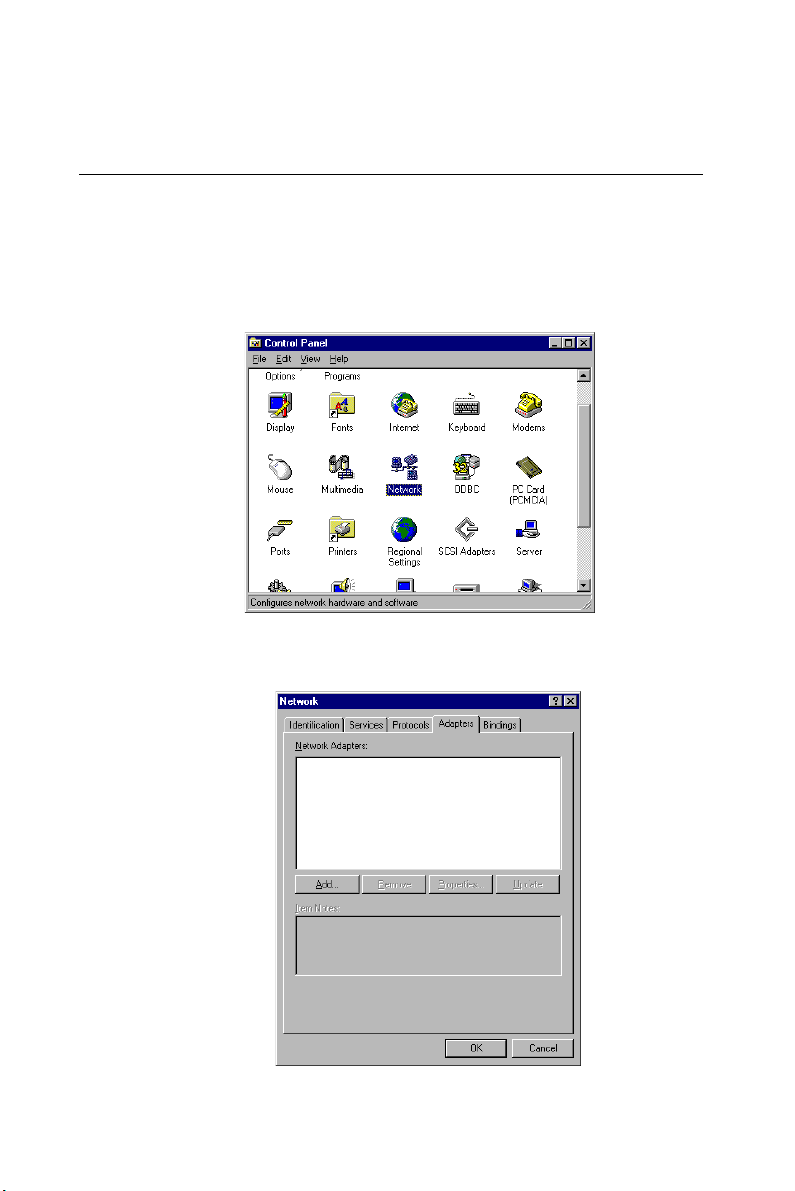

1. In the "Windows NT" screen, click on "Start" and select "Settings". Then click on the "Control Panel" icon to select "Network".
2. In the "Network" window, select the "Adapters" tab. Then click
on "Add...".
66
PCA-6003 User's Manual

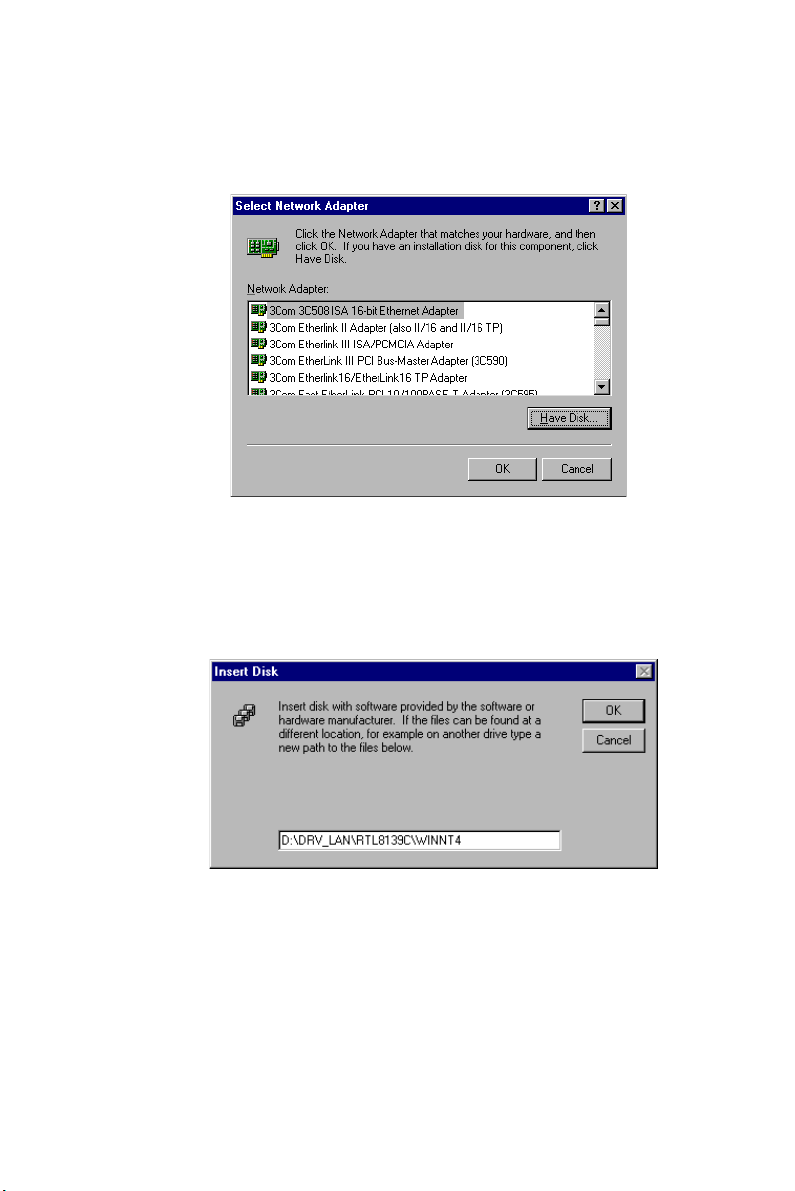

3. In the "Select Network Adapter" window, click on "Have Disk...".
4. When the "Insert Disk" window appears, insert the utility CD into
the CD-ROM drive. The correct file path is;
D:\Drv_LAN\RTL8139C\WINNT4. When you have the correct file
path, click on "OK".
Chapter 5 LAN Configuration
67
5. In the "Select OEM Option" window, click on "OK".
6. In the "Duplex mode", click "OK".
68
PCA-6003 User's Manual
7. In the "Network" window, select the "Adapters" tab. Under
"Network Adapters:", highlight "Realtek RTL8139CA/B/C(8130).
8. In the "Microsoft TCP/IP Properties" window, select the "IP
Address" tab. Then select "Specify an IP address". Type in the IP
Address and Subnet Mask details. Then click on "OK".
Chapter 5 LAN Configuration
69
9. In the "Network Settings Change" window, click on "Yes".
70
PCA-6003 User's Manual
5.6 Windows 2000 Drivers Setup Procedure
Note: The CD-ROM drive is designed as "E" throughout
this section.
1. In the "Windows 2000" screen, click on " Start" and select "
settings". Then click on the " Control Panel" icon to select
"system".
Chapter 5 LAN Configuration
71
2. In the " System Properties" window, select the " Device Manager".
72
PCA-6003 User's Manual
3. In "Device Manager" screen, follow the screen instructions, to
click on "Properties".
4. In the following screen, to click on "Update Driver".
Chapter 5 LAN Configuration
73
5. Click on "Next".
6. Following the highlighted item, and click on "Next".
74
PCA-6003 User's Manual
7. Click on "Have Disk".
8. Key in "E:\Drv__LAN\RTL8139C\WIN2000", then click on "OK".
Chapter 5 LAN Configuration
75
9. To highlight the following item, and click "Next".
10. Click "Next".
76
PCA-6003 User's Manual
11. Click "Finish" to complete the installation.
Chapter 5 LAN Configuration
77
78
PCA-6003 User's Manual
APPENDIX
A
Programming the
Watchdog Timer
The PCA-6003 is equipped with a watchdog timer that resets the CPU or generates
an interrupt if processing comes to a
standstill for any reason. This feature
ensures system reliability in industrial
standalone or unmanned environments.
A.1 Programming the Watchdog Timer
To program the watchdog timer, you must write a program which
writes I/O port address 443 (hex). The output data is a time interval
value. The value range is from 01 (hex) to 3F (hex), and the related
time interval is 1 sec. to 63 sec.
Data Time Interval
01 1 sec.
02 2 sec.
03 3 sec.
04 4 sec.
••
••
••
3F 63 sec.
80
PCA-6003 User's Manual
After data entry, your program must refresh the watchdog timer by
rewriting I/O port 443 (hex) while simultaneously setting it. When
you want to disable the watchdog timer, your program should read I/O
port 443 (hex).
The following example shows how you might program the watchdog
timer in BASIC:
10 REM Watchdog timer example program
20 OUT &H443, data REM Start and restart the watchdog
30 GOSUB 1000 REM Your application task #1,
40 OUT &H443, data REM Reset the timer
50 GOSUB 2000 REM Your application task #2,
60 OUT &H443, data REM Reset the timer
70 X=INP (&H443) REM Disable the watchdog timer
80 END
1000 REM Subroutine #1, your application task
••
••
••
1070 RETURN
2000 REM Subroutine #2, your application task
••
••
••
2090 RETURN
Appendix A Programming the Watchdog Timer
81
82
PCA-6003 User's Manual
APPENDIX
B
Pin Assignments
This appendix contains information of a
detailed or specialized nature. It includes:
• IDE Hard Drive Connector
• Floppy Drive Connector
• Parallel Port Connector
• SCSI Connector
• USB Connector
• VGA Connector
• Ethernet 10/100Base-T RJ-45
Connector
• COM1/COM2 RS-232 Serial Port
• Keyboard and Mouse Connector
• External Keyboard Connector
• IR Connector
• CPU Fan Power Connector
• Power LED and Keylock Connector
• External Speaker Connector
• Reset Connector
• HDD LED Connector
• ATX Feature Connector
• ATX Soft Power Switch
• SM Bus Connector
• Extension I/O Board Connector
• System I/O Ports
• DMA Channel Assignments
• Interrupt Assignments
• 1st MB Memory Map
B.1 IDE Hard Drive Connector (CN1, CN2)
139
337
4
Table B-1: IDE hard drive connector (CN1, CN2)
Pin Signal Pin Signal
1 IDE RESET* 2 GND
3 DATA 7 4 DATA 8
5 DATA 6 6 DATA 9
7 DATA 5 8 DATA 10
9 DATA 4 10 DATA 11
11 DATA 3 12 DATA 12
13 DATA 2 14 DATA 13
15 DATA 1 16 DATA 14
17 DATA 0 18 DATA 15
19 SIGNAL GND 20 N/C
21 DISK DMA REQUEST 22 GND
23 IO WRITE 24 GND
25 IO READ 26 GND
27 IO CHANNEL READY 28 GND
29 HDACKO* 30 GND
31 IRQ14 32 N/C
33 ADDR 1 34 N/C
35 ADDR 0 36 ADDR 2
37 HARD DISK SELECT 0* 38 HARD DISK SELECT 1*
39 IDE ACTIVE* 40 GND
38
402
* low active
84
PCA-6180 User's Manual
B.2 Floppy Drive Connector (CN3)
33
31
32
Table B-2: Floppy drive connector (CN3)
Pin Signal Pin Signal
1 GND 2 FDHDIN*
3 GND 4 N/C
5 N/C 6 FDEDIN*
7 GND 8 INDEX*
9 GND 10 MOTOR 0*
11 GND 12 DRIVE SELECT 1*
13 GND 14 DRIVE SELECT 0*
15 GND 16 MOTOR 1*
17 GND 18 DIRECTION*
19 GND 20 STEP*
21 GND 22 WRITE DATA*
23 GND 24 WRITE GATE*
25 GND 26 TRACK 0*
27 GND 28 WRITE PROTECT*
29 GND 30 READ DATA*
31 GND 32 HEAD SELECT*
33 GND 34 DISK CHANGE*
3
1
2
434
* low active
Appendix B Pin Assignments
85
B.3 Parallel Port Connector (CN4)
13 2
12 1
25
Table B-3: Parallel port connector (CN4)
Pin Signal Pin Signal
1 STROBE* 14 AUTOFD*
2 D0 15 ERR
3 D1 16 INIT*
4 D2 17 SLCTINI*
5 D3 18 GND
6 D4 19 GND
7 D5 20 GND
8 D6 21 GND
9 D7 22 GND
10 ACK* 23 GND
11 BUSY 24 GND
12 PE 25 GND
13 SLCT 26 N/C
1526
14
* low active
86
PCA-6180 User's Manual
B.4 USB Connector (CN6)
16
2
3
4
5
Table B-5: USB1/USB2 connector (CN6)
7
8
9
10
Pin USB1 Signal Pin USB2 Signal
1 +5 V 6 +5 V
2 UV- 7 UV3 UV+ 8 UV+
4 GND 9 GND
5 Chassis GND 10 N/C
B.5 VGA Connector (CN7)
5
10 6
15
Table B-6: VGA connector (CN7)
1
11
Pin Signal Pin Signal
1 RED 9 V
CC
2 GREEN 10 GND
3 BLUE 11 N/C
4 N/C 12 SDT
5 GND 13 H-SYNC
6 GND 14 V-SYNC
7 GND 15 SCK
8 GND
Appendix B Pin Assignments
87
B.6 Keyboard and Mouse Connnector
(CN11)
6
4
Table B-9: Keyboard and mouse connector (CN11)
Pin Signal
1 KB DATA
2 MS DATA
3 GND
4V
5 KB CLOCK
6 MS CLOCK
CC
5
3
12
B.7 External Keyboard Connector (CN12)
Table B-10: External keyboard connector (CN12)
Pin Signal
1 CLK
2DATA
3NC
4 GND
5V
CC
88
PCA-6180 User's Manual
