PCA-6002-B
PCI/ISA Bus CPU card with
Low Voltage Intel® Celeron®
processor
Users Manual
Ultra
Copyright notice
This document is copyrighted, 2004, by Advantech Co., Ltd. All rights
are reserved. Advantech Co., Ltd. reserves the right to make improvements to the products described in this manual at any time without notice.
No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written permission of
Advantech Co., Ltd. Information provided in this manual is intended to
be accurate and reliable. However, Advantech Co., Ltd. assumes no
responsibility for its use, nor for any infringements upon the rights of
third parties which may result from its use.
Acknowledgements
•AWARD is a trademark of Phoenix Technologies Ltd.
•IBM and PC are trademarks of International Business Machines Corporation.
•Intel®, Pentium® III, and Celeron® are trademarks of Intel Corporation.
•MS-DOS is a trademark of Microsoft Corporation.
•SMC is a trademark of Standard Microsystems Corporation.
•WinBond is a trademark of Winbond Corporation.
All other product names or trademarks are the properties of their respective owners.
Part No. 2002600232
3rd Edition Printed in Taiwan April 2004
PCA-6002-B, Ed. 1 User’s Manual ii
A Message to the Customer
Advantech customer services
Each and every Advantech product is built to the most exacting specifications to ensure reliable performance in the harsh and
demanding conditions typical of industrial environments. Whether your
new Advantech equipment is destined for the laboratory or the factory
floor, you can be assured that your product will provide the reliability and
ease of operation for which the name Advantech has come to be known.
Your satisfaction is our primary concern. Here is a guide to
Advantech’s customer services. To ensure you get the full benefit of our
services, please follow the instructions below carefully.
Technical support
We want you to get the maximum performance from your products. So if
you run into technical difficulties, we are here to help. For the most frequently asked questions, you can easily find answers in your product documentation. These answers are normally a lot more detailed than the ones
we can give over the phone.
So please consult this manual first. If you still cannot find the answer,
gather all the information or questions that apply to your problem, and
with the product close at hand, call your dealer. Our dealers are well
trained and ready to give you the support you need to get the most from
your Advantech products. In fact, most problems reported are minor and
are able to be easily solved over the phone.
In addition, free technical support is available from Advantech engineers
every business day. We are always ready to give advice on application
requirements or specific information on the installation and operation of
any of our products.
iii
ULV Celeron ®
650MHz
ULV Celeron ®
650MHz
ULV Celeron ®
400MHz
400MHz
VVVV
256
PCA-6002-B series comparison table
Model PCA-6002VE-00B1 PCA-6002E2-00B1 PCA-6002VE-03B1 PCA-6002E2-03B1
CPU : ULV Celeron ®
System chipset : Intel
815E
L2 cache: 128 KB 256 KB 256 KB 256 KB
VVVV
Single LAN Dual LAN Single LAN Dual LAN
USB port2424
VGA : Intel 815E
integrated VGA
Dual 10/100Base-T
Ethernet LAN (Intel
82562/ Intel 82551)
PCA-6002-B, Ed. 1 User’s Manual iv
Product warranty
Advantech warrants to you, the original purchaser, that each of its products will be free from defects in materials and workmanship for two years
from the date of purchase.
This warranty does not apply to any products which have been repaired or
altered by persons other than repair personnel authorized by Advantech,
or which have been subject to misuse, abuse, accident or improper installation. Advantech assumes no liability under the terms of this warranty as
a consequence of such events.
If an Advantech product is defective, it will be repaired or replaced at no
charge during the warranty period. For out-of-warranty repairs, you will
be billed according to the cost of replacement materials, service time and
freight. Please consult your dealer for more details.
If you think you have a defective product, follow these steps:
1. Collect all the information about the problem encountered. (For
example, type of PC, CPU speed, Advantech products used, other
hardware and software used, etc.) Note anything abnormal and list
any on-screen messages you get when the problem occurs.
2. Call your dealer and describe the problem. Please have your manual, product, and any helpful information readily available.
3. If your product is diagnosed as defective, obtain an RMA (return
material authorization) number from your dealer. This allows us to
process your return more quickly.
4. Carefully pack the defective product, a fully-completed Repair and
Replacement Order Card and a photocopy proof of purchase date
(such as your sales receipt) in a shippable container. A product
returned without proof of the purchase date is not eligible for warranty service.
5. Write the RMA number visibly on the outside of the package and
ship it prepaid to your dealer.
v
Initial Inspection
Before you begin installing your card, please make sure that the following
materials have been shipped:
• 1 PCA-6002-B Ultra Low Voltage Celeron® processor
-based single board computer
• 1 PCA-6002-B Startup Manual
• 1 CD with driver utility and manual (in PDF format)
• 1 FDD cable, P/N: 1700340640
• 2 Ultra ATA 100 HDD cables, P/N: 1701400452
• 1 printer (parallel port) cable & COM port cable kit,
P/N: 1701260305
• 1 ivory cable for PS/2 keyboard and PS/2 mouse,
P/N: 1700060202 (Optional)
• 1 single-slot bracket, P/N: 1962159010 (optional)
• 1 USB cable adapter, P/N: 1700100170 (optional)
If any of these items are missing or damaged, contact your distributor or
sales representative immediately.
We have carefully inspected the PCA-6002-B mechanically and
electrically before shipment. It should be free of marks and scratches and
in perfect working order upon receipt.
As you unpack the PCA-6002-B, check it for signs of shipping damage.
(For example, damaged box, scratches, dents, etc.) If it is damaged or it
fails to meet the specifications, notify our service department or your
local sales representative immediately. Also notify the carrier. Retain the
shipping carton and packing material for inspection by the carrier. After
inspection, we will make arrangements to repair or replace the unit.
PCA-6002-B, Ed. 1 User’s Manual vi
Contents
Chapter 1 Hardware Configuration .................................2
1.1 Introduction ....................................................................... 2
1.2 Features ............................................................................. 3
1.3 Specifications .................................................................... 4
1.3.1 System............................................................................. 4
1.3.2 Memory........................................................................... 4
1.3.3 Input/Output ................................................................... 4
1.3.4 VGA interface ................................................................. 5
1.3.5 Ethernet LAN.................................................................. 5
1.3.6 Industrial features ........................................................... 5
1.3.7 Mechanical and environmental specifications ................ 5
1.4 Jumpers and Connectors.................................................... 6
Table 1.1:Jumpers ........................................................... 6
Table 1.2:Connectors...................................................... 6
1.5 Location of Jumpers and Connectors ................................ 8
Figure 1.1:Location of jumpers and connectors ............. 8
1.6 Safety Precautions ................................................................. 9
1.7 Jumper Settings ................................................................. 9
1.7.1 How to set the jumpers ................................................... 9
1.7.2 CMOS clear (J1) ........................................................... 10
Table 1.3:CMOS clear (J1) ........................................... 10
1.7.3 Watchdog timer output (J2) .......................................... 10
Table 1.4:Watchdog timer output (J2).......................... 10
1.8 System Memory .............................................................. 11
Table 1.5:DIMM module allocation table .................... 11
1.8.1 Sample calculation: DIMM memory capacity.............. 11
Table 1.6:DIMM memory capacity sample calculation11
1.9 Memory Installation Procedures ..................................... 12
1.10 Cache Memory ................................................................ 12
Chapter 2 Connecting Peripherals .................................14
2.1 Introduction ..................................................................... 14
2.2 Primary (CN1) and Secondary (CN2) IDE Connectors .. 14
2.3 Floppy Drive Connector (CN3)....................................... 15
2.4 Parallel Port (CN4).......................................................... 16
2.5 USB Ports (CN6, CN31, and CN32)............................... 16
2.6 VGA Connector (CN7) ................................................... 17
2.7 10/100Base-T Ethernet Connectors (CN8 and CN34).... 17
2.8 Serial Ports (CN9: COM1; CN10: COM2) ..................... 18
Table 2.1:Serial port connections (COM1, COM2) ..... 18
2.9 PS/2 Keyboard and Mouse Conn (CN11/33) .................. 19
vii
2.10 External Keyboard Connector (CN12)............................ 19
2.11 Infrared (IR) Connector (CN13) ..................................... 20
2.12 CPU Fan Connector (CN14) ........................................... 20
2.13 Front Panel Connectors (CN16, 17, 18, 19, 21&22)....... 21
2.13.1 Power LED (CN16) ...................................................... 21
Table 2.2:PS/2 or ATX power supply LED status........ 21
2.13.2 External speaker (CN17) .............................................. 21
2.13.3 Reset (CN18) ................................................................ 22
2.13.4 HDD LED (CN19)........................................................ 22
2.13.5 ATX soft power switch (CN21).................................... 22
2.13.6 ATX Power Control Connectors (CN20) ..................... 22
2.14 SM Bus Connector (CN29) ............................................. 23
2.15 Connecting to SNMP-1000 remote manager .................. 23
Chapter 3 Award BIOS Setup.........................................26
3.1 Introduction ..................................................................... 26
3.1.1 CMOS RAM Auto-backup and Restore ....................... 26
3.2 Entering Setup ................................................................. 27
Figure 3.1:Award BIOS Setup initial screen ................ 27
3.3 Standard CMOS Setup .................................................... 27
Figure 3.2:Standard CMOS features screen ................. 27
3.4 Advanced BIOS Features ................................................ 28
Figure 3.3:Advanced BIOS features screen.................. 28
3.4.1 Virus Warning............................................................... 28
3.4.2 CPU Internal Cache / External Cache........................... 28
3.4.3 CPU L2 Cache ECC Checking ..................................... 28
3.4.4 Processor Number Feature............................................ 28
3.4.5 Quick Power On Self Test ............................................ 29
3.4.6 First/Second/Third/Other Boot Device ......................... 29
3.4.7 Swap Floppy Drive ....................................................... 29
3.4.8 Boot UP Floppy Seek ................................................... 29
3.4.9 Boot Up NumLock Status............................................. 29
3.4.10 Gate A20 Option........................................................... 29
3.4.11 Typematic Rate Setting................................................. 29
3.4.12 Typematic Rate (Chars/Sec) ......................................... 29
3.4.13 Typematic Delay (msec) ............................................... 29
3.4.14 Security Option ............................................................. 29
3.4.15 OS Select for DRAM > 64MB ..................................... 30
3.4.16 Report No FDD for WIN 95......................................... 30

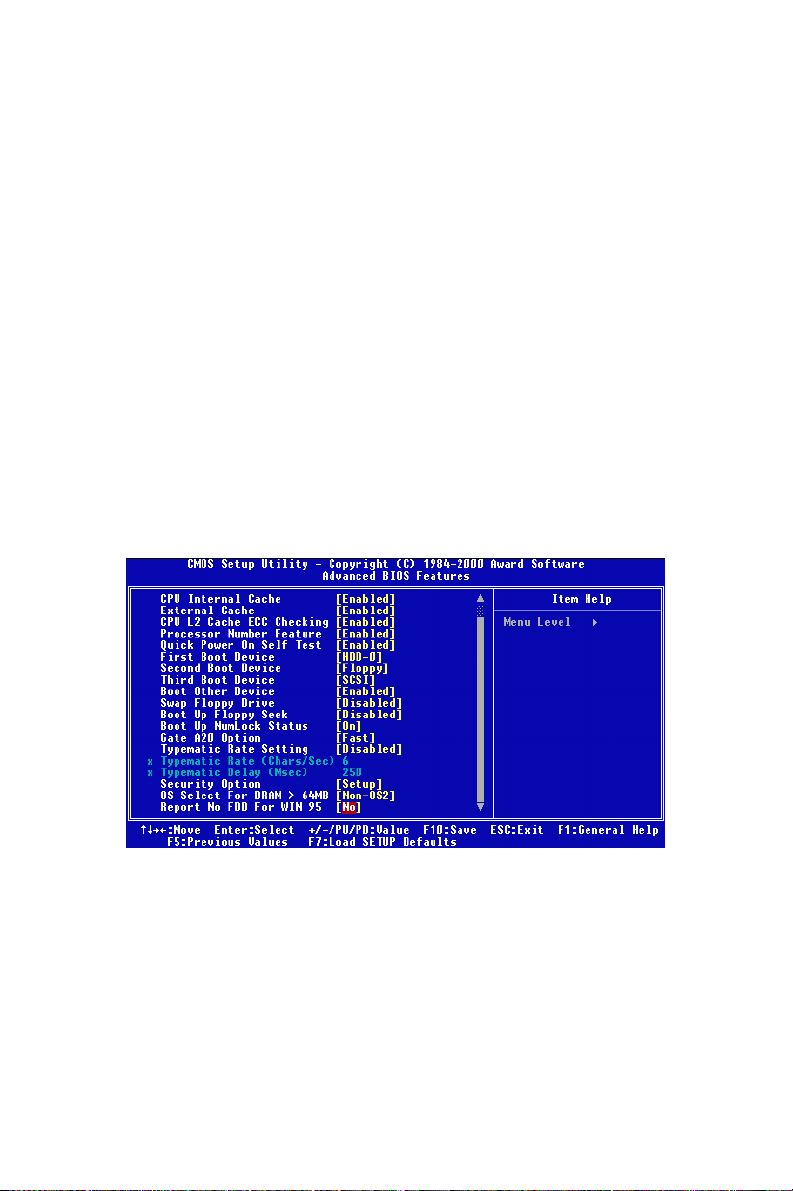

Figure 3.4:Advanced BIOS features screen.................. 30
3.5 Advanced Chipset Features ............................................. 31
Figure 3.5:Advanced chipset features screen ............... 31
3.5.1 SDRAM CAS Latency Time ........................................ 31
3.5.2 SDRAM Cycle Time Tras/Trc...................................... 31
3.5.3 SDRAM RAS-to-CAS Delay ....................................... 31
PCA-6002-B User’s Manual viii
3.5.4 SDRAM RAS Precharge Time ..................................... 31
3.5.5 System BIOS Cacheable............................................... 32
3.5.6 Video Bios Cacheable................................................... 32
3.5.7 Memory Hole At 15M-16M ......................................... 32
3.5.8 CPU Latency Timer ...................................................... 32
3.5.9 Delayed Transaction ..................................................... 32
3.5.10 AGP Graphics Aperture Size ........................................ 32
3.5.11 On-Chip Video Window Size ....................................... 32
3.6 Integrated Peripherals...................................................... 32
3.6.1 On-Chip Primary/Secondary PCI IDE.......................... 32
3.6.2 IDE Primary Master/Slave PIO/UDMA Mode............. 33

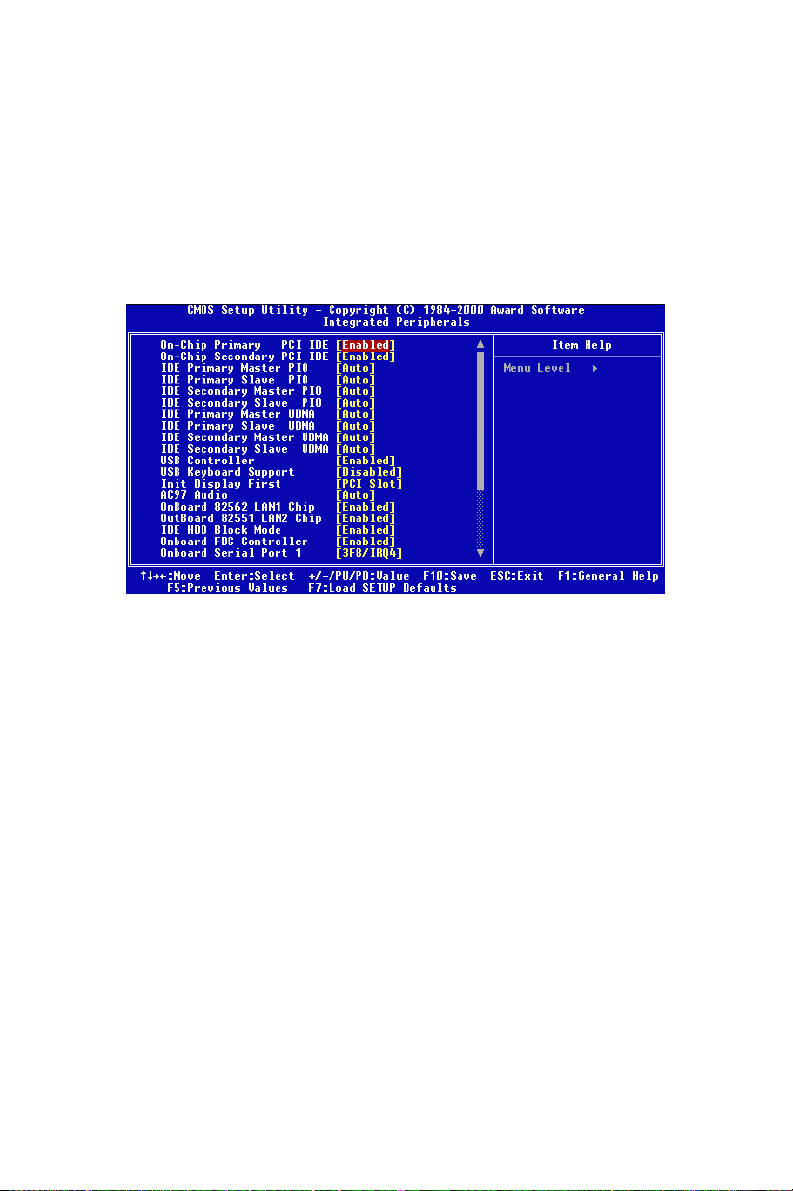

Figure 3.6:Integrated peripherals .................................. 33
3.6.3 USB Controller ............................................................. 33
3.6.4 USB Keyboard Support ................................................ 33
3.6.5 Init Display First ........................................................... 33
3.6.6 AC97 Audio.................................................................. 33
3.6.7 OnBoard 82562 LAN1 Chip ......................................... 33
3.6.8 OutBoard 82551 LAN2 Chip........................................ 34
3.6.9 IDE HDD Block Mode ................................................. 34
3.6.10 Onboard FDC Controller .............................................. 34
3.6.11 Onboard Serial Port 1 (3F8/IRQ4)................................ 34
3.6.12 Onboard Serial Port 2 (2F8/IRQ3)................................ 34
3.6.13 UART Mode Select ...................................................... 34
Figure 3.7:Integrated peripherals (2) ............................ 34
3.6.14 RxD, TxD Active.......................................................... 35
3.6.15 IR Transmission Delay ................................................. 35
3.6.16 UR2 Duplex Mode........................................................ 35
3.6.17 Use IR Pins ................................................................... 35
3.6.18 Onboard Parallel Port (378/IRQ7)................................ 35
3.6.19 Parallel Port Mode (ECP + EPP) .................................. 35
3.6.20 EPP Mode Select .......................................................... 35
3.6.21 ECP Mode Use DMA ................................................... 35
3.7 Power Management Setup............................................... 36
Figure 3.8:Power management setup screen (1)........... 36
3.7.1 Power-Supply Type ..................................................... 36
3.7.2 ACPI Function .............................................................. 36
3.7.3 Power Management ...................................................... 36
3.7.4 Video Off Method......................................................... 36
3.7.5 Video Off In Suspend .................................................. 36
3.7.6 Modem Use IRQ........................................................... 36
3.7.7 Suspend Mode............................................................... 36
3.7.8 HDD Power Down ........................................................ 37
3.7.9 Soft-Off by PWR-BTTN .............................................. 37
3.7.10 PowerOn By LAN ........................................................ 37
3.7.11 PowerOn By Modem .................................................... 37
ix
3.7.12 PowerOn By Alarm ...................................................... 37
3.7.13 CPU Thermal-Throttling............................................... 37
Figure 3.9:Power management setup screen (2)........... 38
3.8 PnP/PCI Configurations .................................................. 38
3.8.1 PnP OS Installed ........................................................... 38
3.8.2 Reset Configuration Data.............................................. 38
3.8.3 Resources controlled by:............................................... 38
Figure 3.10:PnP/PCI configurations screen.................. 39
3.8.4 PCI/VGA Palette Snoop ............................................... 39
3.8.5 Assign IRQ for VGA .................................................... 39
3.9 PC Health Status.............................................................. 39
3.9.1 CPU Warning Temperature .......................................... 39
Figure 3.11:PC health status screen .............................. 40
3.9.2 Current CPU Temperature ............................................ 40
3.9.3 Current CPUFAN Speed............................................... 40
3.10 Password Setting ............................................................. 40
3.11 Save & Exit Setup ........................................................... 41
3.12 Exit Without Saving ........................................................ 41
Chapter 4 Chipset Software Installation Utility............44
4.1 Before you begin ............................................................. 44
4.2 Introduction ..................................................................... 44

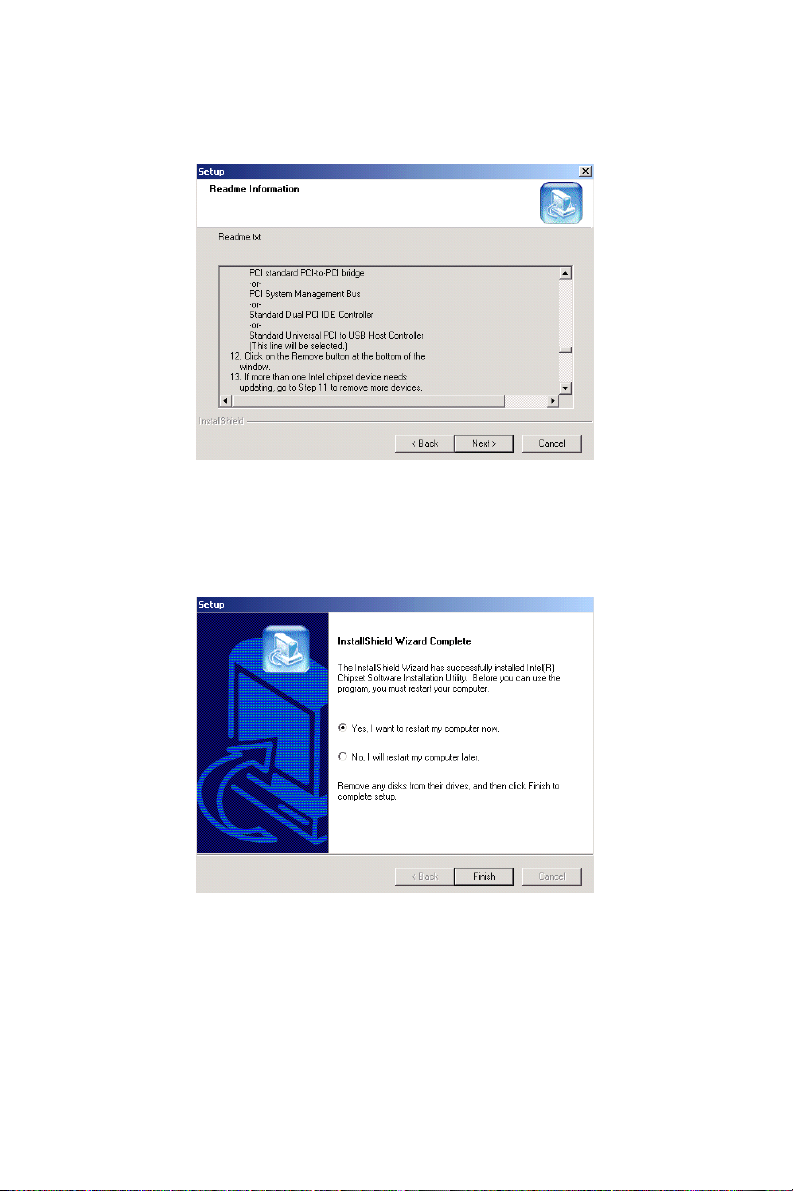

4.3 Windows 2000 Drivers Setup Procedure ........................ 45
4.4 Windows XP Drivers Setup Procedure ........................... 48
Chapter 5 AGP SVGA Setup ..........................................52
5.1 Introduction ..................................................................... 52
5.2 Features ........................................................................... 52
Chapter 6 LAN Configuration ........................................56
6.1 Introduction ..................................................................... 56
6.2 Features ........................................................................... 56
6.3 Installation ....................................................................... 57
6.4 Windows 2000 Drivers Setup Procedure ........................ 57

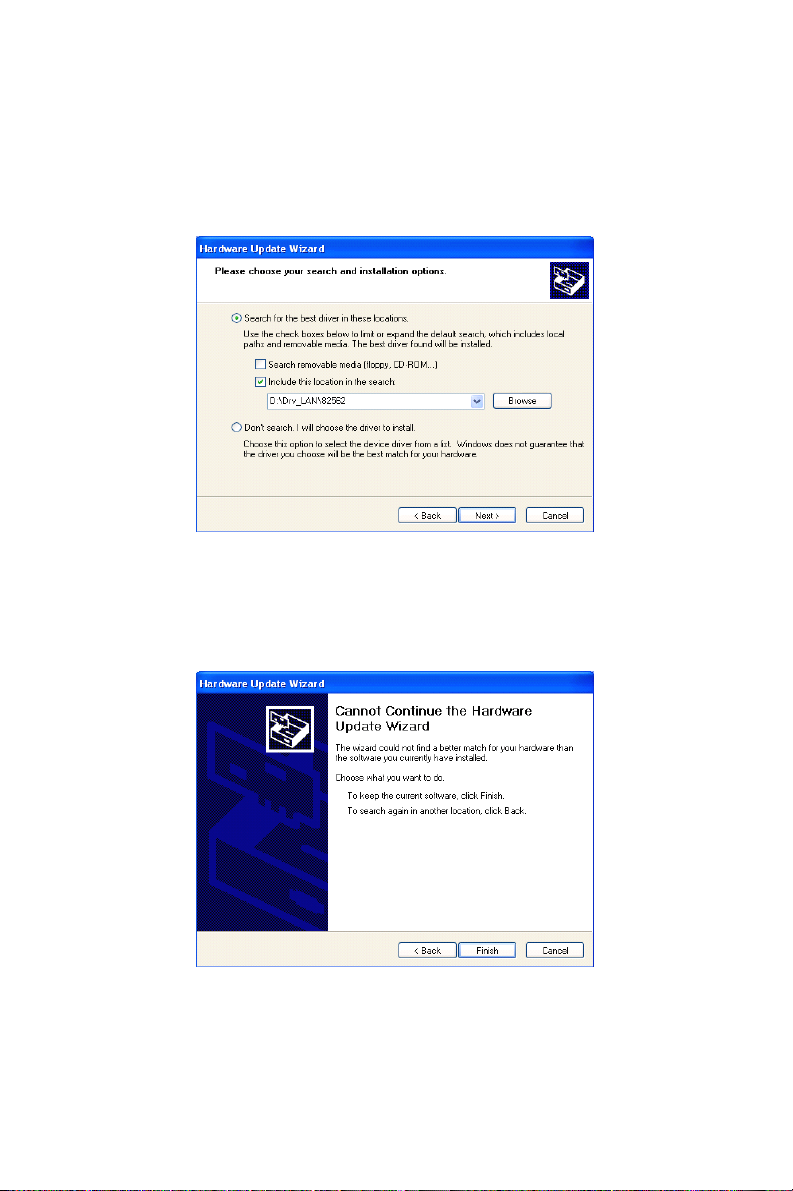

6.5 Windows XP Drivers Setup Procedure ........................... 62
Chapter 7 Ultra ATA Storage Driver Setup ..................66
7.1 Introduction ..................................................................... 66
7.2 Features ........................................................................... 66

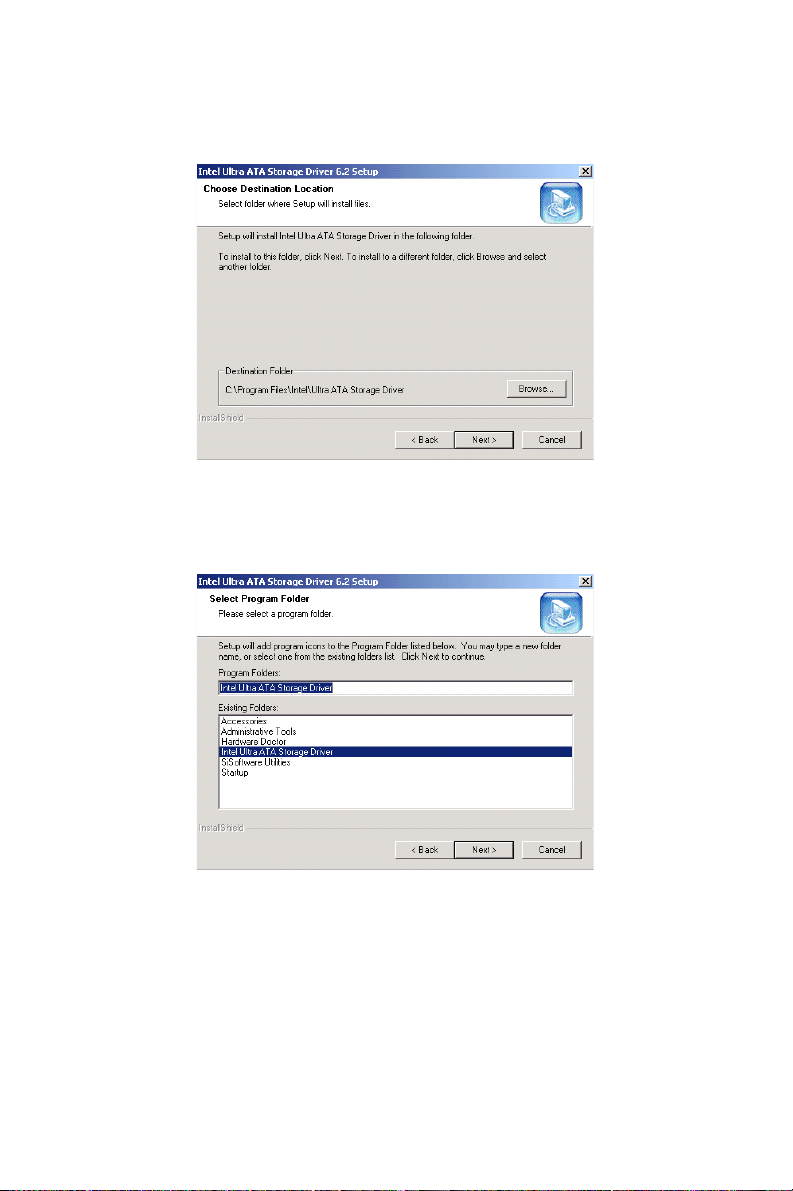

7.3 Windows 2000 Drivers Setup Procedure ........................ 67
7.4 Displaying Driver Information........................................ 70
Chapter 8 Onboard Security Setup ................................74
8.1 Introduction ..................................................................... 74
8.2 Windows 2000 Drivers Setup Procedure ........................ 75
8.3 Using the OBS Hardware Doctor Utility ........................ 77
PCA-6002-B User’s Manual x
Chapter 9 SCSI Setup and Configuration .....................80
9.1 Introduction ..................................................................... 80
9.2 Understanding SCSI ........................................................ 81
9.3 SCSI IDs.......................................................................... 81
9.4 Terminating the SCSI Bus............................................ 82
9.5 Configuring the SCSI interface with SCSISelect............ 83
9.6 Starting SCSISelect ........................................................ 85
9.7 Using SCSI Disk Utilities ............................................... 89
9.8 Installation under Windows 2000 .................................. 90
Appendix A Programming the watchdog timer...............92
A.1 Programming the Watchdog Timer................................. 92
A.1.1 Watchdog timer overview............................................. 92
A.1.2 Reset/ Interrupt selection .............................................. 92
A.1.3 Programming the Watchdog Timer .............................. 92
Table A.1:Watchdog timer registers ............................. 95
A.1.4 Example Program ......................................................... 95
Appendix B Pin Assignments ..........................................102
B.1 IDE Hard Drive Connector (CN1, CN2)....................... 102
Table B.1:IDE hard drive connector (CN1, CN2)...... 102
B.2 Floppy Drive Connector (CN3)..................................... 104
Table B.2:Floppy drive connector (CN3)................... 104
B.3 Parallel Port Connector (CN4) ...................................... 105
Table B.3:Parallel port connector (CN4) .................... 105
B.4 USB Connector (CN6) .................................................. 106
Table B.4:USB1/USB2 connector (CN6)................... 106
B.5 VGA Connector (CN7) ................................................. 107
Table B.5:VGA connector (CN7) ............................... 107
B.6 Ethernet 10/100Base-T RJ-45 Conn(CN8/34) .............. 107
Table B.6:10/100Base-T RJ-45 conn(CN8/34) .......... 107
B.7 COM1/COM2 RS-232 Serial Port (CN9, CN10).......... 108
Table B.7:COM1/2 RS-232 serial port (CN9/10)....... 108
B.8 Keyboard & Mouse connector (CN11) ......................... 109
Table B.8:Keyboard & Mouse connector (CN11)...... 109
B.9 External Keyboard Connector (CN12).......................... 109
Table B.9:External keyboard connector (CN12) ........ 109
B.10 IR Connector (CN13). ................................................... 110
Table B.10:IR connector (CN13)................................ 110
B.11 CPU Fan Power Connector (CN14) .............................. 110
Table B.11:CPU fan power connector (CN14)........... 110
B.12 Power LED Connector (CN16) ..................................... 111
Table B.12:Power LED & keylock conn (CN16)....... 111
B.13 External Speaker Connector (CN17)............................. 111
xi
Table B.13:External speaker (CN17).......................... 111
B.14 Reset Connector (CN18) ............................................... 112
Table B.14:Reset connector (CN18)........................... 112
B.15 HDD LED Connector (CN19)....................................... 112
Table B.15:HDD LED connector (CN19) .................. 112
B.16 ATX Feature Connector (CN20)................................... 113
Table B.16:ATX feature connector (CN20) ............... 113
B.17 ATX Soft Power Switch (CN21)) ................................. 113
Table B.17:ATX soft power switch (CN21)............... 113
B.18 H/W Monitor Alarm (CN22)......................................... 114
Table B.18:H/W monitor alarm (CN22)..................... 114
B.19 SM Bus Connector (CN29) ........................................... 114
Table B.19:SM Bus Connector (CN29)...................... 114
B.20 Extension I/O Board Connector (CN27) ....................... 115
Table B.20:Extension I/O board connector (CN27) ... 115
B.21 Extension I/O Board Connector (CN28) ....................... 116
Table B.21:Extension I/O board connector (CN28) ... 116
B.22 PS/2 Mouse Connector (CN33)..................................... 117
Table B.22:PS/2 mouse connector (CN33)................. 117
B.23 System I/O Ports............................................................ 117
Table B.23:System I/O ports ...................................... 117
B.24 DMA Channel Assignments.......................................... 119
Table B.24:DMA channel assignments ...................... 119
B.25 Interrupt Assignments ................................................... 119
Table B.25:Interrupt assignments ............................... 119
B.26 1st MB Memory Map .................................................... 120
Table B.26:1st MB memory map ............................... 120
B.27 PCI Bus Map ................................................................. 121
Table B.27:PCI bus map ............................................. 121
PCA-6002-B User’s Manual xii
2
1
CHAPTER
Hardware Configuration
This chapter gives background information on the PCA-6002-B. It then
shows you how to configure the card to
match your application and prepare it
for installation into your PC.
• Introduction
• Features
• Specifications
• Board Layout
• Jumpers and Connectors
• Safety Precautions
• Jumper Settings
• System Memory
• Memory Installation Procedures
• Cache Memory
Chapter 1 Hardware Configuration
1.1 Introduction
The PCA-6002-B Series all-in-one industrial grade CPU card uses
Intel®'s highly acclaimed Ultra Low Voltage Celeron® 400/650 MHz
processor together with the Intel® 815E chipset. The card works with
standard ISA or PCI/ISA-bus passive backplanes.
The CPU provides 256 KB on-CPU L2 cache, eliminating the need for
external SRAM chips. It has two PCI EIDE interfaces (for up to four
devices) and a floppy disk drive interface (for up to two devices). Other
features include two RS-232 serial ports (16C550 UARTs with 16-byte
FIFO or compatible), one enhanced parallel port and four USB (Universal
Serial Bus) ports. The PCI enhanced IDE controller supports Ultra ATA/
100/66/33 and PIO Mode 4 operation. This provides data transfer rates of
over 100/66/33 MB/sec. System BIOS supports boot-up from an IDE
CD-ROM and LS-120.
A backup of CMOS data is stored in the Flash memory, which protects
data even after a battery failure. Also included is a 255-level watchdog
timer, which resets the CPU or generates an interrupt if a program cannot
be executed normally. This enables reliable operation in unattended environments.
The PCA-6002-B Series offers several impressive industrial features such
as a chipset integrated VGA (AGP) controller, dual 10/100Base-T networking controllers, two DIMM slots for a total of 512 MB SDRAM
memory, and an ISA High Drive. All these make it an ideal choice for
applications that require both high performance and full functionality.
The remote management interface enables the PCA-6002-B to be managed through Ethernet when it is connected to the SNMP-1000 Remote
HTTP/SNMP System Manager.
Note: Some of the features mentioned above are not
available with all models. For more information
about the specifications of a particular model,
see Section 1.3: Specifications.
PCA-6002-B User’s Manual 2
1.2 Features
1. Low-power CPU for fanless operation: The PCA-6002-B uses
Intel's ultra low voltage Celeron CPU, which consumes less power
and operates without a cooling fan.
2. Temperature monitoring and alert: To prevent system overheat-
ing and damage, the CPU card supports processor thermal sensing
and auto-protection.
3. Voltage monitoring and alert: System voltage levels are moni-
tored to ensure stable current flows to critical components. Voltage
specifications will become even more critical for processors of the
future. Thus monitoring will become ever more necessary to ensure
proper system configuration and management.
4. ATX soft power switch: Through the BIOS, the power button can
be defined as the "Standby" (aka "Suspend" or "Sleep") button or as
the "Soft-Off" button (see Section 3.7.5 Soft-off by PWR-BTN).
Regardless of the setting, pushing the power button for more than 4
seconds will enter the Soft-Off mode.
5. Power-on by modem (requires modem): This allows a computer
to be turned on remotely through an internal or external modem.
Users can thus access information on their computers from anywhere in the world.
6. Power-on by LAN: This allows you to remotely power up your
system through your network by sending a wake-up frame or signal. With this feature, you can remotely upload/ download data to/
from systems during off-peak hours.
7. Message LED: Chassis LEDs now act as information providers.
The way a particular LED illuminates indicates the stage the computer is in. A single glimpse provides useful information to the
user.
8. CMOS RAM backup: When BIOS CMOS setup has been completed, data in the CMOS RAM is automatically backed up to the
Flash ROM. This is particularly useful in industrial environments
which may cause soft errors. Upon such an error occurring, BIOS
will check the data, and automatically restore the original data for
booting.
3 Chapter 1
9. More:
• Power On by Alarm: Powers up your computer at a certain time
• Virus warning: During and after system boot-up, any attempt to
write to the boot sector or partition table of the hard disk drive will
halt the system. In this case, a warning message will be displayed.
You can then run your anti-virus program to locate the problem
1.3 Specifications
1.3.1 System
• CPU: PCA-6002-B supports Intel Ultra Low Voltage Celeron®
400/650MHz.
• BIOS: Award Flash BIOS (4Mb Flash Memory)
• System Chipset: Intel® 815E chipset
• PCI enhanced IDE hard disk drive interface: Supports up to
four IDE (AT-bus) large hard disk drives or other enhanced IDE
devices. Supports PIO mode 4 (16.67 MB/s data transfer rate) and
Ultra ATA 100/66/33 (100/66/33 MB/s data transfer rate). BIOS
enabled/disabled
• Floppy disk drive interface: Supports up to two floppy disk
drives, 5¼" (360 KB and 1.2 MB) and/or 3½" (720 KB, 1.44 MB).
BIOS enabled/disabled
1.3.2 Memory
• RAM: Up to 512 MB in two 168-pin DIMM sockets.
Supports PC100/ PC133-compliant SDRAMs
• ECC ( parity) DRAM not supported
1.3.3 Input/Output
• Bus interface: PCI/ISA bus, PICMG compliant
• Enhanced parallel port: Configurable to LPT1, LPT2, LPT3, or
disabled. Standard DB-25 female connector provided. Supports
EPP/SPP/ECP
• Serial ports: Two RS-232 ports with 16C550 UARTs
(or compatible) with 16-byte FIFO buffer. Supports speeds up to
115.2 Kbps. Ports can be individually configured to COM1, COM2
or disabled
PCA-6002-B User’s Manual 4
• Keyboard and PS/2 mouse connector: Two 6-pin mini-DIN
connector is located on the mounting bracket for easy connection to
a keyboard or PS/2 mouse. An onboard keyboard pin header
connector is also available
1.3.4 VGA interface
• Controller: Chipset integrated
• Display memory: sh ared from system me mory up to
11MB SDRAM
1.3.5 Ethernet LAN
• Supports dual 10/100Base-T Ethernet networking
• Chipset: One on-board Intel® 82551QM and one chipset
integrated LAN controller (82562ET)
1.3.6 Industrial features
• Watchdog timer: Can generate a system reset or IRQ11. The
watchdog timer is programmable, with each unit equal to one
minute (255 levels).
1.3.7 Mechanical and environmental specifications
• Operating temperature: 0°~60° C (32° ~ 140° F, Depending on
CPU)
• Storage temperature: -20°~ 70° C (-4° ~ 158° F)
• Humidity: 20 ~ 95% non-condensing
• Power supply voltage: +5 V, ±12 V
• Power consumption:
Typical: +5V @3.4A, +12V@110mA (Ultra Low Voltage
Celeron®650MHz, 256MB SDRAM)
• Board size: 338 x 122 mm (13.3" x 4.8")
• Board weight: 0.5 kg (1.2 lb)
5 Chapter 1
1.4 Jumpers and Connectors
Connectors on the PCA-6002-B board link it to external devices such as
hard disk drives and a keyboard. In addition, the board has a number of
jumpers used to configure your system for your application.
The tables below list the function of each of the board jumpers and connectors. Later sections in this chapter give instructions on setting jumpers. Chapter 2 gives instructions for connecting external devices to your
card.
Table 1.1: Jumpers
Label Function
J1 CMOS clear
J2 Watchdog timer output selection
Table 1.2: Connectors
Label Function
CN1 Primary IDE connector
CN2 Secondary IDE connector
CN3 Floppy drive connector
CN4 Parallel port
CN6 USB port
CN7 VGA connector
CN8 10/100Base-T Ethernet connector 1
CN9 Serial port: COM1
CN10 Serial port: COM2
CN11 PS/2 keyboard and mouse connector
CN12 External keyboard connector
CN13 Infrared (IR) connector
CN14 CPU fan connector
PCA-6002-B User’s Manual 6
Table 1.2: Connectors
CN16 Power LED/ KB Lock connector
CN17 External speaker
CN18 Reset connector
CN19 HDD LED connector
CN20 ATX feature connector
CN21 ATX soft power switch
CN22 H/W monitor alarm: close - enable OBS alarm
open - disable OBS alarm
CN27 Connector to extension I/O board
CN28 Connector to extension I/O board
CN29 SM BUS
PIN1: SMB_DATA
PIN2: SMB_CLOCK
CN31 USB port 0,1
CN32 USB port 2,3
CN33 PS/2 keyboard and mouse connector
CN34 10/100Base-T Ethernet connector 2
CN43 AC-97 Audio extension interface
CN44 CompactFlash socket
7 Chapter 1
1.5 Location of Jumpers and Connectors
CN7
CN8
CN9
CN6
CN11
CN10
CN4
CN3
CN20
DIMM1 DIMM2
CN29
CN18
CN21
CN22
CN2
CN1
CN19
CN17
CN28
CN27
CN13
J2
J1
CN14
CN16
CN44
CN12
CN43
CN30
U22
CPU_1
Figure 1.1: Location of jumpers and connectors
PCA-6002-B User’s Manual 8
1.6 Safety Precautions
Warning! Always completely disconnect the power cord
from your chassis whenever you work with the
hardware. Do not make connections while the
power is on. Sensitive electronic components
can be damaged by sudden power surges. Only
experienced electronics personnel should open
the PC chassis.
Caution! Always ground yourself to remove any static
charge before touching the CPU card. Modern
electronic devices are very sensitive to static
electric charges. As a safety precaution, use a
grounding wrist strap at all times. Place all electronic components on a static-dissipative surface or in a static-shielded bag when they are
not in the chassis.
1.7 Jumper Settings
This section provides instructions on how to configure your card by setting the jumpers. It also includes the card's default settings and your
options for each jumper.
1.7.1 How to set the jumpers
You configure your card to match the needs of your application by setting
the jumpers. A jumper is a metal bridge that closes an electrical circuit. It
consists of two metal pins and a small metal clip (often protected by a
plastic cover) that slides over the pins to connect them. To “close” (or
turn ON) a jumper, you connect the pins with the clip. To “open” (or turn
OFF) a jumper, you remove the clip. Sometimes a jumper consists of a set
of three pins, labeled 1, 2, and 3. In this case you connect either pins 1
and 2, or 2 and 3. A pair of needle-nose pliers may be useful when setting
jumpers.
9 Chapter 1
1.7.2 CMOS clear (J1)
1
The PCA-6002-B CPU card contains a jumper that can erase CMOS data
and reset the system BIOS information. Normally this jumper should be
set with pins 1-2 closed. If you want to reset the CMOS data, set J1 to 2-3
closed for just a few seconds, and then move the jumper back to 1-2
closed. This procedure will reset the CMOS to its default setting.
Table 1.3: CMOS clear (J1)
Function Jumper setting
* Keep CMOS data 1-2 closed
Clear CMOS data 2-3 closed
* default setting
1.7.3 Watchdog timer output (J2)
The PCA-6002-B contains a watchdog timer that will reset the CPU or
send a signal to IRQ11 in the event the CPU stops processing. This feature means the PCA-6002-B will recover from a software failure or an
EMI problem. The J2 jumper settings control the outcome of what the
computer will do in the event the watchdog timer is tripped.
Table 1.4: Watchdog timer output (J2)
Function Jumper setting
IRQ11 1-2 closed
1
* Reset 2-3 closed
* default setting
PCA-6002-B User’s Manual 10
Note: The interrupt output of the watchdog timer is a
low level signal. It will be held low until the
watchdog timer is reset.
1.8 System Memory
The top-left edge of the PCA-6002-B contains two sockets for 168-pin
dual in-line memory modules (DIMMs). All two sockets use 3.3 V unbuffered synchronous DRAMs (SDRAM). DIMMs are available in capacities of 16, 32, 64, 128, or 256 MB. The sockets can be filled in any
combination with DIMMs of any size, giving your PCA-6002-B single
board computer between 16 MB and 512 MB of memory. Use the following table to calculate the total DRAM memory within your computer:
Table 1.5: DIMM module allocation table
Socket number 168-pin DIMM memory
1 (16, 32, 64, 128, or 256 MB) x 1
2 (16, 32, 64, 128, or 256 MB) x 1
1.8.1 Sample calculation: DIMM memory capacity
Suppose you install a 128 MB DIMM into your PCA-6002-B's socket 1
and a 32 MB DIMM into sockets 2. Your total system memory is 160
MB, calculated as follows:
Table 1.6: DIMM memory capacity sample calculation
Socket number 168-pin DIMM memory Total memory
1 128 MB x 1 128 MB
2 32 MB x 1 32 MB
Total memory 160 MB
11 Chapter 1
1.9 Memory Installation Procedures
To install DIMMs, first make sure the two handles of the DIMM socket
are in the "open" position (i.e., the handles lean outward). Slowly slide
the DIMM module along the plastic guides on both ends of the socket.
Then press the DIMM module right down into the socket, until you hear a
click. This is when the two handles have automatically locked the memory module into the correct position of the DIMM socket. To remove the
memory module, just push both handles outward, and the memory module will be ejected by the mechanism in the socket.
1.10 Cache Memory
Since the second-level (L2) cache has been embedded into the Intel ®
BGA Celeron ™ processor, you do not have to take care of either SRAM
chips or SRAM modules. The built-in second-level cache in the processor
yields much higher performance than the external cache memories. The
cache size in the Intel® BGA Celeron processor is 256 KB.
PCA-6002-B User’s Manual 12
2
2
CHAPTER
Connecting Peripherals
This chapter tells how to connect
peripherals, switches, and indicators to
the PCA-6002-B board.
Chapter 2 Connecting Peripherals
2.1 Introduction
You can access most of the connectors from the top of the board while it
is installed in the chassis. If you have a number of cards installed or have
a packed chassis, you may need to partially remove the card to make all
the connections.
Note: If your chassis has only one empty expansion
slot to accommodate the CPU card, you can
replace the standard dual-slot bracket with the
single-slot bracket included in your PCA-6002B package, in which case you will have to
access the connectors (CN31~34) on the
extension I/O board from inside the chassis.
2.2 Primary (CN1) and Secondary (CN2) IDE Connectors
CN1
CN2
You can attach up to four IDE (Integrated Drive Electronics) drives to the
PCA-6002-B’s built-in controller. The primary (CN1) and secondary
(CN2) connectors can each accommodate two drives.
Wire number 1 on the cable is red or blue and the other wires are gray.
Connect one end to connector CN1 or CN2 on the CPU card. Make sure
that the red/blue wire corresponds to pin 1 on the connector (in the upper
right hand corner). See Chapter 1 for help finding the connector.
Unlike floppy drives, IDE hard drives can connect in either position on
the cable. If you install two drives to a single connector, you will need to
set one as the master and the other as the slave. You do this by setting the
PCA-6002-B User’s Manual 14
jumpers on the drives. If you use just one drive per connector, you should
set each drive as the master. See the documentation that came with your
drive for more information.
Connect the first hard drive to the other end of the cable. Wire 1 on the
cable should also connect to pin 1 on the hard drive connector, which is
labeled on the drive circuit board. Check the documentation that came
with the drive for more information.
Connect the second hard drive to the remaining connector (CN2 or CN1),
in the same way as described above.
2.3 Floppy Drive Connector (CN3)
CN3
You can attach up to two floppy disk drives to the PCA-6002-B's onboard
controller. You can use 3.5" (720 KB, 1.44/2.88 MB) drives.
The card comes with a 34-pin daisy-chain drive connector cable. On one
end of the cable is a 34-pin flat-cable connector. On the other end are two
sets of 34-pin flat-cable connector (usually used for 3.5" drives). The set
on the end (after the twist in the cable) connects to the A: floppy drive.
The set in the middle connects to the B: floppy drive.
15 Chapter 2

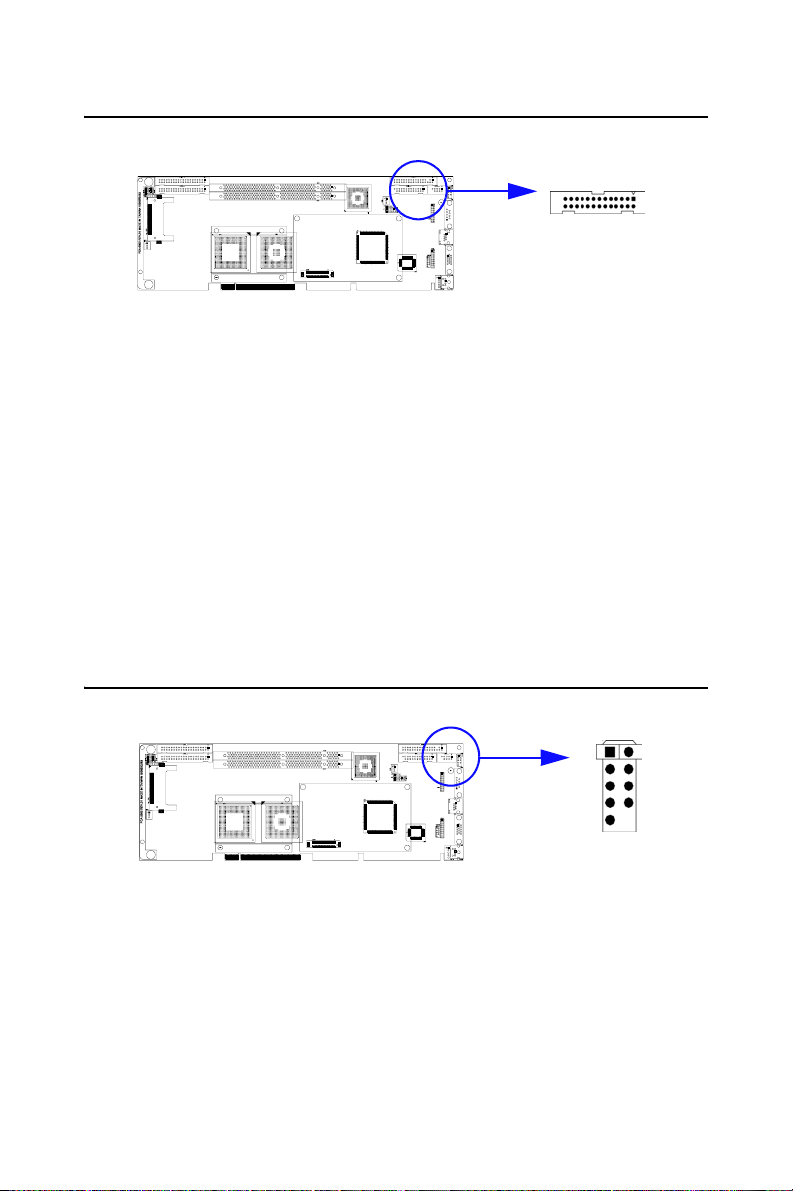

2.4 Parallel Port (CN4)
CN4
The parallel port is normally used to connect the CPU card to a printer.
The PCA-6002-B includes an onboard parallel port, accessed through a
26-pin flat-cable connector, CN4. The card comes with an adapter cable
which lets you use a traditional DB-25 connector. The cable has a 26-pin
connector on one end and a DB-25 connector on the other, mounted on a
retaining bracket. The bracket installs at the end of an empty slot in your
chassis, giving you access to the connector.
To install the bracket, find an empty slot in your chassis. Unscrew the
plate that covers the end of the slot. Screw in the bracket in place of the
plate. Next, attach the flat-cable connector to CN4 on the CPU card. Wire
1 of the cable is red or blue, and the other wires are gray. Make sure that
wire 1 corresponds to pin 1 of CN4. Pin 1 is on the upper right side of
CN4.
2.5 USB Ports (CN6, CN31, and CN32)
CN6
The PCA-6002-B provides four ports of USB (Universal Serial Bus)
interface, which gives complete Plug & Play and hot swapping for up to
127 external devices.The USB interface complies with USB Specification
Rev. 1.0 and is fuse-protected.
The USB interface can be disabled in the system BIOS setup.
PCA-6002-B User’s Manual 16
2.6 VGA Connector (CN7)
The PCA-6002-B includes a VGA interface that can drive conventional
CRT displays. CN7 is a standard 15-pin D-SUB connector commonly
used for VGA. Pin assignments for CRT connector CN7 are detailed in
Appendix B.
2.7 10/100Base-T Ethernet Connectors (CN8 and CN34)
CN7
CN8 and CN34
The PCA-6002-B is equipped with one or two high-performance 32-bit
PCI-bus Ethernet interfaces, which are fully compliant with IEEE 802.3/u
10/100 Mbps CSMA/CD standards. They are supported by all major network operating systems and are 100% Novell NE-2000 compatible. The
RJ-45 jacks on the rear plate provide convenient 10/100 Base-T RJ-45
operation. If users use dual LANs, the second LAN port, CN34, is located
at top slot of the I/O expansion ports.
17 Chapter 2
2.8 Serial Ports (CN9: COM1; CN10: COM2)
CN10
CN9
The PCA-6002-B offers two serial ports, CN9 as COM1 and CN10 as
COM2. These ports can connect to serial devices, such as a mouse or a
printer, or to a communications network.
Table 2.1: Serial port connections (COM1, COM2)
Connector Ports Address Interrupt
CN9 COM1 3F8*3E8 IRQ4
CN10 COM2 2F8*2E8 IRQ3
* default settings
The IRQ and address ranges for both ports are fixed. However, if you
want to disable the port or change these parameters later, you can do this
in the system BIOS setup.
Different devices implement the RS-232 standard in different ways. If
you are having problems with a serial device, be sure to check the pin
assignments for the connector.
PCA-6002-B User’s Manual 18
2.9 PS/2 Keyboard and Mouse Conn (CN11/33)
CN11
Two 6-pin mini-DIN connectors (CN11 and CN33) on the card mounting
bracket provide connection to a PS/2 keyboard and a PS/2 mouse, respectively. CN11 can also be connected to an adapter cable (P/N:
1700060202, available from Advantech) for connecting to both a PS/2
keyboard and a PS/2 mouse.
2.10 External Keyboard Connector (CN12)
CN12
In addition to the PS/2 mouse/keyboard connector on the PCA-6002-B's
ear plate, there is also an extra onboard external keyboard connector.
This gives system integrators greater flexibility in designing their systems.
19 Chapter 2
2.11 Infrared (IR) Connector (CN13)
This connector supports the optional wireless infrared transmitting and
receiving module. This module mounts on the system case. You must
configure the setting through the BIOS setup (see Chapter 3).
CN13
2.12 CPU Fan Connector (CN14)
CN14
If fan is used, this connector supports cooling fans of 500mA (6W) or
less.
PCA-6002-B User’s Manual 20
2.13 Front Panel Connectors (CN16, 17, 18, 19, 21&22)
There are several external switches to monitor and control the PCA-6002B.
CN16
2.13.1 Power LED (CN16)
CN16 is a 5-pin connector for the keyboard lock and power on LED.
Refer to Appendix B for detailed information on the pin assignments. If a
PS/2 or ATX power supply is used, the system's power LED status will
be as indicated below:
Table 2.2: PS/2 or ATX power supply LED status
Power mode LED (PS/2 power) LED (ATX power)
System On On On
System Suspend Fast flashes Fast flashes
System Off Off Slow flashes
2.13.2 External speaker (CN17)
CN17 is a 4-pin connector for an external speaker. If there is no external
speaker, the PCA-6002-B provides an onboard buzzer as an alternative.
To enable the buzzer, set pins 3-4 as closed
21 Chapter 2
2.13.3 Reset (CN18)
1
Many computer cases offer the convenience of a reset button. Connect the
wire from the reset button.
2.13.4 HDD LED (CN19)
You can connect an LED to connector CN19 to indicate when the HDD is
active.
2.13.5 ATX soft power switch (CN21)
If your computer case is equipped with an ATX power supply, you should
connect the power on/off button on your computer case to CN21. This
connection enables you to turn your computer on and off.
2.13.6 ATX Power Control Connectors (CN20)
CN20
Connect to the CN1 on the Advantech backplane to enable the ATX function, 5V stand-by.
PCA-6002-B User’s Manual 22
2.14 SM Bus Connector (CN29)
This connector is reserved for Advantech's SNMP-1000 HTTP/SNMP
Remote System Manager. The SNMP-1000 allows users to monitor the
internal voltages, temperature and fans from a remote computer through
an Ethernet network.
CN29 can be connected to CN3 or CN6 of SNMP-1000. Please be careful about the pin assignments, pin 1 must be connected to pin 1 and pin2
to pin 2 on both ends of cable.
2.15 Connecting to SNMP-1000 remote manager
Use the 6-pin to 8-pin cable to connect the CPU card to SNMP-1000.
This cable comes with the SNMP-1000.
PIN 1
CN21 CN18
CN19 CN29
CPU Card
CN19
PIN 1
SNMP-1000
23 Chapter 2
PCA-6002-B User’s Manual 24
2
3
CHAPTER
Award BIOS Setup
This chapter describes how to set the
card's BIOS configuration data.
Chapter 3 Award BIOS Setup
3.1 Introduction
Award’s BIOS ROM has a built-in setup program that allows users to
modify the basic system configuration. This type of information is stored
in battery-backed memory (CMOS RAM) so that it retains the setup
information when the power is turned off.
3.1.1 CMOS RAM Auto-backup and Restore
The CMOS RAM is powered by an onboard button cell battery.
When you finish BIOS setup, the data in CMOS RAM will be automatically backed up to Flash ROM. If operation in harsh industrial environment cause a soft error, BIOS will recheck the data in CMOS RAM and
automatically restore the original data in Flash ROM to CMOS RAM for
booting.
Note: If you intend to change the CMOS setting with-
out restoring the previous backup, you have to
click on "DEL" within two seconds of the
"CMOS checksum error..." display screen message appearing. Then enter the "Setup" screen
to modify the data. If the "CMOS checksum
error..."message appears again and again,
please check to see if you need to replace the
battery in your system.
PCA-6002-B User’s Manual 26
3.2 Entering Setup
Turn on the computer and press <Del> to allow you to enter the BIOS
setup.
Figure 3.1: Award BIOS Setup initial screen
3.3 Standard CMOS Setup
Choose the “Standard CMOS Features” option from the “Initial Setup
Screen” menu, and the screen below will be displayed. This menu allows
users to configure system components such as date, time, hard disk drive,
floppy drive, display, and memory.
Figure 3.2: Standard CMOS features screen
27 Chapter 3
3.4 Advanced BIOS Features
The “Advanced BIOS Features” screen appears when choosing the
“Advanced BIOS Features” item from the “Initial Setup Screen” menu. It
allows the user to configure the PCA-6002-B according to his particular
requirements. Below are some major items that are provided in the
Advanced BIOS Features screen.
A quick booting function is provided for your convenience. Simply
enable the Quick Booting item to save yourself valuable time.
Figure 3.3: Advanced BIOS features screen
3.4.1 Virus Warning
If enabled, a warning message and alarm beep activates if someone
attempts to write hard disk or boot sector. The commands are “Enabled”
or “Disabled.”
3.4.2 CPU Internal Cache / External Cache
Enabling this feature speeds up CPU to access data. The commands are
“Enabled” or “Disabled.”
3.4.3 CPU L2 Cache ECC Checking
Enabling allows CPU L2 cache checking. The commands are “Enabled”
or “Disabled.”
3.4.4 Processor Number Feature
Enabling this feature will send the processor number out through LAN.
PCA-6002-B User’s Manual 28
3.4.5 Quick Power On Self Test
This option speeds up the Power On Self Test (POST) conducted as soon
as the computer is turned on. When enabled, BIOS shortens or skips some
of the items during the test. When disabled, the computer conducts normal POST procedures. The commands are "Enabled" or "Disabled".
3.4.6 First/Second/Third/Other Boot Device
The BIOS tries to load the OS with the devices in the sequence selected.
If the system fails to boot from first, second or third device, the system
will seek other bootable device.
3.4.7 Swap Floppy Drive
Logical name assignments of floppy drives can be swapped if there is
more than one floppy drive. The commands are “Enabled” or “Disabled.”
3.4.8 Boot UP Floppy Seek
Selecting “Disabled” will speed up the boot and will not check the floppy.
Selecting “Enabled” will search and check the floppy during boot up.
3.4.9 Boot Up NumLock Status
This feature selects the “power on” state for NumLock. The commands
are “Enabled” or “Disabled.”
3.4.10 Gate A20 Option
Normal: The A20 signal is controlled by the keyboard controller.
Fast (Default): The A20 signal is controlled by the chipset.
3.4.11 Typematic Rate Setting
The typematic rate is the rate key strokes repeat as determined by the keyboard controller. The commands are “Enabled” or “Disabled.” Enabling
allows the typematic rate and delay to be selected.
3.4.12 Typematic Rate (Chars/Sec)
BIOS accepts the following input values (characters/second) for typematic rate: 6, 8, 10, 12, 15, 20, 24, 30.
3.4.13 Typematic Delay (msec)
Typematic delay is the time interval between the appearance of two consecutive characters, when holding down a key. The input values for this
category are: 250, 500, 750, 1000 (msec).
3.4.14 Security Option
This setting determines whether the system will boot up if the password is
denied. Access to Setup is always limited. The system will not boot, and
access to Setup will be denied if the correct password is not entered at the
29 Chapter 3
prompt. SetupThe system will boot, but access to Setup will be denied if
the correct password is not entered at the prompt.
Note: To disable security, select “PASSWORD SET-
TING” in the main menu. At this point, you will
be asked to enter a password. Simply press
<Enter> to disable security. When security is
disabled, the system will boot, and you can
enter Setup freely.
3.4.15 OS Select for DRAM > 64MB
This setting allows selecting an OS with greater than 64MB of RAM.
Commands are “Non-OS2” or “OS2.”
3.4.16 Report No FDD for WIN 95
This reports if an FDD is available for Windows 95. The commands are
“Yes” or “No.”
Figure 3.4: Advanced BIOS features screen
PCA-6002-B User’s Manual 30
3.5 Advanced Chipset Features
By choosing the “Advanced Chipset Features” option from the “Initial
Setup Screen” menu, the screen below will be displayed.
Note: DRAM default timings have been carefully cho-
sen and should ONLY be changed if data is
being lost. Please first contact technical support.
Figure 3.5: Advanced chipset features screen
3.5.1 SDRAM CAS Latency Time
This controls the latency between SDRAM read command and the time
that the data actually becomes available. Leave this on the default setting.
3.5.2 SDRAM Cycle Time Tras/Trc
This selects the number of SCLKs for an access cycle.
3.5.3 SDRAM RAS-to-CAS Delay
This controls the latency between SDRAM active command and the read/
write command. Leave this on the default setting.
3.5.4 SDRAM RAS Precharge Time
This controls the idle clocks after issuing a precharge command to
SDRAM. Leave this on the default setting.
31 Chapter 3
3.5.5 System BIOS Cacheable
Selecting Enabled allows caching of the system BIOS ROM at F0000hFFFFFh, resulting in better system performance. However, if any program writes to this memory area, a system error may occur. The Choices:
Enabled, Disabled.
3.5.6 Video Bios Cacheable
Selecting Enabled allows caching of the video BIOS, resulting in better
system performance. However, if any program writes to this memory
area, a system error may occur. The Choices: Enabled, Disabled.
3.5.7 Memory Hole At 15M-16M
Enabling this feature reserves 15 MB to 16 MB memory address space
for ISA expansion cards that specifically require this setting. This makes
memory from 15 MB and up unavailable to the system. Expansion cards
can only access memory up to 16 MB. The default setting is “Disabled.”
3.5.8 CPU Latency Timer
When enabled, the CPU cycle will only be deferred after it has been held
in a “Snoop Stall” for 31 clocks and another ADS# has arrived. When disabled, the CPU cycle will be deferred immediately after the GMCH
receives another ADS#. The Choices: Enabled, Disabled.
3.5.9 Delayed Transaction
The chipset has an embedded 32-bit posted write buffer to support delay
transactions cycles. Select Enabled to support compliance with PCI specification version 2.1. The Choice: Enabled, Disabled.
3.5.10 AGP Graphics Aperture Size
This item can adjust the AGP Graphics Aperture Size; the choice are
"32MB" and "64MB".
3.5.11 On-Chip Video Window Size
This selects the on-chip video window size for VGA drives use. The
Choices: 32MB, 64MB, Disabled.
3.6 Integrated Peripherals
3.6.1 On-Chip Primary/Secondary PCI IDE
If you enable IDE HDD Block Mode, the enhanced IDE driver will be
enabled. Leave IDE HDD Block Mode on the default setting.
PCA-6002-B User’s Manual 32
3.6.2 IDE Primary Master/Slave PIO/UDMA Mode
IDE Secondary Master/Slave PIO/UDMA Mode (Auto) Each channel
(Primary and Secondary) has both a master and a slave, making four IDE
devices possible. Because each IDE device may have a different Mode
timing (0, 1, 2, 3, 4), it is necessary for these to be independent. The
default setting “Auto” will allow auto detection to ensure optimal performance.
Figure 3.6: Integrated peripherals
3.6.3 USB Controller
Select Enabled if your system contains a Universal Serial Bus (USB) controller and you have USB peripherals. The choices: Enabled, Disabled.
3.6.4 USB Keyboard Support
Select Enabled if your system contains a Universal Serial Bus (USB) controller and you have a USB keyboard. The choices: Enabled, Disabled.
3.6.5 Init Display First
This item allows you to choose which one to activate first, PCI Slot or onchip VGA. The choices: PCI Slot, Onboard.
3.6.6 AC97 Audio
This item allows you to enable the AC97 function. The choice are "Auto"
and "Disabled".
3.6.7 OnBoard 82562 LAN1 Chip
This item allows you to enable LAN1. The choice are "Enabled" and
"Disabled".
33 Chapter 3
3.6.8 OutBoard 82551 LAN2 Chip
This item allows you to enable LAN2. The choice are "Enabled" and
"Disabled".
3.6.9 IDE HDD Block Mode
You can enable the Primary IDE channel and/or the Secondary IDE channel. Any channel not enabled is disabled.
3.6.10 Onboard FDC Controller
When enabled, this field allows you to connect your floppy disk drives to
the onboard floppy disk drive connector instead of a separate controller
card. If you want to use a different controller card to connect the floppy
disk drives, set this field to Disabled.
3.6.11 Onboard Serial Port 1 (3F8/IRQ4)
The settings are 3F8/IRQ4, 2F8/IRQ3, 3E8/IRQ4, 2E8/ IRQ10 and Disabled for the on-board serial connector.
3.6.12 Onboard Serial Port 2 (2F8/IRQ3)
The settings are 3F8/IRQ4, 2F8/IRQ3, 3E8/IRQ4, 2E8/ IRQ10 and Disabled for the on-board serial connector.
3.6.13 UART Mode Select
This item allows you to select UART mode. The choices: IrDA, ASKIR,
Normal.
Figure 3.7: Integrated peripherals (2)
PCA-6002-B User’s Manual 34
3.6.14 RxD, TxD Active
This item allows you to determine the active of RxD, TxD. The Choices:
“Hi, Hi,” “Lo, Lo,” “Lo, Hi,” “Hi, Lo.”
3.6.15 IR Transmission Delay
This item allows you to enable/disable IR transmission delay. The
choices: Enabled, Disabled.
3.6.16 UR2 Duplex Mode
This item allows you to select the IR half/full duplex function. The
choices: Half, Full.
3.6.17 Use IR Pins
This item allows you to select the IR protocol depending on the IR device
used. The choice are "RxD2,TxD2" and "IR-Rx2Tx2".
3.6.18 Onboard Parallel Port (378/IRQ7)
This field sets the address of the on-board parallel port connector. You
can either select 3BC/IRQ7, 378/IRQ7, 278/IRQ5 or Disabled. If you
install an I/O card with a parallel port, make sure there is no conflict in
the address assignments. The CPU card can support up to three parallel
ports, as long as there are no conflicts for each port.
3.6.19 Parallel Port Mode (ECP + EPP)
This field allows you to set the operation mode of the parallel port. The
setting "SPP" allows standard speed operation. “EPP” allows bidirectional parallel port operation at maximum speed. “ECP” allows the parallel port to operate in bi-directional mode and at a speed faster than the
maximum data transfer rate. “ECP + EPP” allows normal speed operation
in a two-way mode.
3.6.20 EPP Mode Select
This field allows you to select EPP port type 1.7 or 1.9. The choices:
EPP1.7, 1.9.
3.6.21 ECP Mode Use DMA
This selection is available only if you select “ECP” or “ECP + EPP” in
the Parallel Port Mode field. In ECP Mode Use DMA, you can select
DMA channel 1, DMA channel 3, or Disable. Leave this field on the
default setting.
35 Chapter 3
3.7 Power Management Setup
The power management setup controls the CPU card’s “green” features
to save power. The following screen shows the manufacturer’s defaults:
Figure 3.8: Power management setup screen (1)
3.7.1 Power-Supply Type
Choose AT or ATX power supply
3.7.2 ACPI Function
This item allows you to enable or disable ACPI function. The choice are
"Enabled" and "Disabled".
3.7.3 Power Management
This option allows you to determine if the values in power management
are disabled, user-defined, or predefined.
3.7.4 Video Off Method
This item allows you to setup the video off method. The choices are
"Blank Screen", "V/H SYNC+Blank" and "DPMS".
3.7.5 Video Off In Suspend
When system is in suspend, video will turn off.
3.7.6 Modem Use IRQ
This item allows you to setup the IRQ which used by modem.
3.7.7 Suspend Mode
This item allows you to setup how long system will go suspending.
PCA-6002-B User’s Manual 36
3.7.8 HDD Power Down
You can choose to turn the HDD off after one of the time intervals listed,
or when the system is in “suspend” mode. If the HDD is in a power saving mode, any access to it will wake it up.
Note: The HDD will not power down if the Power Man-
agement option is disabled.
3.7.9 Soft-Off by PWR-BTTN
If you choose “Instant-Off”, then pushing the ATX soft power switch button once will switch the system to “system off” power mode. You can
choose “Delay 4 sec.” If you do, then pushing the button for more than 4
seconds will turn off the system, whereas pushing the button momentarily
(for less than 4 seconds) will switch the system to “suspend” mode.
3.7.10 PowerOn By LAN
This item allows you to wake up the system via LAN from the remotehost. The choices: Enabled, Disabled.
3.7.11 PowerOn By Modem
When Enabled, an input signal on the serial Ring Indicator (RI) line (in
other words, an incoming call on the modem) awakens the system from a
soft off state. The choices: Enabled, Disabled.
3.7.12 PowerOn By Alarm
When Enabled, your can set the date and time at which the RTC (realtime clock) alarm awakens the system from Suspend mode. The choices:
Enabled, Disabled.
3.7.13 CPU Thermal-Throttling
This field allows you to select the CPU THRM-Throttling rate. The
choices: 12.5%, 25.0%, 37.5%, 50.0%, 62.5%, 75.0%, 87.5%.
37 Chapter 3
Figure 3.9: Power management setup screen (2)
3.8 PnP/PCI Configurations
3.8.1 PnP OS Installed
This feature allows you to install the PnP OS. The commands are “Yes”
or “No.”
3.8.2 Reset Configuration Data
Note: This is left “Disabled.” Select “Enabled” to reset
Extended System Configuration Data (ESCD) if
you have installed a new add-on and your OS
won’t boot and you need to reconfigure.
3.8.3 Resources controlled by:
The commands here are “Auto” or “Manual.” Choosing “manual”
requires you to choose resources from each following sub-menu. “Auto”
automatically configures all of the boot and Plug and Play devices but
you must be using Windows 95 or above.
PCA-6002-B User’s Manual 38
Figure 3.10: PnP/PCI configurations screen
3.8.4 PCI/VGA Palette Snoop
This is left at “Disabled.”
3.8.5 Assign IRQ for VGA
This item allows you to assign IRQ for VGA; the default is "Disabled".
3.9 PC Health Status
3.9.1 CPU Warning Temperature
This item will prevent the CPU from overheating. The choices: 30~120.
39 Chapter 3
Figure 3.11: PC health status screen
3.9.2 Current CPU Temperature
This shows you the current CPU temperature.
3.9.3 Current CPUFAN Speed
This shows you the current CPUFAN operating speed. 3.9.5 +5V/+12V/12V/-5V This shows you the voltage of +5V/+12V/-12V/-5V.
3.10 Password Setting
To change the password:
1. Choose the “Set Password” option from the “Initial Setup Screen”
menu and press <Enter>.
The screen will display the following message:
Please Enter Your Password
Press <Enter>.
PCA-6002-B User’s Manual 40
2. If the CMOS is good or if this option has been used to change the
default password, the user is asked for the password stored in the
CMOS. The screen will display the following message:
Please Confirm Your Password
Enter the current password and press <Enter>.
3. After pressing <Enter> (ROM password) or the current password
(user-defined), you can change the password stored in the CMOS.
The password must be no longer than eight (8) characters.
Remember, to enable the password setting feature, you must first select
either “Setup” or “System” from the “Advanced BIOS Features” menu.
3.11 Save & Exit Setup
If you select this and press <Enter>, the values entered in the setup utilities will be recorded in the CMOS memory of the chipset. The microprocessor will check this every time you turn your system on and compare
this to what it finds as it checks the system. This record is required for the
system to operate.
3.12 Exit Without Saving
Selecting this option and pressing <Enter> lets you exit the setup program
without recording any new values or changing old ones.
41 Chapter 3
PCA-6002-B User’s Manual 42
2
4
CHAPTER
VGA Setup
This chapter provides information on
the VGA setup.
Sections include:
• Introduction
• Installation of VGA Drivers
- for Windows 2000
- for Windows XP
Chapter 4 Chipset Software Installation
Utility
4.1 Before you begin
To facilitate the installation of the enhanced display device drivers and
utility software, you should read the instructions in this chapter carefully
before you attempt installation. The device drivers for the PCA-6002-B
board are located on the software installation CD. The auto-run function
of the driver CD will guide and link you to the utilities and device drivers
under a Windows system.
Note: The files on the software installation CD are
compressed. Do not attempt to install the drivers by copying the files manually. You must use
the supplied SETUP program to install the drivers.
Before you begin, it is important to note that most display drivers need to
have the relevant software application already installed in the system
prior to installing the enhanced display drivers. In addition, many of the
installation procedures assume that you are familiar with both the relevant software applications and operating system commands. Review the
relevant operating system commands and the pertinent sections of your
application software’s user’s manual before performing the installation.
4.2 Introduction
The Intel® Chipset Software Installation (CSI) utility installs to the target
system the Windows INF files that outline to the operating system how
the chipset components will be configured. This is needed for the proper
functioning of the following features:
• Core PCI and ISA PnP services.
• AGP support.
• IDE Ultra ATA 100/66/33 interface support.
• USB support.
• Identification of Intel ® chipset components in the Device Manager.
PCA-6002-B User’s Manual 44
• Integrates superior video features. These include filtered sealing of
720 pixel DVD content, and MPEG-2 motion compensation for soft-
ware DVD
Note: This utility is used for the following versions of
Windows system, and it has to be installed
before installing all the other drivers:
Windows 98SE
Windows 2000
Windows ME
Windows XP
4.3 Windows 2000 Drivers Setup Procedure
1. Insert the driver CD into your system's CD-ROM drive. In a few
seconds, the software installation main menu appears. Move the
mouse cursor over the "Auto" button under the "CSI UTILITY"
heading, a message pops up telling you to install the CSI utility
before other device drivers, as shown in the following figure. Click
on this button.
45 Chapter 4
2. Click "Next" when you see the following message.
3. Click "Yes" when you see the following message.
PCA-6002-B User’s Manual 46
4. Click "Next" when you see the following message.
5. When the following message appears, click "Finish" to complete
the installation and restart Windows.
47 Chapter 4
4.4 Windows XP Drivers Setup Procedure
1. Insert the driver CD into your system's CD-ROM drive. In a few
seconds, the software installation main menu appears. Move the
mouse cursor over the "Auto" button under the "CSI UTILITY"
heading, a message pops up telling you to install the CSI utility
before other device drivers, as shown in the following figure. Click
on this button.
PCA-6002-B User’s Manual 48
2. Click "Next" when you see the following message.
3. Click "Yes" when you see the following message.
49 Chapter 4
4. Click "Next" when you see the following message.
5. When the following message appears, click "Finish" to complete
the installation.
PCA-6002-B User’s Manual 50
2
5
CHAPTER
AGP SVGA Setup
The PCA-6002-B features an integrated
AGP SVGA interface. This chapterprovides instructions for installing the
AGP SVGA drivers from the driver CD
included in your package.
Chapter 5 AGP SVGA Setup
5.1 Introduction
AGP (Accelerated Graphics Port) is a graphics interface that provides
faster connection between the display card and memory than a PCI slot.
Your PCA-6002-B CPU card uses the Intel ® 815 chipset that supports
AGP SVGA. The features include:
• Built-in 2D/3D AGP VGA controller.
• Integrated 24-bit 230MHz RAMDAC.
• Up to 1600 x 1200 resolution in 8-bit color at 85 Hz refresh.
• H/W motion compensation assistance for s/w MPEG 2 decoding.
• Software DVD at 30 fps.
5.2 Features
Note: Before installing this driver, make sure the CSI
utility has been installed in your system. See
Chapter 4 for information on installing the CSI
utility.
PCA-6002-B User’s Manual 52
1. Insert the driver CD into your system's CD-ROM drive. In a few
seconds, the software installation main menu appears, as shown in the
following figure. Under the "VGA DRIVERS" heading, click on one of
the buttons (labeled "WIN9X," "WIN2000," and "WINXP" respectively)
according to the operating system you are using. Take WIN200 as an
example.
2. Click "Next" when you see the following message.
53 Chapter 5
3. Click "Next" when you see the following message.
4. When the following message appears, click "Finish" to complete
the installation and restart Windows.
PCA-6002-B User’s Manual 54
2
6
CHAPTER
LAN Configuration
The PCA-6002-B supports dual 10/
100Base-T Ethernet networking with
one chipset integrated LAN controller
(Intel® 82562ET) and one Intel®
82551QM (optional). This chapter
gives detailed information on Ethernet
configuration. It shows you how to
configure the card to match your application requirements.
Sections include:
• Introduction
• Features
• Installation
• Windows 2000 Drivers Setup Procedure
• Windows XP Drivers Setup Procedure
• Windows Wake-on-LAN Setup
Chapter 6 LAN Configuration
6.1 Introduction
The PCA-6002-B features the 32-bit 10/100 Mbps Ethernet network
interface. This interface supports bus mastering architecture and autonegotiation features. Therefore standard twisted-pair cabling with RJ-45
connectors for both 10 Mbps and 100 Mbps connections can be used.
Extensive driver support for commonly-used network systems is also provided.
6.2 Features
• Intel ® 82562ET integrated LAN controller.
• Optional Intel ® 82551QM Ethernet LAN controller (fully integrated
10Base-T/100Base-TX).
• Supports Wake-on-LAN remote control function.
• PCI Bus Master complies with PCI Rev. 2.1.
• MAC & PHY (10/100 Mbps) interfaces.
• Complies to IEEE 802.3 10Base-T and IEEE 802.3u 100Base-T
interfaces.
• Fully supports 10Base-T and 100Base-TX operation.
• Single RJ-45 connector gives auto-detection of 10 Mbps or 100
Mbps network data transfer rates and connected cable types.
• 32-bit Bus Master technology complies with PCI Rev. 2.1.
• Plug and Play.
• Enhancements on ACPI & APM.
• Complies with PCI Bus Power Management Interface Rev. 1.0,
ACPI Rev. 1.0, and Device Class Power Management Rev. 1.0.
PCA-6002-B User’s Manual 56
6.3 Installation
Note: Before installing the LAN drivers, make sure the
CSI utility has been installed in your system.
See Chapter 4 for information on installing the
CSI utility.
The PCA-6002-B's onboard Ethernet interface supports all major network
operating systems. However, the installation procedure varies with different operating systems. In the following sections, refer to the one that provides driver setup procedure for the operating system you are using.
6.4 Windows 2000 Drivers Setup Procedure
Note: The CD-ROM drive is designated as "E"
throughout this section.
1. From the desktop of Windows 2000, click on "Start" and select
"Settings." Then click on the "Control Panel" icon to select "System."
57 Chapter 6
2. In the "System Properties" window, select the "Device Manager"
tab. Select "View devices by type," and navigate to: AAPCA6002B\Network adapters devices. Highlight "Intel® PRO/
100M Network Connection" and click on "Properties."
3. In the "Intel® PRO/100M Network Connection Properties" window, select the "Driver" tab. Then click on "Update Driver..."
PCA-6002-B User’s Manual 58
4. In the "Update Device Driver Wizard" window, click on "Next."
5. In the "Update Device Driver Wizard" window, select "Search for
a suitable driver for my device (recommended)." Then click on
"Next."
59 Chapter 6
6. In the following "Update Device Driver Wizard" window, click on
"CD-ROM drives."
7. In the following "Update Device Driver Wizard" window, click
on"Next."
PCA-6002-B User’s Manual 60
8. In the following "Update Device Driver Wizard" window, click on
"Finish" to complete the installation.”
61 Chapter 6
6.5 Windows XP Drivers Setup Procedure
Note: The CD-ROM drive is designated as "E"
throughout this section.
1. From the desktop of Windows XP, click on "Start" and select "Settings." Then click on the "Control Panel" icon to select "System."
In the "System Properties" window, select the "Device Manager"
tab. Navigate to"Network adapters" and click "Ethernet Controller."
PCA-6002-B User’s Manual 62
2. In the "Ethernet Controller Properties" window, select the "Driver"
tab. Then click on "Driver Details..."
In the "Hardware Update Wizard" window, select "Install the software
automatically (Recommended)" Then click on "Next."
63 Chapter 6
3. In the "Hardware Update Wizard" window, select "Search for the
best driver in these locations" and "Include this location in the
search." Click "Search" to find the location of driver. Then click on
"Next."
4. In the following "Hardware Update Wizard" window, click on
"Finish" to complete the installation.
PCA-6002-B User’s Manual 64
2
7
CHAPTER
Ultra ATA Storage
Driver Setup
This driver must be installed to use the
Intel® Ultra ATA controller to improve
storage subsystem performance and
overall system performance.
Chapter 7 Ultra ATA Storage Driver
Setup
7.1 Introduction
This driver takes advantage of the latest Intel ® Ultra ATA controller features to improve both storage subsystem performance and overall system
performance. A useful diagnostic tool, Intel Ultra ATA Companion® ,
shows technical information of the ATA subsystem.
7.2 Features
• The driver enables fast Ultra ATA transfers by default.
• Users no longer have to manually enable DMA transfers for each
ATA and/or ATAPI peripheral devices.
• Each ATA channel has independent device timings/transfers which
allows PIO-only and DMA-capable devices to share the same
ATA controller cable, where one is the master and the other the
slave, without restricting transfer mode to PIO-only for both
devices.
• Technical details of the ATA subsystem can be viewed via use of the
application.
• Drivers are optimized.
PCA-6002-B User’s Manual 66
7.3 Windows 2000 Drivers Setup Procedure
Note: Before installing this driver, make sure the CSI
utility has been installed in your system. See
Chapter 4 for information on installing the CSI
utility.
1. Insert the driver CD into your system's CD-ROM drive. In a few
seconds, the software installation main menu appears, as shown in
the following figure. Under the "IDE DRIVERS" heading, click on
the "Auto" button.
67 Chapter 7
2. Click on "Next" when you see the following message.
3. When you see the following message, click on "Yes" to accept the
License Agreement.
PCA-6002-B User’s Manual 68
4. Click on "Next" when you see the following message.
5. Click on "Next" when you see the following message.
69 Chapter 7
6. When the following message appears, click "Finish" to complete
the installation and restart Windows.
7.4 Displaying Driver Information
1. From the desktop of Windows, click on "Start" and select "Programs." Then select "Intel Ultra ATA Storage Driver" and then
"Companion."
PCA-6002-B User’s Manual 70
2. Click on the "Device Parameters" or the "Storage Report" tab to
view related information.
71 Chapter 7
PCA-6002-B User’s Manual 72
2
8
CHAPTER
Onboard Security
Setup
This chapter explains OBS concepts
and provides instructions for installing
the relevant software drivers. This is
done using the driver CD included in
your PCA-6002-B package.
Chapter 8 Onboard Security Setup
8.1 Introduction
Onboard security (OBS) functions monitor key hardware. They help
you maintain your system's stability and durability.
The PCA-6002-B can monitor 5 sets of system positive voltages, 2 sets
of system negative voltages, CPU cooling fan speed, and CPU
temperature. The positive system voltage sets which can be monitored
include:
• CPU core voltage: 1.3 V ~ 3.3 V, according to Intel specifications.
• Transmission voltage from CPU to chipset: typically 1.5 V.
• Chipset voltage: typically 3.3 V.
• Main voltage: +5 V, +12 V.
The negative system voltage sets which can be monitored include:
• Main voltage: -5 V, -12 V.
PCA-6002-B User’s Manual 74
8.2 Windows 2000 Drivers Setup Procedure
1. Insert the driver CD into your system's CD-ROM drive. In a few
seconds, the software installation main menu appears, as shown in
the following figure. Click on the "WIN2000" button under the
"OBS DRIVERS" heading.
2. Click "Next" when you see the following message.
75 Chapter 8
3. Click "Next" when you see the following message.
4. Click "Next" when you see the following message.
PCA-6002-B User’s Manual 76
5. Click "Finish" to complete the installation.
8.3 Using the OBS Hardware Doctor Utility
After completing the setup, all the OBS functions are permanently
enabled. When a monitored reading exceeds safe limits, a warning message will be displayed and an error beep tone will activate to attract your
attention.
OBS Hardware Doctor will show an icon on the right side of the bottom
window bar. This icon is the "Terminate and Stay Resident" (TSR) icon.
It will permanently remain in the bottom window bar, and will activate
warning signals when triggered by the onboard security system.
You can view or change values for various OBS settings by running this
utility:
77 Chapter 8
1. From the desktop of Windows, click on "Start" and select "Programs" and then "Hardware Doctor."
2. It is recommended that you load the default values for all the OBS
settings. However, if desired, you can establish new conditions for
voltage, fan speed, and temperature.
PCA-6002-B User’s Manual 78
2
9
CHAPTER
SCSI Setup and Configuration
The PCA-6002-B features an onboard
SCSI interface. This chapter provides
basic SCSI concepts and instructions
for installing the software drivers with
the SCSI driver disks/CD included in
your package
Chapter 9 SCSI Setup and Configuration
9.1 Introduction
The PCA-6002-B is equipped with an Adaptec AIC-7899 single-chip
PCI- to-SCSI host adapter which provides a dual channel Ultra 160 multitasking interface between your computer.s PCI bus and SCSI devices
(disk drives, CD-ROM drives, scanners, tape backups, removable media
drives, etc.). Ultra 160 is a new generation of SCSI technology that
expands SCSI performance from 80 MBytes/sec to 160 MBytes/ sec. Up
to a total of 15 SCSI devices can be connected to each of the SCSI connectors.
The AIC-7899 combines this Ultra 160 SCSI technology with Adaptec.s
SpeedFlex. technology. SpeedFlex allows the Adaptec SCSI card to be
backwards compatible with previous generations of SCSI products, while
allowing newer Ultra 160 SCSI devices to operate at the higher 160
MBytes/sec rate.
There are 3 SCSI connectors on the CPU card: CN50 and CN51 for Ultra
160 devices, and CN52 for 50-pin SCSI devices. You can use Ultra 160
and Ultra wide devices simultaneously without compromising the performance.
If you need to configure the SCSI, the onboard SCSI Select configuration
utility allows you to change host adapter settings without opening the
computer or handling the board. The SCSI Select utility also contains a
utility to low-level format and verifies the disk media on your hard disk
drives.
Note: If any peripheral is running at SE mode, the
Ultra 160 SCSI segment will run at speeds up to
40 MBytes/sec only instead of 160 MBytes/sec.
PCA-6002-B User’s Manual 80
9.2 Understanding SCSI
SCSI (pronounced scuzzy) stands for Small Computer Systems Interface.
SCSI is an industry standard computer interface for connecting SCSI
devices to a common SCSI bus.
A SCSI bus is an electrical pathway that consists of a SCSI interface
installed in a computer and one or more SCSI devices. SCSI cables are
used to connect the devices to the SCSI interface. For the SCSI bus to
function properly, a unique SCSI ID must be assigned to the SCSI interface and each SCSI device connected to it, and the SCSI bus must be
properly terminated.
9.3 SCSI IDs
Each device attached to the SCSI bus, as well as the SCSI controller
itself, must be assigned a unique SCSI ID number from 0 to 15. A SCSI
ID uniquely identifies each SCSI device on the SCSI bus and determines
priority when two or more devices are trying to use the SCSI bus at the
same time.
Refer o the device.s documentation to set the SCSI ID. Here are some
general guidelines for SCSI IDs:
• For internal SCSI devices, the SCSI ID usually is set by configuring a
jumper on the device.
• For external SCSI devices, the SCSI ID usually is set with a swetch on
the back of the device.
• SCSI ID numbers don.t have to sequential, as long as the SCSI control-
ler and each device has a different number.
• For example, you can have an internal SCSI device with ID 0, and an
external SCSI device with ID 6.
• SCSI ID 7 has the highest priority on the SCSI bus. The priority of the
remaining IDs, in descending order, is 6 to 0, then 15 to 8.
• The on-boards SCSI interface is preset to SCSI ID 7 and should not be
changed. This gives it the highest priority on the SCSI bus.
• Most internal SCSI hard disk drives come from the factory pre-set to
SCSI ID 0.
• If you have 8-bit (or Narrow) SCSI devices, they must use SCSI IDs 0,
1, 2, 3, 4, 5, or 6. SCSI ID 0 is recommended for the first SCSI hard
disk drive.
81 Chapter 9
• If you are booting your computer from a SCSI hard disk drive con-
nected to the SCSI bus, the Boot SCSI ID setting in the SCSISelect
utility must correspond to the SCSI ID of the device from which you
are booting. By default, the Boot SCSI ID is set to 0. We recommend
that you do not change this setting.
9.4 Terminating the SCSI Bus
To ensure reliable communication on the SCSI bus, the ends of the SCSI
bus must be properly terminated. This is accomplished when the device at
the end of the each cable, or the end of the cable itself, has a terminator
installed (or enabled). Terminators must be removed, or termination must
be disabled, on devices between the ends of each cable.
Since the method for terminating a SCSI device can vary widely, refer to
the device.s documentation for instructions on how to enable or disable
termination. Here are some general guidelines for termination:
• Internal Ultra 160 and Ultra 2 SCSI devices come from the factory with
termination disabled and cannot be changed. Proper termination for
internal Ultra 160 and Ultra2 SCSI devices is provided by a 68-pin
Internal LVD (low voltage differential) SCSI cable, which has a builtin terminator at its end.
• Termination on non-Ultra 160 and Ultra2 internal SCSI devices usually
is controlled by manually setting a jumper or a switch on the device, or
by physically removing or installing one or more resistor modules on
the device.
• Termination on most external SCSI devices is controlled by installing
or removing a SCSI terminator. However, termination on some external SCSI devices is enable or disabled by setting a switch on the back
of the SCSI device.
The last external Ultra160 or Ultra2 SCSI device must be terminated with
an LVD/SE (low voltage differential/single ended) terminator plug to
ensure that the device will operate at its maximum speed. If you use a different kind of terminator plug, the data I/O rate will decrease.
By default, termination on the SCSI controller itself is set to Automatic
(the preferred method). We recommend that you do not change this
default setting.
PCA-6002-B User’s Manual 82
9.5 Configuring the SCSI interface with SCSISelect
SCSISelect, included with the CPU card, enables you to change SCSI settings without opening the computer. SCSISelect also enables you to lowlevel format or verify the disk media of your SCSI hard disk drives. The
following table lists the available and default settings for each SCSISelect
option.
Note: The default settings are appropriate for most
systems. Run SCSISelect if you need to
change or view current settings, or if you would
like to run the SCSI disk utilities.
SCSISelect Options Available Settings Default Setting
SCSI Bus Interface
Definitions:
Host Adapter SCSI ID0-15 7
SCSI Parity Checking Enable, Disabled Enabled
Host Adapter SCSI
Termination
LVD/SE Connectors Automatic Automatic
Enabled
Disabled
SE Connectors Automatic Automatic
Low On/High On
Low Off/High Off
Low Off/High On
Boot Device Options:
Boot SCSI ID 0-15 0
Boot LUN Number1 0-7 0
83 Chapter 9
SCSI Device Configuration:
Sync Transfer Rate (MBytes/sec)
160, 80.0, 53.4, 40.0, 160
32.0, 26.8, 20.0,
16.0, 13.4, 10.0
ASYN
Initiate Wide
Negotiation
Enable
Disconnection
Send Start Unit
Command
Enable Write Back
Cache2
BIOS Multiple
LUN Support2
Include in BIOS
Scan2
Advanced Configuration Options:
Reset SCSI Bus at IC
Initialization
Display <Ctrl><A>
Messages during
B IO S In i ti a li z at i on
Extended BIOS
Translation for DOS
Drives > 1 GByte
Verbose/Silent Mode Verbose, Silent Verbose
Host Adapter BIOS Enabled Enabled
Domain Validation2 Enabled, Disabled Enabled
Support Removable
Disks Under BIOS as
Fixed Disks2
Yes, No Yes (enabled)
Yes, No Yes (enabled)
Yes, No Yes (enabled)
N/C (No Change) N/C (No Change)
Yes, N o
Yes, No No (disabled)
Yes, No Yes (enabled)
Enabled, Disabled Enabled
Enabled, Disabled Enabled
Enabled, Disabled Enabled
Disabled : Not Scan
Disabled: Scan Bus
Disabled Disabled
Boot Only,
All Disks
PCA-6002-B User’s Manual 84
BIOS Support for
B o o t a b l e C D _ R O M 2
BIOS Support for
Int 13
Extensions2
1 Setting is valid only if Multiple LUN Support is enabled.
2 Settings are valid only if host adapter BIOS is enabled.
Enabled, Disabled Enabled
Enabled, Disabled Enabled
9.6 Starting SCSISelect
Follow these steps to start SCSISelect:
1. Turn on or restart your system. During the startup process, pay
careful attention to the messages that appear on your screen.
2. When the following message appears on your screen, press the
Ctrl-A keys simultaneously (this message appears for only a few
seconds): Press <Ctrl><A> for SCSISelect (TM) Utility!
3. From the menu that appears, use the arrow keys to move the cursor
to the option you want to select, then press ENTER.
Note: If you have difficulty viewing the display, press
F5 to toggle between color and monochrome
modes. (This feature may not work on some
monitors.)
Exiting SCSISelect
Follow these steps to exit SCSISelect:
1. Press ESC until a message prompts you to exit (if you changed any
settings, you are prompted to save the changes before you exit.)
At the prompt, select YES to exit, then press any key to reboot the computer. Any changes you made in SCSISelect take effect after the computer boots.
85 Chapter 9
Using SCSISelect Settings
To select an option, use the arrow keys to move the cursor to the option,
then press ENTER. In some cases, selecting an option displays another
many. You can return to the previous menu at any time by pressing ESC.
To restore the original SCSISelect default values, press F6 from the main
SCSISelect screen
SCSI Bus Interface Definitions
• Host Adapter SCSI ID-(Default: 7) Sets the SCSI ID for the SCSI
controller. The Adaptec SCSI controller AIC-7899 is set at 7, which
gives t the highest priority on the SCSI bus. We recommend that you
do not change this setting.
• SCSI Parity Checking-(Default: Enabled) When set to Enabled, veri-
fies the accuracy of data transfer on the SCSI bus. Leave this setting
enabled unless any SCSI device does not support SCSI parity.
• Host Adapter SCSI Termination-(Default: Automatic) Determines
the termination setting for the SCSI card. The default setting for both
the LVD/SE (low voltage differential/single ended) connectors and SE
connectors is Automatic, which allows the SCSI card to adjust the termination as needed depending on the configuration of the connected
SCSI devices. We recommend that you do not change these settings.
Boot Device Options
• Boot SCSI ID-(Default: 0) Specifies the SCSI ID of your boot
device. We recommend that you don’t t change the default setting.
• Boot LUN Number-(Default: 0) Specifies which LUN (Logical Unit
Number) to boot from on your boot device. This setting is not valid
unless Multiple LUN Support is Enabled
SCSI Device Configuration
SCSI Device Configuration options can be set individually for each connected SCSI device.
Note: To configure settings for a SCSI device, you
must know it.s SCSI ID
• Sync Transfer Rate-(Default: 160) Determines the maximum syn-
chronous data transfer rate that the SCSI card supports. Use the maximum value of 160 MBytes/sec.
PCA-6002-B User’s Manual 86
• Initiate Wide Negotiation-(Default: Yes) When set to Yes, the SCSI
card attempts 16-bit data transfer (wide negotiation.) When set to No,
the SCSI card uses 8-bit data transfer unless the SCSI device requests
wide negotiation.
Note: Set Initiate Wide Negotiation to NO if you are
using an 8-bit SCSI device that hangs or exhibits other performance problems with 16-bit data
transfer rate enabled.
• Enable Disconnection-(Default: Yes) When set to Yes, allows the
SCSI device to disconnect from the SCSI bus. Leave the setting at
Yes if two or more SCSI device is connected, changing the setting to
No results in slightly better performance.
• Send Start Unit Command-(Default: Yes) When set to Yes, the Start
Unit Command is sent to the SCSI device at bootup.
The following three options have no effect if the SCSI Card BIOS is disabled. (The SCSI Cards BIOS is normally enabled by default.)
• Enable Write Back Cache-(Default: N/C) Can be used to enable or
disable the write-back cache on SCSI disk drives connected to the host
adapter. Leave this option at its default setting of N/C (no change),
which usually allow for optimum drive performance.
• BIOS Multiple LUN Support-(Default: No) Leave this setting at No if
the device does not have multiple Logical Unit Numbers (LUNs.)
When set to Yes, the SCSI card BIOS provides boot support for a SCSI
device with multiple LUNs (for example, a CD juke box. device in
which multiple CDs can be accessed simultaneously.)
• Include in BIOS Scan-(Default: Yes) When set to Yes, the SCSI card
BIOS includes the device as part of its BIOS scan at bootup.
Advanced Configuration Options
Note: Do not change the Advanced Configuration
Options unless absolutely necessary.
• Reset SCSI Bus at IC Initialization-(Default: Enabled) When set to
Enabled, the SCSI card generates a SCSI bus reset during its power-on
initialization and after a hard reset.
87 Chapter 9
• Display <Ctrl> <A> Messages during BIOS Initialization-(Default:
Enabled) When set to Enabled, the SCSI card BIOS displays the Press
<Ctrl> <A> for SCSISelect (TM) Utility! message on your screen during system bootup. If this setting disabled, you can still invoke the
SCSISelect Utility by pressing <Ctrl> <A> after the SCSI card BIOS
banner appears.
• Extended BIOS Translation for DOS Drives > 1 GByte-(Default:
Enabled) When set to Enabled, provides an extended translation
scheme for SCSI hard disks with capacities greater than 1 GByte.
This setting is necessary only for MS-DOS 5.0 or above; it is not
required for other operating systems, such as NetWare of UNIX.
Caution: Changing the translation scheme destroys all
data on the drive. Be sure to back your disk
drives before changing the translation scheme.
Use the MS-DOS Fdisk command to partition a disk laster than 1GByte
controlled by the SCSI card BIOS, when using DOS, Windows 3.1.x, or
Windows 95/98.
• Verbose/Silent Mode-(Default: Verbose) When set to Verbose, the
SCSI card BIOS displays the host adapter model on the screen during
system buildup. When set to Silent, the message is not displayed during bootup.
• Host Adapter BIOS (Configuration Utility Reserves BIOS Space)-
(Default: Enabled) Enables or disables the SCSI card BIOS.
• Leave at Enabled to allow the SCSI card BIOS to scan and initialize all
SCSI devices.
• Set to Disabled: Not scan if the devices on the SCSI bus (for example,
CD-ROM drives) are controlled by software drivers and do not need
the BIOS, and you do not want the BIOS to scan the SCSI bus.
• Set to Disabled: Scan Bus if you do not need the BIOS, but you want it
to scan the SCSI devices on the bus and you need to spin up the
devices.
The following four options have no effect when the SCSI Card BIOS is
disabled. (The SCSI Card BIOS is normally enabled by default.)
• Domain Validation.(Default: Enabled) Determines the optimal trans-
fer rate for each device on the SCSI bus and sets transfer rates accordingly. Displays the resulting data transfer rate.
PCA-6002-B User’s Manual 88
