Advantech EPD-023-053 User Manual

User Manual
EPD Device EPD-023 Module Solution
Wireless ePaper Display Solution
Copyright
The documentation and the software included with this product are copyrighted 2019 by Advantech Co., Ltd. All rights are reserved. Advantech Co., Ltd. reserves the right to make improvements in the products described in this manual at any time without notice. No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written permission of Advantech Co., Ltd. Information provided in this manual is intended to be accurate and reliable. How­ever, Advantech Co., Ltd. assumes no responsibility for its use, nor for any infringe­ments of the rights of third parties, which may result from its use.
Acknowledgements
ARM is trademarks of ARM Corporation. TI is trademarks of Texas Instruments Inc.. ITE is trademarks of ITE Tech Inc.. Eink is trademarks of E ink holding Inc.. Microsoft Windows are registered trademarks of Microsoft Corp. All other product names or trademarks are properties of their respective owners.
Part No. 2006D023xx Edition 1
August 2019
EPD-023 User Manual ii
Product Warranty (2 years)
Advantech warrants to you, the original purchaser, that each of its products will be free from defects in materials and workmanship for two years from the date of pur­chase.
This warranty does not apply to any products which have been repaired or altered by persons other than repair personnel authorized by Advantech, or which have been subject to misuse, abuse, accident or improper installation. Advantech assumes no liability under the terms of this warranty as a consequence of such events.
Because of s high quality-control standards and rigorous testing, most of our customers never need to use our repair service. If an Advantech product is defec­tive, it will be repaired or replaced at no charge during the warranty period. For out­of-warranty repairs, you will be billed according to the cost of replacement materials, service time and freight. Please consult your dealer for more details.
If you think you have a defective product, follow these steps:
1. Collect all the information about the problem encountered. (For example, CPU
speed, Advantech products used, other hardware and software used, etc.) Note anything abnormal and list any onscreen messages you get when the problem occurs.
2. Call your dealer and describe the problem. Please have your manual, product,
and any helpful information readily available.
3. If your product is diagnosed as defective, obtain an RMA (return merchandize
authorization) number from your dealer. This allows us to process your return more quickly.
4. Carefully pack the defective product, a fully-completed Repair and Replacement
Order Card and a photocopy proof of purchase date (such as your sales receipt) in a shippable container. A product returned without proof of the purchase date is not eligible for warranty service.
5. Write the RMA number visibly on the outside of the package and ship it prepaid
to your dealer.
iii EPD-023 User Manual
Declaration of Conformity
FCC Class B
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installa­tion. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful inter­ference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interfer­ence to radio or television reception, which can be determined by turning the equip­ment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
FCC Caution
Any changes or modifications not expressly approved by the party responsible for compliance could void the user equipmt.t.
This device complies with Part 15 of the FCC Rules. Operation is subject to the fol­lowing two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may
cause undesired operation.
IMPORTANT NOTE:
FOR MOBILE DEVICE USAGE (>20cm/low power)
Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncon-
trolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.
OEM Integration Instructions
This device is intended only for OEM integrators under the following conditions (1). This module limit can be used to install in the list of host combinations below.
Product
Host model Module Model Antenna type Difference of
name
Wireless
ePaper
Control
Board
Wireless
ePaper
Control
Board
EPD-023B2
EPD023
EPD-053R2
EPD053
EPD-023 Chip antenna antenna type
EPD-053 PCB dipole
End Product
display screen
size
(2). The antenna must be installed such that 20 cm is maintained between the antenna and users, and the transmitter module may not be colocated with any other transmit or antenna.
(3). The module shall be only used with the integral antenna(s) that has been originally tested and certified with this module.
As long as 3 conditions above are met, further transmitter test will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirement with this module installed (for example, digital device emission, PC peripheral requirements, etc.)
LABEL OF THE END PRODUCT:
The final end product must be labeled in a visible area with the following " Contains TX FCC ID: M82-EPD-023-053 ".
If the labelling area is larger than the palm of the hand, then the following FCC part
15.19 statement has to also be available on the label: This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation.
NCC
Technical Supports and Assistance
1. Visit the Advantech website at http://Supports.advantech.com where you can
find the latest information about the product.
2. Contact your distributor, sales representative, or Advantech's customer service
center for technical Supports if you need additional assistance. Please have the following information ready before you call:
Product name and serial number Description of your peripheral attachments Description of your software (operating system, version, application software,
etc.)
A complete description of the problem The exact wording of any error messages
Packing List
Before setting up the system, check that the items listed below are included and in good condition. If any item does not accord with the table, please contact your dealer immediately.
EPD-023 System Device
Ordering Information
Part No. Description
EPD-023B1AG-NTC02 2.9" Wireless ePaper displays system solution in 2.4G EPD-023B1AG-NTC12 EPD-023B2AG-NTC02 for 50 pcs solution kit EPD-023B1AG-NTC22 EPD-023B2AG-NTC02 for 100 pcs solution kit EPD-023B1AG-NTC32 EPD-023B2AG-NTC02 for 500 pcs solution kit EPD-023B1AG-NTC42 EPD-023B2AG-NTC02 for 3000 pcs solution kit
Optional Accessories
Part No. Description
1760002692-01 4 pcs CR2450 battery
Safety Instructions
1. Read these safety instructions carefully.
2. Keep this User Manual for later reference.
3. Disconnect this equipment from any AC outlet before cleaning. Use a damp
cloth. Do not use liquid or spray detergents for cleaning.
4. For plug-in equipment, the power outlet socket must be located near the equip-
ment and must be easily accessible.
5. Keep this equipment away from humidity.
6. Put this equipment on a reliable surface during installation. Dropping it or letting
it fall may cause damage.
7. The openings on the enclosure are for air convection. Protect the equipment
from overheating. DO NOT COVER THE OPENINGS.
8. Make sure the voldevicee of the power source is correct before connecting the
equipment to the power outlet.
9. Position the power cord so that people cannot step on it. Do not place anything
over the power cord.
10. All cautions and warnings on the equipment should be noted.
11. If the equipment is not used for a long time, disconnect it from the power source
to avoid damage by transient overvoldevicee.
12. Never pour any liquid into an opening. This may cause fire or electrical shock.
13. Never open the equipment. For safety reasons, the equipment should be
opened only by qualified service personnel.
14. If one of the following situations arises, get the equipment checked by service
personnel:
The power cord or plug is damaged. Liquid has penetrated into the equipment. The equipment has been exposed to moisture. The equipment does not work well, or you cannot get it to work according to
the user's manual. The equipment has been dropped and damaged. The equipment has obvious signs of breakage.
15. Danger of explosion if battery is incorrectly replaced. Replace only with same or
equivalent type recommended by the manufacture. Discard used batteries
uctions.
replacement of a battery with an incorrect type that can defeat a safeguard
(for example, in the case of some lithium battery types);
disposal of a battery into fire or a hot oven, or mechanically crushing or cut-
ting of a battery, that can result in an explosion;
l leaving a battery in an extremely high temperature surrounding environment
that can result in an explosion or the leakage of flammable liquid or gas;
a battery subjected to extremely low air pressure that may result in an explo-
sion or the leakage of flammable liquid or gas.
DISCLAIMER: This set of instructions is given according to IEC 704-1. Advantech disclaims all responsibility for the accuracy of any statements contained herein.
EPD-023 User Manual vi
Consignes de Sécurité
1. Lisez attentivement ces instructions de sécurité.
2. Conservez ce manuel de l'utilisateur pour référence ultérieure.
3. Débranchez cet appareil de toute prise secteur avant le nettoyage Utilisez un
chiffon humide. N'utilisez pas de détergents liquides ni en spray pour le nettoy­age
4. Pour les équipements enfichables, la prise de courant doit être située à proxim-
ité de l'équipement et doit être facilement accessible.
5. Gardez cet équipement à l'abri de l'humidité.
6. Placez cet équipement sur une surface fiable lors de son installation
7. Les ouvertures de l'enceinte sont destinées à la convection de l'air. Protégez le
matériel contre la surchauffe. NE COUVREZ PAS LES OUVERTURES.
8. Assurez-vous que la tension de la source d'alimentation est correcte avant de
connecter l'équipement à la prise de courant.
9. Placez le cordon d'alimentation de sorte que personne ne puisse marcher des-
sus. Ne placez aucun objet sur le cordon
10. Toutes les mises en garde et avertissements sur l'équipement doivent être
notés
11. Si l'équipement n'est pas utilisé pendant une longue période, débranchez-le de
la source d'alimentation pour éviter tout dommage d? à une surtension transit­oire
12. Ne jamais verser de liquide dans une ouverture sous peine de provoquer un
incendie ou un choc électrique
13. Ne jamais ouvrir l'appareil.Pour des raisons de sécurité, cet équipement ne doit
être ouvert que par du personnel qualifié
14. Si l'une des situations suivantes se produit, faites vérifier l'équipement par le
personnel de service:
Le cordon d'alimentation ou la fiche est endommagé. Un liquide a pénétré dans l'appareil. L'équipement a été exposé à l'humidité.
L'équipement ne fonctionne pas bien ou vous ne pouvez pas le faire fonction-
ner conformément au manuel d'utilisation. Equipment L'équipement est tombé et a été endommagé. Equipment L'équipement présente des signes évidents de rupture.
AVERTISSEMENT: Cet ensemble d'instructions est donné conformément à la norme CEI 704-1. Advantech décline toute responsabilité quant à l'exactitude des déclara­tions contenues dans le.
Contents
Chapter 1 Product Overview ................................1
1.1 Introduction ...............................................................................................2
1.2 Specifications............................................................................................2
1.3 System implementation.............................................................................3
1.3.1 Advantech EPD-023 & ePaper Manager Solution........................3
Chapter 2 EPD-023 Network Specification .........5
2.1 System Architecture..................................................................................6
Figure 2.1 EPD-023 Network Topology.......................................6
2.1.1 System Environment.....................................................................6
2.2 System Specification.................................................................................6
2.2.1 ePaper Manager...........................................................................7
2.2.2 WISE Gateway (WISE-3610Z)......................................................7
2.2.3 WISE Router (Built-in WISE-3610Z or WISE-3240) .....................7
2.2.4 EPD Device...................................................................................7
2.3 System Network Specification...................................................................8
2.4 EPD System-Initial Flow on Device Side ..................................................8
2.4.1 DEvice Scan for Router ................................................................8
2.4.2 Registration...................................................................................9
2.4.3 Status report .................................................................................9
2.4.4 Execute actions Cmd....................................................................9
2.4.5 Firmware update...........................................................................9
2.5 Whitelist mechanism .................................................................................9
2.6 Secure Key Mechanism ..........................................................................10
Chapter 3 Hardware Specification .....................11
3.1 SYSTEM Specification............................................................................12

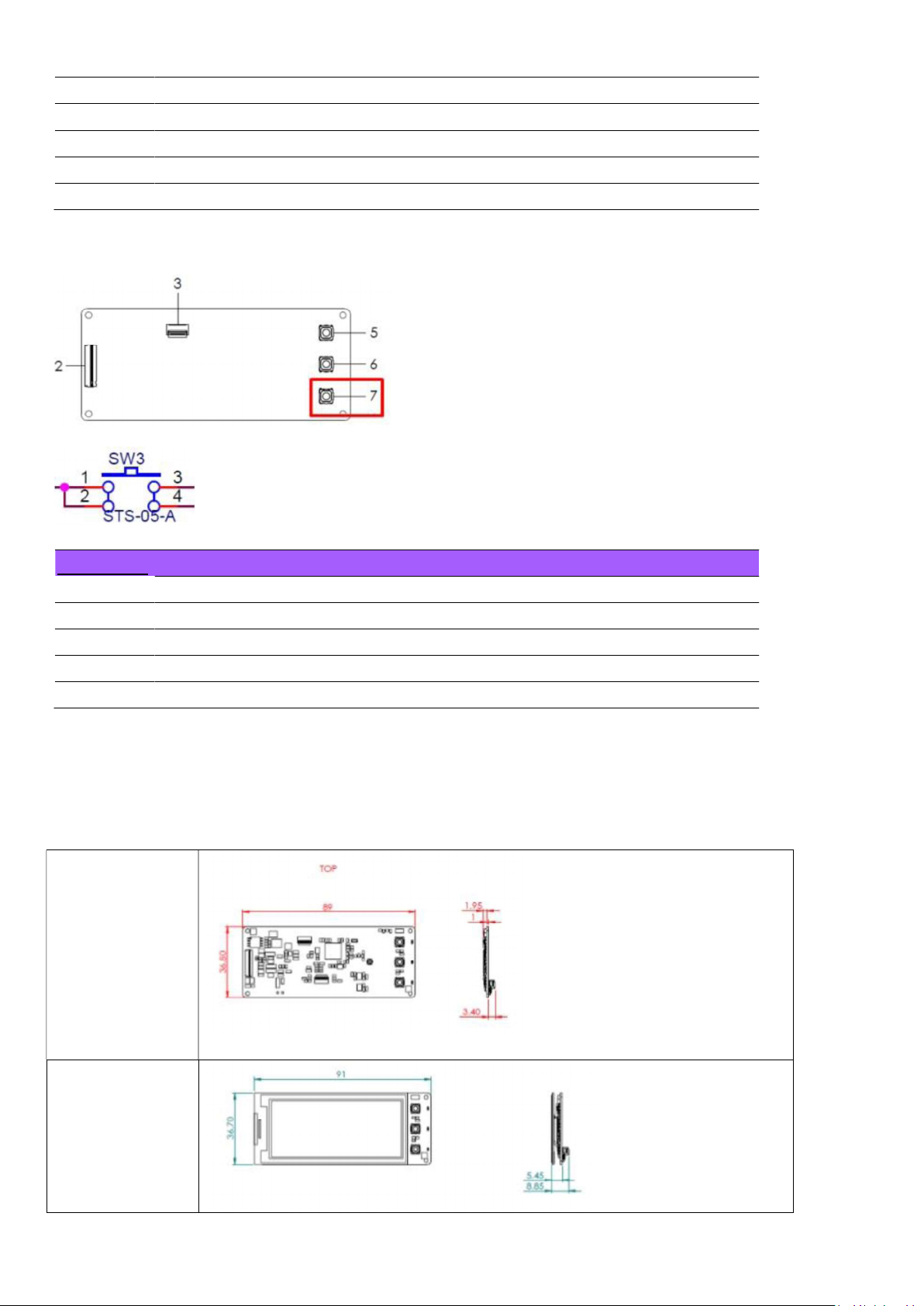

3.1.1 ID Dimension ..............................................................................12
3.1.2 Battery Installation ......................................................................12
3.2 Device LED Button Behavior...................................................................14

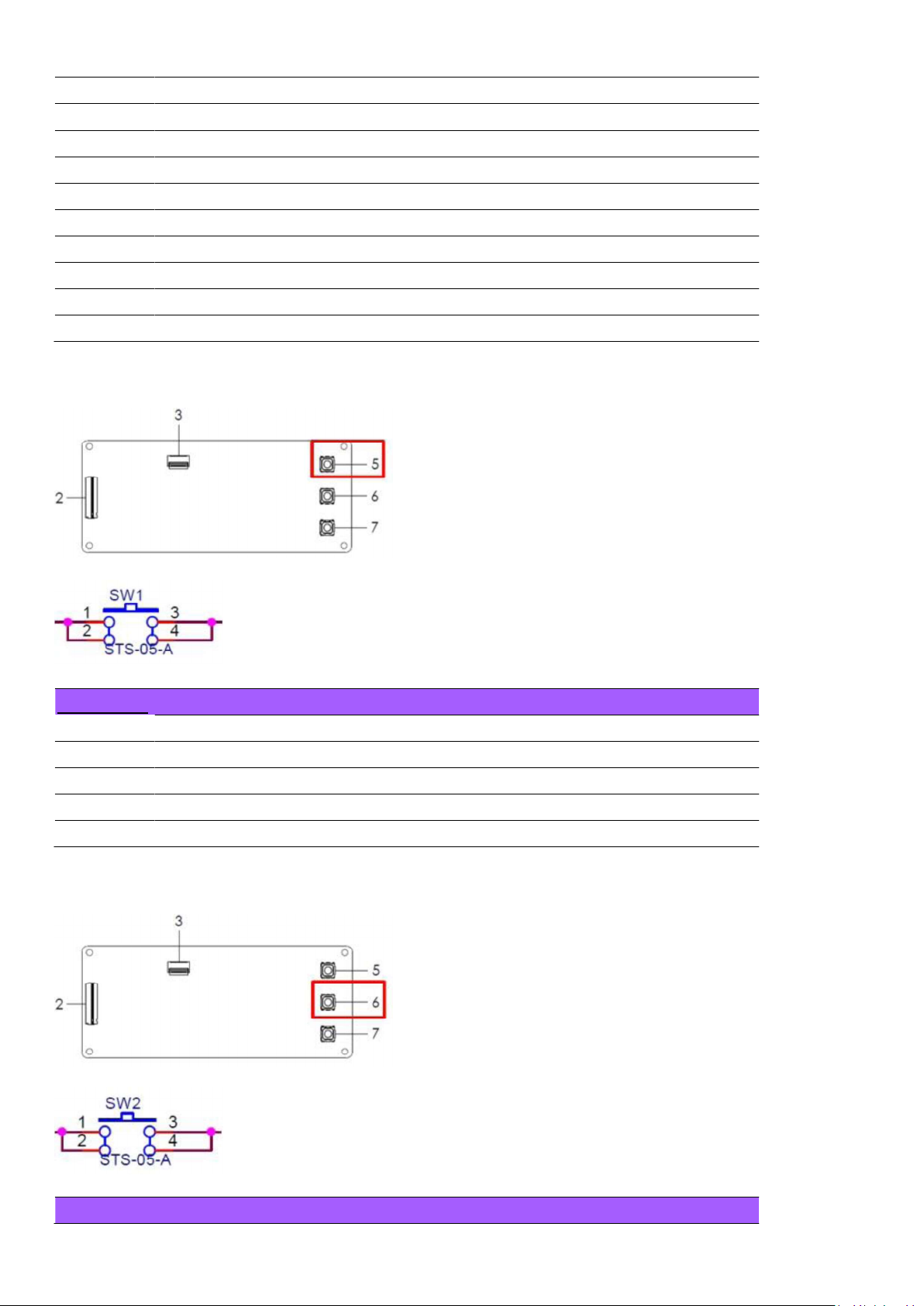

3.2.1 EPD-023 button behaviors:.........................................................14
3.2.2 EPD-023 LED behavior...............................................................14
Chapter 4 EPD-023 in ePaper Manager .............15
4.1 EPD-023 with ePaper Manager Solution ................................................16
Table 4.1: ePaper manager main feature list ............................16
4.2 Preparation..............................................................................................17
4.2.1 Hardware Component List..........................................................17
4.2.2 Software Component List............................................................17

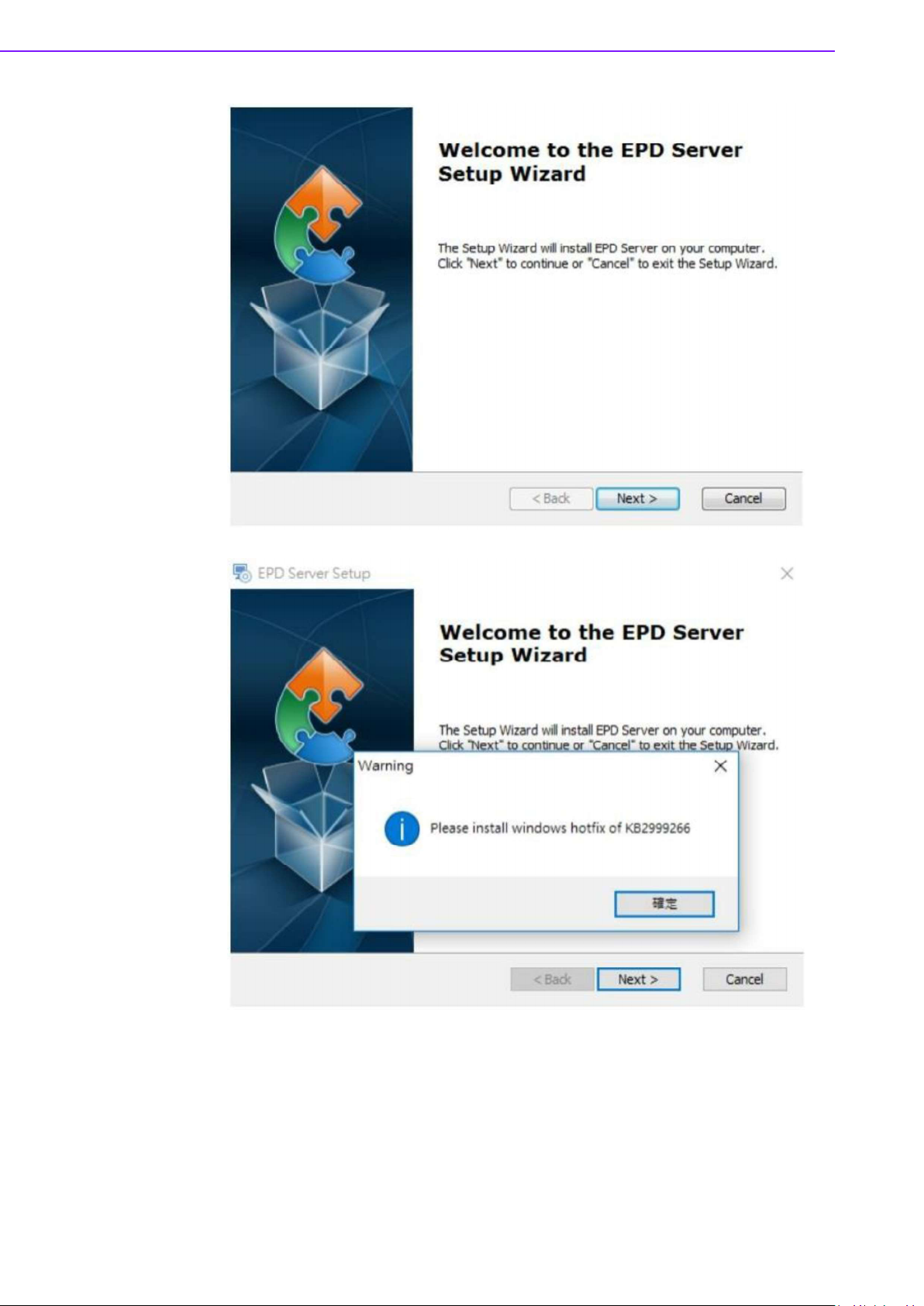

4.2.3 ePaper manager setup on ARK..................................................17
4.2.4 WISE-3610Z Setup and Connection ARK with ePaper Manager33
4.2.5 EPD-023,053 Setup and Connection to ARK with ePaper Manager 35
4.3 Hands-on EPD Device on ePaper Manager ...........................................36

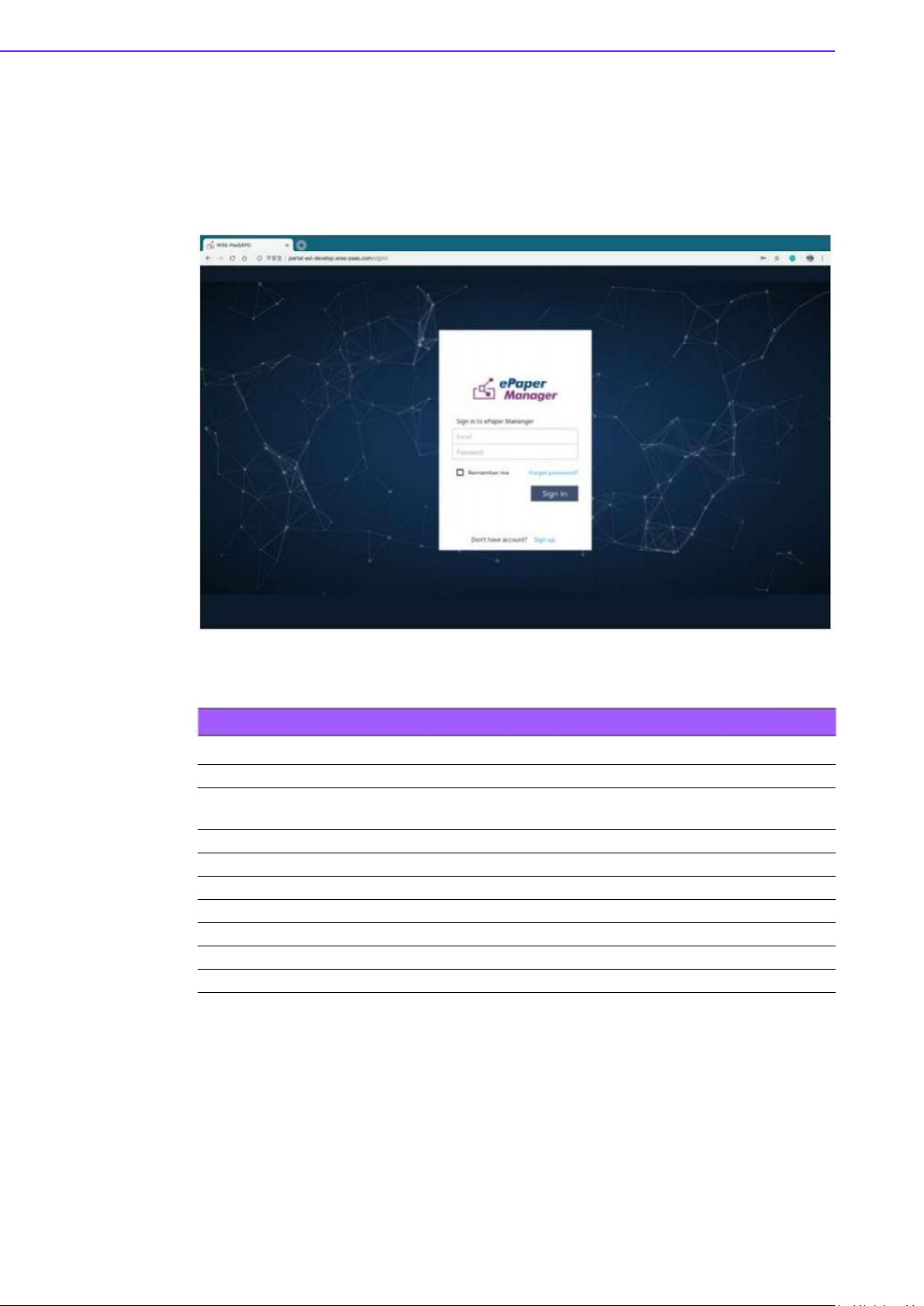

4.3.1 ePaper Manager Login ...............................................................36
4.3.2 Add Group & Device into ePaper Manager.................................37
4.3.3 Import Item Data to ePaper Manager .........................................48
4.3.4 Design Your Own Template........................................................51
4.3.5 Combing Template and Item Data..............................................52
ix EPD-023 User Manual
4.3.6 EPD Controller for EPD Device Management............................ 57
4.3.7 Final Association Between EPD Device, Target Product and
Product Data............................................................................... 64

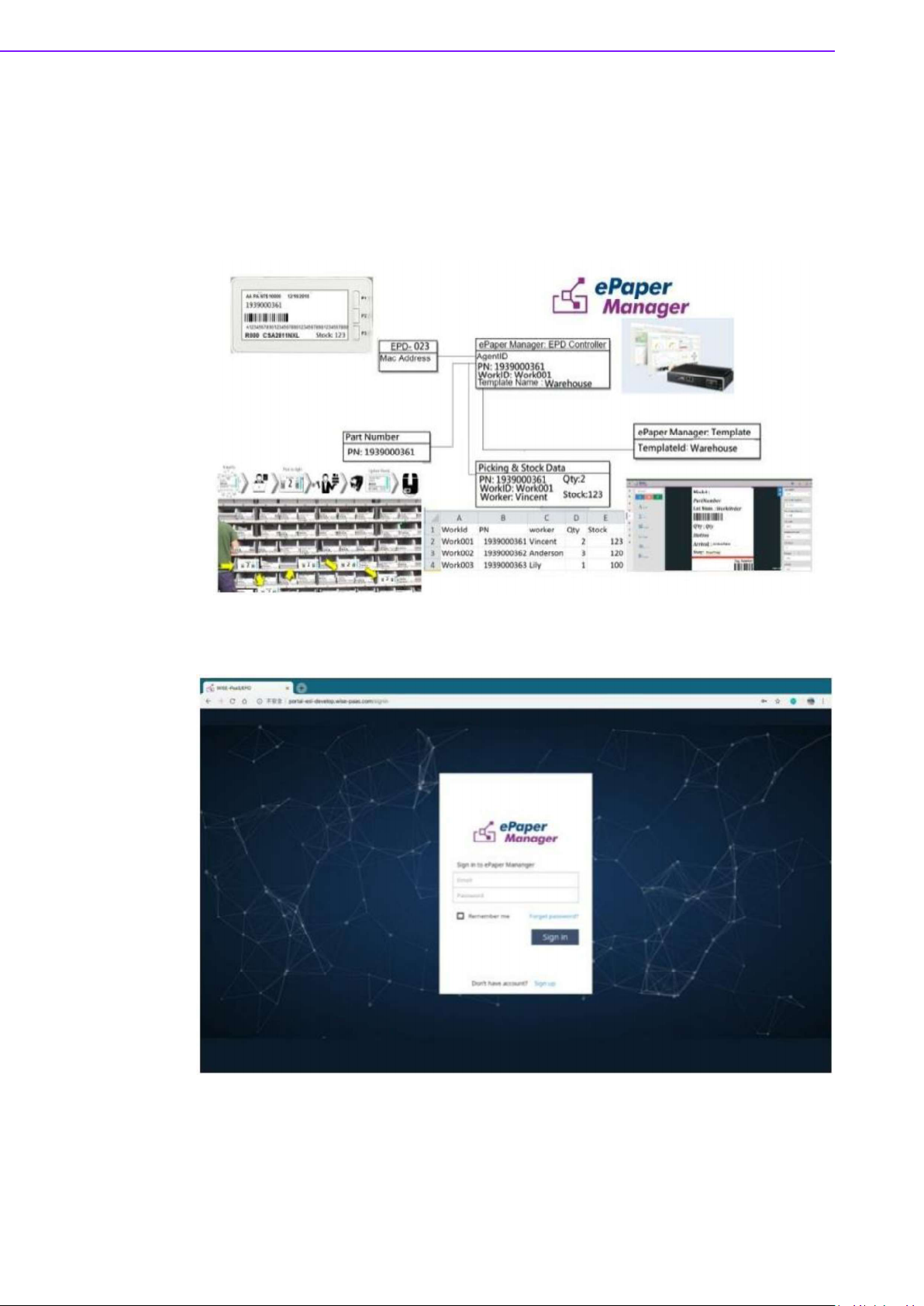

4.3.8 Smart Warehouse Pick to Light Scenario................................... 65
4.3.9 Clear Events and Data of MongoDB........................................... 66
4.4 Integrate EPD APIs Into Your System.................................................... 74
4.5 Control EPD Data Through ePaper Manager API .................................. 75
4.6 ePaper Manager Feature list .................................................................. 79
4.6.1 Component List........................................................................... 79
Chapter 5 WISE-EC EPD Design-in Service .....95
5.1 The Acquisition of Information ................................................................ 96
5.1.1 Concept ...................................................................................... 96
5.1.2 Design......................................................................................... 97
5.1.3 Integration................................................................................... 98
5.1.4 Production................................................................................... 98
5.2 Contact Information................................................................................. 99
5.3 Global Service Policy.............................................................................. 99
5.3.1 Warranty Policy........................................................................... 99
5.3.2 Repair Process......................................................................... 100
EPD-023 User Manual x
Chapter 1
1
Product Overview
1.1 Introduction
EPD-023 is an ePaper device which Supportss ultra low power 2.4GHz RF wireless integrated with a EPD with an ARM Cortex-M3 processor. The device is designed for hospital, pharmacy, factory, warehouse and retail applications. With optimization on power consumption and device management, low data rate applica­tions can achieve years of battery life and thousand of device connections. Advan-
EPD-023 provides multiple interface for application control which is highly integrated with a low power consumption system. EPD-023 can auto join and bind the network with the IoT Gateway (WISE-3610Z) and Router (WISE-3240). Data can be quickly and easily acquired and transformed into different formats to communicate with the ePaper Manager Server (ARK-2250L).
The main features of EPD-023 are:
ARM Cortex-M3 Core Processor Supports IEEE 802.15.4 / 2.4 G networks
2.9" e-Paper panel display Low power consumption and years of battery life Multiple I/O with 3 buttons & 3 LEDs Supports temperature ranges: 0 ~ 50 °C High Performance integrated system with RTOS Supports over-the-air upgrades (OTA) Available solution kit for various application deployments.
1.2 Specifications
Computing System
Display
Storage
Network Transmit Power -21dBm~ +6dBm
Interface
Power Battery CR2450 x4
EPD-023 User Manual 2
MCU Memory Screen Size Resolution Internal External Standard IEEE 802.15.4 Frequency Band 2.4-GHz Channels 11~26 Channel Separation 5MHz
Receiver Sensitivity -100dBm RF Data Rate 250 Kbps Function End node Antenna On-board Antenna LED x3
Function Key x3
TI 32-bit ARM Cortex-M3 Processor RAM 28KB 79 x 36.7 mm 296 x 128 pixels Flash: 128 KB SPI Flash: 512KB
Environment
Physical Characteris­tics
Operating System RTOS
Operation Temperature Non-Operational Temp.
Operating Humidity
Dimensions Weight
B/W: 0 ~ 50 °C
-25 ~ 60 °C
5 ~ 80% Relative Humidity, non-condensing
100 x 47 x17.9 mm 80g
Note! Image for EPD needs to follow these instructions.
1. Image needs to set as 296 x 128 pixels, do not resize which will
cause jaggy edges
2. 24 bit / BMP format for EPD-023
3. Black: (0,0,0) / White (255, 255, 255)
1.3 System implementation
The EPD device can be applied to different applications and system integrators can control the RESTful APIs to design for different scenarios.
1.3.1 Advantech EPD-023 & ePaper Manager Solution
Wireless EPD System consists of ePaper Manager, Gateway, Router and EPD device.
The ePaper manager on ARK2250L provide Web GUI to management the wire-
less EPD system.
The Gateway (WISE-3610Z) is for communication between ePaper manager
and EPD device. The Router (built-in WISE-3610Z) can extend wireless range of the Gateway. The EPD device is a device with ePaper, EPD controller and wireless connectiv-
ity.
Advantech provides a total solution for development to select the different architec­ture according t requirements.
3 EPD-023 User Manual
EPD-023 is the end node of the system. Developers can apply Advantech WISE­3610Z /3240 to connect to ePaper manager which is installed in Embed­ded Computer /ARK2250L.
EPD-023 User Manual 4
Chapter 2
2
EPD-023 Network Specification
2.1 System Architecture
Figure 2.1 EPD-023 Network Topology
2.1.1 System Environment
No Device1 OS Version
1 ARK 2250L/ePaper manager WIN7, WIN10 (2019,Q3) 64 bit, V1.0.0 2 WISE Gateway: 3610Z OpenWRT V1.0.0 4 WISE Router: WISE3240 OpenWRT V1.0.0 6 EPD Device CC2650 TI RTOS V1.0.0
2.2 System Specification
1. One single network can be built by WISE-3610Z or WISE-3240.
2. One WISE-3610Z can support up to 400 EPD devices in one channel.
3. One WISE-3240 can support up to 400 EPD devices in one channel.
4. Supports 11 channels in this system.
5. Supports up to 10000 EPD devices in one system by 25 pcs routers.
6. System supports whitelists to join the system from ePaper manager.
7. Supports changeable encrypted keys.
EPD-023 User Manual 6
2.2.1 ePaper Manager
GUI to operate the system, EPD device and gateway. Through RESTFul API, the external system can operate the whole system as
shown below:
1.ePaper manager can perform WISE Gateway actions and control WISE Gate-
way.
2.ePaper manager can perform WISE Router actions and control WISE Router.
3.ePaper manager can perform EPD device actions and control EPD series
device.
4.ePaper manager can import EPD device list which can be the whitelist to join
the network.
5.ePapaer manager can deliver the image/Firmware to EPD device through
WISE Gateway.
6.Device can periodically report status back to ePaper manager.
2.2.2 WISE Gateway (WISE-3610Z)
1) Supports MQTT broker server.
2) Executes EPD-Gateway actions from ePaper manager.
3) Wireless control router and EPD device.
2.2.3 WISE Router (Built-in WISE-3610Z or WISE-3240)
Transfer command to control EPD device. Wireless control EPD device.
2.2.4 EPD Device
A device can join the router when a corespondent LQI value can be detected
and qualified.
Supports router re-scan: if an EPD device fails to join after 2 mins the EPD
device will start to look for new router. Supports status reports every 1 mins after a device joins the network. Supports sending data requests every 20 secs after a device joins the network. Supports emergency and event status reports every 1 mins after joining the net-
work
Battery status report Hardware malfunciton reports for panel errors and external-flash
errors exception handling: image CRC failing
Device Battery: CR2450 x 4 pcs
The Battery life time can re-fresh images on screen 35000 times for EPD-
023 to transfer images from the gateway to the EPD device (under a typical 25 degree environment.)
Supports multi-image storage.
Full size image: EPD-023: 20 pages in total. The first 3 pages are mapped to
the 3 buttons. The other 17 pages can be controlled from the ePaper man­ager directly.
Supports de-compression on the device side.
Supports execute device action from the Router.
7 EPD-023 User Manual
2.3 System Network Specification
Physical transmission data rate is 250 Kbps Network join performance
a. 1 pcs EPD device takes 6 secs to join the network. b. 400 pcs EPD device join network in 30 minutes by 1 host WISE-1840 on WISE-3610Z
Data transfer performance from Gateway
Update 400pcs EPD-023 in 1
hours 2 way communication
Communication with encrypted AES128
Note! The performance will be adjusted according the environmental limita-
tion.
2.4 EPD System-Initial Flow on Device Side
This section will explain how the end device joins, registers, and communicates with the gateway and router. Users may change some parameters to fit their own sce­nario.
2.4.1 DEvice Scan for Router
Initial scan: EPD device scans each available channel. If the EPD device still
find the router after 2 mins, it will change the status to
Reconfirm scan: The device will start to scan the channel to look for another
router every 2 mins. If a device still find the router after 4 attempts, it will re­scan the channel every 2, 4, 8, 16, 32 mins, then every 64 mins for 5 days. Finally the device will move to deep sleep mode after scanning for 5 days con­tinuously.
Stop scanning and deep sleep: If the EPD device still find the router
finally, it will stop RF Scanning and go back to deep sleep mode until the button of the device has been pressed. The device will start scanning from the begin­ning.
Ini al Scan
EPD-023 User Manual 8
1-Recon m scan
2-Recon m scan
Stop scanning
2.4.2 Registration
Router
Router Power on System get cache file and set GW
cmd Router connect to gateway
EPD Device
Default setting for shipping: Supports 11 channels. Power on auto check if a router exists and asks to join the network. Router permits to join if the EPD device is on the
whitelist EPD device joins the network
2.4.3 Status report
Router (WISE-3610Z or WIS-3240) will report status every 1 mins EPD device will report status every 1 mins
2.4.4 Execute actions Cmd
Router will receive action commands from the gateway in real-time . EPD device sends data requests every 20 secs from sleep mode to router to
check if there are any action commands. EPD device will send back the ACK turn result if the action command is exe-
cuted.
2.4.5 Firmware update
WISE-1840 network control card in the Router will receive FW upgrade com-
mands from the router in real-time and execute automatically. System will
reboot after FW upgrade is complete. EPD device sends data requests every 20 secs from sleep mode to the router to
check if there is any action command. EPD device receives FW upgrade com-
mands if there is FW upgrade action. After upgrading, the EPD device will re-
register network.
2.5 Whitelist mechanism
Before importing the whitelist, the user need to setup a router channel which can pro­vide optimal performance. Users can setup the channel from ePaper manager and the router channels are: 11 13 14 15 20 21 22 23 24 25 26. If the channel has not been set, the router will be set to the default channel of 15.
(1). When a user receives the goods, it comes with an EPD device whitelist. Users need to import the list from ePaper manager.
(2).ePaper manager can dispatch the list to the connected system daemon in the Gateway.
(3) EPD device can auto join the network after the whitelist has been properly setup in ePaper manager and Gateway.
Note! End users need to be aware which 2.4Ghz wi-fi channels have been
used to avoid to using the same channels.
9 EPD-023 User Manual
2.6 Secure Key Mechanism
Advantech EPD-023 asks users to change the secure key when data exchanges between devices. Users can setup a new secure key from ePaper manager and the gateway will start passing the new key to connected devices. As long as the key has been changed, the device can not operate in the original system which has a different secure key setting.
Data communication is encrypted by AES128 Users can define a 128 bit secure key The Gateway exchanges keys to devices automatically
EPD-023 User Manual 10
Chapter 3
3
Hardware Specification
3
3. H/W SPECIFICATION
This section provide board level PCBA design in #3.1 and #3.2 and the system level reference design in #3.2.
EPD-023,053 PCBA with following spec.
Panel Size : 79.0(H)×36.7(V) ×1.15(D) mm,
5.6 Panel Size : 125.4 (H) × 99.5 (V) × 1.15 (D) mm, PCBA: 89 x 36.8 x 3 mm
PCB thickness: 3 mm ± 10%
Module input voltage: 3.3V DC-in
Connector current rating: 0.5A / Power contact
operation temperature range: 0 °C to +50 °C for B/W , 0 °C to +40 °C for R/B/W
3.1 Board level I/O
3.1.1 Internal I/O
Figure 3-1
Table 3-1 I/O Connector
NAME Description EPD-023 EPD-053 CON7 2 pins power connector for battery v v CON1 24 FPC connector for EPD v v CON10 10 FFC connector for debug v v CON11 10 FFC connector for EPD-053R daughter board v SW1 Switch button v SW2 Switch button v SW3 Switch button v
3.1.2 Power connector (CON7)
Figure 3-2
3
4
Figure 3-3
Table 3-2 Power connector (CON7)
PIN PIN_NAME 1 +VBATT 2 GND
3.1.3 EPD FPC connector (CON1)
Figure 3-4
Figure 3-5
Table 3-1-3 EPD FPC connector (CON1)
PIN PIN_NAME 1 VCOM 2 PREVGL 3 VSL 4 PREVGH 5 VSH 6 FMSDO 7 VDD 8 GND 9 +IOVDD
4
5
10 +IOVDD 11 EPD_SDA 12 SPI0_CLK 13 SPI0_CS1# 14 EPD_DC_SEL 15 EPD_RST_N 16 EPD_BUSY 17 BUS_SEL 18 TSDA 19 TSCL 20 VGH 21 VGL 22 RESE 23 GDR 24 MFCSB
3.1.4 Debug FFC connector (CON10)
Figure 3-6
Figure 3-7
Table 3-1-4 Debug FFC connector (CON10)
PIN PIN_NAME
5
6
1 ZB_UART0_TX 2 ZB_UART0_RX 3 GND 4 JTAG_TDI 5 JTAG_TDO 6 JTAG_TCK 7 JTAG_TMS 8 N_RESET 9 BOOT_CFG 10 +DCVIN
3.1.5 Switch button (SW1)
Figure 3-8
Figure 3-9
Table 3-1-5 Switch button (SW1)
PIN PIN_NAME 1 SW1_IN 2 SW1_IN 3 +VDD 4 +VDD
3.1.6 Switch button (SW2)
Figure 3-10
Figure 3-11
Table 3-1-6 Switch button (SW2)
6
7
PIN PIN_NAME 1 SW2_IN 2 SW2_IN 3 +VDD 4 +VDD
3.1.7 Switch button (SW3)
Figure 3-12
Figure 3-13
Table 3-1-7 Switch button (SW3)
PIN PIN_NAME 1 SW3_IN 2 SW3_IN 3 +VDD 4 +VDD
3.2 Module & PANEL OUTLINE AND DIMENSION
Module
Figure 3-14
EPD-023
7
2
3
3.2 Device LED Button Behavior
3.2.1 EPD-023 button behaviors:
item Status Action Result
1
SW1 (P1) no press
SW2(P2) no press
SW3 (P3) no press
3.2.2 EPD-023 LED behavior
Press SW1(P1) &
4
SW3(P3)
If device loses con-
5
nection, press either SW1\SW\SW3
Press button for 0.5 sec and release button
Press button for 0.5 sec and release button
Press button for 0.5 sec and release button
Step1: Long press button (SW1 & SW3) when LED1,LED2 and LED3 off Step2: LED2 flash (0.5 sec toggle LED2) after hold SW1& SW3 for 5 sec Step3: LED2 on after hold SW1 & SW3 for 10 sec Step4: Release SW1 & SW3 keys then LED2 off
Press and release button
Refresh EPD to Page 1
Refresh EPD to Page 2
Refresh EPD to Page 3
Reset to default and reboot Note: All images and set­tings in the device will be deleted.
Leave sleep mode and try to connect to a network
Remote control commands from the gateway.
EPD-023 User Manual 14
Item Status Action Result
1
2 LED2 Remote Control by ePaper Manager API On/Off /Blink 3 LED3 Remote Control by ePaper Manager API On/Off/Blink
LED1
Remote Control by ePaper Manager API (ePaper Manager
On/Off/Blink
Chapter 4
4
EPD-023 in ePaper Manager
4.1 EPD-023 with ePaper Manager Solution
Previously, we looked at EPD-023 as an end device. To build up a solution, we need a gateway to connect to our CMS: ePaper Manager provides a complete solution to help you import device data, design templates and manage devices easily. This user manual will help you to build a total solution system.
ePaper Manager provides a complete solution to help you easily import device data,
EPD-023 User Manual 16
design device templates, and manage devices. The main features are listed below.
Table 4.1: ePaper manager main feature list
Item Name Description
1 Overview System dashboard 2 EPD controller Control & manage EPD device and association with tar-
get 3 Item Data Group Management 4 Device list Target product data & import 5 Template EPD image design and generation 6 Whitelist setting EPD whitelist 7 OTA Firmware upgrade 8 Setting User account management 9 Document Online document
4.2 Preparation
4.2.1 Hardware Component List
1. Advantech Embedded Computer: ARK-2250L
2. Advantech IoT Gateway: WISE-3610Z & Advantech EPD devices.
4.2.2 Software Component List
1. Windows 7 professional version for ARK2250L
Windows firewall needs to be setup for ePaper manager service AMQP: 5672 AMQP/SSL: 5671 HTTP: 8080 MQTT: 1883 MQTT/SSL: 8883 RabbitMQ: 15672
2. ePaper Manager Installation & License on ARK2250L
3. 500 connection licenses on ARK2250L.

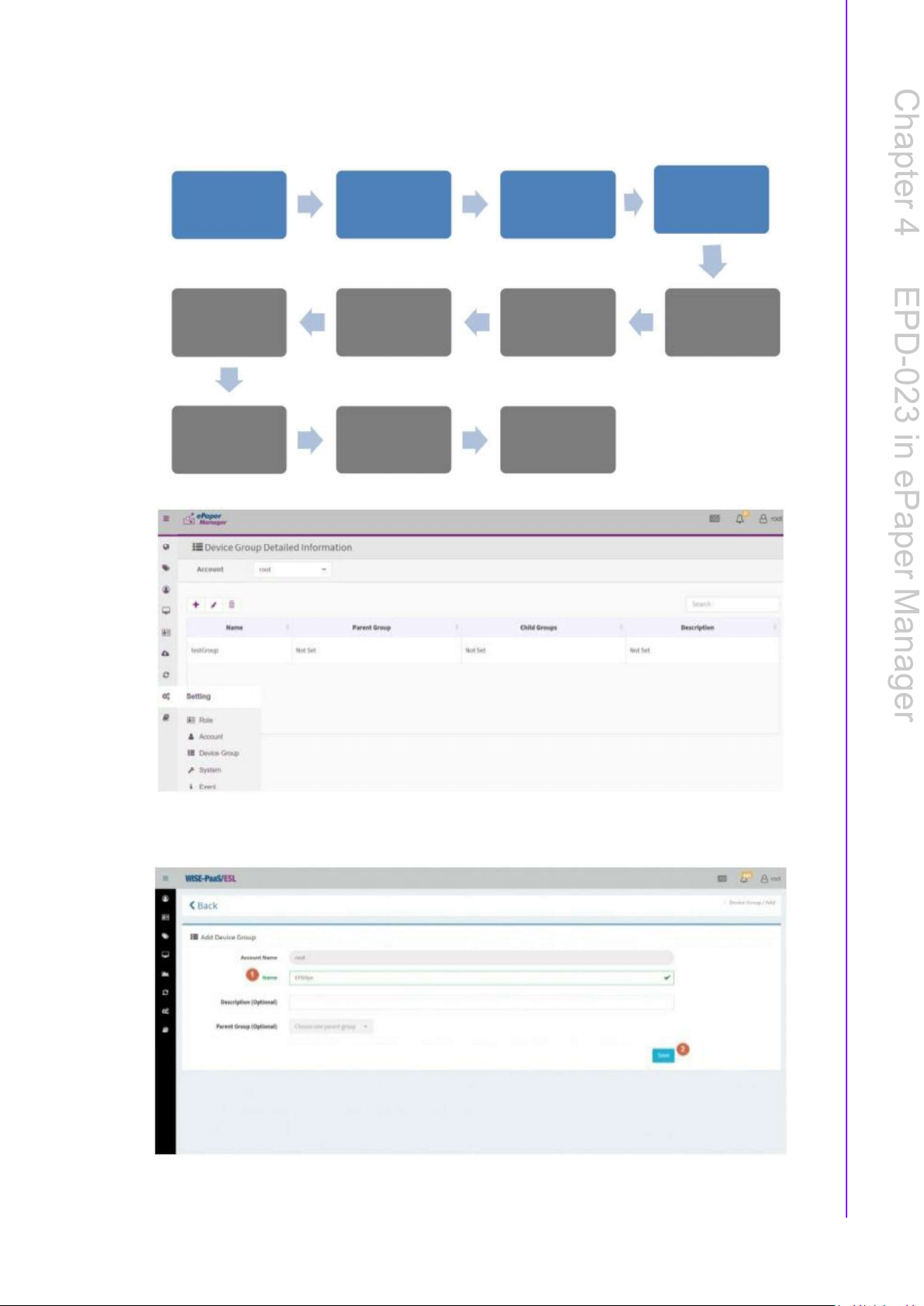

4.2.3 ePaper manager setup on ARK
Install ePaper
Manager
EPD Controller for
EPD device managment
Template & data
binding
Add Gateway to ePaper manager
Data import and
template
EPD controller
Associate the
device and data
Add Router to
Gateway
DeviceList setup: EPD power-on and join network online
EPD System
automacatelly
operate
1. First, you will need to install ePaper manager on ARK-2250L
ePaper Manager Installation
Double click the EPD ServerSetup_1.0.0.exe file to start installation process on the server computer.
Follow the instructions in the setup wizard.
17 EPD-023 User Manual
DeviceList setup:
Add Gateway &
Router
Mac address of
EPD device Import
into white List
EPD-023 User Manual 18
Windows hotfix of KB2999266 is required to run this software. Please download it from Microsoft website and execute. (https://www.microsoft.com/zh- TW/download/ confirmation.aspx?id=49093).
Microsoft Visual C++ 2015 Redistributable Update 3 (https://www.microsoft.com/en-us/download/details.aspx?id=53840)
Please click the next button if there si no need to change the default installation path.
19 EPD-023 User Manual
Please check your public IP or domain name and fill it in the HTTP port number field.
Please change the port number if needed.
EPD-023 User Manual 20
Please fill in the password and confirm it for the PostgreSQL database.
21 EPD-023 User Manual
Please fill in the password and confirm it for the MongoDB database.
Click the install button to start installation.
EPD-023 User Manual 22
Please allow access to the installation of erl.exe.
23
EPD-023 User Manual
Allow to access the installation of epmd.exe.
Click the Finish button to exit the Setup Wizard.
2. You will get a register notification from our sales package. You will need to
enable the key after installation of ePaper manager.
EPD-023 User Manual 24
25 EPD-023 User Manual
4.2.3.1 How to configure your FTP server
Before you start transmitting an image to EPD or Firmware upgrade. You need to setup an FTP server. ARK2250L should have an FTP server installed. Click the startup icon to launch the Filezilla Server.
1. Start the FTP Server.
2. Add user account.
EPD-023 User Manual 26
27 EPD-023 User Manual
3. Add a password for the user. use the symbol in password)
4. Add Shared folders and set the property of the directories and files. Add the
FTP Server to OTA Storage. You should make sure that the Shared folders are available.
EPD-023 User Manual 28
5. Open Windows firewall setting and click allow a program or feature through Win-
dows firewall.
29 EPD-023 User Manual
6. Make sure to allow FileZilla Server and FileZilla Server Interface to pass through
the Windows firewall.
EPD-023 User Manual 30
4.2.3.2 How to configure your FTP server on ePaper manager

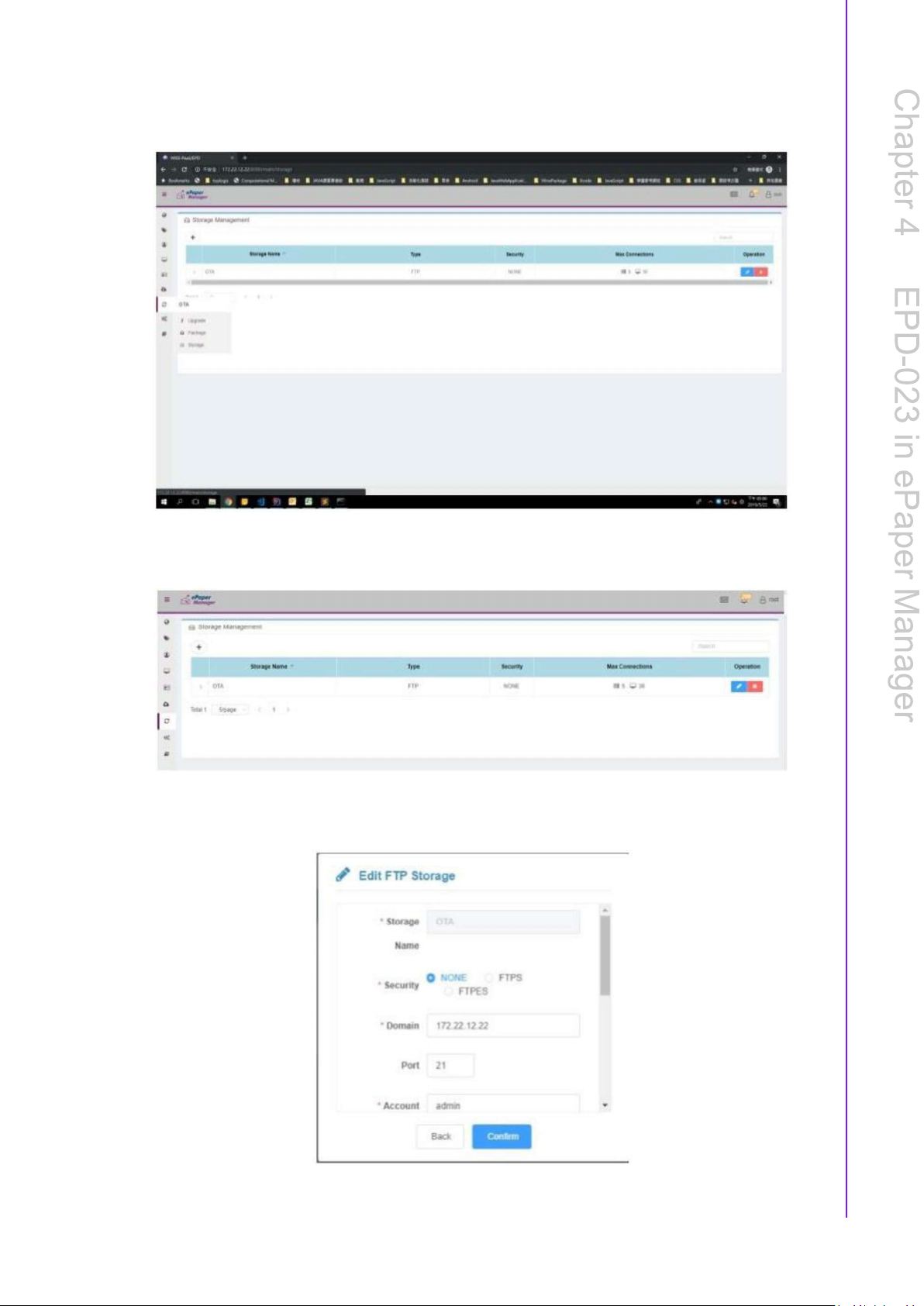

1. Click the Storage button to add an FTP storage for OTA and image delivery.
2. Click Add (+) button on the left-upper corner. Select the FTP option.
3. Finish the configuration form and click Confirm.
31 EPD-023 User Manual
Storage Name: OTA Security: NONE Domain: [Your Server IP] Port: 21 Account Name: [Your FTP account] Password: [Your FTP password] Root Path: [Your root path]
4. You will see an item in the Storage Management table.
5. Open the FTP port of the firewall in the OS.
EPD-023 User Manual 32
4.2.4 WISE-3610Z Setup and Connection ARK with ePaper Manager
Install ePaper
Manager
EPD Controller for
EPD device managment
Template & data
binding
Add Gateway to ePaper manager
Data import and
template
EPD controller
Associate the
device and data
Add Router to
Gateway
DeviceList setup: EPD power-on and join network online
EPD System
automacatelly
operate
After completing the ePaper manager installation, you may start to configure the Gateway: WISE-3610Z.
1. Power on WISE-3610Z
2. Open WISE-3610Z management web page: Open a web browser (Chrome is
recommended) and enter the IP Address http://192.168.1.1 or http://advan­tech.local/
3. Login: The default username and password are root and ePaper. Click the
Login button to open the web configuration page.
DeviceList setup:
Add Gateway &
Router
Mac address of
EPD device Import
into white List
33 EPD-023 User Manual
4. Setup Networking Connection
5. Ethernet WAN Backhaul Connection:
Connect Ethernet cable to an exiting backhaul router and ISP cable modem or Internet service provider xDSL / FTTx modem.
Select WAN for NorthBond backhaul connection and choose Protocol > DHCP Client
EPD-023 User Manual 34
6. Setup the ePaper management server IP as below.
4.2.5 EPD-023,053 Setup and Connection to ARK with ePaper
Manager
Install ePaper
Manager
EPD Controller for
EPD device managment
Template & data
binding
Add Gateway to ePaper manager
Data import and
template
EPD controller
Associate the
device and data
Add Router to
Gateway
DeviceList setup: EPD power-on and join network online
EPD System
automacatelly
operate
DeviceList setup:
Add Gateway &
Router
Mac address of
EPD device Import
into white List
This section explains how the router auto joins with the WISE-3610Z (gateway). Users may change some parameters to fit their scenario.
1. Add Router (WISE-3610Z/WISE-3240) to ePaper manager:
a. WISE-3610Z: The WISE-3610Z combine gateway and router without any extra setting b. WISE-3240: TBD
35 EPD-023 User Manual
4.3 Hands-on EPD Device on ePaper Manager
Users need to prepare a few things before starting ePaper manager/EPD controller.
1. EPD device mac address
2. Target Item data contains unique ID such as the key e.g. PN (part number)
3. Target Item ID as the key e.g. PN (part number)
4. EPD device screen setup via the EPD image template
4.3.1 ePaper Manager Login
EPD-023 User Manual 36
4.3.2 Add Group & Device into ePaper Manager
1. Create group & edit group information
Install ePaper
Manager
Add Gateway to ePaper manager
Add Router to
Gateway
DeviceList setup:
Add Gateway &
Router
EPD Controller for
EPD device managment
Template & data
binding
Data import and
template
EPD controller
Associate the
device and data
DeviceList setup: EPD power-on and join network online
EPD System
automacatelly
operate
Mac address of
EPD device Import
into white List
2. Add Group
37 EPD-023 User Manual
