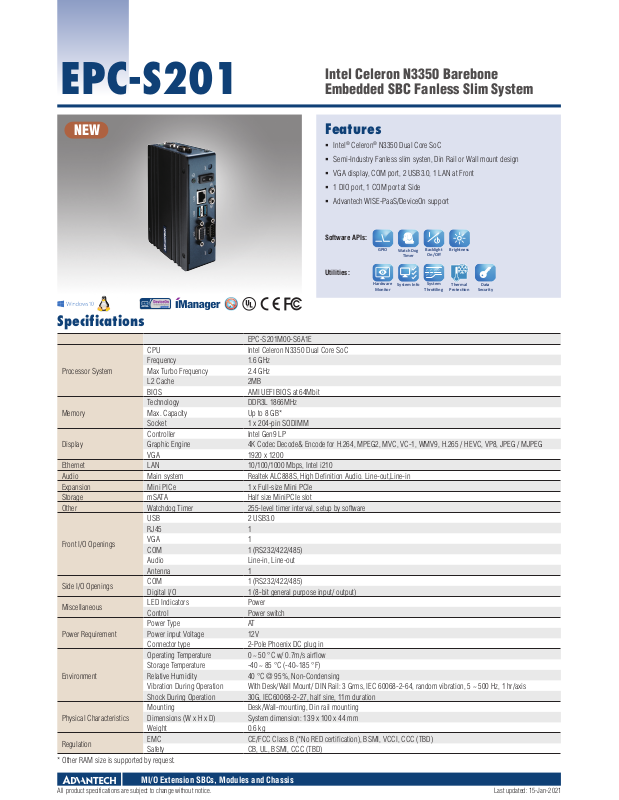

Advantech EPC-S201 DATASHEET
EPC-S201
Watch Dog
Protec�on
Intel Celeron N3350 Barebone
Embedded SBC Fanless Slim System
NEW
Features
Intel® Celeron® N3350 Dual Core SoC
Semi-Industry Fanless slim systen, Din Rail or Wall mount design
VGA display, COM port, 2 USB3.0, 1 LAN at Front
1 DIO port, 1 COM port at Side
Advantech WISE-PaaS/DeviceOn support
Software APIs:
GPIO
Utilities:
Hardware
Monitor
Specifications
EPC-S201M00-S6A1E
CPU Intel Celeron N3350 Dual Core SoC
Frequency 1.6 GHz
Processor System
Memory
Display
Ethernet LAN 10/100/1000 Mbps, Intel i210
Audio Main system Realtek ALC888S, High Definition Audio. Line-out,Line-in
Expansion Mini PICe 1 x Full-size Mini PCIe
Storage mSATA Half size MiniPCIe slot
Other Watchdog Timer 255-level timer interval, setup by software
Front I/O Openings
Side I/O Openings
Miscellaneous
Power Requirement
Environment
Physical Characteristics
Regulation
* Other RAM size is supported by request.
Max Turbo Frequency 2.4 GHz
L2 Cache 2MB
BIOS AMI UEFI BIOS at 64Mbit
Technology DDR3L 1866MHz
Max. Capacity Up to 8 GB*
Socket 1 x 204-pin SODIMM
Controller Intel Gen9 LP
Graphic Engine 4K Codec Decode& Encode for H.264, MPEG2, MVC, VC-1, WMV9, H.265 / HEVC, VP8, JPEG / MJPEG
VGA 1920 x 1200
USB 2 USB3.0
RJ45 1
VGA 1
COM 1 (RS232/422/485)
Audio Line-in, Line-out
Antenna 1
COM 1 (RS232/422/485)
Digital I/O 1 (8-bit general purpose input/ output)
LED Indicators Power
Control Power switch
Power Type AT
Power input Voltage 12V
Connector type 2-Pole Phoenix DC plug in
Operating Temperature 0 ~ 50 °C w/ 0.7m/s airflow
Storage Temperature -40 ~ 85 °C (-40~185 °F)
Relative Humidity 40 °C @ 95%, Non-Condensing
Vibration During Operation With Desk/Wall Mount/ DIN Rail: 3 Grms, IEC 60068-2-64, random vibration, 5 ~ 500 Hz, 1 hr/axis
Shock During Operation 30G, IEC60068-2-27, half sine, 11m duration
Mounting Desk/Wall-mounting, Din rail mounting
Dimensions (W x H x D) System dimension: 139 x 100 x 44 mm
Weight 0.6 kg
EMC CE/FCC Class B (*No RED certification), BSMI, VCCI, CCC (TBD)
Safety CB, UL, BSMI, CCC (TBD)
Timer
System Info
Backlight
On/Off
System
Thro�ling
Brightness
Thermal
Data
Security
MI/O Extension SBCs, Modules and Chassis
All product specifications are subject to change without notice. Last updated: 15-Jan-2021
EPC-S201
COM2
DIO
D-sub 1 (Option)
D-sub 2 (Option)
DC Input
Dimensions
100
139
43.901
Ordering Information
Part Number CPU RAM VGA GbE USB 3.0 RS-232/422/485 Audio MiniPCIe mSATA
EPC-S201M00-S1A1E
* RAM size is supported by request.
Intel Celeron
N3350
up to 8GB
DDR3L*
1 1 2 2
Line in
Line out
1 Full size
1 (Half size
miniPCIe
connector)
Power
Input
12V
DC
Unit: mm
Operating
Temperature
0 ~ 50 °C
Embedded OS/API
OS/API Part No. Description
Win10 20706WX6ES0036 img W10 16EL EPC-S201 64b 1709 ENU
Software API - SUSI API for Windows or Linux Yocto
Liunx - Yocto BSP ready for download on website
Packing List
Part Number Description
1 x EPC-S201 Unit
1 x Startup Manual (Simplified Chinese )
Optional
Part Number Description
96PSA-A60W12P2-3
1702002600-01 Power cable 3-pin 183 cm, USA type
1700018704 Power cable 3-pin 180 cm, UK type
1702002605 Power cable 3-pin 183 cm, Europe type
1700000237-01 Power cable 3-pin 183 cm, PSE type
ESBC-0BRK-WM02 Wall mount kit
ESBC-0BRK-DR01 DIN Rail kit
EWM-W135F01E WIFI Module: 802.11 a/b/g/n, Atheros AR9382, 2T2R
1750008717-01 External Antenna, Dipole Ant. D.B 2.4/5G WIFI 3dBi
1750006043 SMA Cable, R-SMA(F)/MHF 1.32 150mm
Front View Side View
HDD LEDUSB 3.0
VGA
COM1
LAN
Line Out
Line In On/O
DC power 12V/5A 60W, 0 ~ 40 °C, w/ Phoneix Jack type
power connector
COM2
DIO
D-sub 1 (Option)
D-sub 2 (Option)
DC Input
Online Download
www.advantech.com/products
