Advantech EKI1362 User Manual

User Manual

EKI-1361/EKI-1362

1/2-port RS-232/422/485 to

802.11b/g/n WLAN Serial Device
Server

Copyright

The documentation and the software included with this product are copyrighted 2013
by Advantech Co., Ltd. All rights are reserved. Advantech Co., Ltd. reserves the right
to make improvements in the products described in this manual at any time without
notice. No part of this manual may be reproduced, copied, translated or transmitted
in any form or by any means without the prior written permission of Advantech Co.,
Ltd. Information provided in this manual is intended to be accurate and reliable. How­ever, Advantech Co., Ltd. assumes no responsibility for its use, nor for any infringe­ments of the rights of third parties, which may result from its use.

Acknowledgements

Intel and Pentium are trademarks of Intel Corporation.

Microsoft Windows and MS-DOS are registered trademarks of Microsoft Corp.
All other product names or trademarks are properties of their respective owners.

Product Warranty (5 years)

Advantech warrants to you, the original purchaser, that each of its products will be
free from defects in materials and workmanship for two years from the date of pur­chase.

This warranty does not apply to any products which have been repaired or altered by
persons other than repair personnel authorized by Advantech, or which have been
subject to misuse, abuse, accident or improper installation. Advantech assumes no
liability under the terms of this warranty as a consequence of such events.

Because of Advantech’s high quality-control standards and rigorous testing, most of
our customers never need to use our repair service. If an Advantech product is defec­tive, it will be repaired or replaced at no charge during the warranty period. For out­of-warranty repairs, you will be billed according to the cost of replacement materials,
service time and freight. Please consult your dealer for more details.

If you think you have a defective product, follow these steps:

1. Collect all the information about the problem encountered. (For example, CPU

speed, Advantech products used, other hardware and software used, etc.) Note
anything abnormal and list any onscreen messages you get when the problem
occurs.

2. Call your dealer and describe the problem. Please have your manual, product,

and any helpful information readily available.

3. If your product is diagnosed as defective, obtain an RMA (return merchandize

authorization) number from your dealer. This allows us to process your return
more quickly.

4. Carefully pack the defective product, a fully-completed Repair and Replacement

Order Card and a photocopy proof of purchase date (such as your sales receipt)
in a shippable container. A product returned without proof of the purchase date
is not eligible for warranty service.

5. Write the RMA number visibly on the outside of the package and ship it prepaid

to your dealer.

Part No. Edition 1

Printed in Taiwan December 2013

EKI-1361/EKI-1362 User Manual ii

Declaration of Conformity

CE

This product has passed the CE test for environmental specifications. Test conditions
for passing included the equipment being operated within an industrial enclosure. In
order to protect the product from being damaged by ESD (Electrostatic Discharge)
and EMI leakage, we strongly recommend the use of CE-compliant industrial enclo­sure products.

FCC Class B

Note: This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in a residential installa­tion. This equipment generates, uses and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions, may cause harmful inter­ference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interfer-

ence to radio or television reception, which can be determined by turning the equip­ment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:

 Reorient or relocate the receiving antenna.
 Increase the separation between the equipment and receiver.
 Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

 Consult the dealer or an experienced radio/TV technician for help.

Declaration of Conformity

For Wireless Device

This device complies with Industry Canada licence-exempt RSS standard(s).Opera­tion is subject to the following two conditions: (1) this device may not cause interfer­ence, and (2) this device must accept any interference, including interference that
may cause undesired operation of the device.

For ITE Products

Industry Canada - Class B

This digital apparatus does not exceed the Class B limits for radio noise emissions
from digital apparatus as set out in the interference-causing equipment standard enti­tled “Digital Apparatus”, ICES-003 of Industry Canada.

iii EKI-1361/EKI-1362 User Manual

Technical Support and Assistance

1. Visit the Advantech web site at www.advantech.com/support where you can find

the latest information about the product.

2. Contact your distributor, sales representative, or Advantech's customer service

center for technical support if you need additional assistance. Please have the
following information ready before you call:

– Product name and serial number
– Description of your peripheral attachments
– Description of your software (operating system, version, application software,

etc.)

– A complete description of the problem
– The exact wording of any error messages

Safety Instructions

1. Read these safety instructions carefully.

2. Keep this User Manual for later reference.

3. Disconnect this equipment from any AC outlet before cleaning. Use a damp

cloth. Do not use liquid or spray detergents for cleaning.

4. For plug-in equipment, the power outlet socket must be located near the equip-

ment and must be easily accessible.

5. Keep this equipment away from humidity.

6. Put this equipment on a reliable surface during installation. Dropping it or letting

it fall may cause damage.

7. The openings on the enclosure are for air convection. Protect the equipment

from overheating. DO NOT COVER THE OPENINGS.

8. Make sure the voltage of the power source is correct before connecting the

equipment to the power outlet.

9. Position the power cord so that people cannot step on it. Do not place anything

over the power cord.

10. All cautions and warnings on the equipment should be noted.

11. If the equipment is not used for a long time, disconnect it from the power source

to avoid damage by transient overvoltage.

12. Never pour any liquid into an opening. This may cause fire or electrical shock.

13. Never open the equipment. For safety reasons, the equipment should be

opened only by qualified service personnel.

14. If one of the following situations arises, get the equipment checked by service

personnel:

– The power cord or plug is damaged.
– Liquid has penetrated into the equipment.
– The equipment has been exposed to moisture.
– The equipment does not work well, or you cannot get it to work according to

the user's manual.

– The equipment has been dropped and damaged.
– The equipment has obvious signs of breakage.

15. DO NOT LEAVE THIS EQUIPMENT IN AN ENVIRONMENT WHERE THE

STORAGE TEMPERATURE MAY GO BELOW -40° C (-40° F) OR ABOVE 80°
C (140° F). THIS COULD DAMAGE THE EQUIPMENT. THE EQUIPMENT
SHOULD BE IN A CONTROLLED ENVIRONMENT.

EKI-1361/EKI-1362 User Manual iv

16. CAUTION: DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY

REPLACED. REPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE
RECOMMENDED BY THE MANUFACTURER, DISCARD USED BATTERIES
ACCORDING TO THE MANUFACTURER'S INSTRUCTIONS.

17. The sound pressure level at the operator's position according to IEC 704-1:1982

is no more than 70 dB (A).

DISCLAIMER: This set of instructions is given according to IEC 704-1. Advantech
disclaims all responsibility for the accuracy of any statements contained herein.

Safety Precaution - Static Electricity

Follow these simple precautions to protect yourself from harm and the products from
damage.

 To avoid electrical shock, always disconnect the power from your PC chassis

before you work on it. Don't touch any components on the CPU card or other
cards while the PC is on.

 Disconnect power before making any configuration changes. The sudden rush

of power as you connect a jumper or install a card may damage sensitive elec­tronic components.

v EKI-1361/EKI-1362 User Manual

EKI-1361/EKI-1362 User Manual vi

Contents

Chapter 1 Overview...............................................1

1.1 Introduction ............................................................................................... 2

1.2 Features .................................................................................................... 3

1.3 Specifications ............................................................................................ 3

1.4 Package Check List .................................................................................. 5

Chapter 2 Getting Started.....................................7

2.1 Understanding EKI-1361/EKI-1362........................................................... 8

2.1.1 Product Description....................................................................... 8

Figure 2.1 Dual Ethernet Connections......................................... 8

2.1.2 COM Port Redirector (Virtual COM Port)...................................... 9

Figure 2.2 COM Port Redirector .................................................. 9

Figure 2.3 Multi-Access Mode ................................................... 10

2.1.3 TCP Server Mode ....................................................................... 11

Figure 2.4 TCP Server Mode..................................................... 11

2.1.4 TCP Client Mode......................................................................... 11

Figure 2.5 TCP Client Mode ...................................................... 11

2.1.5 Serial Tunneling Mode ................................................................ 12

Figure 2.6 Serial Tunneling Mode.............................................. 12

2.1.6 UDP Server/Client Mode............................................................. 12

2.1.7 Control Mode .............................................................................. 12

2.2 Hardware................................................................................................. 13

2.2.1 LED Indicators ............................................................................ 13

Table 2.1: EKI-1361/1362 series LED Indicators ...................... 13

2.2.2 Dimensions (Units: mm).............................................................. 14

Figure 2.7 DIN-Rail Mount of EKI-1361 ..................................... 14

Figure 2.8 Wall Mount of EKI-1361............................................ 14

Figure 2.9 DIN-Rail Mount of EKI-1362 ..................................... 15

Figure 2.10Wall Mount of EKI-1362............................................ 15

2.3 Connecting Hardware ............................................................................. 16

2.3.1 Choosing the Location ................................................................ 16

Figure 2.11Combine the Metal Mounting Kit .............................. 16

Figure 2.12DIN-rail Step 2 .......................................................... 16

2.3.2 Wireless Connection ................................................................... 17

2.3.3 Network Connection.................................................................... 17

2.3.4 Power Connection....................................................................... 17

Figure 2.13Power Connector ...................................................... 17

2.3.5 Serial Connection........................................................................ 18

Table 2.2: EKI-152X series Serial Pin Assignments.................. 18

2.4 Installing the Configuration Utility............................................................ 18

Chapter 3 Configuration .....................................21

21

3.1 Configuration Utility Overview ................................................................. 22

3.2 Discovering Serial Device Servers .......................................................... 23

3.2.1 Auto Searching ........................................................................... 23

3.2.2 Clear Device List and Search Again ........................................... 25

3.2.3 Manual Appending ...................................................................... 25

3.3 Network Settings ..................................................................................... 26

3.4 Administrator Settings ............................................................................. 28

vii EKI-1361/EKI-1362 User Manual

3.4.1 Locate the Serial Device Server ................................................. 28

3.4.2 Lock the Serial Device Server (Password Protection) ................ 28

3.4.3 Restore to Factory Default Settings............................................ 30

3.4.4 Update Firmware ........................................................................ 31

Chapter 4 Setting COM Redirector ................... 33

4.1 Setting COM Redirector (Virtual COM port)............................................ 34

4.1.1 Auto Mapping.............................................................................. 34

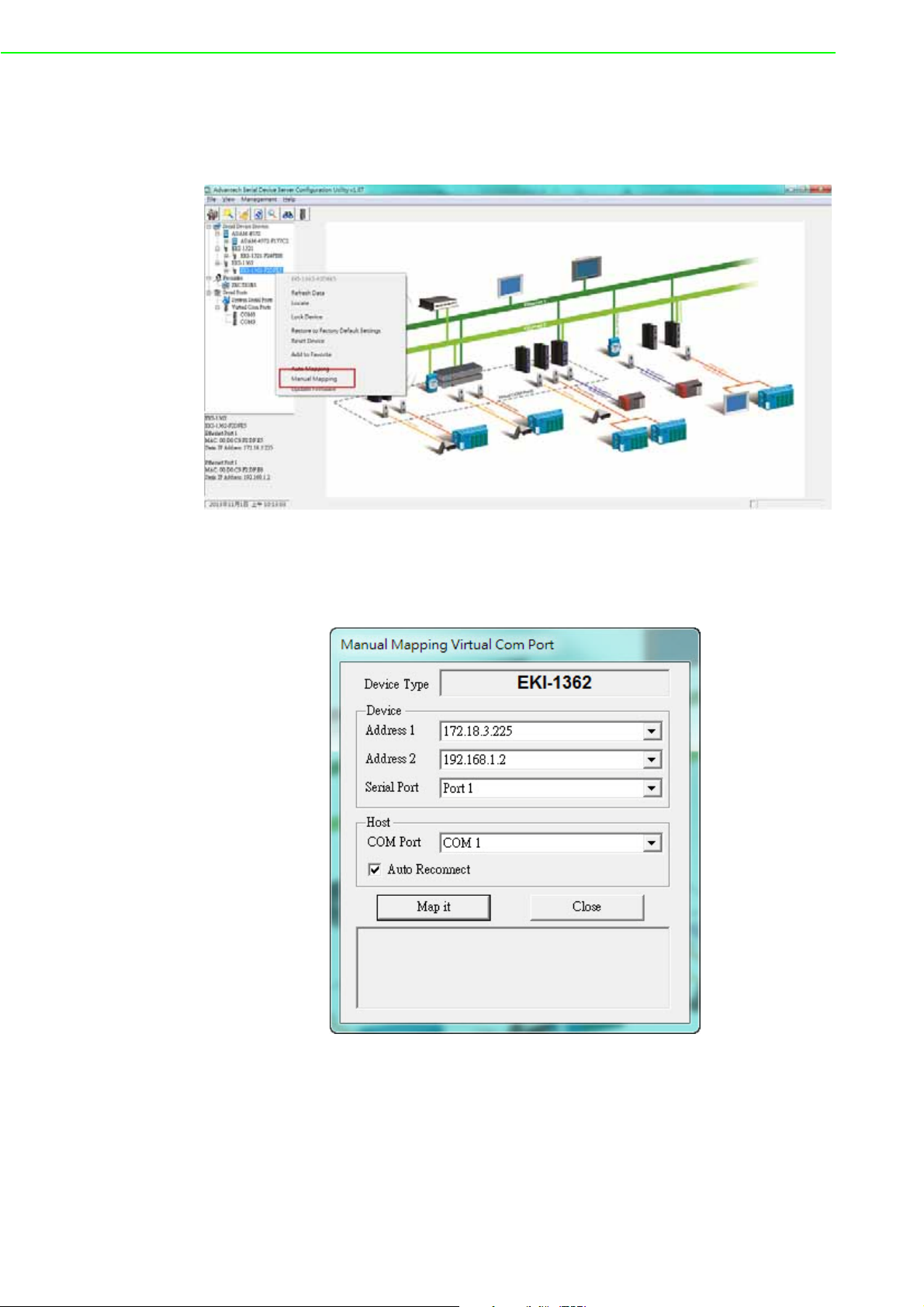

4.1.2 Manual Mapping ......................................................................... 36

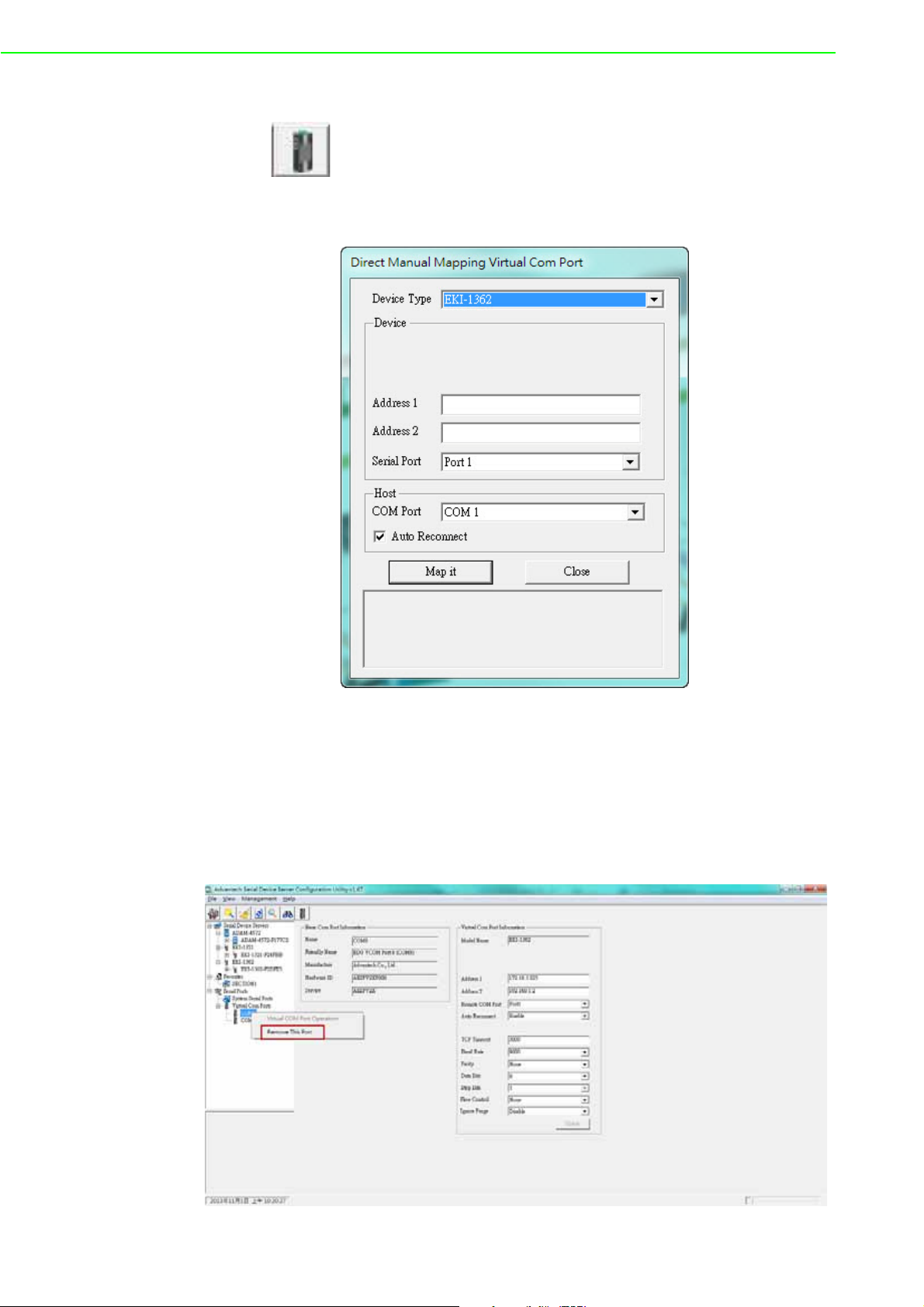

4.1.3 Manual Direct Mapping Virtual COM Port................................... 38

4.1.4 Remove the Virtual COM Port .................................................... 38

Chapter 5 Web-Based Configuration................ 41

5.1 Overview ................................................................................................. 42

5.2 Accessing the Web Page........................................................................ 42

5.3 System .................................................................................................... 43

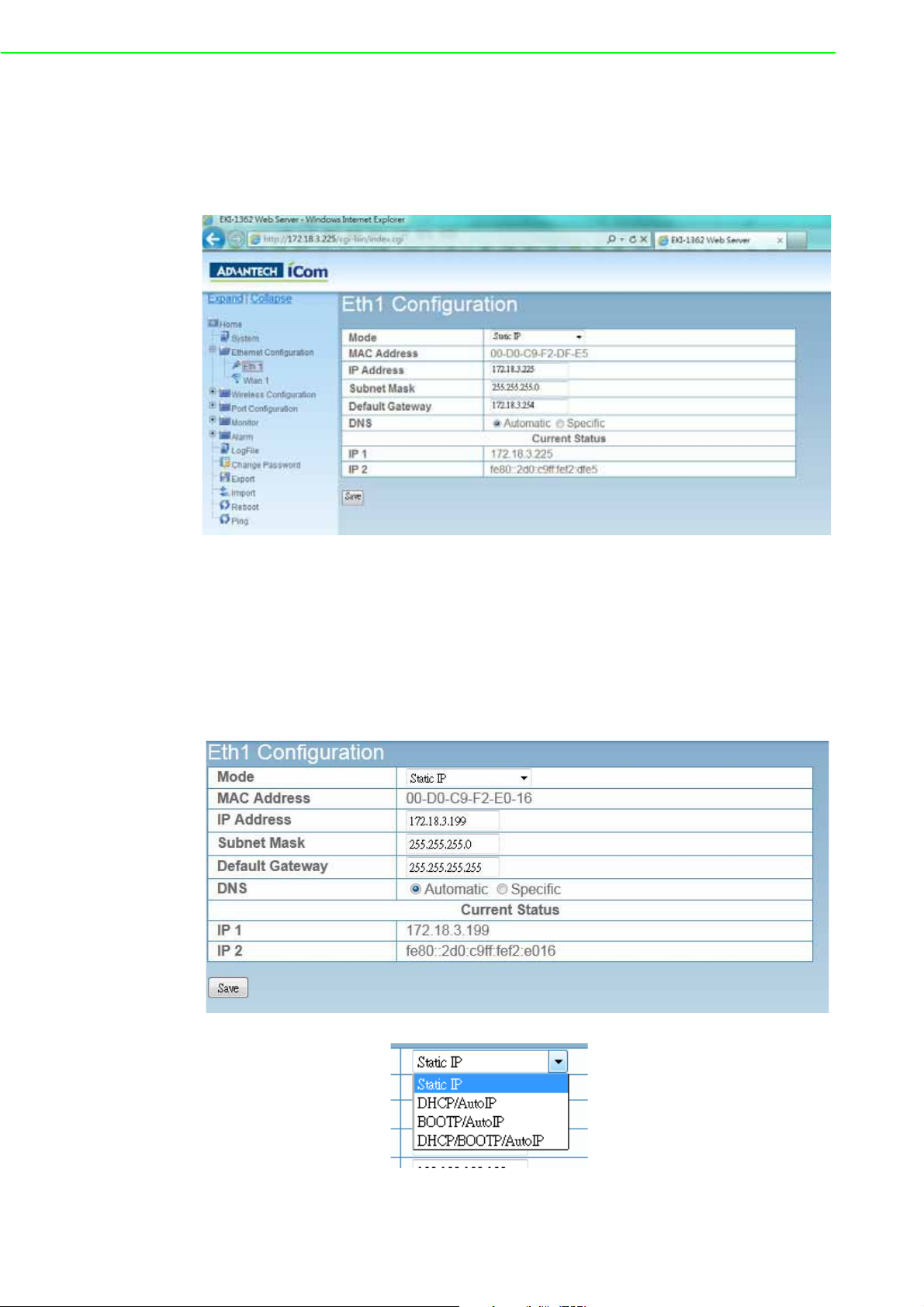

5.4 Network Configuration ............................................................................ 44

5.5 Wireless Configuration............................................................................ 45

5.6 Port Configuration ................................................................................... 48

5.6.1 Basic Port Configuration............................................................. 49

5.6.2 Operation Mode .......................................................................... 49

5.7 Monitor .................................................................................................... 57

5.8 Auto Warning (Alarm) ............................................................................. 58

5.8.1 Email Alert .................................................................................. 58

5.8.2 SNMP Trap ................................................................................. 59

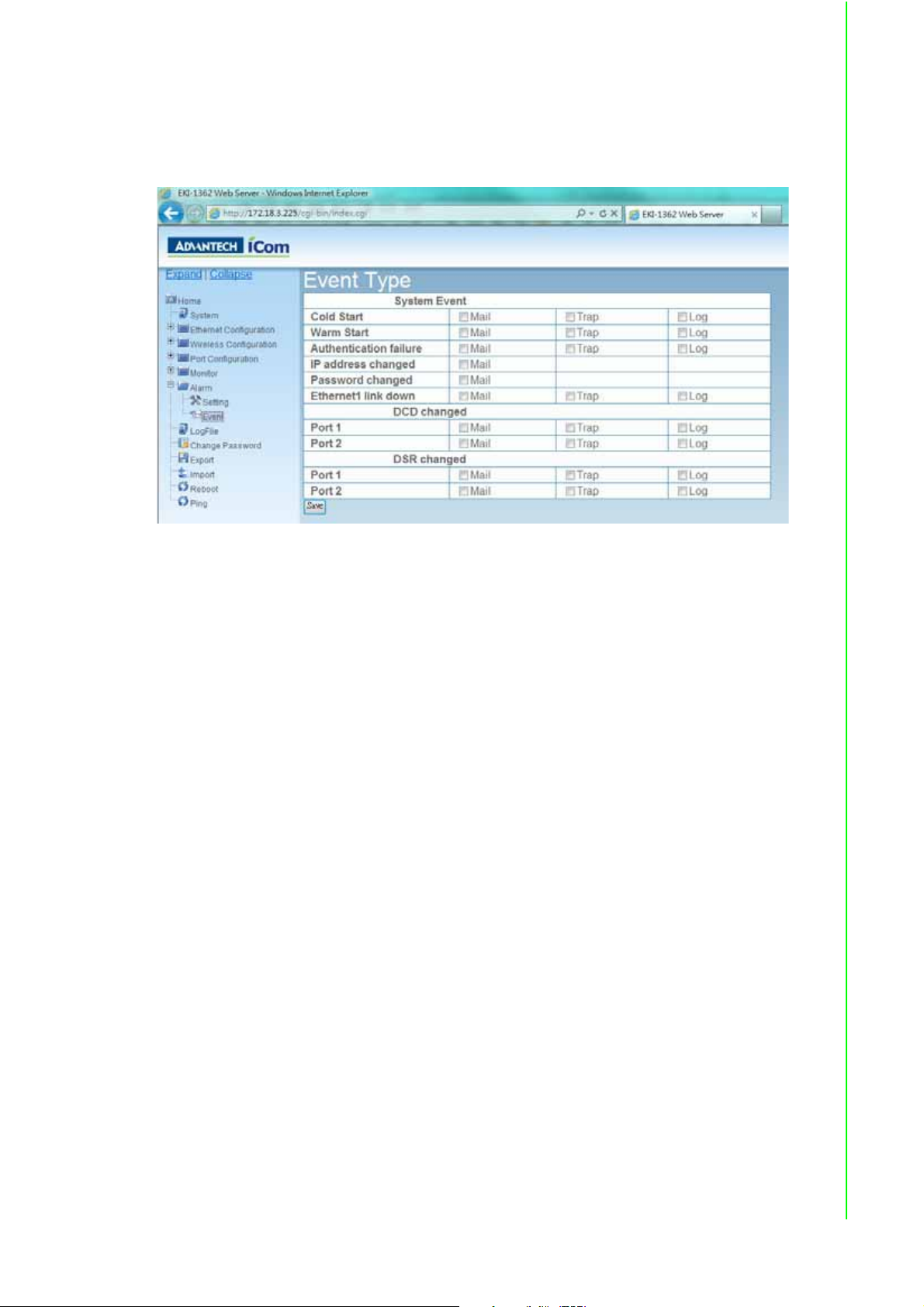

5.8.3 System Event.............................................................................. 59

5.8.4 Serial Port Event......................................................................... 60

5.9 Change Password................................................................................... 60

5.10 Import/Export Device Settings ................................................................ 61

5.11 Reboot .................................................................................................... 62

Chapter 6 Telnet Configuration......................... 63

6.1 Overview ................................................................................................. 64

6.2 Telnet Console........................................................................................ 64

6.3 Command List......................................................................................... 65

Table 6.1: Console Command List ............................................ 65

Appendix A Pin Assignments............................... 79

A.1 Pin Assignments ..................................................................................... 80

A.1.1 RS-232 Pin Assignments............................................................ 80

A.1.2 RS-422/485 Pin Assignments..................................................... 80

Appendix B List of Known TCP and UDP Port

Numbers ............................................ 81

B.1 List of Known TCP and UDP Port Numbers ........................................... 82

EKI-1361/EKI-1362 User Manual viii

Chapter 1

1 Overview

1.1 Introduction

Advantech's EKI-1300 series of Industrial Device Servers are a robust, feature-rich,
and cost effective way to network-enable equipment in an industrial automation envi­ronment. The EKI-1361/1362 provides one or two serial ports, 802.11b/g/n wireless
LAN interface to connect any RS-232/422/485 devices to wireless LAN. These wire­less serial device servers provide serial-to-wireless network connectivity as an alter­native to wired Ethernet connectivity and enable virtually any serial device or
equipment to be remotely accessed, controlled, monitored, or shared on an 802.11b/
g/n wireless network.

By encapsulating serial data and transporting it over Ethernet, the EKI-1361/1362
allows virtual serial links over Ethernet IP-based networks. After Advantech Serial
Device Server Configuration Utility installed, standard serial operation calls with vir­tual COM port could be transparently redirected to the serial device servers, guaran­teeing compatibility with legacy serial devices and enabling backward compatibility
with existing software. EKI-1361/1362 also supports serial tunneling, allowing two
native serial devices to communicate over a network without any hosts or program­ming. As a result, you can extend limited distance, point-to-point, direct serial con­nections within the plant, throughout the factory, the facility, the office building, or
across the global enterprise.

The EKI-1361/1362 provides an impressive list of features and functions enabling
multiple industrial devices to be connected, controlled, configured, managed, and
updated over a network. With serial ports and 802.11b/g/n wireless LAN, the EKI­1361/1362 can easily connects multiple serial devices to a network. The transmission
speed of the EKI-1361/1362 is up to 921.6 Kbps totally outstripping the competition to
meet the demand for high-speed exchange. Functionally transparent and efficient,
the EKI-1361/1362 is especially designed for remotely controlling and monitoring
devices via the Internet.

The EKI-1361/1362 provides roaming ability. EKI-1361/1362 can midgrate from AP to
AP during certain condition. In some field applications, the device can't use a fixed
physical connection, such as AGV, transportation, and cross wide space communica­tion. EKI-1361/1362 can easily installed to fulfill this requirement. With compact size
and lightweight design, EKI-1361/1362 could be installed onto the moving vehicle
without much extra loading.

Types of supported devices:

 Human Machine Interface (HMI)
 Programmable Controller(PLC)
 Flow meters
 Temperature / pressure monitoring equipment
 Gas leak detection device
 Scales
 Power monitoring equipment
 Data Acquisition Modules

EKI-136X series provides various operation modes: COM port redirection (Virtual
COM port), TCP/UDP server/client mode. Serial devices can be connected by means
of multi-access modes.

EKI-1361/EKI-1362 User Manual 2

1.2 Features

 Support standard Wireless 802.11 b/g/n
 Support MIMO 2x2 technology
 Expand up 4096 serial ports for one single host
 Provides 10/100/1000 Mbps auto-sensing Ethernet ports for easy diagnostic
 Supports any baud rate setting from 50 bps up to 921.6 Kbps
 Supports various operation modes: COM port redirection (Virtual COM port),

TCP server/client, UDP server/client, control mode and RFC-2217 mode

 Easy to diagnostic LED indicators
 Supports multi-access features: allows maximum 5 hosts to access one serial

port simultaneously

 Allows maximum 16 peers in TCP/UDP client mode
 Mounts on DIN rail, wall, or panel easily
 Surge protection for RS-422/485 line and power supply
 SNMP MIB-II for network management

1.3 Specifications

WLAN Interface

 Standard Conformance: 802.11b, 802.11g, and 802.11n
 Network Modes: Infrastructure, Ad-Hoc
 Transmit Power:

– 802.11b: +16 dBm (typical)
– 802.11g: +16 dBm @ 6~36 Mbps, +11 dBm @ 54Mbps
– 802.11n/HT20: +16 bBm @ MCS 0 ~ 3, +9 dBm @ MCS 7, +19dBm @ MCS

9, +11 dBm @ MCS 15

– 802.11n/HT40: +16 bBm @ MCS 0 ~ 3, +8 dBm @ MCS 7, +19dBm @ MCS

9, +11 dBm @ MCS 15

 Receive Sensditivity: -82 dBm (Max.)
 Data Rate:

– 802.11b: 1, 2, 5.5, and 11 Mbps
– 802.11g: 6, 9, 12, 18, 24, 36, 48, and 54 Mbps
– 802.11n:

- 20 MHz Channel:

1Nss: 65 Mbps @ 800 GI, 72.2 Mbps @ 400 GI (Max.)
2Nss: 130 Mbps @ 800 GI, 144.4 Mbps @ 400 GI (Max.)

- 40 MHz Channel:

1Nss: 135 Mbps @ 800 GI, 150 Mbps @ 400 GI (Max.)
2Nss: 270 Mbps @ 800 GI, 300 Mbps @ 400 GI (Max.)

 Transmission Distance: Up to 100 meters (in open areas with bundle external

antenna)

 Wireless Security:

– WEP: 64-bit/128-bit data encryption
– WPA, WPA2, 802.11i: Enterprise mode and Pre-Share Key (PSK) mode
– Encryption: EAP-TLS, EAP-TTLS, EAP-PEAP

 Antenna Connector: Reverse SMA

Chapter 1 Overview

3 EKI-1361/EKI-1362 User Manual

Bundle Externel Antenna

 Frequency Range: 2.4GHz ~ 2.5GHz
 Impedanc: 50 Nominal
 VSWR: 1.92:1Max.
 Return Loss: 10dB Max.
 Radiation: Omni-directional
 Gain(Peak): 2dBi
 Polarization: Linear; Vertical
 Admitted Power: 1W

LAN

 Ethernet: 10/100 Mbps auto sensing
 No. of Ports: 1
 Port Connector: RJ45
 Protection: Built-in 1.5 KV magnetic isolation

Serial Interface

 Interface: RS-232/422/485, software selectable
 No. of Ports:

– EKI-1361: 1
– EKI-1362: 2

 Port Connector: DB9 male
 Baud Rate: 50 bps to 921.6 Kbps
 Parity: None, Even, Odd, Space, Mark
 Data bits: 5, 6, 7, 8
 Stop bits: 1, 1.5, 2
 Flow control: XON/XOFF, RTS/CTS, DTR/DSR
 Signals:

– RS-232: TxD, RxD, CTS, RTS, DTR, DSR, DCD, RI, GND
– RS-422: TxD+, TxD-, RxD+, RxD-, GND
– RS-485: Data+, Data-, GND

 Protection: 15 KV ESD for all signals, enhanced protection for RS-422/485 lines

Software

 Utility: Advantech Serial Device Server Configuration Utility
 Driver support: Windows 2000/XP/Vista/7, Windows Server 2003/2008, Linux
 Operation Mode:

– COM port redirection (Virtual COM)
– TCP/UDP server (polling) mode
– TCP/UDP client (event handling) mode
– Pair connection mode

 Configuration: Web interface, Windows utility, Telnet console
 Protocol: ICMP, IP, TCP, UDP, BOOTP, DHCP, Auto IP, Telnet, SNMP, HTTP,

DNS, SMTP, ARP, NTP

 Management: SNMP MIB-II

EKI-1361/EKI-1362 User Manual 4

General

 LED indicators:

– System: Power, System Status
– WLAN: Signal Strength, Link
– LAN: Speed, Link/Active
– Serial: Tx, Rx

Power

 Power input: 12 ~ 48 V(DC), redundant dual inputs
 Power connector: Terminal block
 Power Consumption:

– EKI-1361: 8W
– EKI-1362: 9W

 Power Line Protection: 1 KV burst (EN61000-4-4), 0.5 KV surge (EN51000-4-5)

Environmental

 Operation Temperature: -30 ~ 65°C (-22 ~ 149°F)
 Storage Temperature: -40 ~ 80°C (-40 ~ 176°F)
 Operating Humidity: 5 to 95% RH

Chapter 1 Overview

Regulatory Approvals

 ECM: CE, FCC Part 15 Subpart B (Class B)

1.4 Package Check List

 1 x EKI-1361/1362 Serial Device Server
 Panel/Wall mounting bracket
 DIN-rail mounting kit
 CD-ROM for utility and user manual

Optional Accessory:

 OPT1-DB9-AE D-sub 9 (female) to terminal block connector (for EKI-1000

series RS-422/485 use)

5 EKI-1361/EKI-1362 User Manual

EKI-1361/EKI-1362 User Manual 6

Chapter 2

2 Getting Started

2.1 Understanding EKI-1361/EKI-1362

The EKI-136X series are wireless-based, serial device servers for connecting RS­232/422/485 devices to a TCP/IP network. Once connected through EKI series, the
serial device will be able to send and receive data on a network like any other net­work device. It extends traditional COM ports of a PC with access over a TCP/IP net­work. Through networking, you can control and monitor remote serial devices either
over a LAN or over the WAN. Since the EKI series is connected through a TCP/IP
network, you might need to know some basic facts about networking in order to get
the server hooked up correctly.

2.1.1 Product Description

The EKI series is designed to network-enable any RS-232/422/485 serial device and
provide industry-grade hardware and easy-use software to make connecting serial
devices to an Ethernet network a surprisingly simple process. These units immedi­ately upgrade your existing serial devices for integration into the Internet world. The
EKI series features a lot of powerful functions such as: high speed data transfer,
access-control, auto-detection of all EKI series products, remote connection from dif­ferent network domain, remote firmware download, and more.

After the simple installation steps to attach your network and serial device to the
appropriate connectors on the serial device servers and driver installation, you will
then be able to communicate with the serial devices via its own application software
and with the EKI serial device server. COM port redirector, TCP server mode, TCP
client mode, UDP server mode, UDP client mode and Control mode are all different
schemes to make a serial connection across using one or more Serial device server.

Figure 2.1 Dual Ethernet Connections

EKI-1361/EKI-1362 User Manual 8

2.1.2 COM Port Redirector (Virtual COM Port)

Advantech Serial Device Server Configuration Utility is a serial COM port redirector
that creates virtual COM ports and provides access to serial device connected to
Advantech serial device server. You can configure the serial device server and
enable the Virtual COM port using one integrated utility. Advantech Serial Device
Server Configuration Utility allows you to configure Microsoft applications to
communicate with network enabled serial device servers as easily as if they were
physically installed in or directly connected on the PC.

The Advantech redirector can create up to 4096 virtual COM ports. Application on the
host can open virtual COM port to access the serial device servers at the same time.
The redirector will handle each active virtual COM port as a separate TCP
connection to Advantech serial device servers.

Chapter 2 Getting Started

2.1.2.1 Normal Mode

The Advantech redirector connects the Advantech serial device servers while an
application open the COM port and disconnects from the Advantech serial device
servers when the application closes the COM port. The redirector uses TCP network
connections to the Advantech serial device server to gain the access to the
connected serial devices.

Figure 2.2 COM Port Redirector

9 EKI-1361/EKI-1362 User Manual

2.1.2.2 Multi-Access Mode (Shared COM port mode)

Most of serial devices are connected directly and physically to the PC serial ports via
a cable. The operation system, ex. Windows XP, provides the COM ports that user’s
application can access, and control the serial device through the serial cable. This
means that the serial device can be connected to one host and only one application
on this host can handle input, output and control operation on this device.

If you want to run more than one applications to use a serial device, you can employ
EKI serial device servers that provide a virtual COM port for a host or multi-hosts on
an Ethernet network. EKI serial device server is located between hosts and serial
devices. Each serial port on the EKI serial device server can allow max. five host
connections through one Ethernet port or two Ethernet ports. There are two major
operation modes for Multi-Access Mode. First one is broadcast mode; EKI serial
device server handles a command from one application and replies the data from the
serial port to all applications that are connecting this serial port. Another one is polling
mode; EKI serial device server handles the command from one application and reply
to this application only. Query from other applications must be queued and wait for
current process completing.

Figure 2.3 Multi-Access Mode

By using a serial derive server to share serial device, you eliminate the separate
serial lines and serial devices that can be attached to individual hosts. Collecting the
data from these serial devices become more easily and more effectively.

EKI-1361/EKI-1362 User Manual 10

2.1.3 TCP Server Mode

In TCP server mode, you might initiate the TCP connection from host to EKI serial
device server. This operation mode support max. 5 simultaneous connections for
each serial port on EKI serial device server from one host or several hosts, however
multi-hosts collect the data from one serial port at the same time

Chapter 2 Getting Started

2.1.4 TCP Client Mode

In TCP Client mode, the TCP connection will be established from EKI serial device
server. This operation mode supports max.16 simultaneous connections for each
serial port on EKI series to one host or several hosts. You should configure the IP
address and TCP port number of the network hosts which the EKI serial device
server connect to using Advantech Serial Device Server Configuration Utility. After
configuration, when EKI serial device server receives the data from serial port, the
device server will employ the connection to hosts which are configured.

Figure 2.4 TCP Server Mode

Figure 2.5 TCP Client Mode

11 EKI-1361/EKI-1362 User Manual

2.1.5 Serial Tunneling Mode

Two native serial devices can communicate over an Ethernet network without any
intermediate host PC and software programming. Serial Tunneling is very simple to
use. You can use Advantech Serial Device Server Configuration Utility to designate
one serial port as the tunneling master and another serial device server port as the
tunneling slave.

Figure 2.6 Serial Tunneling Mode

2.1.6 UDP Server/Client Mode

UDP is used primarily for broadcasting messages over a network. In the UDP server
mode, EKI series access max. 8 hosts’ UDP message. In the UDP client mode, EKI
serial device servers transmit UDP message to max. 16 hosts simultaneously.

2.1.7 Control Mode

In controlling mode, the EKI serial device server presents a modem interface to the
attached serial device: it accepts AT-style modem commands to connect / disconnect
to other networking device. If you want serial device running application program to
connect/disconnect to different devices by request, you can use controlling mode.

The controlling mode provides three kinds of modem AT-style commands. The serial
devices can use these commands to control EKI series connecting or disconnecting
to remote networking devices. Thus intelligent serial devices such as stand-alone
PLC will send /receive data to/from devices one by one via Ethernet.

EKI-1361/EKI-1362 User Manual 12

2.2 Hardware

In this section, we will give you an overview of EKI-1361/EKI-1362 hardware and
installation.

2.2.1 LED Indicators

There are LEDs display the power status, network status, and serial communication
status located on the front panel of EKI-1361/EKI-1362, each of them has its own
specific meaning as below table.

Table 2.1: EKI-1361/1362 series LED Indicators

LED Name LED Color LED Description

PWR1

PWR2

Status

LAN

WLAN

Signal
Strength

Serial

Green Power 1 is on.

Off Power 1 is off, or power error condition exists.

Green Power 2 is on.

Off Power 2 is off, or power error condition exists.

Status

Off System is not working.

Green

Off Ethernet is not working.

Orange Steady on: WLAN link is ready

Off WLAN is not working.

Off 0~25% WLAN signal strength.

Orange
(One)

Orange
(Two)

Orange
(Three)

Tx, Orange Serial port is transmitting data.

Rx, Green Serial port is receiving data.

Off No data is transmitted or received through the serial port.

Chapter 2 Getting Started

Blinking: System is ready.
Steady on: The device server has been located by utility’s location
function.

Blinking: Ethernet port is transmitting or receiving data.
Steady on: Ethernet has the good link for 10Mbps or 100Mbps
operations.

25~50% WLAN signal strength.

50~75% WLAN signal strength.

75~100% WLAN signal strength.

13 EKI-1361/EKI-1362 User Manual

2.2.2 Dimensions (Units: mm)

Figure 2.7 DIN-Rail Mount of EKI-1361

Figure 2.8 Wall Mount of EKI-1361

EKI-1361/EKI-1362 User Manual 14

Chapter 2 Getting Started

Figure 2.9 DIN-Rail Mount of EKI-1362

Figure 2.10 Wall Mount of EKI-1362

15 EKI-1361/EKI-1362 User Manual

2.3 Connecting Hardware

Next, we will explain how to find a proper location for your EKI series, and then
explain how to connect to the network, hook up the power cable, and connect to the
EKI series serial port.

2.3.1 Choosing the Location

Due to its versatility and innovative design, EKI serial device server can be:

 Fixed to a panel/wall mount
 Fixed to a DIN-rail

2.3.1.1 Panel/Wall Mounting

The EKI-1361/EKI-1362 can be attached to a wall using the included metal brackets.
Each bracket comes with 3 screws; and then you can install the device firmly via the

components, please see the figure as below.

2.3.1.2 DIN Rail Mounting

You can mount the EKI-152X series on a standard DIN-rail. Please screw the DIN-rail
kit on the serial device server first.

Figure 2.11 Combine the Metal Mounting Kit

Figure 2.12 DIN-rail Step 2

EKI-1361/EKI-1362 User Manual 16

2.3.2 Wireless Connection

EKI-1361/EKI-1362 operates in the 802.11b/g/n WLAN environment, which is cre­ated by an access point working with 802.11b/g/n protocols. When configuring EKI­1361/EKI-1362 in unknown status, user can use the Ethernet port and Configuration
Utility to locate device easily. After found device in the Configuration Utility, user can
configure the Ethernet and Wireless IP address to access web interface for advanced
settings including serial port operation mode and wireless configurations. More detail
description can be found in next chapters.

You can check the signal access strength with the WLAN signal strength LED indica­tors. Adjust the antenna of the EKI serial device server to optimize communication
quality.

2.3.3 Network Connection

EKI-1361/EKI-1362 has a RJ-45 Ethernet port that supports 10 Mbps Ethernet, or
100 Mbps Fast Ethernet, and half or full duplex operation. EKI-1361/EKI-1362 can be
connected to other hubs or switches through a twisted-pair straight through the cable
or a crossover cable up to 100m long. When use EKI-1361/EKI-1362 for first time,
user can connect to device with Configuration Utility. Or you can set the host's ip
address in the same domain with device. Then user can use popular browser to
connect web interface EKI-1361/EKI-1362 built-in for advanced configuration.

Chapter 2 Getting Started

2.3.4 Power Connection

The EKI-1361/EKI-1362 supports dual 12 to 48 VDC power inputs and power-fail
relay output.

You can connect an alarm indicator, buzzer or other signaling equipment through the
relay output. The relay opens if power input 1 or 2 fails (“Open” means if you connect
relay output with an LED, the light would be off).

Figure 2.13 Power Connector

17 EKI-1361/EKI-1362 User Manual

2.3.5 Serial Connection

EKI-1361/EKI-1362 provides 1 or 2 serial ports with DB9 (male) connectors. RS-232/
422/485 pin assignments as below:

Table 2.2: EKI-152X series Serial Pin Assignments

Pin 1 2 3 4 5 6 7 8 9

RS-232 DCD RX TX DTR GND DSR RTS CTS RI

RS-422 TX- - - TX+ GND - RX+ - RX-

RS-485 DATA- - - DATA+ GND - - - -

2.4 Installing the Configuration Utility

The following section will show you how to install the Advantech serial device server
configuration utility, a tool to set up and monitor the EKI serial device servers.

Note! Be sure the Microsoft .NET Framework on your host PC is greater than

version 2.0.

1. Insert the Advantech industrial communication IEDG series driver utility CD into

the CD-ROM drive (e.g. E:\) on the host PC.

2. Use Windows explorer or the Windows Run command to execute the setup pro-

gram, the path for the setup program on the CD-ROM should be: E:\Util­ity&Driver\SerialDeviceServerConfigurationUtility\Serial_Device_Server_Config
uration_Utility_[Version]_Release_[date].exe

EKI-1361/EKI-1362 User Manual 18

3. Upon executing the setup program, the Welcome Dialog Box will be pop-up.

Press the "Next" button to continue.

Chapter 2 Getting Started

4. Carefully read the Software License Agreement, and press "Yes" to continue.

19 EKI-1361/EKI-1362 User Manual

5. The Setup program will specify a default installation path: C:\Program

Files\Advantech eAutomation\Serial Device Server Configuration Utility\

6. After setup has copied all program files to your computer, click the <Finish> but-

ton to finish the installation.

EKI-1361/EKI-1362 User Manual 20
