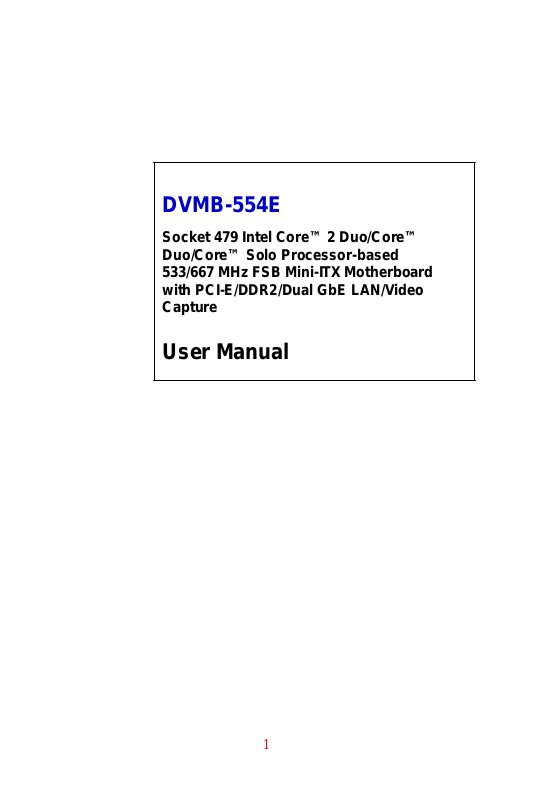

Advantech DVMB-554E User Manual

DVMB-554E

Socket 479 Intel Core™ 2 Duo/Core™ Duo/Core™ Solo Processor-based 533/667 MHz FSB Mini-ITX Motherboard with PCI-E/DDR2/Dual GbE LAN/Video Capture

User Manual

This document is copyrighted, 2006, by Advantech Co., Ltd. All rights are reserved. to the products described in part in any form or by Advantech Co., Ltd. Information

Advantech Co., Ltd. reserves the right to make improve- ments

this manual at any time without notice. No

of this manual may be reproduced, copied, translated or transmit- ted

any means without the prior written permission of

provided in this manual is intended to be accurate and reliable. However, Advantech Co., Ltd. assumes no responsibility for its use, parties which

Acknowledgements

•

AWARD is a trademark of Phoenix Technologies Ltd.

•

IBM and PC are trademarks of International Business Machines Corporation.

•

Intel®, Core™ 2 Duo/Core™ Duo/Core™ Solo are trademarks of Intel Corporation.

•

WinBond is a trademark of Winbond Corporation.

•

All other product names or trademarks are the properties of their respective owners.

may result from its use.

nor for any infringements upon the rights of third

Printed in Taiwan

June

2007

A Message to the Customer

Advantech Customer Services

Each and every Advantech product is built to the most exacting specifications to tions typical equipment

ensure reliable performance in the harsh and demanding condi-

of industrial environments. Whether your new Advantech

destined for the laboratory or the factory floor, you can be assured that your product will provide the reliability and ease of for which

the name Advantech has come to be known.

Your satisfaction is our primary concern. Here is a guide to Advantech’s customer services. To ensure you get the full benefit please follow

the instructions below carefully.

of our services,

Technical Support

We want you to get the maximum performance from your products. So if you run into technical difficulties, we are quently umentation. we can give

asked questions, you can easily find answers in your product doc-

These answers are normally a lot more detailed than the ones over the phone.

here to help. For the most fre-

So please consult this manual first. If you still cannot find the answer,

all the information or questions that apply to your problem, and

gather

the product close at hand, call your dealer. Our dealers are well

with trained and ready to give

Advantech products. In fact, most problems reported are minor and

your

able to be easily solved over the phone.

are

you the support you need to get the most from

In addition, free technical support is available from Advantech engineers every business requirements or any of our products.

day. We are always ready to give advice on application

specific information on the installation and operation of

operation

Certifications

This device complies with the requirements in part 15 of the FCC rules: Operation

•

This device may not cause harmful interference

•

This device must accept any interference received, including interference that

is subject to the following two conditions:

may cause undesired operation

This equipment has been tested and found to comply with the limits for a

A digital device, pursuant to Part 15 of the FCC Rules. These limits

Class are designed to

when the equipment is operated in a commercial environment. This

ence equipment generates, uses,

installed and used in accordance with the instruction manual, may

not cause harmful interference device in a residential

case the user will be required to correct the interference at his/her

which own expense. The cations not expressly would void authority to operate the equipment.

provide reasonable protection against harmful interfer-

and can radiate radio frequency energy and, if

radio communications. Operation of this

area is likely to cause harmful interference in

user is advised that any equipment changes or modifi-

approved by the party responsible for compliance

the compliance to FCC regulations and therefore, the user's

Caution! There is a danger of a new batte ry exp lod ing if it

incorrectly installed. Do not attempt to

is recharge, force open, or heat the battery. Replace the battery only with the same or equivalent type recommended by the manufacturer. Discard used batterie s according to the manufacturer’s in st ruct ions .

Product warranty

Advantech warrants to you, the original purchaser, that each of its products will be from the date

free from defects in materials and workmanship for two years

of purchase.

This warranty does not apply to any products which have been repaired or altered or which have been subject to misuse, abuse, lation. Advantech assumes no liability under the terms consequence of

by persons other than repair personnel authorized by Advantech,

accident or improper instal-

of this warranty as a

such events.

If an Advantech product is defective, it will be repaired or replaced at no charge during the warranty period.

billed according to the cost of replacement materials, service time and

be freight. Please consult your dealer for

If you think you have a defective product, follow these steps:

For out-of-warranty repairs, you will

more details.

1. Collect all the information about the problem encountered. (For

example, type hardware any on-screen messages you

of PC, CPU speed, Advantech products used, other

and software used, etc.) Note anything abnormal and list

get when the problem occurs.

2. Call your dealer and describe the problem. Please have your man-

product, and any helpful information readily available.

ual,

3. If your product is diagnosed as defective, obtain an RMA (return

material authorization) number process your return

more quickly.

from your dealer. This allows us to

4. Carefully pack the defective product, a fully-completed Repair and

Replacement Order Card and a photocopy proof of purchase date (such as your sales receipt) in a shippable container. A product returned without proof of ranty service.

the purchase date is not eligible for war-

5. Write the RMA number visibly on the outside of the package and

prepaid to your dealer.

ship it

Initial Inspection

Before you begin installing your motherboard, please make sure that the following

materials have been shipped:

• DVMB-554E Socket 479 Intel Core™ 2

P/N: 9692055000E

Duo/Core™ Duo/Core™ Solo Processor-

Industrial Mini-ITX Motherboard

based

• 1 DVA-210 4*Channels BNC Connector Module with bracket

• 1 CD with driver utility and manual

• 1 flat cable for DVA-210

• 2 Serial ATA HDD data cable

• 1 Parallel ATA HDD power cable IDE44/40/40P 63cm

• 1 Parallel ATA HDD power cable IDE44/44P 15cm

• 1 ATX 12V power converter cable

• 1 CPU Heat Sink

• 1 PS/2 Y cable for KB&MS

• 2 warranty card

P/N: 9692A21000E

P/N: 2066554E00 P/N: 1700000860 P/N: 1700002155 P/N: 1701440630

P/N: 1701440159

P/N: 1700003411 P/N: 1960004032 P/N: 1700060202 P/N: 2190000902

If any of these items are missing or damaged, contact your distributor or sales representative immediately. We

have carefully inspected the DVMB-

554E mechanically and electrically before shipment. It should be free of

and scratches and in perfect working order upon receipt. As you

marks unpack

the DVMB-554E, check it for signs of shipping damage. (For example, damaged box, scratches, dent s, etc.) If it is damaged or it meet the specifications, notify

our service department or your local sales representative immediately. Also notify the carrier. Retain the shipping carton and packing material we will

make arrangements to repair or replace the unit.

for inspection by the carrier. After inspection,

fails to

Table of Contents

Chapter 1 Hardware Configuration...........................................13

1.1 Introduction.................................................................... 13

1.2 Features.......................................................................... 14

1.3 Specifications................................................................. 14

1.3.1 System

1.3.2 Memory

1.3.3 Input/Output

1.3.4 Graphics

1.3.5 Ethernet LAN

1.3.6 Industrial features

1.3.7 Mechanical and environmental specifications

.................................................................. 14

................................................................ 15

......................................................... 15

............................................................... 15

....................................................... 16

................................................. 16

....... 16

1.4 Jumpers and Connectors................................................. 17

1.5 Board Layout: Jumper and Connector Locations........... 19

1.6 DVMB-554E Block Diagram......................................... 20

1.7 Safety Precautions.......................................................... 21

1.8 Jumper Settings.............................................................. 22

1.8.1 How to set jumpers

1.8.2 CMOS clear (J3)

1.8.3 Watchdog timer output (J4)

1.8.4 COM2 RS 232/422/485 mode selector (J2)

1.8.5 LVDS Power 3.3V/5V selector (J6)

............................................... 22

................................................... 22

.................................. 23

.......... 24

..................... 24

1.9 System Memory............................................................. 25

1.9.1 CPU FSB and memory speed

............................... 25

1.10 Memory Installation Procedures................................... 25

1.11 Cache Memory.............................................................25

1.12 Processor Installation ...................................................26

Chapter 2 Connecting Peripherals.............................................28

2.1 Introduction.................................................................... 28

2.2 Primary IDE Connector (CN11)..................................... 28

2.3 USB Ports and LAN Ports (CN4, CN5, CN9, CN10)..... 29

2.4 VGA and DVI connec t o r module (V1)........................... 30

2.5 Serial port module: COM1/COM2 (CM1).................... 30

2.6 External PS/2 and Composite TV-Out (CN2 )................. 31

2.7 Fan Connector (FN1/FN2/FN3)..................................... 31

2.8 Front Panel Connectors (CNX1/CN13).......................... 32

2.8.1 Power LED and Keyboard Lock (CN13)

2.8.2 External Speaker (CNX1-17)

2.8.3 Reset Connector (CNX1-18)

2.8.4 HDD LED Connector (CNX1-19)

................................ 32

................................ 33

........................ 33

2.8.5 ATX Soft Power Switch (CNX1-21)

2.8.6 SM Bus Connector (CNX1-29)

............................ 33

.............. 32

.................... 33

2.9 H/W Monitor Alarm (CN12).......................................... 34

2.10 Line Out, Mic In Connector (CN3).............................. 34

2.11 Aux Line-In Connector (CN7)...................................... 35

2.12 Serial ATA Interface (SA1, SA2)..................................35

2.13 DVA-210 Connector (VDO1)....................................... 36

2.14 Auxiliary 4-pin power connector (ATX1)..................... 36

2.15 GPIO connector (GPIO1)............................................. 37

2.16 LVDS connector (VCN1) ............................................. 38

2.17 LCD Inverter Power connector (BKL1)....................... 39

Chapter 3 Award BIOS Setup .....................................................41

3.1 Introduction.................................................................... 41

3.1.1 CMOS RAM Auto-backup and Restore

................ 41

3.2 Entering Setup................................................................ 42

3.3 St andard CMOS Setup ................................................... 42

3.3.1 Date

3.3.2 Time

3.3.3 IDE channel 0/1 Master/Slave

3.3.4 Halt On

3.3.5 Memory

...................................................................... 42

..................................................................... 42

.............................. 42

................................................................. 43

................................................................ 43

3.4 Advanced B IOS Features ............................................... 44

3.4.1 CPU Features

3.4.2 Hard Disk Boot Priority

3.4.3 Virus Warning

3.4.4 CPU L1, L2 & L3 Cache

3.4.5 Quick Power On Self Test

3.4.6 First/Second Boot Device

3.4.7 Boot Other Device

3.4.8 Boot Up NumLock Status

3.4.9 Gate A20 Option

........................................................ 45

........................................ 45

...................................................... 45

...................................... 45

.................................... 45

..................................... 45

................................................ 45

..................................... 46

................................................... 46

3.4.10 Typematic Rate Setting

3.4.11 Typematic Rate (Chars/Sec)

3.4.12 T ypematic Delay (msec)

3.4.13 Security Option

3.4.14 APIC Mode

.................................................. 46

........................................................ 46

3.4.15 MPS Version Control For OS

....................................... 46

............................... 46

..................................... 46

............................. 47

3.5 Advanced C h ipset Features ............................................ 47

3.5.1 DRAM Timing Selectable

3.5.2 CAS Latency Time

............................................... 48

3.5.3 DRAM RAS# to CAS# Delay

3.5.4 DRAM RAS# Precharge

3.5.5 Precharge Delay (t RAS)

3.5.6 System Memory Frequency

3.5.7 System BIOS Cacheable

3.5.8 Video BIOS Cacheable

3.5.9 Memory Hole At 15M-16M

3.5.10 PCI-Express Root Port Func

3.5.11 PEG / Onchip VGA Control

3.5.12 On-Chip Frame Buffer Size

3.5.13 DVMT Mode

...................................................... 50

3.5.14 DVMT / FIXED Memory Size

3.5.15 Boot Display

3.5.16 Panel Number

3.5.17 Init Display First

....................................................... 50

..................................................... 50

................................................. 51

.................................... 48

.............................. 48

...................................... 49

.................................. 49

....................................... 49

......................................... 49

................................. 49

............................... 49

............................... 50

................................ 50

........................... 50

3.6 Integrated Peripherals..................................................... 51

3.6.1 IDE HDD Block Mode

3.6.2 IDE DMA Transfer Access

3.6.3 On-Chip Primary / Secondary IDE Device

3.6.4 SATA Mode

.......................................................... 52

3.6.5 On-Chip Serial ATA

3.6.6 PATA IDE Mode

3.6.7 SATA Port

3.6.8 USB Controller

............................................................ 53

..................................................... 53

3.6.9 USB 2.0 Controller

3.6.10 USB Keyboard / Mouse Support

3.6.11 AC97 Audio

........................................................ 54

......................................... 52

................................... 52

........... 52

............................................. 53

.................................................. 53

............................................... 54

........................ 54

3.6.12 Onboard LAN1 Control

3.6.13 Onboard LAN2 Control

3.6.14 Capture Controller

3.6.15 Onboard Serial Port 1

3.6.16 Onboard Serial Port 2

3.6.17 UART Mode Select

3.6.18 RxD, TxD Active

................................................ 55

3.6.19 IR Transmission Delay

3.6.20 UR2 Duplex Mode

3.6.21 Use IR Pins

......................................................... 55

3.6.22 Watch Dog Timer Select

...................................... 54

.............................................. 54

......................................... 54

............................................ 55

....................................... 55

............................................. 55

.................................... 55

3.7 Power Management Setup.............................................. 56

3.7.1 PCI Express PM Function

3.7.2 ACPI Function

3.7.3 Power Management

3.7.4 Video Off Method

...................................................... 57

.............................................. 57

................................................ 57

3.7.5 Video Off In Suspend

3.7.6 Suspend Type

3.7.7 Modem Use IRQ

3.7.8 Suspend Mode

3.7.9 HDD Power Down

....................................................... 58

................................................... 58

...................................................... 58

............................................... 58

3.7.10 Soft-Off by PWR-BTTN

3.7.11 PowerOn by LAN

............................................... 58

3.7.12 CPU THRM-Throttling

3.7.13 PowerOn by Modem

3.7.14 PowerOn by Alarm

3.7.15 Primary IDE 0 (1) and Secondary IDE 0 (1)

3.7.16 FDD, COM, LPT PORT

3.7.17 PCI PIRQ [A-D]#

............................................... 59

3.7.18 PWRON After PWR-Fail

.................................... 57

........................................... 57

..................................... 58

....................................... 58

........................................... 58

............................................. 58

....... 58

..................................... 59

................................... 59

3.8 PnP/PCI Configurations................................................. 60

3.8.1 Reset Configuration Data

3.8.2 Resources Controll ed By

3.8.3 PCI / VGA Palette Snoop

3.8.4 Maximum Payload Size

...................................... 60

..................................... 60

........................................ 60

3.9 PC Health Status.............................................................61

3.9.1 CPU Warning Temperatur e

3.9.2 Current System Temperature

3.9.3 Current CPU Temperature

3.9.4 CPU FAN Speed

................................................... 61

3.9.5 System FAN 1 / 2 Speed

3.9.6 VCORE and Other Voltages

3.9.7 Shutdown Temperature

................................... 61

................................ 61

.................................... 61

....................................... 61

................................. 61

......................................... 61

3.10 Frequency / Voltage Control ......................................... 62

3.10.1 Spread Spectrum

................................................. 62

3.11 Password Setting.......................................................... 63

3.12 Save & Exit Setup........................................................63

3.13 Exit Without Saving .....................................................63

Chapter 4 Chipset Installation....................................................65

4.1 Before you begin............................................................65

4.2 Introduction.................................................................... 65

4.3 Windows XP Driver Setup............................................. 66

Chapter 5 VGA Setup..................................................................70

5.1 Introduction.................................................................... 70

5.2 Windows XP Driver Setup............................................. 70

Chapter 6 Video capture installation .........................................74

6.1 Driver installation of video capture chip........................74

6.2 Installation of DVMB-554E Demo Program.................. 82

6.3 Demo Program Functionality ......................................... 86

6.3.1 Device.................................................................. 86

6.3.2 Switch Channels.................................................. 87

6.3.3 Resolution............................................................ 88

6.3.4 Frame Rate........................................................... 89

6.3.5 Video Mux........................................................... 90

6.3.6 Video Standard.................................................... 91

6.3.7 Snap Buffer.......................................................... 92

6.3.8 Sensor Control..................................................... 93

6.3.9 Micro Control...................................................... 94

6.3.10 GPIO control ..................................................... 94

General Information

Chapter 1 Hardware Configuration

1.1 Introduction

The DVMB-554E is designed with the Intel® 945GM and the ICH7MDH for industrial applications that require both high-performance computing and enhanced motherboard Processor Channe l DDRII

The DVMB-554E offers high-performance cost-saving integrated graphics, built on the Intel® 945GM chipset and Graphics architecture that maximizes system memory up to 224MB. Better still, the DVMB-554E also provides incredible visual LVDS

In addition to powerful computing capabilities, the DVMB-554E comes

advanced I/O enhancements. The DVMB-554E possess multiple

with high performance Express x4 slot; one Mini-PCI socket; eight high-speed

Serial ATA ports supporting up to two devices with software Serial

two ATA RAID These powerful capabilities and suitable

With all these exceptional features and outstanding performance, DVMB554 is simply the best, most advanced yet power saving platform for today and tomorrow’s up-and-coming

supports Intel Core™ 2 Duo/Core™ Duo/Core™ Solo

up to 2.16GHz with 533/667 MHz front side bus and Dual

533/667 MHz memory up to 4 GB.

quality, versatile display options, 8-bit Dual Channel

and a TV-out(NTSC/PAL) interface.

0,1; AC-97 audio; two RS-232 ports; one parallel ATA port.

I/O capabilities ensure even more reliable data storage

power management capabilities. The

features the unique Intel® Extreme

VGA performance and shares

onboard I/O capabilities which include one PCI-

USB 2.0 ports;

for work with high-speed I/O peripherals.

applications.

1.2 Features

•

PCI&

PCI Express architecture:

Designed with the Intel 945GM and ICH7M-DH PCI-Express chipset, the DVMB-554E has dual/single Giga- bit LAN via slot.

• High Performance I/O Capability: PCI- E x1 bus, 2 SATA connectors and 8 USB 2.0 ports.

via

PCI-E x1 bus, 1 Mini-PCI socket and 1 PCI-E x 4

Mini-PCI a nd

Dual Gigabit LAN

• Standard Mini-ITX form factor with industrial features:

provides industrial features like long product life, reliable

554E operation under wide temperature range, watchdog timer, CMOS backup

etc.

functions,

• BIOS CMOS bac kup an d restore:

completed,

ROM. This is particularly useful in harsh environments which

Flash may cause setup data loss such as occurring, BIOS will original data

When BIOS CMOS setup has been

data in the CMOS RAM is automatically backed up to the

battery failure. Upon such an error

check the data, and automatically restore the

for booting.

• Automatically power on after power failure: It is often required to

have an unattended resumes after a power allows users to

the power on button.

ing

system come back to operation when power

failure. Advantech's industrial motherboard

set the system to power on automatically without push-

1.3 Specifications

1.3.1 System

•

CPU: Socket 479 Intel Core™ 2 Duo/Core™ Duo/Core™ Solo up to

2.16GHz 533/667 MHz FSB.

• L2 Cache: CPU has built-in 2MB or 4MB CPU full-speed L2 cache.

• BIOS: Award Flash BIOS (4Mb Flash Memory)

• System Chipset:

• SATA/EIDE hard disk drive interface: T wo on-board SATA

connectors with data transmission rate to two devices with software Serial ATA connector supporting up mode 4 (16.67MB/s data transfer (33/66/100MB/s data transfer rate.) BIOS enabled/disabled.

Intel 945GM with ICH7M-DH

to two enhanced IDE devices. Supports PIO

rate) and ATA 33/66/100

to 150 MB/s, and supports up

RAID 0,1. One on-board IDE

DVMB-

1.3.2 Memory

• RAM: Up to 4 GB in four 240-pin DIMM sockets. Supports dual-chan-

nel DDRII 400/533/667 SDRAM.

1.3.3 Input/Output

• PCI Express slots: 1 PCI-E x 3 with PCI-E x 4 expansion slot (this

expans io n s l o t w o r k s wi t h Ad v an t e c h Ri s e r ca r d ) and 1 PCI-E x 1 gold finger.

• PCI Bus: 1 Mini-PCI socket, 32-bit, 33 MHz PCI 2.2 compliant

• Serial ports:

on-board pin header (RS 232/422/485). Ports can be figured

Two serial ports, one DB-9 (RS 232)connector and one

individually con-

to COM1, COM2, or disabled

• Keyboard and PS/2 mouse connector: One 6-pin Mini-DIN connec-

tors are located on the mounting bracket and work with special Y cable for easy connection to a

•

USB port:

up to 480Mbps.

1.3.4 Graphics

• Controller:

Display memory:

•

• VGA:

• LVDS interface:

• TV-Out: NTSC/PAL.

Up to 2048x1536 resolution@75Hz

PS/2 keyboard and mouse .

Supports up to eight USB 2.0 ports with transmission rate

Intel Graphics Media Accelerator 950

Dynamically shared system memory up to 224 MB.

Support up to UXGA(1600X1200)

1.3.5 Ethernet LAN

• Supporting single/dual 10/100/1000Base-T Ethernet port(s) via PCI

Express x1 bus which provides 500

• Controller:

MB/s data transmission rate.

Marvell 88E8053 PCI-E Gigabit LAN; featuring AI NET2

1.3.6 Industrial features

• Watchdog timer: Can generate a system reset or IRQ11. The watch-

dog timer minute (255 levels)

1.3.7 Mechanical and environmental specifications

• Operating temperature:

• Storage temperature:

• Humidity: 20 ~ 95% non-condensing

• Power supply voltage:

• Power consumption:

1.3A Intel Core Duo 2GHz (667 MHz FSB), 2 x 1GB DDR2 667 SDRAM)

• Board size:

• Board weight:

is programmable, with each unit equal to one second or one

0 ~ 60° C (32 ~ 140° F, Depending on CPU)

-20 ~ 70° C (-4 ~ 158° F)

+3.3V, ±5 V, ±12 V

Maximum: +5 V at 2.4A, +3.3V at 3A, +12V at

170 x 170 mm (6.69" x 6.69")

0.7 kg (1.68 lb)

1.4 Jumpers and Connectors

Connectors on the DVMB-554E motherboard link it to external devices

as hard disk drives and a keyboard. In addition, the board has a num-

such

jumpers used to configure your system for your application.

ber of The tables below list the function of each of the board jumpers and con-

nectors. Later sections ers. Chapter 2 gives motherboard.

Table 1.1: Jumpers

Label

J2 J3 J4 J5 J6

Table 1.2: Connectors

Label

CN6

CM1 CN2 CN3

Line Out/MIC In connector

CN4 CN5

CN7 CN8

CN9 CN10 CN11 CN12 CN13

in this chapter give instructions on setting jump-

instructions for connecting external devices to your

Function

COM2 RS232/422/485 selectors CMOS Clear Watchdog timer output selection AT/ATX mode selector LVDS Power 3.3V/5V selector

Function

Serial port module: COM1/COM2 External PS/2 and Composite TV-Out

LAN2; USB ports 3, 4 LAN1; USB ports 1, 2

Rear Panel audio connector

AUX-IN connector

IrDA connector

USB ports 5, 6 USB ports 7, 8 Primary IDE connector Hardware Monit or connector Power LED

Table 1.2: Connectors

Label

CNX1

Power/

GPIO1 VDO1 FN1 FN2 FN3 SMBUS1 SA1 SA2 VCN1 BKL1 V1

ATX1 ATX2

VGA and DVI connector module

Function

GPIO connector DVA-210 connector FAN connector FAN connector FAN connector SMBus Extend connector Serial ATA 1 Serial ATA 2 LVDS connector LCD Inverter Power/Back light connector

ATX 12 V auxiliary power connector 20-pin ATX power connector

Reset/HDD LED/Alarm specker connector

1.5 Board Layout: Jumper and Connector Locations

Figure 1.1: Jumper and Connect or locations

F i g u r F

Figure

1.2: Rear Panel Placement

1.6 DVMB-554E Block Diagram

Figure 1.3: DVMB-554E Block Diagram

1.7 Safety Precautions

Warning! Always completely disconnect the power cord

from your chassis whenever you work with the hardware. Do not make connections while the power is on. Sensitive electronic components can be damaged by sudden power surges. Only experi enced electr onics personne l should open the PC chassis.

Caution! Always ground yourself t o remove any static

charge before touchin g the mo th er boa rd . Mo dern electronic devices are ve ry se nsitive to static electric charges. As a safety precaution, use a grounding wrist strap at all times. Place all electronic components on a static-dissipative surface or in a st at i c -shielded bag when they are not in the chassis.

Caution! The computer is provided with a battery-pow-

ered Real-time Clock circuit. Th ere is a d a ng er of explosion if batte ry is incor re ctly re pla ced . Replace only with same or equivalent type recommended by the manufacturer. Discard used batteries according to manufacturer's instructions.

Caution! There is a danger of a new batte ry exp lod ing if it

incorrectly installed. Do not attempt to

1.8 Jumper Settings

This section provides instructions on how to configure your motherboard by setting the jumpers. It also includes the motherboards's and your options for each jumper.

1.8.1 How to set jumpers

default settings

You can configure your motherboard to match the needs of your application by trical

setting the jumpers. A jumper is a metal bridge that closes an elec-

circuit. It consists of two metal pins and a small metal clip (often protected by a plastic cover) that slides over the pins to connect them. To “close” (or turn ON) a jumper, you connect the pins with the clip. To “open” (or turn OFF) a jumper, you remove the clip. Sometimes a jumper consists of a set of three pins, either pins 1 when setting jumpers.

and 2, or 2 and 3. A pair of needle-nose pliers may be useful

1.8.2 CMOS clear (J3)

labeled 1, 2, and 3. In this case you connect

The DVMB-554E motherboard contains a jumper that can erase CMOS data and reset the system BIOS information.

with pins 1-2 closed. If you want to reset the CMOS data, set J1 to

be set

Normally this jumper should

2-3 closed for just a few seconds, and then move the jumper back to 1-2 closed. This procedure will reset the CMOS to its default setting.

Table 1.3: CMOS (J3)

Function Jumper Setting

* Keep CMOS data

1-2 closed

Clear CMOS data

2-3 closed

* default setting

1.8.3 Watchdog timer output (J4)

The DVMB-554E contains a watchdog timer that will reset the CPU or send a signal to PIRQE in the event the CPU stops processing. This feature means the DVMB-554E will recover from a software failure or an EMI problem. The J4 computer will do in the event the watchdog timer is tripped.

jumper settings control the outcome of what the

Table 1.4: Watchdog timer output (J4)

Function Jumper Setting

IRQ11

1-2 closed

* Reset

2-3 closed

*default setting

Note:

Table 1.5: A TX /AT Mode selector (J5)

Function Jumper Setting

AT Mode

ATX Mode

The interrupt output of the watchdog timer is a low level signal. It will be held low until the watchdog tim er is r es e t.

1-2 closed

2-3 closed

1.8.4 COM2 RS 232/422/485 mode selector (J2)

Users can use J2 to select among RS 232/422/485 modes for COM2. The default setting is RS 232.

Table 1.6: COM2 RS 232/422/485 mode selector (J2)

Function Jumper Setting

RS232 RS422 RS485

(5-6) + (7-9) + (8-10) + (13-15) + (14-16) closed (3-4) + (9-11) + (10-12) + (15-17) + (16-18) closed (1-2) + (9-11) + (10-12) + (15-17) + (16-18) closed

1.8.5 LVDS Power 3.3V/5V selector (J6)

Table 1.7:

Function Jumper Setting

LVDS Power 3.3V/5V selector

(J6)

*3.3V

*default setting

1-2 closed

2-3 closed

1.9 System Memory

The DVMB-554E has two sockets for 240-pin memory modules (SODIMMs). All these sockets use 1.8 V unbuffered double data synchronous DRAMs (DDR of 256, 512 and 1024 MB. The sockets can be filled in any combination with

DIMMs of any size, giving a total memory size between 256 MB

and 2GB.

1.9.1 CPU FSB and memory speed

The DVMB-554E can accept DDR2 SDRAM memory chips without parity. Also note: The SDRAM, and DDR2 ECC (error checking and

SDRAM). They are available in capacities

DVMB-554E accepts DDR2 400/533/667MHz

SDRAM. The DVMB-554E does NOT support

correction).

1.10 Memory Installation Procedures

To install DIMMs, first make sure the two handles of the DIMM socket are in the DIMM module press This module memory ule will be

1.11 Cache Memory

The CPU that DVMB-554E supports built-in 2MB or 4MB cache memory.

“open” position. i.e. The handles lean outward. Slowly slide the

along the plastic guides on both ends of the socket. Then

the DIMM module right down into the socket, until you hear a click.

when the two handles have automatically locked the mem- ory

into the correct position of the DIMM socket. T o remove the

module, just push both handles outward, and the memory mod-

ejected by the mechanism in the socket.

rate

1.12 Processor Installation

Warning: Without a fan or heat sink, the CPU will over-

heat and cause damage to both the CPU and the single board computer . To install a CPU, first turn off your system. Locate the processor socket 479.

The DVMB-554E is designed for Intel Core™ 2 Duo/Core™ Duo/Core™ Solo (socket install the pro- cessor:

1. Turn the screw to loosen the processor socket.

479) up to 2.16 GHz. Follow these steps to

2. Align the triangular marking on the processor with the small arrow

the corner of the socket.

3. Turn the screw to its original position.

4. Install the heat sink on the CPU. The concave of heat sink should location of capacitors to avoid contacting with capacitors.

face to

Connecting Peripherals

Chapter 2 Connecting Peripherals

2.1 Introduction

You can access most of the connectors from the top of the board as it is

installed in the chassis. If you have a number of cards installed or

being have a packed chassis, you may need all the connections.

2.2 Primary IDE Connector (CN11)

to partially remove the card to make

You can attach up to two IDE (Integrated Drive Electronics) drives to the DVMB-554E’s built-in controller. The

drives.

each accommodate two Wire number 1 on the cable is red or blue and the other wires are gray.

Connect the red/blue wire corresponds to hand

Unlike floppy drives, IDE hard drives can connect in either position on the cable. If you install two drives to a single set one as the master and the other as jumpers on the should set the drive as your

Connect the first hard drive to the other end of the cable. Wi re 1 on the

one end to connector CN11 on the motherboard. Make sure that

corner). See Chapter 1 for help finding the connector.

drives. If you use just one drive on the connector, you

the master. See the documentation that came with

drive for more information.

primary (CN11) connector can

pin 1 on the connector (in the upper right

connector, you will need to

the slave. You do this by setting the

cable should also connect to pin 1 on the hard drive connector, which is

labeled with the drive fo r mo re information.

the drive circuit board. Check the documentation that came

2.3 USB Ports and LAN Ports (CN4, CN5, CN9, CN10)

The DVMB-554E provides up to eight ports of USB (Universal Serial Bus) interface which gives complete Plug & Play and hot swapping for up to 127 external devices. The USB interface complies with USB Specifica-

Rev. 2.0 supporting transmission rate up to 480 Mbps and is fuse

tion protected. The

USB interface can be disabled in the system BIOS setup.

The DVMB-554E is equipped with one or two high-performance 1000 Mbps Ethernet LANs. They are supported by all major network operating systems. Base-T operation.

The RJ-45 jacks on the rear plate provide convenient or 1000

Table 2.1: LAN LED indicator

Lan mode Lan Indicator 1Gbps Link on LED1 Green on

100Mbps Link on LED1 Orange on Active LED2 Gr een flash

2.4 VGA and D VI connector module (V1)

The DVMB-554E includes DVI and VGA interface that can drive dual displays.

2.5 Serial port module: COM1/COM2 (CM1)

The DVMB-554E offers two serial ports. The user can use J2 to select among RS 232/422/485 modes for both COM1 and COM2.

for COM2.

These ports can connect to serial devices,

The default setting is RS 232

such as a mouse or printer, or to a communications network. The IRQ and address ranges for both ports are fixed. However, if you

want to in the system

disable the port or change these parameters later, you can do this

BIOS setup.

Different devices implement the RS-232/422/485 standards in different

ways. the

you are having problems with a serial device, be sure to check

pin assignments for the connector.

2.6 External PS/2 and Composite TV-Out (CN2)

The DVMB-554E provides a PS/2 keyboard/m ouse connector. A 6-pin mini-DIN connector is located on the rear face plate. It comes with an external Y cable to convert from the 6-pin mini-DIN connector to PS/2 keyboard and PS/2 mouse connection.

2.7 Fan Connector (FN1/FN2/FN3)

If fan is used, this connector supports cooling fans of 500 mA (6W) or less.

2.8 Front Panel Connectors (CNX1/ CN13)

There are several external switches to monitor and control the DVMB-

554.

2.8.1 Power LED and Keyboard Lock (CN13)

CN13 is a 5-pin connector for the power LED. Refer to Appendix B for detailed information on the pin assignments. If a is used,

the system's power LED status will be as indicated below:

PS/2 or ATX power sup- ply

Power mode LED (PS/2 power) LED (ATX power) System On On On System Suspend Fast flashes Fast flashes System Off Off Slow flashes

Table 2.2: PS/2 or A TX po wer supply LED status

2.8.2 External Speaker (CNX1-17)

It is a 4-pin connector for an external speaker. If there is no external speaker,

the DVMB-554E provides buzzer, set

pins 3-4 as closed.

onboard buzzer as an alternative. To ena ble the

2.8.3 Reset Connector (CNX1-18)

Many computer cases offer the convenience of a reset button. Connect the wire from the reset button

2.8.4 HDD LED Connector (CNX1-19)

You can connect an LED to this connector to indicate when the HDD is active.

ATX Soft Power Switch (CNX1-21)

2.8.5

If your computer case is equipped with an ATX power supply, you should connect connection enables

the power on/off button on your computer case to this connector. This

you to turn your computer on and off.

2.8.6 SM Bus Connector (CNX1-29)

This connector is reserved for Advantech's SNMP-1000 HTTP/SNMP Remote internal voltages, temperature and fans from a Ethernet network.

CN29 can be connected to CN19 of SNMP-1000. Please be careful about the pin ends

System Manager. The SNMP-1000 allows users to monitor the

assignments, pin 1 must be connected to pin 1 and pin 2 to pin 2 on both

of cable.

remote computer through an

2.9 H/W Monitor Alarm (CN12)

Close: Enable OBS Alarm Open: Disable OBS Alarm

2.10 Line Out, Mic In Connector (CN3)

The Line Out is to output the audio signal to external audio device, like speakers or headphones. The

Mic In is for the audio signal input via

microphones.

2.11 Aux Line-In Connector (CN7)

The connector is for audio devices with a Line-in connector.

2.12 Seria l ATA Interface (SA1, SA2)

In addition to the EIDE interface (up to two devices), the DVMB-554E features a high eases cabling to hard drives

performance serial ATA interf ace (up to 150 MB/s) which

with thin and long cables.

2.13 DVA-210 Connector (VDO1)

DVMB-554E has 4 video capture chips on board. So it can support up to 4 cameras. To be connecting with cameras, DVMB-554E needs to work with DVA-210 for video capture. DVA-210 is a 4 channel video module with BNC connectors and you can find it in DVMB-554E accessory box.

2.14 Auxiliary 4-pin power connector (ATX1)

T o ensure the enough power is supplied to the motherboard, one auxiliary 4 pin power connector is available on the DVMB-554E. ATX1 must be used to provide sufficient 12 V power to ensure the stable operation of the system.

2.15 GPIO connector (GPIO1)

The DVMB-554E provides a GPIO interface, GPIO1, which is a 20 pin connector. Advant ech provides SDK for this GPIO and have 7 pins for input and 8 pins for output. Please refer to pin assignments connector as below.

for GPIO1

GPIO connector (GPIO1)

Pin signal pin signal pin signal pin signal 1 +5V 6 Input 11 Output 16 Input 2 +5V 7 Output 12 Input 17 Output 3 Output 8 Input 13 Output 18 GND 4 Input 9 Output 14 Input 19 GND 5 Output 10 Input 15 Output 20 GND

2.16 LVDS connector (VCN1)

The DVMB-554E provides a LVDS interface supports 18 bits LCD panels. Pin assignments for LVDS connector VCN1 are listed as below.

LVDS connector (VCN1)

Pin signal pin signal pin signal pin signal 1 VDDS 11 GND 21 OD2+ 31 DDC_

2 VDDS 12 GND 22 OD2+ 32 DDC_

3 GND 13 OD1- 23 GND 33 GND 4 GND 14 OD1- 24 GND 34 GND 5 VDDS 15 OD1+ 25 OCK- 35 OD3-

6 VDDS 16 OD1+ 26 OCK- 36 OD3-

7 OD0- 17 GND 27 OCK+ 37 OD3+ 8 OD0- 18 GND 28 OCK+ 38 OD3+ 9 OD0+ 19 OD2- 29 GND 39 HPLG 10 OD0+ 20 OD2- 30 GND 40 VCON

AFE CLK

AFE DAT

AFE

2.17 LCD Inverter Power connector (BKL1)

VP1 is connected to Inverter which can provide power to LCD Panel. The DVMB-554E

can provide a L VDS display.

BIOS Setup

Chapter 3 Award BIOS Setup

3.1 Introduction

Award’s BIOS ROM has a built-in setup program that allows users to modify the in battery backed-up information

3.1.1 CMOS RAM Auto-backup and Restore

The CMOS RAM is powered by an onboard button cell battery. When you finish BIOS backed up to causes a matically booting.

Note:

basic system configuration. This type of information is stored

memory (CMOS RAM) so that it retains the setup

when the power is turned off.

setup, the data in CMOS RAM will be automatically

Flash ROM. If operation in harsh industrial environments

soft error, BIOS will recheck the data in CMOS RAM and auto-

restore the original data in Flash ROM to CMOS RAM for

If you intend to change the CMOS setting without restoring the previous backup, you have to click on “DEL” within two seconds of the “CMOS checksum error...” display screen message appearing. Then enter the “Setup” screen to modify the data. If the “CMOS checksum error.. .” message appears again and again, please check to see if you need to replace the battery in your system.

3.2 Entering Setup

Turn on the computer and press <Del> to enter the BIOS setup.

Figure 3.1: Award BIOS Setup initial screen

3.3 Standard CMOS Setup

3.3.1 Date

The date format is <week>, <month>, <day>, <year>.

3.3.2 Time

The time format is <hour> <minute> <second>, based on the 24-hour clock.

3.3.3 IDE channel 0/1 Master/Slave

•

IDE HDD Auto-Detection:

automatic device

•

IDE Device Setup: Auto None

auto-detection step to make

Manual

•

Access Mode

•

Capacity:

•

Cylinder

Press “Enter” to select this option for

detection.

: Automatically detects IDE devices during POST

: Select this when no IDE device is used. The system will skip the

: User can manually input the correct settings.

: The options are CHS/LBA/Large/Auto

Capacity of currently installed hard disk.

: Number of cylinders

system start up faster.

•

Head

•

3.3.4 Halt On

: Number of heads

Precomp

: Write precomp

Landing Zone Sector

: Number of sectors

: Landing zone

This category determines whether system start-up will halt or not when an error

is detected during power up.

The options are: No Errors/All Errors/All, But Keyboard/All, But Diskette/All, But Disk/Key

3.3.5 Memory

This category displays base memory, extended memory , and total memory detected

during POST (Power On Self T e st).

Figure 3.2: St andard CMOS Features Screen

3.4 Advanced BIOS Features

The “Advanced BIOS Features” screen appears when choosing the “Advanced BIOS Features” item from the “Initial Setup Screen” menu. It allows the requirements. Advanced for your convenience. Simply enable yourself valuable time.

user to configure the DVMB-554E according to his particular

Below are some major items that are provided in the

BIOS Features screen. A quick booting function is provided

the Quick Booting item to save

Figure 3.3: Advanced BIOS features screen

3.4.1 CPU Features

Delay Prior to thermal

This feature controls the activation of the Thermal Monitor's automatic mode. It allows should be activated in ple, with Monitor in

choices are 4 Min, 8 Min, 16 Min, and 32 Min.

The

C1E Function

CPU C1E Function select. Default value is Auto

Execute Disable Bit

you to determine when the Pentium 4's Thermal Monitor

automatic mode after the system boots. For exam-

the default value of 16 Minutes, the BIOS activates the Thermal

automatic mode 16 minutes after the system starts booting up.

When disabled, forces the XD feature flag to always return 0.

3.4.2 Hard Disk Boot Priority

Set hard disk boot device priority.

3.4.3 Virus Warning

Enables or disables the virus warnin g .

3.4.4 CPU L1, L2 & L3 Cache

Enabling this feature speeds up memory access. The commands are “Enabled” or “Disabled.”

3.4.5 Quick Power On Self Test

This allows the system to skip certain tests to speed up the boot-up procedure.

3.4.6 First/Second Boot Device

The BIOS tries to load the OS from the devices in the sequence set here. The options

are: “Floppy”, “LS120”, “CDROM”, “Hard Disk”, “ZIP100”, “USB-FDD”, “USB-ZIP”, “USBCDROM”, “LAN1”, “LAN2” and “Disabled”.

3.4.7 Boot Other Device

Use this to boot another device. The options are “Enabled” and “Disabled”.

3.4.8 Boot Up NumLock Status

Sets the boot up status Num Lock. The options are “On” and “Off”.

3.4.9 Gate A20 Option

“Normal”: A pin in the keyboard controller controls GateA20. Fast (Default) lets chipset control GateA20.

3.4.10 T yp e matic Rate Setting

The typematic rate is the rate key strokes repeat as determined by the keyboard controller. The allows the

typematic rate and delay to be selected.

3.4.11` T yp e matic Rate (Chars/Sec)

commands are “Enabled” or “Disabled”. Enabling

The BIOS accepts the following input values (characters/second) for typematic rate: 6,

8, 10, 12, 15, 20, 24, and 30.

3.4.12 T yp ematic De lay (msec)

Typematic delay is the time interval between the appearances of two consecutive characters, values for this category are:

3.4.13 Security Option

when the key is continuously depressed. The input

250, 500, 750, and 1000 (ms).

This category determines whether the password is required when the system boots up or

•

System:

The system will not boot, and access to Setup will be also

denied unless the

•

Setup

: The system will boot, but access to Setup will be denied unless

the correct password is

only when entering setup. The options are:

correct password is entered at the prompt.

entered at the prompt.

Note:

To disable security, select P ASS WORD SET-

TING in the main menu. Then, you will be asked to enter a pas swor d. S i mply pr e ss <E nt er > to disable security. When security is disabled, the system will boot and you can enter Setup freely.

3.4.14 APIC Mode

This setting allows you to enable the APIC mode. The choices are “Disabled” or

“Enabled.”

3.4.15 MPS Version Control For OS

This specifies the version of the Multiprocessor Specification (MPS) to

used. Version 1.4 has extended configuration tables to improve sup-

be port for multiple PCI bus configurations

- use this for NT, and p ossibly Linux. It is also required for a secondary PCI bus to server Operating Systems.

work without the need for a bridge. Leave it as 1.1 for older

and provide future expandability

3.5 Advanced Chipset Features

By choosing the “Advanced Chipset Features” option from the “Initial Setup Screen” screen contains as shown in

menu, the screen below will be displayed. This sample

the manufacturer’s default values for the DVMB-554E,

Figure 3-5:

Figure 3.5: Advanced chipset features screen (a)

Figure 3.5: Advanced chipset features screen (b)

Note:

DRAM default timings have been carefully chosen and should ONLY be changed if data is being lost. Please first contact technica l support.

3.5.1 DRAM Timing Selectable

This item allows you to control the DRAM speed. The selections are “Manual” or “By SPD”.

3.5.2 CAS Latency Time

When DRAM Timing Selectable is set to [Manual], this field is adjustable. This between SDRAM starting are

3.5.3 DRAM RAS# to CAS# Delay

controls the CAS latency, which determines the time interval

a read command and receiving it. The options

[3T], [4T], [5T], and [Auto].

When DRAM Timing selectable is set to [Manual], this field is adjust-

When DRAM is refreshed, the rows and columns are addressed sep-

able. arately. transition

This setup item allows user to determine the timing of the

from RAS (row address strobe) to CAS (column address strobe). The less the clock cycles are, the faster the DRAM speed is. Set- ting options are [2T] to [5T], and [Auto].

3.5.4 DRAM RAS# Precharge

When the DRAM Timing Selectable is set to [Manual], this field is adjustable.

This setting controls the number of cycles for Row Address

Strobe (RAS) to be allowed to precharge. If no sufficient time

RAS to accumulate its charge before DRAM refresh, refreshing

for the may be incomplete and DRAM only when synchronous are [2T] to [5T],

DRAM is installed in the system. Setting options

and [Auto].

3.5.5 Precharge Delay (t RAS)

may fail to retain data. This item applies

This item allows you to select the value in this field, depending on whether the board has paged DRAMs DRAMs.

The choices are: “4” to “15” and “Auto”.

3.5.6 System Memory Frequency

or EDO (extended data output)

To adjust the frequency of memory. The choices are: "533MHz", "667MHz" and "Auto".

3.5.7 System BIOS Cacheable

Selecting “Enabled” allows caching of the system BIOS ROM at F0000hFFFFFh, resulting in better system gram writes data to Choices are “Enabled”, and

this memory area, a system error may occur. The

3.5.8 Video BIOS Cacheable

performance. However, if any pro-

“Disabled”.

Selecting “Enabled” allows caching of the video BIOS, resulting in better system performance. However, if a system error

may occur. The choices are “Enabled”, and “Dis- abled”.

any program writes to this memory area,

3.5.9 Memory Hole At 15M-16M

Enabling this feature reserves 15 MB to 16 MB memory address space for ISA expansion cards that specifically require this setting. This makes memory can

3.5.10 PCI-Express Root Port Func

PCI Express Port 1/2/3/4

from 15 MB and up unavailable to the system. Expansion cards

only access memory up to 16 MB. The default setting is “Disabled”.

The default setting is “Auto.” The choices are “Enabled,” “Disabled,” and “Auto.”

PCI-E Compliancy Mode

This allows the user to select the PCI-E compliant mode. The options are [v1.0], and [v1.0a].

allowed

3.5.11 PEG / Onchip VGA Control

Use this field to select PEG or Onchip VGA. The default is AUTO.

3.5.12 On-Chip Frame Buffer Size

The On-Chip Frame Buffer Size can be set to 1 MB or 8 MB. This mem-

shared with the system memory.

ory is

3.5.13 DVMT Mode

Displays the active system memory mode.

3.5.14 DVMT / FIXED Memory Size

Specify the size of DVMT / FIXED system memory to allocate for video memory.

3.5.15 Boot Display

Choose the boot display device.The default setting is "Auto" The choices

“VBIOS Default”, “CRT”, “LFP”and “LFP+CRT”.

are

3.5.16 Panel Number

These fields allow you to select the LCD Panel type. The default values

are:

for these ports

•

640x480, 18bit SC

•

800x600, 18bit SC

•

1024x768, 18bit SC

•

1028x1024, 18bit DC

3.5.17 Init Display First

Choose the first display interface to initiate while booting. The choice is “PCI Slot” or “Onboard”.

3.6 Integrated Peripherals

Figure 3.6: Integrated peripherals

3.6.1 IDE HDD Block Mode

Figure 3.7: On-Chip IDE Device

If your IDE hard drive supports block mode select Enabled for automatic detection of

the drive can support.

sector

3.6.2 IDE DMA Transfer Access

Use this field to enable or disable IDE DMA transfer access.

the optimal number of block read/writes per

3.6.3 On-Chip Primary / Secondary IDE Device

IDE Primary Master/Slave PIO/UDMA Mode (Auto). The channel has both Because two IDE devices may have a different Mode timing (0, 1, 2, 3, 4), it is necessary for “Auto” will allow

3.6.4 SATA Mode

The setting choices for the SAT A Mode are IDE, RAID and AHCI Mode. Select [AHCI] for Advanced Host improved SATA [RAID] to use SATA for

Note:

Storage Technology Quickstartguide and Intel(R) Matrix Storage Manager User's Manual know system using Intel(R) Matrix St orage Technology and Matrix

a master and a slave, making four IDE devices possible.

these to be independent. The default setting

auto detection to ensure optimal performance.

[IDE] if you want to have SATA function as IDE. Select

Controller Interface (AHCI) feature, with

performance and native command queuing. Select

RAID.

Please refer to the PDF-format Intel(R) Matrix

this CD (in the MANUAL folder) to

the necessary steps to build and configur e your RAID 0, 1

Storage Manager.

3.6.5 On-Chip Serial ATA

Choose the status of serial ATA. The default setting is “Auto” which lets the system arrange all

parallel and serial ATA resources automatically. The “Disabled” setting disables the SATA controller. The “Combined Mode” combines PATA and SATA, and maximum of 2 IDE drives in each channel. SATA and PATA, and a maximum “SATA

Only” setting means SATA is operating in legacy mode.

3.6.6 PATA IDE Mode

This item shows the parallel ATA channel. It is Secondary.

3.6.7 SATA Port

The “Enhanced Mode” enables both

of 6 IDE drives are supported. The

The PATA IDE mode must to be set to Secondary and SATA will display

“P0, P2 is Primary". It means SATA0 and SATA2 act as Primary Chan- nel.We

swap the channel.

can’t

have one configuration with this setting by spec. and

3.6.8 USB Controller

Figure 3.8: Onboard Device

Select Enabled if your system contains a Universal Serial Bus (USB)

and you have USB peripherals. The choices are “Enabled”

con- troller and

“Disabled”.

3.6.9 USB 2.0 Controller

This entry is to disable/enable the USB 2.0 controller only. The BIOS

may/may not have high-speed USB support. If the BIOS has

itself high speed USB on when a high speed device or “Disabled”.

3.6.10 USB Keyboard / Mouse Support

support built in, the support will automatically turn

is attached. The choices are “Enabled”

Select Enabled if you plan to use an USB keyboard. The choices are “Enabled” and “Disabled”.

3.6.11 AC97 Audio

Select “Disable” if you do not want to use AC-97 audio. Options are “Auto”, and “Disabled”.

3.6.12 Onboard LAN1 Control

Options are “Enabled” and “Disabled”. Select “Disabled” if you don’t want to use onboard LAN controller1.

3.6.13 Onboard LAN2 Control

Options are “Enabled” and “Disabled”. Select Disabled if you don’t want to use

the onboard LAN controller2. Note: Correct sequence of onboard Lan controllers(Lan1 & Lan2) shows in the "Onboard Device" BIOS view.

3.6.14 Capture Controller

Options are “Normal Mode” and “Enhanced Mode”. Select Enhanced Mode if you want to have more effective video capture performance. Default setting is Normal Mode.

Note:

DRAM default timings have been carefully

sen and should ONLY be changed if

chodata is technical

being lost. Please first contact

sup- port.

Super I/O Device:

3.6.15

Onboard Serial Port 1

The settings are “3F8/IRQ4”, “2F8/IRQ3”, “3E8/IRQ4”, “2E8/IRQ3”, and

“Disabled” for the on-board serial connector.

3.6.16 Onboard Serial Port 2

The settings are “3F8/IRQ4”, “2F8/IRQ3”, “3E8/IRQ4”,

“2E8/IRQ3”, and “Disabled” for the on-board serial connector.

3.6.17 UART Mode Select

This item allows you to select UART mode. The choices: “IrDA”, “ASKIR”, and “Normal”.

3.6.18 RxD, TxD Active

This item allows you to determine the active level of the RxD and TxD serial lines. The Choices: “Hi, Hi”, “Lo, Lo”, “Lo, Hi”, and “Hi, Lo”.

3.6.19 IR T ransmis sion Delay

This item allows you to enable/d i sable IR transmission delay. The choices are “Enabled” and “Disabled”.

3.6.20 UR2 Duplex Mode

This item allows you to select the IR half/full duplex function. The choices are “Half” and “Full”.

3.6.21 Use IR Pins

The choices are “RxD2, TxD2” and “IR-Rx2Tx2”.

Figure 3.9: Watch Dog Timer

3.6.22 Watch Dog Timer Select

Allow User select watch Dog time or disable..

3.7 Power Management Setup

The power management setup controls the single board computer's “green” features to save power. The following screen shows the manufac- turer’s defaults.

Figure 3.10: Power management setup screen (a)

Figure 3.10: Power management setup screen (b)

3.7.1 PCI Express PM Function

This allow you to control Power On by onboard LAN chip feature.

3.7.2 ACPI Function

The choices are: “Enabled” and “Disabled”.Power Management This category allows you to select the type (or degree) of power

saving and is

•

HDD Power Down

•

Suspend Mode

directly related to the following modes:

There are three selections for Power Management, and they have fixed mode settings.

Table 3.1: Power Saving

Saving Mode Function

Min Saving Minimum power management., Suspend Mode = 1

Max Saving Maximum power management., Suspend Mode = 1

User Defined Allows you to set each mode individually. When not

(Default) disabled, each of the ranges are from 1 min. to 1

hr., and HDD Power Down = 15 min.

min., and HDD Power Down = 1 min.

hr. except for HDD Power Down which ranges from 1 min. to 15 min., and disabled.

3.7.3 Power Management

This item allows user to select system power saving mode.

Min Saving Minimum power management. Suspend Mode=1 hr.

Max Saving Maximum power management. Suspend Mode=1 min.

User Define Allows user to set each mode individually. Suspend Mode= Disabled or 1 min ~1 hr.

3.7.4 Video Off Method

Use this to select the method to turn of f the video. The choices are “Blank

Screen”, “V/H SYNC+ Blank”, and “DPMS”.

3.7.5 Video Off In Suspend

When the system is in suspend mode, the video will turn off. The choices are “No” and “Yes”.

3.7.6 Suspend Type

The choices are “Stop Grant” and “PwrOn Suspend”.

3.7.7 Modem Use IRQ

This determines the IRQ that the MODEM can use.The choices are “3”, “4”, “5”, “7”, “9”, “10”, “11”, and “NA”.

3.7.8 Suspend Mode

This item allows user to determine the time of system inactivity, all devices except the CPU will be shut off.

3.7.9 HDD Power Down

This item allows user to determine the time of system inactivity, the hard disk drive will be powered down.

3.7.10 Soft-Off by PWR-BTTN

If you choose “Instant-Off”, then pushing the ATX soft power switch but- ton once will switch the system to “system off” power mode. You can choose “Delay 4 sec”. If you do, then

pushing the button for more than 4 seconds will turn off the system, whereas pushing the button momentarily (for less than 4 seconds) will switch the system to “suspend” mode.

3.7.11 PowerOn by LAN

This item allows you to power on the system by LAN. The choices are “Enabled” and “Disabled”.

3.7.12 CPU THRM-Throttling

This option controlls the CPU speed as a percentage of regular power. the choices are 87.5%,

12.5%.

3.7.13 PowerOn by Modem

75%, 62.5%, 50%, 37.5%, 25% .12% and

To enabled or disable the function to power on the system via a Modem connection “Disabled”.

3.7.14 PowerOn by Alarm

from a remote host. The choice “Enabled” and

The choices are “Enabled” and “Disabled”. Fields that follow below indicate date of current month and time of alarm settings, if enabled.

3.7.15 Primary IDE 0 (1) and Secondary IDE 0 (1)

When Enabled, the system will resume from suspend mode if Primary IDE 0 (1) or Secondary IDE 0 (1) becomes active. The choices are “Enabled” and “Disabled”.

3.7.16 FDD, COM, LPT PORT

When Enabled, the system will resume from suspend mode if the FDD, interface, COM “Enabled” and “Disabled”.

port, or LPT port is active. The choices are

3.7.17

PCI PIRQ [A-D]#

When Enabled, the system resumes from suspend mode if an interrupt occurs. The choices are “Enabled” and “Disabled”.

3.7.18 PWRON After PWR-Fail

Use this to set up the system after power failure. The “Off” setting keeps the system powered off after power failure, the

boots system

the system after failure, and the “Former-Sts” returns the

to the status before power failure.

“On” setting

3.8 PnP/PCI Configurations

3.8.1 Reset Configuration Data

Figure 3.11: PnP/PCI configurations screen

The default is Disabled. Select Enabled to reset Extended System Configuration configuration is

3.8.2 Resources Controlled By

Data (ESCD) if you have installed a new add-on card, and system

in such a state that the OS cannot boot.

The commands here are “Auto(ESCD)” or “Manual”. Choosing “Manual” requires you

to choose resources from the following sub-menu. “Auto(ESCD)” automatically configures all of the boot and Plug and Play devices,

but you must be using Windows 95 or above.

3.8.3 PCI / VGA Palette Snoop

This is set to “Disabled” by default.

3.8.4 Maximum Payload Size

This allows you to set the maximum TLP payload size for PCI Express devices. bytes], [2048

The options are [128 bytes], [256 bytes], [512 bytes], [1024

bytes], and [4096 bytes].

3.9 PC Health Status

3.9.1 CPU Warning Temperature

Figure 3.12: PC Health St atus Screen

This item will prevent the CPU from overheating. The choices are “Disabled”, “60C/140F”, 167F”, “80C/176F”, “85C/185F”, “90C/194F”, and “95C/205F”.

3.9.2 Current System Temperature

This shows you the current temperature of system.

3.9.3 Current CPU Temperature

This shows the current CPU temperature.

3.9.4 CPU FAN Speed

This shows the current CPU FAN operating speed.

3.9.5 System FAN 1 / 2 Speed

This shows the current System FAN operating speed.

3.9.6 VCORE and Other Voltages

“63C/145F”, “66C/151F”, “70C/158F”, “75C/

This shows the voltage of VCORE, +1.5V, +3.3, +5V, +12V, -12V, -5V, VBAT(V), and 5VSB(V).

3.9.7 Shutdown Temperature

This item enables users to set the limitation of CPU temperature, the range is from 85°C through 100°C.

3.10 Frequency / Vo ltage Control

3.10.1 Spread Spectrum

Figure 3.14: Spread Spectrum Control screen

This setting allows you to reduce EMI by modulating the signals the CPU generates so that the spikes are reduced to by varying ticular and “Enabled”.

the frequency slightly so that the signal does not use any par-

frequency for more than a moment. The choices are “Disabled”

flatter curves. This is achieved

3.11 Password Setting

Follow these steps to change the password.

1. Choose the “Set Password” option from the “Initial Setup Screen”

menu and press <Enter>. The screen displays the following sage:

Please Enter Your Password

2. Press <Enter>.

3. If the CMOS is good and this option has been used to change the

default CMOS.

password, the user is asked for the password stored in the

The screen displays the following message:

4. Type the current password and press <Enter>.

5. After pressing <Enter> (ROM password) or the current password

Remember, to enable the password setting feature, you must first select either “Setup” or

3.12 Save & Exit Setup

If you select this and press <Enter>, the values entered in the setup utilities will be recorded will check this what it tem to

3.13 Exit Without Saving

Selecting this option and pressing <Enter> lets you exit the setup program without recording any new

Please Confirm Your Password

(user-defined), you can change the password stored in the CMOS.

password must be no longer than eight (8) characters.

The

“System” from the “Advanced BIOS Features” menu.

the CMOS memory of the chipset. The processor

every time you turn your system on and compare this to

finds as it checks the system. This record is required for the sys-

operate.

values or changing old ones.

mes-

Chipset Installation

Chapter 4 Chipset Installation

4.1 Before you begin

To facilitate the installation of the enhanced display drivers and utility software, DVMB-554E are located Chipset Software Installation Utility is not required on any systems running Windows NT 4.0. Updates are provided via Microsoft*.

Note:

Before you begin, it is important to note that most display drivers need to have the relevant software prior to installation procedures assume that you are familiar vant software applications and operating relevant operating application

4.2 Introduction

The Intel® Chipset Software Installation (CSI) utility installs the Windows INF files ponents the following features:

• Core PCI PnP services

• IDE Ultra AT A 100/66/33 and Serial AT A interface support

• USB 1.1/2.0 support (USB 2.0 driver needs to be installed separately

• Identification of Intel® chipset components in the Device Manager

read the instructions in this chapter carefully. The drivers for the

on the software installation CD. The Intel®

Service Packs from

The files on the software installation CD are compressed. Do not a ttemp t to in st a ll th e drivers by copying the files manually . You must use the supplied SETUP program to install the drivers.

application already installed in the system

installing the enhanced display drivers. In addition, many of the

with both the rele-

system commands. Review the

system commands and the pertinent sections of your

software’s user manual before performing the installation.

that outline to the operating system how the chipset com-

will be configured. This is needed for the proper functioning of

for Win98)

• Integrates superior video features. These include filtered sealing of 720 pixel software DVD

DVD content, and MPEG-2 motion compensation for

Note:

This utility is used for the following versions of

installed before installing all the other

be drivers:

• Windows 2000

• Windows XP

Windows system, and it has to

4.3 Windows XP Driver Setup

1. Insert the driver CD into your system's CD-ROM drive. All the

drivers of DVMB-554E are under DVMB554E_CD\01_DVMB-554E_Driver. For the driver of Intel 945GM chipset is under DVMB-

554E_CD\ 01_DVMB-554E_Driver\01_945 chipset. Double click the icon which is in the folder to install driver. To take Windows XP as example.

Click “Next” when you see the following message.

Click “Yes” when you see the following message.

5. Click “Next” when you see the following message.

6. When the following message appears, click “Finish” to complete the installation and restart Windows.

VGA Setup

Chapter 5 VGA Setup

5.1 Introduction

The Intel 945GM integrated graphics controller provides an analog display port, LVDS and TV-out interface. You need to install the driver to enable the function.

The Intel 945GM integrated graphics controller includes the following features.

• Intel Graphics Media Accelerator 950

• Intel Dynamic Video Memory Technology (DVMT3.0)

• LVDS Interface

• TV-Out

Microsoft* DirectX*9 support capabilities, it allows software develop-

to create lifelike environments and characters. Dual independent

ers display, mized without

554E handles diverse applications by providing availability of system memory for general computer supplying addi- tional graphics memory when a 3D-intensive application requests upon the amount of pre- allocated memory something called Dynamic Video Memory

inter- face supporting up to

enhanced display modes for widescreen flat panels, and opti-

3D support deliver an intense and realistic visual experience

requiring a separate graphics card.

: DVMB-554E provide 18-bit dual channel LVDS

: DVMB-554E Supports PAL/ NTSC TV systems

5.2 Windows XP Driver Setup

Insert the driver CD into your system's CD-ROM drive and find Graphic driver under DVMB-554E_CD\01_DVMB-554E_Driver\ 02_Graphics.

The following installation procedure

systems please do a manual installation.

ating

: Incorporating the latest

the maximum

usage, while

it. The amount of video memory is dependent

set for your system plus

T echnology (DVMT).

WUXGA(1600X1200) panel resolution.

is for Windows XP. For other oper-

VGA

: DVMB-

1. Click “Next” to continue the installation.

2. You will see a welcome window. Please click “Yes” to continue the installation.

3. Click “Finish” to complete the installation and restart the computer now or later.

ideo capture installation

Chapter 6 Video capture installation

6.1 Driver installation of video capture chip

Step 1: Pop-up the “System Properties” window, choose the “Hardware” page, and press the “Device Manager” bottom.

Step 2: Click the PC icon and press the left bottom of the mouse. Press the “Scan for hardware changes”.

Step 3: The system will show the un-known devices like below window.

Step 4: Click the below icon to specify the driver location.

Step 5: Specify the driver under the DVMB-554E_CD\01_DVMB554E_Driver\05_BT878 Driver

Step 6: Push the “Next” bottom to process the installation. Step 7: Continuing the installation.

Step 8: Press the “Finish” bottom to finish the first circle installation. Then repeat the installation step 1~8 until all the un-known devices are all installed.

Step 9: From below window, we know there are 8 new items are installed.

6.2 Installation of DVMB-554E Demo Program

Step 1: Install the DVMB-554E demo program. The executive file is in the path: DVMB-554E_CD\02_DVMB554E_Software_Develop_Kit \Demo Program

Step 2: Press the “Next” bottom to begin the installation.

Step 3: Accept the license agreement and continue the installation.

Step 4: Key in your name and company name. Then press the “Next” bottom to continue.

Step 5: Choose the setup type you want and next.

Step 6: Beginning the installation.

Step 7: Finished the installation of DVS-350 demo program.

Step 8: There will be a DVMB554.exe icon on the desktop. Execute the demo program.

6.3 Demo Program Functionality

Below is the demo program window. The left side panels are the preview windows of video inputs. The right side panels are the function parameter settings.

6.3.1 Device

Each device is representative of one Conexant Fusion 878A video capture chip. User can set different parameters to different 878A chip.

6.3.2 Switch Channels

Set the “Switch Channels” to decide how many input for each 878A video chip. Each 878A chip can switch to 4 channel video inputs to share 30/25 frame per second. For more information, please refer to DVMB554SDK_Manual

6.3.3 Resolution

Set the video capturing resolution. Please refer to DVMB554SDK_Manual

Notice: For the resolution of VGA or D1, the capture video will have the interlace effect on the video image. In other words, there will be lines in the capture image especially when the targeted image is moving. To eliminate this effect, user might need to set the resolution down to 640x240 and use specific algorisms to compensate the image interlace between the scanning even field image and odd field image. For CIF/320x240 resolution, there will be no interlace effect.

6.3.4 Frame Rate

Set the frame rate for video capturing for specific channel. Please refer to DVMB554SDK_Manual

6.3.5 Video Mux

Set the “Video Mux” to specify the video input channel for setting parameter. Please refer to DVMB554SDK_Manual

6.3.6 Video Standard

Set the video standard of your cameras. Please refer to DVMB554SDK_Manual.

6.3.7 Snap Buffer

Press the “Snap Buffer” to get the image data of specific channel video input. The snap image will be show on the up panel.

6.3.8 Sensor Control

To set the brightness, contrast, hue and saturation of specific channel. Please refer to DVMB554SDK_Manual

6.3.9 Micro Control

Specify or get the word address(0~127).with a value. Please refer to DVMB554SDK_Manual

6.3.10 GPIO control

To get a specified DI value or to set a specified DO value. Please refer to DVMB554SDK_Manual

Advantech DVMB-554E User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
