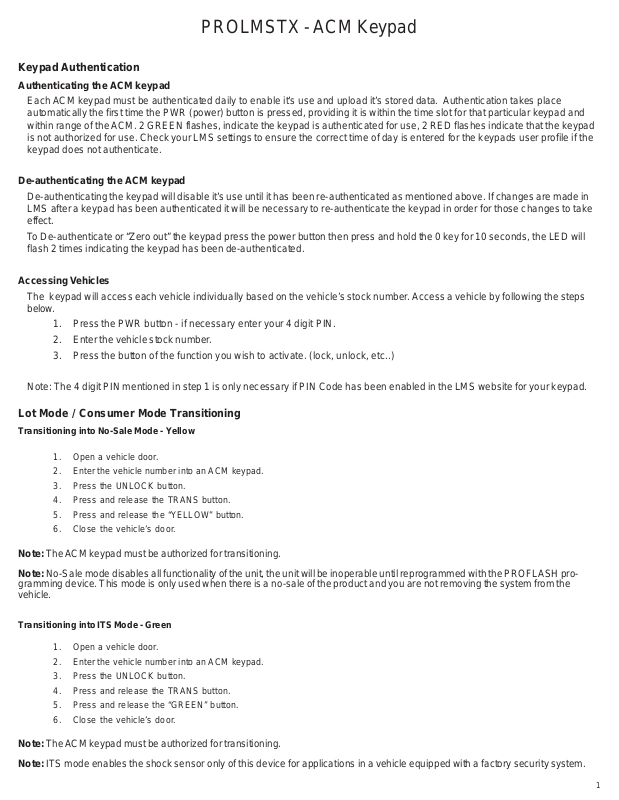

PROLMSTX - ACM Keypad

Keypad Authentication

Authenticating the ACM keypad

Each ACM keyp ad must be authenticated daily to enable it’ s use and upload it’s stored dat a. Authentication takes place
automatically the first time the PWR (power) button is pressed, providing it is within the time slot for that particular keypad and
within range of the ACM. 2 GREEN flashes, indicate the keyp ad is authenticated for use, 2 RED flashes indicate that the keypad
is not authorized for use. Check your LMS settings to ensure the correct time of day is entered for the keypads user profile if the
keypad does not authenticate.

De-authenticating the ACM keypad

De-authenticating the keypad will disable it’s use until it has been re-authenticated as mentioned above. If changes are made in
LMS after a keypad has been authenticated it will be necessary to re-authenticate the keypad in order for those changes to take
effect.

T o De-authenticate or “Zero out” the keyp ad press the power button then press and hold the 0 key for 10 seconds, the LED will
flash 2 times indicating the keypad has been de-authenticated.

Accessing Vehicles

The keypad will access each vehicle individually based on the vehicle’s stock number . Access a vehicle by following the steps
below.

1. Press the PWR button - if necessary enter your 4 digit PIN.

2. Enter the vehicle stock number.

3. Press the button of the function you wish to activate. (lock, unlock, etc..)

Note: The 4 digit PIN mentioned in step 1 is only necessary if PIN Code has been enabled in the LMS website for your keypad.

Lot Mode / Consumer Mode Transitioning

Transitioning into No-Sale Mode - Yellow

1. Open a vehicle door.

2. Enter the vehicle number into an ACM keypad.

3. Press the UNLOCK button.

4. Press and release the TRANS button.

5. Press and release the “YELLOW” button.

6. Close the vehicle’s door.

Note: The ACM keypad must be authorized for transitioning.
Note: No-Sale mode disables all functionality of the unit, the unit will be inoperable until reprogrammed with the PROFLASH pro-

gramming device. This mode is only used when there is a no-sale of the product and you are not removing the system from the
vehicle.

Transitioning into ITS Mode - Green

1. Open a vehicle door.

2. Enter the vehicle number into an ACM keypad.

3. Press the UNLOCK button.

4. Press and release the TRANS button.

5. Press and release the “GREEN” button.

6. Close the vehicle’s door.

Note: The ACM keypad must be authorized for transitioning.
Note: ITS mode enables the shock sensor only of this device for applications in a vehicle equipped with a factory security system.

1

Transitioning into Factory Keyless Upgrade Mode - Blue

1. Open a vehicle door.

2. Enter the vehicle number into an ACM keypad.

3. Press the UNLOCK button.

4. Press and release the TRANS button.

5. Press and release the “BLUE” button.

6. The LED will flash blue 1 time and the system will chirp 3 times.

7. Close the vehicle’s door..

Note: The ACM keypad must be authorized for transitioning.
Note: Factory Keyless Upgrade Mode enables all of the device’s security functionality by use of the factory transmitters.

Transitioning into Security with Transmitters Mode - Red

1. Open a vehicle door.

2. Enter the vehicle number into an ACM keypad.

3. Press the UNLOCK button.

4. Press and release the TRANS button.

5. Press and release the “RED” button.

6. The LED will flash red 1 time and the system will chirp 3 times.

7. Within 5 seconds, program the aftermarket transmitter by pressing the lock button of each transmitter you wish to program.

8. Close the vehicle’s door..

Note: The ACM keypad must be authorized for transitioning.
Note: If no remotes are programmed during step 7, the system will automatically transition into the Factory Keyless Upgrade Mode -

BLUE
Note: Security with Transmitters Mode enables all of the device’s security functionality by use of aftermarket transmitters.

Transitioning into Lot Mode

1. Turn the ignition ON.

2. Press and release the override button 3 times.

3. The system will chirp 1 time.

4. Press button 1 of the short range transmitter.

5. The system will respond with 1 chirp.

6. Turn the ignition OFF to exit transmitter programming.

7. The system will chirp 2 times to confirm exit.

Note: This system has 1 button programming which programs all channels of the transmitter to the system at once. When in lot

mode, a consumer remote can not be programmed to the system until it is transitioned to consumer mode.
All programming features will be defaulted to the factory default settings.
