Advance Security TR17 Users Manual

REMOTE ENGINE STARTER

WITH ALARM SYSTEM

OWNER’S MANUAL

WARNINGS:

As with any product that performs automatic functions, there are certain safety precautions that you must
practice and be aware of.

1. Keep the transmitter out of children’s reach.

2. Do not leave anyone in the vehicle while running on remote control.

3. Alert servicing personnel that the vehicle can be started automatically.

4. Do not start the vehicle by remote while it’s in an enclosed area or garage.

5. Always apply the parking brake and lock the vehicle as you exit the vehicle.

6. The vehicle windows must be rolled up.

7. Should the unit malfunction, disconnect the fuse until the problem is corrected.

8. The use and operations of this system is the sole responsibility of the operator.

9. Some areas may have local ordinances that prohibit leaving a vehicle running on public streets.

10. Do not start the vehicle by remote while the standard transmission vehicle is parked at a steep place.

OPERATION

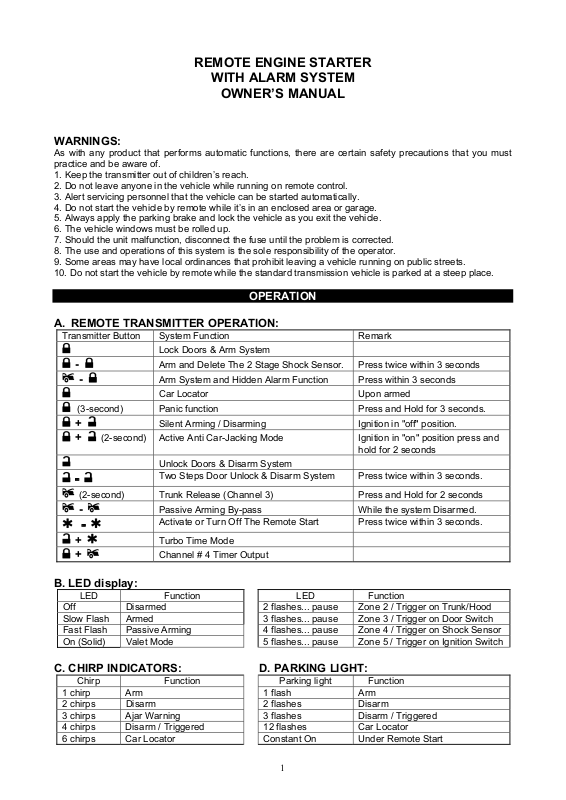

A. REMOTE TRANSMITTER OPERATION:

Transmitter Button System Function Remark

Lock Doors & Arm System

- Arm and Delete The 2 Stage Shock Sensor. Press twice within 3 seconds

- Arm System and Hidden Alarm Function Press within 3 seconds

Car Locator Upon armed

(3-second) Panic function Press and Hold for 3 seconds.

+ Silent Arming / Disarming Ignition in "off" position.
+ (2-second) Active Anti Car-Jacking Mode Ignition in "on" position press and

hold for 2 seconds

Unlock Doors & Disarm System

-

(2-second) Trunk Release (Channel 3) Press and Hold for 2 seconds

- Passive Arming By-pass While the system Disarmed.

-

+ Turbo Time Mode
+ Channel # 4 Timer Output

B. LED display:

LED Function LED Function
Off Disarmed 2 flashes... pause Zone 2 / Trigger on Trunk/Hood
Slow Flash Armed 3 flashes... pause Zone 3 / Trigger on Door Switch
Fast Flash Passive Arming 4 flashes... pause Zone 4 / Trigger on Shock Sensor
On (Solid) Valet Mode 5 flashes... pause Zone 5 / Trigger on Ignition Switch

C. CHIRP INDICATORS: D. PARKING LIGHT:

Chirp Function Parking light Function
1 chirp Arm 1 flash Arm
2 chirps Disarm 2 flashes Disarm
3 chirps Ajar Warning 3 flashes Disarm / Triggered
4 chirps Disarm / Triggered 12 flashes Car Locator
6 chirps Car Locator Constant On Under Remote Start

Two Steps Door Unlock & Disarm System Press twice within 3 seconds.

Activate or Turn Off The Remote Start Press twice within 3 seconds.

1

E. ALARM OPERATING CONDITION:

Siren / Horn Parking Light LED Doors Starter Dome Light

1. Arming 1 or 3 Chirps 1 Flash Slow Flash Locking Disable

2. Disarming 2 or 4 Chirps 2 or 3 Flashes Unlocking Turns on for 30 -second

3. Trigger Alarming Flashes Slow Flash Disable Flashes

4. Panic Alarming Flashes Flashes

5. Car-Jacking Alarming Flashes Disable Flashes

6. Car Locator 6 Chirps 12 Flashes Locking

F. ACTIVE ARMING – LOCK & ARM:

1. Press button on the transmitter.

2. The siren will chirp once and parking light will flash once indicating that the system is now armed. The
vehicle door will lock and dome light turns on for 10 seconds upon arming when interfaced with the
security system.

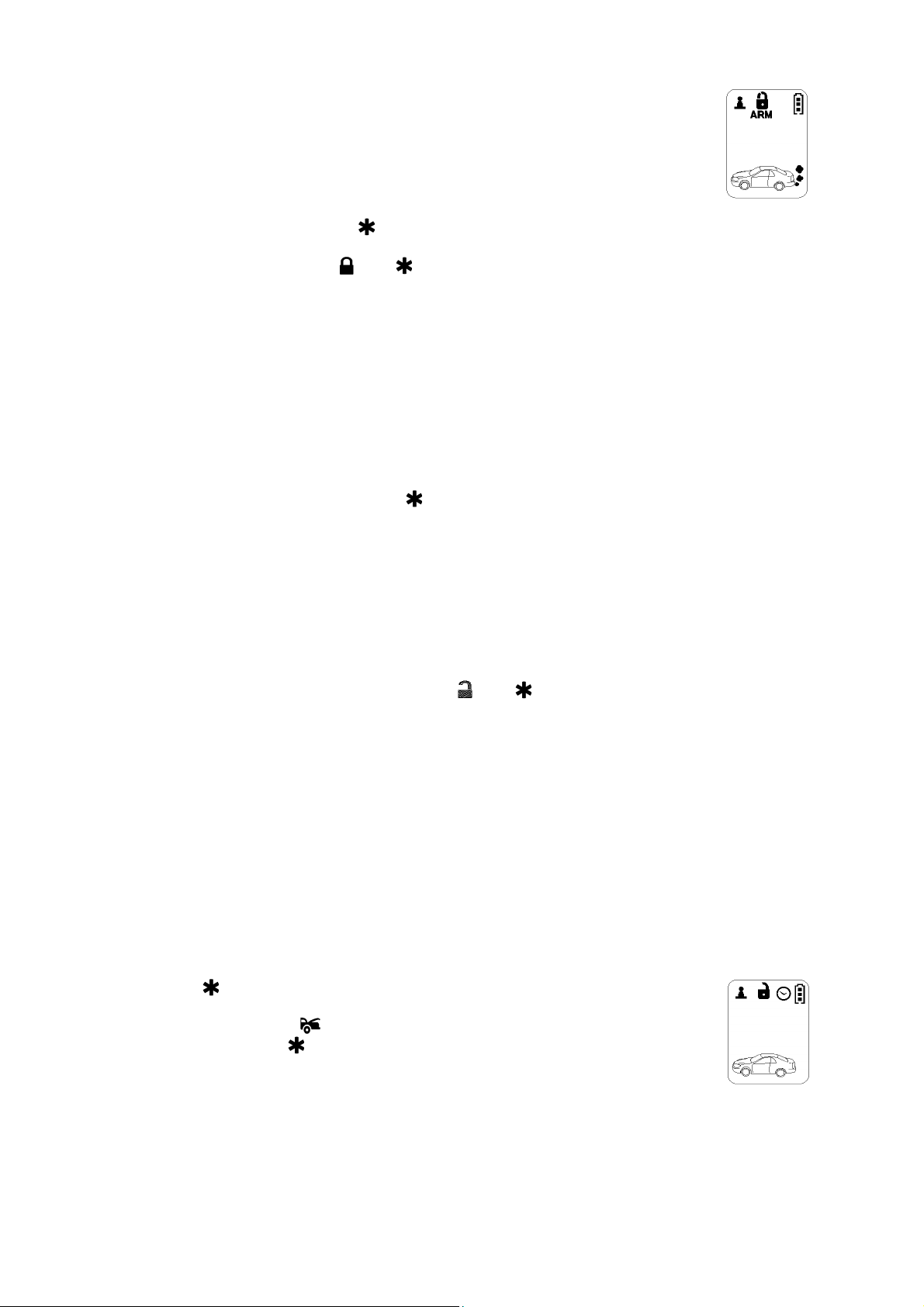

System Arm

SILENT ARMING / DISARMING: Press the transmitter and buttons at the same time will arm or

disarm your security system, No chirp sound will be heard, arm / disarm confirmation will be through the
vehicles parking lights only.

SHOCK SENSOR BY-PASS: Press the
the security system and by-pass the shock sensor. The system will chirp one additional time to confirm the
sensor bypass mode was activated. The sensor bypass feature is programmed to activate for one arming
cycle only. The security system will return to normal operation during the next arming cycle.

HIDDEN ALARM FUNCTION: Press the
the hidden alarm function. The security system will arm and with “Hidden Alarm Function”. The siren / horn
will be silenced even if the sensor is triggered in the armed status.

Door Ajar

button on the transmitter two times within 3 seconds will arm

button first; within 3 seconds press the button to activate

Trunk / Hood Ajar

AJAR WARNING: If the

siren sounds 3 chirps, then
you have left a door, trunk,
or hood lid ajar. (See Alarm

Feature “I
Programming)

- 4

G. PASSIVE ARMING

Active arming / disarming is controlling your security system via the remote transmitter. This security
system is equipped with an optional Passive Arming feature, which allows the security system to arm 30
seconds after the last door is closed. Operation is as follows.

1. Turn the ignition to the “OFF” position and exit the vehicle.

2. After all entrances are closed, the security system LED will flash fast for 30 seconds. If you reopen any
door / hood / trunk, the security system LED will stop flashing. It will begin flashing again once the
vehicle all entrances are closed.

3. After 30-second timer has elapsed, the security system will automatically “ARM”. The siren will chirp [1]
time and the parking lights will flash [1] time.

-

PASSIVE ARMING WITH PASSIVE DOOR LOCKING (See Alarm Feature “I

The vehicle doors will automatically lock after passive arming cycle has been completed.

PASSIVE ARMING BY-PASS: While the system disarmed, Press the
respond with [1] chirp and LED will turn “ON”. The security system will remain in this temporally state for
as long as you wish. To exit passive by-pass, press the transmitter
return to normal status.

or

2” Programming):

button twice, the security will

button and the system will

H. ACTIVE DISARMING – UNLOCK & DISARM:

1. Press button on the transmitter.

2. The siren will chirp twice and parking light flash twice to indicating that the security system is now
disarmed. The vehicle’s door will unlock and dome light turns on for 30 seconds upon disarming when
interfaced with the security system.

2

System Disarm

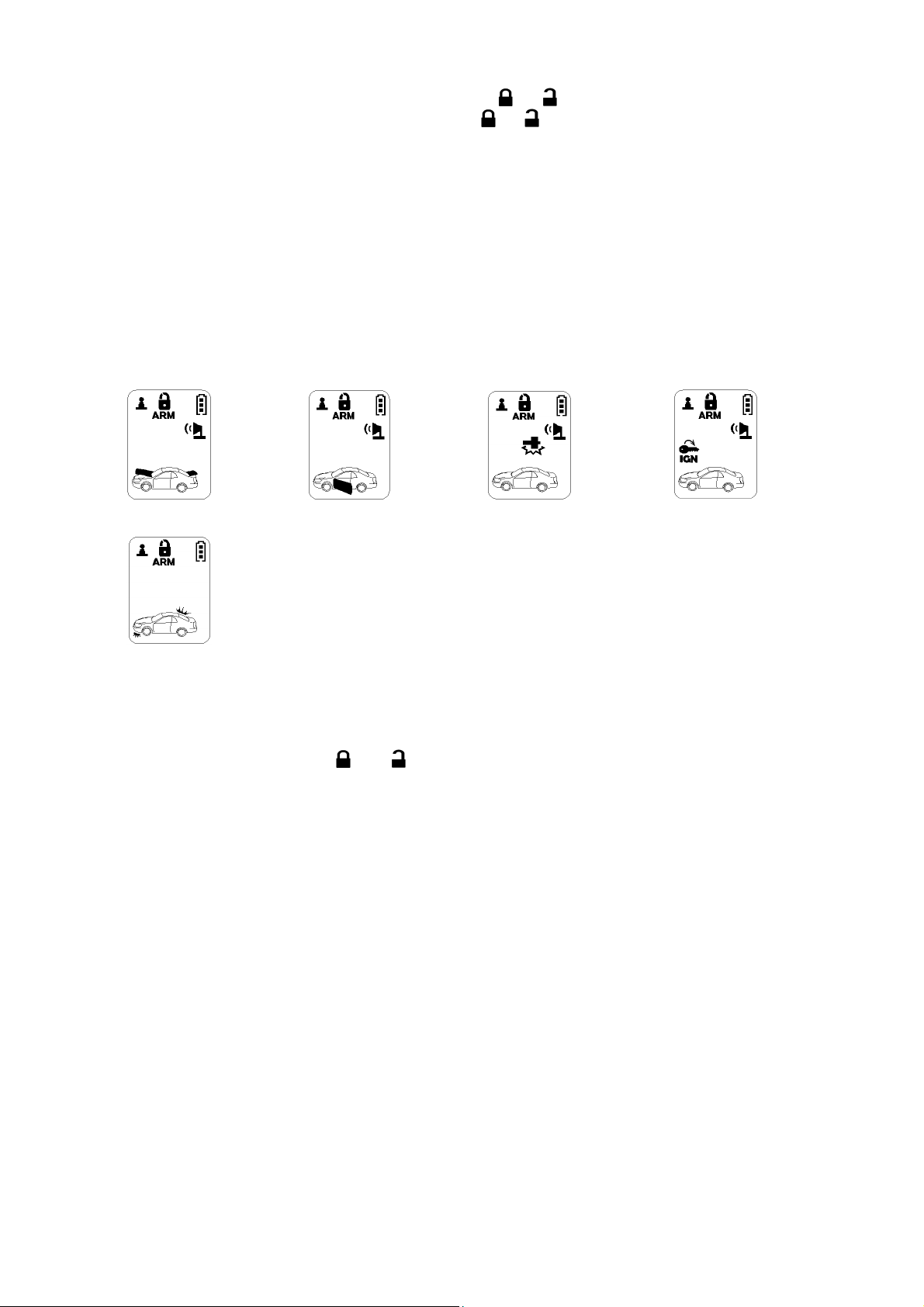

Trunk/Hood Trigger

Doors Trigger

Shock Sensor Trigger

Ignition Trigger

TWO STEPS DOOR UNLOCK (See Alarm Feature “II - 1” Programming): This feature will

independently unlock the driver’s door only when disarming the security system. Pushing the
a second time within 3 seconds will unlock the other doors.

AUTOMATIC RE-ARM (See Alarm Feature “
system will automatically re-arm itself in 60 seconds after disarming with remote transmitter. Automatic
rearm will cancel if any door is opened before the 60 seconds timer has elapsed.

TAMPER DISARMING: If alarm triggered, upon disarm the system, siren chirp 4
times, parking light flash 3 times.

PATHWAY ILLUMINATION (See Alarm Feature “II
feature turns the parking light “ON” for 30 seconds upon a unlock signal and for
10 seconds upon the lock signal.

I - 3” Programming): If this feature is selected, the security

- 4” Programming): This

button

I. DISARMING WITHOUT A TRANSMITTER ( Alarm Feature II - 6 Programming )

OVERRIDES THE ALARM WITHOUT PASSWORD PIN CODE: (Factory Default Setting)

The Override function may be used if the remote transmitter is lost or inoperative.

1. Enter the vehicle and turn the ignition switch to 'ON’ position. (Alarm will sound.)

2. Within 10 seconds push and release the valet switch
The alarm will stop sounding and enter the disarm mode. You can now start and operate the vehicle
normally.

J. VALET MODE: (System in Disarm or Valet mode)

The valet switch allows you to temporarily bypass all alarm function, eliminating the need to hand your
transmitter to parking attendants or garage mechanics. When the system is in valet mode, all alarm
function and remote start functions are bypassed, however the remote panic feature and remote door
locks will remain operational. To use the valet mode, the system must first be disarmed either by using
you remote transmitter, or by operating the Manual override sequence.

Enter Valet Mode:

1. From the disarmed condition, turn the ignition to “ON” position.

2. Push and hold valet switch for 2 seconds until the
LED turns on. The LED wills remain on as long as
the system is in 'valet mode'.

Exit Valet Mode:

1. Return to normal operation, turn ignition 'on'.

2. Push and hold valet switch for 2 seconds, The
LED wills turns off indicate the system are exiting
the valet mode.

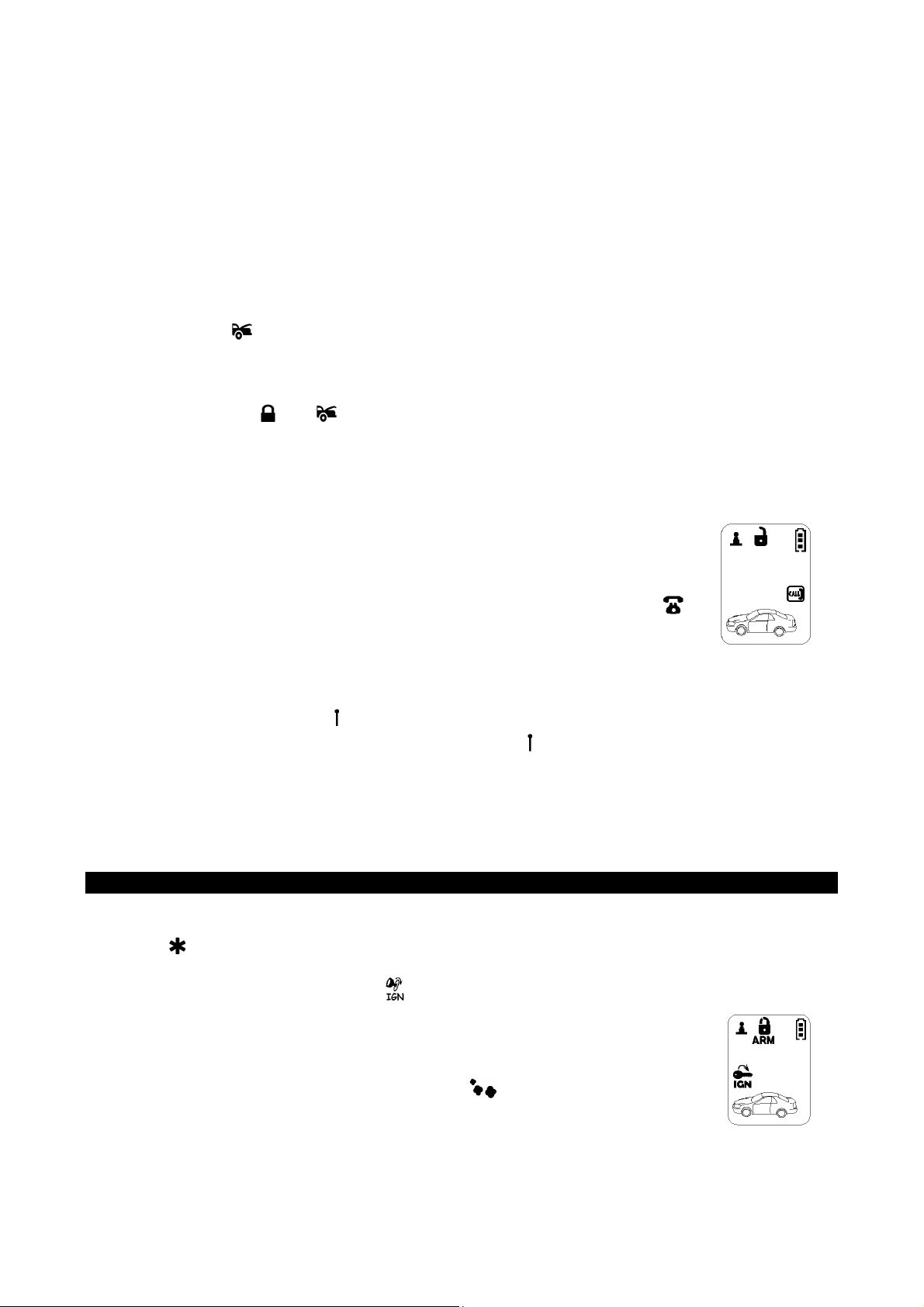

Remote Door Lock

Remote Door Unlock

K. CAR LOCATOR

Under armed mode, press the button to active car locator function. The siren will chirp 6 times. The
parking light will flash 12 times, for you to easily locate your car.

L. PANIC FUNCTION:

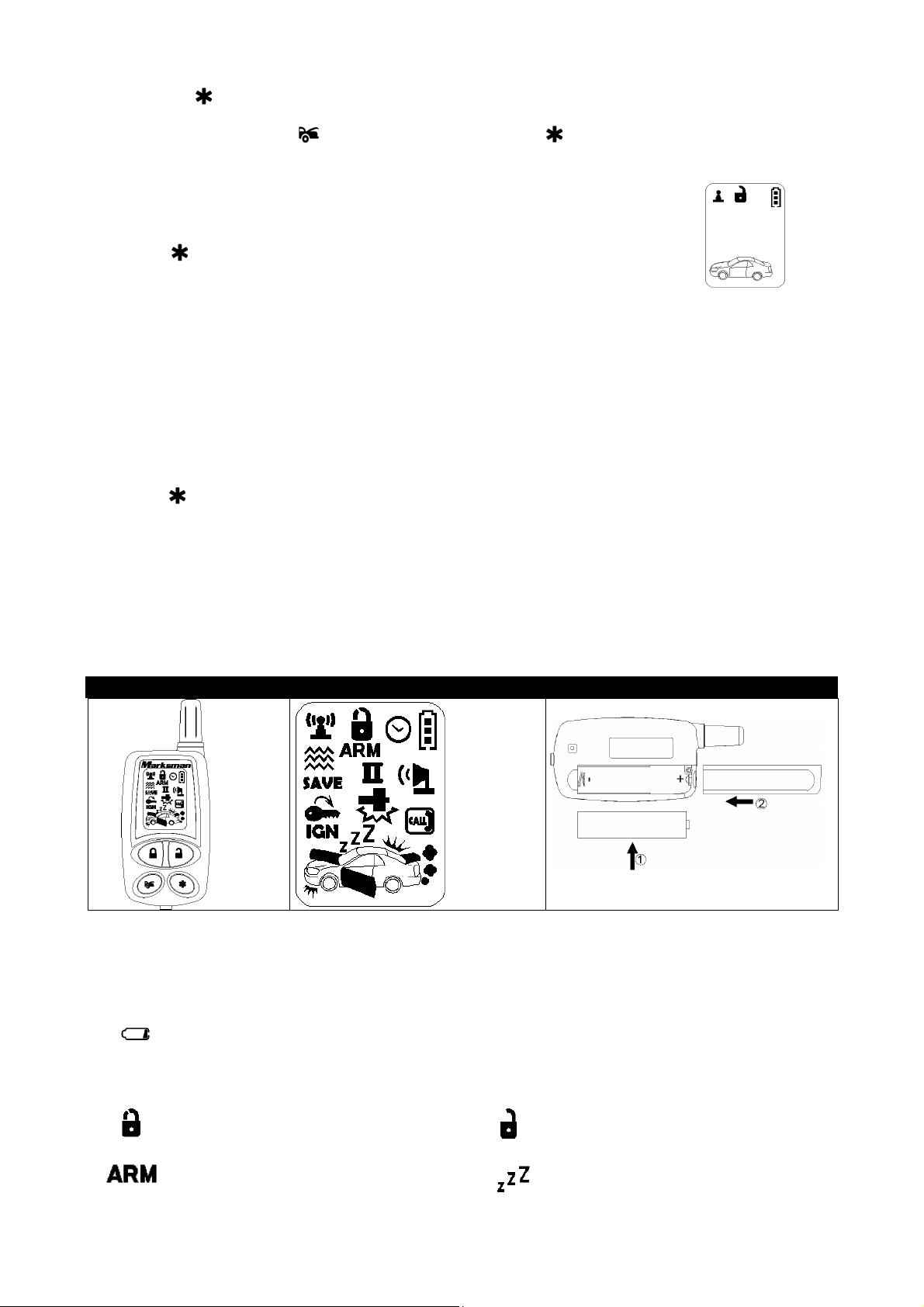

The transmitter can be used as a remote panic switch to manually trigger the alarm in case emergency.

1. Press and hold the

2. During panic mode, the normal function of this transmitter button will be suspended. The transmitter
and

button is pressed, the vehicle’s starter disable device, (where installed) will be enable allowing the
vehicle to start.

buttons can be used to lock and unlock the door (if the option is installed), however once the

button for 3 second. The alarm will immediately sound.

3
