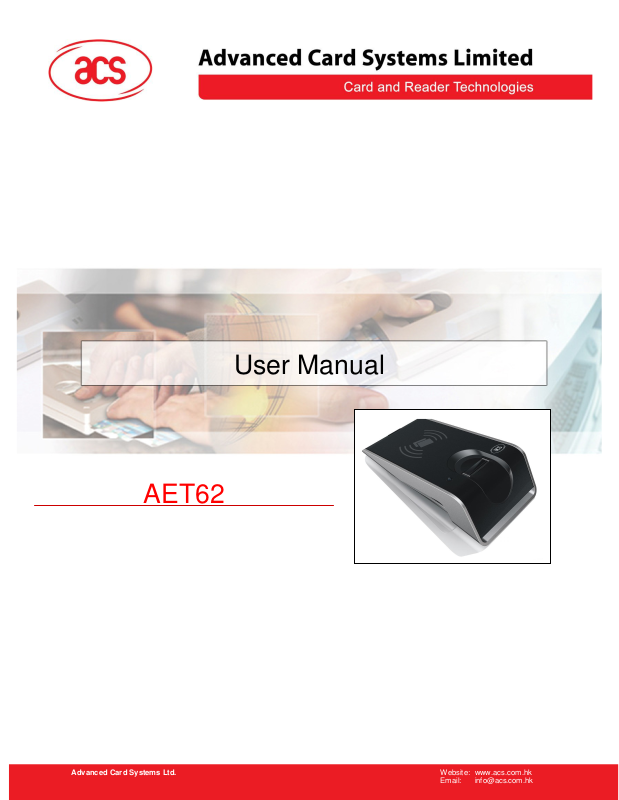

Advanced Card Systems AET62 Users Manual

info@acs.com.hk
AET62
User Manual
Advanced Card Systems Ltd. Website: www.acs.com.hk
Email:
Page 2 of
Revision History
Version Date Prepared By Description
1.00 28 Mar 2008 Jason Ngan Initial release
1.10 24 Aug 2009 Jason Ngan Updated Features
AET62
AET62 Design Specification
Version 1.0 8-DEC-09
18
Page 3 of
Table of Contents
AET62
1.0. Introduction ................................................................................................................. 4
2.0. FEATURES................................................................................................................... 5
3.0. SYSTEM BLOCK DIAGRAM....................................................................................... 6
4.0. HARDWARE INTERFACES ........................................................................................ 7
4.1.
Power Supply.........................................................................................................................7
4.2.
USB Interface ........................................................................................................................7
4.2.1.
Endpoints ......................................................................................................................7
4.3.
Bi-Color LED ..........................................................................................................................8
4.4.
Buzzer (optional)....................................................................................................................8
4.5.
SAM Interface (optional) ........................................................................................................8
4.6.
Built-in Antenna .....................................................................................................................8
4.7.
FINGERPRINT SCANNNER .................................................................................................8
5.0. Commands for Contact and Contactless Interfaces Handling............................ 10
5.1.
PSEUDO APDUS IN CONTACTLESS READER................................................................11
5.1.1.
Direct Transmit............................................................................................................11
6.0. APIs for Fingerprint Sensor..................................................................................... 12
6.1.
PTOpen................................................................................................................................12
6.2.
PTClsoe ...............................................................................................................................12
6.3.
PTGrab ................................................................................................................................13
6.4.
Get Response ......................................................................................................................14
6.5.
Bi-Color LED and Buzzer Control........................................................................................15
6.6.
Get the Firmware Version of the reader ..............................................................................17
7.0. Technical Specification............................................................................................ 18
AET62 Design Specification
Version 1.0 8-DEC-09
18
Page 4 of
AET62
1.0. Introduction
AET62 is a USB 2.0 full speed Contactless card reader, which is the interface for the communication between a computer and a smart card reader. Simultaneously, it is also a fingerprint reader using strip sensor.
AET62 Design Specification
Version 1.0 8-DEC-09
18
Page 5 of
2.0. FEATURES
Slope casing for strip sensor for easy finger snapping - as small as possible Horizontal card placement The card should not cover the strip sensor. Add weight to prevent swinging Un-detachable USB wire of length same as ACR122 USB version 1.1 full speed A bi-colour LED shows the statues of device power supply and smart card reader ISO14443 Parts 1-4 Type A & B, Mifare, Desfire, Topaz, ISO/IEC18092 (NFC) compliant – all
3 modes
Maxmium smart card operation speed: 424 kbps CCID standard, PC/SC compliant Support anti-collision. Even in the presence of multiple cards, at least 1 tag can be correctly
identified.
(By PC/SC Escape Commands) Allow manual card polling option Operating Distance for different Tags ~ 40mm Optional: 1 SAM slot (Not changing often) Match-on-device BioAPI 1.1, Windows Biometric Framework (WBF) CE & FCC, RoHS compliant, REACH compliant (Optional) VCCI OS supported: Windows 2000, 2003, XP 32, XP 64, Vista 32 and Vista 64, Linux, Mac
AET62
AET62 Design Specification
Version 1.0 8-DEC-09
18
Page 6 of
3.0. SYSTEM BLOCK DIAGRAM
AET62 is a merge version with ACR122 and finger print sensor. ACR122 is a contactless reader. The system block of AET62 is shown as follow:
USB
Computer
Interface
The USB Hub Controller is the communication interface between the PC and the host controller and fingerprint sensor via USB port connection. The companion chip get the fingerprint image form the Strip sensor and contains the fingerprint template extraction and matching algorithms. The template matching can be performed in device. The AET62 is powered from USB port without external power supply.
USB
Hub
Controller
PN532
NFC Interface Chip
Host controller
Companion Chip and Fingerprint Sensor
(Strip Sensor)
AET62
Built-In Antenna
SAM slot
ACR122
AET62
NFC Card
Contactless Interface
Carrier = 13.56MHz
AET62 Design Specification
Version 1.0 8-DEC-09
18
Page 7 of
AET62
4.0. HARDWARE INTERFACES
4.1. Power Supply
The AET62 requires a voltage of 5V DC, 150mA regulated power supply, and gets the power supply from PC.
4.2. USB Interface
The AET62 is connected to a computer through USB as specified in the USB Specification 1.1. The AET62 is working in Full speed mode, i.e. 12 Mbps.
Pin Signal Function
1 V
2 D-
3 D+
4 GND
BUS
+5V power supply for the reader (Max 200mA, Normal 100mA)
Differential signal transmits data between AET62 and PC.
Differential signal transmits data between AET62 and PC.
Reference voltage level for power supply
4.2.1. Endpoints
The AET62 uses the following endpoints to communicate with the host computer:
4.2.1.1. Smart Card Reader
Control Endpoint For setup and control purpose
Bulk OUT
Bulk IN
Interrupt IN
For command to sent from host to AET62 (data packet size is 64 bytes)
For response to sent from AET62 to host (data packet size is 64 bytes)
For card status message to sent from AET62 to host (data packet size is 8
bytes)
4.2.1.2. Finger Print Device
Control Endpoint
Bulk OUT
Bulk IN
For setup and control purpose
For command to sent from host to Device (data packet size is 64 bytes)
For response to sent from Device to host (data packet size is 64 bytes)
AET62 Design Specification
Version 1.0 8-DEC-09
18
Page 8 of
4.3. Bi-Color LED
User-controllable Bi-color LED. Red and Green Color.
The Green Color LED will be blinking if the “Card Interface” is not connected.
The Green Color LED will be turned on if the “Card Interface” is connected.
The Green Color LED will be flashing if the “Card Interface” is operating.
The Red Color LED is controlled by the application only.
4.4. Buzzer (optional)
User-controllable buzzer.
The default Buzzer State is OFF
4.5. SAM Interface (optional)
One SAM socket is provided.
AET62
4.6. Built-in Antenna
6 turns symmetric loop antenna. Center tapped.
The estimated size = 50mm x 40mm.
The loop inductance should be around ~ 1.6uH to 2.5uH
Operating Distance for different Tags ~ 40mm to 50mm
No anti-collision. Only one Tag can be accessed at any one time.
Contactless Interface Carrier = 13.56MHz
4.7. FINGERPRINT SCANNNER
AET62 is built around the companion chip and fingerprint sensor.
Fingerprint sensor active capacitive sensing provides a much higher immunity to parasitic effects
leading to a higher signal-to-noise ratio and the ability to capture a wider range of fingerprints
than competing technologies, such as passive capacitive sensing. The matching algorithm will be stored in the Companion chip. The fingerprint matching will be performed on the device. It can provides “Match on device” feature.
Typically there are two processes involved in a biometric application:
Enrollment:
Before the identity of an individual can be verified via his/her fingerprints, it is necessary to
capture one or several fingerprint samples. This process is called enrollment. The samples
AET62 Design Specification
Version 1.0 8-DEC-09
18
Page 9 of
are referred to as fingerprint templates and can be stored on a broad range of media such as
computer storage devices or smartcards.
Verification:
The verification process requires a user to verify his identity by placing his finger on the
fingerprint scanner sensor. The live fingerprint is compared with a stored template using a
matching algorithm in order to determine whether they represent the same set of fingerprint.
The matching result is then made available to the computer.
When using the fingerprint device, the security level is mainly governed by two parameters:
False Acceptance Rate (FAR):
FAR is the probability that a false sample matches with the original template previously
extracted from the subject’s fingerprint images during enrollment.
False Rejection Rate (FRR):
FRR is the rate at which the system incorrectly rejects a legitimate attempt to verify.
AET62
AET62 Design Specification
Version 1.0 8-DEC-09
18
Page 10 of
AET62
5.0. Commands for Contact and Contactless Interfaces Handling
The contactless interface is operating on the top of contact interface. Some Pseudo APDUs are defined for contactless interface. If the reader finds that the APDUs are for contactless interface, the APDUs will be routed to the contactless interface, otherwise, the APDUs will be routed to contact interface. The Contact and Contactless Interfaces are able to be operating at the same time.
The Pseudo APDU “Direct Transmit” is used for sending commands to the contactless interface
Command
Direct
Transmit
2. The Pseudo APDU “Get Response” is used for retrieving the responses from the contactless interface.
Class INS P1 P2 Lc Data In
0xFF 0x00 0x00 0x00 Number
of Bytes
to send
PN532_Contactless
Command
Command
Get Response 0xFF 0xC0 0x00 0x00 Number of Bytes to
If the reader finds that the APDU is in the form of “FF 00 00 00 Lc XX XX ..” or “FF C0 00 00 Le”, the APDU will be routed to the contactless interface.
Also, one Pseudo APDU “Bi-Color LED and Buzzer Control” is defined for controlling the LED and Buzzer.
Command
Bi-Color and
Buzzer
LED Control
Similarly, if the reader finds that the APDU is in the form of “FF 00 40 XX 04 XX XX XX XX”, the APDU will be used for setting the LED and Buzzer State.
The contact interface must be activated in order to send commands to the contactless or LED interface.
Class INS P1 P2 Le
retrieve
Class INS P1 P2 Lc Data In
(4 Bytes)
0xFF 0x00 0x40 LED
State
Control
0x04 Blinking Duration Control
AET62 Design Specification
Version 1.0 8-DEC-09
18
Page 11 of
AET62
5.1. PSEUDO APDUS IN CONTACTLESS READER
PCSC interface is used for exchanging APDUs and Responses between the PC and Tag. The AET62 will handle the required protocol internally. AET62 comes with two primitive commands for this purpose.
5.1.1. Direct Transmit
To send an APDU (PN532 and Contactless Commands), and the length of the Response Data will be returned.
Table 1.0A: Direct Transmit Command Format (Length of the PN532_Contactless Command + 5 Bytes)
Command
Direct
Transmit
Lc: Number of Bytes to Send (1 Byte)
Maximum 255 bytes
Data In: PN532_Contactless Command
The data to be sent to the PN532 and Contactless Tag.
Table 1.0B: Direct Transmit Response Format (2 Bytes)
Response
Result
Data Out: SW1 SW2
Status Code returned by the reader.
Class INS P1 P2 Lc Data In
0xFF 0x00 0x00 0x00 Number
of Bytes
to send
Data Out
SW1 SW2
PN532_Contactless
Command
AET62 Design Specification
Version 1.0 8-DEC-09
18
Page 12 of
6.0. APIs for Fingerprint Sensor
6.1. PTOpen
PT_STATUS PTOpen(
IN PT_CHAR *pszDsn
OUT PT_CONNECTION *phConnection
)
Description:
Open a new fingerprint module connection
Parameters :
pszDsn :
ASCII string describing the FM connection parameters. Examples: “USB”
phConnection:
Connection handle result.
Return value:
PT_STATUS:
Return value.
AET62
6.2. PTClsoe
PT_STATUS PTClose(
IN PT_CONNECTION hConnection
)
Description:
Close a fingerprint module connection
Parameters :
hConnection:
Connection handle to be closed.
Return value:
PT_STATUS:
Return value.
AET62 Design Specification
Version 1.0 8-DEC-09
18
Page 13 of
6.3. PTGrab
PT_STATUS PTGrab(
IN PT_CONNECTION hConnection
IN PT_BYTE byType
IN PT_LONG lTimeout
IN PT_BOOL boWaitForAcceptableFinger
OUT PT_DATA **ppGrabbedData
IN PT_DATA *pSignData
OUT PT_DATA **ppSignature
)
Description:
Scan the finger and return the scanned finger image
hConnection:
FM Handle
byType:
The returned data type
lTimeout:
Timeout value in milliseconds.
boWaitForAcceptableFinger:
Value: Description
True Return the finger image if the finger quality would be acceptable
AET62
False Always returns the finger image after a single swipe
ppGrabbedData:
Address of the data pointer,
pSignData:
Reserved, Null value
ppSignature:
Reserved, Null value
For the detail, please you can refer UPEK ESS&TFM Application Communication Layer document.
AET62 Design Specification
Version 1.0 8-DEC-09
18
Page 14 of
Table 1.0C: Status Code
Results
Success 61 LEN The operation is completed successfully.
Error
Time Out Error 63 01 The PN532 does not response.
Checksum Error
Parameter Error 63 7F The PN532_Contactless Command is
SW1 SW2 Meaning
The response data has a length of LEN bytes.
The APDU “Get Response” should be used to retrieve the response data.
63 00 The operation is failed.
63 27 The checksum of the Contactless
Response is wrong.
wrong.
AET62
6.4. Get Response
To retrieve the response data after the “Direct Command” is issued.
Table 2.0A: Get Response Command Format (5 Bytes)
Command
Get Response 0xFF 0xC0 0x00 0x00 Number of Bytes to
Le: Number of Bytes to Retrieve (1 Byte)
Maximum 255 bytes
Table 2.0B: Get Response Format (Le bytes, Length of the Response Data)
Response
Result
Class INS P1 P2 Le
retrieve
Data Out
Response Data
Data Out: Response Data, or Error Code “63 00” will be given if no response data is available.
AET62 Design Specification
Version 1.0 8-DEC-09
18
Page 15 of
AET62
Remark:
In general, the Pseudo APDUs “Direct Transmit” and “Get Response” are used in pairs. Once the APDU “Direct Transmit” is sent, the reader will return the length of the response data. Then, the APDU “Get Response” is immediately used to retrieve the actual response data.
6.5. Bi-Color LED and Buzzer Control
This APDU is used to control the states of the Bi-Color LED and Buzzer.
Table 3.0A: Bi-Color LED and Buzzer Control Command Format (9 Bytes)
Command
Bi-Color and
Buzzer
LED Control
P2: LED State Control
Table 3.0B: Bi-Color LED and Buzzer Control Format (1 Byte)
CMD Item Description
Class INS P1 P2 Lc Data In
(4 Bytes)
0xFF 0x00 0x40 LED
State
Control
0x04 Blinking Duration Control
Bit 0 Final Red LED State 1 = On; 0 = Off
Bit 1 Final Green LED State 1 = On; 0 = Off
Bit 2 Red LED State Mask 1 = Update the State
0 = No change
Bit 3 Green LED State Mask 1 = Update the State
0 = No change
Bit 4 Initial Red LED Blinking State 1 = On; 0 = Off
Bit 5 Initial Green LED Blinking State 1 = On; 0 = Off
Bit 6 Red LED Blinking Mask 1 = Blink
0 = Not Blink
Bit 7 Green LED Blinking Mask 1 = Blink
0 = Not Blink
AET62 Design Specification
Version 1.0 8-DEC-09
18
Page 16 of
Data In: Blinking Duration Control
Table 3.0C: Bi-Color LED Blinking Duration Control Format (4 Bytes)
Byte 0 Byte 1 Byte 2 Byte 3
AET62
T1 Duration
Initial Blinking State
(Unit = 100ms)
Byte 3: Link to Buzzer. Control the buzzer state during the LED Blinking.
0x00: The buzzer will not turn on
0x01: The buzzer will turn on during the T1 Duration
0x02: The buzzer will turn on during the T2 Duration
0x03: The buzzer will turn on during the T1 and T2 Duration.
Data Out: SW1 SW2. Status Code returned by the reader.
Table 3.0D: Status Code
Results
Success 90 Current LED State The operation is completed successfully.
Error
Table 3.0E: Current LED State (1 Byte)
SW1 SW2 Meaning
63 00 The operation is failed.
T2 Duration
Toggle Blinking State
(Unit = 100ms)
Number of
repetition
Link to Buzzer
Status Item Description
Bit 0 Current Red LED 1 = On; 0 = Off
Bit 1 Current Green LED 1 = On; 0 = Off
Bits 2 – 7 Reserved
Remark:
1. The LED State operation will be performed after the LED Blinking operation is completed.
2. The LED will not be changed if the corresponding LED Mask is not enabled.
3. The LED will not be blinking if the corresponding LED Blinking Mask is not enabled. Also, the number of repetition must be greater than zero.
4. T1 and T2 duration parameters are used for controlling the duty cycle of LED blinking and Buzzer Turn-On duration. For example, if T1=1 and T2=1, the duty cycle = 50%. #Duty Cycle = T1 / (T1 + T2).
5. To control the buzzer only, just set the P2 “LED State Control” to zero.
6. The make the buzzer operating, the “number of repetition” must greater than zero.
7. To control the LED only, just set the parameter “Link to Buzzer” to zero.
AET62 Design Specification
Version 1.0 8-DEC-09
18
Page 17 of
6.6. Get the Firmware Version of the reader
To retrieve the firmware version of the reader.
Table 4.0A: Get Firmware Version Command Format (5 Bytes)
Command
Get Response 0xFF 0x00 0x48 0x00 0x00
Table 4.0B: Get Firmware Version Response Format (10 bytes)
Class INS P1 P2 Le
AET62
Response
Result
E.g. Response = 41 43 52 31 32 32 55 31 30 31 (Hex) = ACR122U101 (ASCII)
Data Out
Firmware Version
AET62 Design Specification
Version 1.0 8-DEC-09
18
Page 18 of
AET62
7.0. Technical Specification
Universal Serial Bus Interface
Power source ....................................... From USB
Speed................................................... 12 Mbps (Full Speed)
Supply Voltage ..................................... Regulated 5V DC
Supply Current ..................................... 300mA (maximum); 100mA (standby); 150mA (normal)
Contactless Smart Card Interface
Standard............................................... MIFARE Classic, ISO14443-4 Type A & B, FeliCa, ISO/IEC 18092 NFC
Operating Frequency............................ 13.56 MHz
Smart card read / write speed............... 106, 212, 424 kbps
SAM Interface (optional SAM Socket)
Standard............................................... ISO 7816
Protocol ................................................ T=0 protocol
Operating Frequency............................ 4 MHz
Smart card read / write speed............... 9600 - 115200 bps
Fingerprint Sensor Interface
Sensor Type ......................................... Swipe
Image resolution................................... 508 DPI
Case
Dimensions........................................... 98 mm (L) x 65 mm (W) x 12.8 mm (H)
Material ................................................ Polycarbonate (PC)
Color..................................................... Pearl White
Antenna Size ........................................ 50mm x 40mm
Operating distance ............................... up to 30 mm (depended on tag type)
Built-in peripherals
Bi-Color LED ........................................ Bi-Color LED, Red and Green
Buzzer .................................................. Monotone (optional)
Operating Conditions
Temperature......................................... 0 - 50° C
Humidity ............................................... 10% - 80%
Cable Connector
Length .................................................. 1.5 M (USB)
Standard/Certifications
CE, FCC
OS
Windows 2K, XP, Vista
OEM
OEM-Logo possible, customer-specific colors, casing, and card connector
Warning: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the
user's authority to operate the equipment.
AET62 Design Specification
Version 1.0 8-DEC-09
18
Loading...
