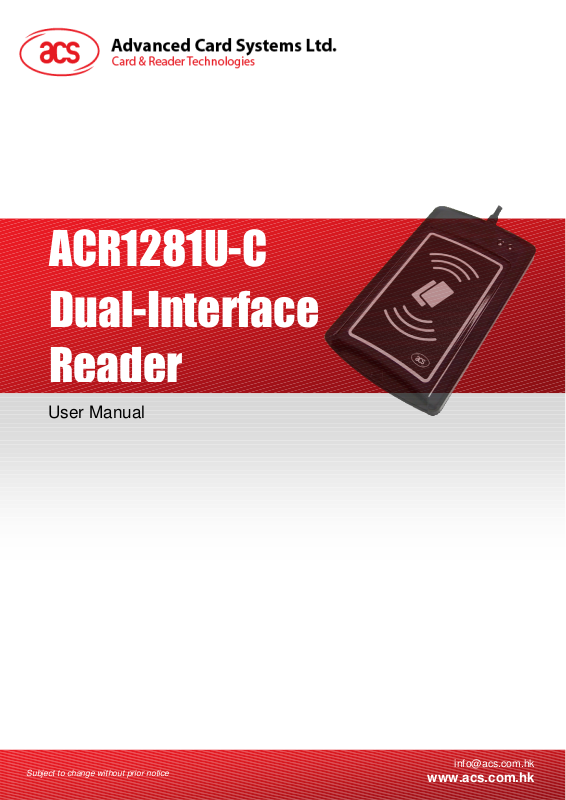

ACR1281U
-C
Dual-Interface
User Manual
Subject to change without prior notice
info@acs.com.hk
www.acs.com.hk
info@acs.com.hk
www.acs.com.hk
Version History
Date By Changes Version
2011-05-09
Melissa Frances
Balmes
2011-05-09 Winnie Chau
2011-05-18
2011-06-02
2011-08-02
Melissa Frances
Balmes
Melissa Frances
Balmes
Melissa Frances
Balmes
2011-08-17 Marizon Javierto
2011-08-17 Melissa Balmes
• Creation
• Adjust SAM speed to maximum 57600bps.
• Added product photo
• Updated information
• Changed photos
• Renamed product code to ACR1281U-C
• Changed product photo
• Revised Introduction
• Updated Technical Specifications
• Proofread the document
• Updated based on ACR1281U-C Design
Specifications Document: 02-DSP-ACR1281U-C-
1.00.03
0.00.00
0.00.01
0.00.02
0.00.03
0.00.04
0.00.05
0.00.06
Document Title Here
Document Title Here
Page 2 of 8
Document Title Here
info@acs.com.hk
www.acs.com.hk
Table of Contents
1.0. Introduction ............................................................................................................. 4
2.0. Features ...................................................................................................................5
3.0. Typical Applications................................................................................................6
4.0. How to use?............................................................................................................. 7
5.0. Technical Specifications.........................................................................................8
Document Title Here
Document Title Here
Page 3 of 8
Document Title Here
info@acs.com.hk
www.acs.com.hk
1.0. Introduction
The ACR1281U-C DualBoost II is the second generation of ACS’
ACR128 DualBoost Reader. ACR1281U-C is a dual interface reader
that can access any contact and contactless smart cards following the
ISO 7816 and ISO 14443 standards. This reader makes it possible to
integrate into one device and one card the conventional separate and
independent applications for contact and contactless technologies.
Like ACR128, DualBoost II is PC/SC compliant for both contact and
contactless interfaces. It makes use of high-speed communication for
contactless cards that reaches up to 848 kbps, which makes it suitable
for highly demanding applications. ACR1281U-C also provides
intelligent support for hybrid and combi cards, such as detecting a
contactless card even if it is inserted in the contact card slot. Lastly, ACR1281U-C has a built-in SAM
slot for added security in both contact and contactless applications.
Being the second generation of ACR128, AC1281U-C D
USB firmware upgradability, contact memory card support and extended APDU support. ACR1281UC is an all-in-one, cost-effective and powerful dual interface reader designed to provide you with great
flexibility and convenience. It can be used for online transactions to settle payment using credit card
or for topping up transport contactless cards. It can also be embedded in bigger machines for physical
access systems.
ualBoost II offers additional features such as
Document Title Here
Document Title Here
Page 4 of 8
Document Title Here
info@acs.com.hk
www.acs.com.hk
2.0. Features
• PC/SC Compliant for Contact, SAM and Contactless Smart Card Interfaces
• CCID Compliant
• Read/write speed of up to 848 kbps
• Supports major contactless smart cards technologies such as ISO14443 Type A and B and
Mifare series
• Supports new Mifare Plus and DESFire EV1
• Supports extended APDU
• Contactless card operating distance is up to 50 mm
• Support major contact smart cards that conform to ISO7816 Part 1 to 3, T=0 and T=1
standard
• Maximum contact smart card read/write speed is 460 kbps
• Supports memory cards such as SLE5528, SLE5542, etc.
• ISO 7816 compliant SAM slot
• Maximum SIM-sized smart card read/write speed is 115.2 kbps
• High transaction processing speed with most local transactions completed within 100 ms
• Intelligent support for hybrid and combi cards
• USB firmware upgradable
• USB Full Speed (12 Mbps)
Document Title Here
Document Title Here
Page 5 of 8
Document Title Here
info@acs.com.hk
www.acs.com.hk
3.0. Typical Applications
• e-Government
• e-Banking and e-Payment
• e-Healthcare
• Transportation
• Network Security
• Access Control
• Loyalty Program
FCC Caution:
Any Changes or modifications not expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
Document Title Here
Document Title Here
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
Page 6 of 8
Document Title Here
info@acs.com.hk
www.acs.com.hk
4.0. How to use?
4.1. Install ACS CCID Driver
Step 1: Double click the “Setup.exe” from the installer
“ACR1281_PCSC_Driver_Installer_bin-1.0.1.0-20110818_all”.
Step 2: The driver will automatically install for ACR1281-C.
4.2. Read the card UID
Step 1: Connect the reader to the computer
Step 2: Execute the “APDU.exe”
Step 3: Put the card onto the reader.
Step 4: Set the program according to the picture below
Step 5: Click Connect.
Step 6: Click Transmit. Then the message “FF CA 00 00 00” transmit to the smart card.
Step 7: Then get the answer response from the smart card “1F 4D 5C 5F 90 00”.
The data transition was completed successfully.
Note: please close the APDU.exe before unplug the reader
Document Title Here
Document Title Here
Page 7 of 8
Document Title Here
info@acs.com.hk
www.acs.com.hk
5.0. Technical Specifications
Universal Serial Bus Interface
Power source ....................................... From USB
Speed................................................... 12 Mbps (Full Speed)
Supply Voltage ..................................... Regulated 5V DC
Supply Current ....................................
. ,,200 mA
<
Contactless Smart Card Interface
Standard............................................... ISO 14443 A & B Parts 1-4
Protocol ................................................ ISO14443 T=CL for ISO14443-4 compliant cards and T=CL Emulation for Mifare series
Smart card read / write speed............... 106 kbps, 212 kbps, 424 kbps, 848 kbps
Operating frequency ............................. 13.56 MHz
Operating distance ............................... up to 50 mm (depends on card type)
Antenna size......................................... 65mm x 60mm
Contact Smart Card Interface
Standard...........................................
Supply current .....................................
Short circuit protection ......................... +5V / GND on all pins
CLK frequency...................................... 4.80 MHz
Card connector..................................... Landing
Card insertion cycles ............................ min. 200,000
.... ISO 7816 1/2/3,
. max. 50mA
44kbps Smart card read / write speed..............9600-- 3
T=0 and T=1
SAM Card Interface
Standard............................................... ISO 7816
Protocol ................................................ T=0 and T=1 protocol
Bulti-in Peripherals
Buzzer .................................................. Monotone
LEDs .................................................... Red and Green
Casing
Dimensions........................................... 120.48 mm (L) x 71.97 mm (W) x 20.4 mm (H)
Weight .................................................. 150 g
Color..................................................... Black
Operating Conditions
Temperature......................................... 0 - 50° C
Humidity ............................................... 10% - 80%
Compliance/Certifications
PC/SC, CCID, CE, FCC, RoHS Compliant, USB Full Speed
Microsoft WHQL Windows 2000, XP, Vista, 7
OS Support
Windows 2000, XP, Vista, 7, Server 2003, Server 2008, Server 2008 R2
Linux, Mac
