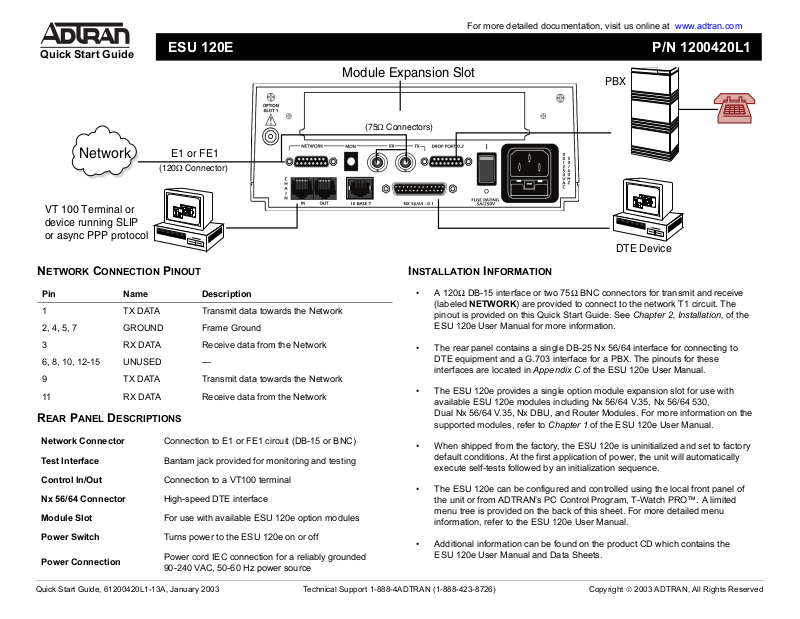

Adtran ESU 120e Quick Start Guide

For more detailed documentation, visit us online at www.adtran.com

Module E

Quick Start Guide

Network

ESU 120E P/N 1200420L1

E1 or FE1

(120W Connector)

VT 100 Terminal or device running SLIP or async PPP protocol

NETWORK CONNECTION PINOUT

Pin Name Description

1 TX DATA Transmit data towards the Network

2, 4, 5, 7 GROUND Frame Ground

xpansion Slot

PBX

(75W Connectors)

DTE Device

INSTALLATION INFORMATION

•A 120Ω DB-15 interface or two 75Ω BNC connectors for transmit and receive (labeled NETWORK) are provided to connect to the network T1 circuit. The pinout is provided on this Quick Start Guide. See Chapter 2, Installation, of the ESU 120e User Manual for more information.

3 RX DATA Receive data from the Network

6, 8, 10, 12-15 UNUSED —

9 TX DATA Transmit data towards the Network

11 RX DATA Receive data from the Network

REAR PANEL DESCRIPTIONS

Network Connector Connection to E1 or FE1 circuit (DB-15 or BNC)

Test Interface Bantam jack provided for monitoring and testing

Control In/Out Connection to a VT100 terminal

Nx 56/64 Connector High-speed DTE interface

Module Slot For use with available ESU 120e option modules

Power Switch Turns power to the ESU 120e on or off

Power Connection

Power cord IEC connection for a reliably grounded 90-240 VAC, 50-60 Hz power source

• The rear panel contains a single DB-25 Nx 56/64 interface for connecting to DTE equipment and a G.703 interface for a PBX. The pinouts for these interfaces are located in Appendix C of the ESU 120e User Manual.

• The ESU 120e provides a single option module expansion slot for use with available ESU 120e modules including Nx 56/64 V.35, Nx 56/64 530, Dual Nx 56/64 V.35, Nx DBU, and Router Modules. For more information on the supported modules, refer to Chapter 1 of the ESU 120e User Manual.

• When shipped from the factory, the ESU 120e is uninitialized and set to factory default conditions. At the first application of power, the unit will automatically execute self-tests followed by an initialization sequence.

• The ESU 120e can be configured and controlled using the local front panel of the unit or from ADTRAN’s PC Control Program, T-Watch PRO™. A limited menu tree is provided on the back of this sheet. For more detailed menu information, refer to the ESU 120e User Manual.

• Additional information can be found on the product CD which contains the ESU 120e User Manual and Data Sheets.

Quick Start Guide

ESU 120E P/N 1200420L1

MENU TREE - OVERVIEW

1) NI PERF RPTS

1) STATUS 2) NI ERRORS

3) ACTIVE ALARMS

4) VIEW HISTORY

5) PORT STATUS

6) REMOTE PORT

7) CLEAR PORT ALRM

8) ENET STATUS

2) CONFIG 1) NETWORK (NI)

MAIN MENU 2) UNIT

3) MAP XCHNG

4) MAP IN USE (A/B)

5) TS0 MAP A

6) TS0 MAP B

7) PORT CONFIG

1) TIME/DATE

2) FACTORY RESTORE Returns all configurations to factory settings

3) UTIL 3) SET PASSCODE

4) UNIT ID

5) SOFTWARE REV Displays the current software revision

6) PORT UTILITY

7) ENET ADDRESS

8) CMD MODE

1) NETWORK TESTS

4) TEST 2) RUN SELF TEST

3) PORT TESTS

4) CANCEL TESTS
