NT1 ACE
USER MANUAL
1203019L1: NT1 ACE with Power Supply
1203019L2: NT1 ACE
1203019L3: NT1 ACE International
336048VUR-2: Power Supply
61203019L1-1D
January 1999
FCC ID: HDC1203019L1
This device complies with Part 15 of the FCC rules. Op-
eration is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this
device must accept any interference received, including
interference that may cause undesired operation.
Changes or modifications to this unit not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
Canadian Standards Association
This device must be powered by a CSA approved power
supply or a power supply meeting the requirements of
CS03, Part I Section 1.4.2.
ADTRAN will repair or replace this product within five years
from the date of shipment if it does not meet i ts published specifications or fails while in service . For detailed wa rranty, repai r,
and return information, refer to the ADTRAN Equipment Warranty and Repair an d Return Po licy Pro cedur e. Return Material
Authorization (RMA) is required prior to returning equipment
to ADTRAN. (See inside back cover for phone and address.)
Huntsville , AL 35814-4000
Warranties
901 Explorer Blvd.
P. O. Box 140000
Phone: (256) 963-8000
©
1999 ADTRAN, Inc.
All rights reserved
Printed in USA
FCC regulations require that the following information be
provided in this manual:
1. This equipment complies with Part 68 of the
FCC rules. On the bottom of the equipment
housing is a label that shows the FCC registration
number for this equipment. If requested, provide
this information to the telephone company.
2. If this equipm ent causes harm to th e telephone
network, the telephone company may t emporar ily
discontinue service. If possible, advance notification is given; o therwise, notification is given as soon
as possible. Th e telephone company wi ll advise the
customer of the right to file a complaint with the
FCC.
3. The telephone company may make changes in its
facilities, equipment, operations, or procedures that
could affect the proper operation of this equipment;
advance notification and the opportu nity to maintain uninterrupted service is given.
4. If experiencing difficulty with this equipment,
please contact ADTRAN for repair and warranty
information. The telephone company m ay requi re
this equipment to be disconnected from the net-
61203019L1-1 NT1 ACE User Manual iii
work until the problem is corrected, or it is certain
the equipment is not malfunctioning.
5. This unit contains no user-serviceable parts.
6. An FCC compliant telephone cord with a modular plug is provided with this equipment. In addition, an FCC compliant cable appropriate for the
dial backup option ordered is provided with this
equipment. This equipment is designed to be connected to the telephone network or premises wiring
using an FCC compatible modular jac k, whic h is
Part 68 compliant.
7. The following information may be requi red
when applying to the local telephone c ompany for
leased line facilities.
Service
Type
Digital Facility
Interface Code
Service
Order Code
Network
Jacks
ISDN 02IS5 6.0N RJ-49C
iv NT1 ACE User Manual 61203019L1-1
ADTRAN YEAR 2000 (Y2K)
READINESS DISCLOSURE
ADTRAN has established a Year 2000 program to en sure
that our products and operations will correctly function
in the new millennium. ADTRAN warrants that all products meet Year 2000 specifications regardless or model or
revision. Information about ADTRAN’s Year 2000 compliance program is available at the following:
Web Site www.adtran.com
Product Matrix www.adtran.com/Y2Kf ax.html
Faxback Document Line (256) 963-8200
Y2K plans and product certifications
are listed in the matrix
Y2K Project Line (256) 963-2200
E-mail year 2000@adtran.com
61203019L1-1 NT1 ACE User Manual v
CANADIAN EMISSIONS REQUIREMENTS
This digital apparatus does not exceed the Class B limits
for radio noise emissions from digital apparatus as set
out in the interference-causing equipment standard entitled "Digital Apparatus," ICES-003 of the Department of
Communications.
Cet appareil numerique respecte les limites de bruits
radioelectriques applicables aux appareils numeriques
de Class B prescrites dans la norme sur le materiel br ouilleur: "Appareils Numeriques," NMB-003 edictee par le
ministre des Communications.
CANADIAN EQUIPMENT LIMITATIONS
Notice: The Canadian Industry and Science Canada label
identifies ce rtif ied equip ment. Th is ce rt ificat ion me ans that
the equipment meets certain telecommunications netwo rk
protective, operational, and safety requirements. The
Department does not guarantee the equipment will operate
to the user’s satisfaction.
Before installing this equipment, ensure that it is permissible to be connected to the facilities of the local telecommunications company. The equipment must also be
installed using an acceptable method of connection. In
vi NT1 ACE User Manual 61203019L1-1
some cases, t he company’s i nside wiring associated with
a single-line individual service may be extended by
means of a certified connector assembly (telephone
extension cord). Compliance with the above conditions
may not prevent degradation of service in some situations.
Repairs to certified equipment should be made by an
authorized Canadian maintenance facility designated by
the supplier . An y r epairs or alterations made by the user
to this equipment, or equipment malfunctions, may give
the telecommunications company cause to request the
user to disconnect the equipment.
Users should ensure for their own protection that the
electrical ground connections of the power utility, telephone lines, and internal metallic water pipe system, if
present, are connected together. This precaution may be
particularly important in rural areas.
Users should not attempt to make such
connections themselves, but should contact
the appropriate electric inspection authority, or an electrician, as appropriate.
61203019L1-1 NT1 ACE User Manual vii
The Load Number (LN) assigned to each terminal device
denotes the percentage of the total load to be connected
to a telephone loop which is used by the device, to prevent overloading. The termination on a loop may consist
of any combination of devices subject only to the requirement that the total of the Load Numbers of all devices
does not exceed 100.
viii NT1 ACE User Manual 61203019L1-1
AFFIDAVIT REQUIREMENTS FOR CONNECTION
TO DIGITAL SERVICES
• An affidavit is required to be given to the telephone company whenever digital terminal
equipment without encoded analog content
and billing protection is used to transmit digital signals containing encoded analog content
which are intended for eventual conversion
into voiceband analog signals and transmitted
on the network.
• The affidavit shall affirm that either no enco ded analog content or billing inform ation is being transmitted or that the output of the device
meets Part 68 encoded analog content or billing protection specifications.
• End user/customer will be responsible to file
an affidavit with the local exchange carrier
when connecting unprotected CPE to a 1.544
Mbps or subrate digital services.
• Until such time as subrate digital terminal
equipment is registered for voice applications,
the affidavit requirement for subrate services
is waived.
61203019L1-1 NT1 ACE User Manual ix
AFFIDAVIT FOR CONNECTION OF CUSTOMER
PREMISES EQUIPMENT TO 1.544 MB PS AND/OR
SUBRA TE DIGITAL SERVICES
For the work to be performed in the certified territory of _______________
(telco name)
State of __________________
County of ________________
I, _______________ __ ___ ___ _______(name),
________________________(business address),
______________________ (telephone number) being duly sworn, state:
I have responsibility for the operation and maintenanc e
of the terminal equipment to be connected to 1.544 Mbps
and/or ________ subrate digital services. The terminal
equipment to be connected complies with Part 68 of the
FCC rules except for the encoded analog content and billing protection specifications. With respect to encoded
analog content and billing prot ection:
( ) I attest that all operations associated with the establishment, maintenance, and adjustment of the digital
CPE with respect to analog content and encoded billing
protection information continuously complies with
Part 68 of the FCC Rules and Regulations.
x NT1 ACE User Manual 61203019L1-1
( ) The digital CPE does not transmit digital signals containing encoded analog content or billing
information which is intended to be decoded
within the telecommunications ne twork.
( ) The encoded analog content and billing protection is factory set and is not under the control
of the customer.
I attest that the operator(s)/maintainer(s) of the
digital CPE responsible for the establishment,
maintenance, and adjustment of the encoded analog content and billing informa tion has (have)
been trained to perform these functions by successfully having completed one of the following
(check appropriate blocks):
( ) A. A training cour se provided by the manufacturer/grantee of the equipment used to encode analog signals; or
( ) B. A training course provided by the customer or authorized representative, using training
materials and instructions provided by the manufacturer/grantee of the equipment used to encode analog signals; or
61203019L1-1 NT1 ACE User Manual xi
( ) C. An independent training course (e.g., trade
school or technical institution) recognized by the
manufacturer/grantee of the equipment used to
encode analog signals; or
( ) D. In lieu of the preceding training requirements, the operator(s)/maintainer(s) is (are) under the control of a supervisor trained in
accordance with _________ (circle one) above.
I agree to provide _________________ (telco's
name) with proper documentation to demonstrate compliance with the information as provided in the preceding paragraph, if so requested.
_______________ ___ _______________Signa tu re
_______________ ___ _______________Title
_________________________________ Date
Transcribed and sworn to before me
This ________ day of ________, 199___
_________________________________
Notary Public
My commission expires:
_________________________________
xii NT1 ACE User Manual 61203019L1-1
IMPORTANT SAFETY INSTRUCTIONS
When using your telephone equipment, basic
safety precautions should always be followed to
reduce the risk of fire, electric shock and injury to
persons. The precautions are listed below.
1. Do not use this product near water (for example, near a bath tub, wash bowl, kitchen sink
or laundry tub, in a wet basement or near a
swimming pool).
2. Avoid using a telephone (other than a cordless
type) during an electrical storm. There may be
a remote risk of electric shock from lightning.
3. Do not use the telephone to report a gas leak in
the vicinity of the leak.
4. Use only the power cord, power supply, and/
or batteries indicated in the manual. Do not
dispose of batteries in a fire. They may explode. Check local codes for any special disposal instructions.
SAVE THESE INSTRUCTIONS.
61203019L1-1 NT1 ACE User Manual xiii
xiv NT1 ACE User Manual 61203019L1-1
Table of Contents
Unit Overview ...............................................................1
LED Indicators ..............................................................2
Passive Bus Description ................................................3
Inspection ...................................................................... 3
Maintenance .................................................................. 4
Remote Testing .............................................................4
Repair and Return .........................................................4
Setting the Option Switches ..........................................4
Powering TEs from the NT1 ACE ................................6
Powering with the NT1 Power Supply .........................6
Connecting the Terminal Equipment ............................8
Short Passive Bus Configuration ..................................9
Extended Passive Bus Configuration ..........................10
Troubleshooting .......................................................... 11
Specifications .............................................................. 12
Network Interface (U) ...........................................12
Customer Interface (S/T) ...................................... 12
61203019L1-1 NT1 ACE User Manual xv
Table of Contents
Faceplate Indicators ...............................................13
Network Compatibility ..........................................13
Mechanical ............................................................13
Power .....................................................................13
Environmental .......................................................13
Power Supply Specifications .................................13
Figures
Figure 1. ADTRAN NT1 ACE .....................................1
Figure 2. Interface Connectors ......................................1
Figure 3. Switch Locations ............................................4
Figure 4. Power Supply Connection .............................7
Figure 5. Short Passive Bus Configuration ...................9
Figure 6. Extended Passive Bus Configuration ...........10
Tables
Table 1. Status Indicators .............................................2
Table 2. Network Connector Pin Assignments ............5
Table 3. Local Bus Connector Pin Assignments .........6
xvi NT1 ACE User Manual 61203019L1-1
NT1 ACE User Manual
READY
ERROR
POWER
NT1 ACE
Unit Overview
The ADTRAN NT1 ACE provides a basic rate interface
between customer ISDN terminal equipment (TE) and the
ISDN network (U). Figure 1 is an illustra tion of the NT1
ACE.
Figure 1. ADTRAN NT1 ACE
Two jacks are provided on the rear panel of the unit for this
purpose, as illustrated in Figure 2.
S/T S/T POWER
LOCAL
NETWORK
U
Figure 2. Interface Connectors
A single RJ-49C connector labeled NETWORK U connects
to the network. Two additional data jacks labeled S/T connect to the local bus.
61203019L1-1 NT1 ACE User Manual 1
NT1 ACE User Manual
The U-interface complies with ANSI T1.601 and
ITU-TI.430 Recommendation Standard. The S/T-interface
complies with ANSI T1.605 and ETSI ETS 300012 Standard.
The ADTRAN NT1 ACE is a stand-alone unit. An external
power source must be provided for the NT1 ACE. External
power is supplied by the ADTRAN Power Supply, part
number 336048VUR-2. The two S/T bus connectors on the
rear of the unit enable the NT1 ACE to supply power to the
TE.
LED Indicators
Table 1 describes the status of the LEDs located on the front
panel of the NT1 ACE.
Table 1. Status Indicators
LED Color Description
READY Green S/T- and U- interfaces ready to place call
ERROR Red S/T- or U-interface not ready
POWER Green Unit has power
If the ERROR indicator is illuminated, check the flash rate of
the READY indicator to determine the source of the error. A
faster 8 Hz flash rat e i nd icates a networ k problem. A sl ower
1 Hz rate indicates an S/T interface problem.
2NT1 ACE
User Manual 61203019L1-1
NT1 ACE User Manual
If the ERROR indicator is not illuminated and the READY
indicator is flashing, a network test is in progress. Network
command tests cause a faster 8 Hz flash rate. Terminal
equipment commanded tests produce a slower 1 Hz flash
rate.
Passive Bus Description
The Local Bus interface may be used to connect up to eight
TEs to the NT1 ACE. This arrangement is referred to as a
Passive Bus. See the section Short Pass ive Bus Configuration
on page 9 for detailed information.
Inspection
After unpacking the unit, immediately inspect it for possible shipping damage. If damage is discovered, file a claim
immediately with the carrier; then contact ADTRAN Customer Service. If possible, keep the original shippin g container for use in shipping the NT1 ACE for repair or for
verification of damage during shipment.
• Never install telepho ne wir ing du ring a lightni ng
storm.
• Never install telephone jacks in wet locations unless
the jack is specific ally de sign ed fo r wet lo cation s.
• Never touch uninsulated telephone wires or terminals unless the telephone line has been disconnected at the network interface.
• Use caution when installing or modifyin g telephone lines.
61203019L1-1 NT1 ACE User Manual 3
NT1 ACE User Manual
Maintenance
The ADTRAN NT1 ACE requires no routine maintenance to
operate. In case of equipment malfunction, refer to the sections Remote T esting and Repair an d Return or r emove the unit
and replace it with another unit optioned in an identical
manner.
Remote Testing
Network test features include a loopback test initiated at the
central office. This test confirms network integrity to the
NT1 ACE.
Repair and Return
Repairs should not be performed in the field. Repair services
can be obtained by returning the unit to the ADTRAN Customer and Product Service (CAPS) Department at the
address listed on the inside back cover of this manual.
Setting the Option Switches
T wo option switches located on the side of the unit configure
the Local Bus of the NT1 ACE, as shown in Figure 3.
LOCAL BUS
TERMINATIONCONFIGURATION
SHORT
LONG
50
NONE 100

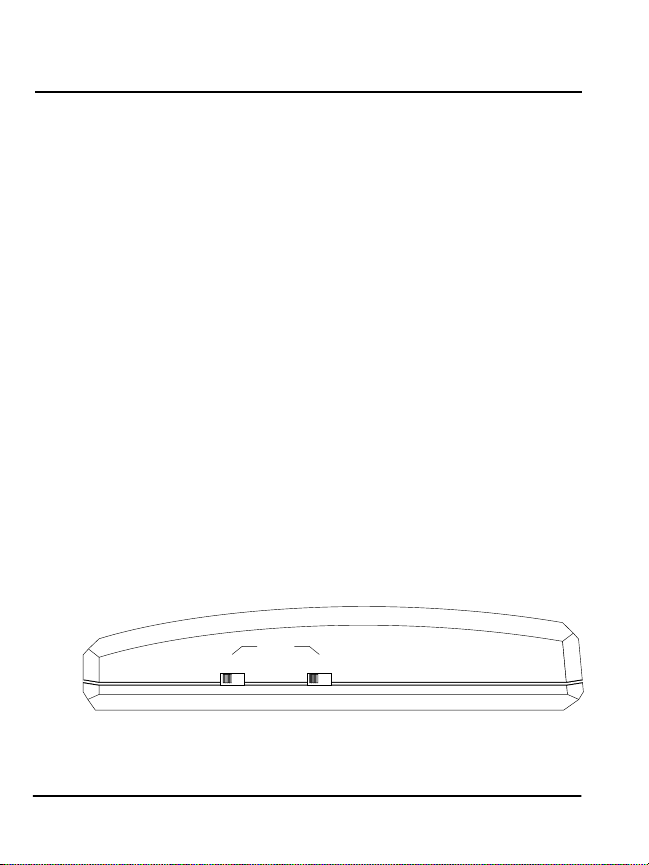

Figure 3. Switch Locations
4NT1 ACE
User Manual 61203019L1-1
NT1 ACE User Manual
The switch labeled TERMINATION sets the Local Bus ter-
mination. The options available are NONE, 50, and 100. See
Powering TEs from the NT1 ACE on page 6 for more information concerning Local Bus configurations.
The switch labeled CONFIGURATION has two possible
options. When set in the LONG position, the Local Bus is
configured for Extended Passive Bus. When set in the
SHORT position, the Local Bus is configured for Short Pas-
sive Bus. Configuration and switch settings are discussed in
Short Passive Bus Configuration on page 9 and in Extended
Passive Bus Configuration on page 10.
The Power Supply provides up to 10 watts of power for the
NT1 ACE and the TE. Table 2 gives pin assignments.
Table 2. Network Connector Pin Assignments
Pin Description
1 No connection
2 No connection
3 No connection
4 U-interface network connection
5 U-interface network connection
6 No connection
7 Negative power input
8 Positive power input
61203019L1-1 NT1 ACE User Manual 5
NT1 ACE User Manual
Powering TEs from the NT1 ACE
The ADTRAN NT1 ACE can be used to provide power for
TEs connected to the local interface. The NT1 ACE, part
number 1203019L1, supplies power by a separate wire pair
(PS2) on the two data jacks marked LOCAL, as shown in
Figure 2 on page 1. The ADTRAN NT1 ACE International,
part number 1203019L3, also incorporates power source 1
(PS1) which provides power over the transmit and receive
pairs. Table 3 lists Local Bus connector pin assignments.
Before attempting to power any TE from the NT1 ACE, verify that it can accept power from a PS1 or PS2 power source.
Table 3. Local Bus Connector Pin Assignments
Pin Description
1 No connection
2 No connection
3 S/T interface Receive Power Source 1 (Positive)
4 S/T interface Transmit Power Source 1 (Negative)
5 S/T interface Transmit Power Source 1 (Negative)
6 S/T interface Receive Power Source 1 (Positive)
7 Power Source 1 (Negative)
8 Power Source 2 (Positive)
Powering with the NT1 Power Supply
The ADTRAN NT1 Power Supply, part number 336048VUR2, provides up to 10 watts of power at -48 VDC. The
NT1 ACE requires 1.1 watts, leaving approximately 8.9
watts to power the TE(s). Before connecting any TE to be
6NT1 ACE
User Manual 61203019L1-1
NT1 ACE User Manual
powered from the NT1, verify that the total power requirement of the connected TE is less than 8.9 watts.
To connect the NT1 ACE to the NT1 Power Supply, perform
the following steps as illustrated in Figure 4.
1. Connect the Power Supply to the NT1 ACE at the
POWER jack located on the NT1 ACE.
2. Plug the Power Supply into the nearest wall outlet
supplying 110 VAC, 60 HZ.
3. On the NT1 ACE, verify that the POWER and ERROR
indicators are illuminated. After approximately 15
seconds, the READY indicator should flash at a 1 Hz
rate. Should any of the indicators fail to operate as
stated, see the section Troubleshooting on page 11.
LOCALNETWORKPOWER
100 - 120
VAC
ISDN PS2
ADTRAN
READY
ERROR
POWER

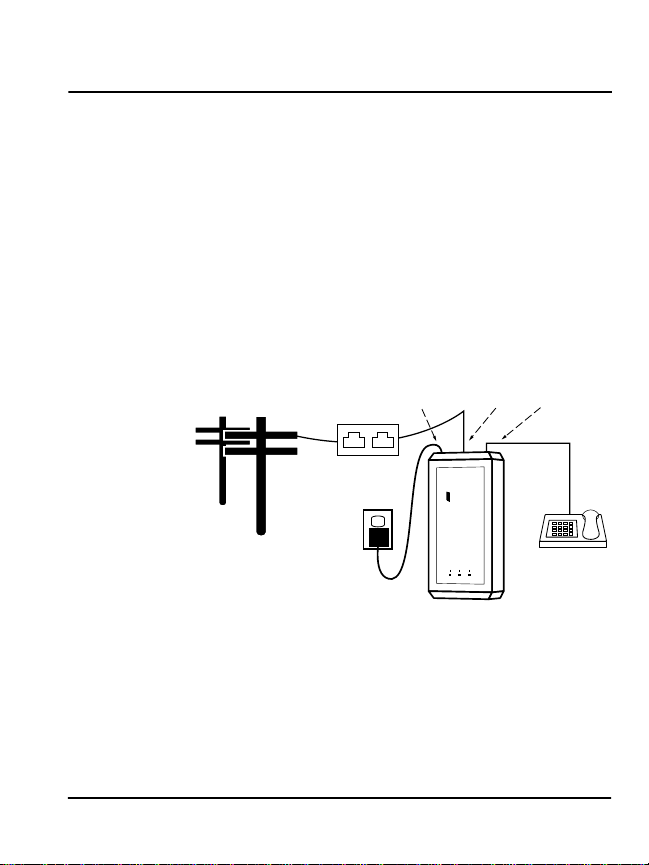

Figure 4. Power Supply Connection
61203019L1-1 NT1 ACE User Manual 7
NT1 ACE User Manual
Connecting the Terminal Equipment
After successfully powering up the NT1 ACE, the POWER
and ERROR indicators should be on and the READY indicator should be flashing. Make sure that terminal equipment
(TE) is properly terminated as instructed in Setting the
Option Switches on page 4. Plug the TE into one of the Local
Bus connectors at the rear of the unit. A second TE may be
plugged into the remaining Local Bus connector. If more
than two TEs need to be connected to the NT1 ACE, additional connections can be made in parallel to the S/T bus
using RJ-45 connectors.
.TEs commonly have additional jacks wired in parallel.
These may be used to connect more th an two TEs as provided for by the NT1 ACE. See the TE documentation for further information.
After the TE powers up, the ERROR indicator sh ould go out.
There may be some delay between plugging in the TE and
the ERROR indicator going out, depending on the specific
TE in use. If the ERROR indicator fails to go out, see the section Troubleshooting on page 11.
As the ERROR indicator extinguishes, the READY indicator
should illuminate. The TE will now be ready to place and
receive calls. There may be a slight delay between the
appearance of the READY indicator and the TE’s ability to
place and receive calls, depending on the specific TE in use.
If the READY indicator fails to illuminate or if you are
unable to place or receive calls, see the section Troubleshoot-
ing on page 11.
8NT1 ACE
User Manual 61203019L1-1
NT1 ACE User Manual
Short Passive Bus Configuration
This configuration allows you to connect up to eight TEs at
any point on the bus. The bus length is limited to 600 feet, as
shown in Figure 5. To select the Short Passive Bus configuration, the CONFIGURATION switch must be set to the
SHORT position. The bus terminating resistors can be
placed at any point along the bus. If the TEs have internal
terminating resistors that can be optioned, only one TE’s
termination resistor should be enabled. The TERMINA-
TION switch should be placed in the 100 position, a nd only
one of the TEs connected should be terminated with 100
ohm. If the unterminated TEs are placed within 20 feet of
the NT1, the TERMINATION switch should be in the 50
position, and the TEs should not be terminated. These
switch settings should always be maintained, unless an
external 100 ohm resistor is being used. If an external terminating resistor is used, set the TERMINATION switch to
the NONE position.
600 Feet
TR
TE TE TE
*
TR NT1
*Not needed if NT1's
Termination Resistors
(TR) are used.

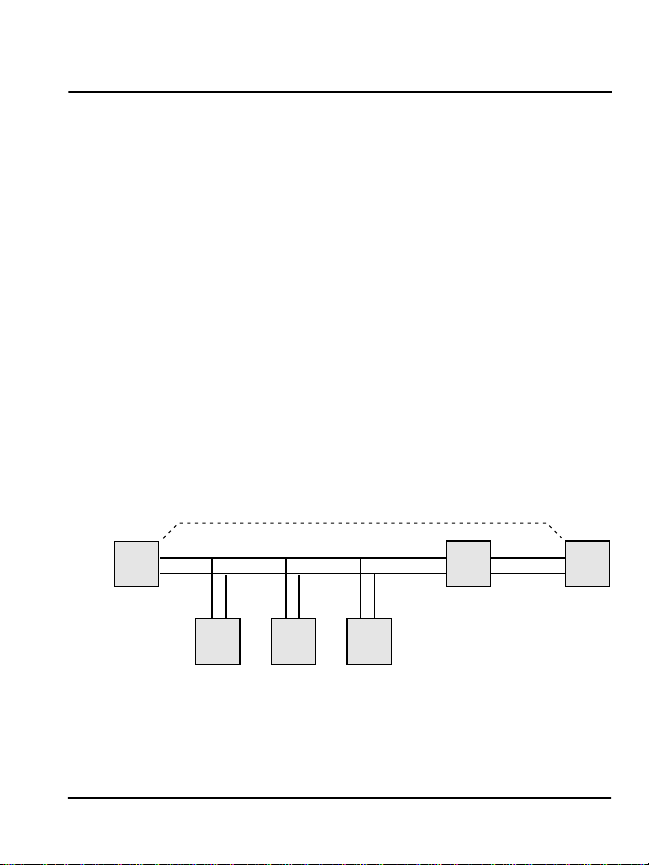

Figure 5. Short Passive Bus Configuration
61203019L1-1 NT1 ACE User Manual 9
NT1 ACE User Manual
Extended Passive Bus Configuration
This configuration allows you to connect up to eight TEs at
greater ranges than the Short Passive Bus. This group of TEs
can be located at up to 3000 feet from the NT1, as shown in
Figure 6. To select the Extended Passive Bus configuration,
the CONFIGURATION switch must be set to the LONG
position. A termination resistor must be cent rally located to
the TEs. If the TEs have internal terminating resistors that
can be optioned, only one TE’s terminating resistor should
be enabled. The TERMINATION switch should be placed
in the 100 position, and only one of the TEs connected
should be terminated with 100 ohm. These switch settings
should always be maintained, unless an external 100 ohm
resistor is being used. If an external termination resistor is
installed , set the TERM I NATION switch to the NONE posi-
tion.
TR
160 Feet
TE TE
3,000 Feet
*
TR NT1
Not needed if NT1's
*
Termination Resistors
(TR ) are used.
Figure 6. Extended Passive Bus Configuration
10 NT1 ACE User Manual 61203019L1-1
NT1 ACE User Manual
Troubleshooting
If your NT1 ACE does not operate properly, please check
the lists of symptoms and solutions below. For further assistance, please contact ADTRAN technical support at 888-
4ADTRAN.
POWER indicator does not illuminate.
• Verify power connection.
• Move power supply to another circuit.
• Call ADTRAN technical support for assis tance.
ERROR indicator illuminated; READY indicator flashes
at a faster 8 Hz rate.
Network activation failure:
• Wall jack wiring is incorrect: Check wall jack.
• Problem with ISDN line: Contact telephone company.
ERROR indicator illuminated; READY indicator flashes
at a slower 1 Hz rate.
Local bus failure:
• TE not connected: Connect TE.
• TE not receiving power from NT1: Con sult TE documentat ion.
• TE not terminated properly: Review the section
Setting the Option Switches on page 4.
61203019L1-1 NT1 ACE User Manual 11
NT1 ACE User Manual
READY indicator does not illuminate.
• Problem with ISDN network: Contact telephone
company.
• ISDN line not plugged into NETWORK jack: Plug
ISDN line into NETWORK jack.
Unable to make or receive a call.
• TE is not compatible with ISDN network: Contact
telephone company.
Specifications
Network Interface (U)
Line.............................2-Wire (Tip and Ring)
Operating Mode ..........Full-Duplex
Data Rate ....................160 kbps total, 144 kbps to customer
Signal Format...............2B1Q
Output Amplitude .........2.5 volts, zero-to-peak
Tx Source Impedance....As per ANSI T1.601
Rx Source Impedance....As per ANSI T1.601
Receiver Sensitivity........As per ANSI T1.601
Customer Interface (S/T)
Line.............................4-Wire (Tx and Rx Pair)
Operating Mode ..........Full-Duplex
Data Rate ....................192 kbps total, 144 kbps to customer
Signal Format...............Alternate Mark Inversion, 100% duty cycle
Output Amplitude .........0.75 volt, zero-to-peak
Tx Source Impedance....As per ANSI T1.605
Rx Source Impedance....As per ANSI T1.605
Receiver Sensitivity........As per ANSI T1.605
12 NT1 ACE User Manual 61203019L1-1
NT1 ACE User Manual
Faceplate Indicators
ERROR.................. U-interface or S/T interface not ready
READY.................. Steady light - Network ready to place a call
POWER ................ Unit has power
8 Hz (faster) flashing - U-interface not ready
1 Hz (slower) flashing - S/T interface not ready
Network Co mp atibilit y
Interface................ ISDN
Mechanical
Size...................... 6.25" wide, 3.75" long, 1.35" high
Weight ................. 9.5 ounces
Mounting............... Wall or desktop
Power
-48 VDC................ 1.1 W dissipation
Sources S/T power up to 8.9 W
Environmental
Temperature .......... 0 to 40 °C (32 to 104 °F) operating
Relative Humidity.... Up to 95%, non-condensing
FCC Approval........ Part 15, Class B
-20 to 70 °C (-4 to 158 °F) storage
Power Supply Specifications
Size............................ 2.5“wide, 3.0" long, 1.9" high
Weight ....................... 1.5 lb
Power Input ................. 110 VAC, 60 Hz
Power Output............... 10 W
Voltage.......................-48 VDC
61203019L1-1 NT1 ACE User Manual 13
NT1 ACE User Manual
14 NT1 ACE User Manual 61203019L1-1
Technical Support and Warranty Information
Presales Inquiries and Applications Support
Please contact your local distributor, ADTRAN Applications
Engineering, or ADTRAN Sales:
Applications Engineering 800) 615-1176
Sales (800) 827-0807
Post-Sale Support
Please contact your local distributor first. If your local distributor cannot help, please contact ADTRAN Technical Support and have the unit serial number available.
Technical Support (888) 4ADTRAN
Repair and Return
If ADTRAN Technical Support determines that a repair is
needed, Technical Support will coordinate with the Customer
and Product Service (CAPS) department to issue an RMA
number. For information regarding equipment currently in
house or possible fees associated with repair, contact CAPS
directly at the following number:
CaPS Department (256) 963-8722
Identify the RMA number clearly on the package (below
address), and return to the following address:
ADTRAN Customer and Product Service
6767 Old Madison Pike
Progress Center/ Building #6 Suite 690
Huntsville, Alabama 35807 RMA # _____________
