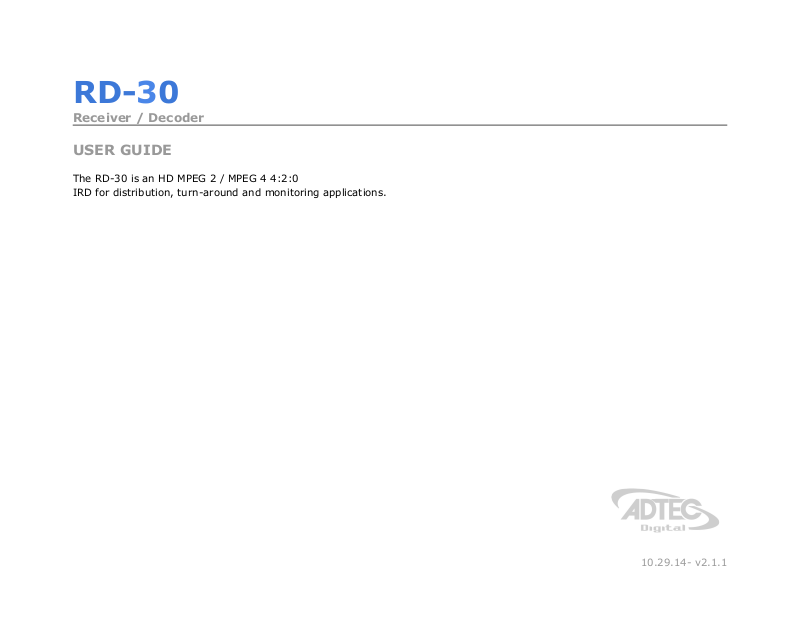

RD-30
Receiver / Decoder
USER GUIDE
The RD-30 is an HD MPEG 2 / MPEG 4 4:2:0
IRD for distribution, turn-around and monitoring applications.
10.29.14- v2.1.1
Table of Contents
www . adtecdigital . com
Table of Contents
Trademarks & Copyrights
Electrical Device Compliance Notices
Safety Instructions
Safety Warnings and Cautions
Compliance Notices
FCC Class A Information
Chapter 1 - Product Introduction
Covered Equipment
Front Panel
Controls
Back Panel
Cooling
Rack Information
Chapter 2 - Installation
Rack Installation
AC Power Connection
Maintenance
Chapter 3 - Getting Connected
Introduction to the Control Application
Compatible browsers
Ethernet Access
Login
Upgrading Via Web User Interface
In Field Feature Upgrades
Key Instructions
Chapter 4 - WebUI overview
WebUI Status Panel
DVB - S 2 - Recommended use of Pilots
UDP / RTP / FEC / TCP IP Rx
Multicast Reception - Address
Unicast Reception - Address
Unicast / Multicast Reception
Chapter 6 - Appendix
Appendix A - GNU General Public License
Appendix B - Technical Specifications
Base Model ( RD 30-01)
Inputs
Outputs
Communications
Video and Audio
Physical and Operational
DVB - S / S 2 Model ( RD 30-01- LB )
Inputs
Appendix C - Adtec Digital Support & Service
Telephone and Email Support
Preparing for Support
SLA Options
10.29.14- v2.1.1
Firmware and Temperature
Chapter 5 - Operational Information
Trademarks & Copyrights
Copyright: (c) 2014 Adtec Digital. All rights reserved. This document may not, in whole or in part, be copied, photocopied,
reproduced and translated, or reduced to any electronic medium or machine-readable form without prior written consent from
Adtec Digital.
Trademarks: RD-30 is a trademark of Adtec Digital. Dolby Digital, Dolby Digital Plus, AC-3 and the double-D symbol are
registered trademarks of Dolby Laboratories. Other product and company names may be trademarks or registered trademarks
of their respective companies. The information in this document is subject to change without notice.
10.29.14- v2.1.1
Electrical Device Compliance Notices
Safety Notices
● Read these instructions
● Keep these instructions
● Heed all warnings
● Follow all instructions
● Do not use this apparatus near water
● Clean only with dry cloth
● Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions
● Do not install near any heat sources such as radiators,
heat registers, stoves, or other apparatus (including
amplifiers) that produce heat
● Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding type plug
has two blades and a third grounding prong. The wide
blade or the third prong is provided for your safety. If
the provided plug does not fit into your outlet, consult
an electrician for replacement of the obsolete outlet.
● Protect the power cord from being walked on or
pinched particularly at plugs, convenience receptacles,
and the point where they exit from the apparatus.
● Only use attachments/accessories specified by the
manufacturer.
● Unplug this apparatus during lightning storms or when
unused for long periods of time.
● Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or
plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate
normally, or has been dropped.
● Do not expose this apparatus to dripping or splashing
and ensure that no objects filled with liquids, such as
vases, are placed on the apparatus.
● To completely disconnect this apparatus from the AC
Mains, disconnect the power supply cord plug from the
AC receptacle.
● The mains plug of the power supply cord shall remain
readily operable.
● Damage Requiring Service: Unplug this product from
the wall outlet and refer servicing to qualified service
personnel under the following conditions:
○ When the power-supply cord or plug is
damaged.
○ If liquid has been spilled, or objects have fallen
into the product.
○ If the product has been exposed to rain or
water.
○ If the product does not operate normally by
following the operating instructions. Adjust
only those controls that are covered by the
operating instructions as an improper
adjustment of the controls may result in
damage and will often require extensive work
by a qualified technician to restore the product
10.29.14- v2.1.1
to its normal operation.
○ If the product has been dropped or damaged in
any way.
○ The product exhibits a distinct change in
performance.
● Replacement Parts: When replacement parts are
required, be sure the service technician uses
replacement parts specified by Sencore, or parts
having the same operating characteristics as the
original parts. Unauthorized part substitutions made
may result in fire, electric shock or other hazards.
Safety Warnings and Cautions
There is always a danger present when using electronic equipment.
Unexpected high voltages can be present at unusual locations in defective equipment and signal distribution systems. Become
familiar with the equipment that you are working with and observe the following safety precautions.
For your safety and the proper operation of the device:
● Every precaution has been taken in the design of the product to ensure that it is as safe as possible. However, safe
operation depends on you the operator.
● Always be sure your equipment is in good working order. Ensure that all points of connection are secure to the chassis
and that protective covers are in place and secured with fasteners.
● Never work alone when working in hazardous conditions. Always have another person close by in case of an accident.
● Always refer to the manual for safe operation. If you have a question about the application or operation call Adtec for
assistance.
● WARNING – To reduce the risk of fire or electrical shock never allow your equipment to be exposed to water, rain or high
moisture environments. If exposed to a liquid, remove power safely (at the breaker) and send your equipment to be
serviced by a qualified technician.
● To reduce the risk of shock the product must be connected to a mains socket outlet with a protective earthing
connection.
● The mains plug is the main disconnect and should remain readily accessible and operable at all times.
10.29.14- v2.1.1
● The product is equipped with an internal system battery. The product must be sent to Adtec service for replacement of
this battery.
CAUTION – Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.
● This unit must be installed and serviced by suitably qualified personnel only.
● Do not break the warranty seals on the device or open the lid. Only approved service technicians are permitted to
service this equipment.
● Disconnect all power before servicing the unit.
● Clean only with a dry cloth.
● If not installed in an equipment rack, install the product securely on a stable surface.
● Install the product in a protected location where no on can step or trip over the supply cord, and where the supply cord
will not be damaged.
● If a system is installed in a closed or multi-unit rack assembly, the operating ambient temperature of the rack
environment may be greater than the room ambient temperature.
● Consideration should be given to installing the unit in an environment compatible with the maximum recommended
ambient temperature of 50 degrees Celcius (122 degrees Fahrenheit).
● Install the unit in a rack so that the amount of airflow required for safe operation is not compromised.
○ The recommended clearance on the top and sides of the unit is at least ½ “ (one half inch/one centimeter).
● Mounting of the unit in a rack should be such that no hazardous condition is achieved due to uneven mechanical loading.
● Use only a grounded electrical outlet when connecting the unit to a power source.
● Reliable earth grounding of rack-mount equipment should be maintained.
○ Particular attention should be given to supply connection other than direct connections to the branch circuit (e.g.,
use of power strips).
Compliance Notices
FCC Class A Information
The RD-30 has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated
in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications. Operation of this equipment
10.29.14- v2.1.1
in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at
his or her own expense.
Shielded cables must be used with this unit to ensure compliance with the Class A FCC limits.
Warning: Changes or modifications to this device not expressly approved by Adtec Digital could void the user’s authority to
operate the equipment.
10.29.14- v2.1.1
Chapter 1 - Product Introduction
10.29.14- v2.1.1
10.29.14- v2.1.1
Covered Equipment
RD-30 (RD30-01): The RD-30 is an HD MPEG 2 / MPEG 4 4:2:0 capable IRD for distribution, turn-around and monitoring
applications. Standard transport stream input/output includes ASI and GigE. Standard video outputs include SDI, Composite
and Digital Video. Standard audio includes two (2) audio PIDs available for processing. Dolby E/Dolby D pass-through, MPEG 1
Layer 2, AAC-LC, AAC-HEv1, AAC-HEv2, Dolby Digital (AC-3) and Dolby Digital+ (EAC-3) downmix decode with an optional
additional two (2) stereo pairs for a total of four audio PIDs. Genlock is standard on all models.
RD-30 w/ L-Band Demodulator (RD30-01-LB): RD-30 (as configured above) + Demodulator and CAM module support.
* Software Key field upgradeable to 16/32APSK, VCM, ISI, MultiBISS, MultiCAM
Available Software Options
RD30-M2/M4-HD-KEY - Adds the capability of MPEG 2 / MPEG 4 HD (1080i/720p)
RD30-AUD-EXP-KEY - Expands audio decode from 2 pairs to 4 pairs
RD30-BISS-KEY - Adds single BISS E/BISS 1 Descrambling capability
RD30-16/32APSK-KEY - Available for RD30-01-LB model. Adds 16/32APSK, VCM and Multistream
RD30-CAM-KEY - Adds DVB-CI multi-service and multi-BISS licenses (Decrypts multiple services. RD30-CAM-KEY is not
required for a single DVB-CI service decrypt.)
RD30-IP-OUT-KEY - Adds SMPTE 2022 FEC Output capability.
Front Panel
The front panel LCD and keypad can be used to configure and monitor your device.
10.29.14- v2.1.1
Controls
Using the Enter, Back and directional buttons (up, down, left, right), the user can control the unit via the front panel.
Control Function
Enter Button Will enter menus and confirm selections.
Back Will back out of menus and escape from item entries.
Up, Down, Left,
Right
Arrows are used for menu navigation and for editing configuration
fields within the unit.
10.29.14- v2.1.1
Back Panel
Connector Description
Processor
Power AC Power, Standard 3 pin computer power plug
(Auto range 100-240 VAC Input)
Ethernet 10/100 BASE-T ethernet interface (Monitoring/Management)
DB9 Relay 9-pin interface for alarms
Decoder
Genlock Bi-level / Tri-Level sync input used for decoder reference
AES Audio Out 1-4 x4 75 Ohm AES-3/EBU BNC
Analog Audio Out x2 DB15 Audio outputs, 2 pairs per DB15 connector
CVBS Out 75 Ohm BNC Standard Definition Composite Video Output
(SMPTE 170M-2004, NTSC, PAL-B/G/I/D/M/N)
SDI Out x2 mirrored SD-SDI/HD-SDI outputs from decoder. Video/Audio/VBI
(SMPTE 259M - SD, SMPTE 292M - HD).
10.29.14- v2.1.1
Digital Video Digital Video Output connector
ASI In 75 Ohm BNC input.
ASI Out 75 Ohm BNC output.
RF 1, 2, 3 & 4 x4 L-Band inputs, 75 Ohm F-Connector (RD30-01-LB option)
GigE In/Out x2 10/100/1000 GigE ports for UDP or RTP transport ingress/egress
Cooling
The RD-30 is cooled via forced induction through the front of the unit and exhausted through the vents in the rear of the
chassis. The RD-30 is equipped with a temperature controlled status indicator. If the temperature inside the unit exceeds 60° C
the red “Error” text will illuminate on the front panel and a description of the error will appear in the “Error List.”
Rack Information
The RD-30 is intended to be mounted in a standard 19” rack. It occupies 1RU of rack space and the connections are all on the
rear of the unit.
10.29.14- v2.1.1
Chapter 2 - Installation
Rack Installation
To install the RD-30 into a rack use the following steps:
Step Description
1 Determine the desired position in the rack for the RD-30 making sure that the
air intake on the front of the unit and the exhausts on the sides of the unit will
not be obstructed.
2 Insert the rack mount clips into place over the mounting holes in the rack.
3 Slide the RD-30 into position in the rack.
4 Secure the RD-30 to the rack by installing the four supplied screws through the
front mounting holes and tightening.
5 If needed, secure a grounding wire use the grounding location on the rear
panel of the RD-30. See Section 1.3 for grounding location.
AC Power Connection
Using the proper power connections is vital to the safe operation of the RD-30. Only use the supplied 3-prong power connector
or one with equal specifications. NEVER tamper with or remove the 3rd – prong grounding pin. This could cause damage to the
RD-30, personnel, or property.
The RD-30 is intended for use on either 120V or 240V systems. The power supply will automatically detect the system it is
connected to. To hook up the power use the following steps:
Step Description
10.29.14- v2.1.1
1 Locate the AC power cord that was included with the RD-30.
2 Plug the female end of the power cord (end with no prongs) into the back of the
unit.
3 Locate a protected outlet (usually inside of the rack) to plug the male end of the
power cable into.
Maintenance
The RD-30 is virtually a maintenance-free piece of equipment. There are no user serviceable parts on the inside of the unit.
10.29.14- v2.1.1
Chapter 3 - Getting Connected
Introduction to the Control Application
A web-based control software application comes pre-installed on the RD-30.
Compatible browsers
Firefox (recommended)
MS Internet Explorer
Safari
Chrome
Ethernet Access
To begin, you will need to connect to your RD-30 via Ethernet directly, or by adding the RD-30 to your local area network. The
default address for all Adtec devices is 192.168.10.48.
To connect directly to the device, make sure that your computer and the device have IP addresses within the same IP class
range.
(ex. 192.168.10.48 for the device and 192.168.10.49 for your computer).
If you need to change the IP address of the device, this can be done via the front panel, System > Network menu. Using a CAT
5 crossover cable, connect one end to your computer and the other to the Ethernet port found on the processor section of the
back panel. (Some computers can auto negotiate the connection and a crossover may not be necessary.)
To add the device to a LAN, connect a standard CAT 5 Ethernet cable to your network router and then to the Ethernet port on
the back of the device. If your network is DHCP enabled and you prefer that over a static IP, you can turn on DHCP for the
device via the front panel, Admin > Network menu.
Login
Once you reach the default login page for the web-based application, you will be prompted for a username and password. The
default username is ‘admin’. There is no default password. Leave the password field empty and click login to enter the webbased application.
10.29.14- v2.1.1
The left-hand panel of the application will report current status while the right panel tabs will allow you to configure your
device.
Upgrading Via Web User Interface
Periodically, we will provide firmware updates to our products via our website, http :// www . adtecdigital . com. To upgrade your
device, download the firmware file from our website and store it locally. Login to the web-based application and navigate to the
Admin > Firmware tab. Click on the upload button located at the top right of the application. Select the firmware file from your
local machine and wait for it to upload.
10.29.14- v2.1.1
Once it has finished uploading, it will appear in the Available Versions list. Click on the Select button associated with the new
file to reboot into the new version.
In Field Feature Upgrades
Unit features can be upgraded in the field via the web user interface. To purchase a permanent key, please provide your unit
serial number from the Admin -> Features tab to your sales representative.
10.29.14- v2.1.1
Key Instructions
An unlock key can be provided via email or verbally if internet access is not available. To enter the unlock key:
Step Action
1 Click on the ‘Input Key’ button.
2 Enter the supplied key into the pop-up dialog box and click OK.
3 The feature status should change from ‘Un-licensed’ to ‘Licensed’.
4 In some cases, a reboot of the unit may be required after enabling a feature key.
10.29.14- v2.1.1
Chapter 4 - WebUI overview
WebUI Status Panel
The left-hand panel of the web application will report current device status while the right-hand panel will allow you to configure
your device. This section will cover what each part of the status panel represents. Each panel may be collapsed or expanded
by clicking on the icon with the ‘double up’ or ‘double down’ arrows. The heading of each status may contain an
LED that summarizes the current state of the individual status box. Green represents, OK, Yellow represents, Potential
Warning, and Red represents an alarm.
Firmware and Temperature
The top left hand status displays a logo of the product, Firmware
version and operating temperature of the IRD
Decoder Status
10.29.14- v2.1.1
The Active Input LED will be green if the decoder is actively
decoding a program from the input. The selected input data rate
(Transmux Rate) is displayed as well as the Service ID
(Program Number) and Program Name if available.
RF Rx Status
The Active Input will display the last actively selected RF port. It
does not represent the active input for the decoder (refer to
Decoder status for Decoder input).
Status provides an indication of tuner lock along with the receive
level (dBm), Eb/No or Es/No (dB) and Link Margin (dB).
The modulation and coding mode detected will be displayed
under the Mode / FEC title along with the tuners acquired LBand frequency (MHz).
IP-Rx Status
The IP-Rx1 and IP-Rx2 status display information about the two
potential IP-Rx profiles that can be configured.
Sync Status will be green if a transport stream is detected. The
current IP-Rx configuration is also displayed for IP Addr./Port
and Buffer Mode/Level. The IRD automatically detects protocol
and FEC parameters if enabled.
10.29.14- v2.1.1
Video Status
This window shows statistics about the decoded incoming
(video elementary stream) and outgoing (processed) video.
Input transport stream information includes video rate (Mb/s),
codec detected, resolution, frame rate, AFD information and
PID.
Output baseband information includes resolution, frame rate and
AFD information.
Audio Status
This window shows statistics about the decoded incoming audio
elementary streams.
Input transport stream information includes audio type, channel
configuration, PID (decimal) and the encoded audio rate (kb/s).
IP-Tx Status
10.29.14- v2.1.1
The IP-Tx1 and IP-Tx2 status windows display information
about the two potential IP-Tx profiles that can be configured.
Status will be green if the Tx profile is set to ENABLED and if
link is detected on the configured output. Each output profile
can share the same GigE port if needed, they can also share
the same port as the configured Rx profiles.
The configured IP destination parameters IP Address/Port,
Source Port, Protocol and DVB TS Packets per IP Packet can
be viewed in this status.
Chapter 5 - Operational Information
DVB-S2 - Recommended use of Pilots
The use of DVB-S2 pilots within the modulated carrier are recommended under certain conditions. With the following
configurations, Pilots are recommended:
● High order modulation schemes: 16APSK and 32APSK
● Low code rates QPSK: 1/4, 1/3, 2/5, 1/2, and 3/5
● Low code rates 8PSK: 3/5, 2/3, 3/4, and 5/6
● Low symbol rates: < 5 Mbaud for free running DRO LNB
● Low symbol rates: < 3 Mbaud for Phase Locked DRO LNB
UDP / RTP / FEC IP Rx
The RD-30 supports a number of IP based protocols for the reception of transport streams via private and public networks. The
RD-30 will automatically determine if an IP stream is UDP or RTP.
10.29.14- v2.1.1
UDP ( User Datagram Protocol ) multicast/unicast streams are commonly used for broadcast transport streams in local or
private networks that contain little to no packet loss. UDP offers no protection against dropped packets or packets received out
of order (usually due to packets taking a different amount of time to traverse network devices). Due to the low reliability of
UDP, it is generally not recommended to be used over the public internet or in environments where the potential of packet loss,
increased jitter, or out of order packets is high. If packets are lost or received out of order, service anomalies will occur.
RTP ( Real-time Transport Protocol ) is another type of multicast/unicast stream that is better to use than UDP in some
environments. RTP is built upon the building blocks of UDP, but adds packet sequence identification. Packet sequencing gives
a receiver the information needed to detect and correct packets that were received ‘out of order’. RTP is highly recommended
when timely delivery of each consecutive packet may not be guaranteed.
RTP + FEC or SMPTE-2022 is an additional method used in dealing with lost packets, where RTP alone can only tolerate packets
received out of order. FEC ( Forward Error Correction ) streams add overhead to the overall data rate, but add protection in
case of a lost packet. FEC ( detection and correction of lost packets ) adds latency and data overhead as opposed to UDP
where no protection mechanisms exist. The amount of packet redundancy and overhead can be configured at the RTP/FEC
transmitter. Each multicast/unicast FEC stream is transmitted on base port N and two FEC streams are sent on N+2 and N+4
respectively. When receiving FEC streams behind firewalls, please bear in mind that two additional ports ( N+2 and N+4 )
must be allowed through for proper error recovery to occur.
The RD-30 supports both unicast (point to point) and multicast (broadcast) streams. How to setup IP addressing and
networking equipment is outside the scope of this document. Please verify that IP addresses and gateways are configured
properly at transmit and receive ends for proper stream reception.
Multicast Reception - Address
To receive a multicast (UDP/RTP/SMPTE2022) stream, place the IP Rx mode to ‘multicast’ and insert a multicast address
desired to receive in the ‘Address’ field. This address must match the same address used on the multicast transmitter.
Multicast IP address ranges are 224.10.xxx.xxx to 239.xxx.xxx.xxx, where 0 <= xxx <= 255. If you are new to multicast and
attempting a first time connection, 226.0.1.1 is a common address to start with. Please verify transmitter address
configuration.
10.29.14- v2.1.1
Unicast Reception - Address
To receive a unicast (UDP/RTP/SMPTE2022) stream, place the IP Rx mode to ‘unicast’. The unit will be ‘listening’ for any
streams sent directly to it. Refer to your IP transmitter documentation for proper configuration of the transmitter.
Unicast/Multicast Reception
Enter the port number in the ‘port’ field. The port number must match the port number used on the transmitter where the
range is 1 to 65535. If you are new to multicast and attempting a first time connection, 2000 is a common port to start with.
Lower port numbers are usually reserved for other network services. Please verify transmitter port configuration.
Choose the IP Rx ‘Connector’ dependent upon your network setup. There are two available GigE cards available for receiving
network streams.
Once IP Rx is configured, click Apply.
10.29.14- v2.1.1
Visit the Input -> Service tab and Select the appropriate IP input (Port 1 or Port 2) from the drop down to select IP for
decoding. IP service names will populate in the service list.
10.29.14- v2.1.1
Chapter 6 - Appendix
Appendix A - GNU General Public License
Version 2, June 1991 Copyright (C) 1989, 1991 Free Software Foundation, Inc.
59 Temple Place, Suite 330, Boston, MA 02111-1307 USA
Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed.
Preamble
The licenses for most software are designed to take away your freedom to share and change it. By contrast, the GNU General Public License is intended to
guarantee your freedom to share and change free software--to make sure the software is free for all its users. This General Public License applies to most of
the Free Software Foundation's software and to any other program whose authors commit to using it. (Some other Free Software Foundation software is
covered by the GNU Library General Public License instead.) You can apply it to your programs, too.
10.29.14- v2.1.1
When we speak of free software, we are referring to freedom, not price. Our General Public Licenses are designed to make sure that you have the freedom to
distribute copies of free software (and charge for this service if you wish), that you receive source code or can get it if you want it, that you can change the
software or use pieces of it in new free programs; and that you know you can do these things.
To protect your rights, we need to make restrictions that forbid anyone to deny you these rights or to ask you to surrender the rights. These restrictions
translate to certain responsibilities for you if you distribute copies of the software, or if you modify it.
For example, if you distribute copies of such a program, whether gratis or for a fee, you must give the recipients all the rights that you have. You must make
sure that they, too, receive or can get the source code. And you must show them these terms so they know their rights.
We protect your rights with two steps: (1) copyright the software, and (2) offer you this license which gives you legal permission to copy, distribute and/or
modify the software.
Also, for each author's protection and ours, we want to make certain that everyone understands that there is no warranty for this free software. If the software
is modified by someone else and passed on, we want its recipients to know that what they have is not the original, so that any problems introduced by others
will not reflect on the original authors' reputations.
Finally, any free program is threatened constantly by software patents. We wish to avoid the danger that redistributors of a free program will individually
obtain patent licenses, in effect making the program proprietary. To prevent this, we have made it clear that any patent must be licensed for everyone's free
use or not licensed at all.
The precise terms and conditions for copying, distribution and modification follow.
GNU GENERAL PUBLIC LICENSE TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICATION
0. This License applies to any program or other work which contains a notice placed by the copyright holder saying it may be distributed under the terms of this
General Public License. The "Program", below, refers to any such program or work, and a "work based on the Program" means either the Program or any
derivative work under copyright law: that is to say, a work containing the Program or a portion of it, either verbatim or with modifications and/or translated
into another language. (Hereinafter, translation is included without limitation in the term "modification".) Each licensee is addressed as "you". Activities other
than copying, distribution and modification are not covered by this License; they are outside its scope. The act of running the Program is not restricted, and the
output from the Program is covered only if its contents constitute a work based on the Program (independent of having been made by running the Program).
Whether that is true depends on what the Program does.
1. You may copy and distribute verbatim copies of the Program's source code as you receive it, in any medium, provided that you conspicuously and
appropriately publish on each copy an appropriate copyright notice and disclaimer of warranty; keep intact all the notices that refer to this License and to the
absence of any warranty; and give any other recipients of the Program a copy of this License along with the Program. You may charge a fee for the physical act
of transferring a copy, and you may at your option offer warranty protection in exchange for a fee.
2. You may modify your copy or copies of the Program or any portion of it, thus forming a work based on the Program, and copy and distribute such
modifications or work under the terms of Section 1 above, provided that you also meet all of these conditions:
a) You must cause the modified files to carry prominent notices stating that you changed the files and the date of any change.
b) You must cause any work that you distribute or publish, that in whole or in part contains or is derived from the Program or any part thereof, to be licensed
as a whole at no charge to all third parties under the terms of this License.
c) If the modified program normally reads commands interactively when run, you must cause it, when started running for such interactive use in the most
ordinary way, to print or display an announcement including an appropriate copyright notice and a notice that there is no warranty (or else, saying that you
provide a warranty) and that users may redistribute the program under these conditions, and telling the user how to view a copy of this License. (Exception: if
the Program itself is interactive but does not normally print such an announcement, your work based on the Program is not required to print an
announcement.)
These requirements apply to the modified work as a whole. If identifiable sections of that work are not derived from the Program, and can be reasonably
considered independent and separate works in themselves, then this License, and its terms, do not apply to those sections when you distribute them as
10.29.14- v2.1.1
separate works. But when you distribute the same sections as part of a whole which is a work based on the Program, the distribution of the whole must be on
the terms of this License, whose permissions for other licensees extend to the entire whole, and thus to each and every part regardless of who wrote it.
Thus, it is not the intent of this section to claim rights or contest your rights to work written entirely by you; rather, the intent is to exercise the right to control
the distribution of derivative or collective works based on the Program. In addition, mere aggregation of another work not based on the Program with the
Program (or with a work based on the Program) on a volume of a storage or distribution medium does not bring the other work under the scope of this License.
3. You may copy and distribute the Program (or a work based on it, under Section 2) in object code or executable form under the terms of Sections 1 and 2
above provided that you also do one of the following:
a) Accompany it with the complete corresponding machine-readable source code, which must be distributed under the terms of Sections 1 and 2 above on a
medium customarily used for software interchange; or,
b) Accompany it with a written offer, valid for at least three years, to give any third party, for a charge no more than your cost of physically performing source
distribution, a complete machine-readable copy of the corresponding source code, to be distributed under the terms of Sections 1 and 2 above on a medium
customarily used for software interchange; or,
c) Accompany it with the information you received as to the offer to distribute corresponding source code. (This alternative is allowed only for noncommercial
distribution and only if you received the program in object code or executable form with such an offer, in accord with Subsection b above.)
The source code for a work means the preferred form of the work for making modifications to it. For an executable work, complete source code means all the
source code for all modules it contains, plus any associated interface definition files, plus the scripts used to control compilation and installation of the
executable. However, as a special exception, the source code distributed need not include anything that is normally distributed (in either source or binary form)
with the major components (compiler, kernel, and so on) of the operating system on which the executable runs, unless that component itself accompanies the
executable.
If distribution of executable or object code is made by offering access to copy from a designated place, then offering equivalent access to copy the source code
from the same place counts as distribution of the source code, even though third parties are not compelled to copy the source along with the object code.
4. You may not copy, modify, sublicense, or distribute the Program except as expressly provided under this License. Any attempt otherwise to copy, modify,
sublicense or distribute the Program is void, and will automatically terminate your rights under this License. However, parties who have received copies, or
rights, from you under this License will not have their licenses terminated so long as such parties remain in full compliance.
5. You are not required to accept this License, since you have not signed it. However, nothing else grants you permission to modify or distribute the Program or
its derivative works. These actions are prohibited by law if you do not accept this License. Therefore, by modifying or distributing the Program (or any work
based on the Program), you indicate your acceptance of this License to do so, and all its terms and conditions for copying, distributing or modifying the
Program or works based on it.
6. Each time you redistribute the Program (or any work based on the Program), the recipient automatically receives a license from the original licensor to copy,
distribute or modify the Program subject to these terms and conditions. You may not impose any further restrictions on the recipients' exercise of the rights
granted herein. You are not responsible for enforcing compliance by third parties to this License.
7. If, as a consequence of a court judgment or allegation of patent infringement or for any other reason (not limited to patent issues), conditions are imposed
on you (whether by court order, agreement or otherwise) that contradict the conditions of this License, they do not excuse you from the conditions of this
License. If you cannot distribute so as to satisfy simultaneously your obligations under this License and any other pertinent obligations, then as a consequence
you may not distribute the Program at all. For example, if a patent license would not permit royalty-free redistribution of the Program by all those who receive
copies directly or indirectly through you, then the only way you could satisfy both it and this License would be to refrain entirely from distribution of the
Program. If any portion of this section is held invalid or unenforceable under any particular circumstance, the balance of the section is intended to apply and
the section as a whole is intended to apply in other circumstances. It is not the purpose of this section to induce you to infringe any patents or other property
right claims or to contest validity of any such claims; this section has the sole purpose of protecting the integrity of the free software distribution system, which
is implemented by public license practices. Many people have made generous contributions to the wide range of software distributed through that system in
10.29.14- v2.1.1
reliance on consistent application of that system; it is up to the author/donor to decide if he or she is willing to distribute software through any other system
and a licensee cannot impose that choice. This section is intended to make thoroughly clear what is believed to be a consequence of the rest of this License.
8. If the distribution and/or use of the Program is restricted in certain countries either by patents or by copyrighted interfaces, the original copyright holder who
places the Program under this License may add an explicit geographical distribution limitation excluding those countries, so that distribution is permitted only in
or among countries not thus excluded. In such case, this License incorporates the limitation as if written in the body of this License.
9. The Free Software Foundation may publish revised and/or new versions of the General Public License from time to time. Such new versions will be similar in
spirit to the present version, but may differ in detail to address new problems or concerns. Each version is given a distinguishing version number. If the
Program specifies a version number of this License which applies to it and "any later version", you have the option of following the terms and conditions either
of that version or of any later version published by the Free Software Foundation. If the Program does not specify a version number of this License, you may
choose any version ever published by the Free Software Foundation.
10. If you wish to incorporate parts of the Program into other free programs whose distribution conditions are different, write to the author to ask for
permission. For software which is copyrighted by the Free Software Foundation, write to the Free Software Foundation; we sometimes make exceptions for this.
Our decision will be guided by the two goals of preserving the free status of all derivatives of our free software and of promoting the sharing and reuse of
software generally.
NO WARRANTY
11. BECAUSE THE PROGRAM IS LICENSED FREE OF CHARGE, THERE IS NO WARRANTY FOR THE PROGRAM, TO THE EXTENT PERMITTED BY APPLICABLE LAW.
EXCEPT WHEN OTHERWISE STATED IN WRITING THE COPYRIGHT HOLDERS AND/OR OTHER PARTIES PROVIDE THE PROGRAM "AS IS" WITHOUT WARRANTY
OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE. THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE PROGRAM IS WITH YOU. SHOULD THE PROGRAM PROVE
DEFECTIVE, YOU ASSUME THE COST OF ALL NECESSARY SERVICING, REPAIR OR CORRECTION.
12. IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING WILL ANY COPYRIGHT HOLDER, OR ANY OTHER PARTY WHO MAY
MODIFY AND/OR REDISTRIBUTE THE PROGRAM AS PERMITTED ABOVE, BE LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL
OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE PROGRAM (INCLUDING BUT NOT LIMITED TO LOSS OF DATA OR DATA
BEING RENDERED INACCURATE OR LOSSES SUSTAINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE PROGRAM TO OPERATE WITH ANY OTHER
PROGRAMS), EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
END OF TERMS AND CONDITIONS
How to Apply These Terms to Your New Programs
If you develop a new program, and you want it to be of the greatest possible use to the public, the best way to achieve this is to make it free software which
everyone can redistribute and change under these terms.
To do so, attach the following notices to the program. It is safest to attach them to the start of each source file to most effectively convey the exclusion of
warranty; and each file should have at least the "copyright" line and a pointer to where the full notice is found.
<one line to give the program's name and a brief idea of what it does.> Copyright (C) <year> <name of author>
This program is free software; you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software
Foundation; either version 2 of the License, or (at your option) any later version.
This program is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or
FITNESS FOR A PARTICULAR PURPOSE. See the GNU General Public License for more details.
You should have received a copy of the GNU General Public License along with this program; if not, write to the Free Software Foundation, Inc., 59 Temple
Place, Suite 330, Boston, MA 02111-1307 USA
Also add information on how to contact you by electronic and paper mail.
If the program is interactive, make it output a short notice like this when it starts in an interactive mode:
10.29.14- v2.1.1
Gnomovision version 69, Copyright (C) year name of author Gnomovision comes with ABSOLUTELY NO WARRANTY; for details type `show w'. This is free
software, and you are welcome to redistribute it under certain conditions; type `show c' for details.
The hypothetical commands `show w' and `show c' should show the appropriate parts of the General Public License. Of course, the commands you use may be
called something other than `show w' and `show c'; they could even be mouse-clicks or menu items--whatever suits your program.
You should also get your employer (if you work as a programmer) or your school, if any, to sign a "copyright disclaimer" for the program, if necessary. Here is
a sample; alter the names:
Yoyodyne, Inc., hereby disclaims all copyright interest in the program `Gnomovision' (which makes passes at compilers) written by James Hacker. <signature
of Ty Coon>, 1 April 1989 Ty Coon, President of Vice
This General Public License does not permit incorporating your program into proprietary programs. If your program is a subroutine library, you may consider it
more useful to permit linking proprietary applications with the library. If this is what you want to do, use the GNU Library General Public License instead of this
License.
10.29.14- v2.1.1
Appendix B - Technical Specifications
Base Model (RD30-01)
Inputs
DVB-ASI Input
Use: Input available for decode.
Standard: Asynchronous Serial Interface per EN500083-9
Input TS Rate: 250 Kb/s to 200 Mb/s
Packet Size: 188/204 byte
Connector: BNC (75 Ohm)
IP Input
Use: Input available for unicast/multicast decode. TS input/output can share the same connector as required.
Standard: UDP or RTP
Supports 1 to 7 TS packets per IP packet
IGMP v1, v2 and v3 support
Input TS Rate: 250 Kb/s to 200 Mb/s
Connection speed: GigE (10/100/1000 Auto-Negotiate)
Receiver capability: 2 simultaneous MPEG over IP transport streams
Connector: x2 RJ45
Outputs
SD-SDI / HD-SDI
Two mirrored SDI outputs from Decoder
Standard: Video & Audio SMPTE 259M - SD, SMPTE 292M - HD
Up to 8 Channels of Embedded audio
SDI Ancillary support for:
Closed Captioning (CEA-708), AFD (SMPTE 2016), OP-47 (SMPTE RDD-08), SMPTE RDD-11, SCtE 127 (SMPTE 2031), EN301775 (SMPTE
2031), Time Code (SMPTE 12M-2)
10.29.14- v2.1.1
SDI VBI waveform support:
Line 21 captions (CEA-608), TVG2x, AMOL-48/96 (SCTE 127), Teletext/WSS/VPS (EN301775)
Connector: Two BNC (75 Ohm)
CVBS
SD NTSC, PAL-M, PAL-B/G, PAL-N Composite Video Output
NTSC Pedestal selection: Black at 7.5 IRE or Black at 0 IRE
VBI waveform support:
Line 21 captions (CEA-608), TVG2x, AMOL-48/96 (SCTE 127), Teletext/WSS/VPS (EN301775)
Connector: BNC (75 Ohm)
DVB-ASI
Standard: Asynchronous Serial Interface per EN500083-9
ASI Mirrored from DVB-ASI Input, IP Input, or RF Input with purchase of optional tuner package.
Connector: BNC (75 Ohm)
AES Audio
Standard: AES3/EBU
4 pairs of decoded/passthrough audio
Connector: Four BNC (75 Ohm)
Analog Audio
Four balanced pairs via two DB15 connectors. (2 pair per DB15)
Connector: Two DB15
Communications
Ethernet Port
Use: ethernet port used for network management
Format: Ethernet 10/100BaseT auto-negotiating
Communication Methods: WebUI, SNMP
Connector: RJ45
DB9 Relay Connector
Use: DB9 port used for alarm triggering / integration
Connector: DB9 Male
10.29.14- v2.1.1
Video and Audio
Video Decode
MPEG-2 SD (ISO/IEC 13818-2) Decode:
Format: 480i59.94, 576i50
Profiles: MP@ML
MPEG-2 HD (ISO/IEC 13818-2) Decode:
Format: 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.97, 1080p24, 1080p25, 1080p29.97, 1080p30
Profiles: MP@HL
MPEG-4 SD (ISO/IEC 14496-10) Decode:
Format: 480i59.94, 576i50
Profiles: Up to MP@L3
MPEG-4 HD (ISO/IEC 14496-10) Decode:
Format: 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.97, 1080p24, 1080p25, 1080p29.97, 1080p30
Profiles: Up to HP@L4.2
Audio Processing
MPEG 1 Layer 2 audio (4 pairs)
AAC-LC, AAC-HEv1, AAC-HEv2 (4 pairs)
Dolby Digital AC3 / Dolby Digital+ EAC3 stereo downmix and passthrough (4 pairs)
Dolby E / Linear PCM Passthrough (4 pairs)
Physical and Operational
Physical / Environmental
1 RU - 14.6”D X 17.2”W X 1.72”H
Power
Input Voltage: 100VAC - 240VAC 50/60Hz
Idle base unit power draw: 38-40W
Base unit with active ASI input: 54-55W
10.29.14- v2.1.1
DVB-S/S2 model with active LNB 19V @ 500ma and active CAM adds: 10-12W
Operational
- Ambient operating temperature: 0C to 50C.
- Ambient storage temperature: -40C to 65C.
- Non-condensing relative humidity range: < 95%
Certification / Compliance
RoHS Compliant
DVB-S/S2 Model (RD30-01-LB)
The LB option is a hardware option. This unit contains the same features as RD30-01 model listed above plus:
Inputs
DVB-CI Descrambling module
Interface: Adds two DVB-CI CAM slots
Use: Descrambles decoded service only without purchase of RD30-CAM-KEY. RD30-CAM-KEY provides up to maximum amount of decryptable
services supported by CAM module.
DVB-S/DVB-S2 tuner
note: Software key required to unlock full hardware support.
Use: Four switched L-Band inputs available for decode
Connector: F Type, Female
DVB-S EN 300 421 and DVB-S2 EN 302 307
Modulation Scheme support: QPSK / 8PSK / 16APSK / 32APSK
DVB-S2 symbol rate range: 1 - 45Msym/s
DVB-S symbol rate range: 1 - 45Msym/s
frequency range: 950 - 2150MHz
LNB Power and Control:
0, 13, 14, 18 and 19VDC @ 450mA
22kHz (band selection according to universal LNB for ASTRA satellites)
VCM Demodulation Support
10.29.14- v2.1.1
Multistream Support (Single ISI)
10.29.14- v2.1.1
Appendix C - Adtec Digital Support & Service
Technical Support and Customer Service includes troubleshooting product/system functional operations concerning Adtec equipment,
embedded systems and single device issues; Service Order generation, processing and tracking; Warranty claim processing; and on-site
system evaluation and maintenance. Technical Support plans do not include customer training programs. Programs incorporating customer
training are defined in the Training Services Policy. Customer Services technicians provide limited instruction during a support call/email/fax
in order to facilitate checking for proper equipment operation.
Telephone and Email Support
● Telephone: 615-256-6619 ext. 166
● Email: support@adtecinc.com
● Internet: http :// adtecdigital . com / support / support - request
Adtec Digital offers telephone, email and fax support, warranty and service related inquiries during normal business hours: 9:00am to
5:00pm Central Standard Time (CST), Monday through Friday, holidays excepted. Support Requests can also be submitted on-line.
All inquiries will be processed in the order in which they are received and by the criteria outlined in the Call Response Order. Inquiries and
inquiry responses made after 5:00 PM (CST) weekdays, Saturday, Sunday or on an Adtec-recognized holiday will be processed the next
business day in the order received.
Callers on hold and returned calls will be prioritized by the following criteria:
● Priority-24 Subscription Customers
● Standard-Priority Subscription Customers
● All customers that have purchased Installation & Training, within 90 days of the installation.
● Adtec Certified Operators (ACO)
● Limited Level Support, Warranty & Service Requests
● Multi-device system installations that have purchased Installation & Training from Adtec
● Distributors
● System Integrators
● Multi-device systems
● Single device users
10.29.14- v2.1.1
Preparing for Support
To help expedite the troubleshooting process, please be prepared to provide the following information to the support representative:
● Product(s) affected: Please provide a list of the Adtec Products involved including the Revision Number for each affected product.
● Description of the Problem: Please include a detailed description of the problem. Include the approximate time and day the
problem occurred, the spot ID of the material being inserted and what the operator reported about the incident. It is also helpful to
note any recent changes to the system. More information is always better than too little information.
● Your Contact Data: Please include contact information so we can reach you to discuss how to fix the problem, additional
troubleshooting steps that are required or to gather more complete information regarding the problem. Please include your facility
name (or call letters), your name, title, email address, telephone number, hours of work, and other contact persons if you are not
available.
SLA Options
Effective January 1, 2014
For questions, please email slaquestions @ adtecinc . com
● SLA STANDARD*
Services: Includes initial product orientation
Technical support M-F 8AM-8PM (EST)
Firmware and software upgrades
Includes repair expenses**
Includes ground shipping within US
International shipping is extra
Fees: Free for one year after purchase
● SLA PRIORITY 24*
Services: SLA Extended Warranty plus…
Technical support 24x7x365
Expedited shipping is extra
● SLA PREMIUM 24*
Services: SLA Priority 24 plus…
Next business day advance loaners
● SLA EXTENDED WARRANTY*
Services: Extends warranty after year one
Includes repair expenses
Expedited shipping is extra
10.29.14- v2.1.1
● SLA LEGACY
Services: Includes initial product orientation
Technical support M-F 8AM - 8PM (EST)
Firmware and software upgrades
Includes Duet, Soloist 2/ 2S, Mirage, edje1013/1015/2000/2100/2110.
Most legacy products cannot be repaired
● SLA SESSION SUPPORT
Services: Technical support M-F 8AM - 8PM (EST)
Includes support for 5 days after first call
● SE SUPPORT
Services: Event based on-site technical representation
*Available for up to three years after purchase for Adtec manufactured products only
**Excludes equipment that has been subject to misuse, negligence, or accident
All SLAs are subject to terms and conditions of sale. For details see adtecdigital.com/sales/terms
10.29.14- v2.1.1
Loading...
