K5309V2 1/02 Model SASW3000EN

IMPORTANT!

PROPER INTRUSION PROTECTION

For proper intrusion coverage, sensors should be located at

point of entry

skylights that may be present, and the upper windows in a multi-level building. In addition, we recomm end that radio backup be used in a security system s o

that alarm signals ca n still be sent to the Customer Care Ce nter in the event that the telephone li nes are out of order (alarm signals are norm ally sent over the phone lines).

to a home or commercial premises. This would include any

every possible

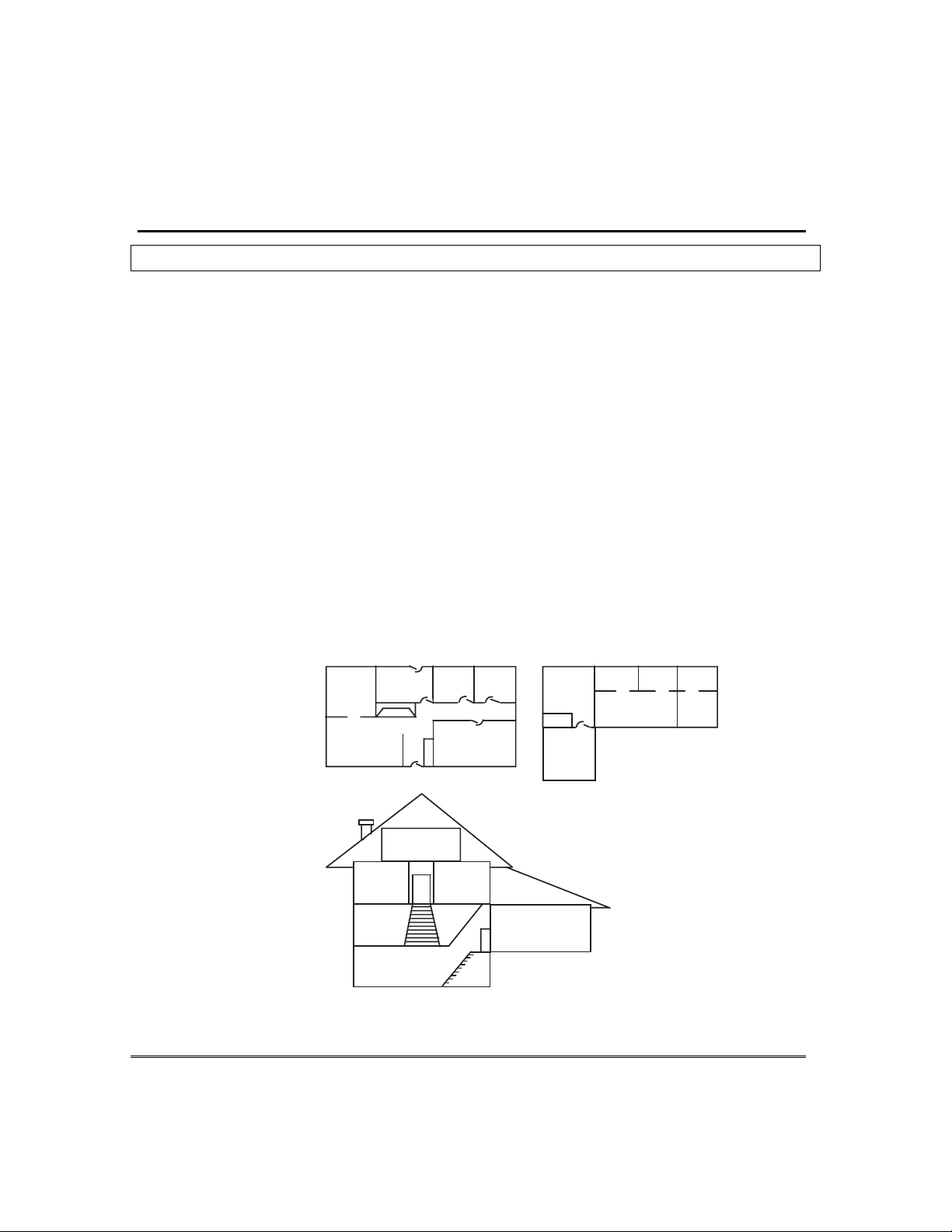

EARLY WARNING FIRE DETECTION

Early warning fire d etection is important in a home. Smok e and heat detectors have played a ke y role in red ucing f ire deaths in t he Unit ed Sta tes. W ith regard to the number and placement of smoke/heat detectors, we subscribe to the recommendations contained in the National Fire Protection Association's National Fire Alarm Code (NFPA 72). T hes e re com mendations can be f ound on page 34 of this manual.

$ERXW7KLV0DQXDO

This manual is a step-by-step guide that will acquaint you with the system's features and benefits . It defines the components and their functions, describ es their operation, and provides clear step-by-step instructions for normal and emergency procedures. Keep this m anual in a convenient pl ace so that you c an refer to it as necessary.

– 2 –

7DEOHRI&RQWHQWV

................................

....................

................................

..........................

................................

.......................

................................

...........

................................

.............

................................

..............................

................................

.................

................................

............................

................................

.........................

................................

.........................

................................

............

................................

...............

................................

.........................

................................

.......

................................

....................

................................

.........................

................................

.............

................................

........

................................

.............................

................................

............

................................

...........

................................

......................

................................

...........

................................

..............................

................................

......

................................

......................

................................

...........................

................................

......................

................................

.................

................................

..............................

................................

................

System Overview

Introduction System Basics

Using the Voice Message Center.........................................................................................7

About The Touchpads

General Information

Functions of the Touchpads Entry/Exit Delays

Exit Delay Entry Delay Exit Alarms

Checking For Open Zones

Using the [∗] Key to Display and Announce System Status

Arming the Syste m

Stay Mode: Arms Perimeter Only, Entry Delay On Night-Stay Mode: Arms Perimeter Only, Plus Selected Zones Instant Mode: Arms Perimeter Only, Entry Delay Off Away Mode: Arms Entire System, Entry Delay On Arming Commands Single Button Arming Single-Button “Step” Arming

5 5

10 12

12 12 13

14 14 14 14 15 16 16

Using the Keyswitch

Disarming and Silencing Alarms

Using the [OFF] key

Bypassing Protection Zones

Using the BYPASS Key Quick Bypass

Chime Mode Viewing Current Date and Time

Viewing the Current Date and Time Setting the Date and Time

Panic Keys

Using Panic Keys

19 20

20 21

21 21

– 3 –

Table of Contents

................................

...................

................................

...............

................................

.......................

................................

.......................

................................

....

................................

.....................

................................

....

................................

.........

................................

...............

................................

..................

................................

.........

................................

...............................

................................

................

......

................................

......

................................

....

................................

.............................

................................

................

................................

.............

................................

..........

................................

.......

................................

............................

................................

..............

................................

...

................................

.......................

................................

........

................................

......

................................

............

................................

....................

Macro Key Programming & Usage

About Macro Keys Example of Macro Programming Using a Programmed Macro Key

Using Device Commands Paging Feature

About Automatic Paging About Manual Paging Latch Key Paging

Security Codes & Authority Levels

About Security Codes Authority Level Definitions To assign User Codes and Attributes

Accessing Other Partitions (GOTO Command and Multi-Partition Arming)

About Accessing Partitions Using the GoTo Command Multi-Partition Arming Common Zone Operation

Scheduling

About Scheduling Creating Schedules

23 24 24

25 26

26 27 27

28 28 29

30 31 31 32

33 33

Event Logging Procedures

About Event Logging Viewing the Event Log

Testing the System (To Be Conducted Weekly) Trouble Conditions Maintaining Your System Fire Alarm System (If Installed) Quick Guide to Basic System Functions Summary of Audible/Visual Notifications Regulatory Statements and Warnings Charts of Your System's Features

– 4 –

35 35

36 37 40 41 45 46 48 50

,QWURGXFWLRQ

Congratulations on your ownership of an ADT Pa rtitioned Security System. You've made a wise decision in choosing it, for it represents the latest in security protection technology today, and millions of premises are protected by ADT systems.

This system provides:

• Three forms of protection: burglary, fire* and emergency.

• At least one touchpad which provides control of system operation and displays

the system’s status

• Various sensors for perimeter and interior burglary protection

• Smoke or combustion detectors* designed to provide early warning in case of fire.

Your system may also have been programmed to automatically send alarm or status messages over the phone lines to a Customer Care Center.

* Commercial installations and some residential systems may not include fire protection – check with your installer.

6\VWHP%DVLFV

Burglary Protection

• There are four modes of burglary protection: Stay, Night-Stay, Away, Instant. STAY: arms perimeter zones only and entry delay is on INSTANT: same as STAY, except entry delay is off NIGHT-STAY: arms perimeter zones and selected interior zones; entry delay on AWAY: arms perimeter and all interior zones, entry delay is on

• You can BYPASS selected zones while leaving the rest of the system armed.

• CHIME mode alerts you to the opening of protected doors and windows while the

system is disarmed.

Fire Protection

• Fire protection is always active (if installed) and an alarm sounds if a fire condition is detected

• If necessary, you can manually initiate a fire alarm using the touchpad (if programmed).

• Refer to the Fire Alarm System section for information regarding fire protection, smoke detectors and planning emergency exit routes.

Security Codes

• You were assigned a 4-digit security code during system installation.

• Use your security code when arming and disarming the system, and when

performing other system functions.

• Other users can be assigned different security codes.

• User codes can be assigned different authority levels, which defi ne which system

functions a particular user can perform.

6\VWHP2YHUYLHZ

– 5 –

6\VWHP2YHUYLHZ

Zones and Partitions

• The system sensing devices have been assigned to various “zones,” which are specific areas of protection (e.g., front door, kitchen window, etc.).

• Zone numbers are displayed at the touchpad when an alarm or trouble condition occurs on a sensor.

• Partitions provide two independent areas of protection, with each partition containing a group of zones that can be armed and disarmed without affecting other zones or users.

• Partitioned systems can include a common zone ar ea, which is an area shared by users of both partitions (such as a lobby in a building).

• Partition identification: 1 = partition 1; 2 = partition 2; 3 = common zone.

Arming, Step-Arming and Disarming Burglary Protection

• The system must be armed before the burglary protection can sense intrusions.

• To arm your system, enter your user code followed by the desired arming key.

• If programmed, the [#] key can be pressed instead of entering the security code

when arming the system.

• You can also use the step-arming key to arm the system, if programmed.

• To disarm the system, enter your user code then press the [OFF] key.

• Step-arming, if programmed, lets you use a function key to arm the system in one

of three modes by simply pressing the key repeatedly, where: first press arms STAY; second press arms NIGHT-STAY; third press arms AWAY.

Alarms

• When an alarm occurs, both the touchpad and external sounders will sound, and the touchpad will display the zone(s) causing the alarm.

• If your system is connected to a Customer Care Center, an alarm message will also be sent.

• To stop the alarm sounding, simply disarm the system.

Memory of Alarm

• When an alarm condition occurs, the touchpad displays the number(s) of the zone(s) that caused the problem, and displays the type of alarm (e.g., “FIRE”).

• The message remains displayed even after disarming the system, but can be cleared with another “off” sequence.

Function Keys

• The “A”, “B”, “C”, and “D” keys on the touchpad can be programmed to perform various functions.

• Functions include: activat e a Panic alarm; arm the system; provide step arming; switch lights on/off; send a message to a pager; display Time/Date; start a Macro

&RQWLQXHG

– 6 –

6\VWHP2YHUYLHZ

The Voice Touchpads feature a voice message

center that lets you record and playback one

Refer to the procedures below when using the

Phone Access

• If included, a phone module permits you to access the system via a touch-tone phone, either on-premises or b y call-in when away.

• When you call in, the phone module announces system status over the telephone, and you can arm/disarm the system and perform most function commands remotely using the telephone keys.

• Complete information for using these features is provided wit h the voice module.

Paging Feature

• If programmed, the system can automatically send certain system condition messages to up to four pagers.

• The display consists of code numbers that identify the type of condition that has occurred.

Scheduling

• Your system can be programmed to automatically perform certain functions (e.g., arm the system) at a predetermined time each day.

8VLQJWKH9RLFH0HVVDJH&HQWHU

message.

• The message can be up to 2.5-minutes long

• The message remains in the Touchpad’s memory

until a new message is recorded.

• The volume control of the message is adjustable.

•

Message Center functions.

Message Center Functions

To… Press these keys… Notes…

record a message

end recording

play a message

adjust the volume

[#] FUNCTION + [0] VOICE + [1] RECORD

[1] RECORD

[#] FUNCTION + [0] VOICE + [3] PLAY

[#] FUNCTION + [0] VOICE + [2] VOLUME keys, then press volume key [3] ↑ (up) or [6] ↓ (down)

&RQWLQXHG

KEY

VOICE

KEY

OFF

RECORD VOLUME

INSTANT

READY

STATUS

FUNCTION

VOLUME

KEY

AWAY

TEST

CODE

KEY

PLAY

BYPASS

FUNCTIONVOICE

LCD

DISPLAY

STATUS

KEY

RECORD

LEDs

SPEAKER

ARMED

READY

MESSAGE

MIC

MICROPHONE

The red MESSAGE LED lights. Message remains in memory until a new message is recorded. The red MESSAGE LED flashes, indicating message waiting. The recorded message plays and the red MESSAGE LED turns off. Adjusting message volume also adjusts status volume. Volume cannot be adjusted while playing.

PLAY KEY

UP VOLUME

STAY

CHIME

AND

DOWN

VOLUME

6160VADT-50-003-V0

– 7 –

$ERXW7KH7RXFKSDGV

*HQHUDO,QIRUPDWLRQ

Your touchpads allow you to control all system functions and feature the following:

• A telephone style (digital) keypad

• Liquid Crystal Display (LCD) which shows the nature and location of all

occurrences

• Built-in sounder which will sound during alarms and troubles. The sounder also "beeps" during certain system functions and when depressing any of the keys (to acknowledge the key press).

• Backlighting of the LCD display windows. Backlighting turns on when any key is pressed, and when opening an entry/ exit door while the system is armed. This feature is helpful when a touchpad is located in a dimly lit area.

• Some touchpads have a voice feature that announces the nature and location of all occurences. Voice touchpads also announce any faulted zones when Chime mode is on. Ask your installer if this option has been programmed for your syst em.

IMPORTANT:

an alarm has occurred during your absence and an intruder may still be on the premises. LEAVE IMMEDIATELY and CONTACT THE POLICE from a nearby safe location.

Your touchpads are functionally the same, but may have different types of displays, depending on the type installed with your system. To access the keys on the touchpad, simply open the swing-down door.

Custom English Display

English Display

Voice Touchpads

If the touchpad beeps rapidly upon entering the premises, it indicates that

2-line Custom English display touchpads feature a 2-line, 32-character alphanumeric LCD which displays system messages in friendly English. These touchpads can also b e programmed with custom zone descriptors.

English display touchpads are functionally identical to Custom English display touchpads, but the LCD display uses predesignated words to identify the nature and location of occurrences.

Voice Touchpads (if installed), are functionally the same as other touchpads, except that these touchpads can provide the following:

• Voice announcements of system status (see Checking for Open Zones section)

• Voice chime, which can alert you to the opening of doors and windows while the system is disarmed (see Voice Chime in Chime mode section)

• Message center, which lets you record and playback messages (see Using the Voice Message Center in the System Overview section).

– 8 –

$ERXW7KH7RXFKSDGV&RQWLQXHG

(QJOLVK'LVSOD\7RXFKSDG

AWAY:

STAY:

INSTANT:

BYPASS:

NOT READY:

NO AC:

AC:

CHIME:

BAT:

ALARM:

All burglary zones, interior and

perimeter, are armed.

Perimeter burglary zones, such as

protected windows and doors, are armed.

Entry delay is turned off:

Lit with STAY = Instant mode Lit with AWAY = Maximum mode

This appears when one or more burglary prot ection zones have been

bypassed. Appears when burglary portion of the system is not ready for arming

(due to open protection zones). The system is ready to arm when th is message disappears and the READY indicator light comes on.

Appears when AC power has been cut off. System is operating on

backup battery power.

Appears when AC power is present. Appears when the CHIME feature is activated. Low battery condition in a wireless sensor (if zone number displayed)

or low system battery (if no zone number displayed).

Appears when an intrusion has been detected and the system is armed

(also appears during a fire alarm or audible emergency alarm). Accompanied by the protection zone in alarm.

ALARM FIRE

ENGLISH DISPLAY TOUCHPAD

AWAY

BYPASS

STAY

CHECK INSTANT

NO AC

TEST NOT READY CHIME BAT

CHECK:

FIRE

Appears when a malfunction is discovered in the system at any t ime or

if an open is detected in a FIRE zone at any time or a fault in a DAY/NIGHT burglary zone during a disarmed period. Accompanied by a display of zone number in trouble.

: Appears when a fire alarm is present. Accompanied by a display of the

zone in alarm. A FIRE display also appears when a fire alarm is manually activated,

accompanied by a display of emergency key zone number programmed for fire.

– 9 –

)XQFWLRQVRIWKH7RXFKSDGV

NOTE:

indicate their primary purpose (most require entry of a security code first); the functions printed under some keys (shown in brackets in the list below) indicate an alternate function available on voice touchpads only.

The functions pri n te d di rectly on the keys

DISPLAY WINDOW.

Custom English Display Touchpads:

character Liquid Crystal Display (LCD) touchpads that display protection point identification, system status, and messages.

English Display Touchpads:

zone ID and system status messages using predesignated words in the LCD display.

OFF

Disarms burglary portion of

silences alarms and audible trouble indicators, and clears visual display after problem's correction.

[RECORD]

message.

AWAY

perimeter and interior.

[VOLUME]

to set playback and system announcement volume.

STAY

system only. Interior protection is not armed, allowing movement within premises without causing an alarm.

[PLAY]

Used with VOLUME key to raise volume.

[↑]

a numeric key.

TEST

disarmed. Refer to test procedures.

BYPASS

from being monitore d by the sys t em.

Used wi th VOLUME k ey to lower volume.

[↓]

INSTANT

mode, but without the entry delay feature. Entering via an entry/exit door will cause an instant alarm.

Used to record up to a 2.5-m inute

Arms the entire burglary system,

Used with the desired ↑ [3] or ↓ [6] keys

Arms perimeter portion of burglary

Used to playback a recorded message.

This is not a Function key. Used only as

Tests the system and alarm sounder if

Testing The System

Removes individual prote cti on zones

Arms in manner similar to the STAY

Display protection

2-line, 32-

the system,

section for

CODE

for other users of the system.

10.

When on, the opening of windows or doors while the system is disarmed will sound 3 beeps at the touchpad(s).

11.

the system without use of a security code (if programmed).

[FUNCTION]

functions.

12. Key

RECORD, VOLUME, and PLAY functions.

13.

zones.

[STATUS]

faulted zones (if any exist).

KEYS 0–9:

14.

security code(s).

MIC:

15.

MESSAGE LED:

16.

message waiting or lights steady red when recording a message.

READY INDICATOR:

17.

system is ready to be armed (no faults present). While the system is disarmed, this indicator will go on and off as protection zones are closed and opened.

ARMED INDICATOR:

18.

system has been armed.

FUNCTION KEYS:

19.

been programmed for a variety of functions, including panic (emergency) functions. For details, see the

INTERNAL SPEAKER:

20.

mimics the alarm sounder during alarms, and will also "beep" during certain system functions. The speaker also provides voice playback for any recorded messages.

∗

Used to assign additional user codes

CHIME

READY

Turns CHIME mode on

This key can be used for "Quick Arming" of

Used to enable voice and volume

[VOICE]

Used to display all open protection

Used to announce system status and

Microphone for Message Center recordings.

Used to activate the

Numeric keys used to enter your

(red). Flashes red when

(green) Lit when the

Keys A, B, C, D may have

Function Keys

section.

and off.

(red) Lit when the

The built-in speaker

– 10 –

)XQFWLRQVRIWKH7RXFKSDGV&RQWLQXHG

ARMED

READY

MESSAGE

MIC

234

OFF

RECORD VOLUME

INSTANT

READY

STATU S

Custom English Display Voice Touchpad

(shown without swing-down front door)

STAY

PLAY

BYPASS

AWAY

TEST

7 8

CHIME

CODE

FUNCTIONVOICE

6160VADT-002-V0

IMPORTANT!

When entering codes and commands, sequential key depressions must be made

•

within 10 seconds of one another. If 10 seconds elapse without a k ey depression, the entry will be aborted and must be repeated from its beginning. Be sure to observe this precaution when performing any of the procedures in this manual.

• If you make a mistake while entering a security code, stop, press the [

✱

and then start over. If you stop in the middle while entering a code, and then immediately start the entry over, an erroneous code might be entered.

] key,

– 11 –

(QWU\([LW'HOD\V

________________________________

___________________________

________________________________

___________________________

(QWU\'HOD\

Entry Delays give you time to disarm the system when you re-enter through the designated entrance door. You must disarm the system (simply enter your security code) before the entry delay period ends, or an alarm will occur. The touchpad beeps during the entry delay period, reminding you to disarm the system. There are two entry delays (if programmed). The first is for your primary entrance and the second can be used for a secondary entrance, where a longer delay is required to walk to the touchpad to disarm the system.

You can also arm the system with no entry delay at all by using the INSTANT arming mode. This mode provides greater security while on the premises or while away for extended periods of time.

See your installer for your delay times.

Partition 1

Exit D elay: seconds Entry Delay 1: seconds

([LW'HOD\

Exit delay gives you time to leave t hrough the designated exit door without setting off an alarm. Exit delay begins immediately after arming your system in any arming mode and Custom Display touchpads display the message “You May Exit Now.”

“You may exit now” disappears, the system is fully armed.

will sound during the exit delay period, until the last 10 seconds, which then changes to fast beeping (alerting you to the end of exit delay). If you cannot leave by this time, you should stop, disarm the system, and start over to avoid a false alarm.

Exit Delay Restart (if programmed): someone in after arming STAY, you can re-start the exit delay at any time – simply press the [✱] key, then let that person in. The system automatically re-arms when exit delay expires, which avoids having to disarm the system and then re-arm it again. In addition, when the system is armed AWAY, reopening and closing the entry/exit door before exit delay time expires (e.g., reentering to get a forgotten item) will reset the exit delay time.

Entry Delay 2:

NOTE: Entry/Exit times set for partition 1 also apply to the common zone. Partition 2

Exit D elay: seconds Entry Delay 1: seconds

Entry Delay 2:

If programmed, a slow beeping

If you wish to open the entry/exit door to l et

seconds

When

– 12 –

([LW$ODUPV

protection zones have been either closed or bypassed.

Whenever you arm the system, the exit delay begins. If an entry/exit door or interior zone is faulted when the exit delay ends (e.g., exit door left open), the system sounds an alarm and starts the entry delay timer. If you disarm the system before the entry delay ends, the alarm sound stops and the message "CANCELED ALARM" or "CA" is displayed on the touchpad, along with a zone number indicating the faulted zone. No message is sent to the Customer Care Center.

To clear the exit alarm condition, the open zone must be made intact; to clear the display, enter your code plus OFF.

If you do not disarm the system before the entry delay ends, and an entry/exit door or interior zone is still open, the alarm sound continues and an "exit alarm" message is sent to the Customer Care Center. The message ""EXIT ALARM" or "EA" is displayed on the touchpad, along with a zone number indicating the faulted zone. To stop the alarm, the system must be disarmed (your code plus OFF); to clear the dis play, enter your code plus OFF a second time. An “exit alarm” also results if an entry/exit door or interior zone is faulted within two minutes after the end of the exit delay.

Your system may have been programmed for this feature to minimize false alarms sent to the Customer Care Center. Ask your installer if "Exit Alarm" is active in your system. If so, check this box.

(QWU\([LW'HOD\V

&RQWLQXHG

&KHFNLQJ)RU2SHQ=RQHV

8VLQJWKH>∗@.H\WR'LVSOD\DQG$QQRXQFH6\VWHP6WDWXV

efore arming your system, all protected doors, windows and other protection zones

must be closed or bypassed, otherwise the touchpad will dis play a "Not Ready" message.

1. Press [∗] READY (do not enter code first) to display faulted zones

2. Secure or bypass the zones displayed.

The touchpad’s READY indicator lights when all

4. Arm the system as desired.

Voice Status: Voice Touchpads (if installed), can announce system status and faulted zones (up to 3 zone descriptors ) if the Voice Status feature is turned on.

To turn the Voice Status feature on/off:

(also turns on Voice Chime mode; see

To announce Status: Press [∗] STATUS key once. To announce faulted zones: Press the [∗] STATUS key a second time within 5

seconds of the first press.

# + 0 + 2 + 4

Chime mode

section)

Custom Display:

(-7%61)(  46)77 83 7,3; *%9087

English Display:

Zone no. and “NOT READY”

∗

– 13 –

$UPLQJWKH6\VWHP

6WD\0RGH$UPV3HULPHWHU2QO\(QWU\'HOD\2Q

• Used when you want to arm the system with persons staying inside (or if you have pets that are moving throughout the premises).

• The perimeter sensors are armed, bu t interior sensors are left disarmed.

• Exit delay begins (you can lea ve through the entry/exit door, if desired).

• An alarm sounds immediately if any protected perimeter window or non-entry/exit

door is opened.

• You may otherwise move freely within the premises.

• Persons entering later can enter through an entry/exit door without causing an

alarm, but they must disarm the system within the entry delay period to avoid sounding an alarm.

1LJKW6WD\0RGH$UPV3HULPHWHU2QO\3OX V6HOHFWHG=RQHV

• Use Night-Stay mode to provide increased security while staying inside.

• Arms same as Stay mode, but also arms pre-selected interior sensors (programmed

by your installer), while other interior sensors are left disarmed.

• Persons entering later can use an entry/exit door but they must disarm the system and must not violate any of the programmed interior zones to avoid sounding an alarm.

•

IMPORTANT: When Night-Stay mode is on, the selected interior zones are armed and cause an alarm if anyone enters those areas (e.g., waking in the middle of the night). To avoid sounding an alarm, you must disarm the system before any activity takes place in those interior zones.

,QVWDQW0RGH$UPV3HULPHWHU2QO \(QWU\'HOD\2II

• Used when staying inside and do not expect anyone to use an entry/exit door.

• Arms same as Stay mode.

• An alarm sounds immediately if any protected perimeter window or any door is

opened, including entry/exit doors .

•

IMPORTANT: Arming the system in this mode greatly increases the chance of false alarms. Use extreme care in selecting this mode of arming.

$ZD\0RGH$UPV(QWLUH6\VWHP(QWU\'HOD\2Q

• Used when nobody will be staying inside (including pets).

• The entire system (interior and perimeter) is armed.

• Exit delay begins letting you leave through the entry/exit door.

• An alarm sounds if a protected window or any door is opened, or if any movement

is detected inside your premises.

• You can reenter through an entry/exit door wi thout causing an alarm, but you must disarm the system within the entry delay period to avoid sounding an alarm.

– 14 –

$UPLQJ&RPPDQG V

Before arming, close all perimeter doors and windows and make sure the Ready to Arm message is displayed.

Modes of Arming

Mode Press these keys… Touchpad Confirms By…

Stay security code + [3] (STAY)

Night-Stay security code + [3] + [3]

Instant security code + [7] (INSTANT)

Away security code + [2] (AWAY)

$UPLQJWKH6\VWHP

•

three beeps

•

armed STAY message displayed

•

red ARMED indicator lights

•

three beeps

•

NIGHT-STAY message displayed

•

red ARMED indicator lights

•

three beeps

•

armed STAY message displayed

•

red ARMED indicator lights

•

also note that entry delay is turned off

•

two beeps, or, if programmed, beeping

for duration of exit delay

•

armed AWAY message displayed

•

red ARMED indicator lights Leave the premises through an entry/exit door during the exit delay period to avoid causing an alarm. The touchpad beeps rapidly during the last 5 seconds of the exit delay to warn you that it is ending.

Quick Arming

If "Quick Arming" was programmed by the installer, the

[#]

key can be pressed in place of the security code when arming the system in any of its arming modes. However,

Function Key Arming

For any arming command, a function key may have also been programmed for your system. If so, you can press and hold the appropriate function key for 2 seconds to arm the system. See your installer for the designated functions (see Single Button Arming section).

the security code must always be used to disarm the system.

Refer to the Accessing Other Partitions section for information on multi-partiion arming.

– 15 –

$UPLQJWKH6\VWHP

6LQJOH%XWWRQ$UPLQJ

The “A”, “B”, “C”, and/or “D” keys on your touchpad may have been programmed for single-button arming. Note that while it will not be necessary to use a security code for arming, a security code must always be used to disarm the system.

If Single-Button Arming is programmed:

• A function key has been assigned to a specific type of arming: STAY mode, Night-

STAY mode, AWAY mode, or STEP-ARMING (see St ep-Arming paragraph).

• You DO NOT need to enter your security code before pressing the function key

(but you always need your security code to DISARM the system).

Before arming, close all perimeter doors and windows.

Press and hold the assi gned function key for 2

seconds (no code is required). Function keys are shown below.

A B C D

The touchpad begins beeping and displays the

armed message. The red ARMED indicator also lights.

OFF

INSTANT

READY

AWAY

TEST

CODE

STAY

321

BYPASS

654

CHECK

987 #0

ADT3000-007-V0

(-7%61)(

6)%(= 83 %61

English Display:

Green LED lit

%61)(%;%= =39 1%= )<-8 23;

6LQJOH%XWWRQ´6WHSµ$UPLQJ

Single-Button “Step” arming may have been programmed into one of the lettered keys (A, B, C, or D). Check with your installer to see if this has been done in your system.

If Step-Arming is programmed:

• The assigned key provides a choice of three levels of security.

• The selected key can be pressed once, twice, or three times, increasing the level of

security with each press, as follows

Key

First Press

A, B, C, D

– 16 –

Armed-STAY Armed Night-STAY

Second Press

(if programmed)

English Display:

Third Press

Armed-AWAY

AWAY

8VLQJWKH.H\VZLWFK

GREEN

RED

Your system may be equipped with a keyswitch for use when arming and disarming. Red and green lights on the keyswitch plate indicate the status of your system as follows: Green Light: Lights when the system is disarmed and ready to be armed (no

open zones). If the system is disarmed and the green light is off, it indicates the system is not ready (one or more zones are open).

Red Light: Lights or flashes when system is armed in AWAY or STAY mode.

See your installer for the meanings of the lit red light: Lit Steady = system armed AWAY or

Flashing = system armed STAY and exit delay timer active Rapid flashing = an alarm has occurred (memory of alarm).

Before arming, close all perimeter doors and windows.

To arm in the AWAY mode:

Turn the key to the right for 1/2 second and release. Touchpads beep twice and the red indicator lights or flashes.

To arm in the STAY mode:

Turn the key to the right and hold for longer than 1 second, then release. Touchpads beep three times and the red indicator lights or flashes.

To disarm the system:

Turn the key to the right and release. The red light turns off

8VLQJWKH.H\VZLWFK

system armed STAY and exit delay has expired

– 17 –

'LVDUPLQJDQG6LOHQFLQJ$ODUPV

8VLQJWKH>2)) @N H\

The OFF key is used to disarm the system, silence alarm and trouble sounds, and clear alarm memories.

IMPORTANT: If you return and the main burglary sounder is on,

CONTACT THE POLICE from a nearby safe location. If you return after an alarm has occurred and the main sound er has shut itself off,

will beep rapidly upon your entering, indicating that an alarm has occurre d during you r absence.

LEAVE AT ONCE, and CONTACT THE POLICE from a nearby safe location.

+ 1

(Security Code)

OFF

DO NOT ENTER, but

the touchpad

(-7%61)(

6)%(= 83 %61

The “READY” indicator light will be lit if all zones are secure, and the touchpad will emit a single tone

English Display:

READY

to confirm that the system is disarmed. NOTE: If entry delay has started (you’ve open ed the

entry door), you do not need to press the OFF key; simply enter your security code.

To Silence a Burglary Alarm and Clear a Memory of Alarm

Enter your security code. This disarms the system and silences the alarm (or warning tones of a Memory of Alarm).

Note the zone in alarm on the touchpad display, and make that zone intact (close door, window, etc.). Now enter the security code plus OFF sequence again to clear the touchpad’s Memory of Alarm display.

3. To Silence a Fire Alarm and Clear Memory of Alarm

Simply press the OFF key to silence the alarm. Note the zone in alarm on the touchpad display, and check the detector. Now enter the security code plus OFF sequence to clear the touchpad's Memory of Alarm display. See the Fire Alarm System section.

– 18 –

8VLQJWKH%<3$66.H\

Use t

his key when you want to arm your system with one or more zones intentionally

unprotected.

Vent Zones:

automatically bypassed if left open when arming the system (you do not need to manually bypass them). However, if a vent zone window is closed becomes protected and will cause an alarm if opened again while the system is armed.

When bypassing zones:

•

The system must be disarmed before you can bypass zones.

•

Bypassed zones are unprotected and will not cause an alarm if violated.

•

The system will not allow fire zones to be bypassed.

•

Zones are automatically unbypassed when the system is disarmed.

+ 6 + zone numbers (see below)

(Security Code)

Enter the 2-digit zone number(s) for the zone(s) to be bypassed (e.g., 06, 10, 13, etc.). Single digit zone numbers must be preceded by a zero (e.g. 05, 06).

When finished, the touchpad will momentarily

display a "Bypass" message for each bypass ed zone number. Wait for all bypassed zones to be displayed.

Arm the system as usual. To display bypassed zones prior to arming, enter

your security code and press the [6] BYPASS key.

Your system may have certain windows set as “vent” zones, which are

%\SDVVLQJ3URWHFWLRQ=RQHV

after

(-7%61)(  46)77

BYPASS

 83 7,3; *%9087

English Display:

(-7%61)( &=4%77

6)%(= 83 %61

English Display:

BYPASS

arming, it

NOT READY

– 19 –

%\SDVVLQJ3URWHFWLRQ=RQHV

4XLFN%\SDVV

If programmed, "Quick Bypass" allows you to easily bypass all open (faulted) zones without having to enter zone numbers individually. This feature is useful if, for example, you routinely leave certain windows open when arming at night.

+ 6 + [#]

(Security Code)

In a few moments, all open zones will be displayed and automatically bypassed.

zones that you wish to leave unprotected are bypassed, and that there are no other zones unintentionally left open.

Wait for all bypassed zones to be displayed, then arm

the system as desired. Ask your installer if "Quick Bypass" is active for your system, and if so, check here:

BYPASS

Make sure that only those

&KLPH0RGH

CHIME mode alerts you to the opening of a perimeter door or window while the system is disarmed. When Chime mode is activated:

• Three tones sound at the touchpad whenever a perimeter door or window is opened.

• Interior zones do not produce a tone when they are faulted.

• Pressing the READY key will display the open protection points.

To turn Chime Mode on/off

+ 9

(Security Code)

The CHIME message appears when on. Perimeter zones will cause a tone when faulted.

The CHIME message disappears when Chime mode is off.

Voice Chime: You can set the Voice Touchpads (if installed) to announce faulted (opened) entry/exit or perimeter zon es whenever normal Chime mode is on.

To turn Voice Chime Mode on or off:

(normal Chime mode must be on first)

When Voice Chime is on, any faulted zone(s) causes a voice status announcement, chime and display. When off, the sounder still provides chime if normal Chime mode is on.

CHIME

(system must be disarmed)

# + 0 + 2 + 4

(-7%61)(  46)77  83 7,3; *%9087

English Display:

(-7%61)( &=4%77

6)%(= 83 %61

English Display:

(-7%61)(

6)%(= 83 %61

English Display:

(-7%61)( ',-1)

6)%(= 83 %61

English Display:

NOT READY

BYPASS

READY

CHIME

– 20 –

9LHZLQJ&XUUHQW'DWHDQG7LPH

To move cursor ahead, press [∗]. To go back, press [#].

9LHZLQJWKH&XUUHQW' DW HDQG 7LP H

The system lets you view its time and date setting.

+[#] + [6] [3]

(Security Code)

OR, press the function key (A, B, C, or D) for viewing

current date and time, if programmed.

(-7%61)(

6)%(= 83 %61

English Display:

READY

A typical time/date display is shown. The display will remain on for about 30 seconds.

“A” “B ” “C” “D”

If one of the above keys has been programmed for the date/time display feature, place a check mark in the box beneath that key.

6HWWLQJWKH'DWHDQG7LPH

You can set the time and date by doing the following:

+[#] + [6] [3]

(Security Code)

2. Press [∗] when the time/date is displayed. A cursor appears under the first digit of the hour.

• Enter the 2-digit hour setting.

• Enter the 2-digit minute setting.

• Press [1] for PM or [0] for AM.

• Enter the last two digits of the current year.

• Enter the 2-digit month setting.

• Enter the 2-digit day setting.

3. To exit, press [∗] when cursor is at the last digit, or wait 10 seconds.

8-1)(%8) 7%8 %1C

(-7%61)(

6)%(= 83 %61

8-1)(%8) 7%8 41 

Current time display

8-1)(%8) 7%8 4

Time/date editing display

– 21 –

3DQLF.H\V

8VLQJ3DQLF.H\V

Your system may have been programmed to use special keys to manually activate emergency (panic) functions as follows:

This Function Sends this signal* With This Sounding…

Silent Alarm silent alarm no audible alarm or any visual display

Audible Alarm audible alarm a loud, steady alarm at touchpad(s)

Personal Alarm auxiliary alarm steady alarm sound at touchpad(s),

Fire Alarm fire alarm temporal (pulsing) sound at external

*All panic functions send signals to the Customer Care Center, if connected.

indicating that a silent alarm has been initiated.

and at any external sounders that may be connected.

but not at external bells or sirens.

bells and sirens.

To activate a Panic Function:

Press and hold down for at least 2 seconds whichever lettered key on the touchpad has been programmed for the desired emergency function.

(-7%61)(

6)%(= 83 %61

English Display:

READY

OR Press both keys of the assigned key pair at the same

time.

ARMED

STAY

AWAY

OFF

ARMED

READY

C D

BYPASS

TEST

CHIME

CODE

INSTANT

READY

6160ADT-50-002-V0

READY

Typical Panic Display:

%0%61 

English Display:

99 and ALARM

PRESS BOTH KEYS OF DESIRED PAIR AT THE SAME TIME

AWAY

STAY

OFF

BYPASS

TEST

INSTANT

READY

ZONE 99

CODE

ZONE 96ZONE 95

CHIME

6160ADT-50-003-V0

Lettered Panic Keys Panic Key Pairs

See your installer and use the chart provided in the Features Programmed in Your System section to note the functions that have been programmed for your system.

– 22 –

$ERXW0DFUR.H\V

The “A”, “B”, “C” or “D” keys can be used to automatically activate a series of commands of up to 16 keystrokes, if programmed for this function. These keystrokes, as a group, are called “macros” and are stored in the system's memory.

• Typical macro functions can include:

- Arming sequences: STAY, Night-STAY, INSTANT, or AWAY

- Bypassing particular zone(s)

- Activating relay(s) for turning on (or off) lights, fans, etc.

• Up to four macros can be assigned – but no more than one macro to a key.

• Macros can be activated only by users with authority levels authorized to

perform the macro’s function.

NOTE: The installer must activ ate the desired fun ction key (using *57 Function key Menu Mode) before macros can be assigned.

See the chart at the back of this manual for the key(s) assigned for macros.

+ [#] + [6] + [6]

(Security Code)

Enter the macro number, 1-4, to be programmed at

the “Select Macro?” prompt. Remember, there are four macros available, but only one macro can be assigned to each key.

0DFUR.H\3URJUDPPLQJ8VDJH

(-7%61)(

6)%(= 83 %61

7)0)'8 1%'63  

3. If a macro has been previously defined, the keystrokes are shown on the bottom line of the display, otherwise the display is blank.

To exit this mode (and keep the existing macro definition), press any k ey except the [∗] key. The system returns to normal mode.

To define a macro for the selected key, press [∗] and continue with the next prompt.

Enter the first of the series of desired commands, (do not include your user code when programming a macro), then press/hold the “D” key for at least two seconds to complete the first command. This key terminates each separate command, and appears as an “F” in the touchpad display.

1%'63 (-740%=

1%'63 4+1

– 23 –

0DFUR.H\3URJUDPPLQJ8VDJH

FRQW

The touchpad beeps to acknowledge your input and displays the command you entered (followed by “F”).

4. Enter the next command, followed by press/holding the “D” key for at least two seconds. The touchpad beeps and displays the k eystrokes entered so far.

5. Repeat until the all the desired commands (up to 16 characters including the “F”s) have been entered.

Be sure to check your keystrokes before continuing. If you made a mistake, you must start over.

6. To exit, press/hold the “D” key for at least two seconds. The display returns to system status and indicates system is ready.

([DPSOHRI0DFUR3URJUDPPLQJ

Suppose you want to (1) bypass the two upstairs window zones, then (2) turn on an exterior light, and then (3) arm the security system in the AWAY mode. The procedures in the table that follows show you how you would program this macro:

Function

Bypass zones 02 & 03

Insert terminator. Press the “D” key for at least 2 seconds.

Turn light on

(device 01).

Insert terminator. Press the “D” key for at least 2 seconds.

Arm system AWAY Press

Insert terminator. Press the “D” key for at least 2 seconds.

Keystrokes Required Touchpad Display

Press 2-digit zone numbers 02 & 03.

Press [#] and 7 keys for “device ON”, and [01] key for selecting device 1.

BYPASS [6]

AWAY [2]

key.

key, then

Typical Macro Display:

1%'63 4+1

*# **



*

*#

*#*

*#*

*#**

8VLQJD3URJUDP PHG0DFUR.H\

(-7%61)(

6)%(= 83 %61

)28)6 97)6 '3() 

– 24 –

Press the Macro key programmed for the desired series of commands for at least 2 seconds.

User Code” prompt appears.

displayed for up to 10 seconds. Enter your 4-digit user code.

The programmed macro sequence begins automatically after the user code is entered.

The prompt remains

The “Enter

$ERXW'HYLFH&RPPD QGV

Your system may be set up so that it can control certain lights or other devices.

• Some devices may be automatically turned on or off by the system.

• You may be able to override automatically controlled devices using the

commands described below.

• Some devices can be manually turned on or off using the commands described below.

• See your installer for a list of devices that may be set up for your system. A list of these devices is provided at the back of this manual for you to fill out.

8VLQJ'HYLFH&RPPDQGV

To Activate Devices:

+ [#] + [7] + 2-digit device number

(Security Code)

Devices associated with that device number activate.

To Deactivate Devices:

+ [#] + [8] + 2-digit device number

(Security Code)

Devices associated with that device number deactivate.

(-7%61)(

6)%(= 83 %61

English Display:

READY

– 25 –

3DJLQJ)HDWXUH

$ERXW$XWRPDW LF3 DJLQJ

Your system may be set up to automatically send alert messages to a pager as certain conditions occur in your system.

• The following events can be programmed by your installer to be sent to the pagers: arming, disarming from a touchpad using a security code; auto-arming/disarming, arming with assigned button, and keyswitch arming do not send pager messages .)

• You can also program the system to send an automatic pager message to alert you in the event that someone has not arrived home (disarmed the system) within a defined period of time (see the Scheduling section for details on programming a “latch key report”).

• Your installer programs the pager phone numbers and reporting events.

• The pager message consists of a 7-digit system status code that indicates the type of

condition that has occurred.

• An optional, predefined 16-digi t character string can precede the 7-digit system status code; these characters can consist of a PIN no., subscriber account no., or any additional data that you may wish to have sent to the pager.

• The pager display format is as follows:

Optional 16 digits

A = B = C =

Optional 16-digits for Account numbers, PIN numbers, or any other data; programmed by the installer, if required.

The 3-digit Event Codes (BBB) that can be displayed are:

911 = 811 = 101 = 102 =

Alarms.

The 4-digit number (CCCC) following this code is the zone number that has caused the alarm.

†

, alarms, and trouble conditions. († reports when arming/disarming

AAAAAAAAAAAAAAAA

A 3-digit code that

describes the event that has occurred in your system (see for event codes table below)

A 4-digit User or Zone number, depending on the type of event that has occurred, where:

• alarms and troubles display zone number

• arming/disarming (opens/closes) display user number

The first 2 digits are always “00” (e.g., 0004 represents zone or user number 4), and, single-digit user or zone numbers are always preceded by a zero.

Troubles.

The 4-digit number (CCCC) following this code is the zone number that has caused the trouble.

3-digit Event Code

–

(system disarmed).

The 4-digit number (CCCC) that follows this code is the user number that has disarmed the system.

BBB

–

CCCC

Open

4-digit User or Zone No.

(system armed).

The 4-digit number (CCCC) that follows this code is the user number that has armed the system.

– 26 –

Examples of typical 7-digit pager displays follow.

Ex. 1 Ex. 2.

³

³

= Reporting of an alarm (911) caused by a fault on zone 4 (0004).

= Reporting of a closing–system arming (102)– by user 5 (0005).

$ERXW0DQXDO3 DJL QJ

Your system may be set up so you can manually send a message to up to four pagers.

• Your installer programs the paging function key and the pager phone numbers.

• Pressing the paging keys sends the message

• This message could mean “call home”, “call your office”, or any other prearranged

meaning.

• See the Paging chart at the back of this manual for details of the paging setup for

your system.

3DJLQJ)HDWXUH

999–9999

to the selected pager

1. Hold

pager key

Press and hold the programmed Paging Key for at least 2 seconds (wait for beep), then press the pager number (1-4)* representing the pager intended to receive the message.

2. The recipient, on seeing the 999–9999 message, will understand the prearranged meaning of th is signal.

If no number is pressed, the message is sent to pager 1

/DWFK.H\3DJLQJ

You can program a schedule that causes a pager report to be sent if the system is not DISARMED by the scheduled time (see Scheduling section, event “03”). For example, a working parent might want a message to be sent to a pager if their child did not arrive home from school and disarm the system by a certain time.

If programmed, the message that is sent is:

2 seconds then press [1-4].

(pager no.)

777–7777

(-7%61)(

6)%(= 83 %61

English Display:



Pager Display

READY

– 27 –

6HFXULW\&RGHV$XWKRULW\/HYHOV

$ERXW6HFXULW\&RG HV

Your system lets you assign up to 45 different security codes for use by other users.

• Only the System Master and Partition Masters can assign user codes to users.

• Users are identified by 2-digit user numbers 03-49 and are pre-assigned to either

partition 1 or partition 2 (users 01-02 are reserved).

• Only the Installer or System Master can change the partitions to which a user is assigned.

• In addition to a security code, each user is assigned various system attributes.

• User codes can be used interchangeably within a partition when performing system

functions (a system armed with one user's code can be disarmed by another user's code), with the exception of the guest code described below.

• User code programming involves these steps:

1. Choose a user number from the set of users assigned to the partition in which the user will be operating, and assign a 4-digit security code.

2. Assign an authority level to that user.

3. Assign other attributes as necessary (see attributes on the next page).

NOTE: The factory settings are designed to meet most normal user situations. Therefore, the only step you usually need to do when adding users is assign a user number (from the partition’s pre-assigned user numbers) and a security code.

$XWKRULW\/HYHO'HILQLWLRQV

Authority levels define the system functions a particular user can/cannot perform.

– 28 –

Level Title Explanation

N/A System Master Reserved for user 02; Can perform all system functions and assign

codes in both partitions; can change its own code as follows:

Master code + [8] + 02

0 Standard User Can only perform security functions in assigned partition.

Cannot perform other system functions. 1 Arm Only Can only arm the system. Cannot disarm or do other functions. 2 Guest Can arm the system in assigned partitions, but cannot disarm the

system

typically assigned to someone (such as a babysitter or cleaner) who

has a need to arm/disarm the system only at certain times. The user

of this code should 3 Duress Code Intended for use when you are forced to disarm or arm the system

under threat. When used, the system will act normally, but can

silently notify the Customer Care Center of your situation, if that

service has been provided. 4 Partition Master Can do everything a standard user can do, and can assign

user codes to users in their partition.

the system was armed with this code. This code is

unless

new master code + new master code again

use the “Quick Arming” feature.

not

6HFXULW\&RGHV$XWKRULW\/HYHOV

This command assigns the partitions the user can access . If more than

+RZ7R$VVLJQ8VHU&RGHVDQG$WWULEXWHV

The following lists the various command strings for adding user codes and attributes.

Refer to the User Setup chart a t the back of this manual for factory

assignments of user attributes and to keep a record of user programming.

NOTE: Partition Master codes apply only to those user numbers previously assigned

(by the system master/installer) to the partition master’s partition.

Add User Code:

(

Users 03/33 are preset to partition masters, but can be changed.)

Delete User Code:

Authority Level:

Factory Assignments: users 04-32/34-49 = 0 users 03/33 = 4

Access Group:

Factory Assignments: none

User’s Partition:

Factory Assignments: Part. 1 = users 03-32 Part. 2 = users 33-49

RF User Number:

Factory Assignments: none

Pager On/Off:

Factory Assignments: users 01-04 = 0 (off) users 05-49 = 1 (on)

System/Partition Master code + [8] + user no.

User 01 = installer User 03 = partition 1 master User 02 = master User 33 = partition 2 master The Touchpad beeps once to confirm that new user was added.

System/Partition Master code + [8] + [user no.] + [#] [0]

The user code and all attributes* programmed for this user number, including any associated RF keys, are erased from the system. (*except assigned partition)

System/Partition Master code + [8] + [user no.] + [#] [1]+ auth. level

Authority Levels (see definitions on previous page): 0 = standard user 3 = duress 1 = arm only 4 = partition master 2 = guest

System/Partition Master Code + [8] + [user no.] + [#] [2]+ group (1-8)

You can assign users to a group, then set an access schedule that defines the times this group of users can operate the system. The system ignores these users outside the scheduled times.

System Master Code + [8] + [user no.] + [#] [3]+ 0 + partition(s) + [#]

one, enter partition numbers sequentially, then press [#] to end. E.g., master code + [8] + [user no.] + [#] [3] + [0] + [1] [2] + [#] gives the user access to partitions 1 and 2 and the common partition. Partition Entries: 1 = partition 1 and common

2 = partition 2 and common 3 = common partition only

System/Partition Master Code + [8] + [user no.] + [#] [4]+ zone no.

Use this command to assign a wireless button device (keyfob) to this user (keyfob must be enrolled in system first; see installer).

one number: enter the zone number assigned to a button on the

keyfob that will be used for arming/disarming by this user.

System/Partition Master Code + [8] + [user no.] + [#] [5] + 0 or 1

You can program a user so that a message is sent to a pager whenever this code is used to arm or disarm the system. Paging On/Off: 1 = allow paging; 0 = no paging for this user

&RQW

new user’s code

– 29 –

$FFHVVLQJ2WKHU3DUWLWLRQV

Arming

Touchpad

Arming

Partition 1

Partition 2

Partition 1 and

Partition 2

Partition 1

Partition 2 and

Partition 1

Partition 2

*272&RPPDQGDQG0XOWL3DUWLWLRQ$UPLQJ

$ERXW$FFHVVLQJ 3DUW LWLRQ V

Condition 1

Condition 2

Condition 3

Condition 4

Each touchpad is assigned a default partition for display purposes, and will show only that partition's information.

• If the user is authorized, a touchpad in one partition can be used to perform system functions in the other partition by using the GOTO command. Refer to the GOTO section.

• If the user is authorized, that user can arm other partitions. Refer to the MultiPartition Arming section.

The following table shows the relationship of the touchpads in each partition when system is armed and disarmed.

PARTITION 1 PARTITION 2 COMMON ZONE

(LOBBY, etc.)

State

Disarmed

Armed

Touchpad

Status

Only

Common Zone

Only

State

Disarmed

Armed

Disarmed

Armed

Status

Only

Common Zone

Only

State

Disarmed Common Zone

Armed Common Zone

Touchpad

Status

Only

When both partitions are disarmed, the touchpad in each partition displays zone status for its partition only. The common zone touchpad shows the status in that zone only. See Condition 1 above.

When partition 1 is disarmed and partition 2 is armed, the touchpad in partition 1 shows the status of partition 1 and the common zone. Partition 2 will display the status of partition 2 only. See Condition 2 above.

When partition 1 is armed and partition 2 is disarmed, the touchpad in partition 1 shows the status of partition 1 only. Partition 2 will display the status of partition 2 and the common zone. See Condition 3 above.

As long as any one of the two partitions is disarmed, the common zone will always be disarmed. The common zone will be armed only when both partition 1 and 2 are armed. See Condition 4 above.

– 30 –

$FFHVVLQJ2WKHU3DUWLWLRQV

8VLQJWKH*R7R&RPPDQG

If the user is authorized, a touchpad in one partition can be used to perform system functions in the other partition by using the GOTO command.

• You must use a Custom English touchpad to access another partition.

• Touchpads automatically return to their original partition after 2 minutes

with no touchpad activity. + [∗] + partition number (0,1,2,3)

(Security Code)

0 = return to touchpad’s original partition. 1 = partition 1; 2 = partition 2; 3 = common zone

The touchpad beeps to confirm the partition change. The touchpad remains in the new partition until

directed to go to another partition, or until it automatically returns to the original partition.

The active partition number is displayed in the upper left portion of screen, if the option is programmed.

0XOWL3DUWLWLRQ$UPLQJ

Some users can be given Multi-Partition arming ability by being assigned to both partitions when programming user attrib utes. When attempting to arm multi-partitions:

• You must use a Custom English touchpad.

• The system arms only if a ll partitions are “ready to arm.”

• If any partition is “not ready,” the system does not arm at all.

• You can use the GOTO command to bypass open zones before arming.

• If any partition is already armed when global arming is attempted, that

partition remains in its existing armed state.

&RQWLQXHG

 (-7%61)(

6)%(= 83 %61

English Display:

 (-7%61)(

6)%(= 83 %61

English Display:

Green LED lit

+ [0] + arm command (see list below)

(Security Code)

Multi-Partition Arming Commands

2 = arms all partitions AWAY 3 = arms all partitions STAY 33 = arms all partitions NIGHT-STAY 7 = arms all partitions INSTANT 1 = disarms all partitions

 (-7%61)(

6)%(= 83 %61

English Display:

Green LED lit

– 31 –

$FFHVVLQJ2WKHU3DUWLWLRQV

&RPPRQ=RQH2SHUDWLRQ

&RQWLQXHG

Ask your installer if a "common zone" was assigned. If so, check

this box

Your system may have been set up to use a common zone, which is an area shared by users of both partitions, such as a foyer or lobby. If so, please note the following:

The common zone will sound and report alarms only when

•

partitions are armed. If only one pa rtition is armed, the system ignores faults on the common zone.

Either partition may arm its system if the common zone is

•

faulted, but once armed, the other partition arm unless the common zone is first bypassed or the fault is corrected.

Faults on the common zone are displayed on common zone

•

touchpads, and will also appear on another partition’s touchpad when that partition is armed.

Either partition can clear and restore the common zone after an

•

alarm. Entry/exit time for the common zone is the same as for partition 1.

•

will not

both

be able to

– 32 –

$ERXW6FKHGXOL QJ

The system provides up to 16 end-user schedules (programmable by master/installer only), which can be used to control vari ous types of events.

• Each schedule causes a defined event to start and stop (when appropriate) at a specified time.

• Schedules can be set to automatically repeat at various intervals.

• Schedules can be set for random starting, if desired.

&UHDWLQJ6FKHGXOHV

+ [#] + [6] [4]

(Master Code)

Enter a 2-digit schedule number from 01-16.

Press [∗] to continue.

Enter the desired 2-digit event number from the

following list. 00 = clear the scheduled event 01 = turn a programmed output on or off

(see Using Device Commands section for a list of output device numbers used in your system)

02 = set a user access schedule for one or more users

(see Security Codes section for an explanation of access groups)

03 = send a “latch-key” report to a pager if the system is not disarmed by a specified

time; message sent is “777-7777.” 04 = automatically arm the system in STAY mode at a specified time 05 = automatically arm the system in AWAY mode at a specified time 06 = automatically disarm the system at a specified time 07 = Display the word “REMINDER” at a specified time

Press [∗] to continue.

4. For event number “01,” enter the output number associated with this schedule. Otherwise, this prompt is skipped. Press [∗] to continue to the “Start” prompt below.

6FKHGXOLQJ

 (-7%61)(

6)%(= 83 %61

)28)6 7',)( 23 =59-8 

)28)6 ):)28

():-') 291&)6

– 33 –

6FKHGXOLQJFRQWLQXHG

8. Enter the event’s stop time, AM/PM and days of week.

5. For event number “02,” enter the access group number. Otherwise, this prompt is skipped. Press [∗] to continue to the “Start” prompt below.

6. For event numbers “03-07,” enter the partition number to be armed or disarmed. 0 = arm all; 1 = partition 1; 2 = partition 2; 3 = arm common Otherwise, this prompt is skipped. Press [∗] to continue to the “Start” prompt.

7. Enter the event’s start time and days of week. Hour = 00-12; minute = 00-59 AM = 0; PM = 1 Days = Position the cursor under the desired days using the [∗] key to move forward, then press “1” to select the day. Press [∗] to continue.

Refer to step 7 for available entries. Press [∗] to continue.

9. Enter the desired repeat option. 0 = no repeat 1 = repeat schedule weekly 2 = repeat schedule biweekly (every other week) 3 = repeat schedule every third week 4 = repeat schedule every fourth week

e.g., To make a schedule that happens everyday you would select all days with a repeat count of 1. To make a schedule that runs for one week t h en stops, select everyday with a repeat count of 0.

10. Select the randomize option, if desired. 0 = no; 1 = yes If selected, the schedule times will vary within 60 minutes of the “hour” time. For example, if a schedule is set to start at 6:15pm, it will do so the first time 6:15pm arrives, but on subsequent days it will start anytime between 6:00 and 6:59 p.m. Press [∗] to continue.

+6394 291&)6

4%68-8-32

78%68 718;8*7 ,,11%1 

7834 718;8*7 ,,11%1 

6)4)%8 348-32  <

6%2(31->) =23 ==)7 <

– 34 –

$ERXW(YHQW/RJ JLQJ

The system records various events in a history log, which can be viewed by the master user using a Custom English Display touchpad.

• The Event Log holds up to 100 events.

• Events are displayed in chronological order, from most recent to oldest.

• When the log is full, the oldest event is replaced by the logging of any new event.

9LHZLQJWKH(YHQW/RJ

+ [#] + 6 + 0

(Master Code)

(YHQW/RJJLQJ3URFHGXUHV

(-7%61)(

6)%(= 83 %61

2. The system displays the most recent event as follows:

• event number

• type of event, identified by its corresponding code

(see your installer for the meaning of each code)

• zone or user number (depending on type of event)

• partition in which event occurred

• time and date of the event’s occurrence.

3. Pressing [∗] displays previous events (back in time). Pressing [#] displays events forward in time.

4. Exit the event log by pressing any key other than [∗] or [#].

 ) 9 4 %1 

– 35 –

7HVWLQJWKH6\VWHP

$ERXW7HVWLQJW KH6\V W HP

Using TEST mode allows each protection point to be checked for proper operation.

• The touchpad sounds a single beep every 40 seconds as a reminder that the system is in the Test mode.

• Alarm messages are not sent t o your Customer Care Center while Test mode is on.

Disarm the system and close all protected windows,

doors, etc. The READY indicator light should come on if all zones are intact (i.e., all protected windows, doors, etc. are closed.

+ 5 then [0] (walk)

(Security Code)

The Dial test (option “1”) is intended for the installer and should not be used unless directed to do so by your Customer Care Representative.

3. Listen. The external sounder should sound for 1 second and then turn off. If the sounder does not sound, CALL FOR SERVICE.

4.Fault zones. Open each protected door and window in turn and listen for t h ree beeps from the touchpad. Identification (zone number or zone description) of each faulted protection point should appear on the display. The display clears when the door or window is closed.

5. Walk in front of any interior motion detectors (if used) and listen for three beeps. The identification of the detector should appear on the display when it is activated. The display clears when no motion is detected.

Note that if wireless motion detectors are used, there is a 3-minute delay between activations. This is to conserve battery life.

6. Test all smoke detectors, following the manufacturer's instructions. The identification of each detector should appear on the displa y when each is activated.

If a problem is experienced with any protection point (no confirming sounds, no display), call for service immediately.

When all protection points have been checked and are intact (closed), there should be no zone identification numbers displayed on the touchpad.

TEST

7R%H&RQGXFWHG: HHNO\

(-7%61)(

6)%(= 83 %61

=(-%0 =;%0/

8)78 -2 463+6)77

– 36 –

7. Exit test mode:

If the test mode is inadvertently left active, it automatically turns off after 4 hours.

+ [1]

(Security Code)

"Check" and

he word

CHECK

on the touchpad's display, accompanied by a

"beeping" at the touchpad, indicates a trouble condition in the

"Battery" Displays

7URXEOH&RQGLWLRQV

system.

To silence the beeping for these conditions, press any key.

A display of "CHECK" and one or more zone numbers

indicates that a problem exists with the displayed zone(s) and requires your attention. Determine if the zone(s) displayed are intact and make them so if they are not. If the problem has been corrected, the display can be cleared if you enter the OFF sequence (security code plus OF F key) twice. If the display persists, CALL FOR SERVICE

Note:

indicates that the wiring connection to the external sounder is at fault (opened or shorted), and you should CALL FOR SERVICE. See “BELL FAILURE” on next page. A display of

CHECK 90

operation of wireless sensors* in the system. See “ on next page.

A display of

indicates that RF interference may be impeding the

CHECK 70

on English Display touchpads

Rcvr Jam

”

* Not all systems

use wireless sensors.

If there are wireless sensors* in your system,

condition may also be caused by some change in the environment that prevents the wireless receiver from receiving messages from a particular sensor. CALL FOR SERVICE if this occurs.

IF YOU CANNOT CORRECT A "CHECK " DISPLAY, CALL FOR SERVICE

TYPICAL "CHECK" DISPLAYS

CHEC

ENGLISH DISPLAY

TOUCHPAD

',)'/

&)(6331;-2(3;

CUSTOM ENGLISH DISPLAY

TOUCHPAD

the

CHECK

– 37 –

7URXEOH&RQGLWLRQV&RQWLQXHG

Not all systems use

Rcvr Jam Wireless part of the syst em is experiencing

Words or letters in parentheses ( ) are those that are displayed on English Display touchpads.

Other Trouble

Displays

Any “beeping” that accompanies a trouble display can be stopped by depressing any key on the touchpad or by entering an OFF sequence (code + OFF)

wireless sensors.

COMM. FAILURE Indicates that a failure has occurred in (or FC) the telephone communication portion of

your system. CALL FOR SERVICE.

SYSTEM LO BAT Indicates that a low system battery (or BAT with no condition exists. Display is zone No.) accompanied by "beeping"* at the

touchpad. If this condition persists for more than one day (with AC present), CALL FOR SERVICE.

LO BAT I nd ic ates th at th er e is a low battery + zone descriptor condition in the wireless transmitter**

(or BAT with number displayed (00 is RF keypad). zone No.) Accompanied by a single "beep"* (about

once every 40 seconds) at the touchpad. Either replace the battery yourself, or

CALL FOR SERVICE. If the battery is not replaced within 30 days, a CHECK display may occur.

(or CHECK 90) RF interference which may impede

reception from wireless sensors.**

MODEM COMM

(or CC)

BELL FAILURE Indicates that the wiring connection to (or CHECK 70) the external sounder is at fault (open or

– 38 –

Indicates that the control is on-line with the Customer Care Center's remote computer. The control will not operate while on-line. Wait a few minutes — the display should disappear.

shorted). Accompanied by “beeping” at the touchpad. CALL FOR SERVICE.

7URXEOH&RQGLWLRQV&RQWLQXHG

than 1 minute, system is disabled. CALL

If there is no touchpad display at all, and the READY indicator

Other Trouble

Displays

(Continued

Total Power Failure

AC LOSS The system is operating on battery power (or NO AC)

)

Busy-Standby (or dI)

OPEN CIRCUIT The touchpad is not receiving signals from (or OC) the control. CALL FOR SERVICE.

Long Rng Trbl If part of your system, back-up Long (or bF) Range Radio communication has failed.

TELCO FAULT The telephone line has a problem. (or CHECK 94) CALL FOR SERVICE.

is not lit, operating power (from AC and back-up battery) for the system has stopped and the system is inoperative. CALL FOR SERVICE.

only due to an AC power failure. If only some lights are out on the premises, check circuit breakers and fuses and reset or replace as necessary. If AC power cannot be restored and a “low system battery” message appears (see previous page), CALL FOR SERVICE.

If this message remains displayed for more FOR SERVICE.

CALL FOR SERVICE.

In The Event Of Telephone Operational Problems

In the event of telephone operational problems, disconnect the control from the phone line by removing the plug from the phone wall jack. We recommend that your installer demonstrate this disconnection on installation of the system. Do not attempt to disconnect the phone connection inside the control. Doing so will result in the loss of your phone lines. If the regular phones work correctly after the control has been disconnected from the phone wall jack, the control has a problem and you should immediately call for service. If upon disconnection of the control, there is still a problem on the phone line, notify the Telephone Company that they have a problem and request prompt phone repair service. The user may not under any circumstances attempt any service or repairs to the security system. Repairs must be made only by ADT authorized service (see the LIMITED WARRANTY statement for informa tio n on how to obtain service).

– 39 –

0DLQWDLQLQJ<RXU6\VWHP

low battery display to turn off. If the sensor is not activated, the display

most units and applications, provide 2–4 years of service. 3-volt lithium

Taking Care of

Your System

Silencing Low

Battery Warning

Tones at the

Touchpad

Replacing

Batteries in

Wireless Sensors

Wireless sensors may not have been used in your security system

IMPORTANT:

Use only batteries recommended by your installer as replacement.

The components of your security system are designed to be as maintenance-free as possible. However, to make sure that your system is in reliable working condition, do the following:

1. Test your system weekly

2. Test your system after any alarm occurs. You can silence the touchpad’s warning tones b y pressing the OFF key,

but the touchpad's low battery message display will remain on as a reminder that you have a low battery condition in one or more of your wireless sensors. When you replace the weak battery with a fresh one, the sensor sends a "good battery" signal to the control as soon as the sensor is activated (opening/closing of door, window, etc.), causing the

will automatically clear within approximately 1 hour. Each wireless sensor in your system has a 9-volt or 3-volt battery. The

system detects a low battery in wireless sensors, including smoke detectors, the personal emergency transmitter, and the portable wireless touchpad and displays a low battery message*. (A low battery in a portable wireless touchpad is detected as soon as one of its keys is pressed, and displayed as 00.) . Battery-operated smoke detectors with a low battery also emit a single "chirp" sound approximately once every 20–30 seconds.

Alkaline batteries provide a minimum of 1 year of operation, and in batteries provide up to 4 or more years of operation. Actual battery life

will depend on the environment in which the sensor is used, the number of signals that the transmitter in the sensor has had to send, and the specific type of sensor. Factors such as humidity, high or low temperatures or large swings in temperature, may all lead to the reduction of actual battery life in an installation.

The low battery message comes on as a warning that battery replacement in indicated sensor(s) is due within 30 days. In the meantime, a sensor causing a low battery indication is still fully operational.

Routine Care

– 40 –

• Treat the components of your security system as you would any other electrical equipment. Do not slam sensor-protected doors or windows.

• Keep dust from accumulating on the touchpad and all protective sensors, particularly on motion sensors and smoke detectors.

• The touchpad and sensors should be cleaned carefully with a dry soft cloth. Do not spray water or any other fluid on the units.

)LUH$ODUP6\VWHP,I,QVWDOOHG

ENGLISH DISPLAY TOUCHPAD

1. You can silence the alarm at any time by pressing the

OFF

key (the

3. If this does not remedy the problem, there may still be smoke in the

THIS SECTION APPLIES ONLY TO RESIDENTIAL SYSTEMS

General

Silencing

Fire Alarms and

Clearing Memory

of Alarm

Your fire alarm system (if installed) is on 24 hours a day, for continuous protection. In the event of an emergency, the strategically located smoke and heat detectors will sound their alarms and automatically send signals to your system, triggering a loud, interrupted pulsed sound* from the Touchpad(s) and any external sounders. A FIRE message will appear at your Touchpad and remain on until you silence the alarm (see below for silencing fire alarms).

Temporal pulse sounding is produced for Fire alarms, as follows:

3 pulses–pause–3 pulses–pause–3 pulses–pause. . . , repeated.

TYPICAL FIRE EMERGENCY DISPLAYS

*-6)1%78)6

&)(6331

CUSTOM DISPLAY TOUCHPAD

security code is not needed to silence fire alarms). To clear the display, enter your code and press the Memory of Alarm).

2. If the Touchpad's FIRE display does not clear after the second OFF sequence, smoke detectors may still be responding to smoke or heat producing objects in their vicinity. Investigate, and should this be the case, eliminate the source of heat or smoke.



ALARM

FIRE

OFF

key again (to clear

detector. Clear it by fanning the detector for about 30 seconds. When the problem has been corrected, clear the display by

entering your code and pressing the

Smoke Detector

Reset

Depending on the type of smoke detectors in your system, it may be necessary to "reset" the smoke detectors after a fire alarm has been turned off. Check with your installer. This "reset" i s accomplished at a touchpad, as follows:

Enter User Code*, then press the [1] key (* except “arm only” user).

OFF

key.

– 41 –

)LUH$ODUP6\VWHP&RQWLQXHG

THIS SECTION APPLIES ONLY TO RESIDENTIAL SYSTEMS

Manually

Initiating

a Fire Alarm

Using the Panic

Key(s) Assigned

for FIRE

Emergency

1. Should you become aware of a fire emergency before your smoke or heat detectors sense the problem, go to your nearest touchpad and manually initiate an alarm by pressing the panic key assigned for FIRE emergency for 2 seconds. If a key pair has been assigned for fire, press both keys at the same time. See Using the Panic Keys section below for further details.

2. Evacuate all occupants from the premises.

3. If flames and/or smoke are present, leave the premises and notify your local Fire Department immediately.

4. If no flames or smoke are apparent, investigate the cause of the alarm. The zone number(s) of the zone(s) in an alarm condition will be displayed at the touchpad.

A key or key pair may have been assigned for manually initiating a FIRE alarm. See the Panic Keys section for key assignments. For convenience, indicate the key or key pair assigned for fire below.

Individual Keys

A BC

Press

the individual key assi gned for fire

for 2

seconds.

Key Pairs

OFF

and

∗

READY

– 42 –

∗

READY

DISPLAYS FOLLOWING MANUAL INITIATION OF A FIRE ALARM

STAY

and

*-6)

CUSTOM DISPLAY TOUCHPAD

Press

the key pair assigned

for fire

at the same time.



ALARM FIRE

ENGLISH DISPLAY TOUCHPAD

)LUH$ODUP6\VWHP&RQWLQXHG

THIS SECTION APPLIES ONLY TO RESIDENTIAL SYSTEMS

1DWLRQDO)LUH3URWHFWLRQ$VVRFLDWLRQ

5HFRPPHQGDWLRQVRQ6PRNH'HWHFWRUV

With regard to the number and placement of smoke/heat detectors, we subscribe to the recommendations contained in the National Fire Protection Association's National Fire Alarm Code (NFPA 72) noted below.

Early warning fire detection is best achieved by the install ation of fire detection equipment in all rooms and areas of the household as follows: A smoke detector installed outside of each separate sleeping area, in the immediate vicinity of the b edrooms and on each additional story of the family living unit, including basements and excluding crawl spaces and unfinished attics.

In addition, the NFPA recommends that you install heat or smoke detectors in the living room, dining room, bedroom(s), kitchen, hallway(s), attic, furnace room, utility and storage rooms, basements and attached garages.

KITCHEN

✪

DINING

✪

LIVING ROOM

✪

BEDROOM

LVNG RM

BASEMENT

▲

■

BEDROOM

■

TO BR

■

✪

BEDROOM

■ ✪

BEDROOM

✪

BEDROOM

▲

KTCHN

■

✪

BEDROOM

CLOSED

DOOR

✪

TV ROOM

BEDROOM

KITCHEN

■

✪✪

▲

DINING

LIVING ROOM

BDRM

■

BDRM

✪

Smoke Detectors for Minimum Protection

■

Smoke Detectors for Additional Protection

✪

Heat-Activated Detectors

▲

GARAGE

✪

– 43 –

)LUH$ODUP6\VWHP&RQWLQXHG

THIS SECTION APPLIES ONLY TO RESIDENTIAL SYSTEMS

(PHUJHQF\(YDFXDWLRQ

Establish and regularly practice a plan of escape in the event of fire. The following steps are recommended by the National Fire Protection Association:

1. Position your detector or your interior and/or exterior sounders so that they can be heard by all occupants.

2. Determine two means of escape from each room. One path of escape should lea d to the door that permits normal exit from the building. The other may be a window, should your path be impassable. Station an escape ladder at such windows if there is a long drop to the ground.

3. Sketch a floor plan of the building. Show windows, doors, stairs and rooftops that can be used to escape. Indicate escape routes for each room. Keep these routes free from obstruction and post copies of the escape routes in every room.

4. Assure that all bedroom doors are shut while you are asleep. This will prevent deadly smoke from entering while you escape.

5. Try the door. If the door is hot, check your alternate escape route. If the door is cool, open it cautiously. Be prepared to slam the door if smoke or heat rushes in.

6. When smoke is present, crawl on the ground. Do not walk upright, since smoke rises and may overcome you. Clearer air is near the floor.

7. Escape quickly; don't panic.

8. Establish a common meeting place outdoors, away from your house, where everyone can meet and then take steps to contact the authorities and account for those missing. Choose someone to assure that nobody returns to the house — many die going back

BACK DOOR

CLOSET

PORCH

BEDROOM

KITCHEN

BEDROOM

1 FLOOR

•

BEDROOM

BATH

2 FLOOR

BEDROOM

BATH

•

BACK

•

FRONT

BEDROOM

– 44 –

4XLFN*XLGHWR%DVLF6\VWHP)XQFWLRQV

(Smartphone Module)

FUNCTION PROCEDURE COMMENTS Check Zones Press READY key. View faulted zones when system not

ready.

Arm System Enter code. Press arming key desired:

(AWAY, STAY, NIGHT-STAY, INSTANT)

Quick Arm

(if programmed)

Bypass Zone(s)

Quick Bypass

(if programmed)

Silence Sounders

Burglary:

Fire:

"Check":

Disarm System Enter code. Press OFF key. Also silences sounders. Memory of

Clear Alarm Memory

Duress (if active

and connected to Customer Care Center)

Panic Alarms

(as programmed)

Chime Mode To turn ON or OFF: Enter code. Press

Test Mode To turn ON: Enter code. Press TEST key.

Phone Access

if applicable

Press #. Press arming key desired: (AWAY, STAY, INSTANT)

Enter code. Press BYPASS key. Enter zone number(s) to be bypassed (use 2-digit entries).

Enter code. Press BYPASS key + [#].

Enter code. Press OFF key.

Press OFF key. Press any key.

After disarming, enter code again. Press OFF key again.

Arm or disarm "normally", but use your 4-digit Duress code to do so.

Press key [A], [B], or [C] for at least 2 seconds.

CHIME key.

To turn OFF: Enter code. Press OFF key. Consult Phone Access User's Guide that

accompanies the Phone Module.

Arms system in mode selected.

Arms system in mode selected, quickly and without use of a code.

Bypassed zones are unprotected and will not cause an alarm if violated.

Bypasses all faulted zones automatically.

Also disarms system. Memory of alarm remains until cleare d.

Memory of Alarm remains until cleared. Determine cau se.

alarm remains until cleared. Touchpad beeps rapidly on entry if

alarm has occurred while absent. Alarm display will remain upon dis arming until cleared.

Performs de sired action and sends silent alarm to Customer Care Center.

See the Panic Keys section for emergency functions programmed for your system. Note: Keys “A”, “B”, and “C” may have been programmed for other functions.

The touchpad will sound if doors or windows are violated while system is disarmed and chime mode is ON.

Tests alarm sounder and allows sensors to be tested.

Permits system access remotely, via Touch-tone phone.

– 45 –

6XPPDU\RI$XGLEOH9LVXDO1RWLILFDWLRQV

ONE SHORT BEEP

b. SYSTEM ARMING ATTEMPT

each zone displayed). Subsequently,

BYPASS

CHECK

displayed. Zone number of troubled

(QJOLVK'LVSOD\7RXFKSDGV

SOUND CAUSE DISPLAY

LOUD, INTERRUPTED Touchpad & Ext.

LOUD, CONTINUOUS Touchpad & Ext.

(not repeated) Touchpad only

ONE SHORT BEEP (once every 40 secs) Touchpad only

TWO SHORT BEEPS Touchpad only THREE SHORT

BEEPS Touchpad only

RAPID BEEPING Touchpad only

SLOW BEEPING Touchpad only

FIRE ALARM

BURGLARY/AUDIBLE EMERGENCY ALARM

a. SYSTEM DISARM

WITH AN OPEN ZONE. c. BYPASS VERIFY

a. SYSTEM IS IN TEST MODE b. LOW BATTERY AT A

TRANSMITTER ARM AWAY

a. ARM STAY, NIGHT-STAY, OR

INSTANT

b. ZONE OPENED WITH

SYSTEM IN CHIME MODE.

a. TROUBLE

b. MEMORY OF ALARM

c. SYSTEM LOW BATTERY d. EXT. SOUNDER WIRING FAIL

a. EXIT DELAY WARNING b. ENTRY DELAY WARNING

FIRE

is displayed; zone number of zone in alarm is displayed. If a fire alarm is manually activated, zone number 95 will be displayed.

ALARM

alarm is also displayed.

a. READY indicator light comes on. b. Number of the open protection zone displayed.

c. Zone numbers of the bypassed protection zones are displayed (one beep is heard for

a. Opened zone numbers will appear. b.

transmitter.

AWAY

a. ARMED indicator is lit.

b. protection zone will be displayed if the [✱] key is pressed.

protection zone is displayed. b.

of zone in alarm is displayed

BAT

c. d. a.

b. Exceeding the entry delay time without disarming causes alarm.

is displayed. Zone number of zone in

is displayed.

BAT

displayed with zone number of

is displayed. Red ARMED indicator is lit.

STAY

CHIME

FIRE

CHECK 70 AWAY

INSTANT

displayed; zone number of open

ALARM

displayed with no zone ID number.

is displayed.

is displayed. Red

is displayed; zone number

If a bell is used as external sounder, fire alarm is

– 46 –

pulsed ring;

burglary/audib le emergency is

steady ring

6XPPDU\RI$XGLEOH9LVXDO1RWLILFDWLRQV

ONE SHORT BEEP

b. Number and descriptor of open protection zone is

TWO SHORT BEEPS

SYSTEM IS DISARMED.

ARMED STAY

ARMED INSTANT

displayed.

ARMED AWAY

is displayed along with

You May

. DISARM SYSTEM OR ALARM WILL OCCUR

displayed.

Exceeding the delay time without

&XVWRP(QJOLVK'LVSOD\ 7RXFKSDGV

SOUND CAUSE DISPLAY

LOUD, INTERRUPTED* Touchpad & Ext.

LOUD, CONTINUOUS* Touchpad & Ext.

(not repeated) Touchpad only

ONE SHORT BEEP (once every 40 secs) Touchpad only

Touchpad only THREE SHORT

BEEPS Touchpad only

FIRE ALARM.

BURGLARY/AUDIBLE EMERGENCY ALARM.

a. SYSTEM DISARM. b. SYSTEM A RMING ATTEMPT

WITH A N OPEN ZONE. c. BYPASS VERIFY.

a. SYSTEM IS IN TEST MODE. b, LOW BATTERY AT A

TRANSMITTER. ARM AWAY.

a. ARM STAY, NIGHT-STAY, OR INSTANT.

b. ZONE OPENED WHILE

FIRE

is displayed; descriptor of zone in alarm is displayed. If a fire alarm is manually activated, zone number 95 will be displayed.

ALARM

zone in alarm is also displayed

DISARMED/READY TO ARM

displayed. c. Numbers and descriptors of the bypassed zones

are displayed (One beep is heard for each zone displayed). Subsequently, the following is displayed:

a. Opened Zone identifications will appear.

LO BAT

ARMED AWAY

lit.

Red ARMED indicator lit.

CHIME

b. zone will be displayed if the [✱] key is pressed.

displayed. If programmed, descriptor of

is displayed.

DISARMED BYPASS /Ready to Arm.

displayed with description of transmitter.

displayed. Red ARMED indicator

displayed, descriptor of open protection

RAPID BEEPING Touchpad only

SLOW BEEPING Touchpad only

* If a bell is used as external sounder, fire alarm is

ring

a. TROUBLE.

b. MEMORY OF ALARM.

c. SYSTEM LOW BATTERY. d. EXT. SOUNDER WIRE FAIL.

a. EXIT DELAY WARNING (if programmed).

b. ENTRY DELAY WARNING.

CHECK

protection zone is displayed.

FIRE

in alarm is displayed.

SYSTEM LO BAT

BELL FAILURE

Exit Now.

disarming causes an alarm.

pulsed ring;

displayed. Descriptor of troubled

ALARM

burglary/audib le emergency is

is displayed; descriptor of zone

displayed.

is displayed.

steady

– 47 –

5HJXODWRU\6WDWHPHQWVDQG:DUQLQJV

NOTE: This is a “Grade A” Residential System

RADIO FREQUENCY EMISSIONS

Federal Communications Commission (FCC) Part 15

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Industry Canada

This Class B digital apparatus complies with Canadian ICES-003. Cet Appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

TELEPHONE/MODEM INTERFACE

FCC Part 68

This equipment complies with Part 68 of the FCC rules. On the front cover of this equipment is a label that contains the FCC registration number and Ringer Equivalence Number (REN). You must provide this information to the telephone company when requested.

This equipment uses the following USOC jack: RJ31X This equipment may not be used on telephone-company-provided coin service. Connection to party

lines is subject to state tariffs. This equipment is hearing-aid compatible.

Industry Canada

NOTICE:

the equipment meets telecommunications network protective, operational and safety requirements as prescribed in the appropriate Terminal Equipment Technical Requirements document(s). The Department does not guarantee the equipment will operate to the user’s satisfaction.

Before installing this equipment, users should ensure that it is permissible to be connected to the facilities of the local telecommunications company. The equipment must also be installed using an acceptable method of connection. The customer should be aware that compliance with the above conditions may not prevent degradation of service in some situations.

Repairs to certified equipment should be coordinated by a representative designated by the supplier. Any repairs or alteratio n s m ade by the user to this equipment, or equipment malfunctions, may give the telecommunications company to request the user to disconnect the equipment.

Users should ensure for their own protection that the electrical ground connections of the power utility, telephone lines and internal metallic water pipe system, if present, are connected together, This precaution may be particularly important in rural areas.

Caution:

appropriate electric inspection authority, or electrician, as appropriate.

The Industry Canada Label identifies certified equipment. This certification means that

Users should not attempt to make such connections themselves but should contact

– 48 –

Ringer Equivalence Number Notice:

The

Ringer Equivalence Number

of the maximum number of terminals allowed to be connected to a telephone interface. The termination on an interface may consist of any combination of devices subject only to the requirement that the sum of the Ringer Equivalence Numbers of all the devices does not exceed 5.

(REN) assigned to each terminal device provides an indication

5HJXODWRU\6WDWHPHQWV&RQWLQXHG

Industrie Canada

l’étiquette d’Industrie Canada identifie le matériel homologué. Cette étiquette certifie que le

AVIS:

matériel est conforme aux normes de protection, d’exploitation et de sécurité des réseaux de télécommunications, comme le prescrivent les documents concernant les exigences techniques relatives au matériel terminal. Le Ministère n’assure toutefois pas que le matériel fonctionnera à la satisfaction de l’utilisateur.

Avant d’installer ce matériel, l’utilisateur doit s’assurer qu’il est permis de le raccorder aux installations de l’enterprise locale de télécommunication. Le matériel doit également être installé en suivant une méthode acceptée da raccordement. L’abonné ne doit pas oublier qu’il est possible que la conformité aux condi t io n s énon cées ci-dessus n’empêche pas la dégradation du service dan s certaines situations.

Les réparations de matériel nomologué doivent être coordonnées par un représentant désigné par le fournisseur. L’entreprise de télécommunications peut demander à l’utilisateur da débrancher un appareil à la suite de réparations ou de modifications effectuées par l’utilisateur ou à cause de mauvai s fonctionnement.

Pour sa propre protection, l’utilisateur doit s’assurer que tous les fils de mise à la terre de la source d’energie électrique, de lignes téléphoniques et des canalisations d’eau métalliques, s’il y en a, sont raccordés ensemble. Cette précaution est particulièrement importante dans les régions rurales.

Avertissement :

racours à un service d’inspection des installations électriques, ou à un électricien, selon le cas.

L’utilisateur ne doit pas tenter de faire ces raccordements lui-même; il doit avoir

AVIS : L’indice d’équivalence de la so nnerie

le nombre maximal de terminaux qui peuvent être raccordés à une interface. La terminaison d’une interface téléphonique peut consister en une combinaison de quelques dispositifs, à la seule condition que la somme d’indices d’équivalence de la sonnerie de tous les dispositifs n’excède pas 5.

(IES) assigné à chaque dispositif terminal indique

– 49 –

&KDUWVRI<RXU6\VWHP·V)HDWXUHV

Features Comments

Exit Delay Entry Delay 1 Entry Delay 2 Night-Stay Zones Quick Arm Quick Bypass Automatic Paging Keyswitch Arming (circle type of LED lighting) Up and About Schedul e

Part. 1: Part. 2: Part. 1: Part. 2: Part. 1: Part. 2: Zones: yes no yes no yes no users: Arm AWAY: steady flash Arm STAY: steady flash inactivity alert time: daily monitoring times:

Function Keys

Single-Button Arming

•

Step Arming

•

Paging (see Paging chart below)

•

Time/Date Display

•

Macro Key 1

•

Macro Key 2

•

Macro Key 3

•

Macro Key 4

•

Emergency Key

•

Emergency Key

•

Emergency Key

•

Emergency Key

•

Device Activation

•

††

Emergency Keys: A = [1] / [∗]B = [

††

: Personal

††

: Silent Alarm

††

: Audible Alarm

††

: Fire

A B C D Comments

Device:

] / [#] C = [3] / [#]

∗

– 50 –

&KDUWVRI<RXU6\VWHP·V)HDWXUHV

(

)

(0)

(

)

(0)

(1)

(4)

(0)

(1)

(0)

(1)

(0)

(1)

(0)

(1)

(0)

(1)

(0)

(1)

(0)

(1)

(0)

(1)

(0)

(1)

(0)

(1)

(0)

(1)

(0)

(1)

(0)

(1)

(0)

(1)

(0)

(1)

(0)

(1)

(0)

(1)

(0)

(1)

(0)

(1)

(0)

(1)

(0)

(1)

(0)

(1)

(0)

(1)

(0)

(1)

(0)

(1)

)

(0)

(1)

(0)

(1)

(0)

(1)

(0)

(1)

(0)

(1)

User Setup

The following chart will help keep track of system users. Copies should be distributed to the partition 1 and partition 2 masters for their records.

To program a user attribute: Enter system/partition master code + [8] + user no. + “#” command listed in column heading…

User

No.

01 installer 02 master 03 part. 1 master 04 05 06 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 (1 29 30 31 32

User

Name

User’s Part(s).

(system master only)

[#] [3] + part(s) + [#]

all all

Security

Code

enter new code

Auth. Level

[#] [1] + level

installer

master

Access

Group

[#] [2] + group

RF Zone

Number

[#] [4] + zone no.

Pager on/off

[#] [5] + 0/1

– 51 –

&KDUWVRI<RXU6\VWHP·V)HDWXUHV

User Setup (continued)

(Enter system/partition master code + [8] + user no. + “#” command listed in column heading…)

User

No.

33 part. 2 master (2) (4) (1) 34 (2) (0) (1) 35 (2) (0) (1) 36 (2) (0) (1) 37 (2) (0) (1) 38 (2) (0) (1) 39 (2) (0) (1) 40 (2) (0) (1) 41 (2) (0) (1) 42 (2) (0) (1) 43 (2) (0) (1) 44 (2) (0) (1) 45 (2) (0) (1) 46 (2) (0) (1) 47 (2) (0) (1) 48 (2) (0) (1) 49 (2) (0) (1)

Authority Levels: 0 = standard user Partitions: 1 = partition 1 and common

User

Name

1 = arm only 2 = partition 2 and common 2 = guest 3 = common partition only 3 = duress 4 = partition master Paging: 0 = no paging

User’s Part(s).

(system master only)

[#] [3] + part(s) + [#]

Security

Code

enter new code

Auth. Level

[#] [1] + level

1 = allow paging

[#] [2] + group

Access

Group

[#] [4] + zone no.

RF Zone

Number

Pager on/off

[#] [5] + 0/1

Paging Setup

Pager Phone Number\

Pager

– 52 –

Prefix Characters

Automatically Reports Upon… Sched. Func. Key

open/close alarm/trouble zone list

p1 p2 p1 p2 p1 p2

&KDUWVRI<RXU6\VWHP·V)HDWXUHV

Device

Schedule No.

Schedules

(

master code + [#] + [6] [4])

No. Event Device No. Group No. Partition Start Stop Repeat Random

(see list below) for “01” events: for “02” events: for “04-06” events:

enter 01-18 enter 1-8 enter 1, 2, or 3

01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16

Events: 00 = clear event 03 = latch key report 06 = auto disarm

01 = device on/off 04 = forced STAY arm 07 = display “reminder” 02 = user access 05 = forced AWAY arm

Time/ Time/ Day Day

(yes/no) (yes/no)

List of Output Devices

Description

01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 18

Function Key

– 53 –

/,0,7$7,2162)7+,66<67(0

WARNING! THE LIMITATIONS OF THIS ALARM SYSTEM

While this system is an advanced design security system, it does not offer guara nteed prot ectio n aga inst burg lar y or other emergency. Any alarm system, whether commercial or residential, is subject to compromise or failure to warn for a variety of reasons. For example:

• Intruders may gain access through unprotected openings or have the technical sophistication to bypass an alarm sensor or disconnect an alarm warning device.

• Intrusion detectors (e.g. passive infrared detectors), smoke detectors, and many other sensing de vices will not work without power. Battery operated devices will not work without batteries, with dead batteries, or if the batteries are not put in properly. Devices powered solely by AC will not work if their AC power supply is cut off for any reason, however briefly.

• Signals sent by wireless transmitters may be blocked or reflected by metal before they reach the alarm receiver. Even if the signal path has been recently checked during a weekly test, blockage can occur if a metal object is moved into the path.

• A user may not be able to reach a panic or emergency button quickly enough.

• While smoke detectors have played a key role in reducing residential fire deaths in the United States, they may not activate or provide early warn ing for a variety of reasons in as m any as 35% of all fire s, accord ing to data publishe d by the Federal Emergency Management Agency. Some of the reasons smoke detectors used in conjunction with this System may not work are as follows. Smoke detectors may have been improperly installed a nd positioned. Smoke detectors may not sense fires that start where smoke cannot reach the detectors, such as in chimne ys, in walls, or roofs, or on the other side of closed doors. Sm oke detect ors als o m ay not sense a fire o n another level of a residence or building. A second floor detector, for example, may not sense a first floor or basement fire. Moreover, smoke detect ors have sensing limitations. No smoke detector can sense every kind of fire every time. In general, detectors may not always warn about fires caused by carelessness and safety hazards like smoking in bed, violent expl osions, escaping gas, improper storage of flammable materials, overloaded electric al circuits, c hildren pla ying with m atches, or arson. Depending upon the nature of the fire and/or the locations of the smoke detect ors, the detector, e ven if it o perates as anticipated, may not provide sufficient warning to allow all occupants to escape in time to prevent injury or death.

• Passive Infrared Motion Detectors can only detect intrusion within the designed ranges as diagrammed in their installation manual. Passive Infrared Detectors do not provide volumetric area protection. T hey do create multiple beams of protection, and intrusion can only be detect ed in unobstructed areas covere d by those beams. T hey cannot detect motion or intrusion that t akes plac e behin d walls , ceilings, floors, closed doors, glass part itions, gl ass doors, or windows. Mechanical tampering, masking, painting or spraying of any material on the mirrors, windows or any part of the optical system can reduce their detect ion ability. P assive Infrared Detect ors sense chang es in t emperature; h owever, as the ambient temperature of protected area approaches the temperature range of 90° to 105°F, the detection performance can decrease.

• Alarm warning de vices such as sirens, bells or horns m ay not alert pe ople or wa ke up sleep ers if they are located on the other side of closed or partly ope n doors. If warning devices s ound on a different level o f the residence from t he bedrooms, then they are less likely to waken or a lert people inside t he bedrooms. Even persons who are awake may not hear the warning if the al arm is muffled from a stereo, radio, air condit ioner or other appliance, or by passing traffic. Finally, alarm warning devices, however loud, may not warn hearing-impaired people or waken deep sleepers.

• Telephone lines needed to transmit alarm signals from a premises to a central monitoring station may be out of service or temporarily out of service. Telephone lines are also subject to compromise by sophisticated intruders.

• Even if the system responds to t he emergency as int ended, howev er, occupant s may have i nsufficient t ime to prot ect themselves from the emergency sit uation. In the case of a monitored alarm system , authorities may not respon d appropriately.

• This equipment, l ike ot her elect rica l devices , is s u bject to com po ne nt f ail ure. Eve n th oug h this equipment is designed to last as long as 10 years, the electronic components could fail at any time.

The most common cause of an alarm system not functioning when an intrusion or fire occurs is inadequate maintenance. This alarm system should be tested weekly to make sure all sensors and transmitters are w orking properly.

Installing an alarm syst em may make one e ligible for lower insur ance rate s, but an alarm syst em is not a s ubstitute for insurance. Homeowners, property owners and renters should continue to act prudently in protecting themselves and continue to insure their lives and property. We continue to develop new and improved protection devices. Users of al arm syst ems owe it to themselves an d the ir lo ved ones to learn about these developments.

– 54 –

Notes

/,0,7(':$55$17<

Terms and Conditions Applying to Sale of Equipment

 /LPLWHG :DUUDQW\

Any part of the system, including the wiring, installed under this Agreement which proves to be defective in material or workmanship within 90 days of the date of completion of installation will be repaired or replaced at ADT's option with a new functionally operative part. Labor and material required to repair or replace such defective components or to make mechanical adjustments to the system will be free of charge for a period of 90 days following the completion of the original installation.

This warranty is extended only to the original consumer purchaser of the system and may be enforced only by such person.

To obtain service under this warranty, call or write our local ADT Service Department at the telephone number or address found in your local yellow pages.

Service pursuant to the warranty will be furnished only during ADT's normal working hours 8:00A.M. to 4:30P.M., Monday through Friday, except holidays. Services rendered outside the normal working hours of ADT are not within the scope of this warranty and any services requested to be performed at such times shall be charged for at ADT's then applicable rates for labor and material.

This warranty does not apply to the conditions listed below, and in the event customer calls ADT for service under the warranty and upon inspection it is found that one of these conditions has led to the inoperability or apparent inoperability of the system, a charge will be made for the service call of the ADT representative, whether or not he actually works on the system. Should it actually be necessary to make repairs to the system due to one of the "conditions Not Covered By Warranty", a charge will be made for such work at ADT's then applicable rates for labor and material.

Conditions Not Covered By Warranty.

A. Damage from accidents, acts of God, alterations, misuse, tampering or abuse. B. Failure of the customer to properly close or secure a door, window, or other point protected

by a burglar alarm device.

C. Failure of customer to properly follow operating instructions provided by ADT at time of

installation or at a later date.

D. Trouble in leased telephone. E. Trouble due to interruption of commercial power. F. Battery replacements.

– 55 –

LIMITED WARRANTY (Continued)

This warranty is in lieu of all other express warranties. Any implied warranties of merchantability and fitness for a particular purpose are limited in duration to a period of 90 days from the date of completion of installation. The exclusive remedy of the customer hereunder shall be repair or replacement as stated above. Under no circumstances shall ADT be liable to the customer or any other person for incidental or consequential damages of any nature, including without limitation, damages for personal injury or damages to property, and, however occasioned, whether alleged as resulting from breach of warranty by ADT, the negligence of ADT, or otherwise, ADT's liability will in no event exceed the purchase price of the system. Some states may not allow limitations on how long an implied warranty lasts, or the exclusion or limitations of incidental or consequential damages, so the above limitations and exclusions may not apply to you, unless a longer period is required by applicable law. Any action against ADT in connection with a system must be commenced within one year after the cause of action has occurred.

No agent, employee or representative of ADT nor any other person is authorized to modify this warranty in any respect.

This warranty gives you specific legal rights and you may also have other rights which vary from state to state.

,QVWDOODWLRQ

ADT agrees to install the equipment in a workmanlike manner in accordance with the following conditions:

A. Customer will make premises available without interruption during ADT normal working

hours 8:00A.M. to 4:30P.M., Monday through Friday, except Holidays.

B. Customer understands that the installation will necessitate drilling into various parts of the

premises: ADT intends, generally, to conceal wiring in the finished areas of the premises; however, there may be areas which, due to construction, decoration, or furnishing of the premises, ADT determines, in its sole discretion, that it would be impractical to conceal wiring and, in such cases, wiring will be exposed.

C. Customer agrees to provide 110 VAC electrical outlets at designated locations for

equipment requiring AC power.

D. Customer to provide for lifting and replacing carpeting, if required, for installation of floor

mats or wiring.

––––––––––––––––––––––––––––––––

No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form, or by any means – electronic, mechanical, photocopying, recording, or otherwise without the written permission of ADT Security Systems, Inc. The material in this publication is for information purposes and subject to change without notice. ADT Security Systems, Inc. assumes no responsibility for any errors which may appear in this publication.

–––––––––––––––––––––––––––

••••••••••••••••••••••••••••••••••

ADT Security Services, Inc. One Town Center Rd. Boca Raton, FL 33486

¬.9@l

K5309V2 1/02

Adt SAFEWATCH PRO 3000EN, ENTREPRENEUR 3000EN, SECURITY MANAGER 3000EN User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
