ADT EZ User Manual

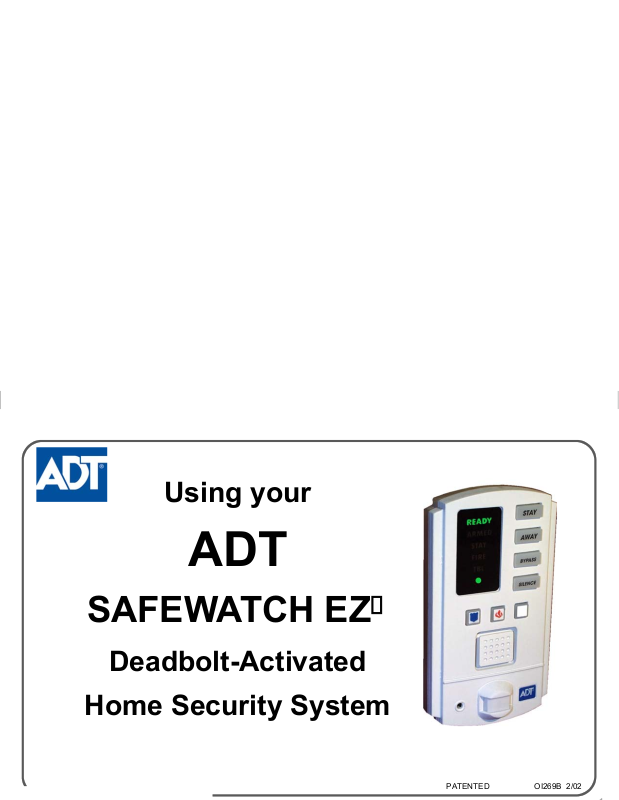

Using your

ADT

SAFEWATCH EZ

Deadbolt-Activated

Home Security System

PATENTED OI269B 2/02

Congratulations

on your purchase of a
new Deadbolt-Activated SAFEWATCH EZ
Security System. This revolutionary new
concept in residential security makes us­ing your system easier than ever before
possible, because the system uses its com­puterized control panel to continually
monitor the status of your entry door (and
deadbolt). It actually anticipates what
command it should expect from you next-­simply leaving you just one button to press
to effortlessly operate your security sys­tem, whether you’re going, returning or
staying in for the night.

Now everyone in your family, young and
old alike, will enjoy the true peace-of-mind
you would expect from a quality, state-of­the-art ADT Security System, without the
fuss of remembering confusing numerical
codes to operate it.

Simplicity and convenience begin with
your System’s one-touch STAY or AWAY
buttons, then just lock or unlock the door
as usual! Day in and day out, that’s all
there is to it.

This booklet contains important infor­mation about the operation of your ADT

SAFEWATCH EZ Security System.
Please read it through and retain it for
handy reference.

Because your system is
customized for your home and lifestyle,
you may find subjects mentioned here,
that don’t apply to your system. Rest as­sured your security system has been con­figured by your ADT Security Professional
to best suit you and the system itself has
been meticulously designed and engi­neered to the highest industry standards.

Please test your system at least once a

week as described below.

INTRODUCTION

1

Test your siren and central station communicator:

Hold Down the BYPASS button for 4 seconds (until the
Touchpad beeps). The system will generate a test re­port to central station and two momentary chirps of the
siren.

•

If the siren does not sound or sounds week, call for service.

•

If the system indicates a low battery system trouble (trouble light TBL
flashing 2 times), call for service.

•

If the system indicates a communication failure system trouble (

TBL

flashing 3 times), call for service. (The communication failure system
trouble may take a few minutes to appear.)

A subsequent press of the SILENCE button will silence the trouble indica-

2

Test your motion sensors and other protective devices:

Hold Down the BYPASS button for 8 seconds (until the second hold-down
beep).

•

Walk through the areas protected by motion sensors. The Touchpad will
beep when the zone is violated and again when the zone is restored.

•

Open and close all protected doors and windows and listen for the cor­responding Touchpad beeps.

After testing the protective devices, the Touchpad ARMED indicator will
flash out the zone number of all zones which have been activated.

Press the SILENCE button to clear the display and end the test.

If any devices fail to respond when activated or register on the Touchpad
display as described above, call for service.

IMPORTANT - TEST YOUR SYSTEM WEEKLY

From a Ready Condition (Disarmed State)

TABLE OF CONTENTS

TABLE OF CONTENTS

INTRODUCTION ...................................... .................... .................... 2

TESTING THE SYSTEM .................................................................. 2

EZ TOUCHPAD INDICATORS ......................................................... 4

EZ TOUCHPAD CONTROLS .......................................................... 5

ARMING WHEN LEAVING .............................................................. 6

BYPASSING FAULTED ZONES ..................................................... 7

ARMING WHEN STAYING HOME ................................................... 8

ARMING AND LEAVING WITH OTHERS STAYING ....................... 9

EXITING WITH THE SYSTEM ALREADY ARMED ........................ 10

EMERGENCY BUTTONS ................................................................ 12

DISARMING THE SYSTEM ............................................................. 13

SILENCING AN ALARM ................................................................... 14

FIRE PROTECTION ......................................................................... 15

SYSTEM TROUBLE ERROR CODES ............................................. 17

ZONE LIST ....................................................................................... 19

ENROLLING A NEW EZ- IFOB ........................................................ 20

LOST KEY MODE ............................................................................ 21

FCC PART 68 STATEMENT ........................................................... 22

LIMITATIONS OF THIS ALARM SYSTEM ....................................... 23

LIMITED WARRANTY ...................................................................... 25

.......................................

27

ALARM TIME OUT: _________ Minutes

FOR SERVICE, CALL: _____________________

TO CANCEL AN

ALARM REPORT, CALL: ____________________

IF THE ALARM IS SOUNDING:

To silence an alarm, in­sert your EZ-IFOB key
into the slot on the
Touchpad and remove
when alarm has si­lenced. Proceed with
caution! (See pages 14
& 15).

READY

ARMED

STAY

FIRE

TBL

•

EZ TOUCHPAD INDICATORS

The green READY light shows the status of the zones in your system:

ON

indicates that all zones are secure and the system is ready to be armed.

FLASHING indicates that at least one zone is open. To determine the open zone, count the

number of flashes and refer to the zone list on your security panel.

OFF indicates that the optional second deadbolt is not locked. If there are two deadbolts in

the system, the other dead bolt must be locked before the system can be armed.

The red ARMED light ON indicates that the system is armed.

BLINKING with the siren sounding indicates that the system is in alarm.
BLINKING with no siren

indicates Alarm Memory (the alarm has been silenced or timed
out). To determine the zone in alarm, count the number of flashes and refer to the zone list
on your security panel. Press SILENCE to clear the alarm memory. (see page 13)

The yellow STAY light ON indicates that the system is armed in the STAY mode, allowing
free movement throughout the premises, while maintaining perimeter protection.

The red FIRE light will flash to indicate that the system is in a Fire Alarm Condition*. If a fire
is in progress, evacuate the premises immediately!

*

Note: This feature may not apply to your system. Consult your installer to determine if your system includes fire protection.

The yellow trouble TBL light will light and the Touch Pad sounder will pulse to indicate that a
system trouble is present. If zone(s) have been bypassed,

TBL

will light steadily. (See

SYSTEM TROUBLE ERROR CODES, Page 17).

The green AC Light ON indicates that AC Power is present.

EZ TOUCHPAD CONTROLS

STAY Button - Press to arm system in the STAY mode. Perimeter devices such as windows and doors will

be protected, while interior protective devices such as motion sensors will be de-activated, allowing free
movement throughout the premises.

AWAY Button - Press to arm system in AWAY mode when no one is to remain home. System will be fully
armed with all perimeter and interior devices activated.

BYPASS Button -

This button has multiple functions, depending on the state of the panel.

BYPASS -

If you are attempting to arm the system with open zones

that cannot be immediately repaired, press

BYPASS

to tempo-

rarily remove these zones from the system. The Bolt Pad will beep and trouble

TBL

will light steady. Press STAY or AWAY to arm

the system as usual (see page 7).

TEST -

To test the system

, hold down the

BYPASS

button for 4 seconds to generate a test report to central station and chirp the siren.

If the test fails, the EZ Touchpad will beep and the trouble light (

TBL

) will flash. Hold down

BYPASS

for 8 seconds to do a “system

walk test” of your protective devices. Press SILENCE to reset. (See page 2).

SIREN - Will sound a LOUD steady sweep tone when intrusion is detected or a distinct pulsating tone for a
fire alarm condition.

MOTION SENSOR - Detects movement in the premises. Do NOT block.

SILENCE Button - Press to silence a Fire Alarm* (page 15), silence system troubles and view system trou-

bles (page 17). *

Note: This feature may not apply to your system. Consult your installer to determine if your system in­cludes fire protection.
Hold down for 4 seconds to remove EZ-IFOBs from the System - See page 20.

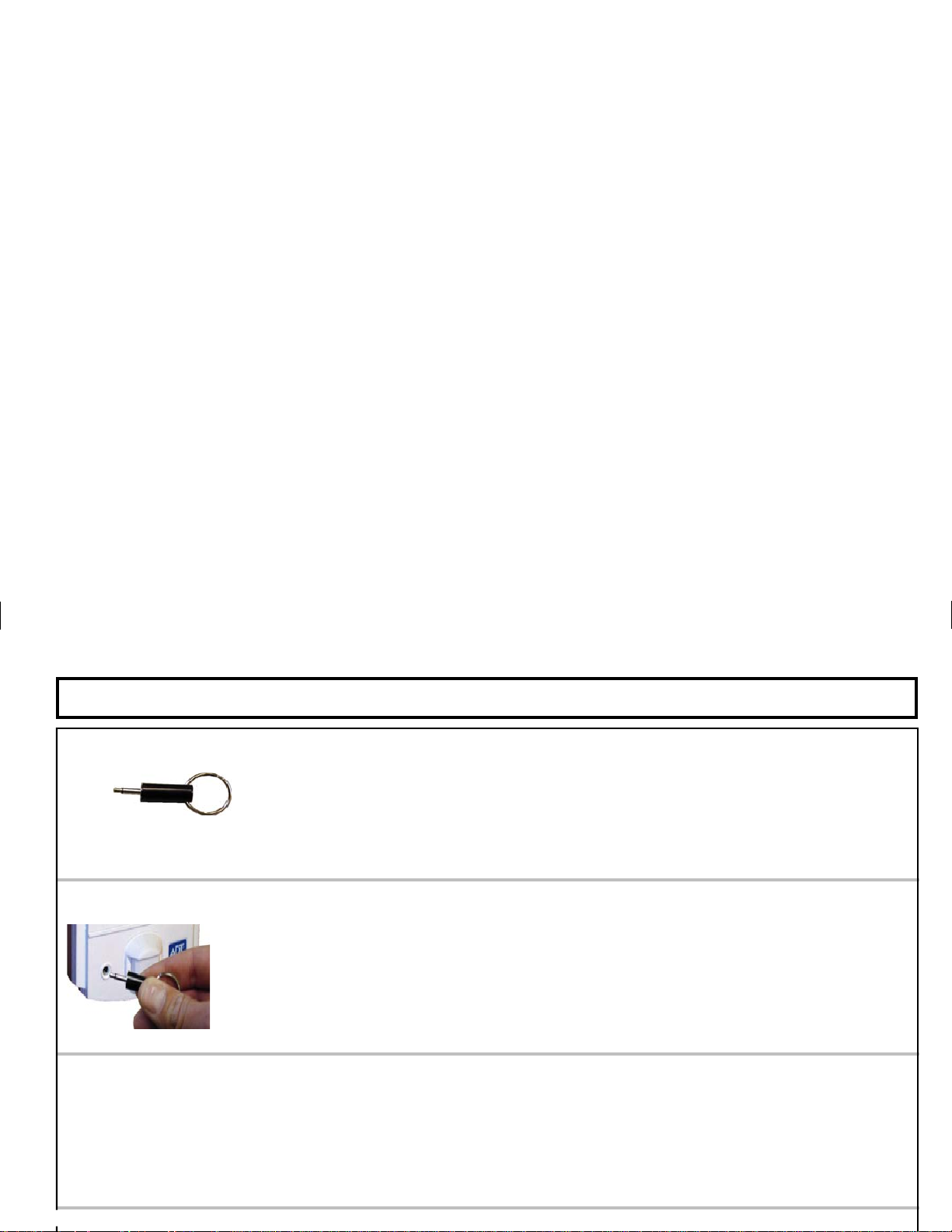

EZ-IFOB - The EZ-IFOB is a uniquely coded digital key which must be used to disarm the system and si-

en in case of alarm. To silence an alarm, simply insert into the EZ-IFOB slot on the EZ Touch-

EMERGENCY BUTTONS

POLICE EMERGENCY

Press to alert Central Station of a Police Emergency.

FIRE EMERGENCY

Press to alert Central Station of a Fire Emergency.

AUXILIARY EMERGENCY

Press to alert Central Station of an Auxiliary Emergency.

ARMING WHEN LEAVING

1

Check the EZ Touchpad indicators.

The green

READY

light should be ON-STEADY, indicating that

the system is ready to arm.

•

If the green READY light is BLINKING, this indicates that a zone is faulted. The READY light is blinking out the zone
number of the open zone. Count the flashes and look at your zone list to see which zone is open and secure it (close

the door or window, etc.). If you cannot immediately secure the zone, it may be bypassed (see page 7).

•

If the green READY light is OFF, the optional second deadbolt is not locked. If there are two deadbolts in the system,
the other deadbolt must be locked before the system can be armed. Go to the other dead bolt location and lock it.

2

Press the AWAY button.



If you change your mind after pressing AWAY, press SILENCE to clear arming.

3

Open the door and exit.

4

Lock the deadbolt from the outside to arm the system. The EZ Touchpad will give one chirp to indi­cate the system has armed.



If the deadbolt has not been locked within 60 seconds of pressing AWA Y, the system will revert
back to a disarmed state.



If the system detects movement inside the premises within 60 seconds of arming, it will automati­cally revert to Stay mode, providing perimeter protection with the interior protection (motion sen-

off. (See ARMING WHEN STAYING HOME - page 8).

If you are leaving with no other family members remaining home:

The

ARMED

indicator will begin to flash, indicating the 60 second exit delay period.

READY

ARMED

BYPASSING FAULTED ZONES

If you are trying to arm with a faulted zone or zones, the green

READY

light will be blinking out the number of the faulted
zones. If you cannot repair the zone(s), they may be temporarily removed from the system, or bypassed, using the fol­lowing procedure:

1

Press the BYPASS button.

The EZ Touchpad will beep and the yellow Trouble indicator will light ON STEADY.

2

Press either the STAY or AWAY button.

3

If arming AWAY, open the door and exit.

Warning: Bypassed zones are unprotected. If a faulted zone cannot be secured, have the system checked as soon as

possible.

4

Lock the deadbolt to arm the system with the faulted zones bypassed.

TBL

ARMING WHEN STAYING HOME

Arming in the Stay mode allows you to remain home with the perimeter protection active and the interior protection off, so
that you may move freely about the premises.

1

Check the EZ Touchpad indicators.

The green

READY

light should be ON-STEADY, indicating that

the system is ready to arm.

•

If the green READY light is BLINKING, this indicates that a zone is faulted. The READY light is blinking out the zone
number of the open zone. Count the flashes and look at your zone list to see which zone is open and secure it (close

the door or window, etc.). If you cannot immediately secure the zone, it may be bypassed (see page 7).

•

If the green READY light is OFF, the optional second deadbolt is not locked. If there are two deadbolts in the system, the
other deadbolt must be locked before the system can be armed. Go to the other dead bolt location and lock it.

2

Press the STAY button.

If the deadbolt is already locked

, the

ARMED

indicator will light and

STAY

will begin to flash, indicat-

ing the 60 second exit delay period. The system will arm in the Stay mode in 60 seconds.

3

If the deadbolt is NOT locked, lock the deadbolt from the inside to arm the system.



If the deadbolt has not been locked within 60 seconds of pressing

STAY

, the system will revert

back to a disarmed state.

The STAY indicator will stop flashing and light steady, indicating the system is armed in the Stay mode.

READY

ARMED

STAY

STAY

ARMING AND LEAVING WITH OTHERS STAYING

1

Check the EZ Touchpad indicators.

The green

READY

light should be ON-STEADY, indicating

that the system is ready to arm.

•

If the green READY light is BLINKING, this indicates that a zone is faulted. The READY light is blinking out the zone
number of the open zone. Count the flashes and look at your zone list to see which zone is open and secure it (close

the door or window, etc.). If you cannot immediately secure the zone, it may be bypassed (see page 7).

•

If the green READY light is OFF, the optional second deadbolt is not locked. If there are two deadbolts in the system,
the other deadbolt must be locked before the system can be armed. Go to the other dead bolt location and lock it.

2

Press the STAY button.

3

Open the door and exit.

4

Lock the deadbolt from the outside to arm the system.



If the deadbolt has not been locked within 60 seconds of pressing

STAY

, the system will

revert back to a disarmed state.

If you are arming and leaving with other family members remaining home:

STAY will begin to flash, indicating the 60 second exit delay period.

READY

STAY
