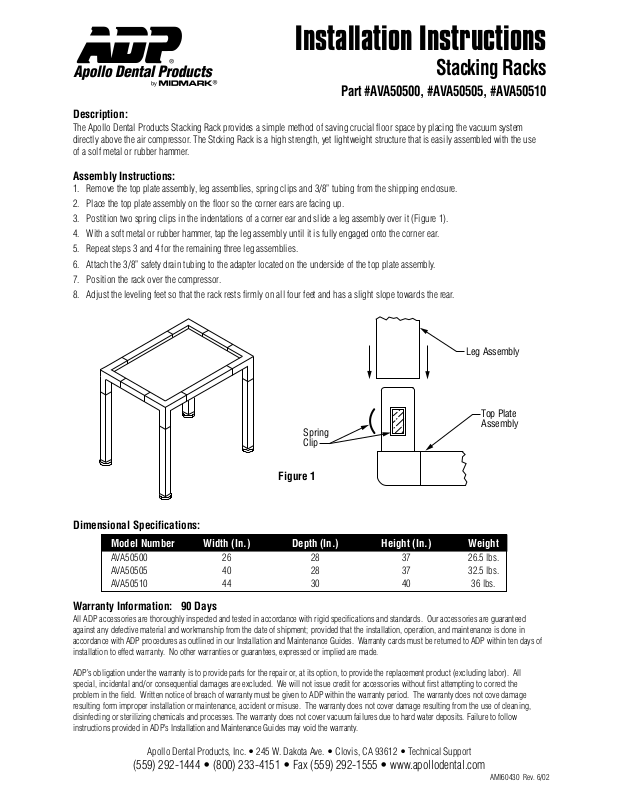

Installation Instructions

Stacking Racks

Part #AVA50500, #AVA50505, #AVA50510

Description:

The Apollo Dental Products Stacking Rack provides a simple method of saving crucial floor space by placing the vacuum system
directly above the air compressor. The Stcking Rack is a high strength, yet lightweight structure that is easily assembled with the use
of a solf metal or rubber hammer.

Assembly Instructions:

1. Remove the top plate assembly, leg assemblies, spring clips and 3/8” tubing from the shipping enclosure.

2. Place the top plate assembly on the floor so the corner ears are facing up.

3. Postition two spring clips in the indentations of a corner ear and slide a leg assembly over it (Figure 1).

4. With a soft metal or rubber hammer, tap the leg assembly until it is fully engaged onto the corner ear.

5. Repeat steps 3 and 4 for the remaining three leg assemblies.

6. Attach the 3/8” safety drain tubing to the adapter located on the underside of the top plate assembly.

7. Position the rack over the compressor.

8. Adjust the leveling feet so that the rack rests firmly on all four feet and has a slight slope towards the rear.

Leg Assembly

Top Plate

Spring
Clip

Assembly

Figure 1

Dimensional Specifications:

Model Number Width (In.) Depth (In.) Height (In.) Weight

AVA50500 26 28 37 26.5 lbs.
AVA50505 40 28 37 32.5 lbs.
AVA50510 44 30 40 36 lbs.

Warranty Information: 90 Days

All ADP accessories are thoroughly inspected and tested in accordance with rigid specifications and standards. Our accessories are guaranteed
against any defective material and workmanship from the date of shipment; provided that the installation, operation, and maintenance is done in
accordance with ADP procedures as outlined in our Installation and Maintenance Guides. Warranty cards must be returned to ADP within ten days of
installation to effect warranty. No other warranties or guarantees, expressed or implied are made.

ADP’s obligation under the warranty is to provide parts for the repair or, at its option, to provide the replacement product (excluding labor). All
special, incidental and/or consequential damages are excluded. We will not issue credit for accessories without first attempting to correct the
problem in the field. Written notice of breach of warranty must be given to ADP within the warranty period. The warranty does not cove damage
resulting form improper installation or maintenance, accident or misuse. The warranty does not cover damage resulting from the use of cleaning,
disinfecting or sterilizing chemicals and processes. The warranty does not cover vacuum failures due to hard water deposits. Failure to follow
instructions provided in ADP’s Installation and Maintenance Guides may void the warranty.
