1

Introduction

DAQ/PXI-2500 SERIES is an advanced analog output card based on the
32-bit PCI/PXI architecture. High performance designs and state-of-the-art
technology make this card ideal for waveform generation, industrial proc­ess control, and signal analysis applications in medical, process control,
etc.

1.1 Features

DAQ/PXI-2500 SERIES advanced analog output cards provide the

following advanced features:

• 32-bit PCI/PXI-Bus, plug and play

• Up to 1MS/s analog output rate

• Up to 400KS/s analog input rate

• Up to 8 analog output channels for DAQ/PXI-2502, and 4 analog output

channels for DAQ/PXI-2501

• Up to 4 analog input channels for DAQ/PXI-2502, and 8 analog input
channels for DAQ/PXI-2501

• Programmable bipolar/unipolar range for analog input channels and
individual analog output channels

• Programmable internal/external reference for individual an alog output
channels

Introduction • 1

• D/A FIFO size: 8K samples for DAQ/PXI -2501, and 16K samples for
DAQ/PXI-2502

• A/D FIFO size: 2K samples

• Versatile trigger sources: software trigger, external digital trigger, ana-

log trigger and trigger from System Synchronization Interface (SSI)

• A/D Data transfer: software polling & bus -mastering DMA with Scat­ter/Gather

• D/A Data transfer: software update and bus-mastering DMA with
Scatter/Gather

• A/D trigger modes: post-trigger, delay-trigger with re-trigger functionality

• D/A outputs with waveform generation capability

• System Synchronization Interface (SSI)

• A/D and D/A fully auto-calibration

• Build-in programmable D/A external reference voltage compensator

• Completely jumper-less and software configurable

1.2 Applications

• Automotive Testing

• Arbitrary Waveform Generator

• Transient Signal Measurement

• ATE

• Laboratory Automation

• Biotech measurement

2 • Introduction

1.3 Specifications

Analog Output (AO)

• Number of channels: 4-CH for DAQ/PXI-2501, 8-CH for DAQ/PXI-2502

• DA converter: AD7945

• Max update rate: 1MS/s

• Resolution: 12 bits

• FIFO buffer size: 8K for DAQ/PXI-2501, 16K for DAQ/PXI-2502

• Data transfer: Programmed I/O, and bus-mastering DMA with scat-

ter/gather

• Voltage reference: internal 10V or external up to ±10V

• Output range:

Bipolar: ±10V or ± external reference
Unipolar: 0~10V or 0~ external reference

• Settling time for –10~+10V step: 2µs

• Slew rate: 20V/µs

• Output coupling: DC

• Protection: Short-circuit to ground

• Output impedance: 0.1Ω. max.

• Output current: ±5mA max.

• Power-on state: 0V steady-state

• Power-on glitch: ±600mV/500µs

• Offset error:

Before calibration: ±80mV max
After calibration: ±2mV max

• Gain error:
Before calibration: ±0.8% of output max
After calibration: ±0.02% of output max

Introduction • 3

Analog Input (AI)

• Number of channels: 4 single-ended for DAQ/PXI-2502, 8 single-ended
for DAQ/PXI-2501

• AD converter: LTC1416

• Max sampling rate: 400KS/s

• Resolution: 14 bits

• FIFO buffer size: 2K samples

• Input range: Bipolar: ±10V, unipolar: 0~10V

• Over voltage protection: Continuous ± 35V maximum

• Input impedance: 1GΩ | 6pF

• Trigger mode: Pre-trigger, post-trigger, middle-trigger, and delay trigger

• Data transfers: Programmed I/O, and bus -mastering DMA with scat-

ter/gather

• Input coupling: DC

• Offset error:

Before calibration: ±40mV max
After calibration: ±1mV max

• Gain error:
Before calibration: ±0.4 % of output max
After calibration: ±1mV of output max

General Purpose Digital I/O (G.P. DIO)

• Number of channels: 24 programmable Input/Output

• Compatibility: TTL/CMOS

• Input voltage:

Logic Low: VIL=0.8V max.; IIL=0.2mA max.
High: VIH=2.0V max.; IIH=0.02mA max

• Output voltage:
Low: VOL=0.5 V max.; IOL=8mA max.
High: VOH=2.7V min; IOH=400µA

4 • Introduction

General Purpose Timer/ Counter (GPTC)

• Number of channel: 2 Up/Down Timer/Counters

• Resolution: 16 bits

• Compatibility: TTL/CMOS

• Clock source: Internal or external

• Max source frequency: 10MHz

Analog Trigger (A.Trig)

• Source: external analog trigger (EXTATRIG)

• Level: ±10V external

• Resolution: 8 bits

• Slope: Positive or negative (software selectable)

• Hysteresis: Programmable

• Bandwidth: 400khz

• External Analog Trigger Input (EXTATRIG)

• Impedance: 40KΩ

• Coupling: DC

• Protection: Continuous ± 35V maximum

System Synchronous Interface (SSI)

• Trigger lines: 7

Calibration

• Recommended warm-up time: 15 minutes

• On-board reference: 5.0V

• Temperature coefficient: ±2ppm/°C

• Long-term stability: 6ppm/1000Hr

Physical

• Dimension: 175mm by 107mm

• I/O connector: 68-pin female mini-SCSI type

Introduction • 5

• Power Requirement: +5VDC; 1.6A typical

Operating Environment

• Ambient temperature: 0 to 55°C

• Relative humidity: 10% to 90% non-condensing

Storage Environment

• Ambient temperature: -20 to 70°C

• Relative humidity: 5% to 95% non-condensing

6 • Introduction

1.4 Software Support

ADLINK provides versatile software drivers and packages for users’ dif­ferent approach to building up a system. ADLINK not only provides pro­gramming libraries such as DLL for most Windows based sy stems, but also
provide drivers for other software packages such as LabVIEW®.

All software options are included in the ADLINK CD. Non-free software
drivers are protected with licensing codes. Without the software code , you
can install and run the demo version for two hours for trial/demonstration
purposes. Please contact ADLINK dealers to purchase the formal license.

1.4.1 Programming Library

For customers who are writing their own programs, we provide function
libraries for many different operating systems, including:

D2K-DASK: Include device drivers and DLL for Windows 98,
Windows NT and Windows 2000. DLL is binary compatible across
Windows 98, Windows NT and Windows 2000 /XP. This means all
applications developed with D2K-DASK are compatible across
Windows 98, Windows NT and Windows 2000/XP. The developing
environment can be VB, VC++, Delphi, BC5, or any Windows pro­gramming language that allows calls to a DLL. The user’s guide and
function reference manual of D2K-DASK are in the CD.
(\\Manual_PDF\Software\D2K-DASK)

D2K-DASK/X : Include device drivers and shared library for Linux.
The developing environment can be Gnu C/C++ or any program­ming language that allows linking to a shared library. The user's
guide and function reference manual of D2K-DASK/X are in the CD.
(\Manual_PDF\Software\D2K-DASK-X.)

1.4.2 D2K-LVIEW: LabVIEW® Driver

D2K-LVIEW contains the VIs, which are used to interface with NI’s Lab­VIEW® software package. The D2K-LVIEW supports Windows
98/NT/2000/XP. The LabVIEW® driver is shipped free with the board. You
can install and use them without a license. For detailed information about
D2K-LVIEW, please refer to the user’s guide in the CD.

(\\Manual_PDF\Software\D2K-LVIEW)

Introduction • 7

1.4.3 D2K-OCX: ActiveX Controls

We suggest customers who are familiar with ActiveX controls and
VB/VC++ programming use PCIS-OCX ActiveX control component librar­ies for developing applications. PCIS-OCX is designed for Windows
98/NT/2000/XP. For more detailed information about PCIS-OCX, please
refer to the user's guide in the CD.

(\Manual_PDF\Software\D2K-OCX\D2K-OCX.PDF)
The above software drivers are shipped with the board. Please refer to the

“Software Installation Guide” in the package to install these drivers.
In addition, ADLINK supplies an ActiveX control software DAQBench.

DAQBench is a collection of ActiveX controls for measurement or auto­mation applications. With DAQBench, you can easily develop custom user
interfaces to display your data, analyze data you acquired or received from
other sources, or integrate with popular applications or other data sources.
For more detailed information about DAQBench, please refer to the user's
guide in the CD.

(\Manual_PDF\Software\DAQBench\DAQBenchManual.PDF)
You can also get a free 4-hour evaluation version of DAQBench from the

CD.
DAQBench is not free. Please contact ADLINK dealer or ADLINK to pur-

chase the software license.

8 • Introduction

2

Installation

This chapter describes how to install DAQ/PXI-2500 SERIES cards. The
contents of the package and unpacking information that you should be
aware of are outlined first.

DAQ/PXI-2500 SERIES performs an automatic configuration of the IRQ,
and port address. Users can use software utility, PCI_SCAN.EXE to read
the system configuration.

2.1 Contents of Package

In addition to this User's Guide, the package should include the following
items:

• DAQ/PXI-2500 SERIES Multi-function Data Acquisition Card

• ADLINK All-in-one Compact Disc

• Software Installation Guide

If any of these items are missing or damaged, contact the dealer from
whom you purchased the product. Save the shipping materials and carton
in case you want to ship or store the product in the future.

Installation • 9

2.2 Unpacking

Your DAQ/PXI-2500 SERIES card contains electro -static sensitive com­ponents that can be easily be damaged by static electricity.

Therefore, the card should be handled on a grounded anti-static mat. The
operator should be wearing an anti-static wristband, grounded at the same
point as the anti-static mat.

Inspect the card module carton for obvious damages. Shipping and han­dling may cause damage to your module. Be sure there are no shipping
and handling damages on the modules carton before continuing.

After opening the card module carton, extract the system module and place
it only on a grounded anti-static surface with component side up.

Again, inspect the module for damages. Press down on all the socketed
IC's to make sure that they are properly seated. Do this only with the
module place on a firm flat surface.

Note: DO NOT APPLY POWER TO THE CARD IF IT HAS BEEN

DAMAGED.

You are now ready to install your DAQ/PXI-2500 SERIES.

10 • Installation

2.3 DAQ/PXI-2500 SERIES Layout

Figure 2.2 PCB Layout of DAQ-2502/2501

Figure 2.3 PCB Layout of PXI-2502/2501

Installation • 11

2.4 PCI Configuration

1. Plug and Play:

As a plug and play component, the board requests an interrupt number via
its PCI controller. The system BIOS responds with an interrupt assignment
based on the board information and system parameters. These system
parameters are determined by the installed drivers and the hardware load
seen by the system.

2. Configuration:

The board configuration is done on a board-by-board basis for all PCI
boards on your system. Because configuration is controlled by the system
and software, there is no jumper setting required for base-address, DMA,
and interrupt IRQ.

The configuration is subject to change with every boot of the system as
new boards are added or removed.

3. Trouble shooting:

If your system doesn’t boot or if you experience erratic operation with your
PCI board in place, it’s likely caused by an interrupt conflict (perhaps the
BIOS Setup is incorrectly configured). In general, the solution, once you
determine it is not a simple oversight, is to consult the BIOS documentation
that comes with your system.

12 • Installation

3

Signal Connections

This chapter describes the connectors of DAQ/PXI-2500 SERIES, and the
signal connection between DAQ/PXI-2500 SERIES and external devices.

3.1 Connectors Pin Assignment

DAQ/PXI-2500 SERIES is equipped with two 68-pin VHDCI-type con­nectors (AMP-787254-1). It is used for digital input / output, analog input /
output, and timer/counter signals, etc. The pin assignments of the con­nectors are defined in Figure 3.1.1 and Figure 3.1.2.

Signal Connections • 13

AO_0 1 35 AGND
AO_1 2 36 AGND
AO_2 3 37 AGND
AO_3 4 38 AGND

AOEXTREF_A/AI_0 5 39 AGND

AI_1 6 40 AGND

EXTATRIG/AI_2 7 41 AGND

AOEXTREF_B/AI_3 8 42 AGND

AO_4/AI_4 9 43 AGND
AO_5/AI_5 10 44 AGND
AO_6/AI_6 11 45 AGND
AO_7/AI_7 12 46 AGND

AO_TRIG_OUTA 13 47 EXTWFTRG_A

AO_TRIG_OUTB 14 48 EXTWFTRG_B

GPTC1_SRC 15 49 VCC
GPTC0_SRC 16 50 DGND

GPTC0_GATE 17 51 GPTC1_GATE

GPTC0_OUT 18 52 GPTC1_OUT

GPTC0_UPDOWN 19 53 GPTC1_UPDOWN

RESERVED 20 54 DGND

AFI1 21 55 AFI0

PB7 22 56 PB6
PB5 23 57 PB4
PB3 24 58 PB2
PB1 25 59 PB0
PC7 26 60 PC6
PC5 27 61 PC4

DGND 28 62 DGND

PC3 29 63 PC2
PC1 30 64 PC0
PA7 31 65 PA6
PA5 32 66 PA4
PA3 33 67 PA2
PA1 34 68 PA0

Figure 3.1.1 Connector CN1 pin assignment

14 • Signal Connections

channel <4..7> / AI channel

Legend :

Pin # Signal Name Refer-

1~4 AO_<0..3> AGND Output Voltage output of DA
5 AOEXTREF_A/
6 AI_1 AGND Input AI input 0

7 EXTATRIG/
8 AOEXTREF_B/
9~12 AO_<4..7>/

13,14 AO_TRIG_OUT_
15,16 GPTC<0,1>_SRC DGND Input Source of GPTC<0,1>

17,51 GPTC<0,1>_GATE DGND Input Gate of GPTC<0,1>
18,52 GPTC<0,1>_OUT DGND Input Output of GPTC<0,1>
19,53 GPTC<0,1>_

20 RESERVED -------- -------- Reserved Pin
21,55 AFI<1,0> DGND Input Auxiliary Function Input
22,56,23,57,
24,58,25,59
26,60,27,61,
29,63,30,64
31,65,32,66,
33,67,34,68
35~46 AGND -------- -------- Analog ground
47,48 EXTWFTRIG_<A,B> DGND Input External waveform trigger

49 VCC DGND Power
28,50,54,62 DGND -------- -------- Digital ground

AI_0

AI_2
AI_3
AI_<4..7>

<A,B>

UPDOWN

PB<7,0> DGND PIO Programmable DIO of
PC<7,0> DGND PIO Programmable DIO of
PA<7,0> DGND PIO Programmable DIO of

ence

AGND Input External reference for AO

AGND Input External analog trigger / AI
AGND Input External reference for AO
AGND Output

DGND Output AO trigger signal for

DGND Input Up/Down of GPTC<0,1>

*PIO means Programmable Input/Output

Figure 3.1.2 Connector CN2 pin assignment

Direction Description

channel <0..3>
channel <0..3> / AI input 2

input 1
channel <4..7> / AI input 3

Voltage output of DA

/Input

<4..7> (only for DAQ-2501)
channel <0..3> <4..7>

8255 Port B
8255 Port C
8255 Port A

for AO channel <0..3>
<4..7>
+5V Power Source

(Output)

Signal Connections • 15

4

Operation Theorm

The operation theories of the DAQ/PXI-2500 series are described in this
chapter. The functions include A/D conversion, D/A conversion, Digital I/O,
and General Purpose Counter / Timer. This operation theory will help you
understand how to configure and program the DAQ/PXI-2500 series.

16 • Operation Theoreym

Operation Theorem • 17

4.1 A/D Conversion

When using an A/D converter, users should know the properties of the
signal to be measured. In addition, users should setup the A/D configura­tions, including scan channels, input range, and polarities.

The A/D acquisition is initiated by a trigger signal. The data acquisition will
start once the trigger signal matches the trigger conditions. Converted
data are queued into the FIFO buffer, and then transferred to the host PC's
memory for further processing.

Two acquisition modes: Software Polling and Programmable Scan are
described in the following sections , including the timing, trigger modes,
trigger sources, and transfer methods.

4.1.1 DAQ/PXI-2500 series AD Data Format

The data format of the acquired 14-bit A/D data is 2’s Complement coding.
Table 4.1.1 and 4.1.2 lists the valid input ranges and the ideal transfer
characteristics.

Magnitude Bipolar Input Range

FSR ±10V ±5V ±2.5V ±1.25V
LSB 1120.78uV 610.39uV 305.19uV 152.60uV
FSR-1LSB 9.998779V 4.999389V 2.499694V 1.249847V 1FFF
Midscale +

LSB
Midscale 0V 0V 0V 0V 0000
Midscale ­LSB

-FSR -10V -5V -2.5V -1.25V 2000

Table 4.1.1 Bipolar Input Range and Converted Digital Codes

Magnitude Unipolar Input Range

FSR 0V ~ 10V 0 ~ +5V 0 ~ +2.5V 0 ~ +1.25V
LSB 610.39uV 305.19uV 152.60uV 76.3uV
FSR -

LSB
Midscale +
LSB
Midscale 5V 2.5V 1.25V 0.625V 0000
Midscale ­LSB

-FSR 0V 0V 0V 0V 2000

Table 4.1.2 Unipolar Input Range and Converted Digital Codes

1120.78uV 610.39uV 305.19uV 152.60uV 0001

-1120.78uV -610.39uV -305.19uV -152.60uV 3FFF

Digital
code

4.999389V 2.499694V 1.249847V 1.249923V 1FFF

5.000611V 2.500306V 1.250153V 0.625076V 0001

4.999389V 2.499694V 1.249847V 1.249923V 3FFF

Digital
code

18 • Operation Theoreym

can right after the

can delayed by the amount

after the

Trigger

while

and it could be

4.1.2 Software Polling

This is the easiest way to acquire a single A/D data. The A/D converter
performs one conversion whenever the dedicated software command is
executed. The software would poll the conversion status and read the A/D
data back when it is available.

This method is suitable for applications that need to acquire A/D data in
real time. In this mode, the timing of the A/D conversion is fully controlled
by software. However, it would be difficult to maintain a fixed A/D sampling
rate.

4.1.3 Programmable Scan

This method is suitable for applications that need to acquire A/D data at a
precise and fixed rate. A scan is a group of multiple channel samples and
the scan interval is defined by the SI_counter. Likewise, the sample in­terval of the multiple channels is defined by the SI2_counter. Please refer
to Table 4.1.4 for more information.

DAQ/PXI-2500 series can sample multiple channels in continu­ous/discontinuous ascending sequence. For example, users may program
DAQ/PXI-2500 series to perform a scan in the channel sequence of
1-2-4-1-2-4…

There are 3 Trigger Modes available in Programmable Scan. They are
Post-Trigger, Delay-Trigger, Post/Delay-Trigger with Retrigger. Please
refer to Table 4.1.3 for a brief summary on Trigger Modes and their Trigger
Sources.

Trigger Mode Description Trigger Sources

Post-Trigger

Delay-Trigger

Post/Delay­with Retrigger

Table 4.1.3 Trigger Modes and Corresponding Trigger Sources

Perform a s
trigger occurs.

S
of time programmed
trigger

Perform repeated scan
trigger occurs
under Post-Trigger or De­lay-Trigger mode.

Operation Theorem • 19

Software Trigger
Digital Trigger
Analog Trigger
SSI AD Trigger

4.1.3.1 Scan Timing and Procedure

There are 4 counters that need to be specified prior to programmable
scans:

Counter
Name

SI_counter 24-bit

SI2_counter 24-bit

Width Description Notes

Scan Interval, which

defines the interval
between each scan.

Sampling Interval,
which defines the
interval between
each sampled
channel.

Scan Interval =
SI_counter / Time-

base*

Sampling Interval =

SI2_counter /

Timebase*

Post Scan Counts,

which defines how

PSC_counter 24-bit

many scans to be
performed with re­spect to each trig­ger.

Delay Time =
(Delay_counter /

Timebase*),

Delay_counter 16-bit

Timebase*=40M for DAQ/PXI-2500 Series

Define the delay
time for scan after
trigger.

Table 4.1.4 Summary of Counters for Programmable Scan

The relationship between counters and acquisition timing is illustrated in
Figure 4.1.1.

20 • Operation Theoreym

Acquisition_in_progress

AD_conversion

3 Scans, 4 Samples per scan

(PSC_Counter=3)

(Scan acquisition is performed in ascending sequence for enabled channels)

Trigger
Scan_start

Scan_in_progress

Ch0

Ch1

Ch2

Ch0

Ch1

Ch3

Ch2

Ch0

Ch1

Ch3

Ch2

Ch3

Sampling Interval t=
SI2_COUNTER/TimeBase

Scan Interval T=
SI_COUNTER/TimeBase

Figure 4.1.1 Timing for Scan

NOTE:

1. The maximum A/D sampling rate is 400KHz for DAQ/PXI-2500 series
therefore the minimum setting of SI2_counter is 100.

2. The Scan Interval can not be smaller than the interval of data Sampling
Interval multiple by the Number of channels per Scan, i.e.: SI_counter
>= SI2_counter * NumChan_Counter

4.1.3.2 Trigger Mode

Post-Trigger Acquisition

Use post-trigger acquisition when users want to perform scans right after a
trigger signal. The number of scans to be performed after the trigger signal
is specified by the PSC_counter, as illustrated in Figure 4.1.2. The total
acquired data length = (number_of_channels_enabled_for
_scan_acquisition) * PSC_counter.

Delay Trigger Acquisition

Use delay trigger when users want to delay the scan after a trigger signal.
The delay time is determined by the Delay_counter, as shown in Figure

4.1.3.
The counter counts down on the rising edges of Delay_counter clock

source after the trigger signal. When the count reaches 0, DAQ/PXI-2500
SERIES starts to perform the scan. The acquired data length = (num­ber_of_channels_enabled_for_scan_acquisition) * PSC_counter. The
Delay_counter clock source can be so ftware selected from Internal 40MHz

Operation Theorem • 21

Scan_in_progress

Operation start

Timebase, external input (AFI-1), or General Purpose Timer/Counter
Output 0/1.

Post-Trigger or Delay-trigger Acquisition with retrigger

Use post-trigger or delay-trigger acquisition with retrigger when users want
to perform repeated scans with respect to the repeated triggers. Figure

4.1.4 illustrates an example. Two scans are performed after the first trigger
signal, and then wait for the next trigger signal. When the trigger signal
occurs, it performs 2 more scans.

When re -trigger function is disabled, only one trigger signal would be ac­cepted after retrigger

NOTE: Retrigger signals asserted during scan process will be ignored.

Acquisition_in_progress

(NumChan_Counter=4, PSC_Counter=3)

Trigger
Scan_start

AD_conversion

Acquired & stored data
(3 scans)

Figure 4.1.2 Post trigger

22 • Operation Theoreym

Scan_in_progress

Operation start

Operation start

Trigger
Scan_start

AD_conversion

Acquisition_in_progress

Acquisition_in_progress

(NumChan _Counter=4, SC_Counter=2, retrig_no=3)

Trigger
Scan_start

AD_conversion

Scan_in_progress

(NumChan _Counter=4, PSC_Counter=3)

Delay until
Delay_Counter
reaches 0

Acquired & stored data
(3 scans)

Figure 4.1.3 Delay trigger

Acquired & stored data
(6 scans)

Figure 4.1.4 Post trigger with retrigger

4.1.4.4 Bus-mastering DMA Data Transfer

Bus Mastering DMA Mode

In order to utilize the maximum PCI bandwidth, PCI bus-mastering DMA is
used for high speed DAQ boards. The bus-mastering capability of the PLX
PCI controller, takes over the PCI bus when it becomes the master. Bus
mastering reduces the required size of on-board memory as well as CPU
loading since data is directly transferred to the host PC ’s memory without
CPU intervention.

Operation Theorem • 23

The hardware temporarily stores the acquired data in the onboard Data
FIFO buffer, then transfers the data to the user-defined DMA buffer in the
host PC’s memory. Bus-mastering DMA utilizes the fastest available
transfer rate of PCI-bus. Once the analog acquisition operation starts,
control returns to your program.

The DMA transfer mode is very complex to program. We re commend
using a high-level program library to configure this card. If users would like
to program the software that can handle DMA data transfer, please refer to
http://www.plxtech.com for more information on PCI controllers.

DMA with Scatter Gathering Capability

In multi-user or multi-tasking OS such as Microsoft Windows, Linux, etc., it
would be difficult to allocate a large continuous memory block due to
memory fragmentation. PLX PCI controller provides scatter /gather or
chaining mode to link non-continuous memory blocks into a linked list, so
that users can transfer large amounts of data without being limited by the
fragment of memory blocks. Users can configure the linked list for the input
DMA channel and the output DMA channel, individually.

Figure 4.1.5 shows the linked list that is constructed by three DMA de­scriptors. Each descriptor contains a PCI address, a local address, a
transfer size, and the pointer to the next descriptor. Users can thus collect
fragmented memory blocks and chain their associative DMA descriptors
altogether. DAQ/PXI-2500 SERIES software driver provides users easy
ways to setup scatter/gather functions . Sample programs are also sup­plied in the all-in-one CD.

Figure 4.1.5 Scatter/Gather DMA for data transfer

In non-chaining mode, the maximum DMA data transfer size would be 2M
double words (8M bytes). By using chaining mode, scatter/gather, there is
no limitation on DMA data transfer size. Users can also link the descriptor
nodes circularly to achieve a multi-buffered DMA.

24 • Operation Theoreym

4.2 D/A Conversion

DAQ/PXI-2500 series offers flexible and versatile analog output scheme to
fit users’ complex field applications. In order to take full advantages of
DAQ/PXI-2500 series, we suggest users carefully read the following con­tents.

Architecture

There are up to 8-channel of 12-bit Digital-to-Analog Converter (DAC)
available in the DAQ/PXI -2502. Four D/A channels are packed into one
D/A group, i.e., DAQ/PXI-2502 contains two D/A groups, and
DAQ/PXI-2501 has only one D/A group.

Figure 4.2.1 Block Diagram of D/A Group

(Group B of DAQ/PXI-2502 is identical to Group A shown above)

Figure 4.2.1 shows the D/A block diagram. DAC are controlled implicitly by
CPLD and have their outputs updated only when digital codes for all en­abled DA channels are ready and latched. This ensures D/A conversions
to be synchronized for each channel in the same D/A group. Users can
utilize this property to perform multi-channel waveform generation without
any phase-lag.

Operation Theorem • 25

Hardware controlled Waveform Generation

FIFO is a hardware first-in first-out data queue, which holds temporary
digital codes for D/A conversion. When DAQ/PXI-2500 SERIES operates
in Waveform Generation mode, the waveform patterns are stored in FIFO,
with 8K maximum samples. Waveform patterns larger than 8K are also
supported by utilizing bus-mastering DMA transfer supported by PCI con­troller. Data format in FIFO is shown in Figure 4.2.2.

Figure 4.2.2 Data Format in FIFO and mapping

With hardware-based Waveform Generation, D/A conversions are updated
automatically by CPLD rather than application software. Unlike the con­ventional Software-based Waveform Generation, the precise hardware
timing control guarantees non-distorted waveform generation even when
host CPU is under heavy loading. Detailed function setup will be explained
in Section 4.2.2.

NOTE: When using waveform generation mode, all the four DACs in the
same D/A group must be configured for the same mode. However, any
one of the DAC can be disabled. If users need to use the software update
mode, they can use another D/A group on the PXI/DAQ-2502.

26 • Operation Theoreym

Setting up the DACs

Before using the DACs, users should setup the reference source and its
polarity. Each DAC has its own reference and polarity settings. For ex­ample; the internal voltage reference of D/A Group A is tied to internal
+10V, however, users can still connect external reference thru AOEXTREF
(pin 5 on CN2), for example to a +3.3V voltage source. Therefore, each
DAC in D/A Group A has two reference options: 10V or 3. 3V. However, DA
update timing, trigger Source, and trigger/stop mode are all the same
throughout that D/A Group.

DAQ/PXI-2500 SERIES provides the capability to fine tune the voltage
reference from the external source. The external reference is fed thru an
on board calibrated circuit, with programmable offset. Users can utilize this
capability to generate precise D/A outputs.

CAUTION: The range of external voltage reference should be within ｱ
10V.

Utilizing Multiplying Characteristic of DACs

The D/A reference selection let users fully utilize the multiplying charac­teristics of the DACs. Digital codes sent to the D/A converters will be
multiplied by the reference to generate output.

Bipolar Unipolar

Magnitude

FSR – LSB

Midscale +
LSB
Midscale 0 Vref * (2048 / 4096) 0800

Midscale –
LSB

-FSR + LSB

-FSR -Vref 0 0000

Output Output

+Vref * (2046 /

2048)

+Vref * (1 / 2048) Vref * (2049 4096) 0801

-Vref * ( 1 / 2048) Vref * (2047 / 4096) 07FF

-Vref * (2046 /

2048)

Vref * (4095 / 4096) 0FFF

Vref * ( 1 / 4096) 0001

Digital
Code

Table 4.2.1 D/A Output Versus Digital Codes

Operation Theorem • 27

DAQ/PXI-2500 SERIES can generate standard and arbitrary functions,
continuously or piece-wisely. Appendix A demonstrates possible wave­form patterns generated by DAQ/PXI-2500 SERIES in combination with
various counters, clock sources, and voltage references.

4.2.1 Software Update

This method is suitable for applications that need to generate D/A output
controlled by user programs. In this mode, the D/A converter generates
one output once the software command is issued. However, it would be
difficult to determine the software update rate under a multi-task OS like
Windows.

4.2.2 Waveform Generation

This method is suitable for applications that need to generate waveforms at
a precise and fixed rate. Various programmable counters will facilitate
users to generate complex waveforms with great flexibility.

There are three event signals involved in Waveform Generation: Start,
DAWR (DA WRite), and Stop. Please refer to Table 4.2.2 for a brief
summary on Waveform Generation Events and their corresponding Trig­ger Sources.

For more information on Trigger Mode, Stop Mode, Time-base, and Trig­ger Sources, please refer to section 4.2.2.2, 4.2.2.4, 4.1.4.2, and 4.5, re­spectively.

Signal Descriptions Valid Sources

Software Trigger

Start

DAWR

Stop Stop Waveform Generation

Start Waveform Generation
process.

Write data to the DAC on the fal­ling edges of DAWR.

Ext. Digital Trigger
Analog Trigger
SSI Trigger
Internal Update
External Update
SSI Update
Software Trigger
Ext. Digital Trigger
Analog Trigger

Table 4.2.2 Trigger Signals and Corresponding Signal Sources

28 • Operation Theoreym

4.2.2.1 Waveform Generation Timing

Six counters interact with the waveform to generate different DAWR timing,
thus forming different waveforms. They are described in Table 4.2.3.

Counter Name Width Description Note

Update Interval,

UI_counter 24-bit

UC_counter 24-bit

IC_counter 16-bit

DLY1_counter 16-bit

DLY2_counter 16-bit

Trig_counter 16-bit

Timebase*=40M for DAQ/PXI-2500 Series

which defines the
update interval be­tween each data
output.

Update Counts,
which defines the
number of data in a
waveform.

Iteration Counts,
which defines how
many times the
waveform is gener­ated.
Define the delay time
for waveform gen­eration after the
trigger signal.
Define the delay time
to separate con­secutive waveform
generation. Effec­tive only in Iterative

Waveform Genera­tion mode.

Define the accept­able start trigger
count when
re-trigger function is
enabled

Update Interval =
UI_counter / Time-
base*.

When value in
UC_counter is
smaller than the size
of waveform pat­terns, the waveform
is generated
piece-wisely.

Delay Time =
(DLY1_counter /
Clock Timebase)

Delay Time =
(DLY2_counter /
Clock Timebase)

Table 4.2.3 Summary of Counters for Waveform Generation

Operation Theorem • 29

reaches

0

NOTE: The maximum D/A update rate is 1MHz. Therefore the minimum
setting of UI_counter is 40.

4 update counts, 3 iterations
(UC _Counter=4, IC_Counter=3)

Trigger

UC_Counter=4

DAWR

WFG_in_progress

Output Waveform

Operation start

Delay until
DLY1_Counter

Delay until
DLY2_Counter
reaches 0

DA update_interval t=
UI_Counter/Timebase

A single waveform

IC_Counter = 3

Delay until
DLY2_Counter
reaches 0

Figure 4.2.3 Typical D/A timing of waveform generation

(Assuming the data in the data buffer are 2V, 4V, -4V, 0V)

4.2.2.2 Trigger Modes

Post-Trigger Generation

Use post-trigger generation when users want to generate waveform right
after a trigger signal. The number of patterns to be updated after the
trigger signal is specified by UC_counter* IC_counter, as illustrated in
Figure 4.2.4.

30 • Operation Theoreym

Operation start

Delay-Trigger Generation

Use delay-trigger when users want to delay the waveform generation after
the trigger signal. The delay time is determined by DLY1_counter, as
shown in Figure 4.2.5.

The counter counts down on the rising edges of DLY1_counter clock
source after the start trigger signal. When the count reaches zero,
DAQ/PXI-2500 series starts to generate the waveform. The DLY1_counter
clock source can be software selected from the Internal 40MHz Timebase,
external clock input (AFI-0), or GPTC output 0/1.

Post-Trigger or Delay-Trigger with Retrigger

Use post-trigger or delay-trigger with retrigger when users want to gener­ate multiple waveforms with respect to multiple incoming trigger signals.
Users can set Trig_counter to specify the number of acceptable trigger
signals.

Figure 4.2.6 illustrates an example. Two waveforms are generated after
the first trigger signal (Iterative Waveform Generation is used in this
example, please refer to Section 4.2.2.3 for details). The board then waits
for another trigger signal. When the next trigger signal is asserted, the
board generates two more waveforms. After three trigger signals, as
specified in Trig_Counter, no more triggers signals will be accepted unless
software trigger reset command is executed.

NOTE: Start Trigger signals asserted during waveform generation
process will be ignored.

Trigger
DAWR

WFG_in_progress

Output Waveform

8 update counts, 1 iteration
(UC _Counter=8, IC_Counter=1)

Figure 4.2.4 Post-Trigger Generation

Operation Theorem • 31

WFG_in_progress

Operation start

reaches 0

4 update counts, 2 iterations

Trigger
DAWR

Output Waveform

8 update counts, 1 iteration
(UC _Counter=8, IC_Counter=1)

Delay until
DLY1_counter

Figure 4.2.5 Delay-Trigger Generation

Trigger

DAWR

WFG_in_progress

Output Waveform

(UC _Counter=4, IC_Counter=2, Trig_Counter=3,
DLY2_Counter disabled, DLY2_Counter disabled)

Operation start

a single waveform

Ignored

Figure 4.2.6 Post-Trigger with Retrigger Generation

4.2.2.3 Iterative Waveform Generation

Users can set IC_counter to generate iterative waveforms, no matter which
Trigger Mode is used. The IC_counter stores the iteration number. Ex­amples are shown in Figure 4.2.7 and 4.2.8.

When IC_counter is disabled, the waveform generation will not stop until a
stop trigger is asserted. For Stop Mode, please refer to Section 4.2.2.4 for
details.

An on-board data FIFO is used to buffer the waveform patterns for wave­form generation. If the size of a single waveform is smaller than that of the
FIFO, after initially loading the data from the host PC’s memory, the data in
FIFO will be re-used when a single waveform generation is completed. In
other words, it won’t occupy the PCI bandwidth afterwards. However, if the

32 • Operation Theoreym

A single waveform

WFG_in_progress

trigger is asserted

size of a single waveform were larger than that of the FIFO, it needs to be
intermittently loaded from the host PC’s memory via DMA, thus PCI
bandwidth would be occupied.

If the value specified in UC_counter is smaller than the sample size of the
waveform patterns, the waveform will be generated piece-wisely. For
example, if users defined a 16-sample sine wave and set the UC_counter
to 2, the generated waveform will be a 1/8-cycle sine wave for every
waveform period. In other words, a complete sine wave will be generated
for every 8-iterations. If value specified in UC_counter is larger than the
sample size of waveform LUT, say, 32; the generated waveform will be a
2-cycle sine wave for every waveform period.

In conjunction with different trigger modes and counter setups, users can
manipulate a single waveform to generate different, more complex wave­forms. For more information, please refer to Appendix A.

Trigger
DAWR

WFG_in_progress

Output Waveform

4 update counts, 3 iterations
(UC _Counter=4, IC_Counter=3, DLY2_Counter=0)

Operation start

Figure 4.2.7 Finite iterative waveform generation with Post-trigger

(Assuming the digital codes in the FIFO are 2V, 4V, 2V, 0V)

Trigger

DAWR

Output Waveform

4 update counts, infinite iterations
(UC _Counter=4, IC_Counter=disabled, DLY2_Counter=disabled)

Operation start

waveform generation
won’t stop until a stop

Figure 4.2.8 Infinite iterative waveform generation with Post-trigger

(Assuming the digital codes in the FIFO are 2V, 4V, 2V, 0V)

Operation Theorem • 33

DLY2_Counter in iterative Waveform Generation

To expand the flexibility of Iterative Waveform Generation, DLY2_counter
was implemented to separate consecutive waveform generations.

The DLY2_counter starts counting down right after a single waveform
generation is completed. When it reaches zero, the next iteration of
waveform generation will start as shown in Figure 4.2.3. If users are
generating waveform piece-wisely, the next piece of waveform will be
generated. The DLY2_counter clock source can be software selected from
Internal 40MHz Timebase, external clock input (AFI-0), or GPTC output
0/1.

4.2.2.4 Stop Modes

Users can stop waveform generation while it is still in progress, either by
hardware or software trigger. The stop trigger sources can be software
selected from Internal software trigger, external digital trigger (AFI-0/1), or
analog trigger. Three stop modes are provided to stop finite or infinite
waveform generation.

Stop Mode I

After a mode I stop trigger is asserted, the waveform generation stops
immediately. Figure 4.2.9 illustrates an example.

Stop Mode II

After a mode II stop trigger is asserted, the waveform generation continues
to generate a complete waveform then stops the operation. Take Figure

4.2.10 as an example. Since UC_counter is set to 4, the total generated
data points must be a multiple of 4.

Users can check WFG_in_progress (waveform generation in progress)
status by software read-back to confirm the stop of a waveform generation.

Stop Mode III

After a mode III stop trigger is asserted, the waveform generation contin­ues until the iterative number of waveforms specified in IC_Counter is
completed. Take Figure 4.2. 11 for example. Since IC_Counter is set to 3,
the total generated waveforms must be a multiple of 3.

Users can check WFG_in_progress (waveform generation in progress)
status by software read-back to confirm the stop of a waveform generation.

34 • Operation Theoreym

Trigger

DAWR

WFG_in_progress

Output Waveform

4 update counts, infinite iterations
(UC _Counter=4, IC_Counter disabled)

Operation start

stop trigger

Figure 4.2.9 Stop mode I

(Assuming the data in the data buffer are 2V, 4V, 2V, 0V)

Trigger

DAWR

WFG_in_progress

Output Waveform

4 update counts, infinite iterations
(UC _Counter=4, IC_Counter disabled)

Operation start

stop trigger

Figure 4.2.10 Stop mode II

Trigger

DAWR

WFG_in_progress

Output Waveform

4 update counts, finite iterations
(UC _Counter=4, IC_Counter=3, Trig_Counter>1)

Operation start

stop trigger

Figure 4.2.11 Stop mode III

Operation Theorem • 35

4.3 General Purpose Digital I/O

DAQ/PXI-2500 SERIES provides 24-line general-purpose digital I/O
(GPIO) through a 82C55A chip.

The 24-line GPIO are separated into three ports: Port A, Port B and Port C.
High nibble (bit[7…4]), and low nibble (bit[3…0]) of each port can be indi­vidually programmed to be either inputs or outputs. Upon system startup
or reset, all the GPIO pins are reset to high impedance inputs.

For more information on programmable I/O chip 82C55A, please refer to
http://www.intel.com.

36 • Operation Theoreym

4.4 General Purpose Timer/Counter Operation

Two independent 16-bit up/down timer/counter are embedded in FPGA
firmware for users applications. They have the following features:

• Direction of counting can be controlled via hardware or software.

• Selectable counter clock source from either internal or external clock up

to 10MHz.

• Programmable gate selection.

• Programmable input and output signal polarities, either active-high or

active-low.

• Initial Count can be loaded via software

• Current count value can be read-back by software without affecting

circuit operation

4.4.1 Timer/Counter functions basics

Each timer/counter has three inputs that can be controlled via hardware or
software. They are clock input (GPTC_CLK), gate input (GPTC_GATE),
and up/down control input (GPTC_UPDOWN).

The GPTC_CLK input acts as a clock source to the timer/counter. Active
edges on the GPTC_CLK input increment or decrement the counter. The
GPTC_UPDOWN input determines whether the counter’s counting-up or
counting-down. The GPTC_GATE input is a control line, which acts as a
counter enable or a counter trigger signal in different modes.

The output of timer/counter is GPTC_OUT. After power-up, GPTC_OUT is
pulled high by a 10K resistor. GPTC_OUT goes low after the DAQ board is
initialized.

All the polarities of input/output signals can be programmed via software.
In this chapter, all timing figures assume that GPTC_CLK, GPTC_GATE,
and GPTC_OUT are set to be positive-logic. (i.e. they’re triggered on the
rising-edge)

4.4.2 General Purpose Timer/Counter modes

Eight programmable timer/counter modes are provided. All modes start
operations following the software start command. The GPTC software
reset command initializes the status of the counter and re-loads the initial
value to the counter.

Operation Theorem • 37

5 4 3 2 1 1 0

0 1 2 3 4 5 5

4.4.2.1 Mode1: Simple Gated-Event Counting

In this mode, the counter counts the number of pulses on the GPTC_CLK
after the software start. Initial count value can be loaded via software.

Current count value can be read-back by software at any time.
GPTC_GATE is used to enable/disable counting. When GPTC_GATE is
inactive, the counter halts the current count value. Figure 4.4.1 illustrates
the operation with initial count = 5 in down-counting mode.

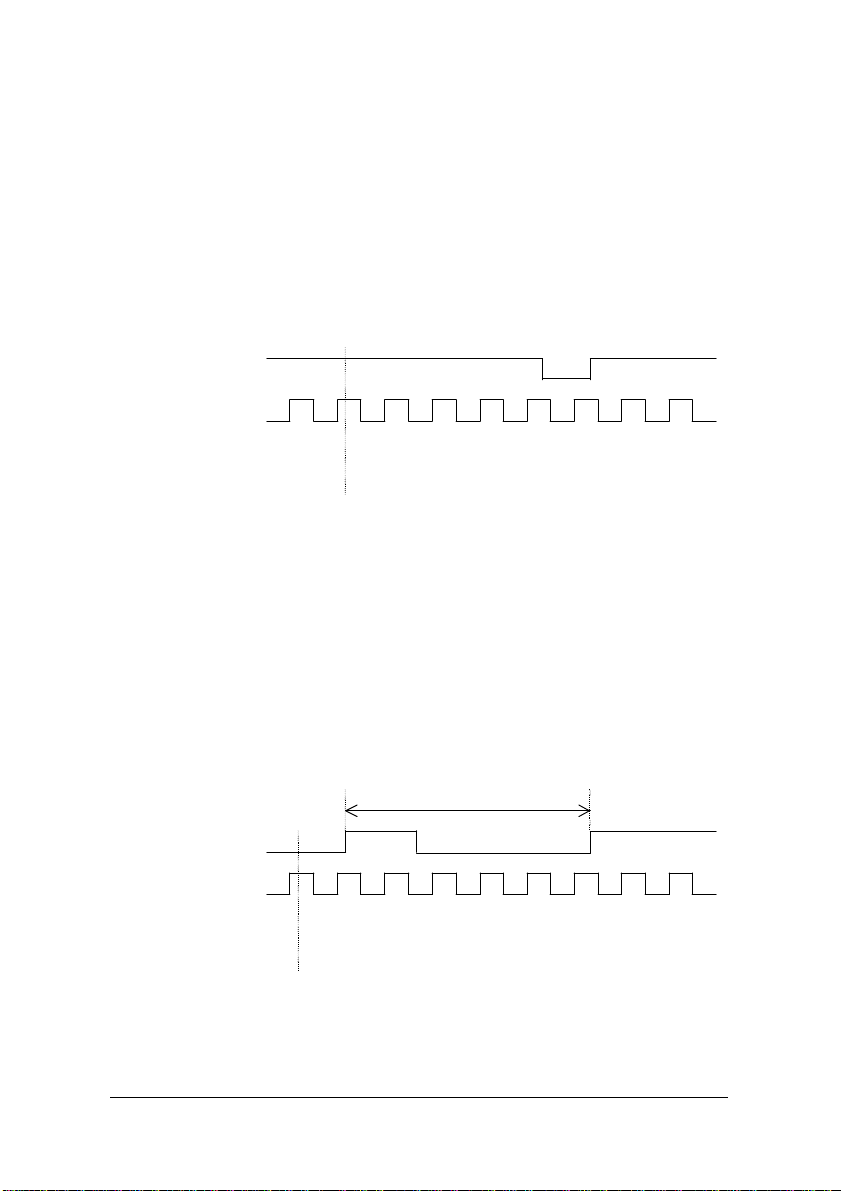

Software start
Gate
CLK

Count value

5

ffff

Figure 4.4.1 Mode 1 Operation

4.4.2.2 Mode2: Single Period Measurement

In this mode, the counter counts the period of the signal on GPTC_GATE
in terms of GPTC_CLK. Initial count can be loaded via software. After the
software start, the counter counts the number of active edges on
GPTC_CLK between two active edges of GPTC_GATE. After the com­pletion of the period measurement, GPTC_OUT outputs high and current
count value can be read-back by software. Figure 4.4.2 illustrates the
operation where initial count = 0, up-counting mode.

Software start

Gate
CLK

Count value

0

5

Figure 4.4.2 Mode 2 Operation

38 • Operation Theoreym

0 1 2 3 4 5 5

2 1 0 3 2 2 1 0

4.4.2.3 Mode3: Single Pulse-width Measurement

In this mode, the counter counts the pulse-width of the signal on
GPTC_GATE in terms of GPTC_CLK. Initial count can be loaded via
software. After the software start, the counter counts the number of active
edges on GPTC_CLK when GPTC_GATE is active. GPTC_OUT outputs
high, and current count value can be read-back via software after the
completion of the pulse -width measurement. Figure 4.4.3 illustrates the
operation where initial count = 0 in up-counting mode.

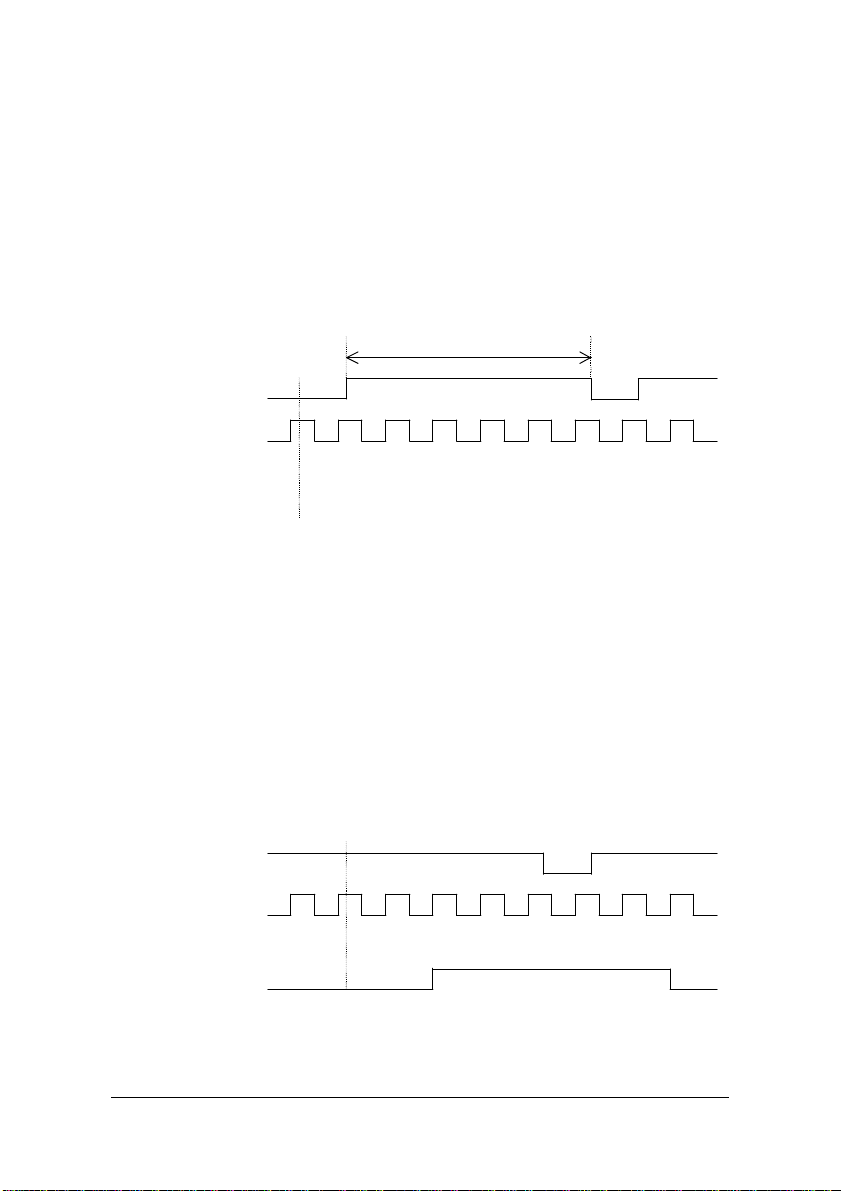

Software start

Gate
CLK

Count value

0

Figure 4.4.3 Mode 3 Operation

4.4.2.4 Mode4: Single Gated Pulse Generation

This mode generates a single pulse with programmable delay and pro­grammable pulse-width following the software start. These software
programmable parameters could be specified in terms of periods of the
GPTC_CLK. GPTC_GATE is used to enable/disable counting. When
GPTC_GATE is inactive, the counter halts the counting. Figure 4.4.4 il­lustrates the generation of a single pulse with pulse-delay of two and
pulse-width of four.

Gate
CLK

Software start

5

Count value

OUT

2

Figure 4.4.4 Mode 4 Operation

Operation Theorem • 39

2 1 0 3 2 1 0

1 0 3 2 1 0 2 2 1 0 3 2 1 0 2 2

O U T

4.4.2.5 Mode5: Single Triggered Pulse Generation

This function generates a single pulse with programmable delay and pro­grammable pulse-width following an active GPTC_GATE edge. These
software programmable parameters can be specified in terms of periods of
the GPTC_CLK input. Once the first GPTC_GATE edge triggers the single
pulse, GPTC_GATE takes no effect until the software start is re-executed.
Figure 4.4.5 illustrates the generation of a single pulse with pulse delay of
two and pulse-width of four.

Software start
Gate
CLK

Count value

2

OUT

Figure 4.4.5 Mode 5 Operation

4.4.2.6 Mode6: Re-triggered Single Pulse Generation

This mode is similar to mode 5 except that the counter generates a pulse
following every active edge on GPTC_GATE. After the software start,
every active GPTC_GATE edge triggers a single pulse with programmable
delay and pulse-width. Any GPTC_GATE trigger that occurs during the
pulse generation would be ignored. Figure 4.4.6 illustrates the generation
of two pulses with pulse delay of two and pulse-width of four.

S o f t w a r e s t a r t
G a t e
C L K
C o u n t v a l u e

2 2

I g n o r e d

Figure 4.4.6 Mode 6 Operation

40 • Operation Theoreym

4 3 2 1 0 2 1

0 3 2

O U T

3 3 2 1 0 2 1

1 0 3

O U T

4.4.2.7 Mode7: Single Triggered Continuous Pulse Generation

This mode is similar to mode 5, except that the counter generates con­tinuous periodic pulses with programmable pulse interval and pulse-width
following the first active edge of GPTC_GATE. Once the first
GPTC_GATE edge triggers the counter, GPTC_GATE takes no effect until
the software start is re-executed. Figure 4.4.7 illustrates the generation of
two pulses with pulse delay of four and pulse-width of three.

S o f t w a r e s t a r t
G a t e
C L K
C o u n t v a l u e

4 4

Figure 4.4.7 Mode 7 Operation

4.4.2.8 Mode8: Continuous Gated Pulse Generation

This mode generates periodic pulses with programmable pulse interval
and pulse-width following the software start. GPTC_GATE is used to
enable/disable counting. When GPTC_GATE is inactive, the counter halts
the current count value. Figure 4.4.8 illustrates the generation of two
pulses with pulse delay of four and pulse-width of three.

S o f t w a r e s t a r t
G a t e
C L K
C o u n t v a l u e

4 4

0 3 2 1 0 2 1

0 3 2 1 0 2 1

Figure 4.4.8 Mode 8 Operation

Operation Theorem • 41

4.5 Trigger Sources

We provide flexible trigger selections in DAQ/PXI-2500 SERIES. In addi­tion to software trigger, DAQ/PXI-2500 SERIES also supports external
analog and digital triggers. Users can configure the trigger source for A/D
and D/A processes individually via software.

NOTE: A/D and D/A conversion share the same analog trigger.

4.5.1 Software-Trigger

This trigger mode does not need any external trigger source. The trigger
asserts right after users execute the specified function call. A/D and D/A
processes can receive an individual software trigger.

4.5.2 External Analog Trigger

The analog trigger circuitry routing is shown in the Figure 4.5.1. The analog
multiplexer selects either a direct analog input from the EXTATRIG
pin( SRC1 in Figure 4.5.1) on the 68-pin connector CN1 or the input signal
of ADC( SRC2 in Figure 4.5.1). The range of trigger level for SRC1 is ±10V
and the resolution is 78mV(please refer to Table4.5.1), while the trigger
range of SRC2 is the full-scale range of AD input, and the resolution is the
desired range divided by 256.

EXTATRIG

AIn

CN1

Input Multipexer

Instrumentation
Amplifier

SRC2

SRC1

MUX

A/D
Converter

Analog
Trigger
Circuit

Figure 4.5.1 Analog trigger block diagram

42 • Operation Theoreym

Trigger Level digital setting Trigger voltage

0xFF 9.92V
0xFE 9.84V

--- --­0x81 0.08V
0x80 0

0x7F -0.08V

--- --­0x01 -9.92V
0x00 -10V

Table 4.5.1 Analog trigger SRC1(EXTATRIG) ideal transfer characteristic

The trigger signal asserts when an analog trigger condition is meet. There
are five analog trigger conditions in DAQ/PXI-2500 SERIES.
DAQ/PXI-2500 SERIES uses 2 threshold voltages: Low_Threshold and
High_Threshold to compose 5 different trigger conditions. Users can con­figure the trigger conditions easily via software.

4.5.2.1 Below-Low analog trigger condition

Figure 4.5.2 shows the below-low analog trigger condition, the trigger
signal asserts when the input analog signal is lower than the
Low_Threshold voltage. High_Threshold setting is not used in this trigger
condition.

Figure 4.5.2 Below-Low analog trigger condition

Operation Theorem • 43

4.5.2.2 Above-High analog trigger condition

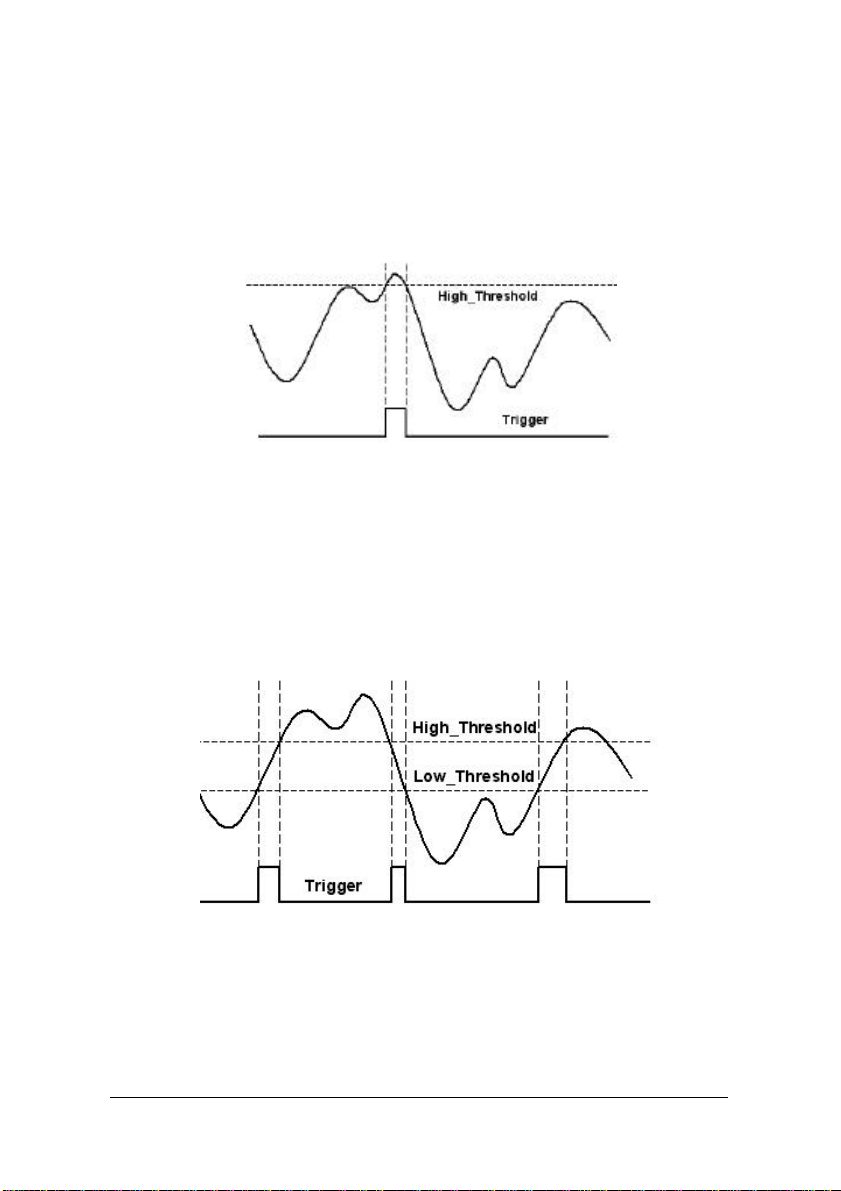

Figure 4.5.3 shows the above-high analog trigger condition, the trigger
signal asserts when the input analog signal is higher than the
High_Threshold voltage. The Low_Threshold setting is not used in this
trigger condition.

Figure 4.5.3 Above-High analog trigger condition

4.5.2.3 Inside-Region analog trigger condition

Figure 4.5.4 shows the inside-region analog trigger condition, the trigger
signal asserts when the input analog signal level falls in the range between
the High_Threshold and the Low_Threshold voltages.

Figure 4.5.4 Inside-Region analog trigger condition

44 • Operation Theoreym

4.5.2.4 High-Hysteresis analog trigger condition

Figure 4.5.5 shows the high-hysteresis analog trigger condition, the trigger
signal asserts when the input analog signal level is higher than the
High_Threshold voltage, where the hysteresis region is determined by the
Low_Threshold voltage.

Figure 4.5.5 High-Hysteresis analog trigger condition

4.5.2.5 Low-Hysteresis analog trigger condition

Figure 4.5.6 shows the low-hysteresis analog trigger condition, the trigger
signal asserts when the input analog signal level is lower than the
Low_Threshold voltage, where the hysteresis region is determined by the
High_Threshold voltage.

Figure 4.5.6 Low-Hysteresis analog trigger condition

Operation Theorem • 45

4.6 Timing Signals

In order to meet the requirements for user-specific timing or synchronizing
multiple boards, DAQ/PXI-2500 SERIES provides a flexible interface for
connecting timing signals with external circuitry or other boards. The DAQ
timing of the DAQ/PXI-2500 SERIES is composed of a bunch of counters
and trigger signals in the FPGA on board.

There are 7 timing signals related to the DAQ timing, which in turn influ­ence the A/D, D/A process, and GPTC operation. These signals are fed
through the Auxiliary Function Inputs pins (AFI) or the System Synchro­nization Interface bus (SSI). We implemented a multiplexer in the FPGA to
select the desired timing signal from these inputs, as shown in the Figure

4.6.1.
Users can use the SSI to achieve synchronization between multiple boards,

or use the AFI to derive timing signals from an external timing circuit.

Internal timing

signals

SSI timing signals

AFI timing signals

DAQ timing signals

Figure 4.6.1 DAQ signals routing

46 • Operation Theoreym

4.6.1 System Synchronization Interface

SSI uses bi-directional I/O to provide flexible connections between boards.
You can choose each of the 7 timing signals and which board to be the SSI
master. The SSI master can drive the timing signals of the slaves. Users
can thus achieve better synchronization between boards.

Note that when power-up or reset, the DAQ board is reset to us ing its in­ternal timing signals.

Operation Theorem • 47

5

Calibration

This chapter introduces the calibration process to minimize AD meas­urement errors and DA output errors.

DAQ/PXI-2500 SERIES is factory calibrate d before shipment. The on­board high precision band-gap voltage reference together with TrimDAC
compensates for unwanted offsets and gain errors, caused by environment
variation or component aging.

48 • Calibration

5.1 Auto-calibration

The auto-calibration feature of DAQ/PXI-2500 SERIES facilitates users
completing a calibration process, without the necessities for any external
voltage references or measurement devices.

The on-board auto-calibration circuitry is composed of a precision
band-gap voltage reference, an ADC and a TrimDAC. TrimDAC is a
multi-channel DAC that generates DC offsets that counteract the offsets
from the main DACs. Digital codes for the TrimDAC, as well as the tem­perature and the date of the calibration, are stored in the onboard
EEPROM. We do not recommend end-users to adjust the onboard
band-gap voltage reference in anyway, unless an ultra-precision calibrator
is available.

Due to temperature, humidity variations, and component aging, the preci­sion of DAQ board may degrade over time. It is suggested that users pe­riodically calibrate the DAQ board. The user calibration constants can also
be stored in the on-board EEPROM.

NOTE:

1. Before auto-calibration procedure starts, it is recommended to warn up
the board for at least 15 minutes.

2. Please remove the cable before auto-calibration, because the D/A
outputs would be changed in the process.

5.2 Saving Calibration Constants

An on-board EEPROM is used to store calibration constants. In addition to
a default bank that stores factory calibration constants, there are three user
banks. Users can save the subsequently performed calibration constants
in anyone of these user banks. ADLink provides software for users to save
calibration constants in an easy manner.

5.3 Loading Calibration Constants

Users can calibrate DAQ board in three sites and store the calibration
constants into different user banks. When moving DAQ board from one
site to another, users can load the calibration constants without
re-calibration. ADLINK provides software for users to load calibration
constants in an easy manner.

Calibration • 49

6

Appendix A

6.1 Waveform Generation Demonstration

Combined with 6 counters, selectable trigger sources, external reference
sources, and time base, DAQ/PXI-2500 SERIES provides the capabilities
to generate complex waveforms. Various modes shown below can be
mixed together to generate waveforms that are even more complex.

Although users can always load a new waveform to generate any desired
waveform, we suggest using hardware capabilities to maximize both effi­ciency and flexibility.

Standard Function

Waveforms including sine wave, trian­gular wave, saw wave, ramp, etc., can
be converted to Waveform LUT. Using
larger waveform means trading maxi­mum output rate for lower harmonic
distortion.

Arbitrary Function

User defined arbitrary function without
size limit can be generated.
Users can also concatenate various
standard functions of same length into
one arbitrary function and setup
piece-wise generation, so each stan­dard function can be generated in se­quence, with a user definable interme­diate space.

50 • Appendix A

Standard Function w. Frequency Variant

Users can alter the frequency of gener­ated waveforms by driving DAWR from
external signal via AF0/AF1/SSI.
The resultant updating rate should be
kept within 1MHz. In this demo, iterative
generation is used.

Iterative Generation w. Intermediate Space

Utilize DLY2_counter to separate con­secutive waveform generations in itera­tive generation mode.
In this demo, the original standard sine
wave is repeated several times as
specified in IC_counter, with intermedi­ate space determined by DLY2_counter.

Piece-wise Generation

When the value specified in UC_counter
is smaller than the sample size of
waveform, the waveform is generated
piece-wisely. The intermediate space
between each piece is determined by
DLY2_counter.
In this demo, the UC_counter is set to
1/8 of the sample size of waveform.

Amplitude Modulated

When external D/A reference is used,
applying sinusoidal voltage reference
will result in an amplitude modulated
(AM) waveform generation.
Users can use one D/A channel to
generate sine wave, loop it back to
AOEXTREF_A/B pin, and generate AM
waveform by another D/A channel using
external reference. All can be done in a
single D/A group.

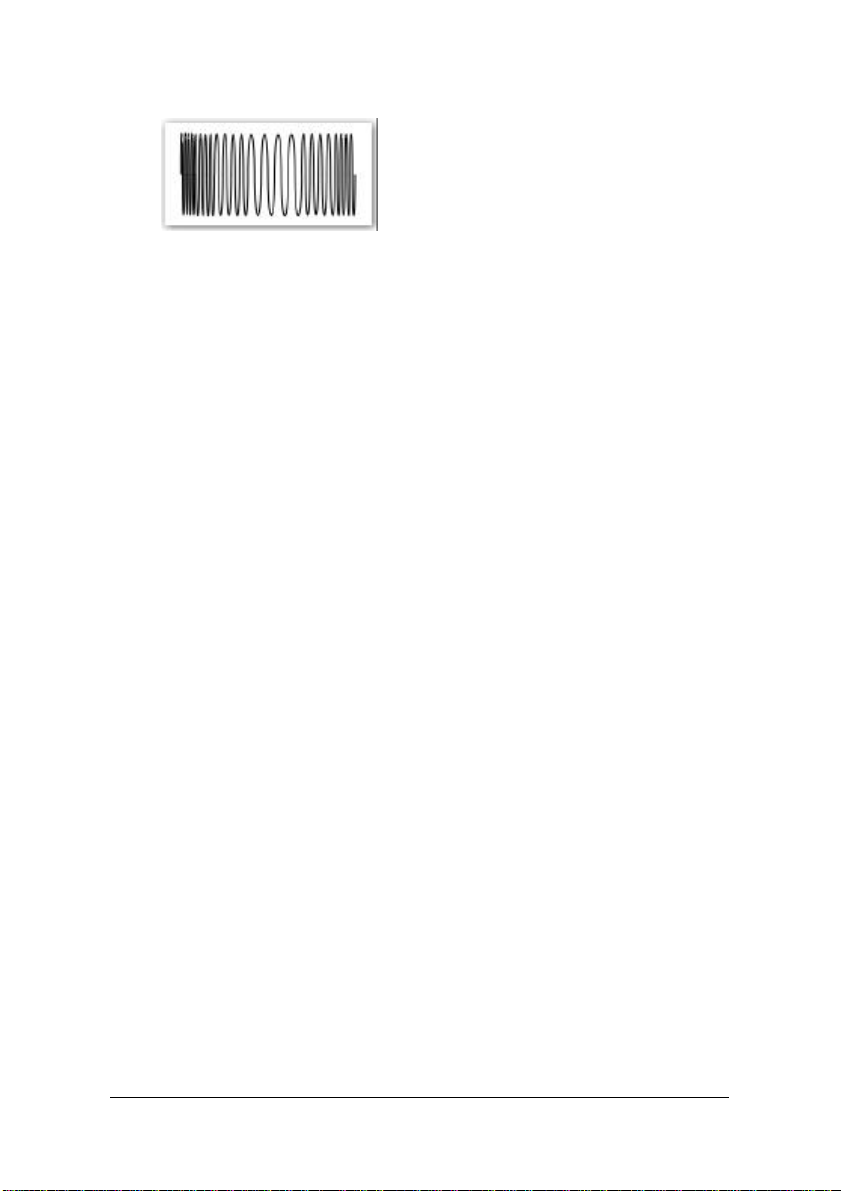

Frequency Modulated

Appendix A • 51

By feeding AFI0/AFI1 with PWM source,
pulse train from VCO, or any
time-varying digital signal,
DAQ/PXI-2500 SERIES is capable of
generating frequency modulated (FM)
waveform.
Since all four channels are synchronized
in a D/A group, precise quadrature
waveform generation is guarantied,
provided the waveform are shifted
90-degree for the other channel. Phase
difference of any degree can also be
setup.
Combined with external High-speed
programmable Digital I/O card,
Phase-Shift-Keying or
Phase-Reversal-Keying can also be
achieved.

52 • Appendix A

Warranty Policy

Thank you for choosing ADLINK. To understand your rights and enjoy all
the after-sales services we offer, please read the following carefully.

1. Before using ADLINK’s products, please read the user manual and
follow the instructions exactly. When sending in damaged products
for repair, please attach an RMA application form.

2. All ADLINK products come with a two-year guarantee,free of r epair
charge.

• The warranty period starts from the product’s shipment date

from ADLINK’s factory

• Peripherals and third-party products not manufactured by

ADLINK will be covered by the original manufacturers’ warranty

• End users requiring maintenance services should contact their

local dealers. Local warranty conditions will depend on the local
dealers

3. Our repair service does not cover two -year guarantee while dam­ages are caused by the following:

a. Damage caused by not following instructions on user menus.
b. Damage caused by carelessness on the users’ part during

product transportation.

c. Damage caused by fire, earthquakes, floods, lightening, pollu-

tion and incorrect usage of voltage transformers.

d. Damage caused by unsuitable storage environments with high

temperatures, high humidity or volatile chemicals.

e. Damage caused by leakage of battery fluid when changing

batteries.
f. Damages from improper repair by unauthorized technicians.
g. Products with altered and damaged serial numbers are not en-

titled to our service.
h. Other categories not protected under our guarantees.

4. Customers are responsible for the fees regarding transportation of
damaged products to our company or to the sales office.

Warranty Policy • 53

5. To ensure the speed and quality of product repair, please download
an RMA application form from our company website

www.adlinktech.com. Damaged products with RMA forms at-

tached receive priority.

For further questions, please contact our FAE staff.
ADLINK: [e-mail]
Test & Measurement Product Segment: [e-mail]
Automation Product Segment: [e-mail]
Computer & Communication Product Segment: [e-mail] ;

[e-mail]

54 • Warranty Policy
