1 Introduction

The ADLINK PCIS-8580 is the PCI-to-PCI expansion systems for
extending your PCI buses of the host computers. With the state­of-art StarFabric high-speed serial link technology, you can extend
your PCI bus of the host computer to an external chassis, which
accommodates 4 (PCIS-8580-4S) or 13 (PCIS-8580-13S) addi­tional PCI slots. This advanced technology provides full 32-bit/
33MHz PCI bandwidth (132MB/s) and maximal 10m distance
between host computer and expansion chassis. In addition,
ADLINK PCI-to-PCI expansion system utilizes the concept of
“serialized bridge” to provide complete hardware and software
transparency to your host system. Any hardware installed in the
expansion chassis works as it’s inside the host system without any
driver/software effort.

The ADLINK PCIS-8580 PCI-to-PCI expansion system is com­posed of three major components: a PCI expansion card (LPCI-

8575), an expansion chassis (RK-8005 for PCIS-8580-4S or RK­8014 for PCIS-8580-13S), and a cable (ACL-PCIEXT-2). The PCI
expansion card is the core of this system. It acts as a PCI bridge
with the capability to serialize the PCI signals and maintain a
5Gbps serial link between the host system and the expansion
chassis. The expansion chassis, which is a 4-slot wall-mount
chassis (RK-8005) or a 13-slot rack-mount chassis (RK-8014), is
the platform to accommodate PCI slots. It contains a backplane, a
power supply, and a pre-installed PCI expansion card. The cable,
which consists of DVI-D connector and shielding twisted pairs,
provides robust connectivity and satisfying signal quality between
the host computer and the expansion chassis.

Introduction 1

1.1 Features

PCIS-8580-4S

 PCI local bus specification Rev 2.2 compliant
 PCI bridge architecture specification Rev 1.2 compliant
 Provides 4 extended half-size PCI slots
 Full 32-bit/33MHz PCI bandwidth expansion (132MB/s)
 Maximal 10m expansion distance
 Complete hardware and software transparency
 24-pin DVI-D connector for robust connectivity
 Shoebox size wall-mount chassis with built-in 200W power

supply

PCIS-8580-13S

 PCI local bus specification Rev 2.2 compliant
 PCI bridge architecture specification Rev 1.2 compliant
 Provides 13 extended full-size PCI slots
 Full 32-bit/33MHz PCI bandwidth expansion (132MB/s)
 Maximum 10m expansion distance
 Complete hardware and software transparency
 24-pin DVI-D connector for robust connectivity
 19” rack-mound chassis with built-in 400W power supply

1.2 Applications

 Industrial automation/control
 Electronics manufacturing test
 Military/aerospace
 Video capture
 Remote test and measurement

2Introduction

1.3 Specifications

LPCI-8575 PCI-PCI Expansion Card

 PCI local bus specification Rev 2.2 compliant
 PCI bridge architecture specification Rev 1.2 compliant
 Supports both 5V and 3.3V PCI bus
 Data throughput: full 32-bit/33MHz PCI bandwidth (132MB/

s)

 I/O connector: DVI-D 24-pin connector
 Link indicator (Green LED)

 Off: Expansion or host computer does not power on
 On: Link status is good
 Blink: Link status is failed. Check your cable or power-on

sequence.

 Maximum extended distance: 10m
 Power requirements

+5V +3.3V

190mA 250mA

Table 1-1: Power requirements

Introduction 3

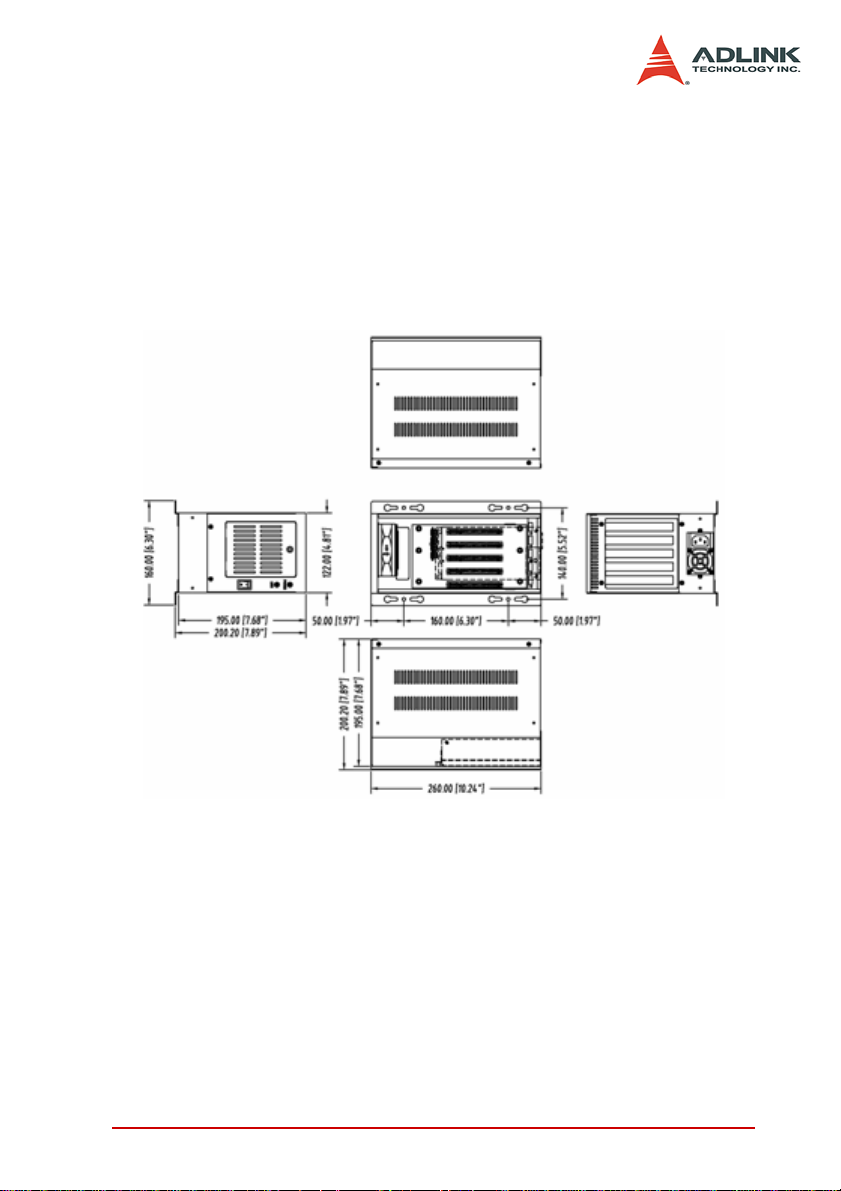

RK-8005 Expansion chassis

 Dimensions: 122mm(W) x 195mm(H) x 260mm(D)
 Weight: 3.2 Kg (7.04lb)
 Backplane: 5x 32-bit/33MHz half-size PCI slots

 1 slot for expansion card
 4 slots available for PCI cards

 Front-panel indicators

 Power indicator (Red LED)
 Link indicator (Green LED)

Off: Expansion or host computer does not power on
On: Link status is good
Blink: Link status is failed. Check your cable or power-

on sequence.

 Power supply

 Input voltage: 85VAC to 265VAC, auto-switching
 Output: 200W

 Cooling: One 37.5 CFM ball bearing fan (80m m )

4Introduction

RK-8014 Expansion chassis

 Dimensions: 438.5mm(W) x 177mm(H) x 448.5mm(D)
 Weight: 12 kg (26.4lb)
 Backplane: 14x 32-bit/33 M Hz full-size PCI slots

 1 slot for expansion card
 13 slots available for PCI cards

 Front-panel indicators

 Power indicator (Red LED)
 Link indicator (Green LED)

Off: Expansion or host computer does not power on
On: Link status is good
Blink: Link status is failed. Check your cable or power-

on sequence.

 Power supply

 Input voltage: 85VAC to 265VAC, auto-switching
 Output: 400W

 Cooling: Two 88 CFM ball bearing fan (120mm)

ACL-PCIEXT-2 Cable

 Length: 2m
 Construction: 8 pairs of shielding twisted copper wires
 Connector: DVI-D 24-pin
 Other cable options

 ACL-PCIEXT-5: 5m
 ACL-PCIEXT-10: 10m

General

 Operating temperature: 0C to 50C
 Storage temperature : -20C to 80C
 Relative humidity: 10 to 90%, non-condensing

Introduction 5

6Introduction

2 Installation

This chapter outlines the contents of package, describes unpack­ing information, and describes how to set up the PCIS-8580 PCI­to-PCI expansion system and install your PCI cards.

2.1 Content of package

PCIS-8580-4S package includes the following items:

 One LPCI-8575 in a individual carton
 One wall-mount chassis, which contains the following com-

ponents pre-installed:

 One LPCI-8575
 One 5-slot backplane

 One 200W AC power supply
 One ACL-PCIEXT-2 cable
 One AC power cord
 Wall-mount kit for chassis
 This User’s Manual

PCIS-8580-13S package includes the following items:

 One LPCI-8575 in a individual carton
 One rack-mount chassis, which contains the following com-

ponents pre-installed:

 One LPCI-8575

 One 14-slot backplan e

 One 400W AC power supply
 One ACL-PCIEXT-2 cable
 One AC power cord
 This User’s Manual

If any of these items are missing or damaged, contact your
ADLINK dealer. Save the shipping materials and carton in to ship
or store the product in the future.

Installation 7

2.2 Unpacking

The ADLINK PCIS-8580 system contains some electro-static sen­sitive components that can be easily be damaged by static elec­tricity. For this reason, the card and chassis should be handled on
a grounded anti-static mat and the operator should wear an anti­static wristband during the unpacking and installation procedure.

Please also inspect the components for apparent damage.
Improper shipping and handling may cause damage to th e compo­nents. Be sure there are no shipping and handling damage on the
components before continuing.

You are now ready to set up your PCIS-8580 PCI-to-PCI expan­sion system.

Note: DO NOT APPLY POWER TO THE CARD OR CHASSIS IF

IT HAS BEEN DAMAGED.

2.3 Getting Start

In this section, we’ll illustrate the step-by-step instructions to set
up your PCIS-8580 PCI-to-PCI expansion system.

Install PCI Expansion Card into your Host System

The first step is to install the PCI expansion card (LPCI-8575) into
your host system. You can find an individual carton in the whole
package which contains the PCI expansion card. The steps of
installation are:

1. Turn off your host computer.

2. Open the chassis of the host computer.

3. Remove the package of PCI expansion card. (Please
wear your anti-static facilities when you handle the card.)

4. Plug the PCI expansion card into an available PCI slot
and screw it to the chassis.

5. Close the chassis.

8Installation

Figure 2-1: Install the PCI expansion card into your host system

Driver Installation

After installing the PCI expansion card into your host computer,
now you can turn on your computer an d install the driver of PCI
expansion card. Please follow the following steps to finish the
driver installation.

1. Insert the ADLINK ALL-In-One CD.

2. Execute x:\Driver Installation\PCI Expan-

sion\PCIS_8580_setup.exe to launch the setup pro­gram. (x: denotes your CD-ROM drive). A InstallShield®
wizard appears to guide you finish the setup procedure.

Installation 9

Figure 2-2: Installing the driver for PCI expansion card

3. While setup finishes, please reboot your system. (Note:
According to different hardware configuration, you may
need to reboot your computer for several times to detect
the StarFabric serialized bridge and its subsequent PCI
devices.)

Install your PCI Card into the Expansion Chassis

The PCIS-8580 expansion chassis can accommodate 4 additional
PCI slots (PCIS-8580-4S) or 13 additional PCI slots (PCIS-8580­13S). This section illustrates the procedures to install your PCI
cards into the expansion chassis.

1. Open the expansion chassis by loosen the screws and
remove the top cover of the chassis. You’ll see a back­plane inside the chassis.

10 Installation

2. Plug you PCI cards into the expansion chassis and

screw them to the chassis.

3. Put the top cover and tighten the screws.

Figure 2-3: Install your PCI cards into the expansion chassis (using the

PCIS-8580-4S as an example)

Installation 11

Connect to Expansion Chassis

Your host computer and the expansion chassis are connected via
a cable (ACL-PCIEXT-2). This cable uses the DVI-D connector
and customized shielding twisted pairs to make a robust high­speed serial link. Please DO NOT use standard DVI cable to con­nect your host computer and the expansion chassis.

Figure 2-4: Connect you host comput e r an d ex pansion chassis (using the

PCIS-8580-4S as an example)

Power-on Sequence

To make the PCI-to-PCI expansion system works well, you need
to follow a correct power-on sequence for both expansion chassis
and host computer. The LINK indicators (a green LED) on the
front-panel of the expansion chassis and LPCI-8575 indicate the
status of serial link between the expansion chassis and the host
computer. When the LINK LED is on, the link is good, otherwise
when the LINK LED is off or blinking, the link is failed.

1. Make sure the cable is correctly connected and screw
the connectos.

2. Turn on the expansion chassis.

3. Turn on the host computer. At this time you’ll see the
LINK indicators on both sides are on.

12 Installation

3 Hardware Overview

This chapter illustrates the basic hardware architecture of each
component in the ADLINK PCIS-8580 PCI-to-PCI expansion sys­tem.

3.1 System Architecture

This section describes the operation theory and technology of the
PCIS-8580 PCI-to-PCI expansion system.

Operation Theory

Figure 3-1: Operation theory of PCIS-8580 PCI-to-PCI expansion system

The PCIS-8580 PCI-to-PCI expansion system utilizes the state-of­art St ar Fabric te chno logy a s the groun dwor k fo r exten ding the PCI
bus. A PCI-StarFabric bridge located on the host computer pro­vides an interface between PCI and StarFabric port, which trans­lates the parallel PCI signals into serial frame format for
transmission across StarFabric link. Each StarFabric link contains
4 pairs, 622Mps LVDS signals and provides 2.5Gbps total band­width to accommodate complete PCI traffic without any compro­mise in bandwidth. Error detection and error correction are
automatically performed during the StarFabric transmission to
guarantee the data integrity.

Hardware Overview 13

3.2 LPCI-8575 PCI Expansion Card

This section describes the basic function, bus architecture and
jumper settings of the PCI expansion module LPCI-8575.

Functional Block

The LPCI-8575 expansion module is basically a PCI-to-PCI
bridge. The PCI-to-PCI bridge function in the LPCI-8575 supports
legacy address routed traffic, which provides 100% capability with
PCI drivers, application software, BIOS, O/Ss, etc. These func­tions allow users to transfer their designs without extra effort.

The LPCI-8575 employs a serial interconnect technology,
622Mbps low voltage differential signaling (LVDS). Each LPCI­8575 expansion module has one link port, the link port is divided
into transmit (TX) and receive (RX). Fo ur TX and RX differential
pairs in the link are used to provide 2.5Gbps full duplex link band­width or 5Gbps of total bandwidth. Incorporated with the high
speed serial LVDS, it is easy to extend the transmission up to 10
meters through shielded twisted pair copper cables.

Inside the PCI-to-PCI bridge, a PCI-to-StarFabric/StarFabric-to­PCI converter is used to translate PCI transactions into StarFabric
frames and St arFabric fr ames into PCI transactions. The PCI in ter­face of the LPCI-8575 is capable of 32-bit/66MHz. Thus the maxi­mum data throughput can up to 264Mbytes/s. The PCI interface in
LPCI-8575 acts like the primary side of a PCI-to-PCI bridge if
LPCI-8575 is plugged into the peripheral slot.

Figure 3-2: Concept of the serialized PCI bridge

14 Hardware Overview

Jumper Settings for LPCI-8575

The following figure shows the locations of jumpers and the con­nector.

Figure 3-3: Jumpers and connectors on the LPCI-8575

Jumper / Connector / LED Descriptions

CN1

JP1 Spread spectrum control.
JP2 M66EN setting.
JP3 Peripheral / System slot selection.
JP4 Serial link status LED connector.

D2 Serial link status LED.

Table 3-1: Jumpers and connectors on the LPCI-8575

A DVI-D connector for the serial link for PCI-to-PCI expansion.

Please DO NOT connect CN1 to any monitor or video device.

Spread Spectrum Control, JP1

When LPCI-8575 plugged into the expansion chassis, it pro­vides a discrete clock signal to each of the peripheral slot
defined as a PCI clock (CLK0, CLK1, CLK2 and CLK3).

An important feature of the LPCI-8575 expansion modules is
that it support 33MHz/66MHz clock operating environment. As
system clock increase, electromagnetic interference (EMI)
becomes a challenge for the system designers. LPCI-8575

Hardware Overview 15

adopts a spread-spectrum clock gene rator to help us er to deal
with this difficult task.

Spread spectrum clocking speeds up and slows down the clock
within a few percent of its fundamental frequency. By reducing
the peak amplitudes, the system will more likely meet EMI
emission compliance standards. In other words, spread spec­trum clocking distributes the energy that was originally concen­trated on one frequency over a wider band. This method
dramatically reduces the amount of EMI.

Spread Spectrum Control JP1

OFF (default)

ON

Table 3-2: JP1 Settings

M66EN Setting, JP2

LPCI-8575 supports 32-bit PCI buses operating at 66MHz or
33MHz. A bundled link can support the full bandwidth of 32-bit/
66MHz PCI bus. You can utilize the following configuration to
set the operation frequency of your system.

JP2 Setting

Auto detection mode enabled. When LPCI-8575 is plugged
into system slot in the extended chassis, it will detect the con­figuration and operate at 33MHz or 66MHz automatically. If
the backplane or any devices in the system do not support
66MHz PCI bus operations, LPCI-8575 will only operate at
33 MHz only.

Table 3-3: JP2 Settings

16 Hardware Overview

JP2 Setting

Auto detection mode disabled, force to 33MHz. PCI bus is
forced to operate at 33 MHz. If your extended system is
66MHz capable, please switch JP2 to 1-2 contact.

(Default)

Table 3-3: JP2 Settings

Peripheral / System Slot Selection, JP3

LPCI-8575 is a dual purpose PCI-to-PCI expansion module.
When LPCI-8575 plugged into a peripheral, it becomes a
peripheral card. When LPCI-8575 plugged into the expansion
chassis system slot, it becomes a system card.

JP3 Setting Descriptions

Auto selection. LPCI-8575 will detect the slot
configuration automatically.

(Default)

Force to Peripheral slot.

Force to system slot.

Table 3-4: JP3 Settings

Hardware Overview 17

Serial Link Status LED Connector, JP4

Anode

Cathode

The serial link status is shown on LED D2. LPCI-8575 also pro­vides a LED connector for user’s applications. The pin assign­ment of JP4 is shown in the following figure.

Serial Link Status LED, D2

The LED D2 shows the serial link status. The following table
shows the possible status of the LED when you turn on the
expansion chassis power and main system power.

LED status Descriptions How to solve?

ON

Twinkling

OFF The serial link connection is not correct. Check if the serial link cable is ok or not.

The serial link is synchronous. The
power on sequence is correct.

The serial link is not synchronous. The
main system power is turned on before
expansion chassis power.

Table 3-5: D2 Display

Reset the main system or re-boot the
main system power after expansion
chassis power is on.

18 Hardware Overview

3.3 BP-8005

This section describes the architecture and jumper settings of the
BP-8005 backplane. The BP-8005 is for PCIS-8580-4 S and is pre­installed in the RK-8005 chassis.

Backplane Architecture

The BP-8005 backplane provides 1 system slot and 4 available
PCI peripheral slots. The system slot is occupied by a pre-inst alled

Hardware Overview 19

LPCI-8575 PCI expansion card. The rest PCI slots are available
for any 5V PCI peripheral cards.

Figure 3-4: Top view of BP-8005 backplane

20 Hardware Overview

Figure 3-5: Bottom view of BP-8005 backplane

Hardware Overview 21

Jumpers and Connectors

Jumpers and connectors on the top side

JP/CN Ended Voltage Out Description

CN3 3 +12V, GND Fan connector for 12V fan

JP1 2 +5V, GND LED connector
JP3 2 +12V, GND Fan connector for 12V fan

T able 3-6: Top side jumpers and connectors

Jumpers and connectors on the bottom side

JP/CN Ended V oltage Out Description

CN1 2 5V, GND LED connector
CN2 20 3.3V, ±12V, 5V ATX POWER connector
CN4 2 5V, GND POWER-OK status connector

JP2 2 N/A ATX POWER ENABLE

Table 3-7: Bottom side jumpers and connectors

22 Hardware Overview

3.4 RK-8005

RK-8005 is a robust industrial chassis for accommodating the BP­8005 backplane. The RK-8005 is a small, compact chassis
(122mm x 195mm x 260mm) with a built-in 200W universal AC
power supply. The RK-8005 is provided with a wall-mount kit so
you can place it in many different environments.

Mechanical Drawing of RK-8005

Figure 3-6: Mechanical drawing of RK-8005

Hardware Overview 23

3.5 BP-8014

This section describes the architecture and jumper settings of the
BP-8014 backplane. The BP-8014 is for PCIS-8580-13S and is
pre-installed in the RK-8014 chassis.

Backplane Architecture

The BP-8014 backplane provides 1 system slot and 13 available
PCI peripheral slots. The system slot is occupied by a pr e-inst alled
LPCI-8575 PCI expansion card. The rest PCI slots are available
for any 5V PCI peripheral cards.

Figure 3-7: Top view of BP-8014 backplane

24 Hardware Overview

Jumpers and Connectors

JP/CN Ended Voltage Out Description

CN2 20 3.3V,±12V,5V ATX POWER connector
FAN4 3 12V, GND Fan connector for 12V fan
FAN5 3 12V, GND Fan connector for 12V fan
FAN6 3 12V, GND Fan connector for 12V fan

JP2 2 N/A ATX POWER ENABLE
JP6 2 5V, GND POWER-OK status connector
JP7 2 5V, GND LED connector

Table 3-8: BP-8014 jumpers and connectors

Hardware Overview 25

3.6 RK-8014

RK-8014 is a robust industrial chassis for accommodating the BP­8014 backplane. The RK-8014 is a 19” rack-mount chassis with a
built-in 400W universal AC power supply.

Mechanical Drawing of RK-8014

Figure 3-8: Mechanical drawing of RK-8014

26 Hardware Overview

3.7 ACL-PCIEXT- 2

ACL-PCIEXT-2 is the cable connecting the host computer and the
expansion chassis. It is carefully designed to transmit 622Mbps
LVDS signals. ACL-PCI-EXT-2 contains 8 pairs of shielding
twisted copper wires and 2 DVI-D 24-pin connectors. For users
who need longer expansion distance, optional ACL-PCIEXT-5
(5m) and ACL-PCIEXT-10 (10m) are provided.

Note: THE ACL-PCIEXT-2 CABLE IS USED FOR PCIS-8680 ON-

LY. DO NOT APPLY ACL-PCIEXT-2 TO ANY OTHER DE­VICES TO AVOID UNEXPECTED DAMAGES.

Pin Assignment of ACL-PCIEXT-2

Figure 3-9: DVI Connector pins and dimensions

#1 #2 #3 #4 #5 #6 #7 #8

RX3+ RX3- Shield TX0+ TX0- Shield TX1+ TX1-

#9 #10 #11 #12 #13 #14 #15 #16

RX2+ RX2- Shield Shield Shield Shield TX2+ TX2-

#17 #18 #19 #20 #21 #22 #23 #24

RX1+ RX1- Shield RX0+ RX0- Shield TX3+ TX3-

Table 3-9: Pin Assignment of ACL-PCIEXT-2

Hardware Overview 27

28 Hardware Overview
