ADLINK PCI-7432 User Manual

NuIPC / NuDAQ

743X Series

64-CH Isolated Digital I/O Board

User’s Guide

Copyright 2002 ADLINK Technology Inc.

All Rights Reserved.
Manual Rev. 3.34: October 22, 2002
Part NO: 50-11108-202

The information in this document is subject to change without prior notice in
order to improve reliability, design and function and does not represent a
commitment on the part of the manufacturer.

In no event will the manufacturer be liable for direct, indirect, special,
incidental, or consequential damages arisi ng out of the use or inability to use
the product or documentation, even if advised of the possibility of such
damages.

This document contains proprietary information protected by copyright. All
rights are reserved. No part of this manual may be reproduced by any
mechanical, electronic, or other means in any form without prior written
permission of the manufacturer.

Trademarks
NuDAQ, NuIPC, DAQBench are registered trademarks of ADLINK

Technology Inc. Other product names mentioned herein are used for
identification purposes only and may be trademarks and/or registered
trademarks of their respective companies.

Getting service from ADLINK

• Customer Satisfaction is the most important priority for ADLINK Tech Inc. If
you need any help or service, please cont act us.

ADLINK Technology Inc.

Web Site http://www.adlinktech.com
Sales & Service [e-mail]

NuDAQ + USBDAQ [e-mail]

Technical
Support

TEL [phone] FAX [phone]
Address 9F, No. 166, Jian Yi Road, Chungho City, Taipei, 235 Taiwan.

• Please email or FAX us of your detailed information for a prompt,
satisfactory and constant service.

Com pany/Organization
Contact Person
E -mail Address
Address
Country
TEL FAX
Web Site

Product Model

Environment to Use

Automation [e-mail]
NuIPC [e-mail]
NuPRO / EBC [e-mail]

Detailed Company Information

Questions

OS:
Computer Brand:
M/B: CPU:
Chipset: BIOS:
Video Card:
Network Interface Card:
Other:

Detail Description

Suggestions to ADLINK

Table of Contents

Tables and Figures..................................................................iii

Introduction...............................................................................1

1.1 Features.............................................................................. 2

1.2 Applications ......................................................................... 3

1.3 Specifications ...................................................................... 3

1.4 Supporting Software............................................................. 5

1.4.1 Programming Library..................................................................5

1.4.2 PCIS-LVIEW: LabVIEW® Driver................................................6

1.4.3 PCIS-VEE: HP-VEE Driver..........................................................6

1.4.4 DAQBenchTM: ActiveX Controls.................................................6

1.4.5 PCIS-DDE: DDE Server and InTouchTM.................................7

1.4.6 PCIS-ISG: ISaGRAFTM driver.....................................................7

1.4.7 PCIS-ICL: InControlTM Driver.....................................................7

1.4.8 PCIS-OPC: OPC Server..............................................................7

Getting Started .........................................................................8

2.1 What You Have ....................................................................8

2.2 Unpacking ........................................................................... 9

2.3 PCB Layout ......................................................................... 9

2.3.1 PCI-743X PCB Layout.................................................................9

2.3.2 cPCI-743X PCB Layout
10

2.3.3 cPCI-743XR PCB Layout
10

2.4 Hardware Installation Outline ..............................................11

2.5 Device Installation for Windows Systems.............................12

2.6 Connector Pin Assignment for PCI-7432, cPCI-7432, cPCI-

7432R .............................................................................13

2.7 Connector Pin Assignment of cPCI -7432RP ........................14

2.8 Connector Pin Assignment of cPCI -7433/R & PCI-7433 .......15

2.9 Connector Pin Assignment of PCI-7434...............................16

2.10 Connector Pin Assignment of cPCI -7434R...........................17

2.11 Connector Pin Assignment of cPCI -7434RP ........................18

2.11 Jumpers Setting.................................................................19

Table of Contents • i

Registers..................................................................................21

3.1 PCI PnP Registers .............................................................21

3.2 I/O Address Map................................................................22

3.3 Digital Input Register..........................................................23

3.4 Digital Output Register .......................................................24

Operation Theory...................................................................25

4.1 Isolated Digital Input Channels ............................................25

4.2 Isolated Digital Output Channels.........................................26

C/C++ Libraries.......................................................................27

5.1 Libraries Installation ...........................................................27

5.2 Programming Guide ...........................................................28

5.2.1 Naming Convention.....................................................................28

5.2.2 Data Types...................................................................................28

5.3 Running the Testing Utility ..................................................29

5.4 Initial .............................................................................29

5.5 Digital Input Relative Functions ...........................................31

5.6 Digital Output Relative Functions ........................................32

5.7 Interrupt Source Control .....................................................33

5.8 Get Interrupt Status............................................................34

5.9 Interrupt Enable .................................................................35

5.10 Interrupt Disable ................................................................36

5.11 LED Control Function .........................................................37

5.12 Get Slot Number ................................................................38

Warranty Policy......................................................................39

ii • Table of Contents

Tables and Figures

Tables

Table 1. Features between different 743X Models........................2

Table 2. Optical Isolated Input Channel Specifications ..................3

Table 3. Optical Isolated Output Channel Specifications................4

Table 4. PCI-7433 jumper setting table ......................................19

Table 5. I/O Address Map of c/PCI-7432/33/34...........................22

Table 6. IDI_N: Isolated Digital Input CH N.................................23

Table 7. IDO_N: Isolated Digital Output CH N............................24

Table 8. Function Data Types ....................................................28

Figures

Figure 1: PCI-743X PCB Layout ...................................................9

Figure 2: cPCI-743X PCB Layout................................................10

Figure 3: cPCI-743XR PCB Layout .............................................10

Figure 4: Pin Assignment of 7432 CN1 Connector.......................13

Figure 5: Pin Assignment of cPCI-7432RP CN1 Connector ..........14

Figure 6: Pin Assignment of 7433 CN1 Connector.......................15

Figure 7: Pin Assignment of PCI-7434 CN1Connector .................16

Figure 8: Pin Assignment of cPCI-7434R CN1 Connector ............17

Figure 9: Pin Assignment of cPCI-7434RP CN1 Connector ..........18

Figure 10: Simplified digital input circuit diagram............................19

Figure 11: PCI-7433 (rev. B2) Jumper Locations ...........................20

Figure 12: Isolated input connection .............................................25

Figure 13: Common Ground Connection for cPCI-7434R and

cPCI-7432R................................................................26

Figure 14: Common Power Connection for cPCI-7434R/P and

cPCI-7432R/P.............................................................26

Tables and Figures • iii

How to Use This Guide

This manual is designed to help you use the 743X series products. It
describes how to modify and control various functions of the 743X card to
meet the requirements of your application. It is divided into four chapters:

Chapter 1, “Introduction”, gives an overview of the product

Chapter 2, “Getting Started”, describes how to install the board.

Chapter 3, “Registers”, describes the details of the registers and

Chapter 4, “C/C++ Library”, describes the functions in the DOS

features, applications, and specifications.

The PCB layout, connector specifications, and
installation notes are also described.

its structure. This information is important for
programmers who want to control the hardware with
low-level programming

C/C++ Library and Windows 95 DLL.

iv • How to Use This Guide

1

Introduction

The 743X series products are 64-CH high-density isolated digital input
and/or output cards. The 743X series products include the following cards
and are available in different form factors.

The following items are PCI bus products:

• PCI-7432: Isolated 32-CH DI and 32-CH DO card

• PCI-7433: Isolated 64-CH DI card

• PCI-7434: Isolated 64-CH DO card

The following items are 3U CompactPCI products:

• cPCI-7432 : Isolated 32-CH DI and 32-CH DO card

• cPCI-7433 : Isolated 64-CH DI card

• cPCI-7434 : Isolated 64-CH DO card with common ground

configuration

• cPCI-7434P: Isolated 64-CH DO card with common power
configuration

The following items are for 3U CompactPCI with rear I/O:

• cPCI-7432R : Isolated 32-CH DI and 32-CH DO card

• cPCI-7432RP : Isolated 32-CH DI and 32-CH DO card with common

power configuration

• cPCI-7433R : Isolated 64-CH DI card

• cPCI-7434R : Isolated 64-CH DO card with common ground

configuration

• cPCI-7434RP: Isolated 64-CH DO card with common power
configuration

Introduction • 1

The above I/O cards are isolated up-to 5000 Vdc (excluding cables) for
channel-to-computer isolation. It protects your computer against damage
caused by accidental contact with high external voltage and eliminates
troublesome ground loops.

The 743X series products use PCI -9050 PCI controller to interface the board
to the PCI bus. The PCI-9050 fully implements the PCI local bus
specification Rev 2.1. All bus relative configurations, such as base memory
and interrupt assignment, are automatically controlled by BIOS software.

1.1 Features

The PCI -743X Isolated D/I cards provide the following advanced features:
PCI bus PCI-7432 PCI-7433 PCI-7434
3U CompactPCI cPCI-7432 cPCI-7433

3U CompactPCI with Rear I/O

32 Isolated Digital Input / Output
Channels

64 Isolated Digital Input
Channels

64 Isolated Digital Output
Channels

High output driving capability
500mA sink current on isolated

output channels
5000 Vrms high voltage isolation
Up to 24V voltage protection for

isolated input
External interrupt signal on DI

channels
Dual interrupt trigger
100-pin SCSI-II connector

cPCI-7432R

cPCI-7432RP

√ -- --

-- √ --

-- -- √

√

√ -- √

√*1 √*1 √

√ √ --

√ √ -­√ √

√ √ √

cPCI-7433R

--

cPCI-7434

cPCI-7434P
cPCI-7434R

cPCI-7434RP

√

--

Table 1. Features between different 743X Models

*1: For PCI-7433, cPCI-7433R and cPCI-7432R/P, the isolation

2 • Introduction

voltage is up to 2500 Vrms.

1.2 Applications

• Laboratory and Industrial automation

• Watchdog timer

• Event counter

• Frequency counter and generator

• Low level pulse generator

• Time delay

1.3 Specifications

♦ Optical Isolated Input Channel

PCI-7432

Number of Channel

Input Voltage

Input Resistance

Isolated Voltage

Throughput

Interrupt Sources

Power

Consumption

Table 2. Optical Isolated Input Channel Specifications

cPCI-7432

cPCI-7432R/P

32 DI 64 DI

0 – 24V dc
logic H: 5~24V
logic L: 0~1.5V

2.4KΩ@0.5W

(2.4 KΩ @1W for PCI -7433)

5000 Vrms

(2500 Vrms for PCI -7433, cPCI-7433R, cPCI-

7432R/P)

10K Hz (0.1 ms)

Digital input channel 0 and channel 1

+5V @ 530 mA typical +5V @ 500 mA typical

PCI-7433

cPCI-7433

cPCI-7433R

Introduction • 3

♦ Optical Isolated Output Channel

Darlington transistor with common

PCI-7432

cPCI-7432

cPCI-7432R/P

PCI-7434

cPCI-7434/P

cPCI-7434R/P

Number of Channel 32 DO 64 DO

Output Type

ground/common power

Output Voltage 5VDC min, 35VDC maximum

Output Device

ULN2803A (common ground)
TD62783 (common power)

l Max . 500mA/ch if only one of the

ULN2083A transistor is ON

Sink Current

l 500mA/ch if all of the ULN2803A

transistors are ON @ 20% duty
(T

= 50?)

amb

l Max. 2.25W per ULN2803A device

Isolation Voltage

(2500 Vrms for cPCI -7432R/P)

5000 Vrms

Throughput 10K Hz (0.1 ms)

On Board Isolated +5V

Output Power

200mA 150mA

Power Consumption

Table 3. Optical Isolated Output Channel Specifications

4 • Introduction

+5V @ 530 mA

typical

+5V @ 560 mA

typical

♦ General Specifications

Connector: 100-pin SCSI-II connector
Operating temperature: 0°C ~ 60°C
Storage temperature: -20°C ~ 80°C

Humidity : 5 ~ 95%, non-condensing
Dimension:

• PCI-7432/33/34: Compact size only 106mm(H) X 173mm(L)

• cPCI-7432/33/34: Standard 3U CompactPCI form factor

• cPCI-7432R/33R/34R: Standard 3U CompactPCI form factor with

rear I/O

1.4 Supporting Software

ADLINK provides versatile software drivers and packages for users’ different
approach to building a system. We not only provide programming libraries
such as DLL for many Windows systems, but also provide drivers for many
other software package such as LabVIEW®, HP VEETM, DASYLabTM,
InTouchTM, InControlTM, ISaGRAFTM, and so on.

All software options are included in the ADLINK CD. Non-free software
drivers are protected with licensing codes. Without the software code, you
can install and run the demo version for two hours for trial/demonstration
purposes. Please contact ADLINK dealers to purchase the formal license.

1.4.1 Programming Library

For customers who are writing their own programs, we provide function
libraries for many different operating systems, including:

• DOS Library: Borland C/C++ and Microsoft C++, the functions
descriptions are included in this user’s guide.

• Windows 95 DLL: For VB, VC++, Delphi, BC5, the functions
descriptions are included in this user’s guide.

Introduction • 5

• PCIS-DASK: Includes device drivers and DLL for Windows 98,
Windows NT and Windows 2000. DLL is binary compatible across
Windows 98, Windows NT and Windows 2000. This means all
applications developed with PCIS-DASK are compatible across
Windows 98, Windows NT and Windows 2000. The developing
environment can be VB, VC++, Delphi, BC5, or any Windows
programming language that allows calls to a DLL. The user’s guide
and function reference manual of PCIS-DASK are in the CD. Please
refer to the PDF manual files under \\Manual_PDF\Software\PCIS­DASK

The above software drivers are shipped with the board. Please refer to the
“Software Installation Guide” for installation procedures.

1.4.2 PCIS-LVIEW: LabVIEW® Driver

PCIS-LVIEW contains the VIs, which are used to interface with NI’s
LabVIEW® software package. The PCIS-LVIEW supports Windows
95/98/NT/2000. The LabVIEW® drivers is shipped free with the board. You
can install and use them without a license. For more information about
PCIS-LVIEW, please refer to the user’s guide in the CD.
(\\Manual_PDF\Software\PCIS-LVIEW)

1.4.3 PCIS-VEE: HP -VEE Driver

The PCIS-VEE includes user objects, which are used to interface with the
HP VEE software package. PCIS-VEE supports Windows 95/98/NT. The
HP-VEE drivers are shipped free with the board. For more information
about PCIS-VEE, please refer to the user’s guide in the CD.
(\\Manual_PDF\Software\PCIS-VEE)

1.4.4 DAQBenchTM: ActiveX Controls

We suggest customers who are familiar with ActiveX controls and VB/VC++
programming use the DAQBenchTM ActiveX Control components library for
developing applications. The DAQBenchTM is designed under Windows
NT/98. For more information about DAQBench, please refer to the user’s
guide in the CD. (\\Manual_PDF\Software\DAQBench\DAQBench
Manual.PDF)

6 • Introduction

1.4.5 PCIS-DDE: DDE Server and InTouchTM

DDE stands for Dynamic Data Exchange. The PCIS-DDE includes the PCI
cards’ DDE server. The PCIS-DDE server is included in the ADLINK CD. It
needs a license. The DDE server can be used in conjunction with any DDE
client under Windows NT.

1.4.6 PCIS-ISG: ISaGRAFTM driver

The ISaGRAF WorkBench is an IEC1131-3 SoftPLC control program
development envi ronment. The PCIS-ISG includes ADLINK product drivers
for ISaGRAF under Windows NT environment. The PCIS-ISG is included in
the ADLINK CD. A license is needed to use the drivers.

1.4.7 PCIS-ICL: InControlTM Driver

PCIS-ICL is the InControl driver, which supports Windows NT. The PCIS­ICL is included in the ADLINK CD. A license is needed to use the drivers.

1.4.8 PCIS-OPC: OPC Server

PCIS-OPC is an OPC Server, which can link with OPC clients. There are
several software packages on the market, which can provide the OPC
clients. The PCIS-OPC supports Windows NT and requires a license to
operate.

Introduction • 7

2

Getting Started

This chapter describes how to install and setup the 743X Series cards. The
contents in the package and unpacking information that you should be
aware of are outlined first.

2.1 What You Have

In addition to the User’s Manual, the package should include the following
items:

• 743X Board

• ADLINK CD

• Software Installation Guide

• Rear I/O transition board (DB-100RU) for cPCI -743XR rear I/O

version only

If any of these items are missing or damaged, contact ADLINK or the dealer
from whom you purchased the product. Save the shipping materials and
carton in case you want to ship or store the product in the future.

8 • Getting Started

2.2 Unpacking

The PCI-7432/33/34 card conta ins electro-static sensitive components that
can be easily be damaged by static electricity.

Therefore, the card should be handled on a grounded anti -static mat. The
operator should be wearing an anti -static wristband, grounded at the same
point as the anti-static mat.

Inspect the card module carton for obvious damages. Shipping and handling
may cause damage to your module. Be sure there are no shipping and
handling damages on the modules carton before continuing.

After opening the card module carton, ext ract the system module and place
it only on a grounded anti-static surface with component side up.

Again, inspect the module for damages. Press down on all the socketed IC's
to make sure that they are properly seated. Do this only with the module
place on a firm flat surface

Note: DO NOT ATTEMPT TO INSTALL A DAMAGED BOARD IN THE

COMPUTER.

You are now ready to install your card.

2.3 PCB Layout

2.3.1 PCI-743X PCB Layout

CN1 is the I/O interface and is a 100-pin SCSI-type connector.

Figure 1: PCI-743X PCB Layout

Getting Started • 9

2.3.2 cPCI-743X PCB Layout

The CN1 is the I/O interface and is a 100-pin SCSI-type connector.

Figure 2: cPCI-743X PCB Layout

2.3.3 cPCI-743XR PCB Layout

CN1 is the I/O interface and is a 100-pin SCSI-type connector. J2 is used for
rear I/O signaling. There are no connectors on the main board.

10 • Getting Started

Figure 3: cPCI-743XR PCB Layout

2.4 Hardware Installation Outline

PCI configuration

The PCI cards (or CompactPCI cards) are equipped with plug and play PCI
controllers, it can request base addresses and interrupts according to the
PCI standard. The system BIOS will assign the system resources based on
the PCI cards’ configuration registers and system parameters (which are set
by the system BIOS). Interrupt assignment and memory usage (I/O port
locations) can only be assigned by the system BIOS. These system
resource assignments are done on a board-by-board basis. It is not
suggested to assign the system resource by any other methods.

PCI slot selection

The PCI card can be inserted into any PCI slot without any configuration of
the system resources. The CompactPCI card can also be inserted into any
CompactPCI I/O slot.

Installation Procedures

1. Turn off your computer

2. Turn off all accessories (printer, modem, monitor, etc.) connected to
your computer.

3. Remove the cover from your computer.

4. Setup jumpers on the PCI or CompactPCI card.

5. Select a 32-bit PCI slot. PCI slot are shorter than ISA or EISA slots,
and are usually white or ivory.

6. Before handling the PCI cards, discharge any static buildup on your
body by touching the metal case of the computer. Hold the edge and
do not touch the components.

7. Position the board into the PCI slot you selected.

8. Secure the card in place at the rear panel of the system.

Getting Started • 11

For cPCI-743X products (with and without rear I/O)

1. Read through this manual, and setup the jumper according to your

application needs.

2. Turn off your computer and all accessories (printer, modem, monitor,

etc.) connected to the computer.

3. Remove the cover from the slot of your cPCI computer.

4. Select a 32 -bit cPCI expansion slot on the back plane for cPCI-743X

card.

5. Before handling the cPCI-743X card, discharge any static buildup

from your body by touching the metal casing of the computer. Hold
the edge and do not touch the components.

6. Position the board into the cPCI slot you selected.

7. Secure the card on the back plane by using screws removed from the

slot.

CAUTION!! Don’t put cPCI -743XR (rear I/O) cards into the cPCI back plane

of other manufacturers because the rear I/O definition might be
different, and permanent damage could happen.

2.5 Device Installation for Windows Systems

Once Windows 95/98/2000 has started, the Plug and Play functions of the
Windows system will find and locate the new NuDAQ/NuIPC card. If this is
the first time a NuDAQ/NuIPC card is installed in your Windows system, you
will be prompted to input the device information source. Please refer to the
“Software Installation Guide” for installation procedures of the device
drivers.

12 • Getting Started

2.6 Connector Pin Assignment for PCI-7432, cPCI-7432,
cPCI-7432R

The pin assignment of the 100-pin SCSI-II connector for the 7432 Series is
shown in figure 4 below.

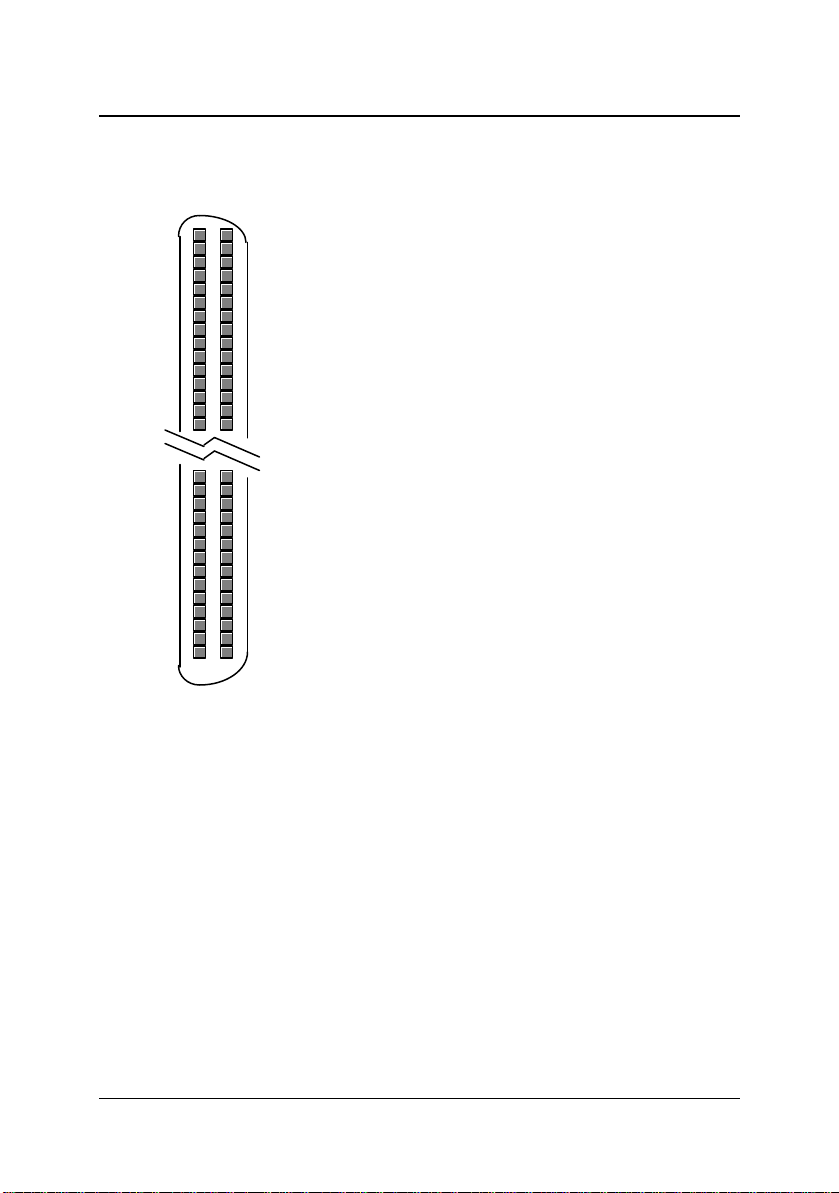

(1) IDI_0 (26) IDO_0 (51) IDI_8 (76) IDO_8

(1)
(2)
(3)

(48)
(49)
(50)

(51)
(52)
(53)

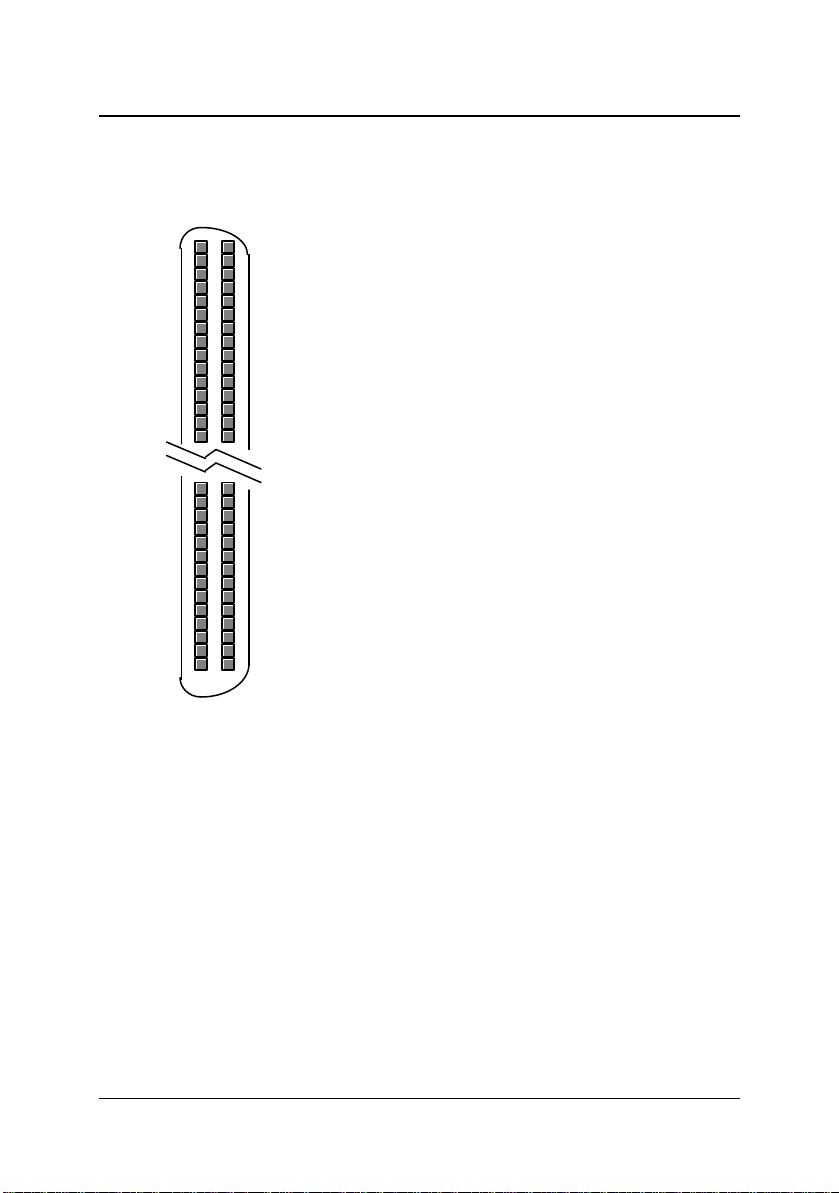

Figure 4: Pin Assignment of 7432 CN1 Connector

Legend:

IDI_n: Isolated digital input channel n
IDO_n: Isolated digital output channel n
VDDm: Common pin for output channel group m (VDD1 is common

pin for isolated output channel 0~7, VDD2 is common pin for
isolated output channel 8~15, and so on).

IGND: Ground return path for isolated output channels
COMm: Common junction for isolated input channel group m (COM1

is common junction for input channel 0~7, COM2 is common
junction for input channel 8~15, and so on).

V5V: Onboard un-regulated 5V power supply output

(2) IDI_1 (27) IDO_1 (52) IDI_9 (77) IDO_9
(3) IDI_2 (28) IDO_2 (53) IDI_10 (78) IDO_10
(4) IDI_3 (29) IDO_3 (54) IDI_11 (79) IDO_11
(5) IDI_4 (30) IDO_4 (55) IDI_12 (80) IDO_12
(6) IDI_5 (31) IDO_5 (56) IDI_13 (81) IDO_13
(7) IDI_6 (32) IDO_6 (57) IDI_14 (82) IDO_14
(8) IDI_7 (33) IDO_7 (58) IDI_15 (83) IDO_15
(9) COM1 (34) VDD1 (59) COM2 (84) VDD2
(10) COM1 (35) IGND (60) COM2 (85) IGND
(11) COM1 (36) IGND (61) COM2 (86) IGND
(12) COM1 (37) IGND (62) COM2 (87) IGND
(13) IDI_16 (38) IDO_16 (63) IDI_24 (88) IDO_24
(14) IDI_17 (39) IDO_17 (64) IDI_25 (89) IDO_25
(15) IDI_18 (40) IDO_18 (65) IDI_26 (90) IDO_26
(16) IDI_19 (41) IDO_19 (66) IDI_27 (91) IDO_27
(17) IDI_20 (42) IDO_20 (67) IDI_28 (92) IDO_28
(18) IDI_21 (43) IDO_21 (68) IDI_29 (93) IDO_29
(19) IDI_22 (44) IDO_22 (69) IDI_30 (94) IDO_30
(20) IDI_23 (45) IDO_23 (70) IDI_31 (95) IDO_31
(21) COM3 (46) VDD3 (71) COM4 (96) VDD4

(98)

(22) COM3 (47) IGND (72) COM4 (97) IGND

(99)

(23) COM3 (48) IGND (73) COM4 (98) IGND

(100)

(24) COM3 (49) IGND (74) COM4 (99) IGND
(25) NC (50) V5V (75) NC (100) V5V

Getting Started • 13

2.7 Connector Pin Assignment of cPCI-7432RP

The cPCI -7432RP’s pin assignment is shown in Figure 5.

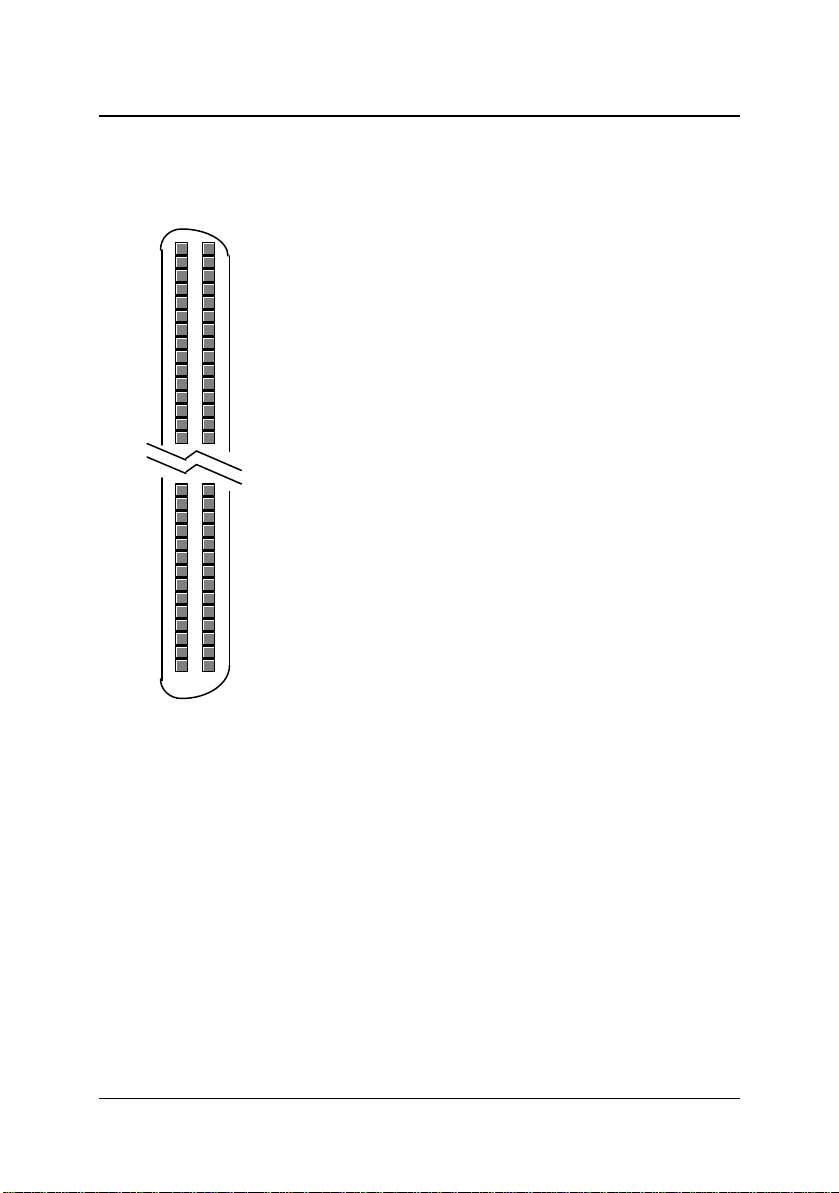

(1) IDI_0 (26) IDO_0 (51) IDI_8 (76) IDO_8

(1)
(2)
(3)

(48)
(49)
(50)

(51)
(52)
(53)

(98)
(99)
(100)

(2) IDI_1 (27) IDO_1 (52) IDI_9 (77) IDO_9

(3) IDI_2 (28) IDO_2 (53) IDI_10 (78) IDO_10
(4) IDI_3 (29) IDO_3 (54) IDI_11 (79) IDO_11
(5) IDI_4 (30) IDO_4 (55) IDI_12 (80) IDO_12
(6) IDI_5 (31) IDO_5 (56) IDI_13 (81) IDO_13
(7) IDI_6 (32) IDO_6 (57) IDI_14 (82) IDO_14
(8) IDI_7 (33) IDO_7 (58) IDI_15 (83) IDO_15

(9) COM1 (34) IGND (59) COM2 (84) IGND
(10) COM1 (35) VDD1 (60) COM2 (85) VDD2
(11) COM1 (36) VDD1 (61) COM2 (86) VDD2
(12) COM1 (37) VDD1 (62) COM2 (87) VDD2

(13) IDI_16 (38) IDO_16 (63) IDI_24 (88) IDO_24
(14) IDI_17 (39) IDO_17 (64) IDI_25 (89) IDO_25
(15) IDI_18 (40) IDO_18 (65) IDI_26 (90) IDO_26
(16) IDI_19 (41) IDO_19 (66) IDI_27 (91) IDO_27
(17) IDI_20 (42) IDO_20 (67) IDI_28 (92) IDO_28
(18) IDI_21 (43) IDO_21 (68) IDI_29 (93) IDO_29
(19) IDI_22 (44) IDO_22 (69) IDI_30 (94) IDO_30
(20) IDI_23 (45) IDO_23 (70) IDI_31 (95) IDO_31

(21) COM3 (46) IGND (71) COM4 (96) IGND
(22) COM3 (47) VDD3 (72) COM4 (97) VDD4
(23) COM3 (48) VDD3 (73) COM4 (98) VDD4
(24) COM3 (49) VDD3 (74) COM4 (99) VDD4

(25) NC (50) V5V (75) NC (100) V5V

Figure 5: Pin Assignment of cPCI-7432RP CN1 Connector

Legend:

IDI_n: Isolated digital input channel n.
IDO_n: Isolated digital output channel n.
VDDm: Common pin for output channel group m, m=1 for output

channel 0~7, m=2 for output channel 8~15, m=3 for output
channel 16~23, m=4 for output channel 24~31.

IGND: Ground return path for isolated output channels.
COMm: Common junction for isolated input channel group m, m=1 for

input channel 0~7, m=2 for input channel 8~15, m=3 for input
channel 16~23, m=4 for input channel 24~31.

V5V: Onboard un-regulated 5V power supply output

14 • Getting Started

2.8 Connector Pin Assignment of cPCI-7433/R & PCI-7433

The pin assignment of the 100-pin SCSI-II connector for the 7433 Series is
shown in figure 6 below.

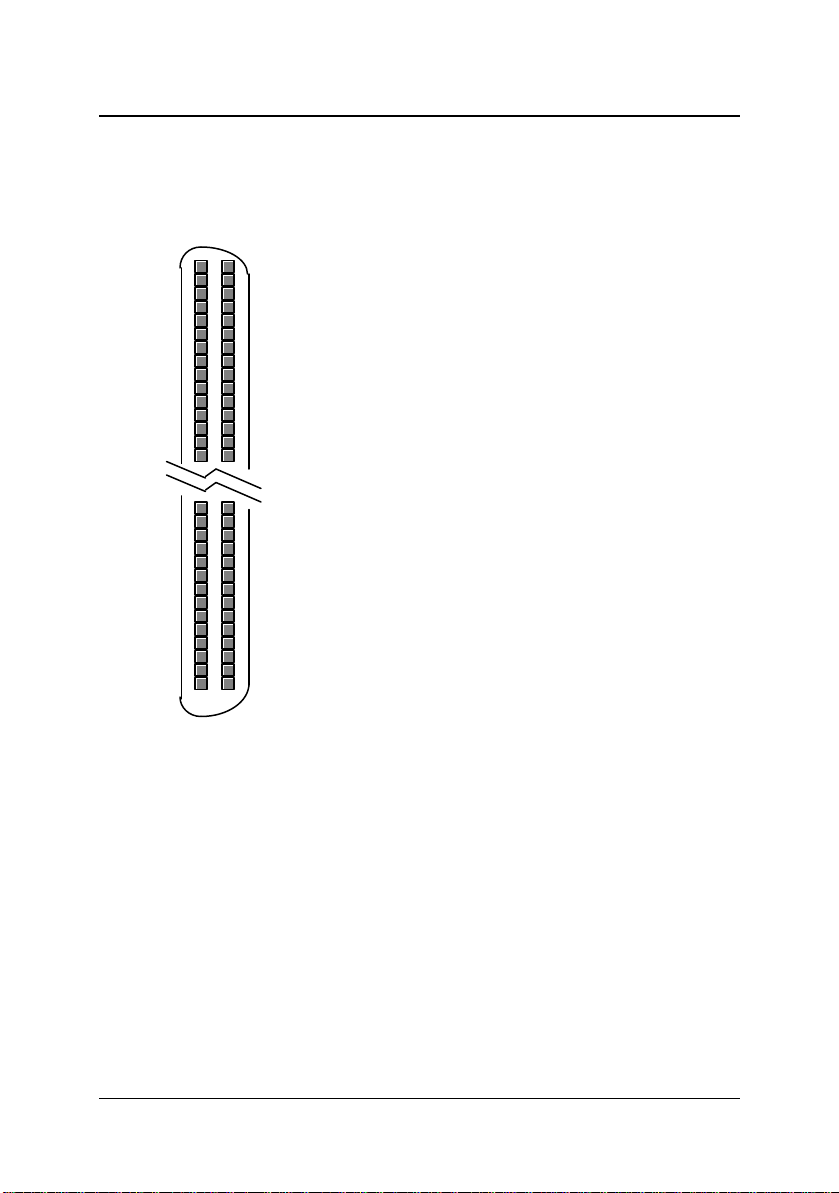

(1) IDI_0 (26) IDI_32 (51) IDI_8 (76) IDI_40

(1)
(2)
(3)

(48)
(49)
(50)

Figure 6: Pin Assignment of 7433 CN1 Connector

Legend:

IDI_n: Isolated digital input channel n.
COMm: Common junction for isolated input channel group m,

(2) IDI_1 (27) IDI_33 (52) IDI_9 (77) IDI_41

(51)
(52)

(3) IDI_2 (28) IDI_34 (53) IDI_10 (78) IDI_42

(53)

(4) IDI_3 (29) IDI_35 (54) IDI_11 (79) IDI_43
(5) IDI_4 (30) IDI_36 (55) IDI_12 (80) IDI_44
(6) IDI_5 (31) IDI_37 (56) IDI_13 (81) IDI_45
(7) IDI_6 (32) IDI_38 (57) IDI_14 (82) IDI_46
(8) IDI_7 (33) IDI_39 (58) IDI_15 (83) IDI_47
(9) COM1 (34) COM5 (59) COM2 (84) COM6
(10) COM1 (35) COM5 (60) COM2 (85) COM6
(11) COM1 (36) COM5 (61) COM2 (86) COM6
(12) COM1 (37) COM5 (62) COM2 (87) COM6
(13) IDI_16 (38) IDI_48 (63) IDI_24 (88) IDI_56
(14) IDI_17 (39) IDI_49 (64) IDI_25 (89) IDI_57
(15) IDI_18 (40) IDI_50 (65) IDI_26 (90) IDI_58
(16) IDI_19 (41) IDI_51 (66) IDI_27 (91) IDI_59
(17) IDI_20 (42) IDI_52 (67) IDI_28 (92) IDI_60
(18) IDI_21 (43) IDI_53 (68) IDI_29 (93) IDI_61
(19) IDI_22 (44) IDI_54 (69) IDI_30 (94) IDI_62
(20) IDI_23 (45) IDI_55 (70) IDI_31 (95) IDI_63
(21) COM3 (46) COM7 (71) COM4 (96) COM8

(98)

(22) COM3 (47) COM7 (72) COM4 (97) COM8

(99)

(23) COM3 (48) COM7 (73) COM4 (98) COM8

(100)

(24) COM3 (49) COM7 (74) COM4 (99) COM8
(25) NC (50) NC (75) NC (100) NC

(COM1 is common junction for input channel 0~7, COM2 is
common junction for input channel 8~15, COM3 is common
junction of input channel 16~23, and so on.)

Getting Started • 15

2.9 Connector Pin Assignment of PCI-7434

The pin assignment of the 100-pin SCSI-II connector for the PCI-7434
Series is shown in figure 7 below.

(1) IDO_0 (26) IDO_32 (51) IDO_8 (76) IDO_40

(1)
(2)
(3)

(48)
(49)
(50)

(51)
(52)
(53)

(98)
(99)
(100)

(2) IDO_1 (27) IDO_33 (52) IDO_9 (77) IDO_41
(3) IDO_2 (28) IDO_34 (53) IDO_10 (78) IDO_42
(4) IDO_3 (29) IDO_35 (54) IDO_11 (79) IDO_43
(5) IDO_4 (30) IDO_36 (55) IDO_12 (80) IDO_44
(6) IDO_5 (31) IDO_37 (56) IDO_13 (81) IDO_45
(7) IDO_6 (32) IDO_38 (57) IDO_14 (82) IDO_46
(8) IDO_7 (33) IDO_39 (58) IDO_15 (83) IDO_47
(9) VDD1 (34) VDD5 (59) VDD2 (84) VDD6
(10) IGND (35) IGND (60) IGND (85) IGND
(11) IGND (36) IGND (61) IGND (86) IGND
(12) IGND (37) IGND (62) IGND (87) IGND
(13) IDO_16 (38) IDO_48 (63) IDO_24 (88) IDO_56
(14) IDO_17 (39) IDO_49 (64) IDO_25 (89) IDO_57
(15) IDO_18 (40) IDO_50 (65) IDO_26 (90) IDO_58
(16) IDO_19 (41) IDO_51 (66) IDO_27 (91) IDO_59
(17) IDO_20 (42) IDO_52 (67) IDO_28 (92) IDO_60
(18) IDO_21 (43) IDO_53 (68) IDO_29 (93) IDO_61
(19) IDO_22 (44) IDO_54 (69) IDO_30 (94) IDO_62
(20) IDO_23 (45) IDO_55 (70) IDO_31 (95) IDO_63
(21) VDD3 (46) VDD7 (71) VDD4 (96) VDD8
(22) IGND (47) IGND (72) IGND (97) IGND
(23) IGND (48) IGND (73) IGND (98) IGND
(24) IGND (49) IGND (74) IGND (99) IGND
(25) NC (50) V5V (75) NC (100) V5V

Figure 7: Pin Assignment of PCI-7434 CN1Connector

Legend:

IDO_n: Isolated digital output channel n.
VDDm: Common pin for isolated output channel group m, (VDD1 is

the common pin for isolated output channel 0~7, VDD2 is for
channel 8~15, VDD3 is for channel 16~23, VDD4 is for
channel 24~31, VDD5 is for channel 32~39, VDD6 is for
channel 40~47, VDD7 is for channel 48~55, and VDD8 is for
channel 56~63).

IGND: Ground return path for isolated output channels.

V5V: Onboard un-regulated 5V power supply output

16 • Getting Started

2.10 Connector Pin Assignment of cPCI-7434R

cPCI-7434R’s pin assignment is shown in Figure 8.

(1) IDO_0 (26) IDO_32 (51) IDO_8 (76) IDO_40

(1)
(2)
(3)

(48)
(49)
(50)

(51)
(52)
(53)

(98)
(99)
(100)

(2) IDO_1 (27) IDO_33 (52) IDO_9 (77) IDO_41
(3) IDO_2 (28) IDO_34 (53) IDO_10 (78) IDO_42
(4) IDO_3 (29) IDO_35 (54) IDO_11 (79) IDO_43
(5) IDO_4 (30) IDO_36 (55) IDO_12 (80) IDO_44
(6) IDO_5 (31) IDO_37 (56) IDO_13 (81) IDO_45
(7) IDO_6 (32) IDO_38 (57) IDO_14 (82) IDO_46
(8) IDO_7 (33) IDO_39 (58) IDO_15 (83) IDO_47
(9) VDD (34) VDD (59) VDD (84) VDD
(10) IGND (35) IGND (60) IGND (85) IGND
(11) IGND (36) IGND (61) IGND (86) IGND
(12) IGND (37) IGND (62) IGND (87) IGND
(13) IDO_16 (38) IDO_48 (63) IDO_24 (88) IDO_56
(14) IDO_17 (39) IDO_49 (64) IDO_25 (89) IDO_57
(15) IDO_18 (40) IDO_50 (65) IDO_26 (90) IDO_58
(16) IDO_19 (41) IDO_51 (66) IDO_27 (91) IDO_59
(17) IDO_20 (42) IDO_52 (67) IDO_28 (92) IDO_60
(18) IDO_21 (43) IDO_53 (68) IDO_29 (93) IDO_61
(19) IDO_22 (44) IDO_54 (69) IDO_30 (94) IDO_62
(20) IDO_23 (45) IDO_55 (70) IDO_31 (95) IDO_63
(21) VDD (46) VDD (71) VDD (96) VDD
(22) IGND (47) IGND (72) IGND (97) IGND
(23) IGND (48) IGND (73) IGND (98) IGND
(24) IGND (49) IGND (74) IGND (99) IGND
(25) NC (50) V5V (75) NC (100) V5V

Figure 8: Pin Assignment of cPCI-7434R CN1 Connector

Legend:

IDO_n: Isolated digital output channel n.
VDDm: Common pin for isolated output channel group m (Note: All

outputs share the same power supply).

IGND: Ground return path for isolated output channels.
V5V: Onboard un-regulated 5V power supply output

Getting Started • 17

2.11 Connector Pin Assignment of cPCI-7434RP

cPCI-7434RP’s pin assignment is shown in Figure 9.

(1) IDO_0 (26) IDO_32 (51) IDO_8 (76) IDO_40

(1)
(2)
(3)

(48)
(49)
(50)

(51)
(52)
(53)

(98)
(99)
(100)

(2) IDO_1 (27) IDO_33 (52) IDO_9 (77) IDO_41
(3) IDO_2 (28) IDO_34 (53) IDO_10 (78) IDO_42
(4) IDO_3 (29) IDO_35 (54) IDO_11 (79) IDO_43
(5) IDO_4 (30) IDO_36 (55) IDO_12 (80) IDO_44
(6) IDO_5 (31) IDO_37 (56) IDO_13 (81) IDO_45
(7) IDO_6 (32) IDO_38 (57) IDO_14 (82) IDO_46
(8) IDO_7 (33) IDO_39 (58) IDO_15 (83) IDO_47
(9) IGND (34) IGND (59) IGND (84) IGND
(10) VDD (35) VDD (60) VDD (85) VDD
(11) VDD (36) VDD (61) VDD (86) VDD
(12) VDD (37) VDD (62) VDD (87) VDD
(13) IDO_16 (38) IDO_48 (63) IDO_24 (88) IDO_56
(14) IDO_17 (39) IDO_49 (64) IDO_25 (89) IDO_57
(15) IDO_18 (40) IDO_50 (65) IDO_26 (90) IDO_58
(16) IDO_19 (41) IDO_51 (66) IDO_27 (91) IDO_59
(17) IDO_20 (42) IDO_52 (67) IDO_28 (92) IDO_60
(18) IDO_21 (43) IDO_53 (68) IDO_29 (93) IDO_61
(19) IDO_22 (44) IDO_54 (69) IDO_30 (94) IDO_62
(20) IDO_23 (45) IDO_55 (70) IDO_31 (95) IDO_63
(21) IGND (46) IGND (71) IGND (96) IGND
(22) VDD (47) VDD (72) VDD (97) VDD
(23) VDD (48) VDD (73) VDD (98) VDD
(24) VDD (49) VDD (74) VDD (99) VDD
(25) NC (50) V5V (75) NC (100) V5V

Figure 9: Pin Assignment of cPCI-7434RP CN1 Connector

Legend:

IDO_n: Isolated digital output channel n.
VDDm: Common pin for isolated output channel group m. (Note: All

outputs share the same power supply).

IGND: Ground return path for isolated output channels.
V5V: Onboard un-regulated 5V power supply output

18 • Getting Started

2.11 Jumpers Setting

Digital I/O cards often operate in noisy environments and may suffer
electrostatic discharge or transient voltage up to several 1000 volts. To
protect the system from potential damage, the PCI-7433 have implemented
protection circuits on its input channels. Eight jumpers on the PCI-7433 are
used to enable or disable the transient voltage suppressors. Each jumper is
responsible fo r up to 8 digital input channels. The following table and figure
illustrates the jumper settings. Please note that these setting are only
available for the PCI -7433.

Jumper Isolated digital input channel

J1 0 ~ 7
J2 8 ~ 15
J3 16 ~ 23
J4 24 ~ 31
J5 32 ~ 39
J6 40 ~ 47
J7 47 ~ 55
J8 56 ~ 63

Table 4. PCI-7433 jumper setting table

Figure 10: Simplified digital input circuit diagram

Getting Started • 19

Figure 11: PCI-7433 (rev. B2) Jumper Locations

20 • Getting Started

3

Registers

The descriptions of the registers and structure of the 743X Series are
outlined in this chapter. The information in this chapter will assist
programmers, who wish to handle the card with low-level programs.

In addition, the low level programming syntax is introduced. This information
can help beginners to operate the 743X in the shortest possible time.

3.1 PCI PnP Registers

This PCI card functions as a 32-bit PCI target device to any master on the
PCI bus. There are three types of registers: PCI Configuration Registers
(PCR), Local Configuration Registers (LCR) and 743x series registers.

The PCR, which is PCI-bus specifications compliant, is initialized and
controlled by the plug & play (PnP) PCI BIOS. Users may obtain more
information on the PCI BIOS specification to better understand the operation
of the PCR. Please conta ct PCISIG to acquire the specifications of the PCI
interface.

The PCI bus controller PCI-9050 is provided by PLX technology Inc.
(www.plxtech.com). For more information about the LCR, please visit PLX
technology’s web site to download relative information. It is not necessary
for users to fully understand the details of the LCR if the software library
provided is used. The PCI PnP BIOS assigns the base address of the LCR.
The assigned address is located at an offset of 14h from the PCR.

The 743x series registers are discussed in the next section. The base
address, which is also assigned by the PCI PnP BIOS, is located at an offset
of 18h from the PCR. Therefore, users can read the address 18h from the
PCR to obtain its base address by using the BIOS function call. Do not
attempt to modify the base address and interrupt that have been assigned
by the PCI PnP BIOS, it may cause resource conflicts with your system.

Registers • 21

3.2 I/O Address Map

All 743X series registers are 32 bits long. Users can access these registers
using 32-bit I/O instructions. The following table shows the registers
address map, including descriptions and their offset addresses relative to
the base address

Address Write Read

PCI-7432

cPCI-7432

CPCI-7432R/P Base + 0x04 LED Control Slot Number

Base + 0x00 Isolated DO Isolated DI
Base + 0x40 Clear IRQ --

Address Write Read

PCI-7433

cPCI-7433

cPCI-7433R
cPCI-7433R Base + 0x50 LED Control Slot Number

Base + 0x00 -- Isolated DI
Base + 0x04 -- Isolated DI
Base + 0x08 Clear IRQ --

Address Write Read

Base + 0x00 Isolated DO -- PCI-7434

cPCI-7434[P]

cPCI-7434R[P]
cPCI-7434R[P] Base + 0x50 LED Control Slot Number

Table 5. I/O Address Map of c/PCI -7432/33/34

Caution: 1. I/O port is 32 bits width

2. 8-bit or 16-bit I/O access is not allowed.

Base + 0x04 Isolated DO --

22 • Registers

3.3 Digital Input Register

There are 32 isolated digital input channels on the PCI -7432 and 64 isolated
digital input channels on the PCI-7433, each bit of based address
corresponds to a signal on the digital input channel.

Address: BASE + 0 ~ BASE + 3 for 7432

BASE + 0 ~ BASE + 7 for 7433

Attribute: read only

Data Format:

7432

7 6 5 4 3 2 1 0

Base + 0 IDI_7 IDI_6 IDI_5 IDI_4 IDI_3 IDI_2 IDI_1 IDI_0
Base + 1 IDI_15 IDI_14 IDI_13 IDI_12 IDI_11 IDI_10 IDI_9 IDI_8
Base + 2 IDI_23 IDI_22 IDI_21 IDI_20 IDI_19 IDI_18 IDI_17 IDI_16
Base + 3 IDI_31 IDI_30 IDI_29 IDI_28 IDI_27 IDI_26 IDI_25 IDI_24

7433

7 6 5 4 3 2 1 0
Base + 0 IDI_7 IDI_6 IDI_5 IDI_4 IDI_3 IDI_2 IDI_1 IDI_0
Base + 1 IDI_15 IDI_14 IDI_13 IDI_12 IDI_11 IDI_10 IDI_9 IDI_8
Base + 2 IDI_23 IDI_22 IDI_21 IDI_20 IDI_19 IDI_18 IDI_17 IDI_16
Base + 3 IDI_31 IDI_30 IDI_29 IDI_28 IDI_27 IDI_26 IDI_25 IDI_24
Base + 4 IDI_39 IDI_38 IDI_37 IDI_36 IDI_35 IDI_34 IDI_33 IDI_32
Base + 5 IDI_47 IDI_46 IDI_45 IDI_44 IDI_43 IDI_42 IDI_41 IDI_40
Base + 6 IDI_55 IDI_54 IDI_53 IDI_52 IDI_51 IDI_50 IDI_49 IDI_48
Base + 7 IDI_63 IDI_62 IDI_61 IDI_60 IDI_59 IDI_58 IDI_57 IDI_56

Table 6. IDI_N: Isolated Digital Input CH N

Registers • 23

3.4 Digital Output Register

There are 32 digital output channels on the PCI -7432 and 64 isolated digital
output channels on the PCI -7434, each bit of based address corresponds to
a signal on the digital output channel.

Address: BASE + 0 ~ BASE + 3 for 7432
BASE + 0 ~ BASE + 7 for 7434

Attribute: write only
Data Format:

7432

7 6 5 4 3 2 1 0
Base + 0
Base + 1
Base + 2
Base + 3

Base + 0
Base + 1
Base + 2
Base + 3
Base + 4
Base + 5
Base + 6
Base + 7

IDO_7 IDO_6 IDO_5 IDO_4 IDO_3 IDO_2 IDO_1 IDO_0
IDO_15 IDO_14 IDO_13 IDO_12 IDO_11 IDO_10 IDO_9 IDO_8
IDO_23 IDO_22 IDO_21 IDO_20 IDO_19 IDO_18 IDO_17 IDO_16
IDO_31 IDO_30 IDO_29 IDO_28 IDO_27 IDO_26 IDO_25 IDO_24

7434

7 6 5 4 3 2 1 0

IDO_7 IDO_6 IDO_5 IDO_4 IDO_3 IDO_2 IDO_1 IDO_0
IDO_15 IDO_14 IDO_13 IDO_12 IDO_11 IDO_10 IDO_9 IDO_8
IDO_23 IDO_22 IDO_21 IDO_20 IDO_19 IDO_18 IDO_17 IDO_16
IDO_31 IDO_30 IDO_29 IDO_28 IDO_27 IDO_26 IDO_25 IDO_24
IDO_39 IDO_38 IDO_37 IDO_36 IDO_35 IDO_34 IDO_33 IDO_32
IDO_47 IDO_46 IDO_45 IDO_44 IDO_43 IDO_42 IDO_41 IDO_40
IDO_55 IDO_54 IDO_53 IDO_52 IDO_51 IDO_50 IDO_49 IDO_48
IDO_63 IDO_62 IDO_61 IDO_60 IDO_59 IDO_58 IDO_57 IDO_56

Table 7. IDO_N: Isolated Digital Output CH N

24 • Registers

4

2.4K Ohm

Signal (source)

(GND)

2.4K Ohm

Signal (sink)

Operation Theory

4.1 Isolated Digital Input Channels

The isolated digital input has an open collector transistor structure. The input
voltage range is 0V to 24V (0V to 50V for PCI -7433) and the input resistance
is 2.4KΩ (4.7KΩ for PCI-7433). The connection between external signals
and the 7432/33 is shown in Fig 12. Please note that the input common
junction could be common ground or common power, they are dependent on
the user’s environment. Therefore, the digital input could be either a current
source or a current sink.

Isolated Input

Current Flow

COM m

Current Flow

Isolated Input

COM m
(+VDD)

Figure 12: Isolated input connection

Operation Theory • 25

4.2 Isolated Digital Output Channels

Load

IGND

VDD n

+

V5V

Load

IGND

VDD n

+

V5V

The common ground connection of isolated digital output is shown figure 13,
while common power connection of isolated digital output as figure 14.
When the isolated digital output goes “ON”, the sink current will be
conducted through the transistors. When the isolated digital output goes
“OFF”, no current is conducted flow through the transistors. Please note that
when the load is of an “inductance nature” such as a relay, coil or motor, the
VDD pin must be connected to an external power source. The extra
connection is utilized for the ‘fly-wheel diode’ to form a current-release
closed loop, so that the transistors are protected from any high reverse
voltage which can be generated by the inductance load when the output is
switched from “ON” to “OFF”.

DC-DC
Convertor

V

-

5~35V

Figure 13: Common Ground Connection for cPCI -7434R and cPCI-7432R

DC-DC
Convertor

V

DD

5~35V

Figure 14: Common Power Connection for cPCI -7434R/P and cPCI-

7432R/P

26 • Operation Theory

5

C/C++ Libraries

This chapter describes the software libraries for operating this card. Only the
functions in the DOS library and Windows 95 DLL are described. Refer to
the PCIS-DASK function reference manual, which is included in the ADLINK
CD, for descriptions of Windows 98/NT/2000 DLL functions.

The function prototypes and useful constants are defined in the header files
located in the LIB directory (DOS) and INCLUDE directory (Windows 95).
For Windows 95 DLL, the developing environment can be Visual Basic 4.0
or above, Visual C/C++ 4.0 or above, Borland C++ 5.0 or above, Borland
Delphi 2.x (32-bit) or above, or any Windows programming language that
allows calls to a DLL.

5.1 Libraries Installation

Refer to the “Software Installation Guide” for information regarding software
installation of libraries for DOS, Windows 95 DLL, or PCIS-DASK for
Windows 98/NT/2000.

The device drivers and DLL functions for Windows 98/NT/2000 are included
in the PCIS-DASK. Refer to the PCIS-DASK user’s guide and function
reference, which is included in the ADLINK CD, for programming information.

C/C++ Libraries• 27

5.2 Programming Guide

5.2.1 Naming Convention

The functions of the NuDAQ PCI or NuIPC CompactPCI card software
drivers uses full-names to represent the functions' real meaning. The naming
convention rules are:

In DOS Environment :
_{hardware_model}_{action_name}. e.g. _7432_Initial().

All functions in the PCI -7432 driver have 7432 as {hardware_model} and can
be used by both PCI-7432 and cPCI-7432. All functions in the PCI-7433
driver have 7433 as {hardware_model}. And again can be used by PCI-7433,
cPCI-7433 and cPCI -7433R. All functions in the PCI-7434 driver have 7434
as {hardware_model}. And can be used by PCI-7434, cPCI-7434 and cPCI­7434R.

In order to recognize the difference between the DOS library and Windows
95 library, a capita l "W" is placed at the start of each function name for
Windows 95 DLL drivers. e.g. W_7432_Initial().

5.2.2 Data Types

We have defined some data types in the Pci_743X.h (DOS) and Acl_pci.h
(Windows 95) header files. These data types are used by the NuDAQ Cards’
library. We recommend you use these data types in your application
programs. The following table shows the data type names and their range.

Type

Name

U16 16-bit unsigned integer 0 to 65535

U32 32-bit ingle-precision floating-point 0 to 4294967295

F32 32-bit ingle-precision floating-point -3.402823E38 to 3.402823E38
F64 64-bit double-precision floating-point

Boolean Boolean logic value TRUE, FALSE

28 • C/C++ Libraries

Description Range

U8 8-bit ASCII character 0 to 255
I16 16-bit signed integer -32768 to 32767

I32 32-bit signed integer -2147483648 to 2147483647

-1.797683134862315E308 to

1.797683134862315E309

Table 8. Function Data Types

5.3 Running the Testing Utility

After installation, execute the DOS utility by typing the following command:

C> cd \7432\DOS\UTIL
C> 7432UTIL

(Use 7433UTIL.EXE or 7434UTIL.EXEdepending on the model of your 743X
series card).

5.4 Initial

@ Description

The 743X cards are initialized by this function. The software library
could be used to control multiple 743X cards. Because the 743X is
designed with the PCI bus architecture and meets the plug and play
specifications, the IRQ and I/O address are assigned by the system
BIOS directly

@ Syntax

PCI-7432 / cPCI-7432 cPCI-7432R

C/C++ (DOS)

U16 _7432_Initial (U16 *existCards, PCI_INFO *pciInfo)

C/C++ (Windows 95)

U16 W_7432_Initial (U16 *existCards, PCI_INFO *pciInfo)

Visual Basic (Windows 95)

W_7432_Initial (existCards As Integer, info As PCI_INFO)
As Integer

PCI-7433 / cPCI-7433 / cPCI-7433R

C/C++ (DOS)

U16 _7433_Initial (U16 *existCards, PCI_INFO *pciInfo)

C/C++ (Windows 95)

U16 W_7433_Initial (U16 *existCards, PCI_INFO *pciInfo)

Visual Basic (Windows 95)

W_7433_Initial (existCards As Integer, info As PCI_INFO)
As Integer

C/C++ Libraries• 29

PCI-7434 / cPCI-7434 / cPCI-7434R

C/C++ (DOS)

U16 _7434_Initial (U16 *existCards, PCI_INFO *pciInfo)
C/C++ (Windows 95)
U16 W_7434_Initial (U16 *existCards, PCI_INFO *pciInfo)

Visual Basic (Windows 95)

W_7434_Initial (existCards As Integer, info As PCI_INFO)
As Integer

@ Argument

existCards : The number of installed 7432/33/34 cards. The

Pciinfo : It is a structure used to memorize the PCI bus

returned value shows how many 7432/33/34 cards
are installed in the system.

plug and play initialization information which
is decided by the p&p BIOS. The PCI_INFO
structure is defined in ACL_PCI.H. The base I/O
address and the interrupt channel number are
stored in pciinfo which is used for reference.

@ Return Code

ERR_NoError
ERR_PCIBiosNotExist

30 • C/C++ Libraries

5.5 Digital Input Relative Functions

@ Description

These functions are used to read 32-bit digital inputs data from the
digital input port. To obtain a 32 -bit data from the 7432, use function
“_7432_DI”. To obtain a 32 bit data (MSB double word) from the 7433,
use “7433_DI_HiDW”, or use “7433_DI_LoDW” (LSB double word) for
the PCI -7433.

@ Syntax

PCI-7432 / cPCI-7432 / cPCI-7432R

C/C++ (DOS)

U16 _7432_DI (U16 cardNo, U32 *di_data)

C/C++ (Windows 95)

U16 W_7432_DI (U16 cardNo, U32 *di_data)

Visual Basic (Windows 95)

W_7432_DI (ByVal cardNo As Integer, di_data As Long) As
Integer

PCI-7433 / cPCI-7433 / cPCI-7433R

C/C++ (DOS)

U16 _7433_DI_HiDW (U16 cardNo, U32 *di_data)
U16 _7433_DI_LoDW (U16 cardNo, U32 *di_data)

C/C++ (Windows 95)

U16 W_7433_DI_HiDW (U16 cardNo, U32 *di_data)
U16 W_7433_DI_LoDW (U16 cardNo, U32 *di_data)

Visual Basic (Windows 95)

W_7433_DI_HiDW (ByVal cardNo As Integer, di_data As Long)
As Integer
W_7433_DI_LoDW (ByVal cardNo As Integer, di_data As Long)
As Integer

@ Argument

cardNo: card number of selected board
di_data: return 32-bit value from digital port.

@ Return Code

ERR_NoError
ERR_BoardNoInit

C/C++ Libraries• 31

5.6 Digital Output Relative Functions

@ Description

These functions are used to write data to the digital output ports. You
can write 32-bit data to the 7432 by using function “_7432_DO”; write
32-bit data (MSB double word) to the 7434 by using “_7434_DO_HiDW”;
or write 32-bit data (LSB double word) to 7434 by using
“_7434_DO_LoDW”.

@ Syntax

PCI-7432 / cPCI-7432 / cPCI-7432R

C/C++ (DOS)

U16 _7432_DO (U16 cardNo, U32 do_data)

C/C++ (Windows 95)

U16 W_7432_DO (U16 cardNo, U32 do_data)

Visual Basic (Windows 95)

W_7432_DO (ByVal cardNo As Integer, ByVal do_data As Long)
As Integer

PCI-7434 / cPCI-7434 / cPCI-7434R

C/C++ (DOS)

U16 _7434_DO_HiDW (U16 cardNo, U32 do_data)
U16 _7434_DO_LoDW (U16 cardNo, U32 do_data)

C/C++ (Windows 95)

U16 W_7434_DO_HiDW (U16 cardNo, U32 do_data)
U16 W_7434_DO_LoDW (U16 cardNo, U32 do_data)

Visual Basic (Windows 95)

W_7434_DO_HiDW (ByVal cardNo As Integer, ByVal do_data As
Long) As Integer
W_7434_DO_LoDW (ByVal cardNo As Integer, ByVal do_data As
Long) As Integer

@ Argument

cardNo : card number of selected board
do_data : value will be written to digital output port

@ Return Code

ERR_NoError
ERR_BoardNoInit

32 • C/C++ Libraries

5.7 Interrupt Source Control

@ Description

The 7432 and 7433 both have a dual interrupt system. Two interrupt
sources can be generated and be checked by the software. This
function is used to select and control the 7432/33 interrupt sources by
writing data to the interrupt control register. The interrupt source can be
set as Channel 0 (INT1) and/or channel 1 (INT2) of the digital input
channels.

@ Syntax

PCI-7432 / cPCI -7432 /cPCI-7432R

C/C++ (DOS)

void _7432_Set_INT_Control (U16 cardNo, U16 int1Flag,
U16 int2Flag)

C/C++ (Windows 95)

void W_7432_Set_INT_Control (U16 cardNo, U16 int1Flag,
U16 int2Flag)

Visual Basic (Windows 95)

W_7432_Set_INT_Control (ByVal cardNo As Integer, ByVal
int1Flag As Integer, ByVal int2Flag As Integer)

PCI-7433 / cPCI-7433 / cPCI-7433R

C/C++ (DOS)

void _7433_Set_INT_Control (U16 cardNo, U16 int1Flag,
U16 int2Flag)

C/C++ (Windows 95)

void W_7433_Set_INT_Control (U16 cardNo, U16 int1Flag, U16

int2Flag)

Visual Basic (Windows 95)

W_7433_Set_INT_Control (ByVal cardNo As Integer, ByVal

int1Flag As Integer, ByVal int2Flag As Integer)

@ Argument

cardNo: card number of selected board
int1Flag: INT1 setting; 0: disable, 1: enable
int2Flag: INT2 setting; 0: disable, 1: enable

C/C++ Libraries• 33

5.8 Get Interrupt Status

@ Description

The 7432 and 7433 both have a dual interrupt system. Two interrupt
sources can be generated and be checked by the software. This
function is used to distinguish which interrupt is inserted if both INT1
and INT2 are in use.

@ Syntax

PCI-7432 / cPCI-7432 / cPCI-7432R

C/C++ (DOS)

void _7432_Get_IRQ_Status (U16 cardNo, U16 *int1Status,
U16 *int2Status)

C/C++ (Windows 95)

void W_7432_Get_IRQ_Status (U16 cardNo, U16 *int1Status,
U16 *int2Status)

Visual Basic (Windows 95)

W_7432_Get_IRQ_Status (ByVal cardNo As Integer,
int1Status As Integer, int2Status As Integer)

PCI-7433 / cPCI-7433 / cPCI-7433R

C/C++ (DOS)

void _7433_Get_IRQ_Status (U16 cardNo, U16 *int1Status,
U16 *int2Status)

C/C++ (Windows 95)

void W_7433_Get_IRQ_Status (U16 cardNo, U16 *int1Status,
U16 *int2Status)

Visual Basic (Windows 95)

W_7433_Get_IRQ_Status (ByVal cardNo As Integer,
int1Status As Integer, int2Status As Integer)

@ Argument

cardNo: card number of selected board
int1Status: 0: interrupt not INT1, 1: interrupt is INT1
int2Status: 0: interrupt not INT2, 1: interrupt is INT2

34 • C/C++ Libraries

5.9 Interrupt Enable

@ Description

This function is only available to Windows 95 drivers. It is used to
activate the interrupt controller. After calling this function, every time an
interrupt request signal is generated, a software event is signaled.
Please refer to the sample program 7432int.c or 7433int.c.

@ Syntax

PCI-7432 / cPCI-7432 / cPCI-7432R

C/C++ (Windows 95)

U16 W_7432_INT_Enable (U16 cardNo, HANDLE *hEvent)

Visual Basic (Windows 95)

W_7432_INT_Enable (ByVal cardNo As Integer, hEvent As
Long) As Integer

PCI-7433 / cPCI-7433 / cPCI-7433R

C/C++ (Windows 95)

U16 W_7433_INT_Enable (U16 cardNo, HANDLE *hEvent)

Visual Basic (Windows 95)

W_7433_INT_Enable (ByVal cardNo As Integer, hEvent As
Long) As Integer

@ Argument

cardNo : card number of selected board
hEvent : the address of an array of two handles. HEvent[0]

@ Return Code

ERR_NoError
ERR_BoardNoInit

and hEvent[1] are the events for interrupt signals
INT1 and INT2 respectively.

C/C++ Libraries• 35

5.10 Interrupt Disable

@ Description

This function is only available to Windows 95 drivers. This function is
used to disable the generation of interrupt signals.

@ Syntax

PCI-7432 / cPCI-7432 / cPCI-7432R

C/C++ (Windows 95)

U16 W_7432_INT_Disable (U16 cardNo)

Visual Basic (Windows 95)

W_7432_INT_Disable (ByVal cardNo As Integer) As Integer

PCI-7433 / cPCI-7433 / cPCI-7433R

C/C++ (Windows 95)

U16 W_7433_INT_DIsable (U16 cardNo)

Visual Basic (Windows 95)

W_7433_INT_Disable (ByVal cardNo As Integer) As Integer

@ Argument

cardNo : card number of selected board

@ Return Code

ERR_NoError
ERR_BoardNoInit

36 • C/C++ Libraries

5.11 LED Control Function

@ Description

The LED control function is only available to the CompactPCI rear I/O
version. The cPCI-7432R/33R/34R has four user defined LED’s. This
function is used to control the LED’s.

@ Syntax

cPCI-7432R / cPCI-7433R / cPCI-7434R

C/C++ (DOS)

Void _7432R_LED (U16 cardNo, U32 LED_Data)
void _7433R_LED (U16 cardNo, U32 LED_Data)
void _7434R_LED (U16 cardNo, U32 LED_Data)

C/C++ (Windows 95)

void W_7432R_LED (U16 cardNo, U32 LED_Data)
void W_7433R_LED (U16 cardNo, U32 LED_Data)
void W_7434R_LED (U16 cardNo, U32 LED_Data)

Visual Basic (Windows 95)

W_7432R_LED (ByVal cardNo As Integer , ByVal
LED_Data As Long) As Integer
W_7433R_LED (ByVal cardNo As Integer , ByVal
LED_Data As Long) As Integer
W_7434R_LED (ByVal cardNo As Integer , ByVal
LED_Data As Long) As Integer

@ Argument

cardNo: card number of selected board
LED_Data: control LED data (only use finally byte)

C/C++ Libraries• 37

5.12 Get Slot Number

@ Description

The Get slot number function is only available to the CompactPCI rear
I/O version. The slot number is read back from the geographic address,
which is defined on the backplane.

@ Syntax

cPCI-7432R / cPCI-7433R / cPCI-7434R

C/C++ (DOS)

void _7432R_SlotNo (U16 cardNo, U32 *slot_No)
void _7433R_SlotNo (U16 cardNo, U32 *slot_No)
void _7434R_SlotNo (U16 cardNo, U32 *slot_No)

C/C++ (Windows 95)

void W_7432R_SlotNo (U16 cardNo, U32 *slot_No)
void W_7433R_SlotNo (U16 cardNo, U32 *slot_No)
void W_7434R_SlotNo (U16 cardNo, U32 *slot_No)

Visual Basic (Windows 95)

W_7432R_SlotNo (ByVal cardNo As Integer , slot_No
As Long) As Integer
W_7433R_SlotNo (ByVal cardNo As Integer , slot_No
As Long) As Integer
W_7434R_SlotNo (ByVal cardNo As Integer , slot_No
As Long) As Integer

@ Argument

cardNo: card number of selected board
slot_No: tne slot number of the cPCI card (only use LSB

byte)

38 • C/C++ Libraries

Warranty Policy

Thank you for choosing ADLINK. To understand your rights and enjoy all
the after-sales services we offer, please read the following carefully.

1. Before using ADLINK’s products, please read the user manual and
follow the instructions carefully. When sending in damaged
products for repair, please attach an RMA application form.

2. All ADLINK products come with a two-year guarantee, free of
repair charge.

• The warranty period starts from the product’s shipment date

from ADLINK’s factory

• Peripherals and third-party products not manufactured by

ADLINK will be covered by the original manufacturers’
warranty

• End users requiring maintenance services should contact

their local dealers. Local warranty conditions will depend on
the local dealers

3. Our repair service does not cover the two-year guarantee while
damages are caused by the following:

a. Damage caused by not following instructions in the user

menus .

b. Damage caused by carelessness on the users’ part during

product transportation.

c. Damage caused by fire, earthquakes, floods, lightening,

pollution and incorrect usage of voltage transformers.

d. Damage caused by unsuitable storage environments with

high temperatures, high humidity or volatile chemicals.

e. Damage caused by leakage of battery fluid when changing

batteries.
f. Damages from improper repair by unauthorized technicians.
g. Products with altered and damaged serial numbers are not

entitled to our service.
h. Other categories not protected under our guarantees.

4. Customers are responsible for the fees regarding transportation of
damaged products to our company or to the sales office.

Warranty Policy • 39

5. To ensure the speed and quality of product repair, please
download an RMA application form from our company website

www.adlinktech.com. Damaged products with RMA forms attached

receive priority.

For further questions, please contact our FAE staff.
ADLINK: [e-mail]
Test & Measurement Product Segment: [e-mail]
Automation Product Segment: [e-mail]

Computer & Communication Product Segment: [e-mail];

[e-mail]

40 • Warranty Policy
