How to Use This Guide

This manual is designed to help you use the 7248/96 series products. It describes how to modify and control various functions on the cards to meet your requirements. It is divided into five chapters:

Chapter 1, Introduction

• applications, and specifications.

Chapter 2, Installation

• products. The layout of the card is shown; as well as the description for the jumper settings, connectors specifications, and installation.

Chapter 3, Registers Format

• structure and format of the PCI-7224/7248/7296.

Chapter 4, Operation Theorem

• system’s versatile functions, including DIO, timer / counter, and interrupt systems.

Chapter 5, C/C++ Library

• language under DOS environment allowing the ease of use of the functions on this card for the user.

, gives an overview of the product features,

, describes how to install the 7248/96 series

, describes the low-level register

, describes in further detail of the

specifies the software library of C

How to use this guide • iii

Introduction

The 7248/7296 series products are general purpose digital I/O cards. This series includes four cards:

• PCI-7224: 24-CH DIO card

• PCI-7248: 48-CH DIO card

• PCI-7296: 96-CH DIO card

• cPCI-7248: 3U CompactPCI 48-CH DIO card

• cPCI-7249R: 3U CompactPCI 48-CH DIO card with Rear I/O

The 7248 series products are multi-function digital I/O boards used for industrial PC with PCI bus or CompactPCI bus. The cards are Plug and Play therefore it is not necessary to set any jumper for configuration of I/O address or interrupt resources.

PCI-7248 and PCI-7296 are 48-channel and 96-channel DIO cards respectively. PCI-7224 is a reduced version of PCI-7248, where all functions are exactly the same as PCI-7248 with the exception that there are only 24 channels. The cPCI-7248 is the 3U CompactPCI version of the PCI-7248. The software is fully compatible with the PCI-7248. In this manual, if the specifications for PCI-7224 and cPCI-7248’s are not specified, they are the same as that of PCI-7248.

The PCI-7248 emulates two industry standard 8255 Programmable Peripheral Interface (PPI) chips operated under mode zero configuration. The PCI-7296 emulates four PPI chips. These two cards are compatible not only on hardware connectors but also on software programming.

The cPCI-7248 is the CompactPCI version of PCI-7248. All the functions are exactly the same as PCI-7248. The cPCI-7249 is an extended version of cPCI-7248, with an additional latch register and rear I/O capability.

Every PPI connector has 3 ports: PA, PB, and PC. The PC can also be subdivided into 2 nibble-wide (4-bit) ports - PC Upper and PC Low. Each connector corresponds to one PPI chip with 24 DIO points. PCI7224/7248/7296 are equipped with one, two, and four 50-pin male ribbon connectors respectively. The cPCI-7248 is equipped with one 100-pin SCSItype connector.

Introduction • 1

1.1 Features

The 7248/96 series products provide the following advanced features:

1.1.1 Digital I/O Ports

• 24/48/96 TTL/DTL compatible with digital I/O lines

• Emulates industry standard mode 0 of 8255 PPI

• Buffered circuits for higher driving

• Direct interface with OPTO-22 compatible I/O module

• Output status read-back

1.1.2 Timer/Counter and Interrupt System

• A 32 bits timer to generate watchdog timer interrupt

• A 16 bits event counter to generate event interrupt

• Programmable interrupt source

• Dual interrupt system

1.1.3 Miscellaneous

• Provide 12V and 5V power supply on OPTO-22 connectors

• On board reset-able fuses to protect power supply for external

devices

1.2 Applications

• Programmable mixed digital input & output

• Industrial monitoring and control

• Digital I/O control

• Contact closure, switch/keyboard monitoring

• Connects with OPTO-22 compatible modules

• Useful with A/D and D/A to implement a data acquisition and control

system

2 • Introduction

1.3 Specifications

I/O channels

Digital Input Signal

Digital Output Signal (Port A & B)

Digital Output Signal (Port C)

Operating Temperature Storage Temperature Humidity I/O Connectors

Bus Power Consumption

(without external devices)

Transfer Rate

24-bit for PCI-7224 48-bit for PCI-7248 96-bit for PCI-7296 48-bit for cPCI-7248 and cPCI-7249R Logic High Voltage: 2.0 V to 5.25V Logic Low Voltage: 0.0 V to 0.80V Logic High Current: 20.0 uA Logic Low Current: -0.2 mA Logic High Voltage: Minimum 2.4 V Logic Low Voltage: Maximum 0.5V Logic High Current: -2.6 mA Logic Low Current: 24.0 mA Logic High Voltage: Minimum 2.4 V Logic Low Voltage: Maximum 0.4V Logic High Current: -15.0 mA Logic Low Current: 24.0 mA 0 °C - 60°C

-20°C - 80°C 5% - 95% non-condensing 50-pin male ribbon cable connectors for PCI7224/7248/7296 or 100-pin SCSI-type connectors for cPCI-7248 PCI bus for PCI-7224/7248/7296 3U 32-bit CompactPCI Bus for cPCI-7248

PCI-7224:

330mA @ 5VDC (Typical) 350mA @ 5VDC (Maximum)

PCI-7248:

500mA @ 5VDC (Typical) 540mA @ 5VDC (Maximum)

PCI-7296:

860mA @ 5VDC (Typical) 940mA @ 5VDC (Maximum)

cPCI-7248:

470mA @ 5VDC (Typical) 560mA @ 5VDC (Maximum)

cPCI-7249R:

700mA @ 5VDC (Typical) 500 K bytes/s (Maximum)

Introduction • 3

PCB Dimension PCI-7224:

PCI-7248: PCI-7296: cPCI-7248: cPCI-7249R:

with Rear I/O option

148mm x 102mm 148mm x 102mm 16mm x 102mm 3U CompactPCI form factor

3U CompactPCI form factor, J2

4 • Introduction

1.4 Software Support

ADLINK provides versatile software drivers and packages for different approaches to building systems. We not only provide prog ramming libraries such as DLL for many Windows systems, but also provide drivers for many

software packages such as LabVIEW®, HP VEETM, DASYLabTM, InTouchTM, InControl

All the software options are included in the ADLINK CD. The non-free software drivers are protected by serial licensed codes. Without the software serial number, the user can still install them and run the demo version for t wo hours for demonstration purpose. Please contact your dealer to purchase the formal license serial code.

1.4.1 Programming Library

For customers who are writing their own programs, we provide function libraries for many different operating systems, including:

, ISaGRAFTM, and many more.

• DOS Library: Borland C/C++ and Microsoft C++, the functions descriptions are included in this user’s guide.

• Windows 95 DLL: For VB, VC++, Delphi, BC5, the functions descriptions are included in this user’s guide.

• PCIS-DASK: Include device drivers and DLL for

Windows NT and Window s 2000

Windows 98, Windows NT and Windows 2000. In other words, all applications developed with PCIS-DASK are compatible across Windows 98, Windows NT and Windows 2000. The developing environment can be VB, VC++, Delphi, BC5, or any Windows programming language that allows calls to a DLL. The user’s guide and function reference manual of PCIS-DASK are in the CD. Please refer the PDF manual files under the following directory: \\Manual_PDF\Software\PCIS-DASK

• PCIS-DASK/X: Include device drivers and shared library for The developing environment can be Gnu C/C++ or any programming language that allows linking to a shared library. The user's guide and function reference manual of PCIS-DASK/X ar e in the CD. (\Manual_PDF\Software\PCIS-DASK-X.)

• T he above software drivers ar e shipped with the board. Please refer to the “Software Installation Guide” to install these drivers.

. DLL is binary compatible across

Windows 98,

Linux

Introduction • 5

1.4.2 PCIS-LVIEW: LabVIEW® Driver

PCIS-LVIEW contains the VIs, which are used to interface with NI’s LabVIEW 95/98/NT/2000. The LabVIEW board. You can install and use them without license. For more detailed

information about PCIS-LVIEW, please refer to the user’s guide in the CD. (\\Manual_PDF\Software\PCIS-LVIEW)

software package. The PCIS-LVIEW supports Windows

drivers are shipped free of charge with the

1.4.3 PCIS-VEE: HP-VEE Driver

The PCIS-VEE includes user objects, which are used to interface with HP VEE software package. PCIS-VEE supports Windows 95/98/NT. The HPVEE drivers are shipped free of charge with the board. You can install and use them without license. For detail information about PCIS-VEE, please refer to the user’s guide in the CD.

(\\Manual_PDF\Software\PCIS-VEE)

1.4.4 DAQBenchTM: ActiveX Controls

We suggest the customers who are familiar with ActiveX controls and VB/VC++ programming to use the DAQBench library for developing applications. The DAQBench Windows NT/98. For more detailed information about DAQBench, please refer to the user’s guide in the CD.

(\\Manual_PDF\Software\DAQBench\DAQBench Manual.PDF)

ActiveX Control components

is designed under

1.4.5 DASYLabTM PRO

DASYLab is an easy-to-use software package, providing easy to setup instrument functions such as FFT analysis. Please contact ADLINK Technology to obtain DASYLab PRO, which includes DASYLab and ADLink hardware drivers.

1.4.6 PCIS-DDE: DDE Server and InTouchTM

DDE stands for Dynamic Data Exchange specifications. The PCIS-DDE includes the PCI cards’ DDE server. The PCIS-DDE server is included in the ADLINK CD. A license is required. The DDE server can be used in conjunction with any DDE client under Windows NT.

6 • Introduction

1.4.7 PCIS-ISG: ISaGRAFTM driver

The ISaGRAF WorkBench is an IEC1131-3 SoftPLC control program development environment. The PCIS-ISG includes ADLink products’ target drivers for ISaGRAF under Windows NT environment. The PCIS-ISG is included in the ADLINK CD. A license is required.

1.4.8 PCIS-ICL: InControlTM Driver

PCIS-ICL is the InControl driver which supports the Windows NT. The PCISICL is included in the ADLINK CD. A license is required.

1.4.9 PCIS-OPC: OPC Server

PCIS-OPC is an OPC Server, which can be linked with OPC clients. There are now many software packages on the market that can provide OPC clients. PCIS-OPC supports Windows NT and a license is required.

Introduction • 7

Installation

This chapter describes how to install the 7248/96 series products. Please take note of the packing and unpacking instructions as described below:

• Check what you have (section 2.1)

• Unpacking (section 2.2)

• Check the PCB (section 2.3)

• Hardware installation (section 2.4)

• Device Installation for Windows System (section 2.5)

• Connector pin assignment (section 2.6)

• Jumpers setup (section 2.7)

• Termination boards connection (section 2.8)

2.1 What You Have

In addition to this User's Manual, the package also includes:

• The PCI or CompactPCI board

• ADLINK CD

• Software Installation Guide

• In the cPCI-7249R box, a rear I/O transition board DB-100RU is

included

If any of these items are missing or damaged, please contact the dealer from whom you purchased the product. Keep the shipping materials and box in case you want to ship or store the product in the future.

Installation • 9

2.2 Unpacking

Your card contains sensitive electronic components that can be easily damaged by static electricity.

The card should be placed on a grounded anti-static mat. The operator should wear an anti-static wristband, grounded at the same poi nt as the antistatic mat.

Inspect the card module carton for obvious damage. Shipping and handling may cause damage to your module. Ensure there is no shipping and handling damage on the module before processing.

After opening the card module carton, remove the system module and place only on a grounded anti-static surface with components side up.

Again inspect the module for damages. Press down on all the socketed IC's to make sure they are properly seated. Only do this with the module placed on a firm flat surface.

Note: DO NOT APPLY POWER TO THE CARD IF IT HAS BEEN

DAMAGED.

You are now ready to install your 7248/96 series product.

10 • Installation

2.3 PCB Layout

2.3.1 PCI-7248/7224 PCB Layout

Figure 2.3.1 PCI-7248/7224 PCB Layout

2.3.2 PCI-7296 PCB Layout

PCI Controller

CN1 CN2 CN3 CN4

Figure 2.3.2 PCI-7296 PCB Layout

Installation • 11

2.3.3 cPCI-7248 PCB Layout

JC2 JB2 JA2

JA1 JB1 JC1

CN1

Figure 2.3.3 cPCI-7248 PCB Layout

2.3.4 cPCI-7249R PCB Layout

CPCI-7248

PCI Controll er Chi p

12 • Installation

Figure 2.3.4 cPCI-7249R Layout

2.4 Hardware Installation

PCI configuration

The PCI cards (or CompactPCI cards) are equipped with Plug and Play PCI controller, it can request base addresses and interrupt according to PCI standard. The system BIOS will install the system resources based on the PCI cards’ configuration registers and system parameters (which are set by system BIOS). Interrupt assignment and memory usage (I/O port locations) of the PCI cards can be assigned by system BIOS only. These system resource assignments are done on an individual board basis. It is not recommended to assign the system resource by any other methods.

PCI slot selection

The PCI card can be inserted into any PCI slot without any configuration for system resource. Please note that the PCI system board and slot must provide bus-mastering capability to operate this board well.

PCI Installation Procedures

Turn off your computer.

Turn off all peripherals (printer, modem, monitor, etc.) connected to your computer.

Remove the cover from your computer.

Set up jumpers on the PCI or CompactPCI card.

Select the 32-bit PCI slot. PCI slots are shorter than the ISA or EISA slots and are usually white or ivory.

Before handling the PCI cards, discharge any static buildup on your body by touching the metal case of the computer. Hold the edge and do not touch the components.

Position the board into the PCI slot you have selected.

Secure the card in place at the rear panel of the system.

Installation • 13

CompactPCI Installation Procedures

Read through this manual, and set the jumpers according to your application.

Turn off your computer and turn off all accessories connected to computer.

Remove the slot cover from the CompactPCI.

Select a 32-bit CompactPCI slot on the back plane for cPCI-7248 board. Select a 32-bit CompactPCI slot with rear I/O extension for cPCI-7249R.

Before handling the boards, discharge any static buildup on your body by touching the metal case of the computer. Hold the edge and do not touch the components.

Position the board into the slot you selected.

Secure the card on the back plane by using the screw removed from the slot.

Install the rear I/O transition board for cPCI-7249R.

2.5 Device Installation for Windows Systems

Once Windows 95/98/2000 has started, the Plug and Play function of Windows system will find the new NuDAQ/NuIPC cards. If this is the first time you are installing NuDAQ/NuIPC cards on your Windows system, you will be informed to input the device information source. Please refer to the “Software Installation Guide” for the steps of installing the device.

14 • Installation

2.6 Connector Pin Assignment

2.6.1 PCI-7224/7248/7296 Pin Assignment

The I/O ports of PCI-7224/7248/7296 emulate the mode 0 configuration of the 8255 general purpose programmable peripheral interface. The cards come equipped with 50-pin male IDC connectors that interface with OPTO-22. Figure 2.4 shows the circuits and pinout of PCI-7224/7248/7296's conn ectors (CN1-CN4).

JPn

1 2 3

+12V

FUSE

PnC7 PnC6 PnC5 PnC4 PnC3 PnC2 PnC1 PnC0 PnB7 PnB6 PnB5 PnB4 PnB3 PnB2 PnB1 PnB0 PnA7 PnA6 PnA5 PnA4 PnA3 PnA2 PnA1 PnA0

+5V

CNn

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50

HEADER 25X2

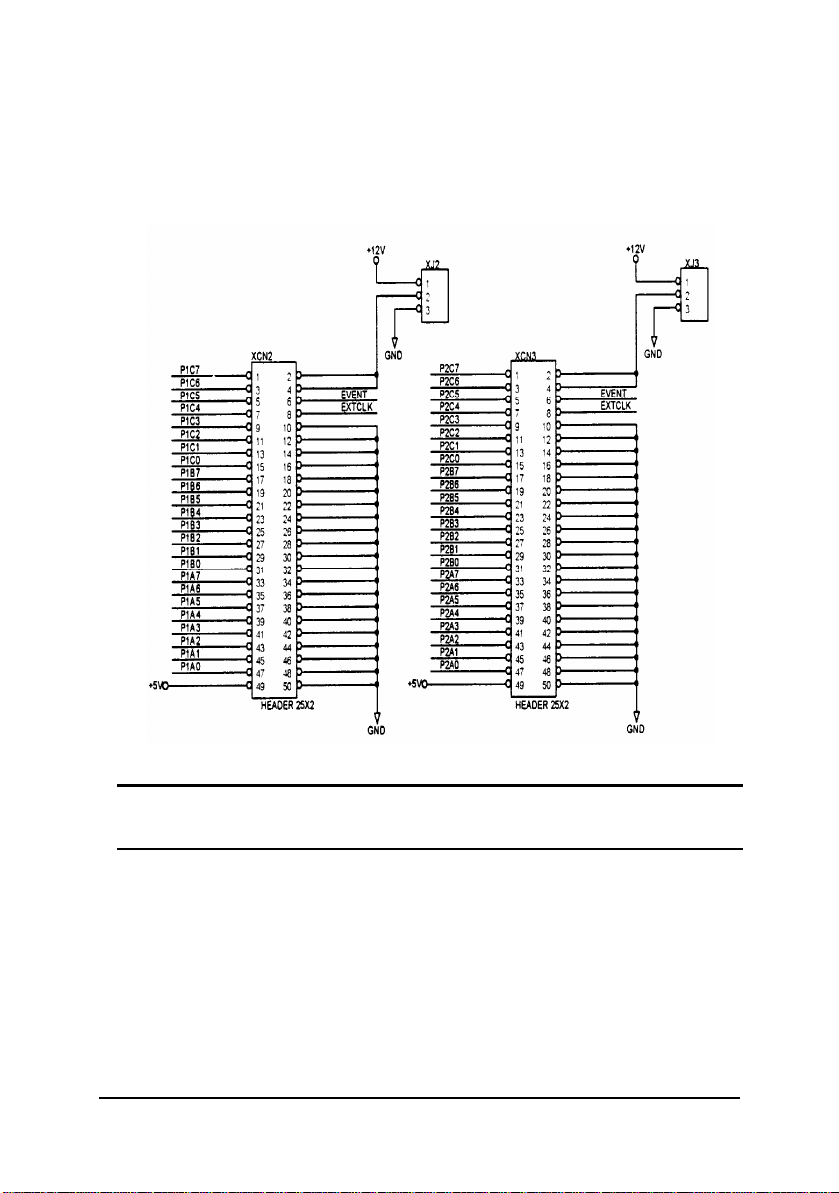

Figure 2.6.1 Pin assignments and power signals of PCI-7224/7248/7296

The DIO pin names are specified as PnXb, where

n : means the connector reference number n=1-4. X : means the port name, X=A, B or C b : means the bit number of a port, b=0-7

For example, P1C4 means bit 4 of port C on connector CN1. Note:

1. The pinout of the CN1-CN4 connectors are identical.

2. The power supply pins are protected by resettable fuses. Refer to section

4.4 for details on power supply.

Installation • 15

2.6.2 cPCI-7248 Pin Assignment

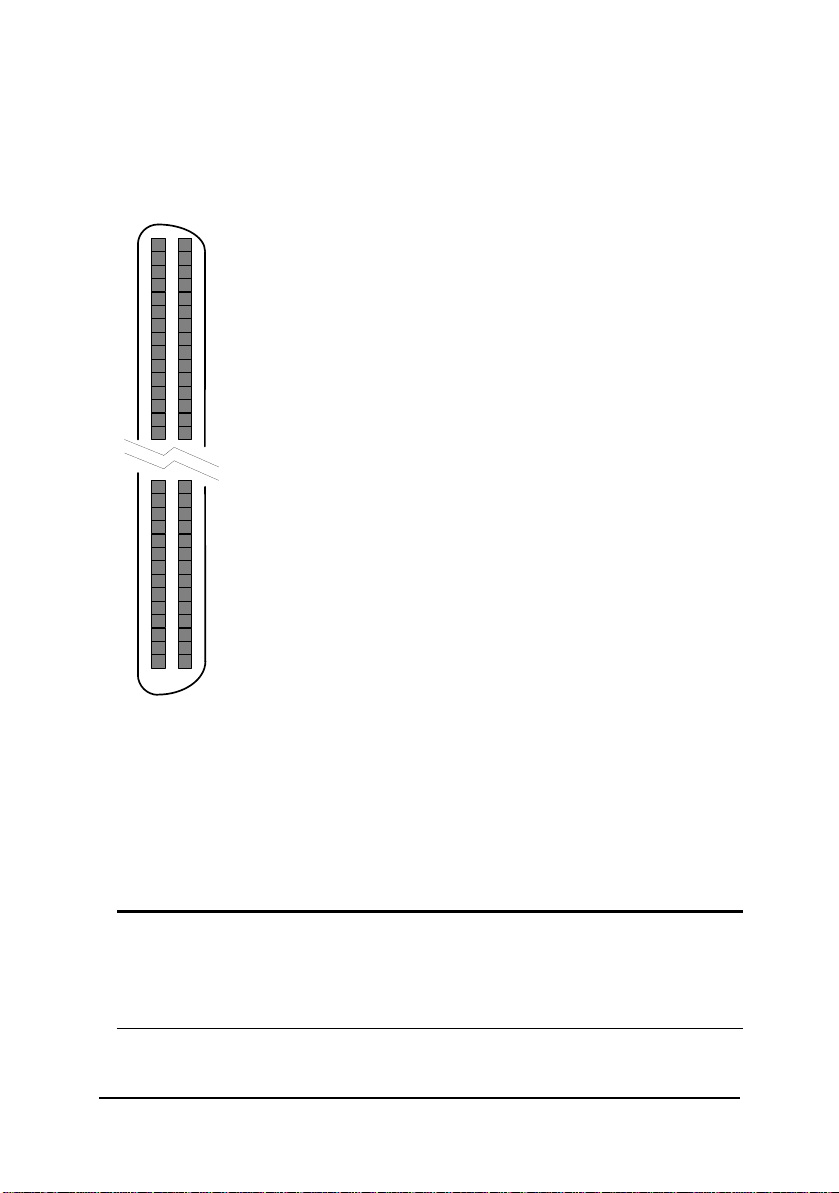

The cPCI-7248 is equipped with a SCSI-type 100-pin connector. The pin assignment is described in Figure 2.6.2.

(1) (2) (3)

(48) (49) (50)

The DIO pin names are specified as PnXb, where

For example, P1C4 means bit 4 of port C on connector CN1.

(51) (52) (53)

(98) (99) (100)

(1) P1A0 (26) P2A0 (51) EVENT (76) GND (2) P1A1 (27) P2A1 (52) GND (77) GND (3) P1A2 (28) P2A2 (53) GND (78) GND (4) P1A3 (29) P2A3 (54) GND (79) GND (5) P1A4 (30) P2A4 (55) GND (80) GND (6) P1A5 (31) P2A5 (56) GND (81) GND (7) P1A6 (32) P2A6 (57) GND (82) GND (8) P1A7 (33) P2A7 (58) GND (83) GND (9) P1B0 (34) P2B0 (59) GND (84) GND (10)P1B1 (35) P2B1 (60) GND (85) GND (11)P1B2 (36) P2B2 (61) GND (86) GND (12) P1B3 (37) P2B3 (62) GND (87) GND (13) P1B4 (38) P2B4 (63) GND (88) GND (14) P1B5 (39) P2B5 (64) GND (89) GND (15) P1B6 (40) P2B6 (65) GND (90) GND (16) P1B7 (41) P2B7 (66) GND (91) GND (17) P1C0 (42) P2C0 (67) GND (92) GND (18) P1C1 (43) P2C1 (68) GND (93) GND (19) P1C2 (44) P2C2 (69) GND (94) GND (20) P1C3 (45) P2C3 (70) GND (95) GND (21) P1C4 (46) P2C4 (71) GND (96) GND (22) P1C5 (47) P2C5 (72) GND (97) GND (23) P1C6 (48) P2C6 (73) GND (98) GND (24) P1C7 (49) P2C7 (74) GND (99) GND (25) V5V (50) +12V (75) V5V (100) +12V

Figure 2.6.2 Pinout and power signals of cPCI-7248

n : means the connector reference number n=1 - 2. X : means the port name, X=A, B or C b : means the bit number of a port, b=0-7

Note:

1. The pinout of the CN1-CN4 connectors are identical.

2. The power supply pins are protected by resettable fuses. Refer to section

4.4 for details on power supply.

16 • Installation

2.6.3 cPCI-7249R Pin Assignment

The I/O ports of cPCI-7249R emulate the mode 0 configuration of the 8255 general purpose programmable peripheral interface. This card comes equipped with a SCSI-100 Pin connector. The cPCI-7249R supports a R724 9 daughter board for rear I/O and includes two OPTO-22 connectors as well as a SCSI -100 connector.

(1) (2) (3)

(48) (49) (50)

The DIO pin names are specified as PnXb, where

For example, P1C4 means bit 4 of port C on connector CN1

(51) (52) (53)

(98) (99) (100)

n : means the connector reference number n=1-2 X : means the port name, X= A, B or C b : means the bit number of a port, b=0-7

EXTCLK

External edge trigger signal for latch digital input data

EVENT V5V +12V

: : :

External clock source for counter 0 Onboard un-regulated 5V power supply output Onboard un-regulated +12V power supply output

Installation • 17

2.6.4 R7249 OPTO-22 Connectors

The cPCI-7249R’s rear I/O transition board R7249 is equipped with two 50 pin male IDC connectors: XCN2; XCN3 that interface with OPTO-22.

Figure 2.3 R7249 OPTO-22 Connectors Pin Assignment

Note : The power supply pins are protected by resettable fuses.

Refer to section 3.7 for details of the power supply.

18 • Installation

2.7 Jumpers Description

The 7248/96 DIO cards are Plug and Play, thus it is not necessary to set up the card configurations to fit the computer system. However, to fit different users’ versatile operating environment, there are still a few jumpers to set the power-on status of ports and the usage of the +12V output pins.

2.7.1 Power on Status of Ports

For every port on the 7248/96 cards, the power-on status is set as input therefore, the voltage could be pulled high, pulled low, or floating. It is dependent on the jumper setting. Table 2.1 lists the refere nce number of the jumpers and the corresponding port names.

Jumper Port Name Remarks

JA1 P1A (Port A of CN1) JB1 P1B (Port B of CN1) JC1 P1C (Port C of CN1)

JA2 P2A (Port A of CN2) for PCI-7248/96, cPCI-7248 JB2 P2B (Port B of CN2) for PCI-7248/96, cPCI-7248 JC2 P2C (Port C of CN2) for PCI-7248/96, cPCI-7248 JA3 P3A (Port A of CN3) for PCI-7296 JB3 P3B (Port B of CN3) for PCI-7296 JC3 P3C (Port C of CN3) for PCI-7296 JA4 P4A (Port A of CN4) for PCI-7296 JB4 P4B (Port B of CN4) for PCI-7296 JC4 P4C (Port C of CN4) for PCI-7296

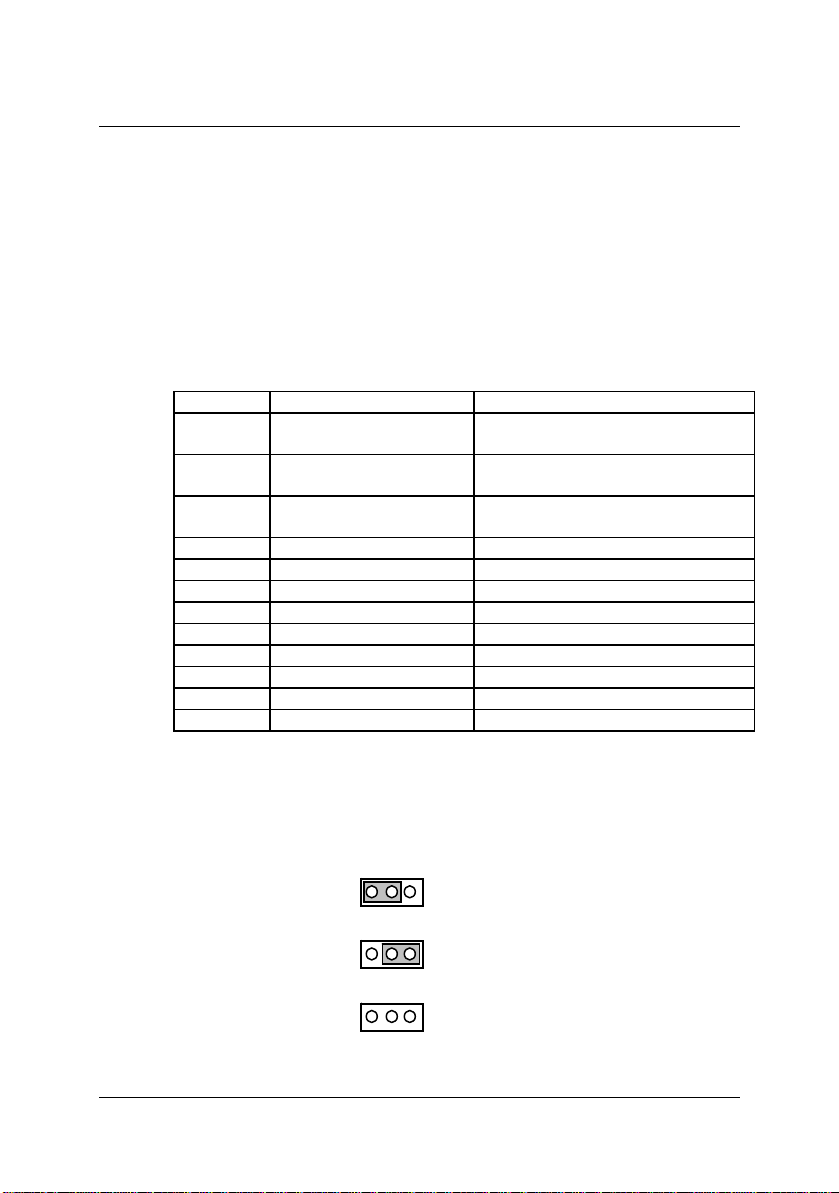

Table 2.1 Jumpers and Port names list

The physical meaning of all the jumpers are identical. The power-on status of each port can be set independently. The default is to pull all signals high. The following diagram use JA1 as an example to show the possible configurations.

1. Port A of CN1 are power-on pulled high. ‘H’ 1 2 JA1

2. Port A of CN1 are power-on pulled low. ‘L’ 1 2 JA1

3. Port A of CN1 are power-on floating. (The jumper is removed) 1 2 JA1

for PCI-7224/7248/7296,

cPCI-7248

for PCI-7224/7248/7296,

cPCI-7248

for PCI-7224/7248/7296,

cPCI-7248

Installation • 19

2.7.2 12V Power Supply Configuration

The pin 2 and pin 4 of the CN1-CN4 50-pin OPTO-22 connectors can be configured as 12V power supply or ground. Please refer to Figure 2.4 for the 12 volts power supply position. JP1-JP4 of 12V power are for CN1-CN4 respectively. Connections with ground are set as default. The following diagram shows the setting of JP2, connecting pin 2 and pin 4 of CN2 to ground.

(12V)1 2(Ground) JP2

2.8 Termination Boards Connection

There are many termination boards that can be connected with PCI7248/7296 for isolated I/O expansion.

1. TB-24R, DIN-24R

The TB-24R and DIN-24R provide 24 Form C relays for digital output control.

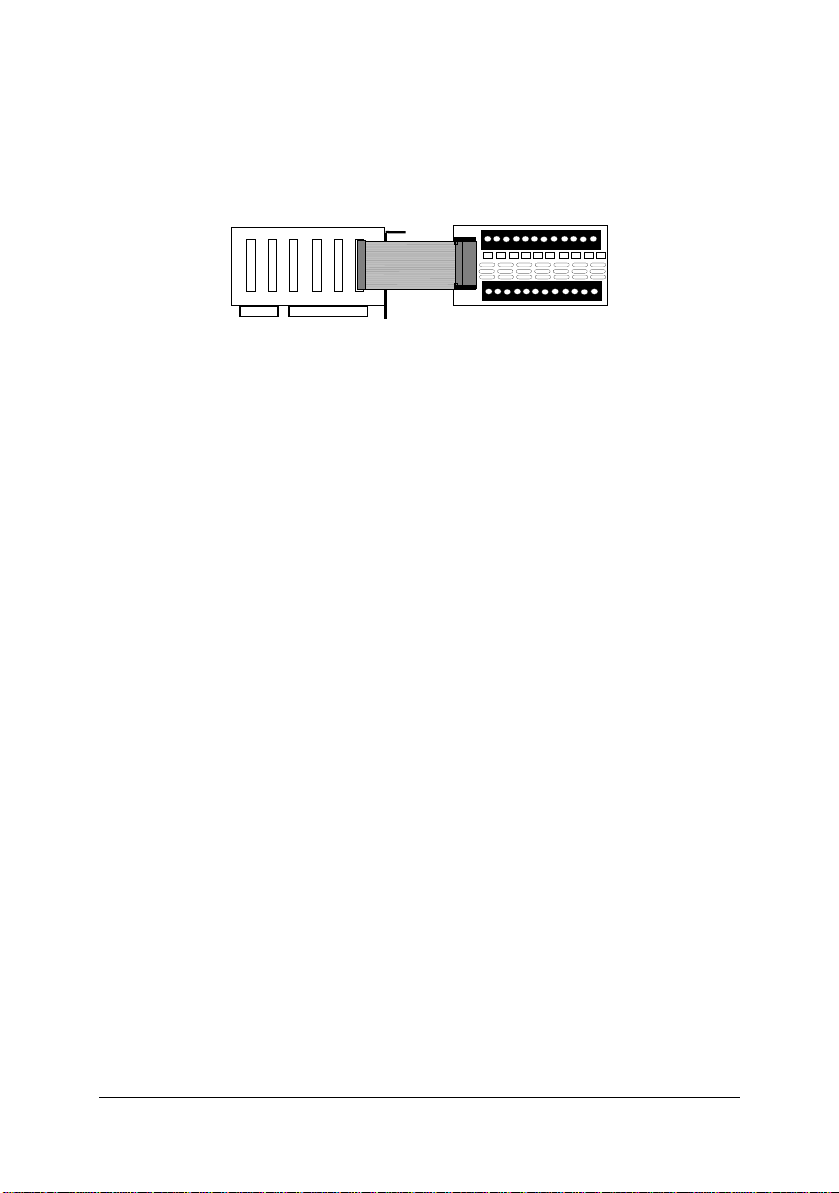

PCI-7296 PCI-7248

TB-24R

or DIN-24R

2. TB-24 P, DIN-24P

The TB-24P and DIN-24P provide 24 opto-isolated digital input channels.

PCI-7296 PCI-7248

TB-24P

or DIN-24P

20 • Installation

3. TB-16P8R

The TB-16P8R provides 16 opto-isolated digital input channels and 8 rela y outputs.

PCI-7296 PCI-7248

TB-16P8R

4. TB-24, DIN-50S

TB-24 and DIN-50S are termination boards with 50 pin ribbon connector. They are used for general-purpose applications.

5. DIN-100S

DIN-100S is equipped with 100-pin SCSI-type connector. It can be connected with cPCI-7248 and cPCI-7249R.

Installation • 21

Registers Format

The detailed description of the registers format are specified in this chapter. This information is useful for the programmers who wish to handle the card by low-level programming. However, it is strongly recommended that the user has a more in depth understanding of the PCI interface before starting any low-level programming. In addition, the contents of this chapter can help the user understand how to use the software driver to manipulate this card.

3.1 PCI Plug and Play Registers

This PCI card functions as a 32-bit PCI target device to any master on the PCI bus. There are three types of registers: PCI Configuration Registers (PCR), Local Configuration Registers (LCR) and PCI-6308 registers.

The PCR, which is compliant to the PCI-bus specifications, is initialized and controlled by the Plug and Play PCI BIOS. Users can study the PCI BIOS specification to understand the operation of the PCR. Please contact PCISIG to acquire the specifications of the PCI interface.

The PCI bus controller PCI-9050 is provided by PLX Technology, Inc. (www.plxtech.com). For more detailed information on LCR, please visit the PLX technology website to download the relative information. Users are not required to understand the details of the LCR if they are using the software library. The PCI Plug and Play BIOS assigns the base address of the LCR. The assigned address is located at offset 14h of PCR.

The PCI-6308 registers are shown in the next section. The base address, which is also assigned by the PCI Plug and Play BIOS, is located at offset 18h of PCR. Therefore, users can read the 18h of PCR to find the base address by using the BIOS function call.

Please do not try to modify the base address and interrupt which are assigned by the PCI Plug and Play BIOS as it may cause resource conflict in your system.

Registers Format • 23

3.2 I/O Address Map

All the 724X registers are 8 bits. The users can access these registers on ly by 8 bits I/O instructions. The following table shows the registers map, including descriptions and their offset addresses relative to t he base addr ess. Please refer to chapter 4 of this manual for a more detailed description on the operation of different registers.

Offset Write Read Boards

0x00 P1A P1A PCI-7224 0x01 P1B P1B PCI-7248 0x02 P1C P1C PCI-7296 0x03 P1Ctrl Not used cPCI-7248/49R 0x04 P2A P2A PCI-7248 0x05 P2B P2B PCI-7296 0x06 P2C P2C cPCI-7248/49R 0x07 P2Ctrl Not used 0x08 P3A P3A P1AE 0x09 P3B P3B P1BE 0x0A P3C P3C P1CE 0x0B P3Ctrl Not used Not used cPCI-7249R 0x0C P4A P4A P2AE 0x0D P4B P4B P2BE 0x0E P4C P4C P2CE 0x0F P4Ctrl Not used Not used 0x10 Timer/Counter #0 Timer/Counter #0 PCI-7224 0x11 Timer/Counter #1 Timer/Counter #1 PCI-7248 0x12 Timer/Counter #2 Timer/Counter #2 PCI-7296

0x13 0x20

Timer/Counter Mode Control ISC: Interrupt Source Control

Timer/Counter Mode Status

Not used

0x30 Clear Interrupt Not used

(1)

PCI-7296

(1) (1) (1)

for

Only

cPCI-7248/49R

24 • Registers Format

Operation Theorem

4.1 Digital I/O Ports

4.1.1 Introduction

The 7248/96 products can emulate one/two/four mode 0 configuration of 8255 programmable peripheral interface (PPI) chips. There are 24 DIO signals for every PPI.

4.1.2 8255 Mode 0

The basic functions of 8255 mode 0 are:

z Two 8-bit I/O ports-port A (PA) and port B (PB) z Two nibble-wide (4-bit) ports C-PC upper and PC lo wer z Each port can be used as either input or output z Outputs are latched whereas inputs are buffered z 16 different input/output configurations are available

4.1.3 Special Function of the DIO Signals

Two I/O signals (PC0 and PC3) of CN1 and CN2 can be used to generate hardware interrupt. Refer to section 4.3 for details on the interrupt control. In addition, the P1C4 signals can be used as input signal of event counter.

Operation Theorem • 25

4.1.4 Digital I/O Port Programming

Users can write the digital output value to or read back the digital signal le vel from the PPI ports by using the software library. The port names are defined in Table 4.1. These port names are used throughout this manual as well as in the software library. The programming for PCI-7224/7248/7296 and cPCI7248 are fully compatible.

Connector

Numbers

P1A P2A P3A P4A

Port P1B P2B P3B P4B

Names P1C P2C P3C P4C

P1CTRL P2CTRL P3CTRL P4CTRL

There are four ports on every 8255 PPI, including ports A, B, C, and the control port. PA, PB, and PC could be written or read but the control port is write only. Refer to chapter 5 for more details on the programming of DIO ports.

CN1 CN2 CN3 CN4

Table 4.1 I/O Port Names

4.1.5 Control Word

The control word written in the control port is used to setup PA, PB, and PC as input or output port. Figure 4.1 shows the format of the control word. Table

4.2 shows the 16 possible control words and the respective I/O configurations.

D7 D6 D5 D4 D3 D2 D1 D0

X X

??X

X : don't care

Figure 4.1 Control Word Format

26 • Operation Theorem

1/0 : Input/Output of Port C low nibble 1/0 : Input/Output of Port B

1/0 : Input/Output of Port C high nibble 1/0 : Input/Output of Port A

Control

Word

00H 01H 02H 03H 08H 09H 0AH 0BH 10H 11H 12H 13H 18H 19H 1AH

1BH*

D4 D3 D1 D0 PORTA PORT C

UPPER

0 0 0 0 O/P O/P O/P O/P 0 0 0 1 O/P O/P O/P I/P 0 0 1 0 O/P O/P I/P O/P 0 0 1 1 O/P O/P I/P I/P 0 1 0 0 O/P I/P O/P O/P 0 1 0 1 O/P I/P O/P I/P 0 1 1 0 O/P I/P I/P O/P 0 1 1 1 O/P I/P I/P I/P 1 0 0 0 I/P O/P O/P O/P 1 0 0 1 I/P O/P O/P I/P 1 0 1 0 I/P O/P I/P O/P 1 0 1 1 I/P O/P I/P I/P 1 1 0 0 I/P I/P O/P O/P 1 1 0 1 I/P I/P O/P I/P 1 1 1 0 I/P I/P I/P O/P 1 1 1 1 I/P I/P I/P I/P

PORT B PORT C

LOWER

Table 4.2 Summary of control word (D0-D4)

(* power on default configuration)

4.1.6 Power On Configuration

The default configuration after power on, hardware reset, or software reset sets all ports as input ports. Therefore, users do not need to worry about damaging external devices when system is on. In addition, the default signal level can be pulled high or pulled low by setting the jumpers . Refer to section

2.7 for setting the power on status of the DIO ports.

4.1.7 Note for Output Data

Be careful of the initial condition of digital output signals. If users set the control word as output port after power on, the previous uncertain output value will be put on the output pins immediately. Therefore,

BE SURE TO WRITE A SAFE VALUE TO THE PORTS BEFORE CONFIGURING THEM AS OUTPUT PORTS.

4.1.8 Note for cPCI-7249R

The P1AE, P1BE, P1CE, P2AE, P2BE, and P2CE registers latch data from P1A, P1B, P1C, P2A, P2B, and P2C respectively. The latch signal is from Pin 99 of the 100-pin connector.

Operation Theorem • 27

4.2 Timer/Counter Operation

4.2.1 Introduction

One 8254 programmable timer/counter chip is installed in the 7248/9 6 series. There are three counters in one 8254 chip and six possible operation modes for each counter. The block diagram of the timer/counter system is shown in Figure 4.2.

'H'

8254 Chip

Counter #0

G C

Timer #1

G C

Timer #2

Event IRQ

Timer IRQ

P1C4

Trigger

Edge

Control

2 MHz Clock

Figure 4.2 Timer/counter system of 7248/96 series.

Timers #1 and #2 of the 8254 chip are cascaded as a 32-bit programmable timer. In the software library, Timers #1 and #2 are always set as mode 2 (rate generator).

In software library, counter #0 is used as an event counter that is, interrupt on terminal count of 8254 mode 0. Please refer to chapter 5 for programming the timer/counter functions.

4.2.2 General Purpose Timer/Counter

The counter 0 is a general purpose timer/counter for users applications. It can be used as an event counter, for measuring frequency, or other functions. The following Modes are provided by the 82C54 chip.

Mode 0

Mode 1

Mode 2

Mode 3

Mode 4

Mode 5

28 • Operation Theorem

: Interrupt on Terminal Count : Programmable One-Shot : Rate Generator : Square Wave Rate Generator : Software Triggered Strobe : Hardware Triggered Strobe

The 8254 timer/counter IC occupies four I/O addresses. Users can refer to Tundra's or Intel®'s data sheet for a full description of the 8254 features. You can download the 8254 data sheet from the following web site:

http://support.intel.com/support/controllers/peripheral/231164.htm or http://www.tundra.com (for Tundra’s 82C54 datasheet)

4.2.2 Cascaded 32 Bits Timer

The input clock frequency of the cascaded timers is 2MHz. The output of the timer is sent to the interrupt circuit (refer to section 4.3). Therefore, the maximum and minimum watchdog timer interrupt frequency is (2MHz)/(2*2)=500KHz and (2MHz)/(65535*65535)= 0.000466Hz respectively.

4.2.3 Event Counter and Edge Control

The counter #0 of the 8254 chip can be used as an event counter. T he input of counter #0 is PC4 of CN1 (P1C4). The counter clock trigger directio n (H to L or L to H) is programmable. The gate control is always enabled. T he output is sent to interrupt system which is named as event IRQ. If counter #0 is set as 8254 mode 0, the event counter IRQ will generate when the counter value is counting down to zero.

4.3 Interrupt Multiplexing

4.3.1 Architecture

The 7248/96 series products have a powerful and flexible interrupt multiplexing circuit which is suitable for many applications. The board is capable of accepting Dual Interrupts. The dual interrupt means that the hardware can generate two interrupt request signals at the same time and the software can service these two request signals by ISR. Note that th e dual interrupts do not imply the card occupies two IRQ levels.

The two interrupt request signals (INT1 and INT2) come from digital input signals or the timer/counter output. An interrupt source multiplexer (MUX) is used to select the IRQ sources. Fig 4.3 shows the interrupt system.

Operation Theorem • 29

4.3.2 IRQ Level Setting

(*)

)

There is only one IRQ level requested by this card, although it is a dual interrupt system. The motherboard circuits will transfer INTA# to one of the PC IRQ levels. The IRQ level is set by the PCI Plug and Play BIOS and saved in the PCI controller. Users can obtain the IRQ level setting in software library.

INTA#

(*) Note: This interrupt is not available in PCI-7224

PCI

Controller

Fig 4.3 Dual Interrupt System of PCI-7224/7248/96

INT1

INT2

Clear IRQ

IRQ

Flip-

Flops

INT1 MUX

INT2 MUX

P1C0

~P1C0 & P1C3

Event Counte

P2C0

~P2C0 & P2C3 (*

Timer IRQ

4.3.3 Note for Dual Interrupts

The PCI controller of PCI-7224/7248/96 can receive two hardware IRQ sources. However, a PCI controller can generate only one IRQ to PCI bus, the two IRQ sources must be distinguished by ISR of the application software if the two IRQ are all used.

The application software can use the “_72xx_Get_Irq_Status” function to distinguish which interrupt is inserted. After an ISR is completed, users must check if another IRQ is also asserted, then clear the current IRQ to allow room for the next IRQ.

The two IRQs are called INT1 and INT2. In PCI-7224/7248/7296, INT1 comes from P1C0, P1C3 or the event counter interrupt. INT2 comes from P2C0, P2C3 or the timer interrupt. However in PCI-7224, INT2 only comes from timer interrupt. The sources of INT1 and INT2 are selectable by the Interrupt Source Control (ISC) Register.

30 • Operation Theorem

4.3.4 Interrupt Source Control

In ISC register (offset 0x20), there are four bits to control the IRQ sources of INT1 and INT2.

If the application requires only one IRQ, one of the IRQ sources can be disabled by software. If no IRQ source is required, both interrupts can be disabled. However if the user only disables the IRQ source without changing the initial condition of the PCI controller, the PCI BIOS will still assign a IRQ level to the PCI card and occupy the PC resource.

It is not recommended to change the initial condition of the PCI card b y the user’s own application software. If the user wishes to disable the IRQ level, they can use ADLINK’s utility ‘INIT7248.EXE’ or ‘INIT7296.EXE’ to change power on interrupt setting.

Table 4.3 shows the register format of the ISC (address offset 0x20). This register is write only. The four LSBs are used to control the source of INT1 and INT2.

INT1 D3 D2 D1 D0 IRQ Source IRQ Trigger Condition

Disable X X 0 0 INT1 disable -Mode 1 X X 0 1 ~P1C0 falling edge of P1C0 Mode 2 X X 1 0 P1C0 OR ~P1C3 (see following) Mode 3 X X 1 1 Event Counter Counter count down to 0

INT2 D3 D2 D1 D0 IRQ Source IRQ Trigger Condition

Disable 0 0 X X INT2 disable -Mode 1 0 1 X X ~P2C0 falling edge of P2C0(*) Mode 2 1 0 X X P2C0 OR ~P2C3 (see following) (*) Mode 3 1 1 X X Timer Output Timer count down to 0

Table 4.3 ISC register format

(*) Note: Not available on PCI-7224. When the IRQ source is set as P1C0 OR P1C3, the IRQ trigger conditions

are summarized in table 4.4.

P1/2C0 P1/2C3 IRQ Trigger Condition

High X PC0=H disable all IRQ

X Low PC3=L disable all IRQ

Low 1-> 0 PC3 falling edg e trigger when PC0=L

0->1 High PC0 rising edge trigger when PC3=H

Table 4.4 IRQ Trigger conditions

Because P1/P2C0 and P1/P2C3 are external signals, the user can utilize the combination of the four signals to generate a proper IRQ.

4.4 12V and 5V Power Supply

Operation Theorem • 31

The OPTO-22 compatible connectors provide external devices for +12V a nd +5V power supply. To avoid shorting or overloading the power supply, the resettable fuses are added on all the output power. Refer to Figure 2.6.1

The maximum current for 5V on every connector is 0.5A. If the load current is larger than this, the resistance of the resettable fuse will increase due to the rise in temperature. This in turn will cause the power supply to drop and reduce its current. If the shorting or overloading problem is eliminated, the fuse will return to its normal condition. It is not necessary to repair or re-install the fuse.

The maximum current for 12V on all four connectors is also 0.5A. The action of the fuse is the same as that used for +5V power. The limitation is more restrictive than 5V power supply because the PCI bus can not provide large amounts of current.

32 • Operation Theorem

C/C++ Libraries

This chapter describes the software library for operating this card. Only the functions in DOS library and Windows 95 DLL are described. A description of Windows 98/NT/2000 DLL functions can be found in the PCIS-DASK functio n reference manual located in the ADLINK CD. The functions of PCI-7248 can also be applied to PCI-7224 and cPCI-7248. Therefore in the following section, there are no special functions for PCI-7224 and cPCI-7248. The software driver of PCI-7224 is fully compatible with that of PCI-7248. In the sections below, all function calls referring to “7248” can also be applied to PCI-7224.

The function prototypes and some useful co nstants are defined in the header files LIB directory (DOS) and INCLUDE directory (Windows 95). For Windows 95 DLL, the developing environment can be Visual Basic 4.0 or above, Visual C/C++ 4.0 or above, Borland C++ 5.0 or above, Borland Delphi

2.x (32-bit) or above, or any Windows programming language that allows calls to a DLL. It provides the C/C++, VB, and Delphi include files.

5.1 Libraries Installation

Please refer to the “Software Installation Guide” for detailed installation information on the software libraries for DOS, Windows 95 DLL, or PCISDASK for Windows 98/NT/2000.

The device drivers and DLL functions of Windows 98/NT/2000 are included in the PCIS-DASK. Please refer to the PCIS-DASK user’s guide and function reference for detailed programming information in the ADLINK CD.

C/C++ Libraries • 33

5.2 Programming Guide

5.2.1 Naming Convention

The functions of the NuDAQ PCI cards or NuIPC CompactPCI cards’ software driver use full-names to represent the functions' real meaning. The naming convention rules are:

In DOS Environment:

_7248_Initial()

_{hardware_model}_{action_name}. All functions in PCI-7248 driver are with 7248 as {hardware_mode l}. But they

can be used by PCI-7248, PCI-7224 and cPCI-7248. In order to recognize the difference between DOS library and Windows 95

library, a capital Windows 95 DLL driver, e.g.

is placed in the beginning of each function name of t he

e.g.

W_7248_Initial()

5.2.2 Data Types

We defined some data type in Pci_7248.h (DOS) and Acl_pci.h (Windows

95). These data types are used by NuDAQ Cards’ library. ADLINK Technology Inc. suggests these data types to be used in the application programs. The following table gives the data type names and their range.

Type Name Description Range

U8 8-bit ASCII character 0 to 255 I16 16-bit signed integer -32768 to 32767

U16 16-bit unsigned integer 0 to 65535

I32 32-bit signed integer -2147483648 to 2147483647

U32 32-bit single-precision

floating-point

F32 32-bit single-precision

floating-point

F64 64-bit double-precision

floating-point

Boolean Boolean logic value TRUE, FALSE

0 to 4294967295

-3.402823E38 to 3.402823E38

-1.797683134862315E308 to

1.797683134862315E309

34 • C/C++ Libraries

5.3 _7248/96_Initial

@ Description

The cards are initialized by this function. The software library could be used to control multiple cards.

@ Syntax

C/C++ (DOS)

U16 _7248_Initial (U16 *existCards, PCI_INFO *pciInfo) U16 _7249_Initial (U16 *existCards, PCI_INFO *pciInfo) U16 _7296_Initial (U16 *existCards, PCI_INFO *pciInfo)

C/C++ (Windows 95)

U16 W_7248_Initial (U16 *existCards, PCI_INFO *pciInfo) U16 W_7249_Initial (U16 *existCards, PCI_INFO *pciInfo) U16 W_7296_Initial (U16 *existCards, PCI_INFO *pciInfo)

Visual Basic (Windows 95)

W_7248_Initial (existCards As Integer, pciInfo As

PCI_INFO) As Integer

W_7249_Initial (existCards As Integer, pciInfo As

PCI_INFO) As Integer

W_7296_Initial (existCards As Integer, pciInfo As

PCI_INFO) As Integer

@ Argument

@ Return Code

existCards: The number of installed PCI-7224/7248/7296

cards. The returned value shows how many PCI-7224/7248/7296 cards are installed in your system.

pciinfo: It is a format to record the PCI bus Plug

and Play initialization information which is decided by the Plug and Play BIOS. The PCI_INFO structure is defined in ACL_PCI.H. The base I/O address and the interrupt channel number are stored in pciinfo.

ERR_NoError ERR_PCIBiosNotExist

C/C++ Libraries • 35

5.4 Digital Input

@ Description

This function is used to read 8-bit digital input data from digit al input ports. You can get the 8-bit data from _7248_DI by using this function. The written data and read-in data is 8-bit data. Each data is mapped to a signal as shown below.

D7 D6 D5 D4 D3 D2 D1 D0

PA7 PA6 PA5 PA4 PA3 PA2 PA1 PA0 PB7 PB6 PB5 PB4 PB3 PB2 PB1 PB0 PC7 PC6 PC5 PC4 PC3 PC2 PC1 PC0

@ Syntax

PCI-7224/7248, cPCI-7248, cPCI-7249R:

C/C++ (DOS)

U16 _7248_DI (U16 cardNo, U16 channelPort, U8 *diData) U16 _7249_DI (U16 cardNo, U16 channelPort, U8 *diData) U16 _7296_DI (U16 cardNo, U16 channelPort, U8 *diData)

C/C++ (Windows 95)

U16 W_7248_DI (U16 cardNo, U16 channelPort, U16

U16 W_7249_DI (U16 cardNo, U16 channelPort, U16

U16 W_7296_DI (U16 cardNo, U16 channelPort, U16

Visual Basic (Windows 95)

W_7248_DI (ByVal cardNo As Integer, ByVal channelPort

W_7249_DI (ByVal cardNo As Integer, ByVal channelPort

W_7296_DI (ByVal cardNo As Integer, ByVal channelPort

@ Argument

cardNo: Card number to select board diData: Returns a 8-bit value from digital port. channelPort: Port of each channel

PCI_CH0_PA: CH1’s Port A PCI_CH0_PB: CH1’s Port B PCI_CH0_PC: CH1’s Port C PCI_CH0_PCU: CH1’s Port C Upper Nibble PCI_CH0_PCL: CH1’s Port C Low Nibble PCI_CH1_PA: CH2’s Port A PCI_CH1_PB: CH2’s Port B PCI_CH1_PC: CH2’s Port C PCI_CH1_PCU: CH2’s Port C Upper Nibble PCI_CH1_PCL: CH2’s Port C Low Nibble PCI_CH2_PA: CH2’s Port A

*diData)

As Integer, diData As Integer) As Integer

36 • C/C++ Libraries

PCI_CH2_PB: CH2’s Port B PCI_CH2_PC: CH2’s Port C PCI_CH2_PCU: CH2’s Port C Upper Nibble PCI_CH2_PCL: CH2’s Port C Low Nibble PCI_CH3_PA: CH3’s Port A PCI_CH3_PB: CH3’s Port B PCI_CH3_PC: CH3’s Port C PCI_CH3_PCU: CH3’s Port C Upper Nibble PCI_CH3_PCL: CH3’s Port C Low Nibble PCI_CH0_PAE: CH1’s Port A uses External Latch

PCI_CH0_PBE: CH1’s Port B uses External Latch PCI_CH0_PCE: CH1’s Port C uses External Latch PCI_CH1_PAE: CH2’s Port A uses External Latch PCI_CH1_PBE: CH2’s Port B uses External Latch

PCI_CH1_PCE: CH2’s Port C uses External Latch Note: 1.CH2 and CH3 are only available for PCI-7296.

2.Only CH0 is available for PCI-7224.

@ Return Code

ERR_NoError

C/C++ Libraries • 37

5.5 Digital Output

@ Description

This function is used to write data to digital output ports.

@ Syntax

C/C++ (DOS)

U16 _7248_DO (U16 cardNo, U16 channelPort, U8 doData) U16 _7249_DO (U16 cardNo, U16 channelPort, U8 doData) U16 _7296_DO (U16 cardNo, U16 channelPort, U8 doData)

C/C++ (Windows 95)

U16 W_7248_DO (U16 cardNo, U16 channelPort, U16 doData) U16 W_7249_DO (U16 cardNo, U16 channelPort, U16 doData) U16 W_7296_DO (U16 cardNo, U16 channelPort, U16 doData)

Visual Basic (Windows 95)

W_7248_DO (ByVal cardNo As Integer, ByVal channelPort

As Integer, ByVal doData As Integer) As Integer

W_7249_DO (ByVal cardNo As Integer, ByVal channelPort

As Integer, ByVal doData As Integer) As Integer

W_7296_DO (ByVal cardNo As Integer, ByVal channelPort

As Integer, ByVal doData As Integer) As Integer

@ Argument

cardNo: Card number to select board channelPort: The same as channelPort in section 5.5 doData: Value will be written to digital output port

@ Return Code

ERR_NoError

38 • C/C++ Libraries

5.6 Configuration Port

@ Description

This function is used to configure the Input or Output of each Port. Each I/O Port of PCI-7224/7248/7296 is either input or output, so it has to be configured as input or output before I/O operations are applied.

@ Syntax

C/C++ (DOS)

U16 _7248_Config_Port (U16 cardNo, U16 channelPort,

U16 _7249_Config_Port (U16 cardNo, U16 channelPort,

U16 _7296_Config_Port (U16 cardNo, U16 channelPort,

C/C++ (Windows 95)

U16 W_7248_Config_Port (U16 cardNo, U16 channelPort,

U16 W_7249_Config_Port (U16 cardNo, U16 channelPort,

U16 W_7296_Config_Port (U16 cardNo, U16 channelPort,

Visual Basic (Windows 95)

W_7248_Config_Port (ByVal cardNo As Integer, ByVal

W_7249_Config_Port (ByVal cardNo As Integer, ByVal

W_7296_Config_Port (ByVal cardNo As Integer, ByVal

@ Argument

cardNo: Card number to select board channelPort: The same as channelPort in section 5.5 direction: Port I/O direction INPUT_PORT: The port is configure as INPUT OUTPUT_PORT: The port is configure as OUTUT

@ Return Code

ERR_NoError

U16 direction);

U16 direction)

U16 direction);

U16 direction)

channelPort As Integer, ByVal direction As Integer) As Integer

C/C++ Libraries • 39

5.7 Configuration Channel

@ Description

This function is used to configure the Input or Output of each Channel. E ach I/O Port of PCI-7224/7248/7296 is either input or output, so it has to be configured as input or output before I/O operations are applied.

@ Syntax

C/C++ (DOS)

U16 _7248_Config_Channel (U16 cardNo, U16 channelNo,

U16 _7249_Config_Channel (U16 cardNo, U16 channelNo,

U16 _7296_Config_ Channel (U16 cardNo, U16 channelNo,

C/C++ (Windows 95)

U16 W_7248_Config_Channel (U16 cardNo, U16 channelNo,

U16 W_7249_Config_Channel (U16 cardNo, U16 channelNo,

U16 W_7296_Config_ Channel (U16 cardNo, U16 channelNo,

Visual Basic (Windows 95)

W_7248_Config_Channel (ByVal cardNo As Integer, ByVal

W_7249_Config_Channel (ByVal cardNo As Integer, ByVal

W_7296_Config_ Channel (ByVal cardNo As Integer, ByVal

@ Argument

cardNo: Card number to select board channelNo: PCI_CH0, PCI_CH1, PCI_CH2, or PCI_CH3 ctrlValue: The control value to set up PA, PB, and PC as

U16 ctrlValue)

channelNo As Integer, ByVal ctrlValue As Integer) As Integer

input or output port.

40 • C/C++ Libraries

ctrlValue Port A Port CU Port B Port CL PORT_OOOO OUT OUT OUT OUT

PORT_OOOI OUT OUT OUT IN PORT_OOIO OUT OUT IN OUT PORT_OOII OUT OUT IN IN PORT_OIOO OUT IN OUT OUT PORT_OIOI OUT IN OUT IN PORT_OIIO OUT IN IN OUT PORT_OIII OUT IN IN IN PORT_IOOO IN OUT OUT OUT PORT_IOOI IN OUT OUT IN PORT_IOIO IN OUT IN OUT PORT_IOII IN OUT IN IN PORT_IIOO IN IN OUT OUT PORT_IIOI IN IN OUT IN PORT_IIIO IN IN IN OUT PORT_IIII IN IN IN IN

The ctrlValue constants are defined in acl_pci.h and acl_pci.bas.

@ Return Code

ERR_NoError

C/C++ Libraries • 41

5.8 Set Interrupt Control

@ Description

This function is used to set the interrupt configuration. The interrupt should be configured before the function starts.

@ Syntax

C/C++ (DOS)

void _7248_Set_INT_Control(U16 cardNo, U16 ctrlValue); void _7249_Set_INT_Control(U16 cardNo, U16 ctrlValue); void _7296_Set_INT_Control(U16 cardNo, U16 ctrlValue);

C/C++ (Windows 95)

void W_7248_Set_INT_Control(U16 cardNo, U16 ctrlValue); void W_7249_Set_INT_Control(U16 cardNo, U16 ctrlValue); void W_7296_Set_INT_Control(U16 cardNo, U16 ctrlValue);

Visual Basic (Windows 95)

W_7248_Set_INT_Control (ByVal cardNo As Integer, ByVal

ctrlValue As Integer)

W_7249_Set_INT_Control (ByVal cardNo As Integer, ByVal

ctrlValue As Integer)

W_7296_Set_INT_Control (ByVal cardNo As Integer, ByVal

ctrlValue As Integer)

@ Argument

cardNo: Card number to select board ctrlValue: The valid values of configuring the interrupt are INT1:

0x00 Æ disable

INT2: 0x00 Æ disable

Please refer to the section 4.3.4 for detailed description.

0x01 Æ mode1 0x02 Æ mode2 0x03 Æ mode3

0x04 Æ mode1 0x08 Æ mode2 0x0c Æ mode3

42 • C/C++ Libraries

5.9 Timer Start

@ Description

This function is used to set and start timer 0 of on-board timer 8254 .

@ Syntax

C/C++ (DOS)

void _7248_Timer_Start(U16 cardNo, U16 timer0Mode, U16 c0) void _7249_Timer_Start(U16 cardNo, U16 timer0Mode, U16 c0) void _7296_Timer_Start(U16 cardNo, U16 timer0Mode, U16 c0)

C/C++ (Windows 95)

void W_7248_Timer_Start(U16 cardNo, U16 timer0Mode,

U16 c0)

void W_7249_Timer_Start(U16 cardNo, U16 timer0Mode,

U16 c0)

void W_7296_Timer_Start(U16 cardNo, U16 timer0Mode,

U16 c0)

Visual Basic (Windows 95)

W_7248_Timer_Start(ByVal cardNo As Integer, ByVal

timer0Mode As Integer, ByVal c0 As Integer)

W_7249_Timer_Start(ByVal cardNo As Integer, ByVal

timer0Mode As Integer, ByVal c0 As Integer)

W_7296_Timer_Start(ByVal cardNo As Integer, ByVal

timer0Mode As Integer, ByVal c0 As Integer);

@ Argument

cardNo: Card number to select board timer0Mode: The six modes of 8254, please refer to section

c0: The counter/timer value of time0.

4.2.2 for detailed description

C/C++ Libraries • 43

5.10 Timer Read

@ Description

This function is used to read the current count of timer 0 of the on-board timer 8254.

@ Syntax

PCI-7224/7248, CPCI-7248:

C/C++ (DOS)

void _7248_Timer_Read(U16 cardNo, U16 *counterValue); void _7249_Timer_Read(U16 cardNo, U16 *counterValue); void _7296_Timer_Read(U16 cardNo, U16 *counterValue);

C/C++ (Windows 95)

void W_7248_Timer_Read(U16 cardNo, U16 *counterValue); void W_7249_Timer_Read(U16 cardNo, U16 *counterValue); void W_7296_Timer_Read(U16 cardNo, U16 *counterValue);

Visual Basic (Windows 95)

W_7248_Timer_Read(ByVal cardNo As Integer, counterValue

As Integer);

W_7249_Timer_Read(ByVal cardNo As Integer, counterValue

As Integer);

W_7296_Timer_Read (ByVal cardNo As Integer,

counterValue As Integer);

@ Argument

cardNo: card number to select board counterValue: the value of the current count

44 • C/C++ Libraries

5.11 Timer Stop

@ Description

This function is used to stop timer 0 of the on-board timer 8254.

@ Syntax

C/C++ (DOS)

void _7248_Timer_Stop(U16 cardNo, U16 *counterValue); void _7249_Timer_Stop(U16 cardNo, U16 *counterValue); void _7296_Timer_Stop(U16 cardNo, U16 *counterValue);

C/C++ (Windows 95)

void W_7248_Timer_Stop(U16 cardNo, U16 *counterValue); void W_7249_Timer_Stop(U16 cardNo, U16 *counterValue); void W_7296_Timer_Stop(U16 cardNo, U16 *counterValue);

Visual Basic (Windows 95)

W_7248_Timer_Stop (ByVal cardNo As Integer,

counterValue As Integer);

W_7249_Timer_Stop (ByVal cardNo As Integer,

counterValue As Integer);

W_7296_Timer_Stop (ByVal cardNo As Integer,

counterValue As Integer);

@ Argument

cardNo: Card number to select board counterValue: The value of current count when the counter is

stopped

C/C++ Libraries • 45

5.12 Cascaded Timer

@ Description

This function is used to set and start the cascaded timer 1 and timer 2 of on-board timer 8254.

@ Syntax

C/C++ (DOS)

void _7248_Cascaded_Timer(U16 cardNo, U16 c1, U16 c2); void _7249_Cascaded_Timer(U16 cardNo, U16 c1, U16 c2); void _7296_Cascaded_Timer(U16 cardNo, U16 c1, U16 c2);

C/C++ (Windows 95)

void W_7248_Cascaded_Timer(U16 cardNo, U16 c1, U16 c2); void W_7249_Cascaded_Timer(U16 cardNo, U16 c1, U16 c2); void W_7296_Cascaded_Timer(U16 cardNo, U16 c1, U16 c2);

Visual Basic (Windows 95)

W_7248_Cascaded_Timer (ByVal cardNo As Integer, ByVal

c1 As Integer, ByVal c2 As Integer)

W_7249_Cascaded_Timer (ByVal cardNo As Integer, ByVal

c1 As Integer, ByVal c2 As Integer)

W_7296_Cascaded_Timer (ByVal cardNo As Integer, ByVal

c1 As Integer, ByVal c2 As Integer)

@ Argument

cardNo: Card number to select board c1: The value of divisor used in timer 1 c2: The value of divisor used in timer 2

46 • C/C++ Libraries

5.13 Get IRQ Status

@ Description

This function is used to read back the status of interrupt when interrupt is inserted.

@ Syntax

C/C++ (DOS)

void _7248_Get_IRQ_Status(U16 cardNo, U16 *int1Status,

U16 *int2Status);

void _7249_Get_IRQ_Status(U16 cardNo, U16 *int1Status,

U16 *int2Status);

void _7296_Get_IRQ_Status(U16 cardNo, U16 *int1Status,

U16 *int2Status);

C/C++ (Windows 95)

void W_7248_Get_IRQ_Status(U16 cardNo, U16 *int1Status,

U16 *int2Status);

void W_7249_Get_IRQ_Status(U16 cardNo, U16 *int1Status,

U16 *int2Status);

void W_7296_Get_IRQ_Status(U16 cardNo, U16 *int1Status,

U16 *int2Status);

Visual Basic (Windows 95)

W_7248_Get_IRQ_Status (ByVal cardNo As Integer,

int1Status As Integer, int2Status As Integer);

W_7249_Get_IRQ_Status (ByVal cardNo As Integer,

int1Status As Integer, int2Status As Integer);

W_7296_Get_IRQ_Status (ByVal cardNo As Integer,

int1Status As Integer, int2Status As Integer);

@ Argument

cardNo: Card number to select board int1Status: The status of INT1, int1Status = 0 Æ no interrupt int1Status = 1 Æ interrupt 1 inserted int2Status: The status of INT2 int2Status = 0 Æ no interrupt

int2Status = 1 Æ interrupt 2 inserted Please refer to section 4.3 for a more detailed description.

C/C++ Libraries • 47

5.14 Clear IRQ

@ Description

This function is used to clear the interrupt generated from the 7248/96 series.

@ Syntax

C/C++ (DOS)

void _7248_CLR_IRQ(U16 cardNo); void _7249_CLR_IRQ(U16 cardNo); void _7296_CLR_IRQ(U16 cardNo);

C/C++ (Windows 95)

void W_7248_CLR_IRQ(U16 cardNo); void W_7249_CLR_IRQ(U16 cardNo); void W_7296_CLR_IRQ(U16 cardNo);

Visual Basic (Windows 95)

W_7248_CLR_IRQ (ByVal cardNo As Integer); W_7249_CLR_IRQ (ByVal cardNo As Integer); W_7296_CLR_IRQ (ByVal cardNo As Integer);

@ Argument

cardNo: card number to select board

5.15 Software Reset

@ Description

This function is used to reset the I/O port configuration. After resetting PCI7224/7248/7296, all ports will be set as input ports. Note that this function cannot re-start the PCI bus nor will all hardware settings be changed.

@ Syntax

PCI-7224/7248, CPCI-7248:

C/C++ (DOS)

U16 _7248_Software_Reset (U16 cardNo) U16 _7249_Software_Reset (U16 cardNo) U16 _7296_Software_Reset (U16 cardNo)

C/C++ (Windows 95)

U16 W_7248_Software_Reset (U16 cardNo) U16 W_7249_Software_Reset (U16 cardNo) U16 W_7296_Software_Reset (U16 cardNo)

48 • C/C++ Libraries

Visual Basic (Windows 95)

W_7248_Software_Reset (ByVal cardNo As Integer) As

Integer

W_7249_Software_Reset (ByVal cardNo As Integer) As

Integer

W_7296_Software_Reset (ByVal cardNo As Integer) As

Integer

@ Argument

cardNo: Card number which the DIO will be reset.

@ Return Code

ERR_NoError

5.16 Interrupt Start under Windows

@ Description

This function is only available in the Windows 95/98 driver. This function is used to initialize and start up the interrupt control. Please refer to section 4.3 for a detailed description of the interrupt system. After calling this function, every time an interrupt requests a signal to be generated, a software event is signaled. This implies that in the program, the user can use wait the operation to wait for the event. When the event is signaled, it means an interrupt is generated. Please refer to sample program 7248int.c or 7296int.c.

@ Syntax

C/C++ (Windows 95)

void W_7248_INT_Start (U16 cardNo, U16 c1, U16 c2, U16

void W_7249_INT_Start (U16 cardNo, U16 c1, U16 c2, U16

void W_7248_INT_Start (U16 cardNo, U16 c1, U16 c2, U16

Visual Basic (Windows 95)

W_7248_INT_Start (ByVal cardNo As Integer, ByVal c1 As

W_7249_INT_Start (ByVal cardNo As Integer, ByVal c1 As

W_7296_INT_Start (ByVal cardNo As Integer, ByVal c1 As

ctrlValue, HANDLE *hIntEvent)

Integer, ByVal c2 As Integer, ByVal ctrlValue As Integer, hIntEvent As Long)

C/C++ Libraries • 49

@ Argument

cardNo: Card number which the DIO will be reset. c1: If the interrupt source is set as internal

c2: If the interrupt source is set as internal

ctrlValue: The value for INT mode setting. The value

hIntEvent: The handle of the event for interrupt

timer source, this value is the frequency divider of Timer#1.

timer source, this value is the frequency divider of Timer#2.

can be set for INT1 is INT1_OFF, INT1_P1C0, INT1_P1C3C0, or INT1_EVENT_IRQ. The value can be set for INT2 is INT2_OFF, INT2_P2C0, INT2_P2C3C0, or INT2_TIMER_IRQ. Please refer to section 3.3.4 for detailed description.

signals.

@ Return Code

ERR_NoError

5.17 Interrupt Stop under Windows

@ Description

This function is only available in Wind ows 95/98 driver. This function is used to disable the interrupt signal generation.

@ Syntax

C/C++ (Windows 95)

void W_7248_INT_Stop (U16 cardNo) void W_7249_INT_Stop (U16 cardNo) void W_7296_INT_Stop (U16 cardNo)

Visual Basic (Windows 95)

W_7248_INT_Stop (ByVal cardNo As Integer) W_7249_INT_Stop (ByVal cardNo As Integer) W_7296_INT_Stop (ByVal cardNo As Integer)

@ Argument

@ Return Code

cardNo: The card number which the DIO will reset.

ERR_NoError

50 • C/C++ Libraries

Warranty Policy

Thank you for choosing ADLINK. To understand your rights and enjoy all the after-sales services we offer, please read the following carefully:

1. Before using ADLINK’s products please read the user manual and follow the instructions exactly.

2. When sending in damaged products for repair, pleas e attach an RMA application form.

3. All ADLINK products come with a two-year guarantee, repaired free of charge.

• The warranty period starts from the product’s shipment date from

ADLINK’s factory.

• Peripherals and third-party products not manufactured by ADLINK

will be covered by the original manufacturers’ warranty.

• End users requiring maintenance services should contact their local

dealers. Local warranty conditions will depend on local dealers.

4. This warranty will not cover repair costs due to: a. Damage caused by not following instructions.

b. Damage caused by carelessness on the users’ part during product

transportation.

c. Damage caused by fire, earthquakes, floods, lightening, pollution,

other acts of God, and/or incorrect usage of voltage transformers.

d. Damage caused by unsuitable storage environments (i.e. high

temperatures, high humidity, or volatile chemicals. e. Damage caused by leakage of battery fluid. f. Damage from improper repair by unauthorized technicians. g. Products with altered and/or damaged serial numbers. h. Other categories not protected under our g uarantees.

5. Customers are responsible for shipping costs to transport damaged products to our company or sales office.

6. To ensure the speed and quality of product repair, please download a RMA application form from our company website: www.adlinktech.com Damaged products with attached RMA forms receive priority.

For further questions, please contact our FAE staff. ADLINK: service@adlinktech.com

Product Warranty/Service • 51

ADLINK PCI-7224 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
