ADLINK PCES-8581-13S User Manual

PCES-8581-4S PCES-8581-13S

PCI Express-to-PCI Extension System

User’s Manual

Manual Revision: 2.00

Revision Date: October 19, 2007

Part No: 50-1S001-2000

Advance Technologies; Automate the World.

PCES-8581-4S PCES-8581-13S
User’s Manual

Revision History

Revision Release Date Description of Change(s)

2.00 2007/10/19 Initial Release

ii

PCES-8581-4S PCES-8581-13S

User’s Manual

Preface

Copyright 2007 ADLINK TECHNOLOGY INC.

This document contains proprietary information protected by copy­right. All rights are reserved. No part of this manual may be repro­duced by any mechanical, electronic, or other means in any form
without prior written permission of the manufacturer.

Disclaimer

The information in this document is subject to change without prior
notice in order to improve reliability, design, and function and does
not represent a commitment on the part of the manufacturer.

In no event will the manufacturer be liable for direct, indirect,
special, incidental, or consequential damages arising out of the
use or inability to use the product or documentation, even if
advised of the possibility of such damages.

Trademarks

PCI Express® is a registered trademark of the Peripheral
Component Interconnect Special Interest Group.

Product names mentioned herein are used for identification pur­poses only and may be trademarks and/or registered trademarks
of their respective companies.

Preface iii

PCES-8581-4S PCES-8581-13S
User’s Manual

Using this Manual

Audience and Scope

The PCES-8581-4S PCES-8581-13S User’s Manual is intended
for hardware technicians and systems operators with knowledge

of installing, configuring and using PCI Express
systems. This document is specifically intended to describe con­necting ADLINK PCIS-8580-4S/PCIS-8505-13S PCI-to-PCI­Extension Systems to a host computer or I/O devices for extended
functionality.

Manual Organization

This manual is organized as follows:

Preface: Presents important copyright notifications, disclaim­ers, trademarks, and associated information on the proper
understanding and usage of this document and its associated
product(s).

Chapter 1, Introduction: Introduces the PCES-8581-4S/13S

PCI Express

®

-to-PCI Extension System overview, its features,

applications, and package contents.

Chapter 2, Getting Started: Presents information on properly
installing PCES-8581-4S/13S equipment and cabling a PCI

Express

®

to PCI extension system.

Chapter 3, Hardware Information: Presents layout informa­tion, technical drawings, jumper settings and configuration.

®

-to-PCI extension

Chapter 4, Troubleshooting: Provides basic information on
quickly addressing configuration/setup/installation problems
that may occur.

Important Safety Instructions: Presents safety instructions
all users must follow for the proper setup, installation and
usage of equipment and/or software.

Warranty Information: Presents important warranty informa­tion for users/manufacturers rights and responsibilities regard­ing ADLINK products and services.

iv Preface

PCES-8581-4S PCES-8581-13S

User’s Manual

Conventions

Take note of the following conventions used throughout this
manual to make sure that users perform certain tasks and
instructions properly.

Additional information, aids, and tips that help users
perform tasks.

NOTE:

Information to prevent minor physical injury, component

CAUTION:

damage, data loss, and/or program corruption when
trying to complete a task.

Information to prevent serious physical injury,
component damage, data loss, and/or program

WARNING:

Preface v

corruption when trying to complete a specific task.

PCES-8581-4S PCES-8581-13S
User’s Manual

Reference Documentation

The following list of documents may be used as reference materi­als to support installation, configuration and/or the operation of the
PCES-8581-4S/PCES-8581-13S. This list is prepared in alphabet­ical order (by vendor name, then by document title) for clarity.

Vendor(s) Title Rev.

ADLINK Technology, Inc. ADLINK PCIS-8580-4S/PCIS-8505-

13S User’s Manual

PCI-SIG

PCI-SIG PCI-to-PCI Bridge Architecture

PCI-SIG PCI Local Bus Specification 3.0

PCI Express® Base Specification

Specification

2.01

1.0a

1.2

vi Preface

PCES-8581-4S PCES-8581-13S

User’s Manual

Getting Service

Contact us should you require any service or assistance.

ADLINK TECHNOLOGY INC. (HEADQUARTERS)

Web Site: http://www.adlinktech.com
Sales & Service: [e-mail]
Telephone No.: [phone]
Fax No.: [phone]
Mailing Address: 9F No. 166 Jian Yi Road, Chungho City,

Taipei 235, Taiwan, ROC

ADLINK TECHNOLOGY AMERICA INC.

Sales & Service: [e-mail]
Toll-Free: [phone]
Fax No.: [phone]
Mailing Address: 8900 Research Drive, Irvine,

CA 92618, USA

ADLINK TECHNOLOGY CO. LTD. (BEIJING)

Sales & Service: [e-mail]
Telephone No.: [phone]
Fax No.: [phone]
Mailing Address: Rm. 801, Power Creative E,

No. 1, B/D Shang Di East Rd.
Beijing, 100085 China

ADLINK TECHNOLOGY CO. LTD. (SHANGHAI)

Sales & Service: [e-mail]
Telephone No.: [phone]
Fax No.: [phone]
Mailing Address: 4F, Bldg. 39, No.333 Qinjiang Road,

Chao He Jing Hi Tech Park
Shanghai, 200233 China

ADLINK TECHNOLOGY CO. LTD. (SHENZHEN)

Sales & Service: [e-mail]
Telephone No.: [phone]
Fax No.: [phone]
Mailing Address: 2F, C Block, Bld. A1,

Cyber-Tech Zone, Gao Xin Ave. Sec 7,
High-Tech Industrial Park S.,
Shenzhen, 518057 China

Preface vii

PCES-8581-4S PCES-8581-13S
User’s Manual

ADLINK TECHNOLOGY INC. (EUROPE)

Sales & Service: [e-mail]
Toll-Free: [phone]
Fax No.: [phone]
Mailing Address: Nord Carree 3, 40477

Düsseldorf, Germany

ADLINK TECHNOLOGY INC. (INDIA)

Sales & Service: [e-mail]
Telephone No.: [phone]
Fax No.: [phone]
Mailing Address: No. 1357, Ground Floor, "Anupama",

Aurobindo Marg JP Nagar (Ph-1)
Bangalore, Karnataka 560078, India

ADLINK TECHNOLOGY JAPAN CORP.

Sales & Service [e-mail]
Telephone No. [phone]
Fax No. [phone]
Mailing Address Asahiseimei Hatagaya Bld. 1-1-2

Hatagaya Shibuya-ku, Tokyo, Japan

ADLINK TECHNOLOGY INC. (SOUTH KOREA)

Sales & Service: [e-mail]
Telephone No.: [phone]
Fax No.: [phone]
Mailing Address: 4F, Kostech Building, 262-2,

Yahgjae-Dong, Seocho-Gu,
Seoul, 137-130, South Korea

ADLINK TECHNOLOGY SINGAPORE PTE. LTD.

Sales & Service: [e-mail]
Telephone No.: [phone]
Fax No.: [phone]
Mailing Address: 84 Genting Lane #07-02A,

Cityneon Design Center,
Singapore 349584

viii Preface

PCES-8581-4S PCES-8581-13S

User’s Manual

Table of Contents

PCES-8581-4S PCES-8581-13S............................................... i

Revision History...................................................................... ii

Preface .................................................................................... iii

Copyright 2007 ADLINK TECHNOLOGY INC. ...............iii

Disclaimer .......................................................................iii

Trademarks .....................................................................iii

Using this Manual ...........................................................iv

Conventions .................................................................... v

Reference Documentation ..............................................vi

Getting Service ..............................................................vii

Table of Contents................................................................... ix

List of Figures ........................................................................ xi

List of Tables........................................................................ xiii

1 Introduction ........................................................................ 1

1.1 Overview.............................................................................. 1

1.1.1 Controlling PCI with PCI Express®....................................... 1

1.2 Package Contents ............................................................... 3

1.3 Specifications....................................................................... 4

1.4 Features............................................................................... 5

1.5 Applications ......................................................................... 5

2 Getting Started ................................................................... 7

2.1 Installation Environment ...................................................... 7

2.2 Installing PCIe-8560 on a Host Computer ........................... 8

2.3 Installing PCI Peripheral Cards to an Extension Chassis.. 10

2.4 Cabling Host Computer to Extension Chassis ................... 12

2.5 Power-ON/OFF Sequence................................................. 14

2.6 Remote Power-ON/OFF Functionality ............................... 15

2.7 LED Status......................................................................... 18

3 Hardware Information ...................................................... 19

3.1 Functional Block Diagram.................................................. 19

Table of Contents ix

PCES-8581-4S PCES-8581-13S
User’s Manual

3.2 PCIe-8560 Layout, Connectors and Jumpers.................... 20

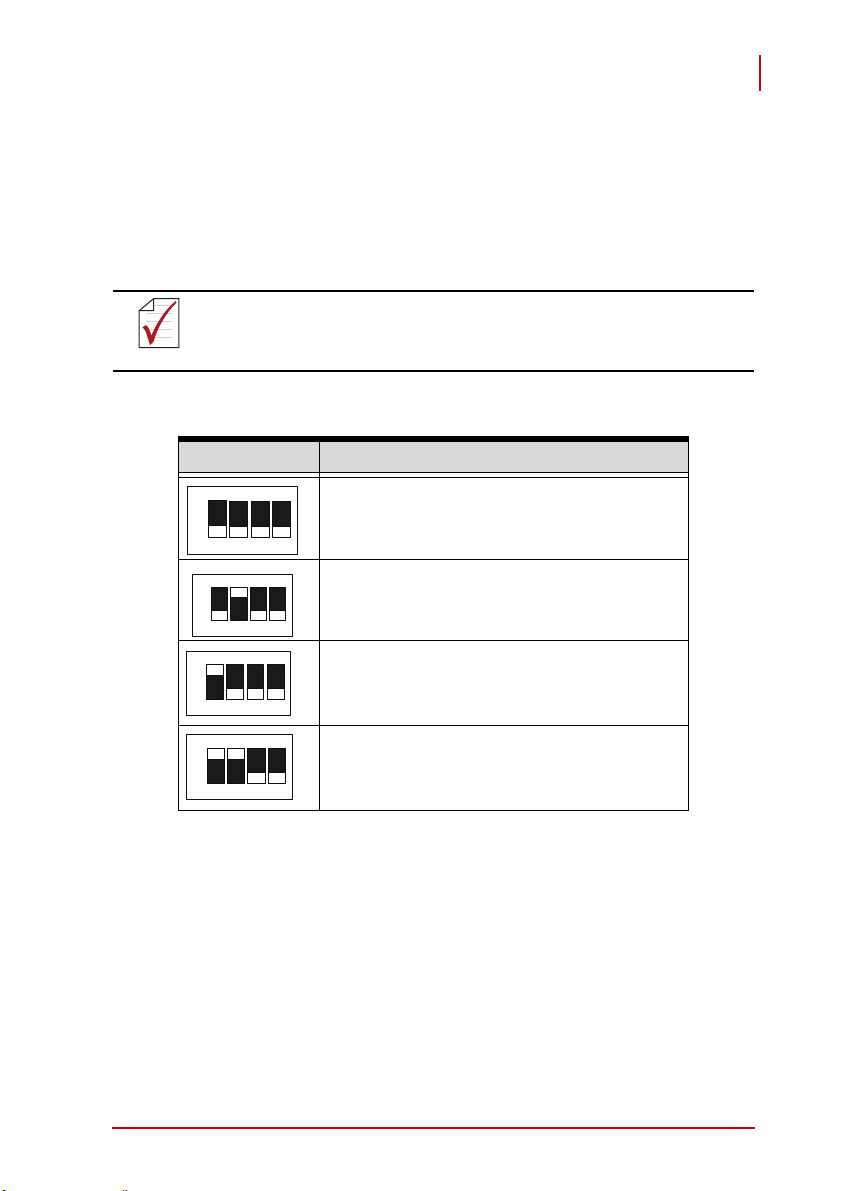

3.2.1 PCIe-8560 S1/S2 Signal Equalizer Adjustments ................ 21

3.3 PCI-8565 Layout, Connectors and Jumpers...................... 23

3.4 RK-8005 4-Slot Extension Chassis.................................... 25

3.4.1 RK-8005 Chassis Mechanical Drawing............................... 25

3.5 RK-8014 13-Slot Extension Chassis.................................. 27

3.5.1 RK-8014 Chassis Mechanical Drawing............................... 27

3.6 BP-8005 Layout, Connectors and Jumpers ....................... 29

3.7 BP-8014 Layout, Connectors and Jumpers ....................... 33

3.8 Extension Cable Options ................................................... 36

4 Troubleshooting (FAQ)..................................................... 37

Important Safety Instructions............................................... 41

Warranty Policy ..................................................................... 43

x Table of Contents

PCES-8581-4S PCES-8581-13S

User’s Manual

List of Figures

Figure 2-1: PCIe-8560 to Host PC Installation Diagram .................... 9

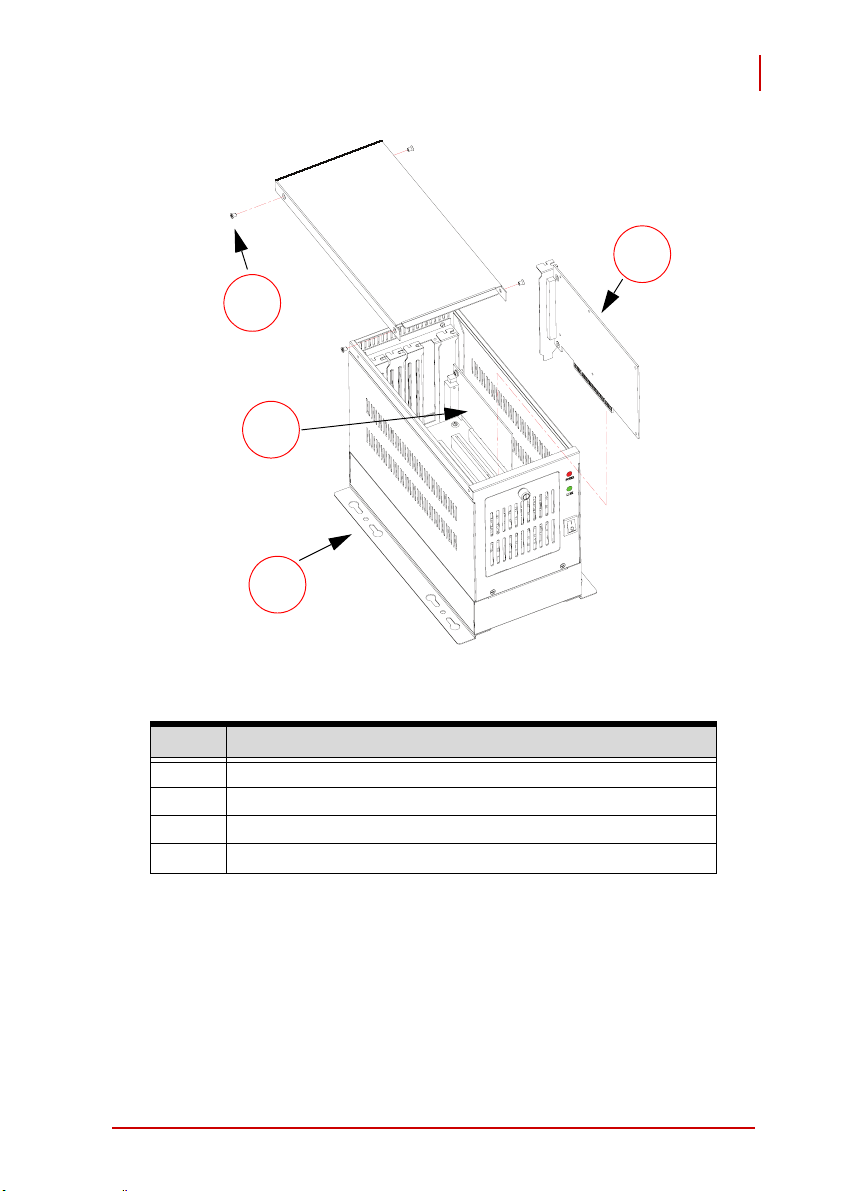

Figure 2-2: PCI to Extension Chassis Installation Diagram ............. 11

Figure 2-3: Cabling 3 M Extension Cable to Host PC ...................... 12

Figure 2-4: Cabling 3 M Extension Cable to Extension Chassis...... 13

Figure 2-5: Host Computer connected to a PCI Extension System . 13

Figure 2-6: BP-8014 Remote Power-On/Off Diagram...................... 17

Figure 3-1: PCI Express Extension System Functional Block Diagram.......19

Figure 3-2: PCIe-8560 Mechanical Layout....................................... 20

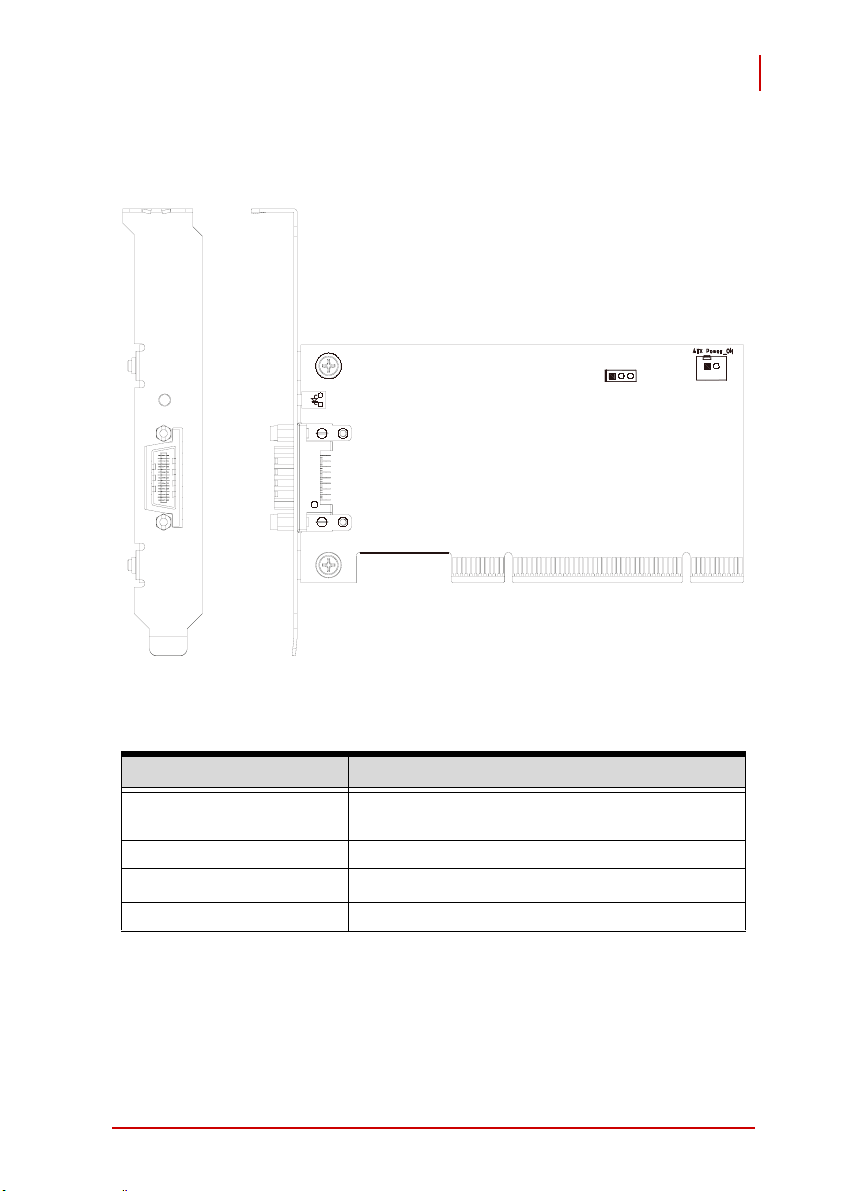

Figure 3-3: PCI-8565 Mechanical Layout......................................... 23

Figure 3-4: RK-8005 Chassis Front and Back View......................... 25

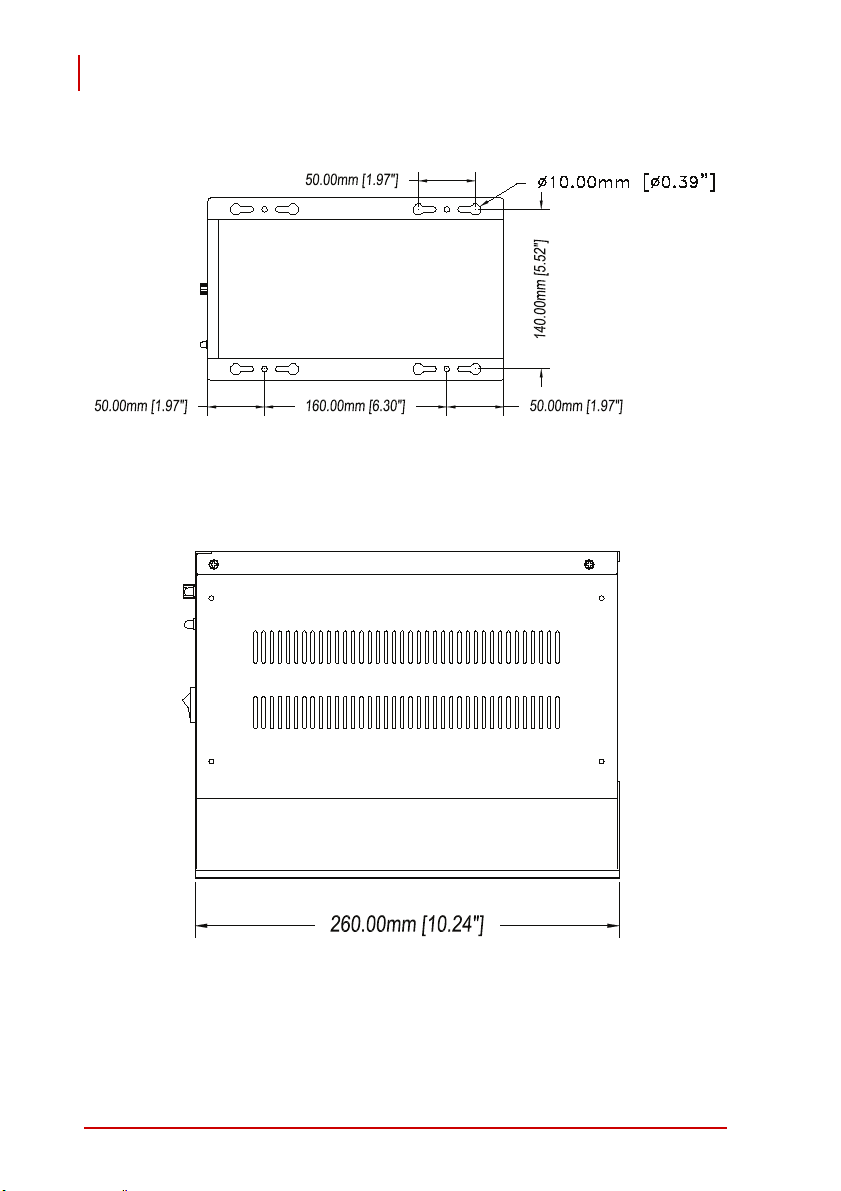

Figure 3-5: RK-8005 Chassis Top View........................................... 26

Figure 3-6: RK-8005 Side View........................................................ 26

Figure 3-7: RK-8014 Front View ...................................................... 27

Figure 3-8: RK-8014 Back View....................................................... 27

Figure 3-9: RK-8014 Top View......................................................... 28

Figure 3-10: RK-8014 Side View........................................................ 28

Figure 3-11: BP-8005 Backplane Layout ........................................... 29

Figure 3-12: BP-8014 Backplane Layout ........................................... 33

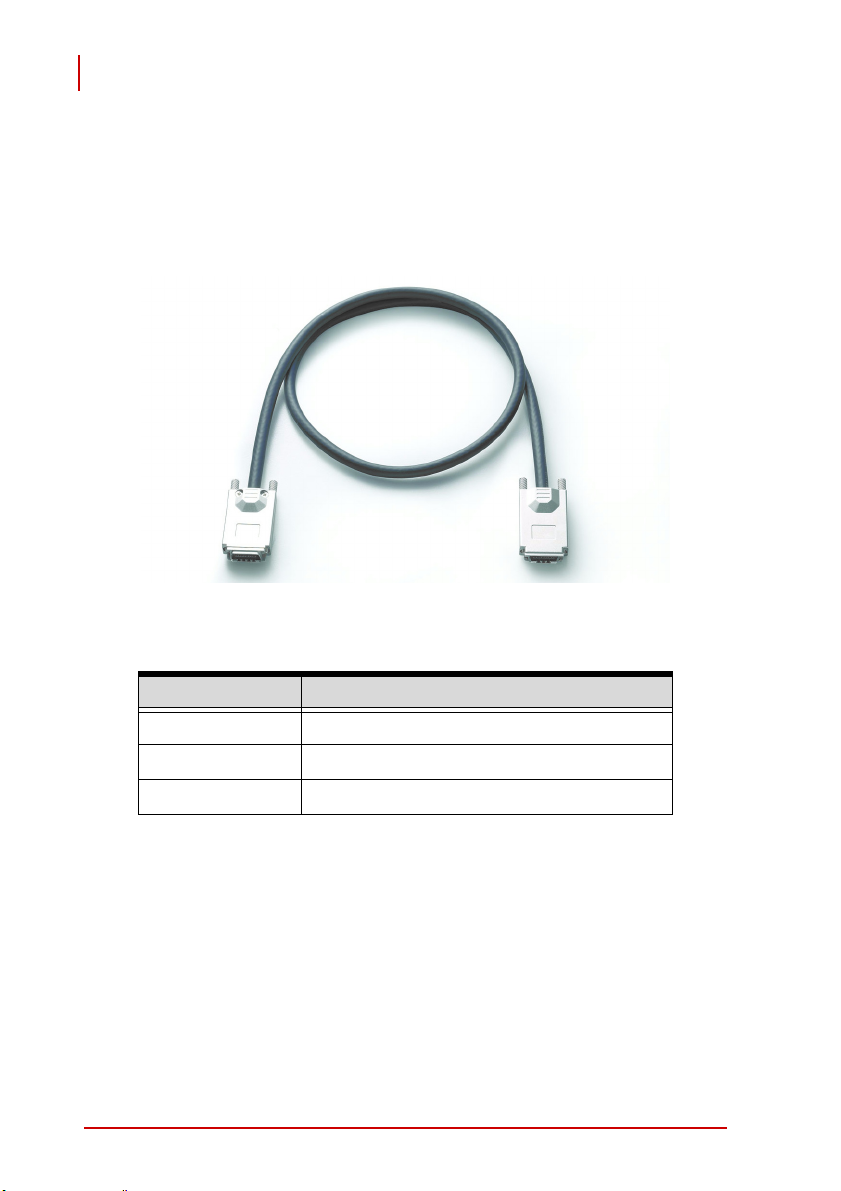

Figure 3-13: Standard 3 M extension cable (ALC-PCEEXT-3) .......... 36

List of Figures xi

PCES-8581-4S PCES-8581-13S
User’s Manual

This page intentionally left blank.

xii List of Figures

PCES-8581-4S PCES-8581-13S

User’s Manual

List of Tables

Table 2-1: PCIe-8560 to Host PC Chassis Installation Items ........... 9

Table 2-2: PCI device to Host PC Chassis Installation Items ......... 11

Table 2-3: Remote Power-ON/OFF Configuration.......................... 15

Table 2-4: Remote Power-On/Off Diagram Description.................. 17

Table 3-1: PCIe-8560 Connectors, Jumpers and LED ................... 20

Table 3-2: PCIe-8560 Pin 1 and Pin 2 Equalizer Selection ............ 21

Table 3-3: PCIe-8560 Pin 3 Output Swing Control ......................... 22

Table 3-4: PCIe-8560 Pin 4 Output De-Emphasis Control ............. 22

Table 3-5: PCI-8565 Connectors, Jumpers and LED ..................... 23

Table 3-6: PCI-8565 JP1 Remote Power-ON/Off Connector.......... 24

Table 3-7: PCI-8565 JP2 Spread Spectrum Clock Control............. 24

Table 3-8: BP-8005 Connectors, Jumpers and LED....................... 30

Table 3-9: BP-8005 CN1 LED Connector ....................................... 30

Table 3-10: BP-8005 CN2 ATX Power Connector............................ 31

Table 3-11: BP-8005 CN3 Fan Connector........................................ 31

Table 3-12: BP-8005 CN4 ATX Power OK Status Connector .......... 31

Table 3-13: BP-8005 JP1 LED Connector ........................................ 32

Table 3-14: BP-8005 JP2 ATX Power Enable Connector................. 32

Table 3-15: BP-8005 JP3 Fan Connector......................................... 32

Table 3-16: BP-8014 Backplane Connectors and Jumpers.............. 34

Table 3-17: BP-8014 JP2 ATX Power Enable Connector................. 34

Table 3-18: BP-8014 JP2 ATX Power Enable Connector................. 34

Table 3-19: BP-8014 FAN4, FAN5, and FAN6 +12 V Connector ..... 35

Table 3-20: BP-8014 CN2 ATX Power Connector............................ 35

Table 3-21: Optional Extension Cables ............................................ 36

List of Tables xiii

PCES-8581-4S PCES-8581-13S
User’s Manual

This page intentionally left blank.

xiv List of Tables

PCES-8581-4S PCES-8581-13S

User’s Manual

1 Introduction

This chapter introduces the PCES-8581-4S/13S PCI Express®­to-PCI Extension System, presents a general overview and basic
applications, its package contents, specifications, and features.

1.1 Overview

Harnessing the bandwidth potential of PCI Express®, the PCES­8581-4S and the PCES-8581-13S smart extension systems
enable computers with a PCI Express
and control up to 13 PCI devices, using the high-speed PCI
Express

®

interface. These extension systems operate in 32-bit/33
MHz configuration and come with complete end-to-end hardware
and software transparency for the host system. Hardware devices
installed in the extension system behave and work as if they are
directly installed on the host system, requiring no additional drivers
or software installation.

The host system may be separated from the extension system at
up to seven meters using high-quality shielded twisted copper
cables. The robust and reliable PCI Express
systems are suited for portable test and measurement applica­tions with high-density I/O requirement and are ideal in hazardous
industrial control and automation environments.

®

slot to remotely manage

®

-to-PCI extension

1.1.1 Controlling PCI with PCI Express

®

Based on PCI Express® technology, PCES-8581-4S and PCES­8581-13S provide bus expansion capability through the high­speed differential signal interface. The PCES-8581-4S and PCES­8581-13S use a signal equalizer and a PCI Express
bridge to architecture a PCI Express
With our PCES-8581-4S and PCES-8581-13S, user can use an
available PCI Express
Because the PCI Express

Introduction 1

®

slot to control an external PCI chassis.

®

Bridge is a transparent bridge, there is

®

to PCI extension system.

®

-to-PCI

PCES-8581-4S PCES-8581-13S
User’s Manual

no need to install any additional software when using PCI devices
in the external chassis.

The PCES-8581-13S and PCES-8581-4S implement a PCI
Express

®

-based control of PCI modules. The technology consists
of a PCIe-8560 card installed in the host computer, a shielded
cable, and the extension system. The PCIe-8560 comes in a PCI
Express

®

x1 footprint and communicates with the extension sys­tem's low-profile PCI-8565 via a twisted and shielded cable. The
PCI-8565 converts the PCI Express

®

interface into a PCI bridge

for additional PCI slots in the extension system.

The link between host PC and the external chassis is a PCI
Express

®

X1 link that represents a dual-simplex communications
channel consisting of two, low-voltage differentially driven signal
pairs. The signaling rate can reach up to 2.5 Gbps in each direc­tion. Using the shielded and twisted cable, the maximum exten­sion distance can be up to 7 M without decreasing the signal rate.

2 Introduction

PCES-8581-4S PCES-8581-13S

1.2 Package Contents

PCES-8581-4S

X PCIe-8560 (packaged separately)

X RK-8005 wall-mount chassis, pre-installed with:

Z PCI-8565 card

Z 5-slot backplane

Z 200 W AC power supply

X 3 m extension cable

X AC power cord

X Wall-mount kit for chassis

X User's manual

PCES-8581-13S

X PCIe-8560 (packaged separately)

X RK-8014 wall-mount chassis, pre-installed with:

Z PCI-8565

Z 14-slot backplane

Z 400 W AC power supply

X 3 m extension cable

X AC power cord

X Wall-mount kit for chassis

X Remote power-on cable

X User's manual

User’s Manual

If any of the items on the contents list are missing or
damaged, contact your ADLINK dealer.

NOTE:

Introduction 3

PCES-8581-4S PCES-8581-13S
User’s Manual

1.3 Specifications

PCIe-8560 (on host computer)

X Compliant with PCI Express

1.0a)

X PCI Express

X Maximum extended distance of up to seven meters

X Low-profile footprint, 68.90 mm (H) x 86.65 mm (W)

X Power requirement: 3.3 V, 210 mA (max)

®

x1 link with 2.5 Gb/s data throughput

PCI-8565 (on extension system)

X Compliant with PCI-to-PCI Bridge Architecture Specifica-

tions (Rev. 1.2)

X Supports 5 V and 3.3 V PCI bus

X 32-bit/33 MHz full data throughput

X Maximum extended distance of seven meters

X Low-profile footprint, 64.41 mm (H) x 119.91 mm (W)

X Power requirement: +3.3 V, 720 mA

®

Base Specifications (Rev.

Operating and Storage Environments

X Operating temperature: 0°C to 50°C

X Storage temperature: -20°C to 80°C

X Relative humidity: 10% to 90%, non-condensing

4 Introduction

PCES-8581-4S PCES-8581-13S

User’s Manual

1.4 Features

X PCI Express

X High-speed PCI Express

X Compatible with 5 V and 3.3 V PCI bus

X Supports 32-bit/33 MHz PCI interface

X Provides four extended half-size PCI slots with built-in 200 W

power supply in a shoebox size chassis (PCES-8581-4S)

X Provides 13 extended full-size PCI slots with built-in 400 W

power supply in 19" rack-mount chassis (PCES-8581-13S)

X Extension lengths of 1 M, 3 M and 7 M

X Complete hardware and software transparency

X Compliant with PCI Express

1.0a

X Compliant with PCI-to-PCI Bridge Architecture Specification,

Revision 1.2

X Compliant with PCI Local Bus Specification, Revision 3.0

®

control of PCI cards

®

X1 interface

®

Base Specification, Revision

1.5 Applications

These extension systems are suitable for:

X Electronics manufacturing testing

X High-density I/O systems

X Industrial automation and control

X Military and aerospace

X Testing systems for remote and/or harsh environments

X Video capture

Introduction 5

PCES-8581-4S PCES-8581-13S
User’s Manual

This page intentionally left blank.

6 Introduction

PCES-8581-4S PCES-8581-13S

User’s Manual

2 Getting Started

This chapter describes the installation environment, installation
procedures, cabling the equipment, and instructions on powering­on/off the PCES-851-4S and PCES-851-13S PCI Express
Extension Systems.

Diagrams and images of equipment mentioned are used
for reference only. Actual system appearance may vary.

NOTE:

2.1 Installation Environment

Whenever unpacking and preparing to install any equipment
described in this manual, please refer to the Important Safety
Instructions chapter of this manual.

Only install equipment in well lit areas on flat, sturdy surfaces with
access to basic tools such as flat and cross head screwdrivers.

®

to PCI

The PCES-8581-4S and PCES-8581-13S contain several electro­static sensitive components that can be easily damaged by static
electricity. For this reason, the card and chassis should be han­dled on a grounded anti-static mat and the operator should wear
an anti-static wristband during the unpacking and installation pro­cedure.

Please also inspect the components for apparent damage.
Improper shipping and handling may cause damage to the compo­nents. Be sure there is no shipping and handling damage on the
components before continuing.

Do not apply power to any equipment if it has been
damaged.

CAUTION:

Getting Started 7

PCES-8581-4S PCES-8581-13S
User’s Manual

2.2 Installing PCIe-8560 on a Host Computer

1. Power-off your host computer.

2. Unscrew the housing of your host computer using a
(cross-head or flat-head) screwdriver. Open the housing.

3. Locate your PCI Express
and remove it from its packaging. (Please wear anti­static gloves and use an anti-static surface when han­dling the card).

4. Install the PCIe-8560 in an available PCI Express
in your host computer. Be sure to firmly attach the PCIe­8560’s bracket to the backplane of the host PC.

5. Close the chassis and re-install its housing screws.

®

extension card (PCIe-8560)

®

slot

8 Getting Started

PCES-8581-4S PCES-8581-13S

User’s Manual

A

A

Figure 2-1:

B

B

PCIe-8560 to Host PC Installation Diagram

C

C

Item Description

A

Industrial PC or Desktop PC with X1 PCI Express

B

PCIe-8560 (PCI Express®-to-PCI extension host card)

C

PCI Express

Table 2-1: PCIe-8560 to Host PC Chassis Installation Items

Getting Started 9

®

Slot

®

Slot

PCES-8581-4S PCES-8581-13S
User’s Manual

2.3 Installing PCI Peripheral Cards to an Extension Chassis

The following instructions are for illustration purposes
when attempting to install additional PCI devices to your

CAUTION:

extension chassis. Both RK-8005 and RK8014 extension
chassis are pre-installed with one PCI-8565 extension
card.

1. Locate your extension chassis (RK-8005 or RK-8014)
and plug-in the AC power cord but DO NOT power-on
the equipment.

2. Unscrew the four housing screws of the extension chas­sis using a (cross-head or flat-head) screwdriver. Open
the top cover of the chassis. You should see a row of
PCI slots (four slots for RK-8005 or 13 slots for RK-8014)
along the backplane.

3. Locate your PCI device and remove it from its packag­ing. (Please wear anti-static gloves and use an anti­static surface when handling the card).

4. Install your PCI device in an available PCI slot and be
sure to firmly attach it’s bracket to the backplane of the
extension chassis.

5. Close the extension chassis and re-install its housing
screws.

10 Getting Started

PCES-8581-4S PCES-8581-13S

User’s Manual

Figure 2-2:

B

D

A

PCI to Extension Chassis Installation Diagram

C

Item Description

A Extension chassis (RK-8005)

B Extension chassis housing screws

C Additional PCI card/device

D

Pre-installed PCI-8565

Table 2-2: PCI device to Host PC Chassis Installation Items

Getting Started 11

PCES-8581-4S PCES-8581-13S
User’s Manual

2.4 Cabling Host Computer to Extension Chassis

Now that you have successfully installed the PCIe-8560 into the
Host computer (or installed an additional PCI device in the exten­sion chassis), you may connect the Host Computer and Extension
Chassis with an extension cable.

Do not remove the extension cable after the system is
powered on. It may cause system errors or data loss. If

CAUTION:

the cable is unplugged improperly, reconnect it and
reboot the host PC and extension chassis.

1. Locate your 3 M extension cable.

2. Connect the 3 M extension cable to the PCI Express
serial link connector (PCIe-8560) of your host PC.

3. Firmly attach the 3 M extension cable by tightening its
retention screws.

®

Figure 2-3: Cabling 3 M Extension Cable to Host PC

12 Getting Started

PCES-8581-4S PCES-8581-13S

User’s Manual

4. Connect the other end of the 3 M extension cable to the

PCI-8565 serial link connector of the extension chassis
(RK-8005 or RK-8014).

Figure 2-4: Cabling 3 M Extension Cable to Extension Chassis

Figure 2-5: Host Computer connected to a PCI Extension System

Getting Started 13

PCES-8581-4S PCES-8581-13S
User’s Manual

2.5 Power-ON/OFF Sequence

To power-on the PCI express® extension system, follow these steps:

1. Check that the 3 M extension cable is properly con­nected to the host PC and extension chassis.

2. Power-on the extension chassis first.

3. Power-on the host PC.

DO NOT remove the cable after the system and
extension chassis are powered on. Disconnecting the

CAUTION:

As the PCI Express
to-PCI bridge interface, the BIOS will identify each device behind
the PCI bridge and assign resource to each one during start up.
Thus users have to power-on the remote chassis first in order to
get appropriate resources from the BIOS.

cable while the system is running may cause
unpredictable system errors and/or system crash.

®

-to-PCI extension system is a standard PCIe-

To power-off the PCI Express

®

extension system, follow these steps:

1. Power-off the host PC.

2. Power-off the extension chassis.

DO NOT power-off the extension chassis until the host
PC is powered off. If the extension chassis is powered off

CAUTION:

14 Getting Started

while the host PC is on, the host PC may hang or crash.

PCES-8581-4S PCES-8581-13S

User’s Manual

2.6 Remote Power-ON/OFF Functionality

Optional functionality of the PCI express® extension system
includes remote power-on/off via the ADLINK BP-8014 backplane.

Once the BP-8014 is properly connected, configured, and
enabled, users may remotely power-on/off the extension chassis
via a host PC.

The following table lists the connectors that enable remote power­on/off functionality.

Part Number

PCI-8565 JP1

BP-8014 JP2 ATX power enabling connector for BP-8014

Connector/

Jumper

A signal is sent from JP1 on PCI-8565 which
enables the RK-8014 to power-on when the
host PC is powered on.

Table 2-3: Remote Power-ON/OFF Configuration

Function

Please refer to sections 3.3, 3.4, 3.5, 3.6 and 3.7 for
detailed layout, connectors and jumpers.

NOTE:

Getting Started 15

PCES-8581-4S PCES-8581-13S
User’s Manual

To enable remote power-on/off functionality, follow these steps:

1. Unscrew the four housing screws of the extension chas­sis (RK-8014) using a (cross-head or flat-head) screw­driver. Open the top cover of the chassis.

2. Disconnect the power-on button of the RK-8014 chassis
panel.

3. Locate the JP2 connector on the BP-8014 as well as the
JP1 of the PCI-8565.

BP-8014 JP2
Connector

PCI-8565 JP1
Connector

16 Getting Started

PCES-8581-4S PCES-8581-13S

User’s Manual

4. Using a controller cable, connect the JP1 of the PCI-

8565 and JP2 of the BP-8014.

Figure 2-6: BP-8014 Remote Power-On/Off Diagram

Item Description

A PCI-8565

B BP-8014

C JP1 on PCI-8565. JP2 is used for controlling

remote chassis power.

D JP2 on BP-8014 is used to control the ATX

power of RK-8014.

E Remote power-on/off control cable.

Table 2-4: Remote Power-On/Off Diagram Description

Getting Started 17

PCES-8581-4S PCES-8581-13S
User’s Manual

2.7 LED Status

The LEDs on the front panel of the PCIe-8560 and PCI-8565 give
power status information. The LEDs light up only when the follow­ing conditions are met:

X The extension cable between the PCIe-8560 (Host PC) and

PCI-8565 (Extension Chassis) is properly connected.

X The extension chassis is powered on.

X The host PC is entering its Power-On Self Test (POST).

18 Getting Started

3 Hardware Information

3.1 Functional Block Diagram

PCES-8581-4S PCES-8581-13S

User’s Manual

Figure 3-1:

X1 PCI Express

PCI Express Extension System Functional Block Diagram

Remote Chassis

Host PC

PCIe-8560

Signal

Equalizer

External Cable

RK-8005 / RK-8014

PCI-8565

PCI Express-to-

PCI Bridge

32-Bit/33MHz PCI Bus

PCI Slot

PCI Slot

PCI Slot

Hardware Information 19

PCES-8581-4S PCES-8581-13S
User’s Manual

3.2 PCIe-8560 Layout, Connectors and Jumpers

Figure 3-2:

PCIe-8560 Mechanical Layout

D1

CN1

S2

S1

Connector/Jumper/LED Description

S1 Adjusts Signal Equalizer

S2 Adjusts Signal Equalizer

CN1

PCI Express® Serial Link Connector

D1 Serial Link Status LED

Table 3-1: PCIe-8560 Connectors, Jumpers and LED

20 Hardware Information

PCES-8581-4S PCES-8581-13S

User’s Manual

3.2.1 PCIe-8560 S1/S2 Signal Equalizer Adjustments

PCIe-8560 provides equalization, amplification and de-emphasis
circuits to optimize signal integrity performance. With this design,
PCIe-8560 allows signal transmission over long distances and
reduces signal distortion.

The following adjustment should be applied to both S1

NOTE:

and S2 simultaneously. The S1 transmits signals and S2
is receives signals.

Configuration Description

ON

Strongest equalizer levels (default)

1234

ON

Moderate equalizer level

1234

ON

Weakest equalizer level

1234

ON

No equalizer

1234

Table 3-2: PCIe-8560 Pin 1 and Pin 2 Equalizer Selection

Hardware Information 21

PCES-8581-4S PCES-8581-13S
User’s Manual

Configuration Description

ON

1234

High level output signal swing (Default)

ON

1234

Normal level output signal swing

Table 3-3: PCIe-8560 Pin 3 Output Swing Control

Configuration Description

ON

High level output signal swing (Default)

1234

ON

Normal level output signal swing

1234

Table 3-4: PCIe-8560 Pin 4 Output De-Emphasis Control

22 Hardware Information

PCES-8581-4S PCES-8581-13S

User’s Manual

3.3 PCI-8565 Layout, Connectors and Jumpers

Figure 3-3:

D1

PCI-8565 Mechanical Layout

JP2

JP1

CN1

Connector/Jumper/LED Description

JP1

ATX power enabling connector. This connector
is used for remote power-on control.

JP2 Spread spectrum clock control

CN1

PCI Express

®

serial link connector

D1 Serial Link Status LED

Table 3-5: PCI-8565 Connectors, Jumpers and LED

Hardware Information 23

PCES-8581-4S PCES-8581-13S
User’s Manual

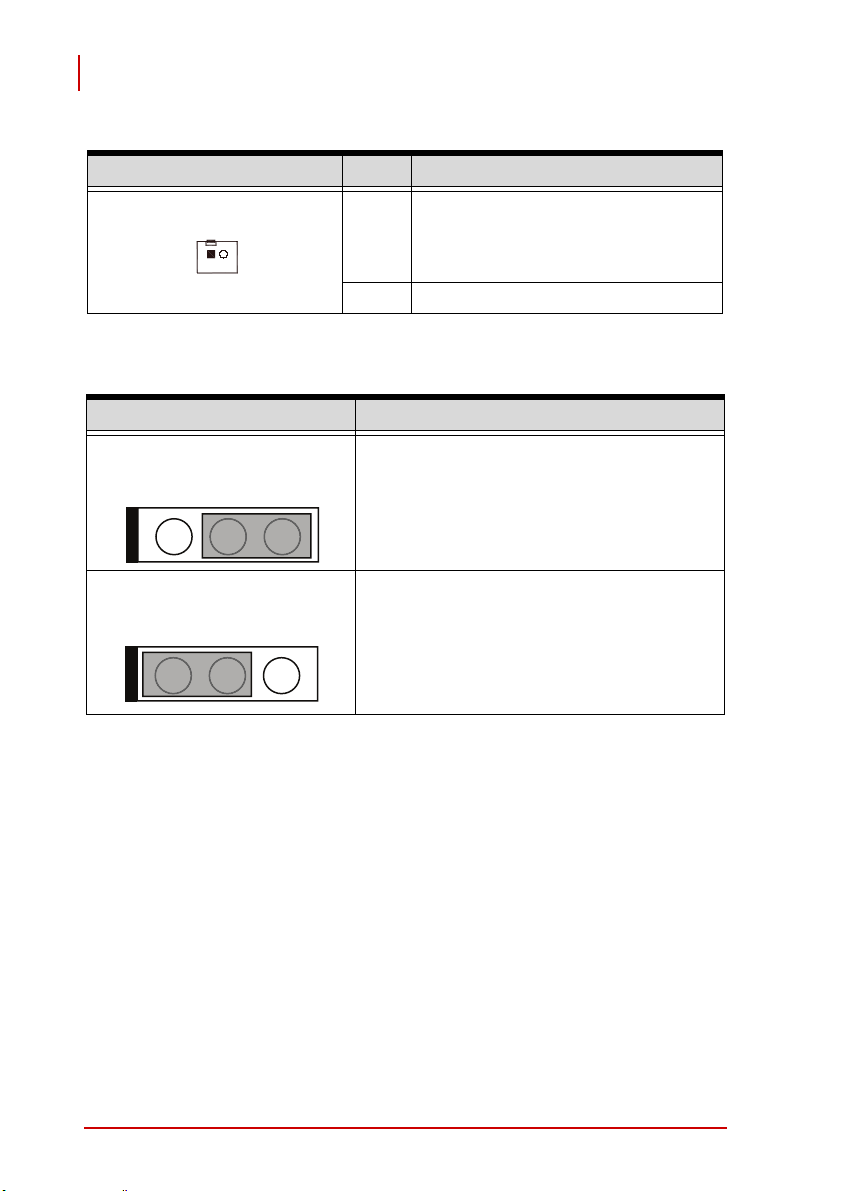

23

JP1

Table 3-6: PCI-8565 JP1 Remote Power-ON/Off Connector

Setting Description

1

2

3

Pin # Assignment

PWR-ON. This pin is used for remote
power-on/off functionality. Connect

1

this to JP2 on the BP-8014 to enable
it.

2N/C

Enables spread spectrum control. When
enabling spread spectrum control, the PCI
clock will be modulated with a low frequency
carrier, the peak EMI can be greatly reduced
in the system.

1

Table 3-7: PCI-8565 JP2 Spread Spectrum Clock Control

24 Hardware Information

2

3

Disables spread spectrum control.

PCES-8581-4S PCES-8581-13S

User’s Manual

3.4 RK-8005 4-Slot Extension Chassis

RK-8005 is a robust industrial chassis for accommodating the BP­8005 backplane. The RK-8005 is a small, compact chassis
(122mm X 195mm X 260mm) with a built-in 200W universal AC
power supply. The RK-8005 is provided with a wall-mount kit so
you can place it in many different environments.

Only half-size PCI cards are suitable for the RK-8005.

NOTE:

3.4.1 RK-8005 Chassis Mechanical Drawing

Figure 3-4: RK-8005 Chassis Front and Back View

Hardware Information 25

PCES-8581-4S PCES-8581-13S
User’s Manual

Figure 3-5: RK-8005 Chassis Top View

Figure 3-6: RK-8005 Side View

26 Hardware Information

PCES-8581-4S PCES-8581-13S

User’s Manual

3.5 RK-8014 13-Slot Extension Chassis

RK-8014 is a robust industrial chassis for accommodating the BP­8014 backplane. The RK-8014 is a 177 mm X 481.1 mm X 438.5
mm chassis with a built-in 200W universal AC power supply.

3.5.1 RK-8014 Chassis Mechanical Drawing

Figure 3-7:

481.10mm [18.96in]

Figure 3-8:

RK-8014 Front View

RK-8014 Back View

429.30mm [16.91in]

101.50mm [4.00in]

177.00mm [6.97in]

Hardware Information 27

PCES-8581-4S PCES-8581-13S
User’s Manual

Figure 3-9:

438.50mm [17.28in]

120.20mm [4.74in]

RK-8014 Top View

448.50mm [17.67in]

Figure 3-10: RK-8014 Side View

28 Hardware Information

PCES-8581-4S PCES-8581-13S

User’s Manual

3.6 BP-8005 Layout, Connectors and Jumpers

The BP-8005 backplane provides 1 system slot and 4 available
PCI peripheral slots. These PCI slots are for 32-bit and 33MHz
PCI devices.

The system slot is occupied by a pre-installed PCI-8565,
please DO NOT install a CPU controller in this slot.

CAUTION:

Figure 3-11:

PCI4 PCI3 PCI2 PCI1 SYSTEM

CN3

BP-8005 Backplane Layout

JP1

JP3

CN4 CN1

CN2

JP2

Top View

Soldered Side

Hardware Information 29

PCES-8581-4S PCES-8581-13S
User’s Manual

Connector/Jumper/LED Description

CN1 LED connector

CN2 ATX power connector

CN3 Fan connector

CN4 ATX power OK status connector

JP1 LED connector

JP2 ATX power enabler

JP3 Fan connector

System slot for extension card. This slot is modi-

System

PCI1 to PCI4 Peripheral PCI Slot

Table 3-8: BP-8005 Connectors, Jumpers and LED

fied for bus extension purposes and does not
support general signal board controllers.

DO NOT plug CPU cards in the system slot.

CAUTION:

Pin # Assignment

1 Ground

2 +5 V Output

CN1

Table 3-9: BP-8005 CN1 LED Connector

30 Hardware Information

PCES-8581-4S PCES-8581-13S

Pin # Assignment Pin # Assignment

1 +3.3 V 11 +3.3 V

2 +3.3 V 12 -12 V

3 Ground 13 Ground

4 +5 V 14 PS-ON

CN2

5 Ground 15 Ground

6 +5 V 16 Ground

7 Ground 17 Ground

8PW-OK 18-5 V

9 5 VSB 19 +5 V

10 +12 V 20 +5 V

Table 3-10: BP-8005 CN2 ATX Power Connector

Pin # Assignment

1N/C

2 +12 V

CN3

User’s Manual

3 Ground

Table 3-11: BP-8005 CN3 Fan Connector

Pin # Assignment

1 Ground

2 PW-OK. ATX Power Status

Table 3-12: BP-8005 CN4 ATX Power OK Status Connector

Hardware Information 31

PCES-8581-4S PCES-8581-13S
User’s Manual

JP1

Table 3-13: BP-8005 JP1 LED Connector

Pin # Assignment

1 Ground

2 LED Power, +5 V

Pin # Assignment

1 Ground

2 PWR-ON, ATX Power Enable

JP2

Table 3-14: BP-8005 JP2 ATX Power Enable Connector

Pin # Assignment

1 Ground

2 +12 V

JP3

Table 3-15: BP-8005 JP3 Fan Connector

32 Hardware Information

PCES-8581-4S PCES-8581-13S

User’s Manual

3.7 BP-8014 Layout, Connectors and Jumpers

The BP-8014 backplane provides 1 system slot and 13 available
PCI peripheral slots. The system is occupied by a pre-installed
PCI-8565 PCI extension card. The remaining PCI slots are avail­able for 5 V or universal PCI peripheral cards.

SYSTEM Slot

JP1

JP4
JP5
JP3

Figure 3-12:

JP6

BP-8014 Backplane Layout

FAN6

JP2

FAN5

CN2

FAN4

Hardware Information 33

PCES-8581-4S PCES-8581-13S
User’s Manual

Connector/Jumper Description

JP2 ATX power enabling connector

JP6 ATX power OK status connector

JP7 LED connector

FAN4 Fan connector for +12 V fan

FAN5 Fan connector for +12 V fan

FAN6 Fan connector for +12 V fan

CN2 ATX power connector

Table 3-16: BP-8014 Backplane Connectors and Jumpers

Pin # Assignment

1PWR-ON

1
2

JP2

Table 3-17: BP-8014 JP2 ATX Power Enable Connector

Pin # Assignment

If JP3 2-3 connected, this pin is
Ground (Default).

2

For PCES-8580-13S extension sys­tem, user should not change the set­ting of JP3.

1PWR-OK

1
2

5 Vsb, +5 V standby power

2

JP6

Table 3-18: BP-8014 JP2 ATX Power Enable Connector

34 Hardware Information

3

PCES-8581-4S PCES-8581-13S

Pin # Assignment

1N/C

2 +12 V

12

3 Ground

User’s Manual

Table 3-19: BP-8014 FAN4, FAN5, and FAN6 +12 V Connector

Pin # Assignment Pin # Assignment

1 +3.3 V 11 +3.3 V

2 +3.3 V 12 -12 V

3 Ground 13 Ground

4 +5 V 14 PS-ON

CN2

5 Ground 15 Ground

6 +5 V 16 Ground

7 Ground 17 Ground

8PW-OK 18-5 V

9 5 VSB 19 +5 V

10 +12 V 20 +5 V

Table 3-20: BP-8014 CN2 ATX Power Connector

Hardware Information 35

PCES-8581-4S PCES-8581-13S
User’s Manual

3.8 Extension Cable Options

The PCI Express®-to-PCI extension system (PCES-8581-13S and
PCES-8581-4S) is available with three different cables in length.
These cables are designed to transfer high speed signals and
have high immunity from electromagnetic interference.

Figure 3-13: Standard 3 M extension cable (ALC-PCEEXT-3)

Part Number Description

ACL-EXPRESS-1

ACL-EXPRESS-3

ACL-EXPRESS-7

Table 3-21: Optional Extension Cables

36 Hardware Information

1 M, PCI Express

3 M, PCI Express

7 M, PCI Express

®

-to-PCI extension cable

®

-to-PCI extension cable

®

-to-PCI extension cable

PCES-8581-4S PCES-8581-13S

User’s Manual

4 Troubleshooting (FAQ)

This chapter describes frequently asked questions that may guide
the user to solve minors problem they may encounter.

This Troubleshooting (FAQ) applies to:

X PCI Express

8581-13S and PCES-8581-4S.

X PCI Express-to-PXI Extension Kit: including PCIe-8560 and

PXI-8565.

In the following description, the products will be renamed as "PCI

Express

®

Bus Extension Products".

®

-to-PCI Extension System: including PCES-

Question:

What is the maximum extension length of PCI

®

Express

Bus Extension Products?

Answer: The maximum extension length is 7m. ADLINK offers

three different cables in length for customer's applications, 1
M, 3 M and 7 M.

Question:

When using ADLINK PCI Express® Bus Extension
Products, is there any additional driver or software required
to install?

Answer: ADLINK PCI Express

designed to be standard PCI Express

®

Bus Extension Products are

®

-to-PCI bridges. It is
not necessary to install additional drivers or software for
support.

Question:

How many extension chassis can I connect to a host

®

PC by using ADLINK PCI Express

Bus Extension Prod-

ucts?

Answer: Due to the point-to-point architecture of PCI Express

®

only one ADLINK PCI Express

Bus Extension Product can

®

,

Troubleshooting (FAQ) 37

PCES-8581-4S PCES-8581-13S
User’s Manual

be supported by one chassis. However, users can select
multiple extension chassis for different purposes. For exam­ple, a 4-slot extension chassis provides small and compact
form factor while an 18-slot extension chassis provides
more PCI slots. Theoretically, PCI specification allows up to

255 PCI bus segments. ADLINK PCI Express
sion Products do not limit the bus segment number. The
maximum PCI bus segments may limited by your BIOS or
operating system.

®

Bus Exten-

Question:

Answer: ADLINK PCI Express

Is there any compatibility problems with the ADLINK

®

PCI Express

designed as standard PCI Express

-to-PXI extension kit?

®

Bus Extension Products are

®

-to-PCI Bridge. During
PC boot up, your PC BIOS will search devices and assign
resources such as, I/O, memory space and IRQ number, to
each device according to its algorithm. Although PCI speci­fication allows up to 255 bus segments in a PC system, the
BIOS may not assign the correct and/or proper resource to
each device in some complex PCI systems.

Because the PCI Express

®

specification was released in
2002, most hardware and circuit board designers as of yet
do not offer multiple PCI-to-PCI bridges. Most BIOS work
for simple applications but may not work for multiple PCI
bus segments and a variety of resource requests. We sug­gest customers choose PC equipment with Intel 945, 965 or
later chipsets to adjust for these issues.

Question:

When I encounter compatibility problems, what should

I do?

Answer: Because most compatibility problems come from PCI

resource assignments, customers should consult their PC
vendors or BIOS vendors for help. Updating to the most cur­rent BIOS version may also resolve PCI resources prob­lems.

38 Troubleshooting (FAQ)

PCES-8581-4S PCES-8581-13S

User’s Manual

The following list are some indications that may help customers to

deal with compatibility issues:

1. Disable the onboard device functions of your host PC to

release IO resources.

2. Remove PCI devices plugged/installed in your host PC.

3. Connect an extension chassis which is single bus seg-

ment to the host PC. Plug a PCI device to an extension
chassis one by one and boot each in sequence to check
if your host PC can accommodate the PCI device or not.

4. You may try to plug the PCI Express

®

card to a different PCI Express

slot.

®

extension host

Troubleshooting (FAQ) 39

PCES-8581-4S PCES-8581-13S
User’s Manual

This page intentionally left blank.

40 Troubleshooting (FAQ)

PCES-8581-4S PCES-8581-13S

User’s Manual

Important Safety Instructions

For user safety, please read and follow all instructions,
WARNINGS, CAUTIONS, and NOTES marked in this manual

and on the associated equipment before handling/operating the
equipment.

X Read these safety instructions carefully.

X Keep this user’s manual for future reference.

X Read the specifications section of this manual for detailed

information on the operating environment of this equipment.

X When installing/mounting or uninstalling/removing

equipment:

Z Turn off power and unplug any power cords/cables.

X To avoid electrical shock and/or damage to equipment:

Z Keep equipment away from water or liquid sources;

Z Keep equipment away from high heat or high humidity;

Z Keep equipment properly ventilated (do not block or

cover ventilation openings);

Z Make sure to use recommended voltage and power

source settings;

Z Always install and operate equipment near an easily

accessible electrical socket-outlet;

Z Secure the power cord (do not place any object on/over

the power cord);

Z Only install/attach and operate equipment on stable

surfaces and/or recommended mountings; and,

Z If the equipment will not be used for long periods of time,

turn off and unplug the equipment from its power source.

X Never attempt to fix the equipment. Equipment should only

be serviced by qualified personnel.

X A Lithium-type battery may be provided for uninterrupted,

backup or emergency power.

Risk of explosion if battery is replaced by an incorrect type.

CAUTION:

Important Safety Instructions 41

Dispose of used batteries according to the instructions.

PCES-8581-4S PCES-8581-13S
User’s Manual

X Equipment must be serviced by authorized technicians

when:

Z The power cord or plug is damaged;

Z Liquid has penetrated the equipment;

Z It has been exposed to high humidity/moisture;

Z It is not functioning or does not function according to the

user’s manual;

Z It has been dropped and/or damaged; and/or,

Z It has an obvious sign of breakage.

42 Important Safety Instructions

PCES-8581-4S PCES-8581-13S

User’s Manual

Warranty Policy

Thank you for choosing ADLINK. To understand your rights and
enjoy all the after-sales services we offer, please read the follow­ing carefully.

1. Before using ADLINK’s products please read the user

manual and follow the instructions exactly. When send­ing in damaged products for repair, please attach an
RMA application form which can be downloaded from:
http://rma.adlinktech.com/policy/

2. All ADLINK products come with a limited two-year war-

ranty, one year for products bought in China:

X The warranty period starts on the day the product is shipped

from ADLINK’s factory.

X Peripherals and third-party products not manufactured by

ADLINK will be covered by the original manufacturers' war­ranty.

X For products containing storage devices (hard drives, flash

cards, etc.), please back up your data before sending them
for repair. ADLINK is not responsible for any loss of data.

X Please ensure the use of properly licensed software with

our systems. ADLINK does not condone the use of pirated
software and will not service systems using such software.
ADLINK will not be held legally responsible for products
shipped with unlicensed software installed by the user.

X For general repairs, please do not include peripheral acces-

sories. If peripherals need to be included, be certain to
specify which items you sent on the RMA Request & Confir­mation Form. ADLINK is not responsible for items not listed
on the RMA Request & Confirmation Form.

Warranty Policy 43

PCES-8581-4S PCES-8581-13S
User’s Manual

3. Repair service is not covered by ADLINK's two-year
guarantee in the following situations:

X Damage caused by not following instructions in the User's

Manual.

X Damage caused by carelessness on the user's part during

product transportation.

X Damage caused by fire, earthquakes, floods, lightening,

pollution, other acts of God, and/or incorrect usage of volt­age transformers.

X Damage caused by inappropriate storage environments

such as high temperatures, high humidity, or volatile chemi­cals.

X Damage caused by leakage of battery fluid during or after

change of batteries by customer/user.

X Damage from improper repair by unauthorized technicians.

X Products with altered and/or damaged serial numbers are

not entitled to our service.

X This warranty is not transferable or extendable.

X Other categories not protected under our warranty.

4. Customers are responsible for all fees necessary to
transport damaged products to ADLINK.

5. To ensure the speed and quality of product repair,
please download an RMA application form from our
company website: http://rma.adlinktech.com/policy/
Products with attached RMA forms receive priority.

For further questions, please e-mail our FAE staff:
[e-mail].

44 Warranty Policy
