Page 1
Spare parts list
Katalog náhradních dílù
527 - 105
Minerva Boskovice, a.s., Sokolská 60, CZ - 680 17 Boskovice
Tel.: +420-516-453434, 453433, 494111 Fax: +420-516-452165 http://www.minerva-boskovice.com
Edition/Vydáno: 01/2004 Printed/Tisk: Czech Republic
Page 2
Jednojehlový icí stroj s klikatým stehem,ponorným podáváním
a ruèním zpátkováním
Single needle lockstitch zigzag machine witch bottom feed,
manual backtacking
527-105
Page 3
OBSAH : - Contents:
Dílce hlavy - Parts of head
tab.1
tab.2
tab.3
tab.4
tab.7
tab.10
tab.5
tab.8
tab.11
tab.6
tab.9
tab.12
tab.13
tab.16
tab.14
tab.17
tab.15
tab.18
Page 4
tab.19
Èíslo tabulky Objednací èíslo Název objektu
Table No. Ordered No. Denomination
tab.20
tab.21
tab.22
tab. 23 S980 008251 Chapaè
Pøíbal - Enclosed accessories
tab. 24 S980 099038 Standard Zvlátní pøísluenství /1
tab. 25 S980 099038 Standard Zvlátní pøísluenství /2
tab. 26 S980 099038 Standard Zvlátní pøísluenství /3
tab. 27 S980 099038 Standard Zvlátní pøísluenství /4
tab. 28 S980 099038 Standard Zvlátní pøísluenství /5
tab. 29 S980 092229 Standard SND
Nutné vybavení - Necessary equipment
tab. 30 S980 094051 Standard Propojovací kabel k pohonu EFKA DC 1600/DA82GA a EFKA VD 552/6F82FA
tab. 31 S791 995068 Standard Díly pro zpátkování pedálem
icí vybavení - Sewing equipment
Tabulka icích vybavení - Table of sewing equipments
tab. 32 S791 124061 35 Standard icí vybavení
tab. 33 S791 400023 icí vybavení
tab. 34 - tab. 35 S791 430048 35 icí vybavení
tab. 34 - tab. 35 S791 430060 35 icí vybavení
tab. 34 - tab. 35 S791 430061 35 icí vybavení
Volitelné vybavení - Optional equipment
Hook
Accessories/1
Accessories/2
Accessories/3
Accessories/4
Accessories/5
Spare parts kit
Connecting cable to drive EFKA DC 1600/DA82GA a EFKA VD 552/6F82FA
Parts of backtacking (with pedal)
Sewing equipment
Sewing equipment
Sewing equipment
Sewing equipment
Sewing equipment
tab. 36 S791 149001 Vybavení pro obnitkování okrajù
tab. 37 S791 151017 Otevøená patka
tab. 38 S791 995153 Zvedání patky elektromagnetem
tab. 39 - tab. 40 S791 995154 Zpátkování elektromagnetem
tab. 39 S980 094057 Tlaèítko pro zpátkování, pro motor EFKA DA82GA
tab. 39 S980 094060 Tlaèítko pro zpátkování, pro motor EFKA 6F82FA
tab. 41 S791 947001 Ustavovací pøípravek
tab. 42 S741 410504 40 Sada rychleopotøebovatelných náhradních dílù
tab. 43 S791 430055 35 Chapaè pro jehly 140-160 Nm
tab. 44 S794 222012 Návìsné osvìtlení
Attachment for serging operation
Hinged foot with front thread slit
Presser foot lift via electromagnet
Backtacking via electromagnet
Push button for backtacking, for EFKA motor DA82GA
Push button for backtacking, for EFKA motor 6F82FA
Adjustment gauges
High mortality spare parts kit
Hook for needle size 140-160 Nm
Sewing lamp
Page 5
tab. 1
527 - 105
...
·.
~····
~··
...
...
04··
®2.9
~.
...
__
..
•
2 S080 123117
3 S321 001000
4 S080 840073
5 S080 313204
6 S080 161138
7 S080 815007
9 S080 831348
10 S080 120248
11 S080 721173
12 S080 827180
13 S080 123122
14 S080 126063
15 S080 823149
16 S080 111227
17 S080 271184
18 S080 821115
19 S080 821077
20 S080 821113
21 S080 120361
22 S080 190368
23 S080 132112
16
26 S080 831494
27 S080 123166
28 S080 132153
29 9840 120030
30 S080 120331
31 9840 120028

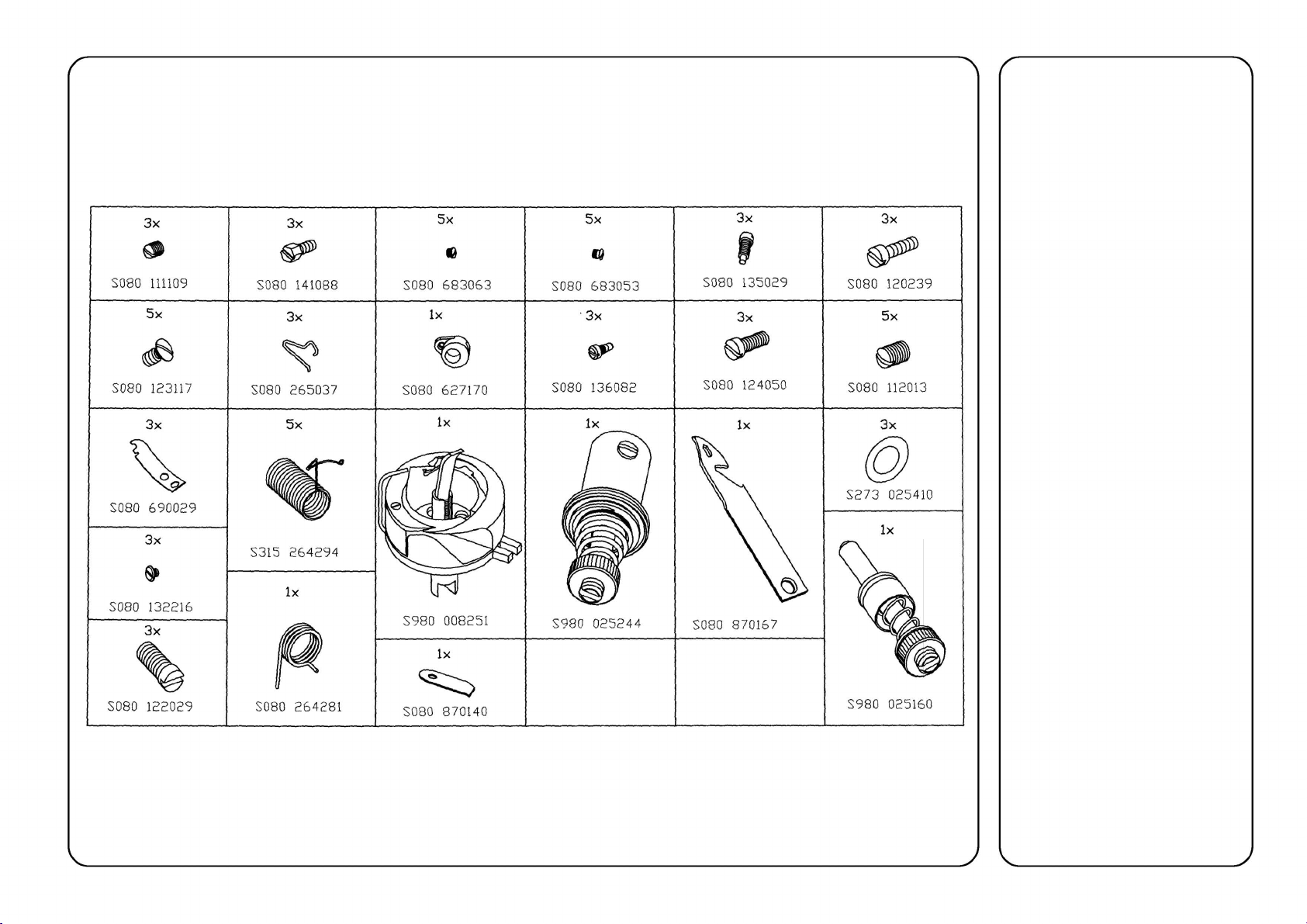

Page 6
tab. 2
527 - 105
1 S080 945188
2 S080 945100
3 S080 111227
5 S080 278009
6 S080 410511
7 S980 049786
8 S080 274104
9 S980 049806
10 S080 264274
14 S080 111245
15 S080 131027
17 S080 120248
18 S080 822424
21 S315 264294
23 S080 828079
24 S080 828080
25 S080 262074
26 S080 195041
27 S080 171037
28 S080 310428
29 S080 120246
30 S980 025160
31 S080 828051
32 S080 827174
33 S080 262065
34 S081 200025
35 S080 171030
36 S980 025244
Page 7
tab. 3
527 - 105
1 S080 111238
2 S080 122007
3 S080 112015
5 S080 138009
8 S080 120006
9 S080 953139
12 S080 328005
13 S980 044727
14 S080 112014
15 S080 120062
19 S080 953159
20 S080 120248
22 S080 111214
23 S080 111295
25 S080 452047
26 S080 111273
27 S080 111126
28 S080 120216
29 S980 043343
30 S980 035318
Page 8
tab. 4
527 - 105
1 S080 646027
2 S080 322247
3 S080 120276
4 S080 646120
5 S321 020000
6 S080 260139
7 S080 111099
8 S080 174066
9 S080 161236
10 S080 442530
11 S080 839010
12 S080 120219
13 S080 126101
14 S080 613472
15 S080 952251
16 S080 120543
17 S080 954048
18 S080 123130
Page 9
©----t::
tab. 5
527 - 105
1 S283 002005
ø 3,5/ø 4,8 x 100 mm
2 S708 130002
ø 2 x 140 mm
3 S080 424051
4 S080 120233
5 S080 951327
6 S708 002105
ø 1,5 x 50 mm
7 S324 010000
9 S080 945326
10 S980 035598
11 S708 130002
ø 2 x 270 mm
12 S283 002005
ø 3,5/ø 4,8 x 210 mm
13 S080 335101
14 S080 131391
15 S080 152099
16 S080 334097
17 S080 112101
18 S080 612342
19 S080 163093
20 S080 422184
22 S080 646027
23 S080 322247
24 S080 190359
25 S080 335105
26 S273 007000
27 S080 120221
28 S273 001001
29 S080 190526
30 S080 161233
31 S080 120291
32 S080 141223
33 S738 002000
34 S708 1
ø 2 x 150 mm
35 S080 318210
36 S080 648132
37 S080 410595
38 S080 120589
S080 613519
39
40 S080 436000
41 S080 320289
42 S080 132203
43 S425 041000
44 S080 112013
47 S980 021353
30002
Page 10
tab. 6
527 - 105
1 S080 120276
2 S080 190353
3 S080 646104
4 S708 002105
ø 1,5 x 80 mm
5 S980 021338
6 S080 113115
7 S080 111229
8 S080 111248
9 S080 391155
10 S080 124050
11 S980 035499
12 S080 135029
13 S080 627170
15 S080 413311
16 S708 002105
ø 1,5x 250 mm
17 S283 002005
ø 3,5/ø 4,8 x 190 mm
18 S080 424051
19 S080 613519
20 S080 410595
21 S080 648132
22 S080 120589
23 S080 421341
24 S080 111222
25 S708 002105
ø 1,5 x 150 mm
26 S283 002005
ø 3,5/ø 4,8 x 70 mm
29 S080 394167
30 S080 136082
Page 11
tab. 7
527 - 105
1 S080 945317
2 S080 120543
3 S080 623249
4 S080 326213
5 S080 283152
6 S080 113122
7 S080 113123
8 S311 732060
9 S311 732040
10 S080 839215
12 S080 136023
13 S080 615021
14 S080 421330
15 S080 112014
17 S080 120239
18 S080 190554
19 S080 271393
20 S980 060209
21 S080 264288
22 S080 120221
23 S080 633196
24 S080 190346
25 S080 271337
26 S080 382101
27 S080 814014
28 S080 120217
29 S080 436331
30 S080 120050
31 S080 392105
32 S080 161139
33 S080 161333
Page 12
tab. 8
527 - 105
3 S080 141102
4 S311 732070
5 S980 043301
6 S080 260547
7 S080 120227
8 S980 022126
10 S080 613373
11 S080 120221
12 S080 613328
13 S080 161142
14 S080 192061
15 S080 441187
16 S980 049785
17 S080 120246
18 S080 342258
19 S980 233031
20 S080 112013
22 S311 728537
25 S980 044714
Page 13
tab. 9
527 - 105
1 S080 945180
2 S283 002001
ø 3 ,5 / ø 4 ,8 x 6 5 m m
3 S080 824095
4 S080 120245
5 S283 002001
ø 3 ,5 / ø 4 ,8 x 8 0 m m
6 S708 130002
ø 2 x 140 mm
7 S321 001000
8 S708 002105
ø 1,5 x 380 mm
9 S283 002005
ø 3 ,5 / ø 4,8 x 150 mm
10 S080 111245
11 S283 002005
ø 3 ,5 / ø 4,8 x 150 mm
12 S080 945316
13 S708 002105
ø 1,5 x 380 mm
15 S080 120259
16 S080 190359
17 S980 041176
18 S708 130002
ø 2 x 320 mm
19 S283 002005
ø 3,5/ø 4,8 x 250 mm
20 S283 002005
ø 3 ,5 / ø 4,8 x 210 mm
21 S708 130002
ø 2 x 270 mm
22 S283 002005
ø 3 ,5 / ø 4 ,8 x 9 0 m m
23 S708 130002
ø 2 x 130 mm
24 S283 002005
ø 3 ,5 / ø 4,8 x 100 mm
25 S708 130002
ø 2 x 140 mm
26 S080 945286
27 S708 130004
ø 4 x 1120 mm
28 S080 441313
29 S080 120216
Page 14
tab. 10
527 - 105
1 S980 041162
2 S080 120346
3 S273 005001
4 S080 316096
5 S080 161151
6 S080 191112
7 S311 733620
Page 15
tab. 11
527 - 105
2 S080 441541
3 S080 260467
4 S080 436338
5 S080 113115
-·· .
.. · .
· .
.......
..
· .·
··~
®
....
. .
. :
•
7 S080 111225
9 S708 130002
ø 2 x 130 mm
10 S283 002001
ø 3,5/ø 4,8 x 90 mm
11 S080 120259
12 S080 190359
13 S980 041176
14 S080 112013
15 S080 111343
16 S080 122029
17 S080 120006
18 S311 733300
20 S980 045330
21 S980 045315
24 S272 011015
25 S080 442548
26 S080 120252
27 S980 035849
28 S980 045301
29 S981 043513
30 9205 102798
31 9352 000090
32 S980 045578
33 S080 338247
34 9352 000100
.... .
..
. . ··
Page 16
tab. 12
527 - 105
1 S425 041000
2 S080 413252
3 S080 141133
4 S080 613495
5 S080 124050
6 S080 410532
7 S080 345067
8 S080 120229
9 S080 613216
10 S080 436000
11 S080 112013
12 S080 412193
13 S425 061000
14 S708 002105
ø 1,5 x 160 mm
15 S080 338069
16 S311 732050
17 S080 318144
18 S080 111227
19 S080 622092
20 S080 612109
21 S708 002105
ø 1,5 x 60 mm
22 S708 002105
ø 1,5 x 350 mm
23 S080 121157
25 S080 630248
26 S980 044045
27 S080 344035
Page 17
tab. 13
527 - 105
1 S080 342243
2 S080 724134
3 S324 020093
4 S311 733180
5 S080 814338
6 S080 630248
7 S080 671152
8 S080 112013
9 S980 044045
10 S708 002105
ø 1,5 x 350 mm
11 S080 141088
12 S080 318103
14 S980 035422
16 S080 141102
19 S980 035420
22 S272 011015
23 S080 122029
24 S080 120222
26 S080 122031
27 S980 045231
28 S324 510900
29 S324 512900
30 S080 111343
31 S080 672166
32 S080 436346
34 S080 120468
35 S980 035570
36 S980 035441
Page 18
tab. 14
527 - 105
1 S425 041000
2 S080 413251
3 S080 345065
4 S080 111227
5 S080 613195
6 S080 630248
7 S708 002105
ø 1,5 x 220 mm
8 S708 002105
ø 1,5 x 350 mm
9 S980 044045
10 S080 112013
11 S080 120229
12 S080 436000
13 S080 120231
14 S080 613152
15 S708 130002
ø 2 x 60 mm
16 S080 344035
17 S080 410538
Page 19
tab. 15
527 - 105
1 S311 733261
2 S324 920796
3 S080 111219
4 S080 441287
5 S324 910093
8 S080 724134
9 S080 552168
10 S080 120226
11 S080 945283
12 S080 120601
13 S311 733221
14 S080 825740
15 S980 008251
17 S080 825744
19 S080 685051
20 S080 120246
21 S080 945285
22 S080 190379
23 S080 111343
25 S080 122007
26 S080 613466
27 S080 111094
28 S080 552167
29 S324 010000
30 S080 410530
31 S080 323155
32 S080 990134
33 S080 827179
34 S980 035406
35 S708 130002
ø 2 x 40 mm
Page 20
tab. 16
527 - 105
6 S080 120269
7 S980 035527
8 S283 002001
ø 3,5/ø 4,8 x 100 mm
9 S080 424051
10 S080 424060
12 S708 130005
ø 5 x 300 mm
13 S283 002005
ø 3,5/ø 4,8 x 170 mm
17 S080 724134
20 S080 120425
Page 21
tab. 17
527 - 105
1 S980 035526
2 S080 945077
3 S080 111252
4 S080 945185
5 S080 111233
6 S080 424051
7 S283 002005
ø 3,5/ø 4,8 x 100 mm
8 S080 945170
9 S080 346053
10 S273 001001
11 S080 120269
12 S321 001002
13 S080 725023
Page 22

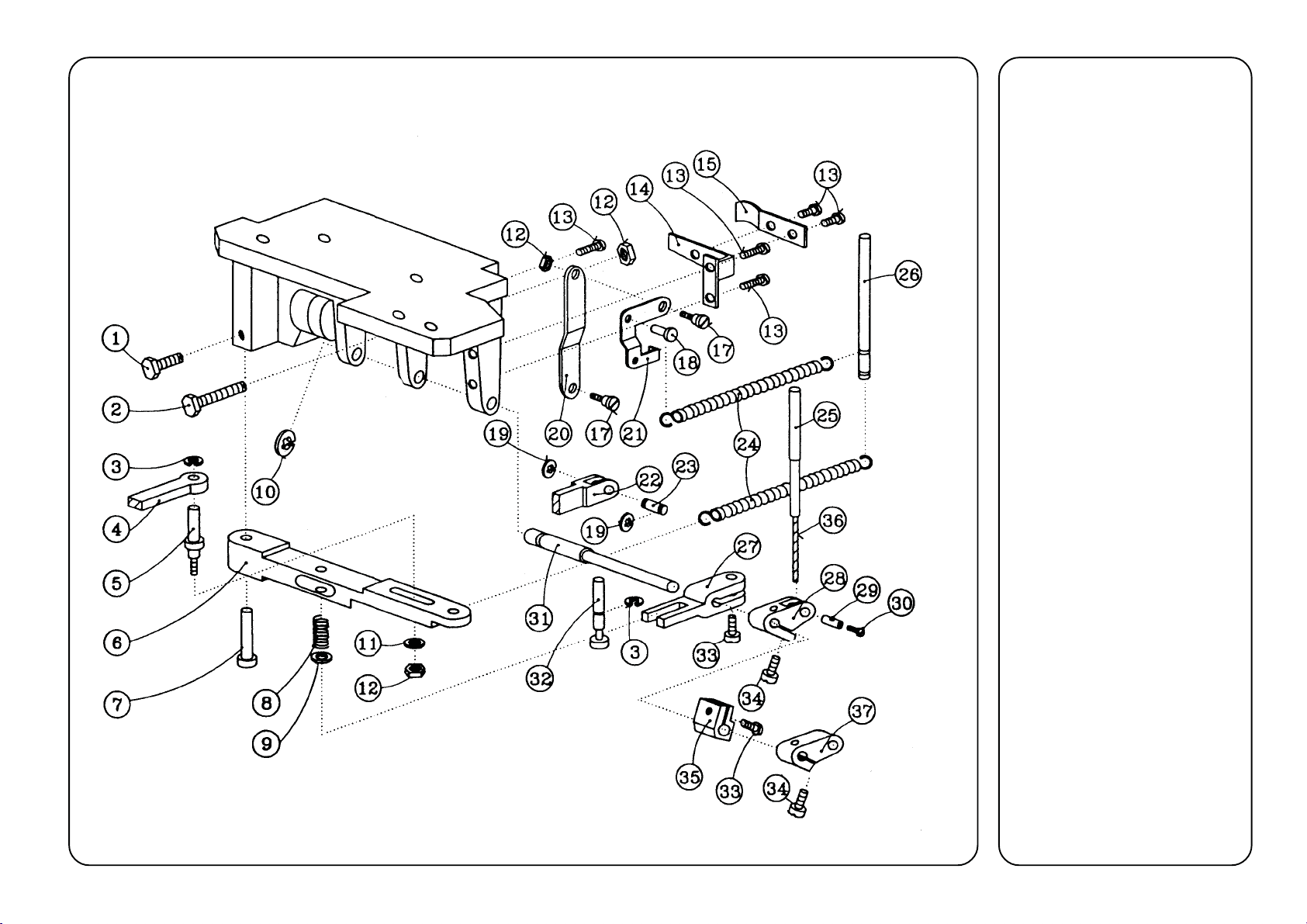

tab. 18
527 - 105
1 S080 141142
2 S080 141204
3 S311 732040
4 S080 632147
5 S080 333121
6 S080 646145
7 S080 320257
8 S080 260434
9 S080 190359
10 S311 732050
11 S080 190353
12 S080 161144
13 S080 120218
14 S080 825856
15 S080 825586
17 S080 131378
18 S080 320258
19 S080 274104
20 S080 822446
21 S080 822409
22 S080 630272
23 S080 314167
24 S080 263103
25 S080 278009
26 S080 310364
27 S080 625132
28 S080 613482
29 S080 334090
30 S080 120246
31 S080 341202
32 S080 322231
33 S080 120220
34 S080 120221
35 S080 627142
36 S080 049786
37 S080 613420
Page 23
..
····
........
...
-···
...
tab. 19
· .
. . ··:
....
527 - 105
1 S080 744380
2 S080 120322
3 S080 161165
4 S080 126078
5 S080 825591
6 S080 422155
7 S980 091220
8 S323 914064
9 S080 120252
10 S080 422154
11 S080 825590
13 S374 059099
16 S080 952235
17 S080 120220
18 S080 120245
19 S980 091219
20 S080 161143
21 S080 154033
22 S080 274104
23 S080 314167
24 S080 630272
25 S980 091446
....
··
...
·········
. .
.......
··························19
18
...
····!·
~
... ·
...
:cc'j,···~,
•'
.•
0
Page 24
tab. 20
527 - 105
1 S080 647222
2 S080 123117
3 S080 111328
4 S080 120332
5 S080 870167
6 S080 825868
7 S080 826039
8 S080 132112
9 S080 635171
10 S080 120293
11 S080 111244
12 S080 765090
13 S080 120218
14 S080 274093
15 S080 338190
16 S080 190483
17 S708 130003
ø 3 x 80mm
18 S080 870140
19 S080 132216
20 S080 945315
21 S080 839058
22 S080 191118
23 S080 120215
Page 25

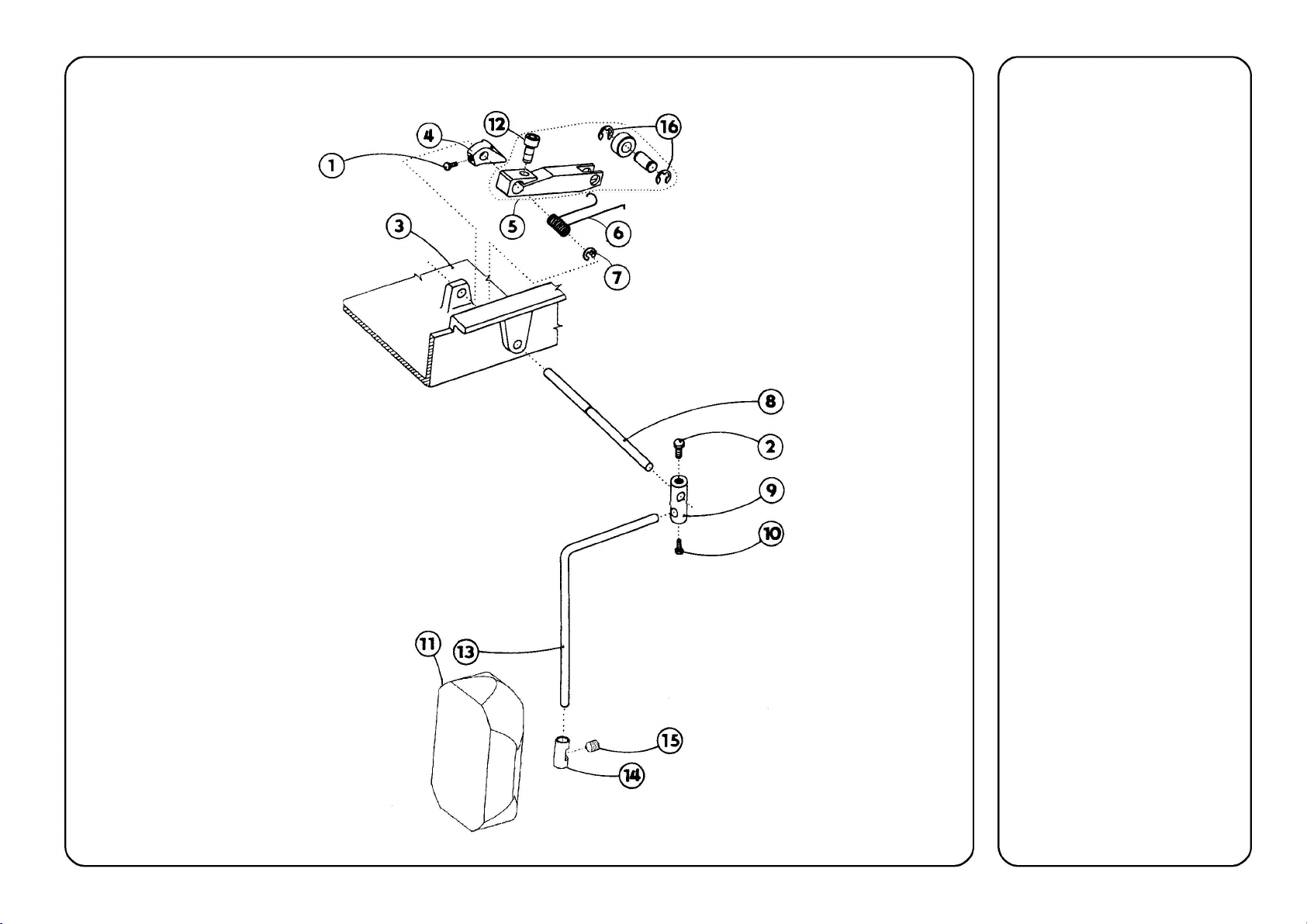

tab. 21
527 - 105
1 S311 732040
2 S080 314165
3 S980 049811
4 S080 161227
5 S080 334093
6 S080 120229
7 S080 636243
9 S080 318171
10 S080 314166
11 S080 410481
12 S080 632147
13 S080 120218
14 S980 049810
16 S080 161144
17 S080 132183
Page 26
··· .. ; ... ·
tab. 22
527 - 105
1 S273 025410
2 S080 441560
3 S080 190593
4 S080 264281
5 S980 035654
6 S080 310377
7 S080 441308
8 S080 613468
9 S080 343074
10 S080 265037
11 S321 953200
12 S080 112115
13 S080 945296
14 S080 111094
15 S080 672174
16 S311 732040
17 S080 124050
18 S080 111230
19 S080 260483
20 S080 870170
21 S980 025248
22 S980 025249
23 S080 827194
24 S080 260510
25 S080 163106
26 S080 161138
27 S311 515091
28 S980 036122
20
·
..
Lfl
Page 27
tab. 23
527 - 105
S980 008251
1 S080 690029
2 S080 683063
3 S980 081122
4 S080 683053
5 S080 683064
6 S980 081138
7 S080 683067
8 S980 081139
9 S080 685051
10 S080 683083
11 S080 681029
Page 28
tab. 24
527 - 105
S980 099038 /1
1 S273 940127
2 S615 932046
3 S273 940141
4 S321 953251
5 S080 725050
6 S080 826387
7 S080 941091
8 S314 016020
9 S080 225031
10 S413 100130
11 0APP 000301
12 S321 026000
13 S272 221000
-@
Page 29
tab. 25
527 - 105
S980 099038 /2
1 S080 141141
2 S080 141121
3 S080 725050
4 S080 625022
5 S980 027603
6 S080 264168
7 S311 732070
8 S080 314065
9 S080 318069
10 S080 141112
11 0396 130013
12 S080 120295
13 S080 383022
14 S080 416146
15 9205 102788
16 S311 732060
Page 30
tab. 26
527 - 105
S980 099038 /3
J
{!).
4
1 S980 049109
2 S080 264290
3 S311 732070
4 S080 613480
5 S080 141109
6 S311 515041
7 S080 725050
8 S980 044142
Page 31
tab. 27
527 - 105
S980099038 /4
1 S981 036163
2 0077 110220 4 x
3 0077 110230 4 x
4 9330 000177
5 0791 001081
6 0791 580100 4 x
7 0791 001091 2 x
8 0791 001096 2 x
10 0995 340617
Page 32
~
••••••••••••••••••••••••••••••••••••••••••••••••••••••••
4
0
••••••••••••••••••••••••••••••••••••••••••
0
•••••••••••
•
••••••••••••••

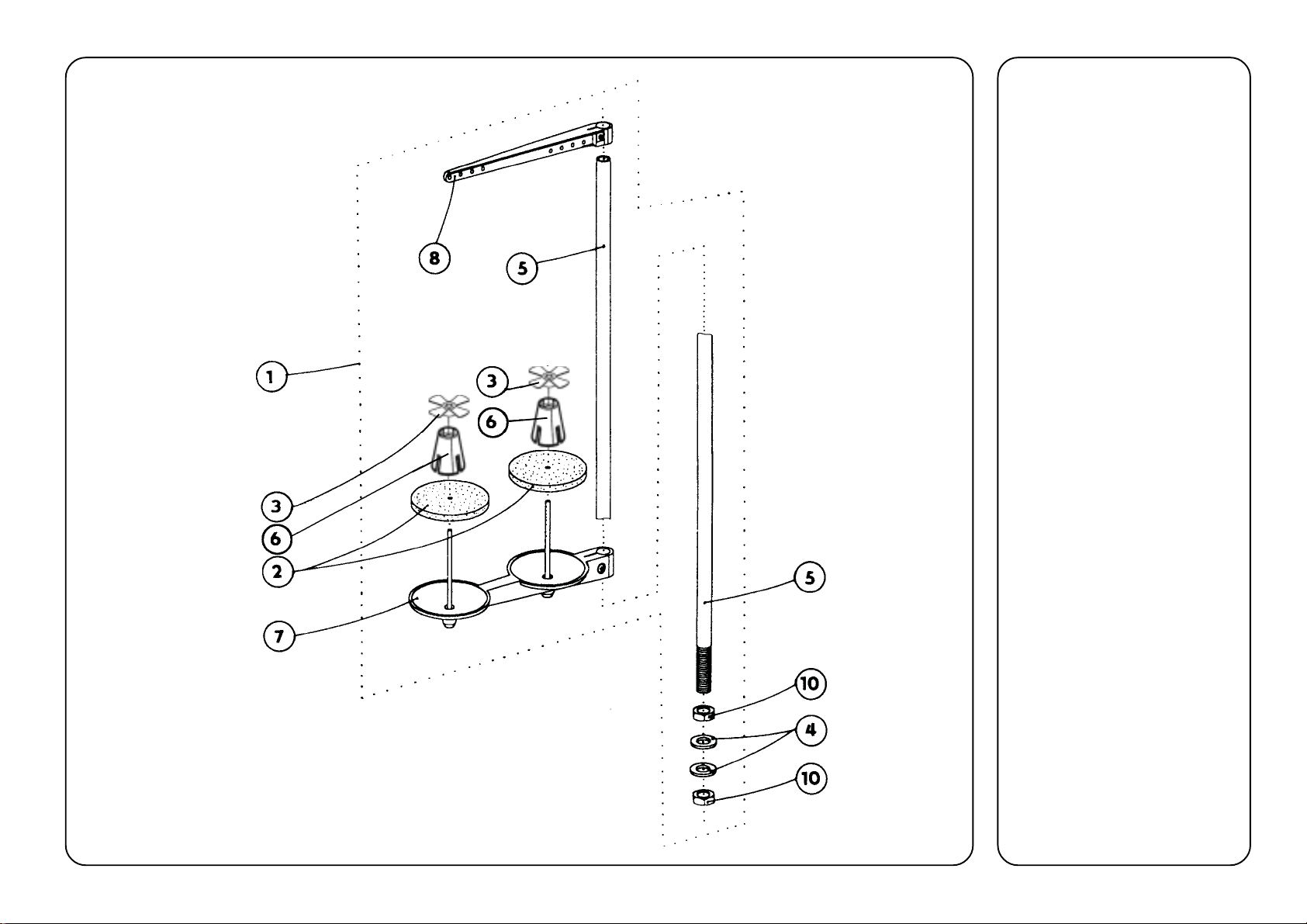

tab. 28
527 - 105
S980 099038 /5
1 S413 731023
2 S080 818273
3 S548 001000
4 S413 310002
5 S080 813481
6 S413 000500
7 S413 000400
8 S562 002000
9 S080 829796
10 S980 092220
·-
--
...
·······························································
·
···································
··
·······················.
Page 33
tab. 29
527 - 105
1 S980 092229
2 S080 265037 4 x
3 S321 953200 2 x
4 S315 264294 4 x
5 S080 683063 4 x
6 S080 683053 4 x
7 S273 025410 4 x
8 S080 685051 10 x
9 S080 690029 4 x
Page 34
tab. 30
527 - 105
S980 094051
Page 35

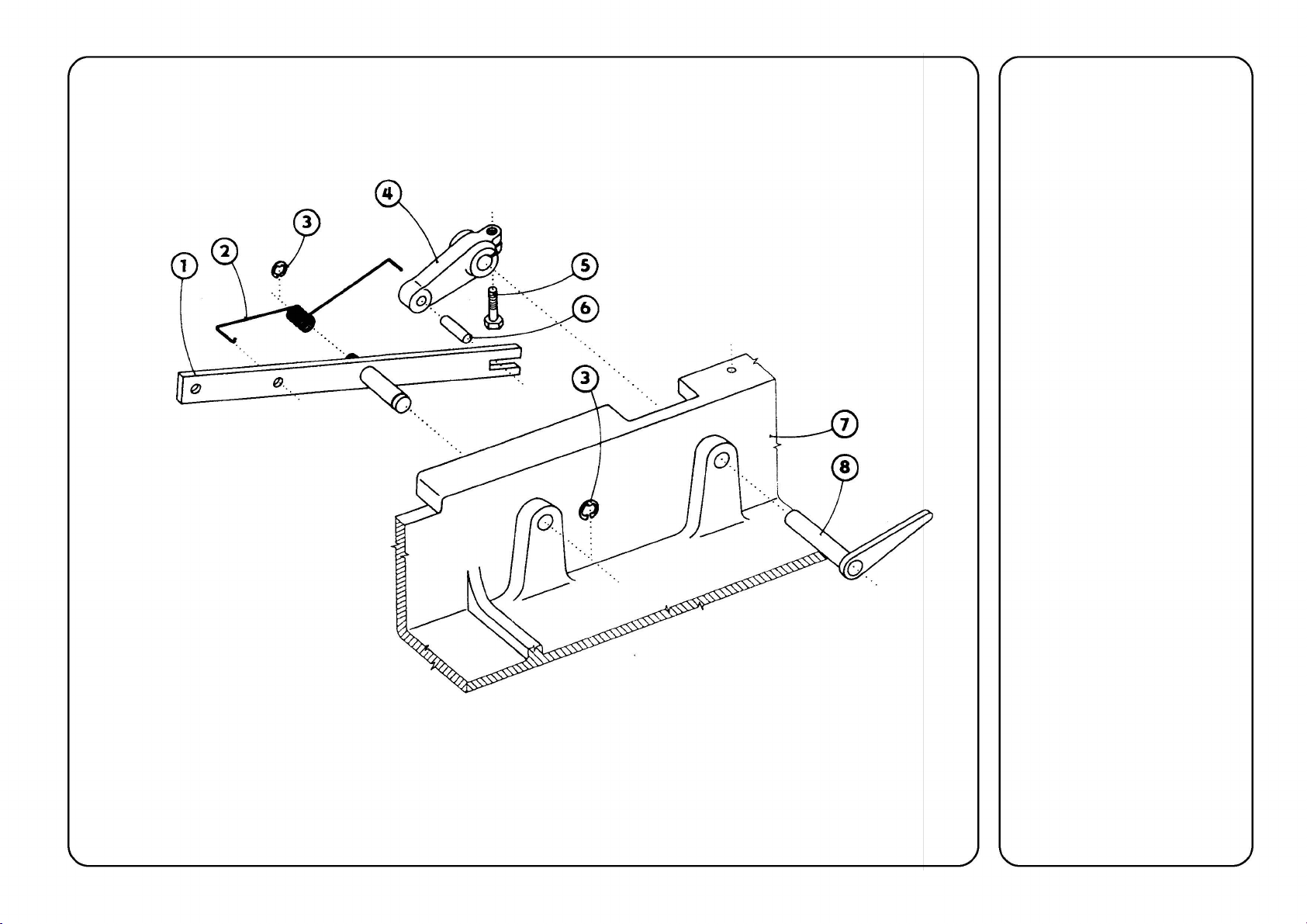

tab. 31
527 - 105
S791 995068
1 S080 316038
2 S080 161143
3 S080 161159
4 S080 632019
5 S080 342096
6 S080 161140
7 S080 111097
8 S080 613480
9 S311 515035
10 S080 120230
Page 36
tab. 32
527 - 105
527 E 461
S791 124061 35
1 134 No. 100 - 11x
2 S980 031603
3 S080 811634
4 S080 651428
Page 37
---~1
tab. 33
527 - 105
527 E 023
S791 400023
1 S980 031 604
2 S080 124 061
3 S080 049 443
4 S080 811 633
5 S980 022 282
6 S080 651 428
Page 38
tab. 34
527 - 105
527E048
S79143004835/1
7mm
527E060
S791430060 35/1 A
4mm
527E061
S791430061 35/1 B
5mm
1 S080 646459
2 S080 743106
3 S080 120217
4 S080 281133
5 S080 646460
6 S311 515026
7 S080 394203
7 S080 394158 A
7 S080 394159 B
8 S080 111109
9 134LRNo. 130 - 12 x
9 134LRNo. 90 -12 x A
9 134LRNo. 110 - 12 x B
10 S080 124086
11 S980 022840
11 S980 022867 A
11 S980 022868 B
12 S980 059054
13 S080 111212
15 S080 111142
21 S080 651499
21 S080 651509 A
21 S080 651510 B
22 S980 031645
23 S980 031646
Page 39
tab. 35
527 - 105
527E048
S79143004835/2
7mm
527E060
S79143006035/2
4mm
527E061
S79143006135/2
5mm
1 S080 310436
2 S080 112012
3 S080 825733
4 S080 190520
5 S080 135023
6 S080 120245
7 S080 049805
8 S080 118051
9 S080 828051
10 S080 271409
11 S080 132163
12 S080 313204
13 S080 827174
14 S080 262065
15 S080 161146
16 S081 200025
17 S080 171030
18 S080 161138
19 S080 414023
20 S315 264162
21 S080 118003
22 S080 195004
23 S080 421129
24 S311 515011
25 S311 510008
26 S080 828046
27 S080 827048
28 S315 262024
29 S080 173017
30 S080 828048
31 S080 418039
32 S080 828047
33 S080 171023
34 S980 025271
35 S980 025272
Page 40

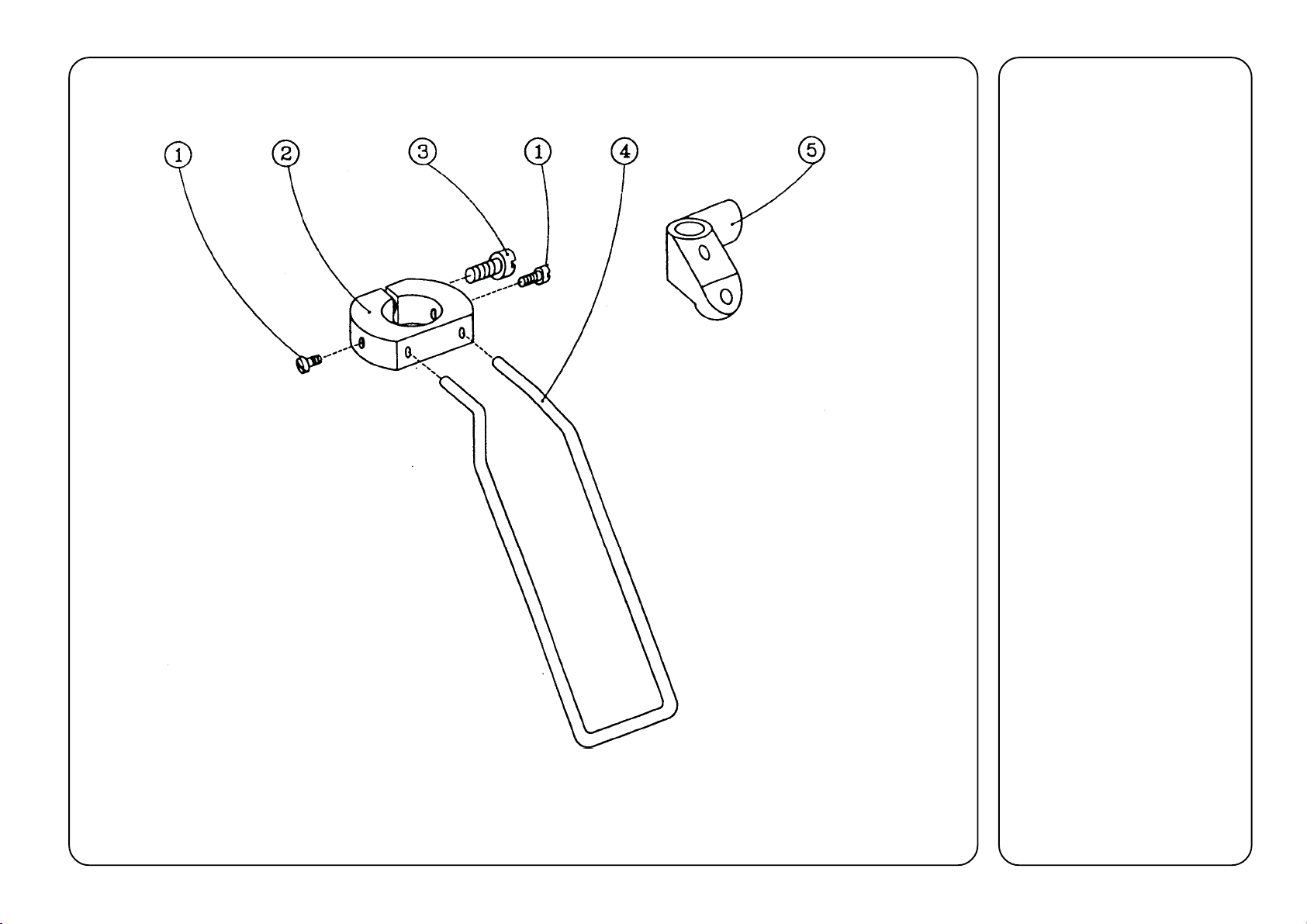

tab. 36
527 - 105
527 N 001
S791 149001
1 S080 120 037
2 S080 646 136
3 S080 120 225
4 S080 271 441
5 S080 627 037
Page 41
tab. 37
527 - 105
525 E 017
S791 151017
1 S980 031652
X = 10 mm
Page 42

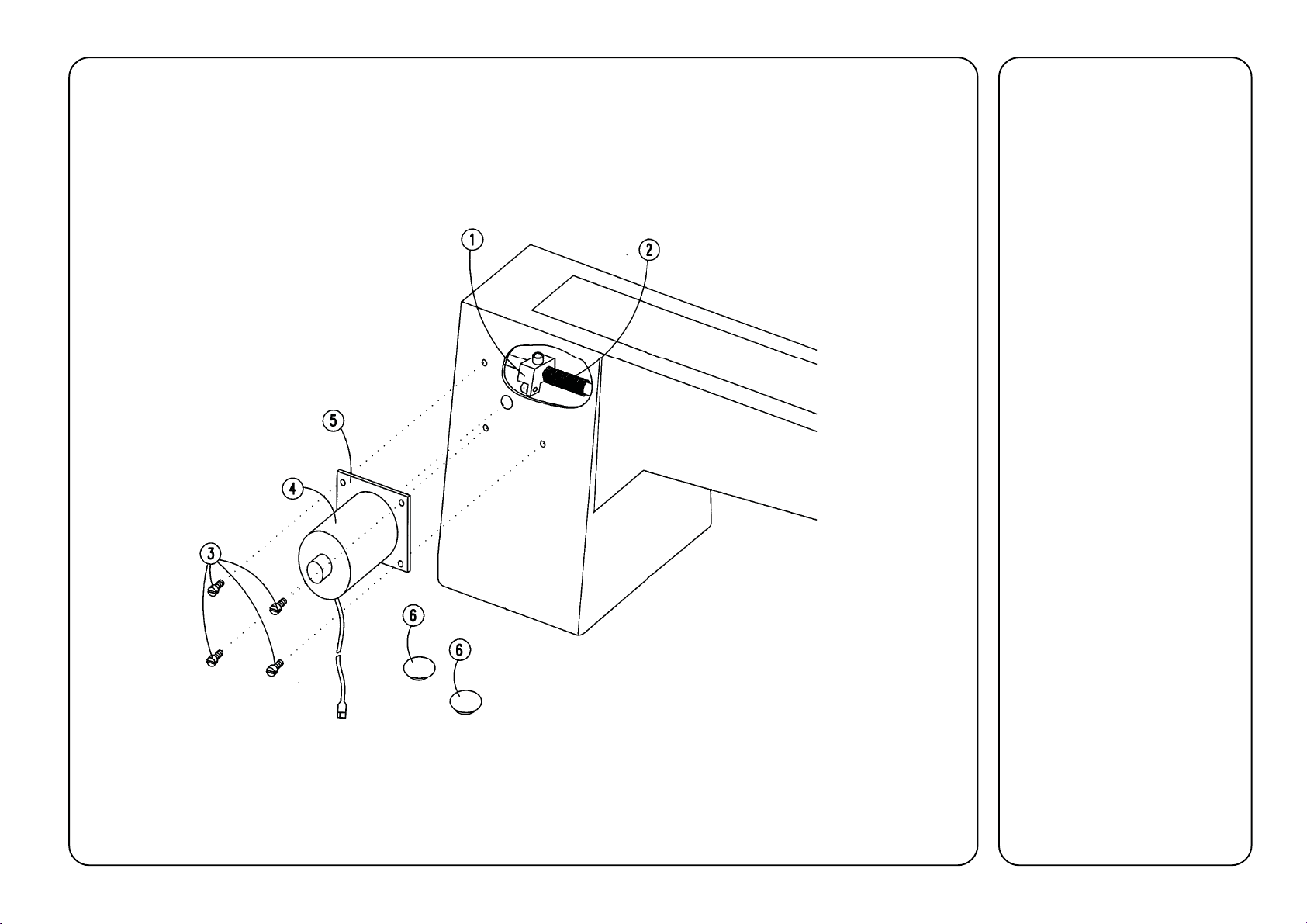

tab. 38
527 - 105
S791 995153
1 S980 060208
2 S080 260610
3 S080 120354
4 S981 094082
5 S080 831699
6 S321 000000
Page 43
tab. 39
527 - 105
1 S980 094057
1 S980 094060
S791 995154 /1
3 S080 132153
4 S980 044895
5 S080 441550
6 S980 043369
7 S080 441475
8 S080 120219
9 S980 233053
10 S080 190483
11 S080 342270
12 S980 035914
Page 44
tab. 40
527 - 105
S791 995154 /2
1 S980 094047
2 S080 613594
3 S080 120331
4 S080 191135
5 S080 120354
6 S080 191136
7 S080 120364
8 S311 732040
9 S080 314231
10 S080 826396
11 S080 342342
Page 45
tab. 41
527 - 105
Z 001
6
S791 947001
1 S080 133112
2 S080 646148
3 S080 814365
4 S080 814364
5 S080 192061
6 S080 131404
7 S080 831412
Page 46
tab. 42
527 - 105
527 Z 504
S741 410504 40
3x
Qt
S080
111109
5x
~
S080 123117
3x
~
S080
690029
3x
&-
S080 132216
3x
~
S080
122029
3x
~
S080 141088 S080
3x
~
S080
265037
5x
S080 627170
..
S315
264294
lx
S980 008251
p
S080
264281
S080 870140
5x
~
683063
lx
~
lx
lx
~
S080
S080
S980
5x
Ill
683053
·3x
~
136082
lx
025244
3x
,
S080 135029
3x
~
S080 124050
lx
87016 7
S080
3x
~
S080 120239
5x
~
S080
112013
3x
@
S273
025410
lx
S980 025160
Page 47
tab. 43
527 - 105
527 Z 055
S791 430055 35
1 S080 690029
2 S080 683063
3 S980 081122
4 S080 683053
5 S080 683064
6 S980 081161
7 S080 683067
8 S980 081160
9 S080 685051
10 S080 683083
11 S080 681029
12 134 No. 160 - 12x
Page 48
d
~····
...
.. ·
LJ
0
~
tab. 44
527 - 105
Z 012
S794 222012
1 S080 120692
2 S080 190346
3 0798 500088
4 0907 487519
5 9822 510001
~
~
.....
.
0
~
~
',
'_,I : ........
t-~
___
~-·~
,-.........
I
l I :
I I :
• I I I
I ' ' I •
I '
\ I < ' •
\I
' \ '
..>...._
I_.....,..
1'-
----'"•
~·-
(i
......
tiP-+'
:------",
~
~··q
I'
,,O}lr"'''•
.......
~'r:;
'-
I
,•-~-
: :
::.::--
~\\
' \
,,
..
~··
_...
.
•
·
·
.
Loading...
