User Instructions

Europe Energy Saving Notice
Energy Saving Matters (EuP 2009/125/EC)
Saving electric energy is a key to help protecting the enviroment.

Please turn o all electrical products when they are not in use. To

avoid power consumption in idle mode, disconnect all electrical

equipment from power when not in use. Thank you!

VF Snow Flurry HO Introduction

VF Snow Flurry HO Safety Precautions

Introduction: Congratulations, you have just purchased the VF Snow

Flurry HO snow machine. The VF Snow Flurry HO snow machine has

been designed to perform reliably for years when the guidelines in this
booklet are followed. Please read and understand the instructions in
this manual carefully and thoroughly before attempting to operate this

unit. These instructions contain important information regarding safety

during use and maintenance.

Customer Support: ADJ Products, LLC provides a toll free cus-

tomer support line, to provide set up help and to answer any question
should you encounter problems during your set up or initial operation.
You may also visit us on the web at www.adj.com for any comments or
suggestions. For service related issue please contact ADJ Products,
LLC. Service Hours are Monday through Friday 8:00 a.m. to 4:30 p.m.

Pacic Standard Time.
Voice: [phone]
Fax: [phone]

E-mail: [e-mail]

To purchase parts online visit http://parts.americandj.com

Warning! To prevent or reduce the risk of electrical shock or re, do

not expose this unit to rain or moisture.

Caution! There are no user serviceable parts inside this unit. Do not

attempt any repairs yourself, doing so will void your manufactures war­ranty. In the unlikely event your unit may require service please contact
ADJ Products, LLC.

Do not discard the shipping cartoon in the trash. Please recycle when
ever possible.

Please Note: Specications and improvements in the design of
this unit and this manual are subject to change without any prior
written notice.

• Be sure to save the packing carton in the unlikely event the unit

may have to be returned for service

• Do not spill water or other liquids into or on to your snow machine.
Be sure that all the snow uid is kept inside the uid reservoir

• Be sure that the local power outlet match that or the required

voltage for your snow machine

• Do not remove the top cover under any conditions. There are no

user serviceable parts inside

• Disconnect the unit’s main power when left unused for long peri-

ods of time

• Never connect this unit to a dimmer pack

• Do not attempt to operate this unit, if it becomes damaged in anyway

• Never operate this unit when it’s cover is removed

• To reduce the risk of electrical shock or re, do not expose this

unit rain or moisture

• Do not attempt to operate this unit if the power cord has been fray­ ed or broken. Do not attempt to remove or break o the ground
prong from the electrical cord. This prong is used to reduce the
risk of electrical shock and re in case of an internal short

• Disconnect from main power before making any type of connection

• Never block the ventilation holes. Always be sure to mount this

unit in an area that will allow proper ventilation. Allow about 6”
(15cm) between this device and a wall

• This unit is intended for indoor use only, use of this product out-

doors voids all warranties

• Always mount this unit in a safe and stable matter

• Please route your power cord out of the way of foot trac. Power

cords should be routed so they are not likely to be walked on,
pinched by items placed upon or against them

• The unit should only be serviced by qualified service personnel

when:

A. The power-supply cord or the plug has been damaged.
B. Objects have fallen, or liquid has been spilled into the unit.
C. The unit has been exposed to rain or water.
D. The appliance does not appear to operate normally or
exhibits a marked change in performance.

ADJ Products, LLC - VF Snow Flurry HO Instruction Manual Page 2 ADJ Products, LLC - VF Snow Flurry HO Instruction Manual Page 3

VF Snow Flurry HO DMX Set-Up

REMOTE

CONTROL

INPUT

POWER

INPUT OUTPUT

SOUND

REMOTE

CONTROL

INPUT

POWER

INPUT OUTPUT

SOUND

REMOTE

CONTROL

INPUT

POWER

INPUT OUTPUT

DMX512

DMX+,DMX-,COMMON

1

2

3

Termination reduces signal errors and
avoids signal transmission problems
and interference. It is always advisable
to connect a DMX terminal, (Resistance
120 Ohm 1/4 W) between PIN 2 (DMX-)
and PIN 3 (DMX +) of the last fixture.

POWER

SOUND

REMOTE

CONTROL

INPUT

POWER

INPUT OUTPUT

VF Snow Flurry HO DMX Set-Up

Power Supply: Before plugging your unit in, be sure the source volt-

age in your area matches the required voltage for your ADJ VF Snow

Flurry HO. The VF Snow Flurry HO is available in a 120v and 220v ver­sion. Because line voltage may vary from venue to venue, you should

be sure your unit voltages matches the wall outlet voltage before

attempting to operate you xture.

DMX-512: DMX is short for Digital Multiplex. This is a universal pro-

tocol used by most lighting and controller manufactures as a form of
communication between intelligent fixtures and controllers. A DMX

controller sends DMX data instructions from the controller to the fix­ture. DMX data is sent as serial data that travels from fixture to fixture
via the DATA “IN” and DATA “OUT” XLR terminals located on all DMX
fixtures (most controllers only have a DATA “OUT” terminal).

DMX Linking: DMX is a language allowing all makes and models

of dierent manufactures to be linked together and operate from a
single controller, as long as all xtures and the controller are DMX

compliant. To ensure proper DMX data transmission, when using
several DMX fixtures try to use the shortest cable path possible. The
order in which fixtures are connected in a DMX line does not influence
the DMX addressing. For example; a fixture assigned a DMX address
of 1 may be placed anywhere in a DMX line, at the beginning, at the
end, or anywhere in the middle. Therefore, the first fixture controlled
by the controller could be the last fixture in the chain. When a fixture
is assigned a DMX address of 1, the DMX controller knows to send
DATA assigned to address 1 to that unit, no matter where it is located
in the DMX chain.

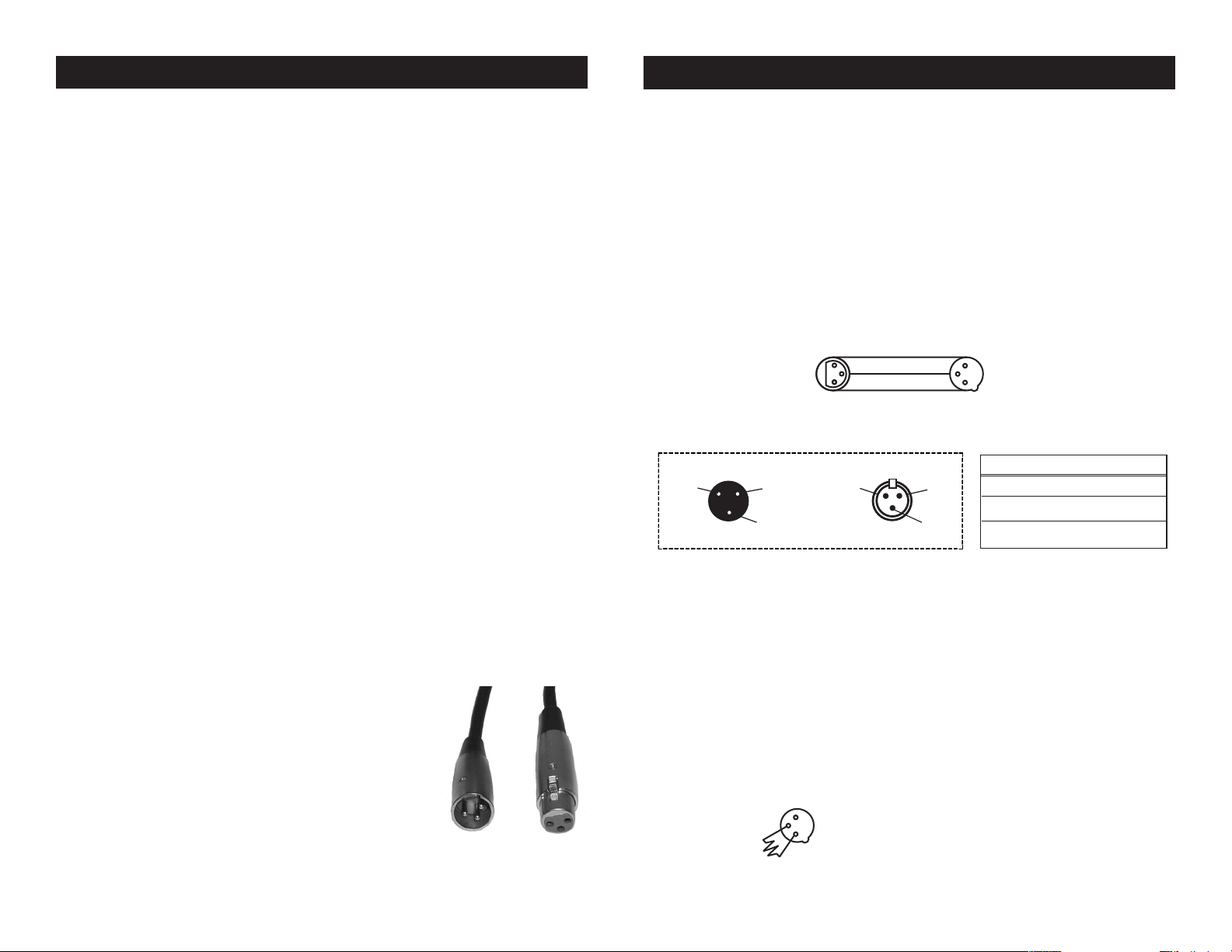

Data Cable (DMX Cable) Requirements (For DMX and Master/Slave
Operation): The VF Snow Flurry HO can be con-

trolled via DMX-512 protocol. The VF Snow Flurry
HO 1 channel DMX unit. The DMX address is set

using the dipswitches on the rear panel of the
unit. Your unit and your DMX controller require a

approved DMX-512 110 Ohm Data cable for data

input and data output (Figure 1). We recommend
Accu-Cable DMX cables. If you are making your

own cables, be sure to use standard 110-120 Ohm

Figure 1

shielded cable (This cable may be purchased at almost all professional

sound and lighting stores). Your cables should be made with a male

and female XLR connector on either end of the cable. Also remember

that DMX cable must be daisy chained and cannot be split.

Notice: Be sure to follow gures two and three when making your own

cables. Do not use the ground lug on the XLR connector. Do not con­nect the cable’s shield conductor to the ground lug or allow the shield
conductor to come in contact with the XLR’s outer casing. Grounding

the shield could cause a short circuit and erratic behavior.

COMMON

1

DMX512 IN

3

3-PIN XLR

2

Figure 2

XLR Pin Conguration

Pin 1 = Ground

Pin 2 = Data Compliment (negative)

Pin 3 = Data True (positive)

When longer runs of cable are

Figure 4

XLR Male Socket

1 Ground

DMX512 OUT

3-PIN XLR

2 Cold

3 Hot

1

2

3

2 Cold

DMX +

DMX -

XLR Female Socket

1 Ground

3 Hot

Figure 3

Special Note: Line Termination.

used, you may need to use a terminator on the last unit to avoid erratic
behavior. A terminator is a 110-120 ohm 1/4 watt resistor which is con-

nected between pins 2 and 3 of a male XLR connector (DATA + and
DATA -). This unit is inserted in the female XLR connector of the last

unit in your daisy chain to terminate the line. Using a cable terminator

(ADJ part number Z-DMX/T) will decrease the possibilities of erratic

behavior.

Termination reduces signal errors and

1

avoids signal transmission problems

3

and interference. It is always advisable

2

to connect a DMX terminal, (Resistance
120 Ohm 1/4 W) between PIN 2 (DMX-)
and PIN 3 (DMX +) of the last fixture.

ADJ Products, LLC - VF Snow Flurry HO Instruction Manual Page 4 ADJ Products, LLC - VF Snow Flurry HO Instruction Manual Page 5

VF Snow Flurry HO Description

VF Snow Flurry HO DMX Operation

The new VF Snow Flurry HO snow machine features a snow juice

level sensor. When the snow juice level reaches a low level, a built-in

sensor inside the reservoir will automatically shut off the pump. This
will greatly expand the life of the pump.

This unit includes a switch located on the rear panel that allows

you to control the speed of the air pump located inside the unit.

This switch controls the size of the flakes that are produced by the
machine. In the max position the air flow will be low, producing larger

flakes. In the minimum position the air flow will be higher produc-

ing smaller flakes. The snow output volume is controlled using the

included remote control.

VF Snow Flurry HO Set-Up

1. Open the shipping carton and carefully remove the unit from the

shipping carton.

2. Be sure to remove all the packing material especially around the
nozzle/sock.

3. Set the snow machine on a flat dry surface. Locate the included

bracket from the package and install it using the supplied hard-

ware to the side casing. Note: The bracket is an optional accesso-

ry and may not be used if desired, however if you intend to sus­ pend the unit from truss the bracket must be used.

4. Remove the fluid reservoir cap and fill it with American DJ® brand

snow juice only and replace the reservoir cap.

5. Place the feeder tube with the filter deep inside the reservoir and
tighten the cap.

6. Using the switch on the rear of the unit, set the air volume output
to either the minimum air volume setting (large snow flakes) or the

maximum air volume setting (small snow flakes).

7. Firmly attach the remote control unit to the rear remote control
socket on the unit. Turn the rotary knob, clockwise to set

a small to large snow output.

8. Plug the unit in to a matching power supply. Switch on the main
power located on the rear of the unit.

NOTE: The liquid reservoir will glow green when power is
applied.

ADJ Products, LLC - VF Snow Flurry HO - Instruction Manual Page 6 ADJ Products, LLC - VF Snow Flurry HO - Instruction Manual Page 7

DMX Mode:

The VF Snow Flurry HO has 1 DMX channel.

1. This function will allow you to control the fixture with a standard
DMX 512 controller.

2. You can directly plug the DMX cable and controller into the snow
machine and the snow machine will automatically detect the DMX
signal. When it detects it the display will show the DMX address,

you can use the UP or DOWN buttons to change the current DMX
address if you desire, and press ENTER to set the address.

3. The other way to connect via DMX is by setting the DMX address
first using the UP or DOWN buttons then pressing ENTER. The

address you have set will be the saved address and will appear
everytime you connect to DMX until you change the address.

4. After you have set your DMX address plug in the fixture via the

XLR connections to any standard DMX controller. Follow the set-

up specifications that come with your DMX controller.

VF Snow Flurry HO DMX Values & Traits

Channel Value Function

1 SNOW OUTPUT

0 - 1 0 F A N O F F N O S N O W O U T P U T
11 - 255 FAN ON SNOW OUTPUT
LEAST - MORE OUTPUT

VF Snow Flurry HO ADJ UC IR Control

The UC IR (not included) infrared remote gives you control of sim­ple functions. To control the fixture you must aim the remote at the

front of the fixture and be no more then 30 feet away. Note: When
DMX mode is active, UC IR will be inactive. UC IR function auto­matically saves the data from the last action.

1. To run your fixture using the UC IR, use the digital menu located
on the rear panel of the unit. Press the MENU button until “Ir” is
displayed and press ENTER.

STAND BY - On/Off

“DIMMER +” and “DIMMER -” - Use these buttons to adjust the out-

put intensity. “+” increases snow output, “-” decreases snow output.

VF Snow Flurry HO Timer Remote Control

VF Snow Flurry HO Warranty Registration

Always be sure to maintain an adequate supply of American
DJ Brand Snow Juice in the fluid reservoir. Running the snow
machine dry will cause pump failure and or clogging. This is the
largest cause of failure in snow, fog, and haze machines. Only
American DJ Snow Juice is recommended and not all snow juice
is created equal.

Timer Remote Operation: Start by connecting the remote to the

fog machine. The timer function allows fog to be emitted at desig-
nated intervals. The remote has three (3) LED’s that indicate different
functions. WHEN THE DMX MODE IS ACTIVE THE TIMER FUNC-

TION WILL NOT WORK.

- The YELLOW LED located to the left will indicate the timer is
turned on and is activated.

- The RED LED will indicate that the remote is plugged in and active.

- The GREEN LED located to the right is lit, it means that Timer
Remote control is active. This button is used to manually emit snow
from the machine. If DMX or UC IR remote is being used, the

green LED will not be lit. When fluid tank is empty, the LED will flash
indicating that the tank is empty.

The remote also contains three rotary knobs.

- The Duration knob sets the timers duration (Length of snow out-

put).

- The Interval knob sets the snow output intervals (Length between

snow output)

- The Output knob sets the amount of snow the machine will output.

The VF Snow Flurry HO snow machine carries a one year
(365 days) limited warranty. Please fill out the enclosed war-

ranty card to validate your purchase. All returned service items
whether under warranty or not, must be freight pre-paid and

accompany a return authorization (R.A.) number. The R.A.

number must be clearly written on the outside of the return

package. A brief description of the problem as well as the R.A.

number must also be written down on a piece of paper and
included in the shipping container. If the unit is under warranty,
you must provide a copy of your proof of purchase invoice. You

may obtain a R.A. number by contacting customer support at
[phone].

VF Snow Flurry HO Trouble Shooting

If you experience low snow output, pump noise, or no snow

output at all, disconnect and discontinue use immediately. Do
not attempt to continue pushing the remote control’s activa­tion button as this may damage the snow machine. Check fluid

level, the external fuse, remote connection, and be sure the wall

outlet is sending power. If all of the above appear to be okay,
and the unit fails to operate correctly, the unit will require ser­vice. Please contact ADJ Products, LLC.

VF Snow Flurry HO Proper Storage and Maintenance

Caution: Before removing or replacing the remote control unit

disconnect the power supply.

ADJ Products, LLC - VF Snow Flurry HO - Instruction Manual Page 8 ADJ Products, LLC - VF Snow Flurry HO - Instruction Manual Page 9

When storing your snow machine be sure to store it in a cool
area. Cover the machine so that dust does not build up on the
unit. When storing the machine for long periods of time, it is

highly advised to at least run the machine every 3-4 months.

Long periods of inactivity can severly shorten the life of your
machine. Only run water based snow juice through your ma­chine. Never run plain water, vinegar, or any other liquid solu-

tion through your machine. Running anything other then water

based snow juice will severly damage your machine.

VF Snow Flurry HO Warranty

MANUFACTURER’S LIMITED WARRANTY

A. ADJ Products, LLC hereby warrants, to the original purchaser, ADJ Products, LLC products
to be free of manufacturing defects in material and workmanship for a prescribed period from
the date of purchase (see specific warranty period on reverse). This warranty shall be valid only if the
product is purchased within the United States of America, including possessions and
territories. It is the owner’s responsibility to establish the date and place of purchase by acceptable
evidence, at the time service is sought.

B. For warranty service you must obtain a Return Authorization number (RA#)

before sending back the product–please contact ADJ Products, LLC Service Department
at 800-322-6337. Send the product only to the ADJ Products, LLC factory. All

shipping charges must be pre-paid. If the requested repairs or service (including
parts replacement) are within the terms of this warranty, ADJ Products, LLC will pay return
shipping charges only to a designated point within the United States. If the entire instrument is
sent, it must be shipped in it’s original package. No accessories should be shipped with the product. If
any accessories are shipped with the product, ADJ Products, LLC shall have no liability whatsoever for
loss of or damage to any such accessories, nor for the safe return thereof.

C. This warranty is void if the serial number has been altered or removed; if the product is modified in any
manner which ADJ Products, LLC concludes, after inspection, affects the reliability of the product; if the
product has been repaired or serviced by anyone other than the ADJ Products, LLC factory unless prior
written authorization was issued to purchaser by ADJ Products, LLC; if the product is damaged because
not properly maintained as set forth in the instruction manual.

D. This is not a service contract, and this warranty does not include maintnance, cleaning or periodic check
up. During the period specified above, ADJ Products, LLC will replace defective parts at its expense
with new or refurbished parts, and will absorb all expenses for warranty service and repair labor by
reason of defects in material or workmanship. The sole responsibility of ADJ Products, LLC under this
warranty shall be limited to the repair of the product, or replacement thereof, including parts, at the sole
discretion of ADJ Products, LLC. All products covered by this warranty were manufactured after August
15, 2012, and bear indentifying marks to that effect.

E. ADJ Products, LLC reserves the right to make changes in design and/or improvements upon its products
without any obligation to include these changes in any products theretofore manufactured.

No warranty, whether expressed or implied, is given or made with respect to any accessory supplied with
products described above. Except to the extent prohibited by applicable law, all implied warranties made
by ADJ Products, LLC in connection with this product, including warranties of merchantability or fitness,
are limited in duration to the warranty period set forth above. And no warranties, whether expressed or
implied, including warranties of merchantability or fitness, shall apply to this product after said period
has expired. The consumer’s and/or Dealer’s sole remedy shall be such repair or replacement as is
expressly provided above; and under no circumstances shall ADJ Products, LLC be liable for any loss or
damage, direct or consequential, arising out of the use of, or inability to use, this product.

This warranty is the only written warranty applicable to ADJ Products, LLC Products and
supersedes all prior warranties and written descriptions of warranty terms and conditions heretofore
published.

MANUFACTURER’S LIMITED WARRANTY PERIODS:

 •LightingProducts=1-year(365days)LimitedWarranty(Such as: Special Effect Lighting, Intelligent

Lighting, UV lighting, Strobes, Fog Machines, Bubble Machines, Mirror Balls, Par Cans, Trussing,
Lighting Stands etc. excluding LED and lamps)

 •LaserProducts=1Year(365Days)LimitedWarranty(excluding laser diodes which have a 6 month

limited warranty)

 •L.E.D.Products=2-year(730days)LimitedWarranty(excluding motors, PCB boards, and power
supplies, which have a 1-year (365 day Limited Warranty) batteries which have a 180 day limited war-

ranty). Only the L.E.D.s carry a 2-year warranty (excluding StarTec Series which a carries a 90 Day

Limited Warranty)

•ADJDMXControllers=2Year(730Days)LimitedWarranty(excluding faders and tact switches)

ADJ Products, LLC - VF Snow Flurry HO - Instruction Manual Page 10

VF Snow Flurry HO Specifications

MODEL - VF Snow Flurry HO

VOLTAGE*: 110v~50/60Hz or 220v~50/60Hz
WEIGHT: 17.5 Lbs. / 8 Kgs
DIMENSIONS: 20" (L) x 12.5 (W) x 13.75” (H)

510 x 316 x 349mm (With Bracket)
20” (L) x 12.5 (W) x 10.5” (H)
510 x 316 x 268mm (w/o Bracket)

FUSE: 15A (110V) or 10A (220V)
TANK CAPACITY: 2.3 Liter

SPRAY DISTANCE: 8-10 Meters

FLUID TYPE: American DJ Snow Juice
WARM UP TIME: No Warm Up Time
DUTY CYCLE: Not to exceed 6 hours turned on.

*Voltage is preset at the factory and may not be changed

ADJ Products, LLC

6122 S. Eastern Ave. Los Angeles, CA 90040 USA

Tel: [phone] / Fax: [phone]

Web: www.adj.com / E-mail: [e-mail]

A.D.J. Supply Europe B.V.

Junostraat 2

6468 EW Kerkrade

Netherlands

[e-mail] / www.adj.com

Tel: [phone] / Fax: [phone]
