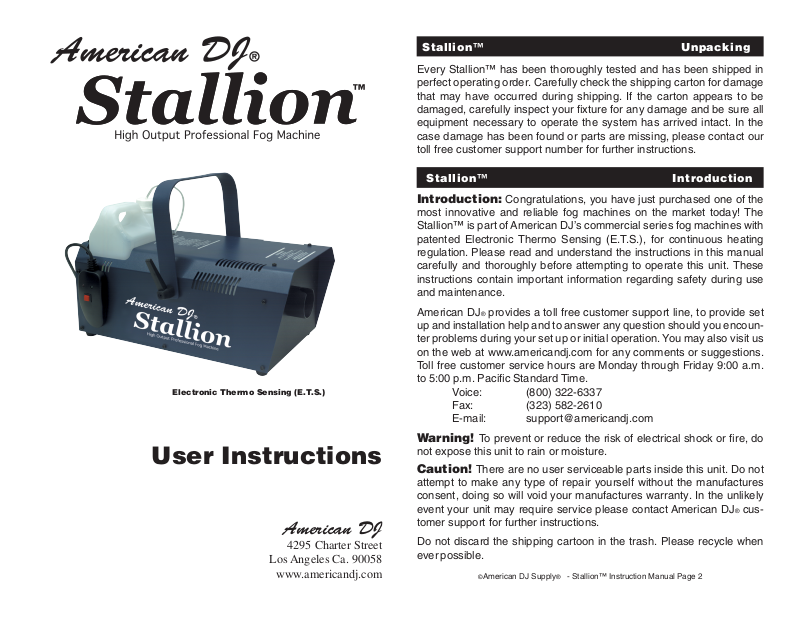

Page 1
Electronic Thermo Sensing (E.T.S.)
Stallion™ Unpacking
Every Stallion™ has been thoroughly tested and has been shipped in
perfect operating order. Carefully check the shipping carton for damage
that may have occurred during shipping. If the carton appears to be
damaged, carefully inspect your xture for any damage and be sure all
equipment necessary to operate the system has arrived intact. In the
case damage has been found or parts are missing, please contact our
toll free customer support number for further instructions.
Stallion™ Introduction
Introduction: Congratulations, you have just purchased one of the
most innovative and reliable fog machines on the market today! The
Stallion™ is part of American DJ’s commercial series fog machines with
patented Electronic Thermo Sensing (E.T.S.), for continuous heating
regulation. Please read and understand the instructions in this manual
carefully and thoroughly before attempting to operate this unit. These
instructions contain important information regarding safety during use
and maintenance.
American DJ® provides a toll free customer support line, to provide set
up and installation help and to answer any question should you encounter problems during your set up or initial operation. You may also visit us
on the web at www.americandj.com for any comments or suggestions.
Toll free customer service hours are Monday through Friday 9:00 a.m.
to 5:00 p.m. Pacic Standard Time.
Voice: (800) 322-6337
Fax: (323) 582-2610
E-mail: [email protected]
User Instructions
American DJ
4295 Charter Street
Los Angeles Ca. 90058
www.americandj.com
Warning! To prevent or reduce the risk of electrical shock or re, do
not expose this unit to rain or moisture.
Caution! There are no user serviceable parts inside this unit. Do not
attempt to make any type of repair yourself without the manufactures
consent, doing so will void your manufactures warranty. In the unlikely
event your unit may require service please contact American DJ® customer support for further instructions.
Do not discard the shipping cartoon in the trash. Please recycle when
ever possible.
©American DJ Supply® - Stallion™ Instruction Manual Page 2
Page 2
Stallion™ Safety Warnings
• NEVER POINT OR AIM THIS DEVICE TOWARDS PEOPLE OR THEIR
CLOTHING.
• Keep this device dry at all times. Do not spill water or other liquids in to or
on to your haze machine. Be sure that all the haze uid is kept inside the
uid reservoir.
• Never overll the unit’s reservoir. Overlling may cause the unit to clog.
• This unit is designed for interior use only. Do not use this unit outdoors.
• Be sure that the local power outlet match that or the required voltage for
your haze machine.
• Do not attempt to operate this unit if the power cord has been frayed or
broken. Please route your power cord out of the way of foot trafc.
• Do not attempt to remove or break off the ground prong from the electrical
cord. This prong is used to reduce the risk of electrical shock and re in
case of an internal short.
• Disconnect from main power before making any type of connection.
• Do not remove the top cover under any conditions. There are no user
serviceable parts inside.
• Disconnect the unit’s main power when left unused for long periods of time.
• Never connect this unit to a dimmer pack
• Always be sure to install this unit in area that will allow proper ventilation.
Allow about 6” (15cm) between this device and a wall.
• Never block the ventilation holes.
• Do not attempt to operate this unit, if it becomes damaged in any way.
• Never operate this unit when it’s cover is removed.
• For adult use only. Fogger must be installed out of the reach of children.
• Never leave the unit running unattended. Keep out of reach of children
• Never aim the output at open ames.
• Never add ammable liquids of any kind (oil, gas, perfume) to the fog juice.
• Use only American DJ® brand fog juice.
• Always make sure there is sufcient fog juice in the tank reservoir. Operating
this unit without fog juice may cause permanent damage to the machine.
• If your Hazer fails to work properly, discontinue use immediately. CONTACT
American DJ® FOR FURTHER INSTRUCTIONS.
• Never drink fog juice. If it is ingested, call a doctor immediately. If fog juice
comes in contact with skin or eyes, rinse thoroughly with water.
• To prevent or reduce the risk of electrical shock or re, do not expose this unit
to rain or moisture.
• Never leave this unit plugged in overnight
Stallion™ Features
• 1300 watt professional heater core.
• 10,000 cubic feet of fog output.
• 10 Foot wired remote control.
• Built in fuse protection.
• One quart tank capacity.
• Built in E.T.S.™ - (Electronic Thermal Sensing™).
• Optional wireless remote control.
• Optional wired timer remote control with volume output control.
Stallion™ Electronic Thermo Sensing
This feature allows you to have fog output available at almost any time,
however the machine does not have continuous output. A small on
board micro processor constantly monitors the operating temperature
of the fog machine. When the fog machine drops one (1) degree in
temperature the E.T.S., automatically senses this change and turns the
heater on to raise the temperature that one degree lost. This enables
the end user to have fog output at anytime. The only time fog will not
be available, is at the end of the machines duty cycle (The fog output
was maxed-out and the heater has to reheat completely).
Stallion™ Operating Instructions
Plug the remote into the rear of the fogger. Plug the Stallion™ into a
standard 110V/120V supply. Always be sure to maintain an adequate
supply of American DJ® Brand Fog Juice™ in the fluid reservoir.
Running the fog machine dry will cause pump failure and or clogging.
This is the largest cause of failure in fog machines. Only American DJ
Fog Juice™ is recommended and not all fog juice is created equal,
other brand juices may cause clogging.
The fogger has no power switch, so the unit is automatically turned
on when it is plugged in. Once the machine is plugged in, a red L.E.D.
on the remote and the rear on the unit will indicated the fogger is
receiving power.
The unit has a warm up time of five (5) minutes. Once the machine
has warmed up to normal operating temperature, the green L.E.D. on
the remote will begin to glow. The glowing Green LED on the remote
indicates the unit is ready to emit fog.
©American DJ Supply® - Stallion™ Instruction Manual Page 3
©American DJ Supply® - Stallion™ Instruction Manual Page 4
Page 3
Stallion™ Operating Instructions Cont.
Stallion™ Warranty Card
To emit fog, press and hold the red button on the remote control. Fog
will continue to emit until the red remote button is released or the unit
has to recycle.
If the GREEN L.E.D. is on and fog does not come out after holding the
output button down for 30 seconds, check the fluid tank and hose to
make sure there is fluid going through the hose. If fluid seems to be
traveling through the line, try one more 30 second burst. If the machine
still fail to emit fog do not try again. Shut down your machine and
contact customer support for further instructions.
Caution: Before removing or replacing the remote unit disconnect the
power supply.
Stallion™ Trouble Shooting
If you experience low output, pump noise, or no output at all, disconnect immediately. Do not attempt to continue pushing the remote
button as this may damage unit. Check fluid level, the external fuse,
remote connection, and check power from wall. If all of the above
appear to be okay, and the unit fails to operate correctly, the unit will
require service. Return the machine to an American DJ® authorized
dealer or service center.
The STALLION™ carries a 90 day limited warranty. We recommend
you fill out the enclosed warranty card to validate your purchase. All
returned service items whether under warranty or not, must be freight
pre-paid and accompany a R.A. Number. If the unit is under warranty,
you must provide a proof of purchase invoice.
Stallion™ Optional Accessories
You can add functionality to your fogger by purchasing these
great options
1. Timer remote: This remote will allow you to run your fogger on ‘Auto
Pilot,’ controlling the duration and interval of the foggers blast.
Allowing for hands free operation.
2. Wireless remote: This remote will allow you to set your fogger on
one end of a room and control it from another, without the hassle
of running a long cable. This will allow for you to control your
fogger up to 100 feet away.
We recommend you fill out the enclosed warranty card to validate
your purchase. All returned service items whether under warranty or
not, must be freight pre-paid and accompany an return authorization
number (R.A. #). If the unit is under warranty, you must provide a proof
of purchase invoice. Contact customer support for an R.A.#.
Stallion™ Clean Machine
To help prevent the unit from clogging, use American DJ® Clean
Machine™ liquid. Clean Machine is recommended when storing your
fogger for more than 1 week, or at least once a month as normal
maintenance under regular usage. Clean Machine removes particle
build up in the heater and gives longer life to the fog machine. Clean
Machine is like a tune up for your fog machine! Clean Machine is
available in gallon or quart bottles.
©American DJ Supply® - Stallion™ Instruction Manual Page 5 ©American DJ Supply® - Stallion™ Instruction Manual Page 6
F-Wirel ess /Vap: 100 foot wireless
remote control
F-Tim e r/Vap: Timer co ntr o l
for use with Stallion
Page 4
Stallion™ Warranty
90 DAY LIMITED WARRANTY
A. American DJ® hereby warrants, to the original purchaser, American DJ® products to be
free of manufacturing defects in material and workmanship for a period of 90 days from the
date of purchase. This warranty shall be valid only if the product is purchased within the
United States of America, including possessions and territories. It is the owner’s responsibility to establish the date and place of purchase by acceptable evidence, at the time service
is sought.
B. For warranty service, send the product only to the American DJ® factory. All shipping
charges must be pre-paid. If the requested repairs or service (including parts replacement)
are within the terms of this warranty, American DJ® will pay return shipping charges only to a
designated point within the United States. If the entire instrument is sent, it must be shipped
in its original package. No accessories should be shipped with the product. If any accessories
are shipped with the product, American DJ® shall have no liability whatsoever for loss of or
damage to any such accessories, nor for the safe return thereof.
C. This warranty is void if the serial number has been altered or removed; if the product
is modied in any manner which American DJ® concludes, after inspection, affects the reliability of the product; if the product has been repaired or serviced by anyone other than the
American DJ® factory unless prior written authorization was issued to purchaser by American DJ®; if the product is damaged because not properly maintained as set forth in the
instruction manual.
D. This is not a service contract, and this warranty does not include maintenance, cleaning
or periodic check-up. During the period specied above, American DJ® will replace defective
parts at its expense, and will absorb all expenses for warranty service and repair labor by
reason of defects in material or workmanship. The sole responsibility of American DJ® under
this warranty shall be limited to the repair of the product, or replacement thereof, including
parts, at the sole discretion of American DJ®. All products covered by this warranty were
manufactured after January 1, 1990, and bear identifying marks to that effect.
E. American DJ® reserves the right to make changes in design and/or improvements upon
its products without any obligation to include these changes in any products theretofore
manufactured.
SPECIFICATIONS:
MODEL - Stallion™
ELECTRONIC THERMO SENSING
WEIGHT: 17 LBS.
DIMENSIONS: 6.25" X 8.5" X 15.5"
FUSE: 15A AGC
SUPPLY VOLTAGE: 120V
WARM UP TIME: 5 Minutes
TANK CAPACITY: 2 Liter Removable
OUTPUT: 10,000 cubic feet per minute
FLUID TYPE: Water Base American DJ Fog
Juice™
DUTY CYCLE: Not to exceed 6 hours turned on.
HEATER: 1,300 Watts
Specications and improvements in the design of this unit and this
manual are subject to change without any prior written notice.
SAFETY ISSUES:
NEVER POINT OR AIM A FOG MACHINE TOWARDS PEOPLE OR
THEIR CLOTHING. THIS UNIT EMITS HOT VAPOR AND SHOULD
BE USED WITH THE SAME CARE THAT YOU WOULD OBSERVE
WHEN USING AN ELECTRIC KETTLE OR IRON.
IF THE POWER SUPPLY CORD IS DAMAGED, IT MUST BE
REPLACED BY MANUFACTURER OR ITS SERVICE AGENT OR
SIMILARLY QUALIFIED PERSON IN ORDER TO AVOID A HAZARD.
F. No warranty, whether expressed or implied, is given or made with respect to any accessory supplied with products described above. Except to the extent prohibited by applicable
law, all implied warranties made by American DJ® in connection with this product, including
warranties of merchantability or tness, are limited in duration to the warranty period set forth
above. And no warranties, whether expressed or implied, including warranties of merchantability or tness, shall apply to this product after said period has expired. The consumer’s and
or Dealer’s sole remedy shall be such repair or replacement as is expressly provided above;
and under no circumstances shall American DJ® be liable for any loss or damage, direct or
consequential, arising out of the use of, or inability to use, this product.
G. This warranty is the only written warranty applicable to American DJ® Products and
supersedes all prior warranties and written descriptions of warranty terms and conditions
heretofore published.
©American DJ Supply® - Stallion™ Instruction Manual Page 7
American DJ Supply World Headquarters:
4295 Charter Street Los Angeles, CA 90058 USA
Tel: 323-582-2650 Fax: 323-582-2610
Web: www.americandj.com E-mail: [email protected]
Loading...
