Spinout™ Introduction
American DJ®
Spinout
DMX Intelligent Moon Flower
Introduction:
Thank you for purchasing the American DJ Spinout.™ To optimize the performance of this product, please read these operating instructions carefully to familiarize yourself with the basic operations of this unit. The American DJ® Spinout™ is a unique unit, it is actually four effects in a single xture. This unit has been tested at the factory before being shipped to you. There is no assembly required.
Customer Support:
American DJ® provides a toll free customer support line, to provide set up help and to answer any question should you encounter problems during your set up or initial operation. You may also visit us on the web at www.americandj.com for any comments or suggestions.
Service Hours are Monday through Friday 10:00 a.m. to 5:00 p.m. Pacic Time. Voice: (800) 322-6337 Fax: (323) 582-2610 E-mail: [email protected]
Warning! To prevent or reduce the risk of electrical shock or re, do
not expose this unit to rain or moisture.
User Instructions
American DJ
4295 Charter Street
Los Angeles Ca. 90058
www.americandj.com
Caution! There are no user serviceable parts inside this unit. Do not
attempt any repairs yourself. Doing so will void your manufactures war­ranty.
Do not discard this cartoon in the trash. Please recycle when ever pos­sible.
HALOGEN LAMP WARNING!
This fixture is fitted with halogen lamps which are highly susceptible to damage if improperly handled. Never touch lamp with bare fingers as the oil from your hands will shorten lamp life. Also, never move fixture until lamp has had ample time to cool. Remember, lamps are not covered under warranty conditions.
Page 2
Spinout™ Warnings
Spinout™ Features
• Do not spill water or other liquids in to or on to your unit.
• Be sure that the local power outlet match that of the required voltage for your fixture.
• Do not attempt to operate this unit if the power cord has been frayed or broken. Please route your power cord out of the way of foot traffic.
• Do not attempt to remove or break off the ground prong from the electrical cord. This prong is used to reduce the risk of electrical shock and fire in case of an internal short.
• Disconnect from main power before making any type of connection.
• Do not remove the top cover under any conditions. There are no user serviceable parts inside.
• Disconnect the unit’s main power when left unused for long periods of time.
• Never connect this unit to a dimmer pack
• Always be sure to mount this unit in area that will allow proper ventilation. Allow about 6” (15cm) between this device and a wall.
• Never block the ventilation holes.
• Do not attempt to operate this unit if it becomes damaged in any way.
• Never operate this unit when it’s cover is removed.
Spinout™ General Instructions
Congratulations and thank you for purchasing the American DJ® Spinout,™ one of the finest pieces of its kind on the market today! The Spinout™ is a great intelligent moonflower fixture. This unit is a great piece for mobile DJ’s, clubs, roller rinks, bars, and bowling centers. When used in multiples of two (2) or more, this unit creates an effect that rivals that of units that can cost up to three times the price. The Spinout™ was designed to run in both master/slave and DMX modes. To customize the operation of your Spinout,™ we recommend using this fixture with a standard DMX controller such as the American DJ® Show Designer™ or the American DJ® DMX Operator.™
Spinout™ Features
The Spinout™ features a bright 250 watt, ELC-3, long life lamp. This unit also features a separate gobo and color wheel and has a four function special effects wheel. The color wheel features seven brilliant colors plus white and the gobo wheel features 9 gobos plus a large and small spot. This unit is ready to be installed or hung and powered right out of the box. There is no assembly required. This fixture incorporates the use of high quality stepper motors for more accurate movements. An internal built in microphone allows the fixture to run in Stand Alone mode so there is no need for an external controller. The Spinout™ may also be set-up to run in a Master-Slave mode when used in multiples of up to 16 units. When used in the Master-Slave mode, the unit will chase to several internal programs. The Spinout™ can also be controlled via a standard DMX controller giving the user independent control over the gobo and color wheel as well as allowing you to control the effects wheel.
Please read and understand the instructions in this manual carefully and thoroughly before attempting to operate this unit. These instructions contain important information regarding safety during use and mainte­nance. Please keep this manual with the unit for future reference.
©American DJ Supply® - www.americandj.com - Spinout™ Instruction Manual Page 3 ©American DJ Supply® - www.americandj.com - Spinout™ Instruction Manual Page 4
Page 3
Spinout™ Set Up
1
2
3
1
2
3
DMX +
DMX -
COMMON
DMX512 IN
(X-CALIBUR)
CONNECTOR
3 PIN
DMX512 OUT
CONTROLLER
CONNECTOR
3 PIN
1
2
3
Termination reduces signal errors and avoids signal transmission problems and interference. It is always advisable to connect a DMX terminal, (Resistance 120 Ohm 1/4 W) between PIN 2 (DMX-) and PIN 3 (DMX +) of the last fixture.
REMOTE
CONTROL
INPUT
POWER
INPUT OUTPUT
SOUND
REMOTE
CONTROL
INPUT
POWER
INPUT OUTPUT
SOUND
REMOTE
CONTROL
INPUT
POWER
INPUT OUTPUT
DMX512
DMX+,DMX-,COMMON
1
2
3
Termination reduces signal errors and avoids signal transmission problems and interference. It is always advisable to connect a DMX terminal, (Resistance 120 Ohm 1/4 W) between PIN 2 (DMX-) and PIN 3 (DMX +) of the last fixture.
POWER
SOUND
REMOTE
CONTROL
INPUT
POWER
INPUT OUTPUT
Spinout™ Set Up Cont.
Unpacking:
Every Spinout™ has been thoroughly tested and has been shipped in perfect operating order. Carefully check the shipping carton for damage that may have occurred during shipping. If the carton appears to be damaged, carefully inspect your fixture for any damage. In the case damage has been found, please contact our toll free customer support number for further instructions.
Power Supply:
Before plugging your unit in, be sure the source voltage in your area matches the required voltage for your American DJ® Spinout.™ The American DJ® Spinout™ is available in a 115v and 230v version. Be sure to plug your power cord into a matching wall outlet before attempting to operate your unit.
Data Cable (DMX Cable) Requirements:
Your fixture and your controller require a standard 3-pin XLR connector for data input and data output (Figure
1). If you are making your own cables be sure to use standard two conductor shielded cable (This cable may be purchased at almost all pro sound and lighting stores). Your cables should be made with a male and female XLR connector on either end of the cable. Also remember that DMX cable must be daisy chained and can not be “Y”ed or split.
Notice: Do not use the ground lug on the XLR connector. Do not connect the
cable’s shield conductor to the ground lug or allow the shield conductor to come in contact with the XLR’s outer casing. Grounding the shield could cause a short circuit and erratic behavior.
Figure 1
XLR Male Socket
TH
EAR
1
2 COL
D
XLR Female Socket
D 2
COL
XLR Pin Conguration:
Pin 1 = Shield
TH
EAR
1
Pin 2 = Data Compliment (negative)
T
HO
T
HO
3
Special Note: Line Termination.
3
Pin 3 = Data True (positive)
Figure 3
When longer runs of cable are used, you may need to use a terminator on the last unit to avoid erratic behavior. A terminator is a 90-120 ohm 1/4 watt resistor which is connected between pins 2 and 3 of a male XLR connector (see figure 4). This unit is inserted in the female XLR connector of the last unit in your daisy chain. Using a cable terminator will decrease the possibilities of erratic behavior and control problems.
Figure 4
Linking:
The Spinout™ is a DMX intelligent unit and must follow standard DMX proto­col. A DMX signal cannot be split or “Y-ed” unless you are using an approved DMX splitter such as the American DJ® DMX Branch 4.™ Link your units together using standard DMX cable as described on page 6 of this manual. Be sure that each fixture follows an “IN”/”OUT” pattern starting from your DMX controller. Your controller will always be the first output in a DMX chain. Link all your DMX devices together regardless of their brand or type.
Notice: Be sure to follow figure 2 when making your own cables.
Figure 2
©American DJ Supply® - www.americandj.com - Spinout™ Instruction Manual Page 5 ©American DJ Supply® - www.americandj.com - Spinout™ Instruction Manual Page 6
Page 4
Spinout™ Operating Instructions
For best results, use fog or special effects smoke to enhance the beams projections. Please make all connection before powering the units.
Stand-Alone Operation (Sound Active):
1. To operate as a stand alone unit, via its internal programs and micro phone, turn all the dip switches to the off position.
2. Adjust the audio sensitivity knob on the rear of the unit to make the unit more or less sensitive to sound.
3. The Spinout™ will now react to the bass tone of music via the internal microphone.
Master-Slave Operation (Sound Active): There are two different Master-Slave modes. One mode syncs all the units together, this means all the unit will do the exact same thing at the same time. The second mode runs the units to a built-in chase.
1. This function will allow you to link up to 16 units.
2. In Master-Slave operation one unit will act as the controlling unit and the others will react to the controlling units programs. Any unit can act as a Master or as a Slave.
3. Daisy chain your units via the XLR connectors on the rear of the units.
4. Use standard XLR microphone cables to link your units together. Remember that the Male XLR connector is the input and the Female XLR connector is the output.
5. The first unit in the chain (master) will use the female XLR connector only. The last unit in the chain will use the male XLR connector only.
6. Mode One - Sync Mode: Turn the dip switches on the Master unit to the off position. For all the remaining units (slaves), turn dip switch number one “on.” Note only the first fixture in the line (master) may use the master units dip switch settings - all “off.”
7. Mode Two: Set you dip switches according to the chart on page 13.
8. After all the units settings have been set and all cables are plugged in, adjust the sensitivity knob on the rear of the master unit to make them more or less sensitive to sound.
Spinout™ Operating Instructions
DMX Operation:
1. Operating through a DMX controller gives you freedom to create your own programs tailored to your needs. This function also allows you to use your fixtures as color changers.
2. This operation will allow you to control each individual fixtures traits with a standard DMX 512 controller such as the American DJ Show Designer
™ or the American DJ® DMX Operator.™
3. The Spinout™ uses four DMX channels to operate; Channel 1 controls dish rotation, channel 2 changes the effect wheel, channel 3 controls Color wheel, and channel 4 controls Gobo wheel. See page 11 for the DMX traits chart.
4. To run your fixture in DMX mode, plug in the fixture via the XLR connections to any standard DMX controller. Follow the set-up specifications that come with the controller.
Spinout™ Focusing
1. To focus a Spinout,™ it is best to first turn down the music sensitivity knob to its minimum position (counter-clockwise).
2. Loosen the Phillips screws on the bottom of the unit that hold the lens in place.
3. Adjust the focus by manually sliding the lens back and forth.
4. Tighten the screws after you achieve your desired focus.
Note: Stand-Alone and Master-Slave operation require sound to activate!
©American DJ Supply® - www.americandj.com - Spinout™ Instruction Manual Page 7 ©American DJ Supply® - www.americandj.com - Spinout™ Instruction Manual Page 8
Page 5
Spinout™ Lamp Replacement
CHANNEL
1 2 3 4
COLOR GOBOROTATION
EFFECT WHEEL
DMX512
LEVEL RANGE
0 - 255
99 95 89 85 79 75 69 65 59 55 49 45 39 35 29 25 19 15
9 5 0
255
200
MAGENTA
ORANGE
YELLOW
LIGHT
GREEN
BLUE
RED
WHITE
PURPLE
Lamp Replacement: Caution! Never open the unit when in use. Always disconnect the main power and allow the unit ample time to cool before attempting to replace the lamp. Remember to always replace with the exact same type lamp and fuse, unless otherwise instructed to do so buy an authorized American DJ® service technician.
1. Be sure to follow the proper procedures when handling halogen bulbs.
2. Lamp replacement has been made simple by incorporating the use of a removable front cover and thumb screws.
3. Loosen the thumb screws on front cover.
4. Remove the cover.
5. Remove and replace the bulb.
6. Reassemble.
Spinout™ Fixture Cleaning
Due to fog residue, smoke, and dust cleaning the internal and external optical lenses must be carried out periodically to optimize light output. Cleaning frequency depends on the environment in which the fixture operates (I.e. smoke, fog residue, dust, dew).
Spinout™ DMX Traits

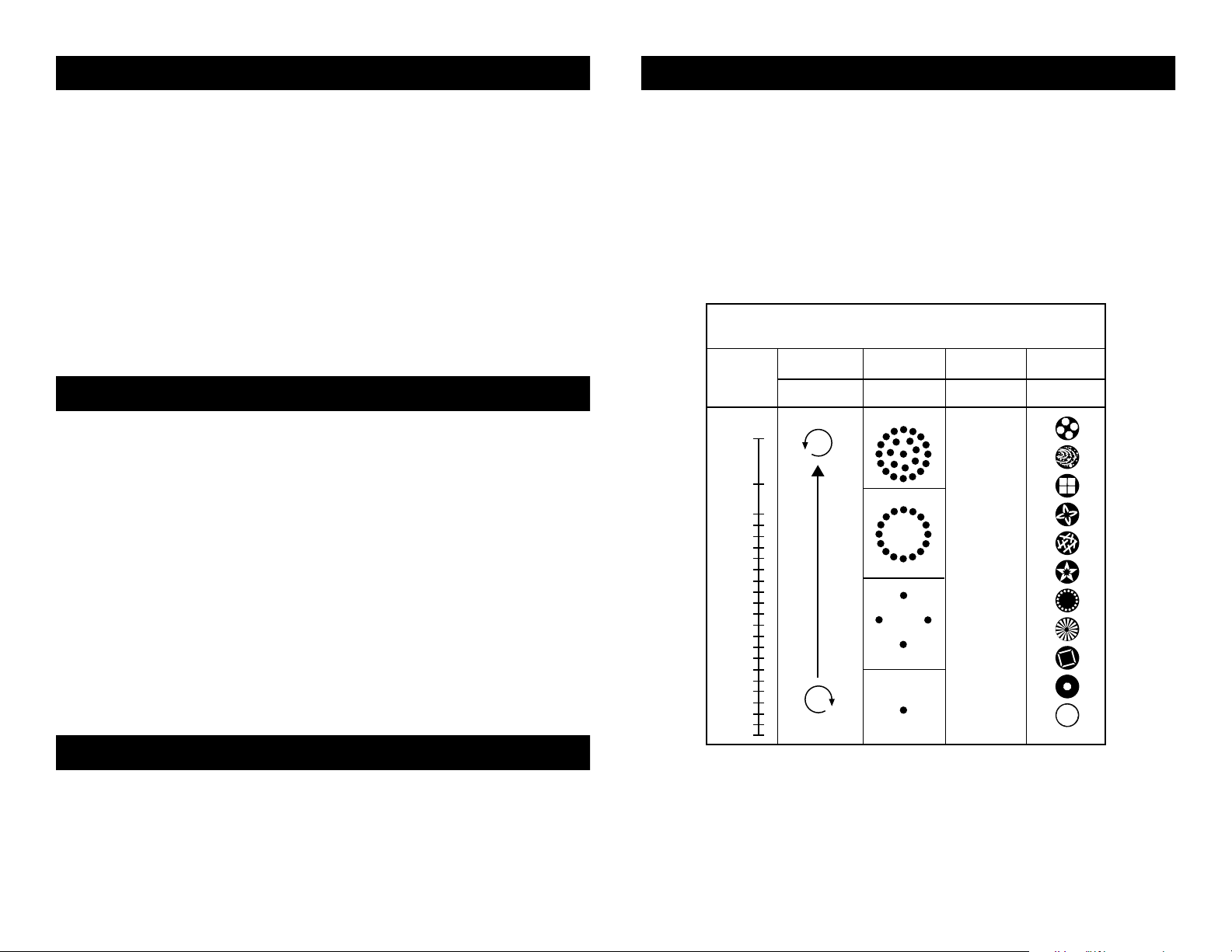

The Spinout™ is a four channel intelligent moonflower. This chart details the DMX traits of the Spinout.™ Use your controller’s fader levels to scroll through the different values. Each fader value dictates the fixtures operation.
1. Use normal glass cleaner and a soft cloth to wipe down the outside casing.
2. Use a brush to wipe down the fan grill.
3. Clean the external optics with glass cleaner and a soft cloth every 20 days. Situation may very. If used heavily in clubs with lots of fog, cleaning may be required more often.
4. Clean the internal optics with glass cleaner and a soft cloth every 30-60 days.
5. Always be sure to dry all parts completely before plugging the unit in.
The American DJ Spinout™ comes with a 1 year limited warranty. We recommend filling out the warranty registration card that came with your fixture to validate your warranty. For service, please contact your American DJ
Spinout™ Warranty
TM
dealer.
©American DJ Supply® - www.americandj.com - Spinout™ Instruction Manual Page 10©American DJ Supply® - www.americandj.com - Spinout™ Instruction Manual Page 9
Page 6
Spinout™ Gobo Wheel

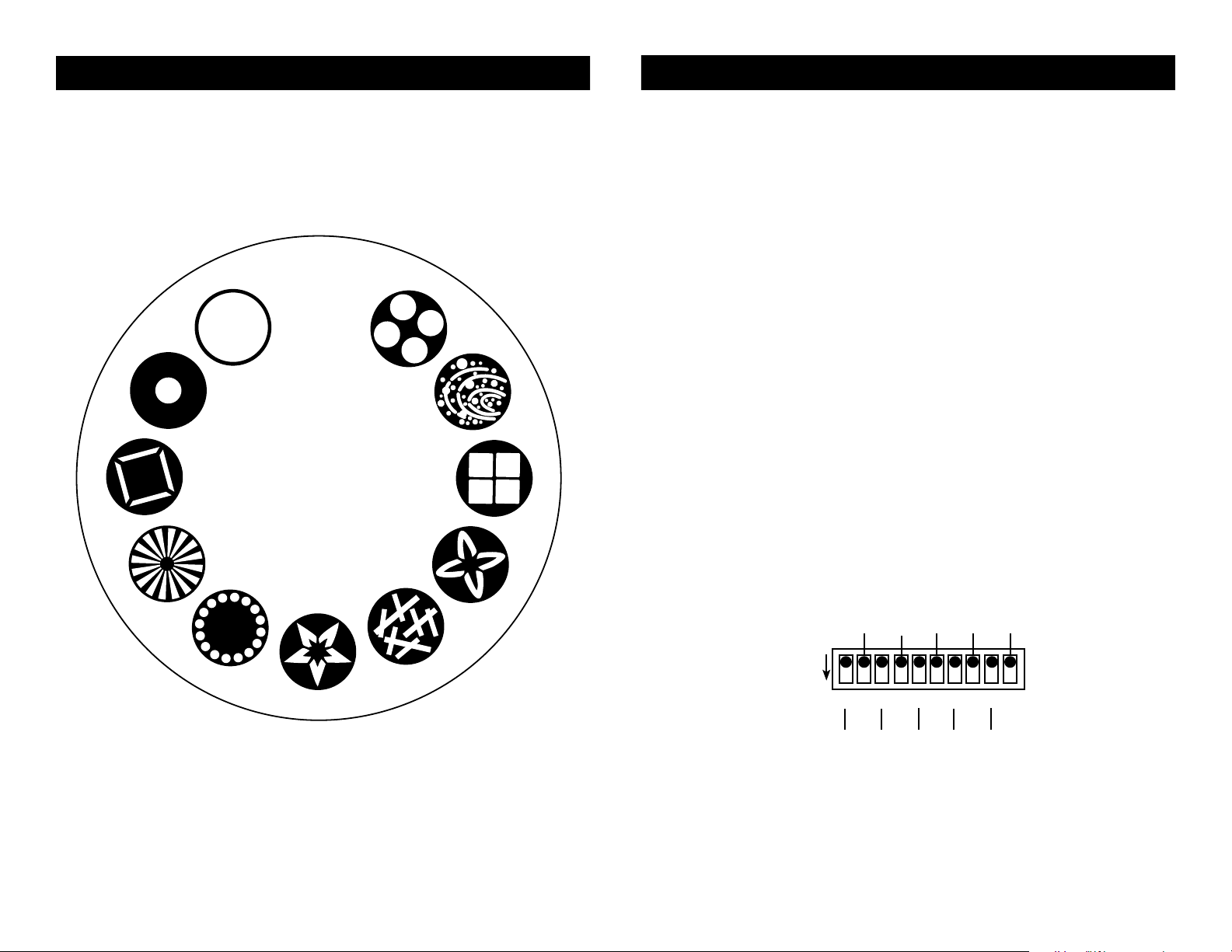

This illustration detail the gobo wheel.
1
11
Spinout™ DMX Address
DMX is a universal binary language used to control intelligent lighting fixtures. Each dip switch represents a value based on binary code:
Dip Switch 1 address equals 1 Dip Switch 2 address equals 2 Dip Switch 3 address equals 4 Dip Switch 4 address equals 8 Dip Switch 5 address equals 16 Dip Switch 6 address equals 32 Dip Switch 7 address equals 64 Dip Switch 8 address equals 128 Dip Switch 9 address equals 256 Dip Switch 10 address equals 512
3
2
4
5
6
7
10
8
9
Please note dip switch 10 may be omitted on some fixtures!
Several DMX fixtures use dip switch 10 to access different functions such as Master/Slave operation. For those fixtures, turning dip switch 10 on will activate it’s specific function and have no bearing on the DMX value.
DMX Channel Value
DMX CHANNEL
2 8 32 128
ON
1 2 3 54 7 9 1086
1 4 16 64 256
Some fixtures will omit dip switch 10 all together, for hose fixture the maximum DMX value that can be assigned to fixture will be 511.
512
©American DJ Supply® - www.americandj.com - Spinout™ Instruction Manual Page 11
©American DJ Supply® - www.americandj.com - Spinout™ Instruction Manual Page 12
Page 7
1
ON
98765432
1
ON
98765432
1
ON
98765432
1
ON
98765432
1
ON
98765432
1
ON
98765432
1
ON
98765432
1
ON
98765432
1
ON
98765432
1
ON
98765432
1
ON
98765432
1
ON
98765432
1
ON
98765432
1
ON
98765432
1
ON
98765432
1
ON
98765432
Head 3
Head 2
Master - Head 1
Head 4 Head 16
Head 15
Head 14
Head 13
Head 12
Head 11
Head 10
Head 9
Head 8
Head 7
Head 6
Head 5
1
ON
98765432
1
ON
98765432
1
ON
98765432
1
ON
98765432
1
ON
98765432
1
ON
98765432
1
ON
98765432
1
ON
98765432
1
ON
98765432
1
ON
98765432
1
ON
98765432
1
ON
98765432
1
ON
98765432
1
ON
98765432
1
ON
98765432
1
ON
98765432
Head 1
Head 2
Head 4
Head 3 Head 15Head 11
Head 14Head 10
Head 9 Head 13
Head 7
Head 6
Head 5
Head 16
Head 12
Head 8

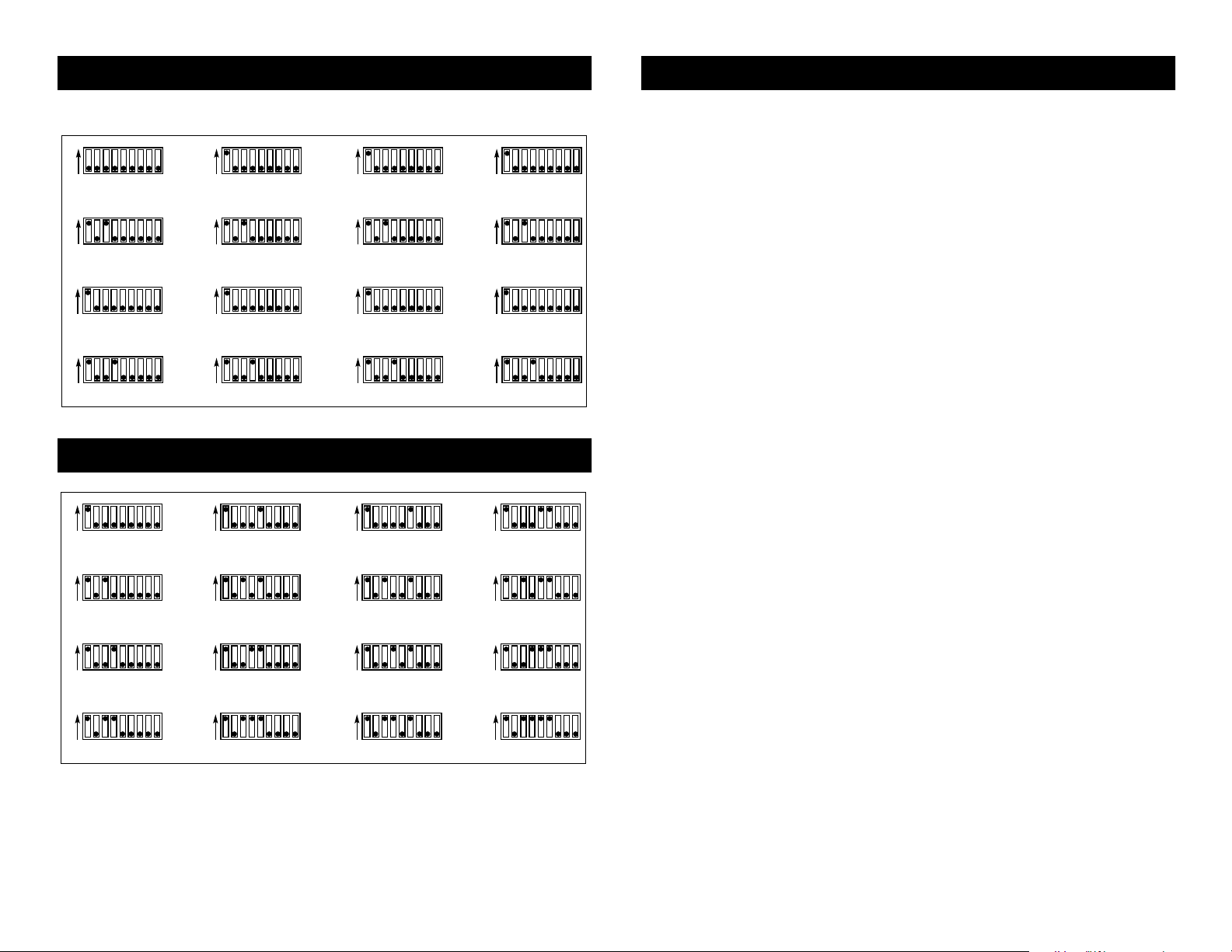

Spinout™ Master/Slave Dip Switch Chart
Spinout™ DMX Addressing Chart
Spinout™ Warranty
1-YEAR LIMITED WARRANTY
A. American DJ® hereby warrants, to the original purchaser, American DJ® products to be free of manufacturing defects in material and workmanship for a period of 1 Year (365 days) from the date of purchase. This warranty shall be valid only if the product is purchased within the United States of America, including possessions and territories. It is the owner’s respon­sibility to establish the date and place of purchase by acceptable evidence, at the time ser­vice is sought.
B. For warranty service, send the product only to the American DJ® factory. All shipping charges must be pre-paid. If the requested repairs or service (including parts replacement) are within the terms of this warranty, American DJ® will pay return shipping charges only to a designated point within the United States. If the entire instrument is sent, it must be shipped in its original package. No accessories should be shipped with the product. If any accessories are shipped with the product, American DJ® shall have no liability whatsoever for loss of or damage to any such accessories, nor for the safe return thereof.
C. This warranty is void if the serial number has been altered or removed; if the product is modied in any manner which American DJ® concludes, after inspection, affects the reli­ability of the product; if the product has been repaired or serviced by anyone other than the American DJ® factory unless prior written authorization was issued to purchaser by Ameri­can DJ®; if the product is damaged because not properly maintained as set forth in the instruction manual.
D. This is not a service contract, and this warranty does not include maintenance, cleaning or periodic check-up. During the period specied above, American DJ® will replace defective parts at its expense, and will absorb all expenses for warranty service and repair labor by reason of defects in material or workmanship. The sole responsibility of American DJ® under this warranty shall be limited to the repair of the product, or replacement thereof, including parts, at the sole discretion of American DJ®. All products covered by this warranty were manufactured after January 1, 1990, and bear identifying marks to that effect.
E. American DJ® reserves the right to make changes in design and/or improvements upon its products without any obligation to include these changes in any products theretofore manufactured.
F. No warranty, whether expressed or implied, is given or made with respect to any acces­sory supplied with products described above. Except to the extent prohibited by applicable law, all implied warranties made by American DJ® in connection with this product, including warranties of merchantability or tness, are limited in duration to the warranty period set forth above. And no warranties, whether expressed or implied, including warranties of merchant­ability or tness, shall apply to this product after said period has expired. The consumer’s and
©American DJ Supply® - www.americandj.com - Spinout™ Instruction Manual Page 13 ©American DJ Supply® - www.americandj.com - Spinout™ Instruction Manual Page 14
or Dealer’s sole remedy shall be such repair or replacement as is expressly provided above; and under no circumstances shall American DJ® be liable for any loss or damage, direct or consequential, arising out of the use of, or inability to use, this product.
F. This warranty is the only written warranty applicable to American DJ® Products and super­sedes all prior warranties and written descriptions of warranty terms and conditions hereto­fore published.
Page 8
Model:
SPECIFICATIONS:
Lamp: ZB-ELC-3 24v/250 Power: 110V/60Hz Fuse: 3A Optics: High Quality Glass Lenses Ventilation: Fan Cooled Working Position: Any Weight: 21Lbs. Size: 11” x 11.5” x 7” Duty Cycle: 10 min. on 10 min. off
Spinout™
©American DJ Supply
American DJ World Headquarters:
4295 Charter Street Los Angeles, CA 90058 USA
Tel: 323-582-2650 / Fax: 323-582-2610
Web: www.americandj.com / E-mail: [email protected]
