Adj LED Pixel 4C User Manual
LED Pixel 4C Introduction
Unpacking: Thank you for purchasing the LED Pixel 4C by ADJ Prod-
ucts, LLC. Every LED Pixel 4C has been thoroughly tested and has
been shipped in perfect operating condition. Carefully check the shipping carton for damage that may have occurred during shipping. If the
carton appears to be damaged, carefully inspect your xture for any
damage and be sure all accessories necessary to operate the unit has
arrived intact. In the case damage has been found or parts are missing, please contact our toll free customer support number for further
instructions. Do not return this unit to your dealer without rst contacting customer support.
Introduction: The ADJ LED Pixel 4C is a 4-Channel Driver/Controller
for the LED Pixel Tube 360 (not included). This xture can be used in a
stand alone mode or connected in a Master/Slave conguration. This
controller has five operating modes: Sound Active mode, Auto mode,
RGB Dimmer mode, Static Color mode and DMX control mode.
Customer Support: ADJ Products, LLC provides a customer sup-
port line, to provide set up help and to answer any question should you
encounter problems during your set up or initial operation. You may
also visit us on the web at www.adj.com for any comments or suggestions. Service Hours are Monday through Friday 8:00 a.m. to 4:30 p.m.
Pacic Standard Time.
Voice: (323) 582-3322
Fax: (323) 582-3108
E-mail: support@adj.com
1/13
User Instructions
Warning! To prevent or reduce the risk of electrical shock or re, do
not expose this unit to rain or moisture.
Caution! There are no user serviceable parts inside this unit. Do not
attempt any repairs yourself, doing so will void your manufactures warranty. In the unlikely event your unit may require service please contact
ADJ Products, LLC.
PLEASE recycle the shipping carton when ever possible.
ADJ Products, LLC - www.adj.com - LED Pixel 4C User Manual Page 2
LED Pixel 4C General Instructions
LED Pixel 4C Safety Precautions
To optimize the performance of this product, please read these
operating instructions carefully to familiarize yourself with the basic
operations of this unit. These instructions contain important safety
information regarding the use and maintenance of this unit. Please
keep this manual with the unit, for future reference.
LED Pixel 4C Features
• Mulit-Colors
• Five Operating Modes
• Electronic Dimming 0-100%
• Built in Microphone
• DMX-512 protocol
• 3-Pin DMX Connection
• 4 DMX Modes: 5 Channel Mode, 7 Channel Mode, 14 Channel
Mode, and 192 Channel Mode.
• ADJ LED RC compatiable (Not Included)
• Power Cord Daisy Chain (See page 22)
LED Pixel 4C Warranty Registration
The LED Pixel 4C carries a 1 year limited warranty. The reason this
product carries a 1 year limited warranty is because it is a controller.
Please fill out the enclosed warranty card to validate your purchase.
All returned service items whether under warranty or not, must be
freight pre-paid and accompany a return authorization (R.A.) number.
The R.A. number must be clearly written on the outside of the return
package. A brief description of the problem as well as the R.A. number
must also be written down on a piece of paper included in the shipping carton. If the unit is under warranty, you must provide a copy of
your proof of purchase invoice. You may obtain a R.A. number by contacting our customer support team on our customer support number.
All packages returned to the service department not displaying a R.A.
number on the outside of the package will be returned to the shipper.
• To reduce the risk of electrical shock or re, do not expose this unit
rain or moisture
• Do not spill water or other liquids into or on to your unit.
• Do not attempt to operate this unit if the power cord has been
frayed or broken. Do not attempt to remove or break off the ground
prong from the electrical cord. This prong is used to reduce the risk
of electrical shock and re in case of an internal short.
• Disconnect from main power before making any type of connection.
• Do not remove the cover under any conditions. There are no user
serviceable parts inside.
• Never operate this unit when it’s cover is removed.
• Never plug this unit in to a dimmer pack
• Always be sure to mount this unit in an area that will allow proper
ventilation. Allow about 6” (15cm) between this device and a wall.
• Do not attempt to operate this unit, if it becomes damaged.
• This unit is intended for indoor use only, use of this product out`
doors voids all warranties.
• During long periods of non-use, disconnect the unit’s main power.
• Always mount this unit in safe and stable matter.
• Power-supply cords should be routed so that they are not likely to
be walked on or pinched by items placed upon or against them,
paying particular attention to the point they exit from the unit.
• Cleaning -The fixture should be cleaned only as recommended by
t he manufacturer. See page 22 for cleaning details.
• Heat -The appliance should be situated away from heat sources
such as radiators, heat registers, stoves, or other appliances (inclu d ing amplifiers) that produce heat.
• The fixture should be serviced by qualified service personnel when:
A. The power-supply cord or the plug has been damaged.
B. Objects have fallen, or liquid has been spilled into the appliance.
C. The appliance has been exposed to rain or water.
D. The appliance does not appear to operate normally or exhibits a
marked change in performance.
ADJ Products, LLC - www.adj.com - LED Pixel 4C User Manual Page 4ADJ Products, LLC - www.adj.com - LED Pixel 4C User Manual Page 3
LED Pixel 4C Set Up
REMOTE
CONTROL
INPUT
POWER
INPUT OUTPUT
SOUND
REMOTE
CONTROL
INPUT
POWER
INPUT OUTPUT
SOUND
REMOTE
CONTROL
INPUT
POWER
INPUT OUTPUT
DMX512
DMX+,DMX-,COMMON
1
2
3
Termination reduces signal errors and
avoids signal transmission problems
and interference. It is always advisable
to connect a DMX terminal, (Resistance
120 Ohm 1/4 W) between PIN 2 (DMX-)
and PIN 3 (DMX +) of the last fixture.
POWER
SOUND
REMOTE
CONTROL
INPUT
POWER
INPUT OUTPUT
LED Pixel 4C Set Up
Power Supply: The ADJ LED Pixel 4C contains a automatic voltage
switch, which will auto sense the voltage when it is plugged into the
power source. With this switch there is no need to worry about the correct power voltage, this unit can be plugged in anywhere.
DMX-512: DMX is short for Digital Multiplex. This is a universal pro-
tocol used as a form of communication between intelligent fixtures
and controllers. A DMX controller sends DMX data instructions from
the controller to the fixture. DMX data is sent as serial data that travels from fixture to fixture via the DATA “IN” and DATA “OUT” XLR terminals located on all DMX fixtures (most controllers only have a DATA
“OUT” terminal).

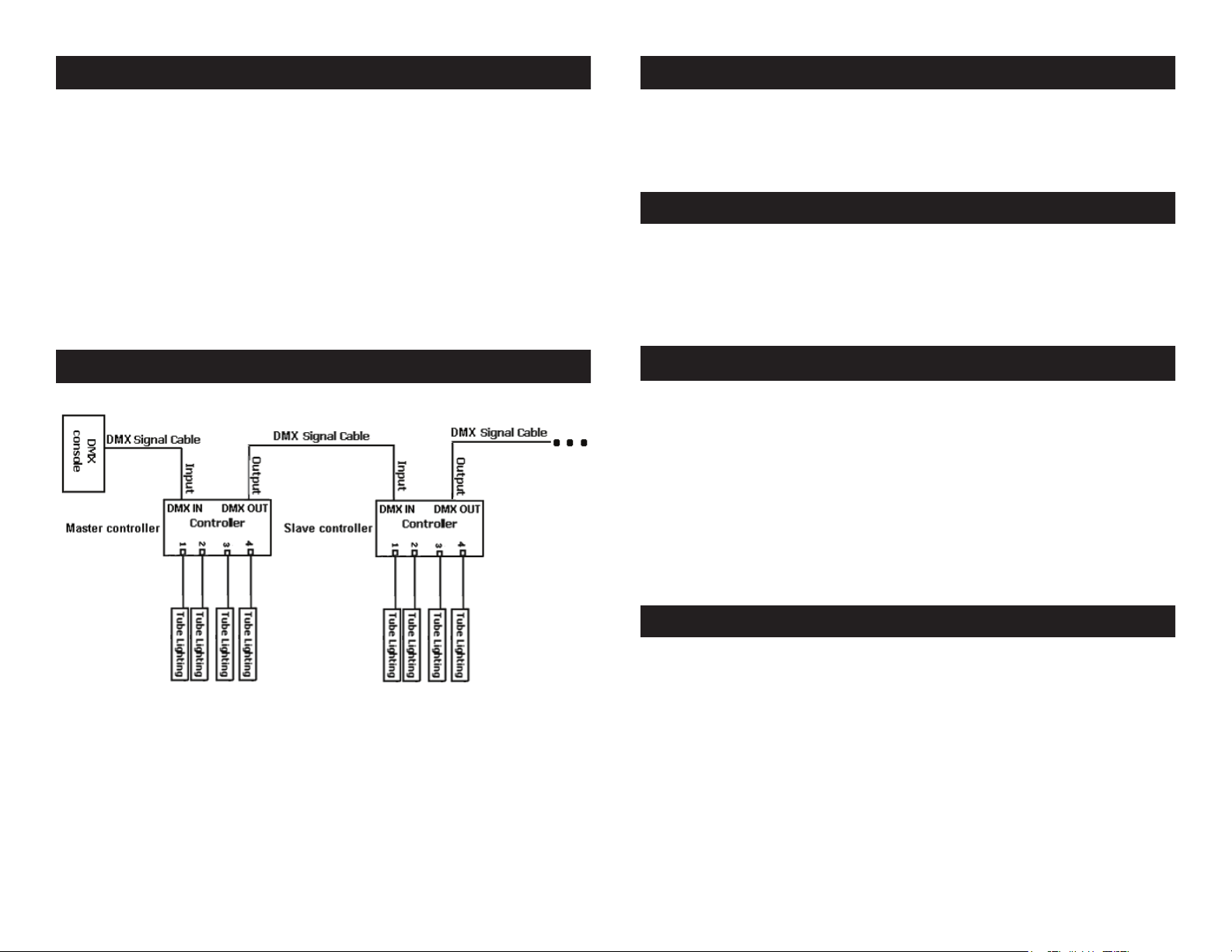

DMX Linking: DMX is a language allowing all makes and models of
different manufactures to be linked together and operate from a single
controller, as long as all xtures and the controller are DMX compliant. To ensure proper DMX data transmission, when using several
DMX fixtures try to use the shortest cable path possible. The order
in which fixtures are connected in a DMX line does not influence the
DMX addressing. For example; a fixture assigned a DMX address of 1
may be placed anywhere in a DMX line, at the beginning, at the end,
or anywhere in the middle. When a fixture is assigned a DMX address
of 1, the DMX controller knows to send DATA assigned to address 1
to that unit, no matter where it is located in the DMX chain.
Data Cable (DMX Cable) Requirements (For DMX Operation):
The LED Pixel 4C can be controlled via DMX-512 protocol. The LED Pixel
4C has 4 DMX channel modes, please see page 7 for the different DMX
modes. The DMX address is set on the back panel of the LED Pixel 4C.
Your unit and your DMX controller require a standard 3-pin XLR connector for data input and data
output (Figure 1). We recommend Accu-Cable
DMX cables. If you are making your own cables,
be sure to use standard 110-120 Ohm shielded
cable (This cable may be purchased at almost all
pro lighting stores). Your cables should be made
with a male and female XLR connector on either
end of the cable. Also remember that DMX cable
must be daisy chained and cannot be split.
ADJ Products, LLC - www.adj.com - LED Pixel 4C User Manual Page 5
Figure 1
Notice: Be sure to follow gures two and three when making your own
cables. Do not use the ground lug on the XLR connector. Do not con-
nect the cable’s shield conductor to the ground lug or allow the shield
conductor to come in contact with the XLR’s outer casing. Grounding
the shield could cause a short circuit and erratic behavior.
COMMON
1
DMX512 IN
3
3-PIN XLR
2
Figure 2
XLR Pin Conguration
1 Ground
3 Hot
Pin 1 = Ground
Pin 2 = Data Compliment (negative)
Pin 3 = Data True (positive)
When longer runs of cable are
Figure 4
Pin 1
Pin 2
Pin 3
Do Not Use
Do Not Use
XLR Male Socket
1 Ground
DMX512 OUT
3-PIN XLR
2 Cold
3 Hot
1
3
2
DMX +
DMX -
XLR Female Socket
2 Cold
Figure 3
Special Note: Line Termination.
used, you may need to use a terminator on the last unit to avoid erratic
behavior. A terminator is a 110-120 ohm 1/4 watt resistor which is connected between pins 2 and 3 of a male XLR connector (DATA + and
DATA -). This unit is inserted in the female XLR connector of the last
unit in your daisy chain to terminate the line. Using a cable terminator
(ADJ part number Z-DMX/T) will decrease the possibilities of erratic
behavior.
5-Pin XLR DMX Connectors.
512 data cables for DATA transmission in place of 3-pin. 5-pin DMX
xtures may be implemented in a 3-pin DMX line. When inserting standard 5-pin data cables in to a 3-pin line a cable adaptor must be used,
these adaptors are readily available at most electric stores. The chart
below details a proper cable conversion.
Conductor 5-Pin XLR Male (In)3-Pin XLR Female (Out)
Ground/Shield
Data Compliment (- signal)
Data True (+ signal)
Not Used
Not Used
ADJ Products, LLC - www.adj.com - LED Pixel 4C User Manual Page 6
Termination reduces signal errors and
1
avoids signal transmission problems
3
and interference. It is always advisable
2
to connect a DMX terminal, (Resistance
120 Ohm 1/4 W) between PIN 2 (DMX-)
and PIN 3 (DMX +) of the last fixture.
Some manufactures use 5-pin DMX-
3-Pin XLR to 5-Pin XLR Conversion
Pin 1
Pin 2
Pin 3
LED Pixel 4C Operating Instructions
LED Pixel 4C Operating Instructions
Operating Modes:
The LED Pixel 4C has five operating modes:
• DMX control mode - This function will allow you to control each
individual fixtures traits with a standard DMX 512 controller.
• RGB DimmerMode - Choose one of the three colors to remain
static or adjust the intensity of each color to make your own color.
• Sound-Active mode - The unit will react to sound. There are 24
sound active programs.
• Auto Mode - There are 2 different Auto Modes to choose from.
• Static Color Mode - Choose 1 of 7 colors to remain static.
DMX Mode:
Operating through a DMX controller gives the user the freedom to create
their own programs tailored to their own individual needs. This function
also allows you to use your fixtures as spot lights. The LED Pixel 4C has
4 DMX modes: 5 Channel mode, 7 Channel mode, 14 Channel mode,
and a 192 Channel mode. See pages 14-20 for each modes’ DMX traits.
1. This function will allow you to control each individual fixture’s traits
with a standard DMX 512 controller.
2. To run your fixture in DMX mode press the MODE button until
“A.XXX” is displayed. “XXX” represents the current displayed ad-
dress. Use the UP or DOWN buttons to select your desired DMX
address, then press the SETUP button to select your DMX Channel
mode.
3. Use the UP or DOWN buttons to scroll through the DMX Channel
modes. The Channel modes are listed below:
To run the 5 Channel Mode, press the MODE button until “Ch.05”
is displayed. This is the 5 Channel DMX Mode.
To run the 7 Channel Mode, press the MODE button until “Ch.07”
is displayed. This is the 7 Channel DMX Mode.
To run the 14 Channel Mode, press the MODE button until
“Ch.14” is displayed. This is the 14 Channel DMX Mode.
To run the 192 Channel Mode, press the MODE button until
“Ch.16” is displayed. This is the 192 Channel DMX Mode.
4. Please see pages 14-20 for DMX values and traits.
5. After you have chosen your desired DMX Channel mode plug in
the fixture via the XLR connections to any standard DMX controller.
RGB Dimmer Mode:
1. Plug the fixture in and press the MODE button until “d-XX” is dis-
ADJ Products, LLC - www.adj.com - LED Pixel 4C User Manual Page 7
played. “XX” represents the current LED Pixel Tube being controlled.
If “d-FU” is displayed then all of the tubes are being controlled. If
“d-01” is displayed, you are controlling the tube connected to port 1.
If “d-02” is displayed, you are controlling the tube connected to port
2. If “d-03” is displayed, your controlling the tube connected to port
3. If “d-04” is displayed, you are controlling the tube connected to
port 4. After deciding what tube to control press the SET UP button.
2. When “r.XXX” is displayed you are in Red dimming mode. Press the
UP and DOWN buttons to adjust intensity. After you have finished
adjusting the intensity, or if you would like to skip to the next color,
press the SET UP button.
3. When “G.XXX” is displayed you are in Green dimming mode. Press
the UP and DOWN buttons to adjust intensity.
4. When “b.XXX” is displayed you are in Blue dimming mode. Press the
UP and DOWN buttons to adjust intensity.
5. After you have adjusted the RGB colors to make your desired color
you can then activate strobing by pressing the SET UP button to
enter the Flash (strobe) mode.
6. “FS.XX” will be displayed, this is Flash mode. The Flash can be
adjusted between “FS.00” (flash off) to “FS.15” (fastest flash).
Sound Active Mode:
In this mode the LED Pixel 4C will react to sound. There are 24 sound
active programs to choose from. The sound sensitivity can also be
adjusted.
1. Plug the fixture in and press the MODE button until “SoXX” is dis-
played. “XX” represents the sound active mode (1-24) currently dis-
played. Use the UP or DOWN buttons to scroll through the 24 sound
active programs.
2. When you have found your desired sound active program press the
SET UP button to adjust the sound sensitivity. When you press SET
UP, “SJ-X” will be displayed. Use the UP or DOWN buttons to adjust
the sensitivity. “SJ-1” is the least sensitive, “SJ-8” is the most sensi tive.
Auto Run Mode: There are 2 different Auto Modes to choose from;
Color
running
1. Plug the fixture in and press the MODE button until either “AFXX”,
or “AJXX” is displayed. Press the SET UP button to switch between
Fade, Color Change, and both modes running together.
speed is adjustable in all 2 modes.
ADJ Products, LLC - www.adj.com - LED Pixel 4C User Manual Page 8
The
Loading...
