ADJ Jolt Bar FX LED User Manual [EN]

JOLT BAR FX

User Manual

©2022 ADJ Products, LLC all rights reserved. Information, specications, diagrams, images, and

instructions herein are subject to change without notice. ADJ Products, LLC logo and identifying
product names and numbers herein are trademarks of ADJ Products, LLC. Copyright protection
claimed includes all forms and matters of copyrightable materials and information now allowed by
statutory or judicial law or hereinafter granted. Product names used in this document may be trade­marks or registered trademarks of their respective companies and are hereby acknowledged. All
non-ADJ Products, LLC brands and product names are trademarks or registered trademarks of their
respective companies.

ADJ Products, LLC and all aliated companies hereby disclaim any and all liabilities for property,

equipment, building, and electrical damages, injuries to any persons, and direct or indirect economic
loss associated with the use or reliance of any information contained within this document, and/or as
a result of the improper, unsafe, insucient and negligent assembly, installation, rigging, and opera­tion of this product.

DOCUMENT VERSION

Due to additional product features and/or enhancements, an updated version of
this document may be available online.
Please check www.adj.com for the latest revision/update of this manual
before beginning installation and/or programming.

Date

01/24/2022 1.0 1.0

Europe Energy Saving Notice
Energy Saving Matters (EuP 2009/125/EC)

Saving electric energy is a key to help protecting the enviroment. Please turn o all electrical products when

they are not in use. To avoid power consumption in idle mode, disconnect all electrical equipment from power
when not in use. Thank you!

Document

Version

Software

Version

DMX Channels Notes

6/9/13/16/18/32/38/

42/64/112/126

2

Initial Release

TABLE OF CONTENTS

Introduction 4

Limited Warranty (USA Only) 5

Warranty Registration | Features 6

Safety Guidelines 7

Overview 8

Installation 9

Remove Device Management 12

Control Panel 13

System Menu 14

DMX Setup 17

DMX Traits 19

LED Pixel Zones 25

Dimmer Modes and Curves 26

Daisy Chain Power Linking | Cleaning and Maintenance 27

Dimensional Drawings 28

Specifications 29

3

INTRODUCTION

Unpacking: Thank you for purchasing the Jolt Bar FX by ADJ Products, LLC. Every device has been
thoroughly tested and has been shipped in perfect operating condition. Carefully check the shipping
carton for damage that may have occurred during shipping. If the carton appears to have been dam-

aged, carefully inspect your xture for any damage and be sure all accessories necessary to operate

the unit have arrived intact. In the event that damage has been found or parts are missing, please
contact our toll free customer support number for further instructions. Do not return this unit to your

dealer without rst contacting customer support.

Introduction: The ADJ Jolt Bar FX is a DMX intelligent, high powered LED xture. To optimize the
performance of this product, please read these operating instructions carefully to familiarize yourself

with the basic operations of this unit. These instructions contain important safety information regard­ing the use and maintenance of this unit. Please keep this manual with the unit for future reference.

Customer Support: Contact ADJ Service for any product related service and support needs. Also visit

forums.adj.com with questions, comments or suggestions.

Parts: To purchase parts online visit:

http://parts.adj.com (US)
http://www.adjparts.eu (EU)

ADJ SERVICE USA - Monday - Friday 8:00am to 4:30pm PST
Voice: 800-322-6337 | Fax: [phone] | [e-mail]

ADJ SERVICE EUROPE - Monday - Friday 08:30 to 17:00 CET
Voice: [phone] | Fax: [phone] | [e-mail]

ADJ PRODUCTS LLC USA

6122 S. Eastern Ave. Los Angeles, CA. 90040
323-582-2650 | Fax [phone] | www.adj.com | [e-mail]

ADJ SUPPLY Europe B.V

Junostraat 2 6468 EW Kerkrade, The Netherlands
[phone] | Fax [phone]

www.adj.eu | [e-mail]

ADJ PRODUCTS GROUP Mexico

AV Santa Ana 30 Parque Industrial Lerma, Lerma, Mexico 52000
[phone]

CAUTION! This device is intended for indoor use only! Do not expose to rain or moisture!

CAUTION! There are no user serviceable parts inside this unit. Do not attempt any repairs yourself,

as doing so will void your manufacturer’s warranty. In the unlikely event that your unit requires service,
please contact ADJ Products, LLC.

Do not discard the shipping cartoon in the trash. Please recycle when ever possible.

4

LIMITED WARRANTY (USA ONLY)

A. ADJ Products, LLC hereby warrants, to the original purchaser, ADJ Products, LLC products to be free of

manufacturing defects in material and workmanship for a prescribed period from the date of purchase

(see specic warranty period on reverse). This warranty shall be valid only if the product is purchased

within the United States of America, including possessions and territories. It is the owner’s responsibility
to establish the date and place of purchase by acceptable evidence, at the time service is sought.

B. For warranty service, you must obtain a Return Authorization number (RA#) before sending the product

back—please contact ADJ Products, LLC Service Department at 800-322-6337. Send the product only to
the ADJ Products, LLC factory. All shipping charges must be prepaid. If the requested repairs or service
(including parts replacement) are within the terms of this warranty, ADJ Products, LLC will pay return ship­ping charges only to a designated point within the United States. If the entire instrument is sent, it must be
shipped in its original package and packaging material. No accessories should be shipped with the prod­uct. If any accessories are shipped with the product, ADJ Products, LLC shall incur no liability whatsoever
for loss of or damage to any such accessories, nor for the safe return thereof.

C. This warranty is void if the product serial number and/or labels are altered or removed; if the product is

modied in any manner which ADJ Products, LLC concludes, after inspection, aects the reliability of the

product; if the product has been repaired or serviced by anyone other than the ADJ Products, LLC factory
unless prior written authorization was issued to purchaser by ADJ Products, LLC; if the product is dam­aged because it was not properly maintained as set forth in the product instructions, guidelines and/or
user manual.

D. This is not a service contract, and this warranty does not include maintenance, cleaning, or periodic

checkup. During the period specied above, ADJ Products, LLC will replace defective parts at its expense

with new or refurbished parts, and will absorb all expenses for warranty service and repair labor by reason
of defects in material or workmanship. The sole responsibility of ADJ Products, LLC under this warranty
shall be limited to the repair of the product, or replacement thereof, including parts, at the sole discretion
of ADJ Products, LLC. All products covered by this warranty were manufactured after August 15, 2012,

and bear identifying marks to that eect.

E. ADJ Products, LLC reserves the right to make changes in design and/or improvements upon its products

without any obligation to include these changes in any products theretofore manufactured.

F. No warranty, whether expressed or implied, is given or made with respect to any accessory supplied with

products described above. Except to the extent prohibited by applicable law, all implied warranties made

by ADJ Products, LLC in connection with this product, including warranties of merchantability or tness,

are limited in duration to the warranty period set forth above. And all warranties, whether expressed or

implied, including warranties of merchantability or tness, are limited in duration to the warranty period set

forth above. The consumer’s and/or dealer’s sole remedy shall be such repair or replacement as is ex­pressly provided above; and under no circumstances shall ADJ Product, LLC be liable for any loss and/or
damage, direct and/or consequential arising out of the use of, and/or inability to use this product.

G. This warranty is the only written warranty applicable to ADJ Products, LLC products, and supersedes all

prior warranties and written descriptions of warranty terms and conditions heretofore published.

MANUFACTURER’S LIMITED WARRANTY PERIODS:

• Non-LED Lighting Products = 1-Year (365 Days) (Including Special Eect Lighting, Intelligent Lighting,

UV lighting, Strobes, Fog Machines, Bubble Machines, Mirror Balls, Par Cans, Trussing, Lighting Stands,
Power/Data Distribution, etc. excluding LED and lamps)

• Laser Products = 1-Year (365 Days) (excluding laser diodes which have a 6-Month Limited Warranty)

• LED Products = 2-Year (730 Days) (excluding batteries which have a 180 Day Limited Warranty)

• NOTE: 2-Year (730 Days) Limited Warranty ONLY applies to product purchased within the United States.

StarTec Series = 1-Year (365 Days) (excluding batteries which have a 180 Day Limited Warranty)

• ADJ DMX Controllers = 2 Year (730 Days)

• American Audio Products = 1 Year (365 Days)

5

WARRANTY REGISTRATION

The Jolt Bar FX carries a 2 year limited warranty. Please ll out the enclosed warranty card to validate

your purchase. All returned service items, whether under warranty or not, must be freight pre-paid

and accompanied by a return authorization (R.A.) number. The R.A. number must be clearly written on

the outside of the return package. A brief description of the problem as well as the R.A. number must
also be written down on a piece of paper included in the shipping carton. If the unit is under warranty,
you must provide a copy of your proof of purchase invoice. You may obtain an R.A. number by con­tacting our customer support team on our customer support number. All packages returned to the
service department not displaying an R.A. number on the outside of the package will be returned to
the shipper.

FEATURES

The ADJ Jolt Bar FX is a professional linear LED fixture that delivers lighting designers huge output as
well as the creative potential of brilliant bright white strobe/blinder LEDs combined with multi-colored
chase effects in one versatile unit. Ideal for concert productions, festival stages and rental houses, as
well as for permanent installation in large nightclubs, the Jolt Bar FX is a flexible fixture that can be
used to create a wide variety of effects.

• 32 x RGB LED zones with individual control

• 16 X Cool White LED zones with individual control

• Color mixing effect

• Strobe effect with variable speed

• Smooth dimming from 0% to 100%

• Double mounting brackets with 180-degree adjustability

INCLUDED ITEMS:

• 1 x Locking power cable

IP RATING

This device is IP20 rated. This means that the unit is protected against the instrusions of solids

approximately the size of an adult finger (2.5mm) or larger, but the unit is not protected against
water or liquid intrusion of any kind.

6

SAFETY GUIDELINES

THIS FIXTURE IS COMPOSED OF SOPHISTICATED ELECTRONIC COMPONENTS. TO GUARANTEE
SMOOTH OPERATION, IT IS IMPORTANT TO FOLLOW ALL INSTRUCTIONS AND GUIDELINES IN
THIS MANUAL. ADJ PRODUCTS, LLC IS NOT RESPONSIBLE FOR INJURY AND/OR DAMAGES
RESULTING FROM THE MISUSE OF THIS FIXTURE DUE TO THE DISREGARD OF THE INFORMATION
PRINTED IN THIS MANUAL. ONLY QUALIFIED AND/OR CERTIFIED PERSONNEL SHOULD PERFORM
INSTALLATION OF THIS FIXTURE AND ONLY THE ORIGINAL RIGGING PARTS INCLUDED WITH THIS
FIXTURE SHOULD BE USED FOR INSTALLATION. ANY MODIFICATIONS TO THE FIXTURE AND/OR
THE INCLUDED MOUNTING HARDWARE WILL VOID THE ORIGINAL MANUFACTURER’S WARRANTY
AND INCREASE THE RISK OF DAMAGE AND/OR PERSONAL INJURY. ONLY CERTIFIED PERSONNEL
SHOULD PERFORM INSTALLATION OF THIS FIXTURE.

• PROTECTION CLASS 1 - FIXTURE MUST BE PROPERLY GROUNDED.

• THERE ARE NO USER SERVICEABLE PARTS INSIDE THIS UNIT.

• DO NOT ATTEMPT ANY REPAIRS YOURSELF, AS DOING SO WILL VOID YOUR MANUFACTURER’S

WARRANTY. DAMAGES RESULTING FROM MODIFICATIONS TO THIS FIXTURE AND/OR THE
DISREGARD OF SAFETY INSTRUCTIONS AND GUIDELINES IN THIS MANUAL VOID THE
MANUFACTURER’S WARRANTY AND ARE NOT SUBJECT TO ANY WARRANTY CLAIMS AND/OR
REPAIRS.

• DO NOT PLUG FIXTURE INTO A DIMMER PACK!

• NEVER OPEN THIS FIXTURE WHILE IN USE!

• UNPLUG POWER BEFORE SERVICING FIXTURE!

• NEVER TOUCH FIXTURE DURING OPERATION, AS IT MAY BE HOT!

• KEEP FLAMMABLE MATERIALS AWAY FROM FIXTURE!

• NEVER LOOK DIRECTLY INTO THE LIGHT SOURCE!

• RETINA INJURY RISK - MAY INDUCE BLINDNESS!

• SENSITIVE PERSONS MAY SUFFER AN EPILEPTIC SHOCK!

• INDOOR / DRY LOCATIONS USE ONLY!

• DO NOT EXPOSE FIXTURE TO RAIN AND MOISTURE!

• MINIMUM DISTANCE TO OBJECTS/SURFACES IS 6.6 FEET (2 METERS)

• MINIMUM DISTANCE TO FLAMMABLE MATERIALS FROM THE SURFACE IS 1.6 FEET (0.5 METER).

• DO NOT TOUCH the xture housing during operation. Turn OFF the power and allow approximately 60
minutes for the xture to cool down before serving.

• DO NOT shake xture, and avoid brute force when installing and/or operating xture.

• DO NOT operate xture if the power cord is frayed, crimped, damaged and/or if any of the power cord
connectors are damaged and do not insert into the xture securely with ease. NEVER force a power cord
connector into the xture. If the power cord or any of its connectors are damaged, replace it immediately

with a new one of the same power rating.

• DO NOT block any air ventilation slots. All fan and air inlets must remain clean and never blocked. Allow
approx. 6” (15cm) between xture and other devices or a wall for proper cooling.

• When installing xture in a suspended environment, always use mounting hardware that is no less than
M10 x 25 mm, and always install xture with an appropriately rated safety cable.

• Always disconnect xture from main power source before performing any type of service and/or cleaning

procedure.

• Only handle the power cord by the plug end. Never pull out the plug by tugging the wire portion of the
cord.

• During the initial operation of this xture, a light smoke or smell may emit from the interior of the xture.

This is a normal process and is caused by excess paint in the interior of the casing burning off from the
heat associated with the lamp and will decrease gradually over time.

• Consistent operational breaks will ensure xture will function properly for many years.

• Only use original packaging and materials to transport the xture in for service.

7

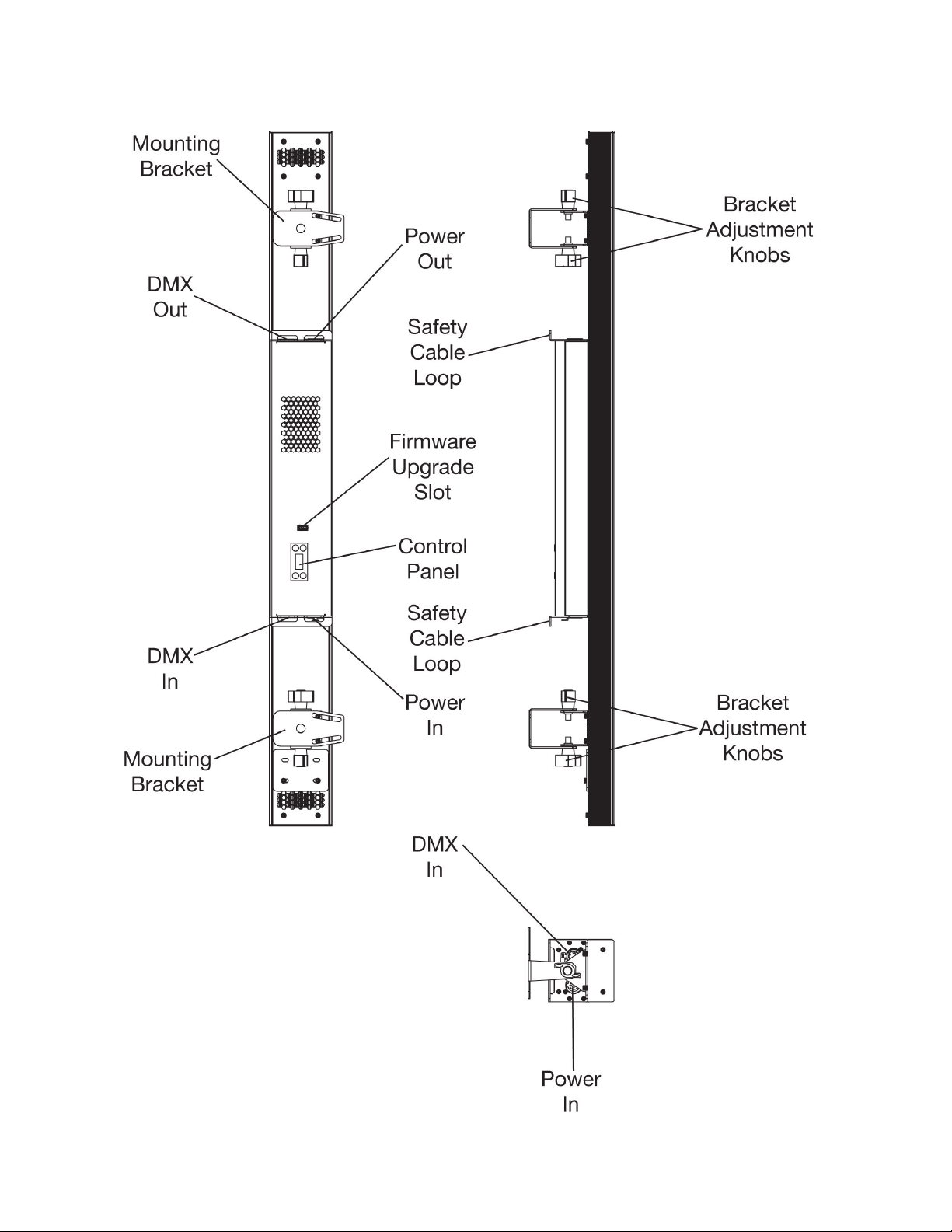

OVERVIEW

8

INSTALLATION

FLAMMABLE MATERIAL WARNING

Keep xture minimum 5.0 feet (1.5m) away from flammable materials and/or pyrotech­nics.

ELECTRICAL CONNECTIONS

A qualied electrician should be used for all electrical connections and/or installations.

MINIMUM DISTANCE TO OBJECTS/SURFACES IS 6.6 FEET (2 METERS).
MINIMUM DISTANCE OF FLAMMABLE MATERIALS FROM THE SURFACE IS 1.6
FEET (0.5 METER)

DO NOT INSTALL THE FIXTURE IF YOU ARE NOT QUALIFIED TO DO SO!

• Fixture MUST be installed following all local, national, and country commercial electrical and con­struction codes and regulations.

• Before rigging/mounting a single xture or multiple xtures to any metal truss/structure or placing
the xture(s) on any surface, a professional equipment installer MUST be consulted to determine
if the metal truss/structure or surface is properly certied to safely hold the combined weight of
the xture(s), clamps, cables, and accessories.

• Maximum ambient operating temperature is 113°F (45°C). Do not use xture when ambient tem-

perature exceeds this value.

• Fixture(s) should be installed outside walking paths, seating areas, or areas where unauthorized
personnel might reach the xture by hand.

• NEVER stand directly below the xture(s) when rigging, removing, or servicing.

• Overhead xture installation must always be secured with a secondary safety attachment, such

as an appropriately rated safety cable.

• Allow approximately 60 minutes for the xture to cool down before servicing.

IP RATING
This device is IP20 rated. This means that the unit is protected against the intrusion of solids

2.5mm in size or larger (approximately the size of an adult finger tip). The unit is NOT pro-

tected against water or liquid intrusion of any kind!

RIGGING
Overhead rigging requires extensive experience, including calculating working load limits,
knowledge of installation material being used, and periodic safety inspection of all installation

material and the fixture, among other skills. If you lack these qualifications, do not attempt the

installation yourself. Improper installation can result in bodily injury.

9

INSTALLATION

CLAMP INSTALLATION

This fixture features a mounting point for the attachment of a mounting clamp on each mount­ing bracket. In order to ensure stability, the device should be mounted using both mounting clamp
points. There is also one safety cable loop located on each side of the housing that contains the
control panel. (see the illustration below). When mounting the fixture to a truss or any other sus­pended or overhead installation, be sure to secure appropriately rated clamps (not included) to the
mounting brackets, and attach a separate SAFETY CABLE of the appropriate weight rating to the
safety cable loop.

SAFETY CABLE:

ALWAYS ATTACH A SAFETY CABLE WHENEVER INSTALLING THIS FIXTURE IN A

SUSPENDED ENVIRONMENT TO ENSURE THAT THE FIXTURE WILL NOT FALL IF

THE CLAMPS FAIL.

10

INSTALLATION

CONNECTOR PLATE:

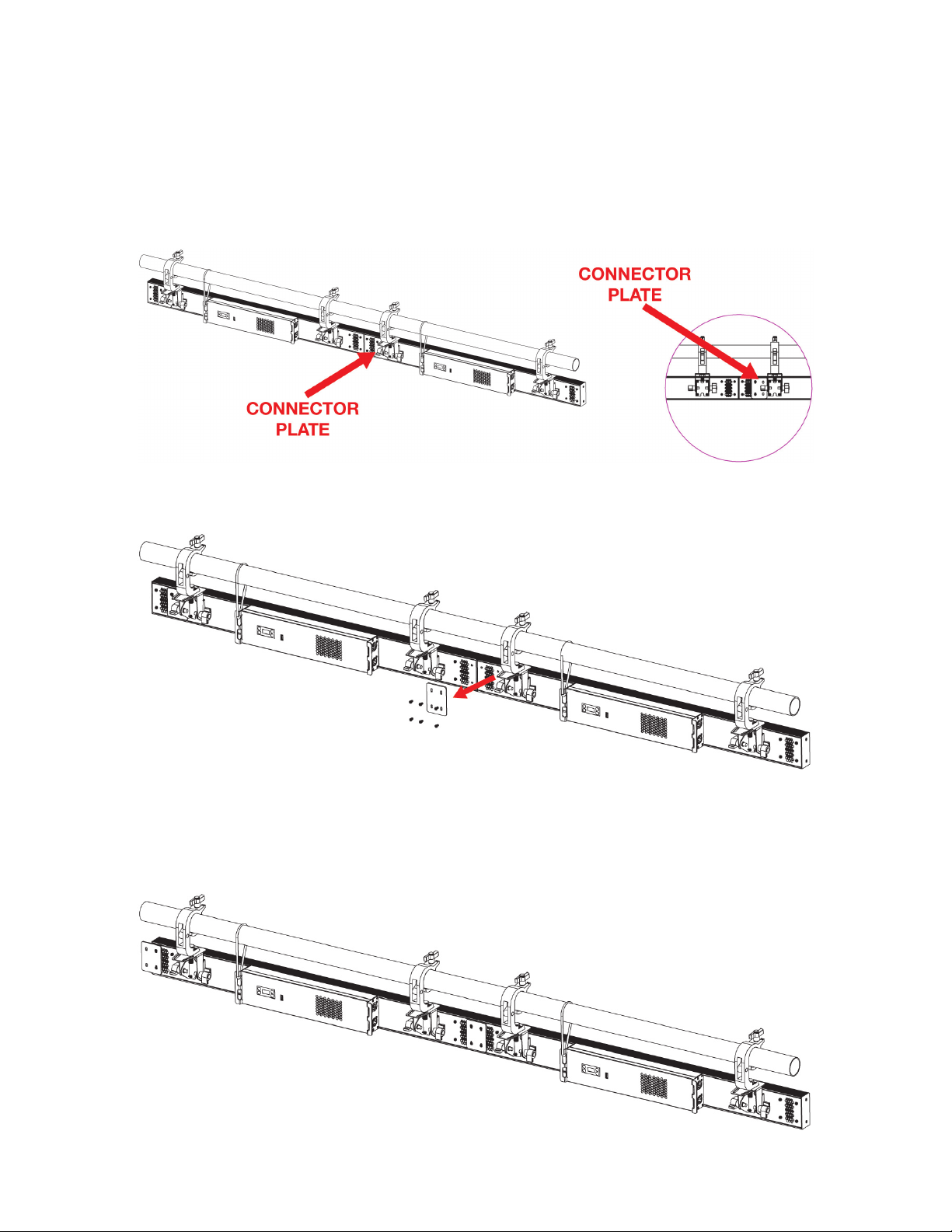

Each unit includes a connector plate that can be used to secure two adjacent mounted units
together. To install the connector plate, follow the directions below:

1. Locate the connector plate. It is affixed to back of the unit, near one of the ends of the bar. See
the illustrations below for guidance.

2. Remove the two (2) screws holding the connector plate in place, as well as two (2) screws on the
end of each adjacent unit, for a total of six (6) screws. Remove the connector plate.

3. Place the connector plate across the gap between the two units, making sure to align the plate
with the four (4) screw holes. Reinstall the four (4) screws that secure the connector plate in
place, as well as the two (2) additional screws that held the connector plate in its storage posi­tion. The installation is now complete.

11

REMOTE DEVICE MANAGEMENT

NOTE: In order for RDM to work properly, RDM enabled equipment must be used throughout
the entire system, including DMX data splitters and wireless systems.

Remote Device Management (RDM) is a protocol that sits on top of the DMX512 data standard for

lighting, and allows the DMX systems of the xtures to be modied and monitored remotely. This

protocol is ideal for instances in which a unit is installed in a location that is not easily accessible.

With RDM, the DMX512 system becomes bi-directional, allowing a compatible RDM enabled con-

troller to send out a signal to devices on the wire, as well as allowing the xture to respond (known

as a GET command). The controller can then use its SET command to modify settings that would
typically have to be changed or viewed directly via the unit’s display screen, including the DMX Ad­dress, DMX Channel Mode, and Temperature Sensors.

Please be aware that not all RDM devices support all RDM features, and therefore it is important
to check beforehand to ensure that the equipment that you are considering includes all of the fea­tures that you require.

The following parameters are accessible in RDM on this device:

MANUFACTURER

SOFTWARE VERSION

DMX START ADDRESS

DEVICE MODEL DESCRIPTION

DEVICE LABEL

DMX PERSONALITY

DMX PERSONALITY DESCRIPTION

DEVICE HOURS

RESET DEVICE - WARM RESET

RESET DEVICE - COLD RESET

12

CONTROL PANEL

The xture includes an easy to navigate system menu control panel display where all necessary set­tings and adjustments are made. (See image below)

• MENU: Leave current menu and return to previous menu level.

• UP: Scroll up in currently displayed menu.

• DOWN: Scroll down in currently displayed menu.

• ENTER: Select an option or confirm a selection.

This fixture includes a display lock feature which automatically shuts off the display screen after a
certain period of inactivity. This feature is OFF by default, which means that the display will always
remain on regardless of inactivity, but can be configured to kick in after up to 10 minutes of inactivity.
See the System Menu section of this manual for details on how to configure this setting.

13

SYSTEM MENU

1 - 507 (6ch)

1 - 504 (9ch)

1 - 500 (13ch)

1 - 497 (16ch)

1 - 495 (18ch)

DMX SETTINGS

DMX Address

DMX Channel Mode

1 - 481 (32ch)

1 - 475 (38ch)

1 - 471 (42ch)

1 - 449 (64ch)

1 - 401 (112ch)

1 - 387 (126ch)

6CH

9CH

13CH

16CH

18CH

32CH

38CH

42CH

64CH

112CH

126CH

PERSONALITY

No DMX Status

Dim Modes

Blackout

Hold

Manual

Standard

Stage

TV

Architectural

Theatre

Stage 2

CONTINUED ON NEXT PAGE

Takes all traits to 0
when DMX signal is
lost or interrupted.

Holds all traits at last
received value when
DMX signal is lost or
interrupted.

Defaults to values set
in Manual Mode when
DMX signal is lost or
interrupted.

14

SYSTEM MENU

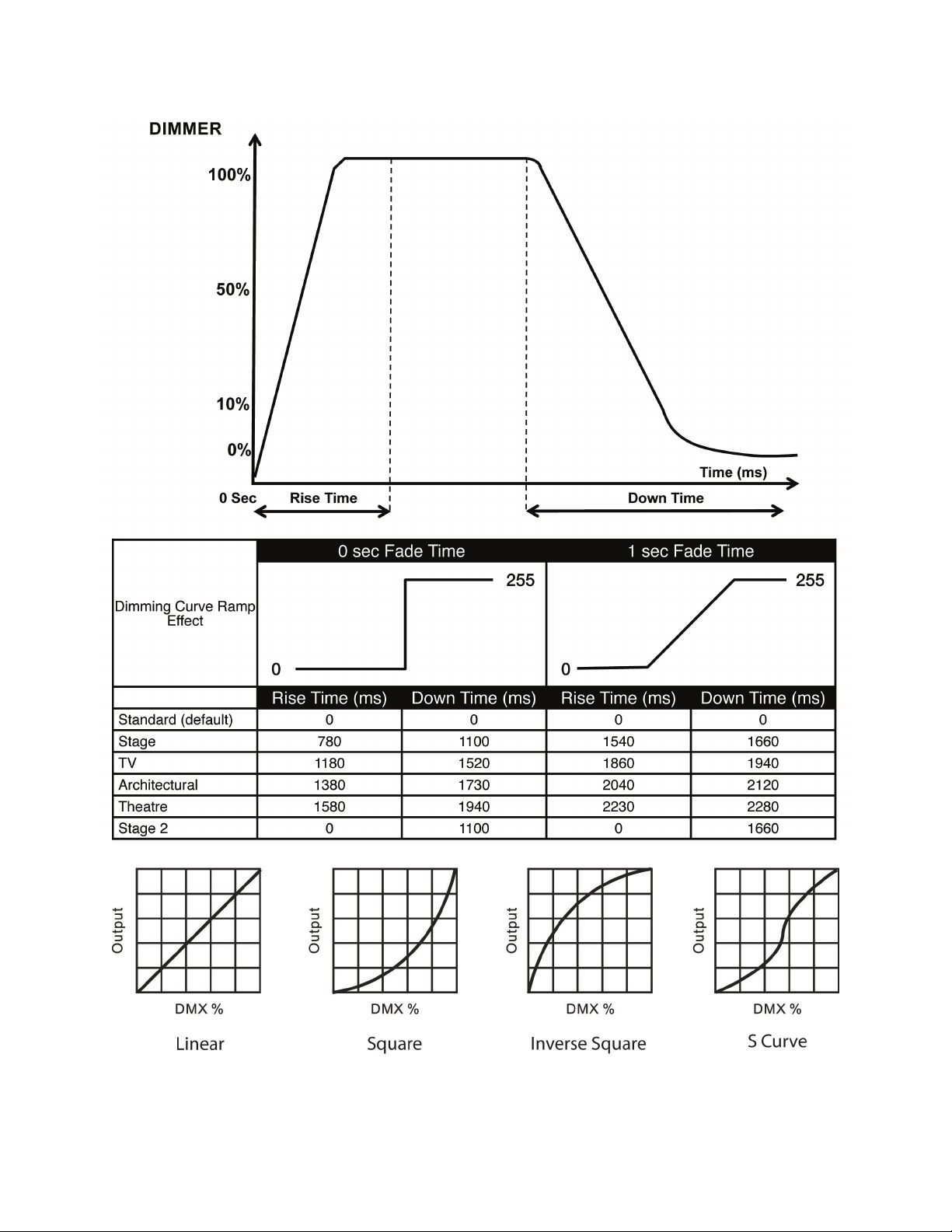

Linear

PERSONALITY
(continued)

Dimmer Curve

Display

Temperature Unit

Fan Speed

Service
(Passcode = 011)

Square

Inv. Sq.

S-Curve

Display Backlight

Display Lock

Display Invert

°C / °F

Low

High

Auto

White Balance

O - 2 min

O - 10 min

No / Yes

Red1 (000 - 255)

Green1 (000 - 255)

Blue1 (000 - 255)

White1 (000 - 255)

Red2 (000 - 255)

Green2 (000 - 255)

Blue2 (000 - 255)

MANUAL

FIXTURE TEST

Update Software

Factory Restore

Red1 000 - 255

Green1 000 - 255

Blue1 000 - 255

White1 000 - 255

Red2 000 - 255

Green2 000 - 255

Blue2 000 - 255

White2 000 - 255

... ...

Dimmer Fine 000 - 255

Auto Test

White2 (000 - 255)

...

Yes / No

Yes / No

Note: Manual control
settings shall always
hold when no DMX
signal is detected.

CONTINUED ON NEXT PAGE

15

Fixture Use Hour

SYSTEM MENU

Total LED Hour

FIXTURE INFORMA­TION

LED Use Hour

Temperature

Fan State

RDM UID xxxxxx

Error Logs

Firmware Version x.xx

LED On Hour

LED Hours Reset Passcode = 011

Fixture Errors

Reset Error Log
(Passcode = 011)

No / Yes

16

DMX SETUP

DMX-512: DMX is short for Digital Multiplex. This is a universal protocol used as a form of commu­nication between intelligent fixtures and controllers. A DMX controller sends DMX data instructions
from the controller to the fixture. DMX data is sent as serial data that travels from fixture to fixture
via the DATA “IN” and DATA “OUT” XLR terminals located on all DMX fixtures (most controllers only
have a DATA “OUT” terminal).

DMX Linking: DMX is a language allowing all makes and models of different manufacturers to be
linked together and operate from a single controller, as long as all fixtures and the controller are DMX
compliant. To ensure proper DMX data transmission, try to use the shortest cable path possible
when using several DMX fixtures. The order in which fixtures are connected in a DMX line does not
influence the DMX addressing. For example, a fixture assigned a DMX address of 1 may be placed
anywhere in a DMX line: at the beginning, at the end, or anywhere in the middle. When a fixture is
assigned a DMX address of 1, the DMX controller knows to send DATA assigned to address 1 to that
unit, no matter where it is located in the DMX chain.

Data Cable (DMX Cable) Requirements (For DMX Operation):The Jolt Bar FX can be controlled
via DMX-512 protocol, and features multiple DMX channel modes. Your unit and your DMX control­ler require a 5-pin XLR connector for data input and data output. If you are making your own cables,
be sure to use standard 110-120 Ohm shielded cable (This cable may be purchased at almost all pro
lighting stores). Your cables should be made with a male XLR connector at one end and a female
XLR connector at the other. Also remember that DMX cable must be daisy chained and cannot be
split.

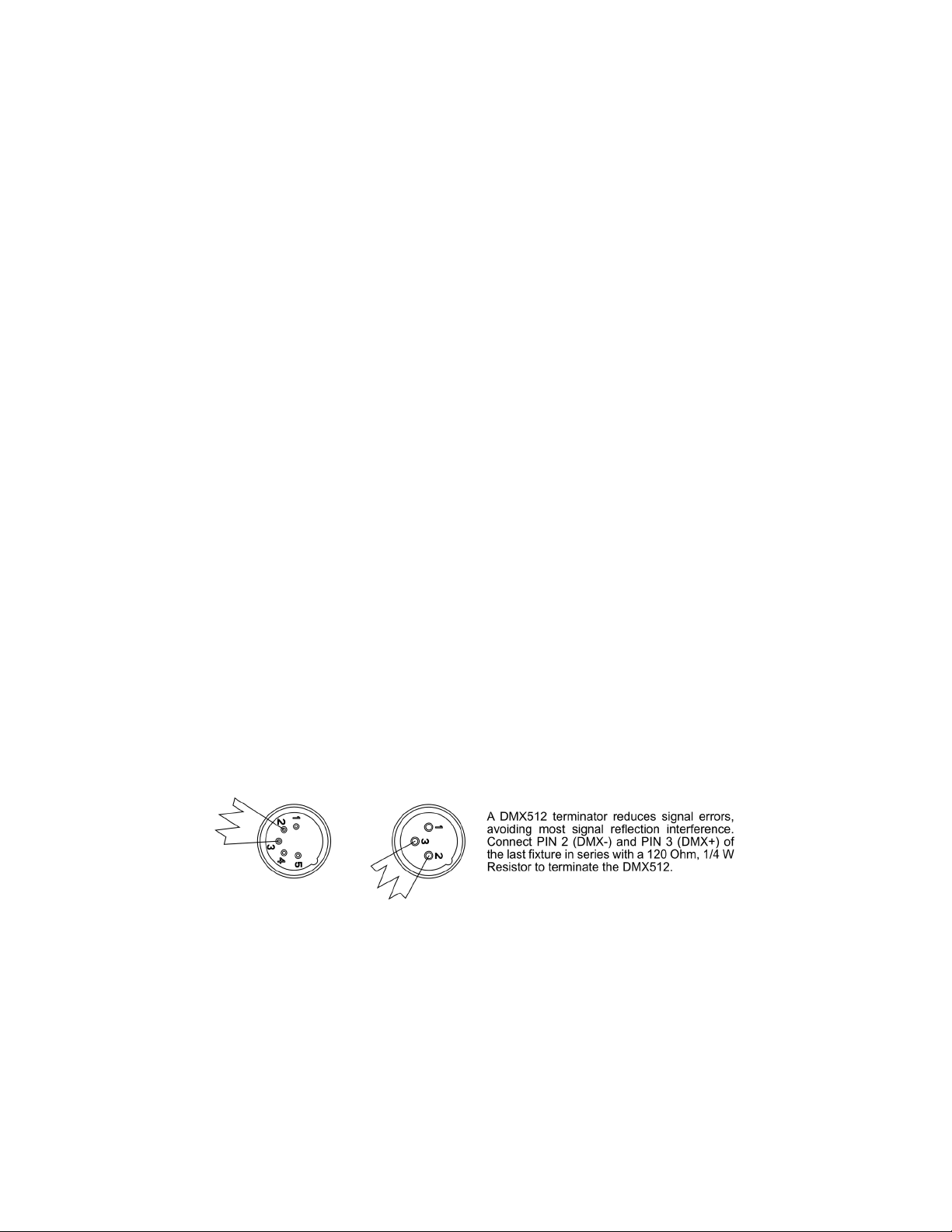

Special Note: Line Termination. When longer runs of cable are used, you may need to use a ter-
minator on the last unit to avoid erratic behavior. A terminator is a 110-120 ohm 1/4 watt resistor
which is connected between pins 2 and 3 of a male XLR connector (DATA + and DATA -). This unit is
inserted in the female XLR connector of the last unit in your daisy chain to terminate the line. Using a
cable terminator (ADJ part number Z-DMX/T) will decrease the chances of erratic behavior.

17

DMX SETUP

DMX ADDRESSING

All fixtures should be given a DMX starting address when operating with a DMX controller, in order to
ensure that the correct fixture responds to the correct control signal. This digital starting address is
the channel number from which the fixture starts to “listen” to the digital control signal sent out from
the DMX controller. The assignment of this starting DMX address is achieved by setting the correct
DMX address on the digital control display on the fixture.

You can set the same starting address for all fixtures or a group of fixtures, or set different addresses
for each individual fixture. Setting all fixtures to the same DMX address will cause all fixtures to react
in the same way. In this case, please note that changing the settings of one channel will affect all the
fixtures simultaneously.

If you set each fixture to a different DMX address, each unit will “listen” starting at the channel num­ber you have set, based on the quantity of DMX channels of each fixture. That means changing the
settings of one channel will only affect the selected fixture.

As an example, when operating this device in 6 channel mode, you should set the starting DMX
address of the first unit to 1, the second unit to 7 (1 + 6), the third unit to 13 (1 + 6 + 6), and so on.
(See the chart below for more details.)

Channel Mode Unit 1 Address Unit 2 Address Unit 3 Address Unit 4 Address

6 Channels

9 Channels

13 Channels

16 Channels

18 Channels

32 Channels

38 Channels

42 Channels

64 Channels

112 Channels

126 Channels

1 7 13 19

1 10 19 28

1 14 27 40

1 17 33 49

1 19 37 55

1 33 65 97

1 39 77 115

1 43 85 127

1 65 129 193

1 113 225 337

1 127 253 379

18

DMX TRAITS

CHANNEL

6CH9 CH13 CH16 CH18 CH32 CH38 CH42 CH64 CH112 CH126

CH

1 1 1 1 000 - 255

2 2 2 2 000 - 255

3 3 3 3 000 - 255

4 4 4 000 - 255

30 32 000 - 255

31 33 000 - 255

32 34 000 - 255

33 35 000 - 255

5 5 6 000 - 255

6 6 7 000 - 255

5 25 25 97 000 - 255

6 26 26 98 000 - 255

DMX

VALUES

000 - 002 Open

FUNCTION

Outer Red, 0% to 100%

Outer Green, 0% to 100%

Outer Blue, 0% to 100%

Inner White, 0% to 100%

Inner White Group 1

Inner White Group 2

Inner White Group 3

Inner White Group 4

Dimmer, 0% to 100%

Dimmer Fine, 0% to 100%

Outer Dimmer, 0% to 100%

Outer Dimmer Fine, 0% to 100%

Strobe Eect

003 - 005 Strobe

006 - 050 Ramp up

7

051 - 100 Ramp down

101 - 150 Ramp up-down

151 - 200 Lightning

201 - 255 Random

8 000 - 255

9 000 - 255

5 4 000 - 255

000 - 002 Open

003 - 005 Strobe

006 - 050 Ramp up

8 7 27 27 99

051 - 100 Ramp down

101 - 150 Ramp up-down

151 - 200 Lightning

201 - 255 Random

Strobe Rate, slow to fast

Strobe Duration, slow to fast

Outer Color Macros

Outer Strobe Eect

9 8 28 28 100 000 - 255

10 9 29 29 101 000 - 255

CONTINUED ON NEXT PAGE

19

Outer Strobe Rate, slow to fast

Outer Strobe Duration, slow to fast

DMX TRAITS

CHANNEL

6CH9 CH13 CH16 CH18 CH32 CH38 CH42 CH64 CH112 CH126

CH

11 10 30 102

DMX

VALUES

000 - 005 No function

006 - 015 Macro1

016 - 025 Macro2

026 - 035 Macro3

036 - 045 Macro4

046 - 055 Macro5

056 - 065 Macro6

066 - 075 Macro7

076 - 085 Macro8

086 - 095 Macro9

096 - 105 Macro10

106 - 115 Macro11

116 - 125 Macro12

FUNCTION

Outer Program Macro

126 - 135 Macro13

136 - 145 Macro14

146 - 155 Macro15

156 - 165 Macro16

166 - 175 Macro17

176 - 185 Macro18

186 - 195 Macro19

196 - 205 Macro20

206 - 215 Macro21

216 - 225 Macro22

226 - 235 Macro23

236 - 245 Macro24

246 - 255 Macro25

11 31 103 000 - 255

12 34 36 120 000 - 255

13 35 37 121 000 - 255

Outer Program Macro Speed

Inner Dimmer, 0% to 100%

Inner Dimmer Fine, 0% to 100%

CONTINUED ON NEXT PAGE

20

DMX TRAITS

CHANNEL

6 CH9 CH13 CH16 CH18 CH32 CH38 CH42 CH64 CH112 CH126

CH

14 36 38 122

15 37 39 123 000 - 255

16 38 40 124 000 - 255

DMX

VALUES

000 - 002 Open

003 - 005 Strobe

006 - 050 Ramp up

051 - 100 Ramp down

101 - 150 Ramp up-down

151 - 200 Lightning

201 - 255 Random

000 - 005 No function

006 - 033 Macro1

034 - 060 Macro2

FUNCTION

Inner Strobe Eect

Inner Strobe Rate, slow to fast

Inner Strobe Duration, slow to fast

Inner Program Macro

061 - 088 Macro3

12 17 41 125

18 42 126 000 - 255

13 000 - 255

1 1 1 1 1 1 1 000 - 255

2 2 2 2 2 2 2 000 - 255

3 3 3 3 3 3 3 000 - 255

4 4 4 4 4 4 4 000 - 255

5 5 5 5 5 5 5 000 - 255

6 6 6 6 6 6 6 000 - 255

7 7 7 7 7 7 7 000 - 255

8 8 8 8 8 8 8 000 - 255

089 - 116 Macro4

117 - 144 Macro5

145 - 172 Macro6

173 - 200 Macro7

201 - 228 Macro8

229 - 255 Macro9

Inner Program Macro Speed

In/Out Program Macro Speed, slow to fast

Red 1

Green 1

Blue 1

Red 2

Green 2

Blue 2

Red 3

Green 3

9 9 9 9 9 9 9 000 - 255

10 10 10 10 10 10 10 000 - 255

11 11 11 11 11 11 11 000 - 255

12 12 12 12 12 12 12 000 - 255

CONTINUED ON NEXT PAGE

21

Blue 3

Red 4

Green 4

Blue 4

DMX TRAITS

CHANNEL

6 CH9 CH13 CH16 CH18 CH32 CH38 CH42 CH64 CH112 CH126

CH

13 13 13 13 13 13 000 - 255

14 14 14 14 14 14 000 - 255

15 15 15 15 15 15 000 - 255

16 16 16 16 16 16 000 - 255

17 17 17 17 17 17 000 - 255

18 18 18 18 18 18 000 - 255

19 19 19 19 19 19 000 - 255

20 20 20 20 20 20 000 - 255

21 21 21 21 21 21 000 - 255

22 22 22 22 22 22 000 - 255

23 23 23 23 23 23 000 - 255

24 24 24 24 24 24 000 - 255

25 25 25 000 - 255

26 26 26 000 - 255

DMX

VALUES

FUNCTION

Red 5

Green 5

Blue 5

Red 6

Green 6

Blue 6

Red 7

Green 7

Blue 7

Red 8

Green 8

Blue 8

Red 9

Green 9

27 27 27 000 - 255

28 28 28 000 - 255

29 29 29 000 - 255

30 30 30 000 - 255

31 31 31 000 - 255

32 32 32 000 - 255

33 33 33 000 - 255

34 34 34 000 - 255

35 35 35 000 - 255

36 36 36 000 - 255

37 37 37 000 - 255

38 38 38 000 - 255

39 39 39 000 - 255

40 40 40 000 - 255

41 41 41 000 - 255

42 42 42 000 - 255

43 43 43 000 - 255

Blue 9

Red 10

Green 10

Blue 10

Red 11

Green 11

Blue 11

Red 12

Green 12

Blue 12

Red 13

Green 13

Blue 13

Red 14

Green 14

Blue 14

Red 15

44 44 44 000 - 255

45 45 45 000 - 255

46 46 46 000 - 255

47 47 47 000 - 255

CONTINUED ON NEXT PAGE

22

Green 15

Blue 15

Red 16

Green 16

DMX TRAITS

CHANNEL

6 CH9 CH13 CH16 CH18 CH32 CH38 CH42 CH64 CH112 CH126

CH

48 48 48 000 - 255

49 49 000 - 255

50 50 000 - 255

51 51 000 - 255

52 52 000 - 255

53 53 000 - 255

54 54 000 - 255

55 55 000 - 255

56 56 000 - 255

57 57 000 - 255

58 58 000 - 255

59 59 000 - 255

60 60 000 - 255

61 61 000 - 255

DMX

VALUES

FUNCTION

Blue 16

Red 17

Green 17

Blue 17

Red 18

Green 18

Blue 18

Red 19

Green 19

Blue 19

Red 20

Green 20

Blue 20

Red 21

62 62 000 - 255

63 63 000 - 255

64 64 000 - 255

65 65 000 - 255

66 66 000 - 255

67 67 000 - 255

68 68 000 - 255

69 69 000 - 255

70 70 000 - 255

71 71 000 - 255

72 72 000 - 255

73 73 000 - 255

74 74 000 - 255

75 75 000 - 255

76 76 000 - 255

77 77 000 - 255

78 78 000 - 255

Green 21

Blue 21

Red 22

Green 22

Blue 22

Red 23

Green 23

Blue 23

Red 24

Green 24

Blue 24

Red 25

Green 25

Blue 25

Red 26

Green 26

Blue 26

79 79 000 - 255

80 80 000 - 255

81 81 000 - 255

82 82 000 - 255

CONTINUED ON NEXT PAGE

23

Red 27

Green 27

Blue 27

Red 28

DMX TRAITS

CHANNEL

6 CH9 CH13 CH16 CH18 CH32 CH38 CH42 CH64 CH112 CH126

CH

83 83 000 - 255

84 84 000 - 255

85 85 000 - 255

86 86 000 - 255

87 87 000 - 255

88 88 000 - 255

89 89 000 - 255

90 90 000 - 255

91 91 000 - 255

92 92 000 - 255

93 93 000 - 255

94 94 000 - 255

95 95 000 - 255

96 96 000 - 255

DMX

VALUES

FUNCTION

Green 28

Blue 28

Red 29

Green 29

Blue 29

Red 30

Green 30

Blue 30

Red 31

Green 31

Blue 31

Red 32

Green 32

Blue 32

13 25 49 97 104 000 - 255

14 26 50 98 105 000 - 255

15 27 51 99 106 000 - 255

16 28 52 100 107 000 - 255

29 53 101 108 000 - 255

30 54 102 109 000 - 255

31 55 103 110 000 - 255

32 56 104 111 000 - 255

57 105 112 000 - 255

58 106 113 000 - 255

59 107 114 000 - 255

60 108 115 000 - 255

61 109 116 000 - 255

62 110 117 000 - 255

63 111 118 000 - 255

64 112 119 000 - 255

White 1

White 2

White 3

White 4

White 5

White 6

White 7

White 8

White 9

White 10

White 11

White 12

White 13

White 14

White 15

White 16

24

6-, 9-, 13-, AND 18-CHANNEL MODE

16-CHANNEL MODE

32-, 38-, AND 42-CHANNEL MODE

LED PIXEL ZONES

64-CHANNEL MODE

112- AND 126-CHANNEL MODE

25

DIMMER MODES AND CURVES

26

DAISY CHAIN POWER LINKING

These units have the capability to be daisy chained together via the power in/out ports. The maxi­mum number of units that can be linked together in this manner is as follows:

• 4 units maximum when running on 120V power.

• 8 units maximum when running on 230V power.

DO NOT EXCEED THE NUMBER OF UNITS LISTED ABOVE.

DO NOT MIX MAKE AND MODEL TYPES WHEN DAISY CHAINING! All units that are connected in

this manner must be of the same make and model type.

CLEANING AND MAINTENANCE

DISCONNECT POWER BEFORE PERFORMING ANY MAINTENANCE!

CLEANING

Frequent cleaning is recommended to ensure proper function, optimized light output, and an extend­ed life. The frequency of cleaning depends on the environment in which the xture operates: damp,
smoky, or particularly dirty environments can cause greater accumulation of dirt on the xture’s op-

tics. Clean the external lens surface periodically with a soft cloth to avoid dirt/debris accumulation.

NEVER use alcohol, solvents, or ammonia-based cleaners.

MAINTENANCE

Regular inspections are recommended to ensure proper function and extended life. There are no

user serviceable parts inside this xture. Please refer all other service issues to an authorized ADJ

service technician. Should you need any spare parts, please order genuine parts from your local ADJ
dealer.

Please refer to the following points during routine inspections:

• A detailed electrical check by an approved electrical engineer every three months, to make sure
the circuit contacts are in good condition and prevent overheating.

• Be sure all screws and fasteners are securely tightened at all times. Loose screws may fall out
during normal operation, resulting in damage or injury as larger parts could fall.

• Check for any deformations on the housing, color lenses, rigging hardware, and rigging points
(ceiling, suspension, trussing). Deformations in the housing could allow for dust or liquids to enter

into the xture. Damaged rigging points or unsecured rigging could cause xture to fall and seri-

ously injure a person(s).

• Electric power supply cables must not show any damage, material fatigue, or sediments.

NEVER remove the ground prong from the power cable.

27

DIMENSIONAL DRAWINGS

Dimensions are not drawn to scale.

28

SPECIFICATIONS

LIGHT SOURCE:

• 672 RGB SMD LEDs + 112 Cool White SMD LEDs

• 116 Degree Beam Angle

• Color Temperature: Red: 620-630nm. Green: 515-525nm. Blue: 460-470nm. / Cool White:

5500-7000K

• 50,000 Hour Average LED Life

FEATURES:

• 32 x RGB LED zones

• 16 x Cool White LED

• 25 built-in RGB LED Program Macros

• 9 built-in Cool White LED Program Macros

CONTROL:

• Control Protocol: DMX

• 11 DMX Modes: 6, 9, 13, 16, 18, 32, 38, 42, 64, 112 and 126 channels

• 0-100% Smooth Dimming

• Strobe, shutter & pulse control

• Max Strobe Rate 25Hz. Min Strobe Rate: 0.35Hz.

• With Wired Digital Communication Network

• Display: LCD display with 4-button touch menu

CONNECTIONS:

• Data: 5-pin DMX In/Out

• 180 degree mounting bracket system

• Power locking power in/out

• Connect ixtures seamlessly using included metal bracket attachment

ELECTRICAL:

• 100-240V 50Hz/60Hz (Auto Sensing)

• Max Power Consumption: 340W

DIMENSIONS / WEIGHT:

• Length: 39.4” (1000mm)

• Width: 4.2” (107mm)

• Height: 4.8” (123mm)

• Weight: 8.8 lbs. (3.99kg)

Specications and manual are subject to change and improvement without prior written notice.

29
