INNO POCKET SCAN
©2013 ADJ Products, LLC all rights reserved. Information,
specications, diagrams, images, and instructions herein are
subject to change without notice. ADJ Products, LLC logo and
identifying product names and numbers herein are trademarks
of ADJ Products, LLC. Copyright protection claimed includes all
forms and matters of copyrightable materials and information
now allowed by statutory or judicial law or hereinafter granted.
Product names used in this document may be trademarks or
registered trademarks of their respective companies and are
hereby acknowledged. All non-ADJ Products, LLC brands and
product names are trademarks or registered trademarks of their
respective companies.
ADJ Products, LLC and all aliated companies hereby disclaim any and all liabilities for property, equipment, building,
and electrical damages, injuries to any persons, and direct or
indirect economic loss associated with the use or reliance of
any information contained within this document, and/or as a
result of the improper, unsafe, unsucient and negligent assembly, installation, rigging, and operation of this product.
8/14
User Instructions
Europe Energy Saving Notice
Energy Saving Matters (EuP 2009/125/EC)
Saving electric energy is a key to help protecting the enviroment.
Please turn o all electrical products when they are not in use. To
avoid power consumption in idle mode, disconnect all electrical
equipment from power when not in use. Thank you!
Inno Pocket Scan General Information
Inno Pocket Scan General Instructions
Unpacking: Thank you for purchasing the Inno Pocket Scan by ADJ
Products, LLC. Every Inno Pocket Scan has been thoroughly tested
and has been shipped in perfect operating condition. Carefully check
the shipping carton for damage that may have occurred during shipping. If the carton appears to be damaged, carefully inspect your xture for any damage and be sure all equipment necessary to operate
the unit has arrived intact. In the event damage has been found or parts
are missing, please contact our toll free customer support number for
further instructions. Please do not return this unit to your dealer without contacting customer support rst.
Introduction: The Inno Pocket Scan is a mini DMX intelligent LED
scanner. The Inno Pocket Scan has 6 DMX channels. The Inno Pocket
Scan has three operating modes; a sound active, show mode, DMX
controlled. The Inno Pocket Scan can operate as a stand alone fixture
or in a Master/Slave configuration. For best results use fog or special
effects smoke to enhance the beams projections.
Customer Support: ADJ Products, LLC provides a toll free cus-
tomer support line, to provide help and to answer any question should
you encounter problems during your set up or initial operation. You
may also visit us on the web at www.adj.com for any comments or
suggestions. Service Hours are Monday through Friday 8:00 a.m. to
4:30 p.m. Pacic Standard Time.
Voice: (800) 322-6337
Fax: (323) 582-2941
E-mail: support@americandj.com
To purchase parts online visit http://parts.americandj.com
Warning! To prevent or reduce the risk of electrical shock or re, do
not expose this unit to rain or moisture.
Warning! This may cause severe eye damage. Avoid looking directly
into the light source at all times!
To optimize the performance of this product, please read these
operating instructions carefully to familiarize yourself with the basic
operations of this unit. These instructions contain important safety
information regarding the use and maintenance of this unit. Please
keep this manual with the unit, for future reference.
Inno Pocket Scan Features
• 6 DMX Channels
• 3 Operating Modes - Sound Active, Show Mode, & DMX Control
• Internal Microphone
• Digital Display for Address and Function Setting
• 12 Preprogrammed Shows
• 8 fixed Gobos/Colors + Spot/White
• Power Cord Daisy Chain (See page 16)
• UC IR Compatiable (Sold Separately)
Inno Pocket Scan Warranty Registration
The Inno Pocket Scan carries a 2 year (730 days) limited warranty.
Please fill out the enclosed warranty card to validate your purchase
and warranty. You may also register your product online at www.
americandj.com. All returned service items whether under warranty or
not, must be freight pre-paid and accompany a return authorization
(R.A.) number. If the unit is under warranty you must provide a copy
of your proof of purchase invoice. Please contact ADJ customer support for a R.A. number.
Inno Pocket Scan Handling Precautions
Caution! There are no user serviceable parts inside this unit. Do not
attempt any repairs yourself, doing so will void your manufactures
warranty. In the unlikely event your unit may require service please
contact ADJ Products, LLC.
During operation the housing may become extremely hot. Avoid touching the unit with bare hands while in use.
ADJ will not accept any liability for any resulting damages caused by
the non-observance of this manual or any unauthorized modication
to this unit.
ADJ Products, LLC - www.adj.com - Inno Pocket Scan Instruction Manual Page 3ADJ Products, LLC - www.adj.com - Inno Pocket Scan Instruction Manual Page 2
Inno Pocket Scan Safety Precautions
Inno Pocket Scan Set Up
For Your Own Personal Safety, Please Read and Understand This
Manual Completely Before You Attempt To Install Or Operate
This Unit!
• To reduce the risk of electrical shock or re, do not expose this unit
rain or moisture
• Do not spill water or other liquids into or on to your unit.
• Do not attempt to operate this unit if the power cord has been
frayed or broken.
• Do not attempt to remove or break o the ground prong from
the electrical cord. This prong is used to reduce the risk of electrical
shock and re in case of an internal short.
• Disconnect from main power before making any type of connection.
• Do not remove the cover under any conditions. There are no user
serviceable parts inside.
• Never operate this unit when it’s cover is removed.
• Always be sure to mount this unit in an area that will allow proper
ventilation. Allow about 6” (15cm) between this device and a wall.
• Do not attempt to operate this unit, if it becomes damaged.
• This unit is intended for indoor use only, use of this product out doors voids all warranties.
• Always mount this unit in safe and stable matter.
• Power-supply cords should be routed so that they are not likely to
be walked on or pinched by items placed upon or against them,
paying particular attention to cords at plugs, convenience recep tacles, and the point where they exit from the appliance.
• Cleaning -The fixture should be cleaned only as recommended by
the manufacturer. See page 20 for cleaning details.
• Heat -This fixture should be situated away from heat sources such
as radiators, heat registers, stoves, or other appliances (including
amplifiers) that produce heat.
• The fixture should be serviced by qualified service personnel when:
A. Objects have fallen, or liquid has been spilled into the appliance.
B. The appliance has been exposed to rain or water.
C. The appliance does not appear to operate normally or exhibits
a marked change in performance.
Power Supply: The ADJ Inno Pocket Scan contains a automatic
voltage switch, which will auto sense the voltage when it is plugged
into a power source. With this switch there is no need to worry about
the correct power voltage, this unit can be plugged in anywhere.
DMX-512: DMX is short for Digital Multiplex. This is a universal pro-
tocol used by most lighting and controller manufactures as a form of
communication between intelligent fixtures and controllers. A DMX
controller sends DMX data instructions from the controller to the fixture. DMX data is sent as serial data that travels from fixture to fixture
via the DATA “IN” and DATA “OUT” XLR terminals located on all DMX
fixtures (most controllers only have a DATA “OUT” terminal).
DMX Linking: DMX is a language allowing all makes and models
of dierent manufactures to be linked together and operate from a
single controller, as long as all xtures and the controller are DMX
compliant. To ensure proper DMX data transmission, when using
several DMX fixtures try to use the shortest cable path possible. The
order in which fixtures are connected in a DMX line does not influence
the DMX addressing. For example; a fixture assigned a DMX address
of 1 may be placed anywhere in a DMX line, at the beginning, at the
end, or anywhere in the middle. Therefore, the first fixture controlled
by the controller could be the last fixture in the chain. When a fixture
is assigned a DMX address of 1, the DMX controller knows to send
DATA assigned to address 1 to that unit, no matter where it is located
in the DMX chain.
Data Cable (DMX Cable) Requirements (For DMX and Master/Slave
Operation): The Inno Pocket Scan can be controlled via DMX-512
protocol. The Inno Pocket Scan is a 6 channel DMX unit. The DMX
address is set electronically using the controls on the side panel of
the unit. Your unit and your DMX controller require a approved DMX512 110 Ohm Data cable for data input and data
output (Figure 1). We recommend Accu-Cable DMX
cables. If you are making your own cables, be sure
to use standard 110-120 Ohm shielded cable (This
cable may be purchased at almost all professional
sound and lighting stores). Your cables should be
made with a male and female XLR connector on
either end of the cable. Also remember that DMX
ADJ Products, LLC - www.adj.com - Inno Pocket Scan Instruction Manual Page 5ADJ Products, LLC - www.adj.com - Inno Pocket Scan Instruction Manual Page 4
Figure 1
Inno Pocket Scan Set Up
REMOTE
CONTROL
INPUT
POWER
INPUT OUTPUT
SOUND
REMOTE
CONTROL
INPUT
POWER
INPUT OUTPUT
SOUND
REMOTE
CONTROL
INPUT
POWER
INPUT OUTPUT
DMX512
DMX+,DMX-,COMMON
1
2
3
Termination reduces signal errors and
avoids signal transmission problems
and interference. It is always advisable
to connect a DMX terminal, (Resistance
120 Ohm 1/4 W) between PIN 2 (DMX-)
and PIN 3 (DMX +) of the last fixture.
POWER
SOUND
REMOTE
CONTROL
INPUT
POWER
INPUT OUTPUT
and PIN 3 (DMX +) of the last fixture.
Inno Pocket Scan Set Up
cable must be daisy chained and cannot be split.
Notice: Be sure to follow gures two and three when making your own
cables. Do not use the ground lug on the XLR connector. Do not connect the cable’s shield conductor to the ground lug or allow the shield
conductor to come in contact with the XLR’s outer casing. Grounding
the shield could cause a short circuit and erratic behavior.
COMMON
1
DMX512 IN
3
3-PIN XLR
2
Figure 2
XLR Pin Conguration
Pin 1 = Ground
Pin 2 = Data Compliment (negative)
Pin 3 = Data True (positive)
XLR Male Socket
1 Ground
DMX512 OT
3-PIN XLR
2 Cold
3 Hot
1
3
2
XLR Female Socket
2 Cold
DMX +
DMX -
1 Ground
3 Hot
Figure 3
Special Note: Line Termination.
When longer runs of cable are
used, you may need to use a terminator on the last unit to avoid erratic
behavior. A terminator is a 110-120 ohm 1/4 watt resistor which is connected between pins 2 and 3 of a male XLR connector (DATA + and
DATA -). This unit is inserted in the female XLR connector of the last
unit in your daisy chain to terminate the line. Using a cable terminator
(ADJ part number Z-DMX/T) will decrease the possibilities of erratic
behavior.
5-Pin XLR DMX Connectors.
Some manufactures use 5-pin DMX-
512 data cables for DATA transmission in place of 3-pin. 5-pin DMX
xtures may be implemented in a 3-pin DMX line. When inserting standard 5-pin data cables in to a 3-pin line a cable adaptor must be used,
these adaptors are readily available at most electric stores. The chart
below details a proper cable conversion.
3-Pin XLR to 5-Pin XLR Conversion
Conductor 5-Pin XLR Male (In)3-Pin XLR Female (Out)
Ground/Shield
Data Compliment (- signal)
Data True (+ signal)
Not Used
Not Used
Pin 1
Pin 2
Pin 3
Pin 1
Pin 2
Pin 3
Pin 4 - Do Not Use
Pin 5 - Do Not Use
ADJ Products, LLC - www.adj.com - Inno Pocket Scan Instruction Manual Page 6 ADJ Products, LLC - www.adj.com - Inno Pocket Scan Instruction Manual Page 7
Termination reduces signal errors and
1
avoids signal transmission problems
3
and interference. It is always advisable
2
to connect a DMX terminal, (Resistance
120 Ohm 1/4 W) between PIN 2 (DMX-)
Figure 4
Inno Pocket Scan System Menu
Inno Pocket Scan System Menu
ADDR - DMX Address Setting.
1. Press the MENU button until “ADDR” is displayed, press
ENTER.
2. The current address will now be displayed and ashing.
Press the UP or DOWN buttons to nd your desired address.
When you have found your desired DMX address press ENTER
then press and hold the MENU button for at least 3 seconds to
set your desired DMX address.
3. Connect your DMX Controller.
SLND - This will let you set unit as a slave in a master-
slave conguration.
1. Press the MENU button until “SLND” is displayed, press
ENTER. Either “SL 1” or “SL 2” will be displayed.
2. Press the UP or DOWN buttons until your desired setting is
displayed, and press ENTER to conm.
NOTE: In a Master/Slave conguration you can set one xture
to Master and then set the next xture to “SL 2”, the xtures
will now have contrast movement to each other.
SHND: SH 0 - SH12 - Show modes 0-12 (Factory
programs). Show mode can run with or without sound
active mode active.
1. Press the MENU button until “SHND” is displayed, press
ENTER.
2. “Sh X” will now be displayed, “X” representing a number
between 0-12. Programs 1-12 are factory programs, while “Sh
0” is random mode. Press the UP or DOWN buttons to nd your
desired show.
3. When you have found your desired show press ENTER, then
ADJ Products, LLC - www.adj.com - Inno Pocket Scan Instruction Manual Page 9ADJ Products, LLC - www.adj.com - Inno Pocket Scan Instruction Manual Page 8
Inno Pocket Scan System Menu
Inno Pocket Scan System Menu
press and hold the MENU button for at least 3 seconds to activate. After you have set your desired show, it can be changed
at any time using the UP or DOWN buttons.
SOUN - Sound Active mode.
1. Press the MENU button until “SOUN” is displayed, press
ENTER.
2. The display will show either “ON” or “OFF”. Press the UP or
DOWN buttons to select “ON” to activate sound active mode,
or “OFF” to deactivate sound active mode.
3. Press ENTER, then press and hold the MENU button for at
least 3 seconds to activate.
SENS - In this mode you can adjust the sound sensitiv-
ity.
1. Press the MENU button until “SENS” is displayed, press
ENTER.
2. A number between 0-100 will be displayed. Press the UP or
DOWN buttons to adjust the sound sensitivity. 0 being the least
sensitive, and 100 being the most sensitive.
3. When you have found your desired setting press ENTER to
conrm.
BLND - Blackout or Stand by mode.
1. Press the MENU button until “BLND” is displayed, press
ENTER. Either Yes or No will be displayed.
2. To activate Blackout tap the UP or DOWN buttons until “Yes”
is displayed, press ENTER to conm. The xture will now be in
Blackout mode. To deactivate Blackout mode, select “No” and
press Enter.
LED - With this function you can have the LED display
turn off after 10 seconds.
1. Press the MENU button until “LED” is displayed, press
ENTER.
2. The display will show either “ON” or “OFF”. Press the UP or
DOWN buttons to select “ON” to keep the LED display on at
all times, or “OFF” to switch to have the LED display switch o
after 10 seconds.
3. Press ENTER to conrm. To make the LED display reappear
after it has turned o, press any button.
DISP - This function will reverse the display 180º.
1. Press the either the MENU button until “DISP” is displayed,
press ENTER.
DIND - In this mode you can select the dimmer curve.
1. Press the MENU button until “DIND” is displayed, press
ENTER.
2. The current dimmer curve setting will be displayed.
3. Press the UP or DOWN buttons to nd your desired dimmer
curve and press ENTER to conrm. See the Dimmer Curve Chart
on page 19 for more information.
ADJ Products, LLC - www.adj.com - Inno Pocket Scan Instruction Manual Page 10
2. Press the UP button to select “DSIP” to “ip” the display, or
“DISP” to change the display back.
3. Press ENTER to conrm.
PAN - Pan Inversion
1. Press the MENU button until “PAN” is displayed, press
ENTER. Either Yes or No will be displayed.
ADJ Products, LLC - www.adj.com - Inno Pocket Scan Instruction Manual Page 11
Inno Pocket Scan System Menu
Inno Pocket Scan System Menu
2. To activate the Pan inversion press the UP or DOWN buttons
until YES is displayed, press ENTER to conm. To deactivate
Pan inversion, select NO and press Enter.
TILT - Tilt Inversion
1. Press the MENU button until “TILT” is displayed, press
ENTER. Either YES or NO will be displayed.
2. To activate the Tilt inversion press the UP or DOWN buttons
until YES is displayed, press ENTER to conm. To deactivate
Tilt inversion, select NO and press Enter.
TEST - This function will run a self test program. The test
program will test pan/tilt movement and colors.
1. Press the MENU button until “TEST” is displayed, press
ENTER.
2. The xture will now run a self test. Press MENU to exit.
TEMP - With this function you can check the temperature
of the xture.
VER - With this function you can display the software ver-
sion of the unit.
1. Press the MENU button until “VER” is displayed, press
ENTER.
2. The software version will now be displayed. Press MENU to
exit
RSET - Use this function to reset the unit.
1. Press the MENU button until “RSET” is displayed, press
ENTER.
2. The xture will now reset.
1. Press the MENU button until “TEMP” is displayed, press
ENTER.
2. The temperature of the xture will now be displayed. Press
MENU to exit.
FHRS - With this function you can display the running
time of the unit.
1. Press the MENU button until “FHRS” is displayed, press
ENTER.
2. The running time of the xture will now be displayed. Press
MENU to exit.
ADJ Products, LLC - www.adj.com - Inno Pocket Scan Instruction Manual Page 12 ADJ Products, LLC - www.adj.com - Inno Pocket Scan Instruction Manual Page 13

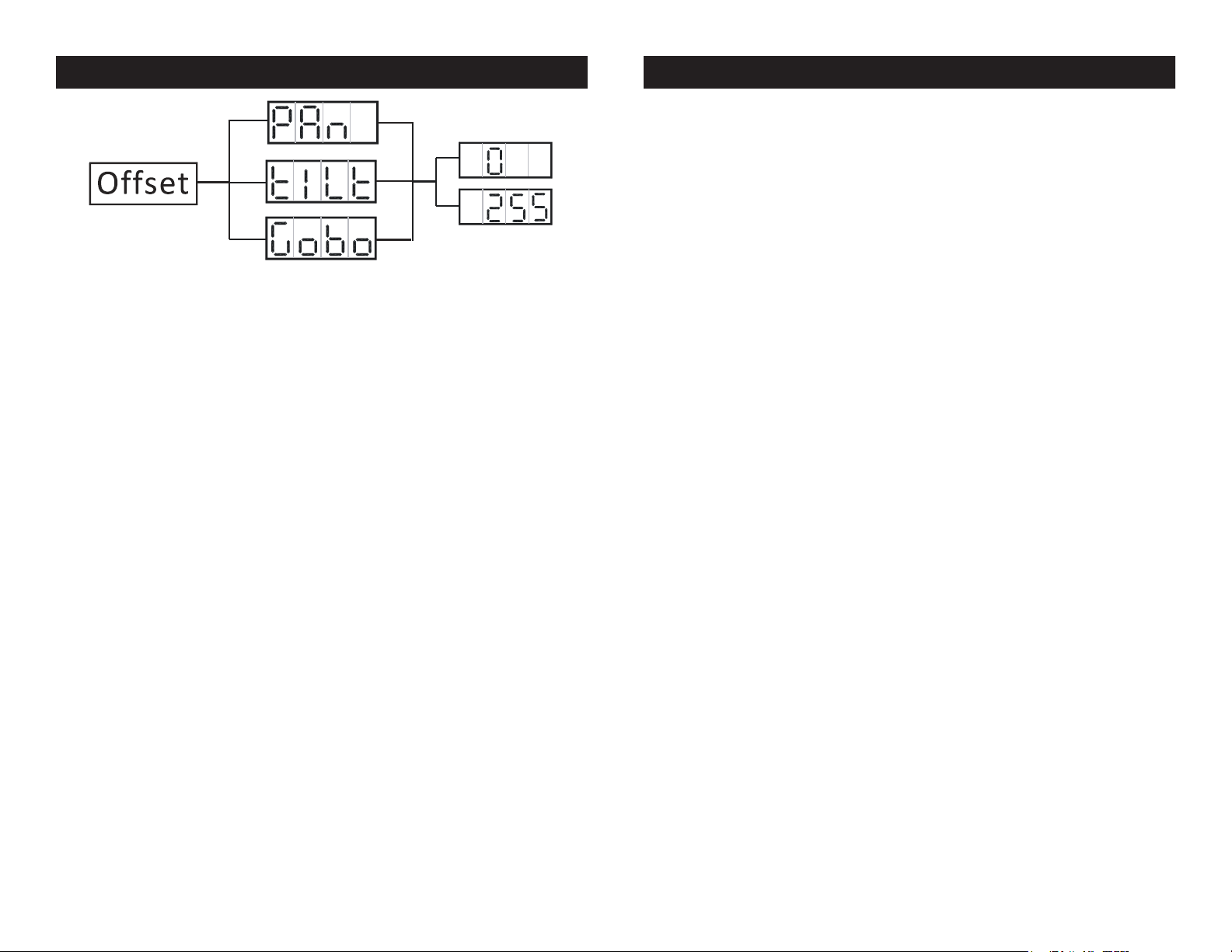

To enter the oset adjustment submenu, press the ENTER button for
at least 5 seconds. In this submenu you are able to adjust the pan
and tilt home positions and gobo wheel home position.
Inno Pocket Scan Operation Inno Pocket Scan Offset Adjustment Menu
Operating Modes: The Inno Pocket Scan can operate in three
different modes. In each mode you can run the fixture as a
stand alone fixture or in a master/slave confiugration. This next
section will detail the differences in the operating modes.
• Sound Active mode -
The fixture will react to sound, chasing through the built-in programs.
• Show mode -
The fixture will run one of 12 shows.
• DMX control mode -
This function will allow you to control each individual fixtures traits
with a standard DMX-512 controller.
PAN - Adjustment of the pan position.
1. Press the ENTER button for at least 5 seconds, then press the UP
or DOWN buttons so that “PAN” is displayed, press ENTER.
2. Use the UP and DOWN buttons to make your adjustments, and
then press ENTER to conrm. Press the MENU button for one second
to exit.
TILT - Adjustment of the tilt position.
1. Press the ENTER button for at least 5 seconds, then press the UP
or DOWN buttons so that “TILT” is displayed, press ENTER.
2. Use the UP and DOWN buttons to make your adjustments, and
then press ENTER to conrm. Press the MENU button for one second
to exit.
GOBO - Adjustment of the gobo position.
1. Press the ENTER button for at least 5 seconds, then press the UP
or DOWN buttons so that “GOBO” is displayed, press ENTER.
2. Use the UP and DOWN buttons to make your adjustments, and
then press ENTER to conrm. Press the MENU button for one second
to exit.
Universal DMX Control: This function allows you to use a Elation®
universal DMX-512 controller to control the chases and patterns,
dimmer and strobe. A DMX controller allows you to create unique
programs tailored to your individual needs.
1. The Inno Pocket Scan has 6 DMX Channels. See pages 17-18 for
detailed description of the DMX values and traits.
2. To control your fixture in DMX mode, follow the set-up procedures
on pages 5-7 as well as the set-up specifications that are includ ed with your DMX controller.
3. Use your DMX controller’s faders to control the various DMX fix ture traits.
4. Follow the instructions on page 9 to set the DMX address.
5. For longer cable runs (more than a 100 feet) use a terminator on
the last fixture.
6. For help operating in DMX mode consult the manual included
with your DMX controller.
Sound Active Mode: This mode allows either a single unit or several
units linked together, to run to the beat of the music.
1. Press the MENU button until “SOUN” is displayed, and press
ENTER. Press the UP or DOWN buttons so that “ON” is dis-
played and press ENTER.
2. To adjust the sound sensitivity level press the MENU button until
“SENS” is displayed, and press ENTER. Use the UP or DOWN
buttons to adjust the sensitivity level, “0” being least sensitive,
“100” being the most sensitive. Press ENTER to set your level.
ADJ Products, LLC - www.adj.com - Inno Pocket Scan Instruction Manual Page 15ADJ Products, LLC - www.adj.com - Inno Pocket Scan Instruction Manual Page 14
Inno Pocket Scan Operation
Inno Pocket Scan DMX Traits and Values
Show Mode: This mode allows either a single unit or several units
linked together, to run one of 12 shows that you choose. Show mode
can run with or without sound active mode.
1. Press the MENU button until “SHND” is displayed, and press
ENTER.
2. Press the UP or DOWN buttons until you nd your desired show,
press ENTER, then press and hold the MENU button for at least 3
seconds to activate. After you have set your desired show, it can
be changed at any time using the UP or DOWN buttons.
Inno Pocket Scan Master-Slave Set Up
Master-Slave Conguration This function will allow you to link up
to 16 units together and operate without a controller. The units will be
sound activated. In a Master-Slave set up, one unit will act as the controlling unit and the others will react to the controlling units programs.
Any unit can act as a Master or as a Slave.
1. Using approved DMX data cables, daisy chain your units togeth-
er via the XLR connector on the rear of the units. Remember the
Male XLR connector is the input and the Female XLR connector
is the output. The rst unit in the chain (master) will use the female
XLR connector only - The last unit in the chain will use the male
XLR connector only. For longer cable runs we suggest a termina tor at the last fixture.
2. Set the Master unit to your desired operating mode.
3. On the slave units tap the MENU button until “SLND” is dis played, and Press ENTER. Choose either “SL 1” or “SL 2” and
press ENTER. See page 9 for more info.
4. The slave units will now follow the Master unit.
Inno Pocket Scan Power Cord Daisy Chain
With this feature you can connect the xtures to one another
using the IEC input and output sockets. The quantity that can be
connected is 19 xtures maximum for 120V and 35 xtures maximum for 240V. After the maximum xtures has been reached you
will need to use a new power outlet. They must be the same xtures. DO NOT mix xtures.
ADJ Products, LLC - www.adj.com - Inno Pocket Scan Instruction Manual Page 16 ADJ Products, LLC - www.adj.com - Inno Pocket Scan Instruction Manual Page 17
Channel Value Function
1 0 - 255 PAN
2 0 - 255 TILT
3 STROBE
0 - 7 BLACKOUT
8 - 15 OPEN
16 - 131 STROBING SLOW - FAST
132 - 139 OPEN
140 - 181 SLOW OPEN - FAST CLOSE
182 - 189 OPEN
190 - 231 FAST OPEN - SLOW CLOSE
232 - 239 OPEN
240 - 247 RANDOM STROBE
248 - 255 OPEN
4 COLOR WHEEL
0 - 7 OPEN
8 - 14 GOBO 1 YELLOW
15 - 21 GOBO 2 RED
22 - 28 GOBO 3 GREEN
29 - 35 GOBO 4 BLUE
36 - 42 GOBO 5 RGB
43 - 49 GOBO 6 UV
50 - 56 GOBO 7 LIGHT BLUE
57 - 63 GOBO 8 UV & LIGHT BLUE
64 - 71 OPEN SHAKE
72 - 78 GOBO 1 YELLOW SHAKE
79 - 85 GOBO 2 RED SHAKE
86 - 92 GOBO 3 GREEN SHAKE
93 - 99 GOBO 4 BLUE SHAKE
100 - 106 GOBO 5 RGB SHAKE
107 - 113 GOBO 6 UV SHAKE
114 - 120 GOBO 7 LIGHT BLUE SHAKE
121 - 127 GOBO 8 UV & LIGHT BLUE SHAKE
128 - 255 GOBO WHEEL ROTATION SLOW - FAST
5 0 - 255 MASTER DIMMER 0% - 100%
6 DIMMER MODE
0 - 20 STANDARD
21 - 40 STAGE
Inno Pocket Scan DMX Traits and Values
Channel Value Function
6 DIMMER MODE
41 - 60 TV
61 - 80 ARCHITECTURAL
81 - 100 THEATRE
101 - 255 DEFAULT DIMMER SETTING
Inno Pocket Scan UC IR Remote Control
The UC-IR infrared remote gives you control of various functions
(See below). To control the fixture you must aim the remote at the
front of the fixture and be no more then 30 feet away.
STAND BY - Pressing this button will blackout the fixture.
FULL ON - Hold this button down to fully light up the unit. When you
let the button go, the unit will return to its previous state.
FADE/GOBO - Press this button to enter Gobo mode. Use the 1-9
buttons to select your desired gobo. Adjust the output intensity using
the “DIMMER +” and “DIMMER -” buttons.
“DIMMER +” and “DIMMER -” - Use these buttons to adjust the output intensity and to adjust the strobe speed.
Inno Pocket Scan Photometric Chart
0m( )
5.0
Distance(m)
Diameter(m)
14
0
1.0 2.0 3.0 4.0
0.228
0.456 0.684 0.91 1 1.139
Inno Pocket Scan Dimmer Curve Chart
STROBE - This button will activate the strobe effect. If you press and
hold this button the unit will begin to strobe.
COLOR - Press this button to activate color control. Use buttons 1-9
to select your desired color.
1-9 - When in either Gobo mode or Color mode, these buttons will
allow you to select either a gobo or color.
SOUND ON & OFF - These buttons activate and deactivate the
sound active mode.
Ramp Effect
Standard
Stage
TV
Architectural
Theatre
(Fade Time) (Fade Time)
SHOW - This activates the show mode. Use buttons 1-9 to select
your desired show.
ADJ Products, LLC - www.adj.com - Inno Pocket Scan Instruction Manual Page 18 ADJ Products, LLC - www.adj.com - Inno Pocket Scan Instruction Manual Page 19
Inno Pocket Scan Fuse Replacement
Locate the fuse holder is located at the rear of unit next to the power
cord. Using a phillips head screwdriver, remove the fuse holder.
Remove the used fuse and replace with a matching fuse. Insert the
fuse holder and fuse into the unit and secure the fuse holder.
Inno Pocket Scan Cleaning
Fixture Cleaning: Due to fog residue, smoke, and dust cleaning
the internal and external optical lenses and mirror should be carried
out periodically to optimize light output. Cleaning frequency depends
on the environment in which the fixture operates (I.e. smoke, fog
residue, dust, dew). In heavy club use we recommend cleaning on a
monthly basis. Periodic cleaning will ensure longevity, and crisp output.
1. Use normal glass cleaner and a soft cloth to wipe down the out-
side casing.
2. Use a brush to wipe down the cooling vents and fan grill.
3. Clean the external optics with glass cleaner and a soft cloth every
20 days.
4. Clean the internal optics with glass cleaner and a soft cloth every
30-60 days.
5. Always be sure to dry all parts completely before plugging the unit
back in.
Inno Pocket Scan Trouble Shooting
Trouble Shooting: Listed below are a few common problems that
you may encounter, with solutions.
No light output from the unit;
1. Be sure the external fuse has not blown. The fuse is located on
the rear of the unit.
2. Be sure the fuse holder is completely and properly seated.
Unit does not respond to sound;
1. Low frequencies (bass) should cause the unit to react to sound.
Tapping on the microphone, quiet or high pitched sounds may
not activate the unit.
ADJ Products, LLC - www.adj.com - Inno Pocket Scan Instruction Manual Page 20 ADJ Products, LLC - www.adj.com - Inno Pocket Scan Instruction Manual Page 21
Inno Pocket Scan Warranty
MANUFACTURER’S LIMITED WARRANTY
A. ADJ Products, LLC hereby warrants, to the original purchaser, ADJ Products, LLC products
to be free of manufacturing defects in material and workmanship for a prescribed period from
the date of purchase (see specific warranty period on reverse). This warranty shall be valid only if the
product is purchased within the United States of America, including possessions and
territories. It is the owner’s responsibility to establish the date and place of purchase by acceptable
evidence, at the time service is sought.
B. For warranty service you must obtain a Return Authorization number (RA#)
before sending back the product–please contact ADJ Products, LLC Service Department
at 800-322-6337. Send the product only to the ADJ Products, LLC factory. All
shipping charges must be pre-paid. If the requested repairs or service (including
parts replacement) are within the terms of this warranty, ADJ Products, LLC will pay return
shipping charges only to a designated point within the United States. If the entire instrument is
sent, it must be shipped in it’s original package. No accessories should be shipped with the product. If
any accessories are shipped with the product, ADJ Products, LLC shall have no liability whatsoever for
loss of or damage to any such accessories, nor for the safe return thereof.
C. This warranty is void if the serial number has been altered or removed; if the product is modified in any
manner which ADJ Products, LLC concludes, after inspection, affects the reliability of the product; if the
product has been repaired or serviced by anyone other than the ADJ Products, LLC factory unless prior
written authorization was issued to purchaser by ADJ Products, LLC; if the product is damaged because
not properly maintained as set forth in the instruction manual.
D. This is not a service contract, and this warranty does not include maintnance, cleaning or periodic check
up. During the period specified above, ADJ Products, LLC will replace defective parts at its expense
with new or refurbished parts, and will absorb all expenses for warranty service and repair labor by
reason of defects in material or workmanship. The sole responsibility of ADJ Products, LLC under this
warranty shall be limited to the repair of the product, or replacement thereof, including parts, at the sole
discretion of ADJ Products, LLC. All products covered by this warranty were manufactured after August
15, 2012, and bear indentifying marks to that effect.
E. ADJ Products, LLC reserves the right to make changes in design and/or improvements upon its products
without any obligation to include these changes in any products theretofore manufactured.
No warranty, whether expressed or implied, is given or made with respect to any accessory supplied with
products described above. Except to the extent prohibited by applicable law, all implied warranties made
by ADJ Products, LLC in connection with this product, including warranties of merchantability or fitness,
are limited in duration to the warranty period set forth above. And no warranties, whether expressed or
implied, including warranties of merchantability or fitness, shall apply to this product after said period
has expired. The consumer’s and/or Dealer’s sole remedy shall be such repair or replacement as is
expressly provided above; and under no circumstances shall ADJ Products, LLC be liable for any loss or
damage, direct or consequential, arising out of the use of, or inability to use, this product.
This warranty is the only written warranty applicable to ADJ Products, LLC Products and
supersedes all prior warranties and written descriptions of warranty terms and conditions heretofore
published.
MANUFACTURER’S LIMITED WARRANTY PERIODS:
•LightingProducts=1-year(365days)LimitedWarranty(Such as: Special Effect Lighting, Intelligent
Lighting, UV lighting, Strobes, Fog Machines, Bubble Machines, Mirror Balls, Par Cans, Trussing,
Lighting Stands etc. excluding LED and lamps)
•LaserProducts=1Year(365Days)LimitedWarranty(excluding laser diodes which have a 6 month
limited warranty)
•L.E.D.Products=2-year(730days)LimitedWarranty(excluding motors, PCB boards, and power
supplies, which have a 1-year (365 day Limited Warranty) batteries which have a 180 day limited war-
ranty). Only the L.E.D.s carry a 2-year warranty (excludingStarTecSerieswhichacarriesa1Year
LimitedWarranty)Note:2YearWarrantyonlyappliestopurchaseswithintheUnitedStates.
•ADJDMXControllers=2Year(730Days)LimitedWarranty(excluding faders and tact switches)
Inno Pocket Scan Specifications
Model: Inno Pocket Scan
Voltage: 100V ~ 240V/50~60Hz
LED: 1 x 12W LED
Power Consumption: 33W
Power Cord Daisy Chain: 19 Fixtures Max. (120V)
35 Fixtures Max. (230V)
Dimensions: 11.5”(L) x 5.25”(W) x 6.5”(H)
294mm x 132mm x 165mm
Weight: 6 Lbs. / 2.4 kgs.
Beam Angle: 14 Degree
Fuse: 3.15 Amp
Duty Cycle: None
DMX: 6 DMX Channels
Gobos/Colors: 8 Fixed Gobos/Colors + Spot/White
Sound Active: Ye s
Working Position: Any Safe, Secure Position
Warranty: 2 Year (730 days)
Auto Sensing Voltage: This xture contains a automatic volt-
age switch, which will auto sense the voltage when it is plugged
into the power source.
Please Note: Specications and improvements in the design
of this unit and this manual are subject to change without any
prior written notice.
ADJ Products, LLC - www.adj.com - Inno Pocket Scan Instruction Manual Page 22
ADJ Products, LLC
6122 S. Eastern Ave. Los Angeles, CA 90040 USA
Tel: 323-582-2650 / Fax: 323-725-6100
Web: www.adj.com / E-mail: info@americandj.com
A.D.J. Supply Europe B.V.
Junostraat 2
6468 EW Kerkrade
The Netherlands
service@adjgroup.eu / www.adj.eu
Tel: +31 45 546 85 00 / Fax: +31 45 546 85 99
Loading...
